Oracle 12c and its pluggable
databases

Presented by : Gustavo René Antúnez
Oracle DBA
The Pythian Group
February, 2014

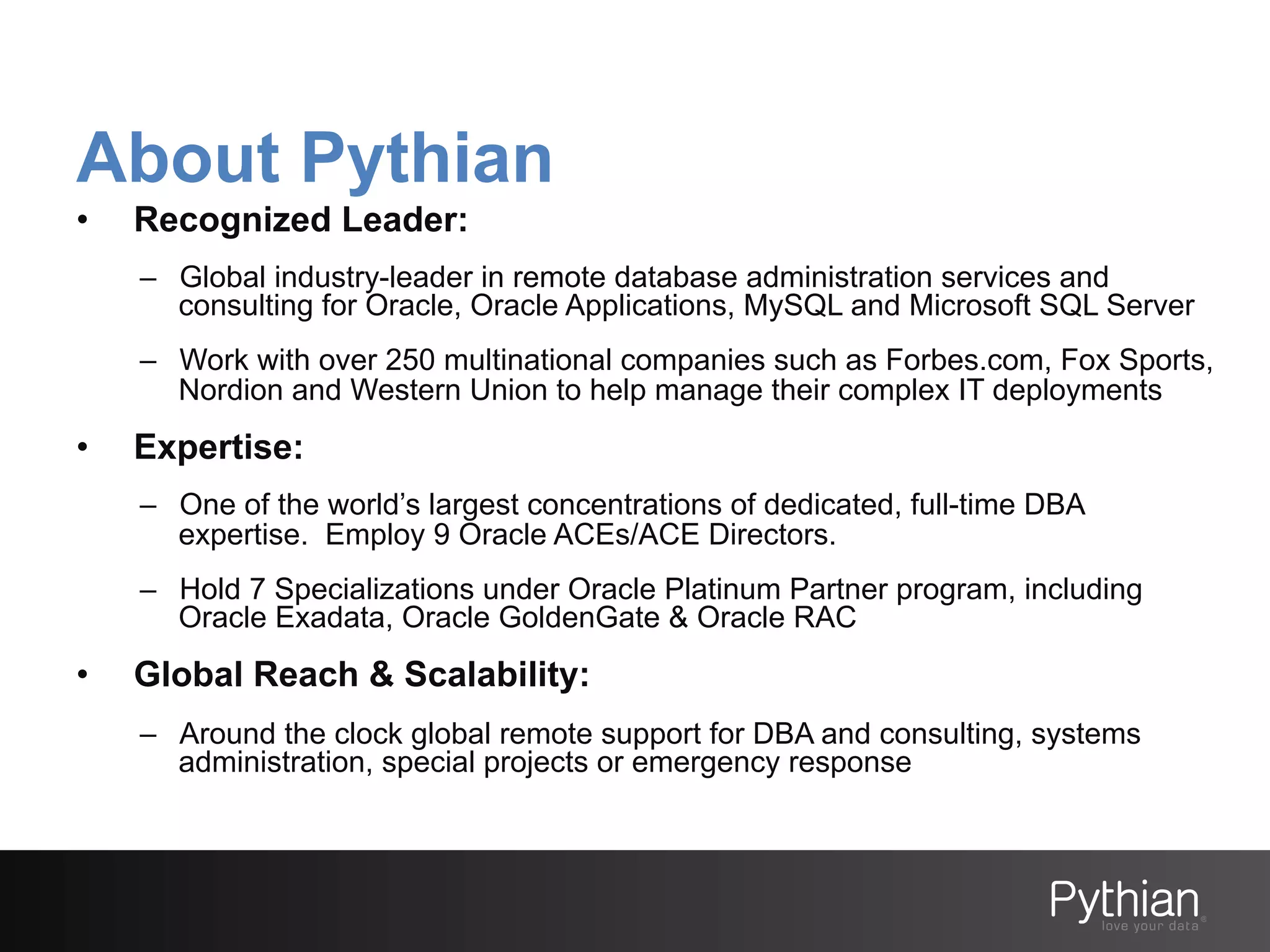

About Pythian
• 

Recognized Leader:
–  Global industry-leader in remote database administration services and
consulting for Oracle, Oracle Applications, MySQL and Microsoft SQL Server
–  Work with over 250 multinational companies such as Forbes.com, Fox Sports,
Nordion and Western Union to help manage their complex IT deployments

• 

Expertise:
–  One of the world’s largest concentrations of dedicated, full-time DBA
expertise. Employ 9 Oracle ACEs/ACE Directors.
–  Hold 7 Specializations under Oracle Platinum Partner program, including
Oracle Exadata, Oracle GoldenGate & Oracle RAC

• 

Global Reach & Scalability:
–  Around the clock global remote support for DBA and consulting, systems
administration, special projects or emergency response

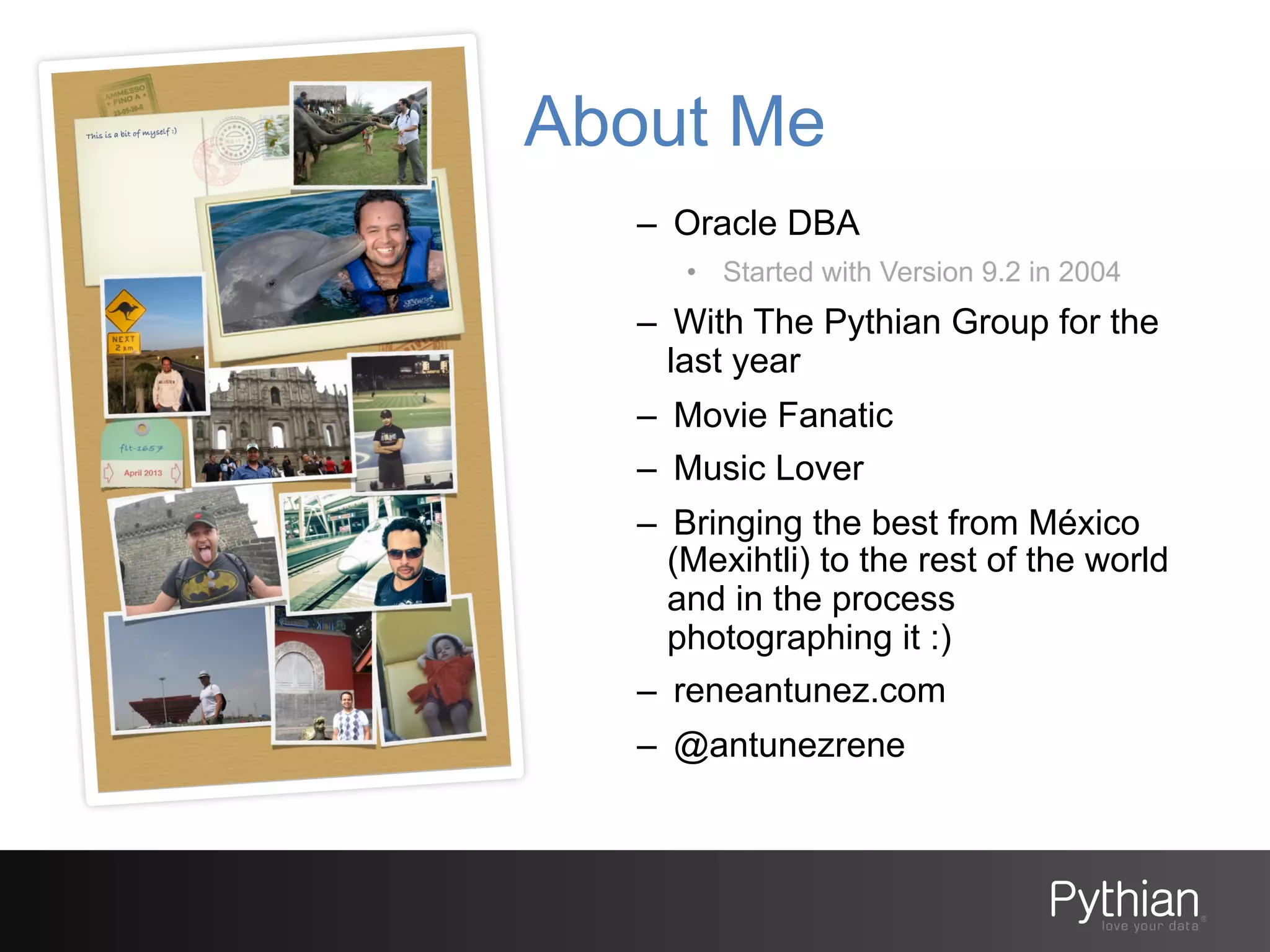

About Me
–  Oracle DBA
•  Started with Version 9.2 in 2004

–  With The Pythian Group for the
last year
–  Movie Fanatic
–  Music Lover
–  Bringing the best from México
(Mexihtli) to the rest of the world
and in the process
photographing it :)
–  reneantunez.com
–  @antunezrene
Where do I come from?
How did you get to be a DBA

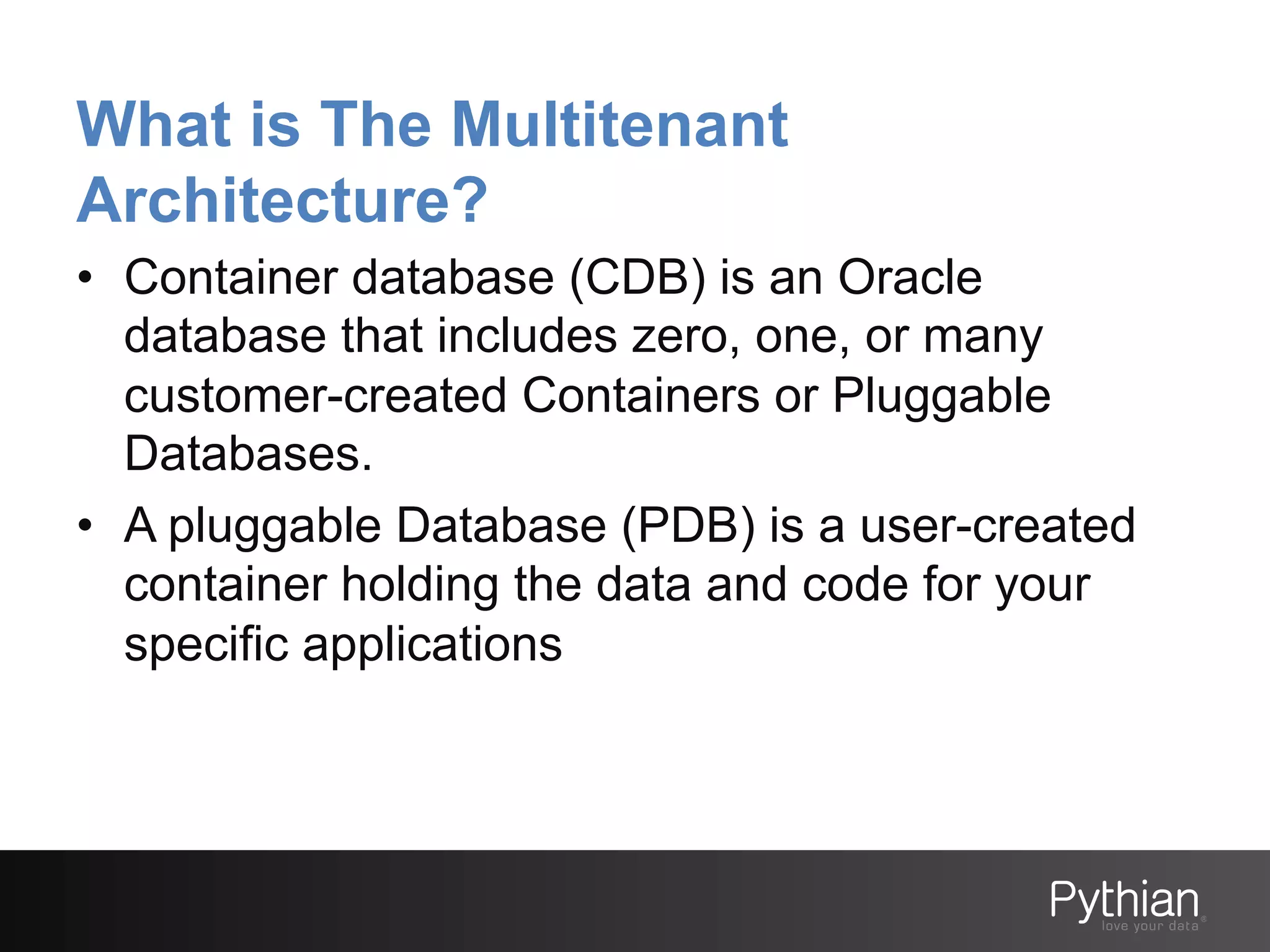

What is The Multitenant
Architecture?
•  Container database (CDB) is an Oracle
database that includes zero, one, or many
customer-created Containers or Pluggable
Databases.
•  A pluggable Database (PDB) is a user-created
container holding the data and code for your
specific applications

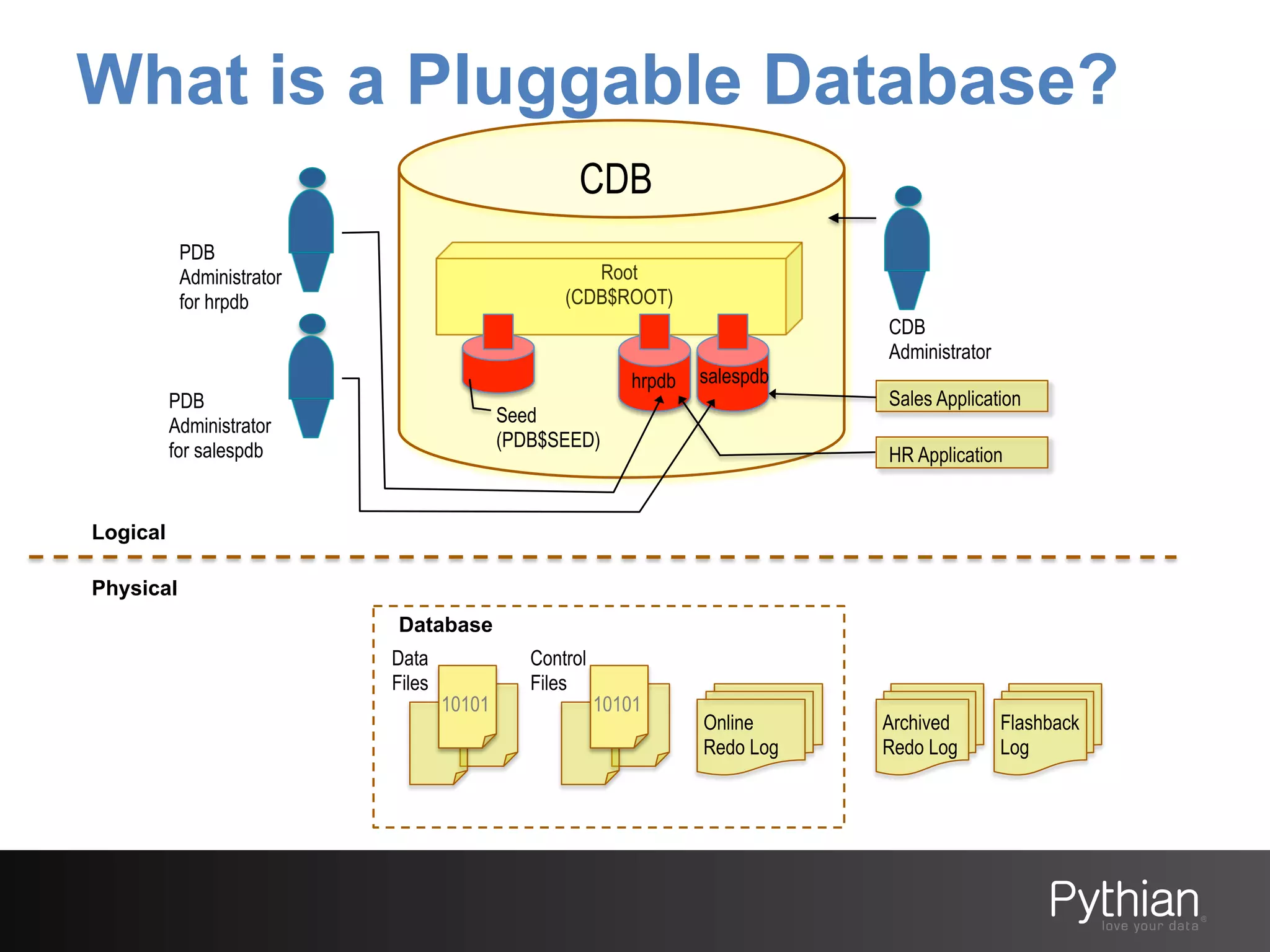

What is a Pluggable Database?
CDB
PDB
Administrator
for hrpdb

Root
(CDB$ROOT)
CDB
Administrator
hrpdb

PDB
Administrator
for salespdb

salespdb

Seed
(PDB$SEED)

Sales Application
HR Application

Logical
Physical
Database
Data
Files

10101

Control
Files

10101

Online
Redo Log

Archived
Redo Log

Flashback
Log

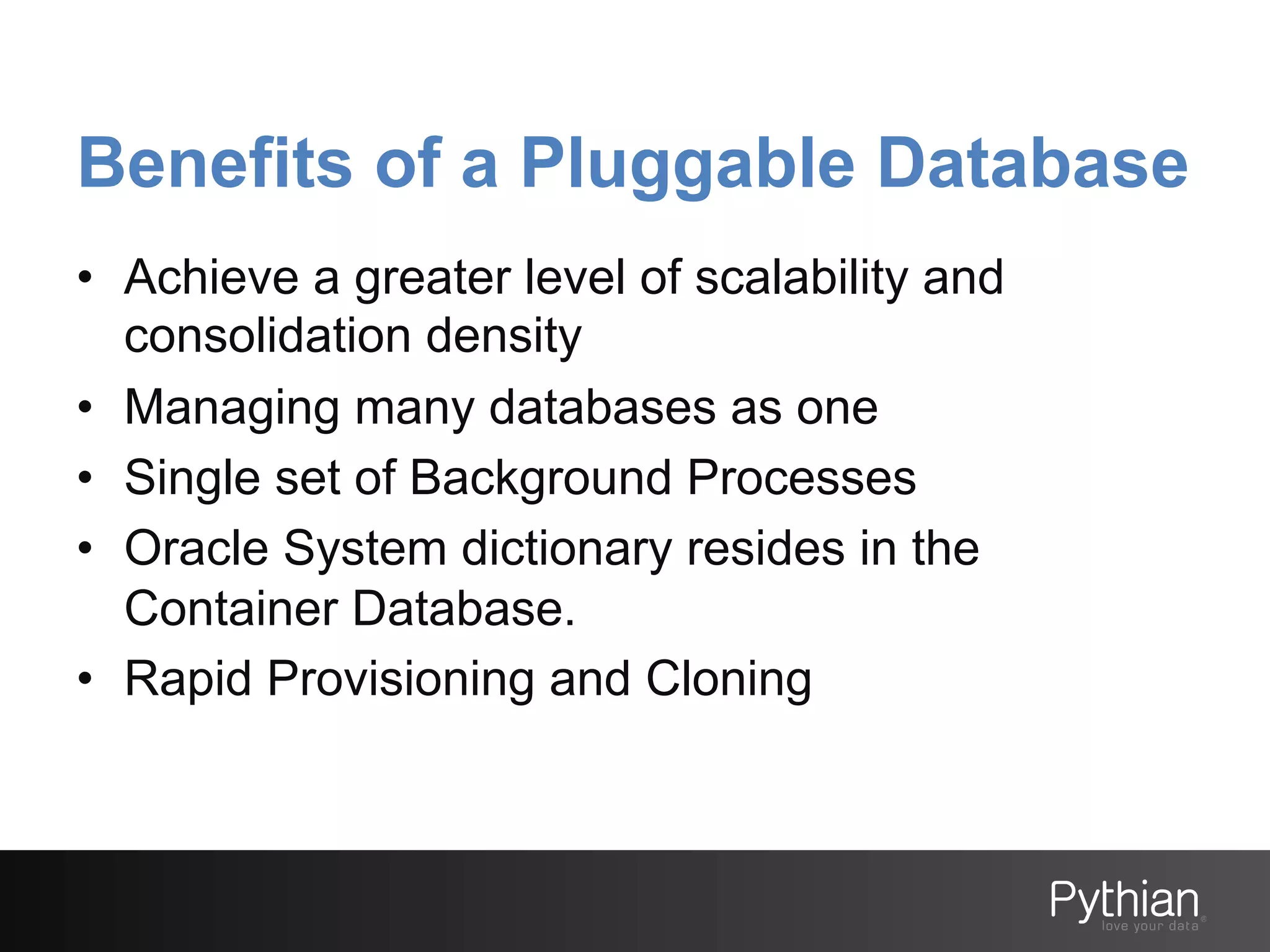

Benefits of a Pluggable Database
•  Achieve a greater level of scalability and
consolidation density
•  Managing many databases as one
•  Single set of Background Processes
•  Oracle System dictionary resides in the
Container Database.
•  Rapid Provisioning and Cloning

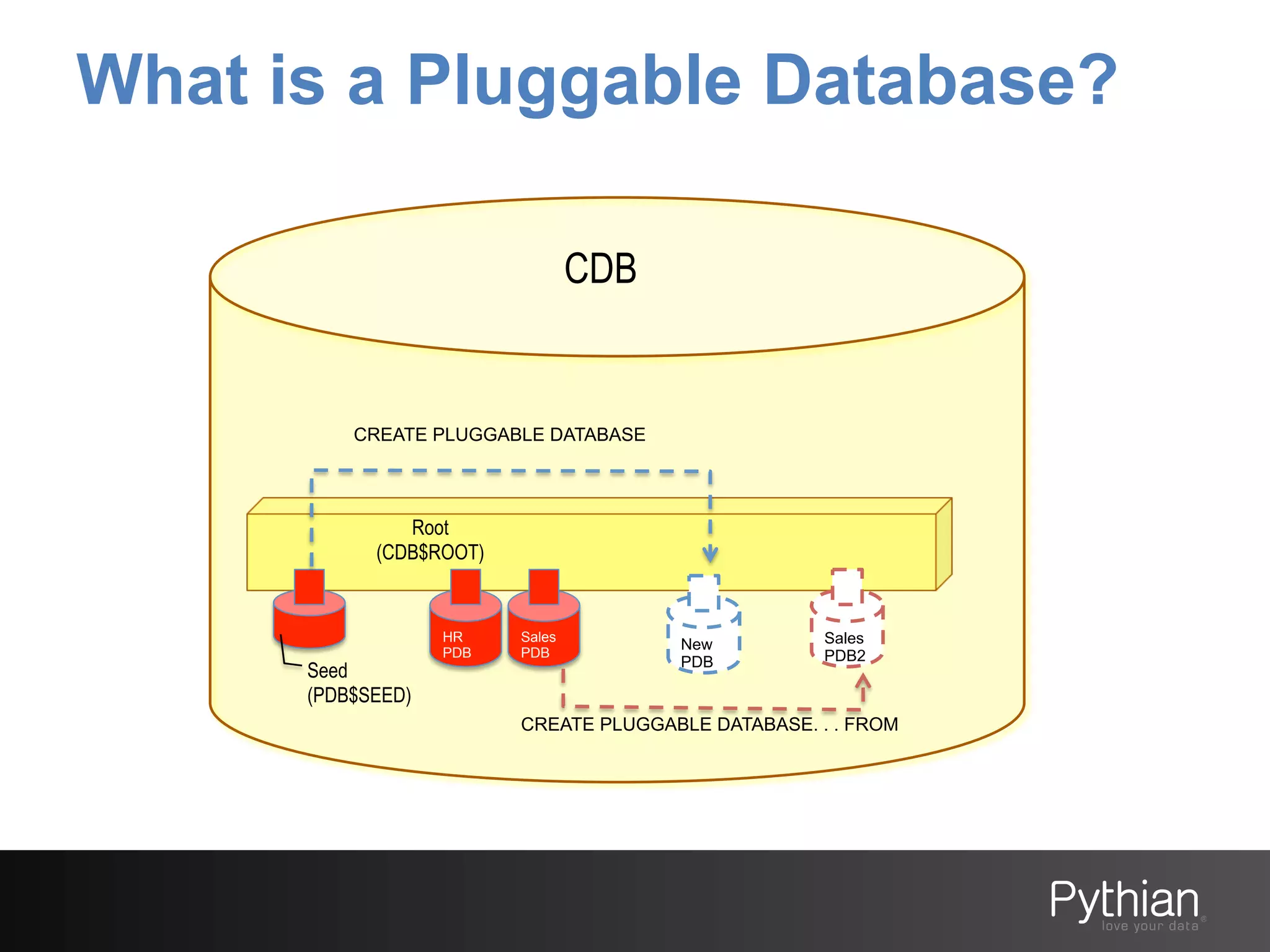

What is a Pluggable Database?
CDB

CREATE PLUGGABLE DATABASE

Root
(CDB$ROOT)

Seed
(PDB$SEED)

HR
PDB

Sales
PDB

New
PDB

Sales
PDB2

CREATE PLUGGABLE DATABASE. . . FROM

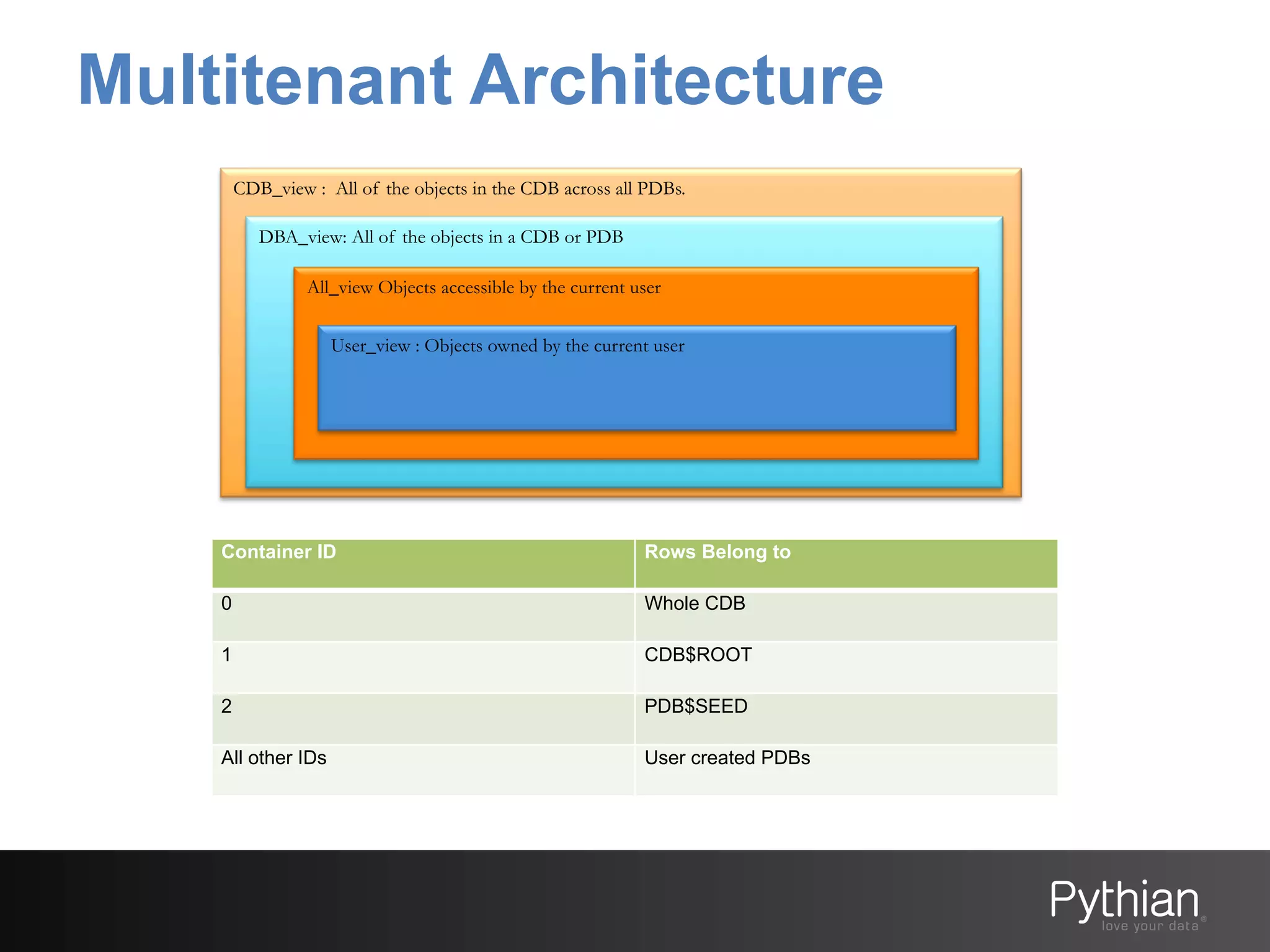

Multitenant Architecture
CDB_view : All of the objects in the CDB across all PDBs.
DBA_view: All of the objects in a CDB or PDB
All_view Objects accessible by the current user
User_view : Objects owned by the current user

Container ID

Rows Belong to

0

Whole CDB

1

CDB$ROOT

2

PDB$SEED

All other IDs

User created PDBs

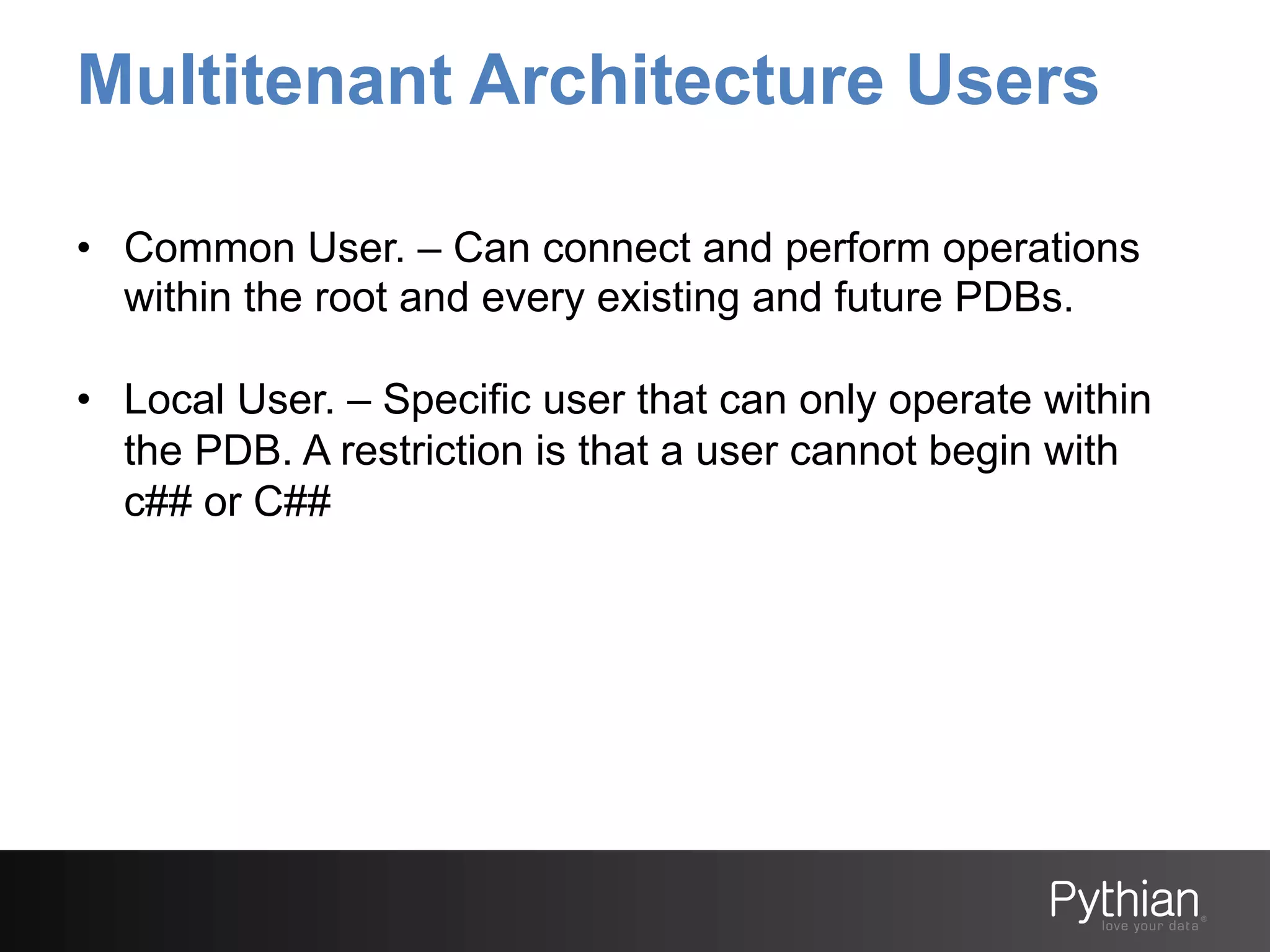

Multitenant Architecture Users
•  Common User. – Can connect and perform operations
within the root and every existing and future PDBs.
•  Local User. – Specific user that can only operate within
the PDB. A restriction is that a user cannot begin with
c## or C##

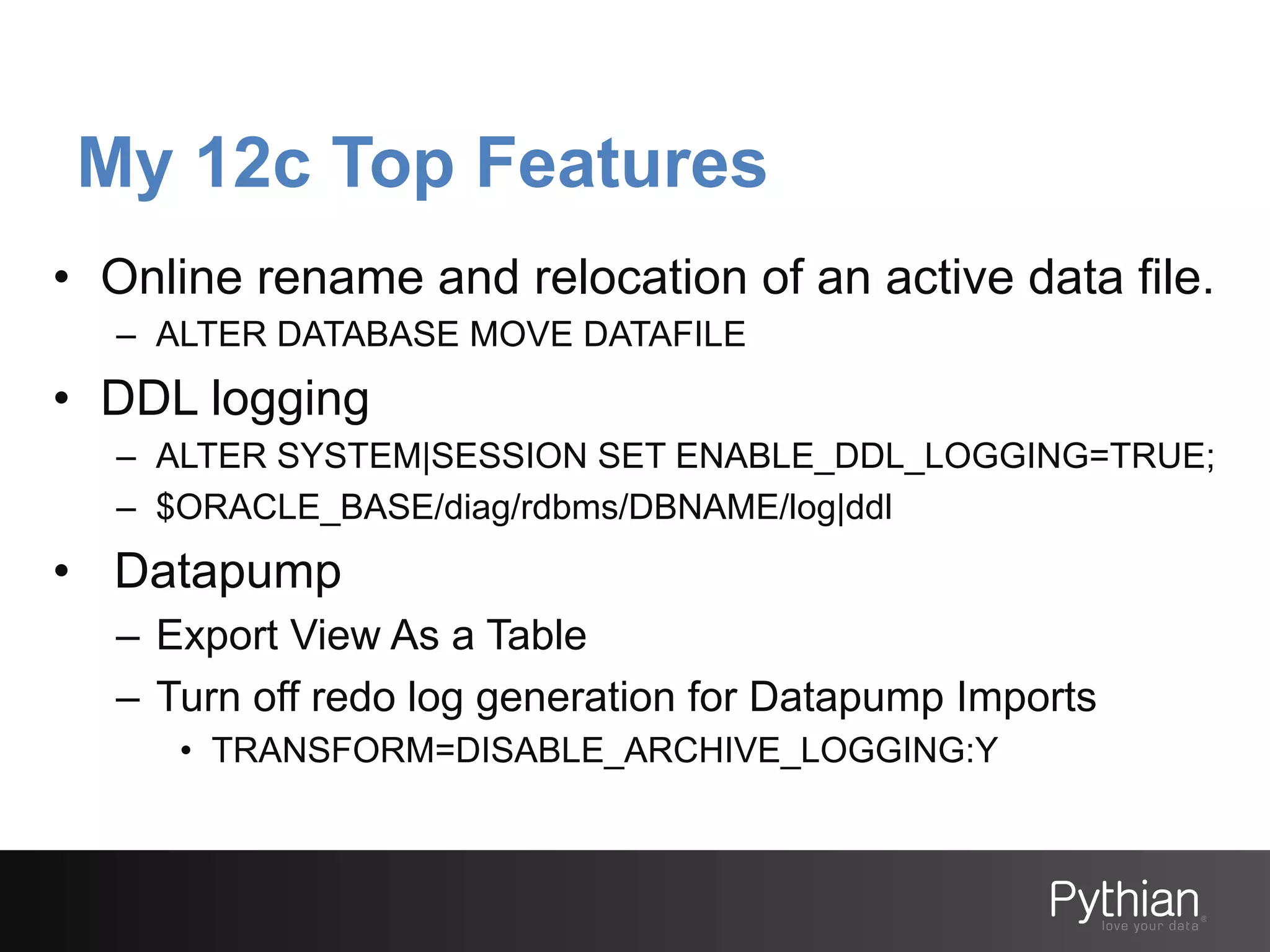

My 12c Top Features
•  Online rename and relocation of an active data file.
–  ALTER DATABASE MOVE DATAFILE

•  DDL logging
–  ALTER SYSTEM|SESSION SET ENABLE_DDL_LOGGING=TRUE;
–  $ORACLE_BASE/diag/rdbms/DBNAME/log|ddl

•  Datapump
–  Export View As a Table
–  Turn off redo log generation for Datapump Imports
•  TRANSFORM=DISABLE_ARCHIVE_LOGGING:Y
My 12c Top Features

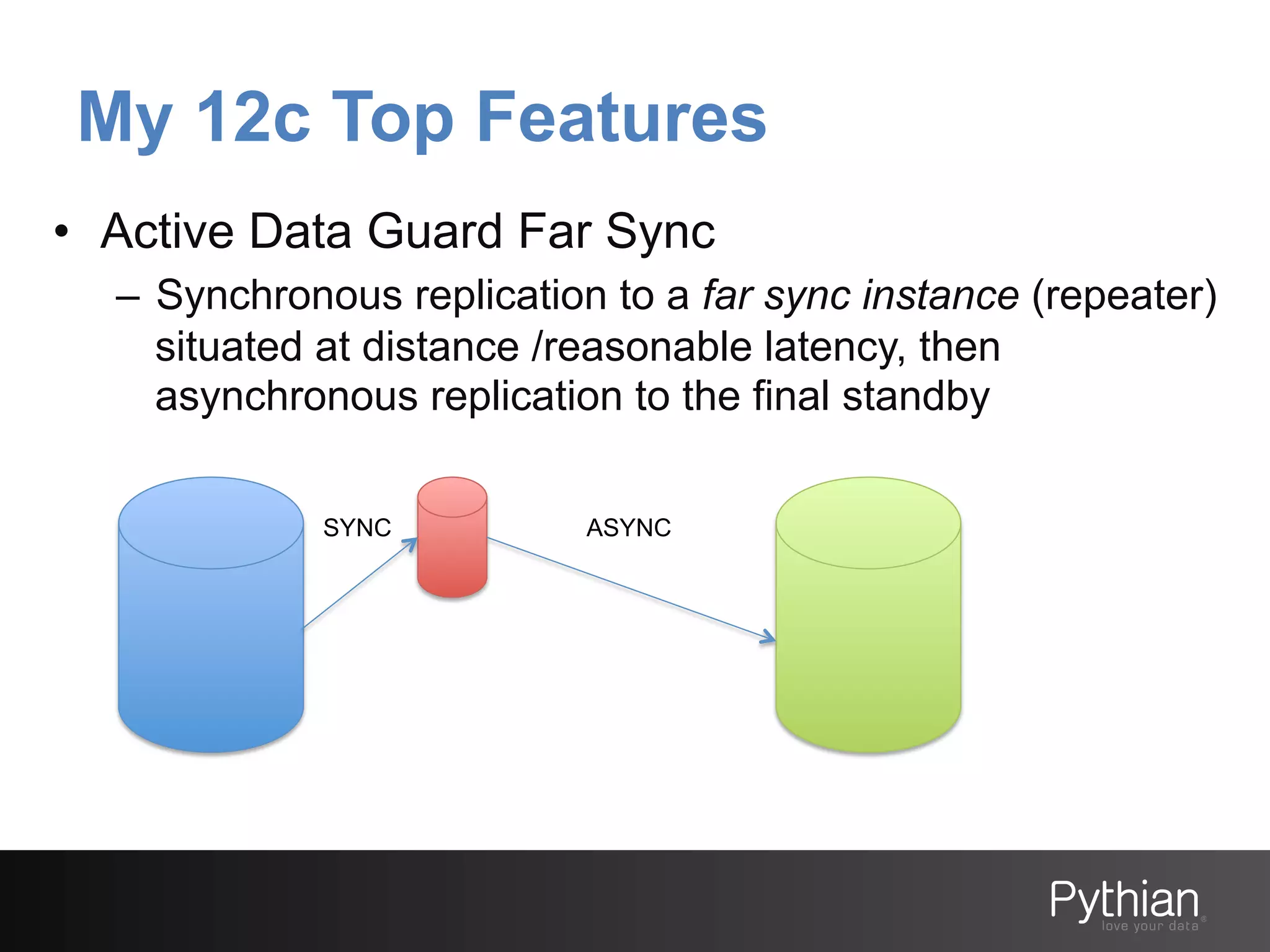

•  Active Data Guard Far Sync
–  Synchronous replication to a far sync instance (repeater)
situated at distance /reasonable latency, then
asynchronous replication to the final standby
SYNC

ASYNC

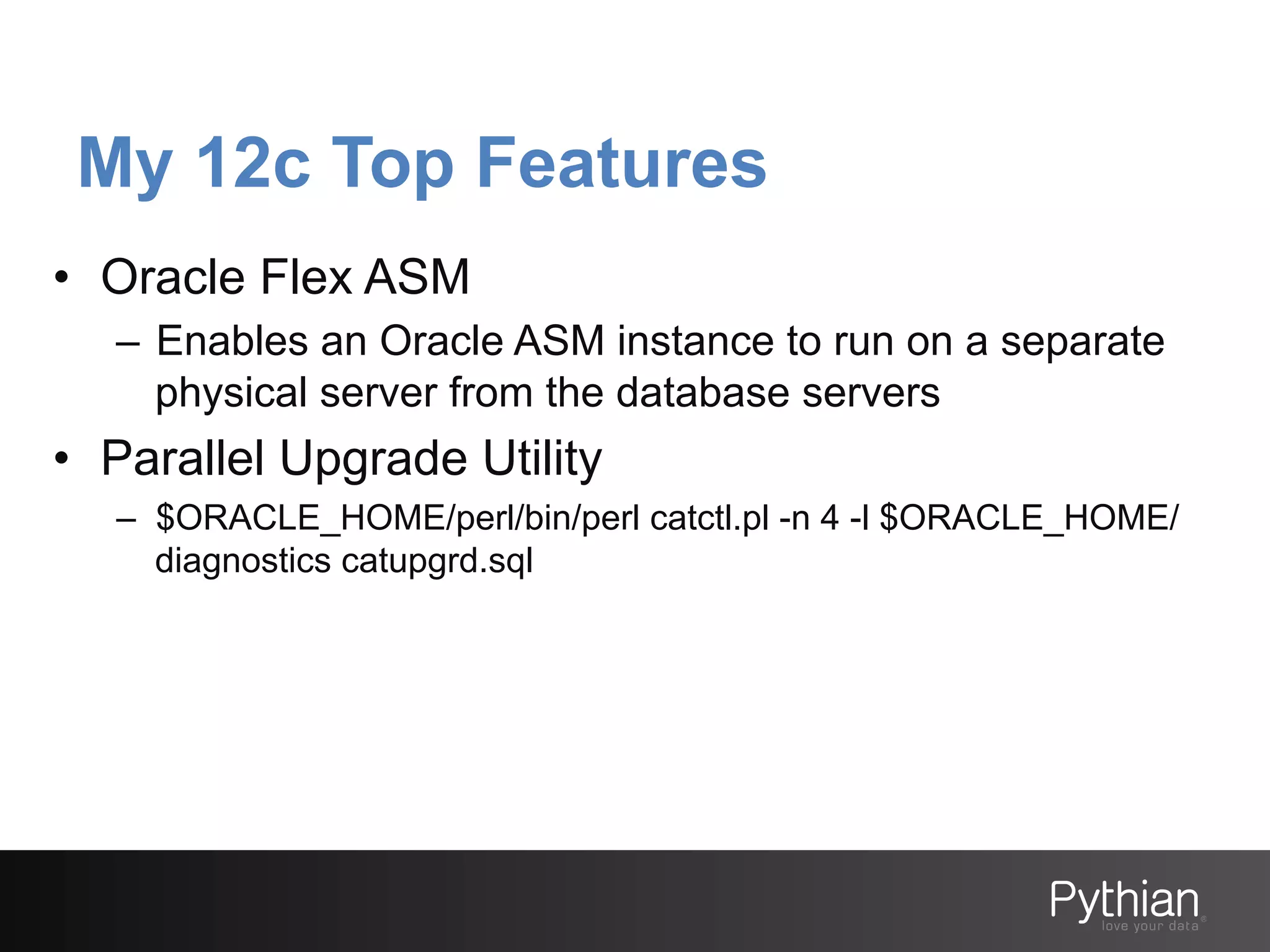

My 12c Top Features
•  Oracle Flex ASM
–  Enables an Oracle ASM instance to run on a separate
physical server from the database servers

•  Parallel Upgrade Utility
–  $ORACLE_HOME/perl/bin/perl catctl.pl -n 4 -l $ORACLE_HOME/
diagnostics catupgrd.sql

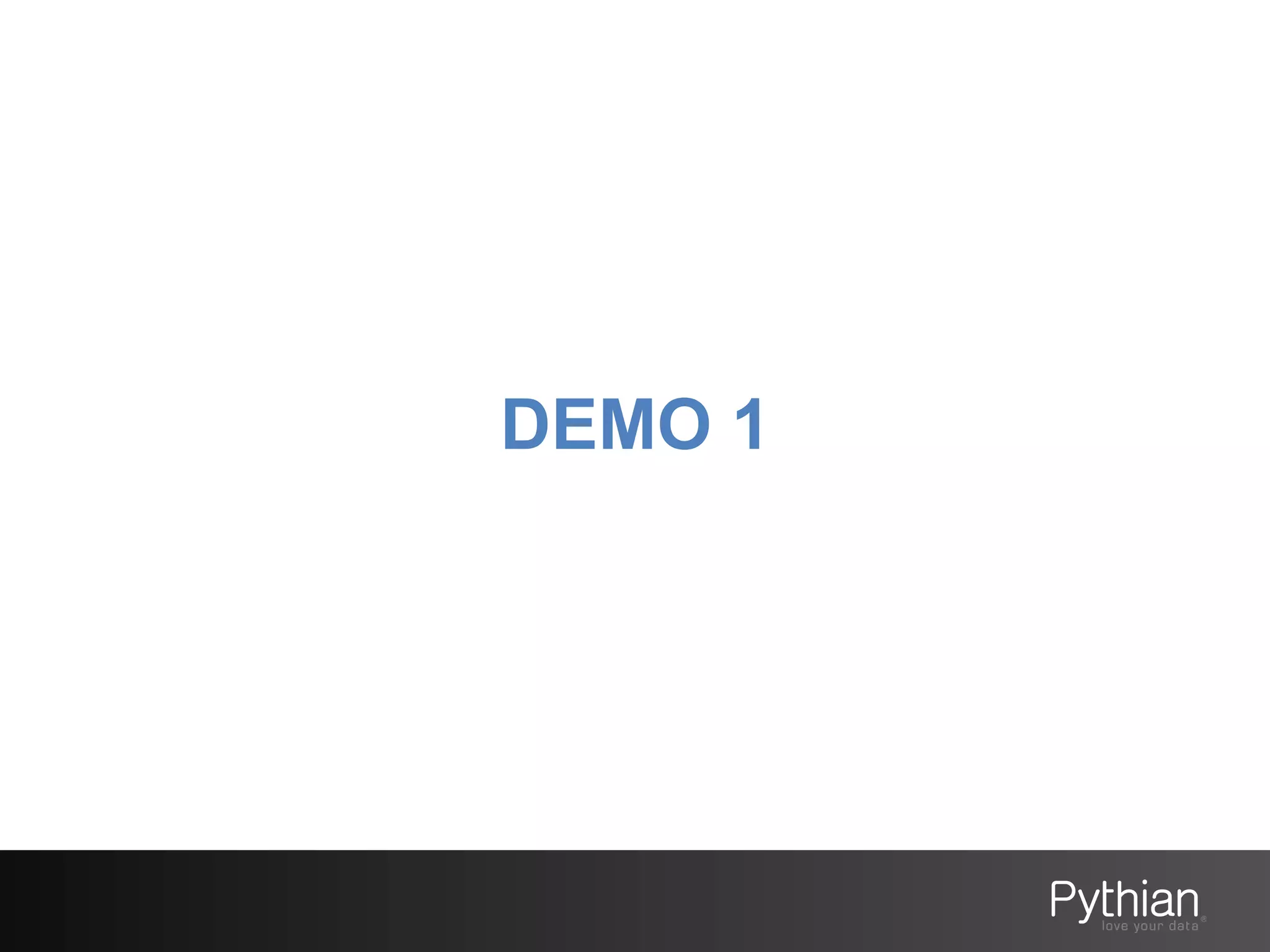

DEMO 1
What is RMAN?
•  Oracle utility to perform backup and recovery, available
since version 8
Executable found in
$ORACLE_HOME/bin

RMAN Utility

recover.bsq
(library file)

Channel

Server
Session

Target
DB

DISK
MML

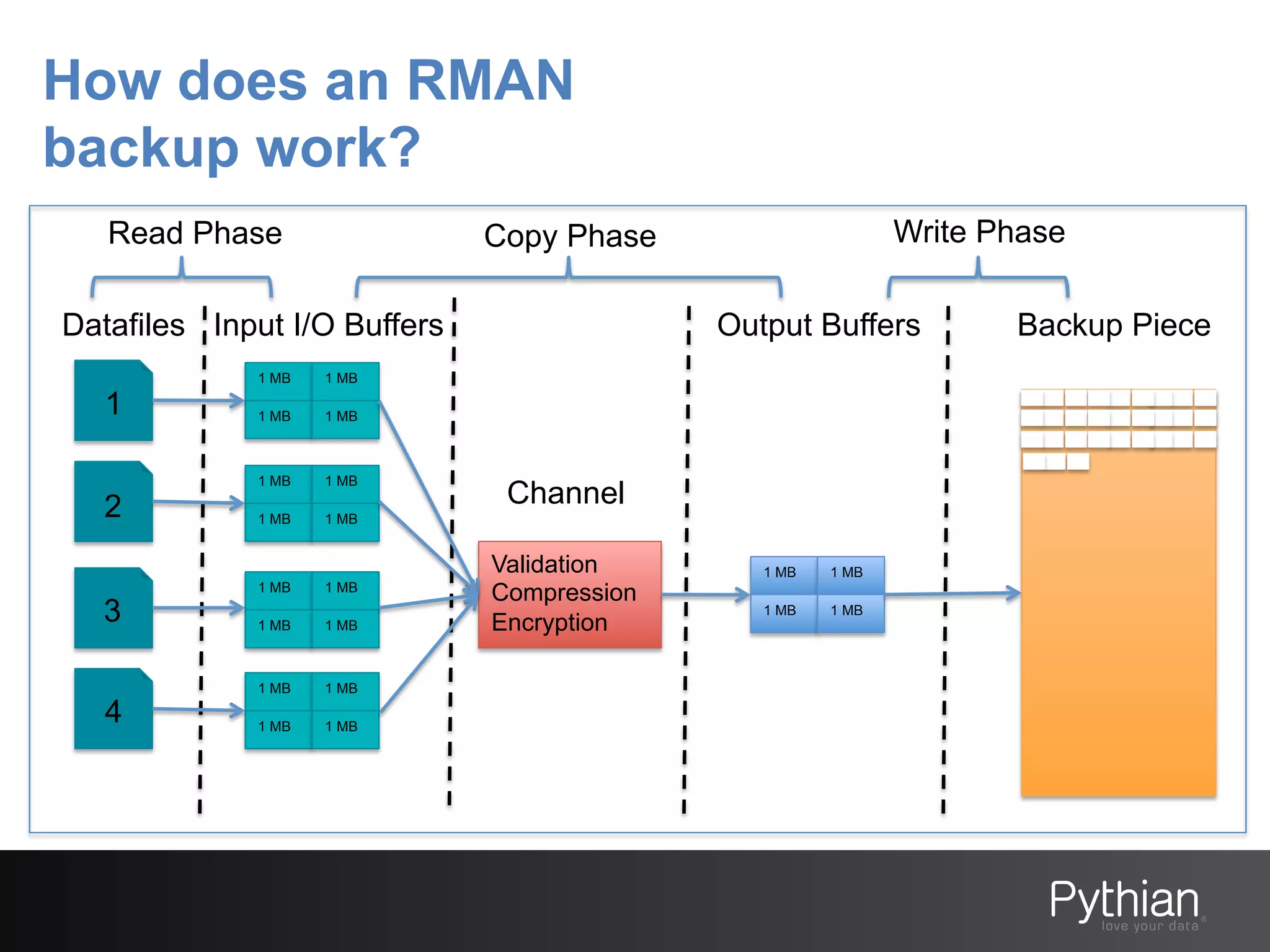

How does an RMAN
backup work?
Read Phase
Datafiles Input I/O Buffers
1
2
3
4

Write Phase

Copy Phase

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

1 MB

Output Buffers

Channel
Validation
Compression
Encryption

1 MB

1 MB

1 MB

1 MB

Backup Piece

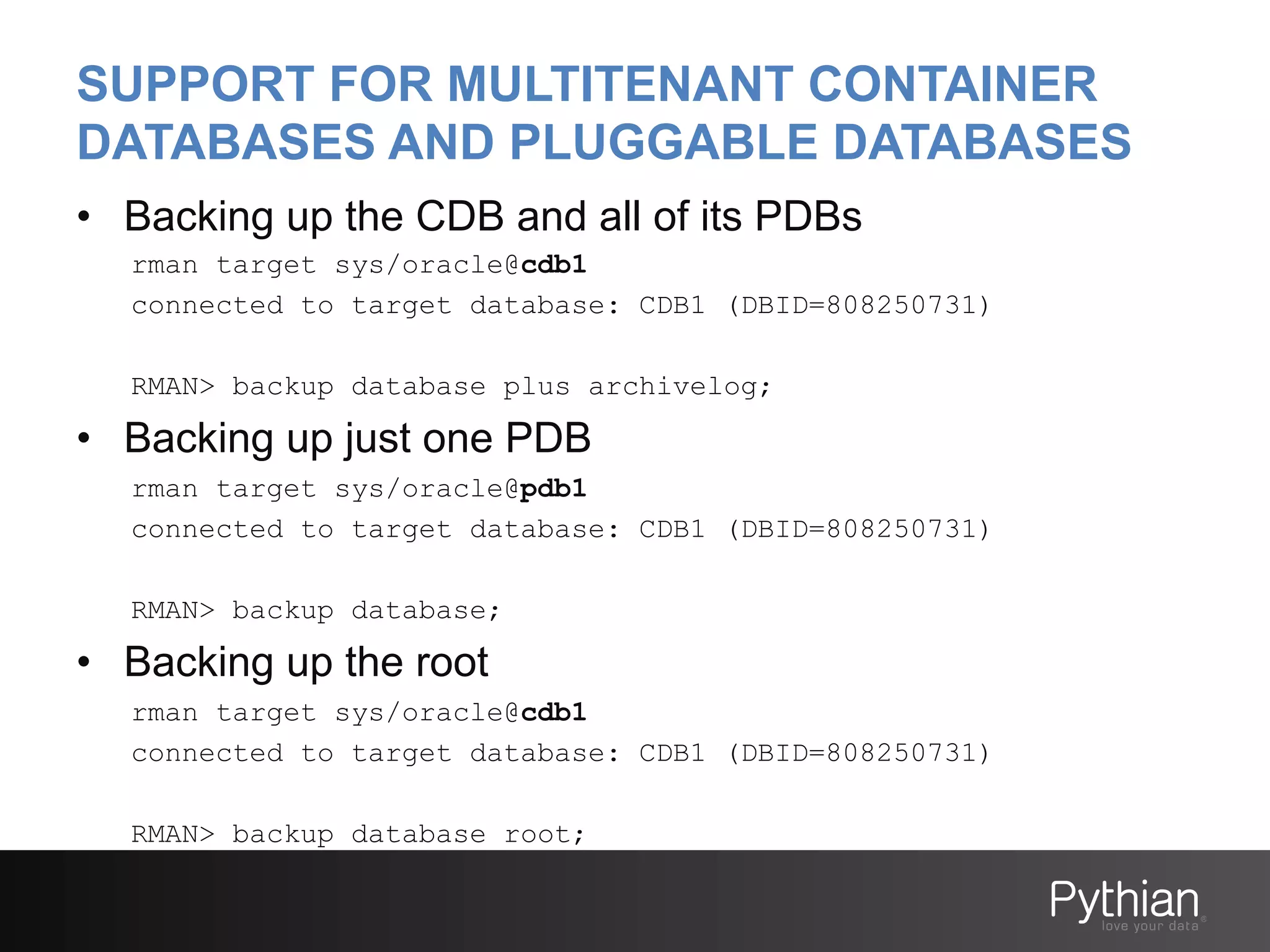

SUPPORT FOR MULTITENANT CONTAINER
DATABASES AND PLUGGABLE DATABASES
•  Backing up the CDB and all of its PDBs
rman target sys/oracle@cdb1
connected to target database: CDB1 (DBID=808250731)
RMAN> backup database plus archivelog;

•  Backing up just one PDB
rman target sys/oracle@pdb1
connected to target database: CDB1 (DBID=808250731)
RMAN> backup database;

•  Backing up the root
rman target sys/oracle@cdb1
connected to target database: CDB1 (DBID=808250731)
RMAN> backup database root;

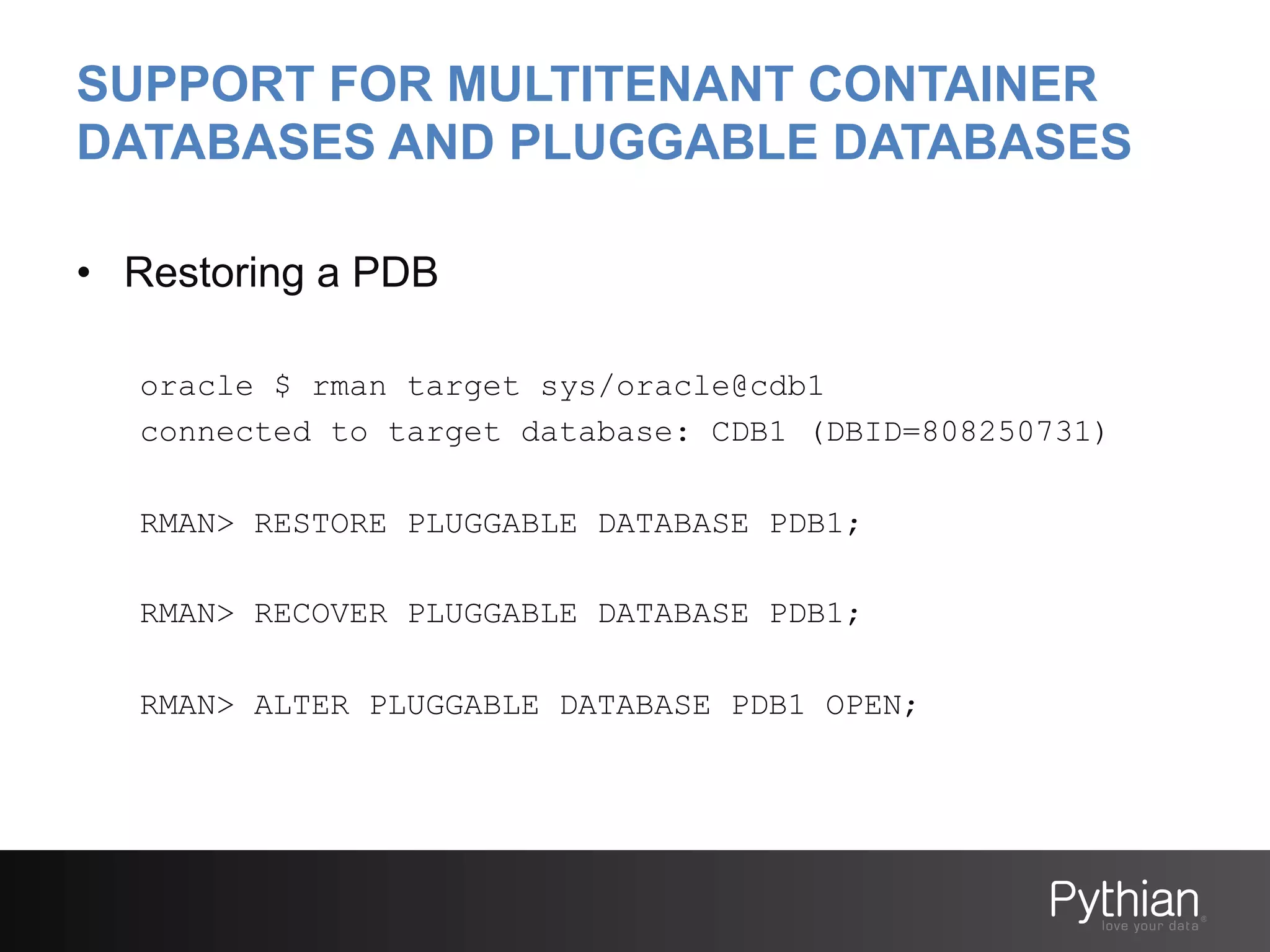

SUPPORT FOR MULTITENANT CONTAINER
DATABASES AND PLUGGABLE DATABASES
•  Restoring a PDB
oracle $ rman target sys/oracle@cdb1
connected to target database: CDB1 (DBID=808250731)
RMAN> RESTORE PLUGGABLE DATABASE PDB1;
RMAN> RECOVER PLUGGABLE DATABASE PDB1;
RMAN> ALTER PLUGGABLE DATABASE PDB1 OPEN;

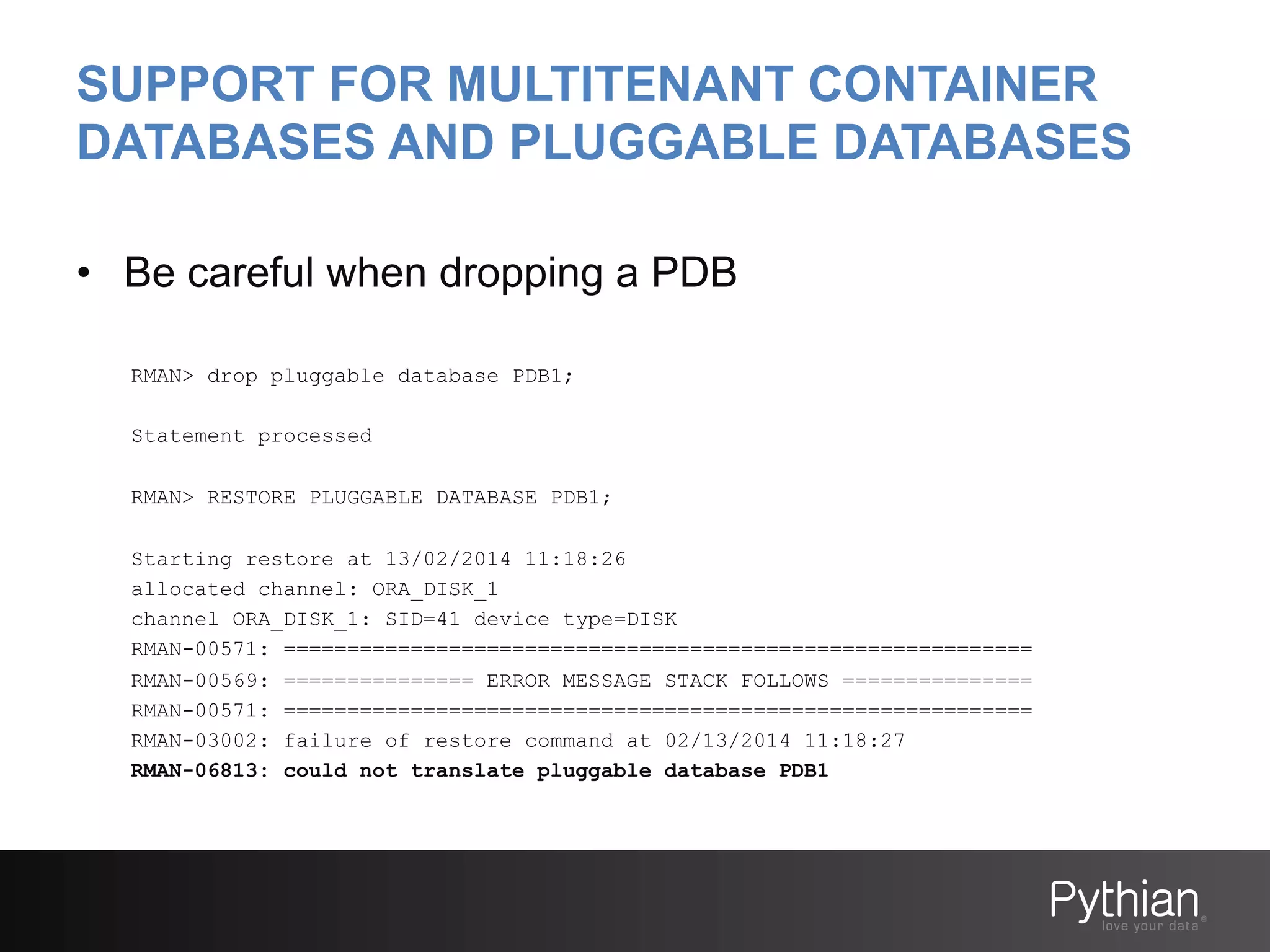

SUPPORT FOR MULTITENANT CONTAINER
DATABASES AND PLUGGABLE DATABASES
•  Be careful when dropping a PDB
RMAN> drop pluggable database PDB1;
Statement processed
RMAN> RESTORE PLUGGABLE DATABASE PDB1;
Starting restore at 13/02/2014 11:18:26
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=41 device type=DISK
RMAN-00571: ===========================================================
RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-00571: ===========================================================
RMAN-03002: failure of restore command at 02/13/2014 11:18:27
RMAN-06813: could not translate pluggable database PDB1

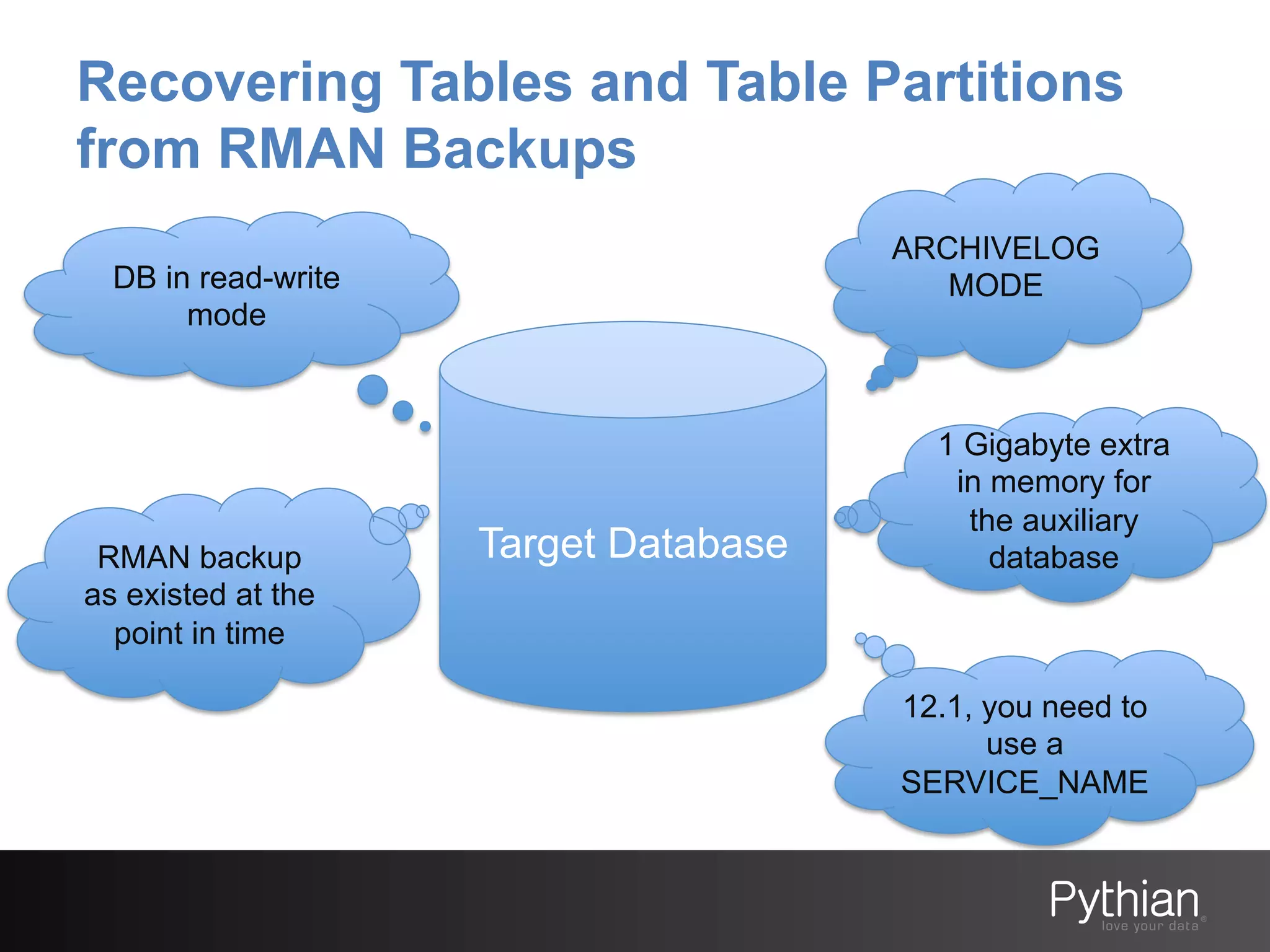

Recovering Tables and Table Partitions
from RMAN Backups
ARCHIVELOG
MODE

DB in read-write
mode

RMAN backup
as existed at the
point in time

Target Database

1 Gigabyte extra
in memory for
the auxiliary
database

12.1, you need to
use a
SERVICE_NAME

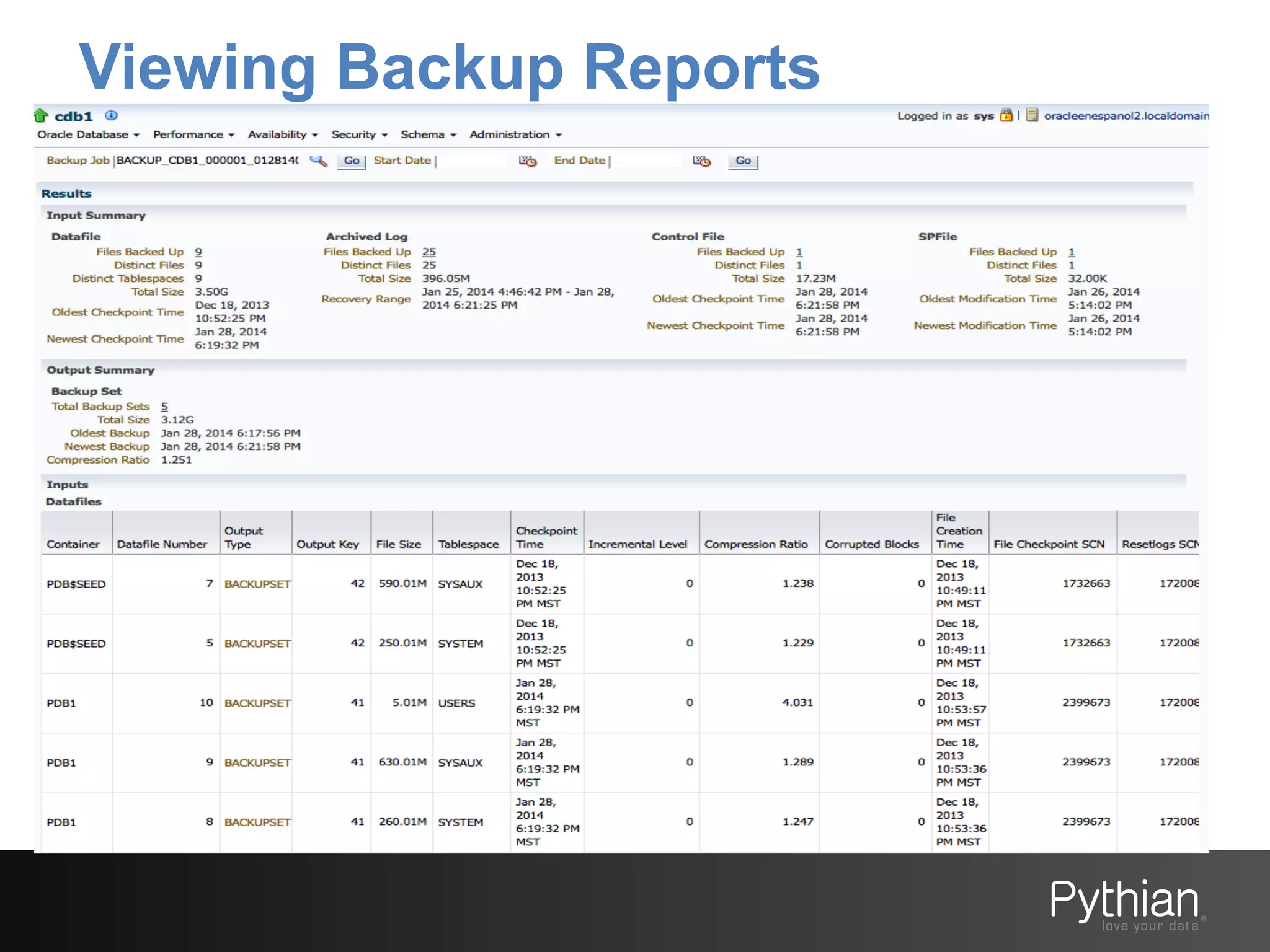

Viewing Backup Reports

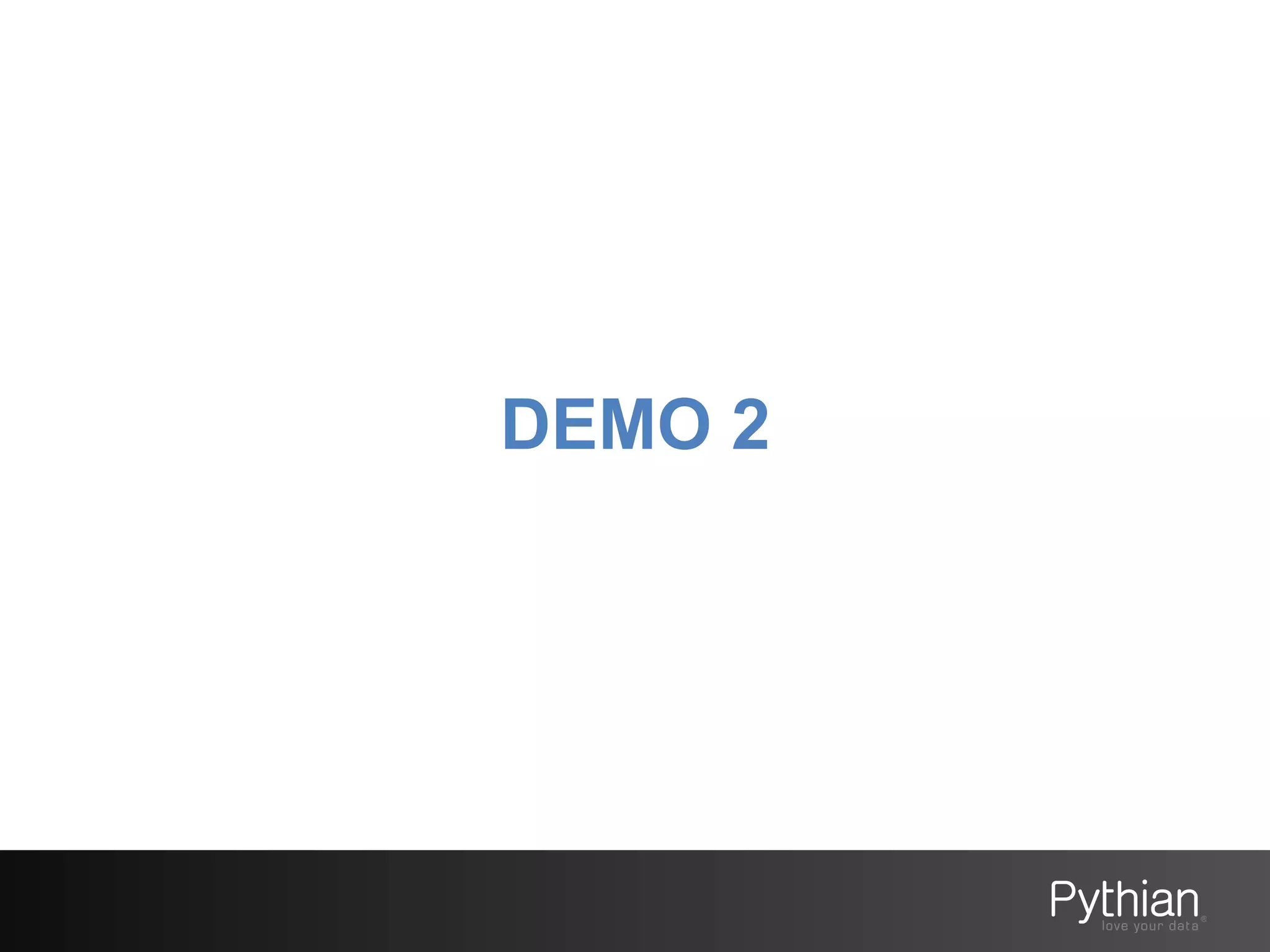

DEMO 2

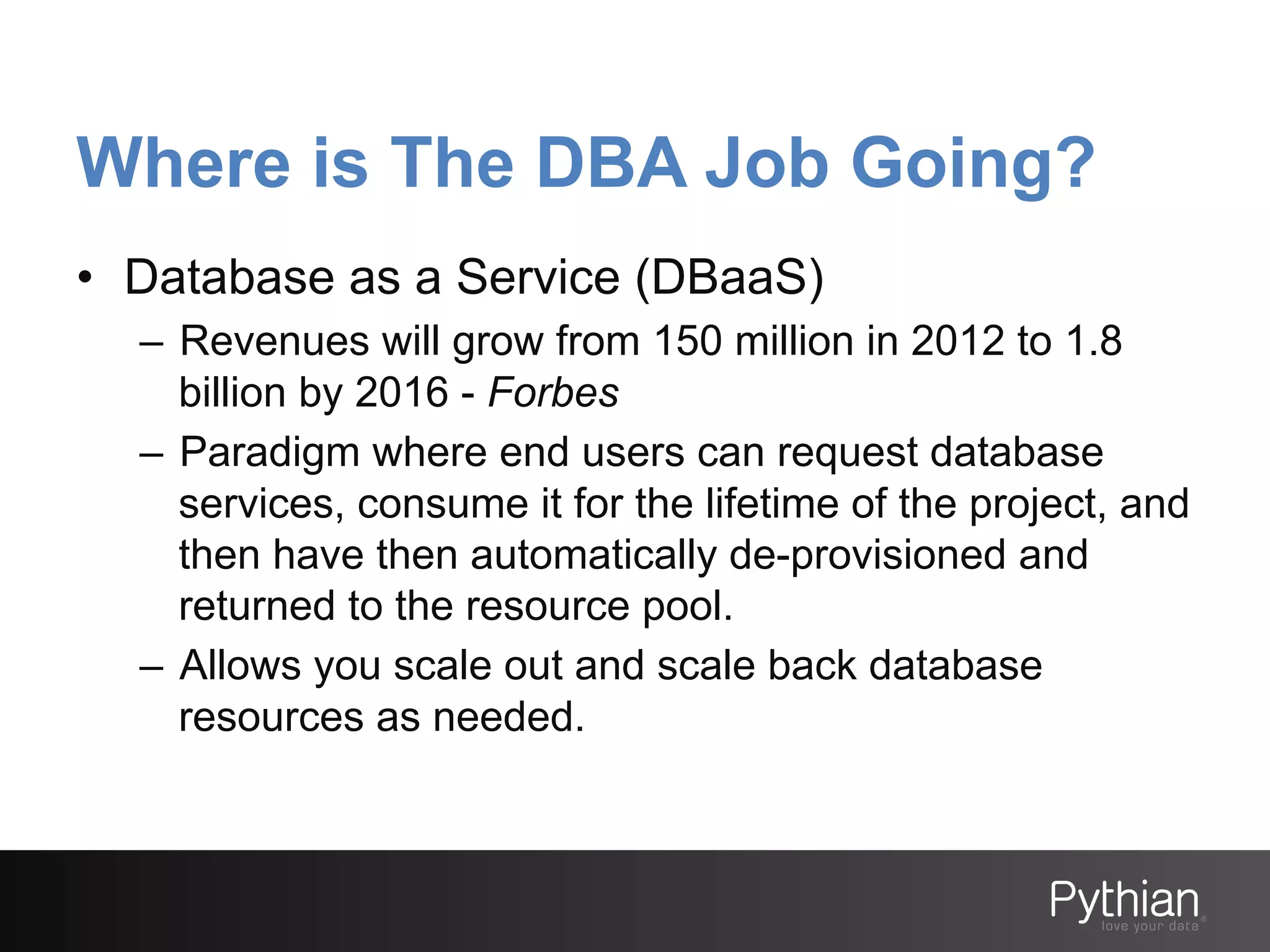

Where is The DBA Job Going?
•  Database as a Service (DBaaS)
–  Revenues will grow from 150 million in 2012 to 1.8
billion by 2016 - Forbes
–  Paradigm where end users can request database
services, consume it for the lifetime of the project, and
then have then automatically de-provisioned and
returned to the resource pool.
–  Allows you scale out and scale back database
resources as needed.

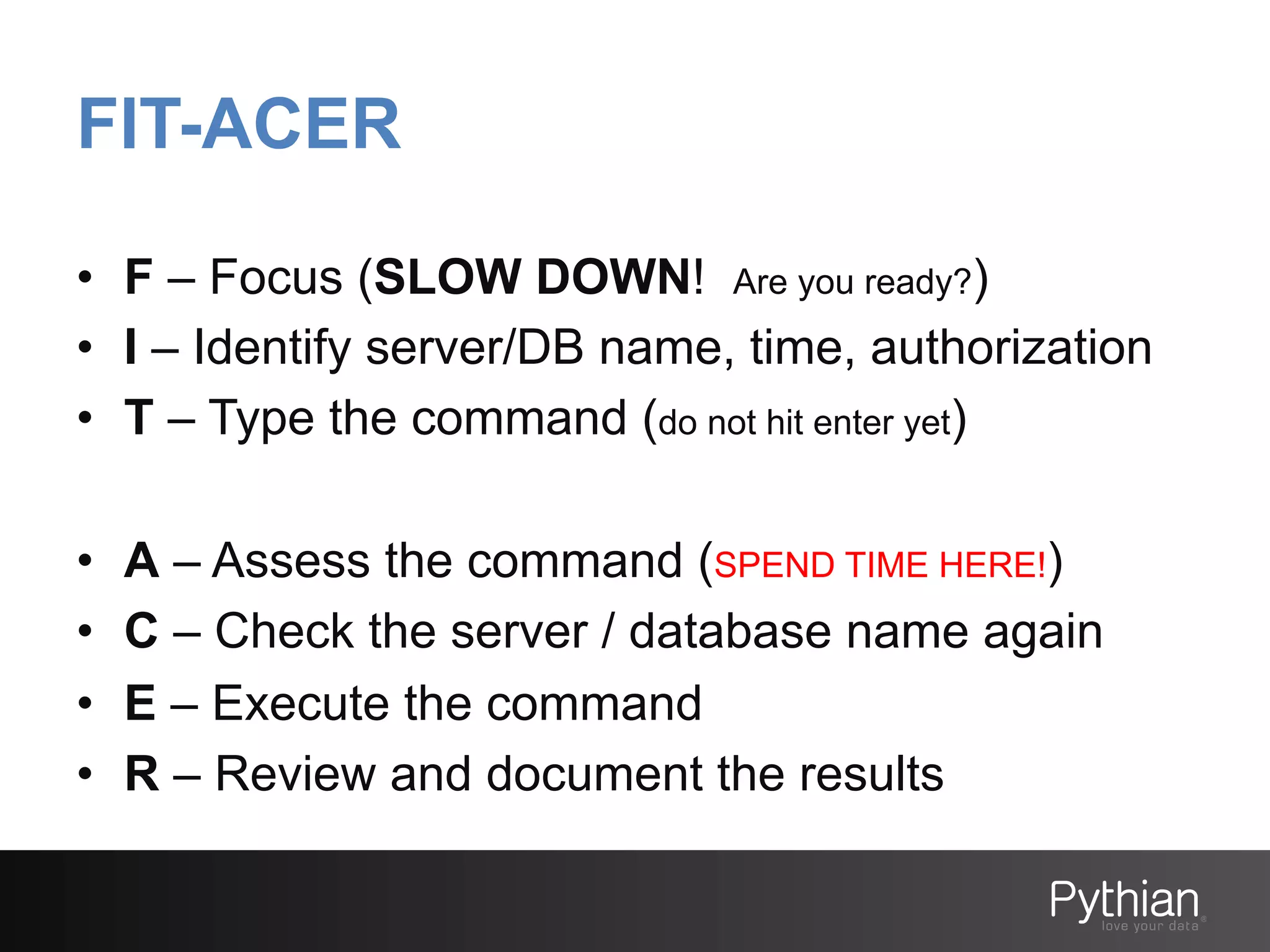

FIT-ACER
•  F – Focus (SLOW DOWN! Are you ready?)
•  I – Identify server/DB name, time, authorization
•  T – Type the command (do not hit enter yet)
• 
• 
• 
• 

A – Assess the command (SPEND TIME HERE!)
C – Check the server / database name again
E – Execute the command
R – Review and document the results

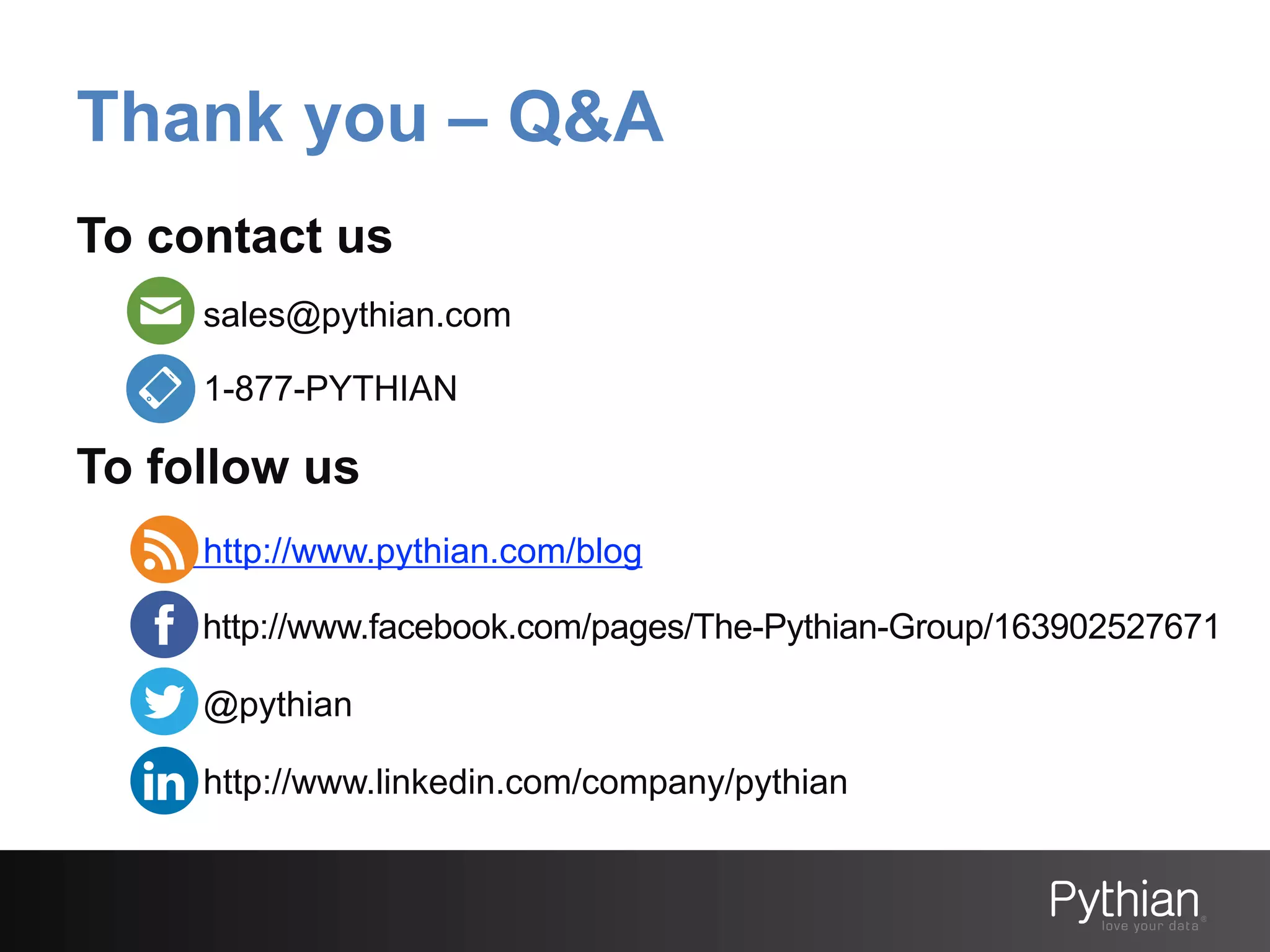

Thank you – Q&A
To contact us
sales@pythian.com
1-877-PYTHIAN

To follow us
http://www.pythian.com/blog
http://www.facebook.com/pages/The-Pythian-Group/163902527671
@pythian
http://www.linkedin.com/company/pythian
