This document outlines requirements for a Java program that implements and compares the performance of linear and binary search algorithms as well as several sorting algorithms. It instructs the student to write code that takes user input to determine array sizes, implements the specified search and sorting algorithms on arrays of random integers, and measures the time and number of operations for each. The student is asked to test the algorithms for different array sizes, under ascending and descending sorted and randomly generated input, and to analyze the results, complexity, and relative performance of each algorithm based on processing time graphs and discussions.

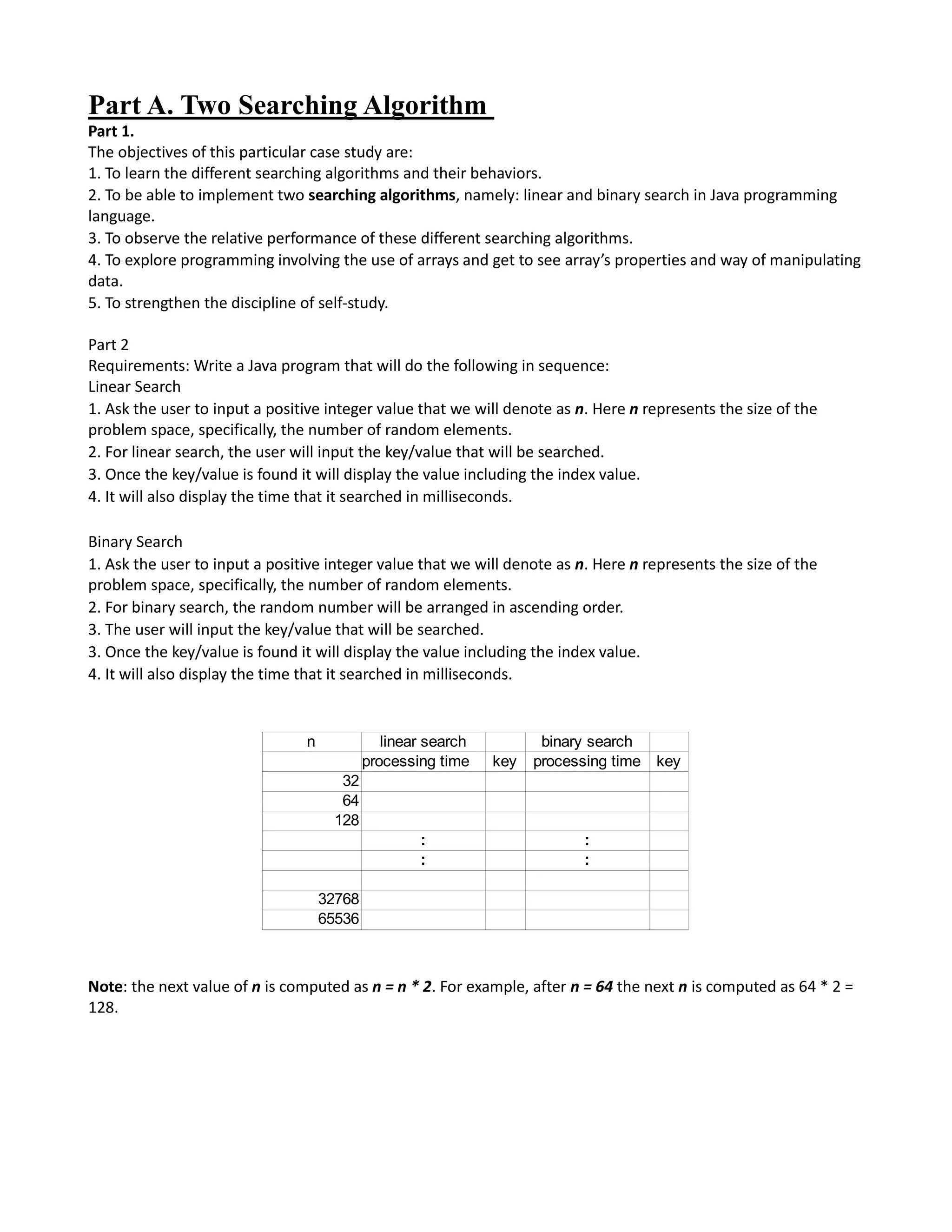

1. Part A. Two Searching Algorithm
Part 1.
The objectives of this particular case study are:
1. To learn the different searching algorithms and their behaviors.
2. To be able to implement two searching algorithms, namely: linear and binary search in Java programming
language.
3. To observe the relative performance of these different searching algorithms.
4. To explore programming involving the use of arrays and get to see array’s properties and way of manipulating
data.
5. To strengthen the discipline of self-study.
Part 2
Requirements: Write a Java program that will do the following in sequence:
Linear Search
1. Ask the user to input a positive integer value that we will denote as n. Here n represents the size of the
problem space, specifically, the number of random elements.
2. For linear search, the user will input the key/value that will be searched.
3. Once the key/value is found it will display the value including the index value.
4. It will also display the time that it searched in milliseconds.
Binary Search
1. Ask the user to input a positive integer value that we will denote as n. Here n represents the size of the
problem space, specifically, the number of random elements.
2. For binary search, the random number will be arranged in ascending order.
3. The user will input the key/value that will be searched.
3. Once the key/value is found it will display the value including the index value.
4. It will also display the time that it searched in milliseconds.
Note: the next value of n is computed as n = n * 2. For example, after n = 64 the next n is computed as 64 * 2 =
128.
n linear search binary search
processing time key processing time key
32
64
128
: :
: :
32768
65536

2. Part B. Ten Sorting Algorithms
Part 1.
The objectives of this particular case study are:
1. To learn the different sorting algorithms and their behaviors.
2. To be able to implement 10 sorting algorithms, namely: bubble sort, selection sort, insertion sort, quick sort,
shell, merge, radix and balloon sort in Java programming language.
3. To observe the relative performance of these different sorting algorithms.
4. To explore programming involving the use of arrays and get to see array’s properties and way of manipulating
data.
5. To strengthen the discipline of self-study, conducting research and working alone.
6. Add 2 more sorting algorithms of you own.
Requirements: Write a Java program that will do the following in sequence:
1. Ask the user to input a positive integer value that we will denote as n. Here n represents the size of the
problem space, specifically, the number of elements to be sorted.
2. Create arrays for 10 lists of n integers.
3. For one array, its initial values are to be generated randomly (use the random function/method of your
chosen library).
4. Copy the contents of the first array to the other ten arrays. After these step, all arrays should contain the
same sequence of integer values.
5. Introduce a count variable into each of your sorting algorithms to keep track of the number of operations.
You should able to discern well as to where should it best placed to count the “important” operations.
6. Sort the first array using bubble sort. Obtain the amount of time it took for bubble sort to rearrange the array
as well as the count on the number of operations.
7. Sort the second array using selection sort and obtain the time it took to rearrange the array as well as the
count on the number of operations.
8. Sort the third array using insertion sort and obtain the time it took to rearrange the array as well as the count
on the number of operations.
9. Sort the fourth array using quicksort and obtain the time it took to rearrange the array as well as the count
on the number of operations.
10. Sort the fifth array using shell sort and obtain the time it took to rearrange the array as well as the count on
the number of operations.
11. Sort the 6th
to 10th
array using merge, radix, balloon and 2 other sorting algorithm and obtain the time it
took to rearrange the array as well as the count on the number of operations.
Run the program for different values of n based on the order. Obtain the processing time for each sorting
algorithm and count, and fill up the following table. The processing time should be in milliseconds.

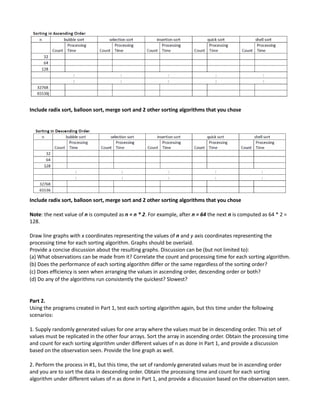

3. Include radix sort, balloon sort, merge sort and 2 other sorting algorithms that you chose
Include radix sort, balloon sort, merge sort and 2 other sorting algorithms that you chose
Note: the next value of n is computed as n = n * 2. For example, after n = 64 the next n is computed as 64 * 2 =
128.
Draw line graphs with x coordinates representing the values of n and y axis coordinates representing the
processing time for each sorting algorithm. Graphs should be overlaid.
Provide a concise discussion about the resulting graphs. Discussion can be (but not limited to):
(a) What observations can be made from it? Correlate the count and processing time for each sorting algorithm.
(b) Does the performance of each sorting algorithm differ or the same regardless of the sorting order?
(c) Does efficiency is seen when arranging the values in ascending order, descending order or both?
(d) Do any of the algorithms run consistently the quickest? Slowest?
Part 2.
Using the programs created in Part 1, test each sorting algorithm again, but this time under the following
scenarios:
1. Supply randomly generated values for one array where the values must be in descending order. This set of
values must be replicated in the other four arrays. Sort the array in ascending order. Obtain the processing time
and count for each sorting algorithm under different values of n as done in Part 1, and provide a discussion
based on the observation seen. Provide the line graph as well.
2. Perform the process in #1, but this time, the set of randomly generated values must be in ascending order
and you are to sort the data in descending order. Obtain the processing time and count for each sorting
algorithm under different values of n as done in Part 1, and provide a discussion based on the observation seen.

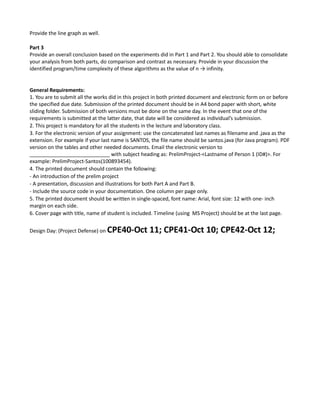

4. Provide the line graph as well.
Part 3
Provide an overall conclusion based on the experiments did in Part 1 and Part 2. You should able to consolidate
your analysis from both parts, do comparison and contrast as necessary. Provide in your discussion the
identified program/time complexity of these algorithms as the value of n → infinity.
General Requirements:
1. You are to submit all the works did in this project in both printed document and electronic form on or before
the specified due date. Submission of the printed document should be in A4 bond paper with short, white
sliding folder. Submission of both versions must be done on the same day. In the event that one of the
requirements is submitted at the latter date, that date will be considered as individual’s submission.
2. This project is mandatory for all the students in the lecture and laboratory class.
3. For the electronic version of your assignment: use the concatenated last names as filename and .java as the
extension. For example if your last name is SANTOS, the file name should be santos.java (for Java program). PDF
version on the tables and other needed documents. Email the electronic version to
____________________________ with subject heading as: PrelimProject-<Lastname of Person 1 (ID#)>. For
example: PrelimProject-Santos(100893454).
4. The printed document should contain the following:
- An introduction of the prelim project
- A presentation, discussion and illustrations for both Part A and Part B.
- Include the source code in your documentation. One column per page only.
5. The printed document should be written in single-spaced, font name: Arial, font size: 12 with one- inch
margin on each side.
6. Cover page with title, name of student is included. Timeline (using MS Project) should be at the last page.
Design Day: (Project Defense) on CPE40-Oct 11; CPE41-Oct 10; CPE42-Oct 12;
