1. Prefabricated Compact Substation
EU-style
Kiosk
2007/3
Zhejiang Farady Electric Co.,Ltd
ISO9001&ISO14001 certificated enterprise
Best solution for your power!

2. ++++General
YBW series products is a kind of complete
solution which assembles the MV RMU,
transformer, LV distribution equipment
together according to fixed connection
scheme. This series substation is suitable for
neighborhood unit, hotel, large-scale work site
and high building that the voltage is 11kV
15/22kV/33kV/, the frequency is 50Hz and the
capacity is under 2500kvA.
++++Service environment
a) Air temperature: Maximum temperature: +40℃; Minimum temperature:-25℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
++++ Main technical specifications
Name Unit HV side Transformer LV side
Rated voltage kV 6-40.5kV 6-40.5kV 0.4
Rated current
A 630
3/75-150/3750 Less than
4000
Frequency Hz 50
Rated Capacity kVA 50-2500
Pfr withstand kV 42/50/70/95 2.5
BIL kV 75/125/170/185
Crust Protection
Grade
IP44
Oil type 55; dry type
65
IP23
Noisy Grade dB 55db
Appearance
Dimensions
mm According to primacy wiring circuit schema
HV Room Transformer Room LV Room
*Consult Farady Electric for availability of non-standard kVA sizes.

3. ++++ Main Designation Characteristics
l The crust of the substation is designed according to the advanced technology and
physical reality. We provide many kinds of crust material such as aluminum alloy steel
composite stainless steel board and non metal material (glass fiber).
l The HV side use load break switch or vacuum circuit breaker. The transformer could be
oil type hermetically-sealed type or dry type.
l The proof of the box is double layers structure and between the layers is filled with foam.
There are independent boards in HV and LV room, and in the transformer room will install
auto thermal controller heater and cooling fan
Note: we offer special customized products according to client’s requirement.
++++M.V. Compartment: ( IP 44)
This Primary side of pre-fabricated substation uses difference design RMU including SF6
gas insulation RMU or Air insulation RMU( with SF6 load break switch built inside) as its
HV incoming and outgoing network realized the power ring system easily. And the
substation selects integrated automation system which can realize unattended mode.
AIS RMU
Note: difference design RMU depend on customer ordering detail

4. ++++ Transformer Compartment: ( IP 23)
This type substations normally use three phase oil immersed power transformer 15kV
315kVA
Transformer compartment is designed to accommodate a 3-Phase, oil immersed naturally
air cooled power transformer
A) Cable connection copper of suitable size for connection
Between MV transformer bushing and MV Switchgear
B) Set of Cables or Bus bars for the connection
Between LV bushing of the TR and
The LV main circuit breaker
S11 series
P.S.also can equipment with dry type transformer while customer order clarify in advance
++++ Low Voltage Compartment: ( IP 23)
The switchboard design use difference solution accordingly to customer demand, there is
GGD/GCK/GCK/MNS etc LV switchboard is designed to accommodate the Main incomer
feeder
for the transformer protection which is located at the middle top (MCCB, Open frame
CB, fused disconnector ...).
Tandem number of outgoing according to attached specifications.
Two instruments panels shall be provided and located at the top to accommodate
measuring meters.
- Main Bus-Bars : Copper 3-Ph. + N
- Operating Voltage : 400 V. - 50 HZ.
- Rated Short Circuit : 50 KA (1 sec).
KWH

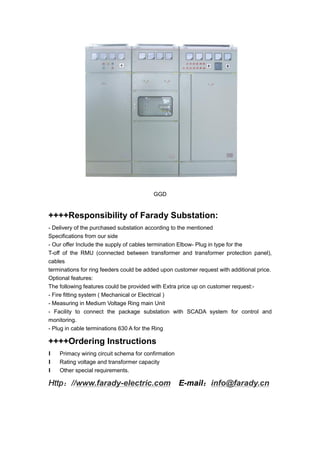

5. GGD
++++Responsibility of Farady Substation:
- Delivery of the purchased substation according to the mentioned
Specifications from our side
- Our offer Include the supply of cables termination Elbow- Plug in type for the
T-off of the RMU (connected between transformer and transformer protection panel),
cables
terminations for ring feeders could be added upon customer request with additional price.
Optional features:
The following features could be provided with Extra price up on customer request:-
- Fire fitting system ( Mechanical or Electrical )
- Measuring in Medium Voltage Ring main Unit
- Facility to connect the package substation with SCADA system for control and
monitoring.
- Plug in cable terminations 630 A for the Ring
++++Ordering Instructions
l Primacy wiring circuit schema for confirmation
l Rating voltage and transformer capacity
l Other special requirements.
Http：//www.farady-electric.com E-mail：info@farady.cn
