1. PROPERTIES OF FRESH AND
HARDENED CONCRETE
Mr. YUSUF A.S.
Associate Professor In Civil Engineering

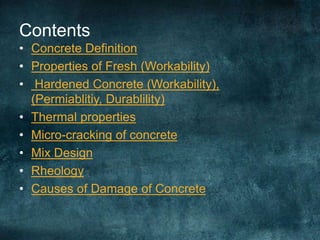

2. Contents
• Concrete Definition
• Properties of Fresh (Workability)
• Hardened Concrete (Workability),
(Permiablitiy, Durablility)
• Thermal properties
• Micro-cracking of concrete
• Mix Design
• Rheology
• Causes of Damage of Concrete

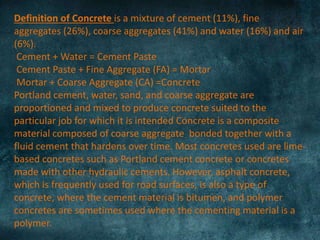

3. Definition of Concrete is a mixture of cement (11%), fine
aggregates (26%), coarse aggregates (41%) and water (16%) and air
(6%).
Cement + Water = Cement Paste
Cement Paste + Fine Aggregate (FA) = Mortar
Mortar + Coarse Aggregate (CA) =Concrete
Portland cement, water, sand, and coarse aggregate are
proportioned and mixed to produce concrete suited to the
particular job for which it is intended Concrete is a composite
material composed of coarse aggregate bonded together with a
fluid cement that hardens over time. Most concretes used are lime-
based concretes such as Portland cement concrete or concretes
made with other hydraulic cements. However, asphalt concrete,
which is frequently used for road surfaces, is also a type of
concrete, where the cement material is bitumen, and polymer
concretes are sometimes used where the cementing material is a
polymer.
4. Definition of Cement
• Portland cements are hydraulic cements,
meaning they react and harden chemically with
the addition of water. Cement contains
limestone, clay , cement rock and iron ore
blended and heated to 1200 to 1500 C°. The
resulting product "clinker" is then ground to the
consistency of powder. Gypsum is added to
control setting time.

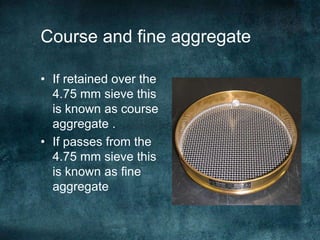

5. Course and fine aggregate
• If retained over the
4.75 mm sieve this
is known as course
aggregate .
• If passes from the
4.75 mm sieve this
is known as fine
aggregate

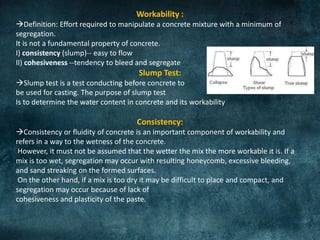

6. Workability :
Definition: Effort required to manipulate a concrete mixture with a minimum of
segregation.
It is not a fundamental property of concrete.
I) consistency (slump)-- easy to flow
II) cohesiveness --tendency to bleed and segregate
Slump Test:
Slump test is a test conducting before concrete to
be used for casting. The purpose of slump test
Is to determine the water content in concrete and its workability
Consistency:
Consistency or fluidity of concrete is an important component of workability and
refers in a way to the wetness of the concrete.
However, it must not be assumed that the wetter the mix the more workable it is. If a
mix is too wet, segregation may occur with resulting honeycomb, excessive bleeding,
and sand streaking on the formed surfaces.
On the other hand, if a mix is too dry it may be difficult to place and compact, and
segregation may occur because of lack of
cohesiveness and plasticity of the paste.

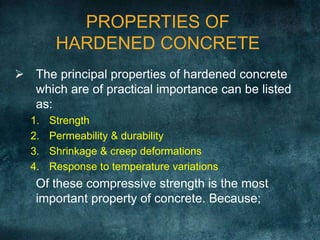

7. PROPERTIES OF
HARDENED CONCRETE
The principal properties of hardened concrete
which are of practical importance can be listed
as:
1. Strength
2. Permeability & durability
3. Shrinkage & creep deformations
4. Response to temperature variations
Of these compressive strength is the most
important property of concrete. Because;

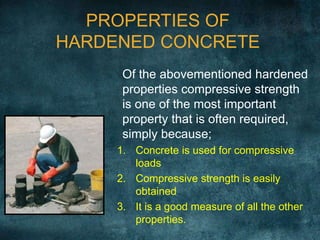

8. PROPERTIES OF
HARDENED CONCRETE
Of the abovementioned hardened
properties compressive strength
is one of the most important
property that is often required,
simply because;
1. Concrete is used for compressive
loads
2. Compressive strength is easily
obtained
3. It is a good measure of all the other
properties.

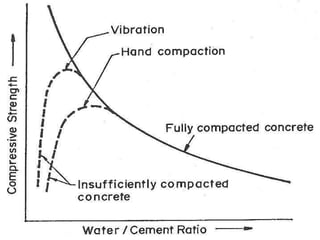

9. STRENGTH OF CONCRETE
The strength of a concrete specimen
prepared, cured and tested under specified
conditions at a given age depends on:
1. w/c ratio
2. Degree of compaction
10.

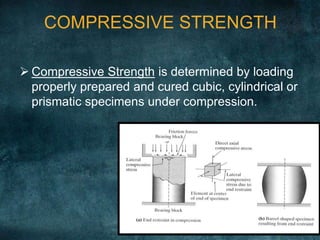

11. COMPRESSIVE STRENGTH
Compressive Strength is determined by loading
properly prepared and cured cubic, cylindrical or
prismatic specimens under compression.

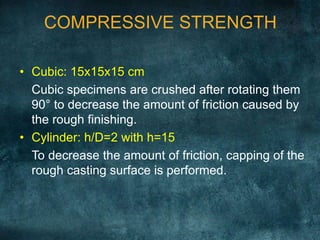

12. COMPRESSIVE STRENGTH
• Cubic: 15x15x15 cm
Cubic specimens are crushed after rotating them
90° to decrease the amount of friction caused by
the rough finishing.
• Cylinder: h/D=2 with h=15
To decrease the amount of friction, capping of the
rough casting surface is performed.

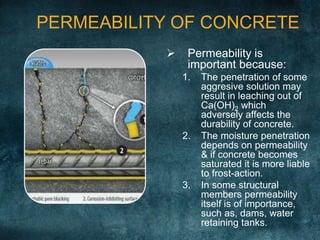

13. PERMEABILITY OF CONCRETE
Permeability is
important because:
1. The penetration of some
aggresive solution may
result in leaching out of
Ca(OH)2 which
adversely affects the
durability of concrete.
2. The moisture penetration
depends on permeability
& if concrete becomes
saturated it is more liable
to frost-action.
3. In some structural
members permeability
itself is of importance,
such as, dams, water
retaining tanks.

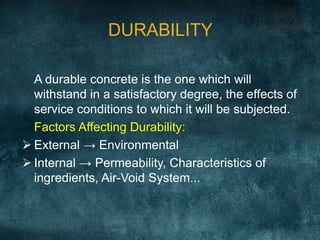

14. DURABILITY
A durable concrete is the one which will
withstand in a satisfactory degree, the effects of
service conditions to which it will be subjected.
Factors Affecting Durability:
External → Environmental
Internal → Permeability, Characteristics of
ingredients, Air-Void System...

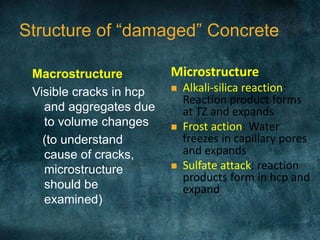

16. Structure of “damaged” Concrete
Macrostructure
Visible cracks in hcp
and aggregates due
to volume changes
(to understand
cause of cracks,
microstructure
should be
examined)
Microstructure
Alkali-silica reaction:
Reaction product forms
at TZ and expands
Frost action: Water
freezes in capillary pores
and expands
Sulfate attack: reaction
products form in hcp and
expand

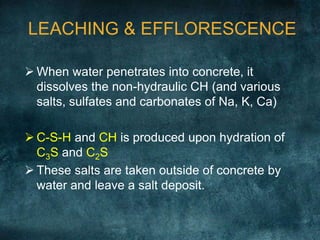

17. LEACHING & EFFLORESCENCE
When water penetrates into concrete, it
dissolves the non-hydraulic CH (and various
salts, sulfates and carbonates of Na, K, Ca)
C-S-H and CH is produced upon hydration of
C3S and C2S
These salts are taken outside of concrete by
water and leave a salt deposit.

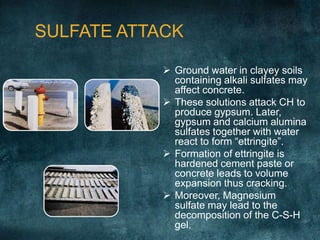

18. SULFATE ATTACK
Ground water in clayey soils
containing alkali sulfates may
affect concrete.
These solutions attack CH to
produce gypsum. Later,
gypsum and calcium alumina
sulfates together with water
react to form “ettringite”.
Formation of ettringite is
hardened cement paste or
concrete leads to volume
expansion thus cracking.
Moreover, Magnesium
sulfate may lead to the
decomposition of the C-S-H
gel.

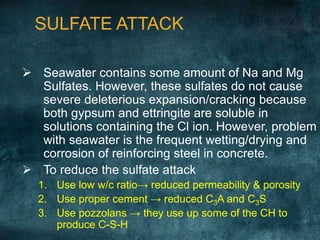

19. Seawater contains some amount of Na and Mg
Sulfates. However, these sulfates do not cause
severe deleterious expansion/cracking because
both gypsum and ettringite are soluble in
solutions containing the Cl ion. However, problem
with seawater is the frequent wetting/drying and
corrosion of reinforcing steel in concrete.
To reduce the sulfate attack
1. Use low w/c ratio→ reduced permeability & porosity
2. Use proper cement → reduced C3A and C3S
3. Use pozzolans → they use up some of the CH to
produce C-S-H
SULFATE ATTACK

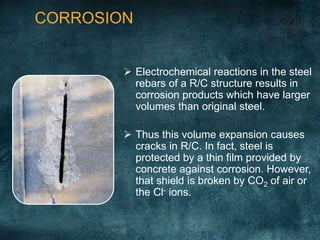

20. CORROSION
Electrochemical reactions in the steel
rebars of a R/C structure results in
corrosion products which have larger
volumes than original steel.
Thus this volume expansion causes
cracks in R/C. In fact, steel is
protected by a thin film provided by
concrete against corrosion. However,
that shield is broken by CO2 of air or
the Cl- ions.
21. FREEZING AND THAWING
Water when freezes expands in volume. This will cause
internal hydraulic pressure and cracks the concrete.
To prevent the concrete from
this distress air-entraining
admixtures are used to produce
air-entrained concrete.

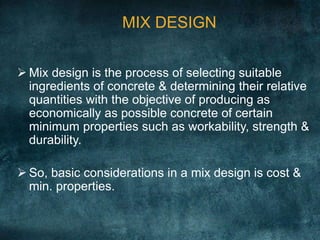

22. Mix design is the process of selecting suitable
ingredients of concrete & determining their relative
quantities with the objective of producing as
economically as possible concrete of certain
minimum properties such as workability, strength &
durability.
So, basic considerations in a mix design is cost &
min. properties.
MIX DESIGN

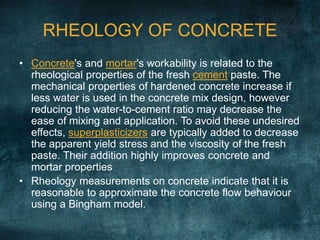

23. RHEOLOGY OF CONCRETE
• Concrete's and mortar's workability is related to the
rheological properties of the fresh cement paste. The
mechanical properties of hardened concrete increase if
less water is used in the concrete mix design, however
reducing the water-to-cement ratio may decrease the
ease of mixing and application. To avoid these undesired
effects, superplasticizers are typically added to decrease
the apparent yield stress and the viscosity of the fresh
paste. Their addition highly improves concrete and
mortar properties
• Rheology measurements on concrete indicate that it is
reasonable to approximate the concrete flow behaviour
using a Bingham model.
Editor's Notes
To view this presentation, first, turn up your volume and second, launch the self-running slide show.
