PORTFOLIO- Golnaz Abadian
- 1. INTERIOR PROJECTS 2009-2015 LIGHTING DESIGNPORTFOLIO Golnaz Abadian

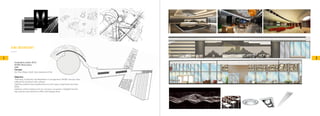

- 2. 21 Graduation project 2013 AFWEObservatory UAE Concept Air_Fire_Water_Earth, four elements of life Objective Harmony, Continuity and Repetition in arrangement, AFWE concept color reflected in furniture color scheme. Lighting solutions been applied base on each space requirment and stan- dards. Lighting control systems such as; vaccancy, occupancy, Daylight harvest- ing sensores been placed in office and storage areas. AFWE OBSERVATORY

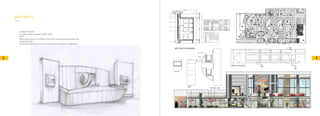

- 3. 450mm 1260mm1260mm 3330mm 2025mm 1170mm 720mm 180mm 90mm 8550mm 3420mm 810mm 720mm 5400mm 810mm 90mm SECTIONOF DRAWERS No: Thickness :Product: Type: Finish: A B C D E F G A B C D E F G Counter Top Silver Black Marble Partition Stud Counter Metal_Stanless Steal 40 mm 20 mm MDF Chip Board Natural Brich mahagony 20 mm Stud MDF 10 mm 10 mm Drawer Stud MDF Maple 10 mm MDF 10 mm Stud Types: Dimensions: 20X20X10mm Thickness 50X20X10mm Thickness 20X110X10mm Thickness Drawer Roller fixed to the sides of the drawer with screw and small wheel on each Roller. A B C 1070 400 1150 80 1150 80 1150 80 1150 400 600 650 300 180 600 1180 300 470 500 370100100 360 330 36082,582,582,5 330 80 Marble Top Wood Keyboard Shelf And Counter Top PLAN VIEW 40130900110 650 1500 650 970 650 970 650 1500 300 750 625 75 1500 75 75 75 970 75 75 75 970 75 75 75 1500 75 1060 2125 4865 1510 MDF with Hard Wood Finish Metal with Recessed Trim Marble Glove Ledge FRONT ELEVATION Observation Fiber Glass Drainage Fill Planter PLAN VIEW FRONT VIEW SECTION VIEW 143,50 105 Timber door frame Ply wood door architrave MDF wood 100mmX40mmX40mm thickness Galvanized aluminum stud 100mmX40mmX20 mm thickness Wall concrete Ply wood door PLAN VIEW 47 15,50 1666,3mm 252 1110,9mm 252 1666,3mm 192 60 192 SECTION A_A' SECTION B_B' Marble Flooring 204 153,50 2525 82 374,4mm18,50 10 156 E F G A B C 1180 Marble Top Keyboard Shelf And Counter Top PLAN VIEW 40130900110 650 1500 650 970 650 970 650 1500 300 750 625 75 1500 75 75 75 970 75 75 75 970 75 75 75 1500 75 1060 2125 4865 1510 MDF with Hard Wood Finish Metal with Recessed Trim Marble Glove Ledge FRONT ELEVATION Observation Fiber Glass Drainage Fill Planter PLAN VIEW FRONT VIEW SECTION VIEW 143,50 105 Timber door frame Ply wood door architrave MDF wood 100mmX40mmX40mm thickness Galvanized aluminum stud 100mmX40mmX20 thickness Wall concrete Ply wood door PLAN VIEW 47 15,50 1666,3mm 252 1110,9mm 252 1666,3mm 192 60 192 SECTION A_A' S 1070 PLAN VIEW 300 750 2125 FRONT ELEVA Observation Fiber Glass Drainage Fill Planter PLAN VIEW FRONT VIEW SECTION VIEW A B C 1070 400 1150 80 1150 80 1150 80 1150 400 600 650 300 470 500 370100100 360 330 36082,582,582,5 330 80 Marble Top Wood Keyboard Shelf And Counter Top PLAN VIEW 40130900110 650 1500 650 970 650 970 650 1500 300 750 625 75 1500 75 75 75 970 75 75 75 970 75 75 75 1500 75 1060 2125 4865 1510 MDF with Hard Wood Finish Metal with Recessed Trim Marble Glove Ledge FRONT ELEVATION Observation Fiber Glass Drainage Fill Planter PLAN VIEW 143,50 105 Wall concrete 180mm990mm 2025m 180mm 90mm 54 SECTION OF DRAWERS No: Thickness :Product: Type: Finish: G A B C D E F G Counter Top Silver Black Marble Partition Stud Counter Metal_Stanless Steal 40 mm 20 mm MDF Chip Board Natural Brich mahagony 20 mm Stud MDF 10 mm 10 mm Drawer Stud MDF Maple 10 mm MDF 10 mm Stud Types: Dimensions: 20X20X10mm Thickness 50X20X10mm Thickness 20X110X10mm Thickness Drawer Roller fixed to the sides of the drawer with screw and small wheel on each Roller. PLAN VIEW 40130900110 650 1500 650 970 650 970 650 1500 300 750 625 75 1500 75 75 75 970 75 75 75 970 75 75 75 1500 75 1060 2125 4865 1510 MDF with Hard Wood Finish Metal with Recessed Trim Marble Glove Ledge FRONT ELEVATION Observation Fiber Glass Drainage Fill Planter N VIEW FRONT VIEW SECTION VIEW 143,50 105 Timber door frame Ply wood door architrave MDF wood 100mmX40mmX40mm thickness Galvanized aluminum stud 100mmX40mmX20 mm thickness Wall concrete Ply wood door PLAN VIEW 47 15,50 1666,3mm 252 1110,9mm 252 1666,3mm 192 60 192 FrameJamb-R SECTION A_A' SECTION B_B' 204 153,50 2525 82 156 450mm 360mm1260mm180mm7650mm180mm990mm 1260mm1260mm 3330mm 2025mm 1170mm 720mm 180mm 90mm 1180 8550mm 3420mm 810mm 720mm 5400mm 810mm 90mm SECTION OF DRAWERS No: Thickness :Product: Type: Finish: A B C D E F G A B C D E F G Counter Top Silver Black Marble Partition Stud Counter Metal_Stanless Steal 40 mm 20 mm MDF Chip Board Natural Brich mahagony 20 mm Stud MDF 10 mm 10 mm Drawer Stud MDF Maple 10 mm MDF 10 mm Stud Types: Dimensions: 20X20X10mm Thickness 50X20X10mm Thickness 20X110X10mm Thickness Drawer Roller fixed to the sides of the drawer with screw and small wheel on each Roller. A B C 1070 400 1150 80 1150 80 1150 80 1150 400 600 650 300 180 600 1180 300 470 500 370100100 360 330 36082,582,582,5 330 80 Marble Top Wood Keyboard Shelf And Counter Top PLAN VIEW 40130900110 650 1500 650 970 650 970 650 1500 300 750 625 75 1500 75 75 75 970 75 75 75 970 75 75 75 1500 75 1060 2125 4865 1510 MDF with Hard Wood Finish Metal with Recessed Trim Marble Glove Ledge FRONT ELEVATION Observation Fiber Glass Drainage Fill Planter AN VIEW FRONT VIEW SECTION VIEW 143,50 105 Timber door frame Ply wood door architrave MDF wood 100mmX40mmX40mm thickness Galvanized aluminum stud 100mmX40mmX20 mm thickness Wall concrete Ply wood door PLAN VIEW Jamb-R 204 153,50 2525 82 156 43 UNIQUE HOTEL Location: Palm Jumeirah_Dubai, UAE 2010 Open space plan on reception area with custom designed patterned marbel flooring Mezzanin level perform as an art gallery for Temporary exhibitions H O S P I T A L I T Y
- 4. FINAL PROJECT:DG OFFICE ID:200910029 COURSE ID:290314 NAME:Fatemeh Abadian DEP OF INTERIOR DESIGN SHEET NO:4 INTERIOR DESIGN IV ASSISTANT: Eng.Taher Salah INS:DR Abdulmunim Taha SCALE: 1:65 Date: 2012/01/05 CEILING PLAN +380 +380 +350 +310 +350 SD SD SD SD SD SD SD SD SD SD SD SD SD SD +340 track lighting spot lighting return supply ventilation ceiling mounted smoke detector sprinkle SD +350 +350 +350 +350 +350 +350 +350 +350 +350 +325+335 +350 SD SD Florescent lighting LEGEND +350+350 FINAL PROJECT:DG OFFICE ID: 200910029 COURSE ID:290314 NAME:Fatemeh Abadian DEP OF INTERIOR DESIGN SHEET NO:4 INTERIOR DESIGN IV ASSISTANT: Eng.Taher Salah INS:DR Abdulmunim Taha SCALE: 1:65 Date: 2012/01/05 CEILING PLAN +380 +380 +350 +310 +350 SD SD SD SD SD SD SD SD SD SD SD SD SD SD +340 track lighting spot lighting return supply ventilation ceiling mounted smoke detector sprinkle SD +350 +350 +350 +350 +350 +350 +350 +350 +350 +325+335 +350 SD SD Florescent lighting LEGEND +350+350 65 Natural light is a key element in this design Admission and HR areas are facing north wall and design department and gallery area with the most interactions facing towared south wall with more light exposure. Reception is centralized in this plan with partitions in both side to provide privacy for clients and empolyees. Material and color scheme are combination of raw material, like nontreated concrete for columns and gradient floor finish in harmony with it. Walls and partitions are either wood or glass in overall, main structural elements of building are in neutral color in contrast with warm and strong colors of furniture C O M M E R C I A L
- 5. 87 High-end, Sustainable Designstategy Located on Madison Ave Office timming is between 9Am to 6Pm Dramatic lighting appearance achived by Contrast in illumination level in treatment room, reception area and hallway. Linear,sharp and high contrast and lighting in hallway in comparison to Calm and Uniform ambient lighting in treatment room and reception area helped to achive this perpose as well. Neutral and earth base colors and material been considered in furniture selection and finishes. D E N T A L O F F I C E

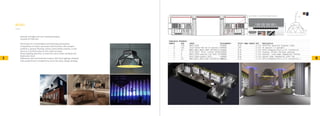

- 6. 9 10 R ET A I L Upscale and high-end men clothing boutique Located on Fifth Ave Achivment of a comfortable and welcoming atmosphere. Composition of classic and modrn look furniturs, like wooden partitions, parquet flooring, Greece style marble columns, a rock stone as a furniture piece in the center of space. Proper lighting selection, to meet the color render standard and illuminance level. Differenet style and finish like modern LED track lighting, indutrial look pendent been considered to serve the space design strategy.

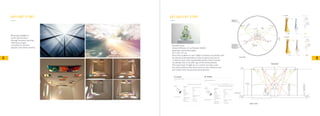

- 7. 1211 D A YL I G H T S T U D Y A R T G A L L E R Y S T U D Y Bouncing daylight in to the inrerio space through fourteen opening with three angels according to summer, equinox and winter solstice. Kendell Geers Master Mistress of my Passion (2010), jasmenite and broken glass, 87 x 60 x 75 cm Since the sculpture is also called as mistress of passion and my personal interpretation of the art piece was not of a mistress lover with negativedenotation that it carries by default, but as an alter ego of the artist passion. The outer layer of light act as a veil to not only cover the artist mistress from bare eyes but also welcome and lure visitors into his personal zone/passion
