The Oresund Bridge connects Denmark and Sweden across the Oresund Strait between Copenhagen and Malmo. Construction began in 1995 and included building an artificial island and a tunnel. The bridge opened in 2000 and is over 7 kilometers long, making it the longest combined bridge-tunnel structure in the world. It carries road and rail traffic across the strait using concrete immersed tunnel sections and a cable-stayed bridge design.
More Related Content
Pont oresund
- 1. DIJOUX Sandrine /PAYET Emmanuelle / SELAMBAYE Jessica
- 2. ORESUND BRIDGEORESUND BRIDGE DIJOUXSandrine SELAMBAYE Jessica PAYET Emmanuelle
- 3. History The bridge The railwayand the tunnel Conclusion Webography
- 6.
- 7.

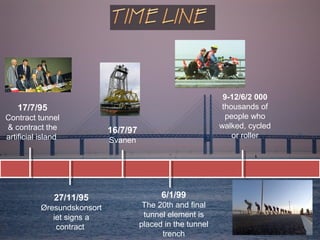

- 8. 17/7/95 Contract tunnel & contractthe artificial island 6/1/99 The 20th and final tunnel element is placed in the tunnel trench 27/11/95 Øresundskonsort iet signs a contract 16/7/97 Svanen 9-12/6/2 000 thousands of people who walked, cycled or roller

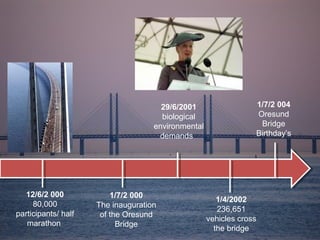

- 9. 1/7/2 004 Oresund Bridge Birthday’s 1/4/2002 236,651 vehicles cross thebridge 29/6/2001 biological environmental demands 1/7/2 000 The inauguration of the Oresund Bridge 12/6/2 000 80,000 participants/ half marathon

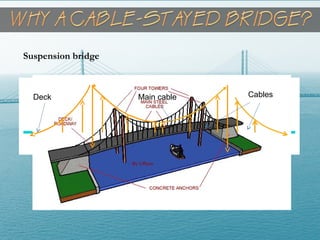

- 11. Suspension bridge Main cableCablesDeck

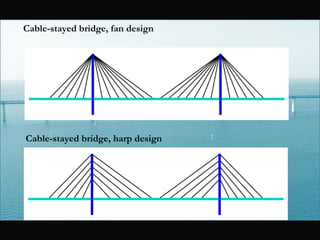

- 12. Cable-stayed bridge, fandesign Cable-stayed bridge, harp design

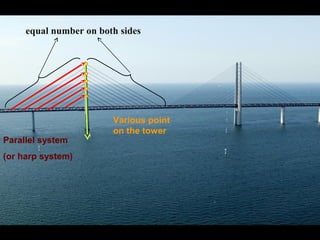

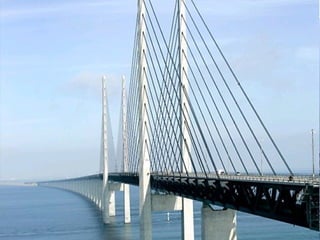

- 13. Parallel system (or harpsystem) Various point on the tower equal number on both sides

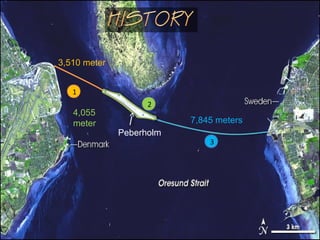

- 14. Total lenght: 7845 m

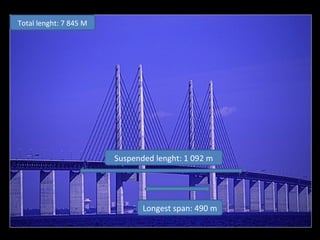

- 15. Suspended lenght: 1092 m Longest span: 490 m Total lenght: 7 845 M

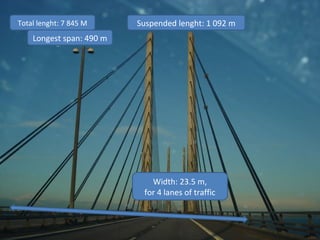

- 16. Width: 23.5 m, for4 lanes of traffic Suspended lenght: 1 092 m Longest span: 490 m Total lenght: 7 845 M

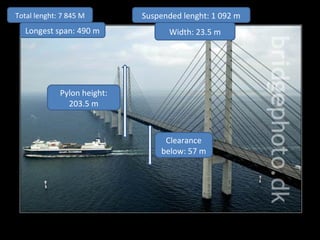

- 17. Clearance below: 57 m Pylonheight: 203.5 m Width: 23.5 m Suspended lenght: 1 092 m Longest span: 490 m Total lenght: 7 845 M
- 18.
- 19. Matériaux utilisés etquantités

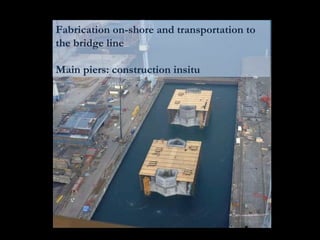

- 20. Fabrication on-shore andtransportation to the bridge line Main piers: construction insitu
- 21. 80 meters 80 meters 20meters15 meters 30 meters 9 500 N
- 22. Bridge deck section Therail section is double track standard gauge (1435 mm) and capable of high-speeds exceeding 200 km/h.

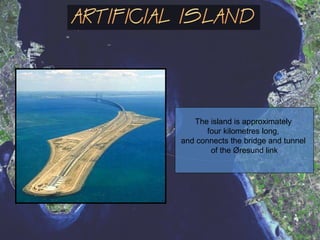

- 23. The island isapproximately four kilometres long, and connects the bridge and tunnel of the Øresund link

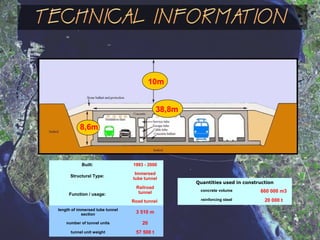

- 24. 10m 38,8m 8,6m Built: 1993 -2000 Structural Type: Immersed tube tunnel Function / usage: Railroad tunnel Road tunnel length of immersed tube tunnel section 3 510 m number of tunnel units 20 tunnel unit weight 57 500 t Quantities used in construction concrete volume 660 000 m3 reinforcing steel 20 000 t

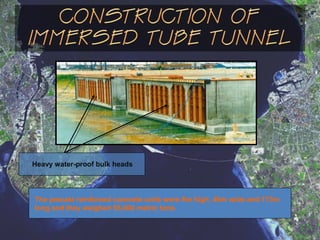

- 25. Heavy water-proof bulkheads The precast reinforced concrete units were 8m high, 40m wide and 175m long and they weighed 55,000 metric tons.

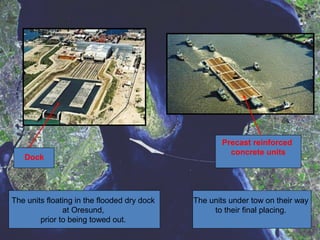

- 26. Dock The units floatingin the flooded dry dock at Oresund, prior to being towed out. Precast reinforced concrete units The units under tow on their way to their final placing.

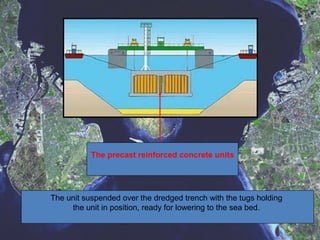

- 27. The precast reinforcedconcrete units The unit suspended over the dredged trench with the tugs holding the unit in position, ready for lowering to the sea bed.
