Planning for software quality assurance lecture 6
The document discusses planning for software quality assurance (SQA) and outlines the key elements of a software quality assurance plan (SQAP). It notes that an SQAP provides a roadmap for SQA activities and defines techniques, procedures, and methodologies that will be used to ensure timely delivery of software that meets requirements. The document then describes various sections that should be included in an SQAP, such as goals, tasks, standards, reviews, testing, problem reporting, tools, code control, and training. It also discusses the IEEE standard for SQAPs and provides examples of what types of information should be included in each SQAP section.
More Related Content
Similar to Planning for software quality assurance lecture 6
Planning for software quality assurance lecture 6
- 1. Planning for SoftwareQuality Assurance By Mr. Fazal Wahab
- 2. Importance of SQAP SQA plan provides a road map for instituting software quality assurance. The plan serves as a template for SQA activities that are instituted for each software project. define the techniques, procedures, and methodologies that will be used to assure timely delivery of the software that meets specified requirements within project resources.
- 3. Software Quality AssurancePlanning What is not tracked is not done” The Goals of Software Quality Assurance: To improve software quality by appropriately monitoring both the software and the development process that produces it. To ensure full compliance with the established standards and procedures for the software and the software process. To ensure that any inadequacies in the process, product and standards are brought to managements attention so that these inadequacies can be fixed

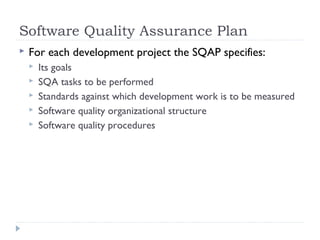

- 4. Software Quality AssurancePlan For each development project the SQAP specifies: Its goals SQA tasks to be performed Standards against which development work is to be measured Software quality organizational structure Software quality procedures
- 5. IEEE Standard forSQAP IEEE Std 730-1989 Standard for Software Quality Assurance Plans IEEE Guide for Software Quality Assurance Planning
- 6. IEEE 730-1989 Standardfor Software Quality Assurance Plans 1. Purpose 2. Reference Documents 3. Management 4. Documentation 5. Standards, Practices, Conventions and Metrics 6. Reviews and Audits 7. Test 8. Problem Reporting and Corrective Action 9. Tools, Techniques, and Methodologies 10. Code Control 11. Media Control 12. Supplier Control 13. Records Collection 14. Training 15. Risk Management

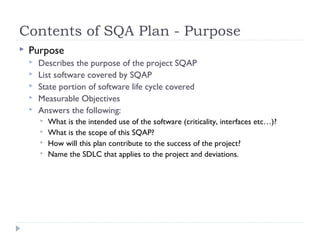

- 7. Contents of SQAPlan - Purpose Purpose Describes the purpose of the project SQAP List software covered by SQAP State portion of software life cycle covered Measurable Objectives Answers the following: What is the intended use of the software (criticality, interfaces etc…)? What is the scope of this SQAP? How will this plan contribute to the success of the project? Name the SDLC that applies to the project and deviations.
- 8. Contents of SQAPlan – Purpose (Measurable Objectives) Example Objectives Technical review of all project documents Ensure maximum inspection rates of 6 pages/hour for documentation and 200 LOC/hour for code. Have a process defect yield of 99.9% before delivery. Have a delivered defect density < 1 defect/1000 LOC for first 12 months of operation
- 9. Contents of SQAPlan – Reference Documents Reference Documents complete list of documents referenced elsewhere in the SQAP For example: Standards and guidelines
- 10. Contents of SQAPlan – Management organization - depict structure of org. responsibilities tasks tasks to be performed relationship between tasks and checkpoints sequence of tasks responsibilities of each organizational unit

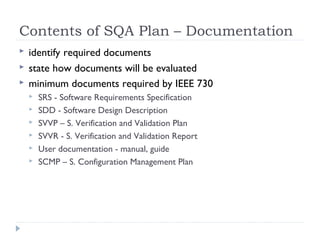

- 11. Contents of SQAPlan – Documentation identify required documents state how documents will be evaluated minimum documents required by IEEE 730 SRS - Software Requirements Specification SDD - Software Design Description SVVP – S. Verification and Validation Plan SVVR - S. Verification and Validation Report User documentation - manual, guide SCMP – S. Configuration Management Plan

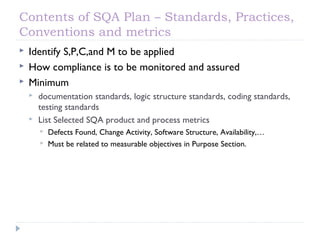

- 12. Contents of SQAPlan – Standards, Practices, Conventions and metrics Identify S,P,C,and M to be applied How compliance is to be monitored and assured Minimum documentation standards, logic structure standards, coding standards, testing standards List Selected SQA product and process metrics Defects Found, Change Activity, Software Structure, Availability,… Must be related to measurable objectives in Purpose Section.

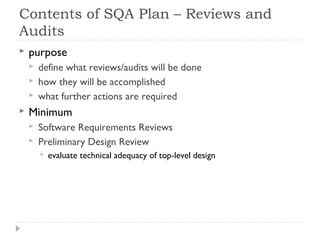

- 13. Contents of SQAPlan – Reviews and Audits purpose define what reviews/audits will be done how they will be accomplished what further actions are required Minimum Software Requirements Reviews Preliminary Design Review evaluate technical adequacy of top-level design

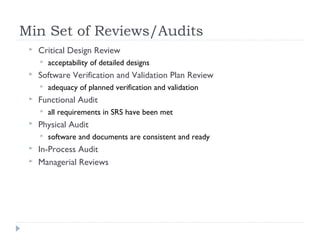

- 14. Min Set ofReviews/Audits Critical Design Review acceptability of detailed designs Software Verification and Validation Plan Review adequacy of planned verification and validation Functional Audit all requirements in SRS have been met Physical Audit software and documents are consistent and ready In-Process Audit Managerial Reviews

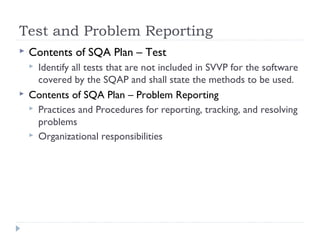

- 15. Test and ProblemReporting Contents of SQA Plan – Test Identify all tests that are not included in SVVP for the software covered by the SQAP and shall state the methods to be used. Contents of SQA Plan – Problem Reporting Practices and Procedures for reporting, tracking, and resolving problems Organizational responsibilities
- 16. Tool, Techniques etc Contents of SQA Plan – Tools, Techniques and Methodologies identify the special software tools, techniques and methodologies purpose describe use

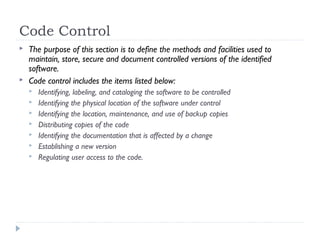

- 17. Code Control Thepurpose of this section is to define the methods and facilities used to maintain, store, secure and document controlled versions of the identified software. Code control includes the items listed below: Identifying, labeling, and cataloging the software to be controlled Identifying the physical location of the software under control Identifying the location, maintenance, and use of backup copies Distributing copies of the code Identifying the documentation that is affected by a change Establishing a new version Regulating user access to the code.

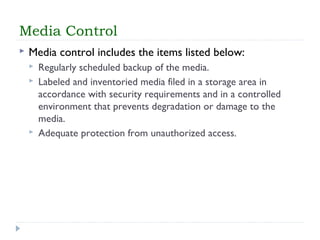

- 18. Media Control Mediacontrol includes the items listed below: Regularly scheduled backup of the media. Labeled and inventoried media filed in a storage area in accordance with security requirements and in a controlled environment that prevents degradation or damage to the media. Adequate protection from unauthorized access.
- 19. Supplier Control Thepurpose of this section is to state the provisions by which SQA assures that software provided by suppliers meets established requirements.

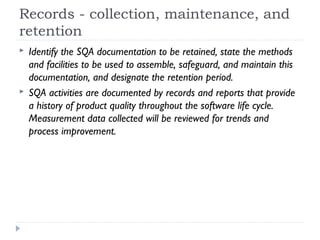

- 20. Records - collection,maintenance, and retention Identify the SQA documentation to be retained, state the methods and facilities to be used to assemble, safeguard, and maintain this documentation, and designate the retention period. SQA activities are documented by records and reports that provide a history of product quality throughout the software life cycle. Measurement data collected will be reviewed for trends and process improvement.

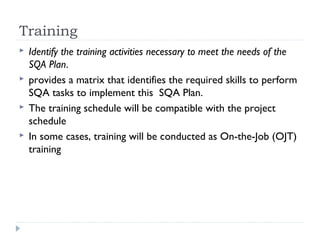

- 21. Training Identify thetraining activities necessary to meet the needs of the SQA Plan. provides a matrix that identifies the required skills to perform SQA tasks to implement this SQA Plan. The training schedule will be compatible with the project schedule In some cases, training will be conducted as On-the-Job (OJT) training

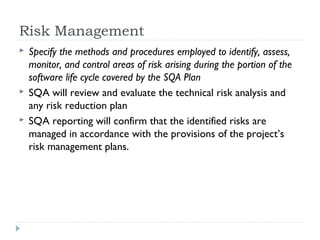

- 22. Risk Management Specifythe methods and procedures employed to identify, assess, monitor, and control areas of risk arising during the portion of the software life cycle covered by the SQA Plan SQA will review and evaluate the technical risk analysis and any risk reduction plan SQA reporting will confirm that the identified risks are managed in accordance with the provisions of the project’s risk management plans.

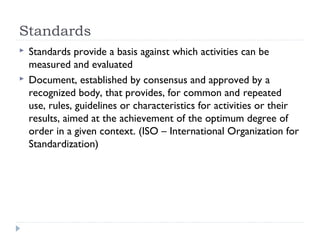

- 23. Standards Standards providea basis against which activities can be measured and evaluated Document, established by consensus and approved by a recognized body, that provides, for common and repeated use, rules, guidelines or characteristics for activities or their results, aimed at the achievement of the optimum degree of order in a given context. (ISO – International Organization for Standardization)
- 24. Types of Standards Regulatory Standards - imposed by Government legislation or regulation; Speed Limits; Electric Voltages for Distribution; Some Communications standards. Consensus Standards - adopted by a community of interest to further the interests of the community most professional Standards and many manufacturing Standards.

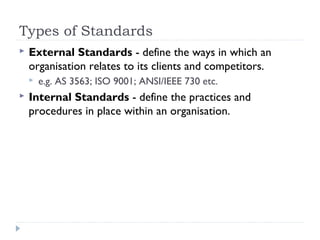

- 25. Types of Standards External Standards - define the ways in which an organisation relates to its clients and competitors. e.g. AS 3563; ISO 9001; ANSI/IEEE 730 etc. Internal Standards - define the practices and procedures in place within an organisation.

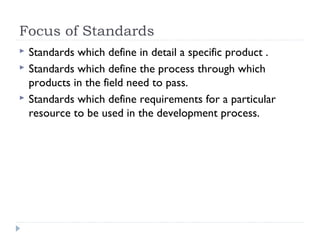

- 26. Focus of Standards Standards which define in detail a specific product . Standards which define the process through which products in the field need to pass. Standards which define requirements for a particular resource to be used in the development process.

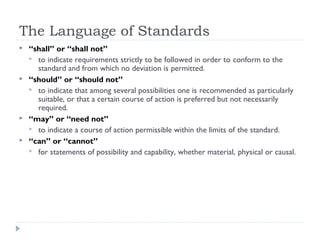

- 27. The Language ofStandards “shall” or “shall not” to indicate requirements strictly to be followed in order to conform to the standard and from which no deviation is permitted. “should” or “should not” to indicate that among several possibilities one is recommended as particularly suitable, or that a certain course of action is preferred but not necessarily required. “may” or “need not” to indicate a course of action permissible within the limits of the standard. “can” or “cannot” for statements of possibility and capability, whether material, physical or causal.
- 28. Sources of Standards International Standards The International Organisation for Standardisation (ISO) The International ElectroTechnical Commission (IEC). Other bodies concerned with international standards exist but normally have a limited scope of interest (e.g. the International Telecommunications Union (ITU); Internet Standards Group; etc.)
- 29. Sources of Standards In Information Technology, the ISO and IEC have set up a Joint Technical Committee, JTC1. JTC1 operates through a series of sub-committees Sub-committee 7 (JTC1/SC7) is responsible for Software Engineering Standards

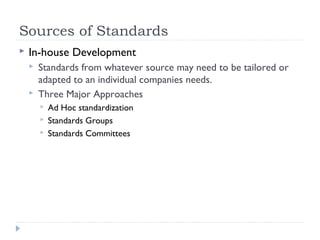

- 30. Sources of Standards In-house Development Standards from whatever source may need to be tailored or adapted to an individual companies needs. Three Major Approaches Ad Hoc standardization Standards Groups Standards Committees

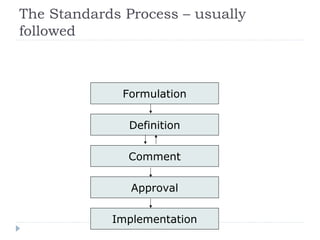

- 31. The Standards Process– usually followed Formulation Definition Approval Implementation Comment
- 32. Areas of Standardizationin Software Development examples Software Development Life Cycle standards Documentation Coding standards Naming standards Operating Procedures and Protocols User Development
