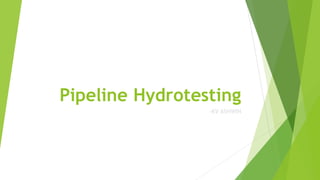

1. Pipeline Hydrotesting
-KV ASHWIN

2. Pipeline Hydrotesting: Ensuring Safety
and Integrity
 Brief Overview:
 In the world of pipelines, safety and integrity are paramount.
 Hydrotesting, a rigorous process, guarantees that pipelines meet stringent
standards.
 Importance:
 Purpose: To validate pipeline strength, locate leaks, and ensure overall reliability.
 Consequences of inadequate testing: Environmental damage, product loss, and
safety hazards.

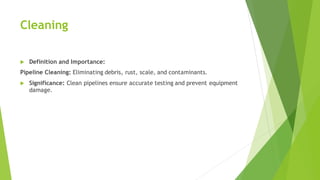

3. Cleaning
 Definition and Importance:
Pipeline Cleaning: Eliminating debris, rust, scale, and contaminants.
 Significance: Clean pipelines ensure accurate testing and prevent equipment
damage.

4. Pigging
 Explanation of Pigging:
Pigging Process: Using specialized devices ("pigs") for cleaning and inspecting
pipelines.
 Pig Types: Brush pigs for scraping, foam pigs for cleaning, magnetic pigs for
debris collection.

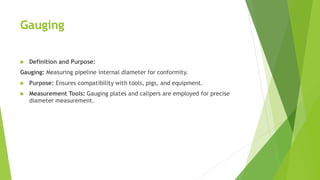

5. Gauging
 Definition and Purpose:
Gauging: Measuring pipeline internal diameter for conformity.
 Purpose: Ensures compatibility with tools, pigs, and equipment.
 Measurement Tools: Gauging plates and calipers are employed for precise
diameter measurement.

6. Water Filling
 Explanation of Water Filling:
Process: Introducing water to the pipeline to simulate operational conditions and
induce pressure.
 Importance: Proper water volume and pressure are vital for accurate testing.

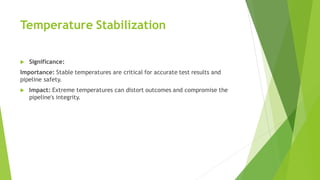

7. Temperature Stabilization
 Significance:
Importance: Stable temperatures are critical for accurate test results and
pipeline safety.
 Impact: Extreme temperatures can distort outcomes and compromise the
pipeline's integrity.

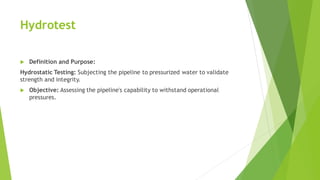

8. Hydrotest
 Definition and Purpose:
Hydrostatic Testing: Subjecting the pipeline to pressurized water to validate
strength and integrity.
 Objective: Assessing the pipeline's capability to withstand operational
pressures.

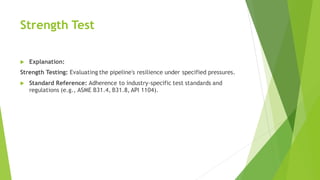

9. Strength Test
 Explanation:
Strength Testing: Evaluating the pipeline's resilience under specified pressures.
 Standard Reference: Adherence to industry-specific test standards and
regulations (e.g., ASME B31.4, B31.8, API 1104).

10. Leak Test
 Definition and Significance:
Leak Testing: A pivotal step in identifying potential leakage points in the
pipeline.
 Importance: Preventing environmental damage and upholding pipeline safety.

11. Dewatering
 Explanation:
Dewatering: Removing test water after a successful hydrotest to prepare for
subsequent stages.
 Equipment: Employing pumps and drainage systems for efficient dewatering.

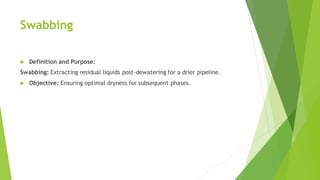

12. Swabbing
 Definition and Purpose:
Swabbing: Extracting residual liquids post-dewatering for a drier pipeline.
 Objective: Ensuring optimal dryness for subsequent phases.

13. Drying
 Explanation:
Pipeline Drying: Ridding the pipeline of any remaining moisture after
dewatering.
 Importance: Essential to prevent corrosion and maintain overall pipeline
integrity.

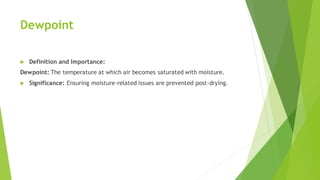

14. Dewpoint
 Definition and Importance:
Dewpoint: The temperature at which air becomes saturated with moisture.
 Significance: Ensuring moisture-related issues are prevented post-drying.
