QT = Test charge in coulombs
To calculate the force on one point due to the presence of several points (Theorem of
superposition).
Limitations of Coulomb’s Law
The law is applicable only for the point charges at rest.
Coulomb’s Law can only be applied in those cases where the inverse square law is
obeyed.
It is difficult to implement Coulomb’s law where charges are in arbitrary shape
because in such cases, we cannot determine the distance between the charges.
The law can’t be used directly to calculate the charge on the big planets.
Relevance of Coulomb’s law in experiment
If Coulomb’s law is applied to two identical balls of mass m are hung by silk thread of length
‘l’ from the same hook and carry similar charges q, then;
The distance between balls
= [
𝑞2
2𝑙
4𝜋𝜖𝑜𝑚𝑔
]
1
3
The tension in the thread
= √𝑓2 + (𝑚𝑔)2
If the total system is kept in space, then the angle between threads is 180°, and tension in a
thread is given by; 𝑇 =
1
4𝜋∈0
𝑞2
4ℓ2](https://image.slidesharecdn.com/physicsproject-220828203032-e3b28dfa/85/Physics-project-7-320.jpg)
![12
From triangle OBC, Sin Ø= (x/2)/L= x/2L
Let the charge on each ball, Q1=Q2=Q
Then at equilibrium, mg sin Ø= (KQ x Q)/ x2
mg x/2L= KQ2
/x2
Q= [(mgx3
)/2LK]1/2
Where K= 9 x 109
N⋅m^2⋅C^−2 and g= 9.8 m/s^2
By substituting value of mass (m), separation between ball (x) and length of thread used to
suspend ball.
Procedure-
1. Measure the mass (m) of each of the two identical pith balls using a physical balance and
note it down
2. Suspend both balls using two silk or cotton threads at a point on a stand or rigid support.
Measure length of threads using half- metre scale. The lengths should be equal. Note
down both lengths
3. Rub the glass tod silk cloth to induce charge on it. Now touch the glass rod with both the
pith balls together so that equal charge is induced on both the balls.
4. When left freely, the two balls will repel each other. Measure the distance between the
balls when are at rest. Note down the distance.
5. To change the charge on ball, touch any one suspended ball with other uncharged third
ball, take third ball away and repeat step 4
6. Touch other uncharged suspended with other uncharged 4th
ball and take the 4th
ball away
and repeat step 4.
Observation-
Mass of each ball, m=
Radius of each ball, r=
Length of each thread, L=
Table-](https://image.slidesharecdn.com/physicsproject-220828203032-e3b28dfa/85/Physics-project-12-320.jpg)
![13
S.no Charge on Ball A Charge on ball B Distance between Balls (x)
1 0 0
2
3
4
Calculation-
Using relation,
Q= [(mgx3
)/2LK]1/2
We can calculate acquired charge in each case.
Result-
The charge on each ball=
Precautions-
1.) Suspended balls should not be touched by any conducting body
2.) Rub the glass rod properly with silk cloth to produce more charge
3.) Weigh the mass of balls accurately
Source of error-
1.) Balls may not be of equal size and mass
2.) Distance may not be measured accurately](https://image.slidesharecdn.com/physicsproject-220828203032-e3b28dfa/85/Physics-project-13-320.jpg)
More Related Content
Physics project
- 1. 1 INVESTIGATORY PROJECT NAME- Inkithagupta CLASS- XII STREAM- Science (PCMB) SUBJECT- Physics TOPIC- To estimate charge induced on two identical Styrofoam balls suspended in vertical plane by usage of Coulomb’s law.
- 2. 2 INDEX IMAGES S.no Title Pageno 1 Acknowledgement 3 2 Introduction 4-7 3 Experiment 8-13 4 Conclusion 14-15 5 Bibliography 16 S.no Title Page no 1 Coulomb’s law 6 2 Movement of electrons in conductor 9 3 Charge induction 10 4 Pith ball electroscope 10 5 Apparatus 11

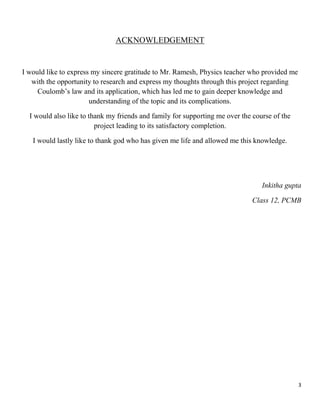

- 3. 3 ACKNOWLEDGEMENT I would liketo express my sincere gratitude to Mr. Ramesh, Physics teacher who provided me with the opportunity to research and express my thoughts through this project regarding Coulomb’s law and its application, which has led me to gain deeper knowledge and understanding of the topic and its complications. I would also like to thank my friends and family for supporting me over the course of the project leading to its satisfactory completion. I would lastly like to thank god who has given me life and allowed me this knowledge. Inkitha gupta Class 12, PCMB
