Performance tuning PHP on IBMi

Performance Tuning PHP on IBM i

Mike Pavlak Alan Seiden
Solution Consultant Strategic Business Systems

Watch the recorded webinar: http://bit.ly/A4NjYM

© All rights reserved. Zend Technologies, Inc.

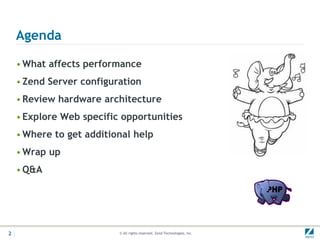

Agenda

• What affects performance
• Zend Server configuration
• Review hardware architecture
• Explore Web specific opportunities
• Where to get additional help
• Wrap up
• Q&A

2 © All rights reserved. Zend Technologies, Inc.

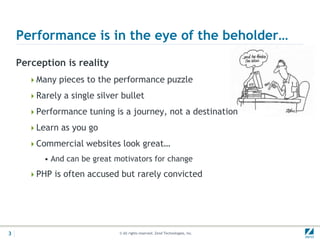

Performance is in the eye of the beholder…
Perception is reality
Many pieces to the performance puzzle

Rarely a single silver bullet

Performance tuning is a journey, not a destination

Learn as you go

Commercial websites look great…
• And can be great motivators for change
PHP is often accused but rarely convicted

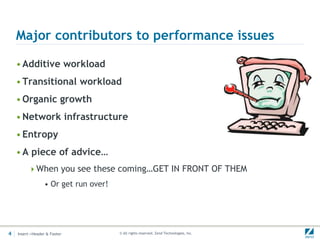

Major contributors to performance issues

• Additive workload
• Transitional workload
• Organic growth
• Network infrastructure
• Entropy
• A piece of advice…
When you see these coming…GET IN FRONT OF THEM
• Or get run over!

4 Insert->Header & Footer © All rights reserved. Zend Technologies, Inc.

Speed = money
• Google’s experiment
Google Search lists 10 results per page

They tested pages of 30 results
• Traffic and revenue dropped by 20%
• Why?
– 10 results took .4 seconds to generate
– 30 results took .9 seconds
• A ½ second delay caused a 20% drop in traffic
Source:
http://glinden.blogspot.com/2006/11/marissa
-mayer-at-web-20.html

Performance Tuning PHP on IBM i | 5 © All rights reserved. Zend Technologies, Inc.

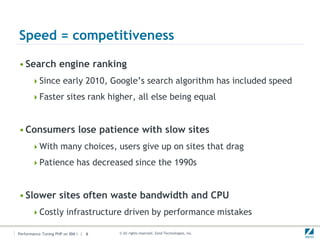

Speed = competitiveness

• Search engine ranking
Since early 2010, Google’s search algorithm has included speed

Faster sites rank higher, all else being equal

• Consumers lose patience with slow sites
With many choices, users give up on sites that drag

Patience has decreased since the 1990s

• Slower sites often waste bandwidth and CPU
Costly infrastructure driven by performance mistakes

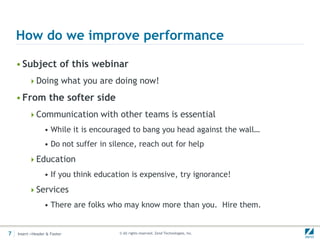

How do we improve performance

• Subject of this webinar
Doing what you are doing now!

• From the softer side
Communication with other teams is essential
• While it is encouraged to bang you head against the wall…
• Do not suffer in silence, reach out for help
Education
• If you think education is expensive, try ignorance!
Services
• There are folks who may know more than you. Hire them.



www.zend.com

Looking at Zend Server Administration


Zend Server for IBM i 5.6

• Zend Server is Home Base
• Configuration options abound
• We will look at
FastCGI settings

Logs

Extensions

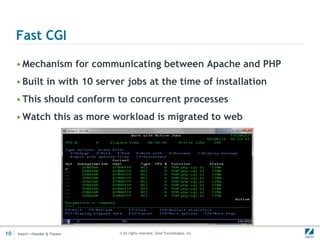

Fast CGI

• Mechanism for communicating between Apache and PHP
• Built in with 10 server jobs at the time of installation
• This should conform to concurrent processes
• Watch this as more workload is migrated to web


Fast CGI
• Changing this
is something that should be considered

But not taken lightly (system resources, etc.)

• File to edit:
/www/zendsvr/conf/fastcgi.conf

SetEnv="PHP_FCGI_CHILDREN=10"

• But don’t forget…
StartProcesses = “2” * PHP_FCGI_CHILDREN = 8 is 16 total worker jobs

http://www.youngiprofessionals.com/wiki/FastCGI

http://www.systeminetwork.com/article/other-
languages/fastcgi-boosts-php-performance-on-ibm-i-66195


PHP Logs

• IFS performance, minimize read/writes
Alan will discuss more

But what about the logs

• Consider the event monitor
• Read the logs
• Reduce the messages
• Clip the log
/usr/local/zendsvr/var/log/php.log

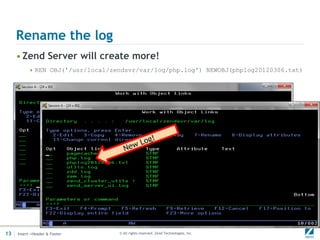

Rename the log
• Zend Server will create more!
 REN OBJ('/usr/local/zendsvr/var/log/php.log') NEWOBJ(phplog20120306.txt)

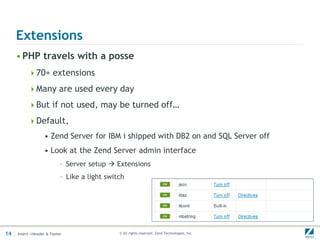

Extensions
• PHP travels with a posse
70+ extensions

Many are used every day

But if not used, may be turned off…

Default,
• Zend Server for IBM i shipped with DB2 on and SQL Server off
• Look at the Zend Server admin interface
– Server setup  Extensions
– Like a light switch

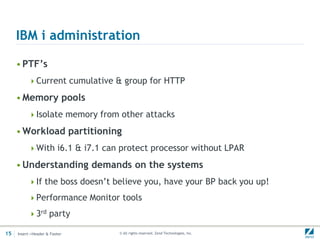

IBM i administration

• PTF’s
Current cumulative & group for HTTP

• Memory pools
Isolate memory from other attacks

• Workload partitioning
With i6.1 & i7.1 can protect processor without LPAR

• Understanding demands on the systems
If the boss doesn’t believe you, have your BP back you up!

Performance Monitor tools

3rd party

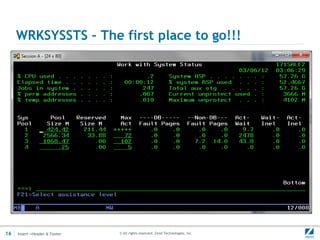

WRKSYSSTS – The first place to go!!!



www.zend.com

Tools

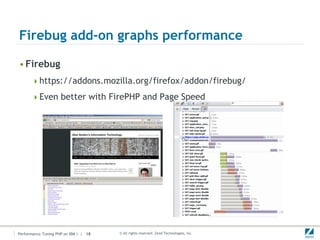

Firebug add-on graphs performance

• Firebug
https://addons.mozilla.org/firefox/addon/firebug/

Even better with FirePHP and Page Speed



www.zend.com

Use Compression

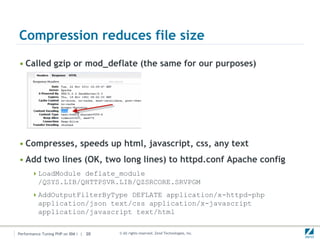

Compression reduces file size
• Called gzip or mod_deflate (the same for our purposes)

• Compresses, speeds up html, javascript, css, any text
• Add two lines (OK, two long lines) to httpd.conf Apache config
 LoadModule deflate_module
/QSYS.LIB/QHTTPSVR.LIB/QZSRCORE.SRVPGM
 AddOutputFilterByType DEFLATE application/x-httpd-php
application/json text/css application/x-javascript
application/javascript text/html

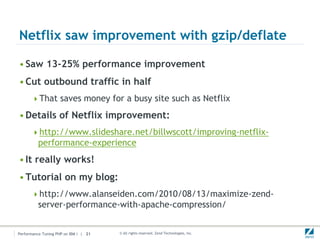

Netflix saw improvement with gzip/deflate

• Saw 13-25% performance improvement
• Cut outbound traffic in half
That saves money for a busy site such as Netflix

• Details of Netflix improvement:
http://www.slideshare.net/billwscott/improving-netflix-
performance-experience
• It really works!
• Tutorial on my blog:
http://www.alanseiden.com/2010/08/13/maximize-zend-
server-performance-with-apache-compression/



www.zend.com

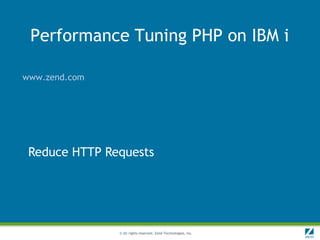

Reduce HTTP Requests

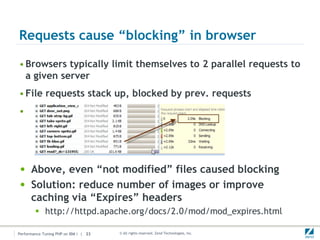

Requests cause “blocking” in browser

• Browsers typically limit themselves to 2 parallel requests to
a given server
• File requests stack up, blocked by prev. requests
•

• Above, even “not modified” files caused blocking
• Solution: reduce number of images or improve
caching via “Expires” headers
 http://httpd.apache.org/docs/2.0/mod/mod_expires.html

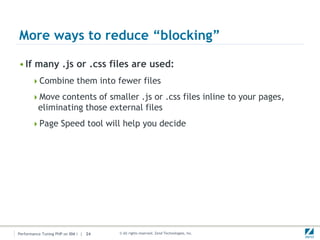

More ways to reduce “blocking”

• If many .js or .css files are used:
Combine them into fewer files

Move contents of smaller .js or .css files inline to your pages,
eliminating those external files
Page Speed tool will help you decide



www.zend.com

Ajax: friend or foe?

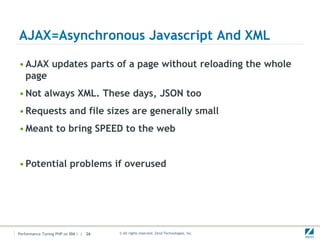

AJAX=Asynchronous Javascript And XML

• AJAX updates parts of a page without reloading the whole
page
• Not always XML. These days, JSON too
• Requests and file sizes are generally small
• Meant to bring SPEED to the web

• Potential problems if overused


AJAX mistake #1
• Too much of a good thing
Requiring several AJAX requests to complete before the page
itself can load fully
Too many HTTP requests at once
I’ve seen a situation where 4 AJAX requests were embedded in a
page load
• The AJAX doesn’t even start till the page loads
• Causes “blocking” as the requests pile up, waiting for the previous
ones to complete
Solution: when page first loads, embed AJAX content right in the
page
• Re-use logic on the server side when building page
• Subsequent updates can be done with AJAX

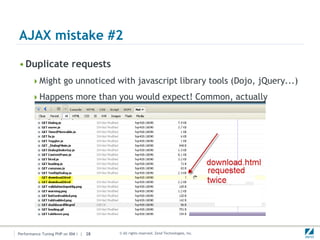

AJAX mistake #2

• Duplicate requests
Might go unnoticed with javascript library tools (Dojo, jQuery...)

Happens more than you would expect! Common, actually

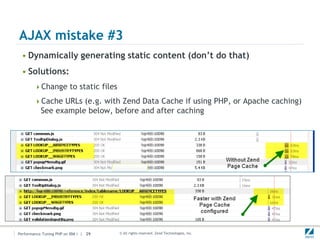

AJAX mistake #3
• Dynamically generating static content (don’t do that)
• Solutions:
Change to static files

Cache URLs (e.g. with Zend Data Cache if using PHP, or Apache caching)
See example below, before and after caching



www.zend.com

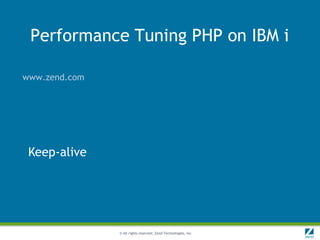

Keep-alive

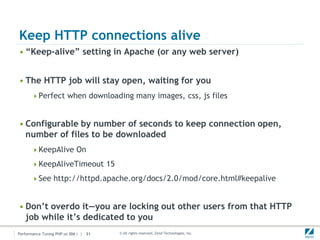

Keep HTTP connections alive
• “Keep-alive” setting in Apache (or any web server)

• The HTTP job will stay open, waiting for you
Perfect when downloading many images, css, js files

• Configurable by number of seconds to keep connection open,
number of files to be downloaded
KeepAlive On

KeepAliveTimeout 15

See http://httpd.apache.org/docs/2.0/mod/core.html#keepalive

• Don’t overdo it—you are locking out other users from that HTTP
job while it’s dedicated to you

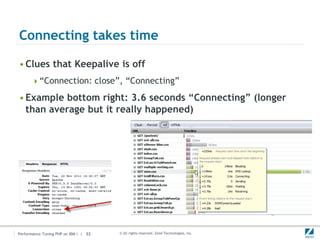

Connecting takes time

• Clues that Keepalive is off
“Connection: close”, “Connecting”

• Example bottom right: 3.6 seconds “Connecting” (longer
than average but it really happened)

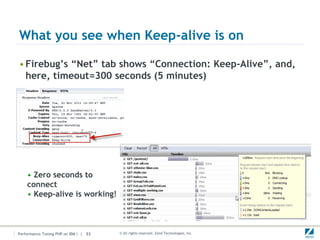

What you see when Keep-alive is on

• Firebug’s “Net” tab shows “Connection: Keep-Alive”, and,
here, timeout=300 seconds (5 minutes)

• Zero seconds to
connect
• Keep-alive is working!



www.zend.com

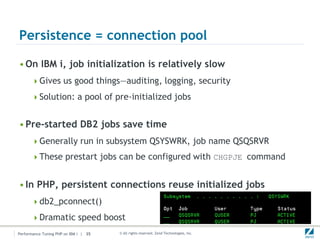

Persistent DB Connections


Persistence = connection pool

• On IBM i, job initialization is relatively slow
Gives us good things—auditing, logging, security

Solution: a pool of pre-initialized jobs

• Pre-started DB2 jobs save time
Generally run in subsystem QSYSWRK, job name QSQSRVR

These prestart jobs can be configured with CHGPJE command

• In PHP, persistent connections reuse initialized jobs
db2_pconnect()

Dramatic speed boost

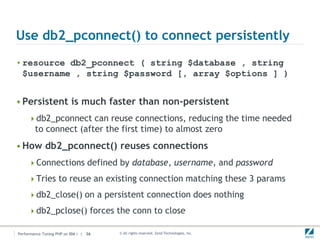

Use db2_pconnect() to connect persistently
• resource db2_pconnect ( string $database , string
$username , string $password [, array $options ] )

• Persistent is much faster than non-persistent
db2_pconnect can reuse connections, reducing the time needed
to connect (after the first time) to almost zero
• How db2_pconnect() reuses connections
Connections defined by database, username, and password

Tries to reuse an existing connection matching these 3 params

db2_close() on a persistent connection does nothing

db2_pclose() forces the conn to close

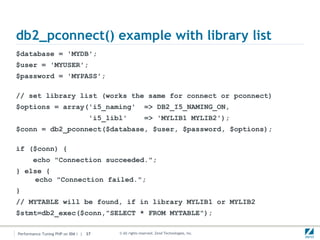

db2_pconnect() example with library list
$database = 'MYDB';
$user = 'MYUSER';
$password = 'MYPASS';

// set library list (works the same for connect or pconnect)
$options = array('i5_naming' => DB2_I5_NAMING_ON,
'i5_libl' => 'MYLIB1 MYLIB2');
$conn = db2_pconnect($database, $user, $password, $options);

if ($conn) {
echo "Connection succeeded.";
} else {
echo "Connection failed.";
}
// MYTABLE will be found, if in library MYLIB1 or MYLIB2
$stmt=db2_exec($conn,"SELECT * FROM MYTABLE");


Rules for using persistence
• Because connections are shared when defined with an
identical database, user, and password, please:
Avoid unpredictable results by also specifying the same $options
for these connections
Promote sharing of jobs by minimizing the number of user profiles
that you connect with
• Each user profile creates a new set of database jobs
• Each set of jobs consumes system resources

• More information:
“DB2 and PHP Best Practices on IBM i” at
http://alanseiden.com/presentations


New open source PHP IBM i toolkit
• Ships with Zend Server 5.6+
PTFs and hotfixes on download page
Many improvements since first release

• Information and updates:
Young i Professionals site
• http://youngiprofessionals.com/wiki/XMLSERVICE
Zend Forum for Q&A and tips
• http://forums.zend.com/viewtopic.php?f=113&t=41648
• “PHP on IBM i”->”Zend Server for IBM i”->”New Toolkit”

• Efficient: use single DB2 connection for SQL and Toolkit
http://forums.zend.com/viewtopic.php?f=113&t=46688
Persistent connection is the fastest


www.zend.com

Wrap it up

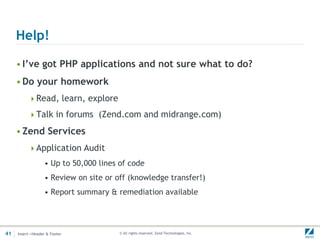

Help!

• I’ve got PHP applications and not sure what to do?
• Do your homework
Read, learn, explore

Talk in forums (Zend.com and midrange.com)

• Zend Services
Application Audit
• Up to 50,000 lines of code
• Review on site or off (knowledge transfer!)
• Report summary & remediation available

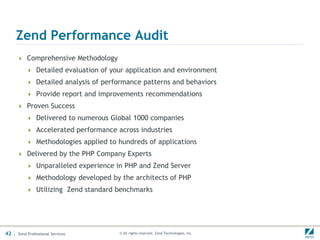

Zend Performance Audit
 Comprehensive Methodology
 Detailed evaluation of your application and environment
 Detailed analysis of performance patterns and behaviors
 Provide report and improvements recommendations
 Proven Success
 Delivered to numerous Global 1000 companies
 Accelerated performance across industries
 Methodologies applied to hundreds of applications
 Delivered by the PHP Company Experts
 Unparalleled experience in PHP and Zend Server
 Methodology developed by the architects of PHP
 Utilizing Zend standard benchmarks

42 Zend Professional Services © All rights reserved. Zend Technologies, Inc.

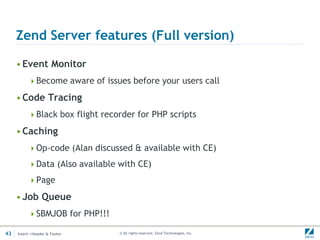

Zend Server features (Full version)

• Event Monitor
Become aware of issues before your users call

• Code Tracing
Black box flight recorder for PHP scripts

• Caching
Op-code (Alan discussed & available with CE)

Data (Also available with CE)

Page

• Job Queue
SBMJOB for PHP!!!

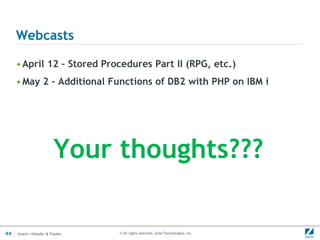

Webcasts

• April 12 – Stored Procedures Part II (RPG, etc.)
• May 2 – Additional Functions of DB2 with PHP on IBM i

Your thoughts???


Events where you’ll find Zend…
• User groups
WMCPA (Lake Geneva, WI) Mar 20-22 (Mike & Alan)
• http://wmcpa.org/
NEUGC (Boston, MA) April 2-4
• http://neugc.org/

Alan:
March 29: COMMON webcast: more performance tips
http://www.common.org/index.php/webcasts/upcoming-webcasts.html

April 5: live online event with System i Network
New PHP Toolkit for IBM i
http://www.systeminetwork.com/events/upcoming-events

In New York City? I host the NYC Zend Framework Meetup
http://www.meetup.com/ZendFramework-NYCmetro/

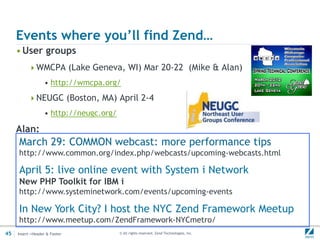

Events where you’ll find Zend…(cont.)
• Major venues
RPG & DB2 Summit (Ft. Worth, TX) Mar 25-28
• http://www.systemideveloper.com/Summit/conferences.html

COMMON Annual Meeting and Expo (Anaheim, CA) May 6-9
• http://www.common.org/index.php/annualmeeting.html

COMMON Fall Conference (Columbus, OH) Sep 24-26
• http://www.common.org/index.php/fall-conference-and-expo.html

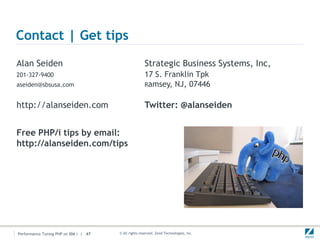

Contact | Get tips
Alan Seiden Strategic Business Systems, Inc,
201-327-9400 17 S. Franklin Tpk
aseiden@sbsusa.com Ramsey, NJ, 07446

http://alanseiden.com Twitter: @alanseiden

Free PHP/i tips by email:
http://alanseiden.com/tips


Q&A
mike.p@zend.com

aseiden@sbsusa.com
Watch the recorded webinar: http://bit.ly/A4NjYM


Performance tuning PHP on IBMi

More Related Content

What's hot

Similar to Performance tuning PHP on IBMi

More from Zend by Rogue Wave Software

Recently uploaded

Performance tuning PHP on IBMi
