1. © 2015 Phase2
Performance Profiling Tools
& Tricks
19 October 2015
All Things Open 2015

2. © 2015 Phase2

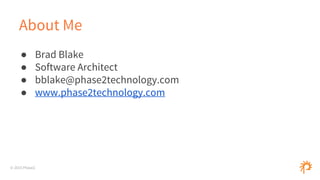

About Me
● Brad Blake
● Software Architect
● bblake@phase2technology.com
● www.phase2technology.com

3. © 2015 Phase2
Profiling

4. © 2015 Phase2

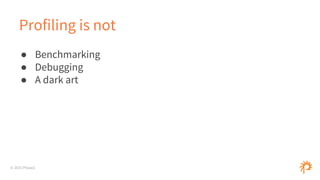

Profiling is not
● Benchmarking
● Debugging
● A dark art

5. © 2015 Phase2

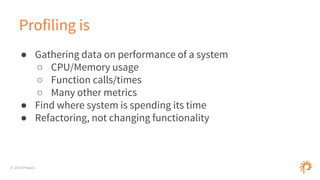

Profiling is
● Gathering data on performance of a system
○ CPU/Memory usage
○ Function calls/times
○ Many other metrics
● Find where system is spending its time
● Refactoring, not changing functionality

6. © 2015 Phase2
Profiling is

7. © 2015 Phase2

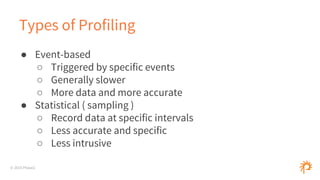

Types of Profiling
● Event-based
○ Triggered by specific events
○ Generally slower
○ More data and more accurate
● Statistical ( sampling )
○ Record data at specific intervals
○ Less accurate and specific
○ Less intrusive

8. © 2015 Phase2
Before you start
● Determine if you have a performance issue
● How big of an issue is it?
● Benchmark
○ ab, httperf, siege, JMeter
● Determine your goal

9. © 2015 Phase2
Do’s
● Get to a functional system quickly, then measure it
○ Needs to be a ‘real’ system
○ Alternative is to prematurely optimize
● Be data-driven
● tail (-f) (-n) is your friend
● Go after items with highest cost
○ Not necessarily the outliers
● Test after each change

10. © 2015 Phase2

11. © 2015 Phase2

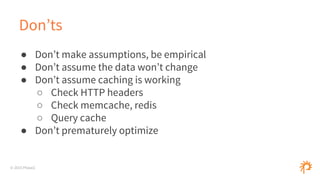

Don’ts
● Don’t make assumptions, be empirical
● Don’t assume the data won’t change
● Don’t assume caching is working
○ Check HTTP headers
○ Check memcache, redis
○ Query cache
● Don’t prematurely optimize

12. © 2015 Phase2

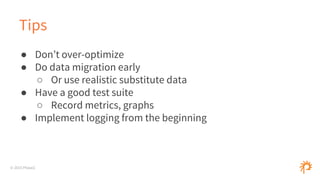

Tips
● Don’t over-optimize
● Do data migration early
○ Or use realistic substitute data
● Have a good test suite
○ Record metrics, graphs
● Implement logging from the beginning

13. © 2015 Phase2
Tips (cont.)
● Increasing memory is NOT A FIX
● Understand bigO concepts
● Match production settings ( Vagrant, Chef, OpenStack, etc )
and configs ( production mode )

14. © 2015 Phase2

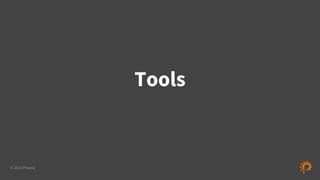

Tools

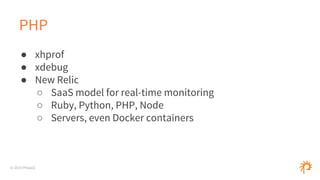

15. © 2015 Phase2
PHP
● xhprof
● xdebug
● New Relic
○ SaaS model for real-time monitoring
○ Ruby, Python, PHP, Node
○ Servers, even Docker containers

16. © 2015 Phase2

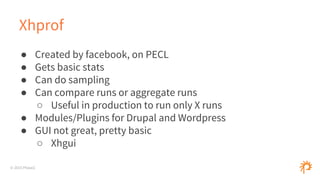

Xhprof
● Created by facebook, on PECL
● Gets basic stats
● Can do sampling
● Can compare runs or aggregate runs
○ Useful in production to run only X runs
● Modules/Plugins for Drupal and Wordpress
● GUI not great, pretty basic
○ Xhgui

17. © 2015 Phase2

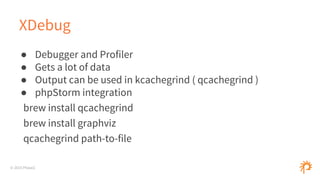

XDebug
● Debugger and Profiler
● Gets a lot of data
● Output can be used in kcachegrind ( qcachegrind )
● phpStorm integration
brew install qcachegrind
brew install graphviz
qcachegrind path-to-file

18. © 2015 Phase2

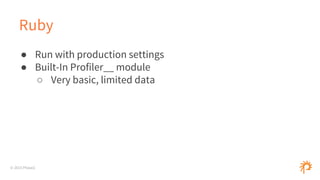

Ruby
● Run with production settings
● Built-In Profiler__ module
○ Very basic, limited data

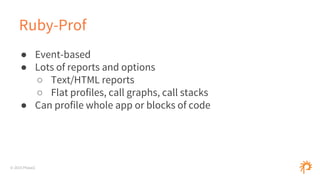

19. © 2015 Phase2
Ruby-Prof
● Event-based
● Lots of reports and options
○ Text/HTML reports
○ Flat profiles, call graphs, call stacks
● Can profile whole app or blocks of code

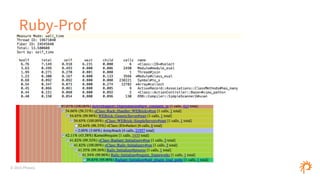

20. © 2015 Phase2
Ruby-Prof

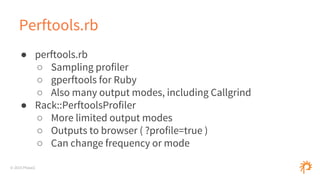

21. © 2015 Phase2
Perftools.rb
● perftools.rb
○ Sampling profiler
○ gperftools for Ruby
○ Also many output modes, including Callgrind
● Rack::PerftoolsProfiler
○ More limited output modes
○ Outputs to browser ( ?profile=true )
○ Can change frequency or mode

22. © 2015 Phase2

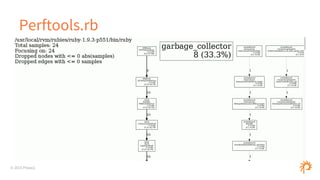

Perftools.rb

23. © 2015 Phase2

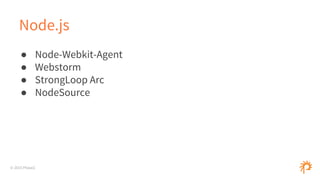

Node.js
● Node-Webkit-Agent
● Webstorm
● StrongLoop Arc
● NodeSource

24. © 2015 Phase2
Flamegraphs

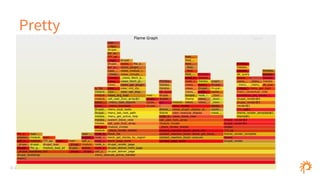

25. © 2015 Phase2
Pretty

26. © 2015 Phase2

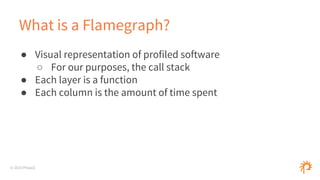

What is a Flamegraph?
● Visual representation of profiled software
○ For our purposes, the call stack
● Each layer is a function
● Each column is the amount of time spent

27. © 2015 Phase2
Why use a Flamegraph?
● Easier for non-technical people
● Easy to diagnose the quick problems
○ What was on the CPU at each interval
● Low overhead
● Pretty

28. © 2015 Phase2

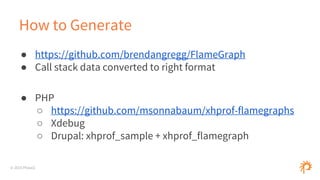

How to Generate
● https://github.com/brendangregg/FlameGraph
● Call stack data converted to right format
● PHP
○ https://github.com/msonnabaum/xhprof-flamegraphs
○ Xdebug
○ Drupal: xhprof_sample + xhprof_flamegraph

29. © 2015 Phase2

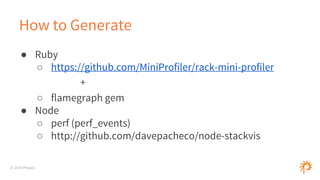

How to Generate
● Ruby
○ https://github.com/MiniProfiler/rack-mini-profiler
+
○ flamegraph gem
● Node
○ perf (perf_events)
○ http://github.com/davepacheco/node-stackvis

30. © 2015 Phase2

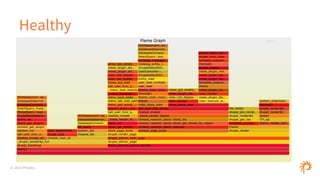

Healthy

31. © 2015 Phase2

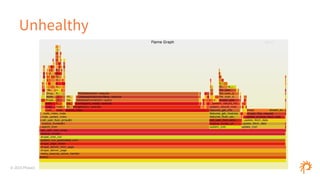

Unhealthy

32. © 2015 Phase2

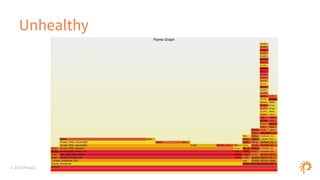

Unhealthy

33. © 2015 Phase2
Query Tuning

34. © 2015 Phase2
How to Diagnose
● Slow query log
● mysql: slow_query_log, slow_query_log_file
○ Logs all queries - X seconds and examine at least X rows
○ Except admin statements ( alter, drop, etc )
○ log_queries_not_using_indexes
● mongo: db.setProfilingLevel()
○ system.profile collection

35. © 2015 Phase2

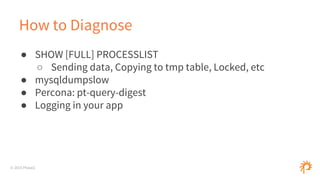

How to Diagnose
● SHOW [FULL] PROCESSLIST
○ Sending data, Copying to tmp table, Locked, etc
● mysqldumpslow
● Percona: pt-query-digest
● Logging in your app

36. © 2015 Phase2
Why is my query slow?
● Too much data
○ Fetching too many columns/rows
○ Examining too many rows
● Poorly designed schema
○ Shorter rows generally better
● Lack of proper indexes
○ Or too many indexes

37. © 2015 Phase2

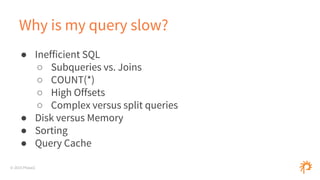

Why is my query slow?
● Inefficient SQL
○ Subqueries vs. Joins
○ COUNT(*)
○ High Offsets
○ Complex versus split queries
● Disk versus Memory
● Sorting
● Query Cache

38. © 2015 Phase2

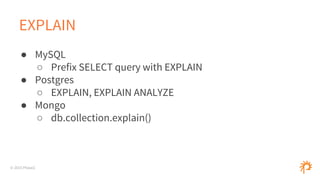

EXPLAIN
● MySQL
○ Prefix SELECT query with EXPLAIN
● Postgres
○ EXPLAIN, EXPLAIN ANALYZE
● Mongo
○ db.collection.explain()

39. © 2015 Phase2
The Optimizer
● Chooses execution plan with lowest cost
○ Not necessarily the fastest
○ Looks at number of rows, indexes, cardinality, length of
keys
○ optimizer_trace ( 5.6 )
○ EXPLAIN FORMAT=JSON ( 5.7 )
● Can do things like reorder and convert JOINs
● Subquery optimization

40. © 2015 Phase2

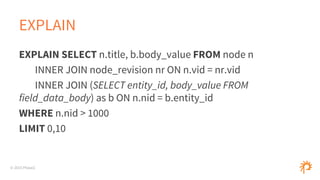

EXPLAIN
EXPLAIN SELECT n.title, b.body_value FROM node n
INNER JOIN node_revision nr ON n.vid = nr.vid
INNER JOIN (SELECT entity_id, body_value FROM
field_data_body) as b ON n.nid = b.entity_id
WHERE n.nid > 1000
LIMIT 0,10

41. © 2015 Phase2

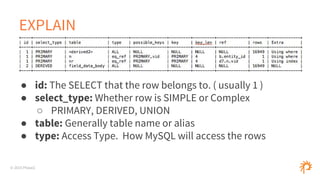

EXPLAIN
● id: The SELECT that the row belongs to. ( usually 1 )
● select_type: Whether row is SIMPLE or Complex
○ PRIMARY, DERIVED, UNION
● table: Generally table name or alias
● type: Access Type. How MySQL will access the rows

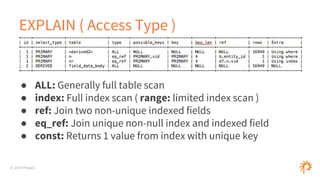

42. © 2015 Phase2
EXPLAIN ( Access Type )
● ALL: Generally full table scan
● index: Full index scan ( range: limited index scan )
● ref: Join two non-unique indexed fields
● eq_ref: Join unique non-null index and indexed field
● const: Returns 1 value from index with unique key

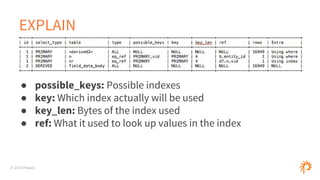

43. © 2015 Phase2
EXPLAIN
● possible_keys: Possible indexes
● key: Which index actually will be used
● key_len: Bytes of the index used
● ref: What it used to look up values in the index

44. © 2015 Phase2
EXPLAIN
● rows: ESTIMATE of rows MySQL will need to read
● Extra: Anything else
○ Using filesort
○ Using temporary
○ Using where
○ Using index

45. © 2015 Phase2

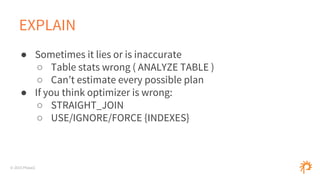

EXPLAIN
● Sometimes it lies or is inaccurate
○ Table stats wrong ( ANALYZE TABLE )
○ Can’t estimate every possible plan
● If you think optimizer is wrong:
○ STRAIGHT_JOIN
○ USE/IGNORE/FORCE {INDEXES}

46. © 2015 Phase2

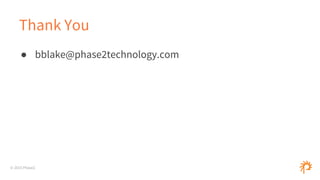

Thank You
● bblake@phase2technology.com
