1. Pebble Watch Development
First Glance

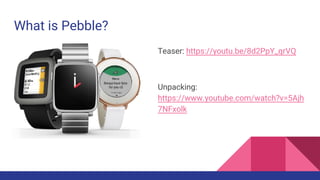

2. What is Pebble?
Teaser: https://youtu.be/8d2PpY_qrVQ
Unpacking:
https://www.youtube.com/watch?v=5Ajh
7NFxolk

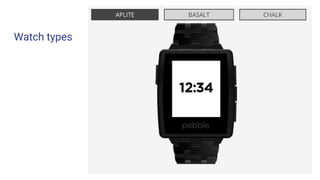

3. Watch types

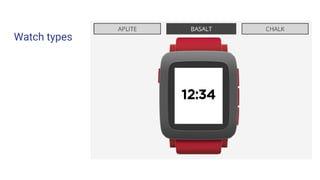

4. Watch types

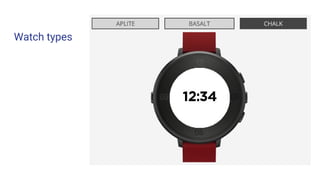

5. Watch types

6. Pebble
Developer
Portal
https://developer.pebble.com
● Instructions for
CloudPebble and SDK
● C Language
● Android and iOS SDKs
● Guides, examples, blog

7. Emulators

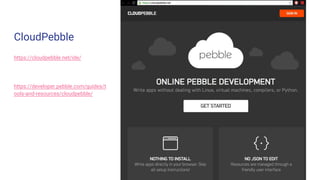

8. CloudPebble
https://cloudpebble.net/ide/
https://developer.pebble.com/guides/t
ools-and-resources/cloudpebble/

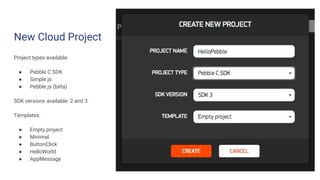

9. New Cloud Project
Project types available:
● Pebble C SDK
● Simple.js
● Pebble.js (beta)
SDK versions available: 2 and 3.
Templates:
● Empty project
● Minimal
● ButtonClick
● HelloWorld
● AppMessage

10. Import Project
● From GitHub
● From .zip

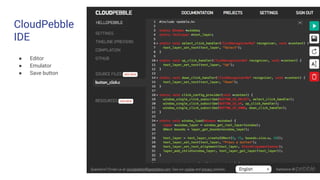

11. CloudPebble
IDE
● Editor
● Emulator
● Save button

12. Settings

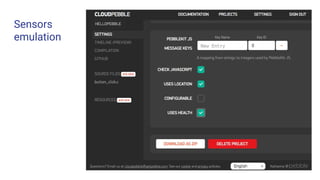

13. Sensors
emulation

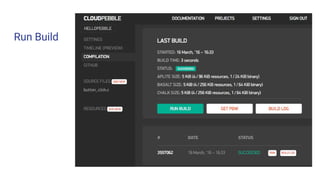

14. Run Build

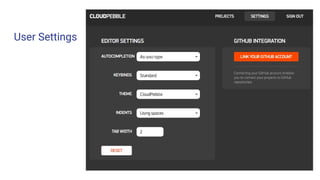

15. User Settings

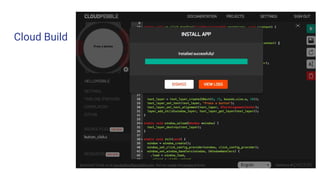

16. Cloud Build

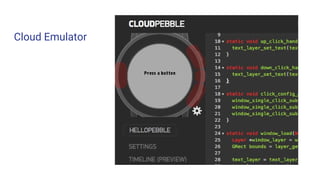

17. Cloud Emulator

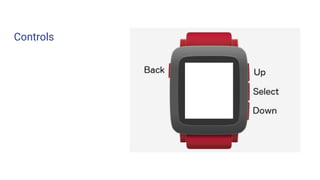

18. Controls

19. Controls

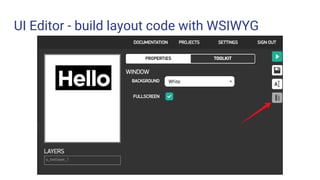

20. UI Editor - build layout code with WSIWYG

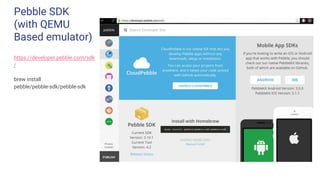

21. Pebble SDK
(with QEMU
Based emulator)
https://developer.pebble.com/sdk/install/mac/
https://developer.pebble.com/sdk
/
brew install
pebble/pebble-sdk/pebble-sdk

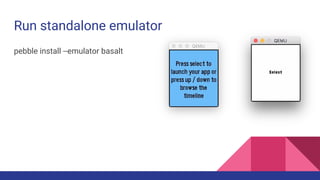

22. Run standalone emulator
pebble install --emulator basalt

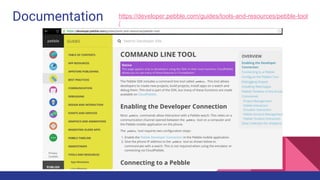

23. Documentation https://developer.pebble.com/guides/tools-and-resources/pebble-tool
/

24. iOS and Android SDKs
https://github.com/pebble/pebble-ios-sdk/
CocoaPods and Carthage supported
https://github.com/pebble/pebble-android-sdk/
Gradle, Maven and jar available

25. Development

26. App structure
● main() function
● app_event_loop() is mandatory
● init() and deinit() are optional

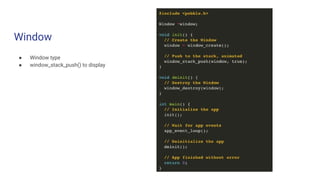

27. Window
● Window type
● window_stack_push() to display

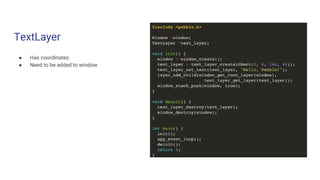

28. TextLayer
● Has coordinates
● Need to be added to window

29. TextLayer formatting

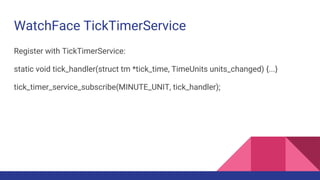

30. WatchFace TickTimerService
Register with TickTimerService:
static void tick_handler(struct tm *tick_time, TimeUnits units_changed) {...}
tick_timer_service_subscribe(MINUTE_UNIT, tick_handler);

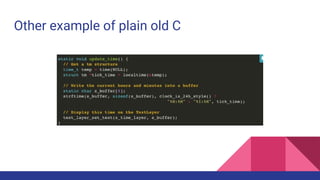

31. Other example of plain old C

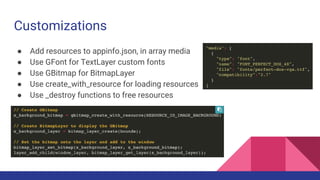

32. Customizations
● Add resources to appinfo.json, in array media
● Use GFont for TextLayer custom fonts
● Use GBitmap for BitmapLayer
● Use create_with_resource for loading resources
● Use _destroy functions to free resources

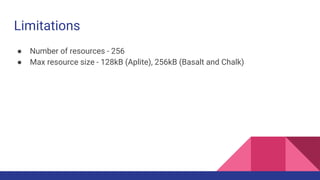

33. Limitations
● Number of resources - 256
● Max resource size - 128kB (Aplite), 256kB (Basalt and Chalk)

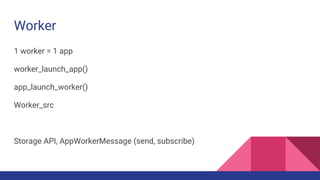

34. Worker
1 worker = 1 app
worker_launch_app()
app_launch_worker()
Worker_src
Storage API, AppWorkerMessage (send, subscribe)

35. Event Services
https://developer.pebble.com/docs/c/Foundation/Event_Service/
https://developer.pebble.com/guides/events-and-services/events/
Handler may listen for event, or use “peek” style to read single data from API
● AppFocusService
● AccelerometerService
● BatteryStateService
● ConnectionService
● HealthService
● TickTimerService

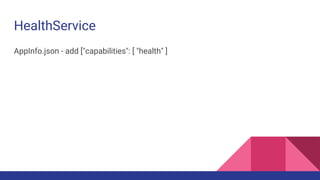

36. HealthService
AppInfo.json - add ["capabilities": [ "health" ]

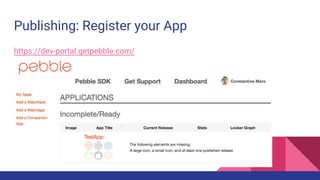

37. Publishing: Register your App
https://dev-portal.getpebble.com/

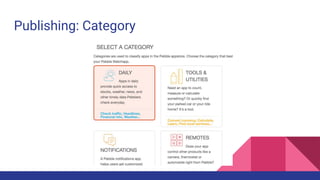

38. Publishing: Category

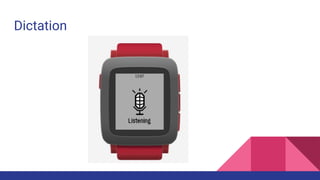

39. Dictation

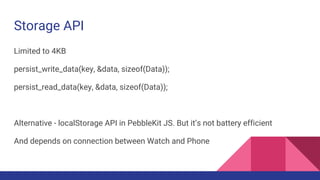

40. Storage API
Limited to 4KB
persist_write_data(key, &data, sizeof(Data));
persist_read_data(key, &data, sizeof(Data));
Alternative - localStorage API in PebbleKit JS. But it’s not battery efficient
And depends on connection between Watch and Phone

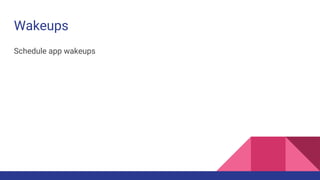

41. Wakeups
Schedule app wakeups

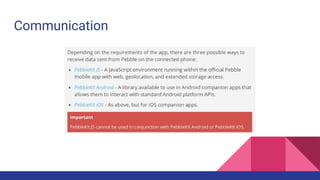

42. Communication

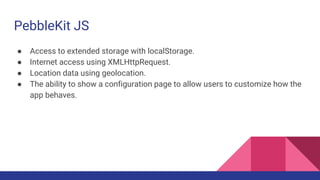

43. PebbleKit JS
● Access to extended storage with localStorage.
● Internet access using XMLHttpRequest.
● Location data using geolocation.
● The ability to show a configuration page to allow users to customize how the
app behaves.

44. AppMessage API
Bi-directional communication between phone apps and Pebble watchapps.
ACKnowledged or "NACK'ed,"
app_message_open()
APP_MESSAGE_INBOX_SIZE_MINIMUM and
APP_MESSAGE_OUTBOX_SIZE_MINIMUM
app_message_inbox_size_maximum() and
app_message_outbox_size_maximum()

45. Companion Apps

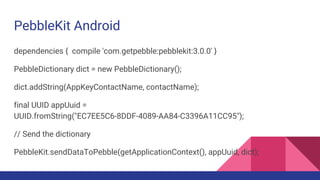

46. PebbleKit Android
dependencies { compile 'com.getpebble:pebblekit:3.0.0' }
PebbleDictionary dict = new PebbleDictionary();
dict.addString(AppKeyContactName, contactName);
final UUID appUuid =
UUID.fromString("EC7EE5C6-8DDF-4089-AA84-C3396A11CC95");
// Send the dictionary
PebbleKit.sendDataToPebble(getApplicationContext(), appUuid, dict);

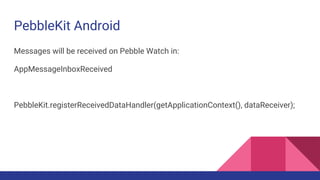

47. PebbleKit Android
Messages will be received on Pebble Watch in:
AppMessageInboxReceived
PebbleKit.registerReceivedDataHandler(getApplicationContext(), dataReceiver);

48. PebbleKit Android
// Create a new receiver to get AppMessages from the C app
PebbleDataReceiver dataReceiver = new PebbleDataReceiver(appUuid) {
@Override
public void receiveData(Context context, int transaction_id,
PebbleDictionary dict) {
// A new AppMessage was received, tell Pebble
PebbleKit.sendAckToPebble(context, transaction_id);
}
};

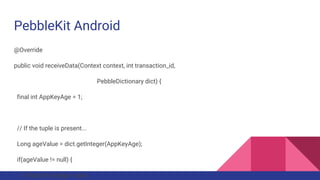

49. PebbleKit Android
@Override
public void receiveData(Context context, int transaction_id,
PebbleDictionary dict) {
final int AppKeyAge = 1;
// If the tuple is present...
Long ageValue = dict.getInteger(AppKeyAge);
if(ageValue != null) {
// Read the integer value

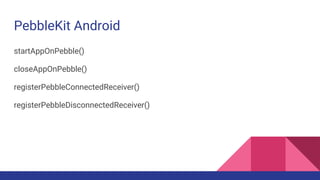

50. PebbleKit Android
startAppOnPebble()
closeAppOnPebble()
registerPebbleConnectedReceiver()
registerPebbleDisconnectedReceiver()

51. PebbleKit iOS
NSUUID *myAppUUID =
[[NSUUID alloc]
initWithUUIDString:@"226834ae-786e-4302-a52f-6e7efc9f990b"];
[PBPebbleCentral defaultCentral].appUUID = myAppUUID;

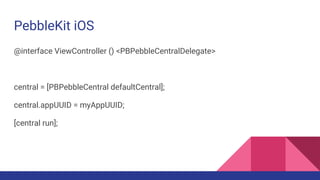

52. PebbleKit iOS
@interface ViewController () <PBPebbleCentralDelegate>
central = [PBPebbleCentral defaultCentral];
central.appUUID = myAppUUID;
[central run];

53. PebbleKit iOS
[PBPebbleCentral defaultCentral].delegate = self;
- (void)pebbleCentral:(PBPebbleCentral*)central
watchDidConnect:(PBWatch*)watch isNew:(BOOL)isNew {
NSLog(@"Pebble connected: %@", [watch name]);
// Keep a reference to this watch
self.connectedWatch = watch;
}

54. PebbleKit iOS
[[PBPebbleCentral defaultCentral] run];

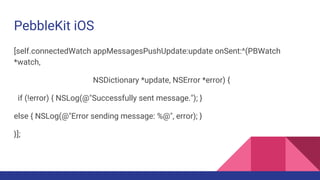

55. PebbleKit iOS
[self.connectedWatch appMessagesPushUpdate:update onSent:^(PBWatch
*watch,
NSDictionary *update, NSError *error) {
if (!error) { NSLog(@"Successfully sent message."); }
else { NSLog(@"Error sending message: %@", error); }
}];

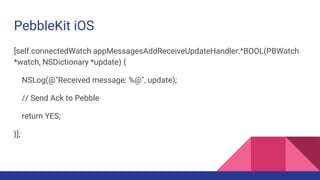

56. PebbleKit iOS
[self.connectedWatch appMessagesAddReceiveUpdateHandler:^BOOL(PBWatch
*watch, NSDictionary *update) {
NSLog(@"Received message: %@", update);
// Send Ack to Pebble
return YES;
}];

57. Publishing App

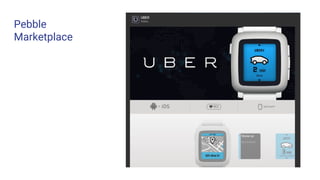

58. Pebble
Marketplace

59. Immediate, easy, no validation

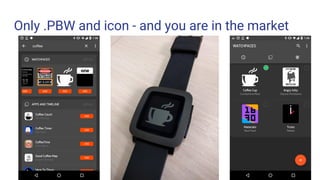

60. Only .PBW and icon - and you are in the market
