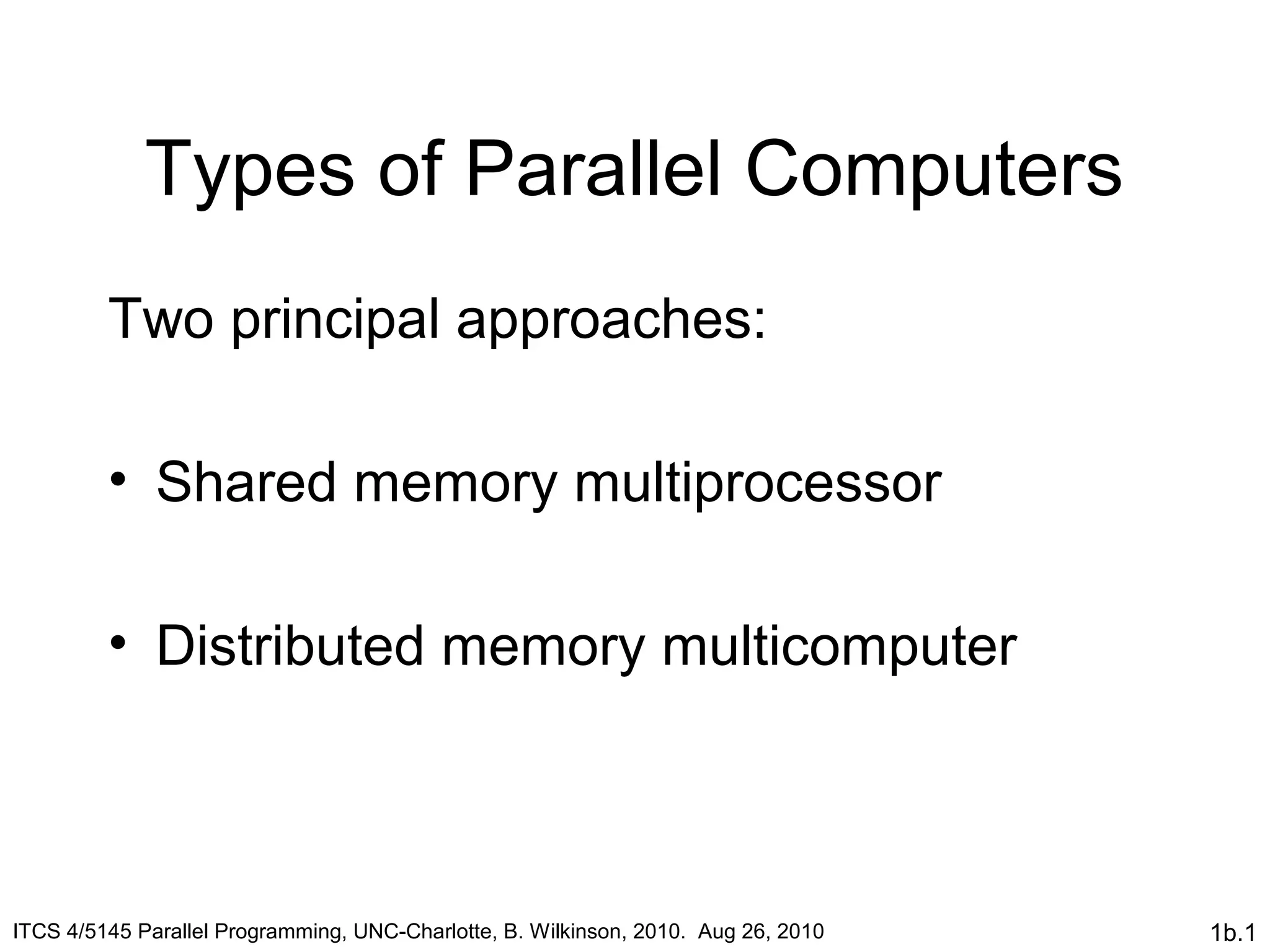

3. 1b.3

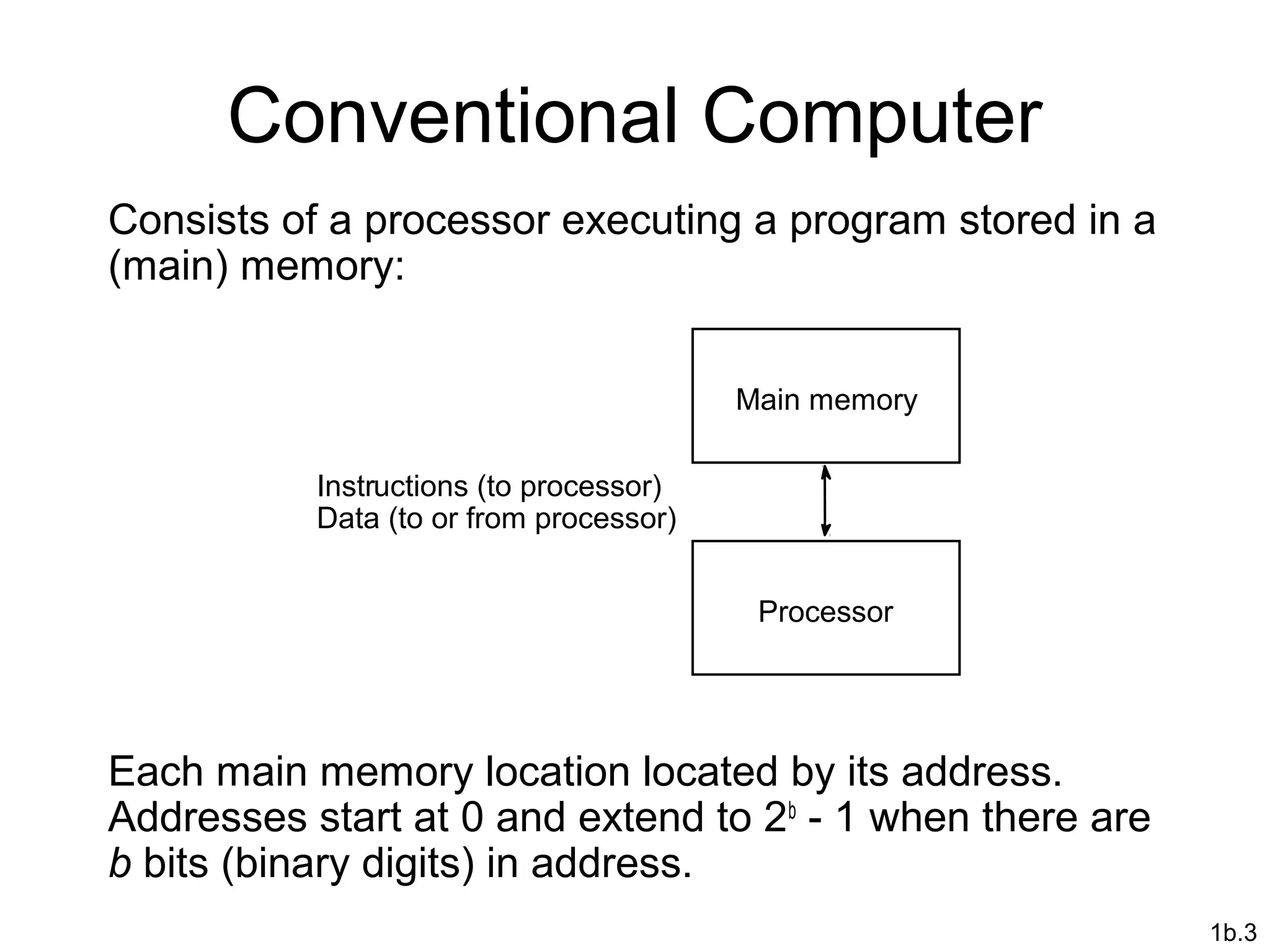

Conventional Computer
Consists of a processor executing a program stored in a
(main) memory:
Each main memory location located by its address.
Addresses start at 0 and extend to 2b
- 1 when there are
b bits (binary digits) in address.
Main memory
Processor
Instructions (to processor)
Data (to or from processor)
4. 1b.4

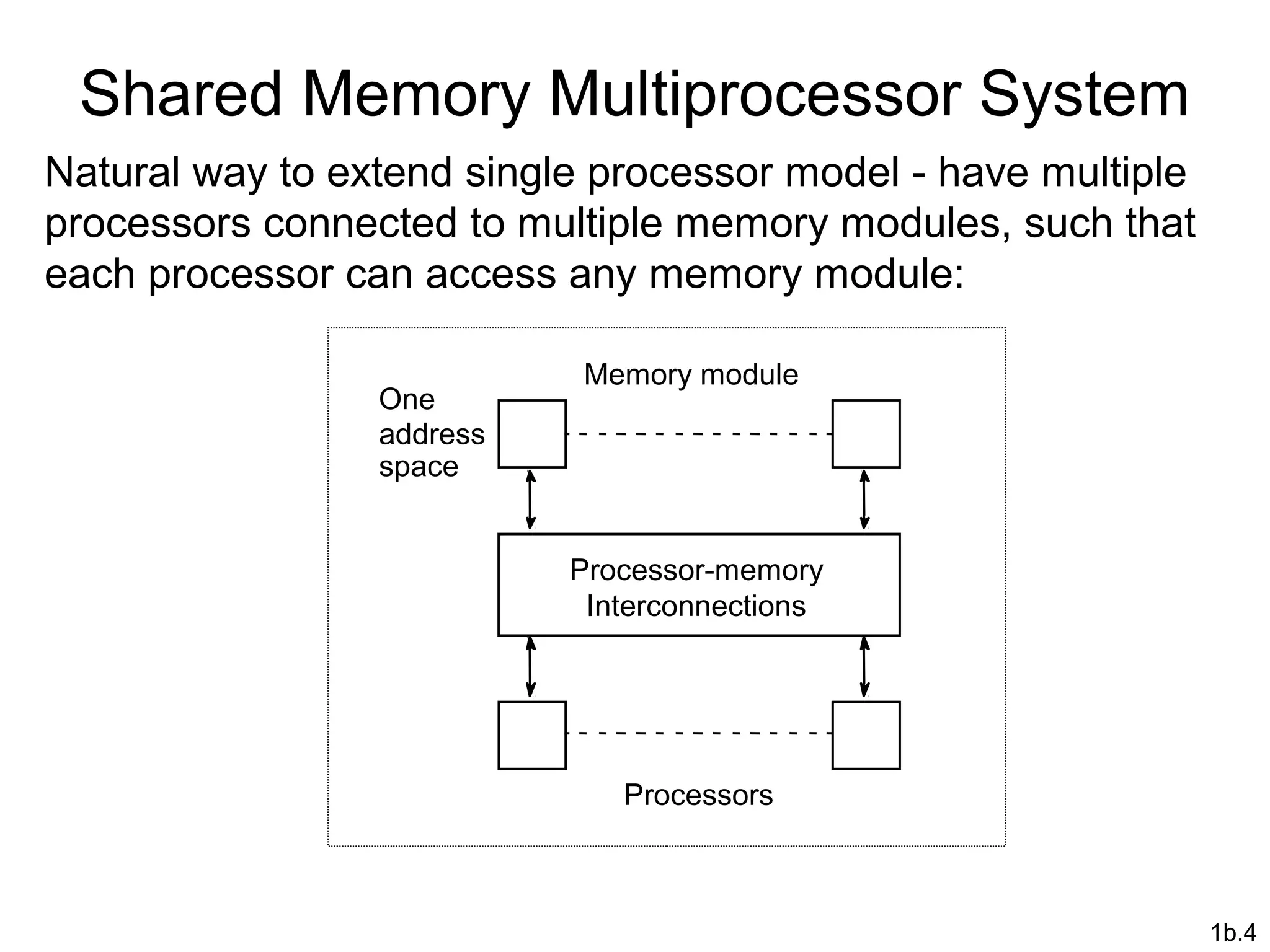

Shared Memory Multiprocessor System
Natural way to extend single processor model - have multiple
processors connected to multiple memory modules, such that
each processor can access any memory module:
Processors
Processor-memory
Interconnections
Memory module
One
address
space
5. 1b.5

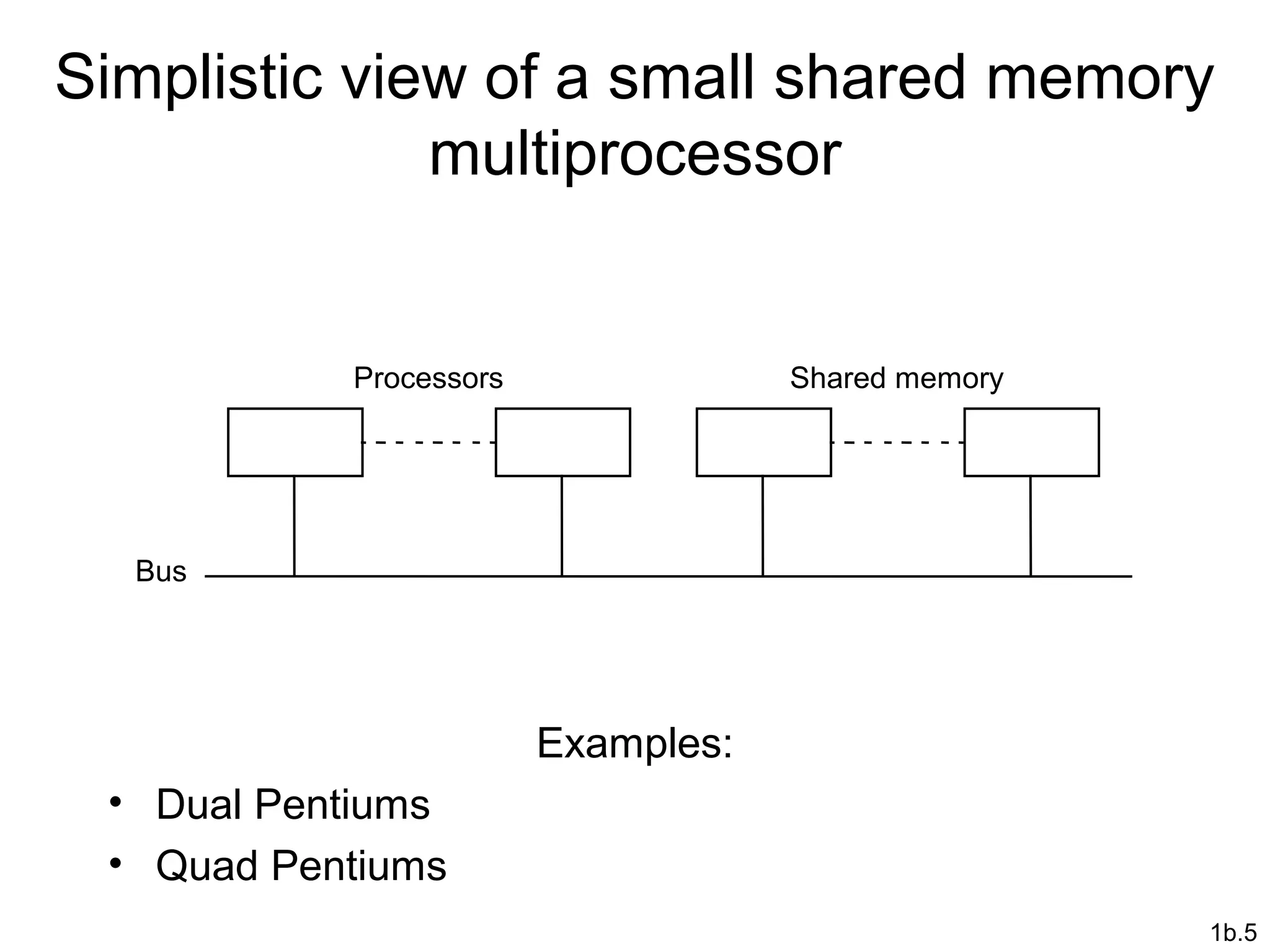

Simplistic view of a small shared memory
multiprocessor
Examples:
• Dual Pentiums
• Quad Pentiums
Processors Shared memory
Bus
6. 1b.6

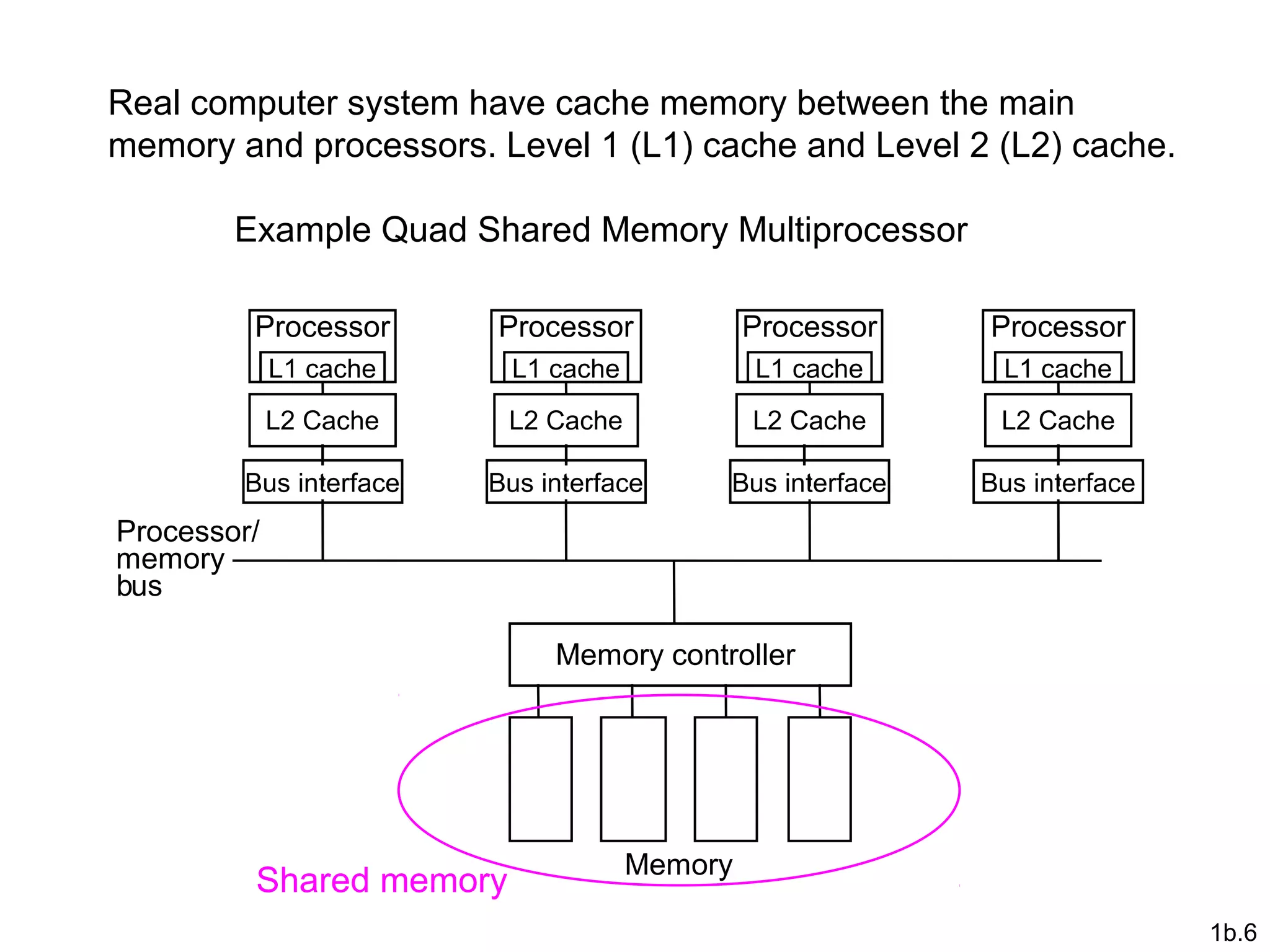

Real computer system have cache memory between the main
memory and processors. Level 1 (L1) cache and Level 2 (L2) cache.
Example Quad Shared Memory Multiprocessor
Processor
L2 Cache
Bus interface
L1 cache
Processor
L2 Cache
Bus interface
L1 cache
Processor
L2 Cache
Bus interface
L1 cache
Processor
L2 Cache
Bus interface
L1 cache
Memory controller
Memory
Processor/
memory
bus
Shared memory
7. 1b.7

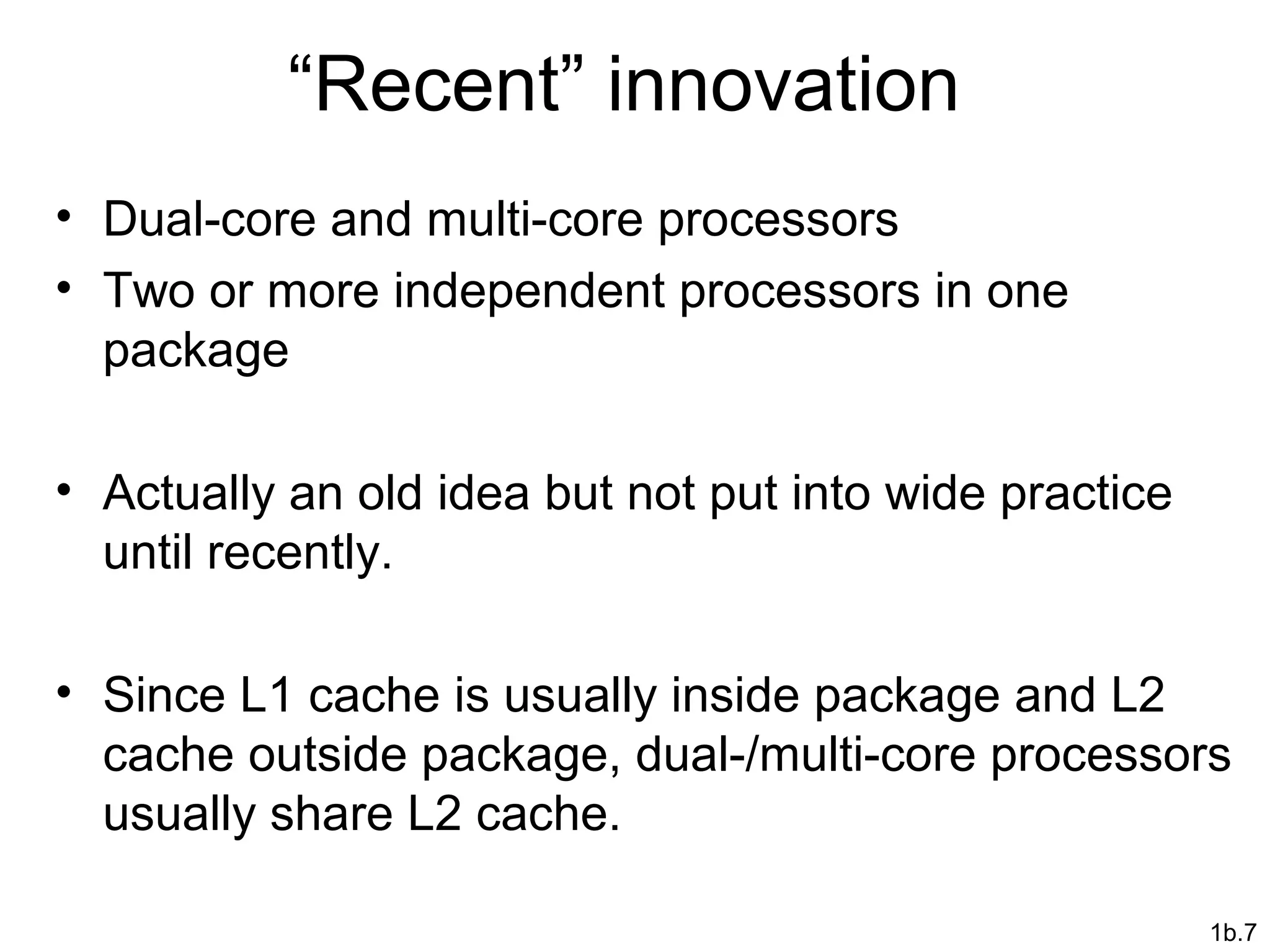

“Recent” innovation
• Dual-core and multi-core processors
• Two or more independent processors in one
package
• Actually an old idea but not put into wide practice
until recently.
• Since L1 cache is usually inside package and L2
cache outside package, dual-/multi-core processors
usually share L2 cache.

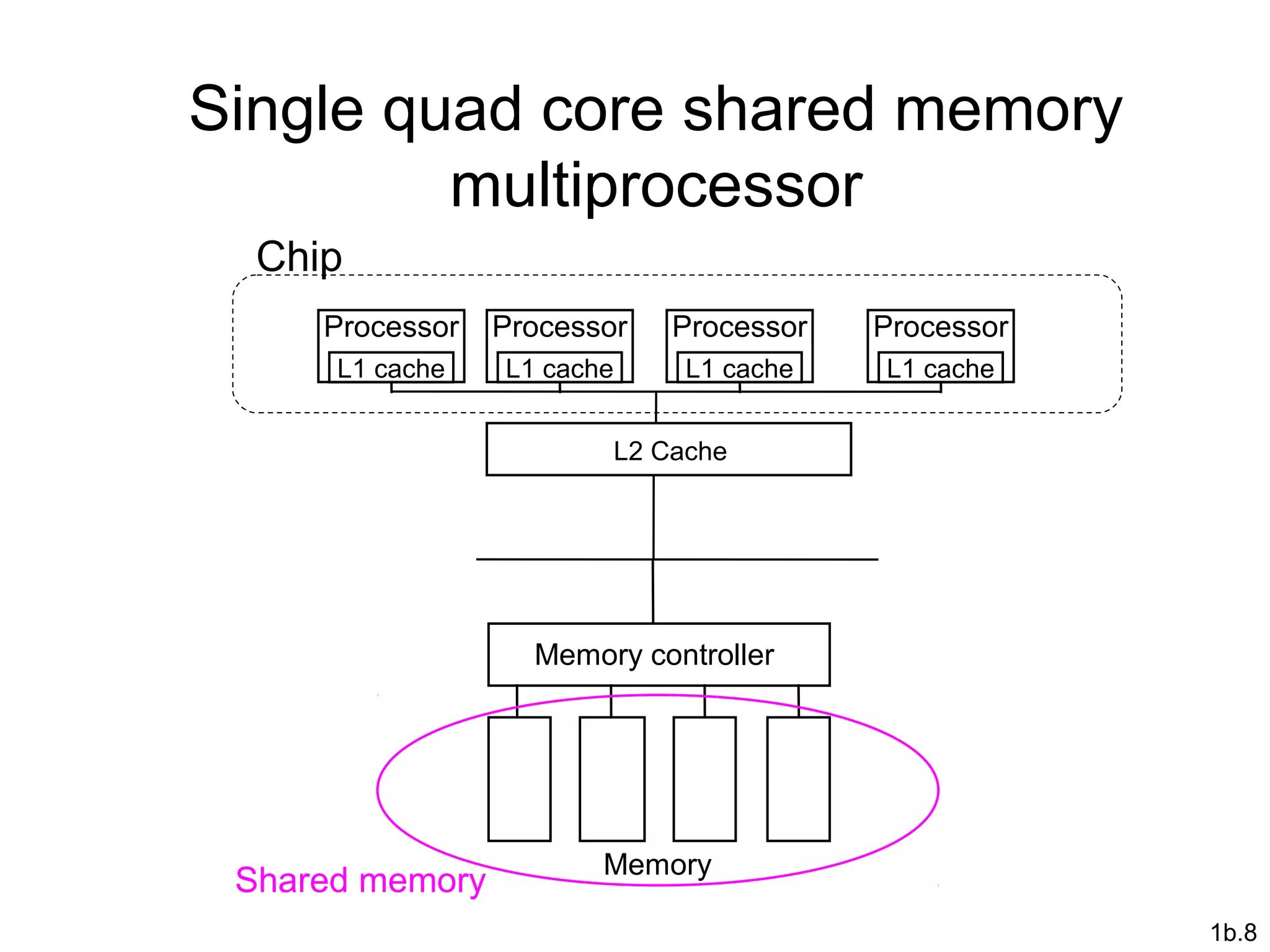

9. 1b.9

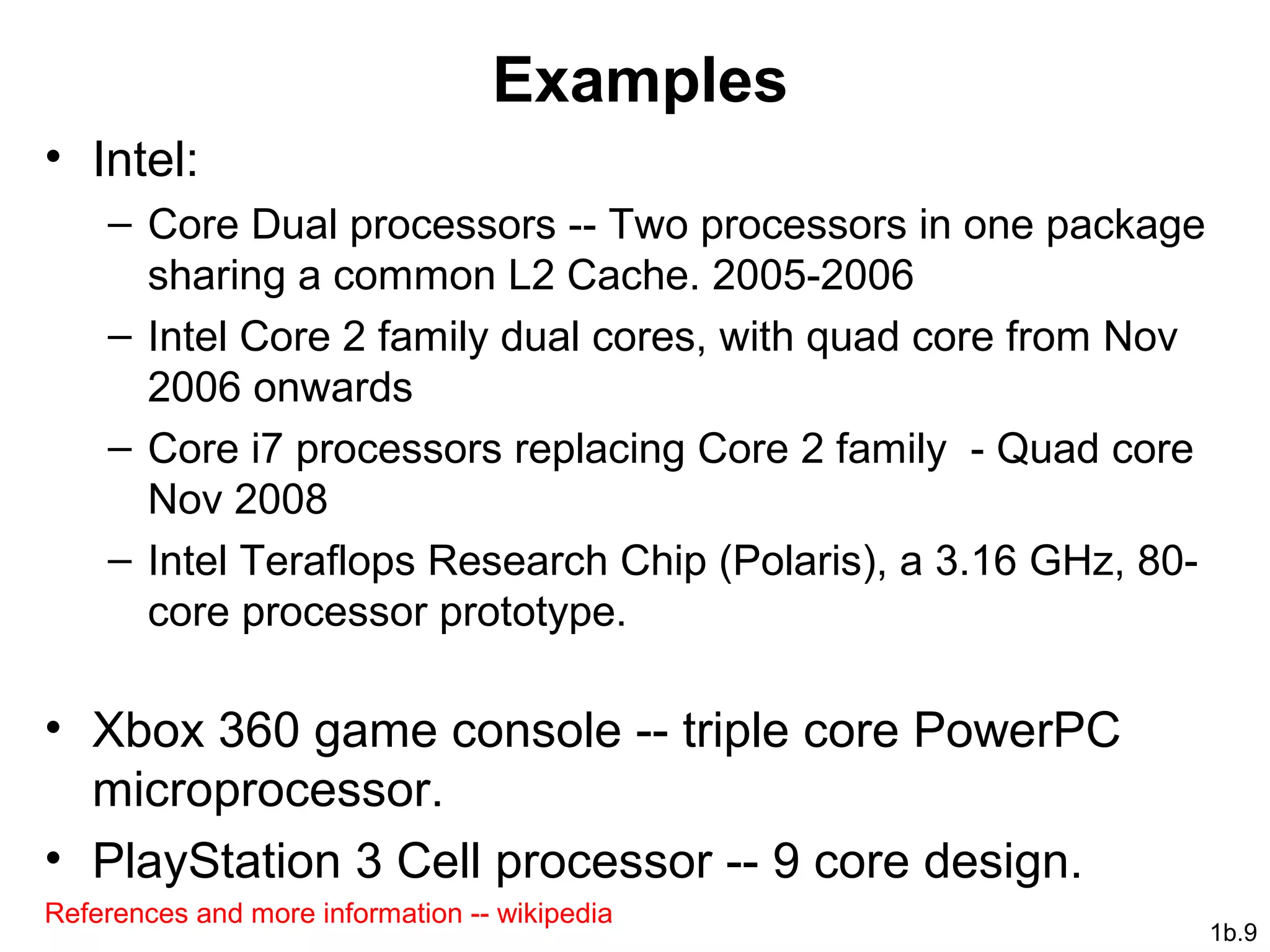

Examples
• Intel:
– Core Dual processors -- Two processors in one package
sharing a common L2 Cache. 2005-2006
– Intel Core 2 family dual cores, with quad core from Nov
2006 onwards
– Core i7 processors replacing Core 2 family - Quad core
Nov 2008
– Intel Teraflops Research Chip (Polaris), a 3.16 GHz, 80-
core processor prototype.
• Xbox 360 game console -- triple core PowerPC
microprocessor.
• PlayStation 3 Cell processor -- 9 core design.
References and more information -- wikipedia

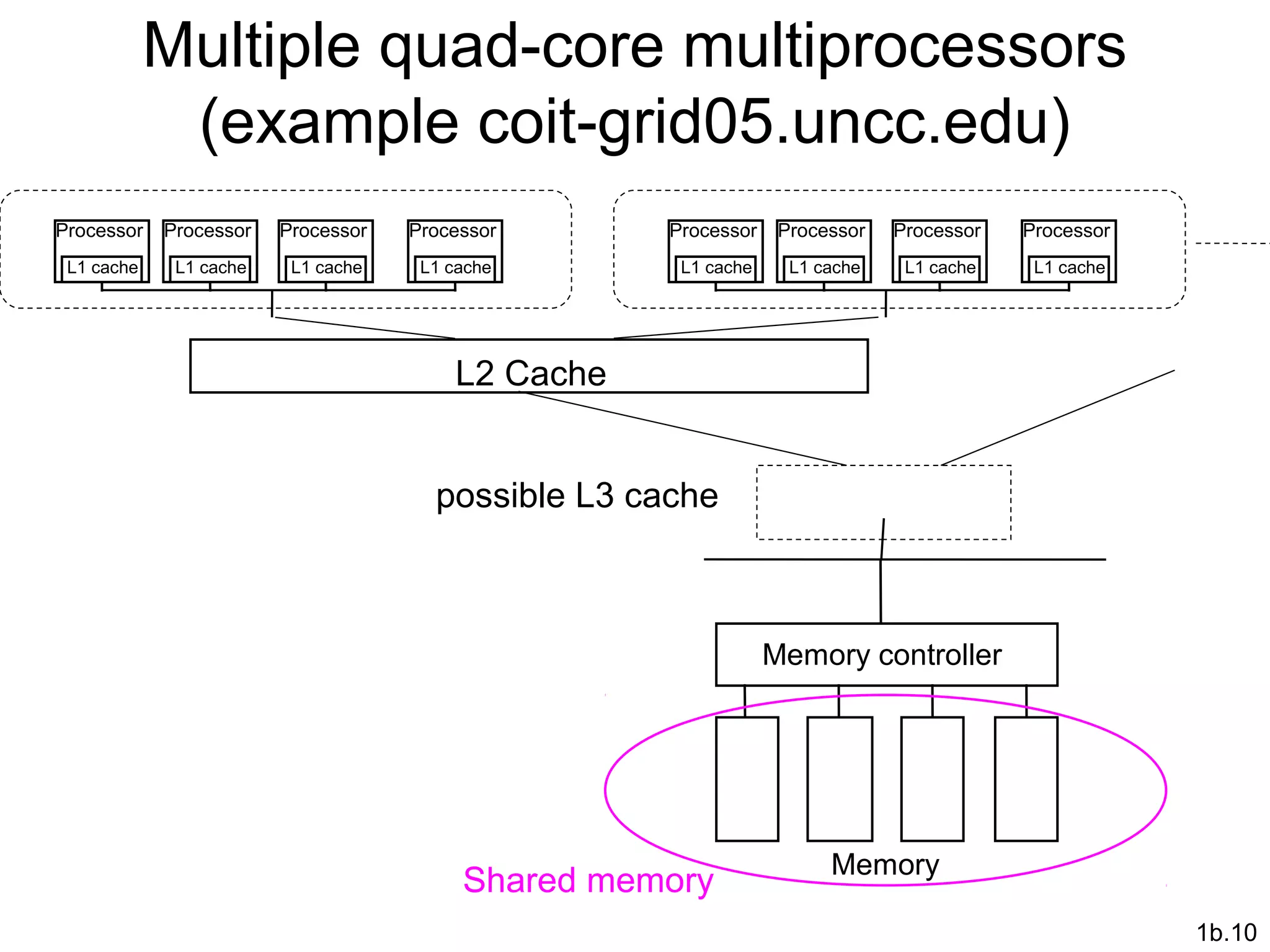

11. 1b.11

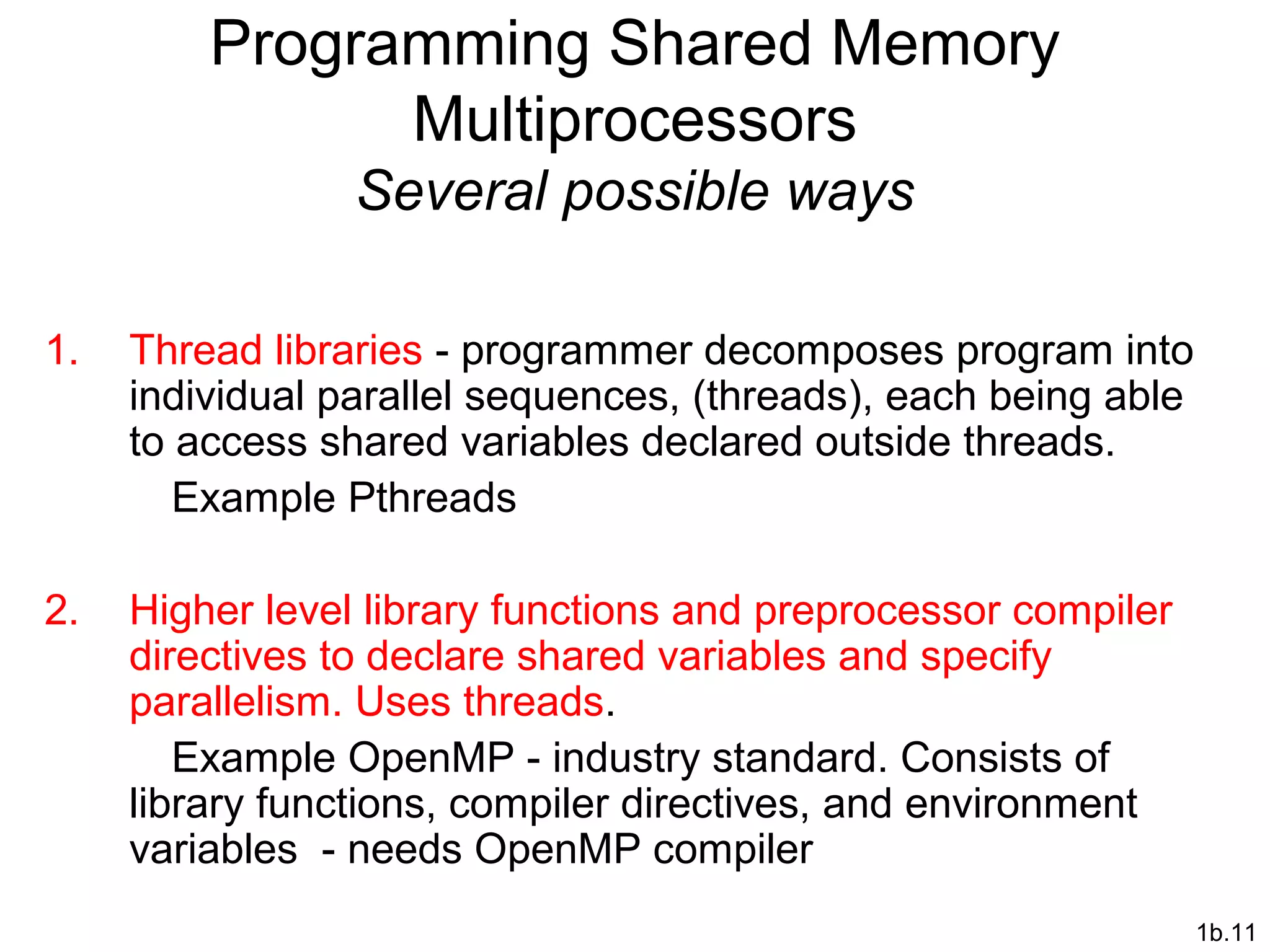

Programming Shared Memory
Multiprocessors
Several possible ways
1. Thread libraries - programmer decomposes program into
individual parallel sequences, (threads), each being able
to access shared variables declared outside threads.
Example Pthreads
2. Higher level library functions and preprocessor compiler
directives to declare shared variables and specify
parallelism. Uses threads.
Example OpenMP - industry standard. Consists of
library functions, compiler directives, and environment
variables - needs OpenMP compiler
12. 1b.12

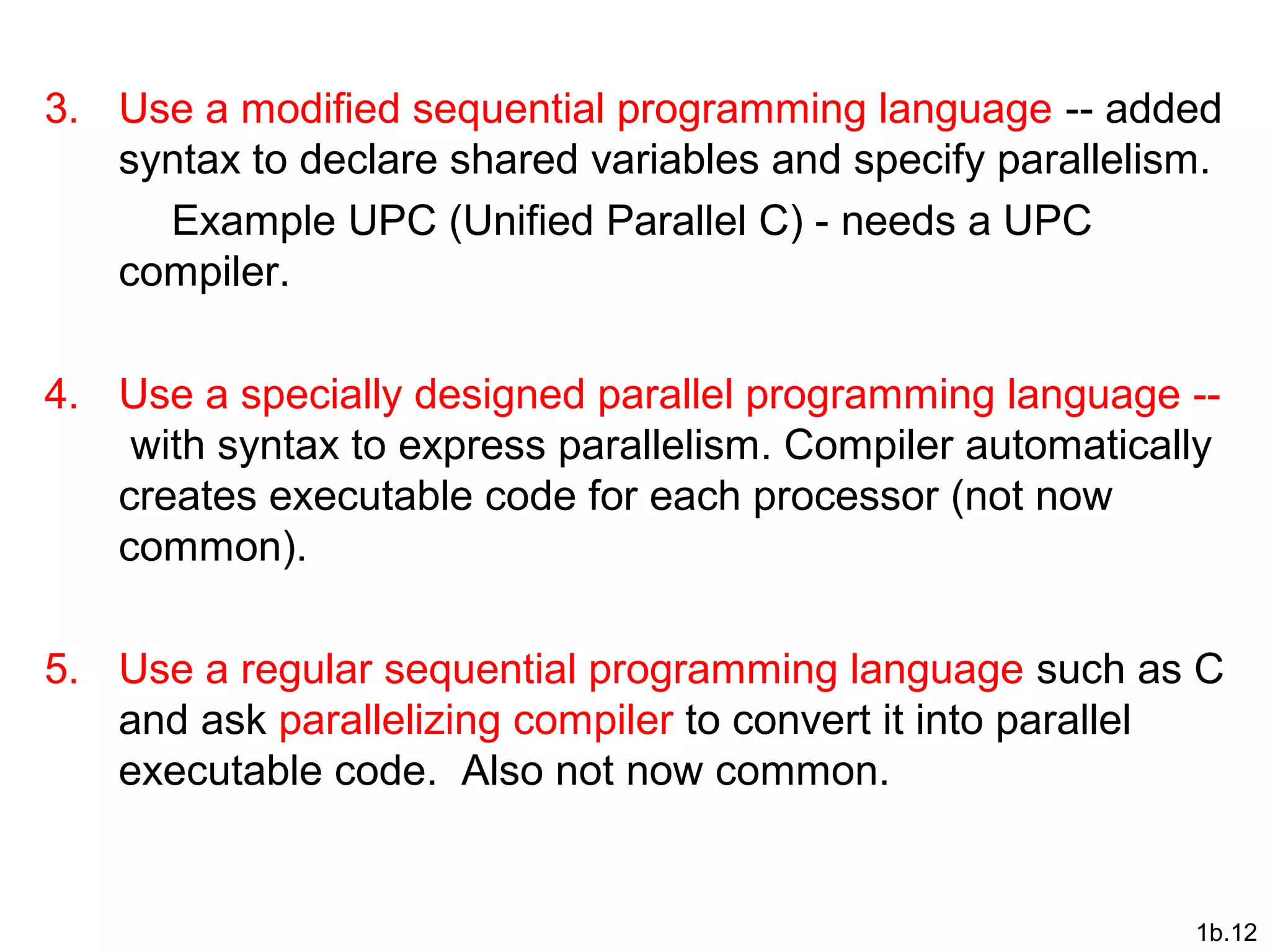

3. Use a modified sequential programming language -- added
syntax to declare shared variables and specify parallelism.
Example UPC (Unified Parallel C) - needs a UPC
compiler.
4. Use a specially designed parallel programming language --
with syntax to express parallelism. Compiler automatically
creates executable code for each processor (not now
common).
5. Use a regular sequential programming language such as C
and ask parallelizing compiler to convert it into parallel
executable code. Also not now common.

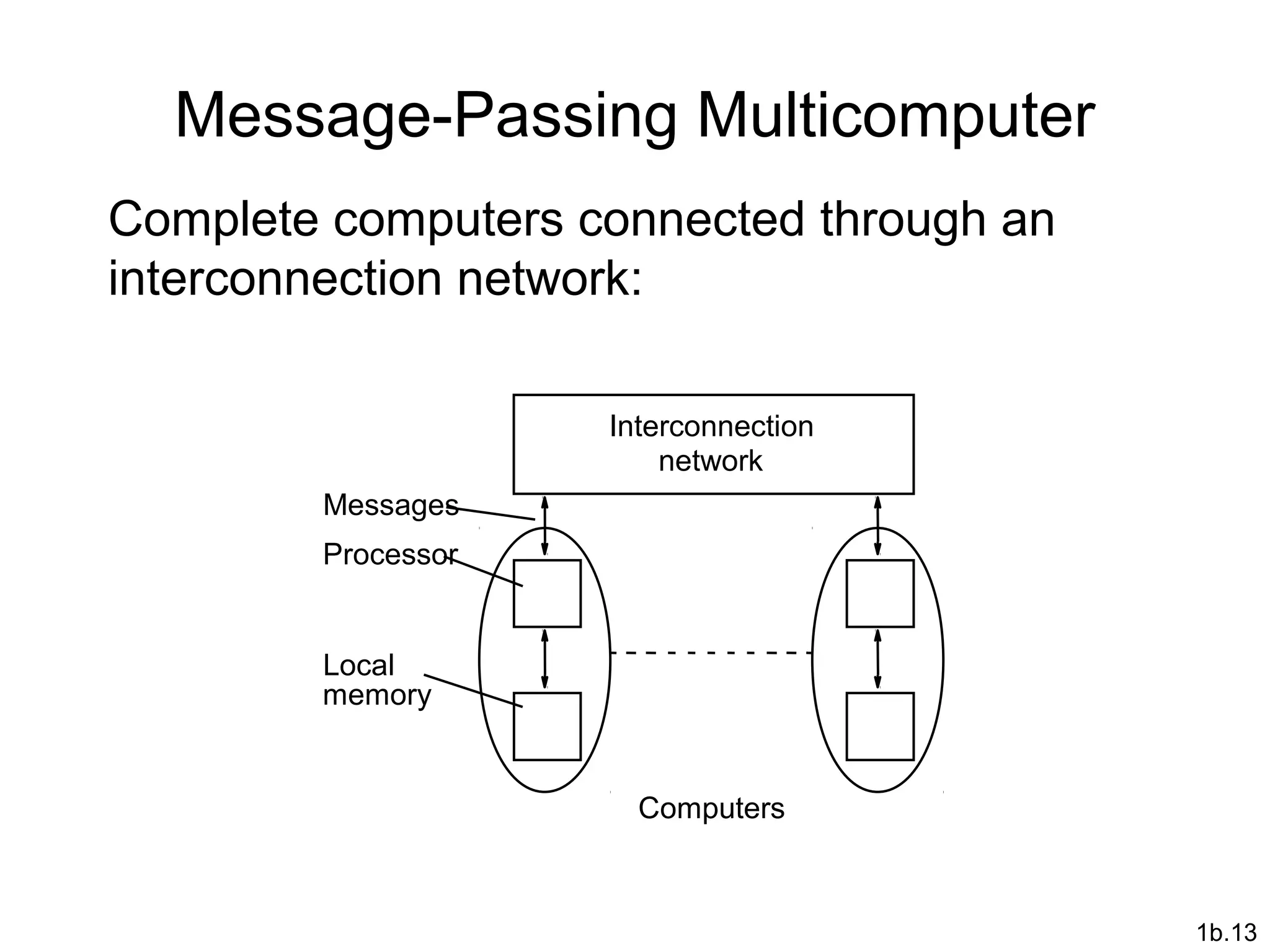

14. 1b.14
Interconnection Networks
Many explored in the 1970s and 1980s
• Limited and exhaustive interconnections
• 2- and 3-dimensional meshes
• Hypercube
• Using Switches:
– Crossbar
– Trees
– Multistage interconnection networks
15. 1b.15

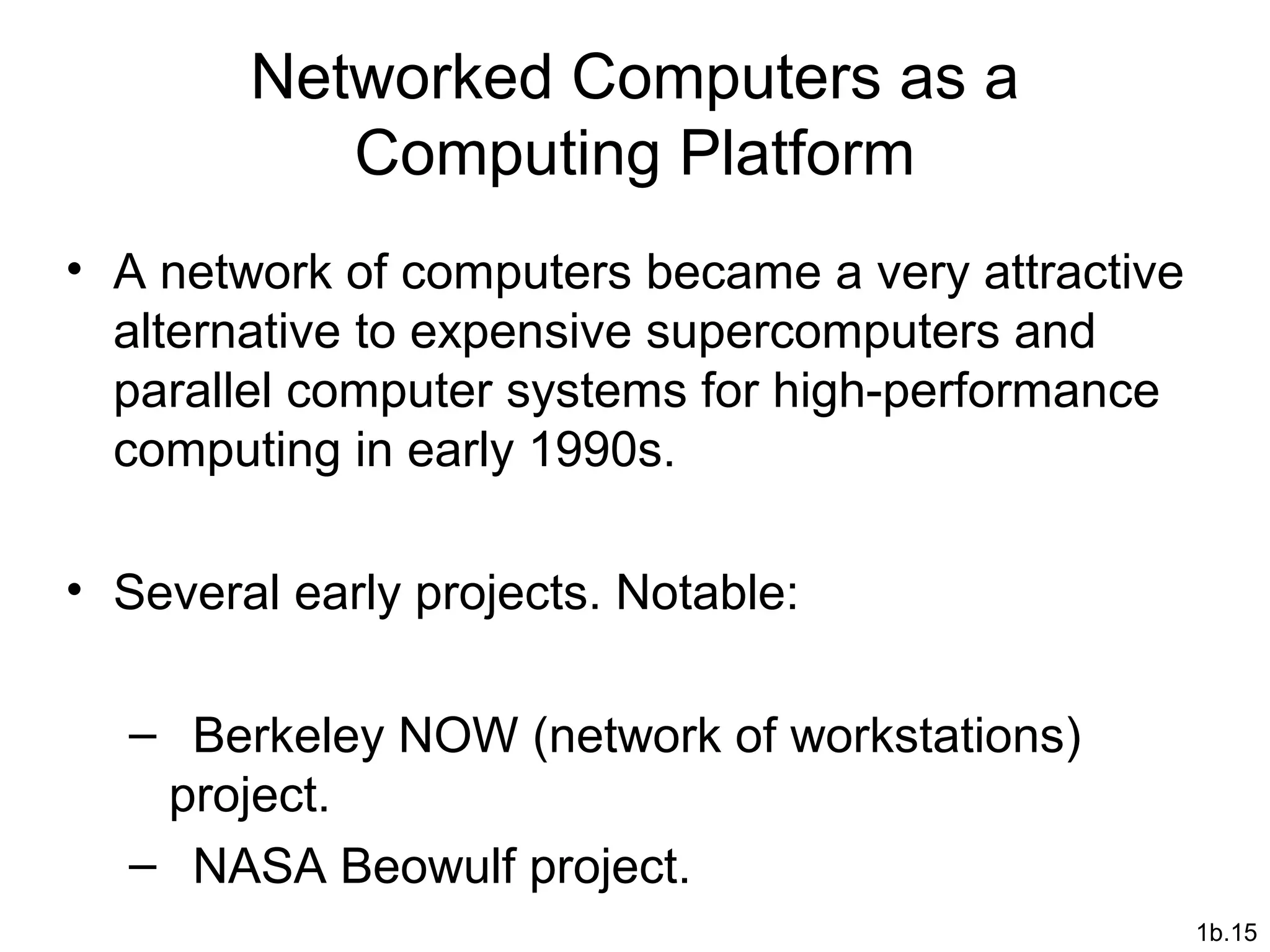

Networked Computers as a
Computing Platform
• A network of computers became a very attractive
alternative to expensive supercomputers and
parallel computer systems for high-performance
computing in early 1990s.
• Several early projects. Notable:
– Berkeley NOW (network of workstations)
project.
– NASA Beowulf project.
16. 1b.16
Key advantages:
• Very high performance workstations and PCs
readily available at low cost.
• The latest processors can easily be
incorporated into the system as they become
available.
• Existing software can be used or modified.
17. 1b.17

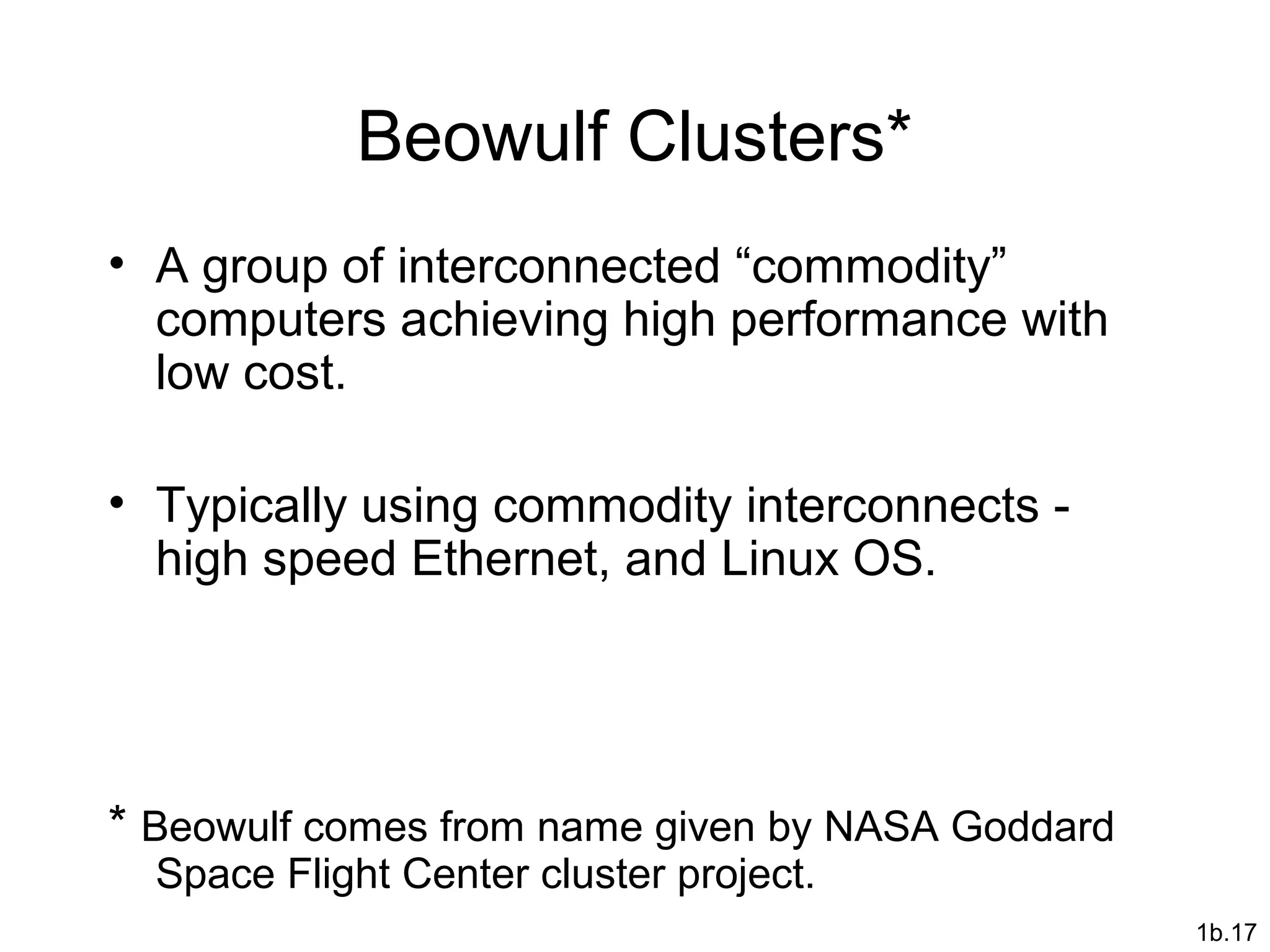

Beowulf Clusters*
• A group of interconnected “commodity”
computers achieving high performance with
low cost.
• Typically using commodity interconnects -
high speed Ethernet, and Linux OS.
* Beowulf comes from name given by NASA Goddard
Space Flight Center cluster project.
18. 1b.18
Cluster Interconnects
• Originally fast Ethernet on low cost clusters
• Gigabit Ethernet - easy upgrade path
More Specialized/Higher Performance
• Myrinet - 2.4 Gbits/sec - disadvantage: single vendor
• cLan
• SCI (Scalable Coherent Interface)
• QNet
• Infiniband - may be important as infininband
interfaces may be integrated on next generation PCs
19. 1b.19
Dedicated cluster with a master node
and compute nodes
User
Master node
Compute nodes
Dedicated Cluster
Ethernet interface
Switch
External network
Computers
Local network
20. 1b.20
Software Tools for Clusters
• Based upon message passing programming model
• User-level libraries provided for explicitly specifying
messages to be sent between executing processes on
each computer .
• Use with regular programming languages (C, C++, ...).
• Can be quite difficult to program correctly as we shall
see.
21. Next step
• Learn the message passing
programming model, some MPI
routines, write a message-passing
program and test on the cluster.
1b.21
