This document provides information on cardiovascular function and control. It discusses: - The path of blood flow from the arm to the liver after injection - Heart anatomy and the two sides of the heart that pump blood to the lungs and body - How cardiac muscle cells fire through the opening and closing of ion channels - The cardiac cycle of diastole and systole, including ventricle contraction and valve opening/closing - Factors that affect blood pressure like cardiac output, peripheral resistance, and neural/hormonal regulation - Hypertension causes, risk factors, target organ effects, and treatment options - Secondary causes of hypertension like kidney disease and drugs

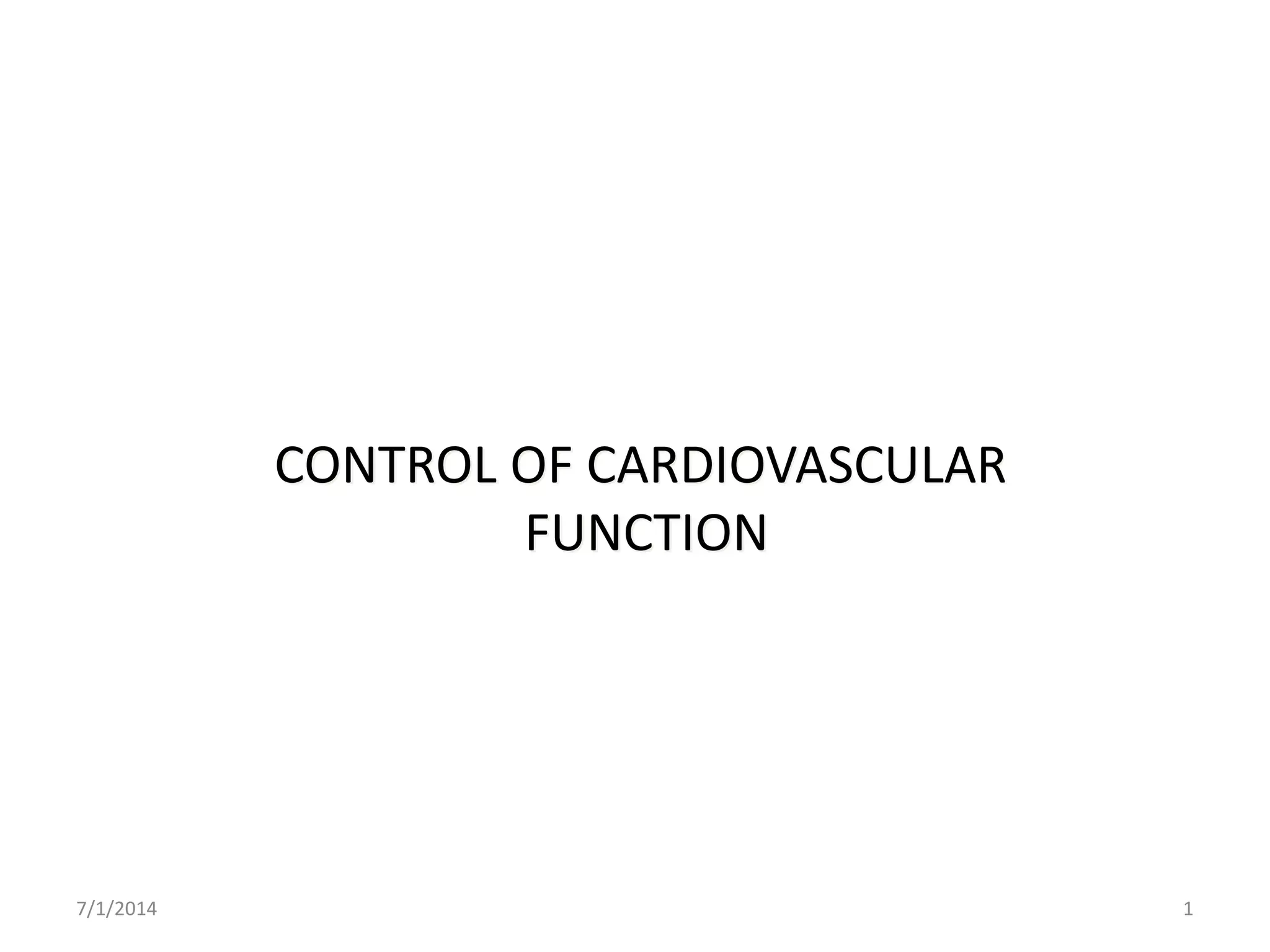

1. CONTROL OF CARDIOVASCULAR
FUNCTION
7/1/2014 1

2. PATH OF BLOOD FLOW
Scenario:
• You inject a medication into the client’s arm
• Within a few minutes, some of that drug has
reached the client’s liver and is being
deactivated
Question:
• How did it get there?
7/1/2014 2

3. SIMPLIFIED PATH OF BLOOD FLOW
right
heart
lungs
left
heart
body
7/1/2014 3

4. HEART ANATOMY
7/1/2014 4

5. QUESTION
Tell whether the following statement is true or
false:
The pulmonary circulation moves blood
through the left side of the heart.
7/1/2014 5

6. ANSWER
False
The right side of the heart pumps blood to the
lungs through the pulmonary arteries, where
gas exchange takes place. The left side of the
heart is considered systemic circulation
because blood is pumped to all body tissues.
7/1/2014 6

7. THE HEART LAYERS
7/1/2014 7

8. THE BASICS OF CELL FIRING
• Cells begin with a
negative charge:
resting membrane
potential
• Stimulus causes
some Na+ channels
to open
• Na+ diffuses in,
making the cell
more positive
Threshold potential
Resting
membrane
potential
Stimulus
7/1/2014 8

9. THE BASICS OF CELL FIRING (CONT.)
• At threshold potential,
more Na+ channels
open
• Na+ rushes in, making
the cell very positive:
depolarization
• Action potential: the cell
responds (e.g., by
contracting)
Threshold potential
Resting
membrane
potential
Stimulus
Action potential
7/1/2014 9

10. THE BASICS OF CELL FIRING (CONT.)
• K+ channels open
• K+ diffuses out,
making the cell
negative again:
repolarization
• Na+/K+ ATPase
removes the Na+ from
the cell and pumps
the K+ back in
Threshold potential
Resting
membrane
potential
Stimulus
Action potential
7/1/2014 10

11. CARDIAC CELL FIRING
• Cells begin with a negative
charge: resting membrane
potential
• Calcium leak lets Ca2+
diffuse in, making the cell
more positive
Threshold potential
Resting
membrane
potential
Calcium leak
7/1/2014 11

12. CARDIAC MUSCLE FIRING (CONT.)
• At threshold potential,
more Na+ channels
open
• Na+ rushes in, making
the cell very positive:
depolarization
• Action potential: the
cell responds (e.g., by
contracting)
Threshold potential
Resting
membrane
potential
Action potential
Calcium leak
7/1/2014 12

13. CARDIAC MUSCLE FIRING (CONT.)
• K+ channels open
• K+ diffuses out, making
the cell negative again,
but Ca2+ channels are
still allowing Ca2+ to
enter
• The cell remains
positive: plateau
Threshold potential
PLATEAU
Action potential
Calcium leak
7/1/2014 13

14. CARDIAC MUSCLE FIRING (CONT.)
• During plateau,
the muscle
contracts
strongly
• Then the Ca2+
channels shut
and it repolarizes
Threshold potential
PLATEAU
Action potential
Calcium leak
7/1/2014 14

15. QUESTION
Which ion channels allow cardiac muscle to
fire without a stimulus?
a. Na+
b. K+
c. Ca2+
d. Cl-
7/1/2014 15

16. ANSWER
c. Ca2+
In the S-A node and A-V node, resting cardiac
muscle cells have open Ca2+ channels. This
allows Ca2+ to leak into the cells, making them
more positive (the cells reach threshold this
way without the need for a stimulus).
7/1/2014 16

17. 7/1/2014 17

18. HEART CONTRACTION
How would each of the following affect heart
contraction:
• A calcium-channel blocker
• A Na+ channel blocker
• A drug that opened Na+ channels
• A drug that opened K+ channels
7/1/2014 18

19. CARDIAC CYCLE—DIASTOLE
• Ventricles relaxed
• Blood entering atria
• Blood flows through AV valves into
ventricles
• Semilunar valves are closed
7/1/2014 19

20. 7/1/2014 20

21. ECG
7/1/2014 21

22. CARDIAC CYCLE—SYSTOLE
• Ventricles contract
• Blood pushes against AV valves and they shut
• Blood pushes through semilunar valves into
aorta and pulmonary trunk
7/1/2014 22

23. QUESTION
Which of the following statements is true
about ventricular systole?
a. Atria contract
b. Ventricles contract
c. AV valves are open
d. Semilunar valves are closed
7/1/2014 23

24. ANSWER
b. Ventricles contract
During ventricular systole, the ventricles
contract. Because blood is being forced from
the ventricle, semilunar valves must be open
and AV valves, closed. The atria is in diastole
(relaxation) during ventricular systole.
7/1/2014 24

25. CARDIAC CYCLE
Discussion:
• Arrange these steps in the proper order:
– Ventricles relax – First heart sound
– Systole – Semilunar valves open
– Diastole – AV valves close
– AV valves open – Semilunar valves close
– Ventricles contract – Second heart sound
7/1/2014 25

26. PRESSURE, RESISTANCE, FLOW
• Fluid flow through a vessel depends on:
– The pressure difference between ends of the vessel
• Pressure pushes the fluid through
• Pressure keeps the vessel from collapsing
– The vessel’s resistance to fluid flow
• Small vessels have more resistance
• More viscous fluids have greater resistance
7/1/2014 26

27. PRESSURE, RESISTANCE, FLOW OF
BLOOD
• Blood flow through a vessel depends on:
– Heart creating pressure difference between ends
of the vessel
• Heart pushing the blood through
• Blood pressure keeping the vessels open
– The vessel’s resistance to fluid flow
• Constricting arterioles increasing resistance
• Increased hematocrit increasing resistance
7/1/2014 27

28. DISCUSSION
How will each of these factors affect
arteriole size and peripheral resistance?
• Lactic acid • Low PO2
• Cold • Histamine
• Endothelin • Heat
• NO • Adenosine
7/1/2014 28

29. BLOOD PRESSURE
• BP = CO x PR
• Blood Pressure = Cardiac Output × Peripheral
Resistance
• CO = SV X HR
• In healthy adult
– Highest pressure(systolic)- < 120 mmHg
– Lowest pressure (diastolic) < 80 mmHg
• Difference between systolic and diastolic
pressure = pulse pressure
7/1/2014 29

30. REGULATION OF BP
Short term regulation of BP relies on neural and
hormonal mechanisms
A) Neural centers are located in the reticular
formation of lower pons and medulla of the
brain
• Area also called cardiovascular center
• ANS control of BP is mediated by intrinsic
circulatory reflexes, extrinsic reflexes, and higher
neural control centers
• Intrinsic mechanism involves Baroreceptors and
chemoreceptors
7/1/2014 30

31. REGULATION OF BP CON’T
• Baroreceptors
– Pressure sensitive receptors
– Located in the walls of blood vessels and heart
– Carotid & aortic baroreceptors are located in
strategically
– Send impulse to the cardiovascular centers
• Arterial chemoreceptors
– Sensitive to changes in oxygen, Carbondioxide, and
Hydrogen ion content of blood
– Located in carotid and aortic bodies
– Can also induce widespread vasoconstriction
7/1/2014 31

32. HORMONAL MECHANISMS
• Involves: renin- angiotensin- aldosterone mechanism,
Vasopressin, epinephrine
• Renin
– An enzyme found in the juxtaglomerula cells of the kidneys
– Released in blood where it converts
angiotensinogen(plasma protein) to angiotensin I
– Angiotensin I is converted to angiotensin II in the lungs by
Angiotensin Converting Enzyme (ACE) present in the
endothelium of the lung vessels
– Angiotensin II :
• Is a strong vasoconstrictor (arterioles and Veins)
• Stimulates aldosterone secretion from adrenal (cortex) gland
bringing about Na/water retention by kidneys
7/1/2014 32

33. VASOPRESSIN
• Released from the posterior pituitary gland in
response to decreased blood volume and BP,
increased osmolality of body fluids
• Has vasoconstrictor effect on blood vessels
especially those of the planchnic circulation
that supplies the abdominal viscera
7/1/2014 33

34. HYPERSTENSION
• Classified into Primary (essential) and
secondary hypertension
• Essential is the most common accounting for
90-95% of HT cases
7/1/2014 34
BP classification Systolic BP(mmHg) Diastolic BP (mmHg)
Normal < 120 And < 80
Pre-hypertension 120 – 139 And 80 – 89
Stage 1 Hypertension 140 – 149 And 90 - 99
Stage 2 Hypertension ≥ 160 ≥ 100

35. RISK FACTORS FOR HT
• Family history, race, age related increase
• Life style
– High sodium intake, excessive calorie intake and
obesity, physical inactivity, excessive alcohol intake
• Oral contraceptives
7/1/2014 35

36. MANIFESTATION
• Target organ damage affecting the following organs
• Heart
– Left ventricular hypertrophy
– Angina or prior myocardial infarction
– Prior coronary revascularization
– Heart failure
• Brain
– Stroke or transient ischemic attack
• Chronic kidney disease
• Peripheral vascular disease
• Retinopathy
7/1/2014 36

37. DIAGNOSIS
• Repeated BP measurement
• BP measurement should be taken when the
person is relaxed and has rested for at least 5
minutes and had not smoked or taken caffein
within 30 minutes
• Pharmacological treatment based on:
– severity of disease
– Presence of target organ disease
– Existence of other conditions and risk factors
7/1/2014 37

38. DRUGS USED
• Diuretics
• β-adrenergic receptor blockers
• ACE inhibitors
• Angiotensin II receptor blockers
• Central alpha 2 adrenergic agonists
• Alpha 1 adrenergic receptor blockers
• Vasodilators
7/1/2014 38

39. SECONDARY HYPERTENSION
• Most common causes are: Kidney disease,
adrenocortical disorder, phenochromocytoma,
coarctation of the aorta, drugs such as cocaine
• HT arising from kidney disease is usually a result of:
– Acute glomerulonephrites
– Acute renal failure
– End stage renal disease
• 80% of patients with Chronic renal failure have HT
• Most acute kidney disorders result in decreased urine
formation, retension of water & Na and HT
• Reduced renal blood flow causes the affected kidney
to release excess amounts of renin
7/1/2014 39

40. ORTHOSTATIC HYPERTENSION
• Read about its causes and management
• Also read about venous thrombosis especially
Deep Vein Thrombosis( DVT)
7/1/2014 40

41. QUESTION
Tell whether the following statements is true
or false:
In patients with hypertension (high blood
pressure), peripheral resistance is increased.
7/1/2014 41

42. ANSWER
True
In hypertension, blood vessels are
constricted/narrowed. Smaller vessels
increase resistance (it’s harder to push the
same amount of fluid/blood through a tube
that has become smaller).
7/1/2014 42

43. LYMPH VESSELS CARRY TISSUE FLUID BACK TO
THE VEINS
7/1/2014 43
