The document discusses Ozone, which is designed to address HDFS scalability limitations and enable trillions of file system objects. It was created as HDFS struggles with hundreds of millions of files. Ozone uses a microservices architecture of Ozone Manager, Storage Container Managers, and Recon Server to divide responsibilities and scale independently. It provides seamless transition for applications like YARN, MapReduce, Hive and Spark, and supports Kubernetes deployments. The document outlines Ozone's architecture, deployment options, write and read paths, usage similarities to HDFS/S3, enterprise-grade features around security, high availability and roadmap.

1. Ozone: Evolution of HDFS Scalability to trillions
of file system objects
Dinesh Chitlangia

2. 2 © Cloudera, Inc. All rights reserved.

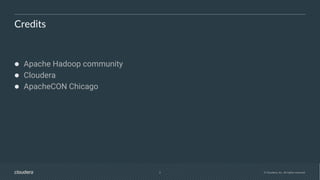

Credits
● Apache Hadoop community
● Cloudera
● ApacheCON Chicago

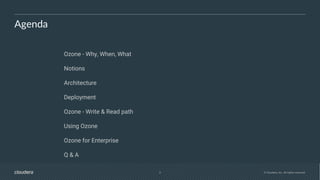

3. 3 © Cloudera, Inc. All rights reserved.
Ozone - Why, When, What
Notions
Architecture
Deployment
Ozone - Write & Read path
Using Ozone
Ozone for Enterprise
Q & A
Agenda

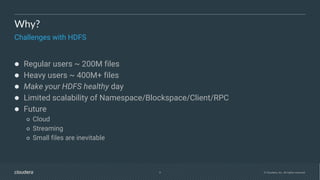

4. 4 © Cloudera, Inc. All rights reserved.
Why?
Challenges with HDFS
● Regular users ~ 200M files
● Heavy users ~ 400M+ files
● Make your HDFS healthy day
● Limited scalability of Namespace/Blockspace/Client/RPC
● Future
○ Cloud
○ Streaming
○ Small files are inevitable

5. 5 © Cloudera, Inc. All rights reserved.

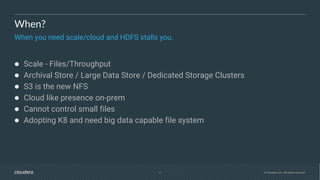

When?
When you need scale/cloud and HDFS stalls you.
● Scale - Files/Throughput
● Archival Store / Large Data Store / Dedicated Storage Clusters
● S3 is the new NFS
● Cloud like presence on-prem
● Cannot control small files
● Adopting K8 and need big data capable file system

6. 6 © Cloudera, Inc. All rights reserved.
What?
Spiritual successor to HDFS
● Object Store for Big Data
● Set of Microservices - Divide, Conquer, Scale
● Scale both Objects & IOPS
● Namenode bottleneck is history
● Seamless transition for Yarn, MapReduce, Hive, Spark apps.
● Supports K8s, CSI and ability to run on K8s natively.

7. 7 © Cloudera, Inc. All rights reserved.

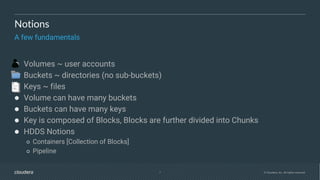

Notions
A few fundamentals
● Volumes ~ user accounts
● Buckets ~ directories (no sub-buckets)
● Keys ~ files
● Volume can have many buckets
● Buckets can have many keys
● Key is composed of Blocks, Blocks are further divided into Chunks
● HDDS Notions
○ Containers [Collection of Blocks]
○ Pipeline

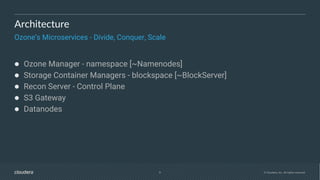

8. 8 © Cloudera, Inc. All rights reserved.
Architecture
Ozone’s Microservices - Divide, Conquer, Scale
● Ozone Manager - namespace [~Namenodes]
● Storage Container Managers - blockspace [~BlockServer]
● Recon Server - Control Plane
● S3 Gateway
● Datanodes

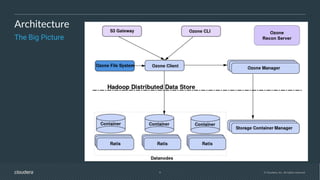

9. 9 © Cloudera, Inc. All rights reserved.
Architecture
The Big Picture

10. 10 © Cloudera, Inc. All rights reserved.

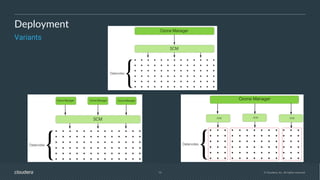

Deployment
Variants

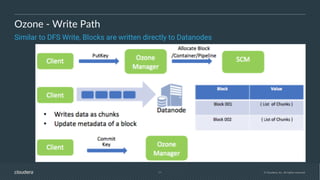

11. 11 © Cloudera, Inc. All rights reserved.
Ozone - Write Path
Similar to DFS Write, Blocks are written directly to Datanodes

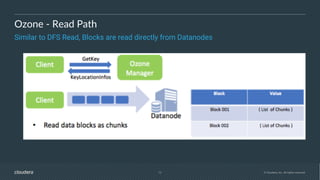

12. 12 © Cloudera, Inc. All rights reserved.
Ozone - Read Path
Similar to DFS Read, Blocks are read directly from Datanodes

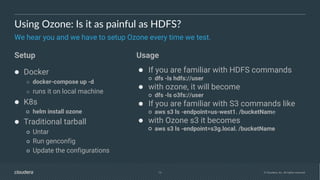

13. 13 © Cloudera, Inc. All rights reserved.
Using Ozone: Is it as painful as HDFS?
We hear you and we have to setup Ozone every time we test.
● Docker
○ docker-compose up -d
○ runs it on local machine
● K8s
○ helm install ozone
● Traditional tarball
○ Untar
○ Run genconfig
○ Update the configurations
● If you are familiar with HDFS commands
○ dfs -ls hdfs://user
● with ozone, it will become
○ dfs -ls o3fs://user
● If you are familiar with S3 commands like
○ aws s3 ls -endpoint=us-west1. /bucketName
● with Ozone s3 it becomes
○ aws s3 ls -endpoint=s3g.local. /bucketName
Setup Usage

14. 14 © Cloudera, Inc. All rights reserved.
Ozone for Enterprise
Designed for Scale
● 10 Billion Keys will be supported in first official release
● Partial Namespace in memory
● Off heap memory usage
● Scale OM/SCM independently, without any disruption
● Create large aggregations of metadata ~ Storage Containers
● Evenly distribute metadata across the cluster including Datanodes

15. 15 © Cloudera, Inc. All rights reserved.
Ozone for Enterprise
Ensuring Correctness & Consistency
● RAFT Consensus Protocol via Apache RATIS
● RocksDB for metadata storage
● Tested with industry recognised off-the-shelf components
○ Blockade Tests - Tests to inject errors/failures in the clusters
○ Tested Apache Spark, YARN, Hive workloads
○ Real world workloads in Apache Spark
○ K8s based clusters, long running clusters, ephemeral clusters
○ S3AFileSystem & similar open source test suites to test S3 Gateway
○ Freon - custom load generator

16. 16 © Cloudera, Inc. All rights reserved.

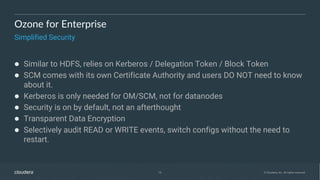

Ozone for Enterprise
Simplified Security
● Similar to HDFS, relies on Kerberos / Delegation Token / Block Token
● SCM comes with its own Certificate Authority and users DO NOT need to know
about it.
● Kerberos is only needed for OM/SCM, not for datanodes
● Security is on by default, not an afterthought
● Transparent Data Encryption
● Selectively audit READ or WRITE events, switch configs without the need to
restart.

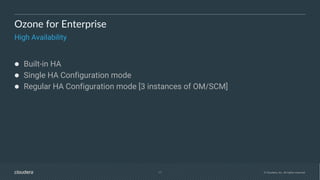

17. 17 © Cloudera, Inc. All rights reserved.
Ozone for Enterprise
High Availability
● Built-in HA
● Single HA Configuration mode
● Regular HA Configuration mode [3 instances of OM/SCM]

18. 18 © Cloudera, Inc. All rights reserved.

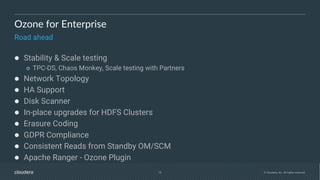

Ozone for Enterprise
Road ahead
● Stability & Scale testing
○ TPC-DS, Chaos Monkey, Scale testing with Partners
● Network Topology
● HA Support
● Disk Scanner
● In-place upgrades for HDFS Clusters
● Erasure Coding
● GDPR Compliance
● Consistent Reads from Standby OM/SCM
● Apache Ranger - Ozone Plugin

19. 19 © Cloudera, Inc. All rights reserved.

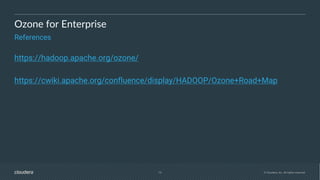

Ozone for Enterprise
References
https://hadoop.apache.org/ozone/
https://cwiki.apache.org/confluence/display/HADOOP/Ozone+Road+Map

20. © Cloudera, Inc. All rights reserved.
Q & A

21. THANK YOU
