The OW2 Open Source Cloudware Initiative aims to develop an open source cloud computing stack. It involves several OW2 projects like JOnAS, JASMINe, CLIF and ProActive to provide elasticity for Java EE platforms as a service. The initiative works with Orange on a use case to improve platform efficiency and reduce energy costs through self-sizing of Java EE clusters based on workload. The goal is to attract more components to the OW2 cloud stack and position OW2 as a key player in open cloud computing through collaborative projects.

1. OW2 Open Source
Cloudware Initiative
Initiative Bedrock: Elasticity for
Green Java EE PaaS*
System@tic GTLL Open Source Cloud Conf.
Paris, 20 Mai 2010
* This research is supported by the French Agence Nationale de la Recherche with the ANR-08-SEGI-017 (SelfXL)

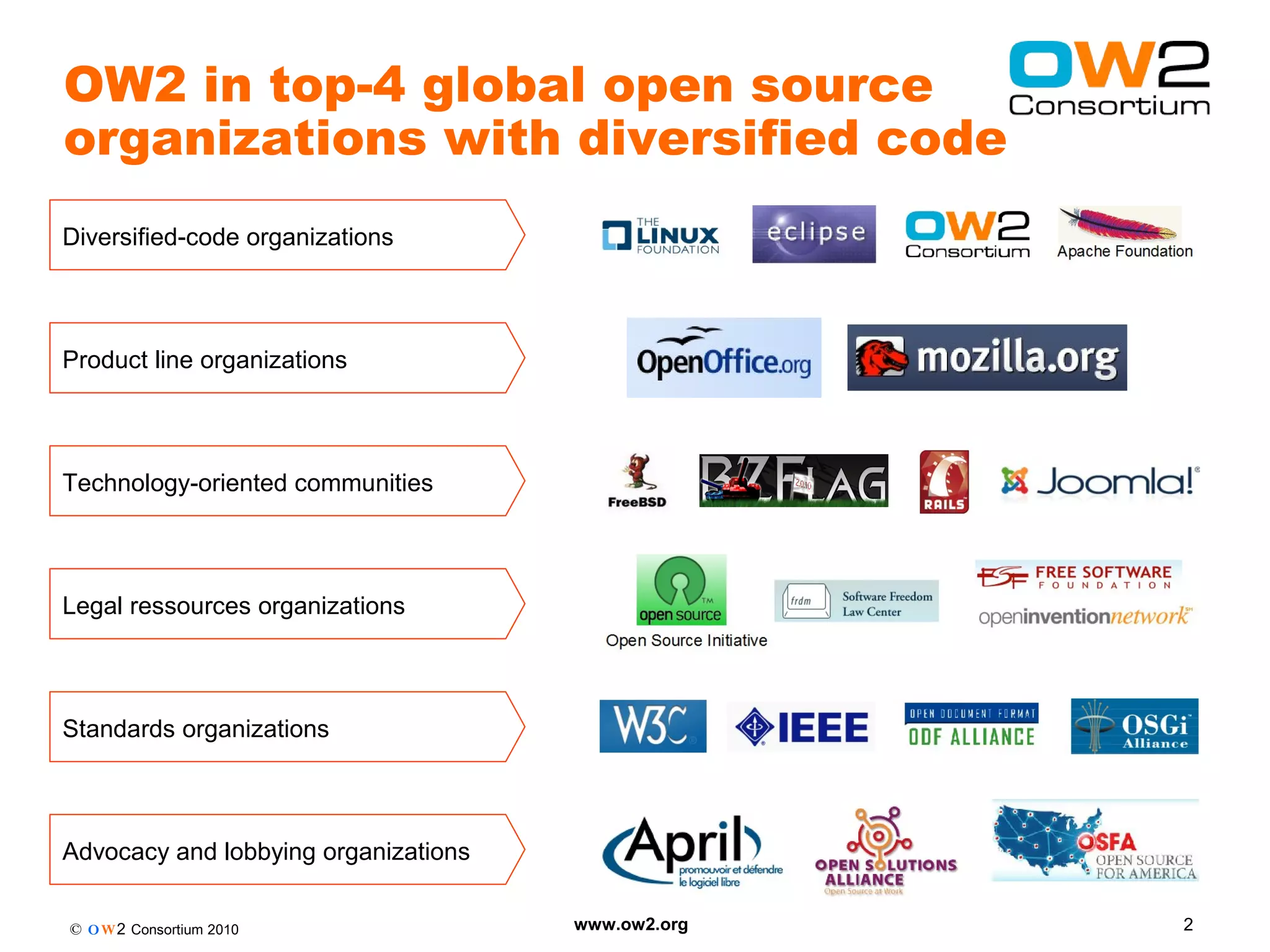

2. OW2 in top-4 global open source
organizations with diversified code
Diversified-code organizations
Product line organizations
Technology-oriented communities
Legal ressources organizations
Standards organizations
Advocacy and lobbying organizations
© O W2 Consortium 2010 www.ow2.org 2

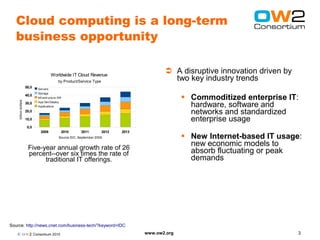

3. Cloud computing is a long-term
business opportunity
Worldwide IT Cloud Revenue
 A disruptive innovation driven by
by Product/Service Type
two key industry trends
50,0 Servers
Storage
40,0
Infrastructure SW  Commoditized enterprise IT:
billion dollars
30,0 App Dev/Deploy
Applications hardware, software and
20,0
networks and standardized
10,0 enterprise usage
0,0
2009 2010 2011 2012 2013
Source IDC, September 2009  New Internet-based IT usage:
Five-year annual growth rate of 26
new economic models to
percent--over six times the rate of absorb fluctuating or peak
traditional IT offerings. demands
Source: http://news.cnet.com/business-tech/?keyword=IDC
© O W2 Consortium 2010 www.ow2.org 3

4. Open source software is critical
for cloud computing openness
 While openness seems still a  OSS Cloud momentum
distant reality...  Virtualization technologies:
 Different meanings Xen, KV, OpenVZ, VirtualBox, etc.
 Proprietary core business  Infrastructure management:
OpenNebula, Eucalyptus, Libcloud,
 Few consensus on standards etc.
 Platform environment:
 ...Open Source Software is now Heroku, etc.
critical for Cloud Computing ...
 General consensus on  OSS a unique proposition for
reduction of costs and barriers
to adoption  Interoperability
 Open APIs for pragmatic  Sovereignty
reasons  Transparency / Privacy /
 OSS and open standards Security
 … but Cloud Computing is also a  De facto open standards
risk for OSS
 Sustainable ecosystems
 Openness not dependant on
software exclusively
© O W2 Consortium 2010 www.ow2.org 4

5. An industry empowerment
strategy
 Furthermore, most consortia
managing open source
development and marketing are
based in the United States and
funded by US IT companies. The OW2
 If the cloud computing research aims opportunity...
at realizing a sustainable European
economic opportunity as envisioned
in 2010, this imbalance needs to be
addressed.
(...)
 The EC should promote the
European leadership position in
software through commercially
relevant open source approaches. OW2 to foster
 Maintaining an open source Cloud projects
approach for research results and to be funded
cloud infrastructure support tools within EU "Future
ensures uptake and simplifies of Internet"
programmes and
adaptation to different environments. PPP mechanisms
The European open source
movement should thereby work
strongly together with industry to
support commercial cloud based
service provisioning.
Source, European Commission, Information Society and Media,
The Future Of Cloud Computing: Opportunities for European Cloud Computing Beyond 2010, page 42 and 4
© O W2 Consortium 2010 www.ow2.org 5

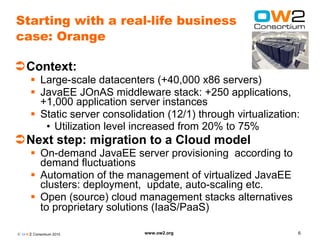

6. Starting with a real-life business
case: Orange
Context:
 Large-scale datacenters (+40,000 x86 servers)
 JavaEE JOnAS middleware stack: +250 applications,
+1,000 application server instances
 Static server consolidation (12/1) through virtualization:
• Utilization level increased from 20% to 75%
Next step: migration to a Cloud model
 On-demand JavaEE server provisioning according to
demand fluctuations
 Automation of the management of virtualized JavaEE
clusters: deployment, update, auto-scaling etc.
 Open (source) cloud management stacks alternatives
to proprietary solutions (IaaS/PaaS)
© O W2 Consortium 2010 www.ow2.org 6

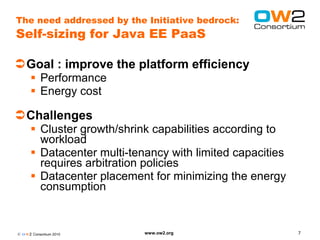

7. The need addressed by the Initiative bedrock:
Self-sizing for Java EE PaaS
Goal : improve the platform efficiency
 Performance
 Energy cost
Challenges
 Cluster growth/shrink capabilities according to
workload
 Datacenter multi-tenancy with limited capacities
requires arbitration policies
 Datacenter placement for minimizing the energy
consumption
© O W2 Consortium 2010 www.ow2.org 7

8. OW2 Initiative bedrock technologies
 JOnAS (http://www.ow2.org/xwiki/bin/view/ActivitiesDashboard/JOnAS)
 Enterprise OSGi & Java EE 5 certified server
 JASMINe (http://jasmine.ow2.org)
 Management tools for SOA platform
 Monitoring module (probe, mediation, graphs)
 Decision module (rules engine based)
 Virtual Machine Management (Xen, VMware, ...)
 CLIF (http://clif.ow2.org)
 Load testing
 Selfbenchmarking
 ProActive (http://www.ow2.org/xwiki/bin/view/ActivitiesDashboard/ProActive)
 Scheduling
 Resource management
 Parallel library
 Entropy (in progress)
 Dynamic VM placement
© O W2 Consortium 2010 www.ow2.org 8

9. Architecture for self-sizing
Scale up/down
PaaS
IaaS VM provisioning
VM placement
© O W2 Consortium 2010 www.ow2.org 9

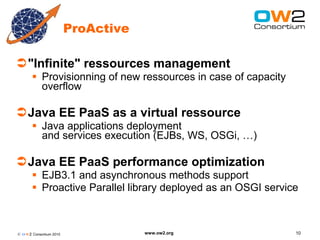

10. ProActive
"Infinite" ressources management
 Provisionning of new ressources in case of capacity
overflow
Java EE PaaS as a virtual ressource
 Java applications deployment
and services execution (EJBs, WS, OSGi, …)
Java EE PaaS performance optimization
 EJB3.1 and asynchronous methods support
 Proactive Parallel library deployed as an OSGI service
© O W2 Consortium 2010 www.ow2.org 10

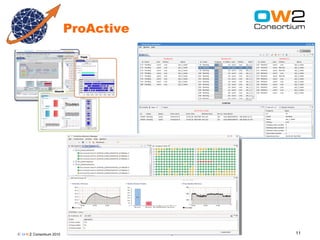

11. ProActive
© O W2 Consortium 2010 www.ow2.org 11

12. 25% Energy Savings
Before After
Server 1 Task 1
Server 2 Task 2
Server 3 Task 3
Server 4 Task 4
© O W2 Consortium 2010 www.ow2.org 12

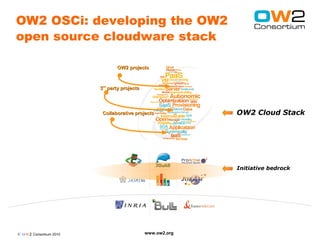

13. OW2 OSCi: developing the OW2
open source cloudware stack
OW2 projects
3rd party projects
Collaborative projects OW2 Cloud Stack
Initiative bedrock
© O W2 Consortium 2010 www.ow2.org

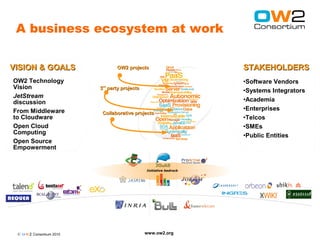

14. A business ecosystem at work
VISION & GOALS OW2 projects STAKEHOLDERS
OW2 Technology •Software Vendors
Vision 3rd party projects
•Systems Integrators
JetStream
discussion •Academia
From Middleware •Enterprises
Collaborative projects
to Cloudware •Telcos
Open Cloud •SMEs
Computing •Public Entities
Open Source
Empowerment
Initiative bedrock
© O W2 Consortium 2010 www.ow2.org

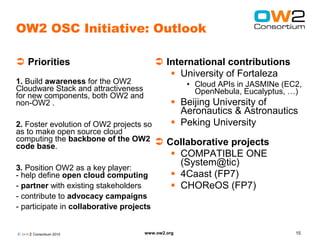

15. OW2 OSC Initiative: Outlook
 Priorities  International contributions
 University of Fortaleza
1. Build awareness for the OW2 • Cloud APIs in JASMINe (EC2,
Cloudware Stack and attractiveness OpenNebula, Eucalyptus, …)
for new components, both OW2 and
non-OW2 .  Beijing University of
Aeronautics & Astronautics
2. Foster evolution of OW2 projects so  Peking University
as to make open source cloud
computing the backbone of the OW2  Collaborative projects
code base.
 COMPATIBLE ONE
(System@tic)
3. Position OW2 as a key player:
- help define open cloud computing  4Caast (FP7)
- partner with existing stakeholders  CHOReOS (FP7)
- contribute to advocacy campaigns
- participate in collaborative projects
© O W2 Consortium 2010 www.ow2.org 15

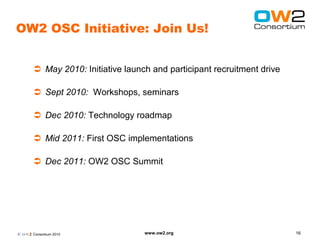

16. OW2 OSC Initiative: Join Us!
 May 2010: Initiative launch and participant recruitment drive
 Sept 2010: Workshops, seminars
 Dec 2010: Technology roadmap
 Mid 2011: First OSC implementations
 Dec 2011: OW2 OSC Summit
© O W2 Consortium 2010 www.ow2.org 16

17. www.ow2.org
For more information
Please contact
Cedric Thomas (CEO)
cedric thomas @ ow2 org
© O W2 Consortium 2010 www.ow2.org 17
