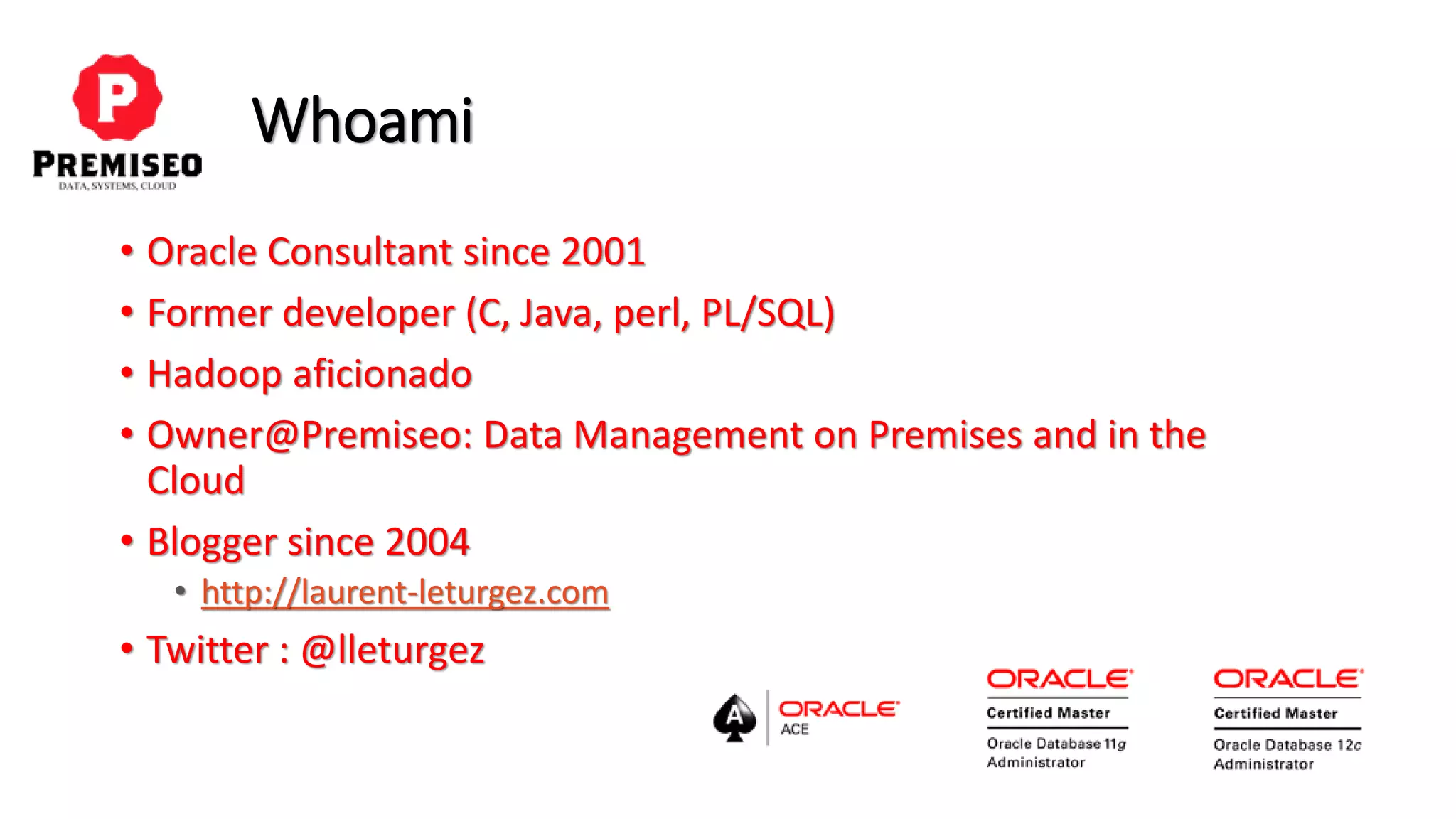

Whoami
• Oracle Consultant since 2001
• Former developer (C, Java, perl, PL/SQL)
• Hadoop aficionado
• Owner@Premiseo: Data Management on Premises and in the
Cloud
• Blogger since 2004
• http://laurent-leturgez.com
• Twitter : @lleturgez

3 Membership Tiers
• Oracle ACE Director
• Oracle ACE
• Oracle ACE Associate
bit.ly/OracleACEProgram
500+ Technical Experts
Helping Peers Globally
Connect:
Nominate yourself or someone you know: acenomination.oracle.com
@oracleace
Facebook.com/oracleaces
oracle-ace_ww@oracle.com

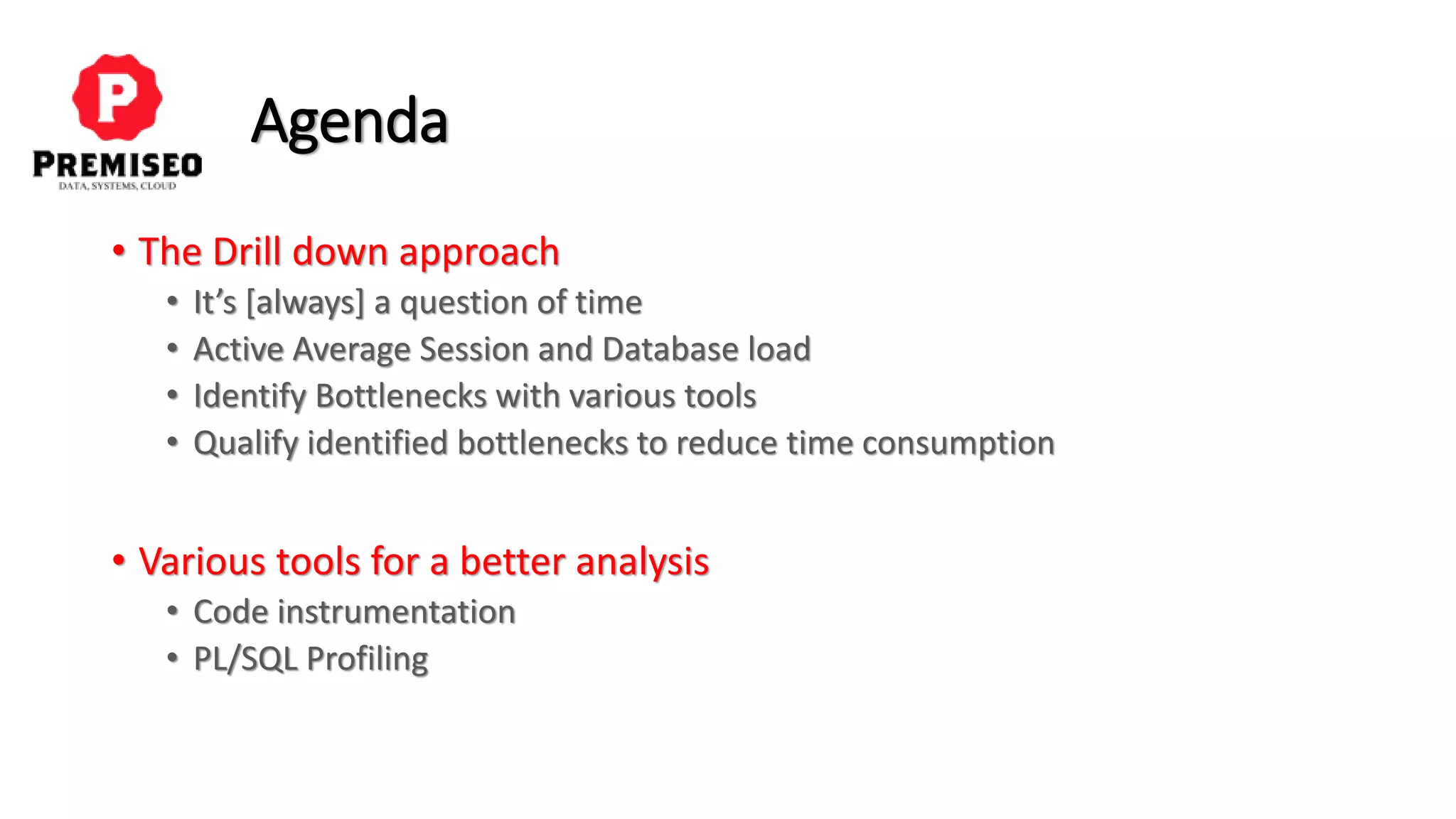

Agenda

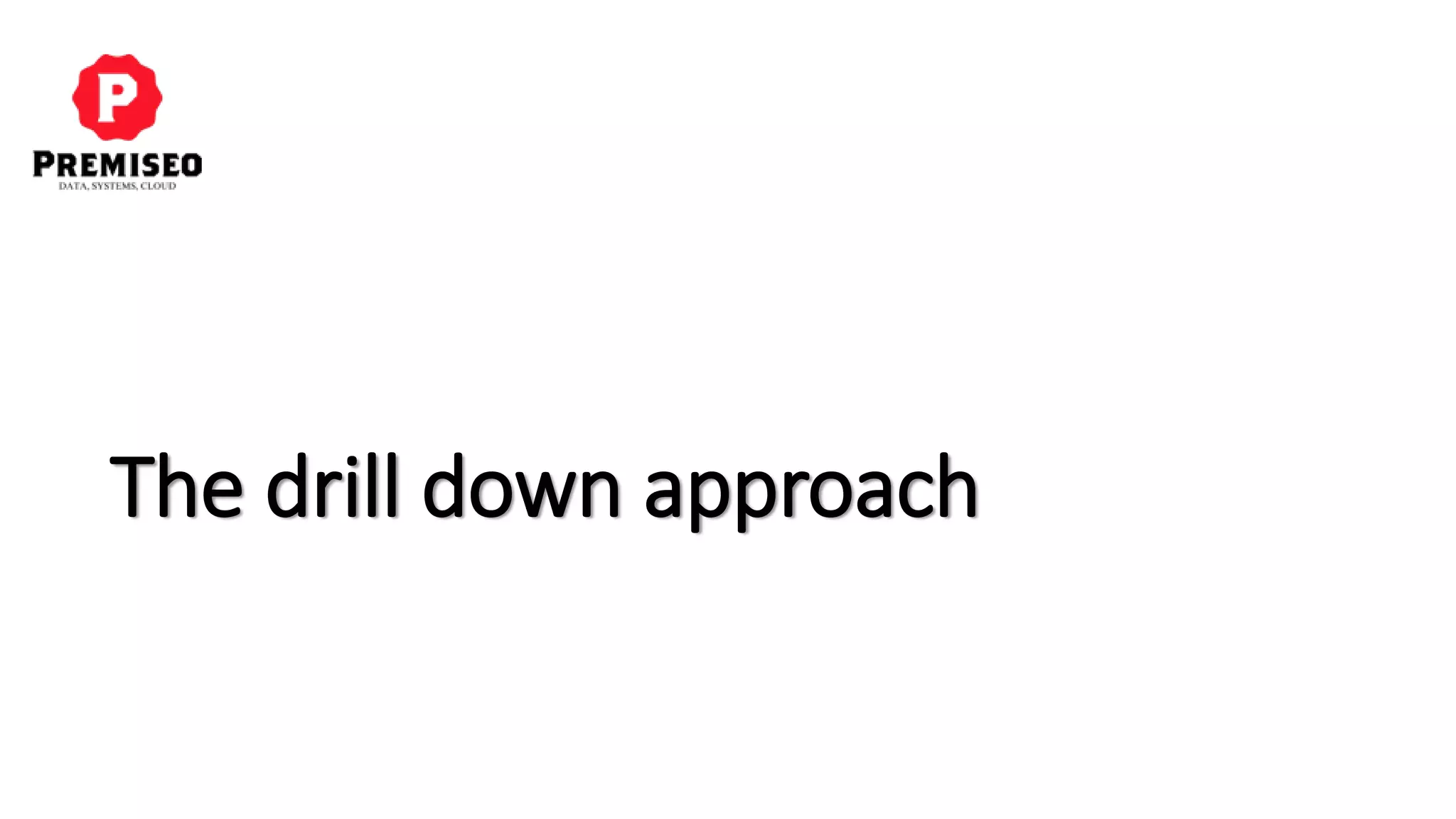

• The Drill down approach
• It’s [always] a question of time
• Active Average Session and Database load
• Identify Bottlenecks with various tools
• Qualify identified bottlenecks to reduce time consumption
• Various tools for a better analysis
• Code instrumentation
• PL/SQL Profiling

Addressing a performance issue.

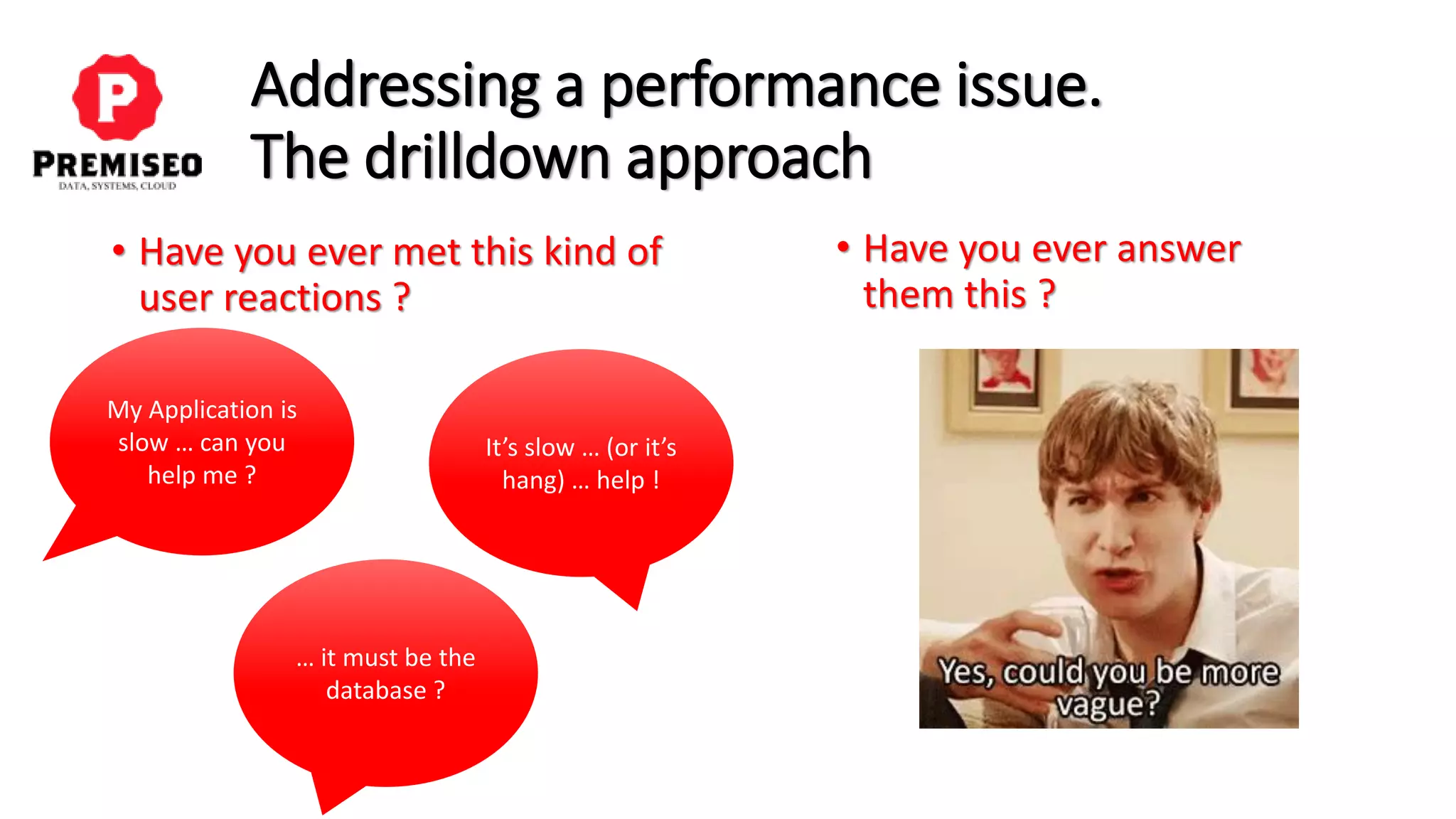

• Have you ever met this kind of
user reactions ?
My Application is
slow … can you
help me ?
… it must be the
database ?
It’s slow … (or it’s
hang) … help !
• Have you ever answer
them this ?

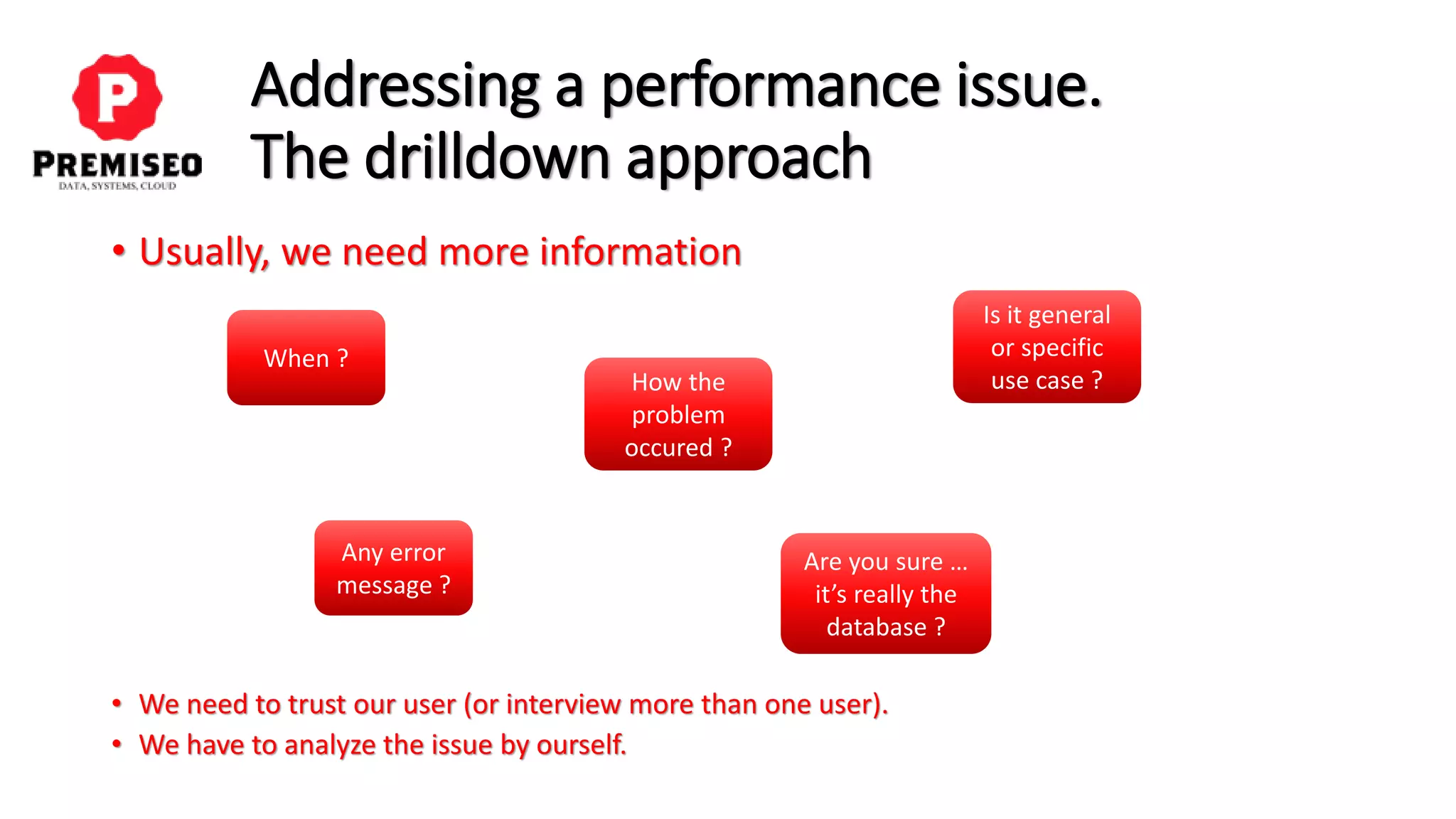

• Usually, we need more information
When ?
Any error
message ?
Is it general
or specific
use case ?
Are you sure …
it’s really the
database ?
How the
problem
occured ?
• We need to trust our user (or interview more than one user).
• We have to analyze the issue by ourself.

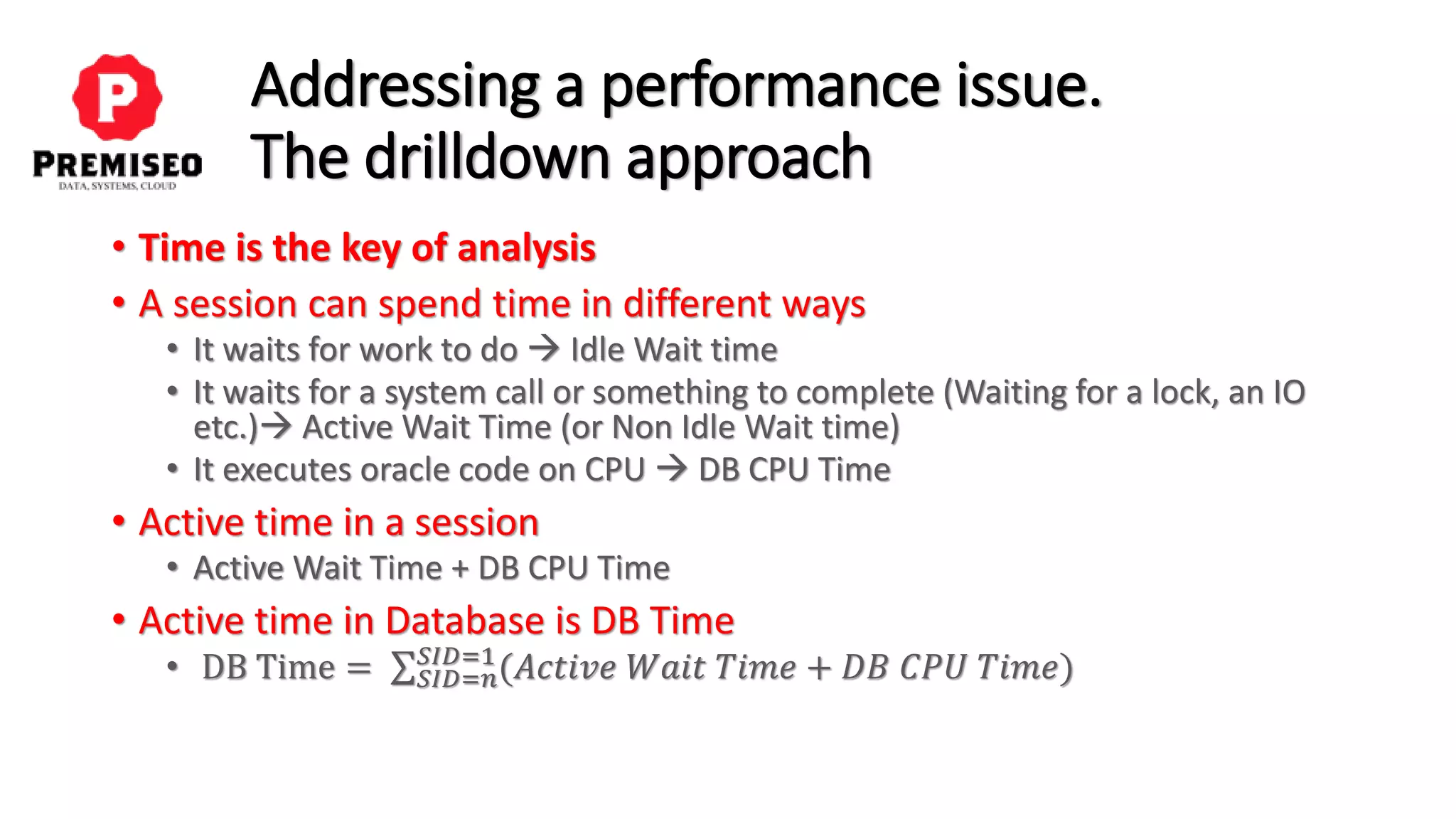

• Time is the key of analysis
• A session can spend time in different ways
• It waits for work to do → Idle Wait time
• It waits for a system call or something to complete (Waiting for a lock, an IO
etc.)→ Active Wait Time (or Non Idle Wait time)
• It executes oracle code on CPU → DB CPU Time
• Active time in a session
• Active Wait Time + DB CPU Time
• Active time in Database is DB Time
• DB Time = σ 𝑆𝐼𝐷=𝑛
𝑆𝐼𝐷=1
(𝐴𝑐𝑡𝑖𝑣𝑒 𝑊𝑎𝑖𝑡 𝑇𝑖𝑚𝑒 + 𝐷𝐵 𝐶𝑃𝑈 𝑇𝑖𝑚𝑒)

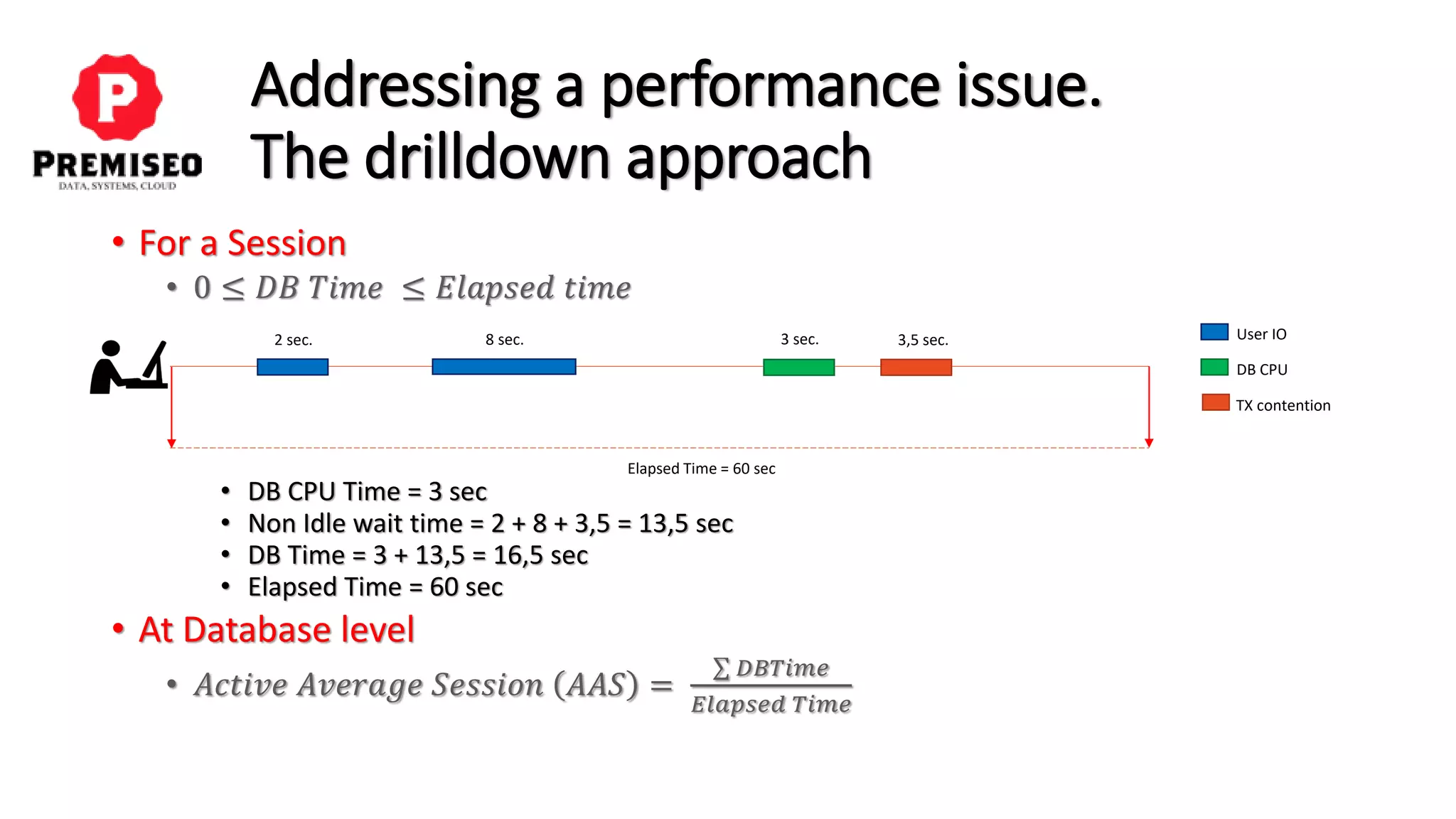

• For a Session
• 0 ≤ 𝐷𝐵 𝑇𝑖𝑚𝑒 ≤ 𝐸𝑙𝑎𝑝𝑠𝑒𝑑 𝑡𝑖𝑚𝑒
• DB CPU Time = 3 sec
• Non Idle wait time = 2 + 8 + 3,5 = 13,5 sec
• DB Time = 3 + 13,5 = 16,5 sec
• Elapsed Time = 60 sec
• At Database level
• 𝐴𝑐𝑡𝑖𝑣𝑒 𝐴𝑣𝑒𝑟𝑎𝑔𝑒 𝑆𝑒𝑠𝑠𝑖𝑜𝑛 𝐴𝐴𝑆 =
σ 𝐷𝐵𝑇𝑖𝑚𝑒
𝐸𝑙𝑎𝑝𝑠𝑒𝑑 𝑇𝑖𝑚𝑒
User IO
DB CPU
TX contention
2 sec. 8 sec. 3 sec. 3,5 sec.
Elapsed Time = 60 sec

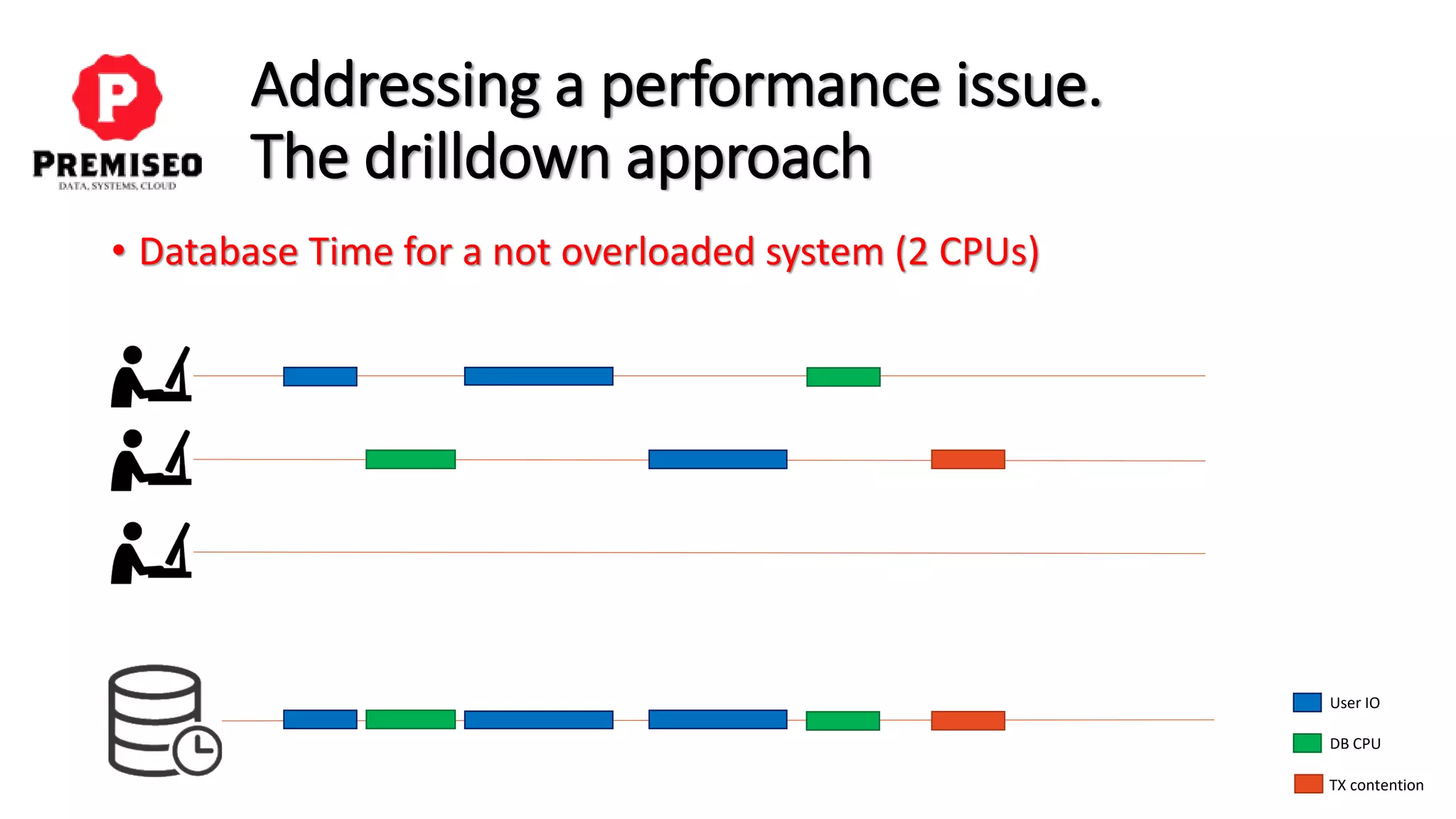

• Database Time for a not overloaded system (2 CPUs)
User IO
DB CPU
TX contention

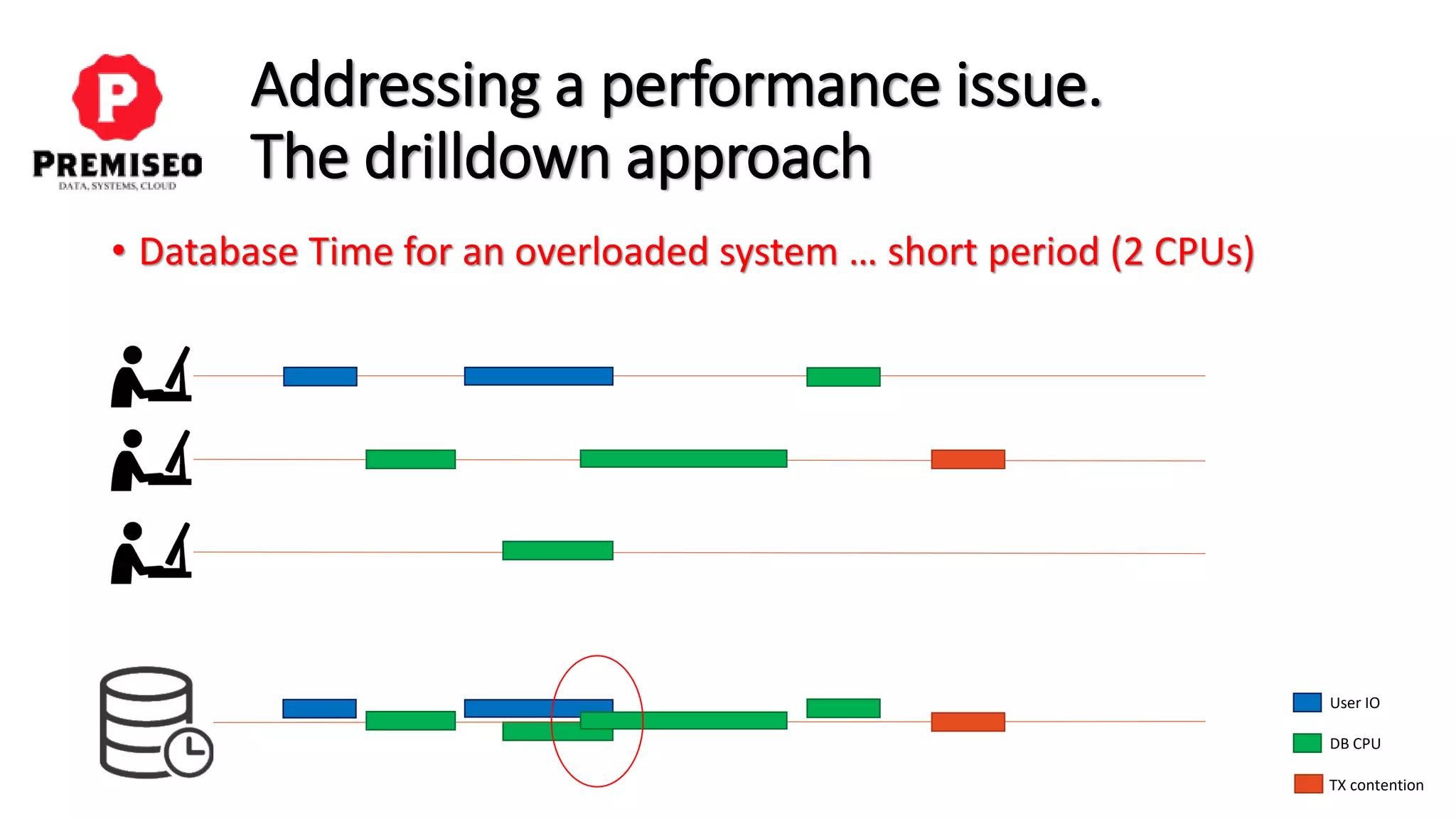

• Database Time for an overloaded system … short period (2 CPUs)
User IO
DB CPU
TX contention

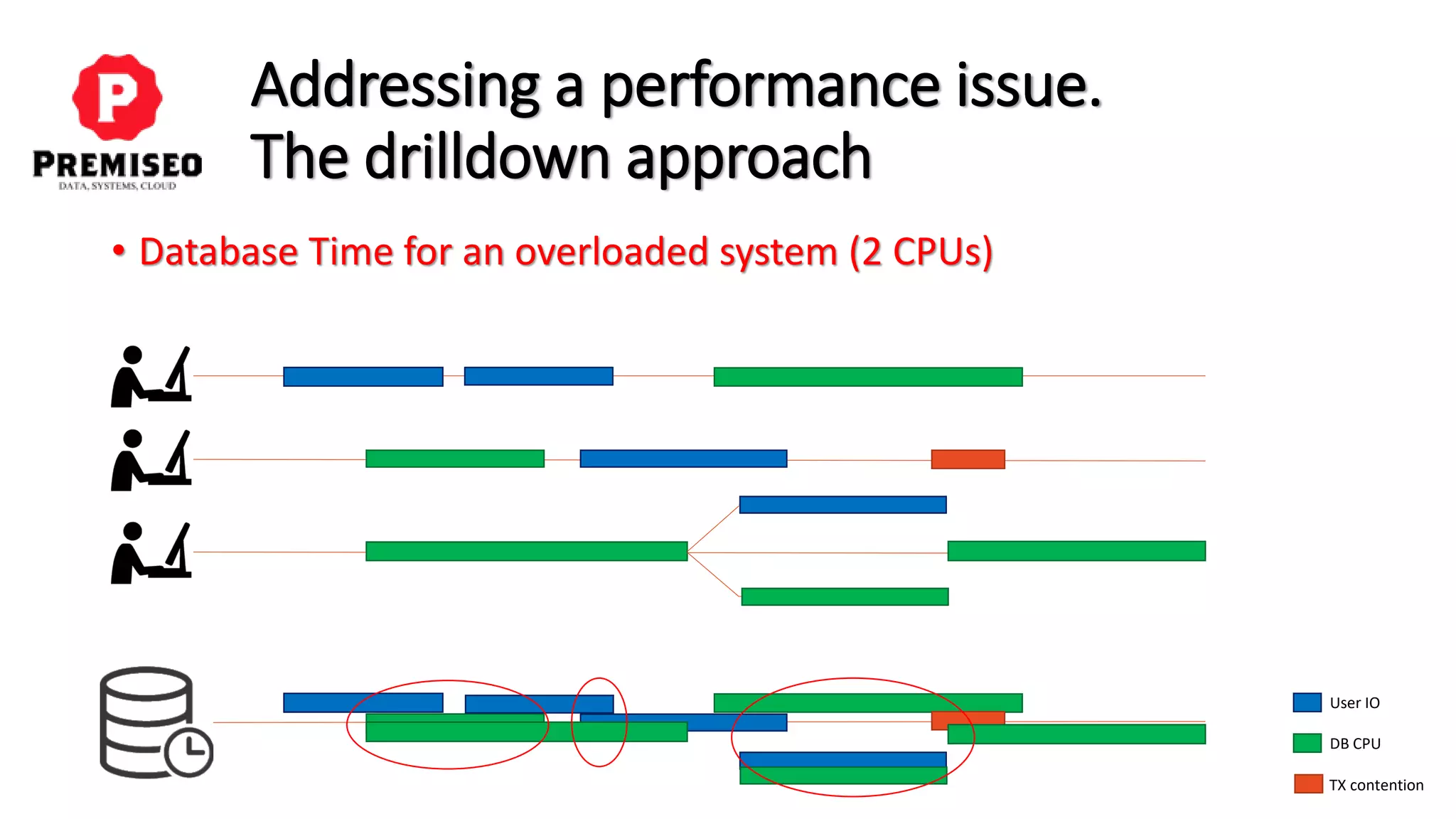

• Database Time for an overloaded system (2 CPUs)
User IO
DB CPU
TX contention

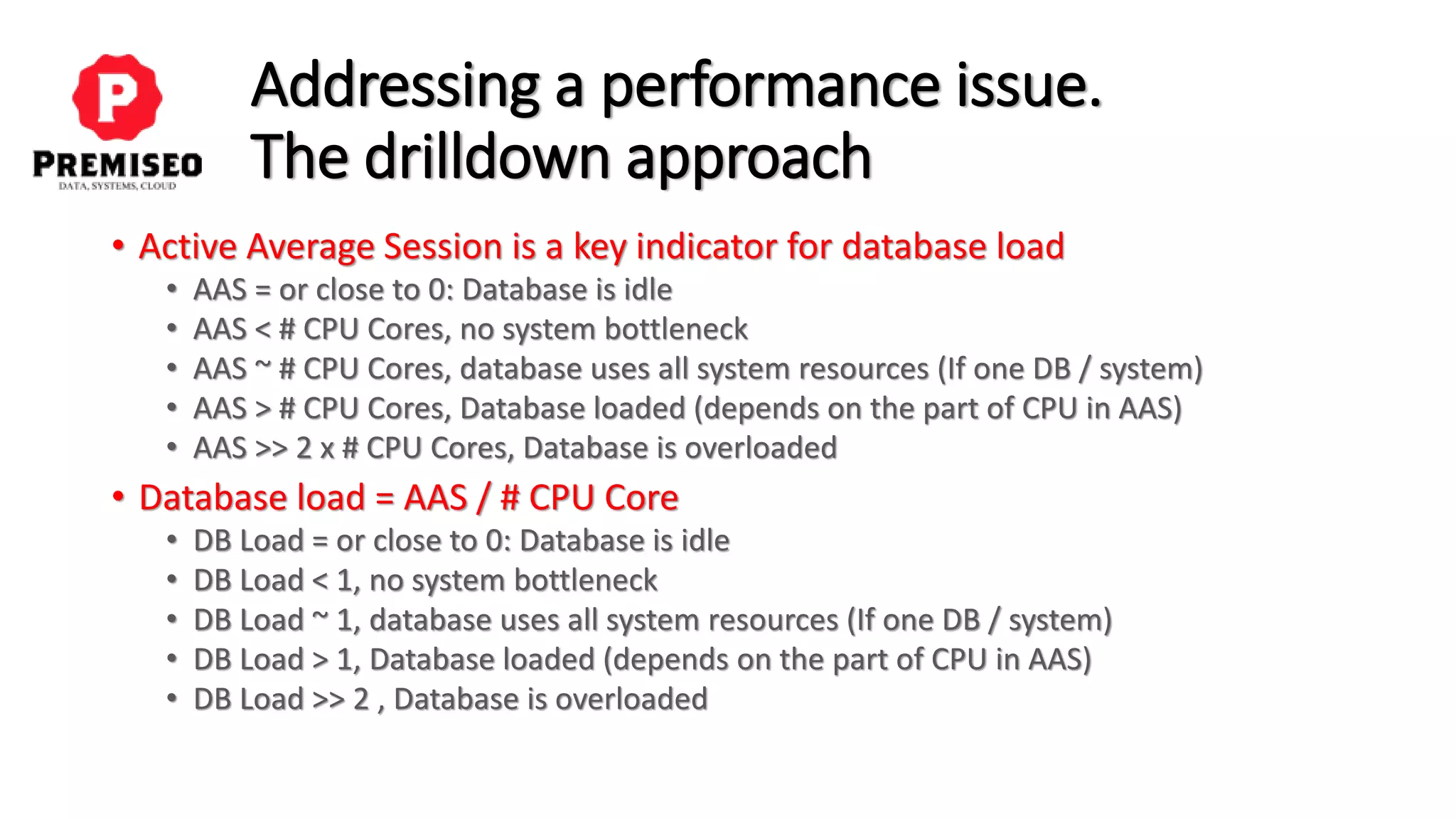

• Active Average Session is a key indicator for database load
• AAS = or close to 0: Database is idle
• AAS < # CPU Cores, no system bottleneck
• AAS ~ # CPU Cores, database uses all system resources (If one DB / system)
• AAS > # CPU Cores, Database loaded (depends on the part of CPU in AAS)
• AAS >> 2 x # CPU Cores, Database is overloaded
• Database load = AAS / # CPU Core
• DB Load = or close to 0: Database is idle
• DB Load < 1, no system bottleneck
• DB Load ~ 1, database uses all system resources (If one DB / system)
• DB Load > 1, Database loaded (depends on the part of CPU in AAS)
• DB Load >> 2 , Database is overloaded

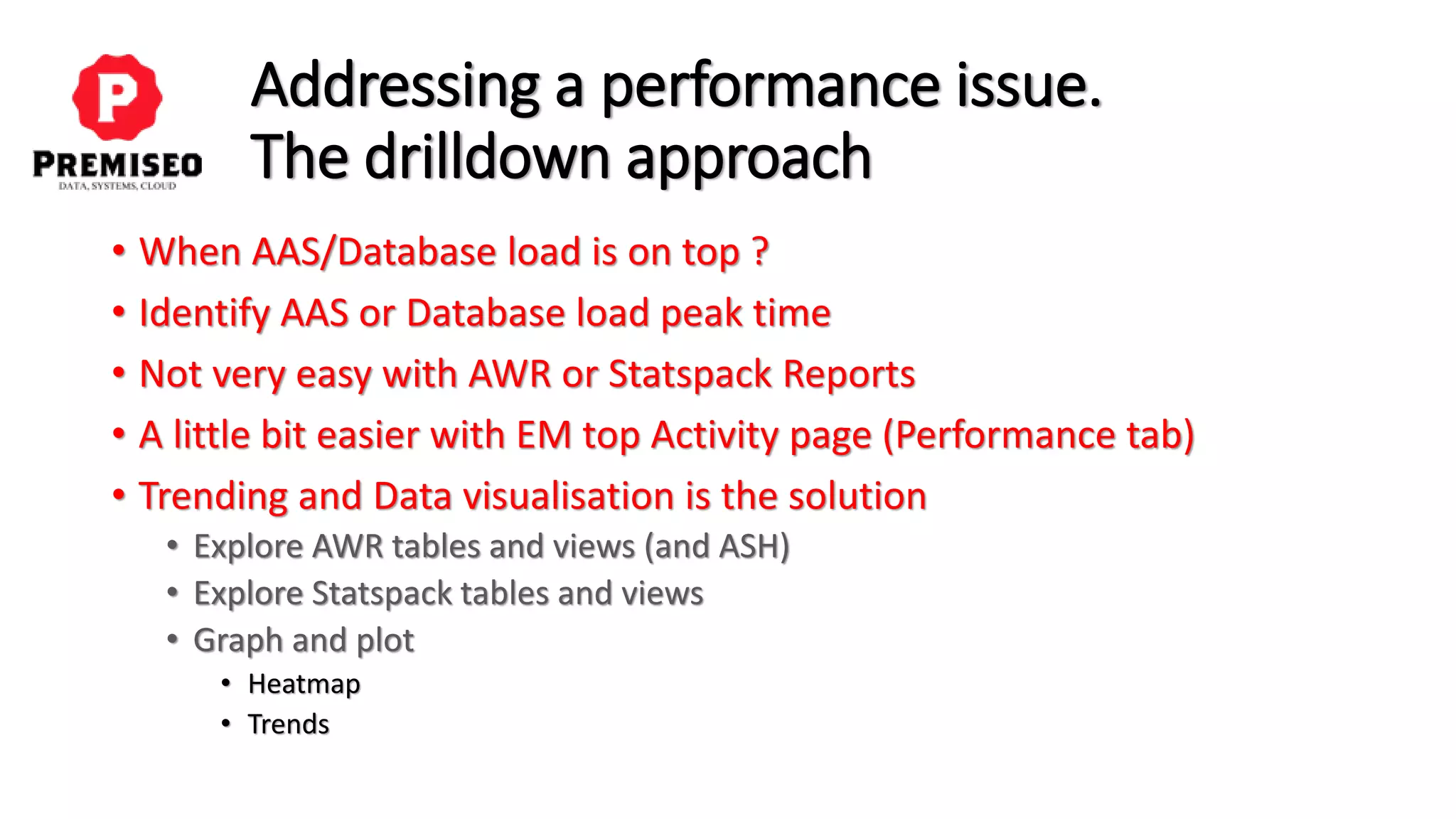

• When AAS/Database load is on top ?
• Identify AAS or Database load peak time
• Not very easy with AWR or Statspack Reports
• A little bit easier with EM top Activity page (Performance tab)
• Trending and Data visualisation is the solution
• Explore AWR tables and views (and ASH)
• Explore Statspack tables and views
• Graph and plot
• Heatmap
• Trends

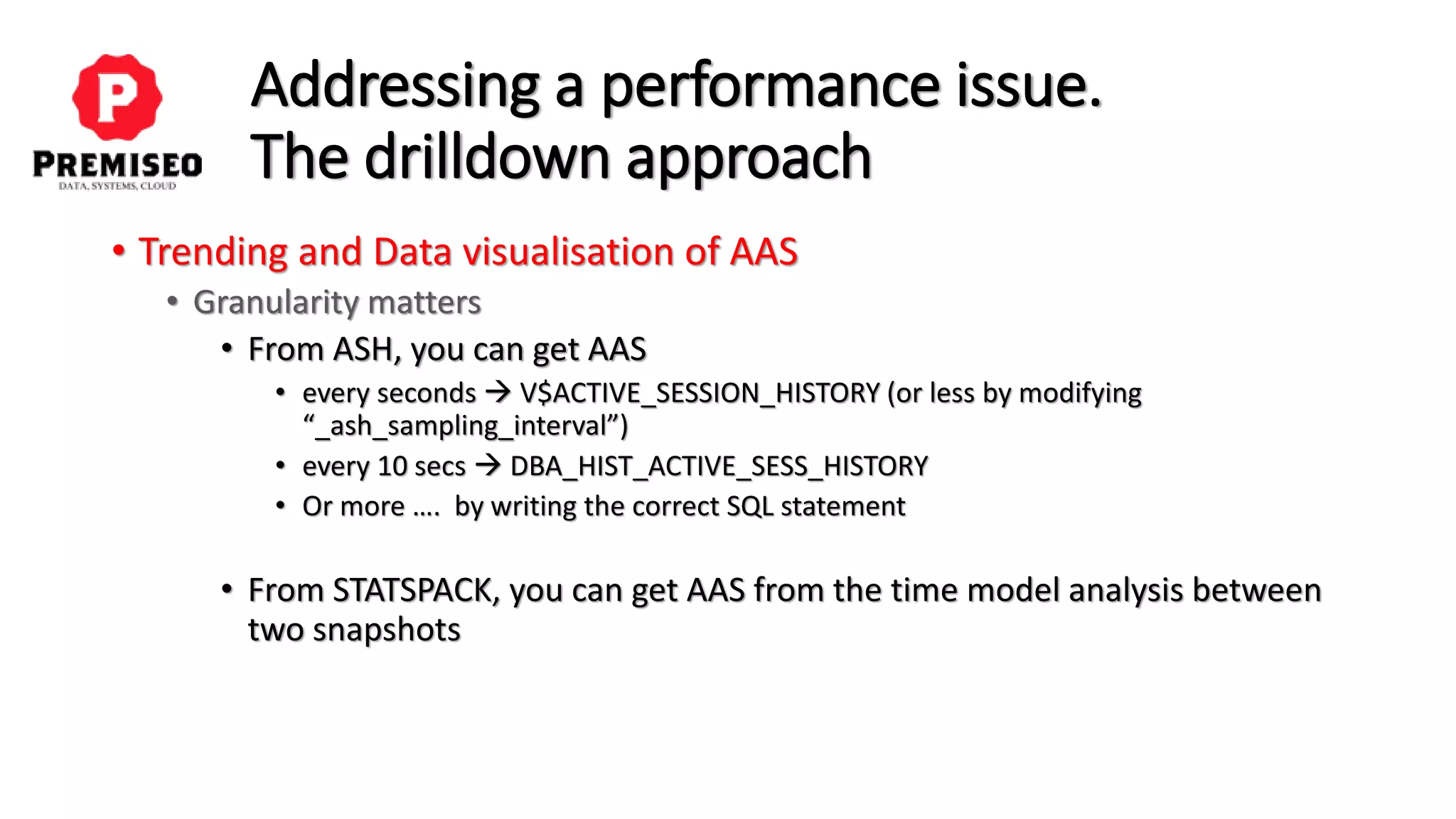

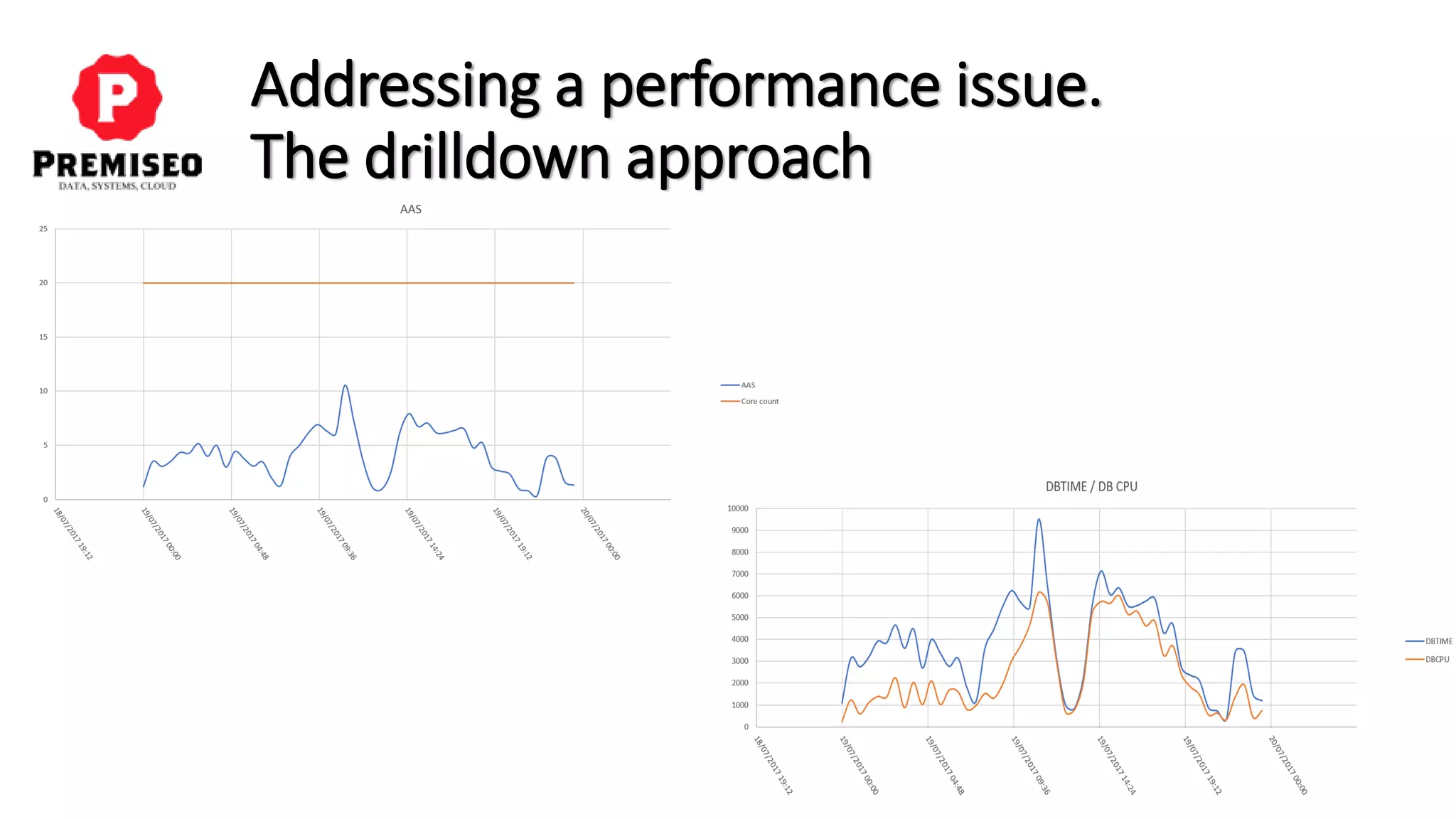

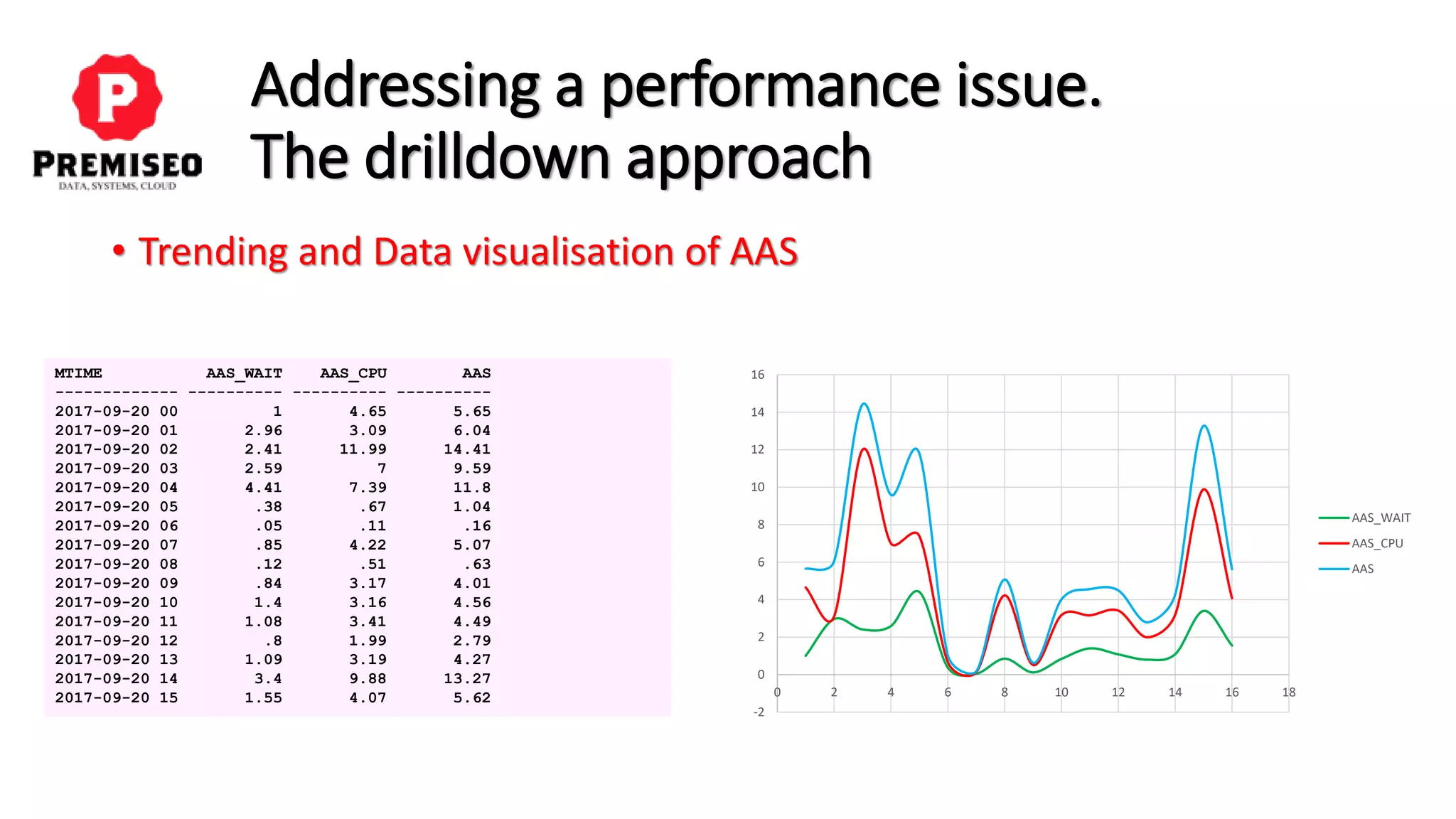

• Trending and Data visualisation of AAS
• Granularity matters
• From ASH, you can get AAS
• every seconds → V$ACTIVE_SESSION_HISTORY (or less by modifying
“_ash_sampling_interval”)
• every 10 secs → DBA_HIST_ACTIVE_SESS_HISTORY
• Or more …. by writing the correct SQL statement
• From STATSPACK, you can get AAS from the time model analysis between
two snapshots

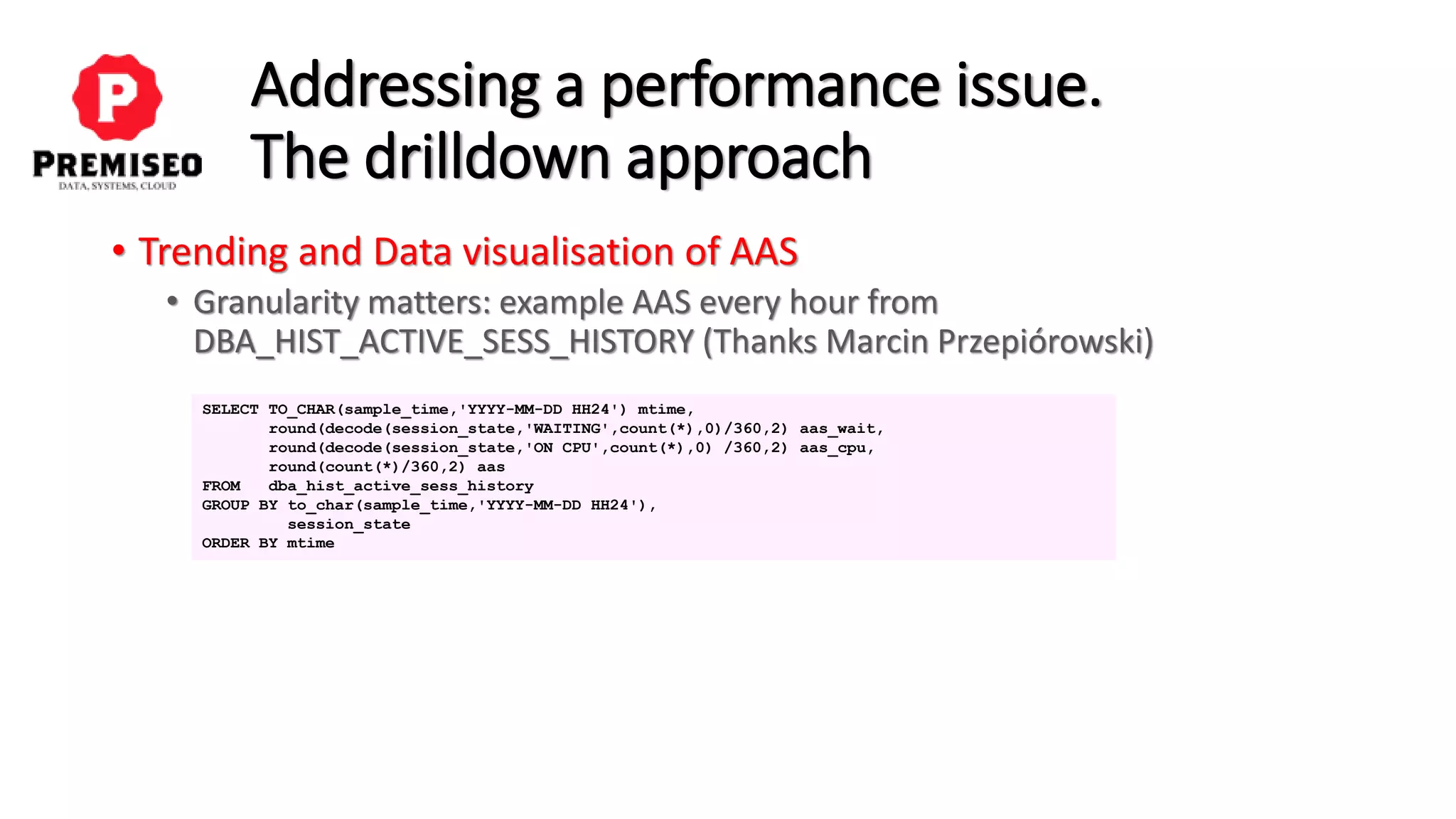

• Granularity matters: example AAS every hour from
DBA_HIST_ACTIVE_SESS_HISTORY (Thanks Marcin Przepiórowski)
SELECT TO_CHAR(sample_time,'YYYY-MM-DD HH24') mtime,
round(decode(session_state,'WAITING',count(*),0)/360,2) aas_wait,
round(decode(session_state,'ON CPU',count(*),0) /360,2) aas_cpu,
round(count(*)/360,2) aas
FROM dba_hist_active_sess_history
GROUP BY to_char(sample_time,'YYYY-MM-DD HH24'),
session_state
ORDER BY mtime

MTIME AAS_WAIT AAS_CPU AAS
------------- ---------- ---------- ----------
2017-09-20 00 1 4.65 5.65
2017-09-20 01 2.96 3.09 6.04
2017-09-20 02 2.41 11.99 14.41
2017-09-20 03 2.59 7 9.59
2017-09-20 04 4.41 7.39 11.8
2017-09-20 05 .38 .67 1.04
2017-09-20 06 .05 .11 .16
2017-09-20 07 .85 4.22 5.07
2017-09-20 08 .12 .51 .63
2017-09-20 09 .84 3.17 4.01
2017-09-20 10 1.4 3.16 4.56
2017-09-20 11 1.08 3.41 4.49
2017-09-20 12 .8 1.99 2.79
2017-09-20 13 1.09 3.19 4.27
2017-09-20 14 3.4 9.88 13.27
2017-09-20 15 1.55 4.07 5.62
-2
0
2
4
6
8
10
12
14
16
0 2 4 6 8 10 12 14 16 18
AAS_WAIT
AAS_CPU
AAS

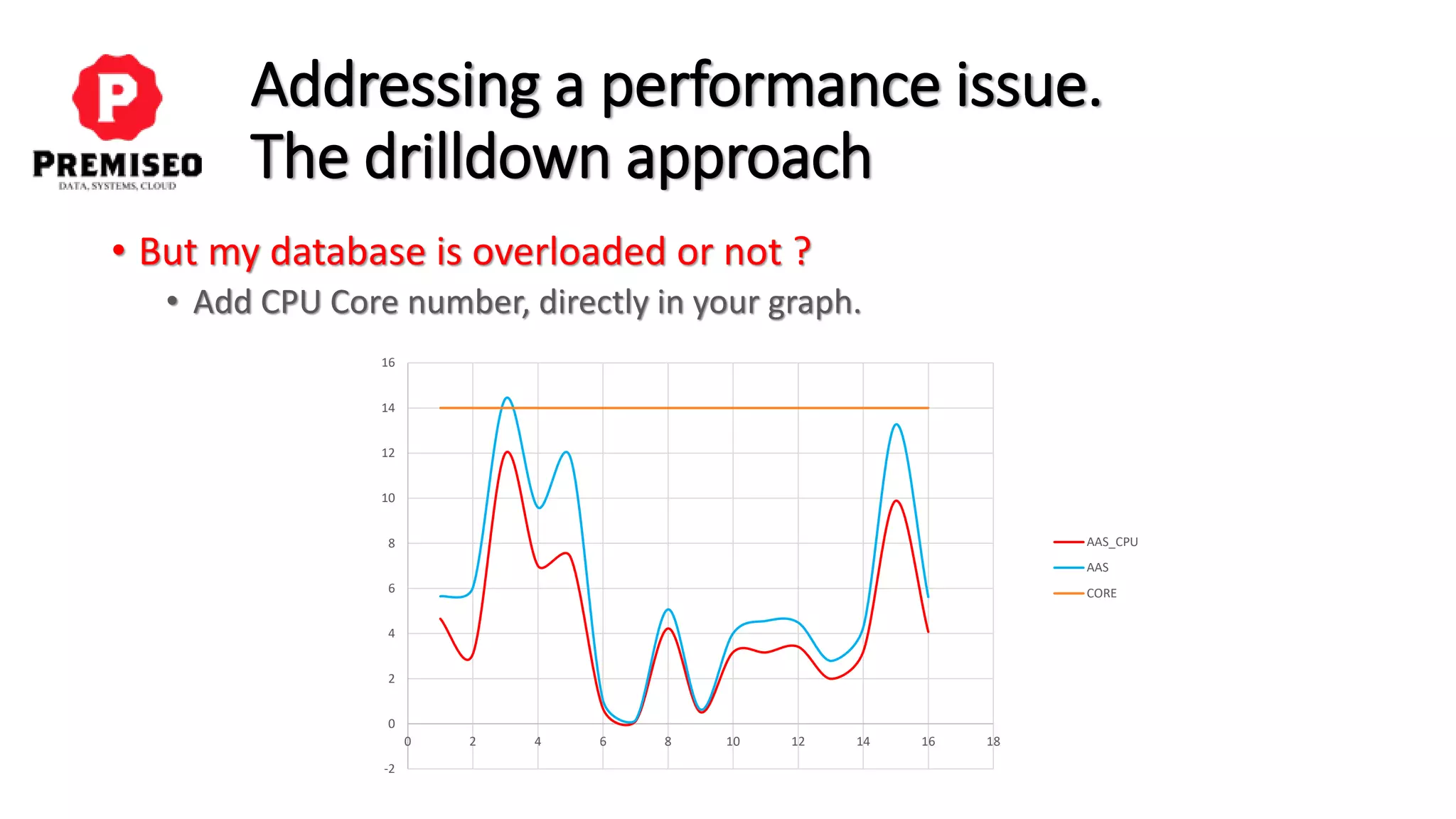

• But my database is overloaded or not ?
• Add CPU Core number, directly in your graph.
-2
0
2
4
6
8
10
12
14
16
0 2 4 6 8 10 12 14 16 18
AAS_CPU
AAS
CORE

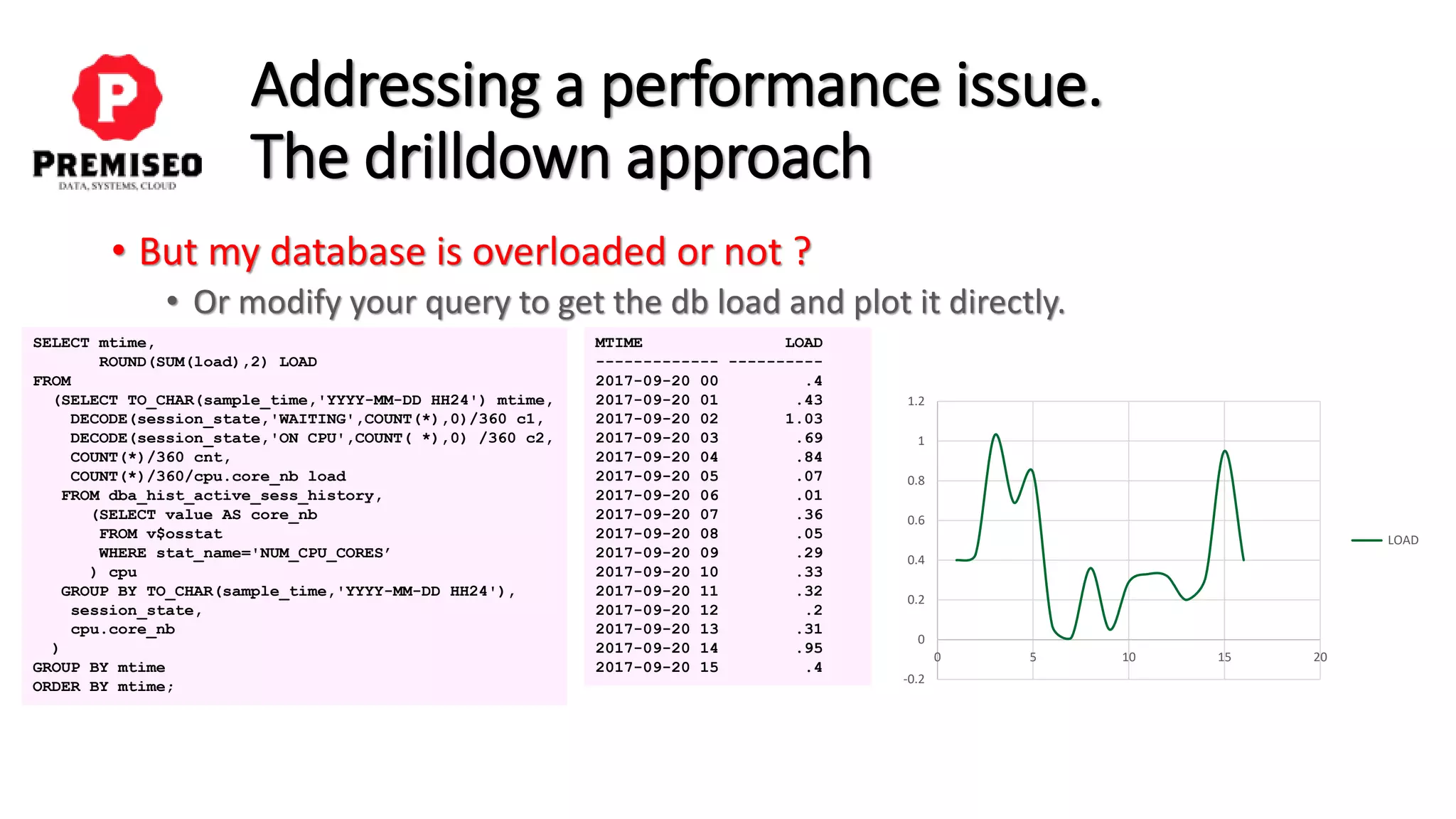

• But my database is overloaded or not ?
• Or modify your query to get the db load and plot it directly.
SELECT mtime,
ROUND(SUM(load),2) LOAD
FROM
(SELECT TO_CHAR(sample_time,'YYYY-MM-DD HH24') mtime,
DECODE(session_state,'WAITING',COUNT(*),0)/360 c1,
DECODE(session_state,'ON CPU',COUNT( *),0) /360 c2,
COUNT(*)/360 cnt,
COUNT(*)/360/cpu.core_nb load
FROM dba_hist_active_sess_history,
(SELECT value AS core_nb
FROM v$osstat
WHERE stat_name='NUM_CPU_CORES’
) cpu
GROUP BY TO_CHAR(sample_time,'YYYY-MM-DD HH24'),
session_state,
cpu.core_nb
)
GROUP BY mtime
ORDER BY mtime;
MTIME LOAD
------------- ----------
2017-09-20 00 .4
2017-09-20 01 .43
2017-09-20 02 1.03
2017-09-20 03 .69
2017-09-20 04 .84
2017-09-20 05 .07
2017-09-20 06 .01
2017-09-20 07 .36
2017-09-20 08 .05
2017-09-20 09 .29
2017-09-20 10 .33
2017-09-20 11 .32
2017-09-20 12 .2
2017-09-20 13 .31
2017-09-20 14 .95
2017-09-20 15 .4
-0.2
0
0.2
0.4
0.6
0.8
1
1.2
0 5 10 15 20
LOAD

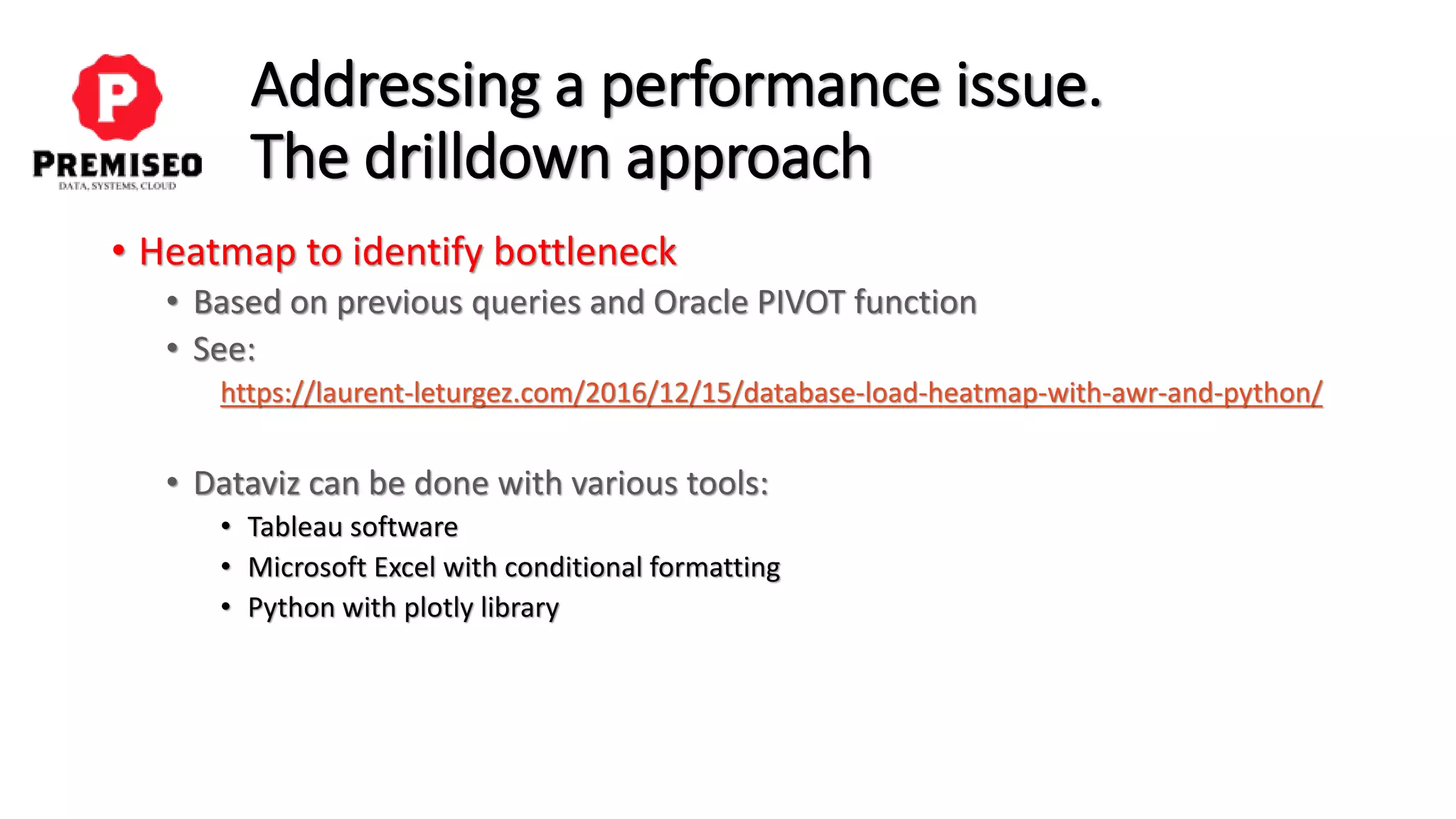

• Heatmap to identify bottleneck
• Based on previous queries and Oracle PIVOT function
• See:
https://laurent-leturgez.com/2016/12/15/database-load-heatmap-with-awr-and-python/
• Dataviz can be done with various tools:
• Tableau software
• Microsoft Excel with conditional formatting
• Python with plotly library

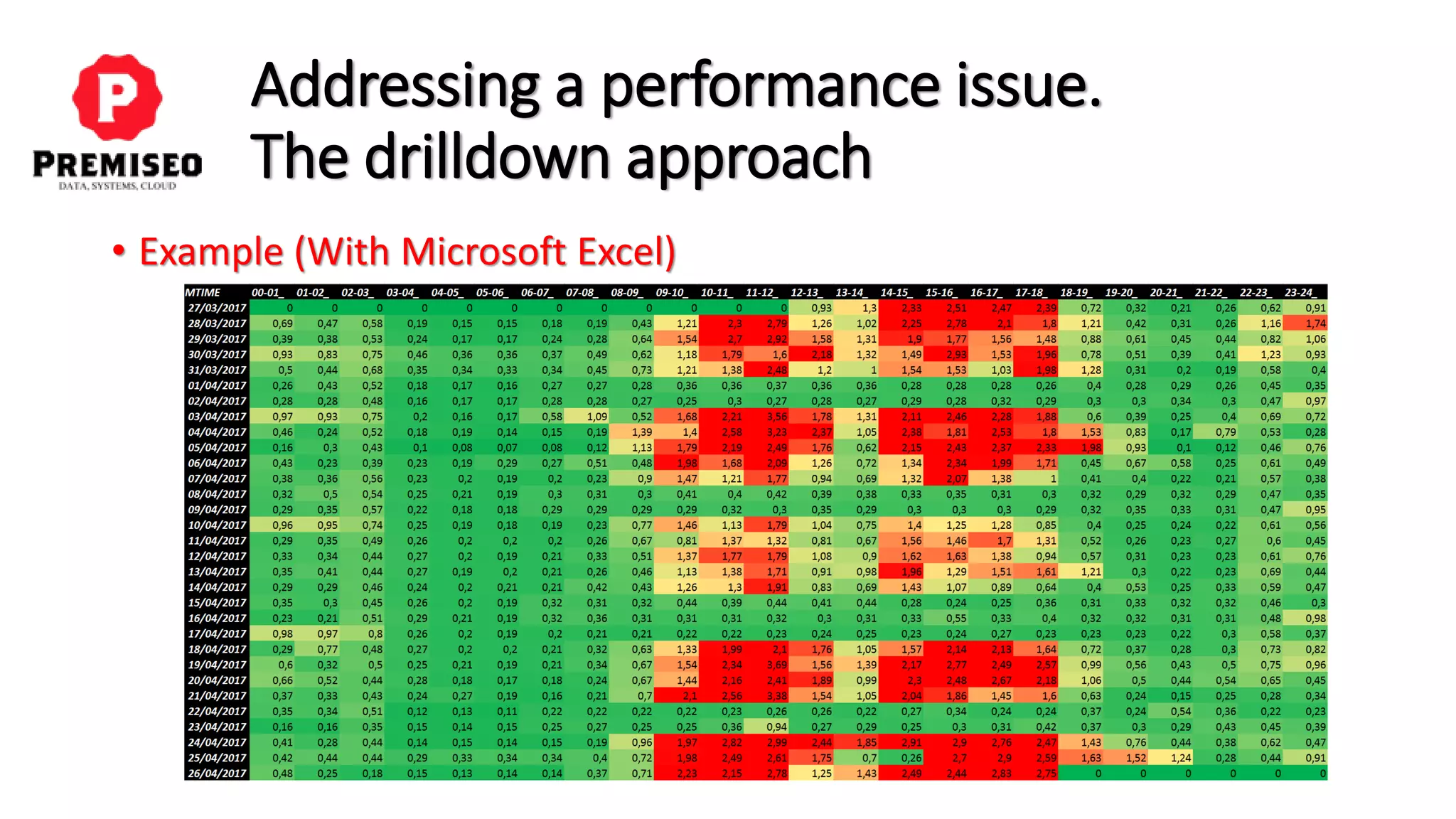

• Example (With Microsoft Excel)

• Examples (with Python and Plotly)

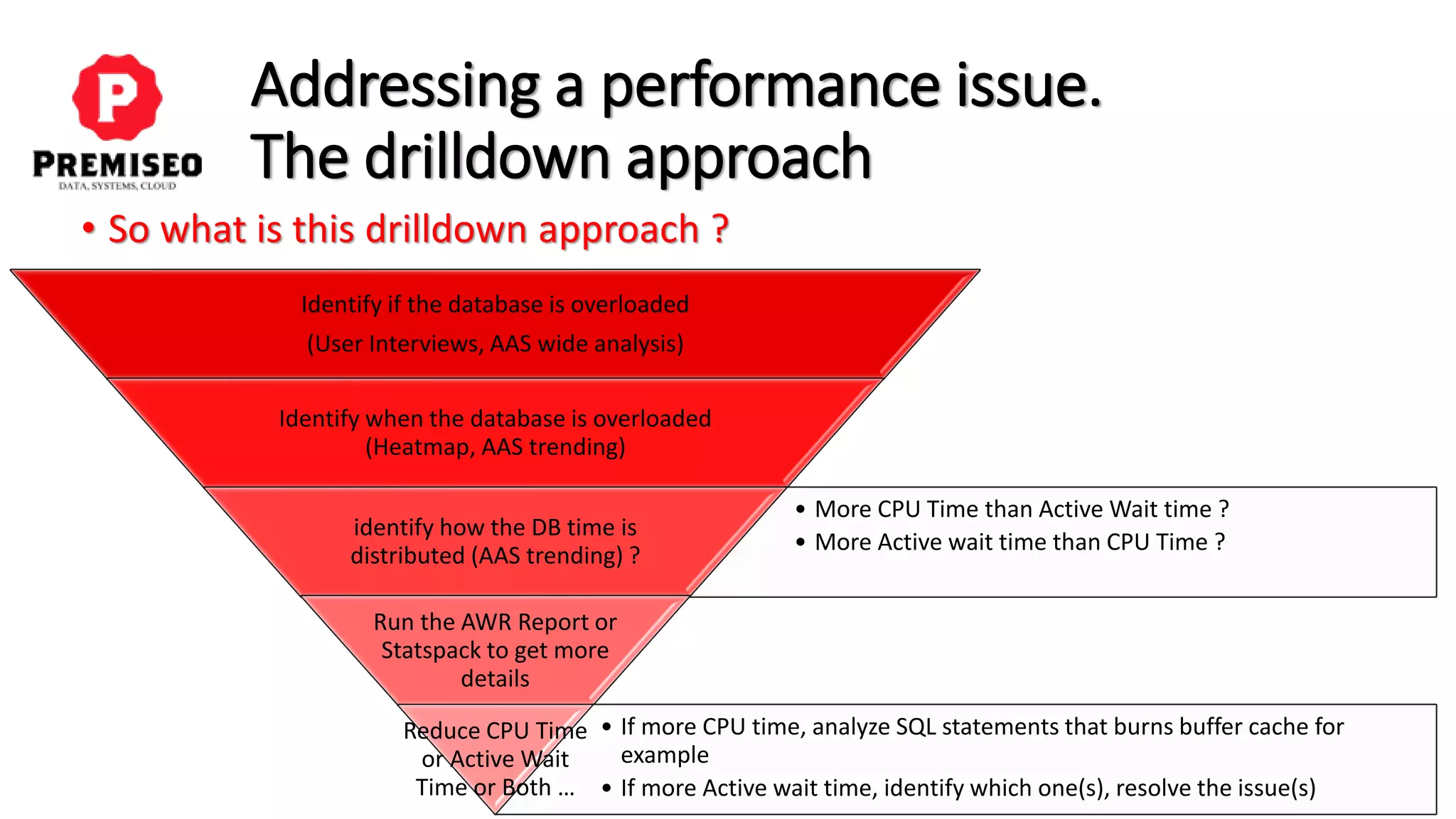

• So what is this drilldown approach ?
• First identify if the database is overloaded (User Interviews, AAS wide
analysis)
• Then, identify when the database is overloaded (Heatmap, AAS trending)
• Then, identify how the DB time is distributed (AAS trending)
• More CPU Time than Active Wait time ?
• More Active wait time than CPU Time ?
• Run the AWR Report or Statspack to get more details (AWR and SP reports)
• Reduce CPU Time or Active Wait Time or Both … (with the help of your brain
!!)
• If more CPU time, analyze SQL statements that burns buffer cache for example
• If more Active wait time, identify which one(s), resolve the issue(s)

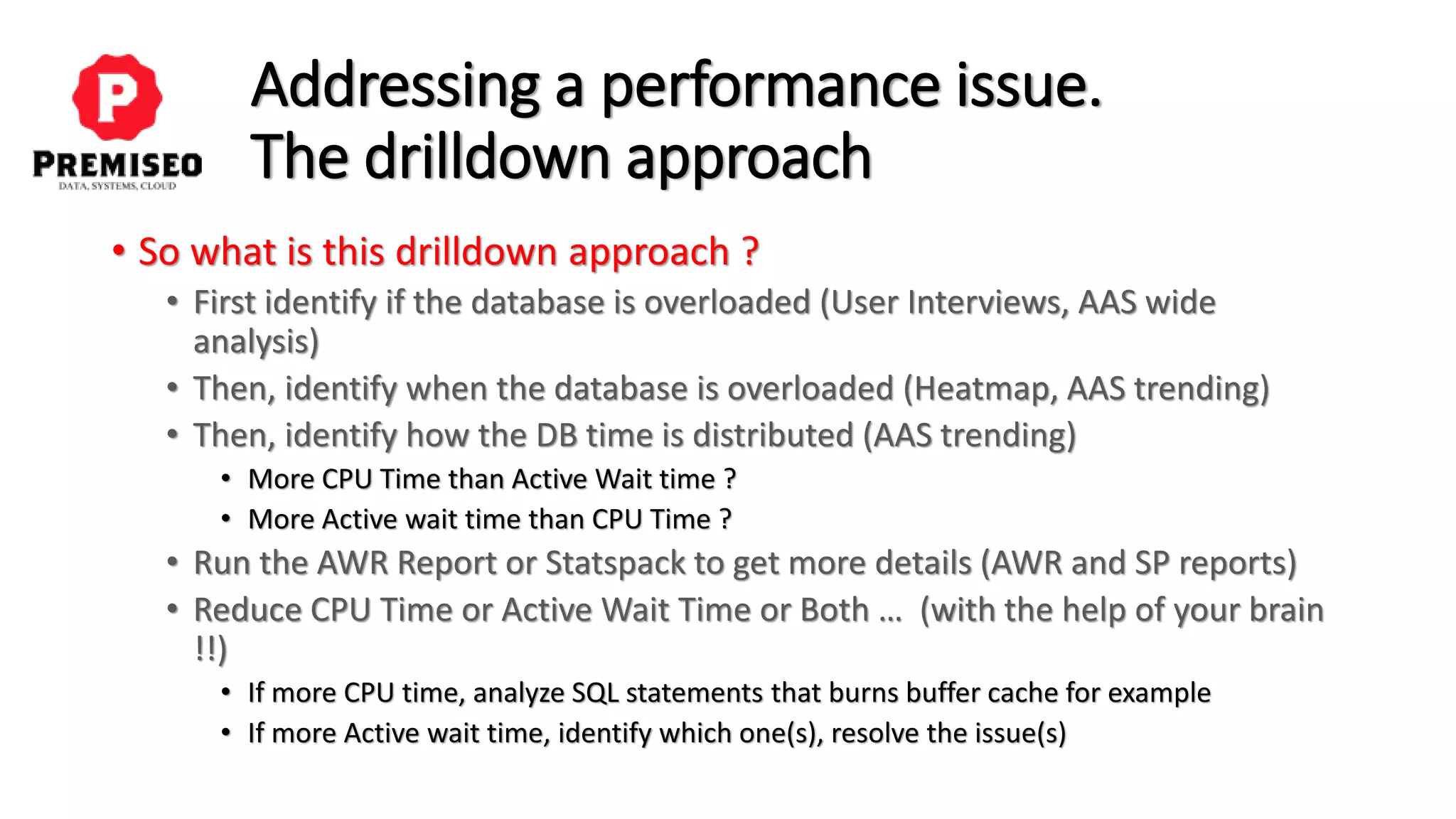

• So what is this drilldown approach ?
Identify if the database is overloaded
(User Interviews, AAS wide analysis)
Identify when the database is overloaded
(Heatmap, AAS trending)
• More CPU Time than Active Wait time ?
• More Active wait time than CPU Time ?
identify how the DB time is
distributed (AAS trending) ?
Run the AWR Report or
Statspack to get more
details
• If more CPU time, analyze SQL statements that burns buffer cache for
example
• If more Active wait time, identify which one(s), resolve the issue(s)
Reduce CPU Time
or Active Wait
Time or Both …

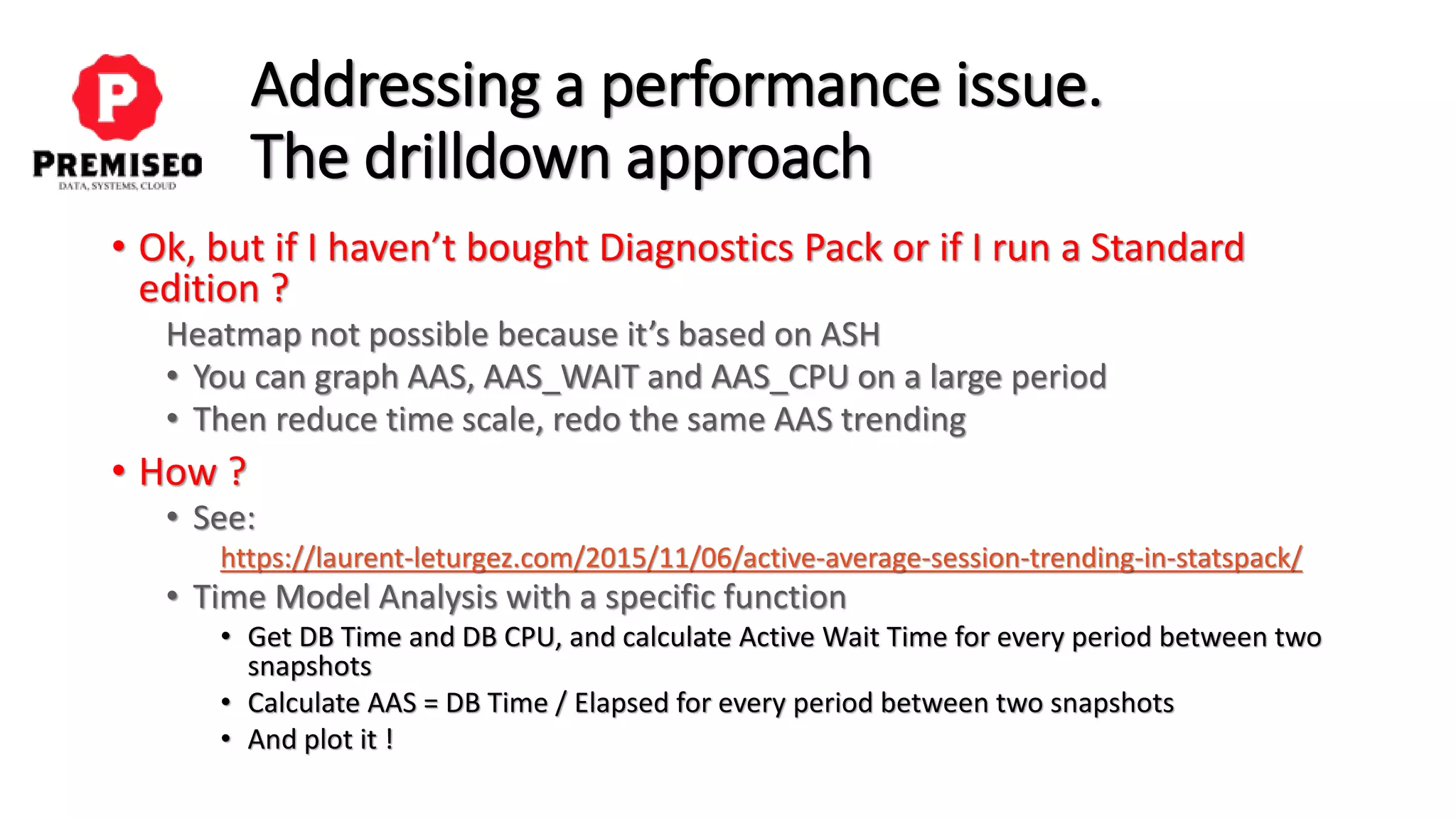

• Ok, but if I haven’t bought Diagnostics Pack or if I run a Standard
edition ?
Heatmap not possible because it’s based on ASH
• You can graph AAS, AAS_WAIT and AAS_CPU on a large period
• Then reduce time scale, redo the same AAS trending
• How ?
• See:
https://laurent-leturgez.com/2015/11/06/active-average-session-trending-in-statspack/
• Time Model Analysis with a specific function
• Get DB Time and DB CPU, and calculate Active Wait Time for every period between two
snapshots
• Calculate AAS = DB Time / Elapsed for every period between two snapshots
• And plot it !

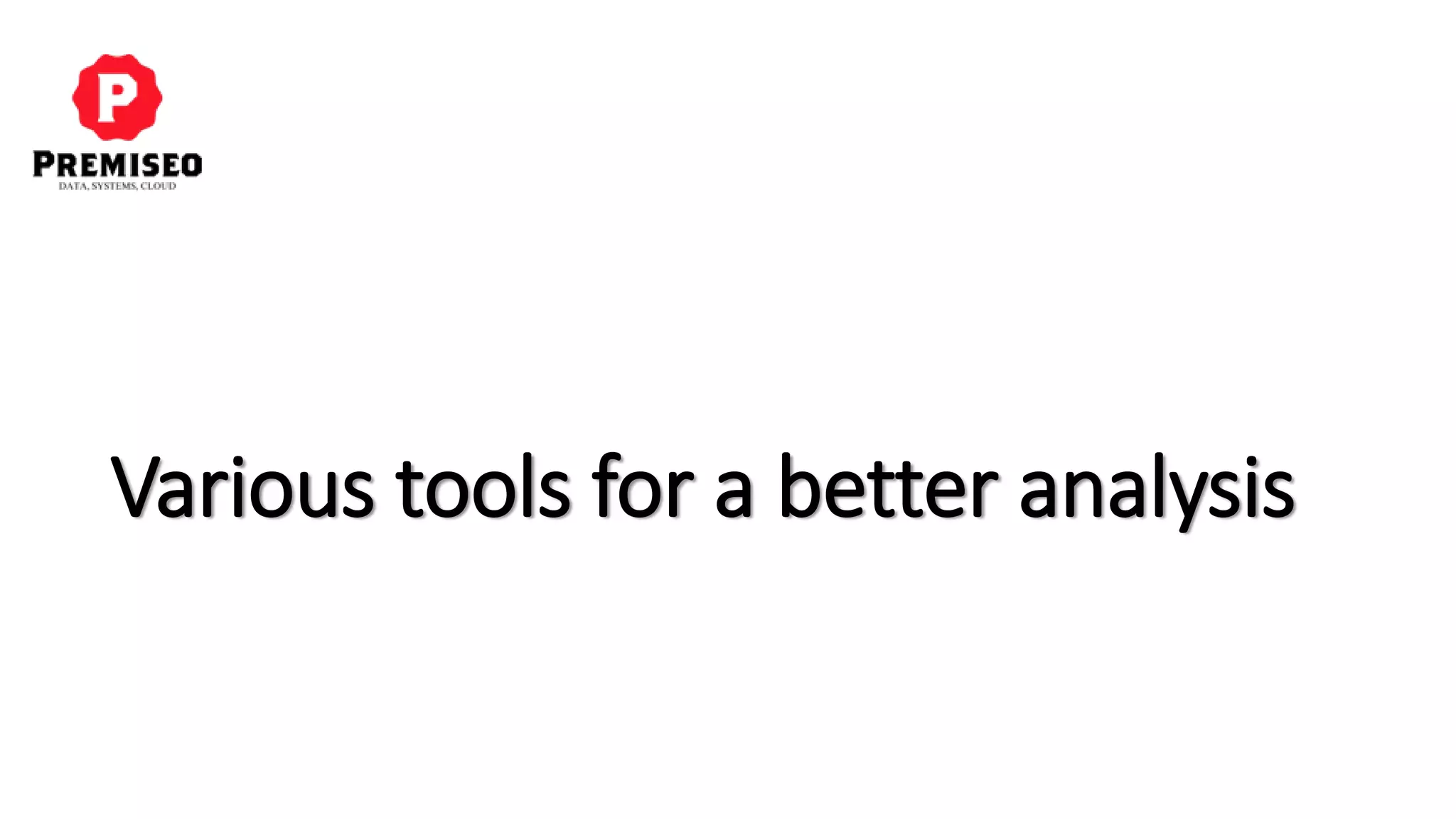

Various tools for a better analysis

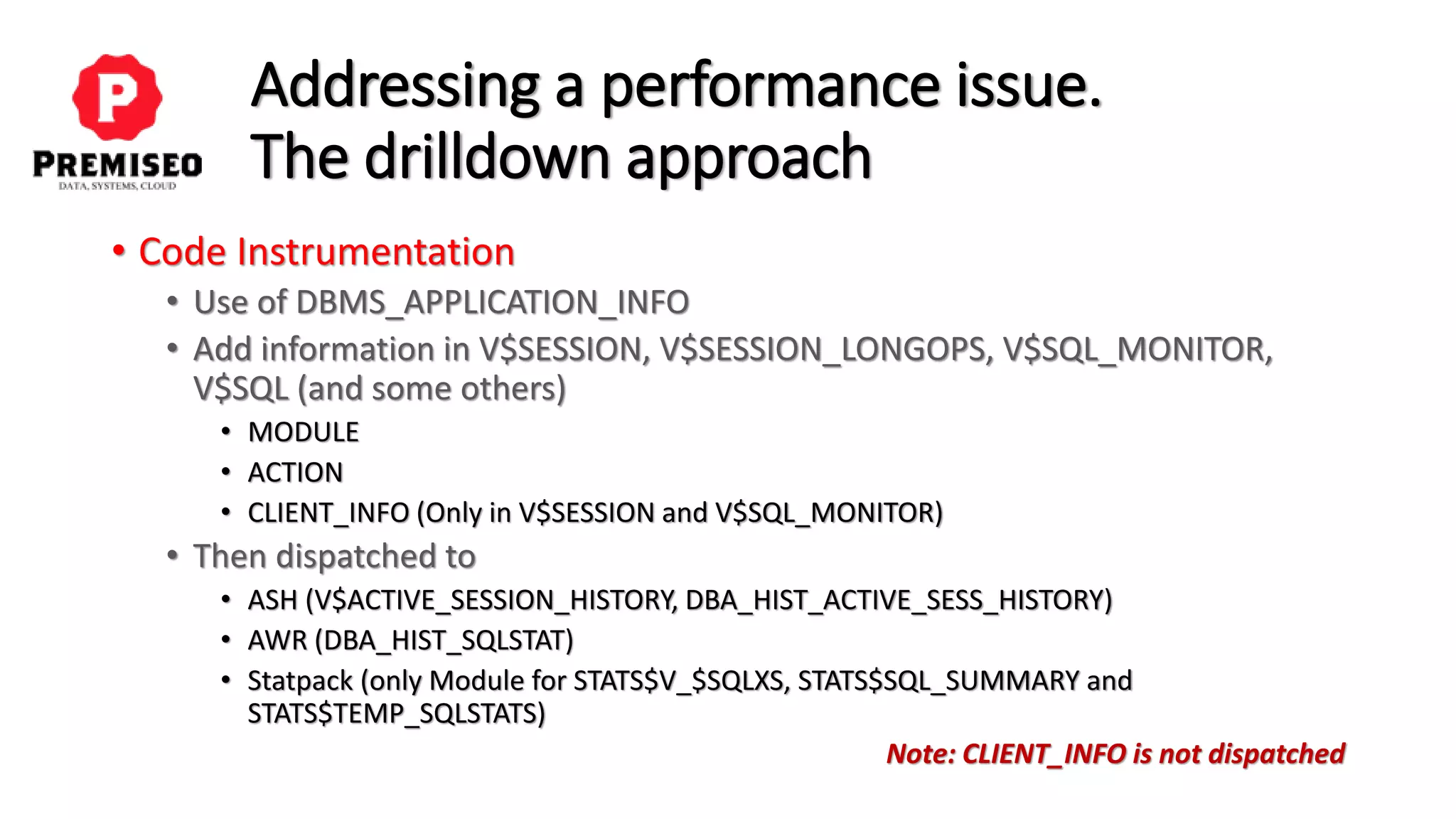

• Code Instrumentation
• Use of DBMS_APPLICATION_INFO
• Add information in V$SESSION, V$SESSION_LONGOPS, V$SQL_MONITOR,
V$SQL (and some others)
• MODULE
• ACTION
• CLIENT_INFO (Only in V$SESSION and V$SQL_MONITOR)
• Then dispatched to
• ASH (V$ACTIVE_SESSION_HISTORY, DBA_HIST_ACTIVE_SESS_HISTORY)
• AWR (DBA_HIST_SQLSTAT)
• Statpack (only Module for STATS$V_$SQLXS, STATS$SQL_SUMMARY and
STATS$TEMP_SQLSTATS)
Note: CLIENT_INFO is not dispatched

Without Code
instrumentation
With Code
instrumentation

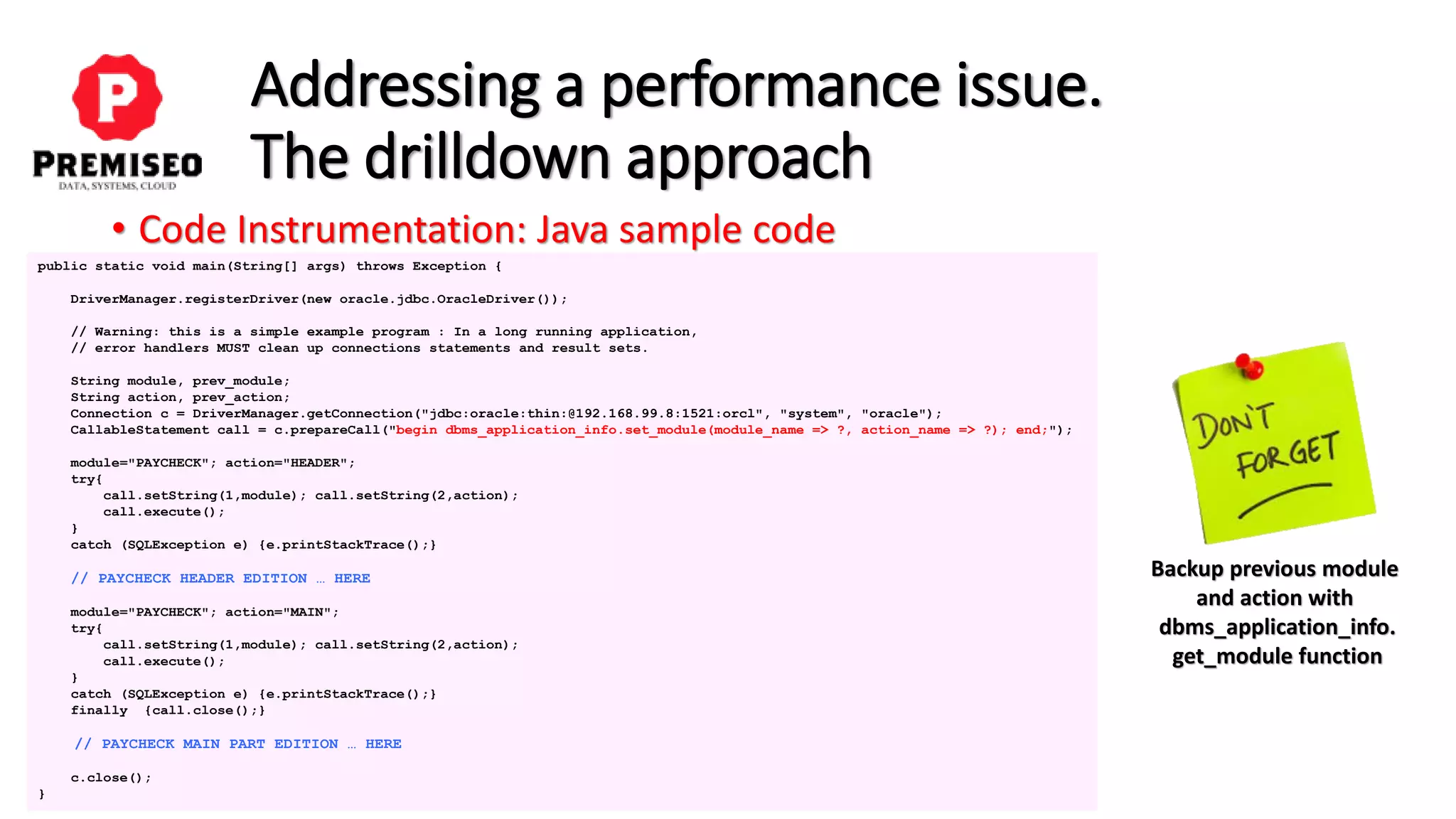

• Code Instrumentation: Java sample code
public static void main(String[] args) throws Exception {
DriverManager.registerDriver(new oracle.jdbc.OracleDriver());
// Warning: this is a simple example program : In a long running application,
// error handlers MUST clean up connections statements and result sets.
String module, prev_module;
String action, prev_action;
Connection c = DriverManager.getConnection("jdbc:oracle:thin:@192.168.99.8:1521:orcl", "system", "oracle");
CallableStatement call = c.prepareCall("begin dbms_application_info.set_module(module_name => ?, action_name => ?); end;");
module="PAYCHECK"; action="HEADER";
try{
call.setString(1,module); call.setString(2,action);
call.execute();
}
catch (SQLException e) {e.printStackTrace();}
// PAYCHECK HEADER EDITION … HERE
module="PAYCHECK"; action="MAIN";
try{
call.setString(1,module); call.setString(2,action);
call.execute();
}
catch (SQLException e) {e.printStackTrace();}
finally {call.close();}
// PAYCHECK MAIN PART EDITION … HERE
c.close();
}
Backup previous module
and action with
dbms_application_info.
get_module function

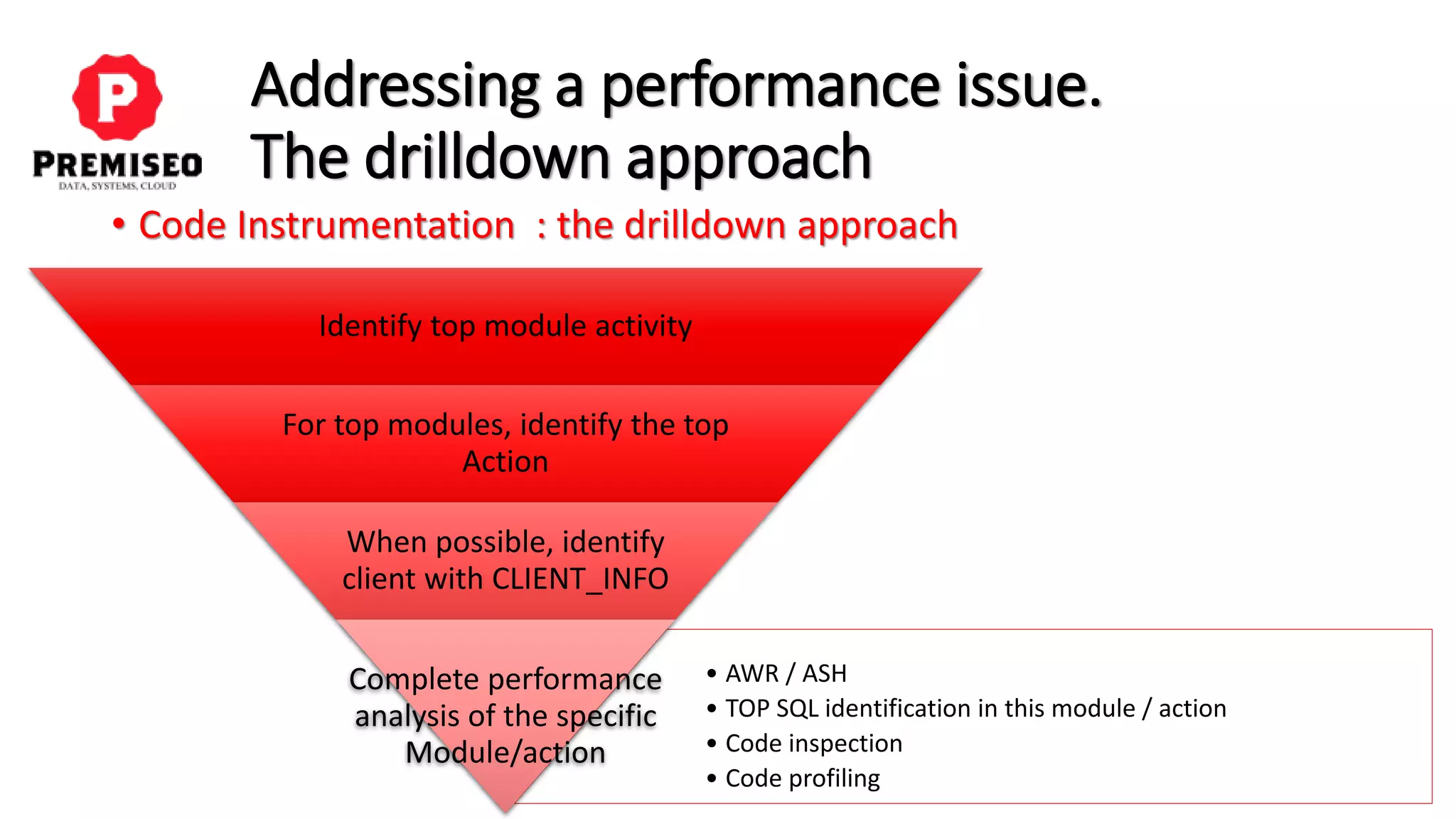

• Code Instrumentation : the drilldown approach
Identify top module activity
For top modules, identify the top
Action
When possible, identify
client with CLIENT_INFO
• AWR / ASH
• TOP SQL identification in this module / action
• Code inspection
• Code profiling
Complete performance
analysis of the specific
Module/action

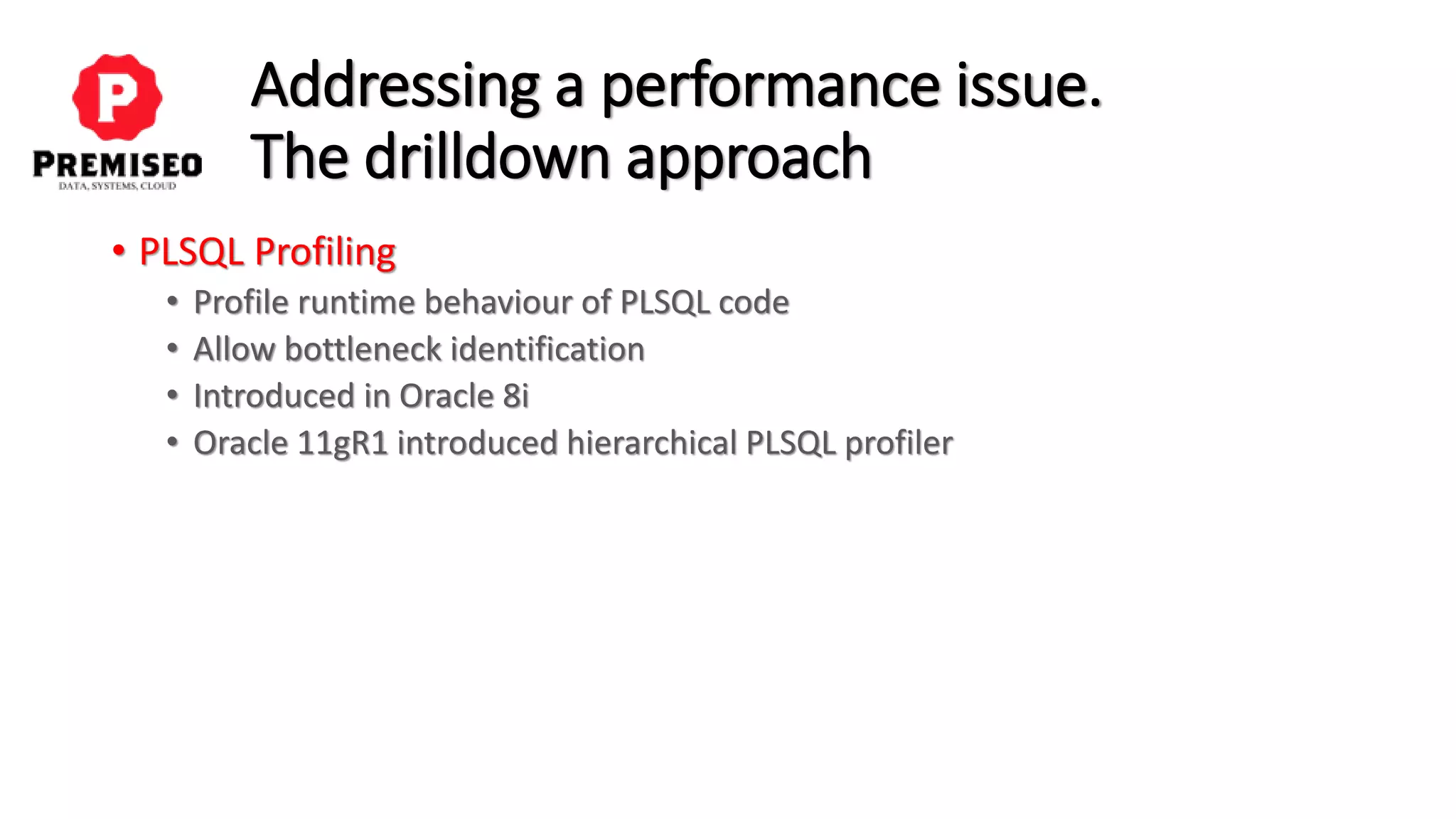

• PLSQL Profiling
• Profile runtime behaviour of PLSQL code
• Allow bottleneck identification
• Introduced in Oracle 8i
• Oracle 11gR1 introduced hierarchical PLSQL profiler

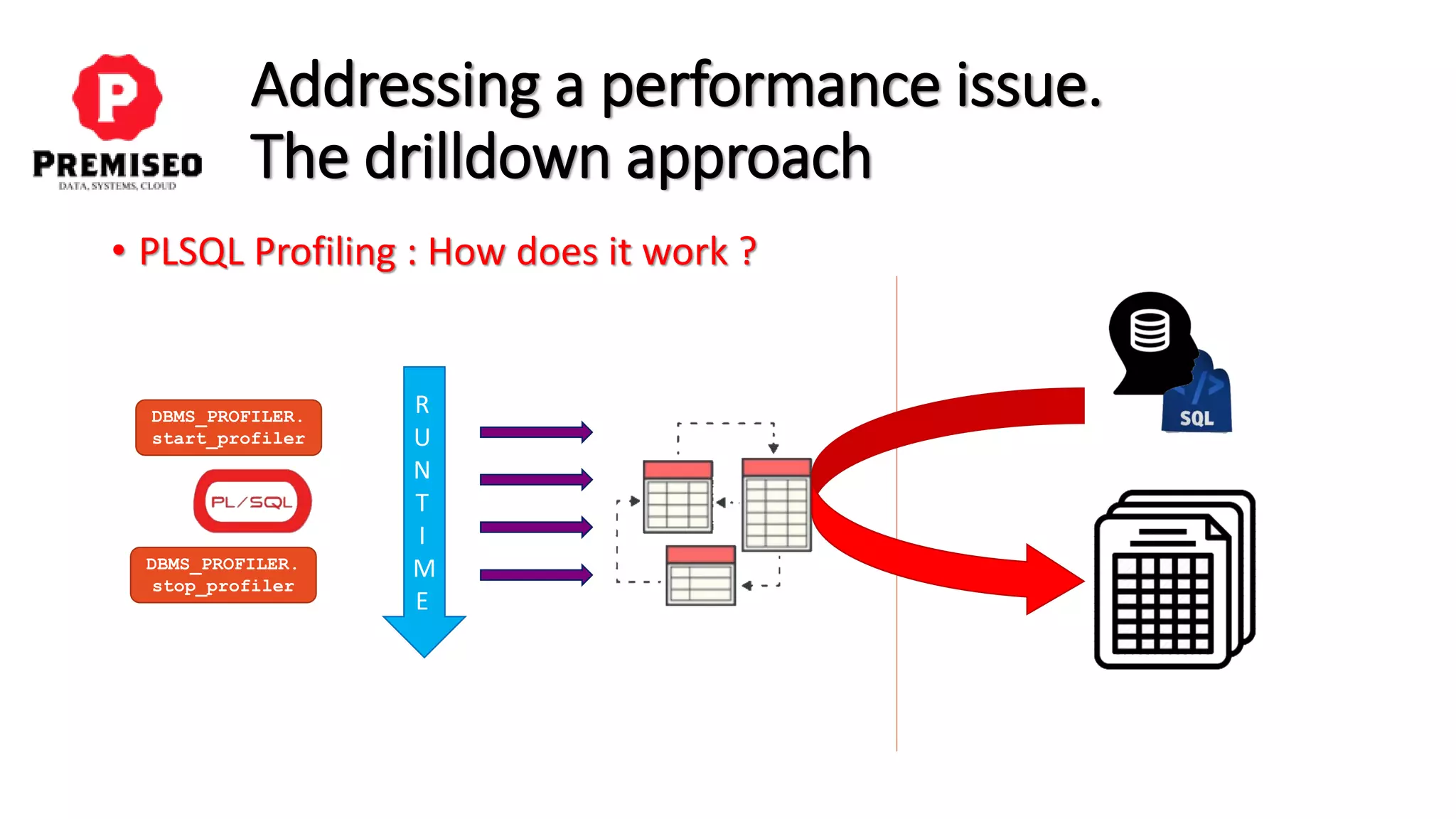

• PLSQL Profiling : How does it work ?
DBMS_PROFILER.
start_profiler
DBMS_PROFILER.
stop_profiler
R
U
N
T
I
M
E

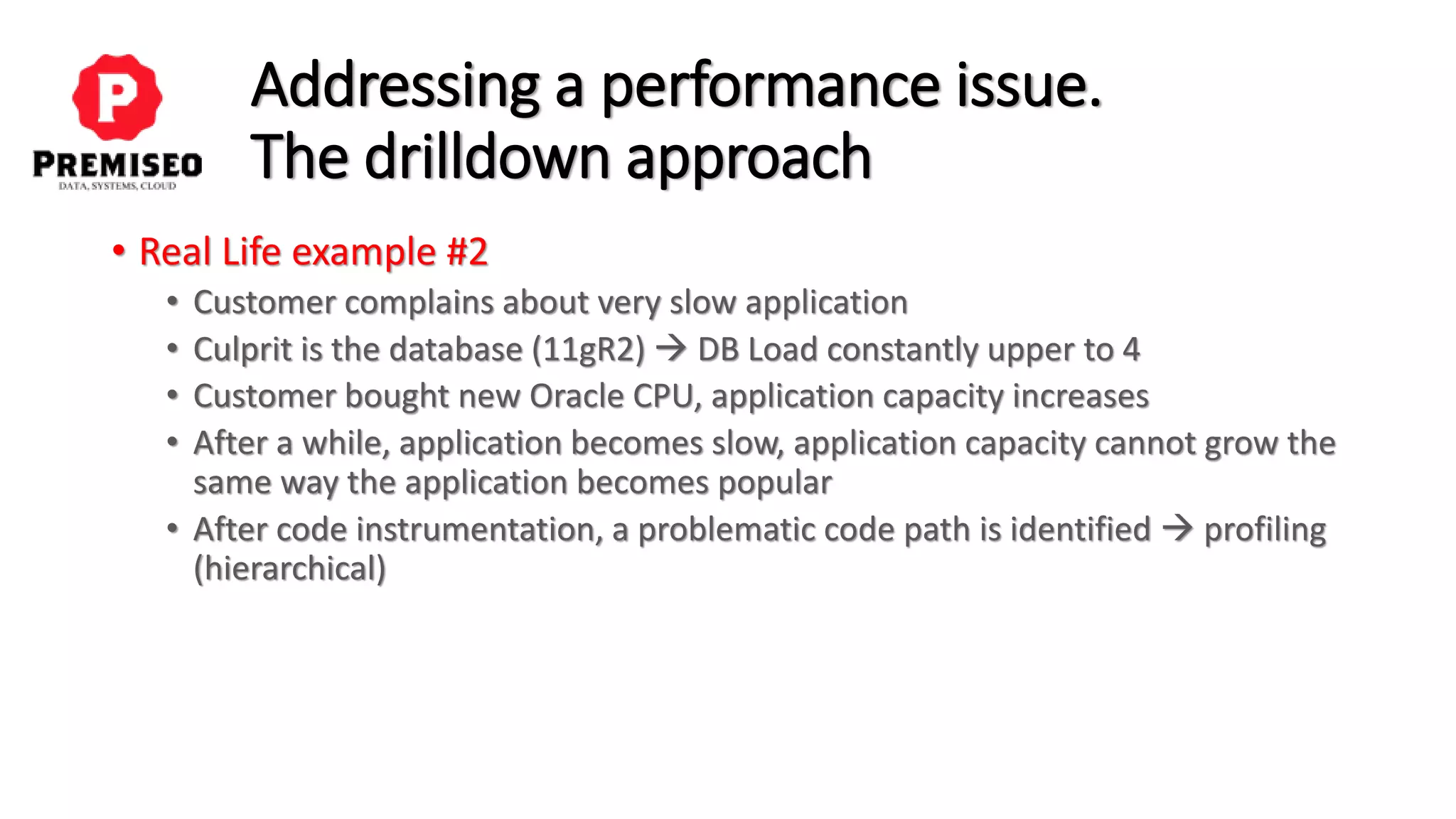

• Real Life example #1
• Night batch is too long (and ends after 4AM)
• Oracle 10g → classic profiler
• The culprit is the billing (sub)-batch (PLSQL) → Profiling

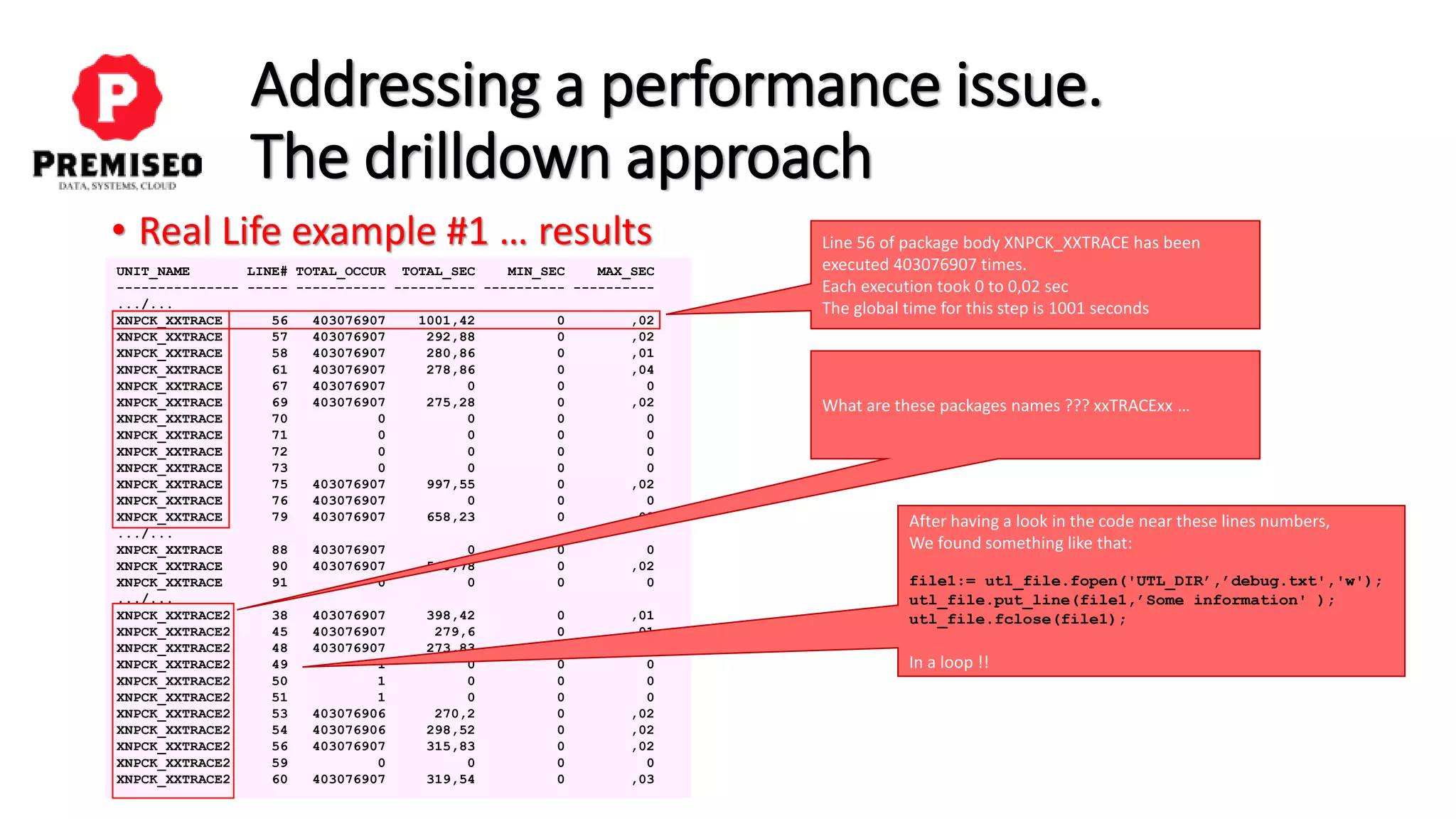

• Real Life example #1 … results
UNIT_NAME LINE# TOTAL_OCCUR TOTAL_SEC MIN_SEC MAX_SEC
--------------- ----- ----------- ---------- ---------- ----------
.../...
XNPCK_XXTRACE 56 403076907 1001,42 0 ,02
XNPCK_XXTRACE 57 403076907 292,88 0 ,02
XNPCK_XXTRACE 58 403076907 280,86 0 ,01
XNPCK_XXTRACE 61 403076907 278,86 0 ,04
XNPCK_XXTRACE 67 403076907 0 0 0
XNPCK_XXTRACE 69 403076907 275,28 0 ,02
XNPCK_XXTRACE 70 0 0 0 0
XNPCK_XXTRACE 75 403076907 997,55 0 ,02
XNPCK_XXTRACE 76 403076907 0 0 0
XNPCK_XXTRACE 79 403076907 658,23 0 ,03
.../...
XNPCK_XXTRACE 88 403076907 0 0 0
XNPCK_XXTRACE 90 403076907 540,78 0 ,02
.../...
XNPCK_XXTRACE2 38 403076907 398,42 0 ,01
XNPCK_XXTRACE2 45 403076907 279,6 0 ,01
XNPCK_XXTRACE2 48 403076907 273,83 0 ,01
XNPCK_XXTRACE2 49 1 0 0 0
XNPCK_XXTRACE2 53 403076906 270,2 0 ,02
XNPCK_XXTRACE2 54 403076906 298,52 0 ,02
XNPCK_XXTRACE2 56 403076907 315,83 0 ,02
XNPCK_XXTRACE2 60 403076907 319,54 0 ,03
Line 56 of package body XNPCK_XXTRACE has been
executed 403076907 times.
Each execution took 0 to 0,02 sec
The global time for this step is 1001 seconds
What are these packages names ??? xxTRACExx …
After having a look in the code near these lines numbers,
We found something like that:
file1:= utl_file.fopen('UTL_DIR’,’debug.txt','w');
utl_file.put_line(file1,’Some information' );
utl_file.fclose(file1);
In a loop !!

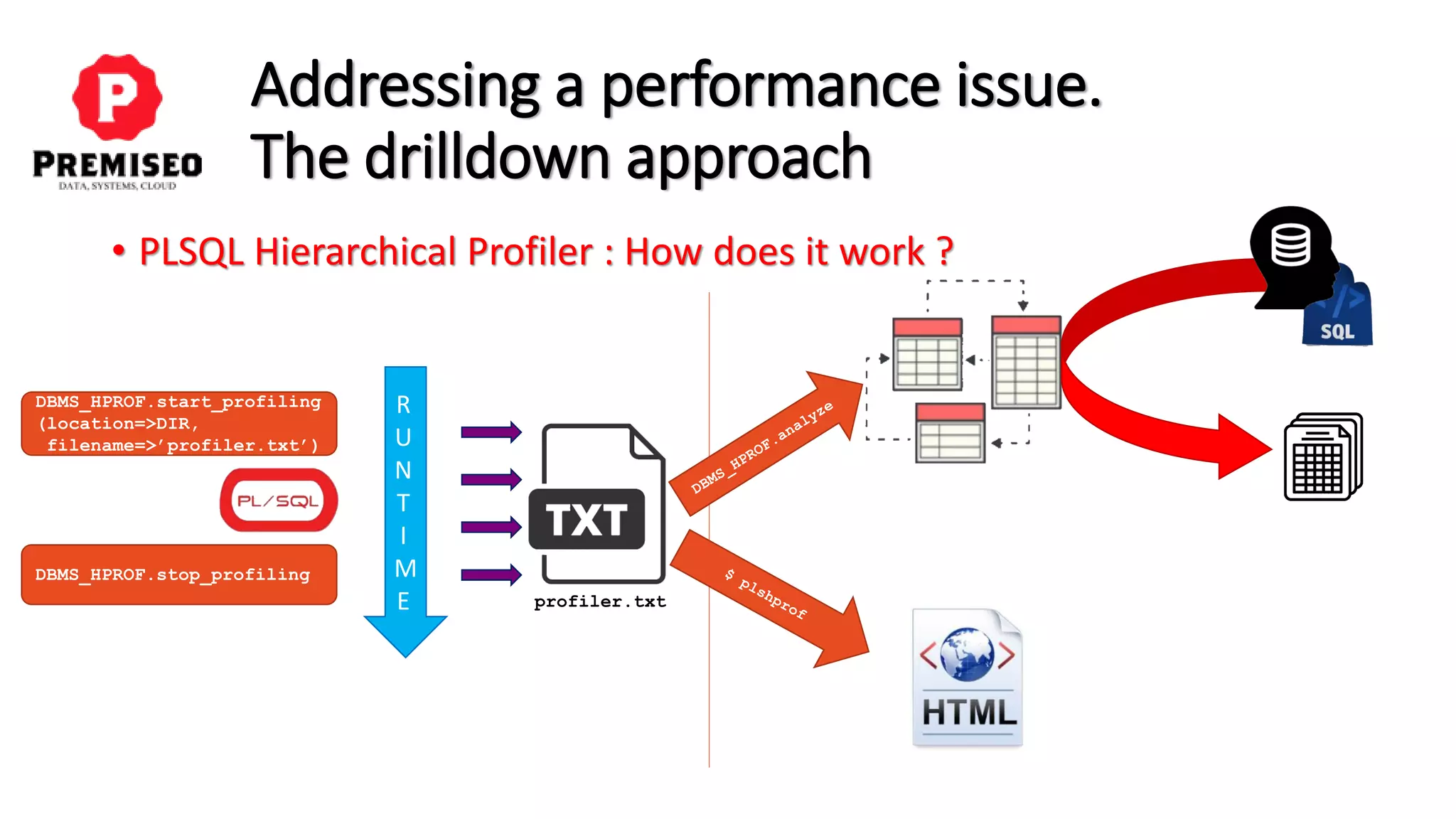

• PLSQL Hierarchical Profiler : How does it work ?
DBMS_HPROF.start_profiling
(location=>DIR,
filename=>’profiler.txt’)
DBMS_HPROF.stop_profiling
R
U
N
T
I
M
E profiler.txt

• Real Life example #2
• Customer complains about very slow application
• Culprit is the database (11gR2) → DB Load constantly upper to 4
• Customer bought new Oracle CPU, application capacity increases
• After a while, application becomes slow, application capacity cannot grow the
same way the application becomes popular
• After code instrumentation, a problematic code path is identified → profiling
(hierarchical)

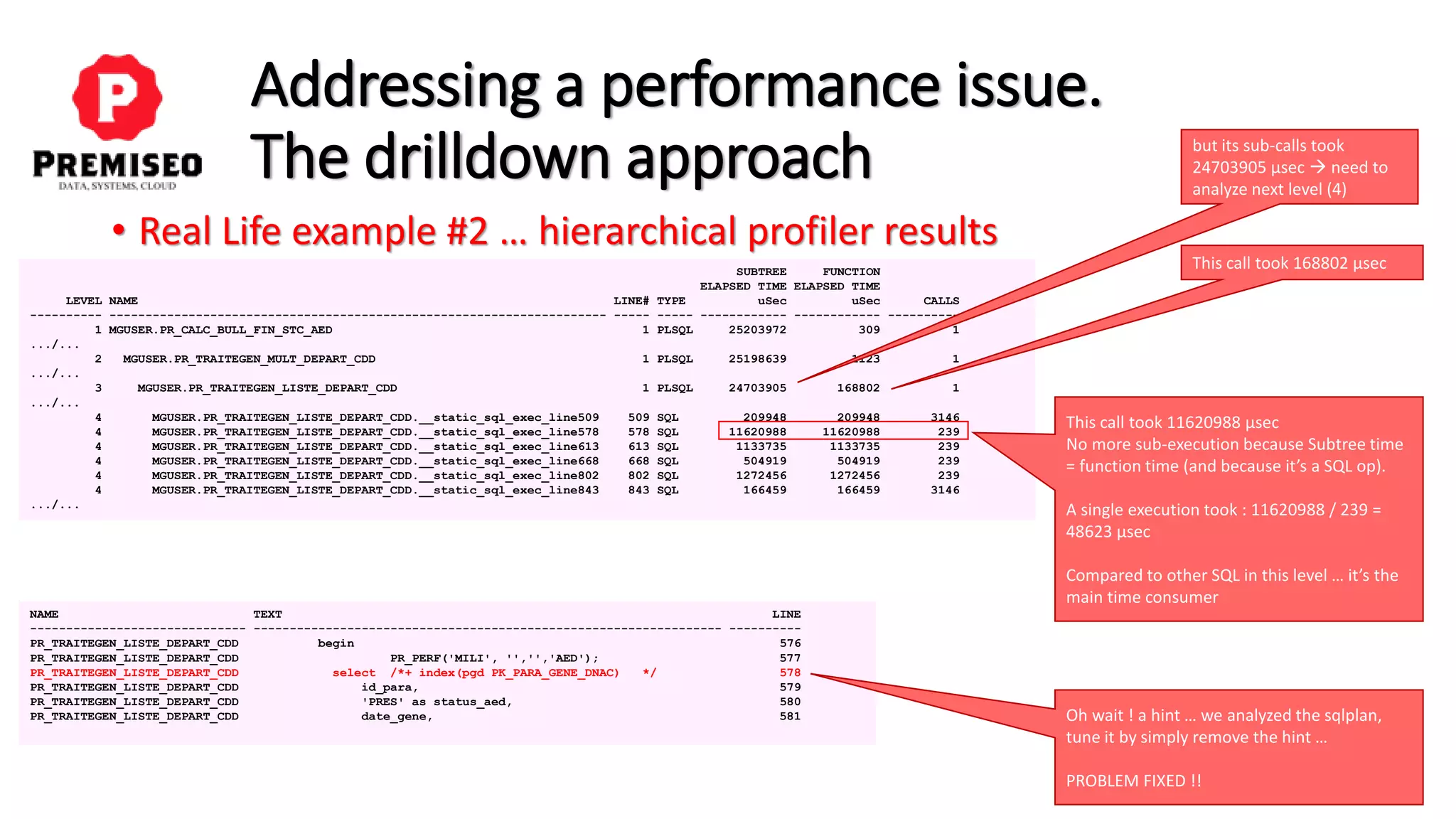

• Real Life example #2 … hierarchical profiler results
SUBTREE FUNCTION
ELAPSED TIME ELAPSED TIME
LEVEL NAME LINE# TYPE uSec uSec CALLS
---------- --------------------------------------------------------------------- ----- ----- ------------ ------------ ----------
1 MGUSER.PR_CALC_BULL_FIN_STC_AED 1 PLSQL 25203972 309 1
.../...
2 MGUSER.PR_TRAITEGEN_MULT_DEPART_CDD 1 PLSQL 25198639 1123 1
.../...
3 MGUSER.PR_TRAITEGEN_LISTE_DEPART_CDD 1 PLSQL 24703905 168802 1
.../...
4 MGUSER.PR_TRAITEGEN_LISTE_DEPART_CDD.__static_sql_exec_line509 509 SQL 209948 209948 3146
.../...
This call took 168802 µsec
but its sub-calls took
24703905 µsec → need to
analyze next level (4)
This call took 11620988 µsec
No more sub-execution because Subtree time
= function time (and because it’s a SQL op).
A single execution took : 11620988 / 239 =
48623 µsec
Compared to other SQL in this level … it’s the
main time consumer
NAME TEXT LINE
------------------------------ ----------------------------------------------------------------- ----------
PR_TRAITEGEN_LISTE_DEPART_CDD begin 576
PR_TRAITEGEN_LISTE_DEPART_CDD PR_PERF('MILI', '','','AED'); 577
PR_TRAITEGEN_LISTE_DEPART_CDD select /*+ index(pgd PK_PARA_GENE_DNAC) */ 578
PR_TRAITEGEN_LISTE_DEPART_CDD id_para, 579
PR_TRAITEGEN_LISTE_DEPART_CDD 'PRES' as status_aed, 580
PR_TRAITEGEN_LISTE_DEPART_CDD date_gene, 581 Oh wait ! a hint … we analyzed the sqlplan,
tune it by simply remove the hint …
PROBLEM FIXED !!

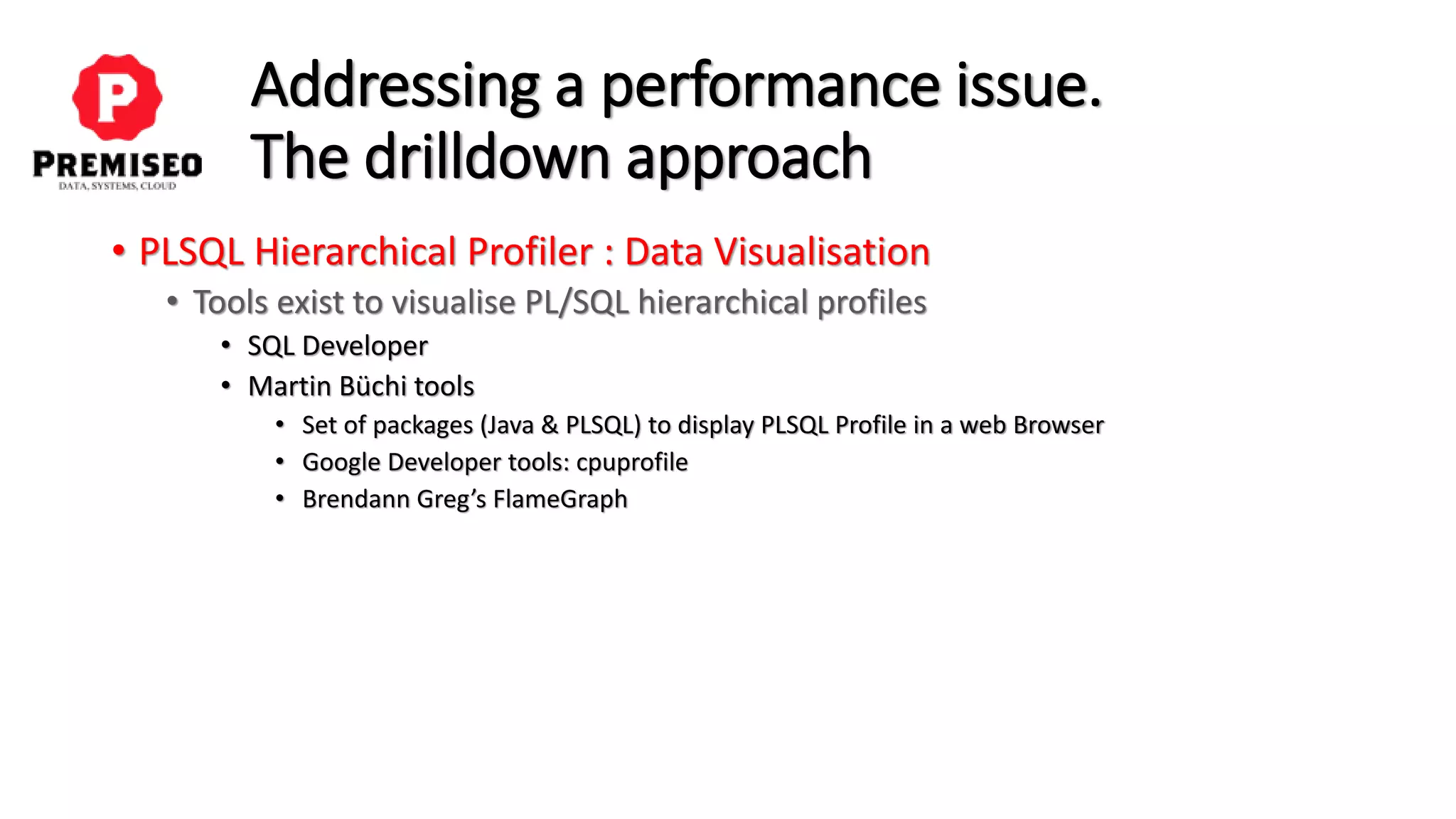

• PLSQL Hierarchical Profiler : Data Visualisation
• Tools exist to visualise PL/SQL hierarchical profiles
• SQL Developer
• Martin Büchi tools
• Set of packages (Java & PLSQL) to display PLSQL Profile in a web Browser
• Google Developer tools: cpuprofile
• Brendann Greg’s FlameGraph

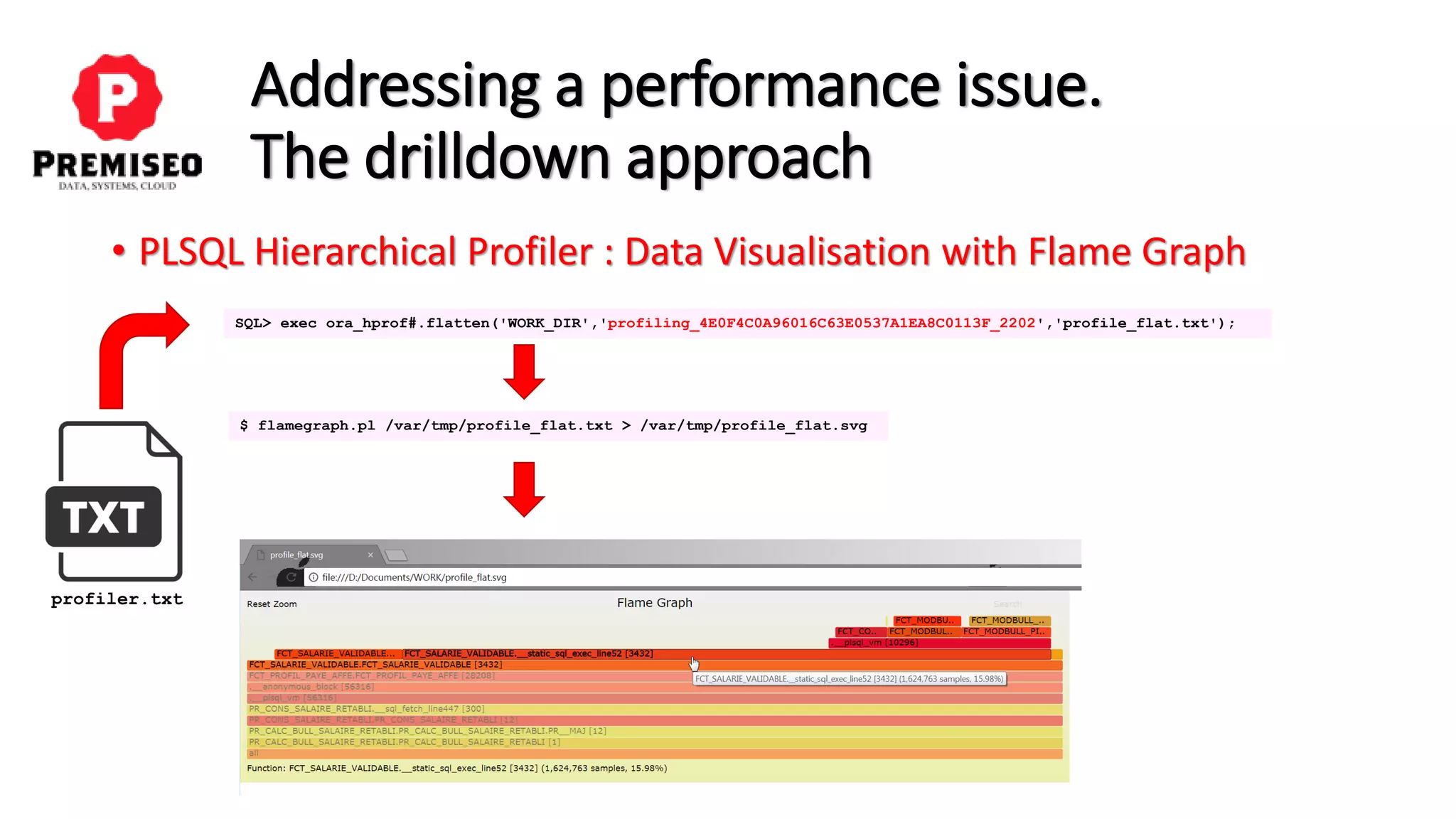

• PLSQL Hierarchical Profiler : Data Visualisation with Flame Graph
profiler.txt
SQL> exec ora_hprof#.flatten('WORK_DIR','profiling_4E0F4C0A96016C63E0537A1EA8C0113F_2202','profile_flat.txt');
$ flamegraph.pl /var/tmp/profile_flat.txt > /var/tmp/profile_flat.svg

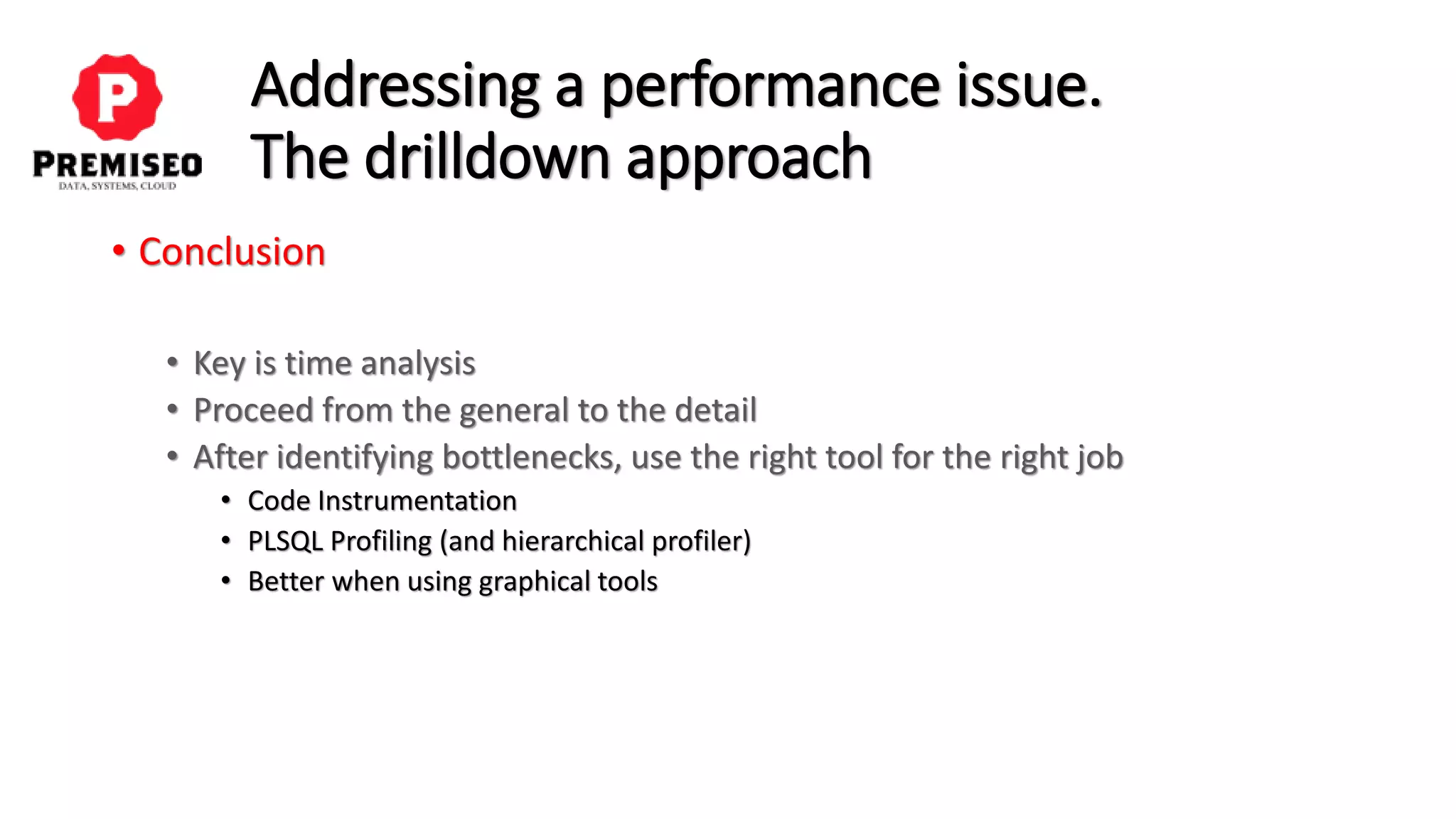

• Conclusion
• Key is time analysis
• Proceed from the general to the detail
• After identifying bottlenecks, use the right tool for the right job
• PLSQL Profiling (and hierarchical profiler)
• Better when using graphical tools

Oracle Database : Addressing a performance issue the drilldown approach

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Oracle Database : Addressing a performance issue the drilldown approach

Similar to Oracle Database : Addressing a performance issue the drilldown approach (20)

More from Laurent Leturgez

More from Laurent Leturgez (6)

Recently uploaded

Recently uploaded (20)

Oracle Database : Addressing a performance issue the drilldown approach
