SQL Tuning 101
The three pillars of SQL Tuning:
Diagnostics Collection, Root Cause Analysis and
Remediation
Carlos Sierra
Agenda
• Motivation
• Methodology
– Diagnostics Collection
– Root Cause Analysis
– Remediation
• Some Important Topics
– Execution Plan
– Cost-based Optimizer
– Plan Stability
• Free Tools

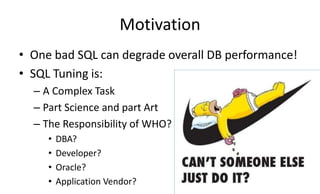

Motivation
• One bad SQL can degrade overall DB performance!
• SQL Tuning is:
– A Complex Task
– Part Science and part Art
– The Responsibility of WHO?
• DBA?
• Developer?
• Oracle?
• Application Vendor?

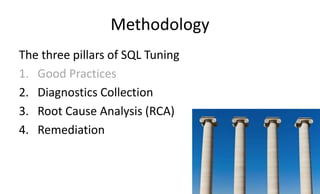

Methodology
The three pillars of SQL Tuning
1. Good Practices
2. Diagnostics Collection
3. Root Cause Analysis (RCA)
4. Remediation

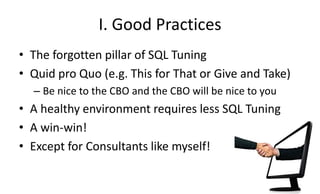

I. Good Practices
• The forgotten pillar of SQL Tuning
• Quid pro Quo (e.g. This for That or Give and Take)
– Be nice to the CBO and the CBO will be nice to you
• A healthy environment requires less SQL Tuning
• A win-win!
• Except for Consultants like myself!
Some Good Practices
• Start with a modern and solid database release
• Reset all CBO related parameters (and some more)
• Gather CBO Statistics as per Application or Product
– Automatic task does a decent job on 11.2.0.4+
• Write reasonable SQL
– Use the product as designed and avoid weird SQL
– If SQL is too long or too complex the CBO will struggle

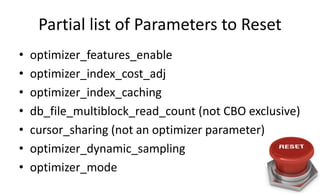

Partial list of Parameters to Reset
• optimizer_features_enable
• optimizer_index_cost_adj
• optimizer_index_caching
• db_file_multiblock_read_count (not CBO exclusive)
• cursor_sharing (not an optimizer parameter)
• optimizer_dynamic_sampling
• optimizer_mode

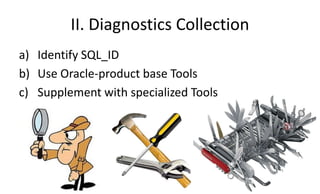

II. Diagnostics Collection
a) Identify SQL_ID
b) Use Oracle-product base Tools
c) Supplement with specialized Tools

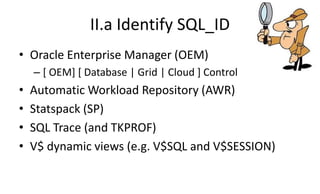

II.a Identify SQL_ID
• Oracle Enterprise Manager (OEM)
– [ OEM] [ Database | Grid | Cloud ] Control
• Automatic Workload Repository (AWR)
• Statspack (SP)
• SQL Trace (and TKPROF)
• V$ dynamic views (e.g. V$SQL and V$SESSION)

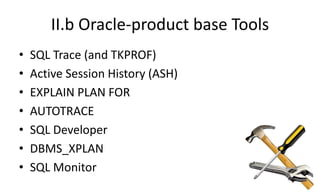

II.b Oracle-product base Tools
• SQL Trace (and TKPROF)
• Active Session History (ASH)
• EXPLAIN PLAN FOR
• AUTOTRACE
• SQL Developer
• DBMS_XPLAN
• SQL Monitor

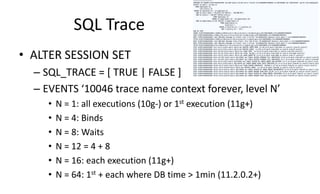

SQL Trace
• ALTER SESSION SET
– SQL_TRACE = [ TRUE | FALSE ]
– EVENTS ‘10046 trace name context forever, level N’
• N = 1: all executions (10g-) or 1st execution (11g+)
• N = 4: Binds
• N = 8: Waits
• N = 12 = 4 + 8
• N = 16: each execution (11g+)
• N = 64: 1st + each where DB time > 1min (11.2.0.2+)
Where is my Trace?
• V$DIAG_INFO (11.1+)
• USER_DUMP_DEST (deprecated 12c)

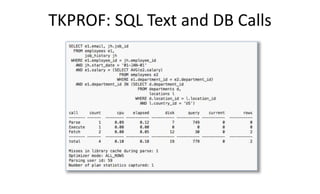

TKPROF: SQL Text and DB Calls

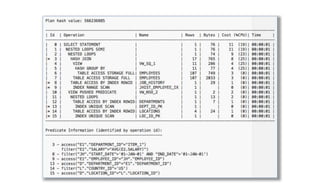

TKPROF: Execution Plan and Wait Events

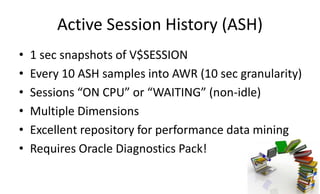

Active Session History (ASH)
• 1 sec snapshots of V$SESSION
• Every 10 ASH samples into AWR (10 sec granularity)
• Sessions “ON CPU” or “WAITING” (non-idle)
• Multiple Dimensions
• Excellent repository for performance data mining
• Requires Oracle Diagnostics Pack!

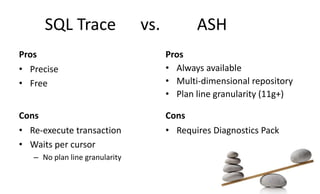

SQL Trace vs. ASH
Pros
• Precise
• Free
Pros
• Always available
• Multi-dimensional repository
• Plan line granularity (11g+)
Cons
• Re-execute transaction
• Waits per cursor
– No plan line granularity
Cons
• Requires Diagnostics Pack

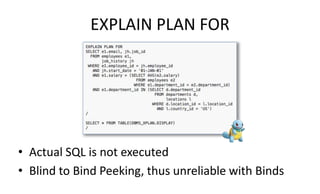

EXPLAIN PLAN FOR
• Actual SQL is not executed
• Blind to Bind Peeking, thus unreliable with Binds

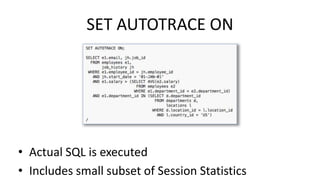

SET AUTOTRACE ON
• Actual SQL is executed
• Includes small subset of Session Statistics

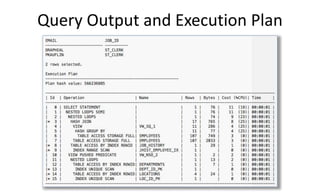

Query Output and Execution Plan

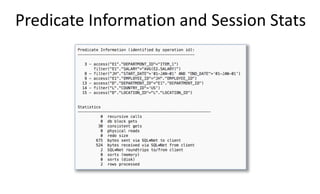

Predicate Information and Session Stats

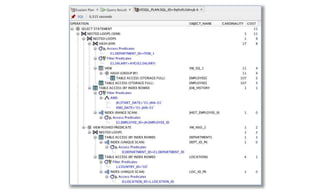

SQL Developer

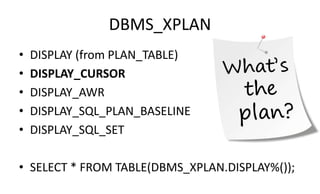

DBMS_XPLAN
• DISPLAY (from PLAN_TABLE)
• DISPLAY_CURSOR
• DISPLAY_AWR
• DISPLAY_SQL_PLAN_BASELINE
• DISPLAY_SQL_SET
• SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY%());

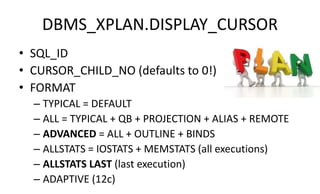

DBMS_XPLAN.DISPLAY_CURSOR
• SQL_ID
• CURSOR_CHILD_NO (defaults to 0!)
• FORMAT
– TYPICAL = DEFAULT
– ALL = TYPICAL + QB + PROJECTION + ALIAS + REMOTE
– ADVANCED = ALL + OUTLINE + BINDS
– ALLSTATS = IOSTATS + MEMSTATS (all executions)
– ALLSTATS LAST (last execution)
– ADAPTIVE (12c)

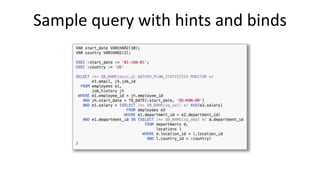

Sample query with hints and binds

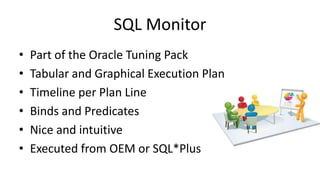

SQL Monitor
• Part of the Oracle Tuning Pack
• Tabular and Graphical Execution Plan
• Timeline per Plan Line
• Binds and Predicates
• Nice and intuitive
• Executed from OEM or SQL*Plus

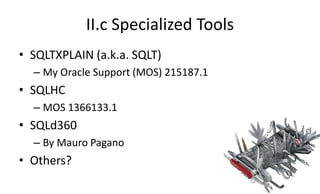

II.c Specialized Tools
• SQLTXPLAIN (a.k.a. SQLT)
– My Oracle Support (MOS) 215187.1
• SQLHC
– MOS 1366133.1
• SQLd360
– By Mauro Pagano
• Others?

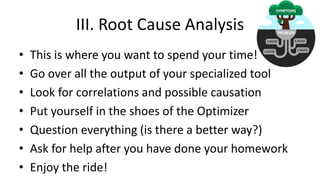

III. Root Cause Analysis
• This is where you want to spend your time!
• Go over all the output of your specialized tool
• Look for correlations and possible causation
• Put yourself in the shoes of the Optimizer
• Question everything (is there a better way?)
• Ask for help after you have done your homework
• Enjoy the ride!

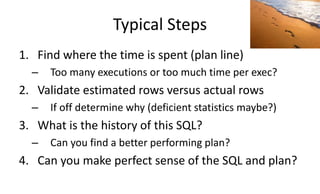

Typical Steps
1. Find where the time is spent (plan line)
– Too many executions or too much time per exec?
2. Validate estimated rows versus actual rows
– If off determine why (deficient statistics maybe?)
3. What is the history of this SQL?
– Can you find a better performing plan?
4. Can you make perfect sense of the SQL and plan?
IV. Remediation
• Explore multiple possibilities
– And try to prove yourself wrong!
• Implement the smallest-scope fix
– Avoid system-wide changes unless you are rock solid!
• Avoid guesses and assumptions (piñata method)
– Too many people out there are “tuning” blind-folded!
• Trust nobody! (be skeptic and test thoroughly)
Three Important Topics
1. Execution Plan
2. Cost-based Optimizer
3. Plan Stability

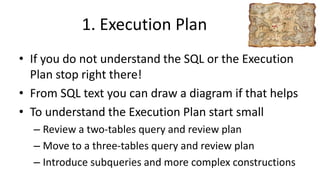

1. Execution Plan
• If you do not understand the SQL or the Execution
Plan stop right there!
• From SQL text you can draw a diagram if that helps
• To understand the Execution Plan start small
– Review a two-tables query and review plan
– Move to a three-tables query and review plan
– Introduce subqueries and more complex constructions

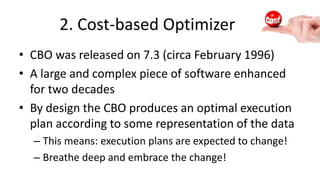

2. Cost-based Optimizer
• CBO was released on 7.3 (circa February 1996)
• A large and complex piece of software enhanced
for two decades
• By design the CBO produces an optimal execution
plan according to some representation of the data
– This means: execution plans are expected to change!
– Breathe deep and embrace the change!

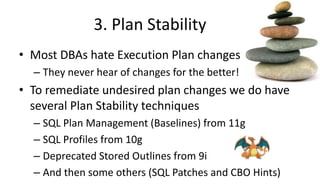

3. Plan Stability
• Most DBAs hate Execution Plan changes
– They never hear of changes for the better!
• To remediate undesired plan changes we do have
several Plan Stability techniques
– SQL Plan Management (Baselines) from 11g
– SQL Profiles from 10g
– Deprecated Stored Outlines from 9i
– And then some others (SQL Patches and CBO Hints)

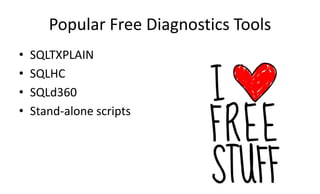

Popular Free Diagnostics Tools
• SQLTXPLAIN
• SQLHC
• SQLd360
• Stand-alone scripts

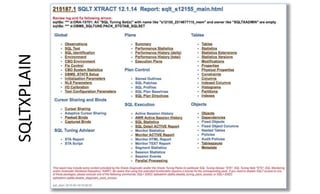

SQLTXPLAIN

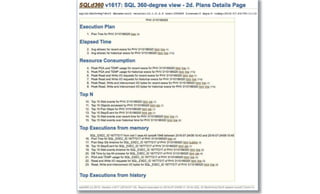

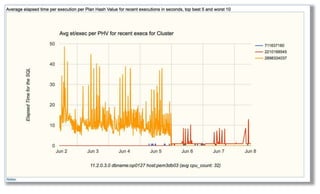

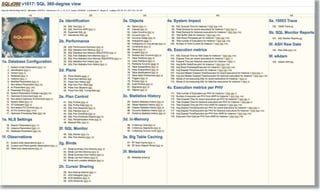

SQLd360
SQLd360 Plan Tree
SQLT XPLAIN vs. SQLd360
Pros
• Oracle Support Standard
• Free (requires MOS account)
• Comprehensive and mature
Pros
• Free Software (no strings)
• Installs nothing on database
• Graphical visualization of data
Cons
• Requires installation
• HTML Tables (no charts)
Cons
• Still young (frequent releases)

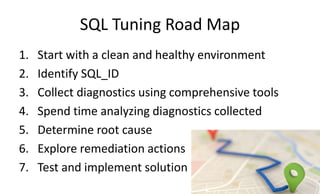

SQL Tuning Road Map
1. Start with a clean and healthy environment
2. Identify SQL_ID
3. Collect diagnostics using comprehensive tools
4. Spend time analyzing diagnostics collected
5. Determine root cause
6. Explore remediation actions
7. Test and implement solution
Questions

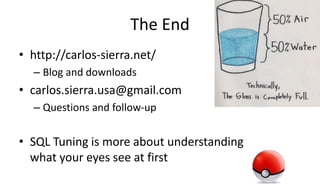

The End
• http://carlos-sierra.net/
– Blog and downloads
• carlos.sierra.usa@gmail.com
– Questions and follow-up
• SQL Tuning is more about understanding
what your eyes see at first
