Oracle Cloud Infrastructure:2020年7月度サービス・アップデート
- 2. 2 Copyright © 2020, Oracle and/or its affiliates
Oracle Java Oracle Corporation
Safe harbor statement

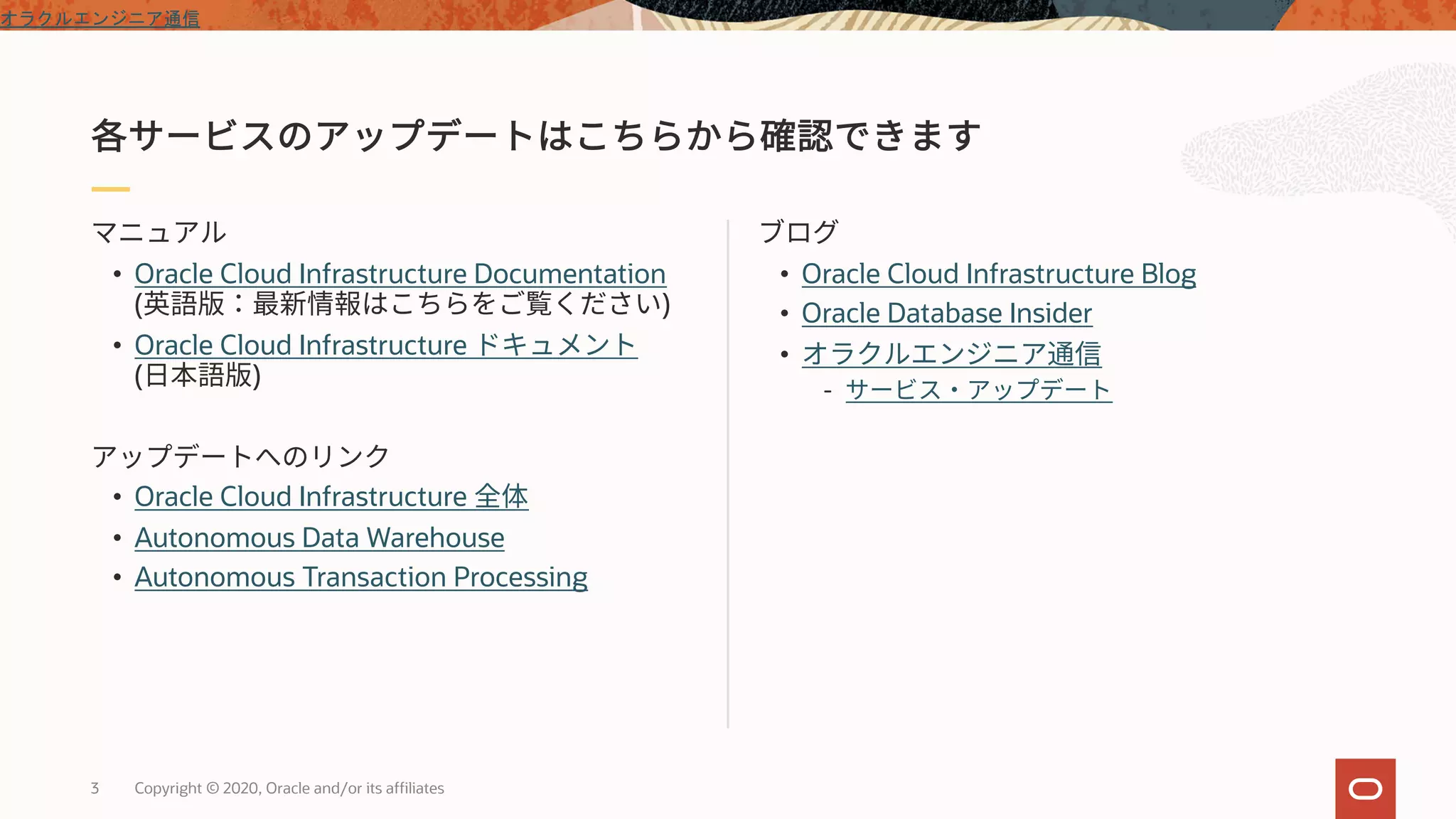

- 3. 3 Copyright © 2020, Oracle and/or its affiliates
• Oracle Cloud Infrastructure Blog
• Oracle Database Insider
•
-
• Oracle Cloud Infrastructure Documentation
( )
• Oracle Cloud Infrastructure
( )
• Oracle Cloud Infrastructure
• Autonomous Data Warehouse
• Autonomous Transaction Processing
オラクルエンジニア通信

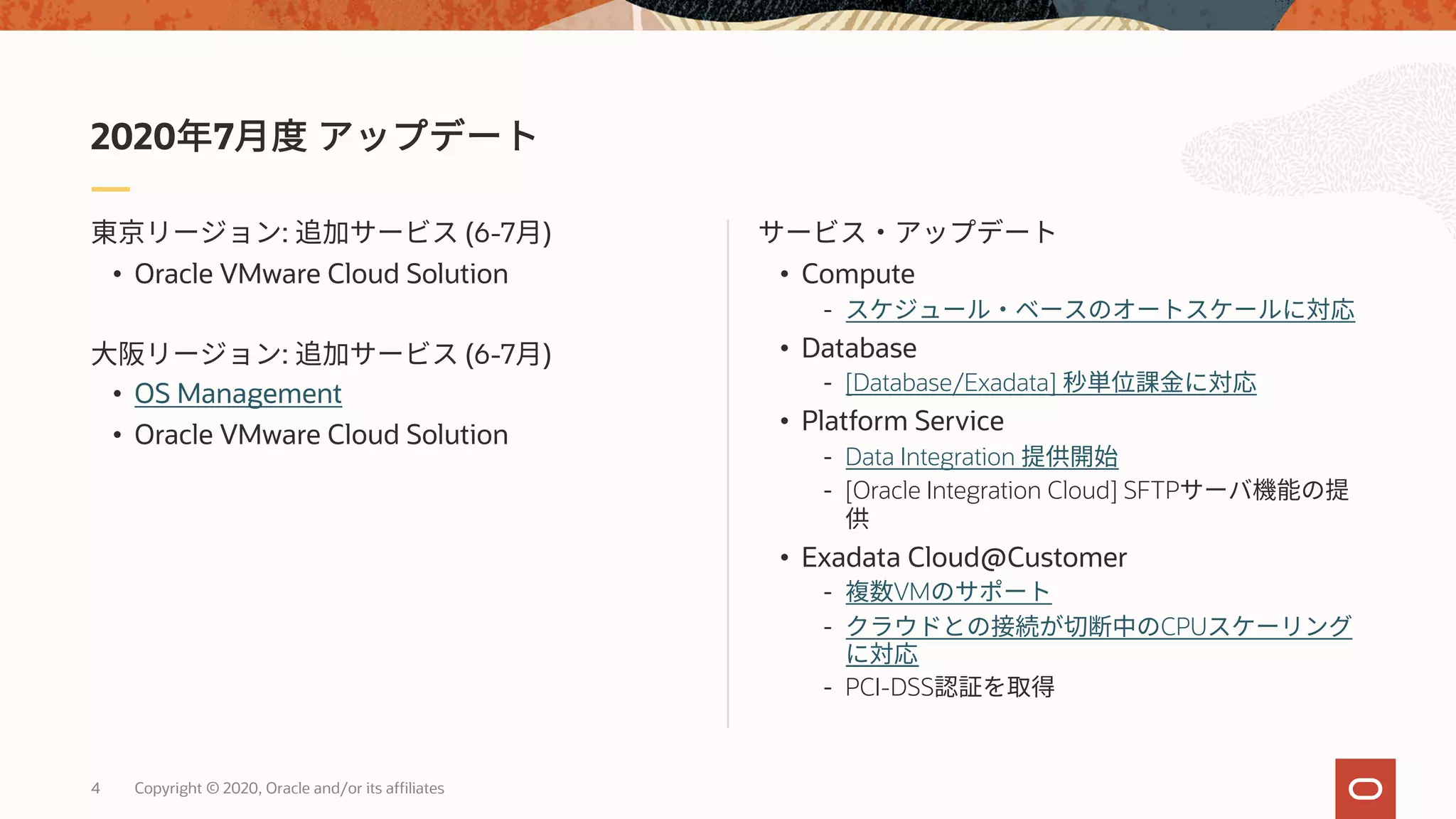

- 4. 4 Copyright © 2020, Oracle and/or its affiliates
• Compute
-
• Database
- [Database/Exadata]
• Platform Service
- Data Integration
- [Oracle Integration Cloud] SFTP
• Exadata Cloud@Customer
- VM
- CPU
- PCI-DSS
: (6-7 )
• Oracle VMware Cloud Solution
: (6-7 )
• OS Management
• Oracle VMware Cloud Solution
2020 7

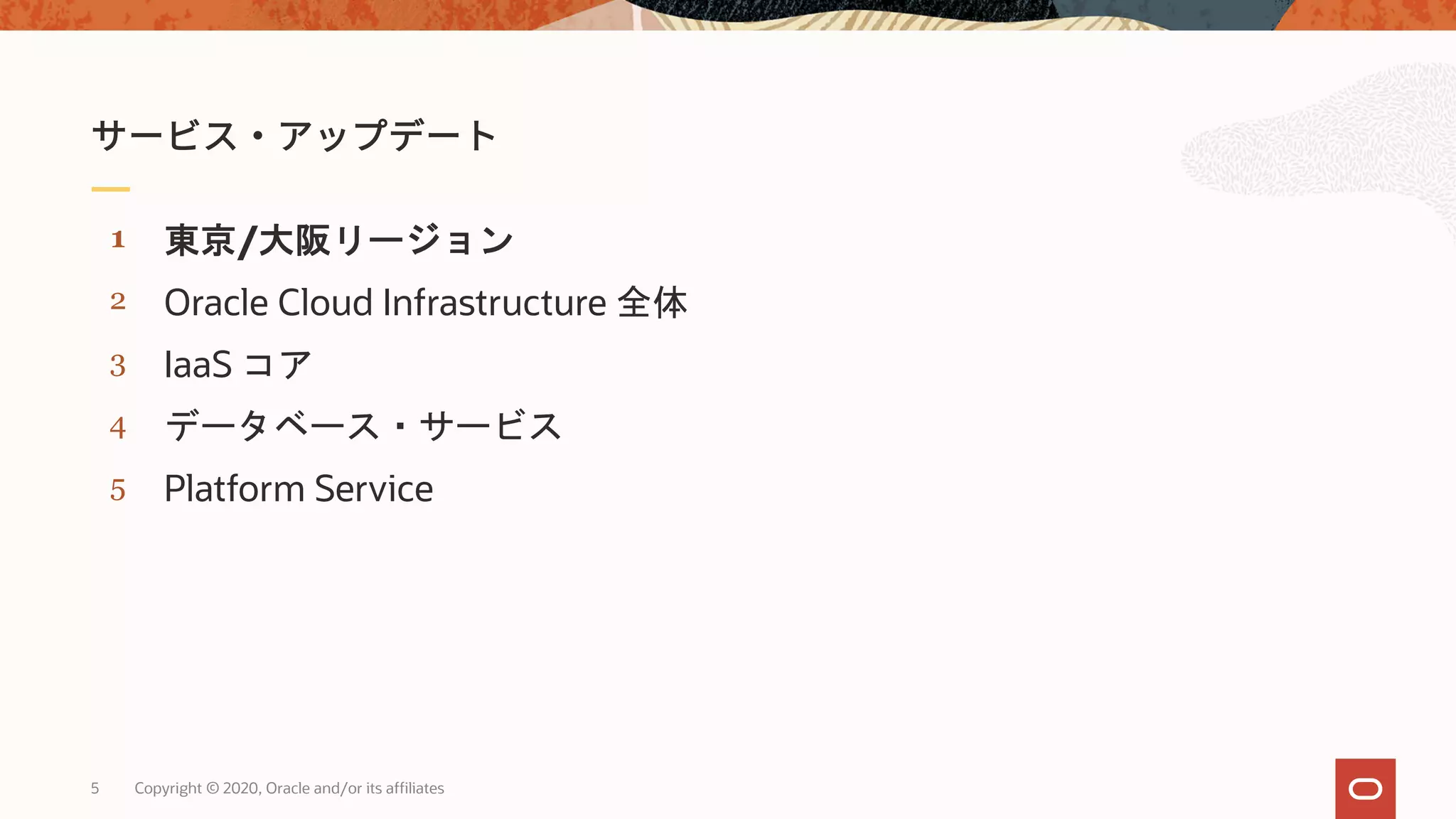

- 5. 5 Copyright © 2020, Oracle and/or its affiliates
5
4
3
2
1
Platform Service
データベース・サービス
IaaS コア
Oracle Cloud Infrastructure 全体
東京/大阪リージョン

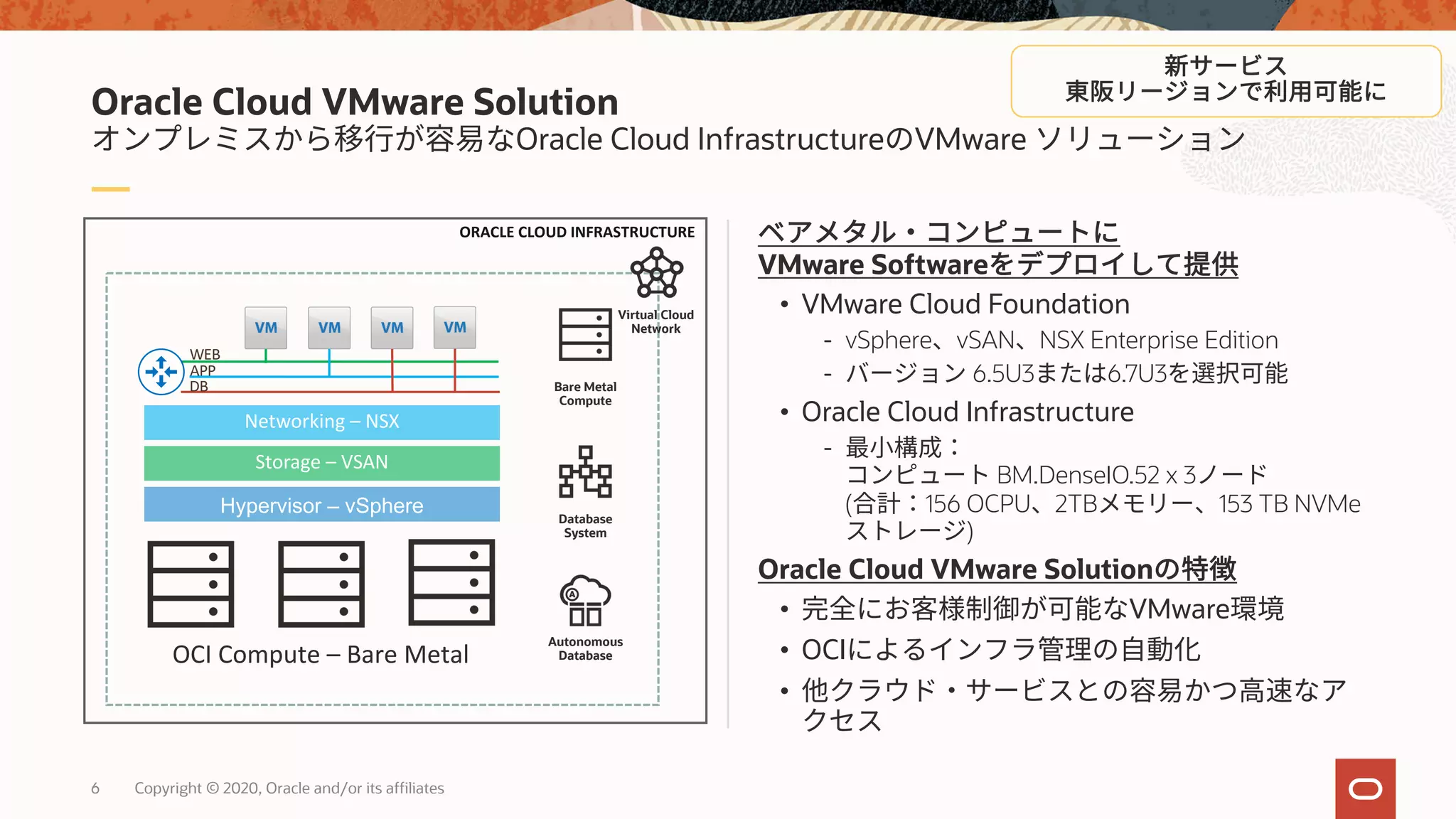

- 6. 6 Copyright © 2020, Oracle and/or its affiliates
VMware Software
• VMware Cloud Foundation
- vSphere vSAN NSX Enterprise Edition
- 6.5U3 6.7U3
• Oracle Cloud Infrastructure
-
BM.DenseIO.52 x 3
( 156 OCPU 2TB 153 TB NVMe
)
Oracle Cloud VMware Solution
• VMware
• OCI
•
Oracle Cloud VMware Solution
Oracle Cloud Infrastructure VMware
Hypervisor – vSphere
Storage – VSAN
Networking – NSX
OCI Compute – Bare Metal
DB
APP
WEB
ORACLE CLOUD INFRASTRUCTURE
Bare Metal
Compute
Virtual Cloud
Network
Database
System
Autonomous
Database

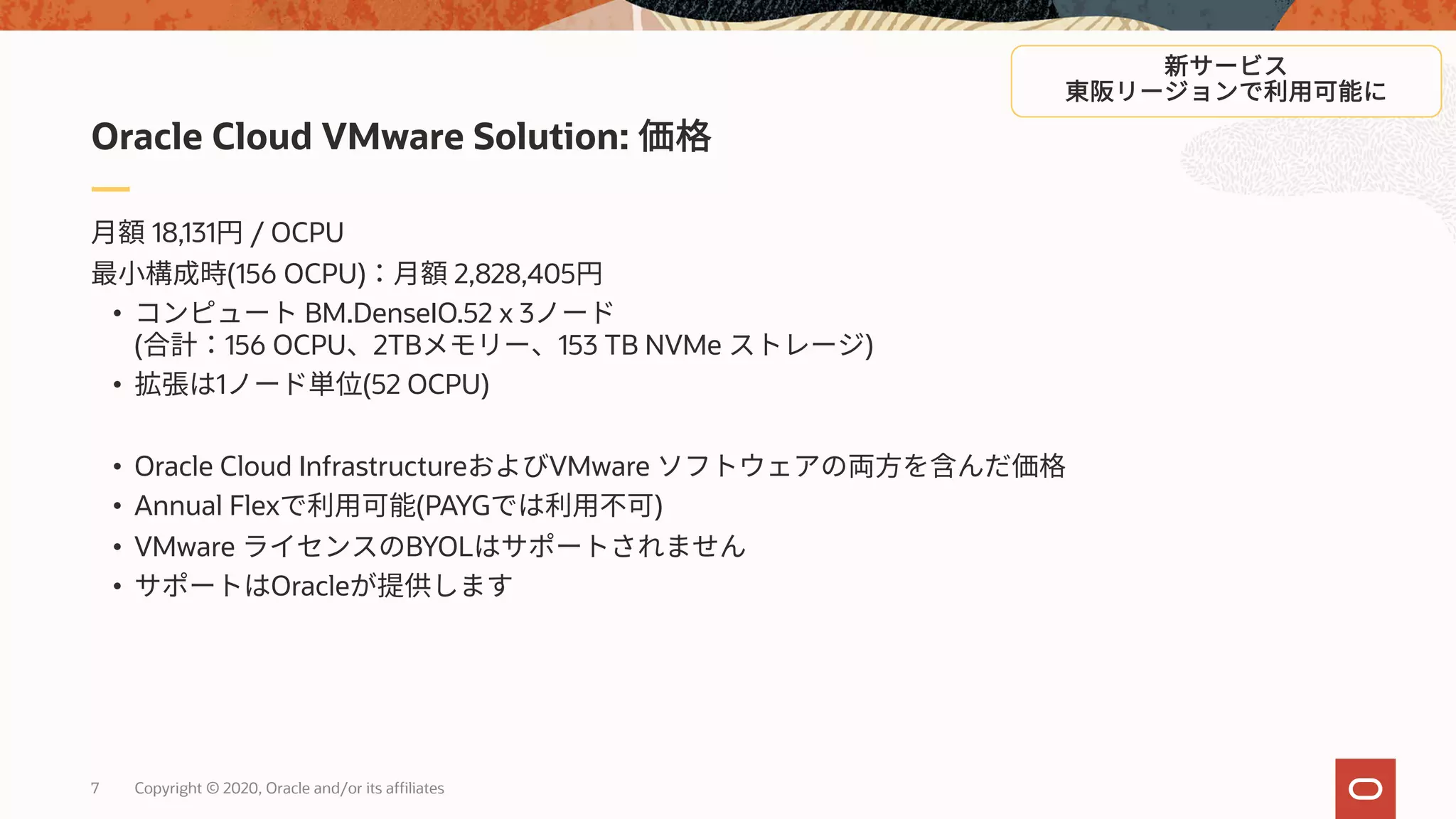

- 7. 7 Copyright © 2020, Oracle and/or its affiliates
18,131 / OCPU
(156 OCPU) 2,828,405
• BM.DenseIO.52 x 3
( 156 OCPU 2TB 153 TB NVMe )
• 1 (52 OCPU)
• Oracle Cloud Infrastructure VMware
• Annual Flex (PAYG )
• VMware BYOL
• Oracle
Oracle Cloud VMware Solution:

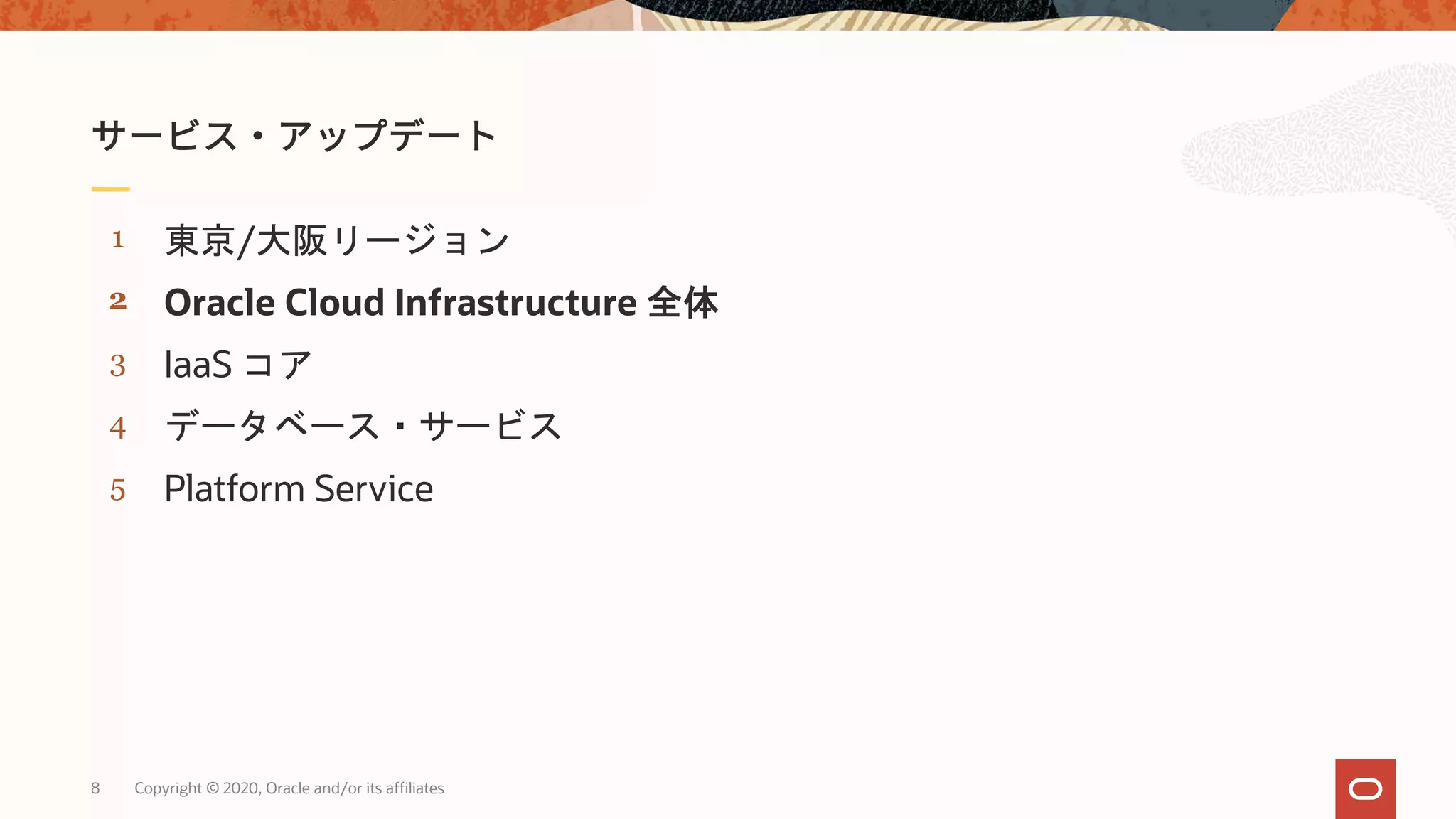

- 8. 8 Copyright © 2020, Oracle and/or its affiliates
5
4
3
2
1
Platform Service
データベース・サービス
IaaS コア
Oracle Cloud Infrastructure 全体
東京/大阪リージョン

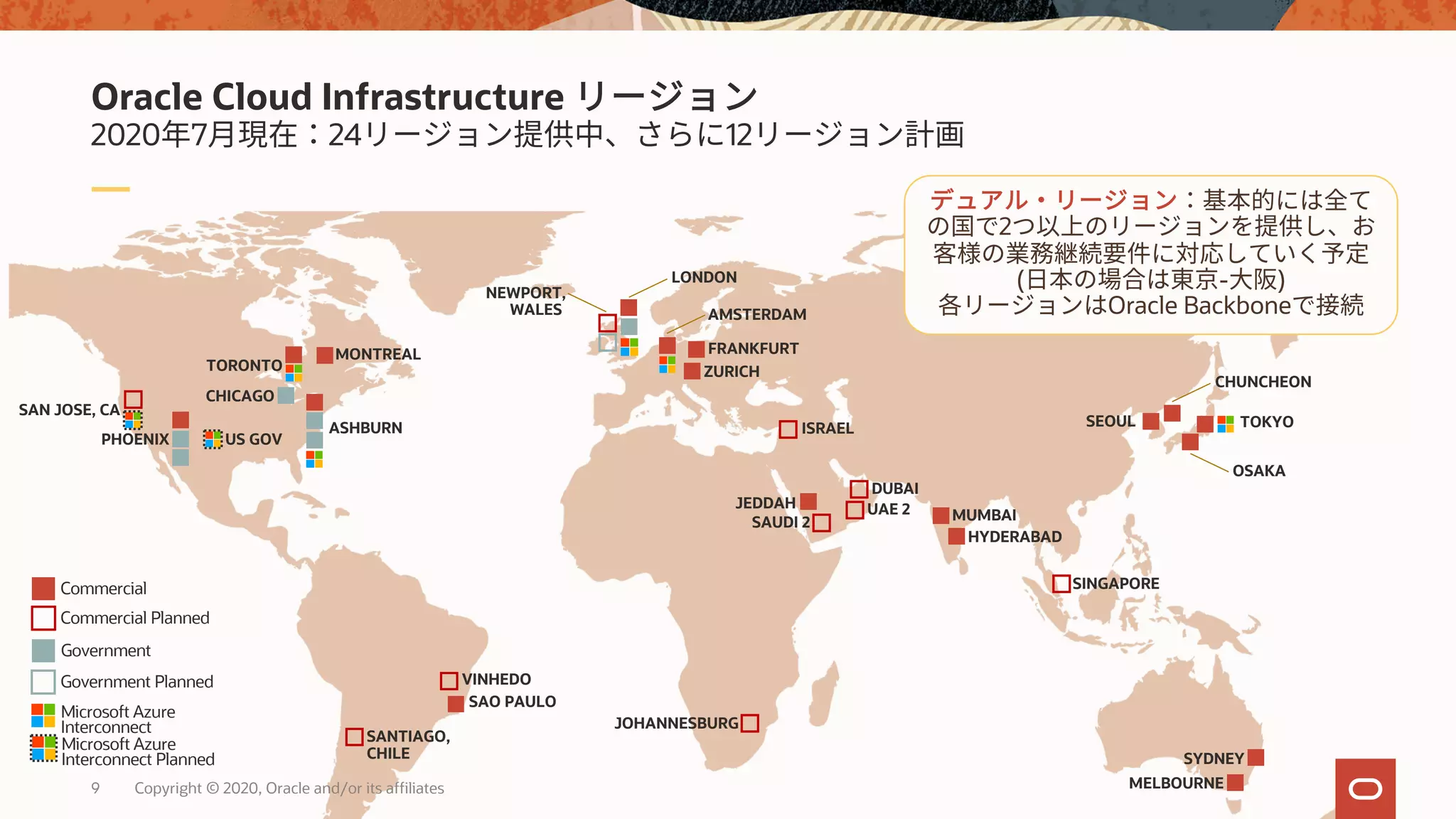

- 9. Copyright © 2020, Oracle and/or its affiliates9
2020 7 24 12
Oracle Cloud Infrastructure
ASHBURN
PHOENIX
SYDNEY
CHICAGO
TORONTO
VINHEDO
TOKYOSEOUL
MUMBAI
OSAKA
MELBOURNE
AMSTERDAM
HYDERABAD
JEDDAH
DUBAI
LONDON
SAN JOSE, CA
SINGAPORE
SAUDI 2
UAE 2
SANTIAGO,
CHILE
ISRAEL
FRANKFURT
ZURICH
MONTREAL
CHUNCHEON
JOHANNESBURG
US GOV
SAO PAULO
NEWPORT,
WALES
Commercial
Government
Commercial Planned
Government Planned
Microsoft Azure
Interconnect Planned
Microsoft Azure
Interconnect
2
( - )
Oracle Backbone

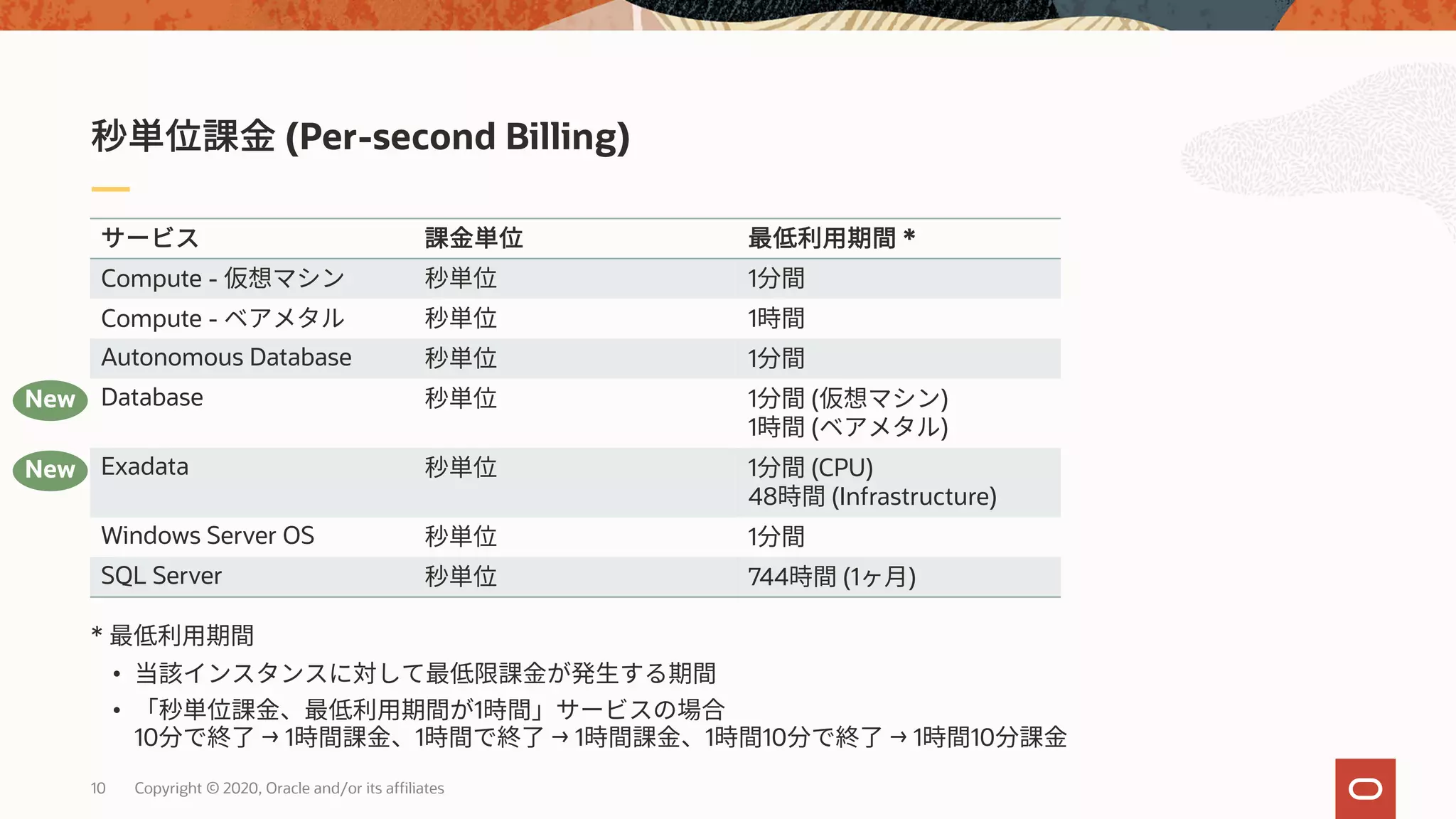

- 10. 10 Copyright © 2020, Oracle and/or its affiliates
*
•
• 1
10 → 1 1 → 1 1 10 → 1 10
(Per-second Billing)
*
Compute - 1
Compute - 1
Autonomous Database 1
Database 1 ( )
1 ( )
Exadata 1 (CPU)
48 (Infrastructure)
Windows Server OS 1
SQL Server 744 (1 )
New
New

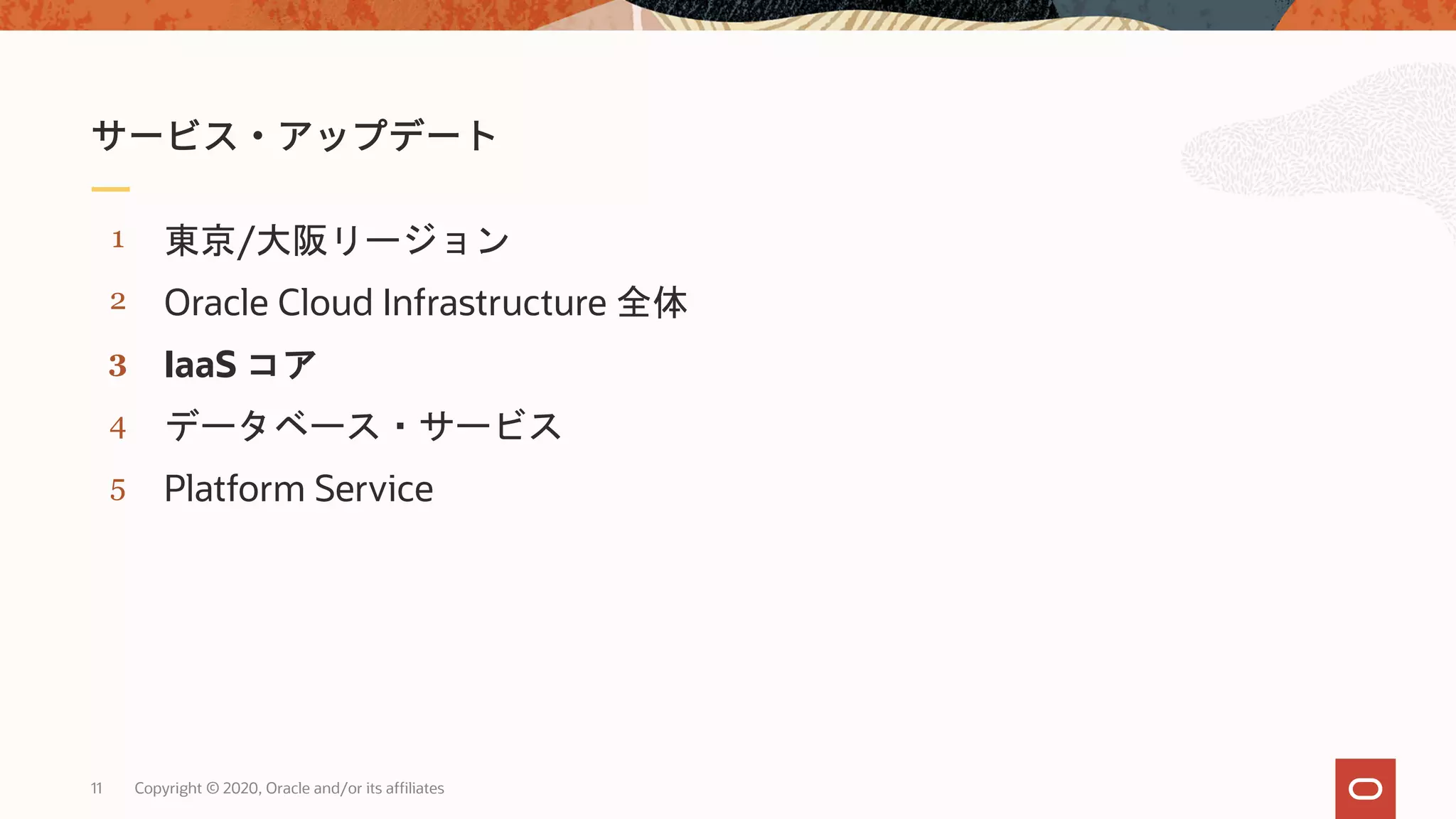

- 11. 11 Copyright © 2020, Oracle and/or its affiliates
5
4
3
2
1
Platform Service
データベース・サービス
IaaS コア
Oracle Cloud Infrastructure 全体
東京/大阪リージョン

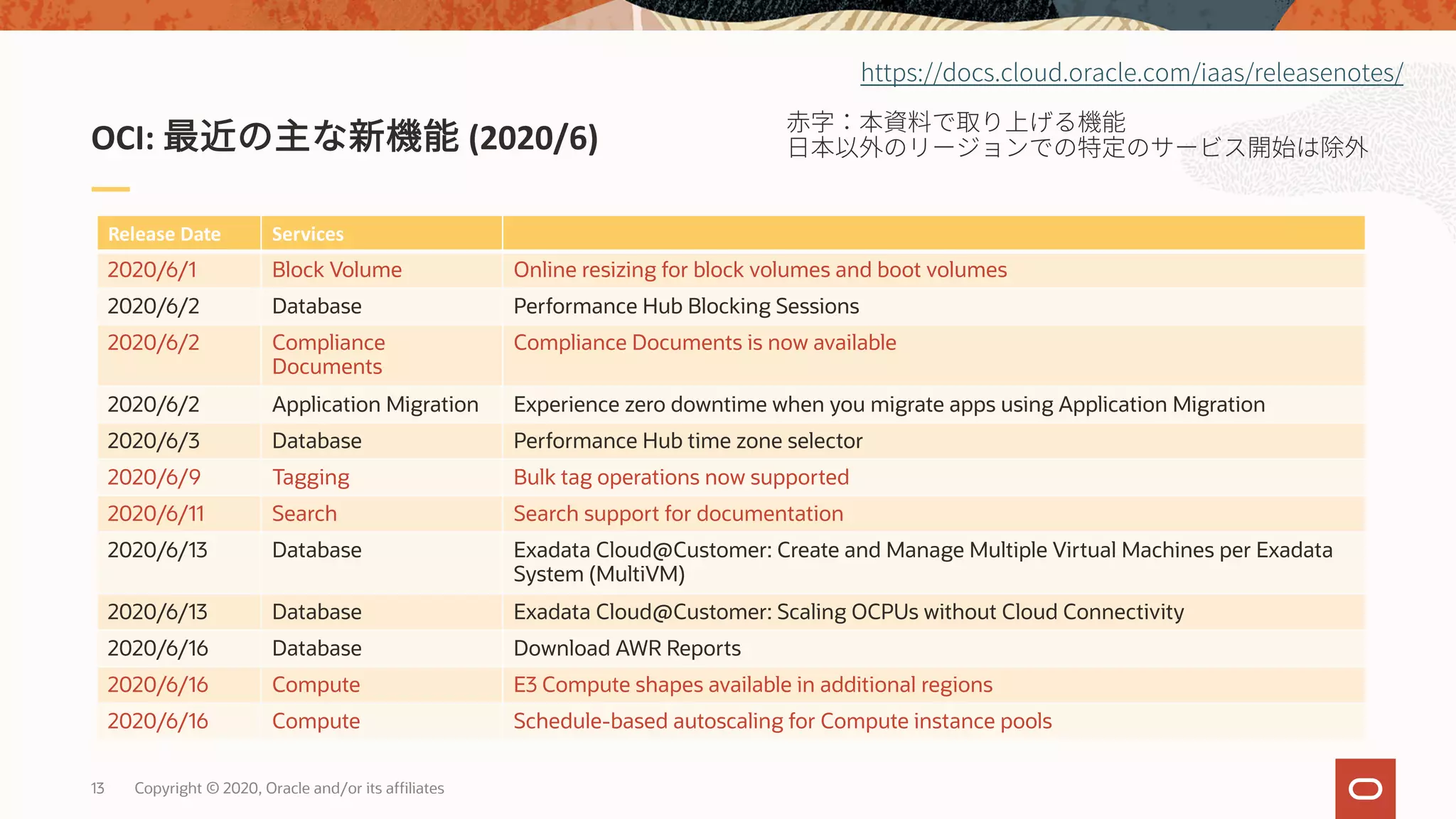

- 13. 13 Copyright © 2020, Oracle and/or its affiliates
OCI: (2020/6)
https://docs.cloud.oracle.com/iaas/releasenotes/
Release Date Services
2020/6/1 Block Volume Online resizing for block volumes and boot volumes
2020/6/2 Database Performance Hub Blocking Sessions

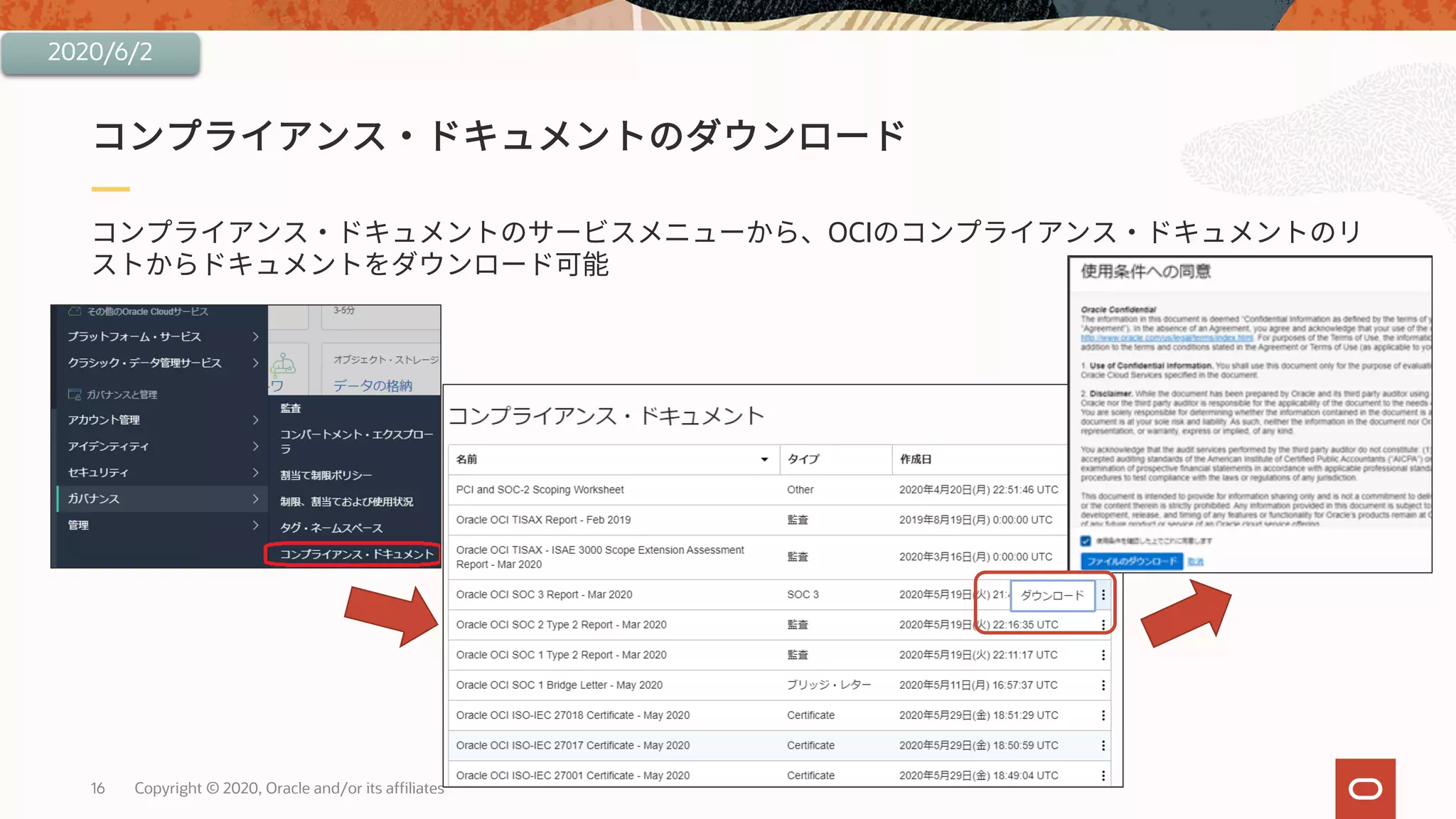

2020/6/2 Compliance
Documents
Compliance Documents is now available
2020/6/2 Application Migration Experience zero downtime when you migrate apps using Application Migration
2020/6/3 Database Performance Hub time zone selector

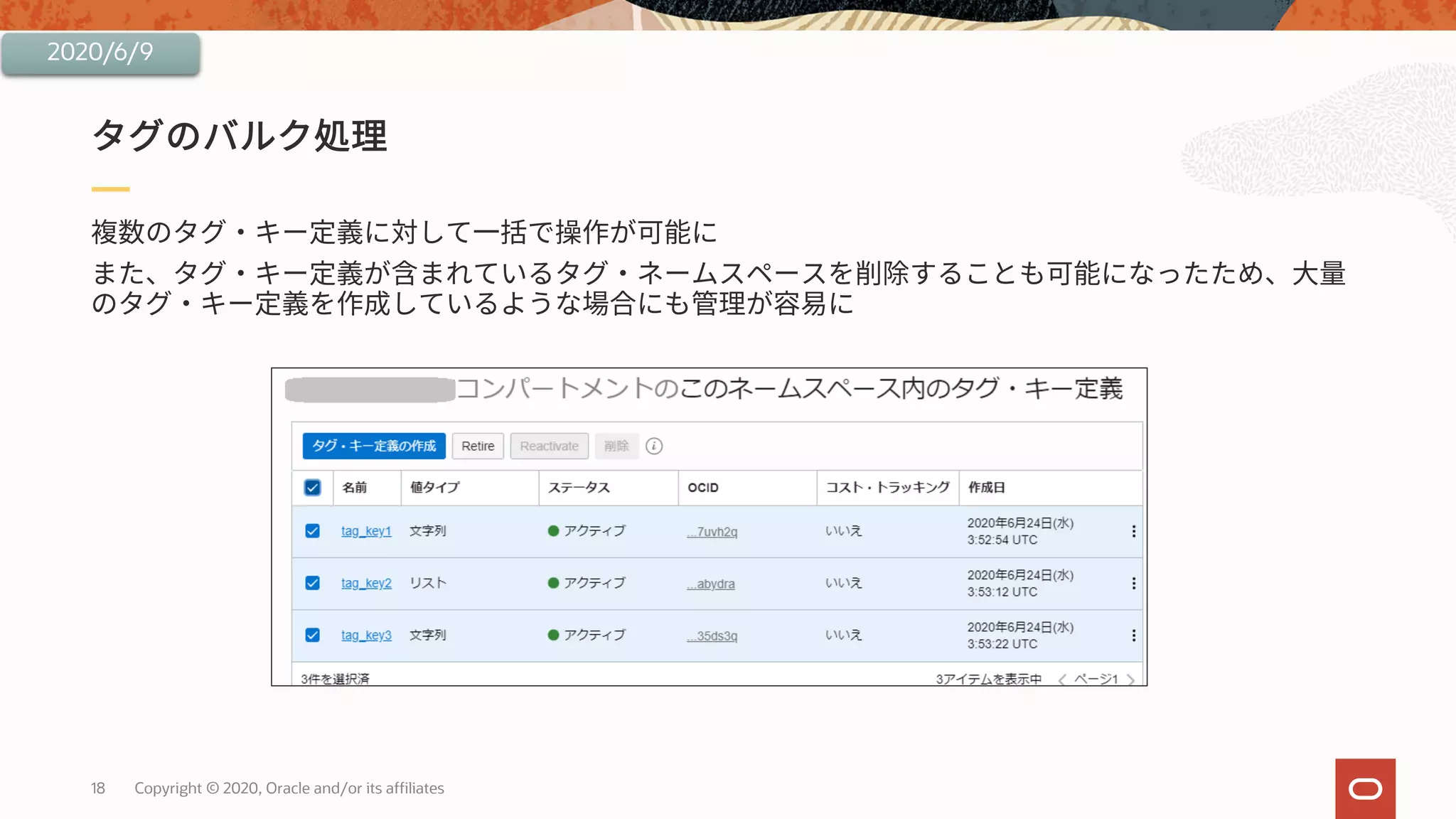

2020/6/9 Tagging Bulk tag operations now supported
2020/6/11 Search Search support for documentation

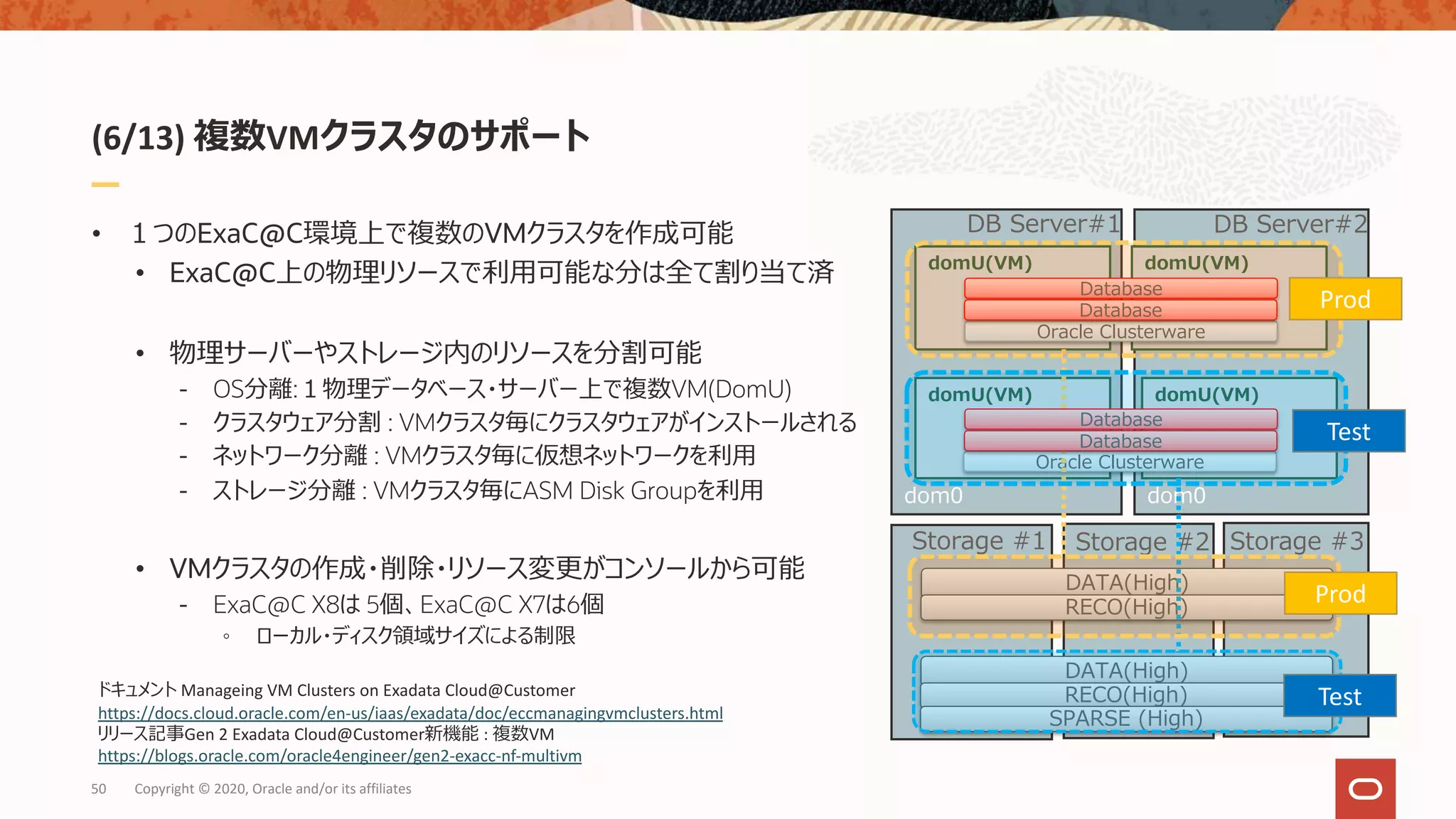

2020/6/13 Database Exadata Cloud@Customer: Create and Manage Multiple Virtual Machines per Exadata
System (MultiVM)

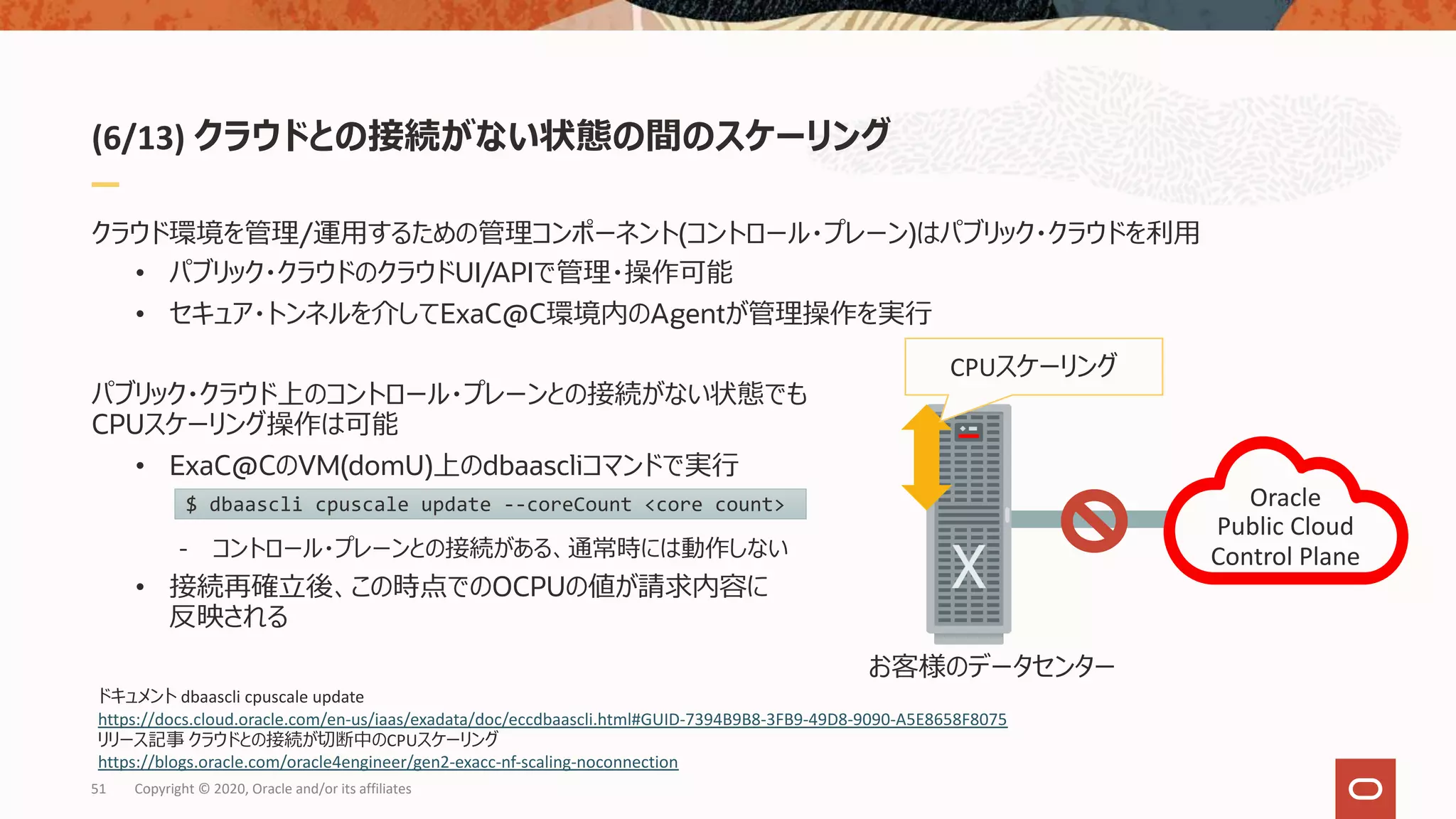

2020/6/13 Database Exadata Cloud@Customer: Scaling OCPUs without Cloud Connectivity
2020/6/16 Database Download AWR Reports
2020/6/16 Compute E3 Compute shapes available in additional regions

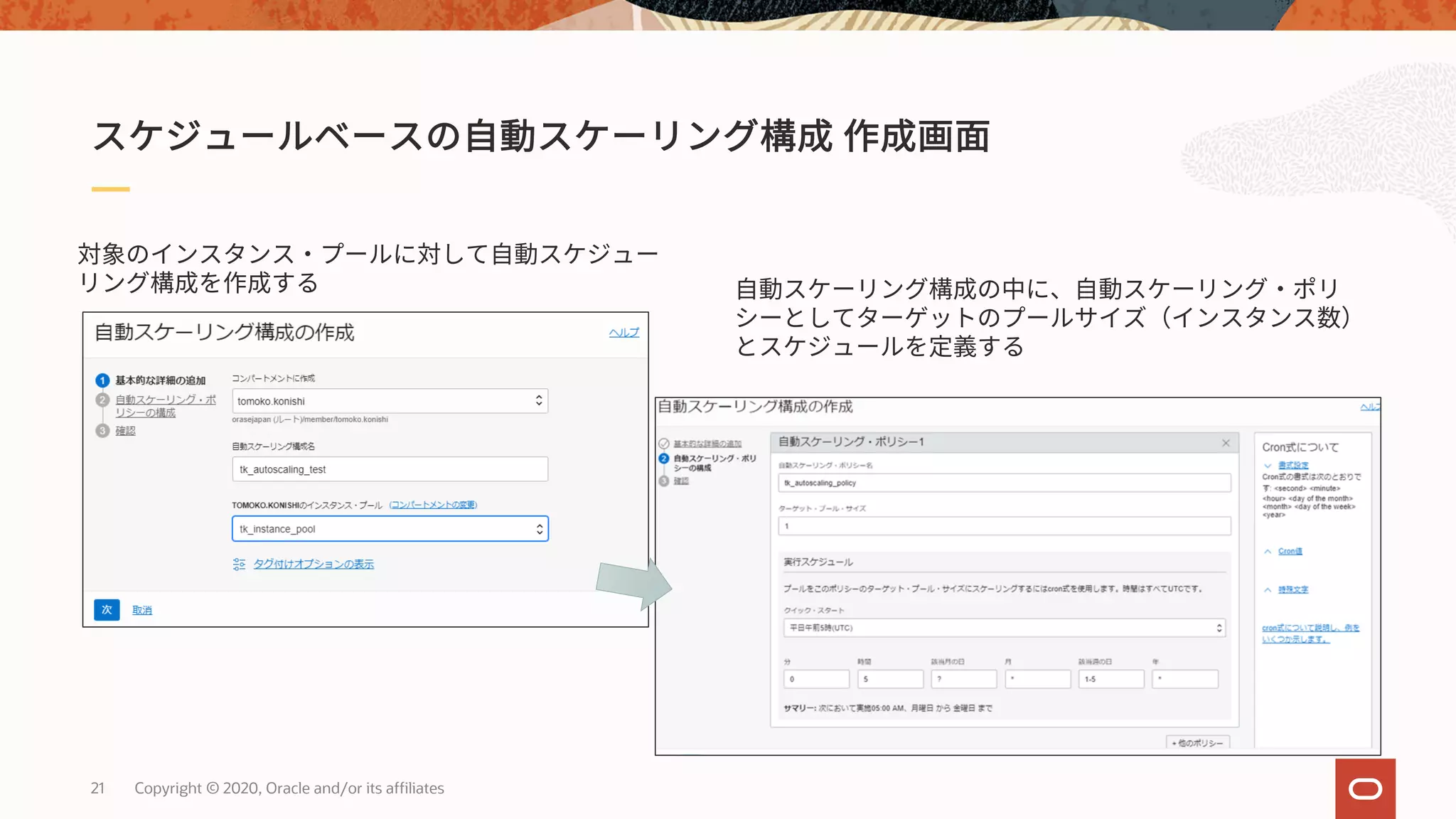

2020/6/16 Compute Schedule-based autoscaling for Compute instance pools

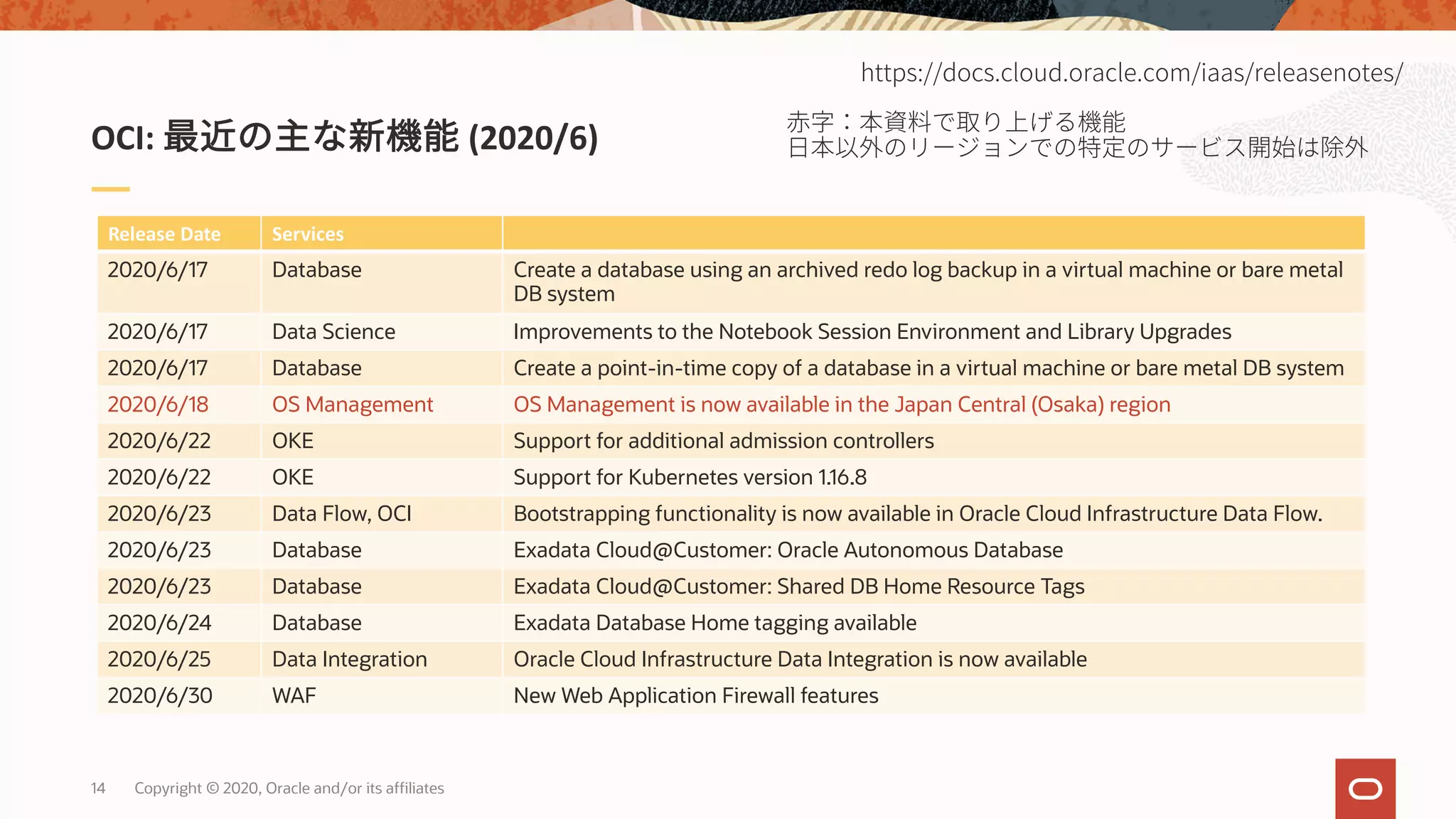

- 14. 14 Copyright © 2020, Oracle and/or its affiliates
OCI: (2020/6)
https://docs.cloud.oracle.com/iaas/releasenotes/
Release Date Services

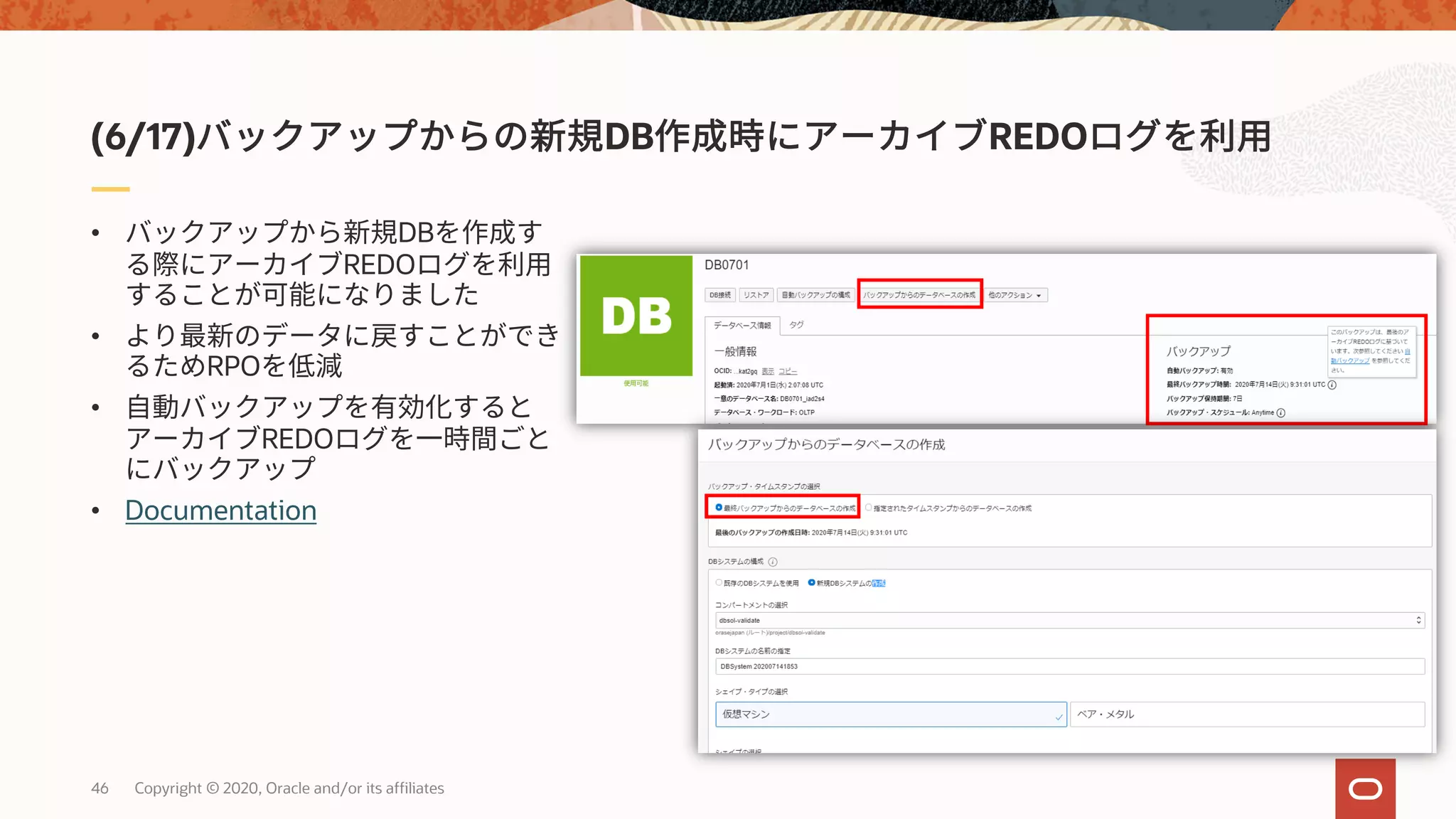

2020/6/17 Database Create a database using an archived redo log backup in a virtual machine or bare metal
DB system
2020/6/17 Data Science Improvements to the Notebook Session Environment and Library Upgrades

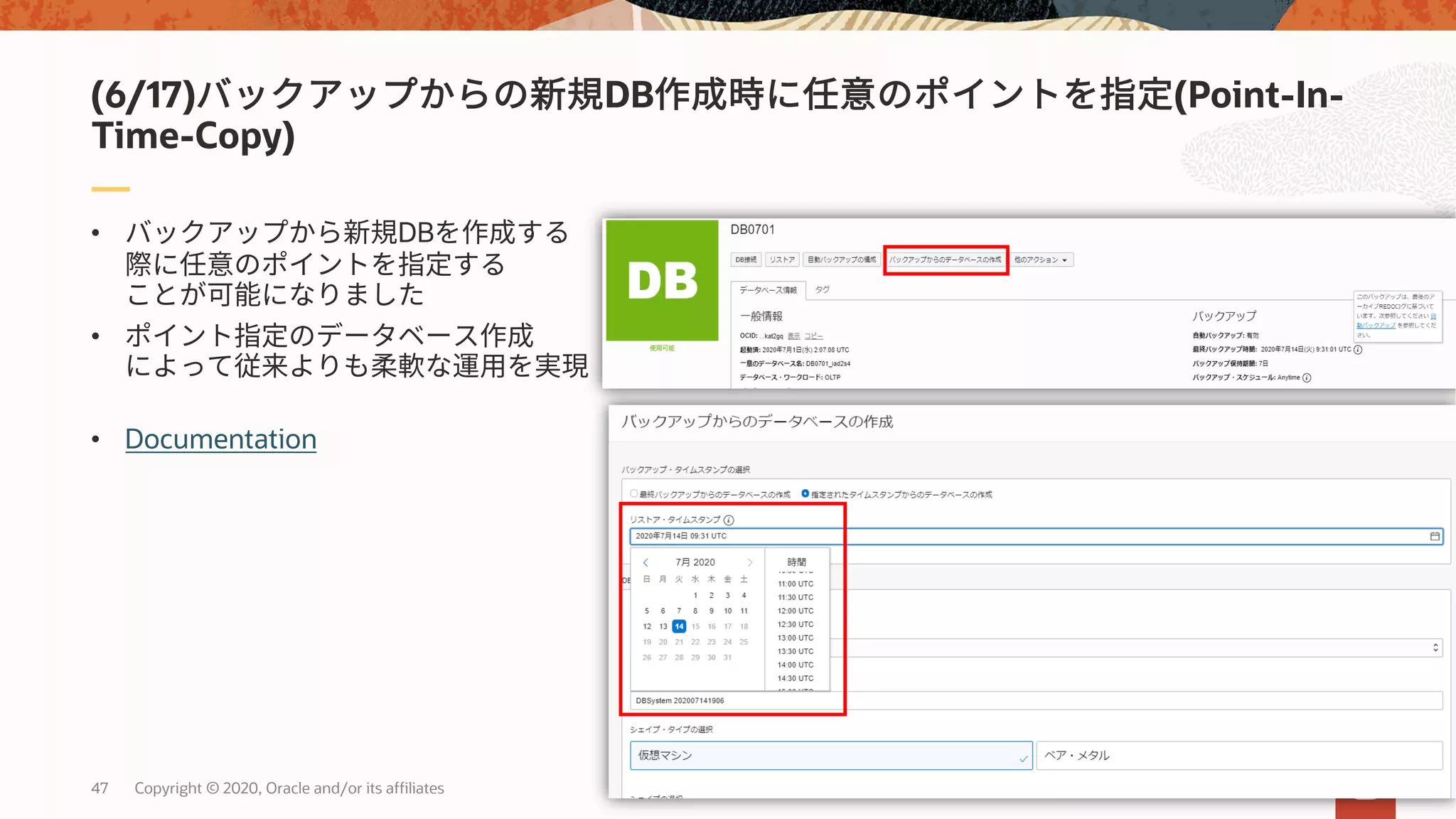

2020/6/17 Database Create a point-in-time copy of a database in a virtual machine or bare metal DB system
2020/6/18 OS Management OS Management is now available in the Japan Central (Osaka) region
2020/6/22 OKE Support for additional admission controllers
2020/6/22 OKE Support for Kubernetes version 1.16.8
2020/6/23 Data Flow, OCI Bootstrapping functionality is now available in Oracle Cloud Infrastructure Data Flow.
2020/6/23 Database Exadata Cloud@Customer: Oracle Autonomous Database
2020/6/23 Database Exadata Cloud@Customer: Shared DB Home Resource Tags
2020/6/24 Database Exadata Database Home tagging available

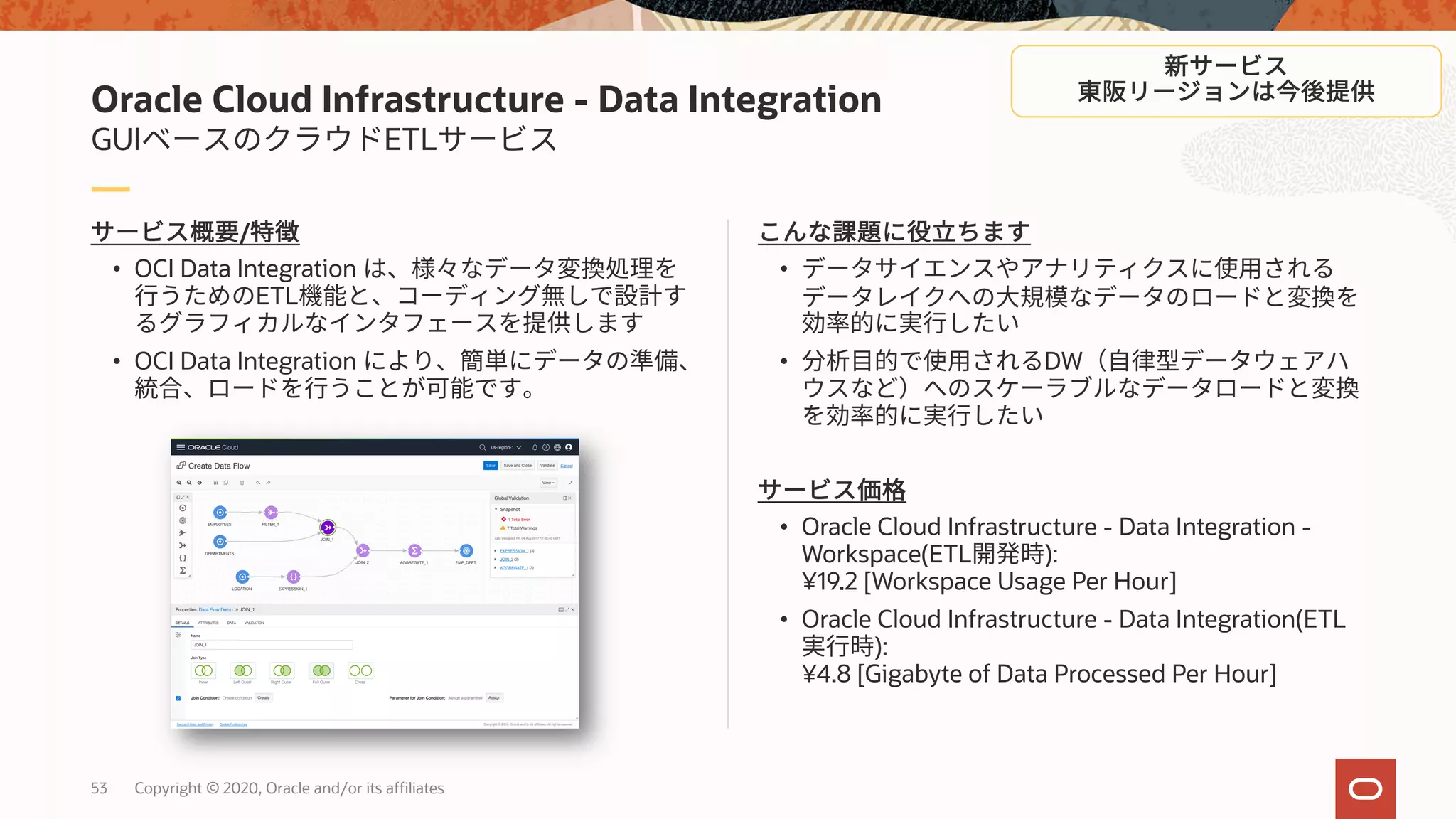

2020/6/25 Data Integration Oracle Cloud Infrastructure Data Integration is now available
2020/6/30 WAF New Web Application Firewall features

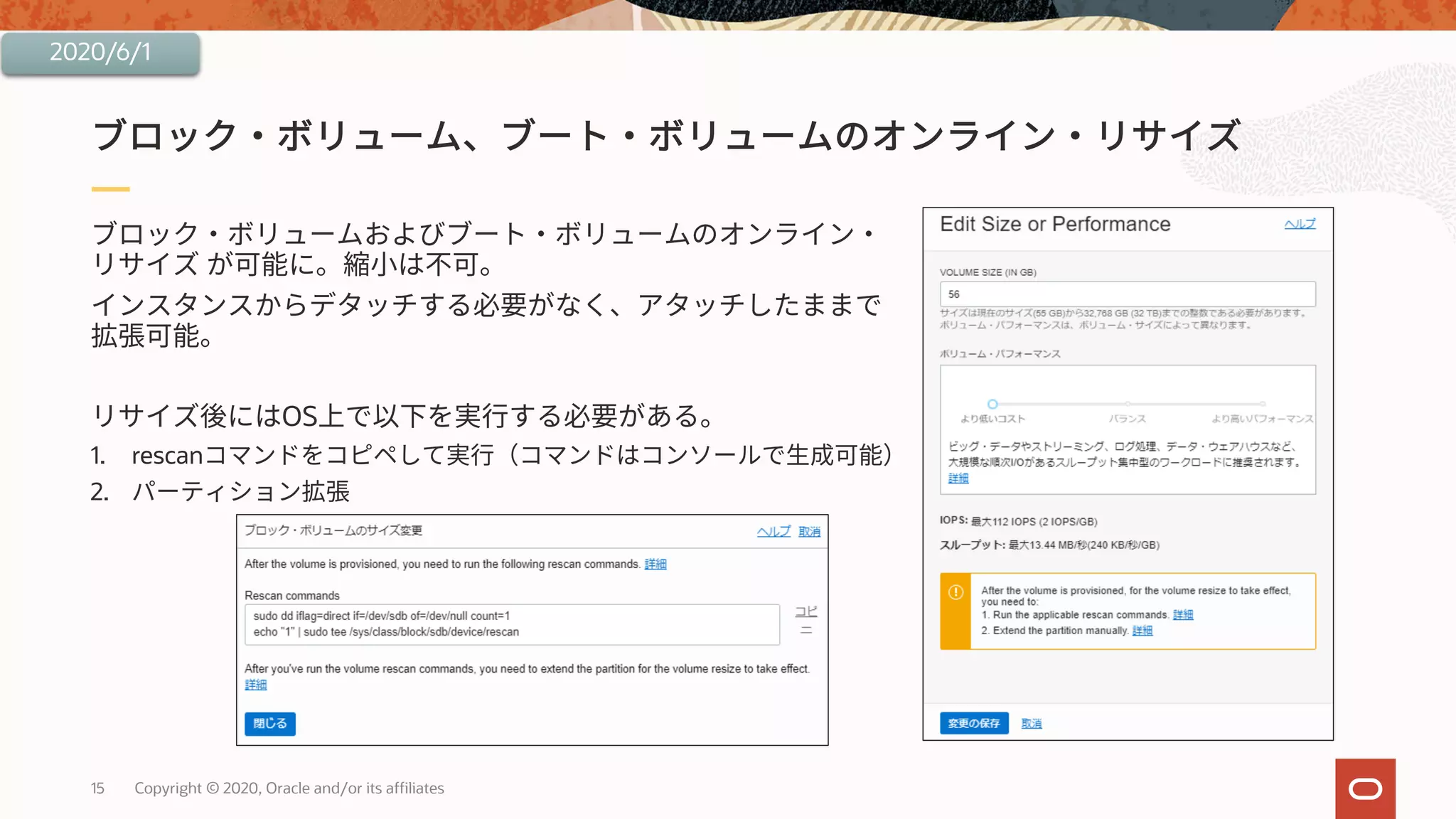

- 15. 15 Copyright © 2020, Oracle and/or its affiliates
OS
1. rescan
2.
2020/6/1

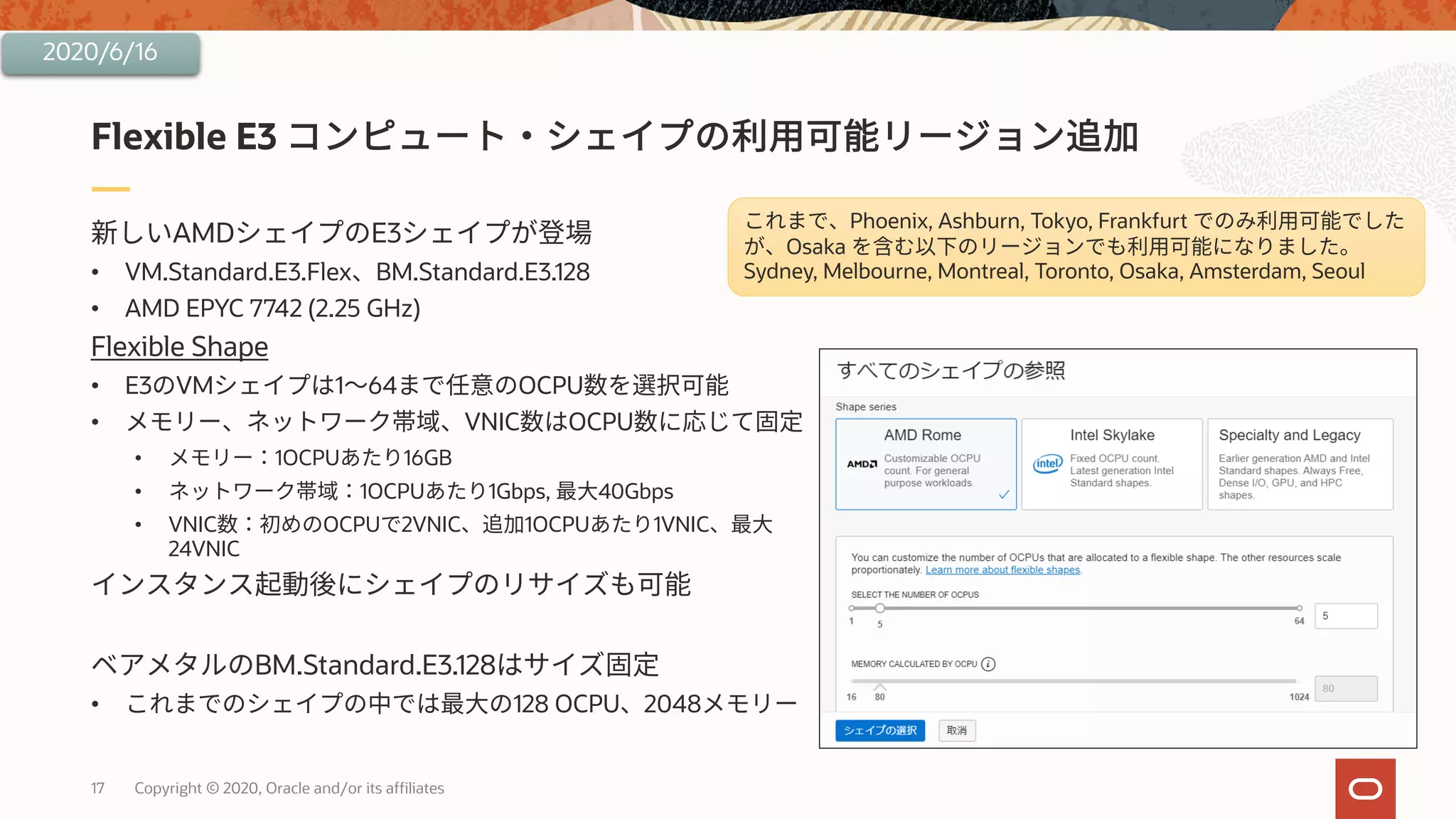

- 17. 17 Copyright © 2020, Oracle and/or its affiliates
AMD E3
• VM.Standard.E3.Flex BM.Standard.E3.128
• AMD EPYC 7742 (2.25 GHz)
Flexible Shape
• E3 VM 1 64 OCPU
• VNIC OCPU
• 1OCPU 16GB
• 1OCPU 1Gbps, 40Gbps
• VNIC OCPU 2VNIC 1OCPU 1VNIC
24VNIC
BM.Standard.E3.128
• 128 OCPU 2048
Flexible E3
2020/6/16
Phoenix, Ashburn, Tokyo, Frankfurt
Osaka
Sydney, Melbourne, Montreal, Toronto, Osaka, Amsterdam, Seoul

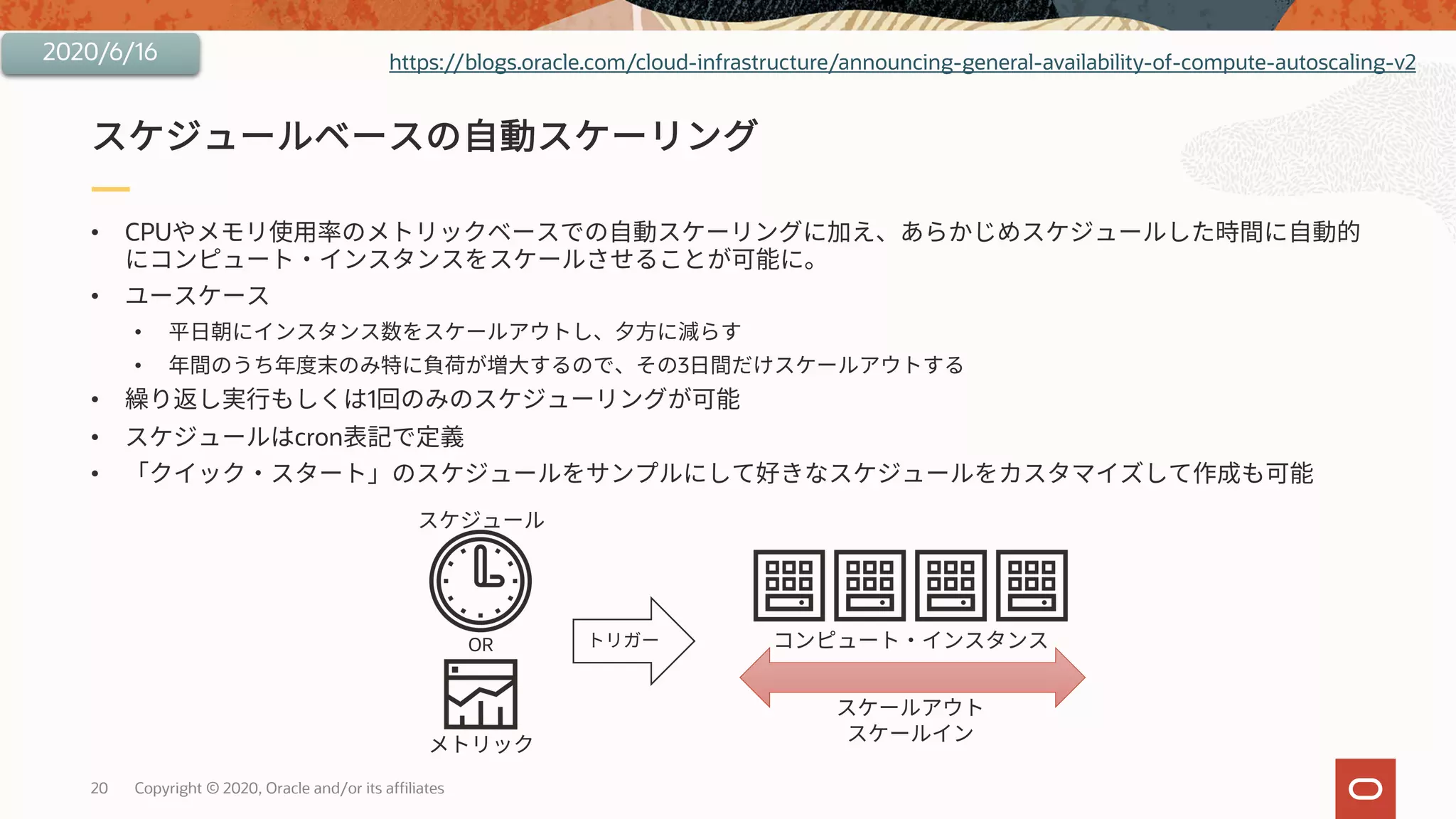

- 20. 20 Copyright © 2020, Oracle and/or its affiliates
• CPU
•
•
• 3
• 1
• cron
•
https://blogs.oracle.com/cloud-infrastructure/announcing-general-availability-of-compute-autoscaling-v2
OR
2020/6/16

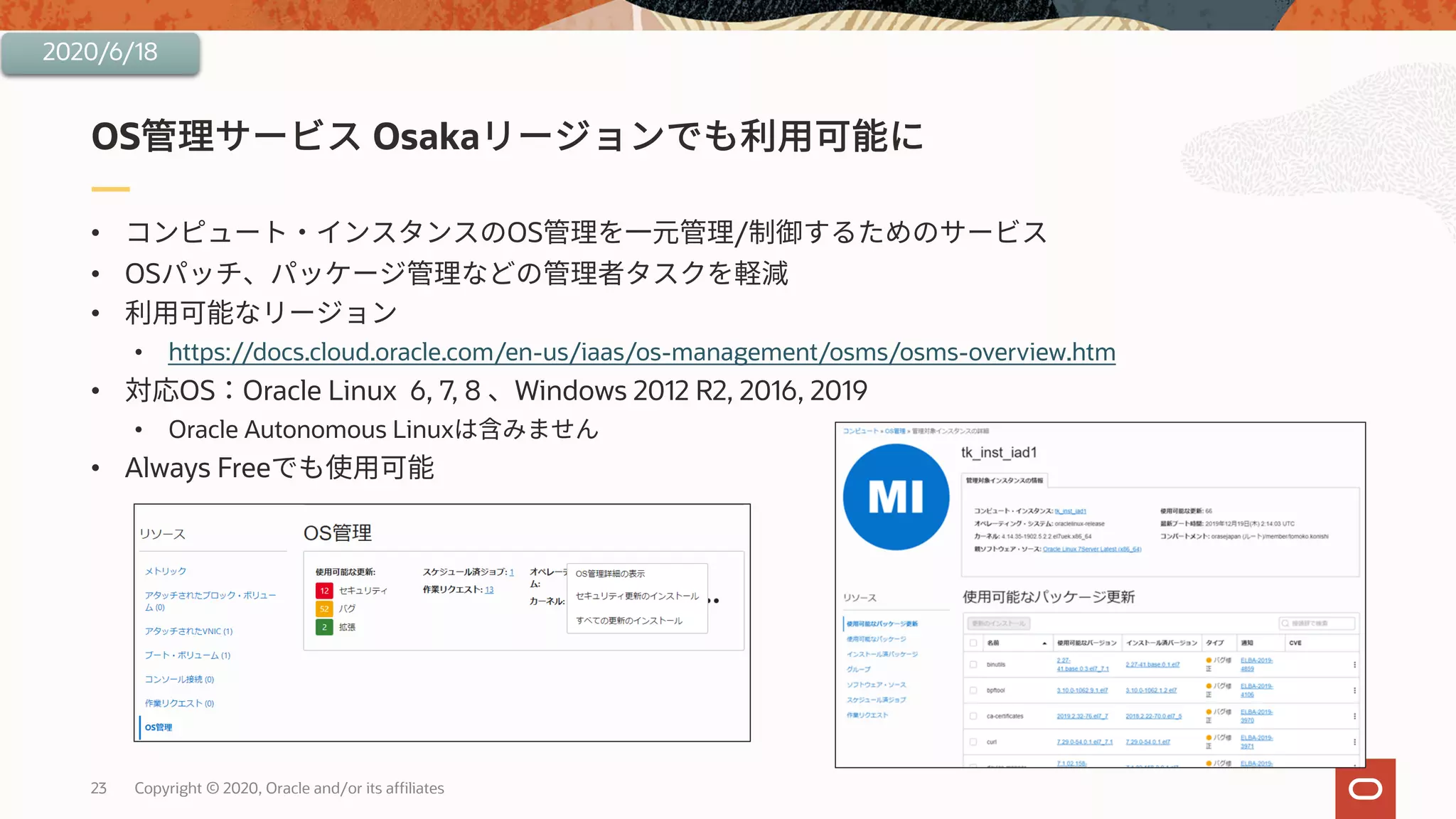

- 23. 23 Copyright © 2020, Oracle and/or its affiliates
• OS /
• OS
•
• https://docs.cloud.oracle.com/en-us/iaas/os-management/osms/osms-overview.htm
• OS Oracle Linux 6, 7, 8 Windows 2012 R2, 2016, 2019
• Oracle Autonomous Linux
• Always Free
OS Osaka
2020/6/18
- 25. 25 Copyright © 2020, Oracle and/or its affiliates
5
4
3
2
1
Platform Service
データベース・サービス
IaaS コア
Oracle Cloud Infrastructure 全体
東京/大阪リージョン

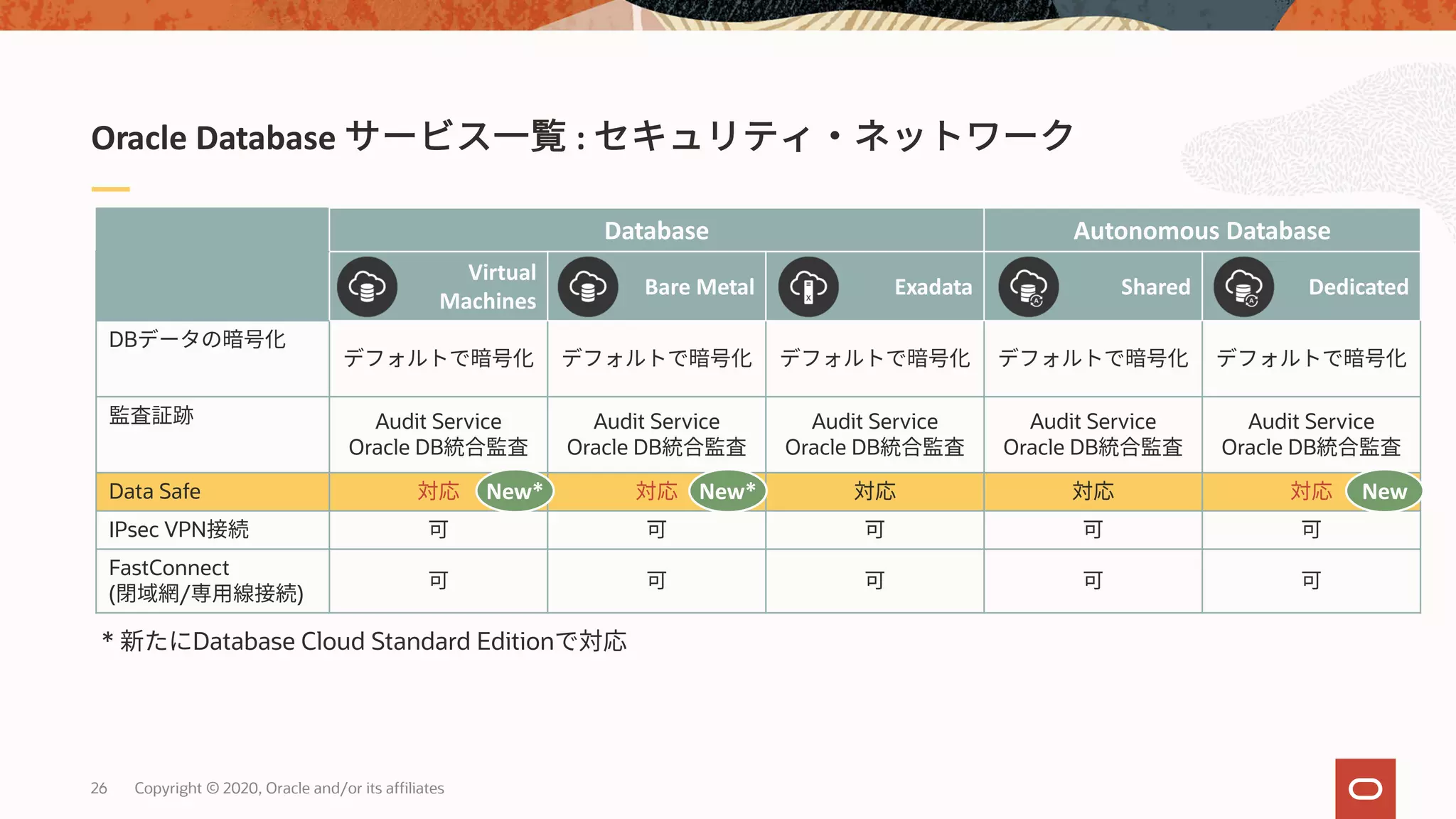

- 26. Copyright © 2020, Oracle and/or its affiliates26
Oracle Database :
Database Autonomous Database
Virtual
Machines
Bare Metal Exadata Shared Dedicated
DB
Audit Service
Oracle DB
Audit Service
Oracle DB
Audit Service
Oracle DB
Audit Service
Oracle DB
Audit Service
Oracle DB
Data Safe
IPsec VPN
FastConnect
( / )
NewNew* New*
* Database Cloud Standard Edition

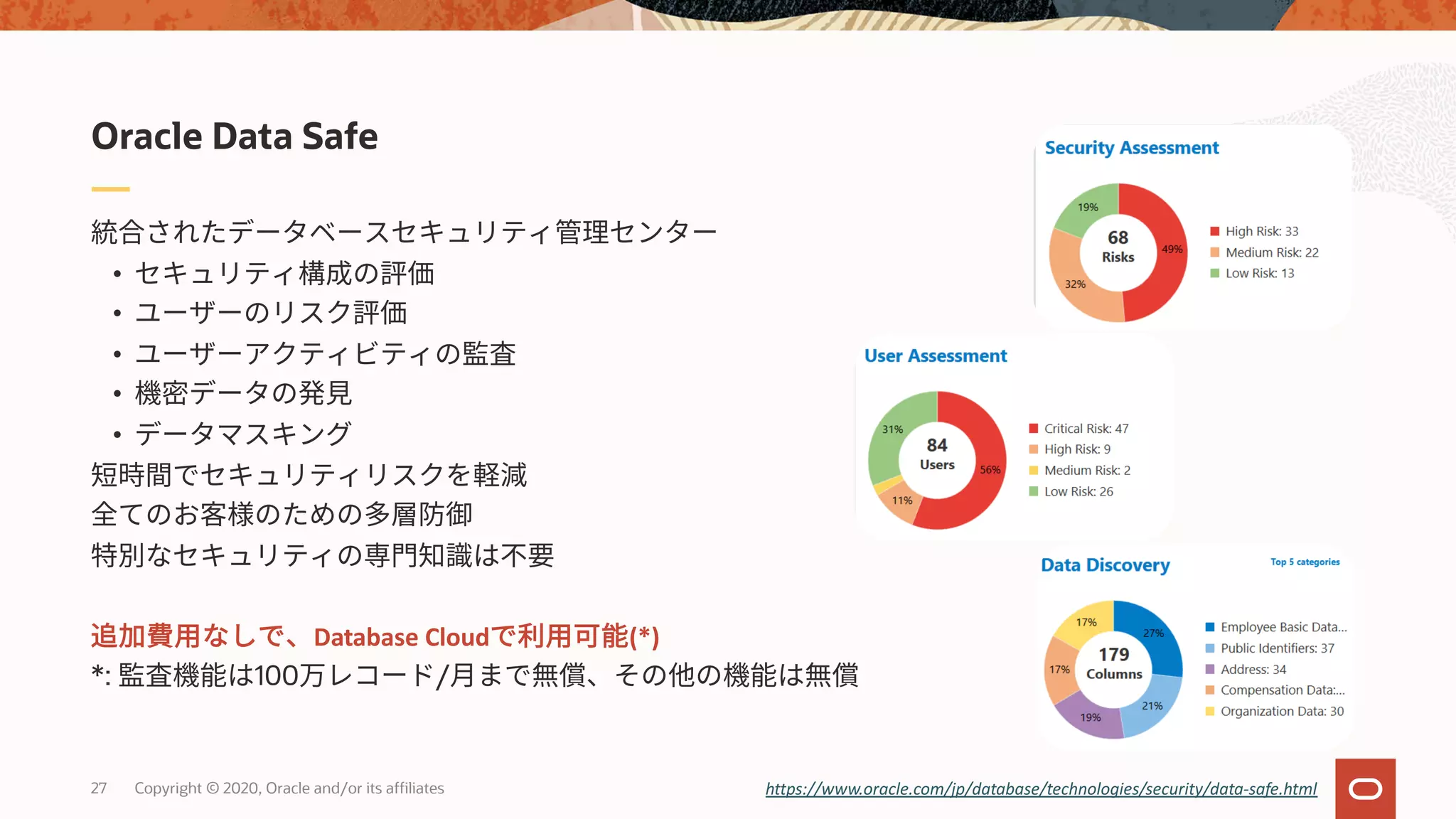

- 27. 27 Copyright © 2020, Oracle and/or its affiliates
•
•
•
•
•
Database Cloud (*)
*: 100 /
Oracle Data Safe
https://www.oracle.com/jp/database/technologies/security/data-safe.html

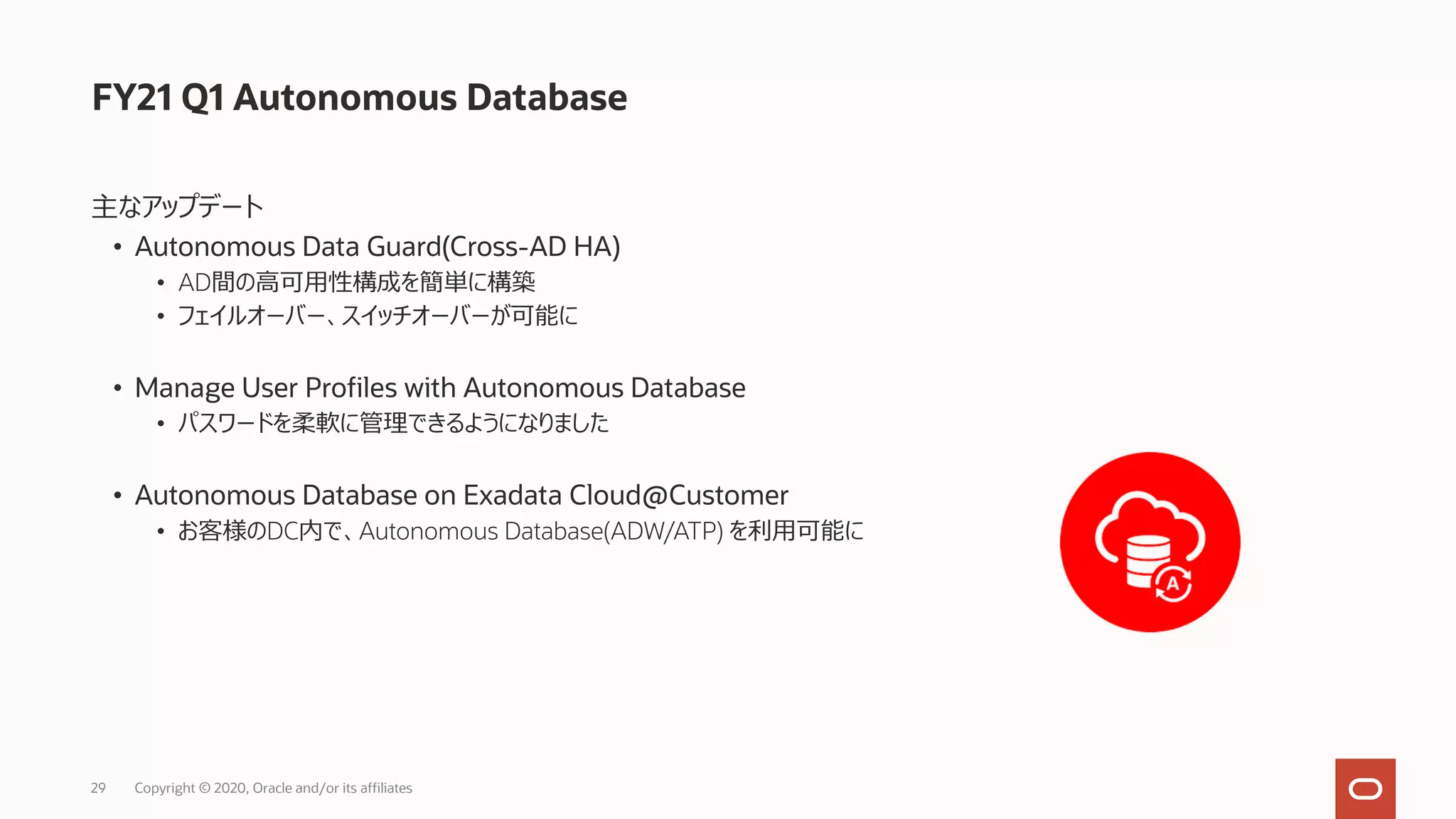

- 29. 29 Copyright © 2020, Oracle and/or its affiliates
FY21 Q1 Autonomous Database
主なアップデート
• Autonomous Data Guard(Cross-AD HA)
• AD間の⾼可⽤性構成を簡単に構築
• フェイルオーバー、スイッチオーバーが可能に
• Manage User Profiles with Autonomous Database
• パスワードを柔軟に管理できるようになりました
• Autonomous Database on Exadata Cloud@Customer
• お客様のDC内で、Autonomous Database(ADW/ATP) を利⽤可能に

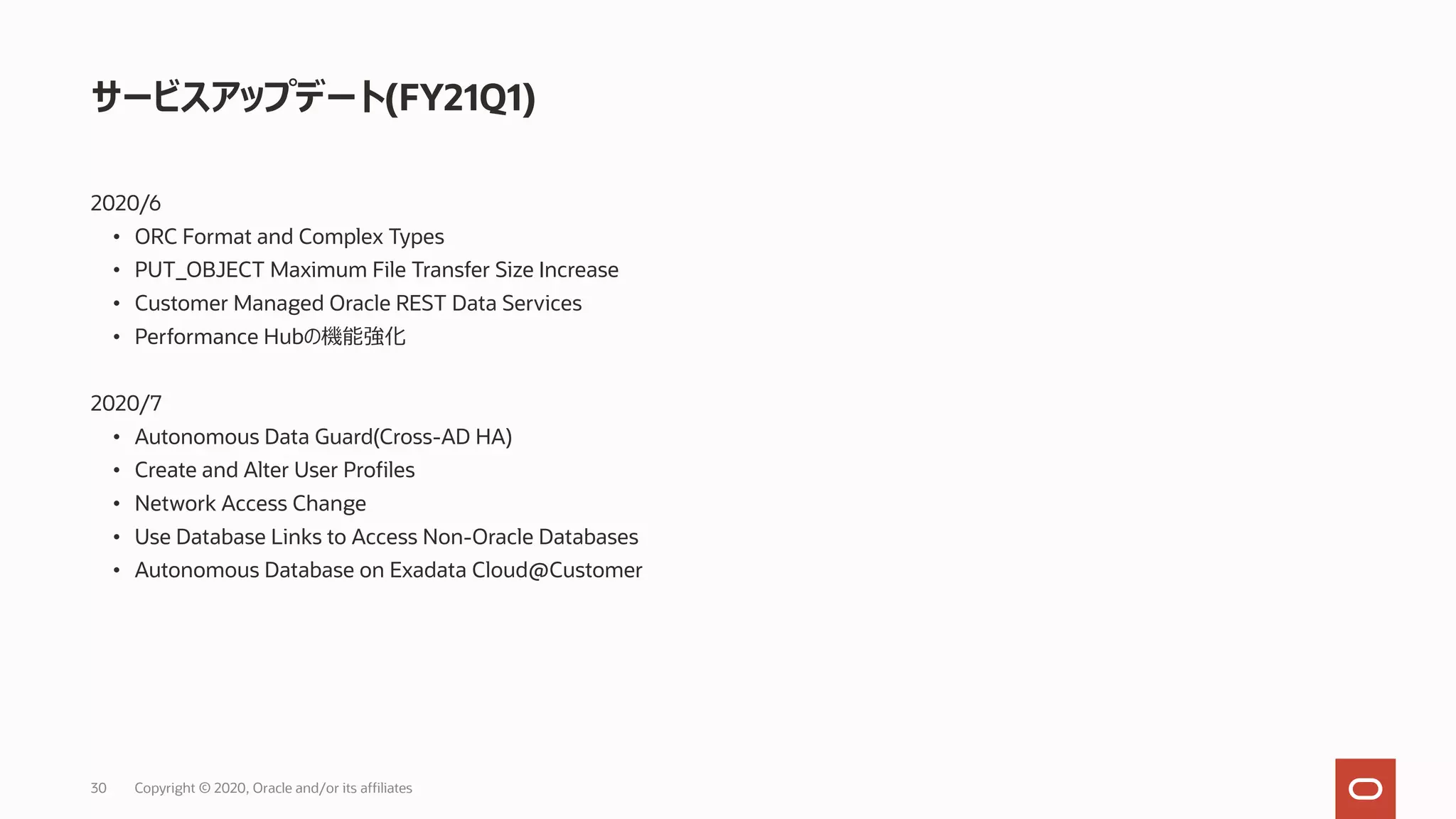

- 30. 30 Copyright © 2020, Oracle and/or its affiliates
サービスアップデート(FY21Q1)
2020/6

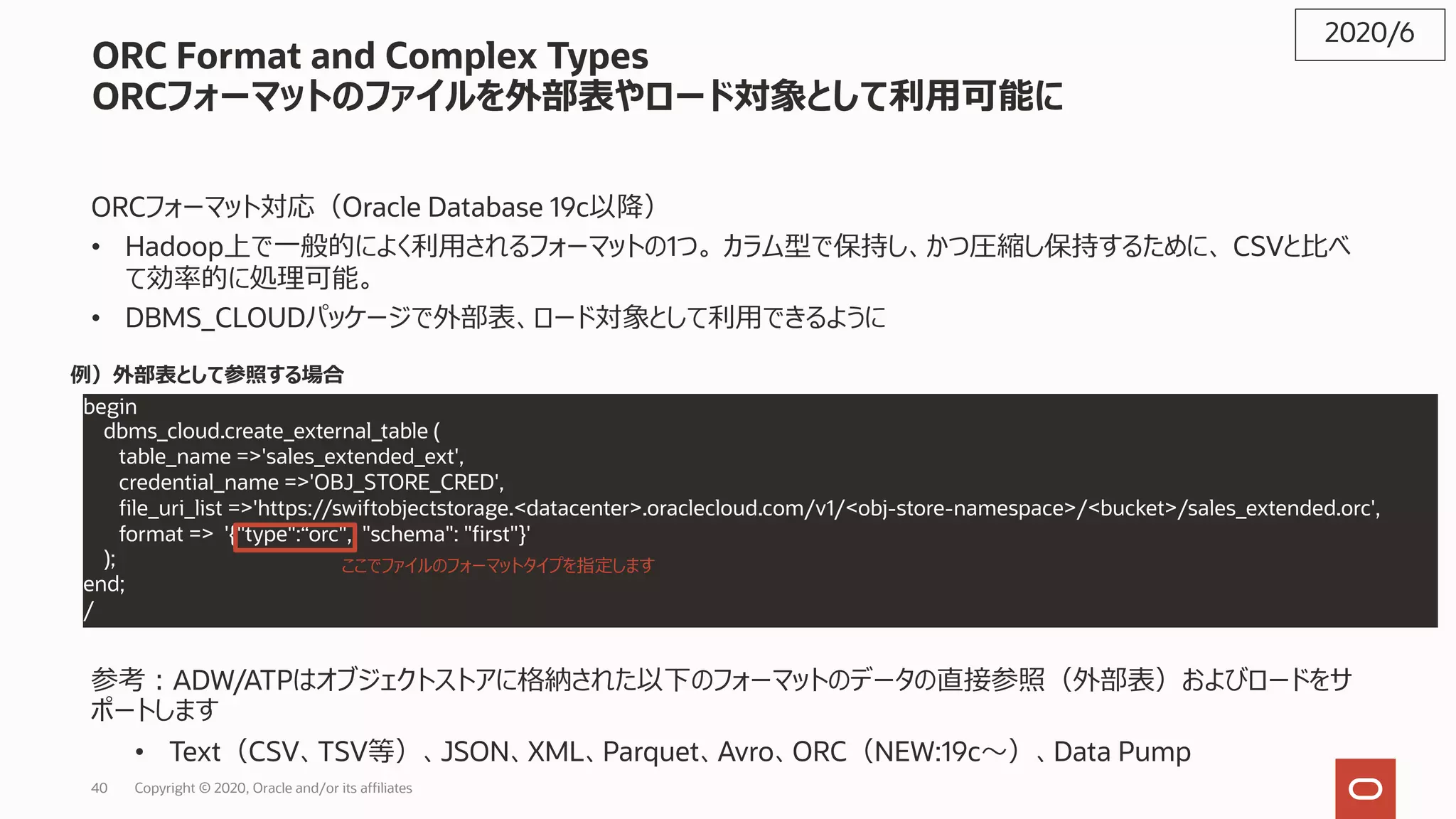

• ORC Format and Complex Types

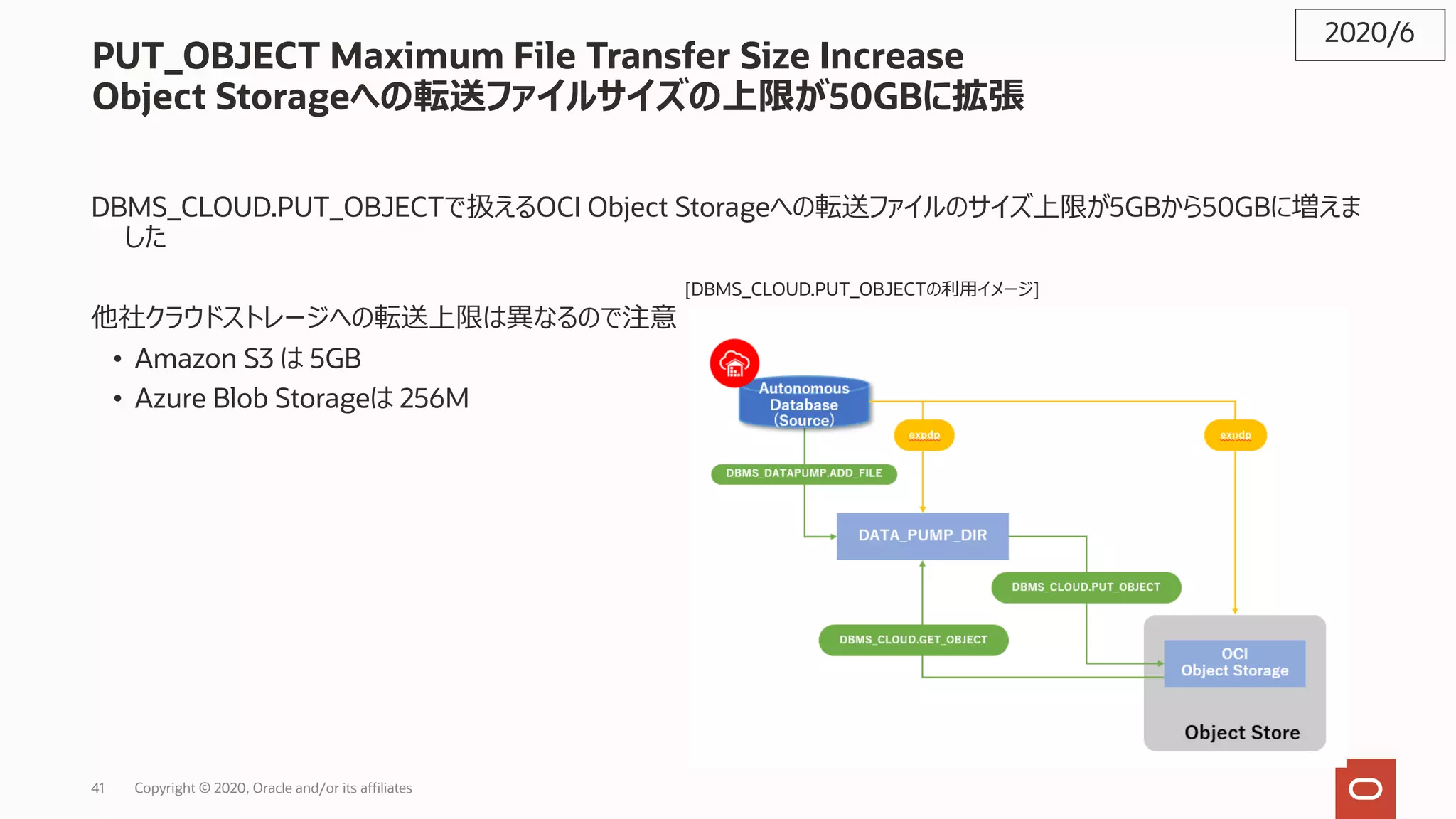

• PUT_OBJECT Maximum File Transfer Size Increase

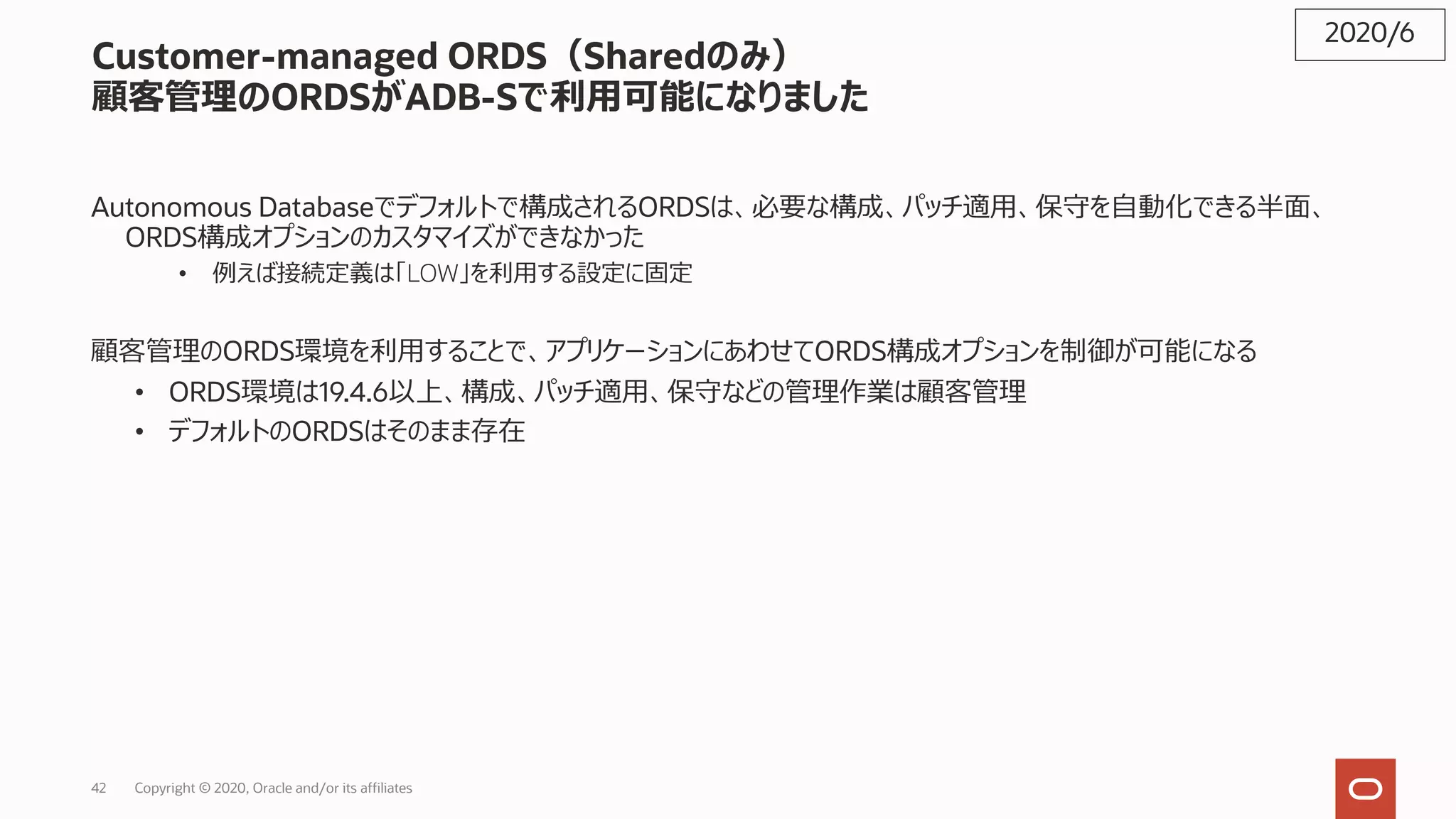

• Customer Managed Oracle REST Data Services

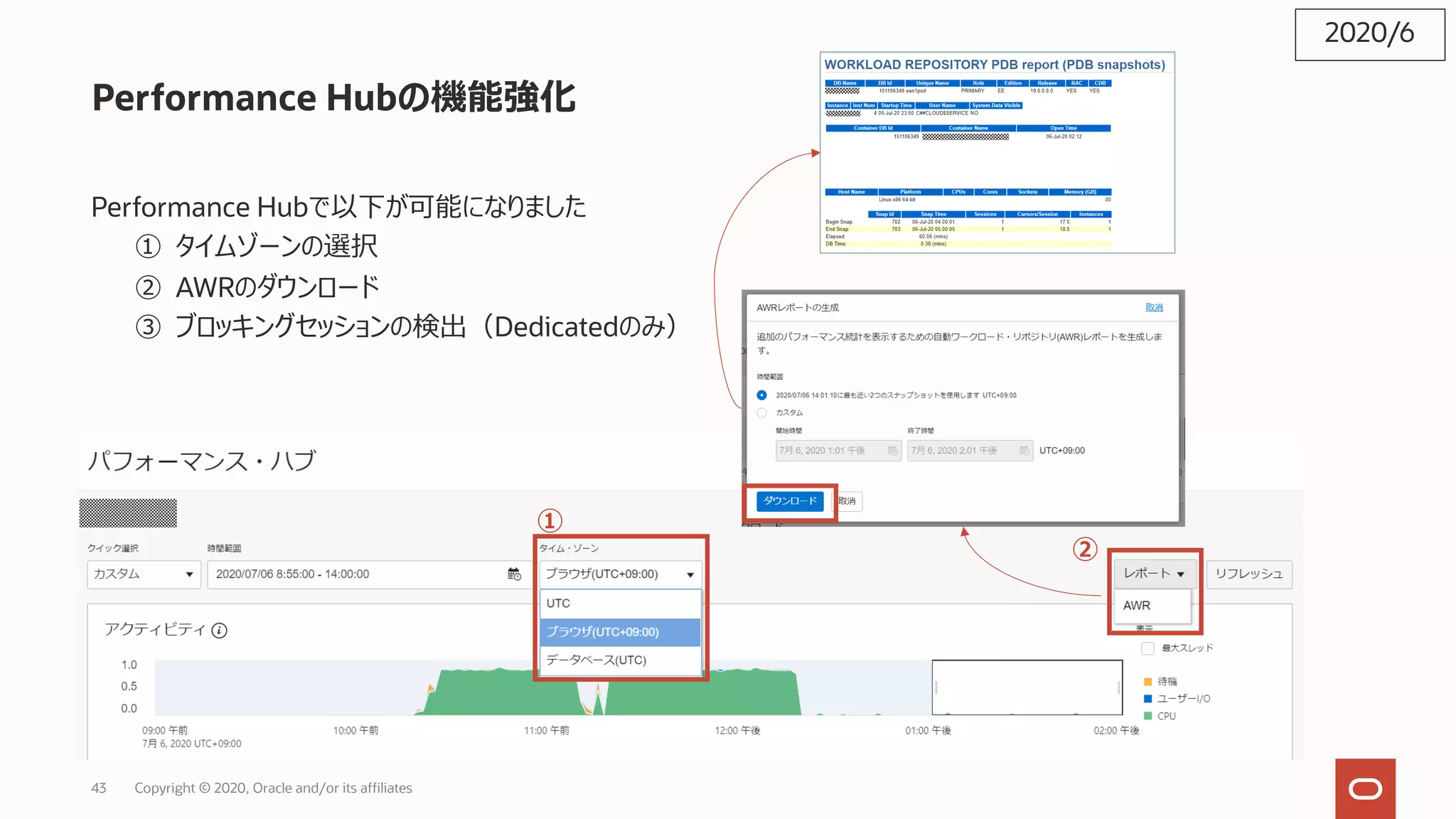

• Performance Hubの機能強化
2020/7
• Autonomous Data Guard(Cross-AD HA)
• Create and Alter User Profiles
• Network Access Change
• Use Database Links to Access Non-Oracle Databases
• Autonomous Database on Exadata Cloud@Customer

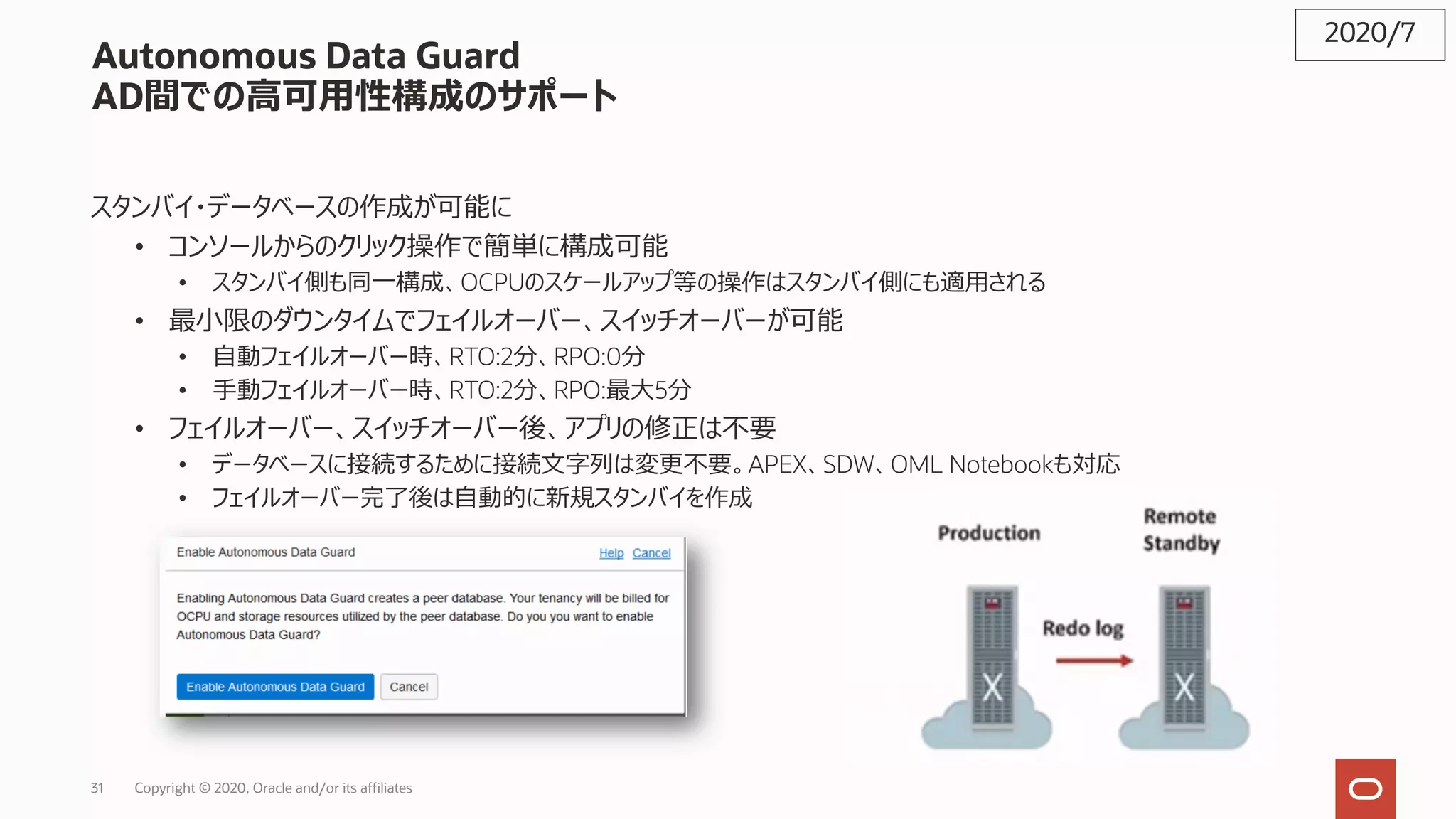

- 31. 31 Copyright © 2020, Oracle and/or its affiliates
Autonomous Data Guard
AD間での⾼可⽤性構成のサポート
スタンバイ・データベースの作成が可能に
• コンソールからのクリック操作で簡単に構成可能
• スタンバイ側も同⼀構成、OCPUのスケールアップ等の操作はスタンバイ側にも適⽤される
• 最⼩限のダウンタイムでフェイルオーバー、スイッチオーバーが可能
• ⾃動フェイルオーバー時、RTO:2分、RPO:0分
• ⼿動フェイルオーバー時、RTO:2分、RPO:最⼤5分
• フェイルオーバー、スイッチオーバー後、アプリの修正は不要
• データベースに接続するために接続⽂字列は変更不要。APEX、SDW、OML Notebookも対応
• フェイルオーバー完了後は⾃動的に新規スタンバイを作成
2020/7

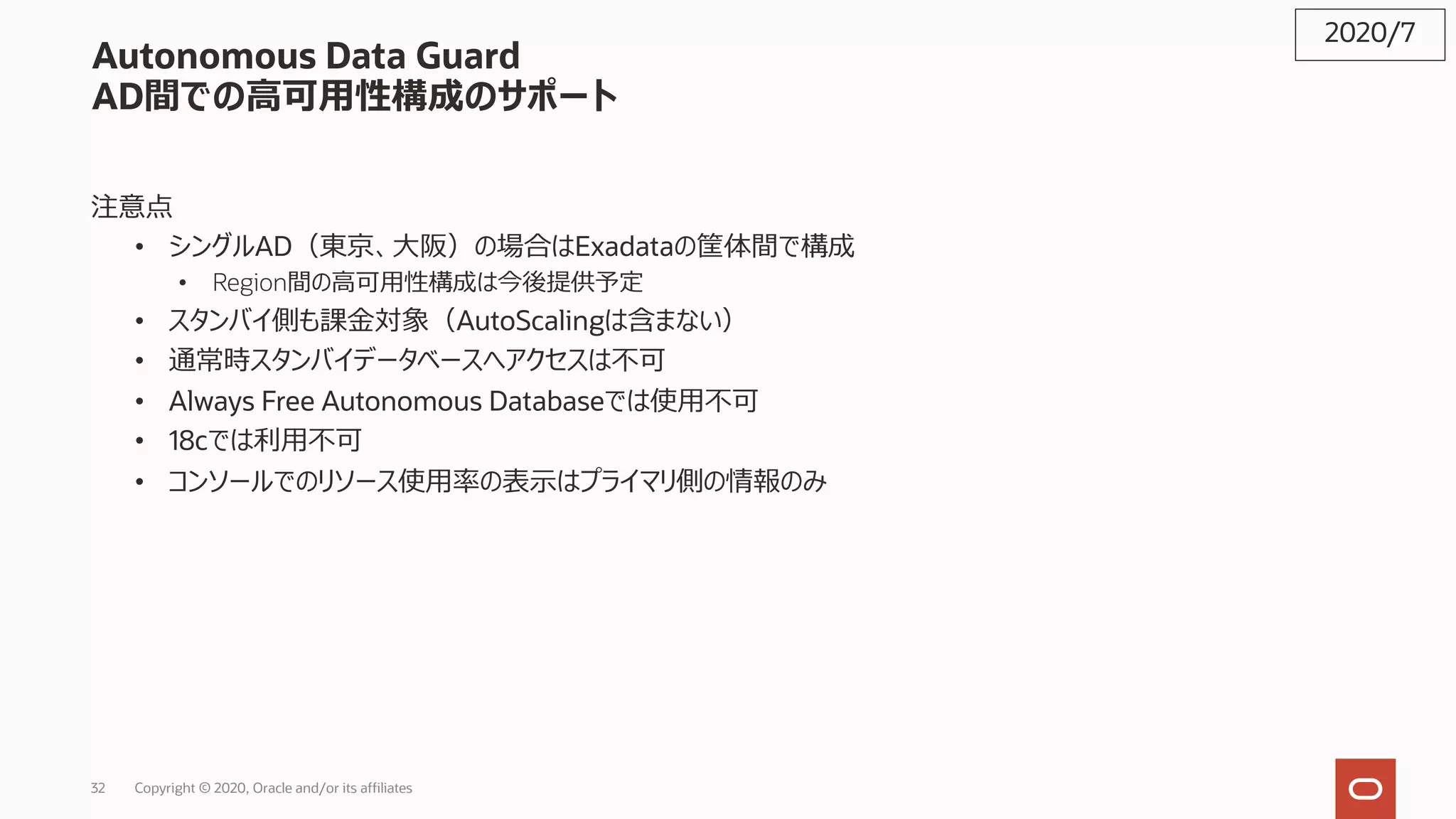

- 32. 32 Copyright © 2020, Oracle and/or its affiliates
Autonomous Data Guard
AD間での⾼可⽤性構成のサポート
注意点
• シングルAD(東京、⼤阪)の場合はExadataの筐体間で構成
• Region間の⾼可⽤性構成は今後提供予定
• スタンバイ側も課⾦対象(AutoScalingは含まない)
• 通常時スタンバイデータベースへアクセスは不可
• Always Free Autonomous Databaseでは使⽤不可
• 18cでは利⽤不可
• コンソールでのリソース使⽤率の表⽰はプライマリ側の情報のみ
2020/7
- 33. 33 Copyright © 2020, Oracle and/or its affiliates

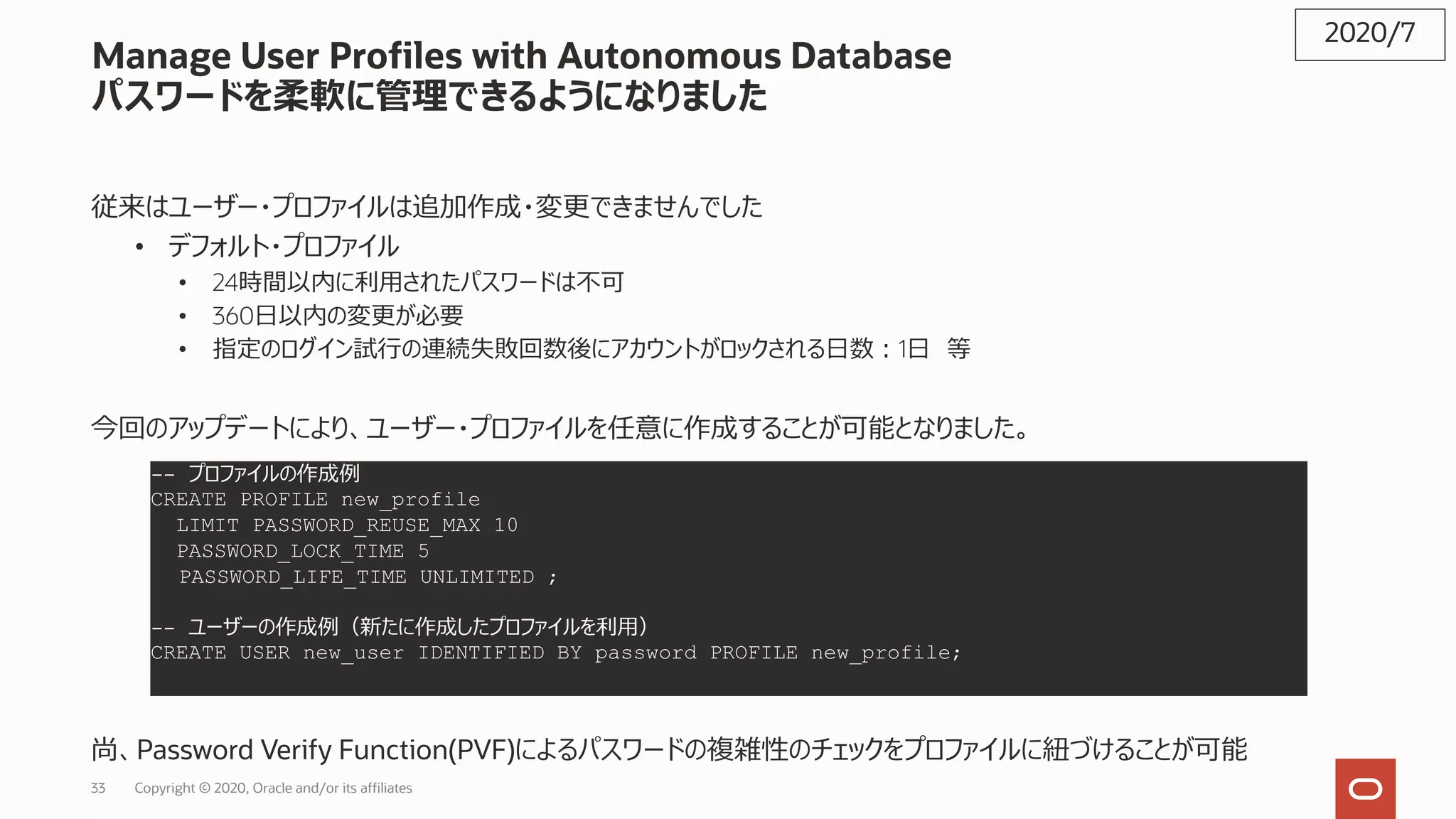

Manage User Profiles with Autonomous Database
パスワードを柔軟に管理できるようになりました
従来はユーザー・プロファイルは追加作成・変更できませんでした
• デフォルト・プロファイル
• 24時間以内に利⽤されたパスワードは不可
• 360⽇以内の変更が必要
• 指定のログイン試⾏の連続失敗回数後にアカウントがロックされる⽇数︓1⽇ 等
今回のアップデートにより、ユーザー・プロファイルを任意に作成することが可能となりました。
尚、Password Verify Function(PVF)によるパスワードの複雑性のチェックをプロファイルに紐づけることが可能
2020/7
-- プロファイルの作成例
CREATE PROFILE new_profile
LIMIT PASSWORD_REUSE_MAX 10
PASSWORD_LOCK_TIME 5
PASSWORD_LIFE_TIME UNLIMITED ;
-- ユーザーの作成例(新たに作成したプロファイルを利⽤)
CREATE USER new_user IDENTIFIED BY password PROFILE new_profile;

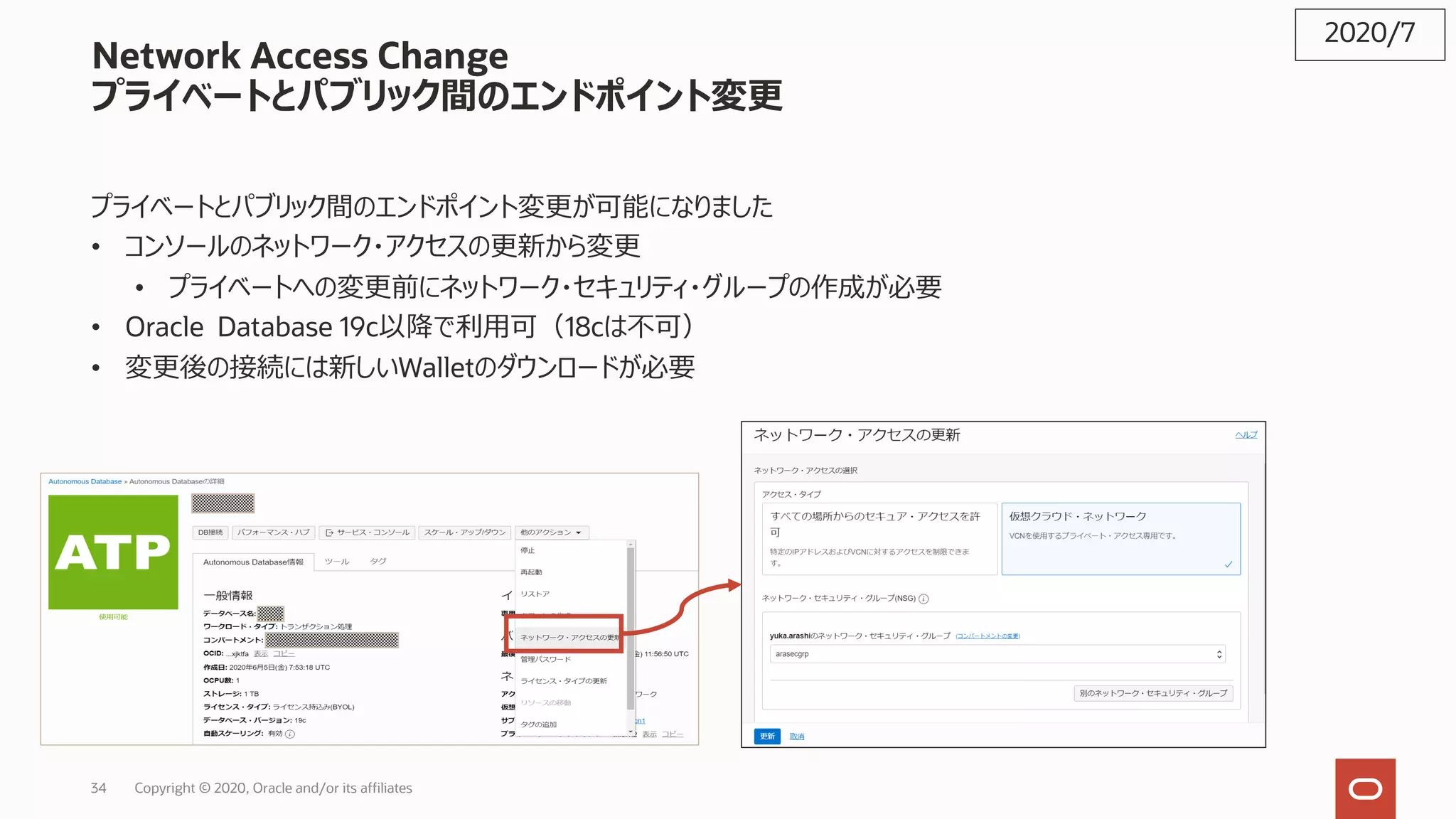

- 34. 34 Copyright © 2020, Oracle and/or its affiliates
Network Access Change
プライベートとパブリック間のエンドポイント変更
プライベートとパブリック間のエンドポイント変更が可能になりました
• コンソールのネットワーク・アクセスの更新から変更
• プライベートへの変更前にネットワーク・セキュリティ・グループの作成が必要
• Oracle Database 19c以降で利⽤可(18cは不可)
• 変更後の接続には新しいWalletのダウンロードが必要
2020/7

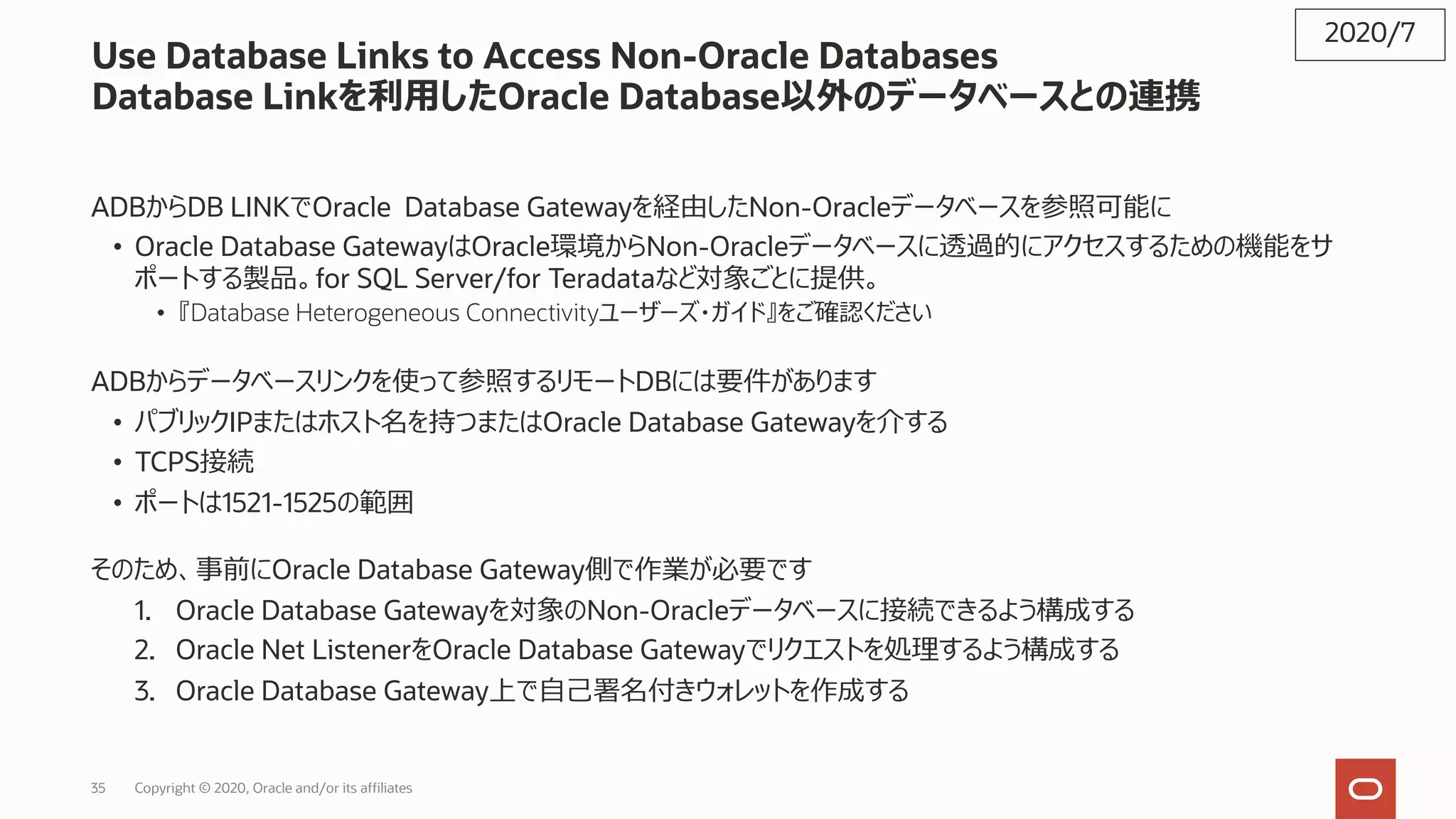

- 35. 35 Copyright © 2020, Oracle and/or its affiliates
Use Database Links to Access Non-Oracle Databases
Database Linkを利⽤したOracle Database以外のデータベースとの連携
ADBからDB LINKでOracle Database Gatewayを経由したNon-Oracleデータベースを参照可能に
• Oracle Database GatewayはOracle環境からNon-Oracleデータベースに透過的にアクセスするための機能をサ
ポートする製品。for SQL Server/for Teradataなど対象ごとに提供。
• 『Database Heterogeneous Connectivityユーザーズ・ガイド』をご確認ください
ADBからデータベースリンクを使って参照するリモートDBには要件があります
• パブリックIPまたはホスト名を持つまたはOracle Database Gatewayを介する
• TCPS接続
• ポートは1521-1525の範囲
そのため、事前にOracle Database Gateway側で作業が必要です
1. Oracle Database Gatewayを対象のNon-Oracleデータベースに接続できるよう構成する
2. Oracle Net ListenerをOracle Database Gatewayでリクエストを処理するよう構成する
3. Oracle Database Gateway上で⾃⼰署名付きウォレットを作成する
2020/7
- 36. 36 Copyright © 2020, Oracle and/or its affiliates

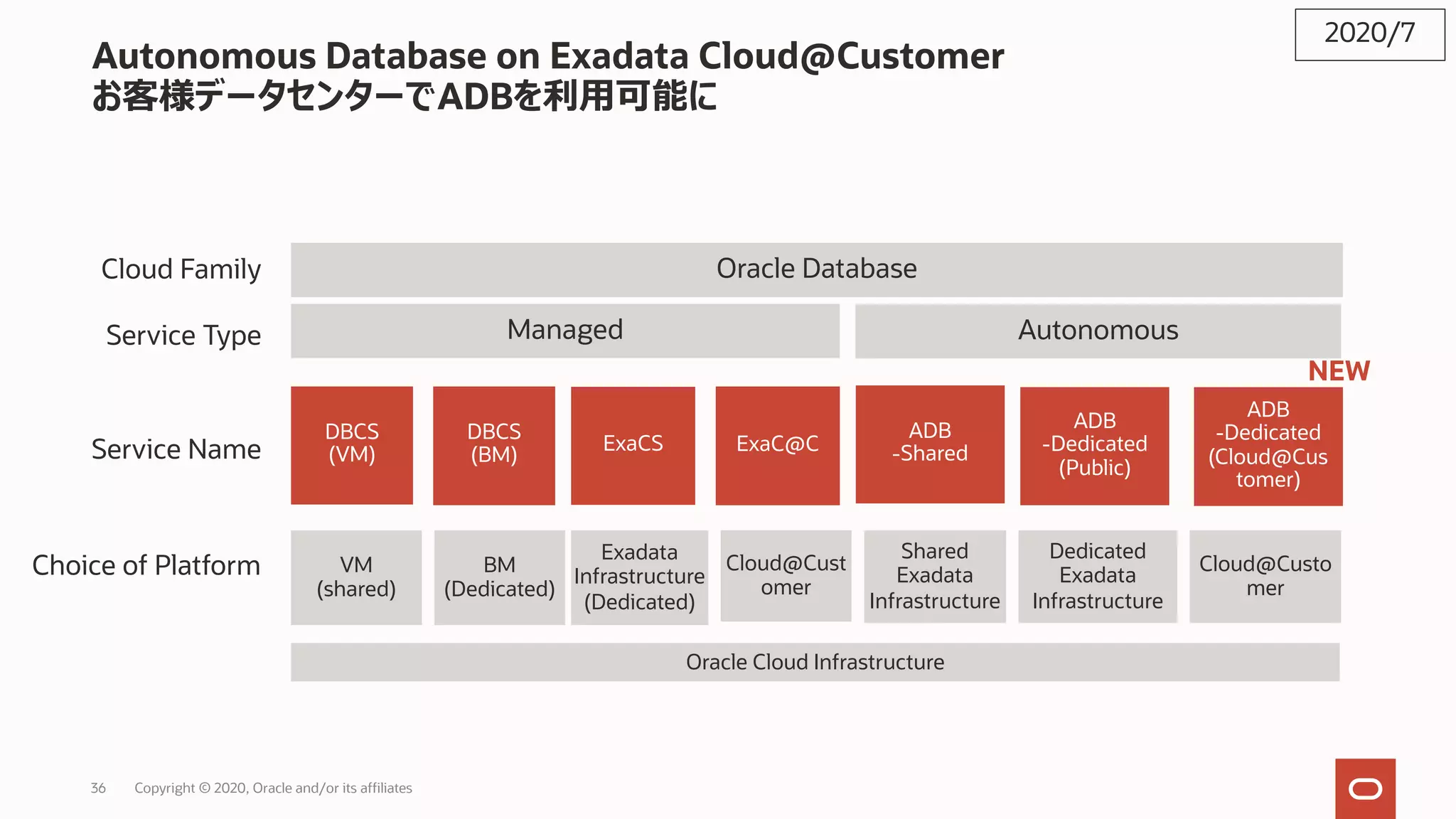

Autonomous Database on Exadata Cloud@Customer
お客様データセンターでADBを利⽤可能に
2020/7
ADB
-Dedicated
(Cloud@Cus
tomer)
ADB
-Dedicated
(Public)
Shared
Exadata
Infrastructure
Dedicated
Exadata
Infrastructure
Cloud@Custo
mer
Exadata
Infrastructure
(Dedicated)
Cloud@Cust
omer
ExaC@CExaCS
Oracle Cloud Infrastructure
ADB
-Shared
Oracle Database
AutonomousManaged
DBCS
(BM)
DBCS
(VM)
BM
(Dedicated)
VM
(shared)
Choice of Platform
Service Name
Service Type
Cloud Family
NEW
- 37. 37 Copyright © 2020, Oracle and/or its affiliates
Autonomous Dedicated
専有環境で稼働するPrivate Database Cloudを提供
⾃律型データベース
• ⾼性能、⾼可⽤性、⾼セキュリティ
• 使いたいときにすぐに利⽤可能
⾼度な分離性
• 複数のレイヤーで独⽴性を確保
• プライベートクラウドとしての責任境界の明確化
• フリート管理者 / データベース管理者
運⽤ポリシーのカスタマイズ
• プロビジョニング、ソフトウェア更新、可⽤性、集約性を制御可能
Public / C@C 共通

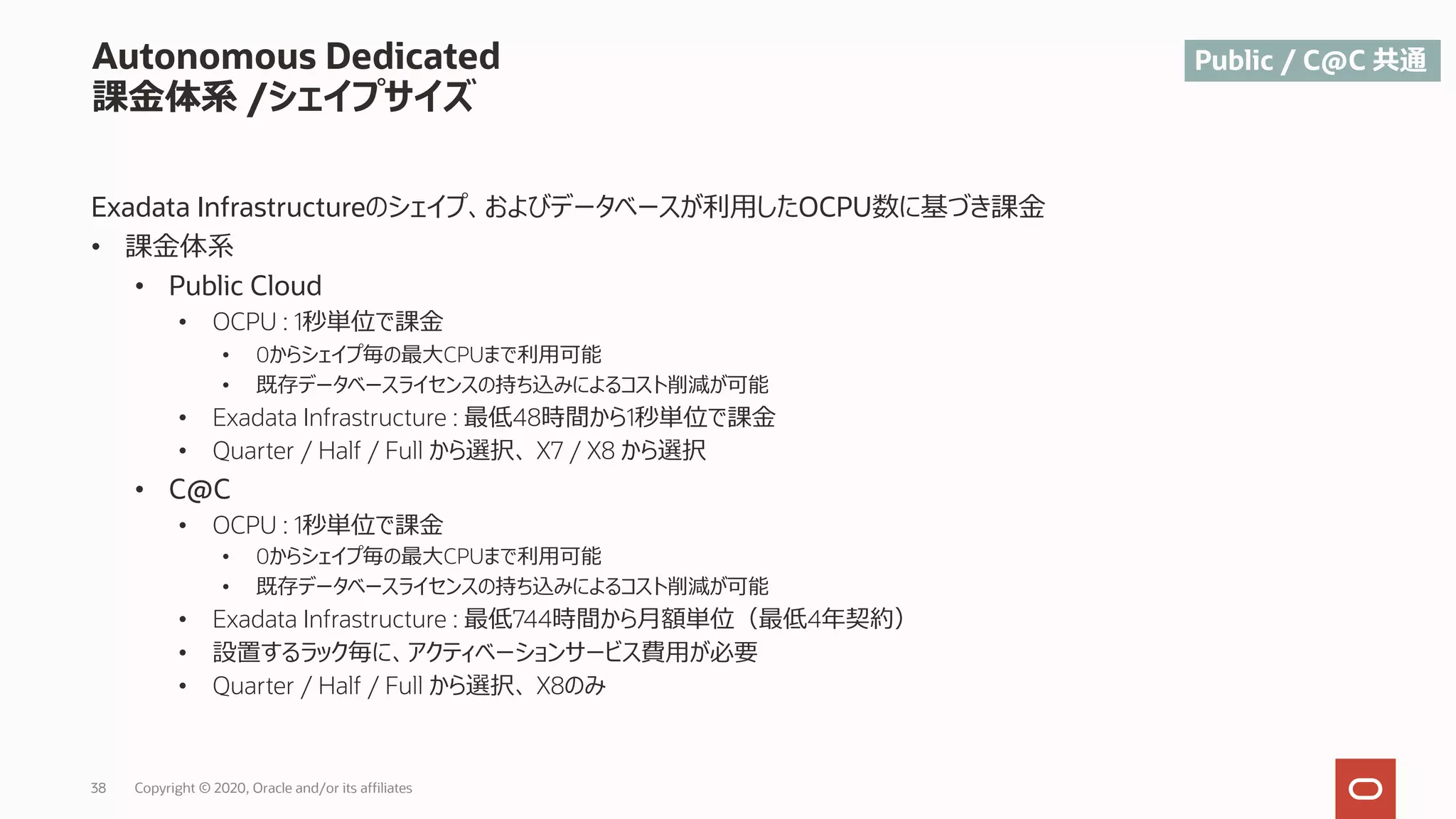

- 38. 38 Copyright © 2020, Oracle and/or its affiliates
Autonomous Dedicated
課⾦体系 /シェイプサイズ
Exadata Infrastructureのシェイプ、およびデータベースが利⽤したOCPU数に基づき課⾦
• 課⾦体系
• Public Cloud
• OCPU : 1秒単位で課⾦
• 0からシェイプ毎の最⼤CPUまで利⽤可能
• 既存データベースライセンスの持ち込みによるコスト削減が可能
• Exadata Infrastructure : 最低48時間から1秒単位で課⾦
• Quarter / Half / Full から選択、 X7 / X8 から選択
• C@C
• OCPU : 1秒単位で課⾦
• 0からシェイプ毎の最⼤CPUまで利⽤可能
• 既存データベースライセンスの持ち込みによるコスト削減が可能
• Exadata Infrastructure : 最低744時間から⽉額単位(最低4年契約)
• 設置するラック毎に、アクティベーションサービス費⽤が必要
• Quarter / Half / Full から選択、 X8のみ
Public / C@C 共通

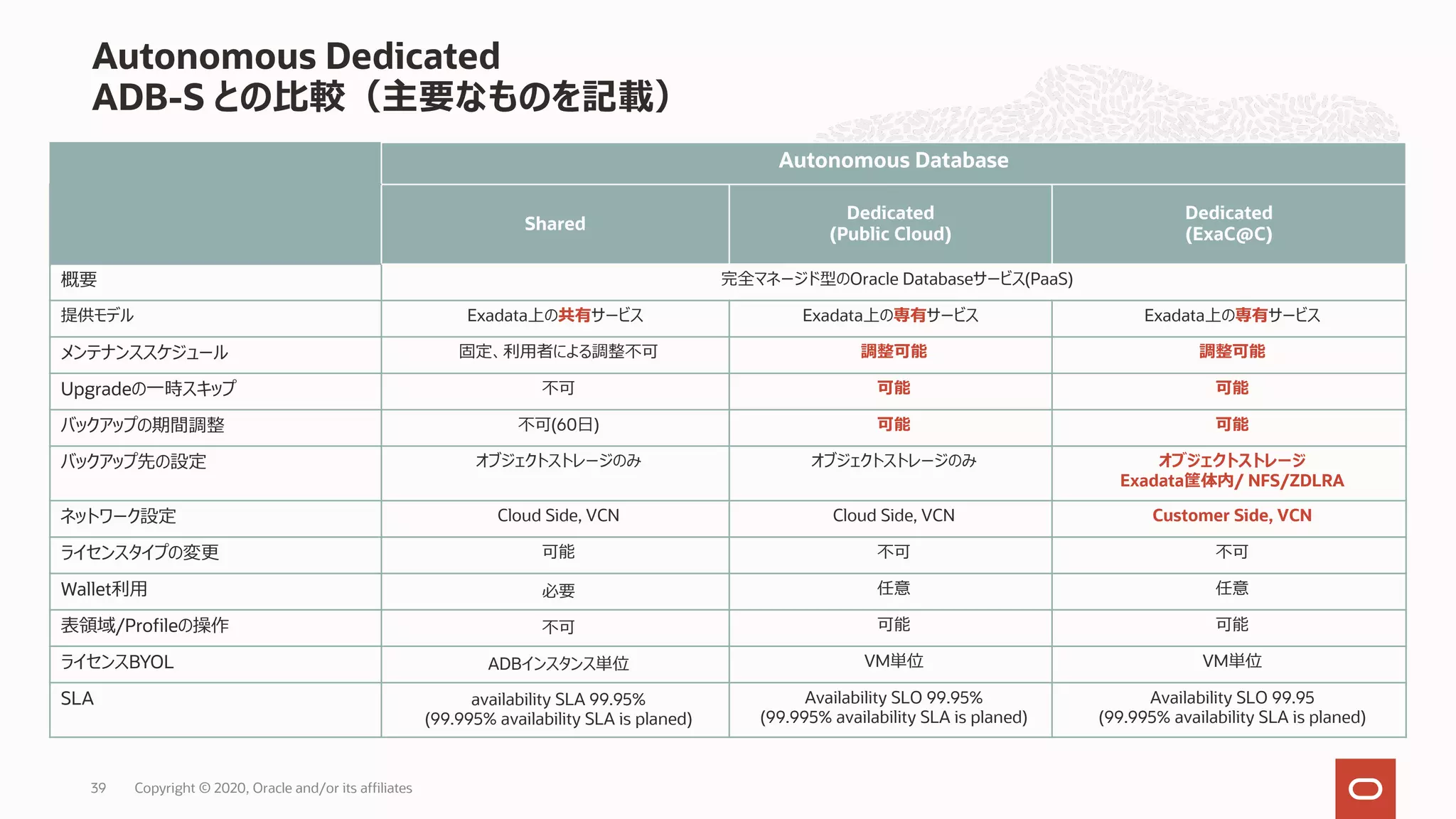

- 39. Autonomous Dedicated
ADB-S との⽐較(主要なものを記載)
Autonomous Database
Shared
Dedicated
(Public Cloud)
Dedicated
(ExaC@C)
概要 完全マネージド型のOracle Databaseサービス(PaaS)
提供モデル Exadata上の共有サービス Exadata上の専有サービス Exadata上の専有サービス
メンテナンススケジュール 固定、利⽤者による調整不可 調整可能 調整可能
Upgradeの⼀時スキップ 不可 可能 可能
バックアップの期間調整 不可(60⽇) 可能 可能
バックアップ先の設定 オブジェクトストレージのみ オブジェクトストレージのみ オブジェクトストレージ
Exadata筐体内/ NFS/ZDLRA
ネットワーク設定 Cloud Side, VCN Cloud Side, VCN Customer Side, VCN
ライセンスタイプの変更 可能 不可 不可
Wallet利⽤ 必要 任意 任意
表領域/Profileの操作 不可 可能 可能
ライセンスBYOL ADBインスタンス単位 VM単位 VM単位
SLA availability SLA 99.95%
(99.995% availability SLA is planed)
Availability SLO 99.95%
(99.995% availability SLA is planed)
Availability SLO 99.95
(99.995% availability SLA is planed)
Copyright © 2020, Oracle and/or its affiliates39
- 40. 40 Copyright © 2020, Oracle and/or its affiliates
ORC Format and Complex Types
ORCフォーマットのファイルを外部表やロード対象として利⽤可能に
ORCフォーマット対応(Oracle Database 19c以降)
• Hadoop上で⼀般的によく利⽤されるフォーマットの1つ。 カラム型で保持し、かつ圧縮し保持するために、 CSVと⽐べ
て効率的に処理可能。
• DBMS_CLOUDパッケージで外部表、ロード対象として利⽤できるように
参考︓ADW/ATPはオブジェクトストアに格納された以下のフォーマットのデータの直接参照(外部表)およびロードをサ
ポートします
• Text(CSV、TSV等)、JSON、XML、Parquet、Avro、ORC(NEW:19c〜)、Data Pump
2020/6
例)外部表として参照する場合
begin
dbms_cloud.create_external_table (
table_name =>'sales_extended_ext',
credential_name =>'OBJ_STORE_CRED',
file_uri_list =>'https://swiftobjectstorage.<datacenter>.oraclecloud.com/v1/<obj-store-namespace>/<bucket>/sales_extended.orc',
format => '{"type":“orc", "schema": "first"}'
);
end;
/
ここでファイルのフォーマットタイプを指定します
- 41. 41 Copyright © 2020, Oracle and/or its affiliates
PUT_OBJECT Maximum File Transfer Size Increase
Object Storageへの転送ファイルサイズの上限が50GBに拡張
DBMS_CLOUD.PUT_OBJECTで扱えるOCI Object Storageへの転送ファイルのサイズ上限が5GBから50GBに増えま
した
他社クラウドストレージへの転送上限は異なるので注意
• Amazon S3 は 5GB
• Azure Blob Storageは 256M
2020/6
[DBMS_CLOUD.PUT_OBJECTの利⽤イメージ]
- 42. 42 Copyright © 2020, Oracle and/or its affiliates
Customer-managed ORDS(Sharedのみ)
顧客管理のORDSがADB-Sで利⽤可能になりました
Autonomous Databaseでデフォルトで構成されるORDSは、必要な構成、パッチ適⽤、保守を⾃動化できる半⾯、
ORDS構成オプションのカスタマイズができなかった
• 例えば接続定義は「LOW」を利⽤する設定に固定
顧客管理のORDS環境を利⽤することで、アプリケーションにあわせてORDS構成オプションを制御が可能になる
• ORDS環境は19.4.6以上、構成、パッチ適⽤、保守などの管理作業は顧客管理
• デフォルトのORDSはそのまま存在
2020/6
- 43. 43 Copyright © 2020, Oracle and/or its affiliates
Performance Hubの機能強化
Performance Hubで以下が可能になりました
① タイムゾーンの選択
② AWRのダウンロード
③ ブロッキングセッションの検出(Dedicatedのみ)
2020/6
①
②

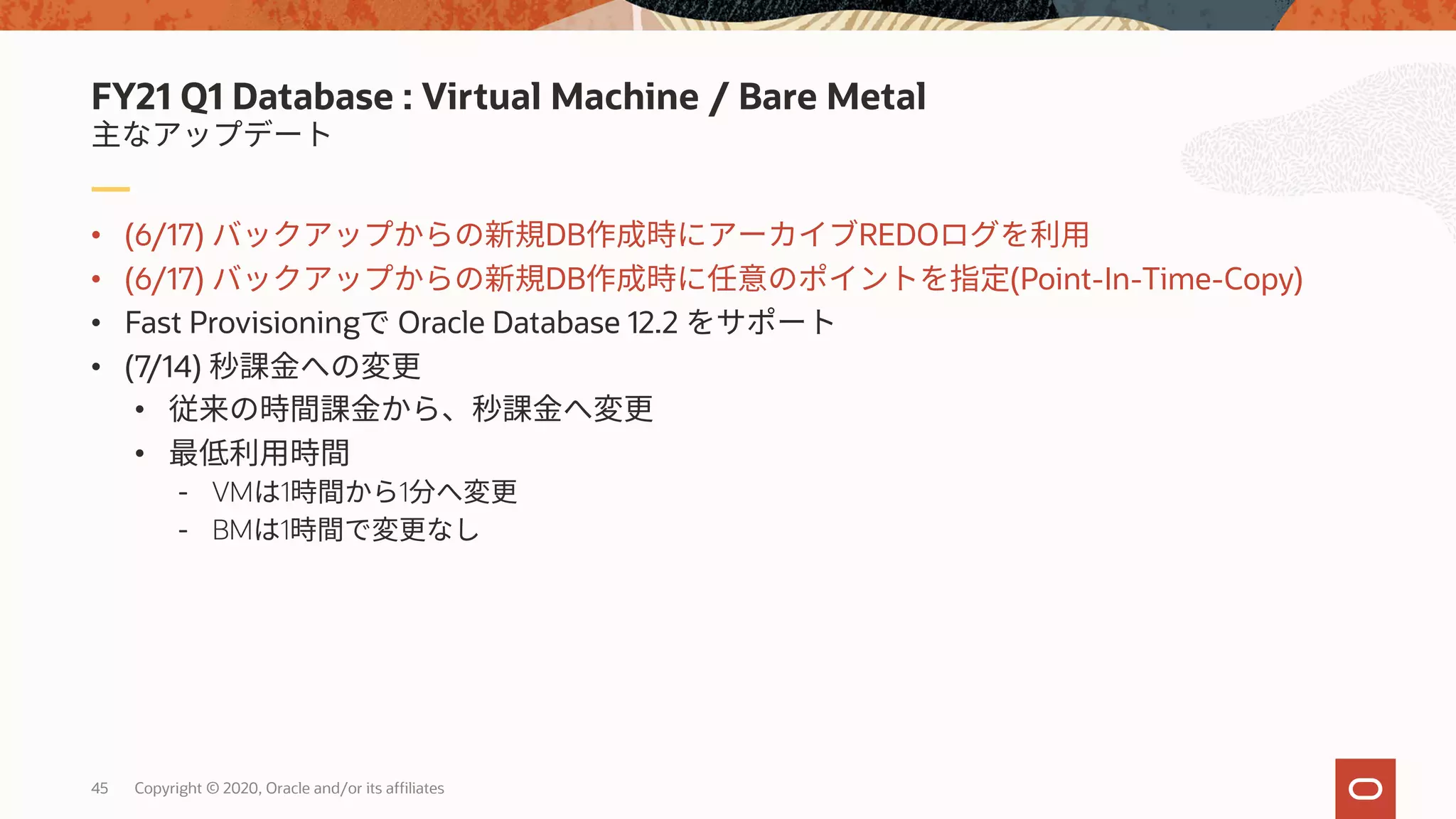

- 45. 45 Copyright © 2020, Oracle and/or its affiliates
• (6/17) DB REDO
• (6/17) DB (Point-In-Time-Copy)
• Fast Provisioning Oracle Database 12.2
• (7/14)
•
•
- VM 1 1
- BM 1
FY21 Q1 Database : Virtual Machine / Bare Metal
- 46. 46 Copyright © 2020, Oracle and/or its affiliates
• DB
REDO
•
RPO
•
REDO
• Documentation
(6/17) DB REDO

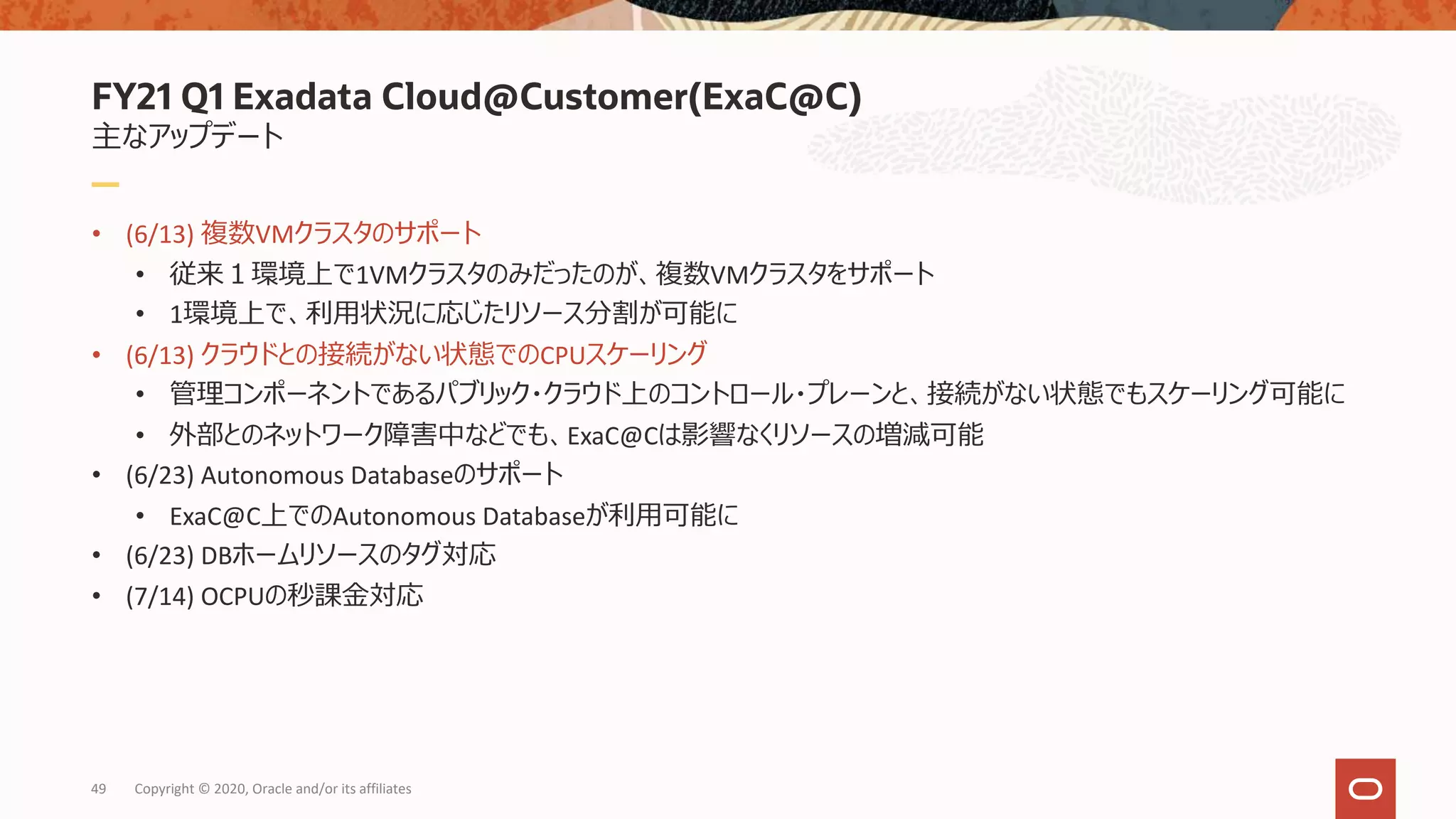

- 49. FY21 Q1 Exadata Cloud@Customer(ExaC@C)
主なアップデート
• (6/13) 複数VMクラスタのサポート
• 従来1環境上で1VMクラスタのみだったのが、複数VMクラスタをサポート
• 1環境上で、利⽤状況に応じたリソース分割が可能に
• (6/13) クラウドとの接続がない状態でのCPUスケーリング
• 管理コンポーネントであるパブリック・クラウド上のコントロール・プレーンと、接続がない状態でもスケーリング可能に
• 外部とのネットワーク障害中などでも、ExaC@Cは影響なくリソースの増減可能
• (6/23) Autonomous Databaseのサポート
• ExaC@C上でのAutonomous Databaseが利⽤可能に
• (6/23) DBホームリソースのタグ対応
• (7/14) OCPUの秒課⾦対応
49 Copyright © 2020, Oracle and/or its affiliates
- 50. (6/13) 複数VMクラスタのサポート
• 1つのExaC@C環境上で複数のVMクラスタを作成可能
• ExaC@C上の物理リソースで利⽤可能な分は全て割り当て済
• 物理サーバーやストレージ内のリソースを分割可能
- OS分離:1物理データベース・サーバー上で複数VM(DomU)
- クラスタウェア分割 : VMクラスタ毎にクラスタウェアがインストールされる
- ネットワーク分離 : VMクラスタ毎に仮想ネットワークを利⽤
- ストレージ分離 : VMクラスタ毎にASM Disk Groupを利⽤
• VMクラスタの作成・削除・リソース変更がコンソールから可能
- ExaC@C X8は 5個、ExaC@C X7は6個
◦ ローカル・ディスク領域サイズによる制限
50 Copyright © 2020, Oracle and/or its affiliates
dom0 dom0
domU(VM) domU(VM)
Oracle Clusterware
domU(VM) domU(VM)
Oracle Clusterware
DB Server#1 DB Server#2
Storage #1 Storage #2 Storage #3
DATA(High)
RECO(High)
DATA(High)
RECO(High)
SPARSE (High)
Prod
Testドキュメント Manageing VM Clusters on Exadata Cloud@Customer
https://docs.cloud.oracle.com/en-us/iaas/exadata/doc/eccmanagingvmclusters.html
リリース記事Gen 2 Exadata Cloud@Customer新機能 : 複数VM
https://blogs.oracle.com/oracle4engineer/gen2-exacc-nf-multivm
Database
Database
Database
Database Test
Prod
- 51. (6/13) クラウドとの接続がない状態の間のスケーリング
クラウド環境を管理/運⽤するための管理コンポーネント(コントロール・プレーン)はパブリック・クラウドを利⽤
• パブリック・クラウドのクラウドUI/APIで管理・操作可能
• セキュア・トンネルを介してExaC@C環境内のAgentが管理操作を実⾏
パブリック・クラウド上のコントロール・プレーンとの接続がない状態でも
CPUスケーリング操作は可能
• ExaC@CのVM(domU)上のdbaascliコマンドで実⾏
- コントロール・プレーンとの接続がある、通常時には動作しない
• 接続再確⽴後、この時点でのOCPUの値が請求内容に
反映される
51 Copyright © 2020, Oracle and/or its affiliates
Oracle
Public Cloud
Control Plane
お客様のデータセンター
CPUスケーリング
$ dbaascli cpuscale update --coreCount <core count>
ドキュメント dbaascli cpuscale update
https://docs.cloud.oracle.com/en-us/iaas/exadata/doc/eccdbaascli.html#GUID-7394B9B8-3FB9-49D8-9090-A5E8658F8075
リリース記事 クラウドとの接続が切断中のCPUスケーリング
https://blogs.oracle.com/oracle4engineer/gen2-exacc-nf-scaling-noconnection

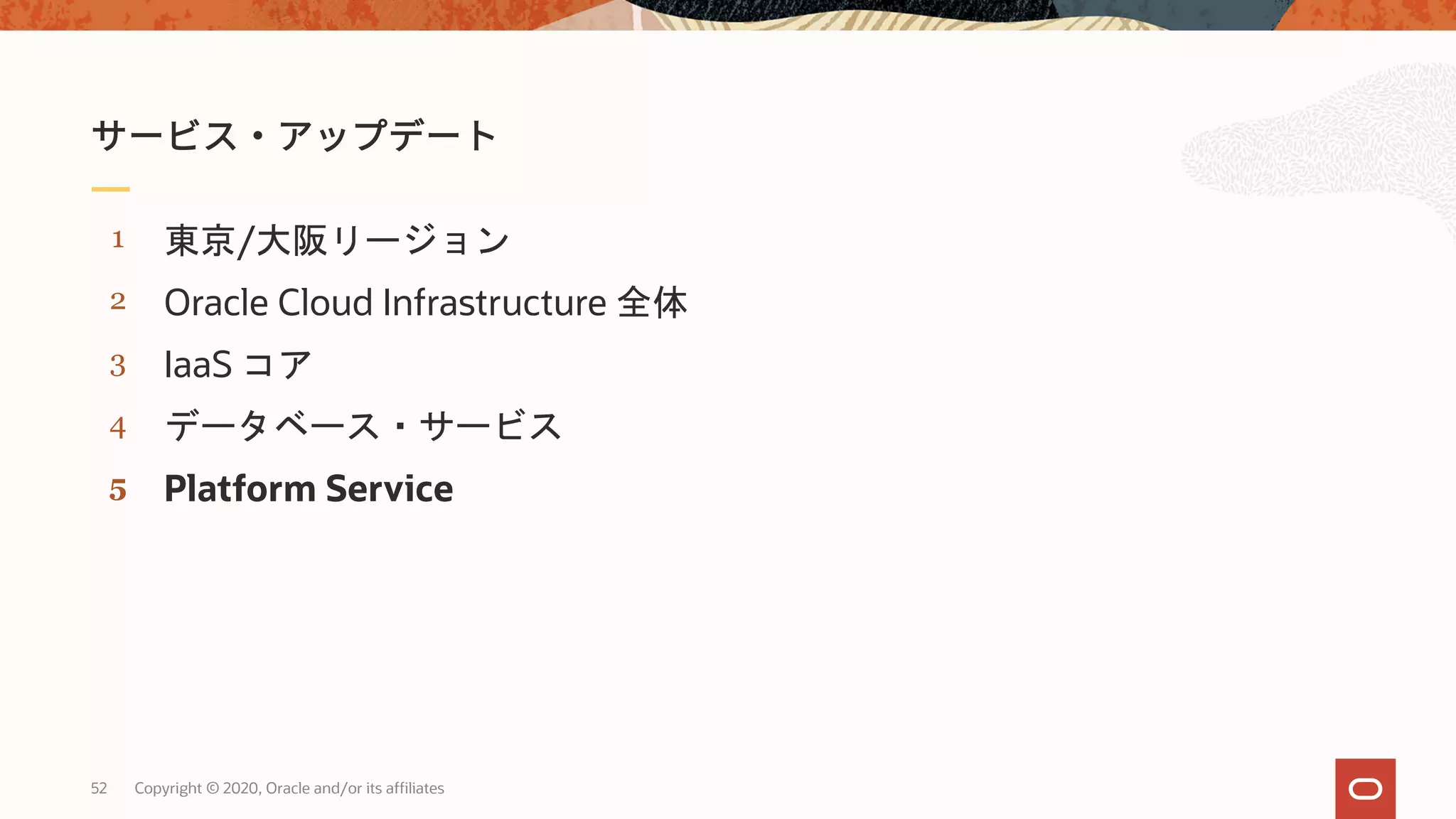

- 52. 52 Copyright © 2020, Oracle and/or its affiliates
5
4
3
2
1
Platform Service
データベース・サービス
IaaS コア
Oracle Cloud Infrastructure 全体
東京/大阪リージョン
- 53. 53 Copyright © 2020, Oracle and/or its affiliates
•
• DW
• Oracle Cloud Infrastructure - Data Integration -
Workspace(ETL ):
¥19.2 [Workspace Usage Per Hour]
• Oracle Cloud Infrastructure - Data Integration(ETL
):
¥4.8 [Gigabyte of Data Processed Per Hour]
/
• OCI Data Integration
ETL
• OCI Data Integration
Oracle Cloud Infrastructure - Data Integration
GUI ETL
- 54. Oracle Integration Cloud (OIC)
(File Server support in Oracle Integration)
54 Copyright © 2020, Oracle and/or its affiliates
OIC SFTP
•
- 500GB
- OIC
- SFTP
•
- SFTP
- OIC-Integration FTP Adapter
- OIC
- REST API ( )
•
-
- SaaS
- SFTP
• OIC Standard Edition / Enterprise

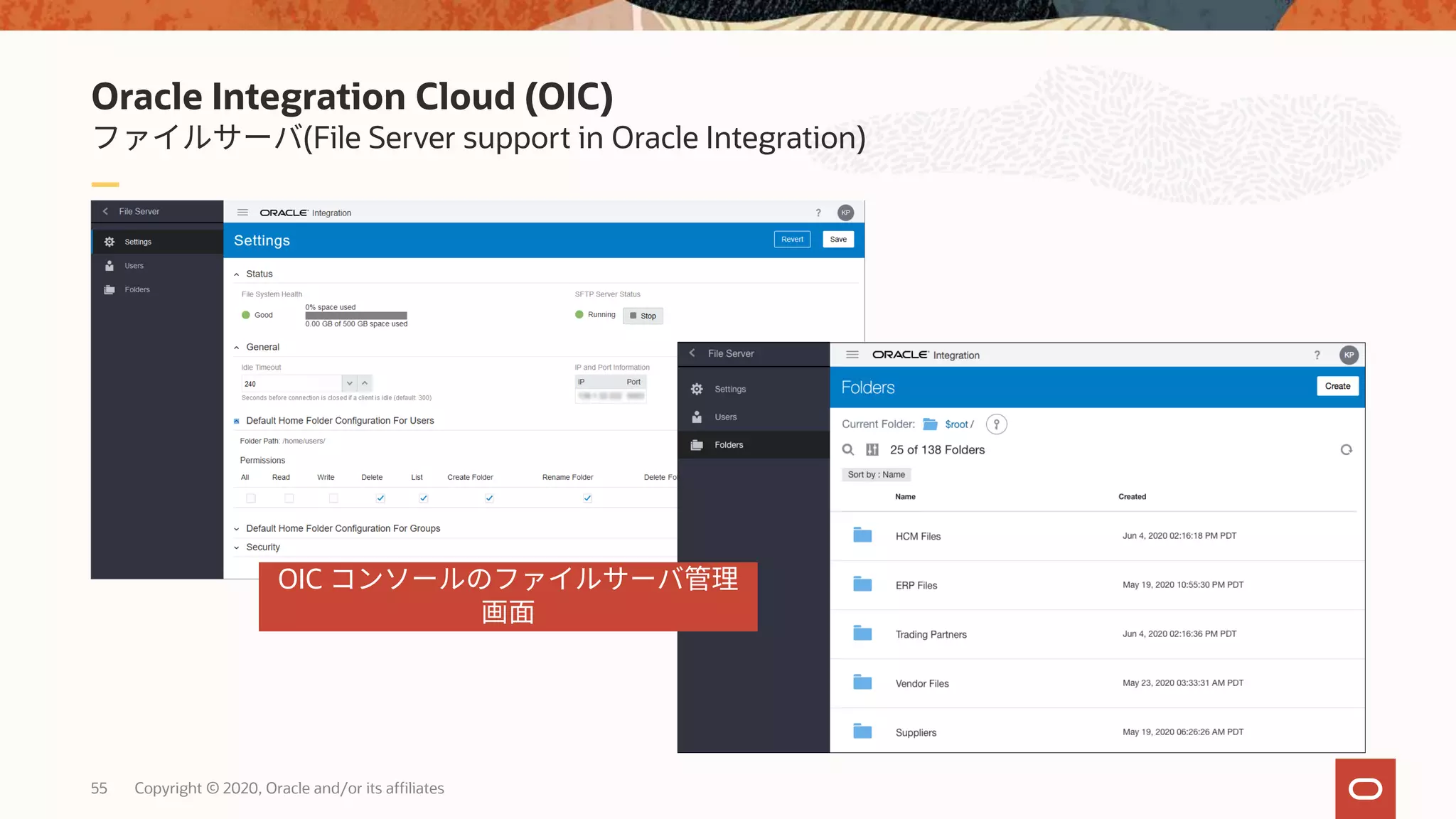

- 55. Oracle Integration Cloud (OIC)
(File Server support in Oracle Integration)
55 Copyright © 2020, Oracle and/or its affiliates
OIC
- 56. 56 Copyright © 2020, Oracle and/or its affiliates
• OIC 5,000 Messages per Hour
- 1 50KB
•
- SFTP PUT/GET/DELETE/FETCH
• 1MB OIC →(FTP Adapter)→OIC→(ERP Cloud Adapter)→Oracle
ERP Cloud
- 1MB / 50KB = 20 Messages per Hour
• FAQ
- https://docs.oracle.com/en/cloud/paas/integration-cloud/file-server/file-server-faq.html
(File Server support in Oracle Integration)
Oracle Integration Cloud (OIC)

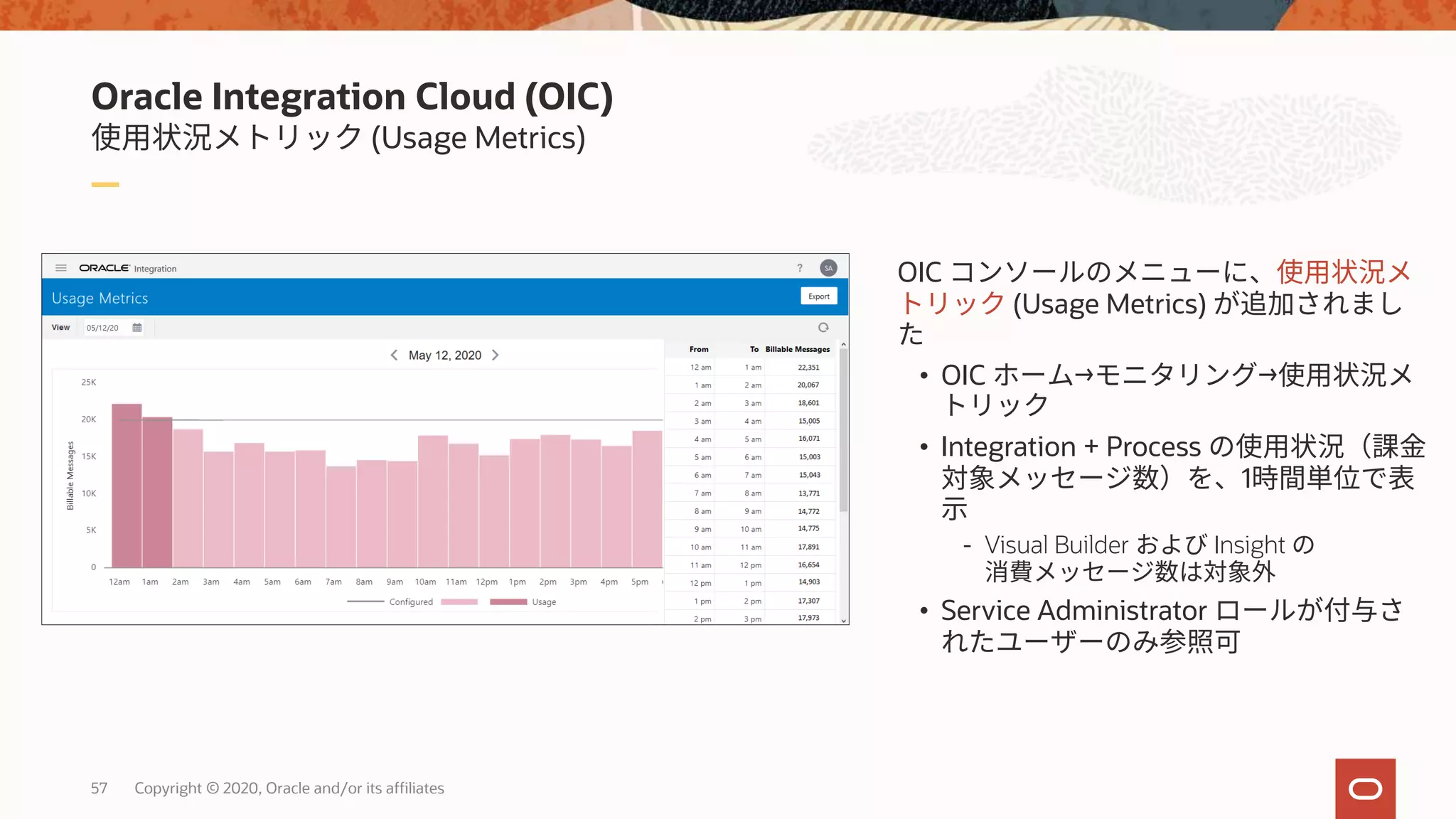

- 57. 57 Copyright © 2020, Oracle and/or its affiliates
(Usage Metrics)
Oracle Integration Cloud (OIC)
OIC
(Usage Metrics)
• OIC → →
• Integration + Process
1
- Visual Builder Insight
• Service Administrator

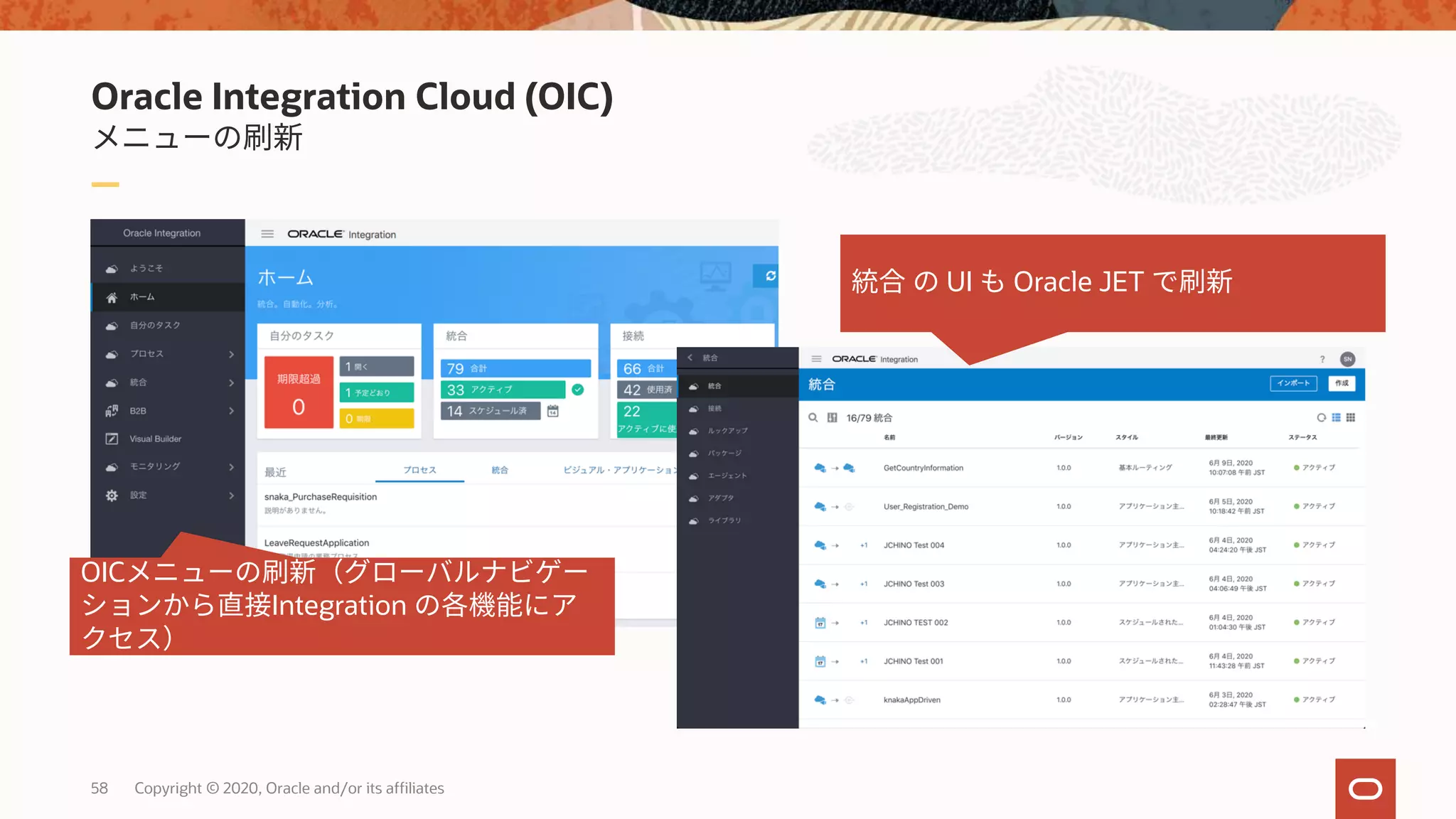

- 58. 58 Copyright © 2020, Oracle and/or its affiliates
Oracle Integration Cloud (OIC)
OIC
Integration
UI Oracle JET

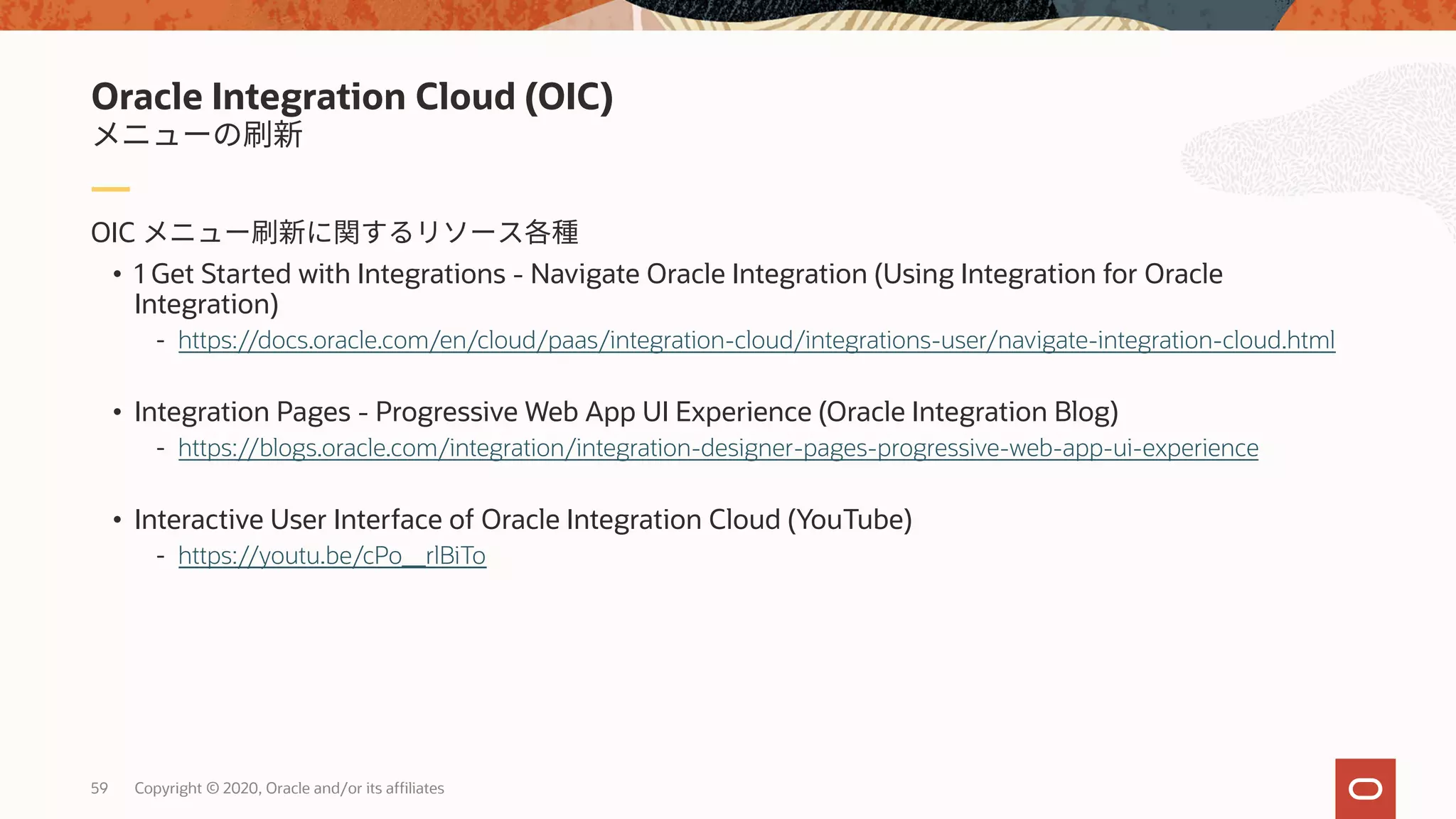

- 59. 59 Copyright © 2020, Oracle and/or its affiliates
OIC
• 1 Get Started with Integrations - Navigate Oracle Integration (Using Integration for Oracle
Integration)
- https://docs.oracle.com/en/cloud/paas/integration-cloud/integrations-user/navigate-integration-cloud.html
• Integration Pages - Progressive Web App UI Experience (Oracle Integration Blog)
- https://blogs.oracle.com/integration/integration-designer-pages-progressive-web-app-ui-experience
• Interactive User Interface of Oracle Integration Cloud (YouTube)
- https://youtu.be/cPo__rlBiTo
Oracle Integration Cloud (OIC)

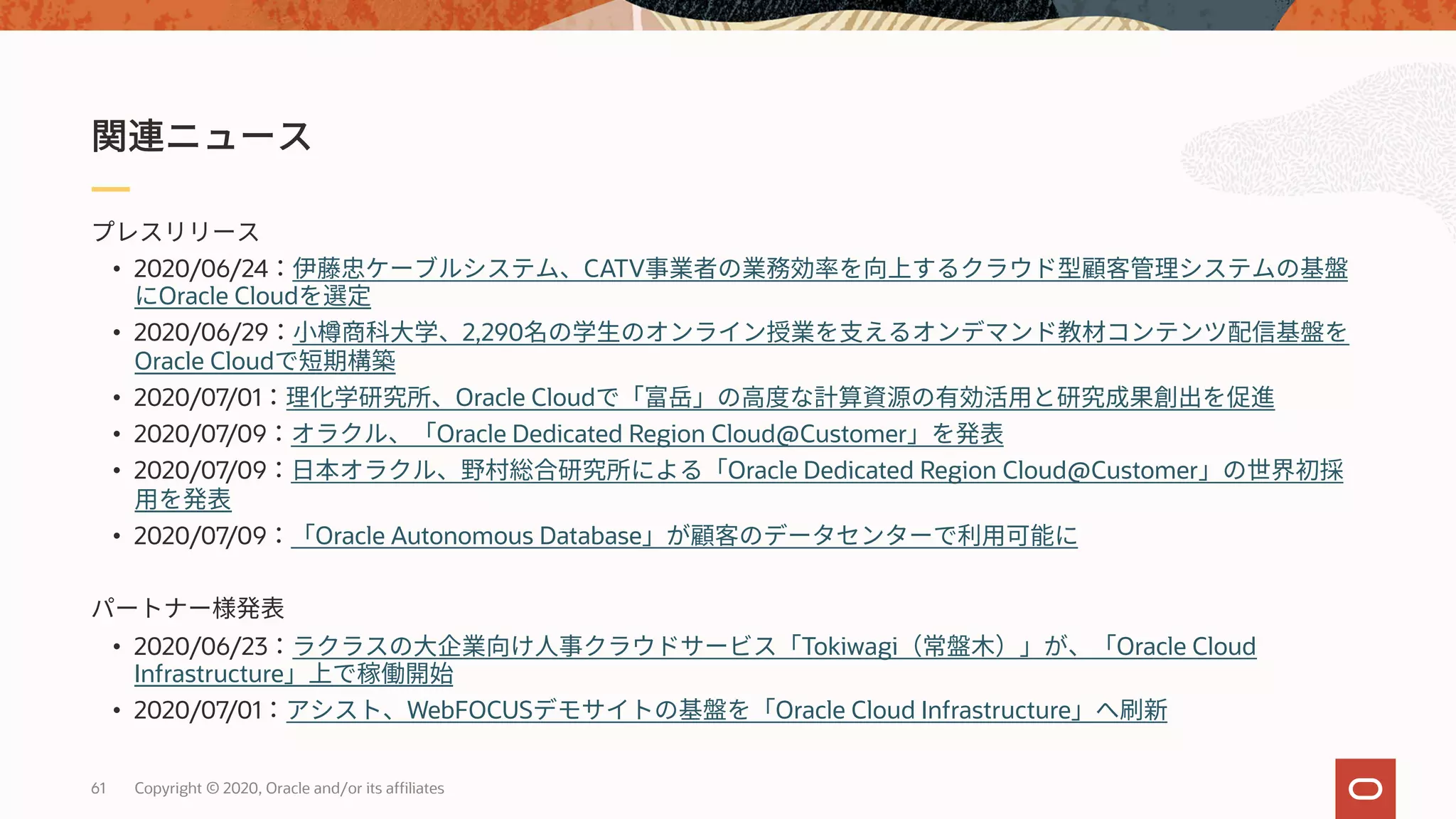

- 61. 61 Copyright © 2020, Oracle and/or its affiliates
• 2020/06/24 CATV
Oracle Cloud
• 2020/06/29 2,290
Oracle Cloud
• 2020/07/01 Oracle Cloud
• 2020/07/09 Oracle Dedicated Region Cloud@Customer
• 2020/07/09 Oracle Dedicated Region Cloud@Customer
• 2020/07/09 Oracle Autonomous Database
• 2020/06/23 Tokiwagi Oracle Cloud
Infrastructure
• 2020/07/01 WebFOCUS Oracle Cloud Infrastructure

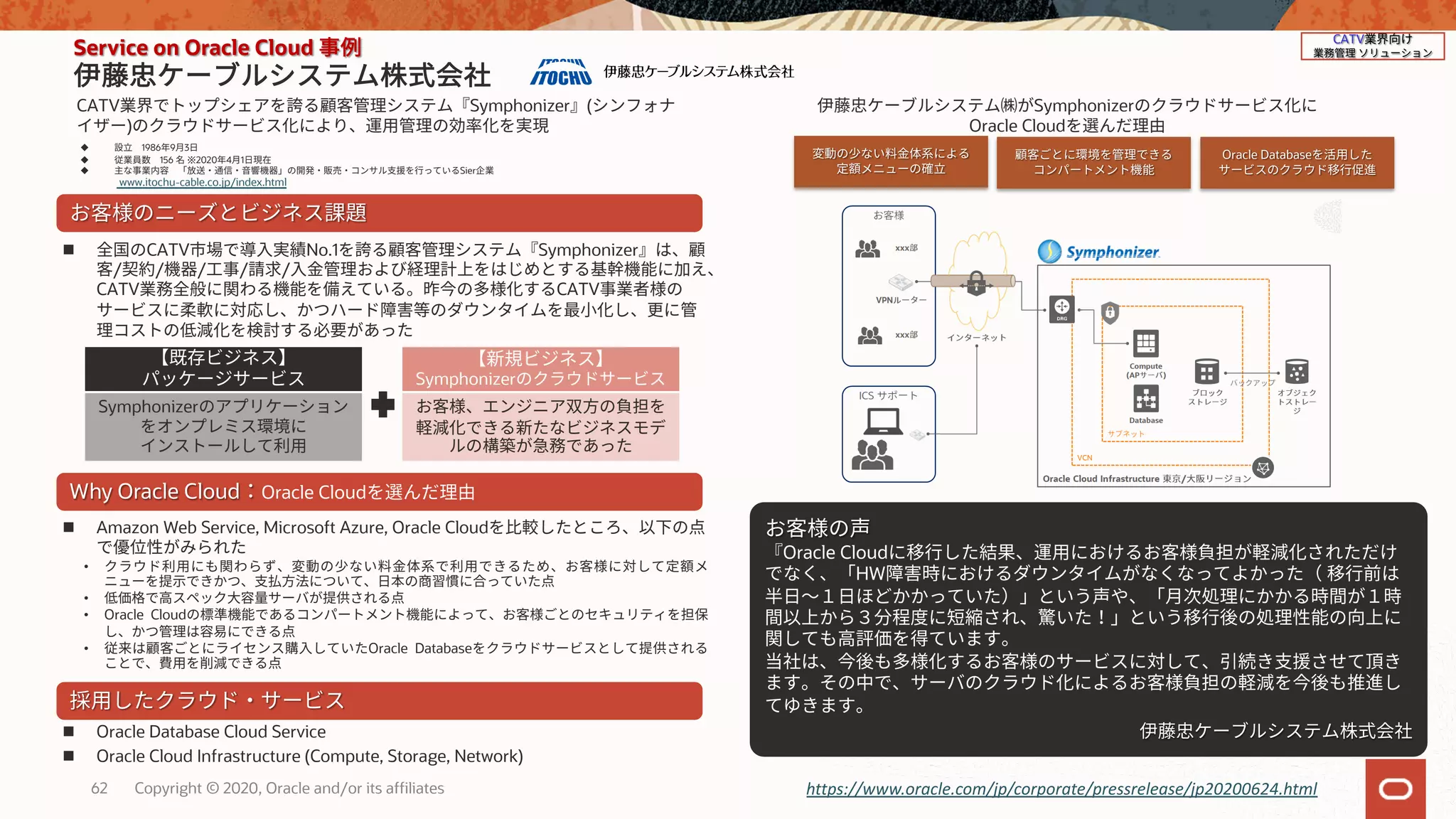

- 62. n CATV No.1 Symphonizer
/ / / / /
CATV CATV
Oracle Cloud
HW
n Oracle Database Cloud Service
n Oracle Cloud Infrastructure (Compute, Storage, Network)
n Amazon Web Service, Microsoft Azure, Oracle Cloud
•
•
• Oracle Cloud
• Oracle Database
Service on Oracle Cloud
CATV Symphonizer (
)
Oracle Database
u 1986 9 3
u 156 ※2020 4 1
u Sier
www.itochu-cable.co.jp/index.html
CATV
Symphonizer
Oracle Cloud
Symphonizer
Symphonizer
Why Oracle Cloud Oracle Cloud
Copyright © 2020, Oracle and/or its affiliates62 https://www.oracle.com/jp/corporate/pressrelease/jp20200624.html

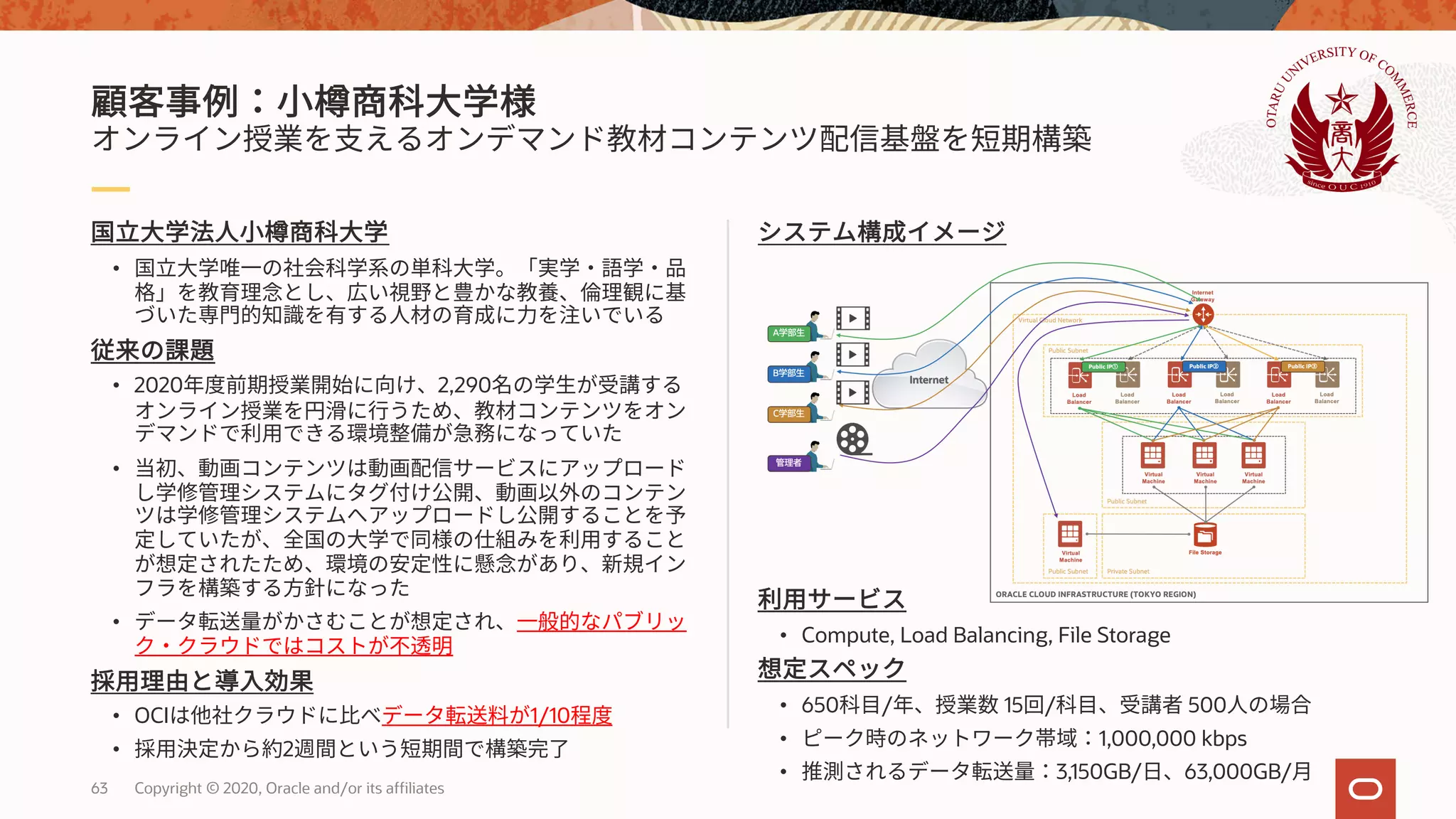

- 63. Copyright © 2020, Oracle and/or its affiliates63
•
• 2020 2,290
•
•
• OCI 1/10
• 2
• Compute, Load Balancing, File Storage
• 650 / 15 / 500
• 1,000,000 kbps
• 3,150GB/ 63,000GB/

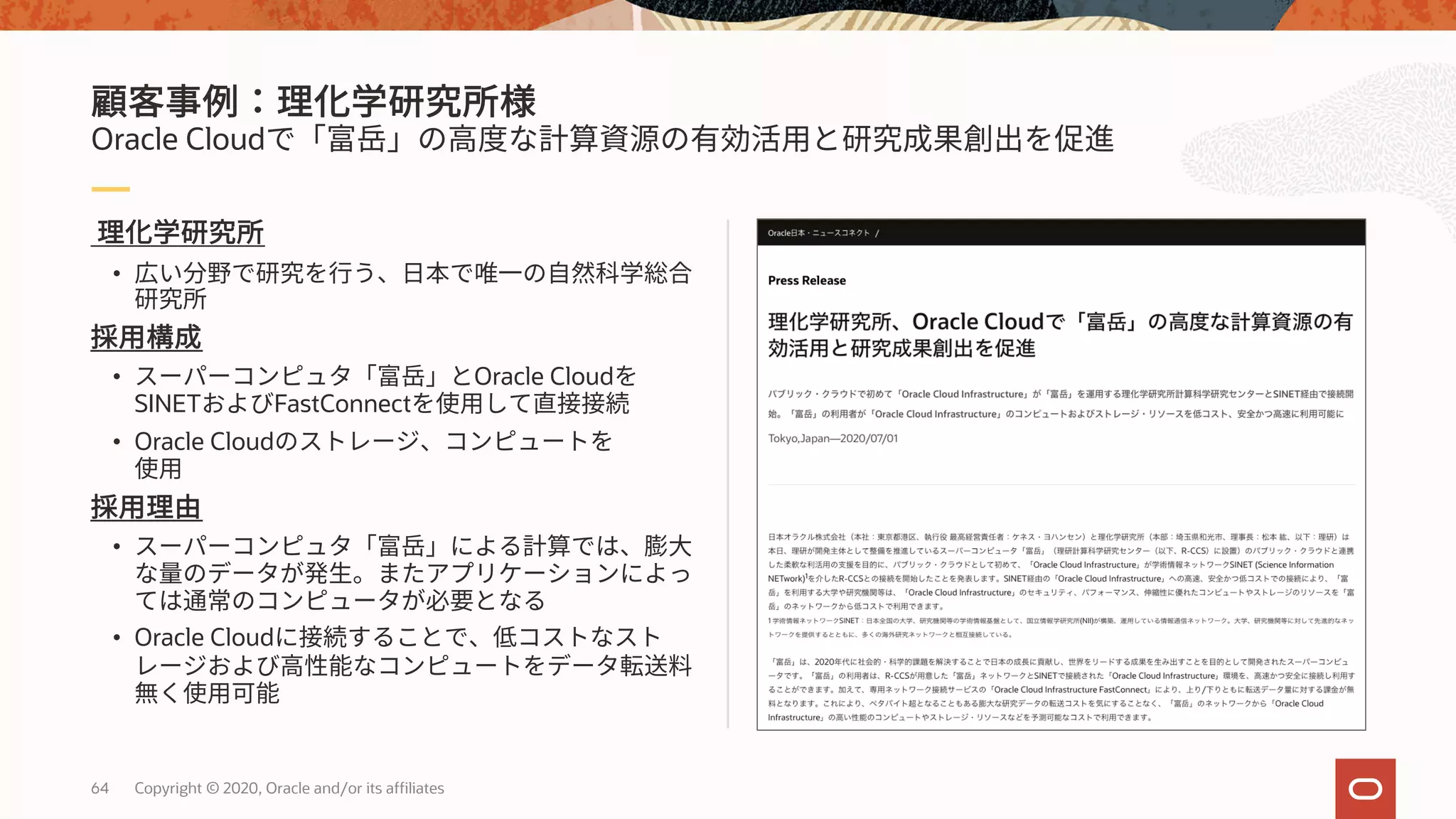

- 64. 64 Copyright © 2020, Oracle and/or its affiliates
•
• Oracle Cloud
SINET FastConnect
• Oracle Cloud
•
• Oracle Cloud
Oracle Cloud

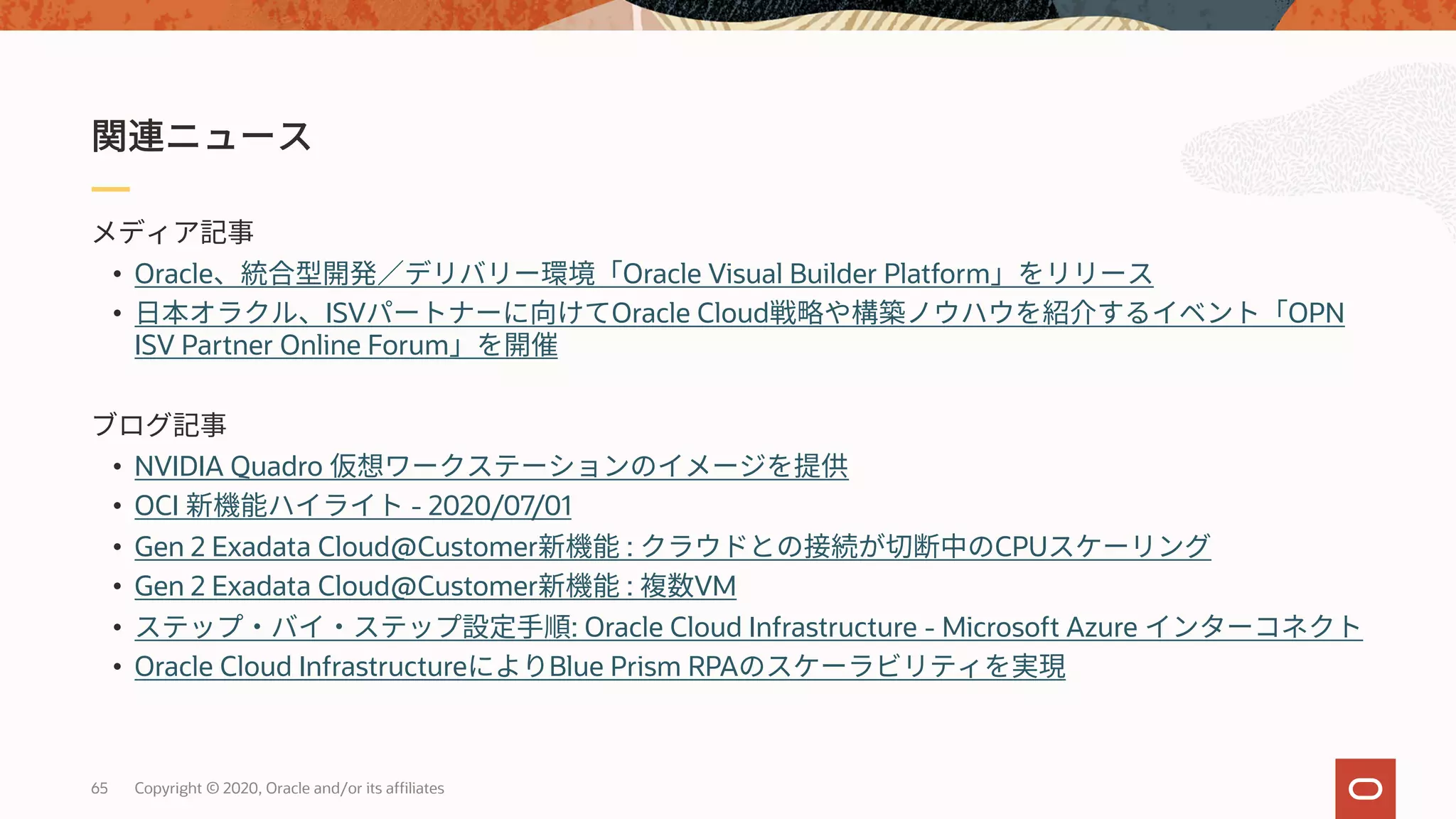

- 65. 65 Copyright © 2020, Oracle and/or its affiliates
• Oracle Oracle Visual Builder Platform
• ISV Oracle Cloud OPN
ISV Partner Online Forum
• NVIDIA Quadro
• OCI - 2020/07/01
• Gen 2 Exadata Cloud@Customer : CPU
• Gen 2 Exadata Cloud@Customer : VM
• : Oracle Cloud Infrastructure - Microsoft Azure
• Oracle Cloud Infrastructure Blue Prism RPA

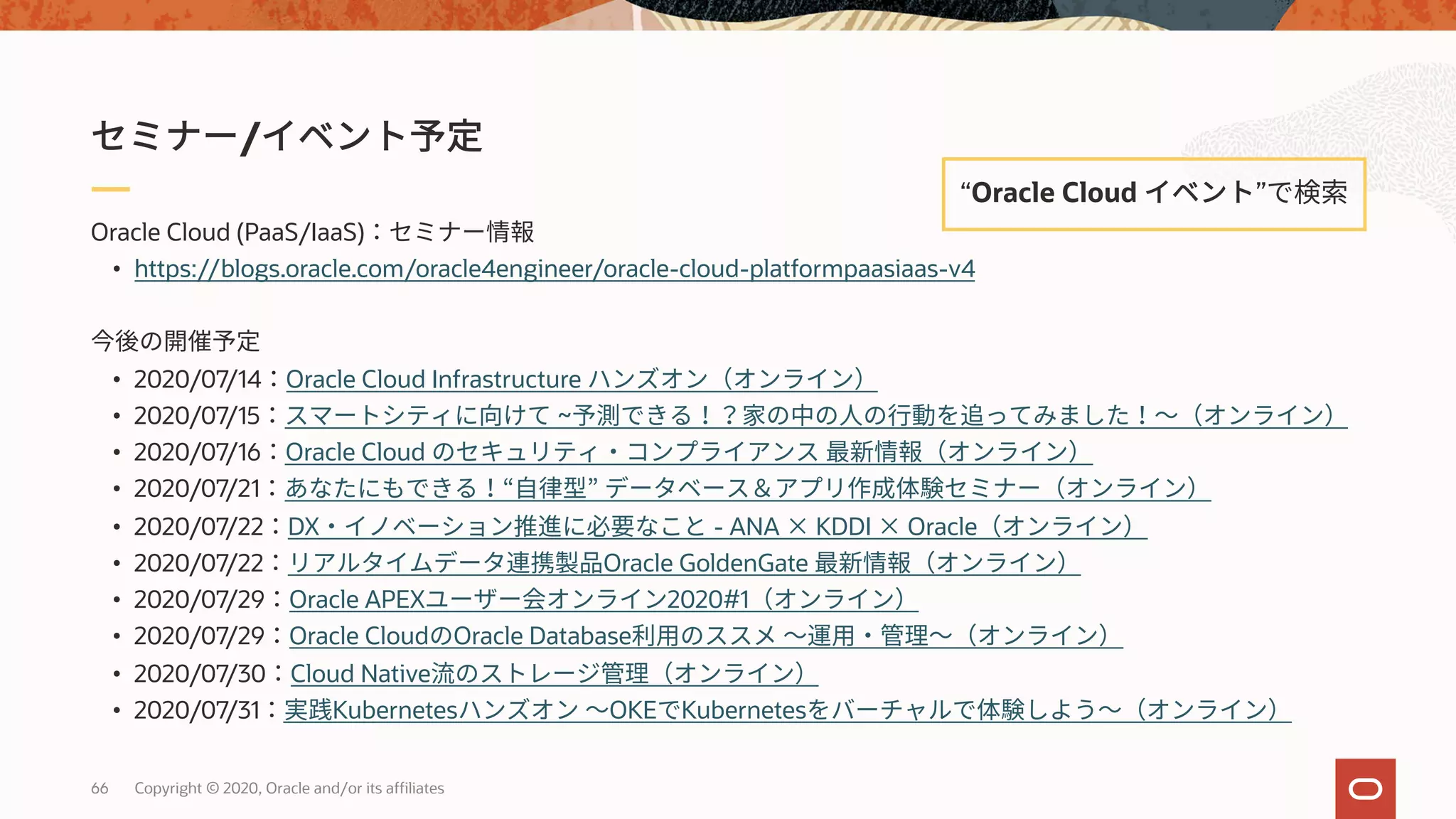

- 66. 66 Copyright © 2020, Oracle and/or its affiliates
Oracle Cloud (PaaS/IaaS)
• https://blogs.oracle.com/oracle4engineer/oracle-cloud-platformpaasiaas-v4
• 2020/07/14 Oracle Cloud Infrastructure
• 2020/07/15 ~
• 2020/07/16 Oracle Cloud
• 2020/07/21
• 2020/07/22 DX - ANA × KDDI × Oracle
• 2020/07/22 Oracle GoldenGate
• 2020/07/29 Oracle APEX 2020#1
• 2020/07/29 Oracle Cloud Oracle Database
• 2020/07/30 Cloud Native
• 2020/07/31 Kubernetes OKE Kubernetes
/
“Oracle Cloud ”
- 67. Oracle Cloud
( ) ( )
67 Copyright © 2020, Oracle and/or its affiliates
15:00-16:00 15:00-16:00
http://oracle.com/goto/ocws-jp

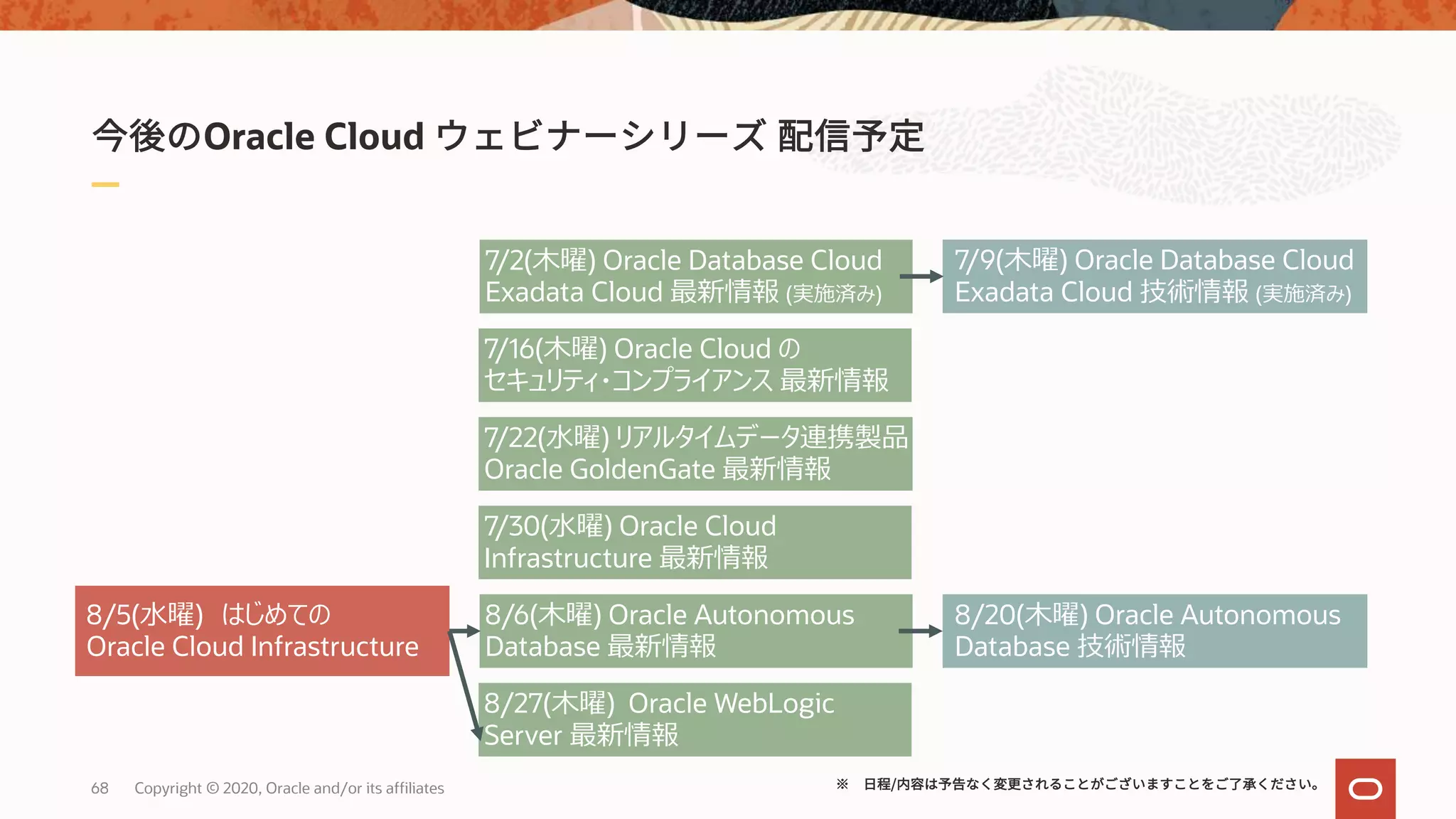

- 68. Oracle Cloud
68 Copyright © 2020, Oracle and/or its affiliates
7/2(⽊曜) Oracle Database Cloud
Exadata Cloud 最新情報 (実施済み)
7/16(⽊曜) Oracle Cloud の
セキュリティ・コンプライアンス 最新情報
7/22(⽔曜) リアルタイムデータ連携製品
Oracle GoldenGate 最新情報
7/9(⽊曜) Oracle Database Cloud
Exadata Cloud 技術情報 (実施済み)
7/30(⽔曜) Oracle Cloud
Infrastructure 最新情報
8/6(⽊曜) Oracle Autonomous
Database 最新情報
8/27(⽊曜) Oracle WebLogic
Server 最新情報
8/20(⽊曜) Oracle Autonomous
Database 技術情報
/
8/5(⽔曜) はじめての
Oracle Cloud Infrastructure
- 69. 69 Copyright © 2020, Oracle and/or its affiliates
Oracle Cloud
Oracle Cloud Oracle Cloud
http://oracle.com/goto/ocws-jp https://bit.ly/oracle-cloud-webinar
