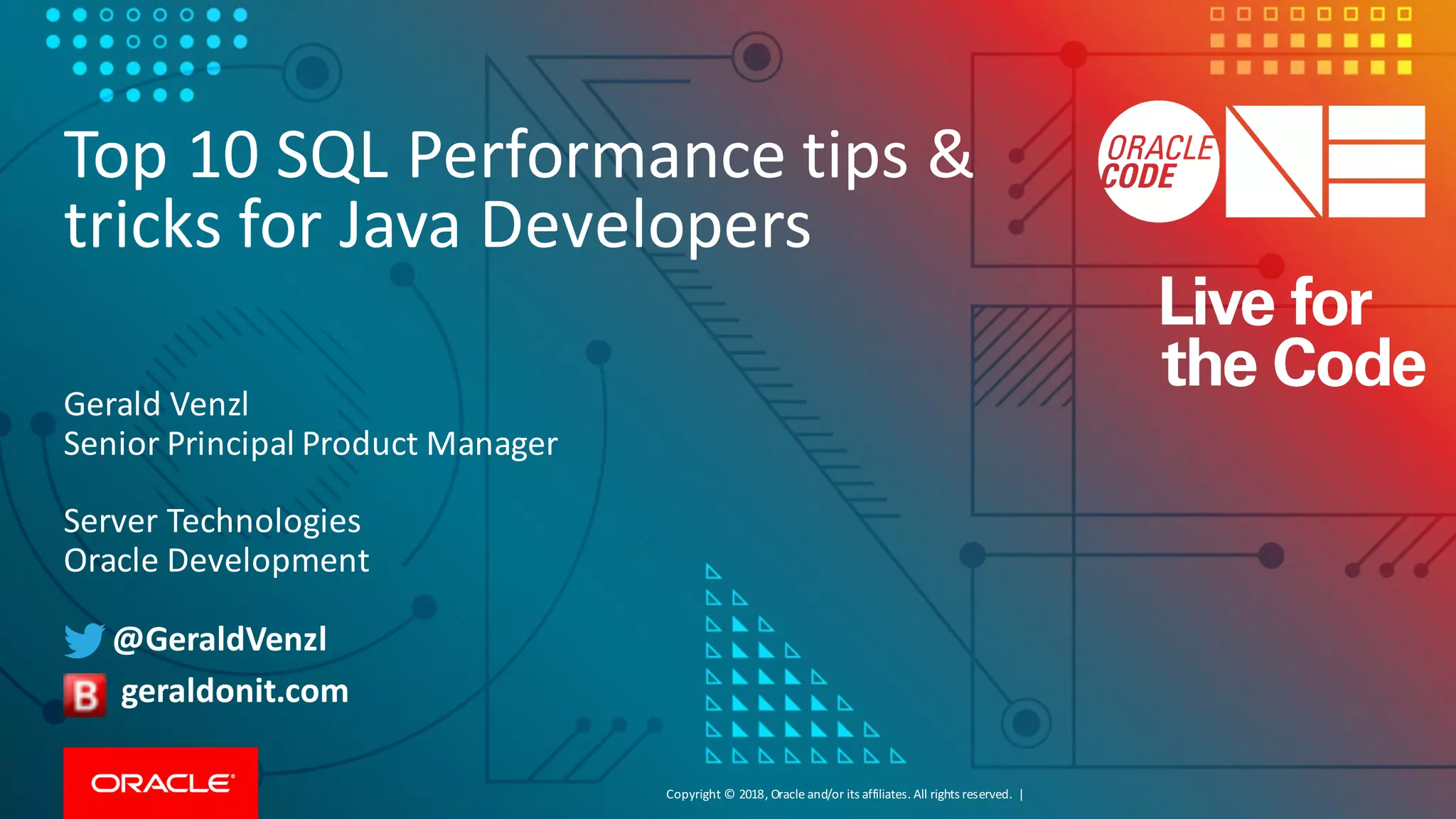

Top 10 SQL Performance tips & tricks for Java Developers

Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Top 10 SQL Performance tips &
tricks for Java Developers
Gerald Venzl
Senior Principal Product Manager
Server Technologies
Oracle Development
@GeraldVenzl
geraldonit.com

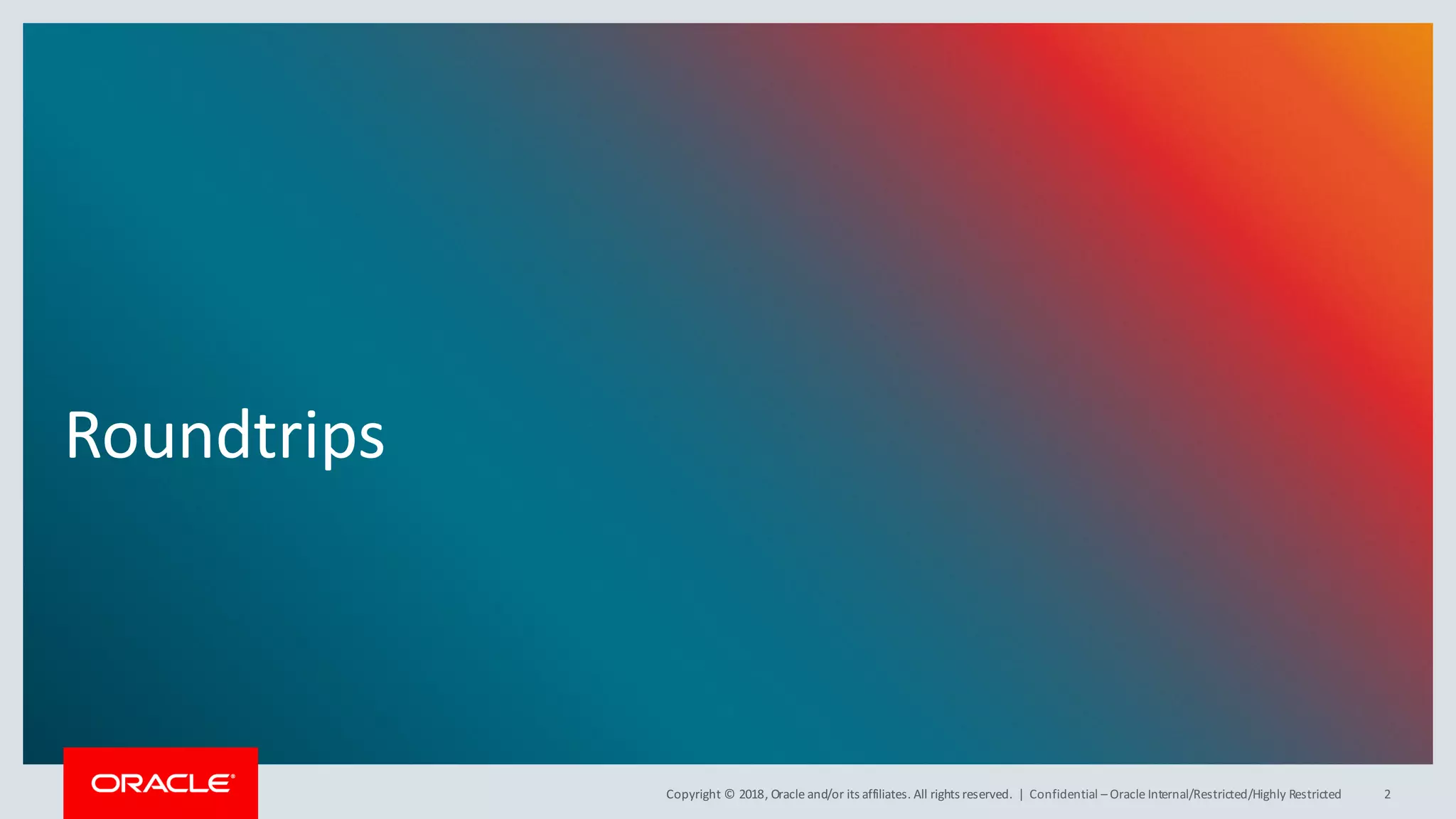

Roundtrips
Confidential – Oracle Internal/Restricted/Highly Restricted 2

Copyright © 2018, Oracle and/or its affiliates. All rights reserved. | 3
Roundtrips

Roundtrips
• Avoid unnecessary round trips to the database
• Every round trip includes time that you spend on the network
• That does not mean to avoid processing anything at the database
• You will see why just in a bit…
4

Bind variables

Bind variables
SELECT text FROM TEST
WHERE id = 453;
SQL ID:
5mwwhtqv204ba
SQL ID:
06jc0z1kcuu6b
WHERE id = 879;
WHERE id = ?;
WHERE id = ?;
SQL ID:
cknumntjbx8u3

0
5000
10000
15000
20000
25000
30000
Test run 1 Test run 2 Test run 3
Milliseconds
Select using literals
Select using bind var
• Three test runs selecting 1k rows
• Dark blue axis shows elapsed time
of SELECT using literals
• Light blue axis shows elapsed time
of SELECT using bind variable
7
Bind variables

Bind variables
• SQL statements are strings
• But data manipulated via SQL may be of a different types (Number, Date, …)
• A bind variable allows you to bind data to an explicit date type
– Without having to convert the data type from string
– And without having to parse the SQL statement again
• Bind variables also avoid SQL injections, i.e. tighter security
What are bind variables
8

for(int i = 1; i <= rows; i++) {
PreparedStatement stmt = conn.prepareStatement(
"SELECT text FROM TEST WHERE id = " + i);
ResultSet rslt = stmt.executeQuery();
rslt.next();
// Fetch the column value to include fetching time
rslt.getString(1);
rslt.close();
stmt.close();
}
Bind variables

"SELECT text FROM TEST WHERE id = ?");
for(int i = 1; i <= rows; i++) {
stmt.setInt(1, i);
rslt.next();
// Fetch the column value to include fetching time
rslt.getString(1);
rslt.close();
}
stmt.close();
Bind variables

Autocommit

Autocommit
How does the DB make sure your data is stored on disk?
12
INSERT INTO purchase (…)
VALUES (:1, :2, :3, …);
COMMIT
Buffer Cache REDO logs

0
2000
4000
6000
8000
10000
12000
14000
16000
18000
20000
Milliseconds
Commit every row
Commit at end
• Three test runs inserting 10k rows
when committing after every row
when committing only once after
all data is loaded
13
Autocommit

Autocommit
• The driver commits every DML on your behalf, implicitly
• That is, for every single INSERT, UPDATE, DELETE, MERGE will be a COMMIT
• Implies a second roundtrip to the databases for every DML operation
• Forces database to write to disk, perhaps unnecessarily
• Means you can never ROLLBACK your changes
• It is turned on by default
– connection.setAutoCommit(false)
What is the Autocommit?
14

"INSERT INTO TEST (id, text, created_tms, last_upd_tms) VALUES
(?,?,SYSDATE,SYSDATE)");
long start = System.currentTimeMillis();
for(int i=1;i<=rows;i++) {
stmt.setInt(1, i);
stmt.setString(2, "This is the row with the value of " + i);
stmt.executeUpdate();
conn.commit();
}
long end = System.currentTimeMillis();
System.out.println("Elapsed time(ms) for commit after every row: " + (end-start));
Autocommit

stmt.setInt(1, i);
}
conn.commit();
System.out.println("Elapsed time(ms) for commit at the end: " + (end-start));
Autocommit

Bulk processing

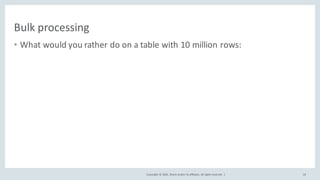

Bulk processing
• What would you rather do on a table with 10 million rows:
18

Bulk processing
"SELECT value FROM PURCHASE WHERE tms > '2016-09-01'");
while (rslt.next()) {
val += rslt.getInt(1);
}
19

Bulk processing
}
"SELECT SUM(value) FROM PURCHASE WHERE tms > '2016-09-01'");
rslt.next();
val = rslt.getInt(1);
20

Bulk processing
}
"SELECT SUM(value) FROM PURCHASE WHERE tms > '2016-09-01'");
rslt.next();
val = rslt.getInt(1);
21

stmt.setInt(1, i);
}
conn.commit();
System.out.println("Elapsed time(ms) for row by row insert: " + (end-start));
Bulk processing

stmt.setInt(1, i);
stmt.addBatch();
}
stmt.executeBatch();
conn.commit();
System.out.println("Elapsed time(ms) for set based insert: " + (end-start));
Bulk processing

4229
4055 4118
76 84 72
0
500
1000
1500
2000
2500
3000
3500
4000
4500
Milliseconds
Insert every row
Set based insert
• Three test runs inserting 10k rows
of individual inserts
of set based inserts
24
Bulk processing

Bulk processing
• Databases work best with set based processing
• Process as much as possible on the side where it makes most sense
• Generally, a single SQL statement execution is the fastest
• Avoids unnecessary roundtrips
25

Fetch size

Fetch size
• Driver fetches more than one row from the database at once
• Avoids unnecessary roundtrips
• Great if you know you will fetch many rows
• Default is set to 10
• statement.setFetchSize(int rows);
Implicit and proactive fetching
27

Savepoints

INSERT INTO…
UPDATE…
INSERT INTO…
SAVEPOINT gerald1;
UPDATE…
UPDATE…
SAVEPOINT gerald2;
DELETE FROM…
ROLLBACK TO SAVEPOINT gerald1;
INSERT INTO…
COMMIT;
Savepoints

Savepoints
• Save the intermediate state(s) of a long running transaction
• If workload fails you don’t have to start from scratch
• Avoids redoing work that has already happened
Safe the progress of your transaction
30

KISS
Keep it simple SQL

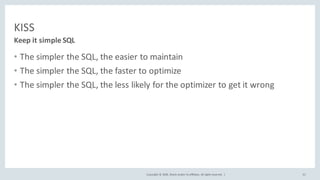

KISS
• The simpler the SQL, the easier to maintain
• The simpler the SQL, the faster to optimize
• The simpler the SQL, the less likely for the optimizer to get it wrong
Keep it simple SQL
32

SELECT (CASE
WHEN v.code = ‘ABC’ THEN 1
WHEN v.code = ‘DEF’ THEN 2
WHEN v.code = ‘GHI’ THEN 3
WHEN v.code = ‘YYZ’ THEN 4
ELSE 5
END) AS code,
v.fk_column AS fk_column,
v.fk_list AS fk_list,
v.grp_id AS grp_id
FROM (SELECT S1.grp_id,
S1.code,
MIN (S1.fk_column) AS fk_column,
LTRIM (MAX (SYS_CONNECT_BY_PATH (S1.fk_column, ‘;’))
KEEP (DENSE_RANK LAST ORDER BY S1.curr),
‘;’) AS fk_list
FROM (SELECT grp_id,
code,
fk_column,
ROW_NUMBER ()
OVER (PARTITION BY grp_id, code
ORDER BY fk_column) AS curr,
ROW_NUMBER ()
OVER (PARTITION BY grp_id, code
ORDER BY fk_column) – 1 AS prev
FROM quite_a_big_table
WHERE grp_id > 0) S1
GROUP BY S1.grp_id, S1.code
CONNECT BY S1.prev = PRIOR S1.curr
AND S1.grp_id = PRIOR S1.grp_id
START WITH curr = 1) v
ORDER BY grp_id, code
KISS

SELECT (CASE
WHEN v.code = ‘ABC’ THEN 1
WHEN v.code = ‘DEF’ THEN 2
WHEN v.code = ‘GHI’ THEN 3
WHEN v.code = ‘YYZ’ THEN 4
ELSE 5
END) AS code,
v.fk_column AS fk_column,
v.fk_list AS fk_list,
v.grp_id AS grp_id
FROM (SELECT grp_id,
code,
MIN (fk_column) AS fk_column,
LISTAGG(fk_column, ‘;’)
WITHIN GROUP (ORDER BY fk_column) AS fk_list
FROM quite_a_big_table
WHERE grp_id > 0
GROUP BY grp_id, code) v
ORDER BY grp_id, code
KISS

KISS - Common table expression
• Specifies a sub query as a common table in a SELECT statement
– A table or subquery that is read more than once by the same statement
• Caches results of sub query in memory on DB server
• Avoids reading the same tables more than once, hence reducing I/O
• Better readability for your SQL
A handy and fast helper for common subqueries
35

WITH active_users (id, http_session, last_active) AS
(
SELECT id, http_session_id, last_active_tms
FROM all_active_users
WHERE …
)
SELECT a.id, a.http_session, p.first_name, p.last_name, p.email_address
FROM active_users a
LEFT JOIN personal_accounts p ON p.email_address = a.id
LEFT JOIN business_accounts b ON b.business_id = a.id;

WITH cte (n) AS
(
SELECT 1 FROM dual
UNION ALL
SELECT n + 1 FROM cte WHERE n < 5
)
SELECT * FROM cte;
N
----------
1
2
3
4
5

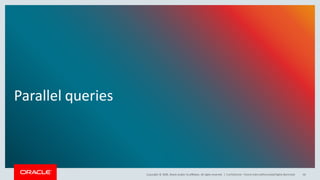

Parallel queries

SELECT id, create_date, first_name, last_name, email_address, http_session_id,
last_active, avatar, twitter_handle, github_profile, stars
FROM super_big_table
INNER JOIN another_super_big_table
ON (a.id = http_session_id)
WHERE id IN (SELECT id FROM active_logons_past_24_hours)
AND stars > 25
AND last_active > SYSDATE – 356;
SELECT /*+ PARALLEL */ id, create_date, first_name, last_name, email_address,
http_session_id, last_active, avatar, twitter_handle, github_profile, stars
FROM super_big_table
INNER JOIN another_super_big_table
ON (a.id = http_session_id)
WHERE id IN (SELECT id FROM active_logons_past_24_hours)
AND stars > 25
AND last_active > SYSDATE – 356;
Parallel queries

Parallel queries
• Queries by default run single threaded
– One process/thread
– Running on one CPU
– Doing all the I/O by itself
• Long running and/or I/O intensive queries might benefit from parallelization
• Easy to enable
• BUT not a universal performance booster!
Use the full power of the database server
40

Explain plans

EXPLAIN PLAN FOR
<your SQL statement here>
SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY());
Explain plans

EXPLAIN PLAN FOR
WITH active_users (id, http_session, last_active) AS
(
SELECT id, http_session_id, last_active_tms
FROM all_active_users
WHERE …
)
SELECT a.id, a.http_session, p.first_name, p.last_name, p.email_address
FROM active_users a
LEFT JOIN personal_accounts p ON p.email_address = a.id
LEFT JOIN business_accounts b ON b.business_id = a.id;
SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY());
Explain plans

Plan hash value: 1707074151
-------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 100M| 39G| 1169 (100)| 00:00:01 |
|* 1 | HASH JOIN RIGHT OUTER | | 100M| 39G| 1169 (100)| 00:00:01 |
| 2 | INDEX FULL SCAN | BA_IDX01 | 1 | 13 | 0 (0)| 00:00:01 |
|* 3 | HASH JOIN RIGHT OUTER| | 100M| 38G| 854 (100)| 00:00:01 |
| 4 | TABLE ACCESS FULL | PERSONAL_ACCOUNTS | 1 | 385 | 2 (0)| 00:00:01 |
| 5 | TABLE ACCESS FULL | ALL_ACTIVE_USERS | 100M| 2479M| 537 (100)| 00:00:01 |
-------------------------------------------------------------------------------------------
Explain plans

Explain plans
• Explain plans give you the steps that are executed by the DB
• It allows you to spot outliers that might need further tuning
• Generating explain plans is easy
Look beyond your SQL statement
45

SQL wait events

SQL> SELECT sid, event, wait_class
FROM v$session_wait
WHERE wait_class != 'Idle';
SID EVENT WAIT_CLASS
------- --------------------- ----------
265 direct path read User I/O
269 enq: TM - contention Application
294 enq: TM – contention Application
296 enq: TM – contention Application
SQL wait events

SQL wait events
• Every SQL statement can be traced on its activity
• Every SQL statement records on what it’s waiting for
• You can usually just query that information
Looking beyond the SQL statement
48
