Optimizing MS Dynamics AX 2012 R3
This document provides an architectural overview of Microsoft Dynamics AX and recommendations for sizing and configuring various components. It describes the data, application, and presentation layers of Dynamics AX. It also includes guidelines for sizing the database, Application Object Server, Enterprise Portal Server, and terminal servers. The document recommends SQL Server settings and configurations to optimize performance as well as settings for the Dynamics AX application. It stresses the importance of maintenance plans for index fragmentation and statistics.
More Related Content
Similar to Optimizing MS Dynamics AX 2012 R3
![Lect 1 Number systems and base conversions. [Autosaved].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/lect1numbersystemsandbaseconversions-260111134109-67c2d865-thumbnail.jpg?width=640&height=640&fit=bounds)
Optimizing MS Dynamics AX 2012 R3

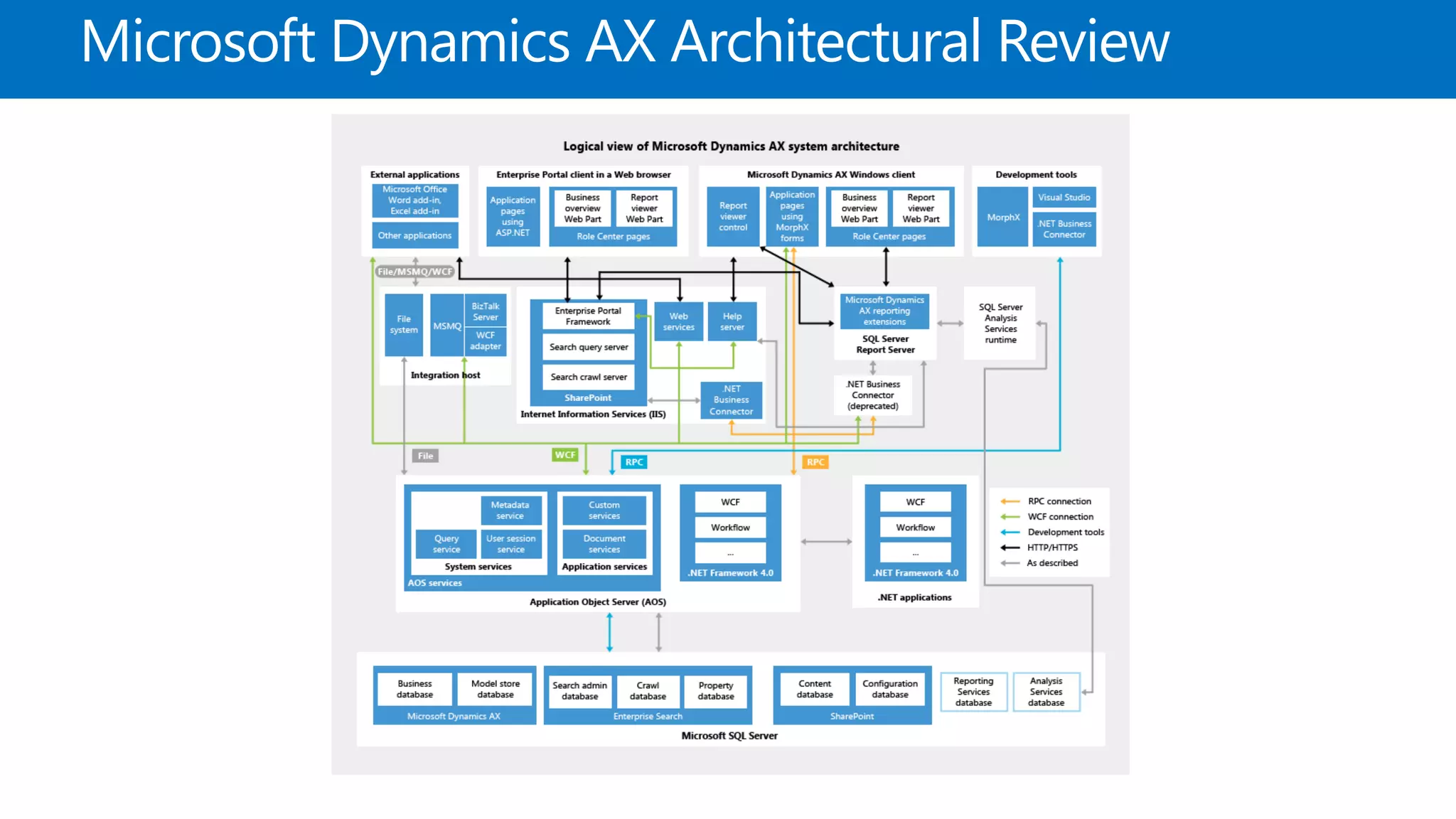

- 3. Microsoft Dynamics AXArchitectural Review

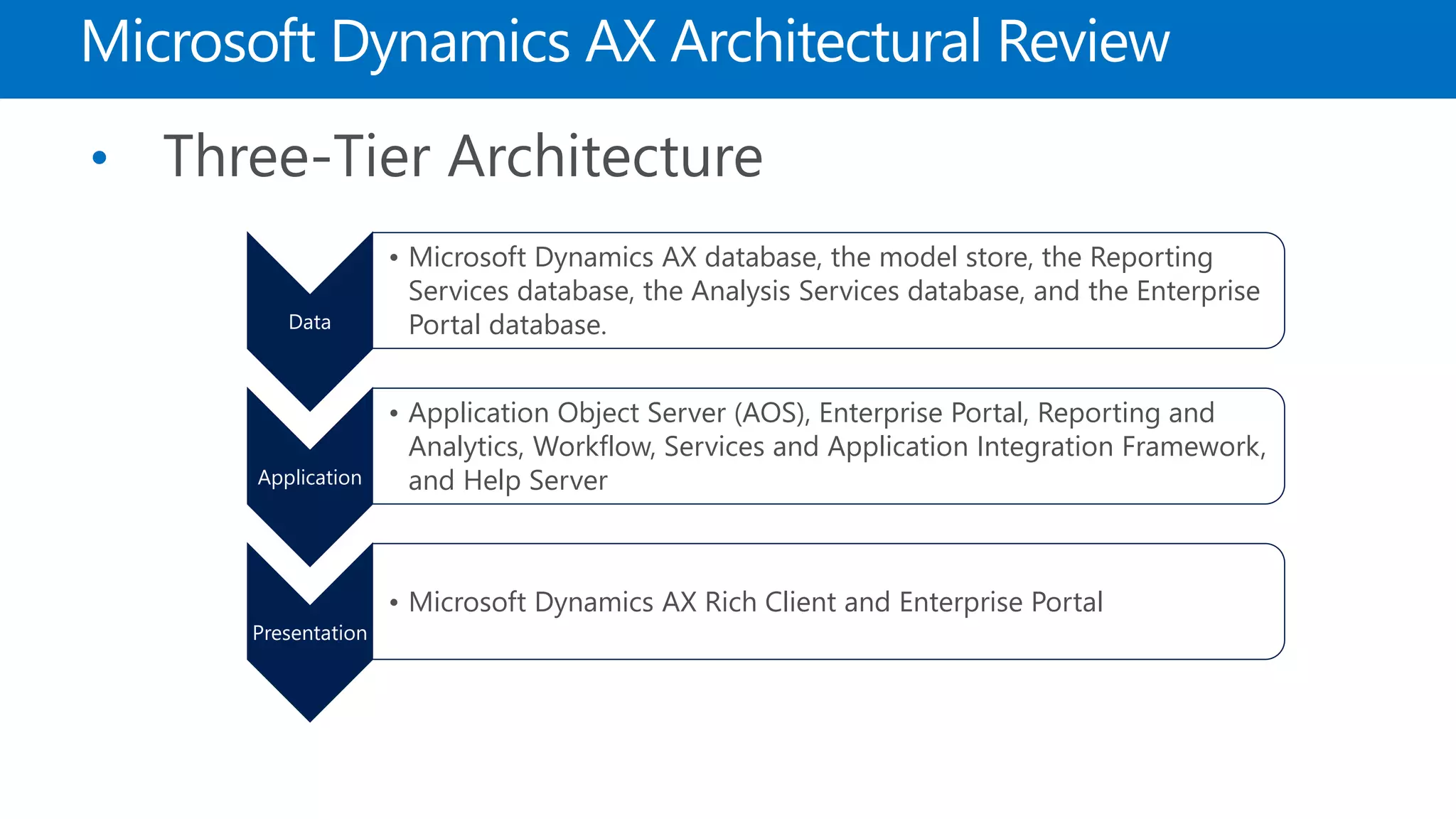

- 4. Microsoft Dynamics AXArchitectural Review • Data • Microsoft Dynamics AX database, the model store, the Reporting Services database, the Analysis Services database, and the Enterprise Portal database. Application • Application Object Server (AOS), Enterprise Portal, Reporting and Analytics, Workflow, Services and Application Integration Framework, and Help Server Presentation • Microsoft Dynamics AX Rich Client and Enterprise Portal

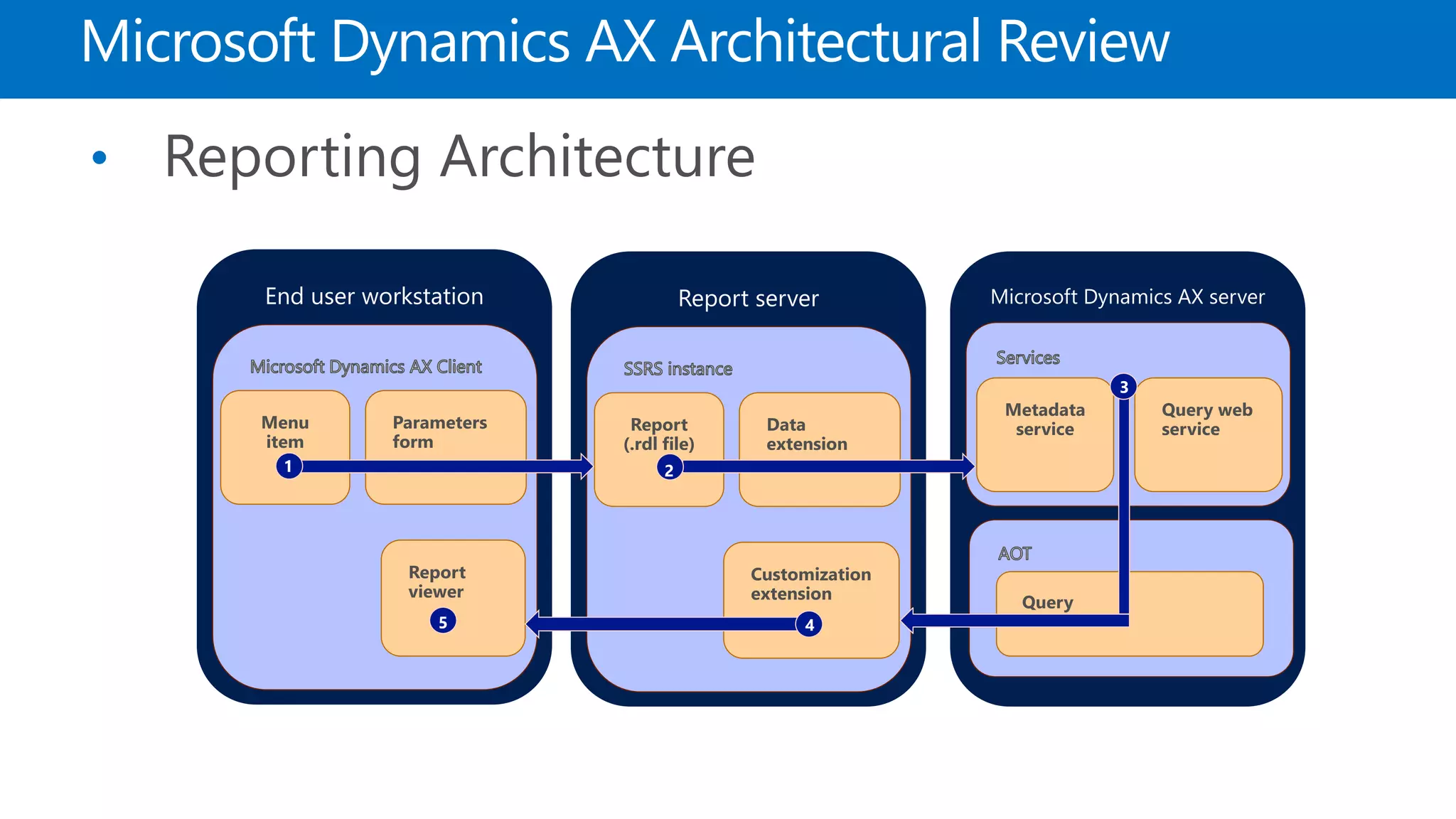

- 5. Microsoft Dynamics AXArchitectural Review • Menu item Parameters form Report viewer Report (.rdl file) Data extension Customization extension Metadata service Query web service Query 1 2 3 45
- 6. Microsoft Dynamics AXArchitectural Review •
- 7.
- 8.

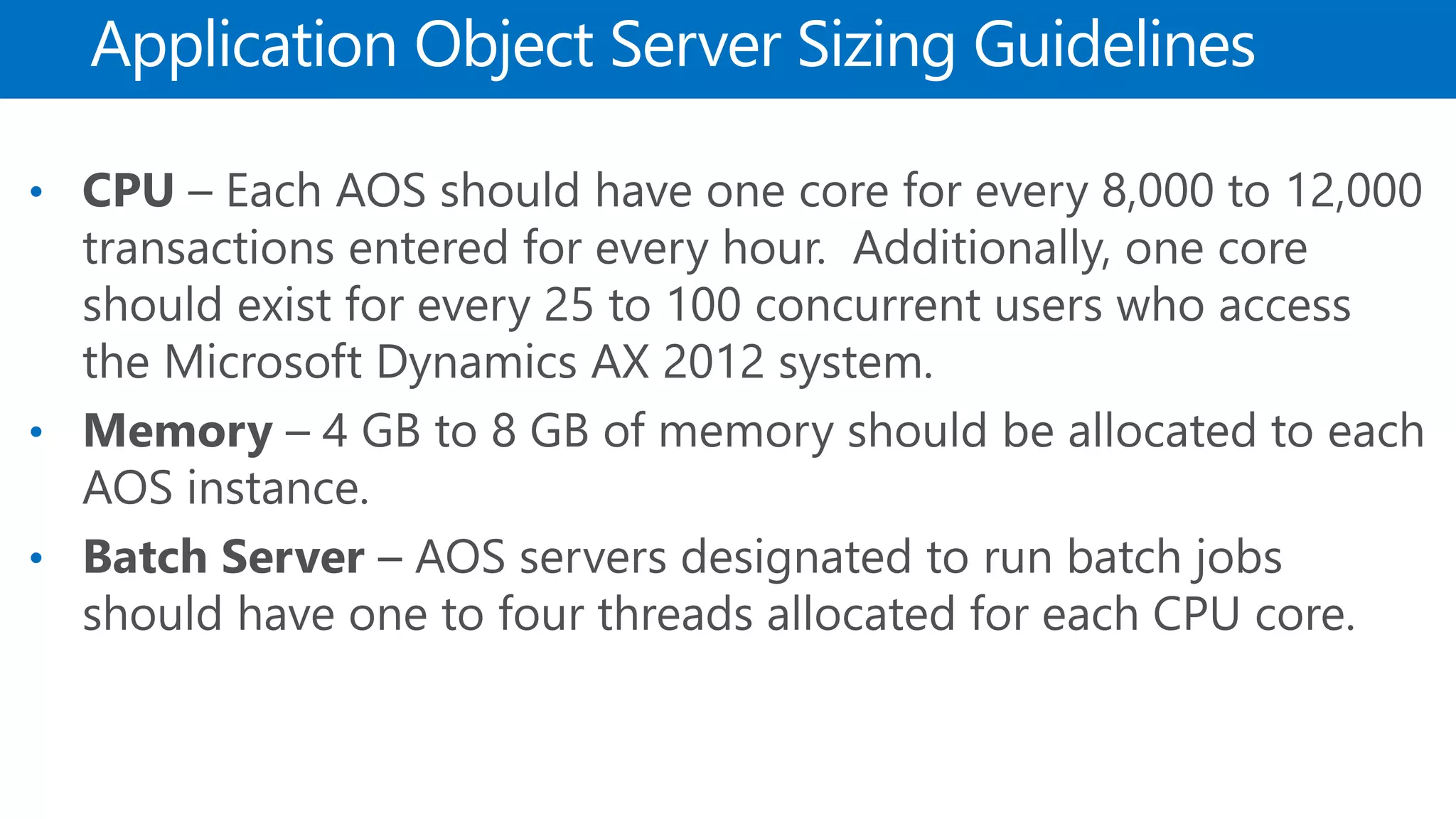

- 9. Application Object ServerSizing Guidelines • • •

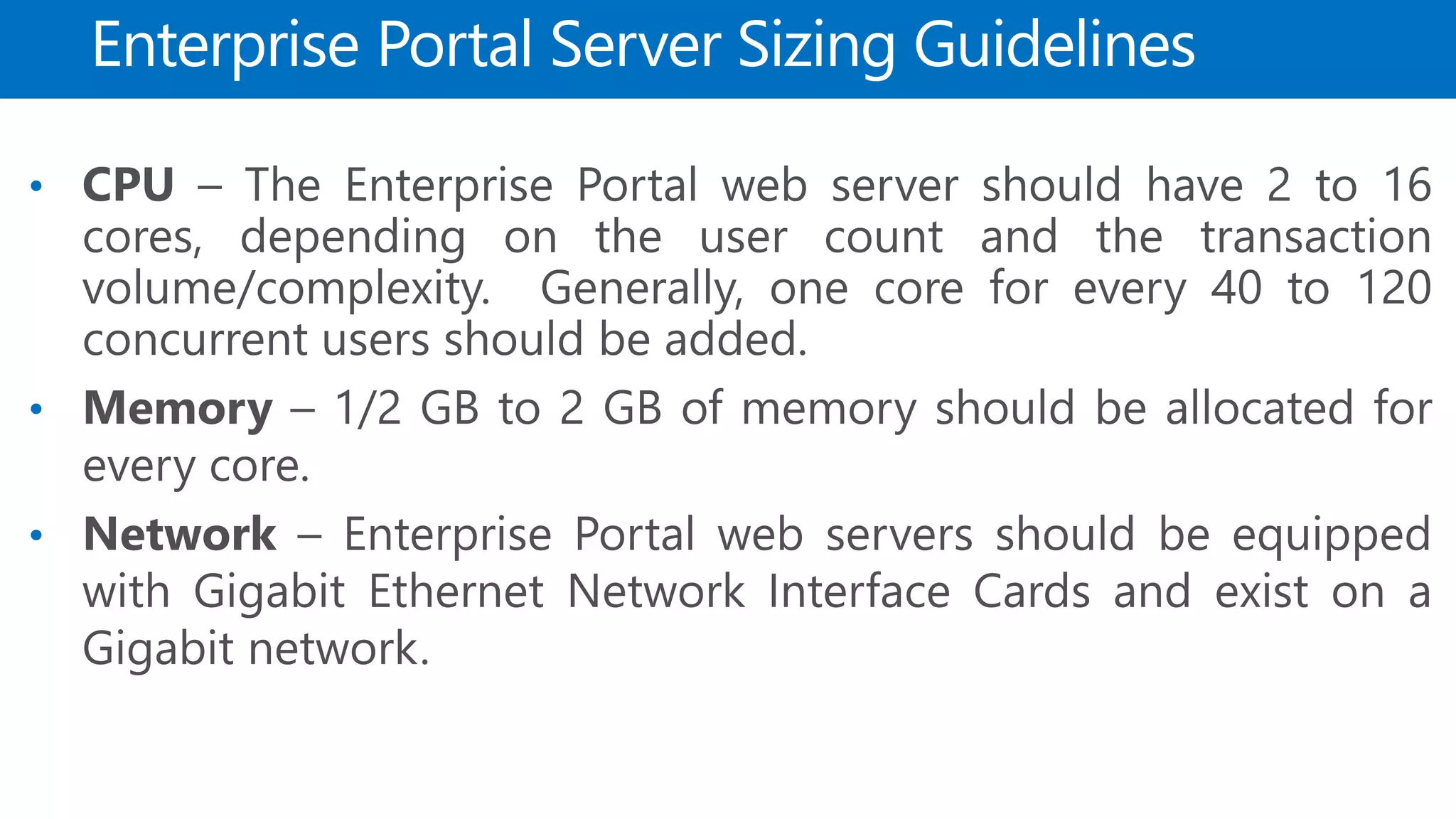

- 10. Enterprise Portal ServerSizing Guidelines • • •

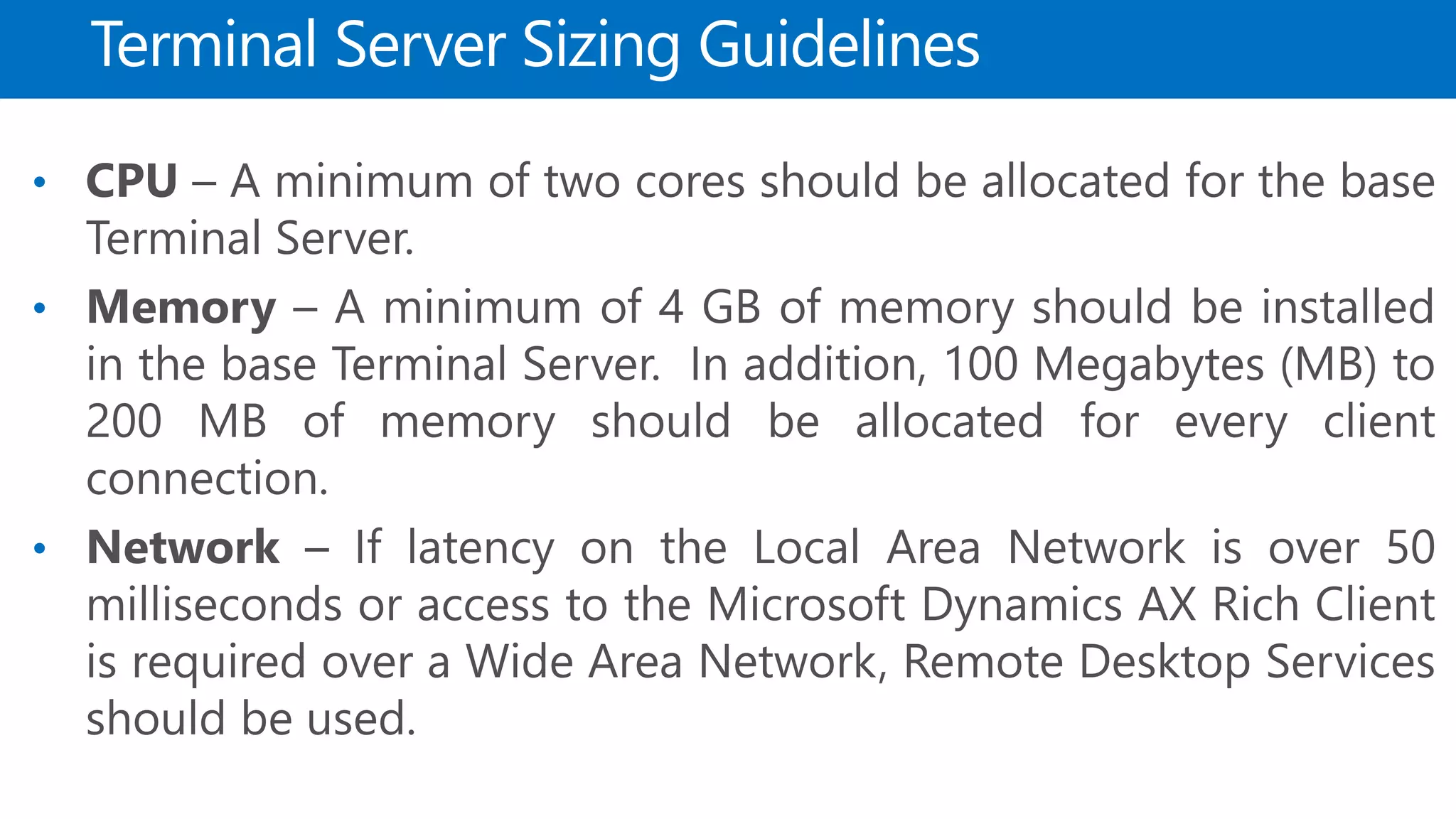

- 11. Terminal Server SizingGuidelines • • •
- 12.
- 13.
- 14.
- 15.
- 16.

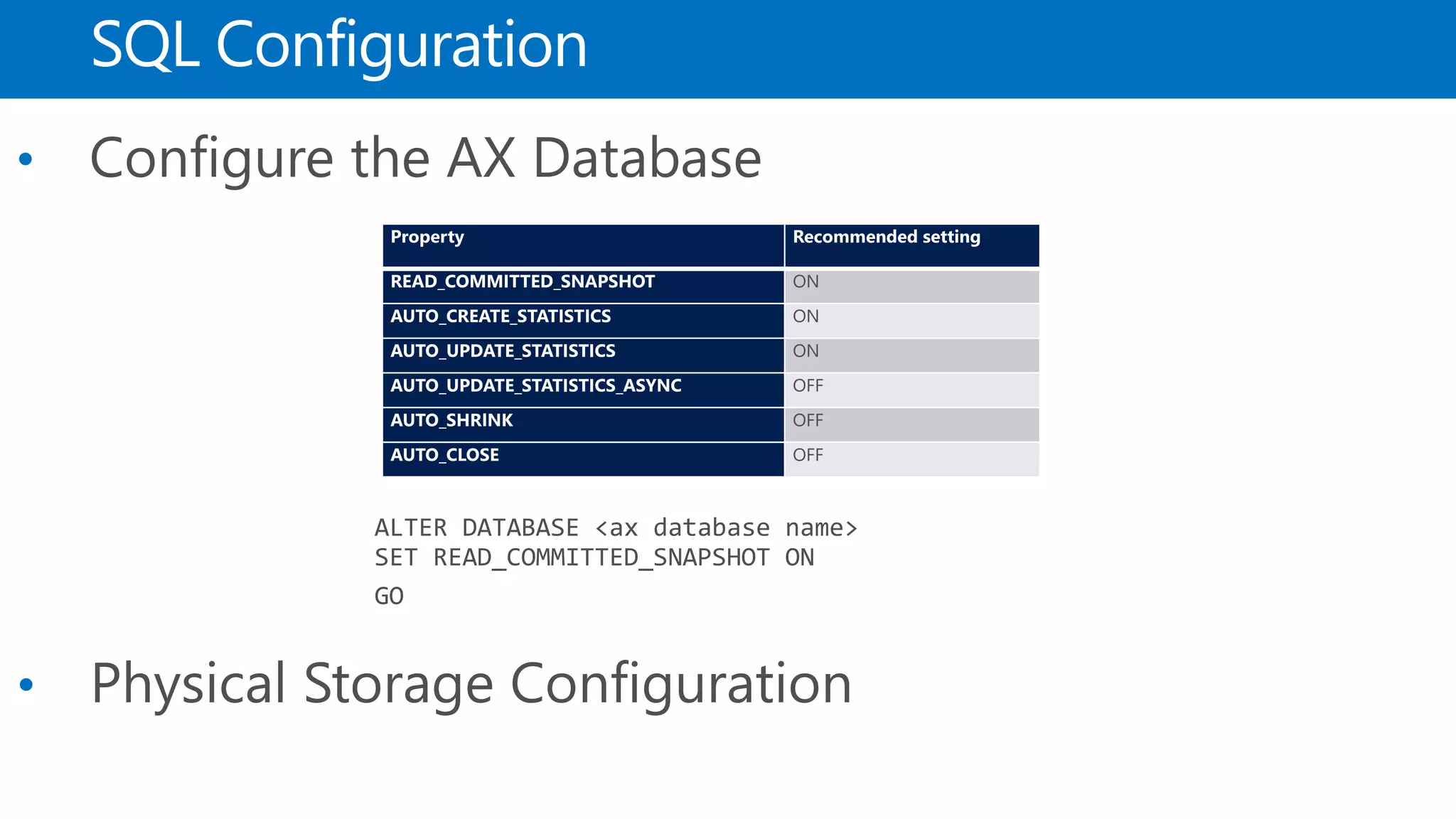

- 17. SQL Configuration • Property Recommendedsetting READ_COMMITTED_SNAPSHOT ON AUTO_CREATE_STATISTICS ON AUTO_UPDATE_STATISTICS ON AUTO_UPDATE_STATISTICS_ASYNC OFF AUTO_SHRINK OFF AUTO_CLOSE OFF • ALTER DATABASE <ax database name> SET READ_COMMITTED_SNAPSHOT ON GO
- 18. Microsoft Dynamics AXSettings •
- 19. Microsoft Dynamics AXSettings •

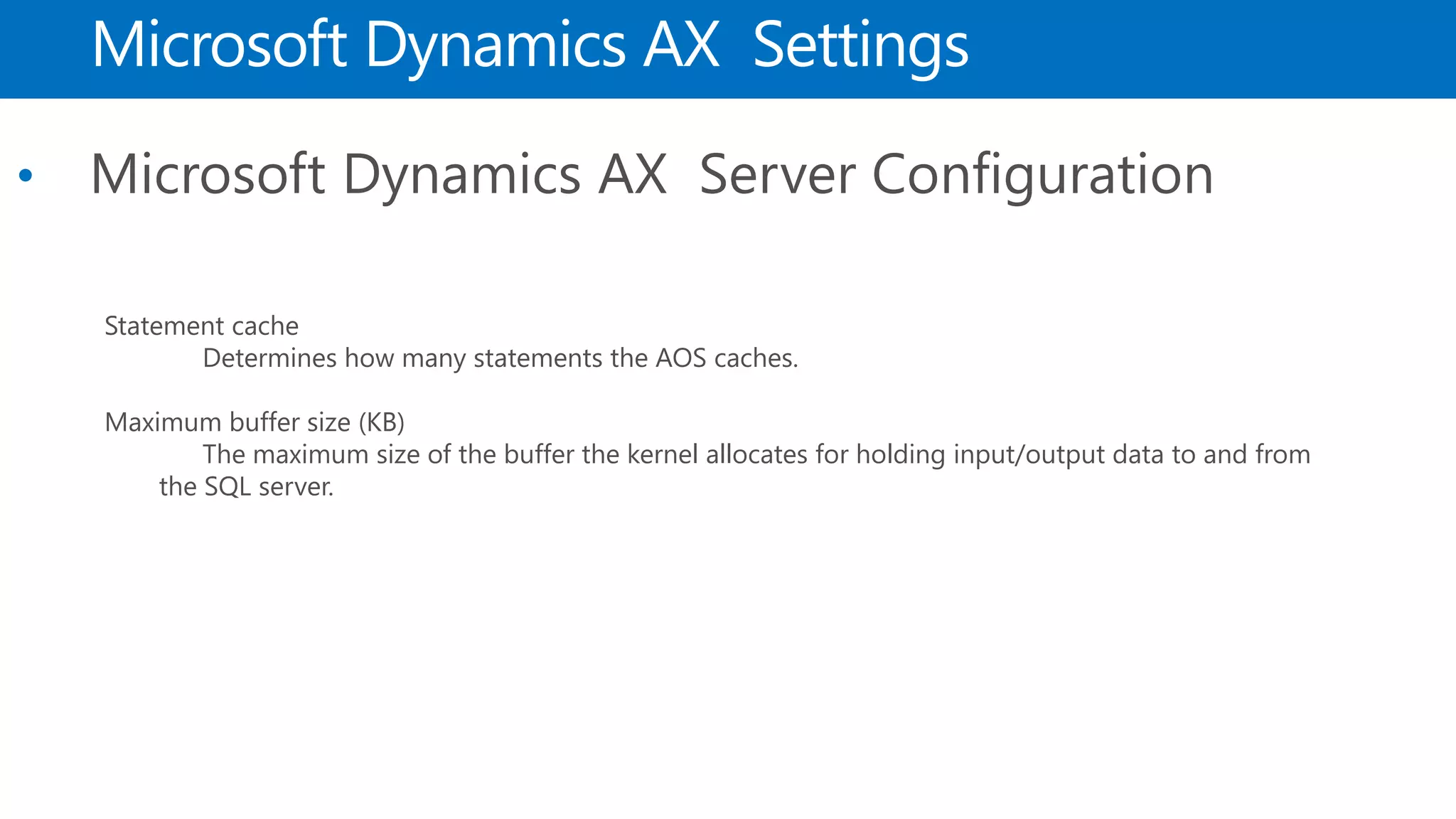

- 20. Microsoft Dynamics AXSettings • Statement cache Determines how many statements the AOS caches. Maximum buffer size (KB) The maximum size of the buffer the kernel allocates for holding input/output data to and from the SQL server.
- 21. Microsoft Dynamics AXSettings •

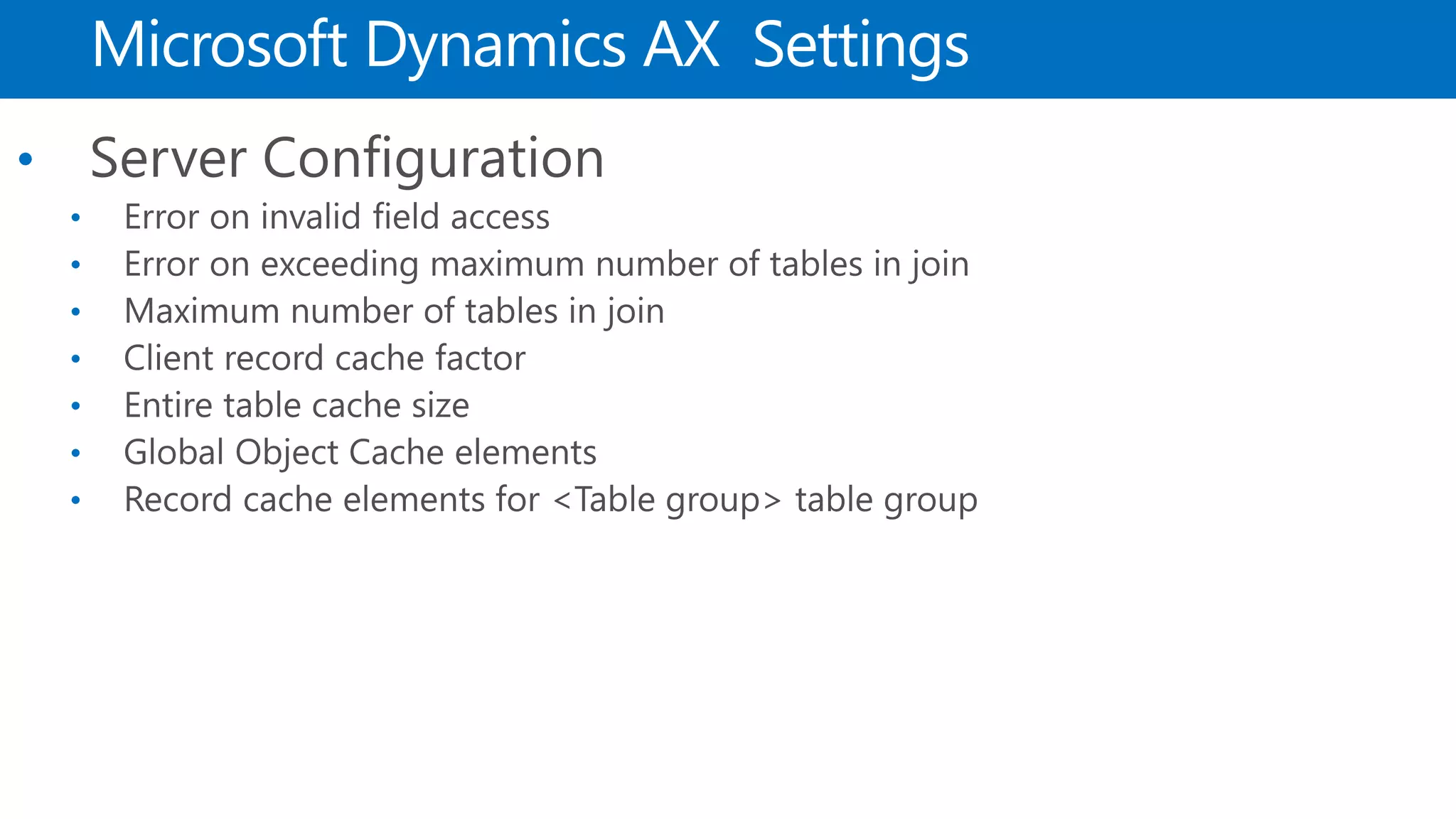

- 22. Microsoft Dynamics AXSettings • • • • • • • •

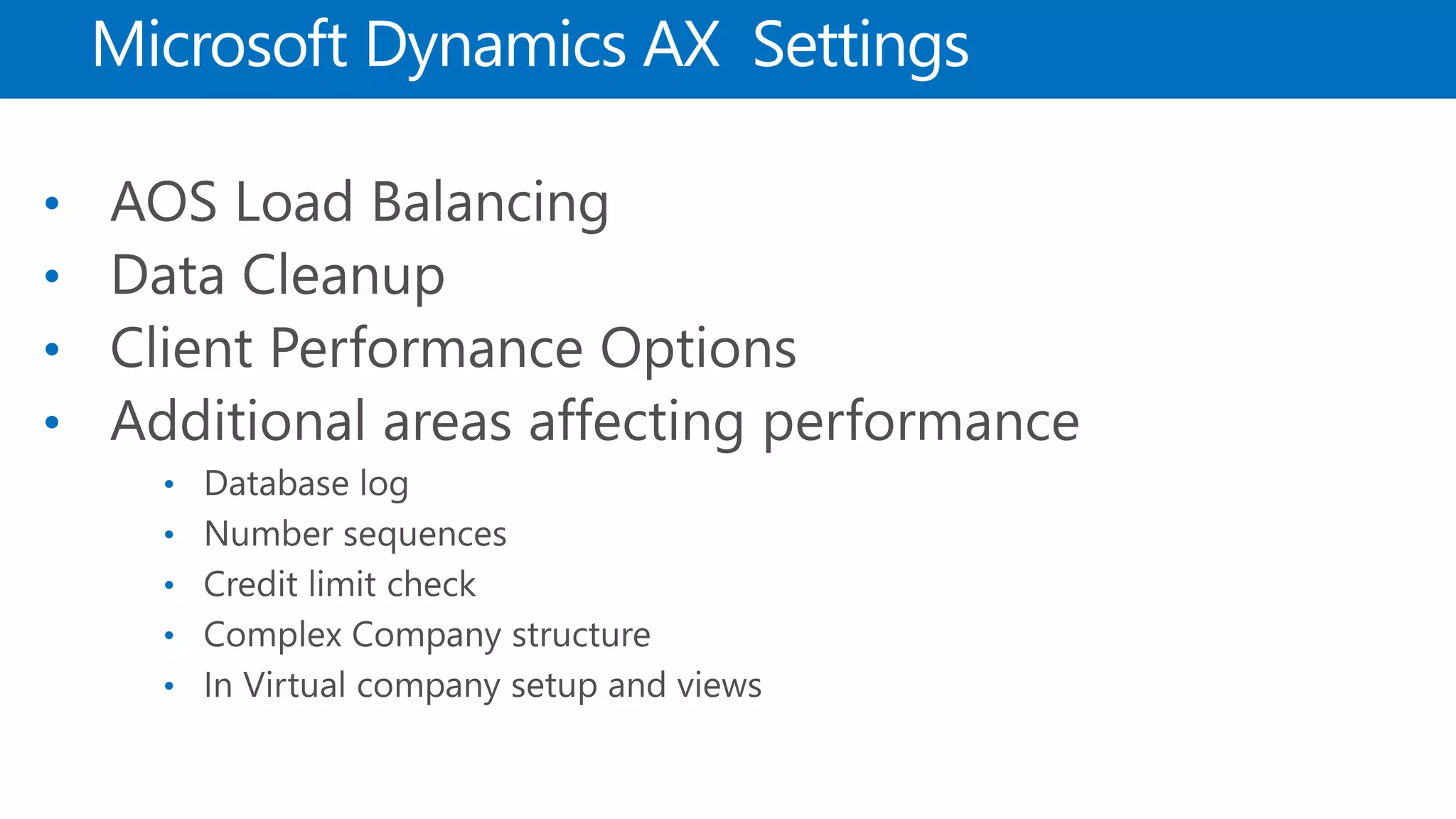

- 23. Microsoft Dynamics AXSettings • • • • • • • • •
- 24.

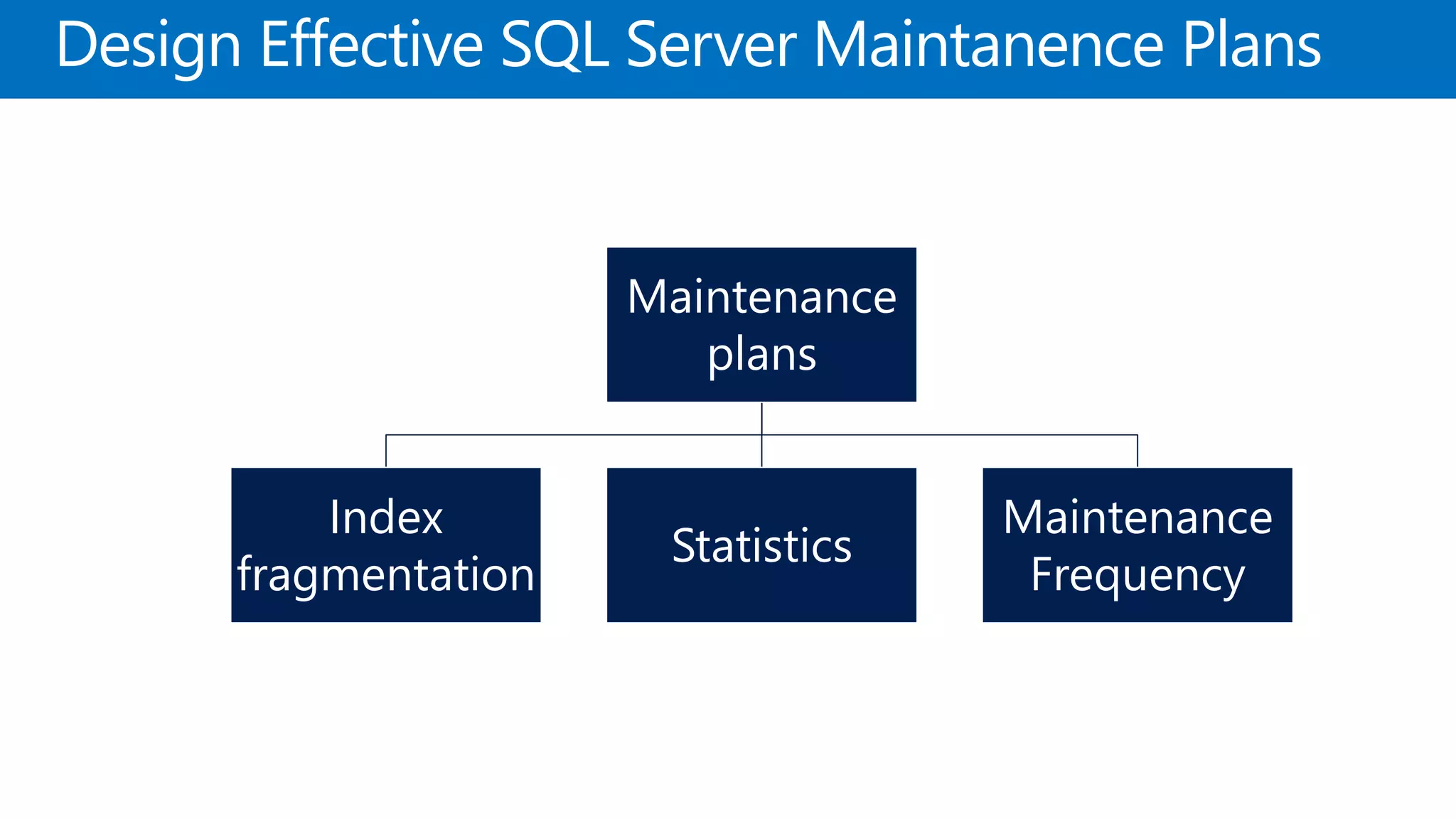

- 25. Design Effective SQLServer Maintanence Plans Maintenance plans Index fragmentation Statistics Maintenance Frequency
Editor's Notes
- #4 Walk through the architecture and discuss how it relates to Performance Planning.
- #5 Discuss the three tier architecture of AX. Discuss with students on other 3 tier architectures they may be familiar with.
- #6 Discuss how reports are executed when the user clicks on a menu item. This will help students understand where the performance bottlenecks could be.

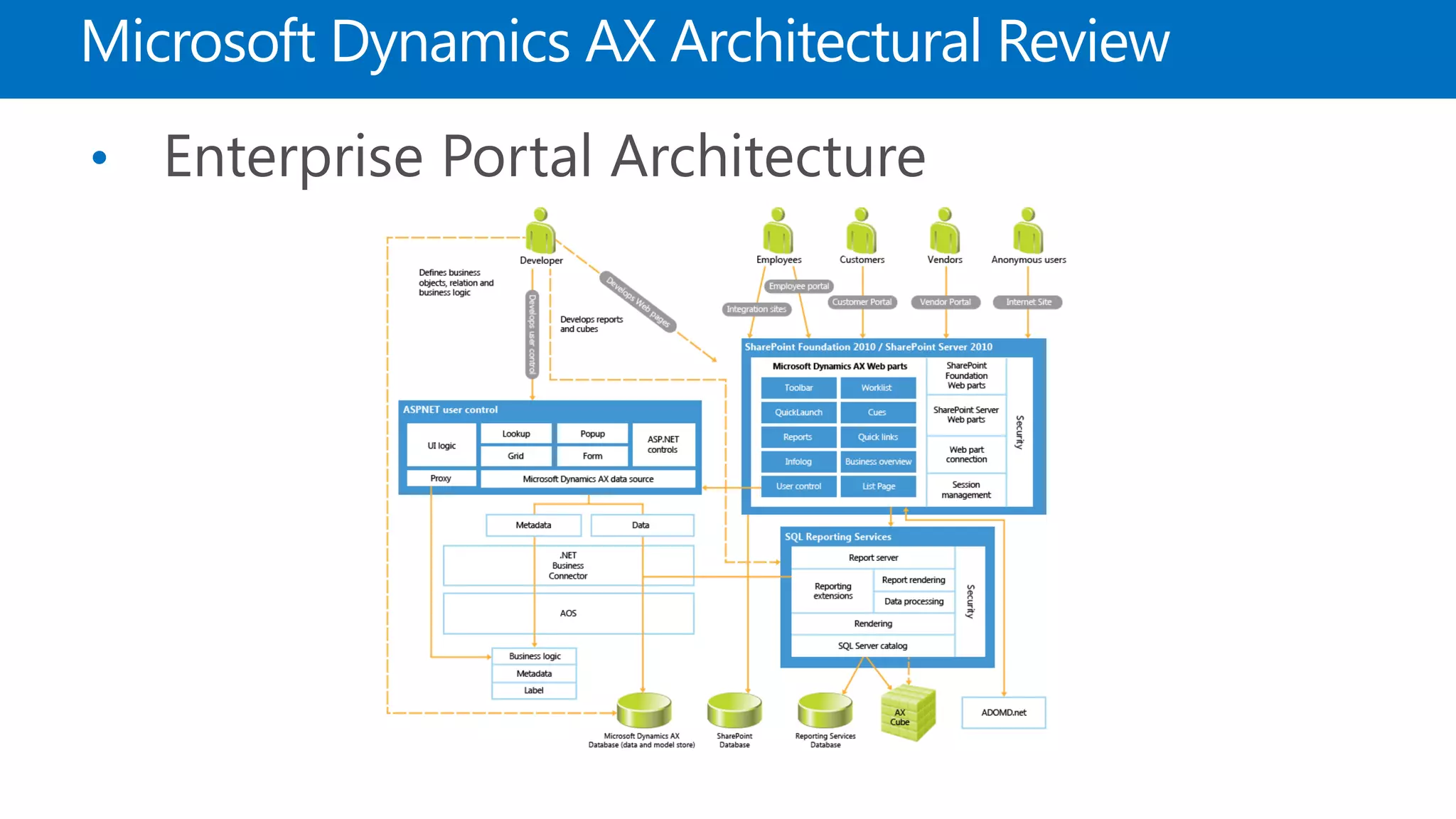

- #7 Talk about the components of EP. Discuss how different components can play a part in performance optimization (e.g. a slow user control might slow down the entire experience on the page)

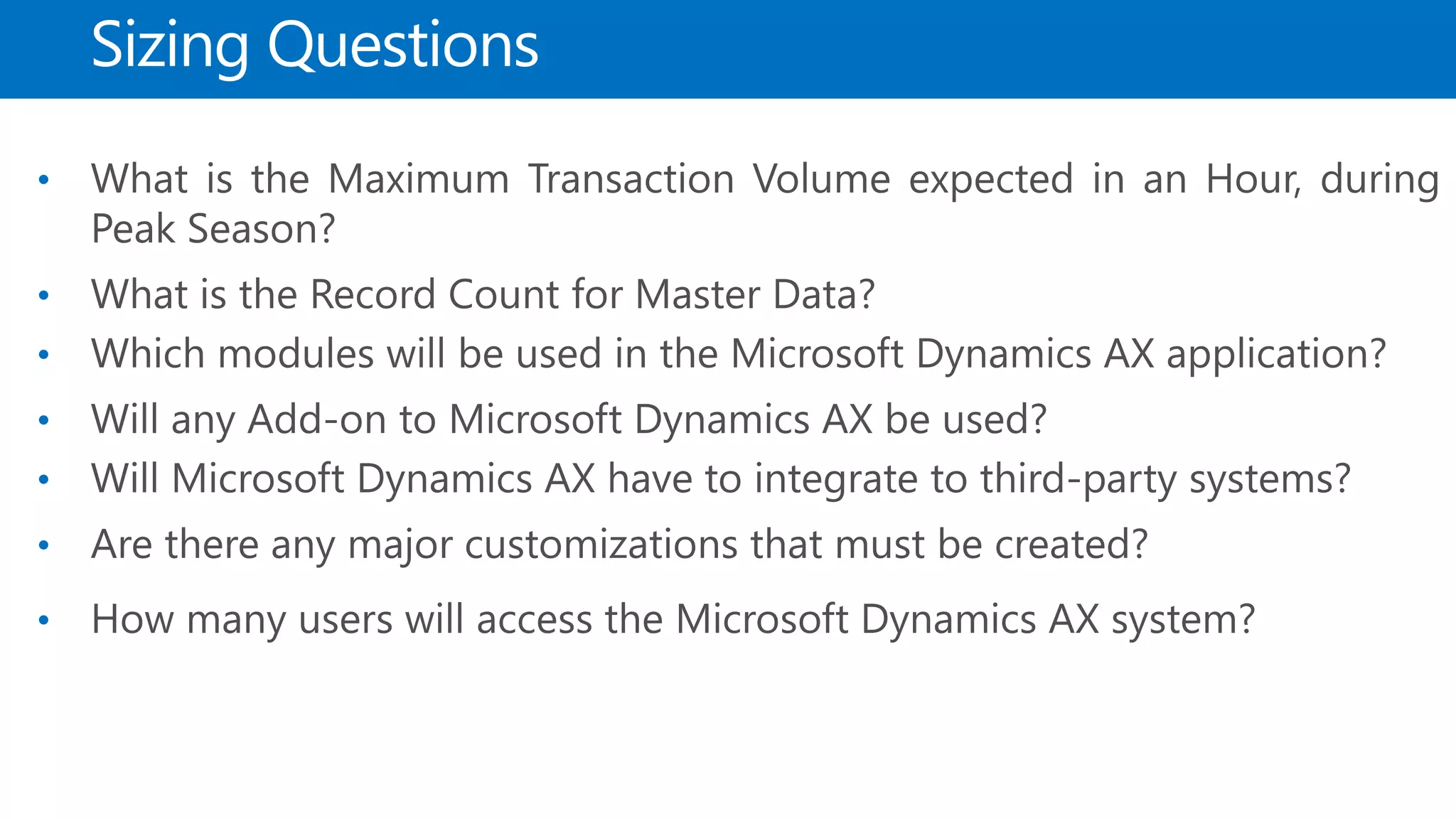

- #8 A basic set of questions for the administrator to ask when he or she performs hardware sizing for an instance of Microsoft Dynamics AX 2012 is available. Although this is not a complete list of questions, it is a good way to start. Every implementation has unique characteristics that you must consider when you perform hardware sizing. Discuss how answers to some of these questions might have an impact on sizing the AX implementation.
- #9 Walk through these guidelines with students. The guidelines provide a good rule of thumb for sizing.

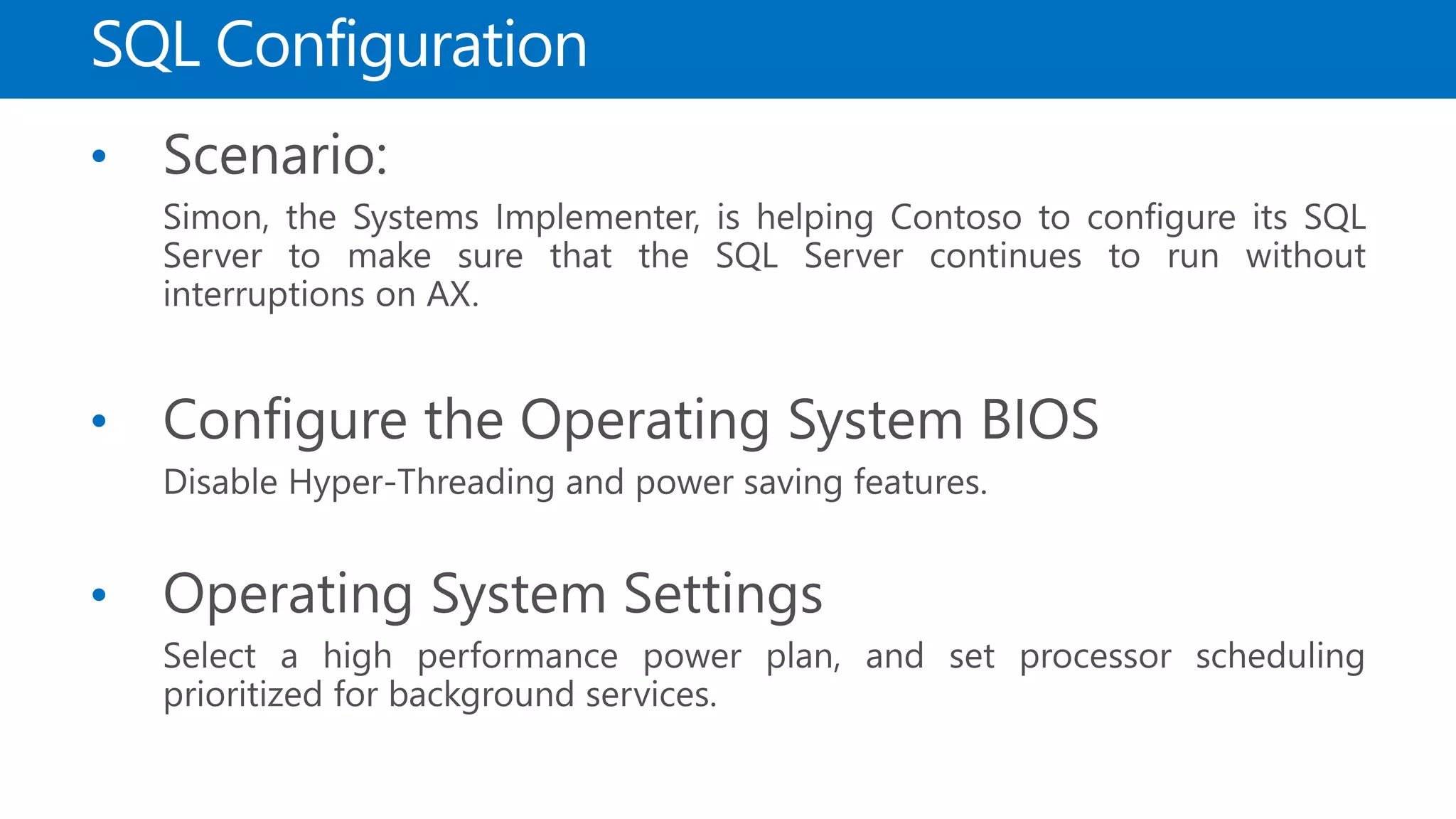

- #13 Describe the scenario that this module will be covering. All the demonstrations will be focused on the same scenario.

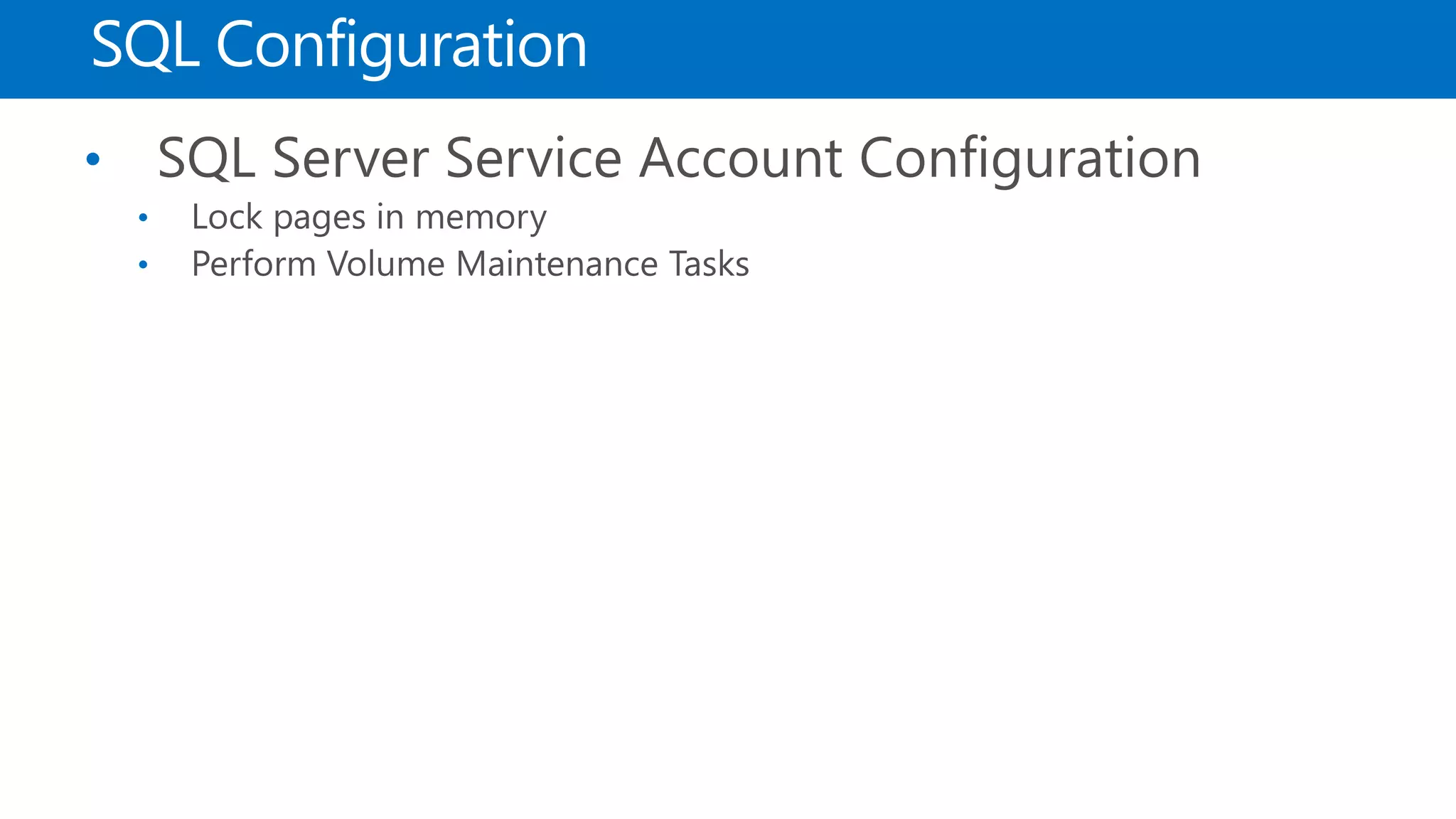

- #14 describe the lock pages in memory and perform volume maintenance tasks policies

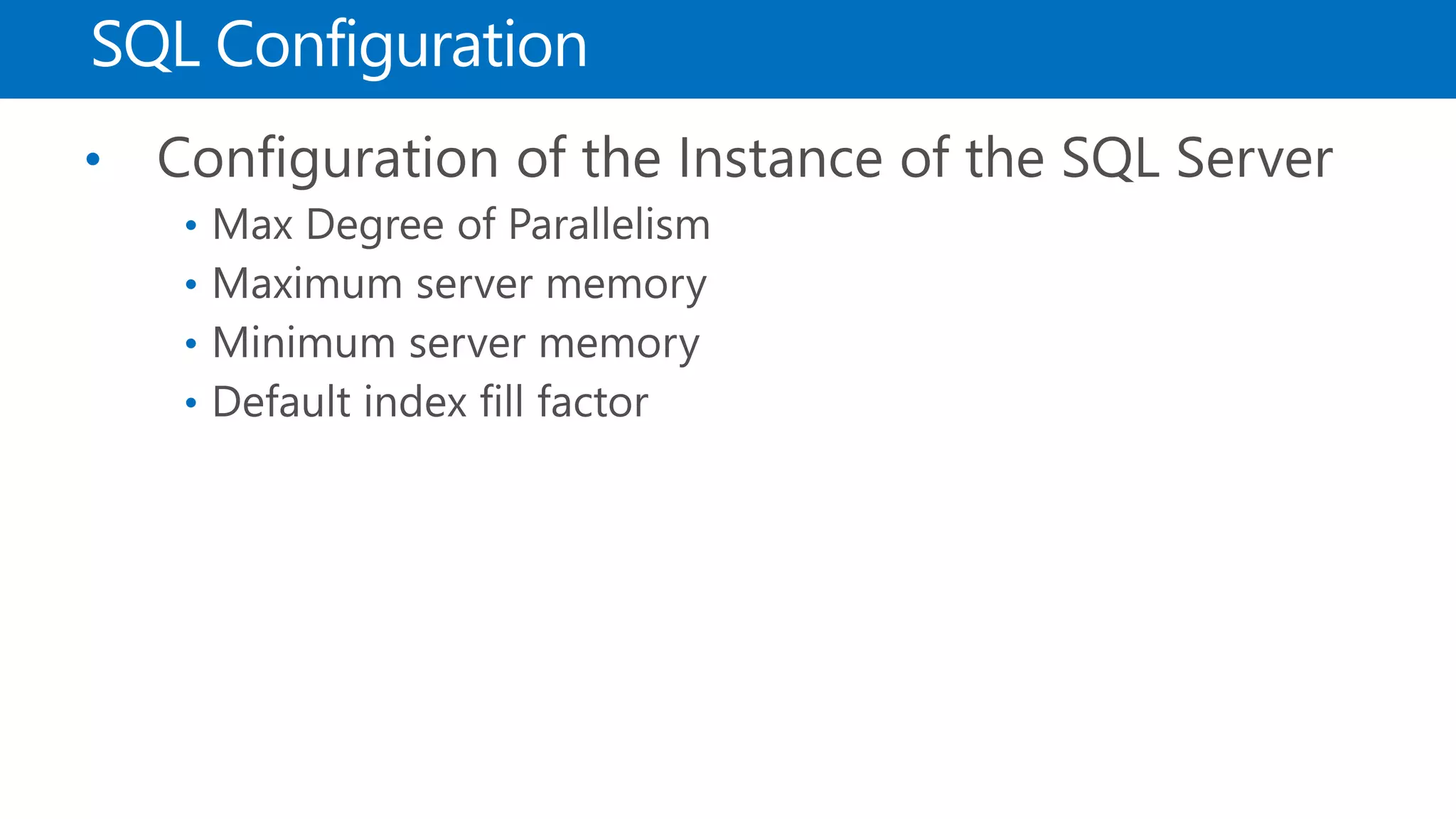

- #15 Describe what the configuration settings mean

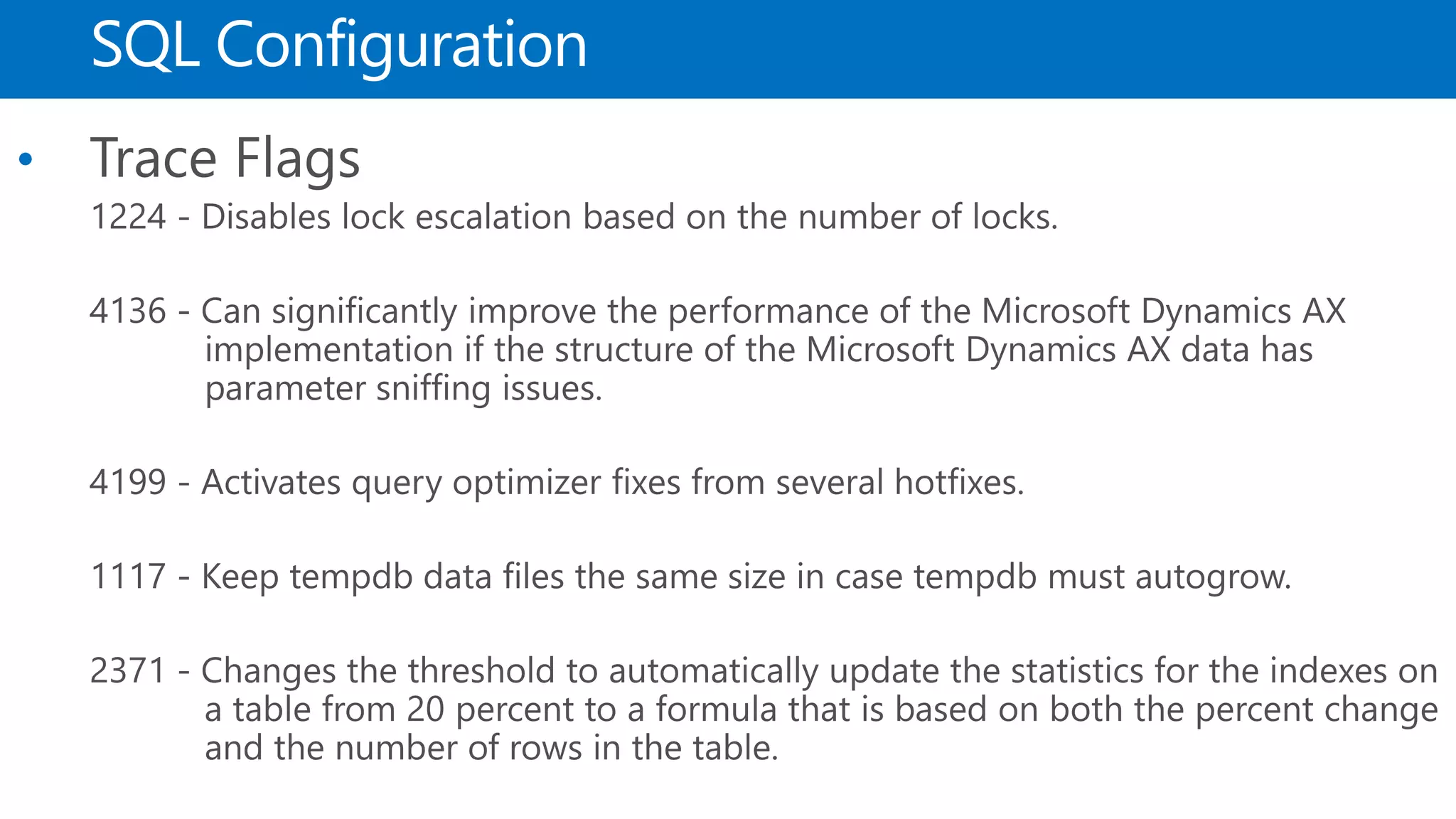

- #16 It will be hard for students to remember these trace flags but do go over them so they understand how trace flags work and where they can go to in case they need to refer to this material again.

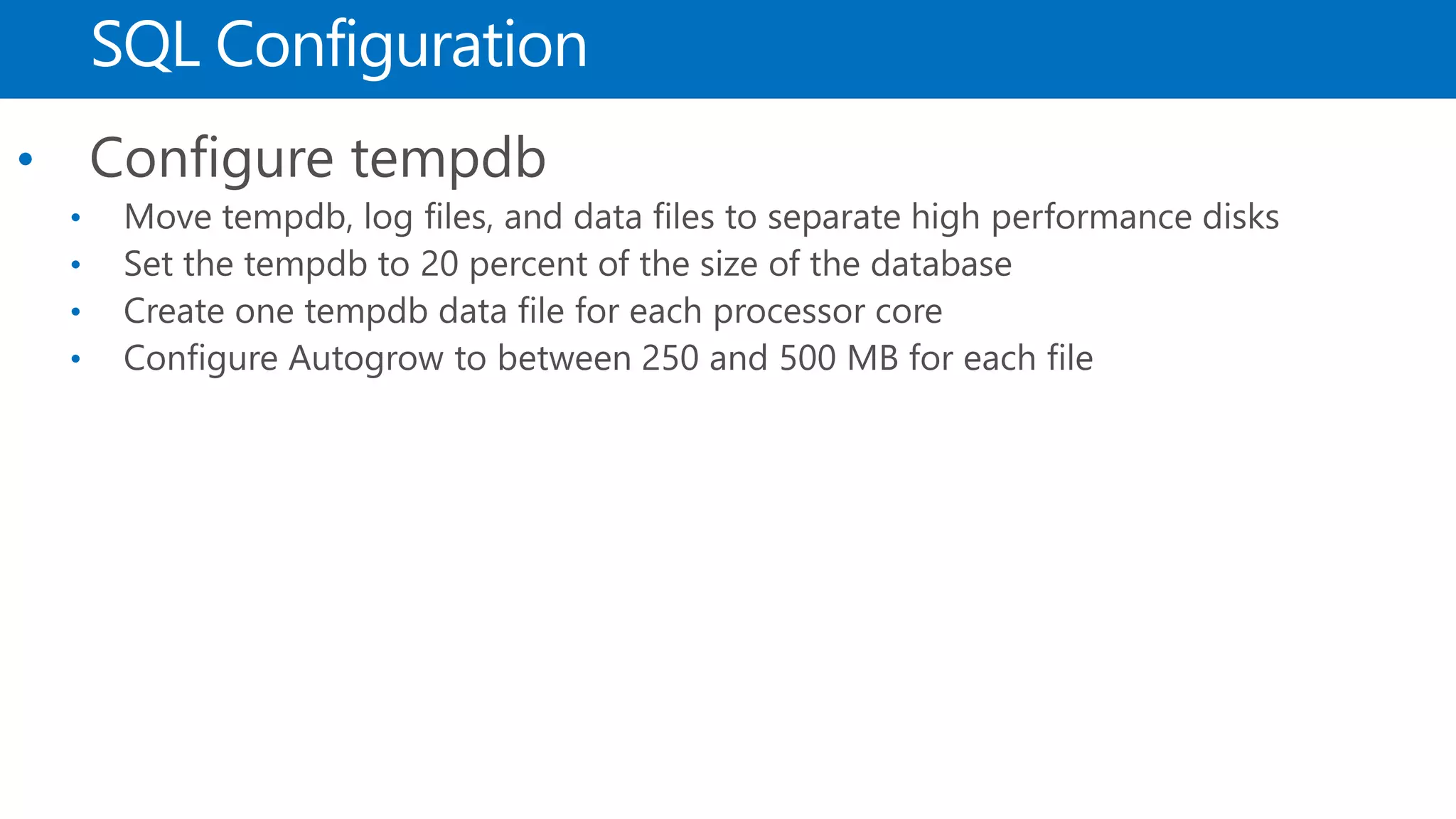

- #17 Describe what the tempdb is and how configuring it properly will help improve performance.
- #18 Describe some of the settings that help configure the AX database to perform optimally.

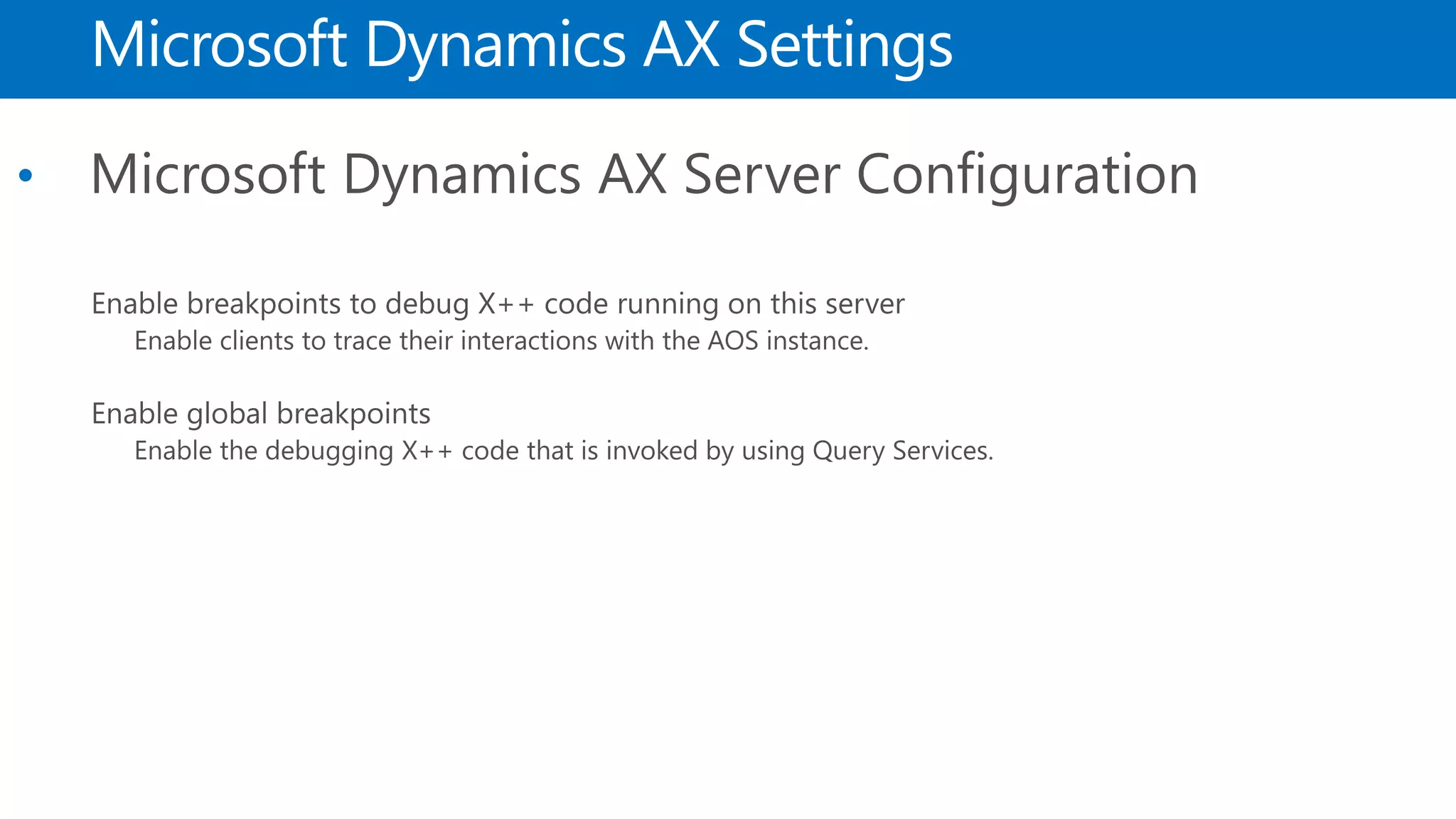

- #19 Talk about breakpoints. Be sure to let students know that these should not be enabled in production

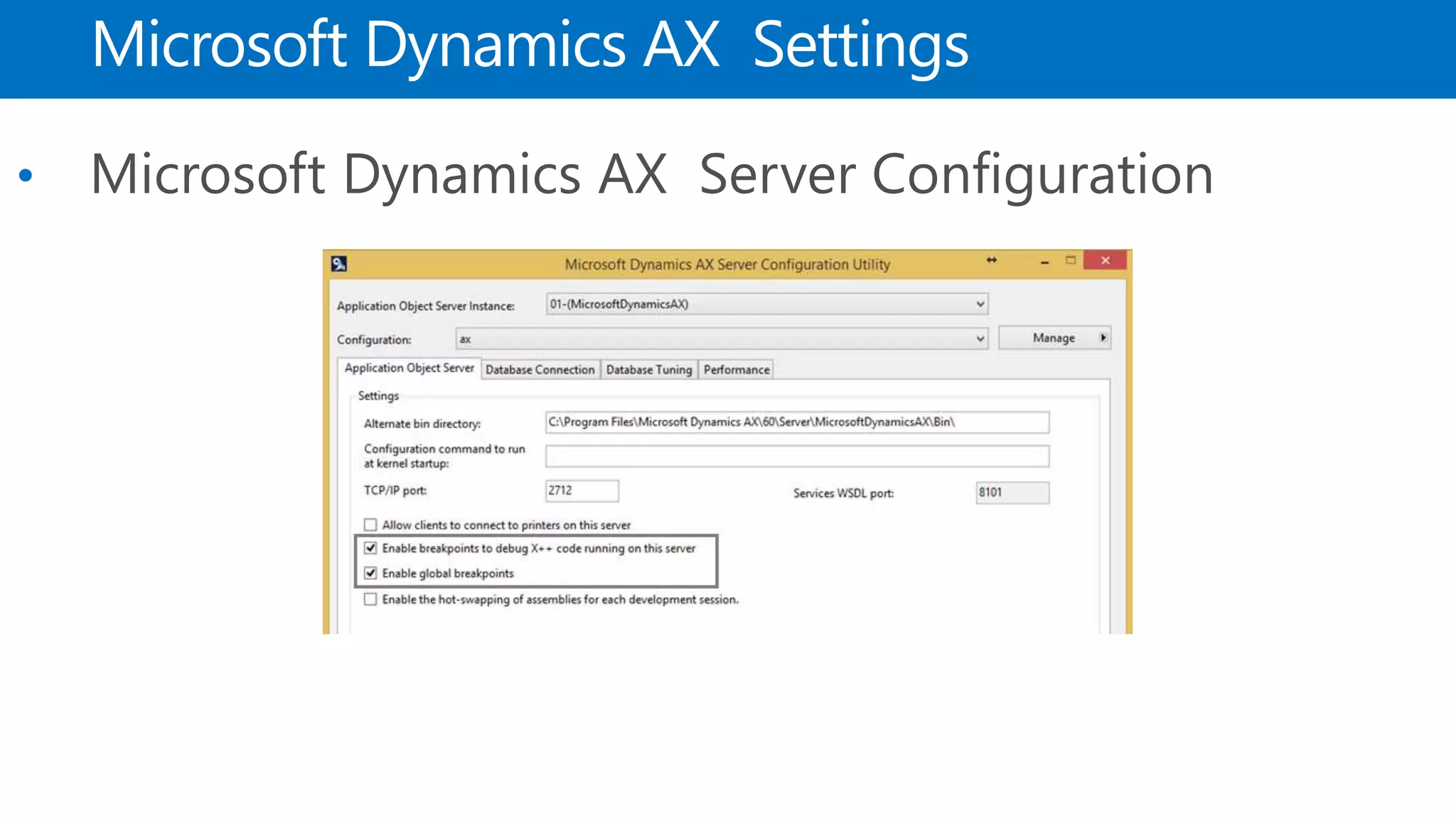

- #20 This screenshot of the Server Configuration Utility shows where to enable breakpoints.
- #21 Statement cache Determines how many statements the AOS caches. Recommended setting for Production: Less than 256 - A value that is larger than 256 can cause memory issues on the server. Maximum buffer size (KB) The maximum size of the buffer the kernel allocates for holding input/output data to and from the SQL server. Recommended setting for Production: 24 – Leave this property at its default of 24 if you can do this.

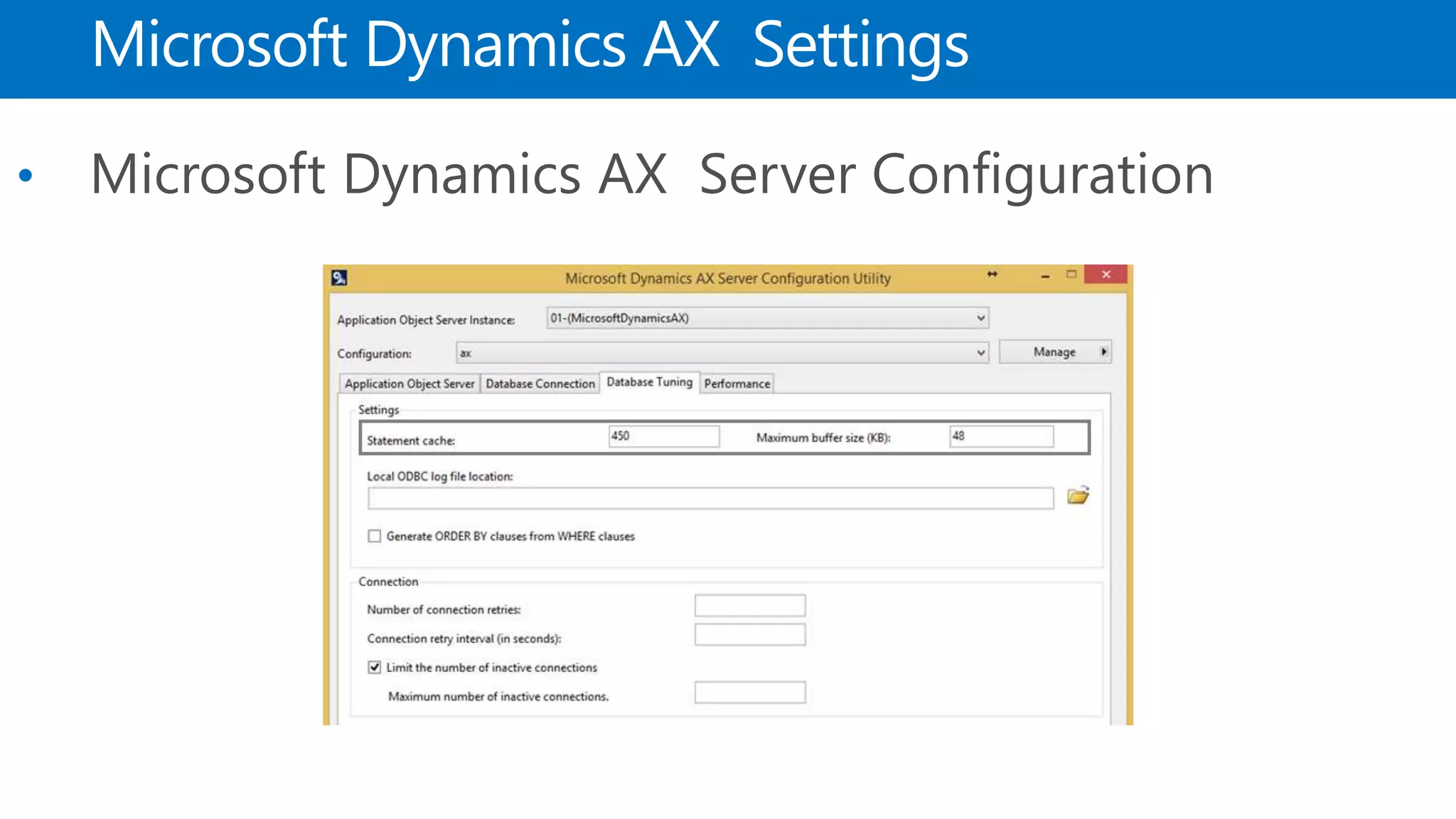

- #22 This screenshot of the Server Configuration Utility shows where to modify the Statement Cache or Maximum Buffer Size Note: Changes to the Microsoft Dynamics AX Server Configuration utility require the AOS service to be restarted. The restart will disconnect all users who are currently logged on to that AOS from Microsoft Dynamics AX .
- #23 The Server configuration form is used to set server, cluster, batch, and performance settings for the AOS in Microsoft Dynamics AX . Describe the various configuration settings that are available.
- #24 AOS Load balancing With AOS, load balancing connections to AOSs are automatically allocated across all the AOSs in a load balancing cluster. This helps make sure that all the AOSs in the load balancing cluster have similar workloads and provides a more consistent performance. Data Cleanup In Microsoft Dynamics AX, cleanup utilities are provided in most modules that can be used to clean up unnecessary data, and this can have a positive effect on performance. Client Performance Options Describe how some settings in the client can affect performance significantly. Additional Areas Affecting Performance Describe how some of these settings can impact performance Discuss with students on other performance issues they might have encountered.

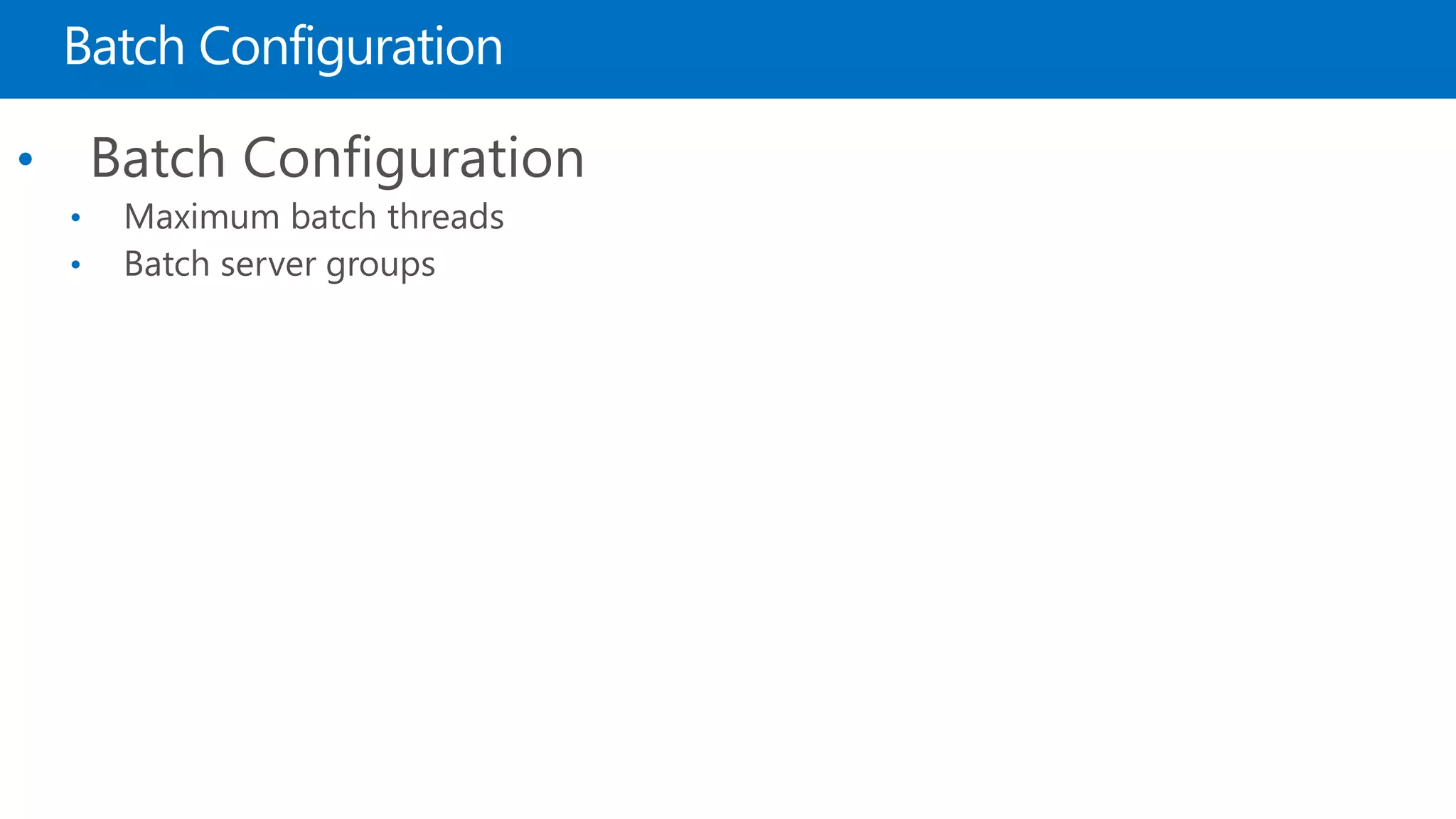

- #25 Discuss with students on how they configure the batch server groups.
- #26 Design Effective SQL Server Maintenance Plans SQL Server will not continue to perform well in a production system without basic maintenance. SQL Server provides a mechanism in maintenance plans to simplify this basic maintenance, but it does need to be setup. This lesson covers setting up maintenance plans to minimize index fragmentation, update statistics, and perform backups. Describe some of the maintenance plans that can be performed and discuss other plans that system administrators frequently do.
