Istio Service Mesh for Developers and Platform Engineers (Presented at Singapore k8s user group 23-May-2023)

1. Sai, Field Engineer @ Solo.io
Istio Service Mesh
For
Developers & Platform Engineers

2. Home Lab
BEFORE

3. Home Lab
NOW

4. Business Drivers for Application Modernization
Reduce Costs
/ Shift Capex
to Opex
Access to
Innovation
Increase flexibility
and Capacity
of Infrastructure
Increase Velocity of
Development
Reduce Risk
Monolithic Microservices

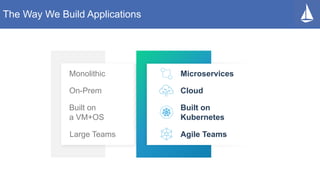

5. The Way We Build Applications
Monolithic
On-Prem
Built on
a VM+OS
Large Teams
Microservices
Cloud
Built on
Kubernetes
Agile Teams

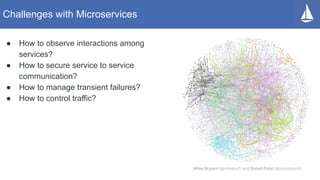

6. Challenges with Microservices
● How to observe interactions among
services?
● How to secure service to service
communication?
● How to manage transient failures?
● How to control traffic?

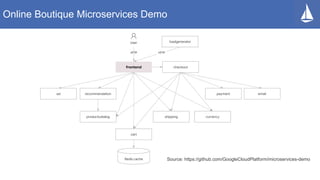

7. Online Boutique Microservices Demo
Source: https://github.com/GoogleCloudPlatform/microservices-demo

8. Application Networking Challenges
● Service discovery
● Load balancing
● Timeouts
● Retry / Budgets
● Circuit breaking
● Tracing, observability
● Secure transport
● Extension
Challenges

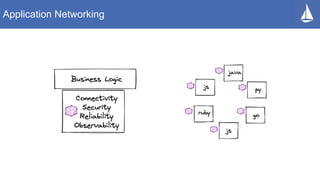

9. Application Networking

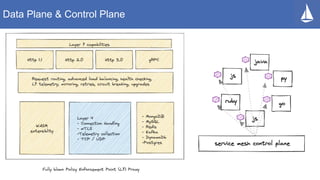

10. Data Plane & Control Plane

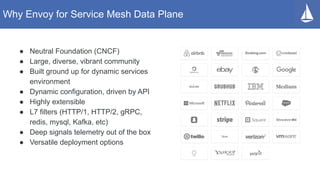

11. Why Envoy for Service Mesh Data Plane
● Neutral Foundation (CNCF)
● Large, diverse, vibrant community
● Built ground up for dynamic services
environment
● Dynamic configuration, driven by API
● Highly extensible
● L7 filters (HTTP/1, HTTP/2, gRPC,
redis, mysql, Kafka, etc)
● Deep signals telemetry out of the box
● Versatile deployment options

12. Istio - Open Source Service Mesh
2017
Istio Launched
Data Plane
Enhancements
2019-20
7 New Community Releases
1000s Production Users
~ 1000 Community Contributors
2022
CNCF
2019-2022

13. Case Studies
https://istio.io/latest/about/case-studies/

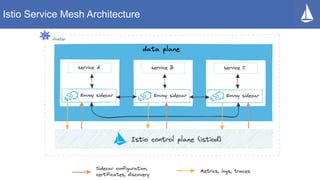

14. Istio Service Mesh Architecture

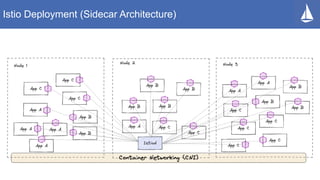

15. Istio Deployment (Sidecar Architecture)

16. Use Cases

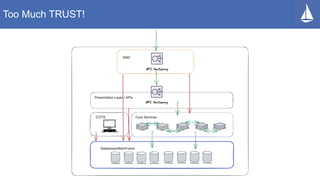

17. Too Much TRUST!

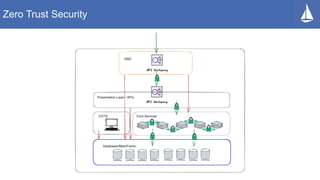

18. Zero Trust Security

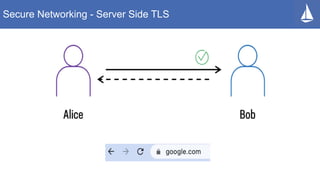

19. Secure Networking - Server Side TLS

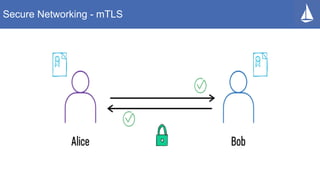

20. Secure Networking - mTLS

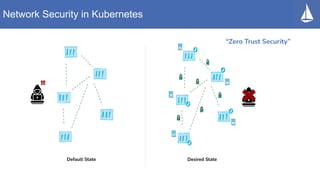

21. Network Security in Kubernetes
Default State
!!!
Desired State
“Zero Trust Security”

22. DIY … Whoops !
○ 81% of companies experienced a certificate-related outage in the
past two years
○ 65% are concerned about the increased workload and risk of outages
caused by shorter SSL/TLS certificate lifespans.
○ Human error was a major contributing factor in 95% of breaches

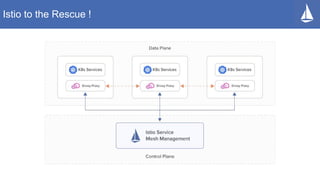

23. Istio to the Rescue !

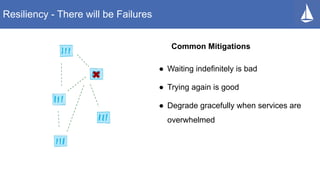

24. Resiliency - There will be Failures
Common Mitigations
● Waiting indefinitely is bad
● Trying again is good
● Degrade gracefully when services are
overwhelmed

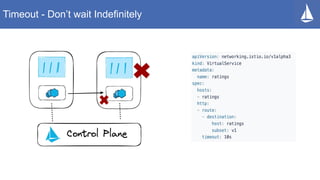

25. Timeout - Don’t wait Indefinitely

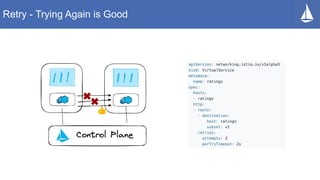

26. Retry - Trying Again is Good
👍

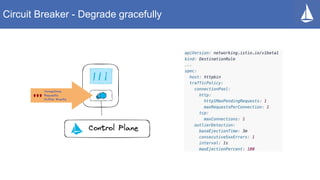

27. Circuit Breaker - Degrade gracefully

28. Observability - Insights for Competitive Advantage
Building a Uniform Approach
● Understand traffic patterns
● Determine service health
● Anticipate outages
● Detect dangerous activity
● Audit access

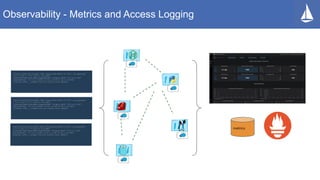

29. Observability - Metrics and Access Logging
[2020-11-25T21:26:18.409Z] "GET /status/418 HTTP/1.1" 418 - via_upstream
- "-" 0 135 3 1 "-" "curl/7.73.0-DEV"
"84961386-6d84-929d-98bd-c5aee93b5c88" "httpbin:8000" "127.0.0.1:80"
inbound|8000|| 127.0.0.1:41854 10.44.1.27:80 10.44.1.23:37652
outbound_.8000_._.httpbin.foo.svc.cluster.local default
[2020-11-25T21:26:18.409Z] "GET /status/418 HTTP/1.1" 418 - via_upstream
- "-" 0 135 3 1 "-" "curl/7.73.0-DEV"
"84961386-6d84-929d-98bd-c5aee93b5c88" "httpbin:8000" "127.0.0.1:80"
inbound|8000|| 127.0.0.1:41854 10.44.1.27:80 10.44.1.23:37652
outbound_.8000_._.httpbin.foo.svc.cluster.local default
[2020-11-25T21:26:18.409Z] "GET /status/418 HTTP/1.1" 418 - via_upstream
- "-" 0 135 3 1 "-" "curl/7.73.0-DEV"
"84961386-6d84-929d-98bd-c5aee93b5c88" "httpbin:8000" "127.0.0.1:80"
inbound|8000|| 127.0.0.1:41854 10.44.1.27:80 10.44.1.23:37652
outbound_.8000_._.httpbin.foo.svc.cluster.local default
metrics

30. RECAP

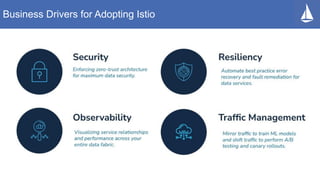

31. Business Drivers for Adopting Istio

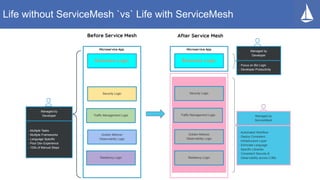

32. Life without ServiceMesh `vs` Life with ServiceMesh
Business Logic
Security Logic
Traffic Management Logic
Golden Metrics/
Observability Logic
Resiliency Logic
Managed by
Developer
- Multiple Tasks
- Multiple Frameworks
- Language Specific
- Poor Dev Experience
- 100s of Manual Steps
Business Logic
Security Logic
Traffic Management Logic
Golden Metrics/
Observability Logic
Resiliency Logic
Managed by
Developer
- Focus on Biz Logic
- Developer Productivity
Managed by
ServiceMesh
- Automated Workflow
- Deploy Consistent
Infrastructure Layer
- Eliminate Language
Specific Libraries
- Consistent Security &
Observability across LOBs
Before Service Mesh After Service Mesh
Microservice App Microservice App

33. Istio Deployment (Sidecar Architecture)

34. Istio Ambient Mesh (Sidecar-less Architecture)
A recent, open source contribution to the Istio project,
that defines a new sidecar-less data plane.
Improve
Performance
Simplify
Operations
Cost
Reduction
https://istio.io/latest/blog/2022/introducing-ambient-mesh/

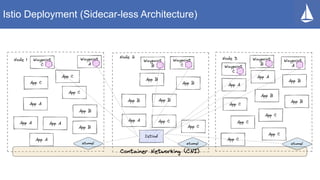

35. Istio Deployment (Sidecar-less Architecture)

36. Something to think about …

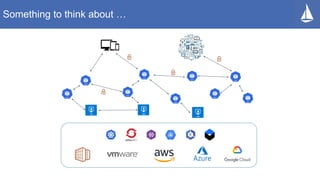

37. Something to think about …

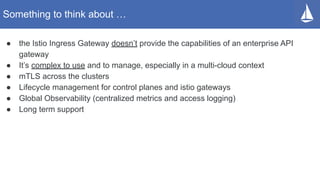

38. ● the Istio Ingress Gateway doesn’t provide the capabilities of an enterprise API
gateway
● It’s complex to use and to manage, especially in a multi-cloud context
● mTLS across the clusters
● Lifecycle management for control planes and istio gateways
● Global Observability (centralized metrics and access logging)
● Long term support
Something to think about …

39. Learn More …

40. Learn More …
10,000+ students have
attended hands-on workshops
1,800+ engineers have
achieved certifications
NPS
Score
75
https://academy.solo.io

41. Istio User Group
SINGAPORE

42. Thanks for attending!
@_hellosai_
sai.linnthu@solo.io
https://www.linkedin.com/in/sailinnthu/
https://www.youtube.com/@SaiLinnThu
Field Engineer - APAC @ Solo.io
