1. MONOLITHS TO MICROSERVICES: APP
TRANSFORMATION
Hands-on Technical Workshop
Ram Maddali
Senior Architect
@RamMaddali
rmaddali@redhat.com
Anand Akella
Senior Architect
aakella@redhat.com

2. A DEVELOPER INTRODUCTION TO
OPENSHIFT

3. CONTAINERS & CLOUD-NATIVE ROADSHOW3
A secure and enterprise-grade container
application platform based on Kubernetes for
traditional and cloud-native applications

4. CONTAINERS & CLOUD-NATIVE ROADSHOW4

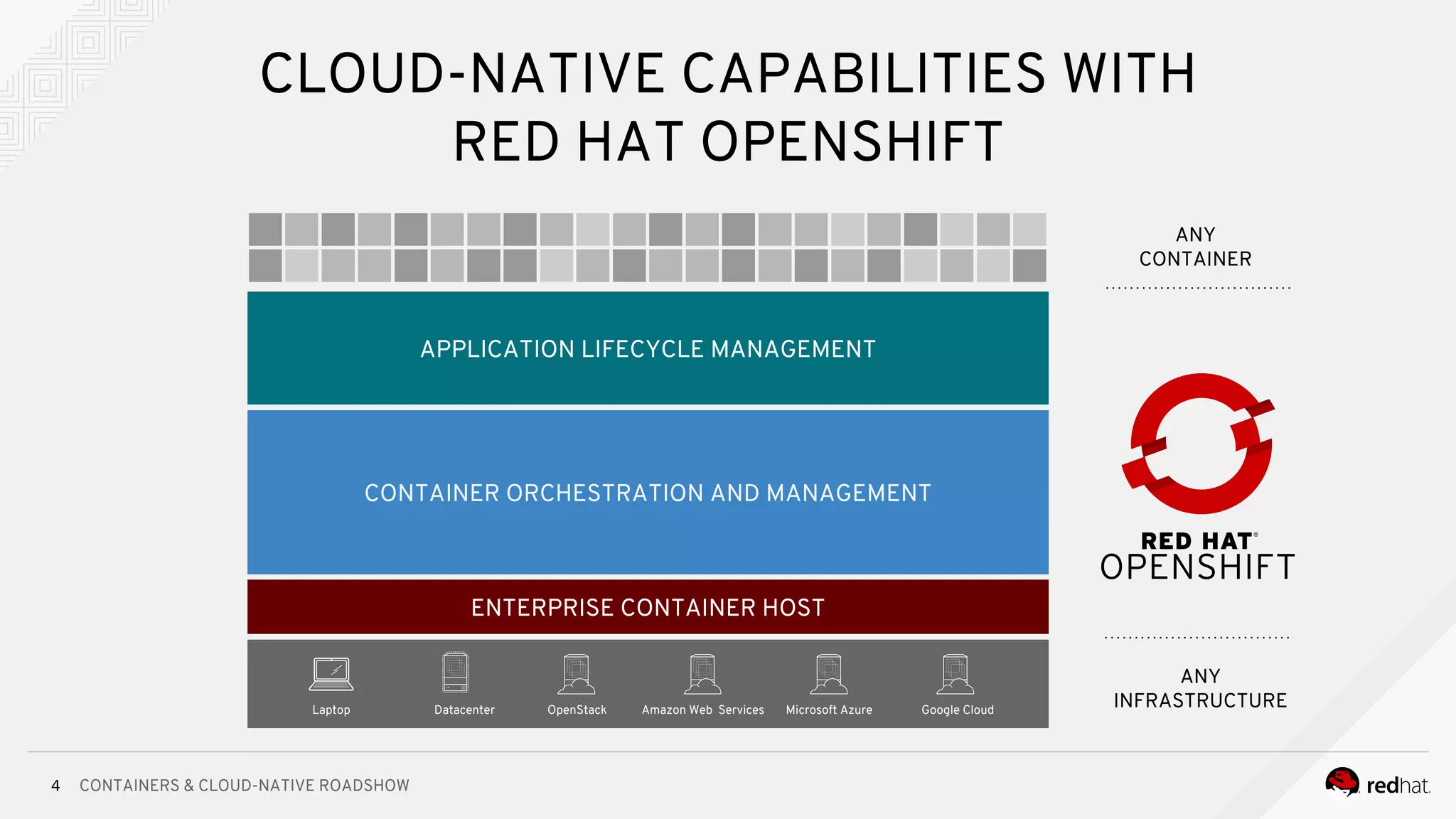

CLOUD-NATIVE CAPABILITIES WITH
RED HAT OPENSHIFT
ANY
CONTAINER
Amazon Web Services Microsoft Azure Google CloudOpenStackDatacenterLaptop
ANY
INFRASTRUCTURE
APPLICATION LIFECYCLE MANAGEMENT
CONTAINER ORCHESTRATION AND MANAGEMENT
ENTERPRISE CONTAINER HOST

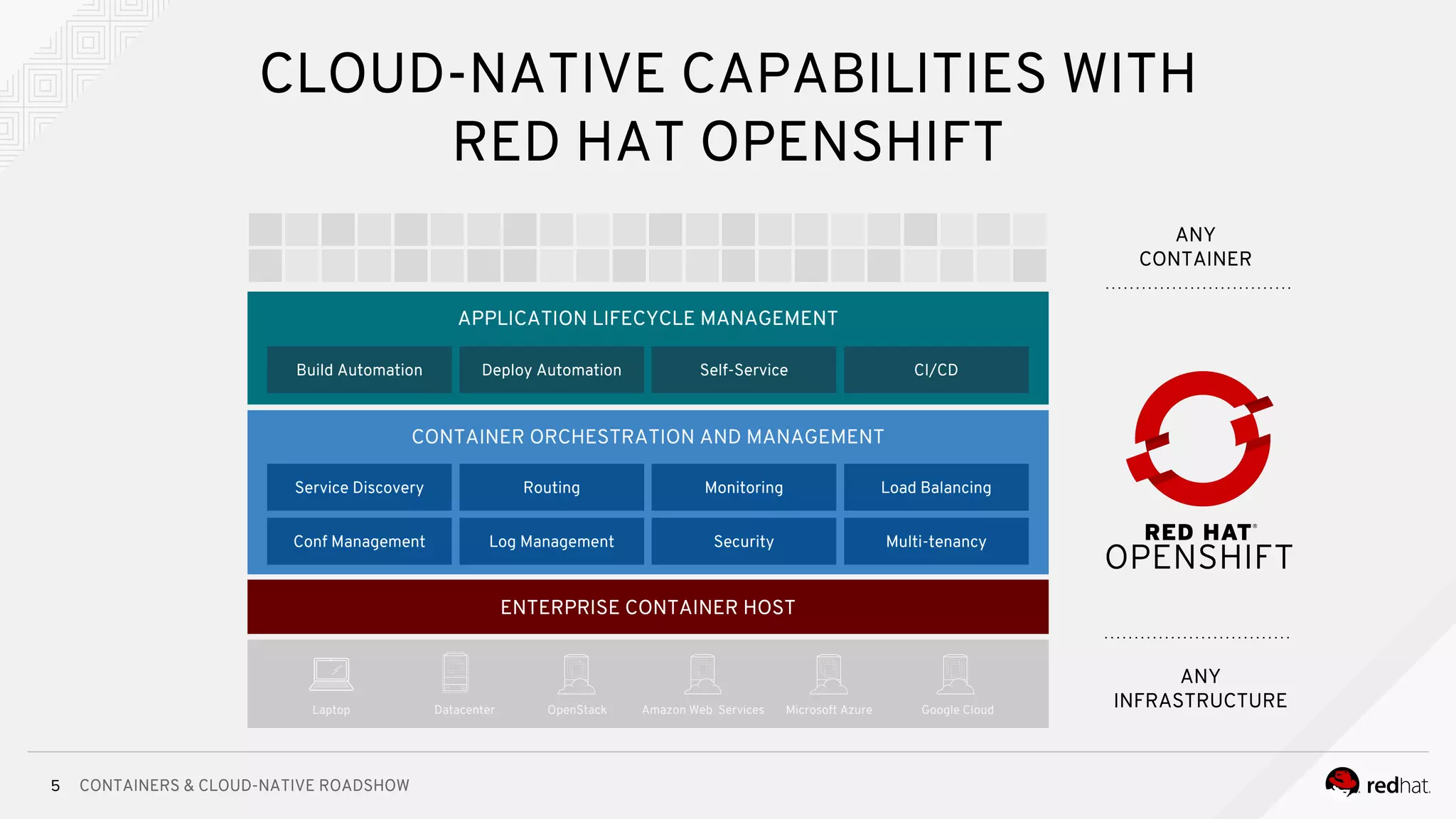

5. CONTAINERS & CLOUD-NATIVE ROADSHOW5
CLOUD-NATIVE CAPABILITIES WITH
RED HAT OPENSHIFT
APPLICATION LIFECYCLE MANAGEMENT
CONTAINER ORCHESTRATION AND MANAGEMENT
ENTERPRISE CONTAINER HOST
Service Discovery Routing Load Balancing
Security
Monitoring
Conf Management Log Management Multi-tenancy
Self-ServiceBuild Automation Deploy Automation CI/CD
ANY
CONTAINER
Amazon Web Services Microsoft Azure Google CloudOpenStackDatacenterLaptop
ANY
INFRASTRUCTURE

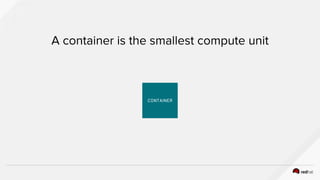

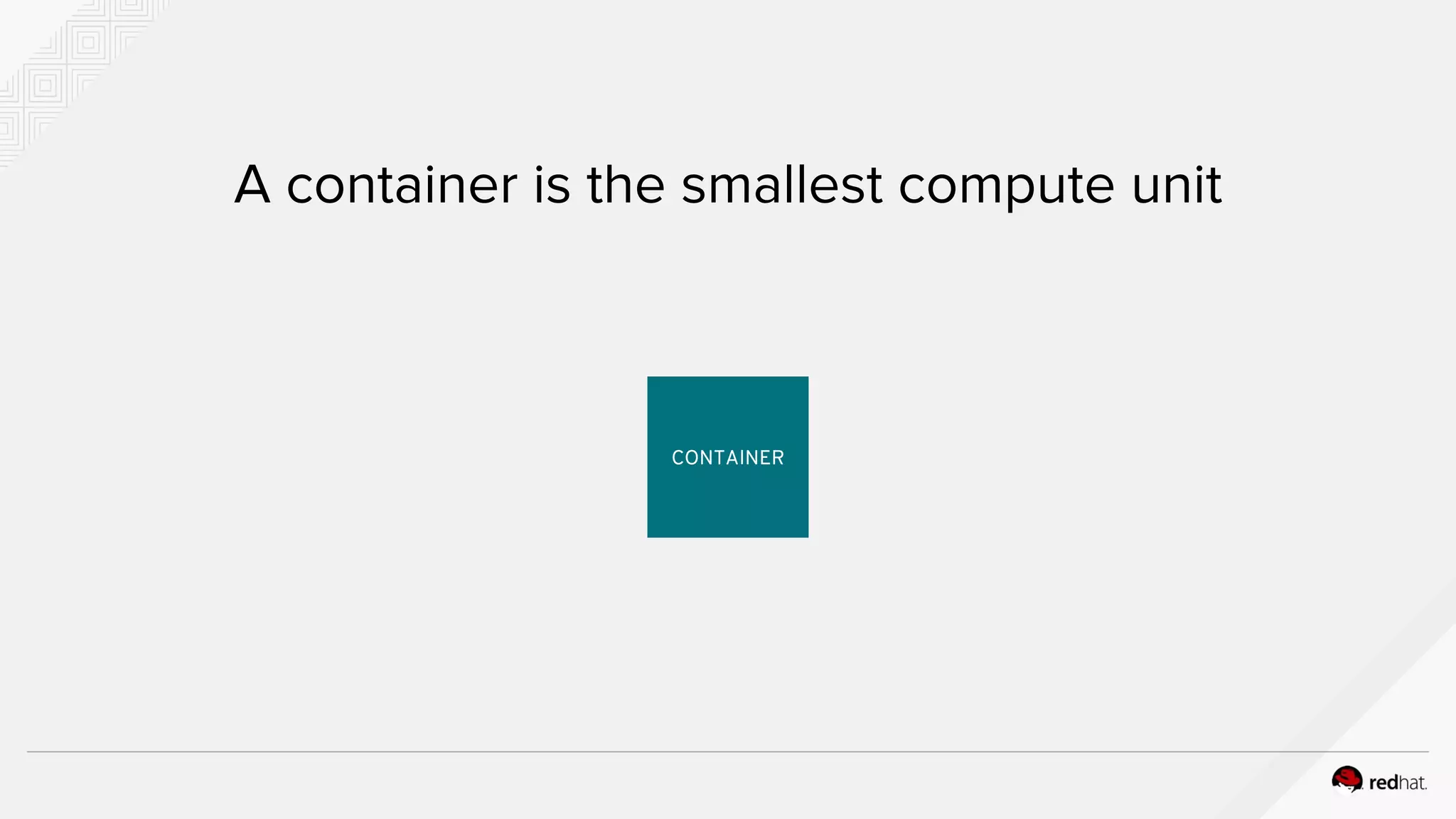

6. A container is the smallest compute unit
CONTAINER

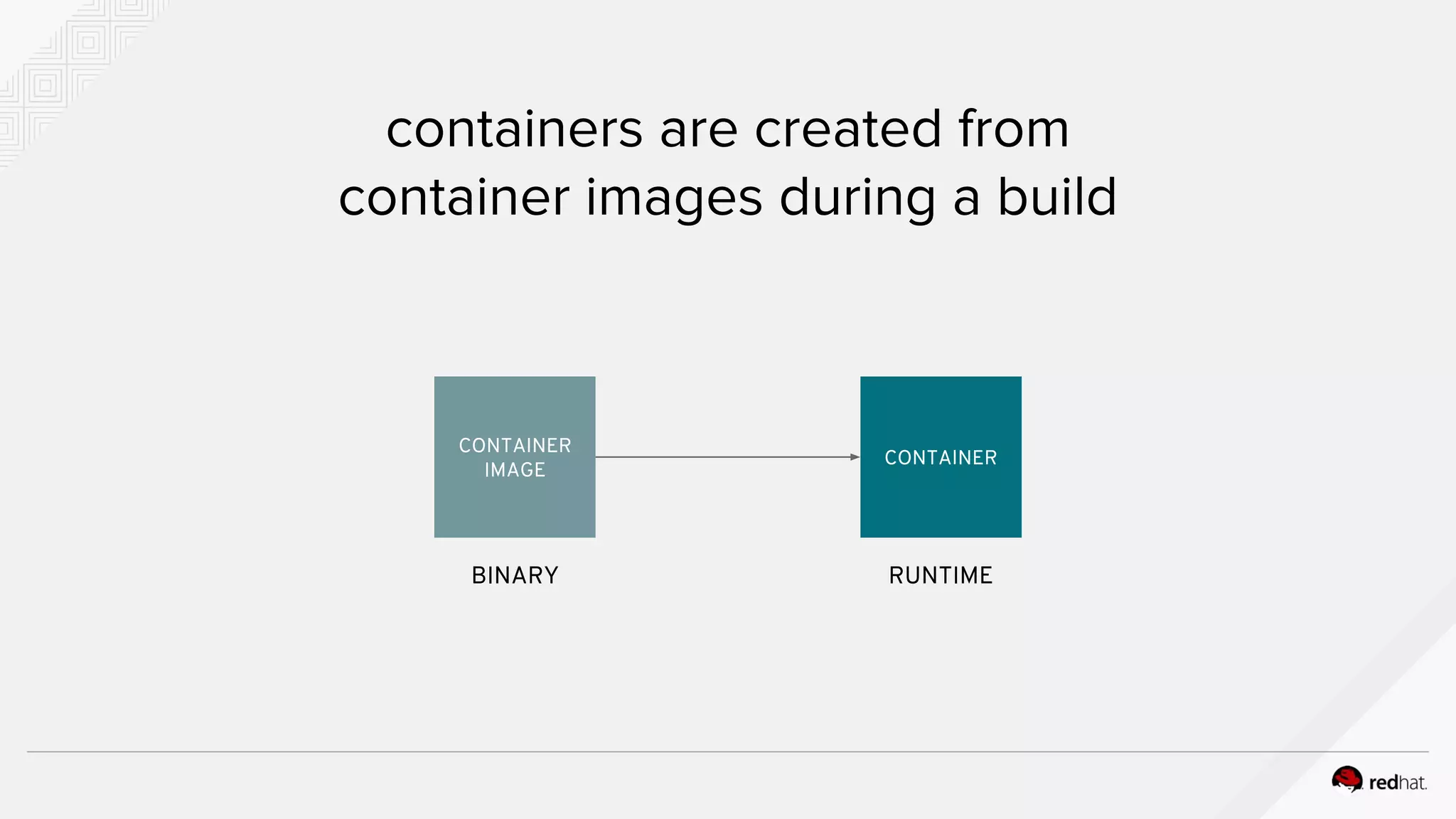

7. containers are created from
container images during a build
CONTAINER
CONTAINER
BINARY RUNTIME

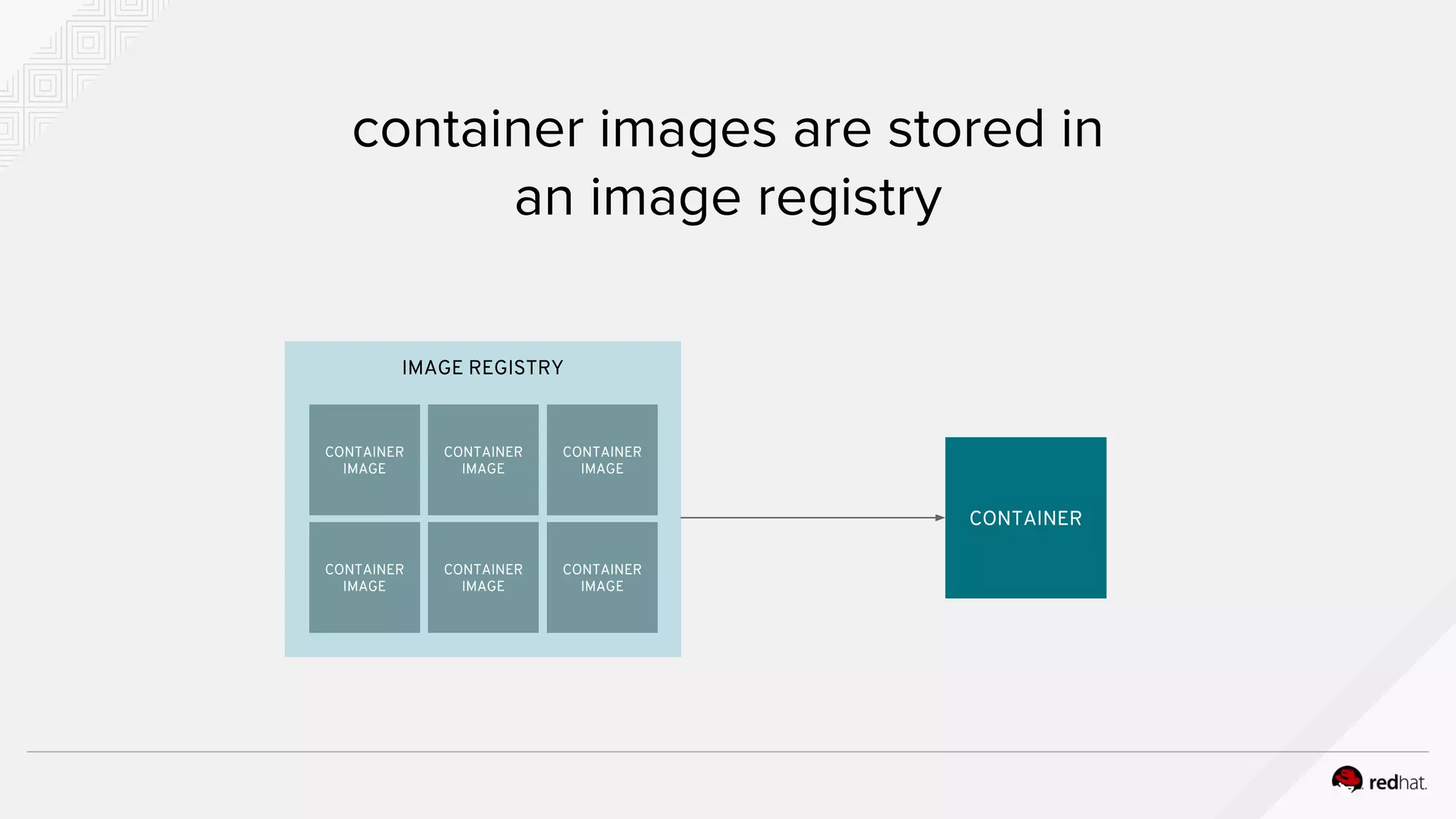

8. IMAGE REGISTRY
container images are stored in
an image registry
CONTAINER
CONTAINER
CONTAINER
CONTAINER
CONTAINER
CONTAINER
CONTAINER

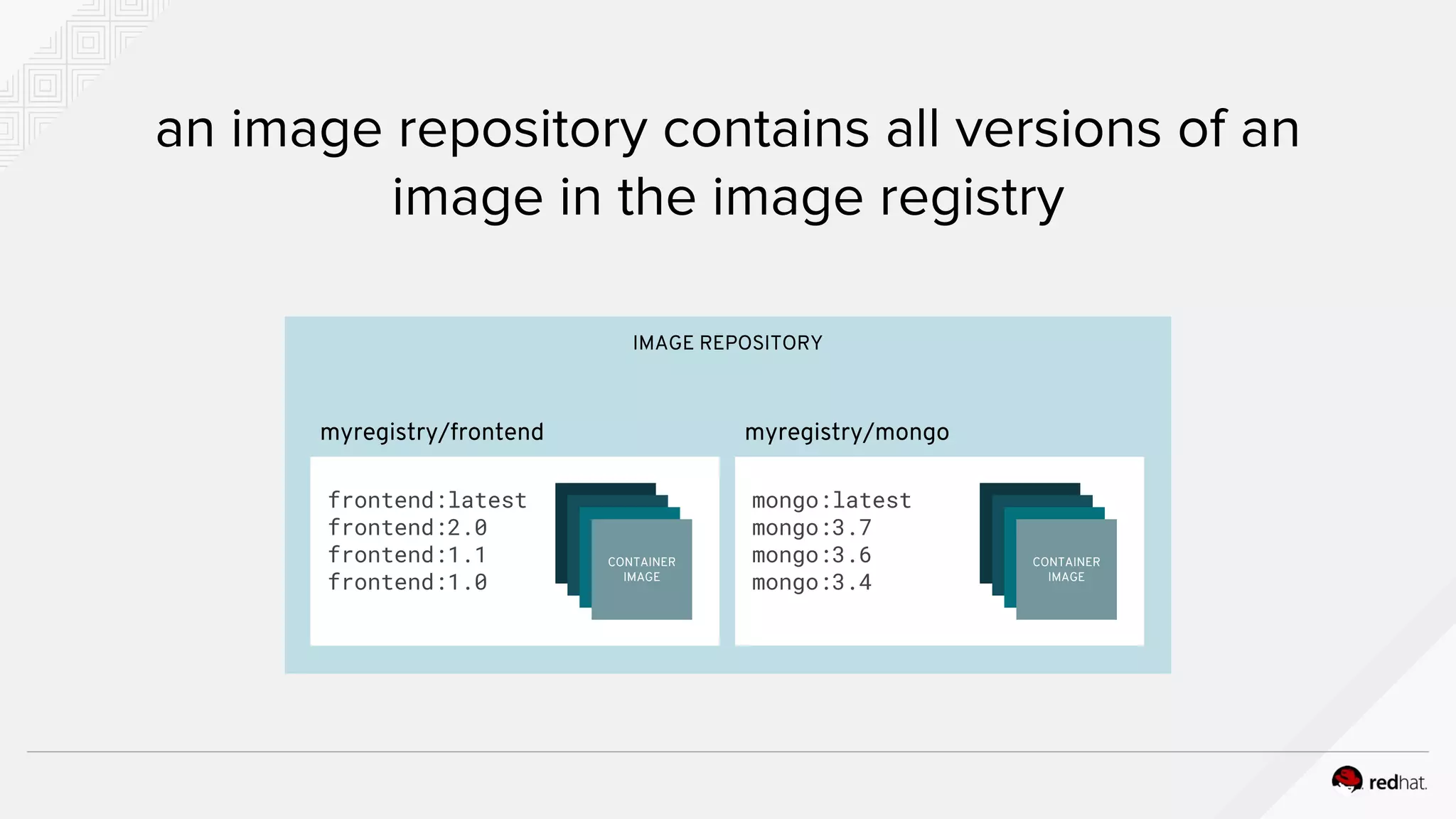

9. an image repository contains all versions of an
image in the image registry
IMAGE REPOSITORY
frontend:latest
frontend:2.0
frontend:1.1
frontend:1.0
CONTAINER
mongo:latest
mongo:3.7
mongo:3.6
mongo:3.4
CONTAINER
myregistry/frontend myregistry/mongo

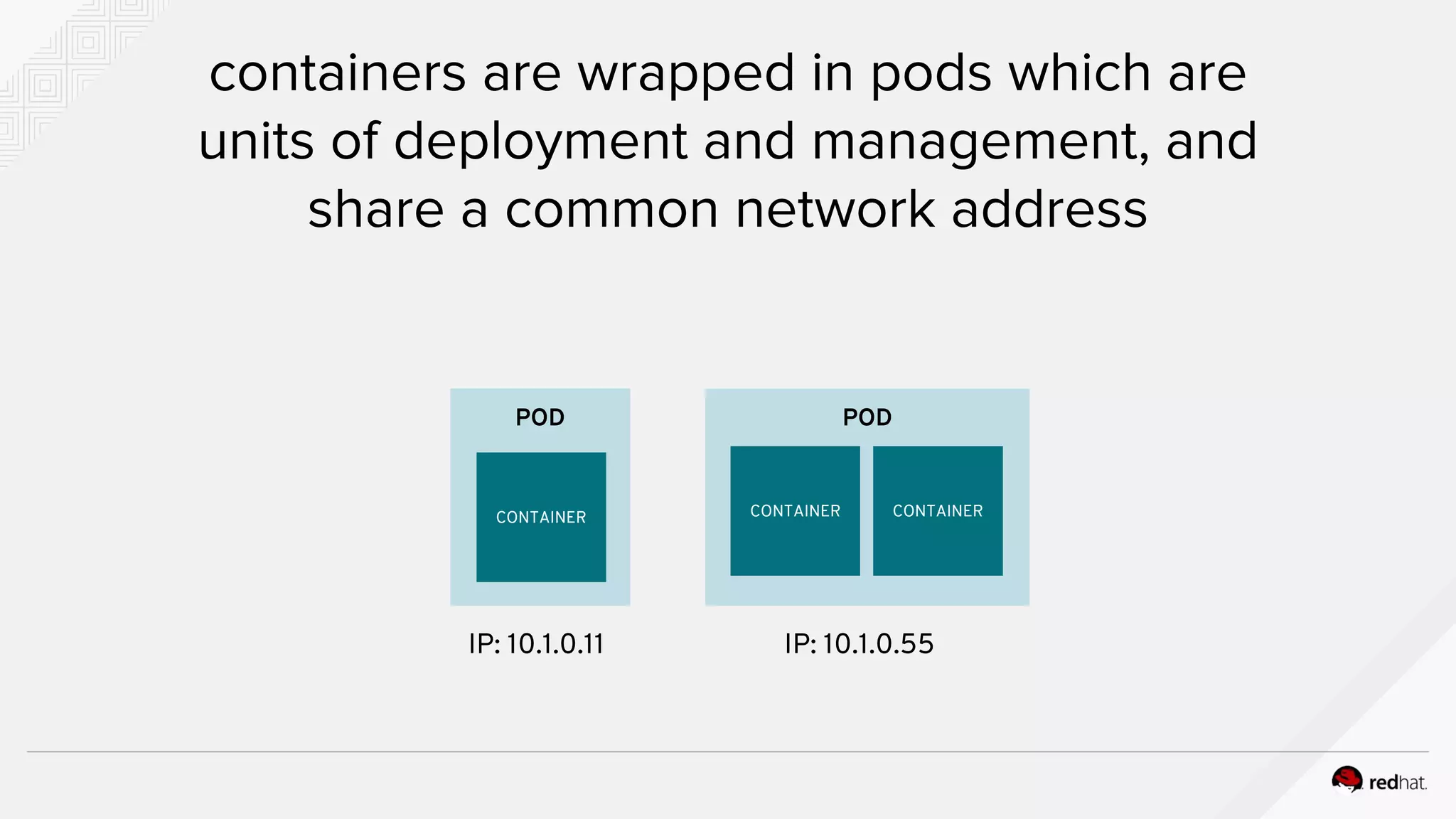

10. PODPOD
containers are wrapped in pods which are
units of deployment and management, and
share a common network address
CONTAINER CONTAINERCONTAINER
IP: 10.1.0.11 IP: 10.1.0.55

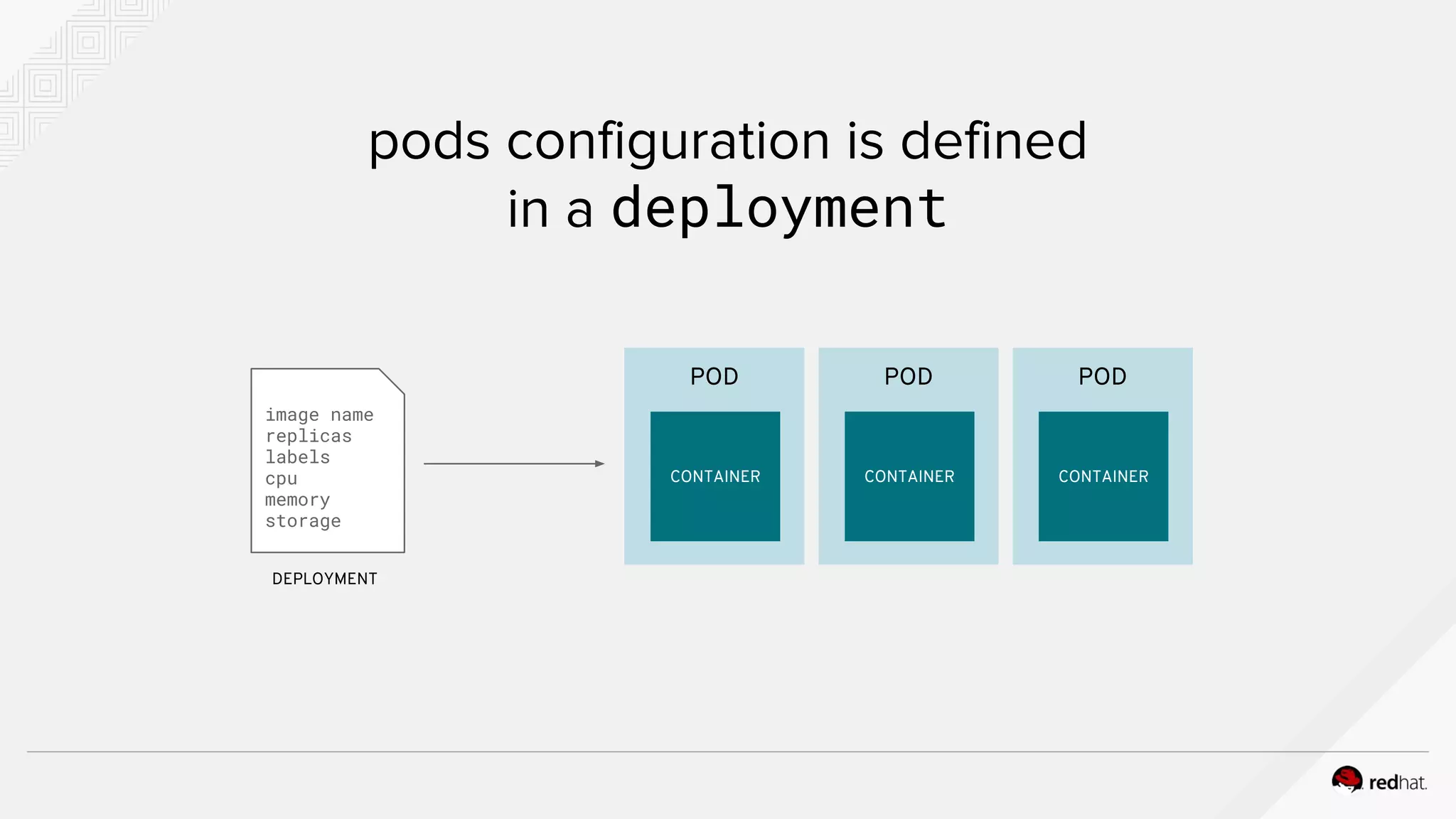

11. pods configuration is defined
in a deployment
image name
replicas
labels
cpu
memory
storage
POD
CONTAINER
POD
CONTAINER
POD
CONTAINER
DEPLOYMENT

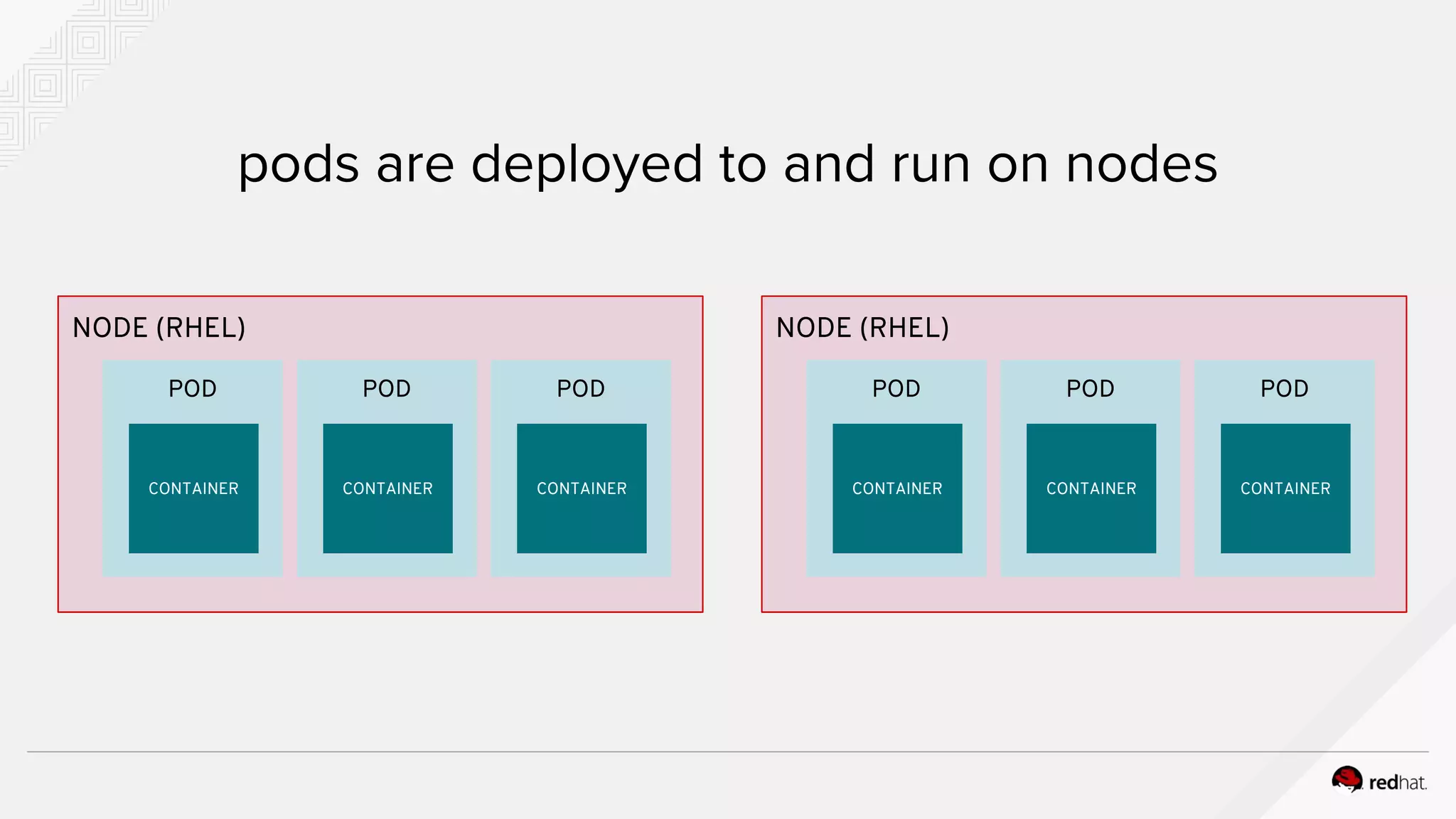

12. NODE (RHEL)
pods are deployed to and run on nodes
POD
CONTAINER
POD
CONTAINER
POD
CONTAINER
NODE (RHEL)
POD
CONTAINER
POD
CONTAINER
POD
CONTAINER

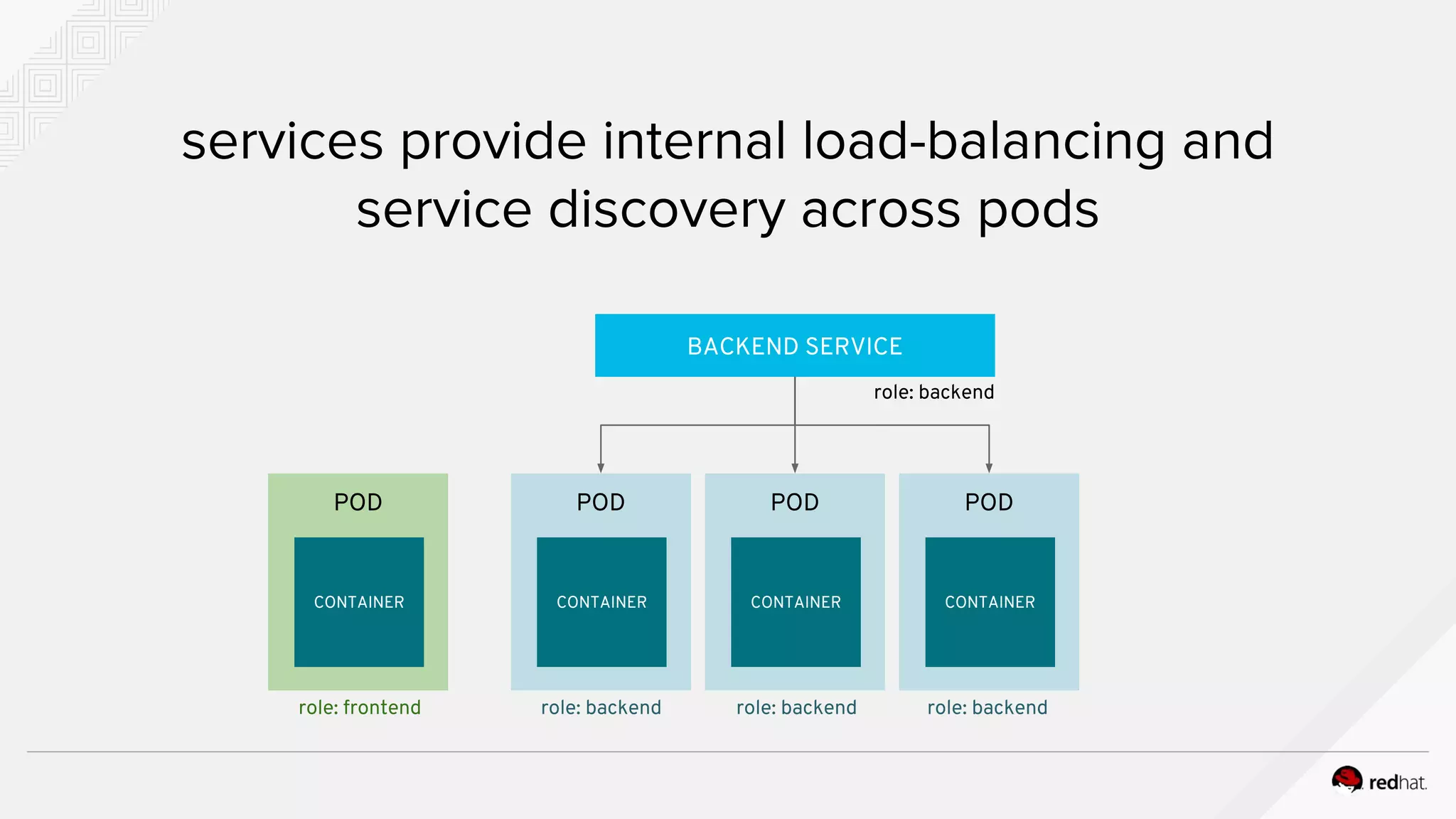

13. POD
services provide internal load-balancing and
service discovery across pods
CONTAINER
POD
CONTAINER
POD
CONTAINER
BACKEND SERVICE
POD
CONTAINER
role: backend
role: backendrole: backendrole: backendrole: frontend

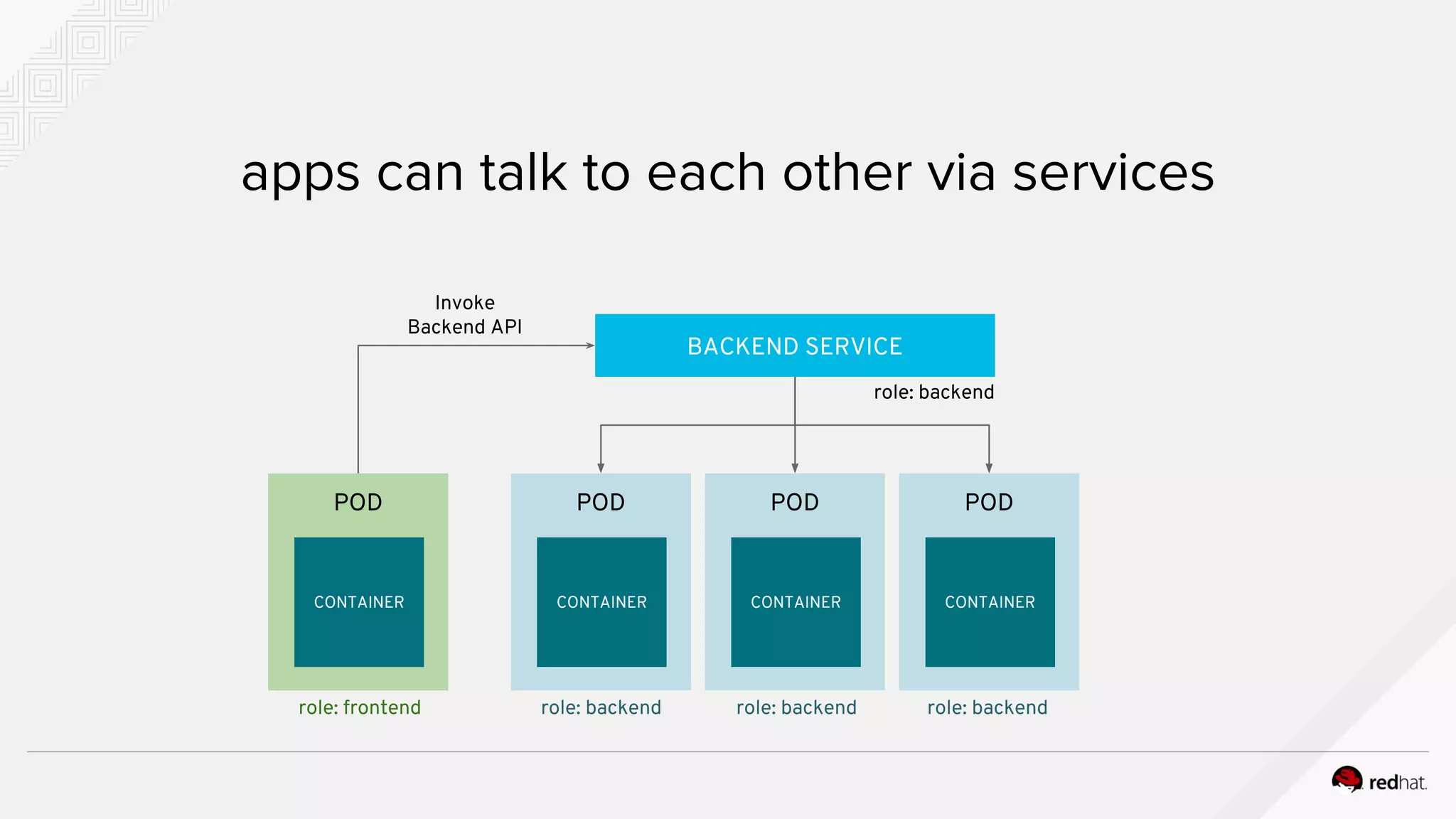

14. POD
apps can talk to each other via services
CONTAINER
POD
CONTAINER
POD
CONTAINER
BACKEND SERVICE
POD
CONTAINER
role: backend
role: backendrole: backendrole: backendrole: frontend
Invoke
Backend API

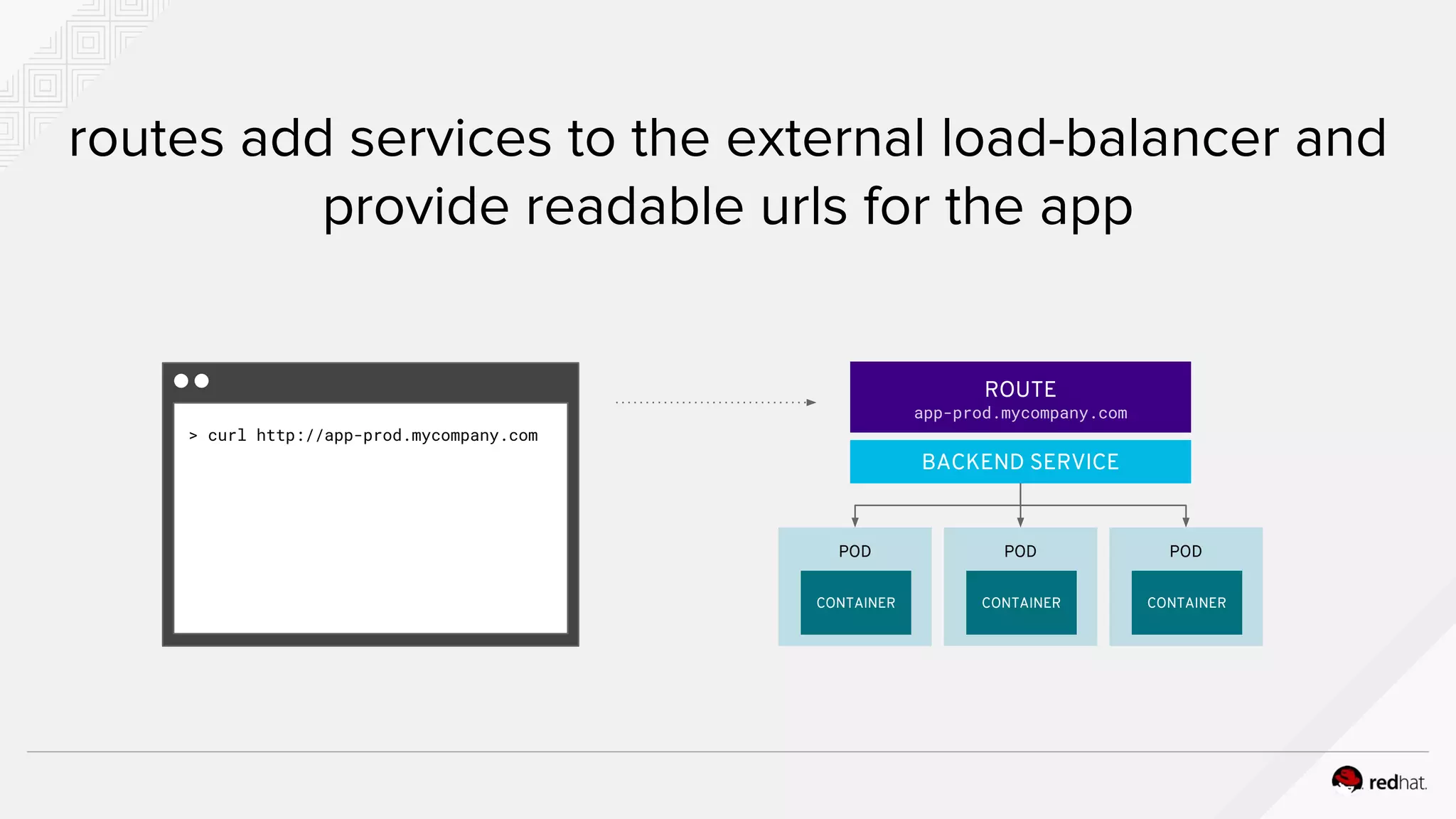

15. POD
routes add services to the external load-balancer and
provide readable urls for the app
CONTAINER
POD
CONTAINER
POD
CONTAINER
BACKEND SERVICE
ROUTE
app-prod.mycompany.com
> curl http://app-prod.mycompany.com

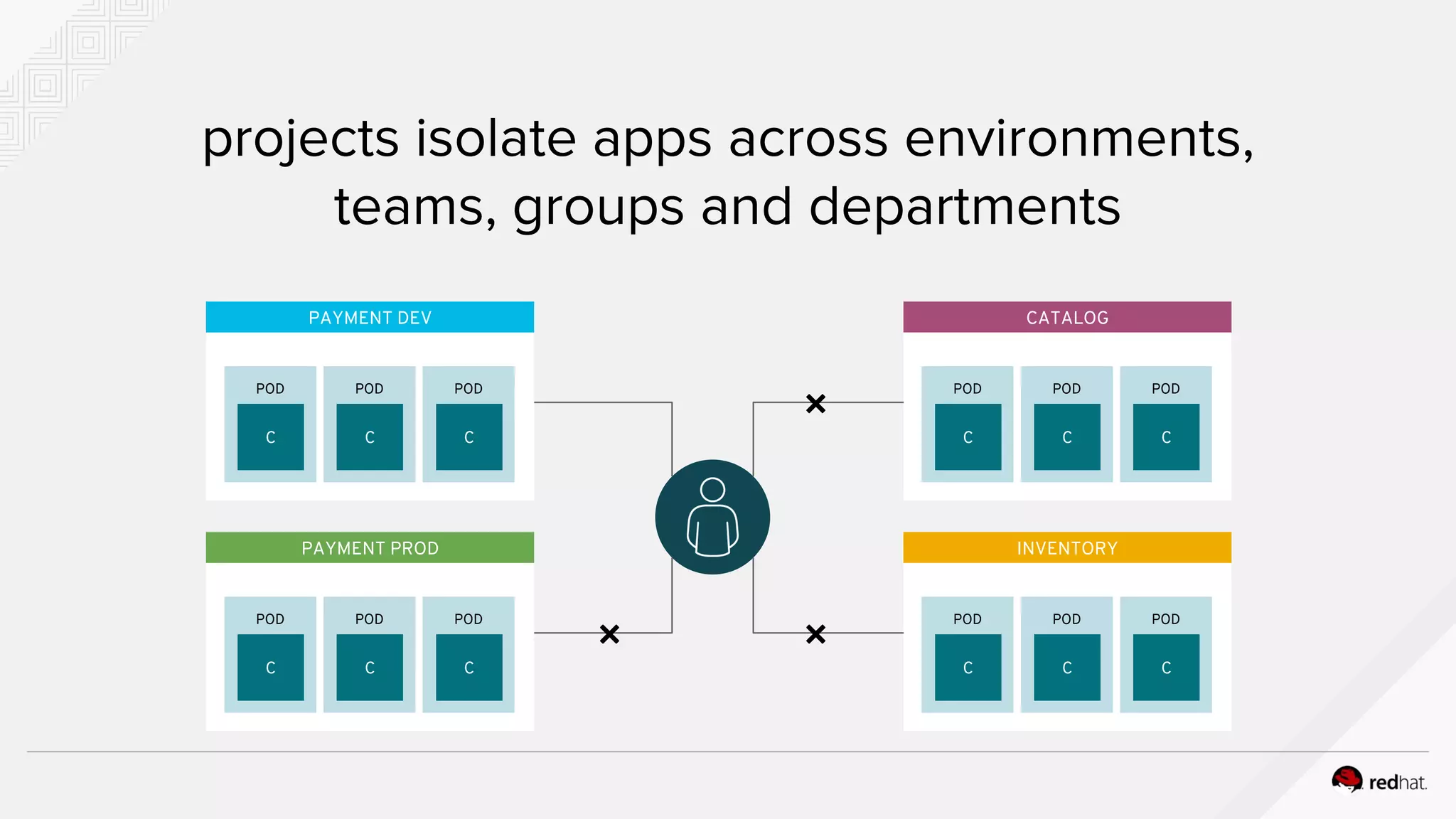

16. projects isolate apps across environments,
teams, groups and departments
POD
C
POD
C
POD
C
PAYMENT DEV
POD
C
POD
C
POD
C
PAYMENT PROD
POD
C
POD
C
POD
C
CATALOG
POD
C
POD
C
POD
C
INVENTORY
❌
❌❌

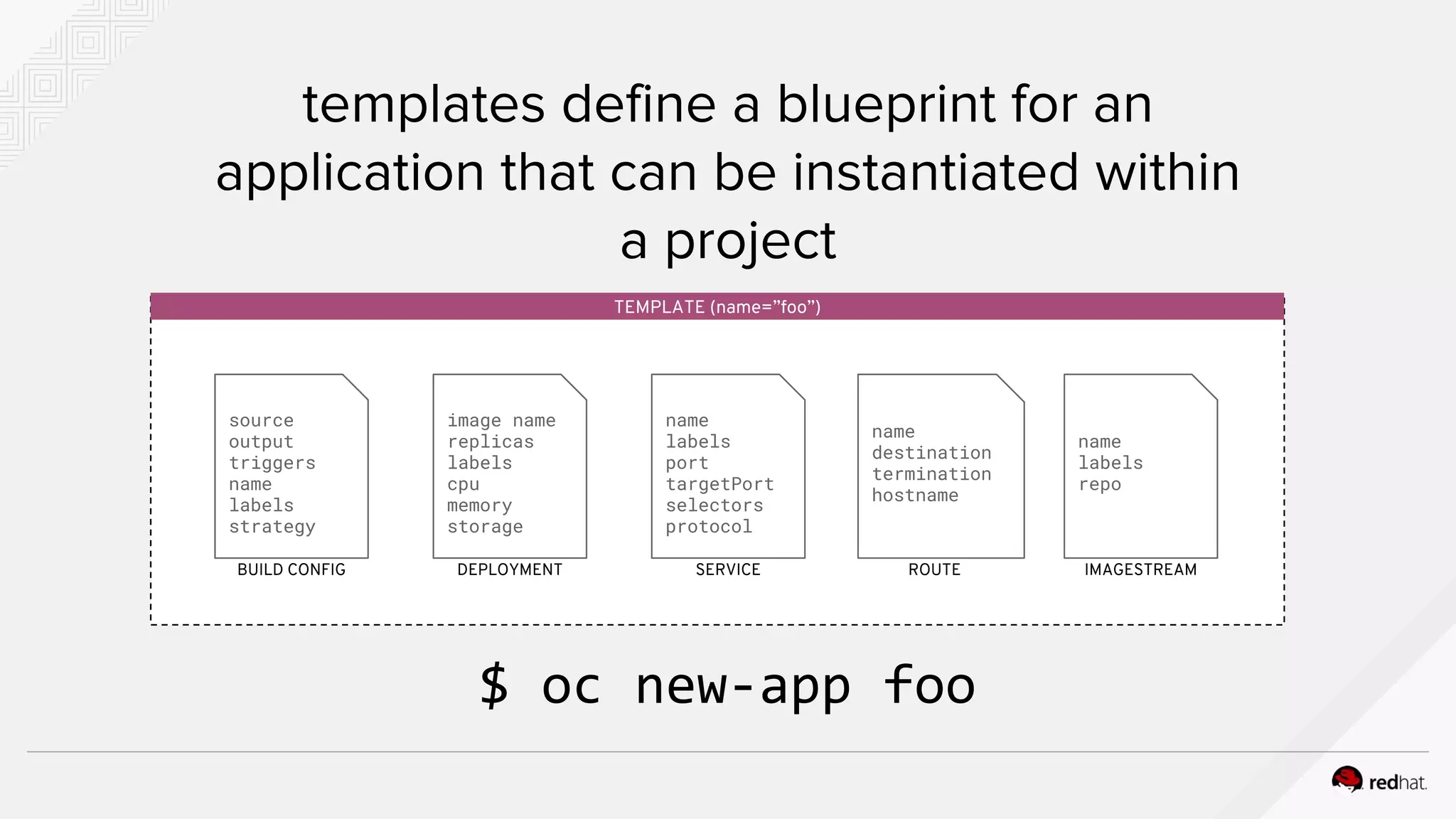

17. templates define a blueprint for an
application that can be instantiated within
a project
TEMPLATE (name=”foo”)
source
output
triggers
name
labels
strategy
BUILD CONFIG
image name
replicas
labels
cpu
memory
storage
DEPLOYMENT
name
labels
port
targetPort
selectors
protocol
SERVICE
name
destination
termination
hostname
ROUTE
name
labels
repo
IMAGESTREAM
$ oc new-app foo

18. LAB: DEVELOPER INTRODUCTION TO
OPENSHIFT

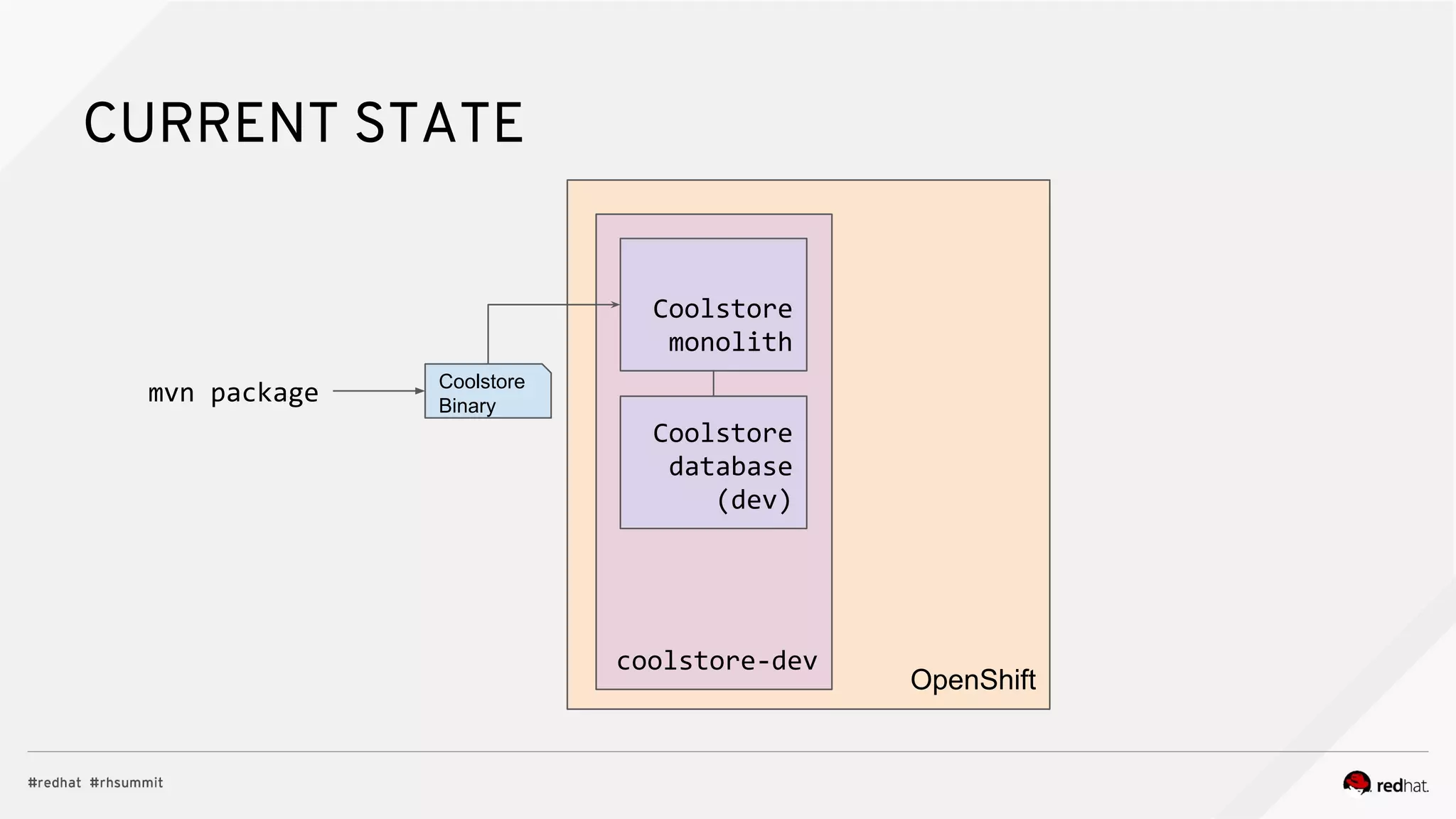

19. CURRENT STATE
OpenShift
coolstore-dev
Coolstore
monolith
Coolstore
database
(dev)
Coolstore
Binary
mvn package

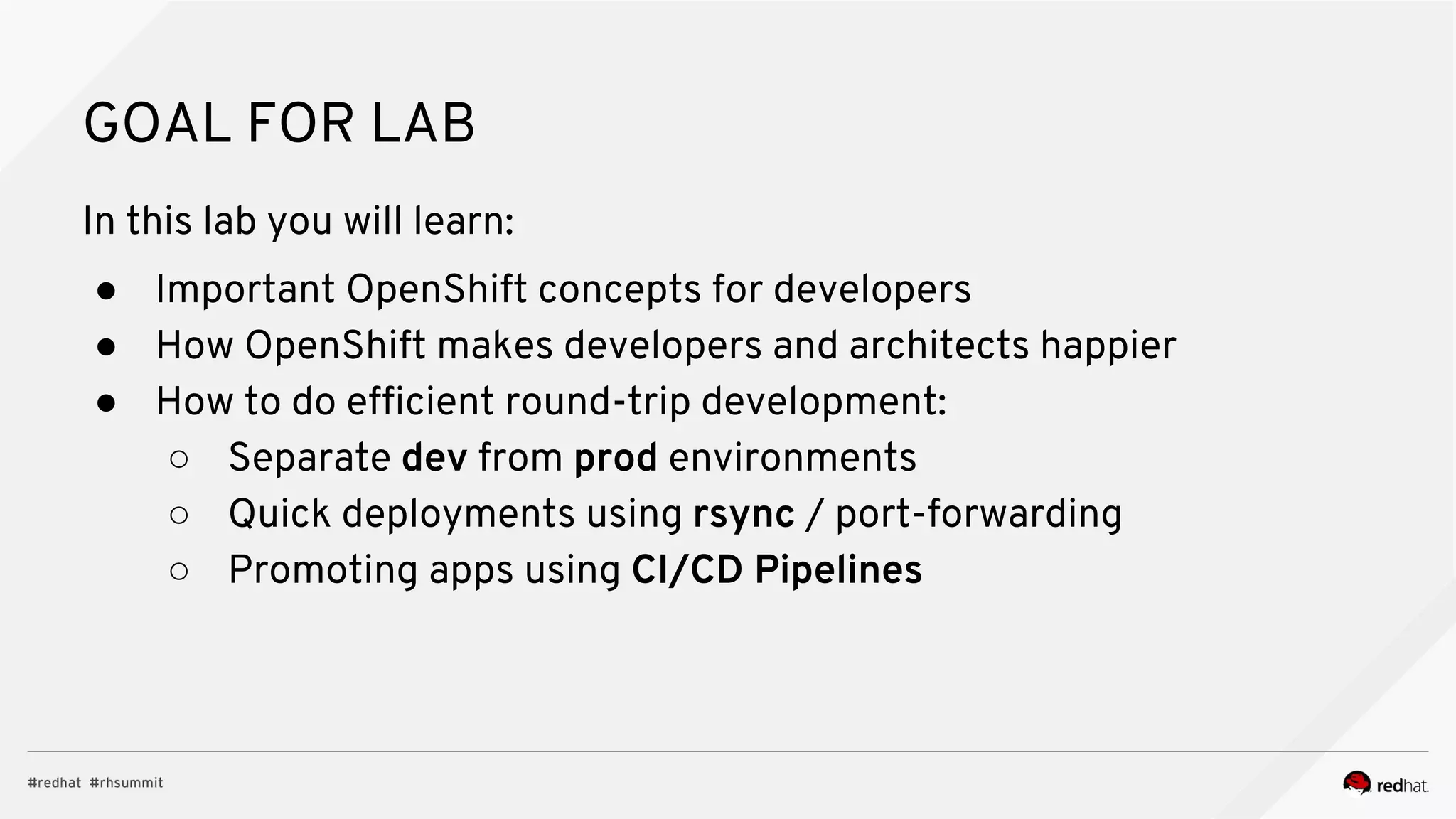

20. GOAL FOR LAB
In this lab you will learn:
● Important OpenShift concepts for developers
● How OpenShift makes developers and architects happier
● How to do efficient round-trip development:
○ Separate dev from prod environments
○ Quick deployments using rsync / port-forwarding
○ Promoting apps using CI/CD Pipelines

21. LAB: DEVELOPER INTRO TO OPENSHIFT
SCENARIO 3 A DEVELOPER INTRODUCTION TO OPENSHIFT
WEB: openshift-modernize-apps.katacoda.com

22. WRAP-UP AND DISCUSSION

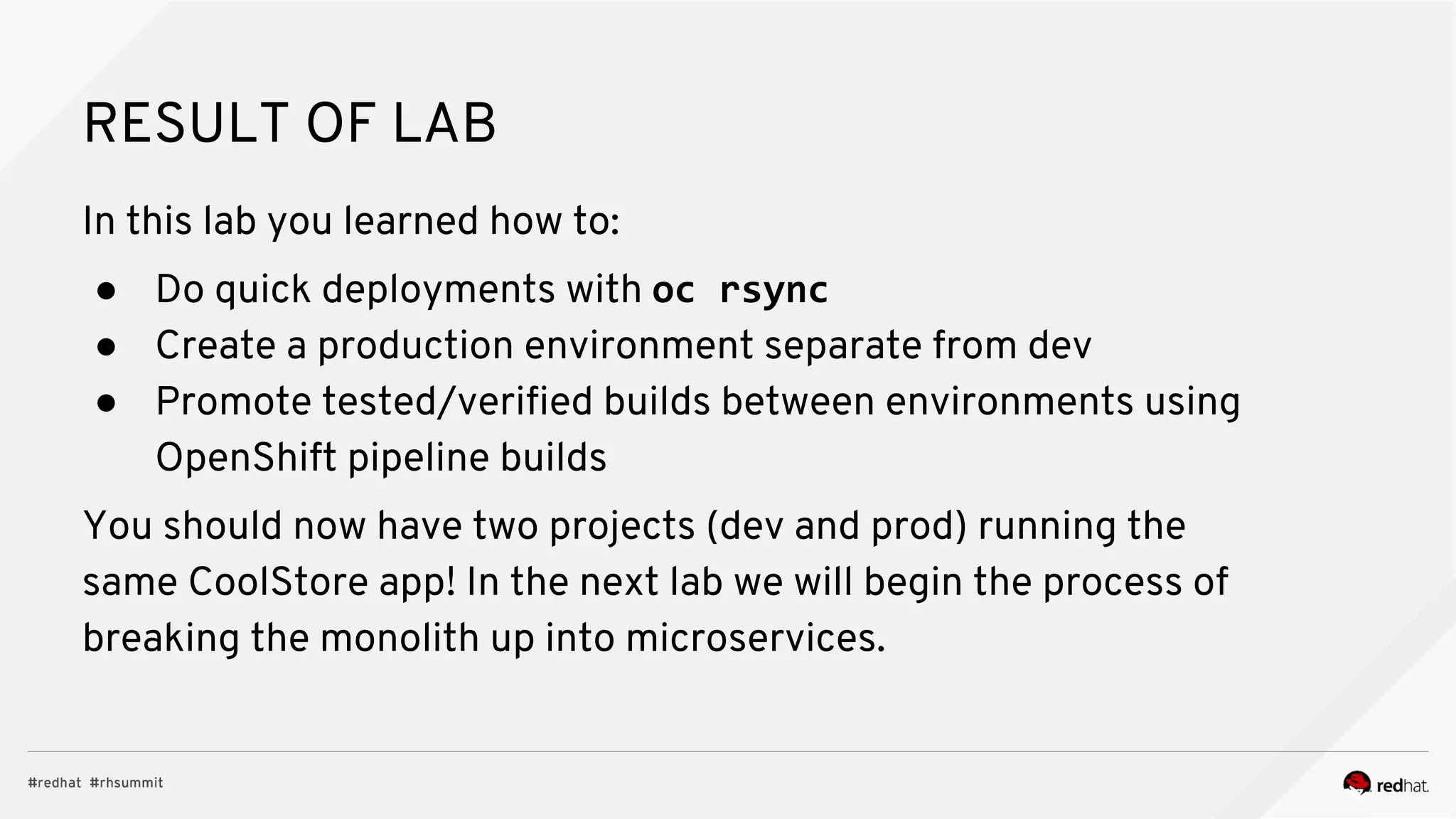

23. RESULT OF LAB
In this lab you learned how to:
● Do quick deployments with oc rsync
● Create a production environment separate from dev
● Promote tested/verified builds between environments using
OpenShift pipeline builds
You should now have two projects (dev and prod) running the
same CoolStore app! In the next lab we will begin the process of
breaking the monolith up into microservices.

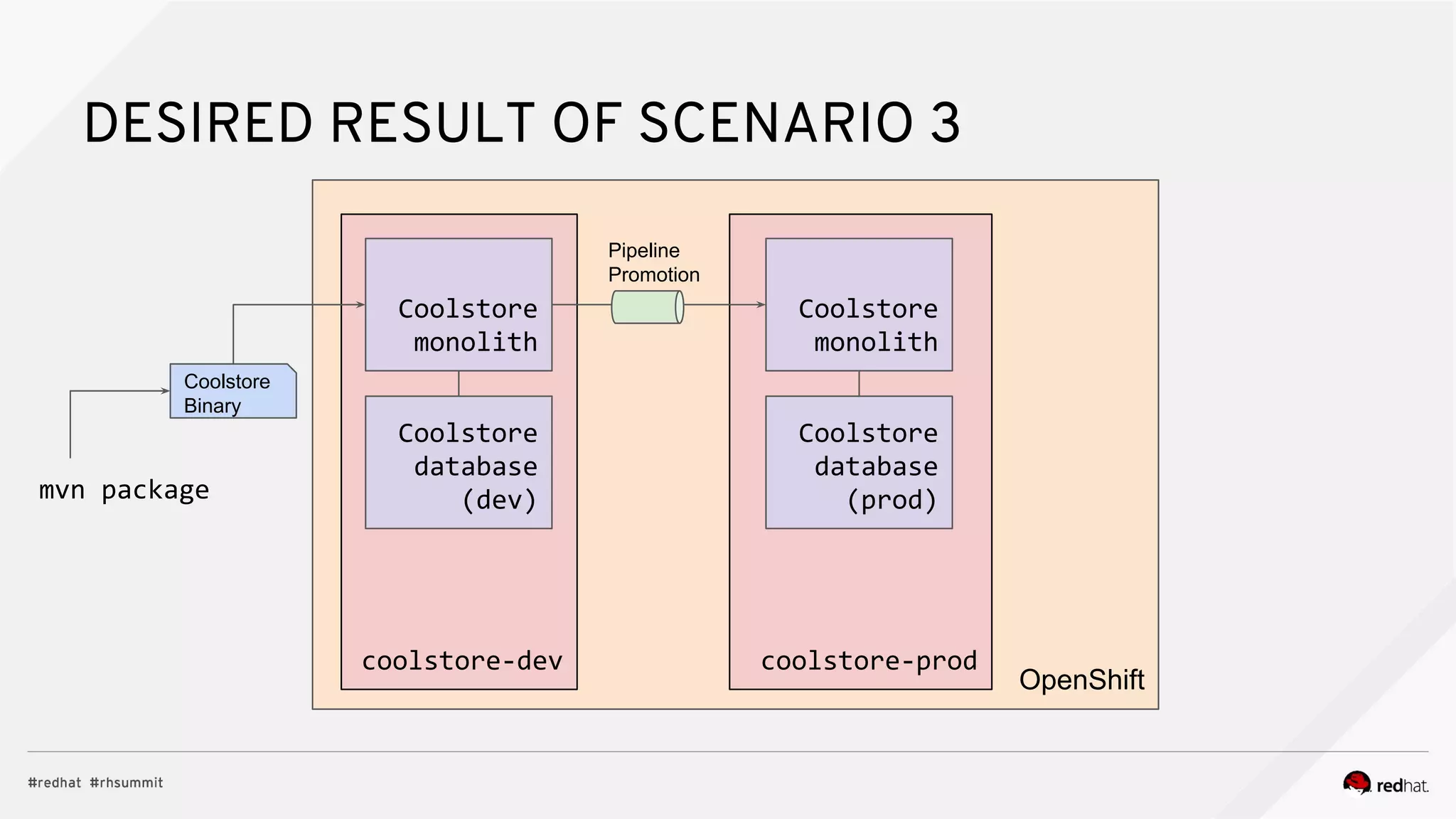

24. DESIRED RESULT OF SCENARIO 3
OpenShift
coolstore-dev
Coolstore
monolith
Coolstore
database
(dev)
Coolstore
Binary
coolstore-prod
Coolstore
monolith
Coolstore
database
(prod)
Pipeline
Promotion
mvn package

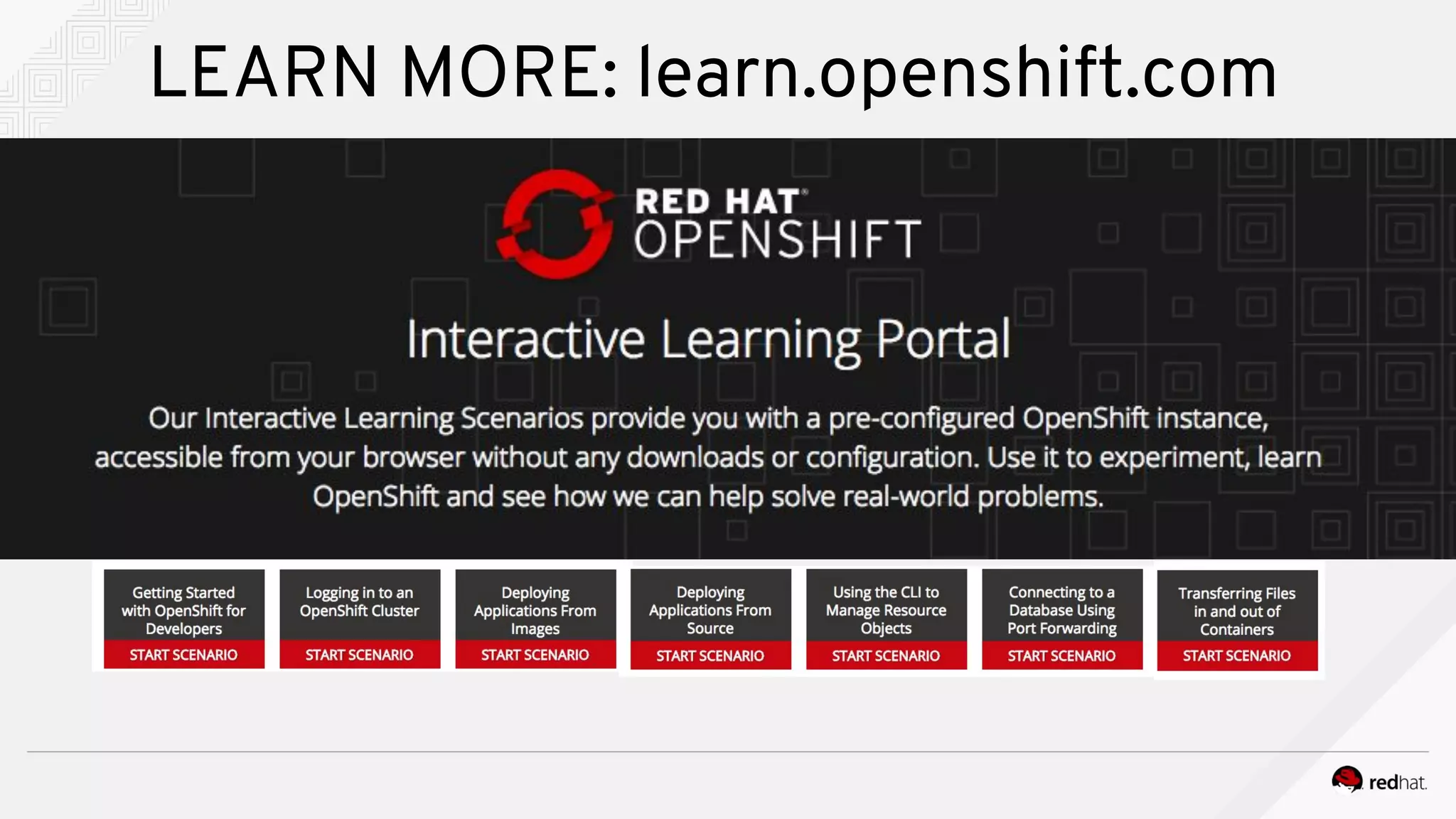

25. LEARN MORE: learn.openshift.com
