1. Open Network Automation Platform (ONAP) is combining the open source projects ECOMP and OPEN-O to create a unified architecture and implementation for automating networking and orchestration. 2. ONAP aims to provide an open source framework for the complete lifecycle management of virtualized software defined networks and services. 3. The goal is for ONAP to accelerate the delivery of new services, increase network programmability, and reduce costs through automation.

1. Introducing ONAP (Open Network Automation Platform)
Open Source ECOMP + OPEN-O joining forces
AUTOMATE | DESIGN | ORCHESTRATE | MANAGE SERVICES & VIRTUAL FUNCTIONS |
ONAP.ORG

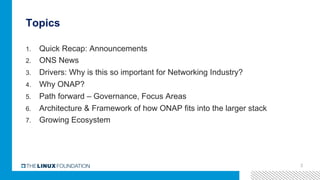

2. Topics
1. Quick Recap: Announcements
2. ONS News
3. Drivers: Why is this so important for Networking Industry?
4. Why ONAP?
5. Path forward – Governance, Focus Areas
6. Architecture & Framework of how ONAP fits into the larger stack
7. Growing Ecosystem
2

3. The Announcement @ MWC Feb 2017 & Coverage

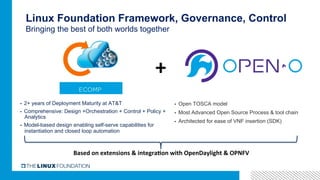

5. Linux Foundation Framework, Governance, Control
Bringing the best of both worlds together
▪ 2+ years of Deployment Maturity at AT&T
▪ Comprehensive: Design +Orchestration + Control + Policy +
Analytics
▪ Model-based design enabling self-serve capabilities for
instantiation and closed loop automation
+
▪ Open TOSCA model
▪ Most Advanced Open Source Process & tool chain
▪ Architected for ease of VNF insertion (SDK)
Based on extensions & integra0on with OpenDaylight & OPNFV

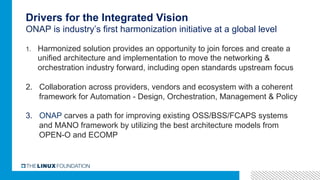

6. Drivers for the Integrated Vision
ONAP is industry’s first harmonization initiative at a global level
1. Harmonized solution provides an opportunity to join forces and create a
unified architecture and implementation to move the networking &
orchestration industry forward, including open standards upstream focus
2. Collaboration across providers, vendors and ecosystem with a coherent
framework for Automation - Design, Orchestration, Management & Policy
3. ONAP carves a path for improving existing OSS/BSS/FCAPS systems
and MANO framework by utilizing the best architecture models from
OPEN-O and ECOMP

7. Key Imperatives and Drivers for ONAP:
§ As We Move Towards Software Defined Networks and Virtualized Network Functions, We Need
a New Approach for Operational Management Framework to Realize the Following Objectives:
§ Increase Value of the Network:
‒ Rapidly on-board new services
‒ Facilitate new business & revenue models
‒ Make Network Programmable in real-time
§ Reduce Capex:
‒ Reduce / Eliminate dependency on development cycles
‒ Dynamically adjust capacity & Allocate Resource When / Where Needed
‒ Lower aggregated spare capacity
§ Reduce OpEx:
‒ Automated service delivery and activation with Zero Touch Flow Through
‒ Policy & Analytics-driven closed loop optimization
§ Open Network Automation Platform (ONAP) provide such a framework for complete lifecycle
management of Virtualized Software Defined Network and Services
7

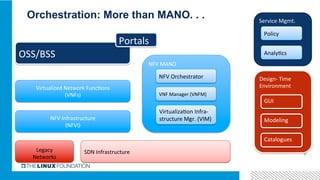

8. Orchestration: More than MANO. . .
8
NFV Infrastructure
(NFVI)
Virtualized Network Func9ons
(VNFs)
OSS/BSS
NFV MANO
NFV Orchestrator
VNF Manager (VNFM)
Virtualiza9on Infra-
structure Mgr. (VIM)
SDN Infrastructure
Design- Time
Environment
GUI
Modeling
Catalogues
Portals
Legacy
Networks
Service Mgmt.
Policy
Analy9cs

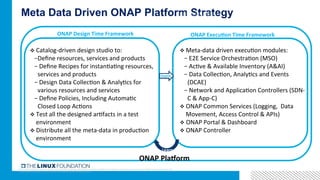

9. Meta Data Driven ONAP Platform Strategy
© 2017 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo, Mobilizing Your World and DIRECTV are registered trademarks and service marks of AT&T Intellectual Property and/
or AT&T affiliated companies. All other marks are the property of their respec9ve owners.
ONAP Design Time Framework
ONAP Pla@orm
v Catalog-driven design studio to:
− Define resources, services and products
− Define Recipes for instan9a9ng resources,
services and products
− Design Data Collec9on & Analy9cs for
various resources and services
− Define Policies, Including Automa9c
Closed Loop Ac9ons
v Test all the designed ar9facts in a test
environment
v Distribute all the meta-data in produc9on
environment
ONAP Execu0on Time Framework
v Meta-data driven execu9on modules:
− E2E Service Orchestra9on (MSO)
− Ac9ve & Available Inventory (A&AI)
− Data Collec9on, Analy9cs and Events
(DCAE)
− Network and Applica9on Controllers (SDN-
C & App-C)
v ONAP Common Services (Logging, Data
Movement, Access Control & APIs)
v ONAP Portal & Dashboard
v ONAP Controller
Deploy
Learn

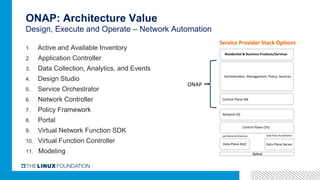

10. ONAP: Architecture Value
Design, Execute and Operate – Network Automation
1. Active and Available Inventory
2. Application Controller
3. Data Collection, Analytics, and Events
4. Design Studio
5. Service Orchestrator
6. Network Controller
7. Policy Framework
8. Portal
9. Virtual Network Function SDK
10. Virtual Function Controller
11. Modeling
Data Plane ASIC Data Plane Server
Data Plane Accelera9on
Control Plane CPU
Leaf Spine Architecture
Network OS
Control Plane SW
Orchestra9on, Management, Policy, Services
Residen0al & Business Products/Services
Service Provider Stack Op0ons
Op9cal
ONAP

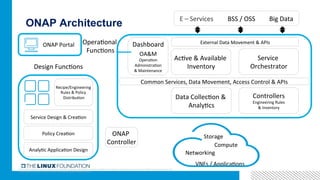

11. ONAP Architecture
Storage
Compute
VNFs / Applica9ons
Networking
ONAP Portal
Design Func9ons
Opera9onal
Func9ons
E – Services BSS / OSS Big Data
External Data Movement & APIs
Data Collec9on &
Analy9cs
Common Services, Data Movement, Access Control & APIs
Controllers
Engineering Rules
& Inventory
Service
Orchestrator
Ac9ve & Available
Inventory
Dashboard
OA&M
Opera9on
Administra9on
& Maintenance
ONAP
Controller
Recipe/Engineering
Rules & Policy
Distribu9on
Service Design & Crea9on
Analy9c Applica9on Design
Policy Crea9on
© 2017 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo, Mobilizing Your World and DIRECTV are registered trademarks and service marks of AT&T Intellectual Property and/
or AT&T affiliated companies. All other marks are the property of their respec9ve owners.

12. ONAP: The Business Value
Accelerate Services with Network Automation
Residen0al Services
Open Network
Automa0on Pla@orm
Enterprise Services Cloud Services
Open Source Ecosystem Value
1. Harmonized shared investment in
technology across Major Carriers globally
2. Neutral platform that will foster innovation
on top of SDN/NFV eg Services, Virtual
Functions, 5G Apps, IOT ecosystem
End User Value
1. Faster Services on Demand including 4G,
5G & Business/Enterprise solutions
2. Elimination of manual steps/errors/time
3. Design, Agility & Automation enabler for 5G
Data
Centers
Carrier
Network
Cloud
Network
At Incep9on, ONAP enables up to 40% of Global Subscribers

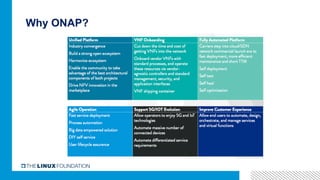

13. Why ONAP?

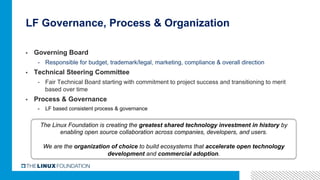

14. LF Governance, Process & Organization
▪ Governing Board
- Responsible for budget, trademark/legal, marketing, compliance & overall direction
▪ Technical Steering Committee
- Fair Technical Board starting with commitment to project success and transitioning to merit
based over time
▪ Process & Governance
- LF based consistent process & governance
The Linux Foundation is creating the greatest shared technology investment in history by
enabling open source collaboration across companies, developers, and users.
We are the organization of choice to build ecosystems that accelerate open technology
development and commercial adoption.

15. A Growing Ecosystem – ONAP members

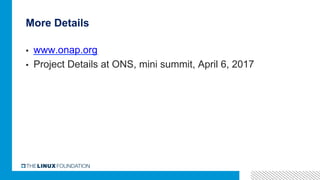

16. More Details
▪ www.onap.org
▪ Project Details at ONS, mini summit, April 6, 2017

17. Q&A
