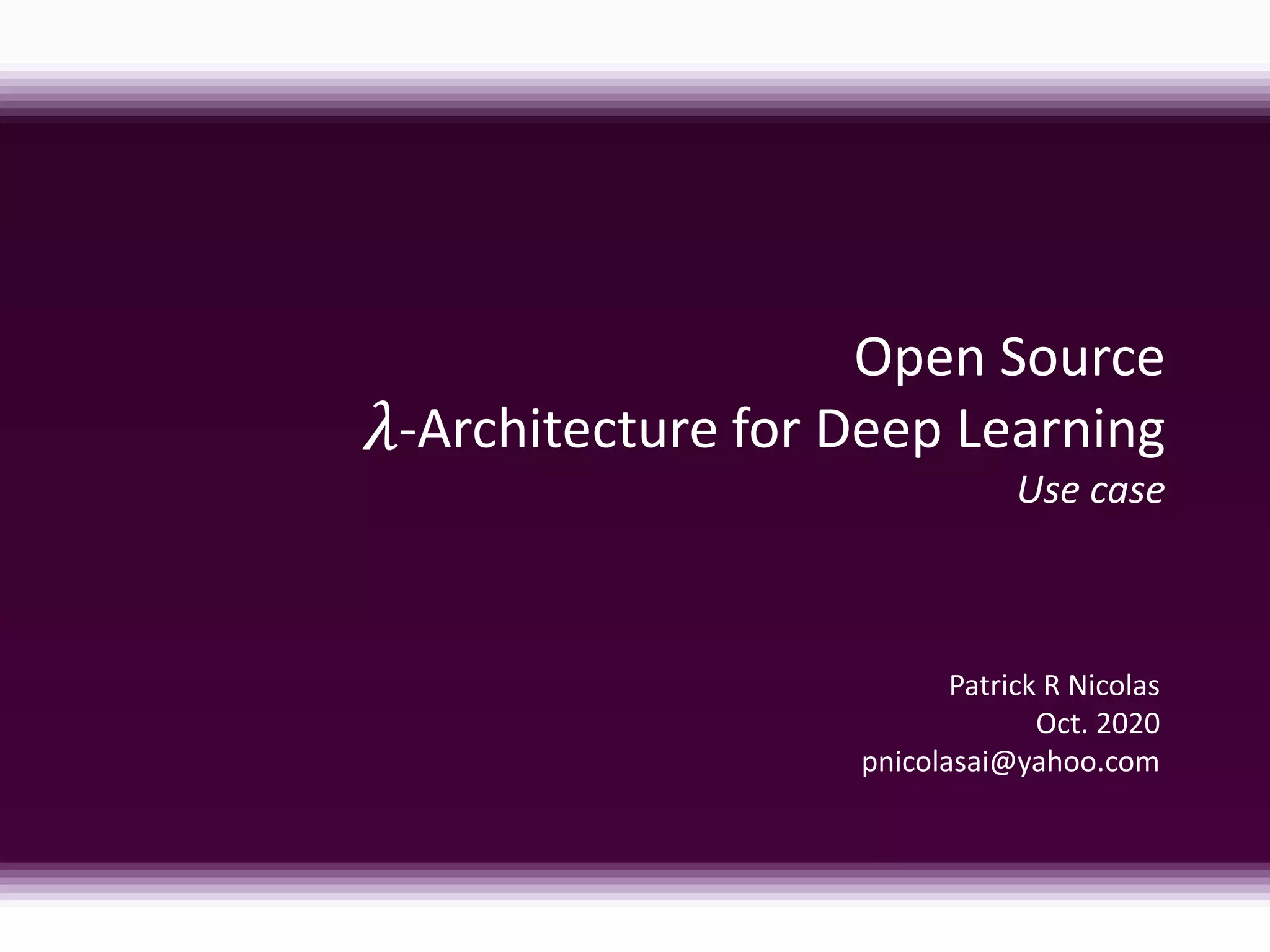

Open Source Lambda Architecture for deep learning

𝜆
Open Source
-Architecture for Deep Learning
Use case
Patrick R Nicolas
Oct. 2020
pnicolasai@yahoo.com

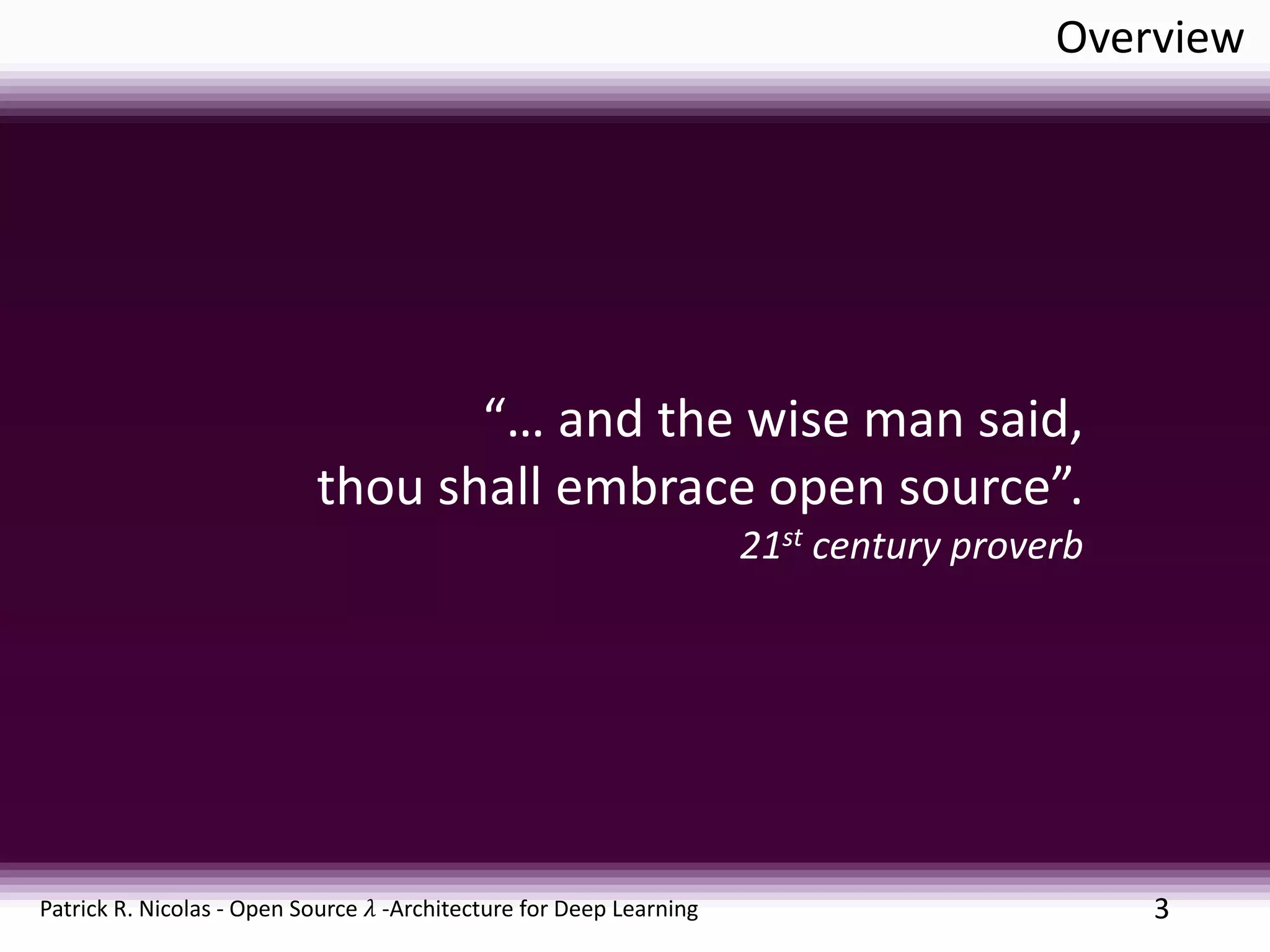

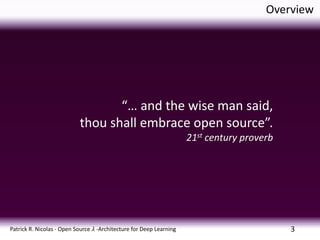

Overview
3
“… and the wise man said,
thou shall embrace open source”.
21st century proverb
Patrick R. Nicolas - Open Source 𝜆 -Architecture for Deep Learning

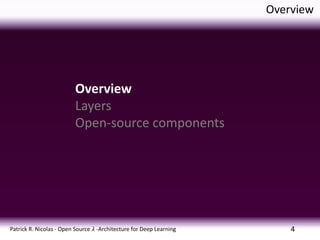

Overview
4

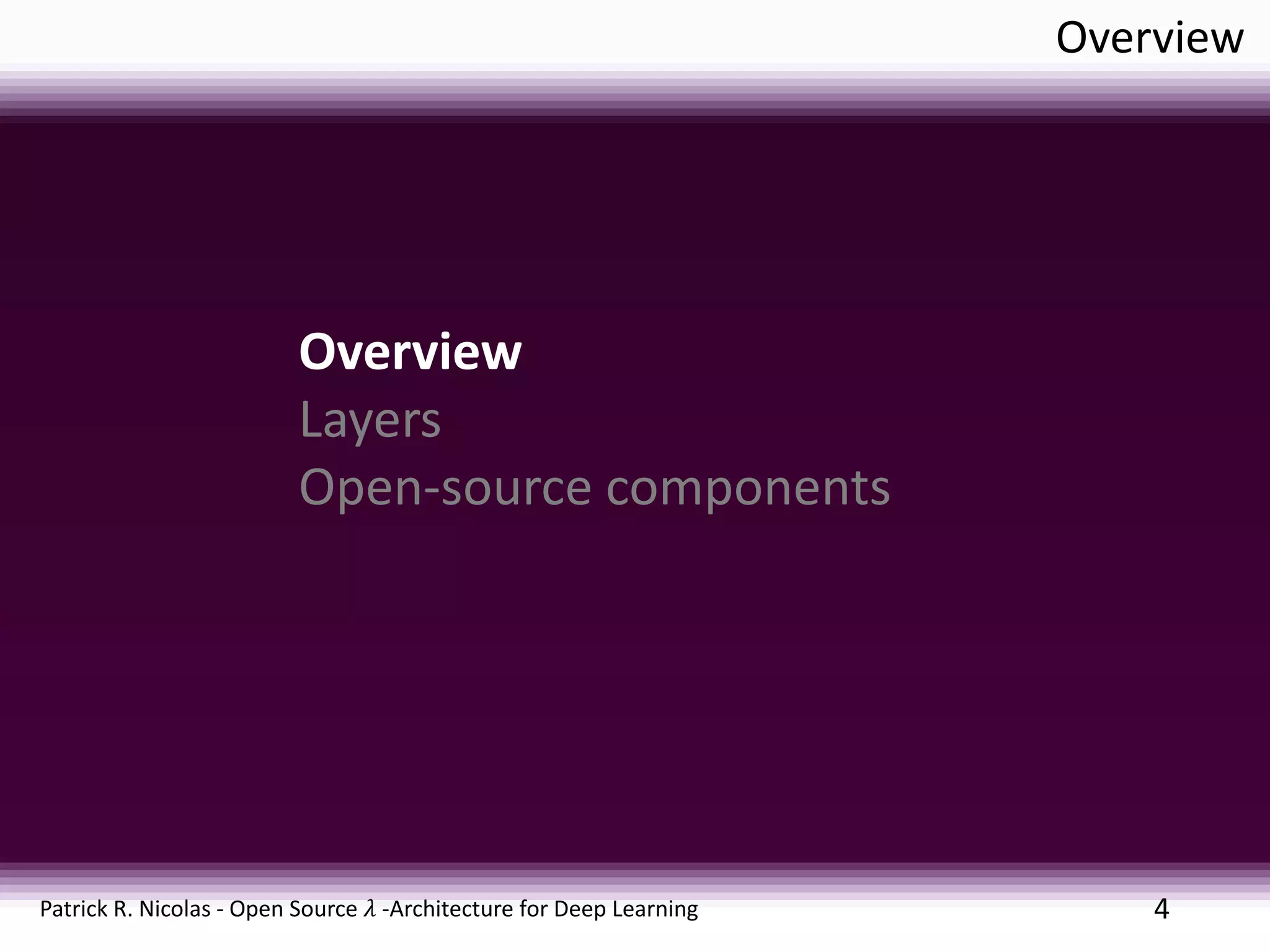

Overview
Layers
Open-source components

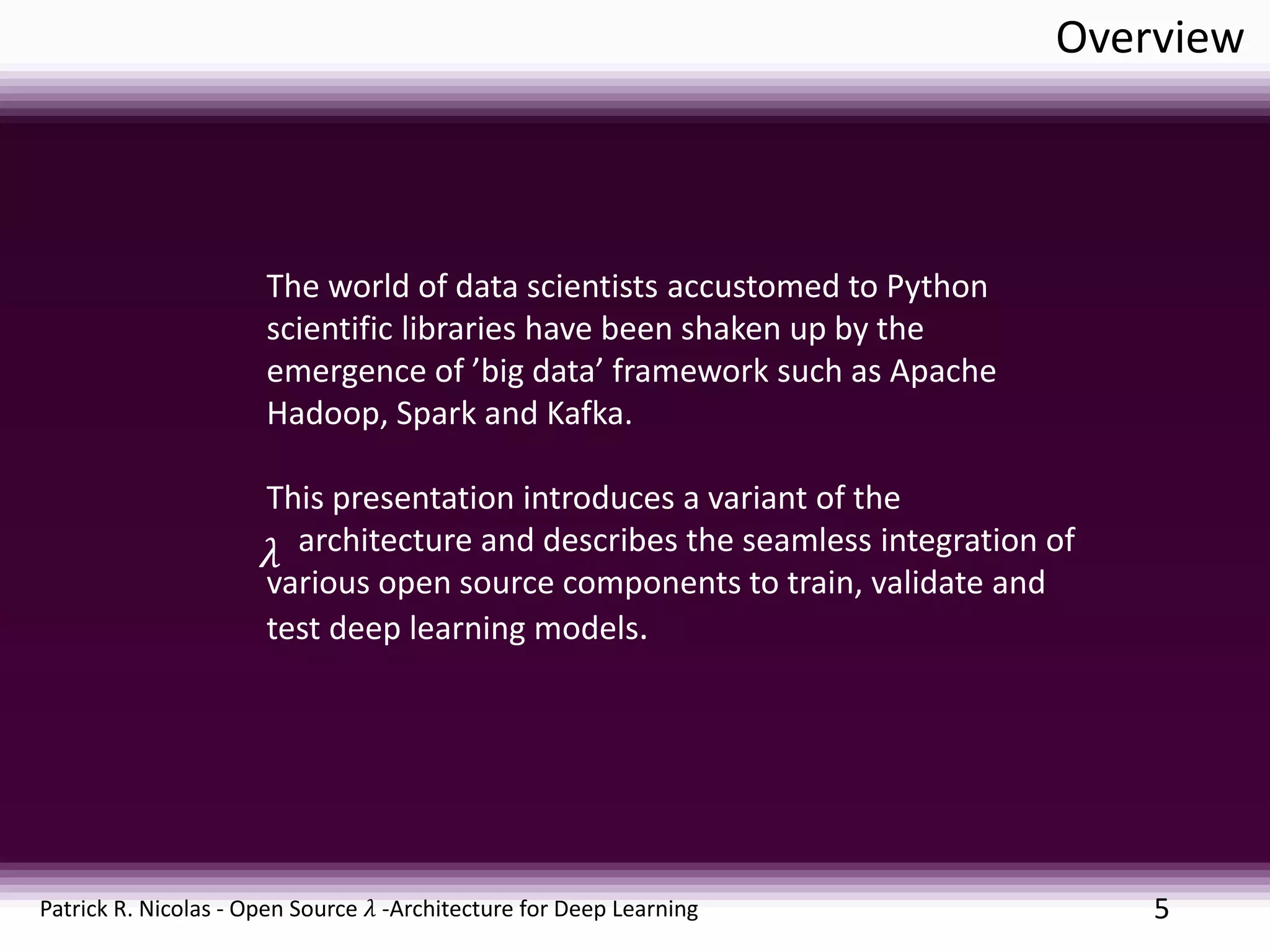

Overview
5
The world of data scientists accustomed to Python
scientific libraries have been shaken up by the
emergence of ’big data’ framework such as Apache
Hadoop, Spark and Kafka.
This presentation introduces a variant of the
architecture and describes the seamless integration of
various open source components to train, validate and
test deep learning models.
𝜆

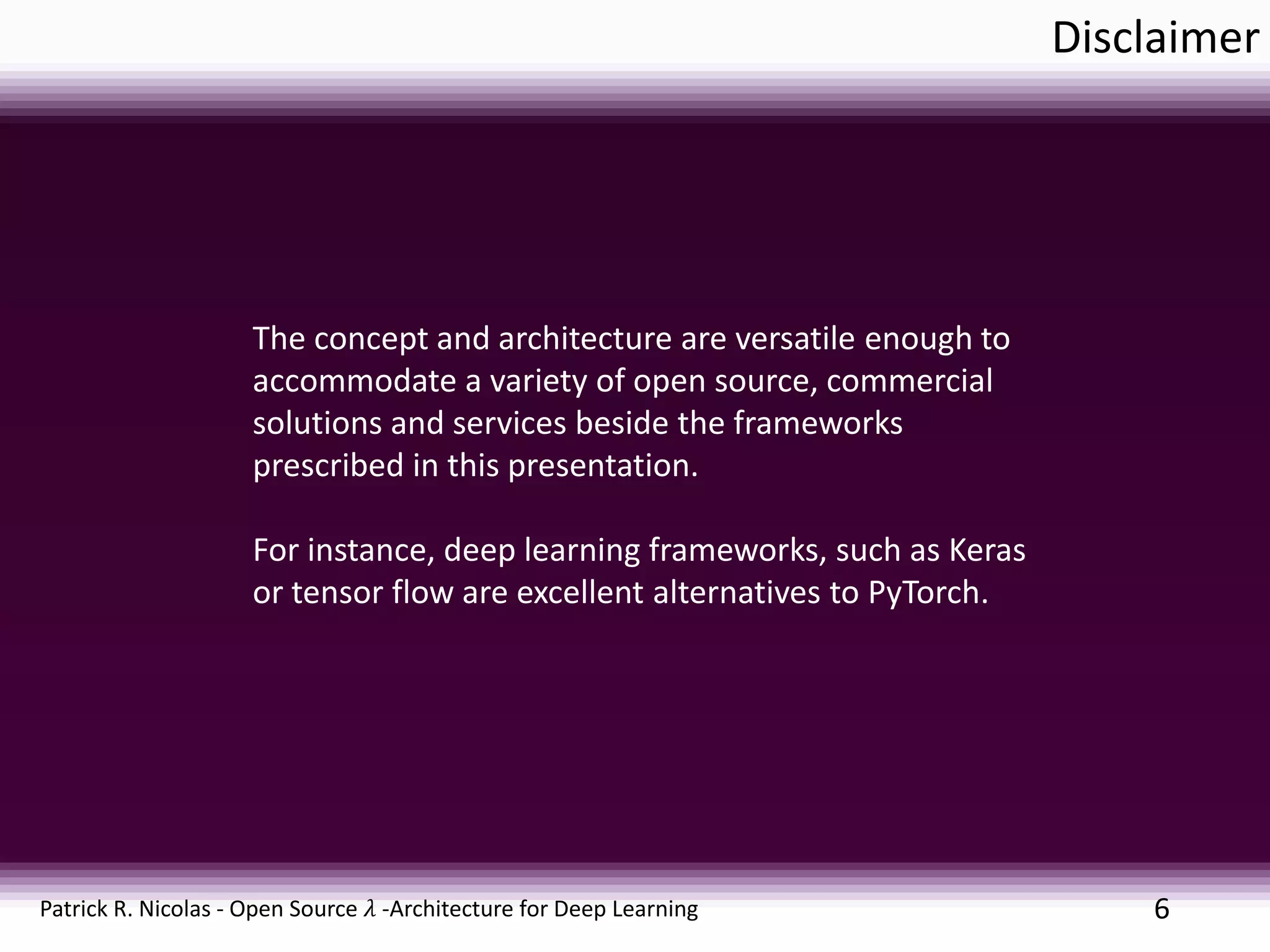

Disclaimer
6
The concept and architecture are versatile enough to
accommodate a variety of open source, commercial
solutions and services beside the frameworks
prescribed in this presentation.
For instance, deep learning frameworks, such as Keras
or tensor flow are excellent alternatives to PyTorch.

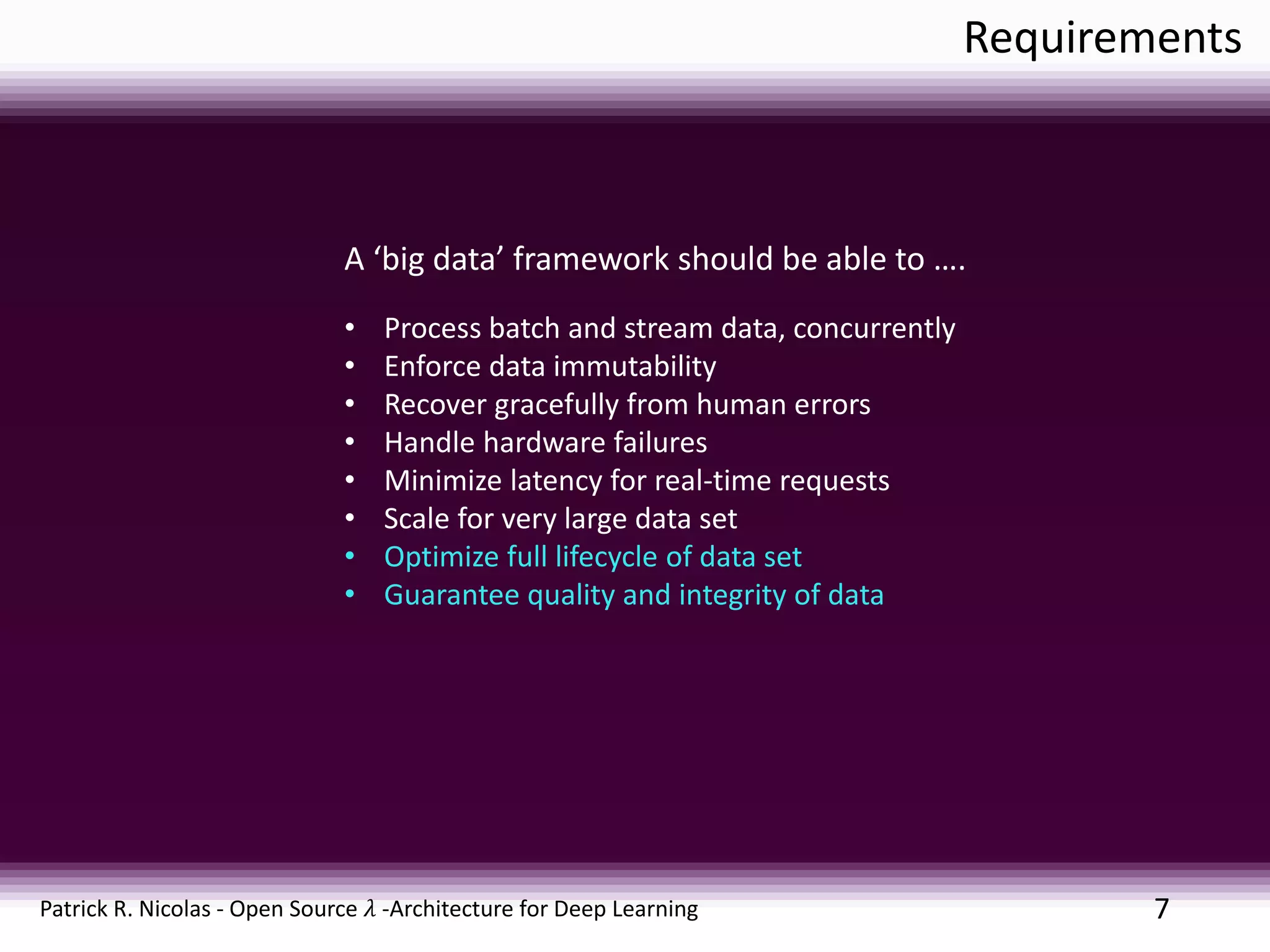

Requirements
7
• Process batch and stream data, concurrently
• Enforce data immutability
• Recover gracefully from human errors
• Handle hardware failures
• Minimize latency for real-time requests
• Scale for very large data set
• Optimize full lifecycle of data set
• Guarantee quality and integrity of data
A ‘big data’ framework should be able to ….

Optimizing data life cycle
8

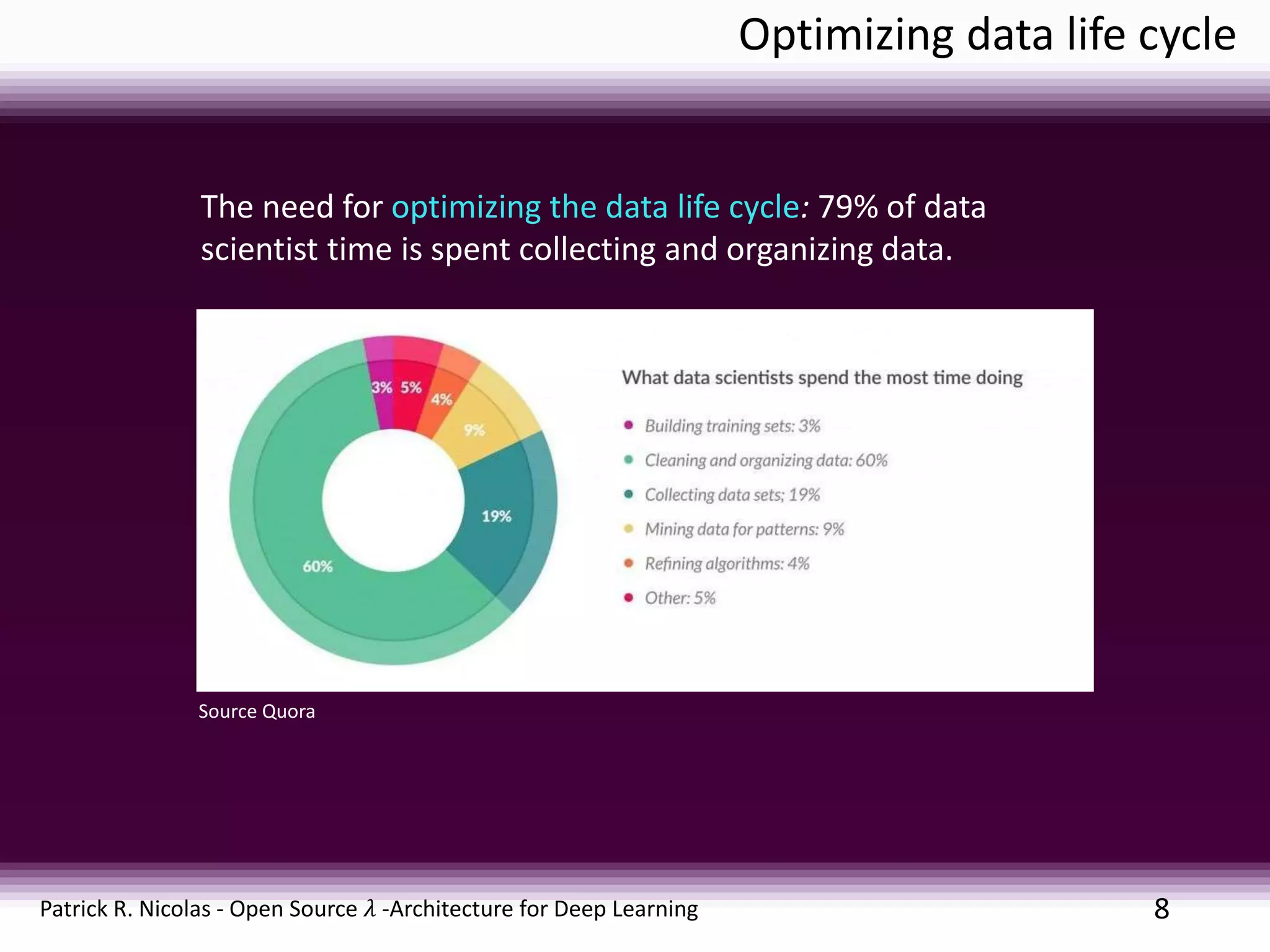

The need for optimizing the data life cycle: 79% of data
scientist time is spent collecting and organizing data.
Source Quora

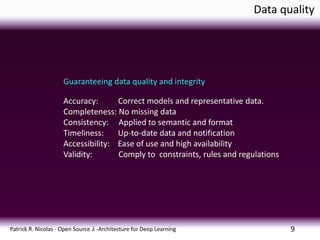

Data quality
9
Accuracy: Correct models and representative data.
Completeness: No missing data
Consistency: Applied to semantic and format
Timeliness: Up-to-date data and notification
Accessibility: Ease of use and high availability
Validity: Comply to constraints, rules and regulations
Guaranteeing data quality and integrity

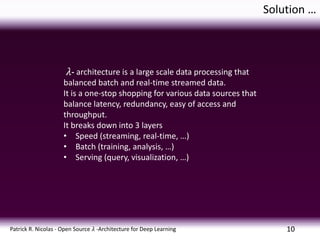

Solution …
10
- architecture is a large scale data processing that
balanced batch and real-time streamed data.
It is a one-stop shopping for various data sources that
balance latency, redundancy, easy of access and
throughput.
It breaks down into 3 layers
• Speed (streaming, real-time, …)
• Batch (training, analysis, …)
• Serving (query, visualization, …)
𝜆

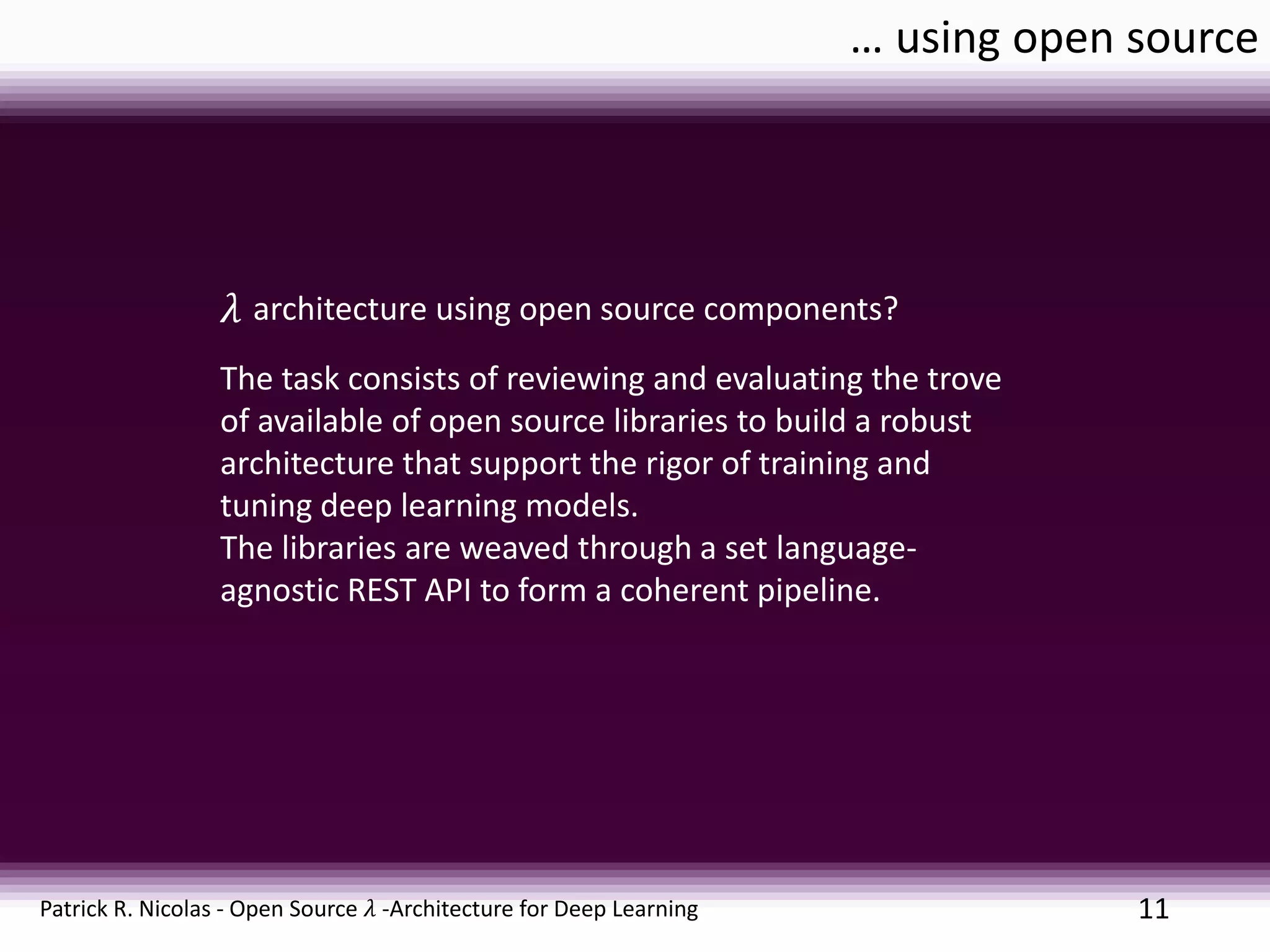

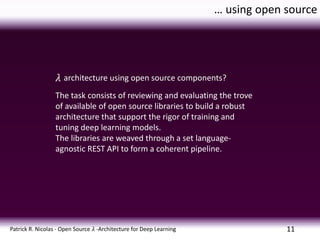

… using open source
11
architecture using open source components?
𝜆
The task consists of reviewing and evaluating the trove
of available of open source libraries to build a robust
architecture that support the rigor of training and
tuning deep learning models.
The libraries are weaved through a set language-
agnostic REST API to form a coherent pipeline.

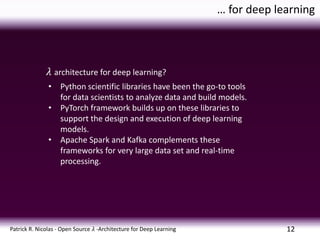

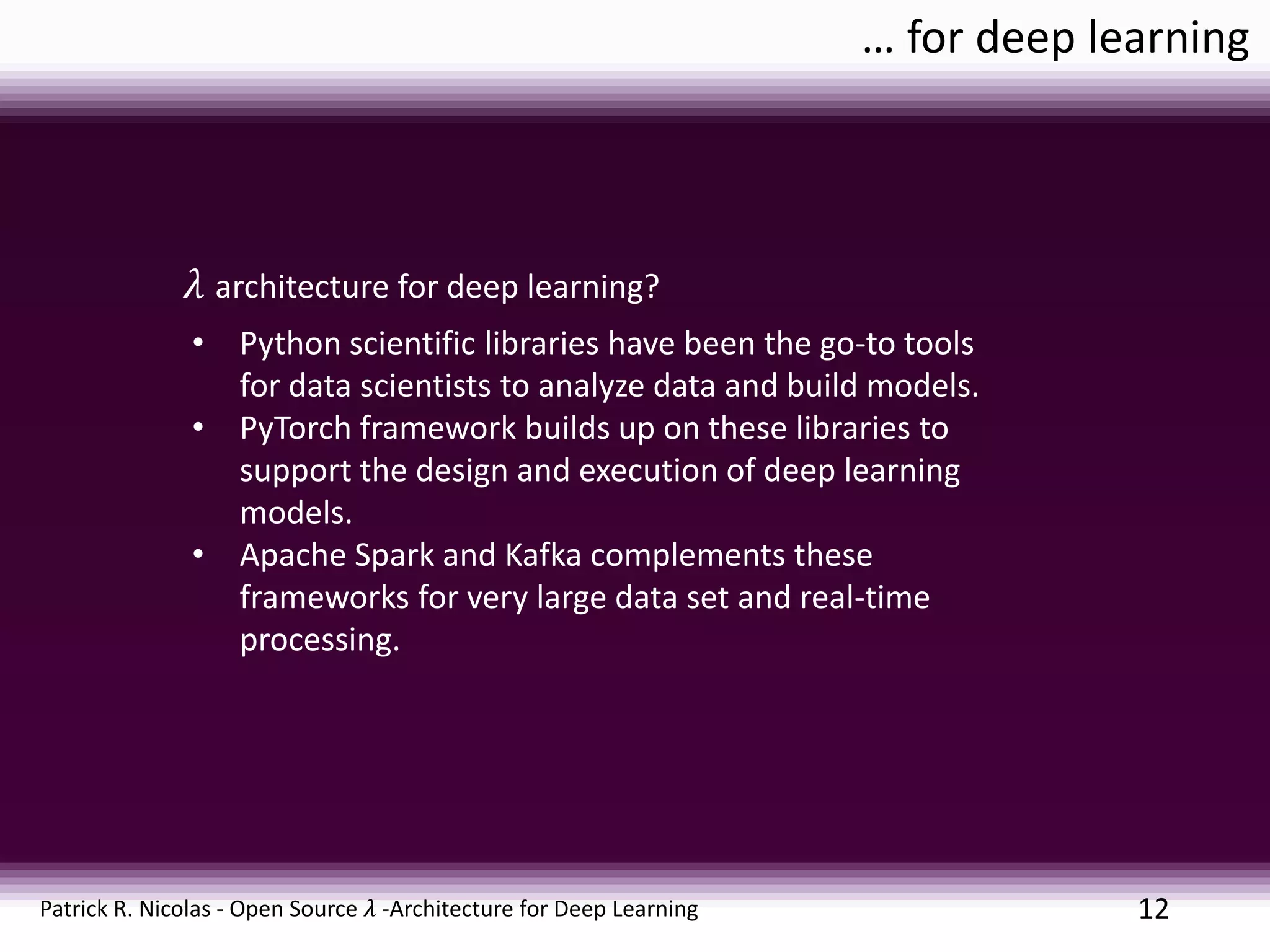

… for deep learning
12
• Python scientific libraries have been the go-to tools
for data scientists to analyze data and build models.
• PyTorch framework builds up on these libraries to
support the design and execution of deep learning
models.
• Apache Spark and Kafka complements these
frameworks for very large data set and real-time
processing.
architecture for deep learning?
𝜆

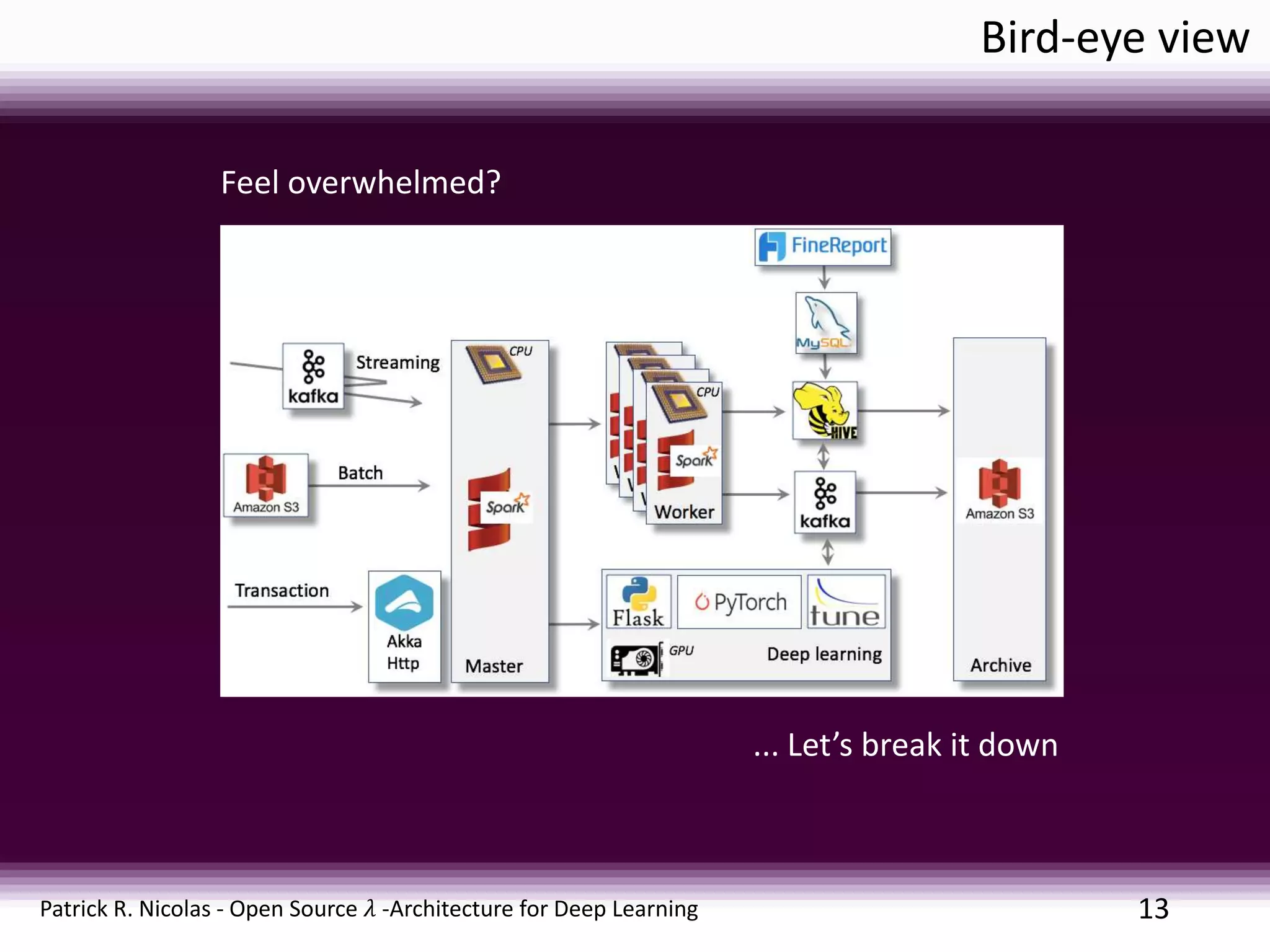

Bird-eye view
13
Feel overwhelmed?
... Let’s break it down
Example open source
𝜆 architecture

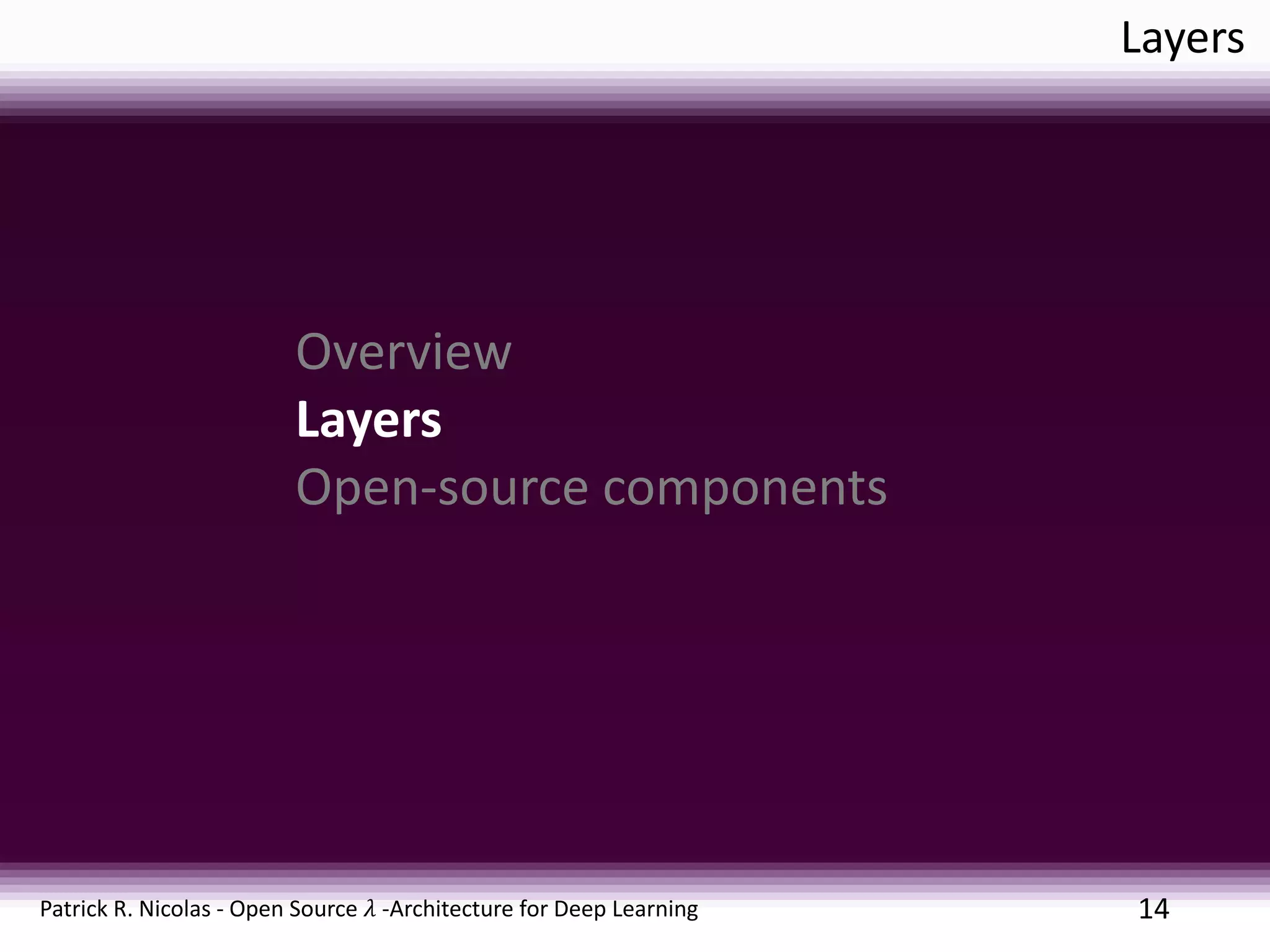

Layers
14
Overview
Layers

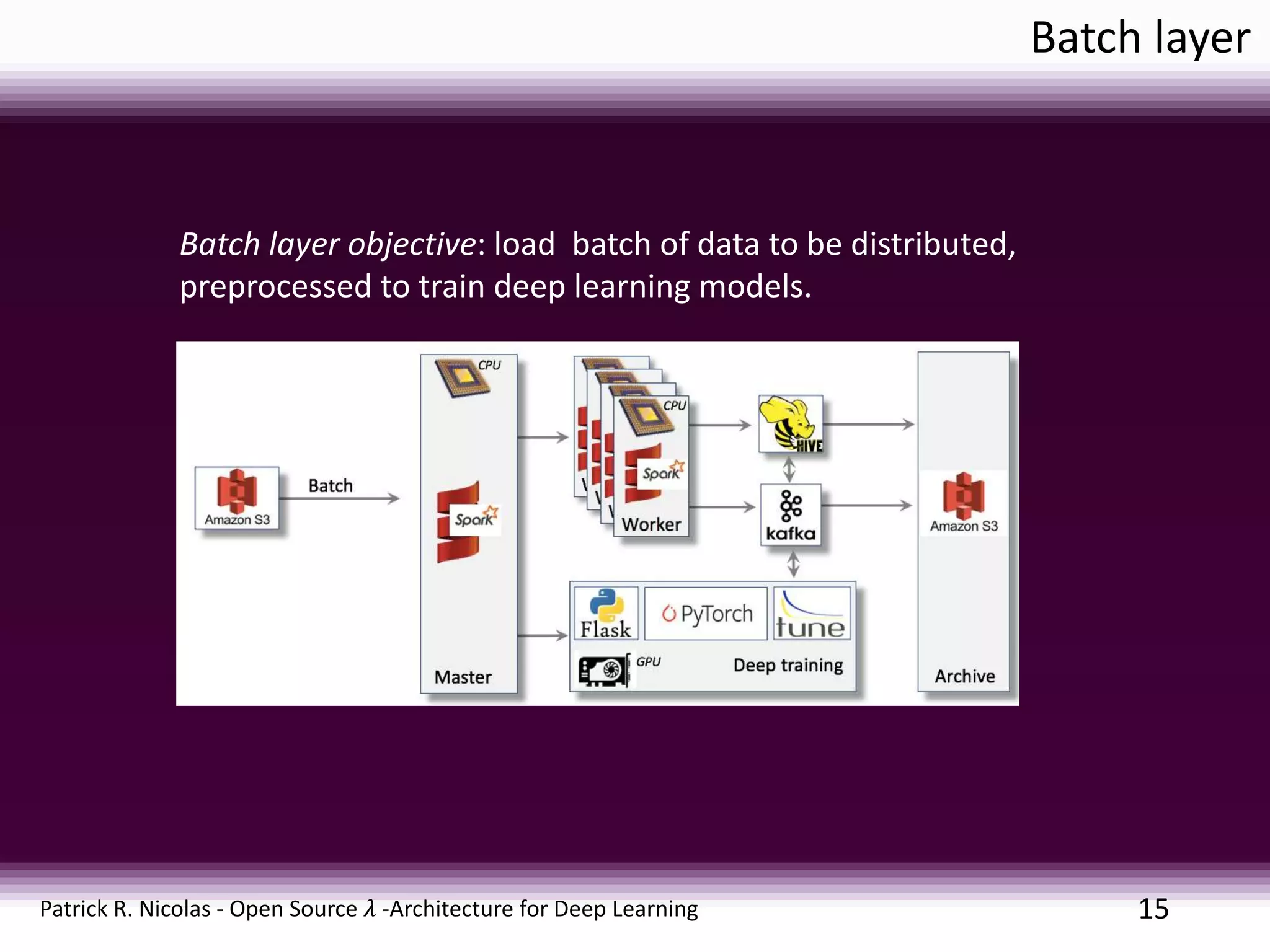

Batch layer
15
Batch layer objective: load batch of data to be distributed,
preprocessed to train deep learning models.

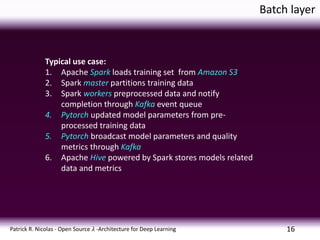

Batch layer
16
Typical use case:
1. Apache Spark loads training set from Amazon S3
2. Spark master partitions training data
3. Spark workers preprocessed data and notify
completion through Kafka event queue
4. Pytorch updated model parameters from pre-
processed training data
5. Pytorch broadcast model parameters and quality
metrics through Kafka
6. Apache Hive powered by Spark stores models related
data and metrics

Speed layer
17

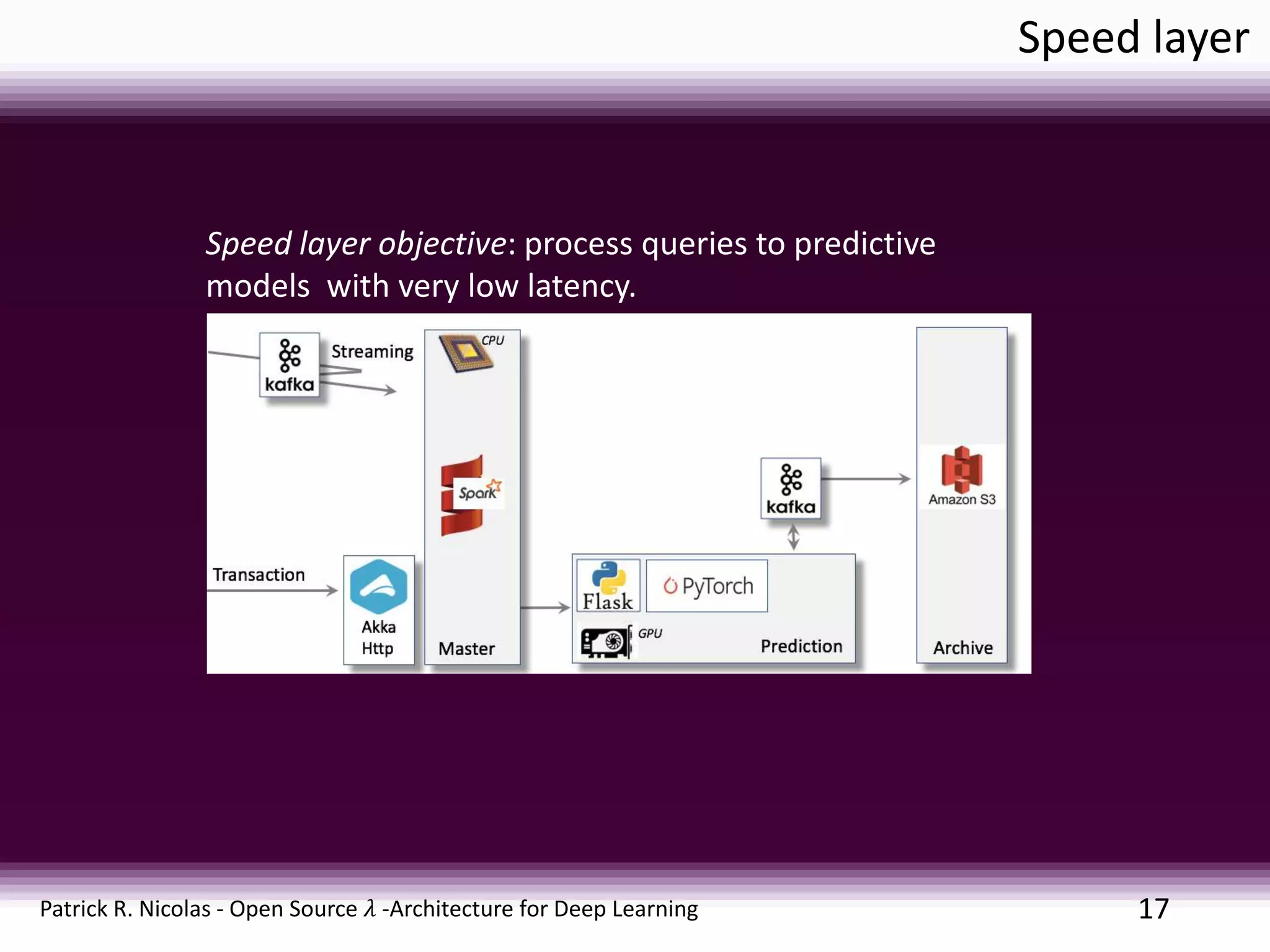

Speed layer objective: process queries to predictive
models with very low latency.

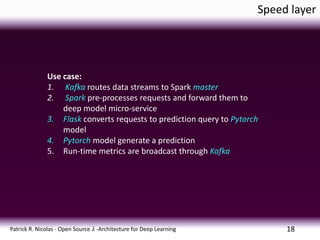

Speed layer
18
Use case:
1. Kafka routes data streams to Spark master
2. Spark pre-processes requests and forward them to
deep model micro-service
3. Flask converts requests to prediction query to Pytorch
model
4. Pytorch model generate a prediction
5. Run-time metrics are broadcast through Kafka

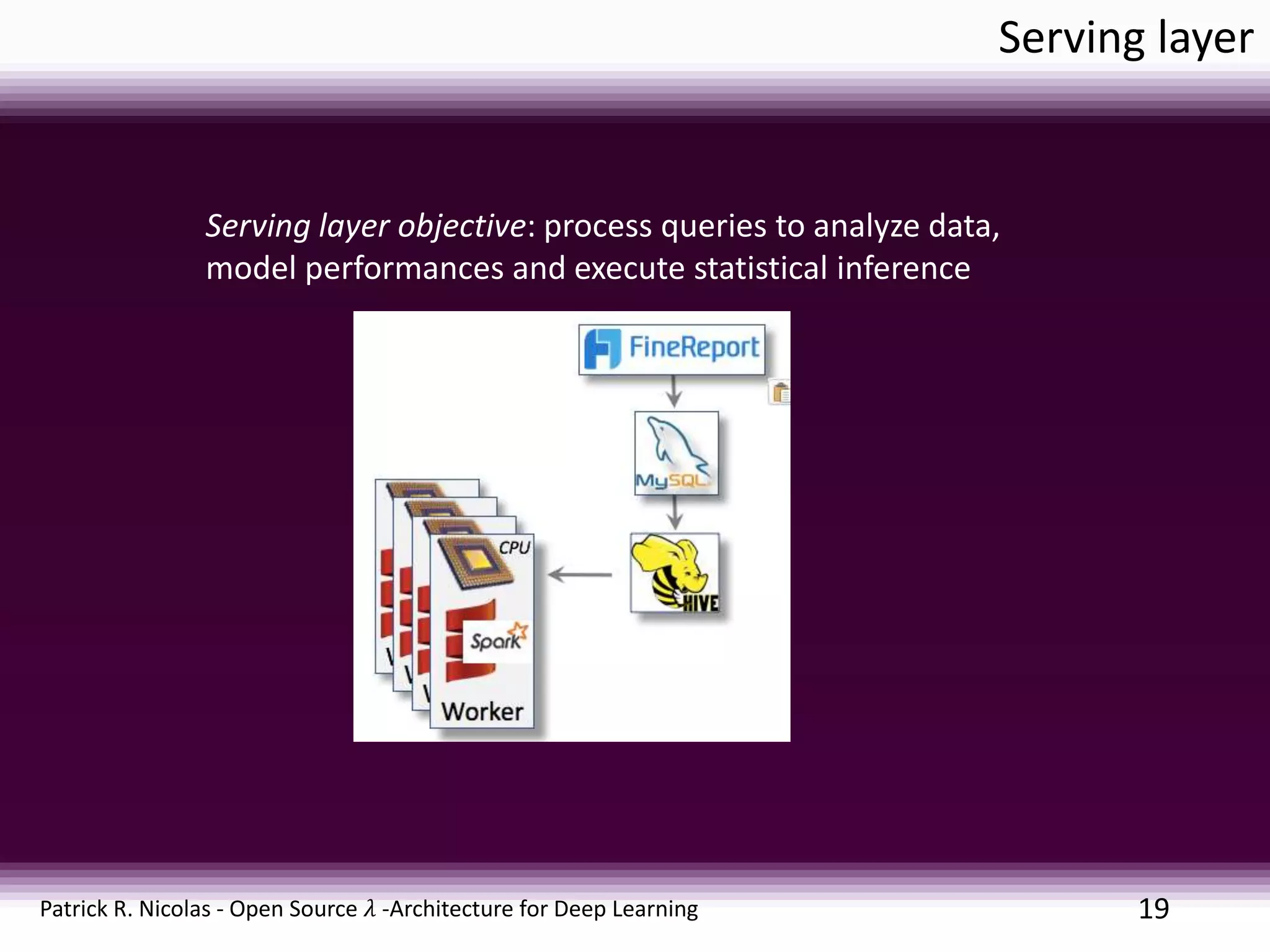

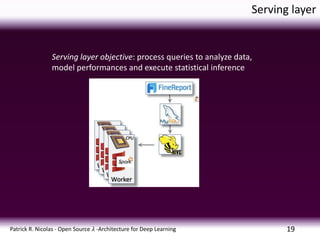

Serving layer
19
Serving layer objective: process queries to analyze data,
model performances and execute statistical inference

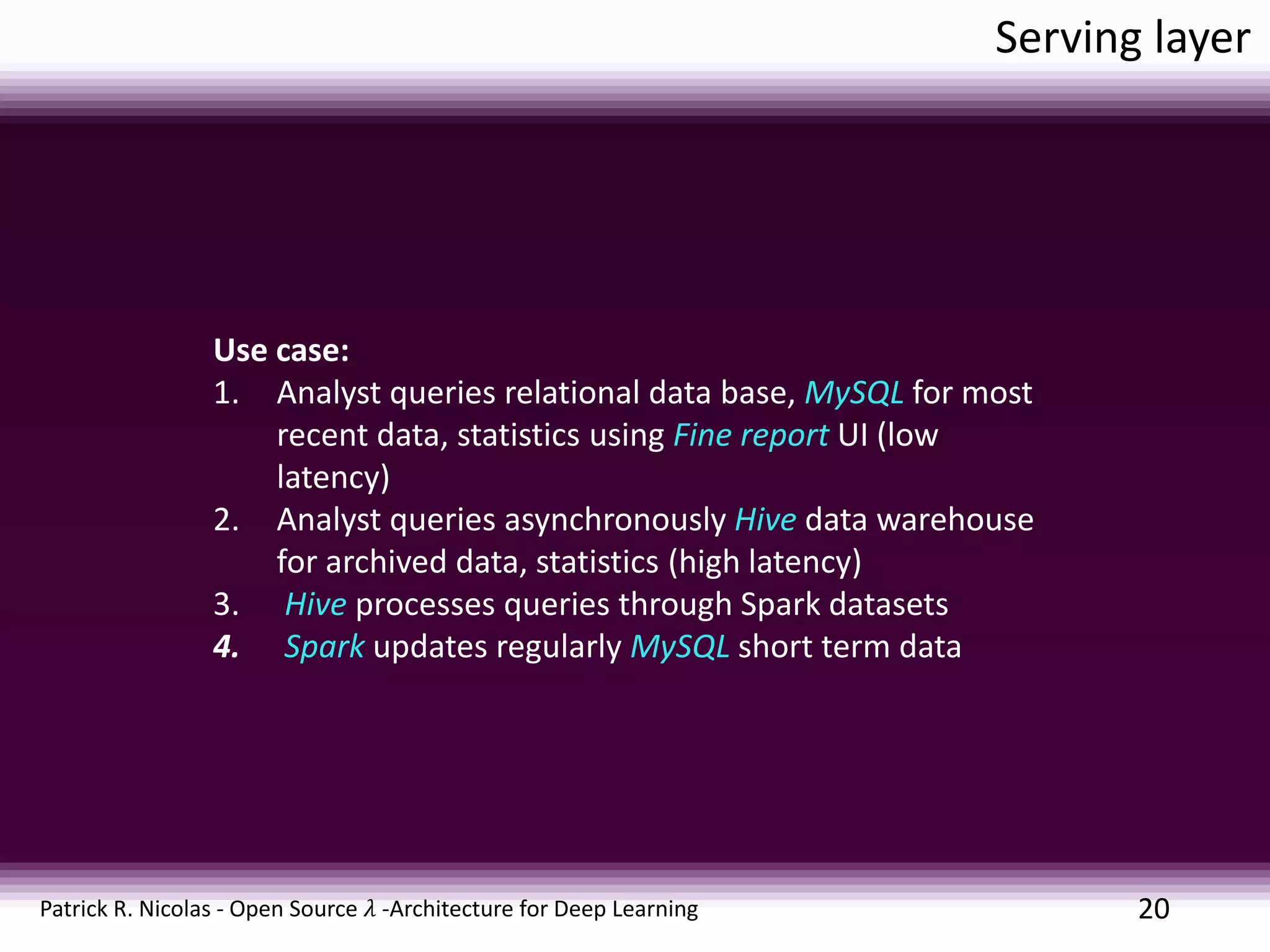

Serving layer
20
Use case:
1. Analyst queries relational data base, MySQL for most
recent data, statistics using Fine report UI (low
latency)
2. Analyst queries asynchronously Hive data warehouse
for archived data, statistics (high latency)
3. Hive processes queries through Spark datasets
4. Spark updates regularly MySQL short term data

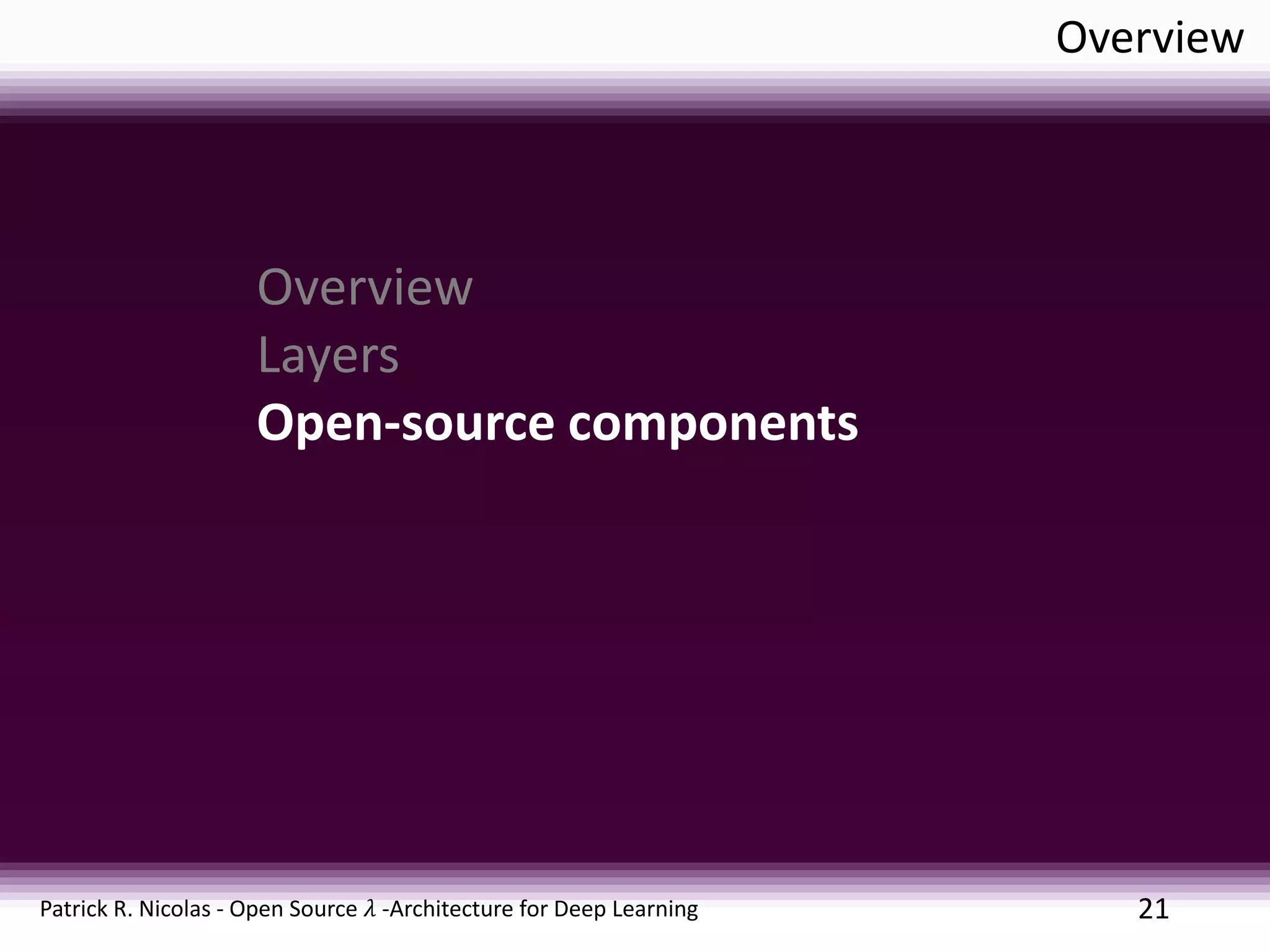

Overview
21

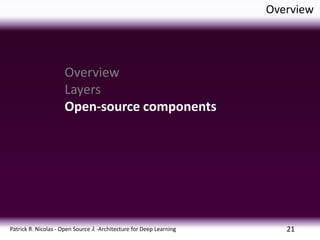

Overview
Layers

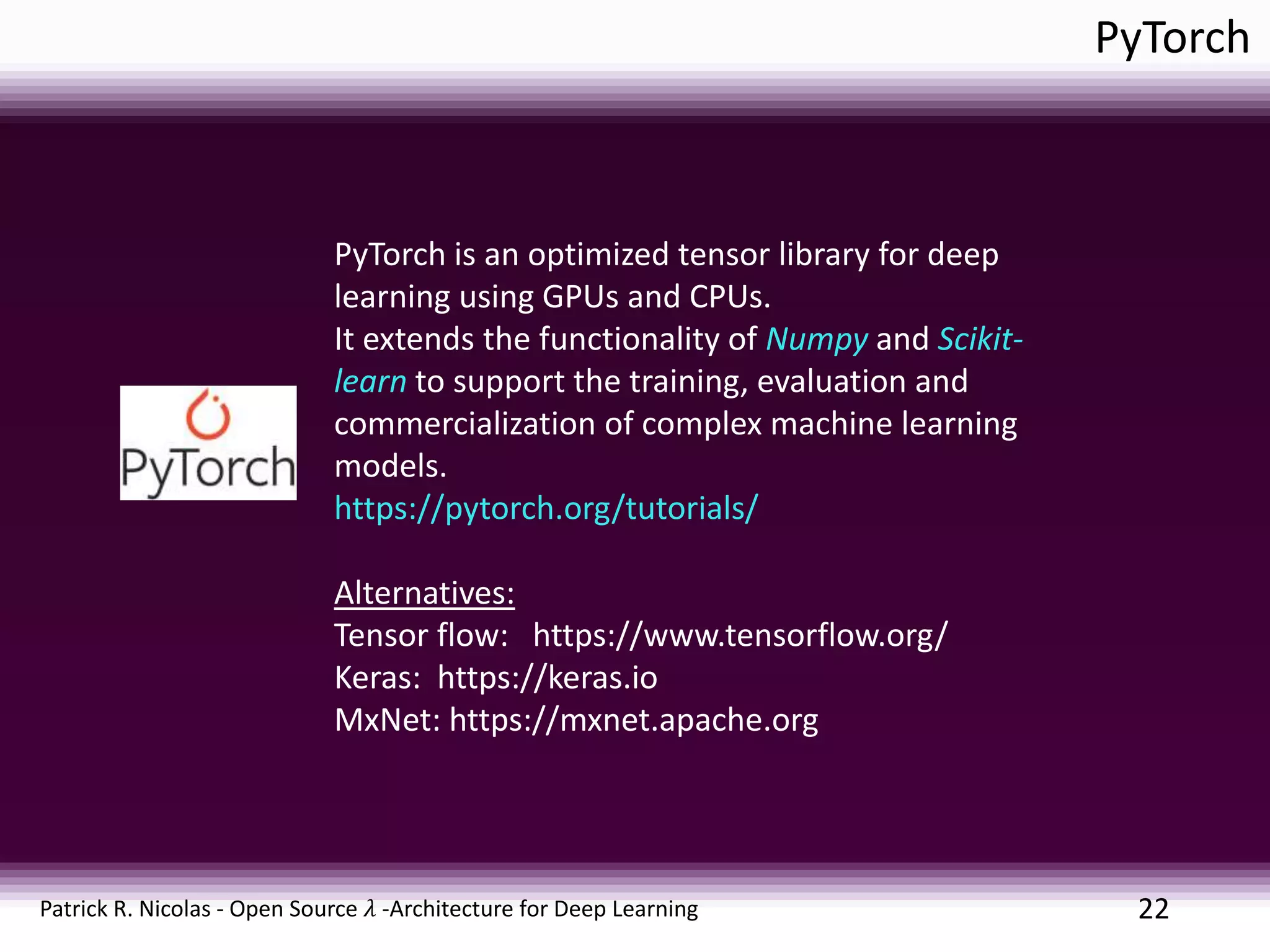

PyTorch
22
PyTorch is an optimized tensor library for deep
learning using GPUs and CPUs.
It extends the functionality of Numpy and Scikit-
learn to support the training, evaluation and
commercialization of complex machine learning
models.
https://pytorch.org/tutorials/
Alternatives:
Tensor flow: https://www.tensorflow.org/
Keras: https://keras.io
MxNet: https://mxnet.apache.org

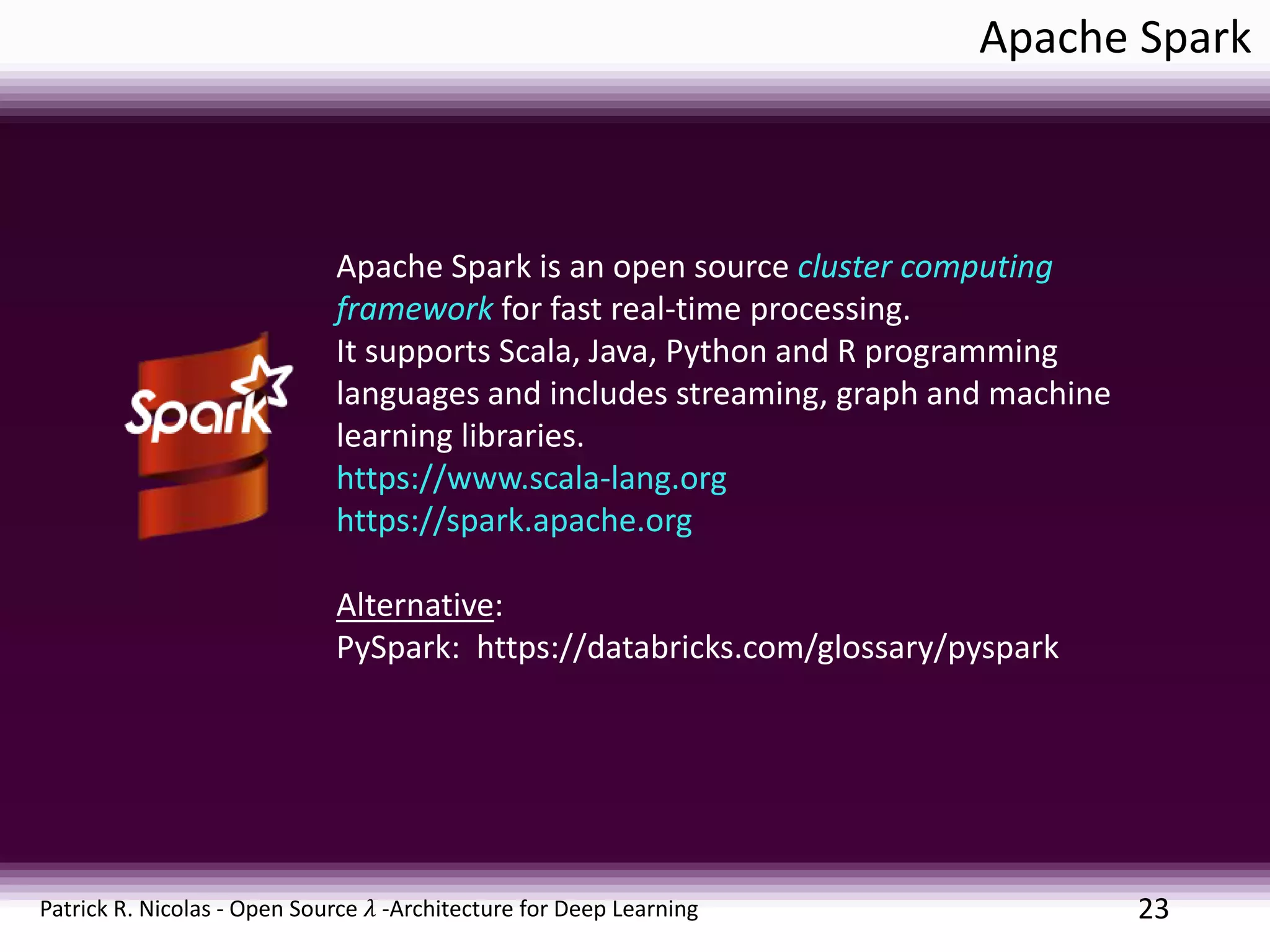

Apache Spark
23
Apache Spark is an open source cluster computing
framework for fast real-time processing.
It supports Scala, Java, Python and R programming
languages and includes streaming, graph and machine
learning libraries.
https://www.scala-lang.org
https://spark.apache.org
Alternative:
PySpark: https://databricks.com/glossary/pyspark

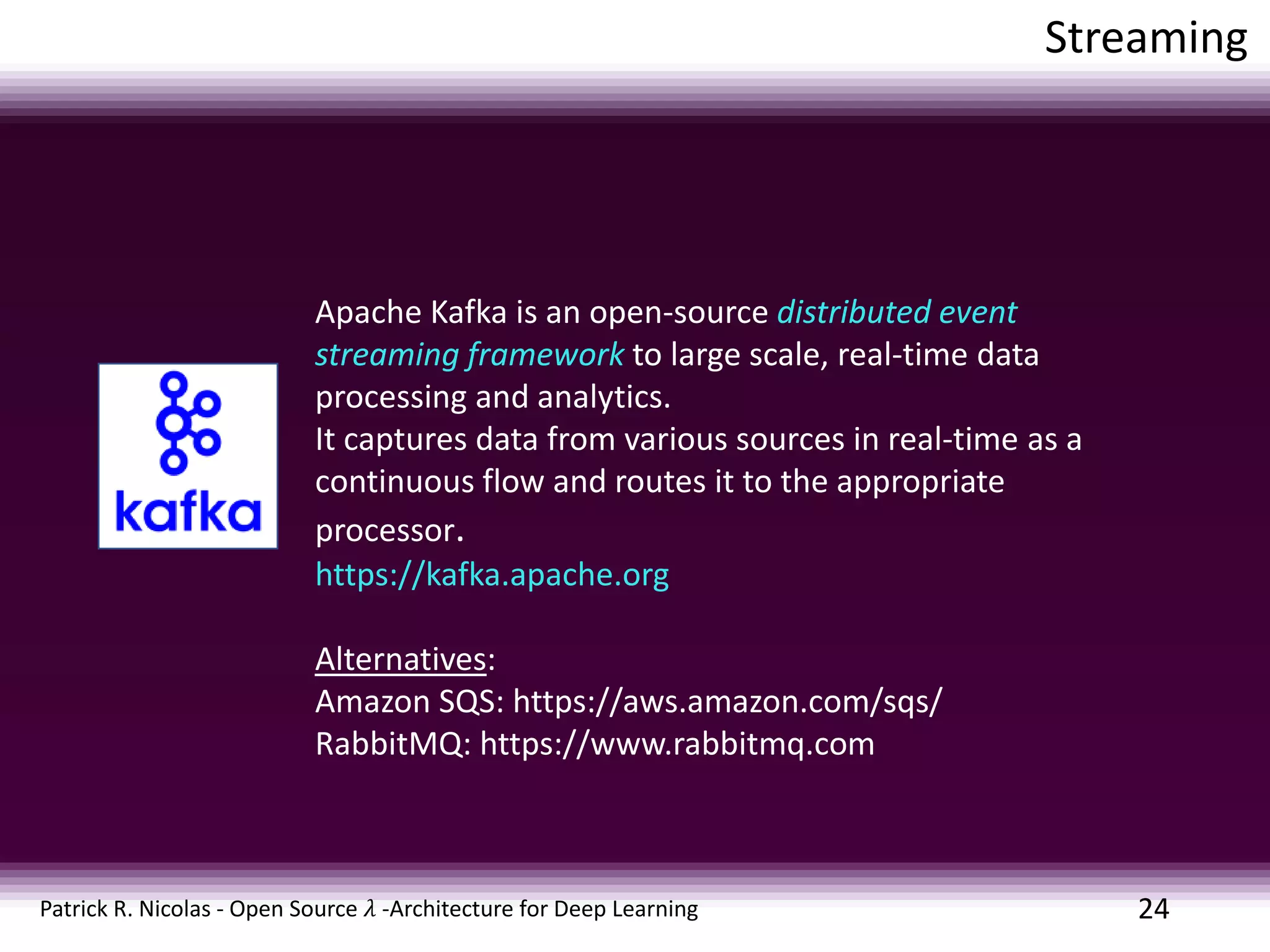

Streaming
24
Apache Kafka is an open-source distributed event
streaming framework to large scale, real-time data
processing and analytics.
It captures data from various sources in real-time as a
continuous flow and routes it to the appropriate
processor.
https://kafka.apache.org
Alternatives:
Amazon SQS: https://aws.amazon.com/sqs/
RabbitMQ: https://www.rabbitmq.com

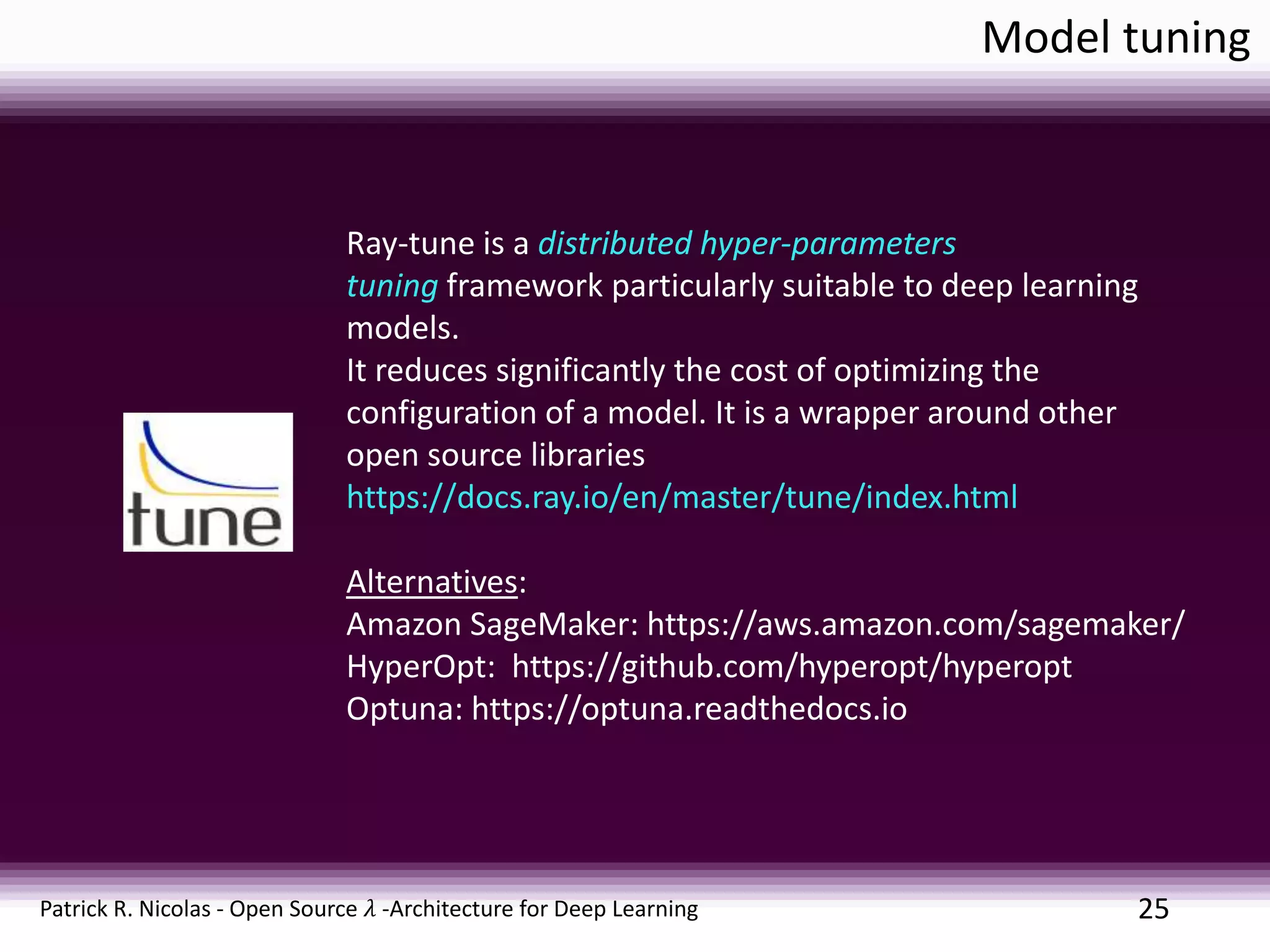

Model tuning
25

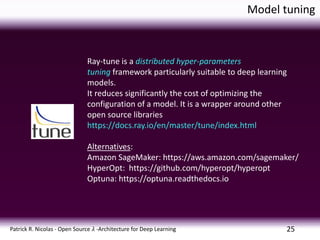

Ray-tune is a distributed hyper-parameters
tuning framework particularly suitable to deep learning
models.
It reduces significantly the cost of optimizing the
configuration of a model. It is a wrapper around other
open source libraries
https://docs.ray.io/en/master/tune/index.html
Alternatives:
Amazon SageMaker: https://aws.amazon.com/sagemaker/
HyperOpt: https://github.com/hyperopt/hyperopt
Optuna: https://optuna.readthedocs.io

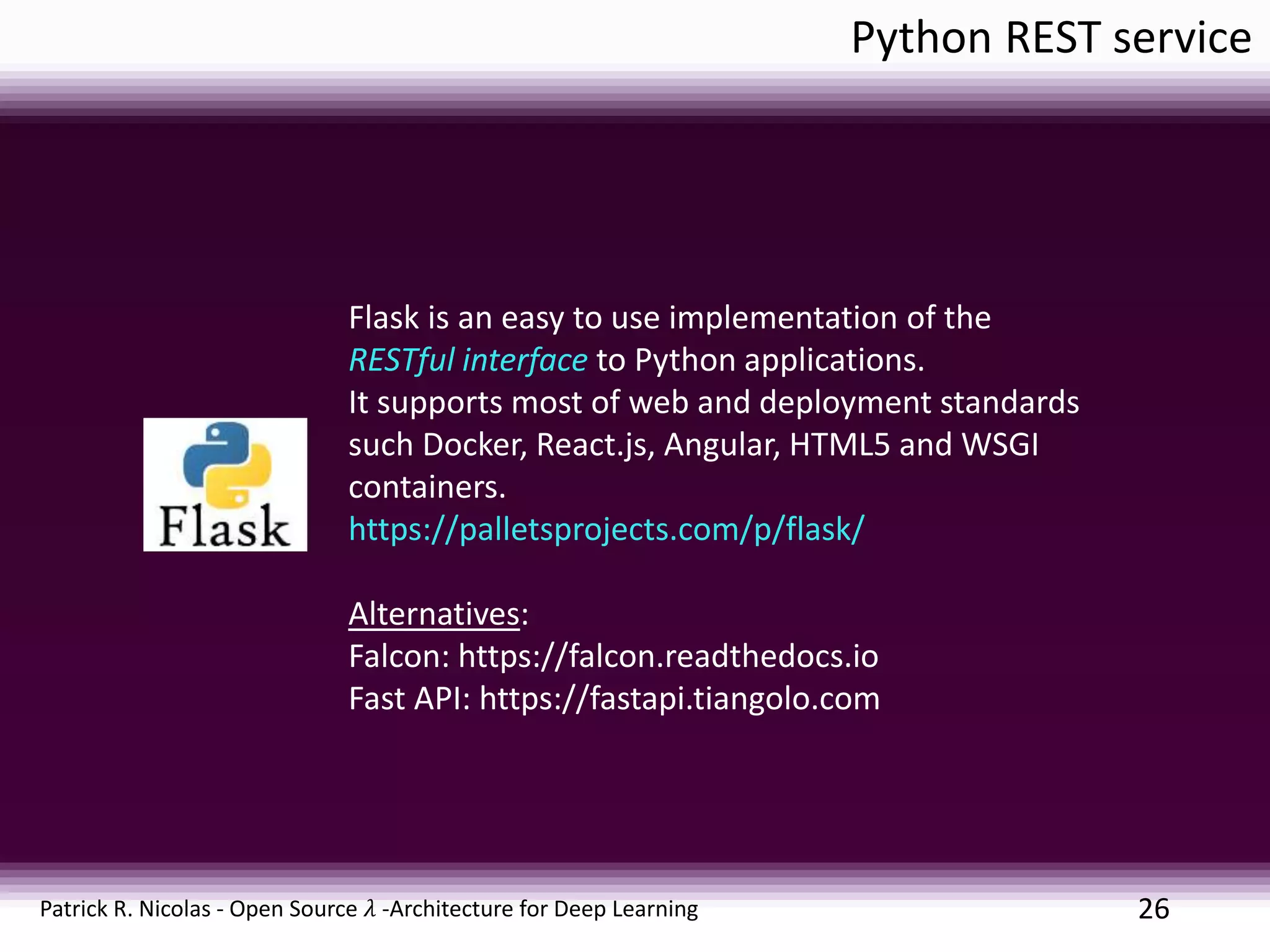

Python REST service
26
Flask is an easy to use implementation of the
RESTful interface to Python applications.
It supports most of web and deployment standards
such Docker, React.js, Angular, HTML5 and WSGI
containers.
https://palletsprojects.com/p/flask/
Alternatives:
Falcon: https://falcon.readthedocs.io
Fast API: https://fastapi.tiangolo.com

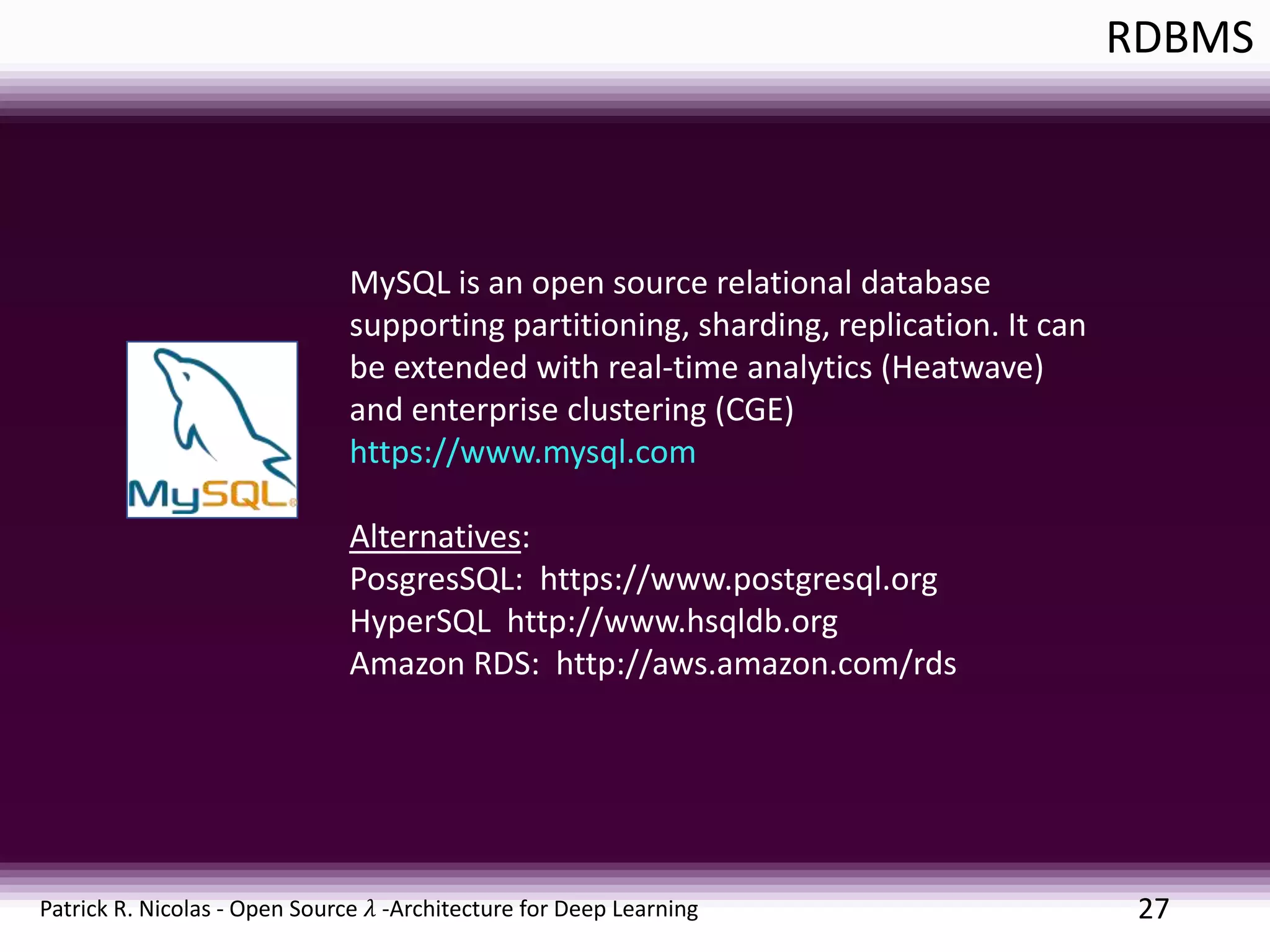

RDBMS
27
MySQL is an open source relational database
supporting partitioning, sharding, replication. It can
be extended with real-time analytics (Heatwave)
and enterprise clustering (CGE)
https://www.mysql.com
Alternatives:
PosgresSQL: https://www.postgresql.org
HyperSQL http://www.hsqldb.org
Amazon RDS: http://aws.amazon.com/rds

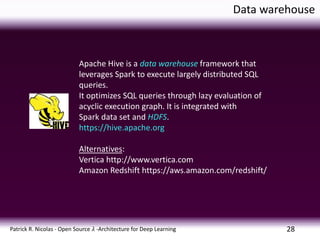

Data warehouse
28
Apache Hive is a data warehouse framework that
leverages Spark to execute largely distributed SQL
queries.
It optimizes SQL queries through lazy evaluation of
acyclic execution graph. It is integrated with
Spark data set and HDFS.
https://hive.apache.org
Alternatives:
Vertica http://www.vertica.com
Amazon Redshift https://aws.amazon.com/redshift/

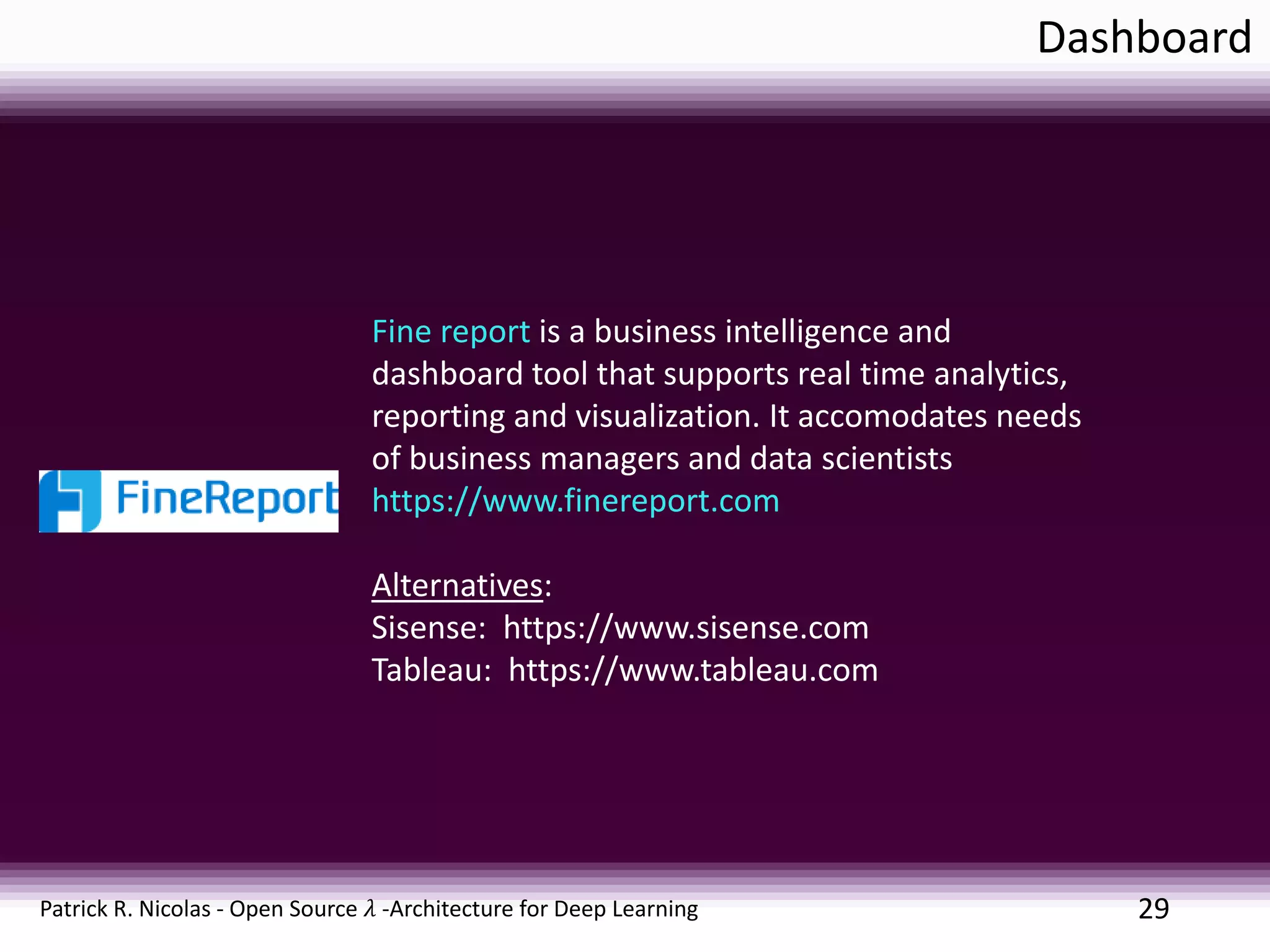

Dashboard
29
Fine report is a business intelligence and
dashboard tool that supports real time analytics,
reporting and visualization. It accomodates needs
of business managers and data scientists
https://www.finereport.com
Alternatives:
Sisense: https://www.sisense.com
Tableau: https://www.tableau.com

30

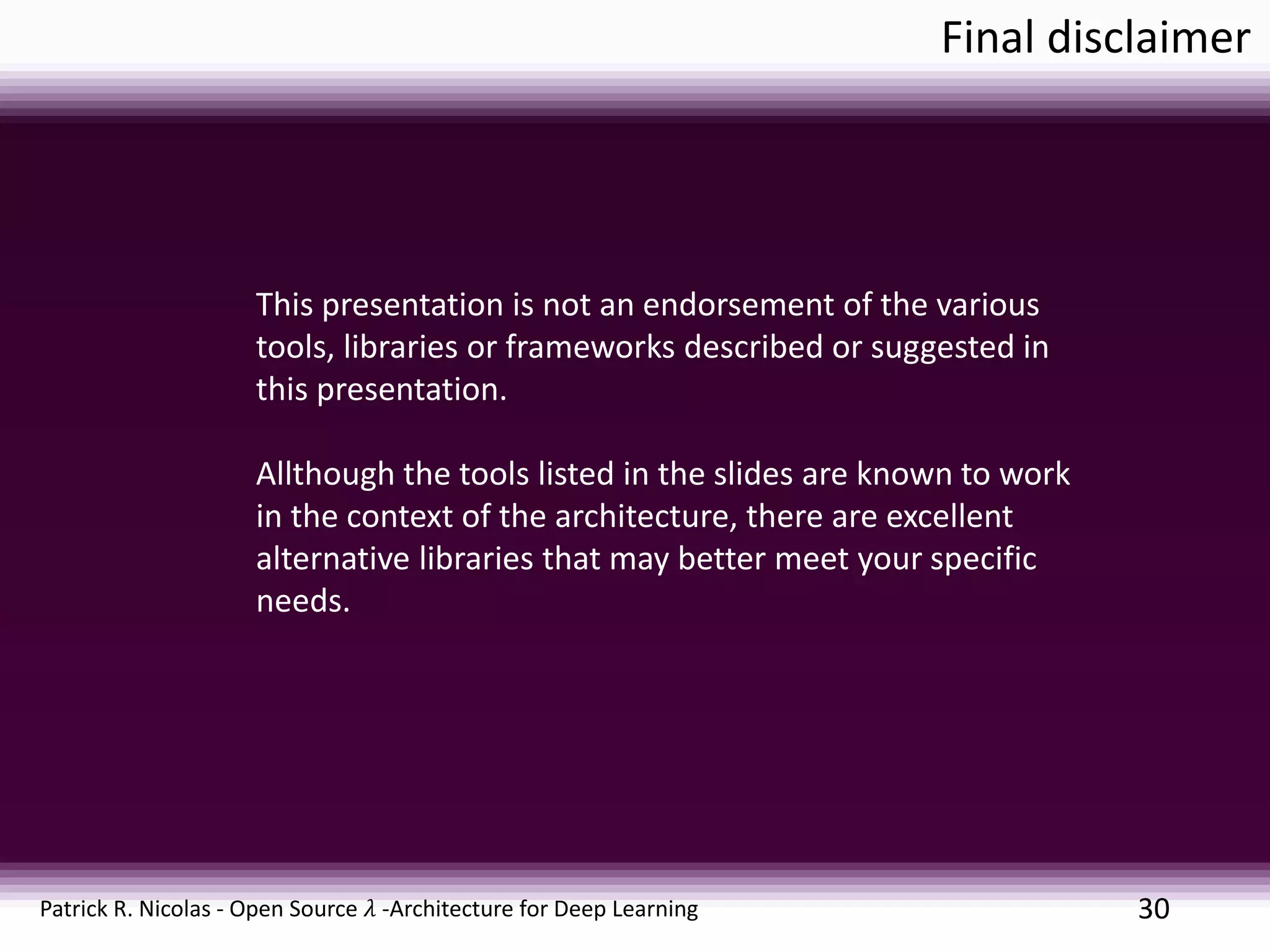

Final disclaimer
This presentation is not an endorsement of the various
tools, libraries or frameworks described or suggested in
this presentation.
Allthough the tools listed in the slides are known to work
in the context of the architecture, there are excellent
alternative libraries that may better meet your specific
needs.

31

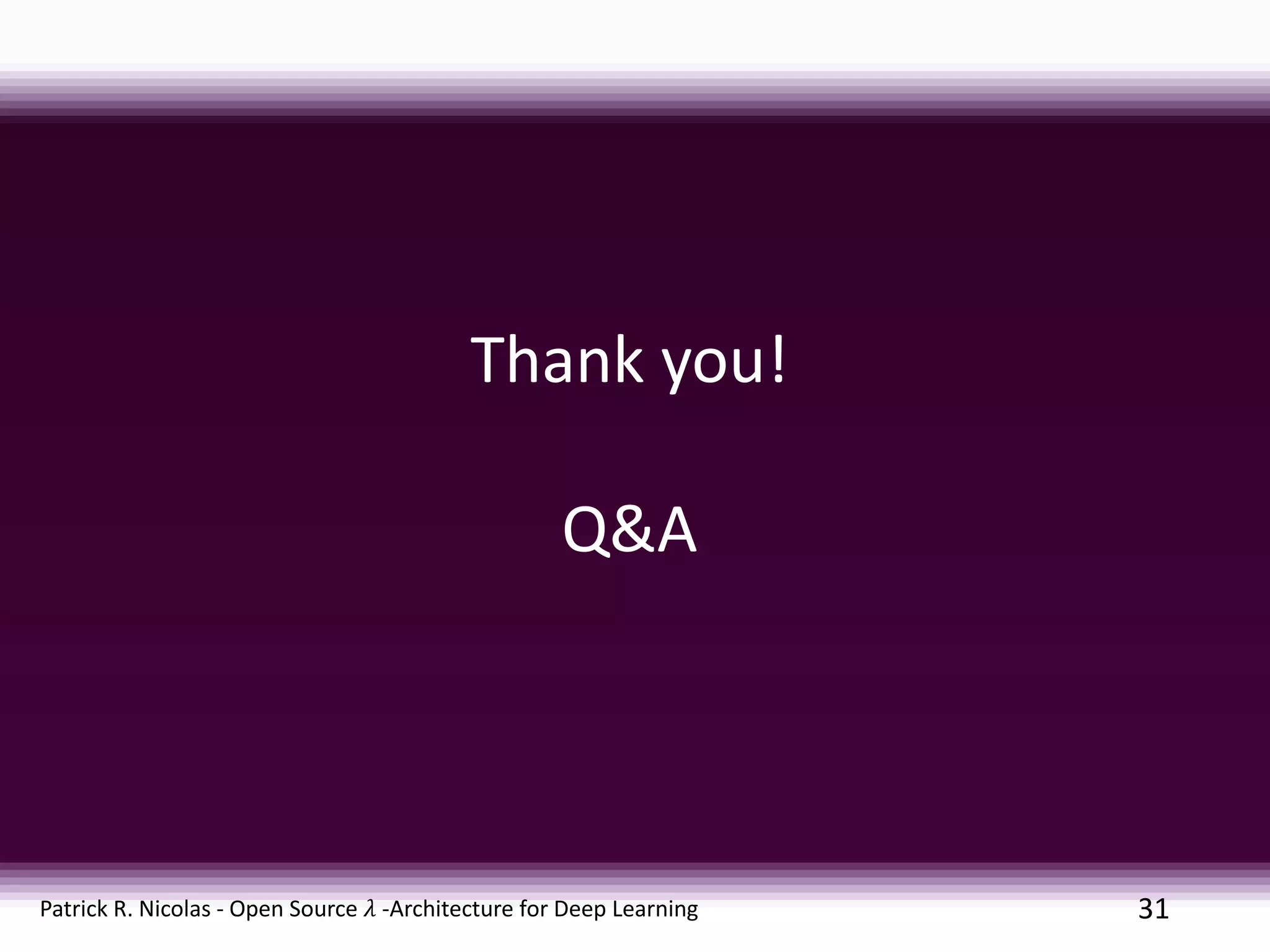

Thank you!
Q&A
