This document discusses tools for distributed data analysis including Apache Spark. It is divided into three parts: 1) An introduction to cluster computing architectures like batch processing and stream processing. 2) The Python data analysis library stack including NumPy, Matplotlib, Scikit-image, Scikit-learn, Rasterio, Fiona, Pandas, and Jupyter. 3) The Apache Spark cluster computing framework and examples of its use including contexts, HDFS, telemetry, MLlib, streaming, and deployment on AWS.

1. Open source tools
mquartulli@vicomtech.org
1

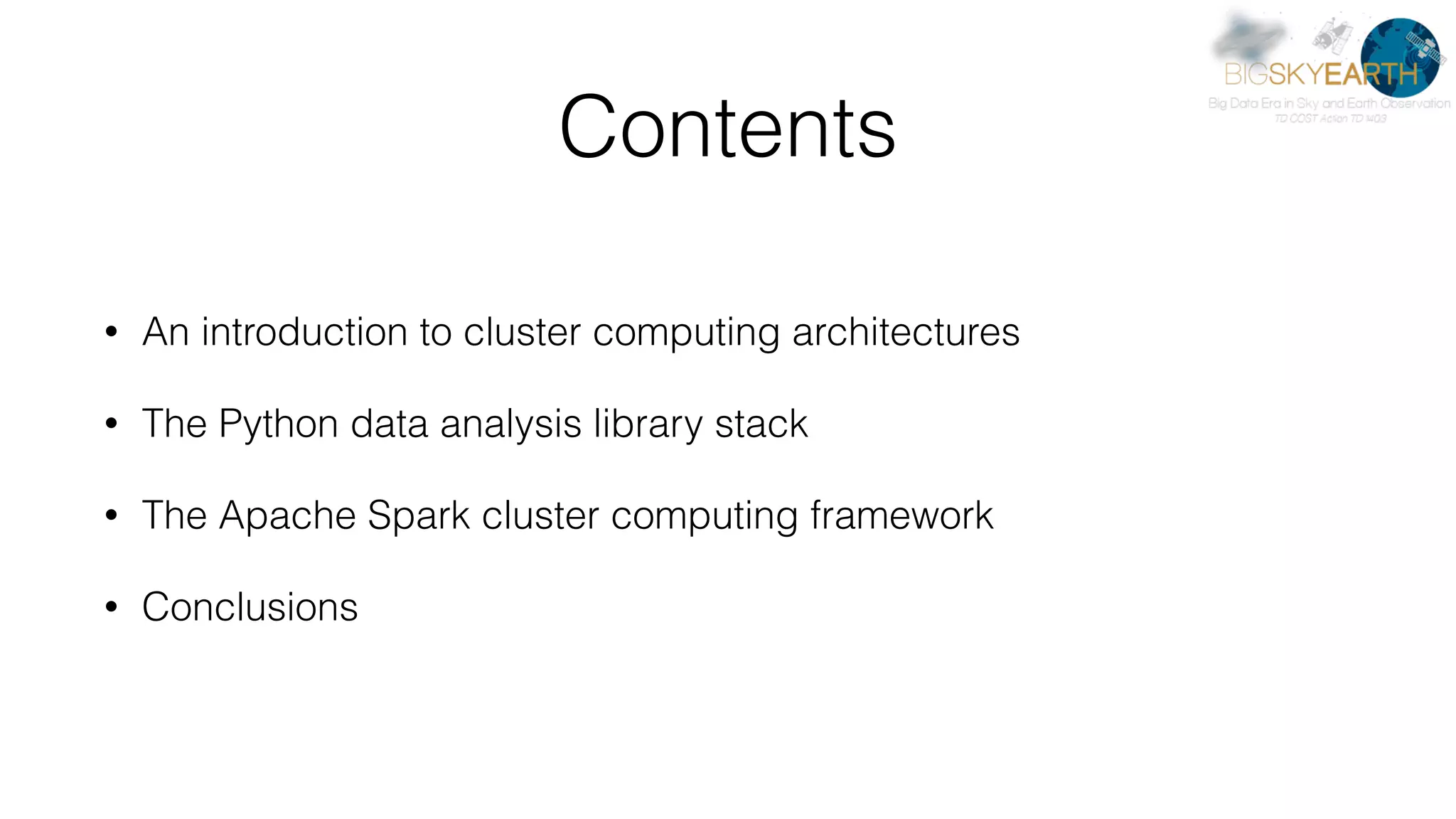

2. Contents
• An introduction to cluster computing architectures
• The Python data analysis library stack
• The Apache Spark cluster computing framework
• Conclusions

3. Prerequisite material
We generally try to build on the
JPL-Caltech Virtual Summer School
Big Data Analytics
September 2-12 2014
available on Coursera. For this specific presentation, please go through
Ashish Mahabal
California Institute of Technology
"Best Programming Practices"
for an introduction to best practices in programming and for an introduction to Python and R.

4. Part 1: introduction
to cluster computing architectures
• Divide and conquer…
• …except for causal/logical/probabilistic dependencies

5. motivating example: thematic mapping
from remote sensing data classification

6. motivation: global scale near real–time analysis
• interactive data exploration
(e.g. iteratively supervised thematic mapping)
• advanced algorithms for end–user “apps”
• e.g.
• astronomy “catalogues”
• geo analysis tools a la Google EarthEngine

7. motivation: global scale near real–time analysis
• growing remote sensing archive size - volume, variety, velocity
• e.g. the Copernicus Sentinels
• growing competence palette needed
• e.g. forestry, remote sensing, statistics,
computer science, visualisation, operations

8. thematic mapping by supervised classification:
a distributed processing minimal example
parallelize
extract content descriptors
classify
trained
classifier
collect
Training is distributed to processing nodes,
thematic classes are predicted in parallel

9. no scheduler: first 100 tiles as per natural data storage organisation
thematic mapping by supervised classification:
a distributed processing minimal example

10. distributed processing
minimal architecture
random scheduler: first 100 random tiles

11. distributed processing
minimal architecture
geographic space filling curve-based scheduler:
first 100 tiles “happen” around tile of interest (e.g. central tile)

12. remote sensing data processing architectures
Job Queue
Analysis Workers
Data
Catalogue
Processing Workers
Auto Scaling
Ingestion
Data
Catalogue
Exploitation
Annotations
Catalogue
User Application Servers
Load
Balancer
User
Source Products
Domain
Expert
Configuration
Admin
Domain
Expert
direct data import
Data Processing / Data Intelligence
Servers
13/34

13. batch processing architectures
parallel “batch mode” processing
Input
Batched
Data
Collector
Processing Job
Processing Job
Processing Job
…
Queries
Bakshi, K. (2012, March). Considerations for big data: Architecture and approach. In Aerospace Conference, 2012
IEEE (pp. 1-7). IEEE.

14. the lambda architecture
Nathan März “How to beat the CAP theorem”, Oct 2011
two separate lanes:
* batch for large, slow “frozen”
* streaming for smaller, fast “live” data
merged at the end
Input
Batched
Data
Collector
Multiple Batch
Processing Jobs
Queries
Multiple Stream
Processing Jobs
RealTime
Streamed Data

15. trade–off considerations
• advantages: adaptability
“best of both worlds” –
mixing systems designed with different trade–offs
• limits: costs — code maintenance in particular
manifestations of polyglot processing

16. the kappa architecture
Jay Kreps “Questioning the Lambda Architecture”, Jul 2014
concept: use stream processing for everything
Collector
Multiple Stream
Processing Jobs
Queries
Multiple Stream
Processing Jobs
RealTime
Streamed Data
Historical Data
Stream
Input
Batched
Data

17. scheduled stream processing
intelligence in smart schedulers
for optimally iterating historical batch elements
presenting them as a stream
Collector
Multiple Stream
Processing Jobs
Queries
Multiple Stream
Processing Jobs
RealTime
Streamed Data
Scheduled
Historical Data
Stream
Input
Batched
Data
Smart
Schedulers

18. scheduling by space–filling curves:
ensure that all points are considered
Source: Haverkort, Walderveen “Locality and Bounding-Box Quality of Two-Dimensional Space-Filling Curves”
2008 arXiv:0806.4787v2

19. E.G.: hilbert scheduling
• hilbert curve scheduling applications
• declustering
Berchtold et al. “Fast parallel similarity
search in multi-media databases” 1997
• visualization
eg. B. Irwin et al. “High level
internet scale traffic visualization
using hilbert curve mapping”
2008
• parallel process scheduling
M. Drozdowski “Scheduling for parallel processing” 2010

20. stream processing with smart schedulers
for remote sensing catalogue analytics
idea: exploit user interest locality in
• geographic space
• multi–resolution space
• possibly semantics?
source: geowave

21. for large datasets:
divide and conquer
yet:
1. dependencies need to be modelled (e.g. segmentation)
2. if NOT ALL TILES HAVE EQUAL VALUE
and analysis cost (e.g. TIME) ENTERS THE PICTURE…
motivating example: thematic mapping
from remote sensing data classification

22. Part 2: the PyData stack
➤ pydata — data analytics http://pydata.org/downloads/
➤ rasterio — OO GDAL https://github.com/mapbox/rasterio
➤ fiona — OO OGR http://toblerity.org/fiona/manual.html
➤ skimage — image processing http://scikit-image.org/
➤ sklearn — machine learning http://scikit-learn.org/stable/
➤ pandas — data analysis http://pandas.pydata.org/
➤ PIL — imaging http://www.pythonware.com/products/pil/
➤ Scipy — scientific computing library http://scipy.org/

23. numpy.array: array data types
What it does:
ND array data types allow operations
to be described in terms of matrices
and vectors.
This is good because:
It makes code both cleaner and more
efficient, since it translates to fewer
lower-level calls to compiled routines,
avoiding `for` loops.

24. matplotlib.pylab: plotting in 2D and 3D
What it does:
It allows producing visual
representations of the data.
This is good because:
It can help generate insights,
communicate results,
rapidly validate procedures

25. scikit-image
• A library of standard image
processing methods.
• It operates on `numpy` arrays.

26. sklearn: machine learning
• A library for clustering,
classification, regression, e.g. for
basic thematic mapping.
• Plus: data transformation, ML
performance evaluation...
• See the ML lessons in the `JPL-
Caltech Virtual Summer School`
material.

27. RASTERIO: RASTER LOADING
➤ high-level interfaces to GDAL
fn = “~/Data/all_donosti_croped_16_wgs4326_b.ers”
import rasterio, numpy
with rasterio.drivers(CPL_DEBUG=True):
with rasterio.open(os.path.expanduser(fn)) as src:
bands = map(src.read_band, (1, 2, 3))
data = numpy.dstack(bands)
print(type(data))
print(src.bounds)
print(src.count, src.shape)
print(src.driver)
print(str(src.crs))
bounds = src.bounds[::2] + src.bounds[1::2]
import skimage.color
import matplotlib.pylab as plt
data_hsv = skimage.color.rgb2xyz(data)
fig = plt.figure(figsize=(8, 8))
ax = plt.imshow(data_hsv, extent=bounds)
plt.show()

28. FIONA: VECTOR MASKING
➤ Binary masking by Shapefiles
import shapefile, os.path
from PIL import Image, ImageDraw
sf = shapefile.Reader(os.path.expanduser(“~/masking_shapes.shp"))
shapes, src_bbox = sf.shapes(), [ bounds[i] for i in [0, 2, 1, 3] ]
# Geographic x & y image sizes
xdist, ydist = src_bbox[2] - src_bbox[0], src_bbox[3] - src_bbox[1]
# Image width & height
iwidth, iheight = feats.shape[1], feats.shape[0]
xratio, yratio = iwidth/xdist, iheight/ydist
# Masking
mask = Image.new("RGB", (iwidth, iheight), "black")
draw = ImageDraw.Draw(mask)
pixels = { label:[] for label in labels }
for i_shape, shape in enumerate(sf.shapes()):
draw.polygon([ p[:2] for p in pixels[label] ],
outline="rgb(1, 1, 1)",
fill="rgb(1, 1, 1)”)
import scipy.misc
fig = plt.figure(figsize=(8, 8))
ax = plt.imshow(scipy.misc.fromimage(mask)*data, extent=bounds)

29. pandas: data management and analysis
• Adds labels to `numpy` arrays.
• Mimicks R's DataFrame type,
integrates plotting and data
analysis.

30. Jupyter: an interactive development
and documentation environment
• Write and maintain documents
that include text, diagrams and
code.
• Documents are rendered as
HTML by GitHub.

31. Jupiter interactive widgets

32. Part 3: Cluster computing
• Idea: “Decompose data, move instructions to data chunks”
• Big win for easily decomposable problems
• Issues in managing dependencies in data analysis

33. Spark cluster computing
Hitesh Dharmdasani, “Python and Bigdata - An Introduction to Spark (PySpark)”

34. pyspark
https://pbs.twimg.com/media/CAfBmDQU8AAL6gf.png

35. pyspark example: context
The Spark context represents the cluster.
It can be used to distribute elements to the nodes.
Examples:
- a library module
- a query description in a search system.

36. pyspark example: hdfs
Distributes and manages for redundancy very large data files on the
cluster disks.
Achille's heel: managing very large numbers of small files.

37. pyspark example: telemetry
The central element
for optimising
the analysis system.
“If it moves we track it” —>
Design Of Experiments

38. pyspark example: spark.mllib
Machine learning tools for cluster computing contexts
is a central application of cluster computing frameworks.
At times, still not up to par with single machine configurations.

39. pyspark.streaming
Data stream analysis (e.g. from a network connection) an important
use case.
Standard cluster computing concepts apply.
It is done in chunks whose size is not controlled directly.

40. pyspark @ AWS
The Spark distribution includes tools
to instantiate a cluster on the
Amazon Web Services
infrastructure.
Costs tend to be extremely low…
if you DO NOT publish your
credentials.

41. Ongoing trends
• Data standardisation: Apache Arrow
• A simplification of infrastructure management tools: Hashi Terraform

42. apache arrow
import feather
path = 'my_data.feather'
feather.write_dataframe(df, path)
df = feather.read_dataframe(path)

43. OpenStack, Ansible, Vagrant, Terraform...
• Infrastructure management tools
allow more complex setups to be easily managed

44. Conclusions
• Extending an analytics pipeline to computing clusters
can be done with limited resources
