1. OPEN ERP 7
CREATE A WORKFLOW

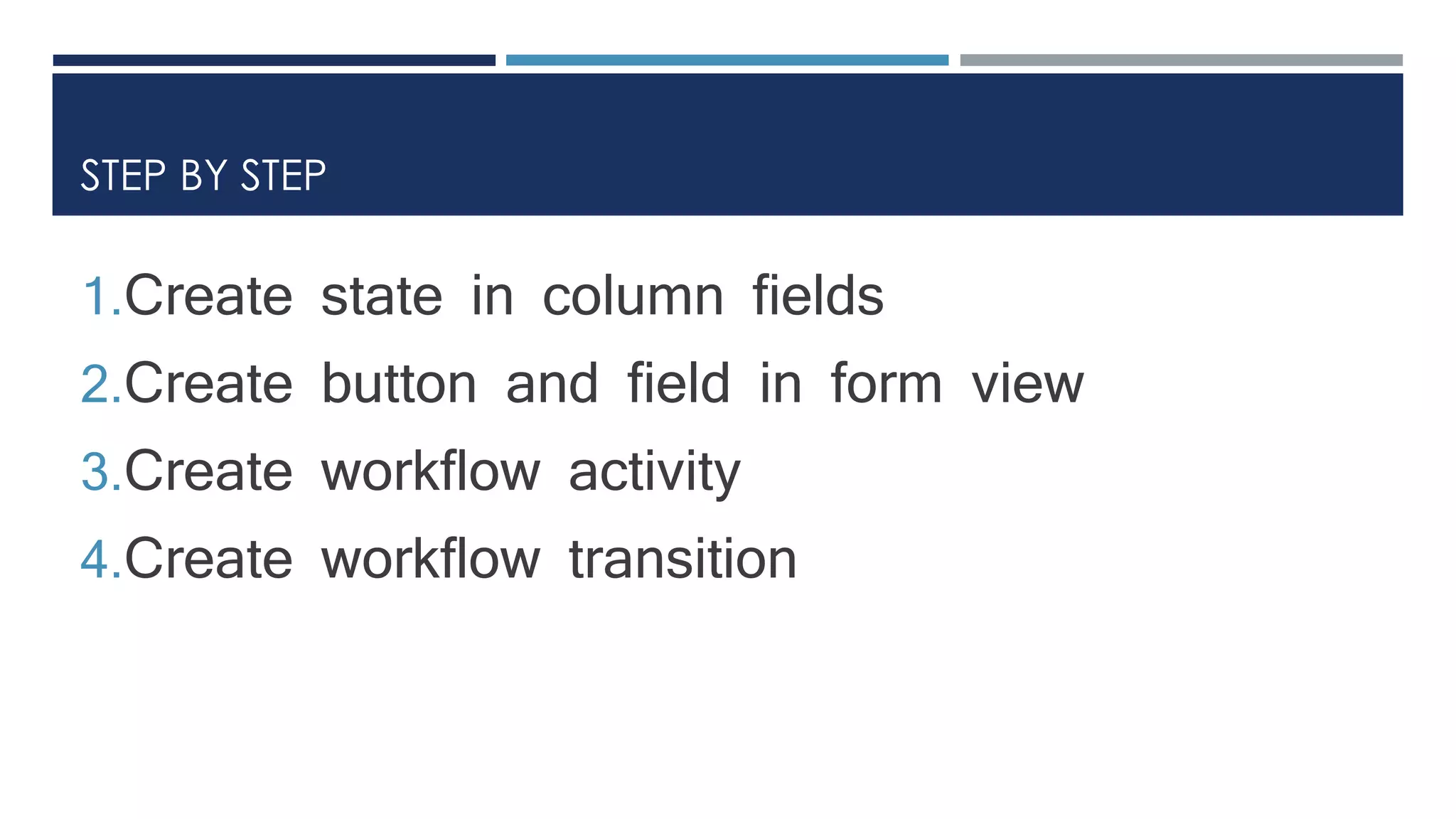

2. STEP BY STEP
1.Create state in column fields
2.Create button and field in form view
3.Create workflow activity
4.Create workflow transition

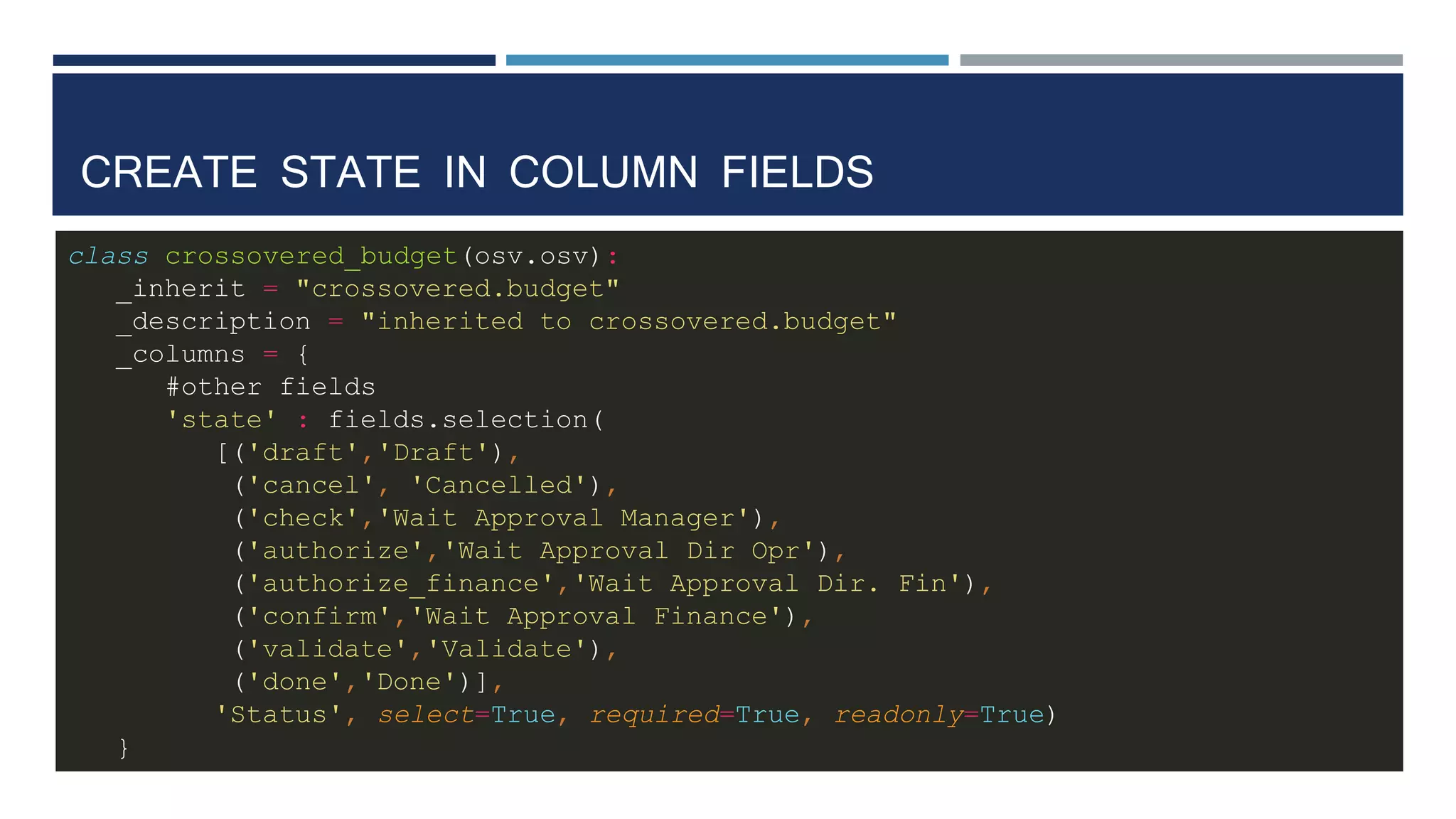

3. CREATE STATE IN COLUMN FIELDS
class crossovered_budget(osv.osv):
_inherit = "crossovered.budget"
_description = "inherited to crossovered.budget"
_columns = {
#other fields
'state' : fields.selection(
[('draft','Draft'),
('cancel', 'Cancelled'),
('check','Wait Approval Manager'),
('authorize','Wait Approval Dir Opr'),
('authorize_finance','Wait Approval Dir. Fin'),
('confirm','Wait Approval Finance'),
('validate','Validate'),
('done','Done')],
'Status', select=True, required=True, readonly=True)
}

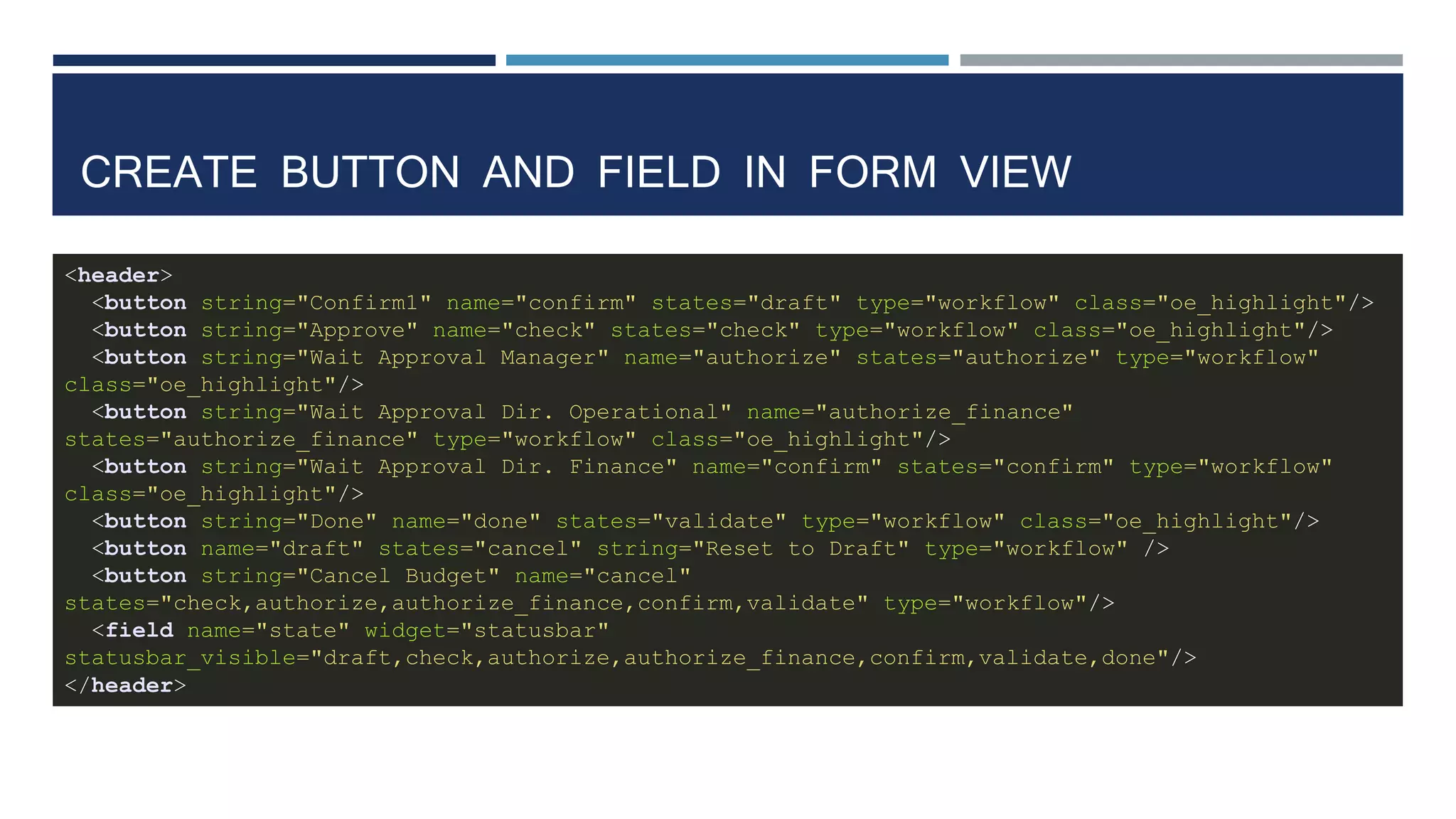

4. CREATE BUTTON AND FIELD IN FORM VIEW
<header>
<button string="Confirm1" name="confirm" states="draft" type="workflow" class="oe_highlight"/>
<button string="Approve" name="check" states="check" type="workflow" class="oe_highlight"/>
<button string="Wait Approval Manager" name="authorize" states="authorize" type="workflow"
class="oe_highlight"/>
<button string="Wait Approval Dir. Operational" name="authorize_finance"
states="authorize_finance" type="workflow" class="oe_highlight"/>
<button string="Wait Approval Dir. Finance" name="confirm" states="confirm" type="workflow"
class="oe_highlight"/>
<button string="Done" name="done" states="validate" type="workflow" class="oe_highlight"/>
<button name="draft" states="cancel" string="Reset to Draft" type="workflow" />
<button string="Cancel Budget" name="cancel"
states="check,authorize,authorize_finance,confirm,validate" type="workflow"/>
<field name="state" widget="statusbar"
statusbar_visible="draft,check,authorize,authorize_finance,confirm,validate,done"/>
</header>

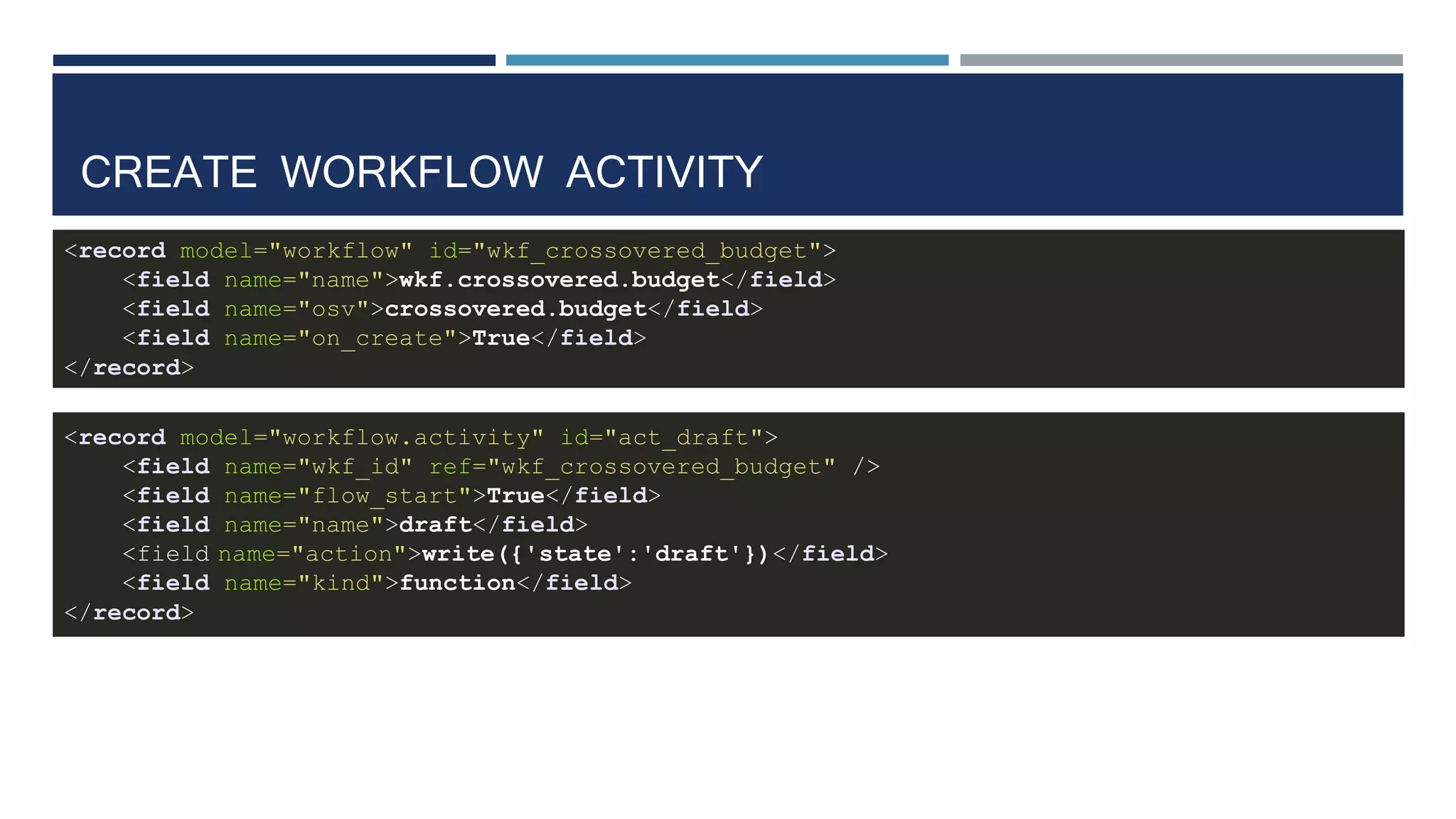

5. CREATE WORKFLOW ACTIVITY
<record model="workflow" id="wkf_crossovered_budget">
<field name="name">wkf.crossovered.budget</field>
<field name="osv">crossovered.budget</field>
<field name="on_create">True</field>
</record>
<record model="workflow.activity" id="act_draft">
<field name="wkf_id" ref="wkf_crossovered_budget" />
<field name="flow_start">True</field>
<field name="name">draft</field>
<field name="action">write({'state':'draft'})</field>
<field name="kind">function</field>
</record>

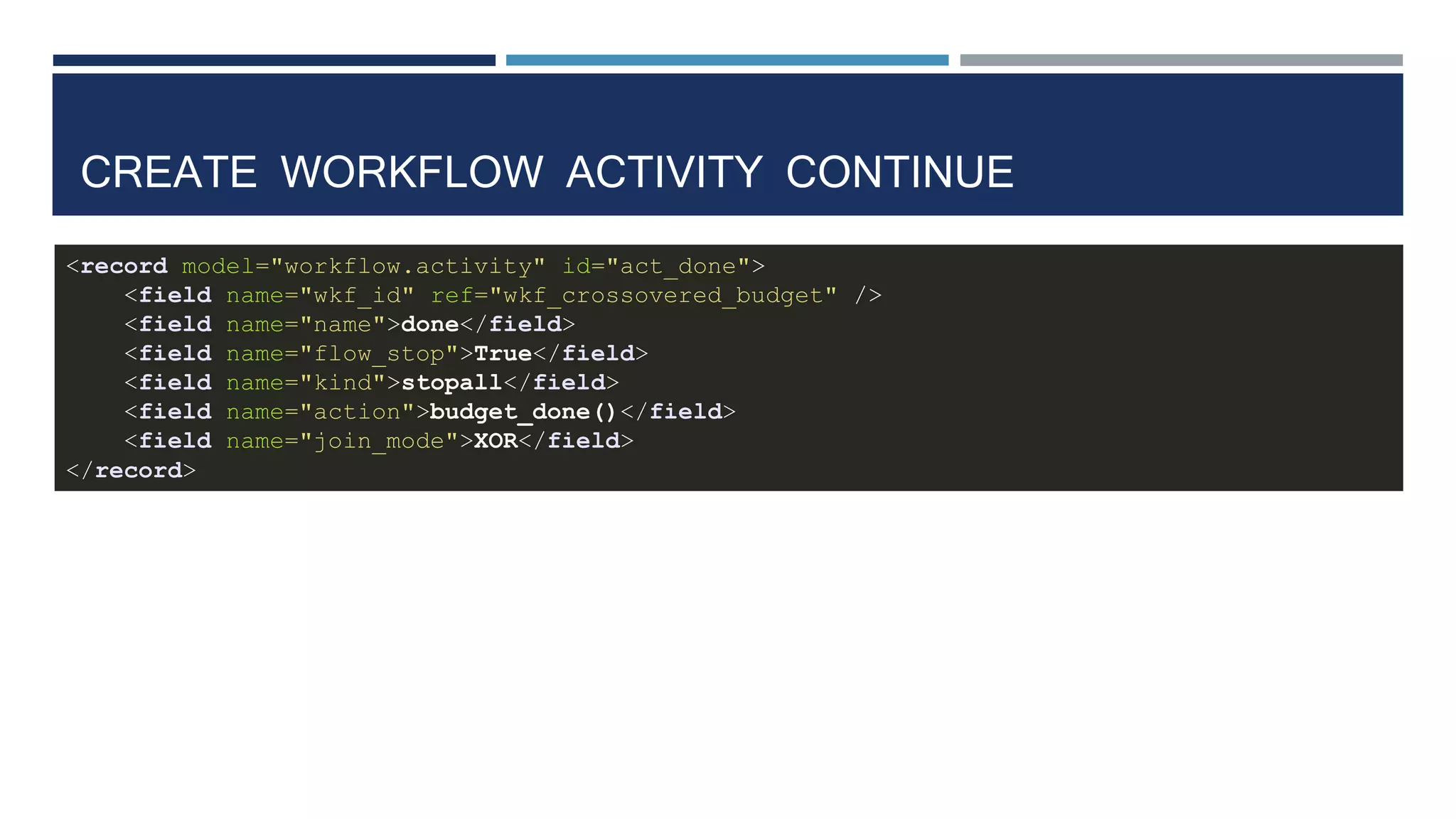

6. CREATE WORKFLOW ACTIVITY CONTINUE
<record model="workflow.activity" id="act_done">
<field name="wkf_id" ref="wkf_crossovered_budget" />
<field name="name">done</field>
<field name="flow_stop">True</field>
<field name="kind">stopall</field>
<field name="action">budget_done()</field>
<field name="join_mode">XOR</field>
</record>

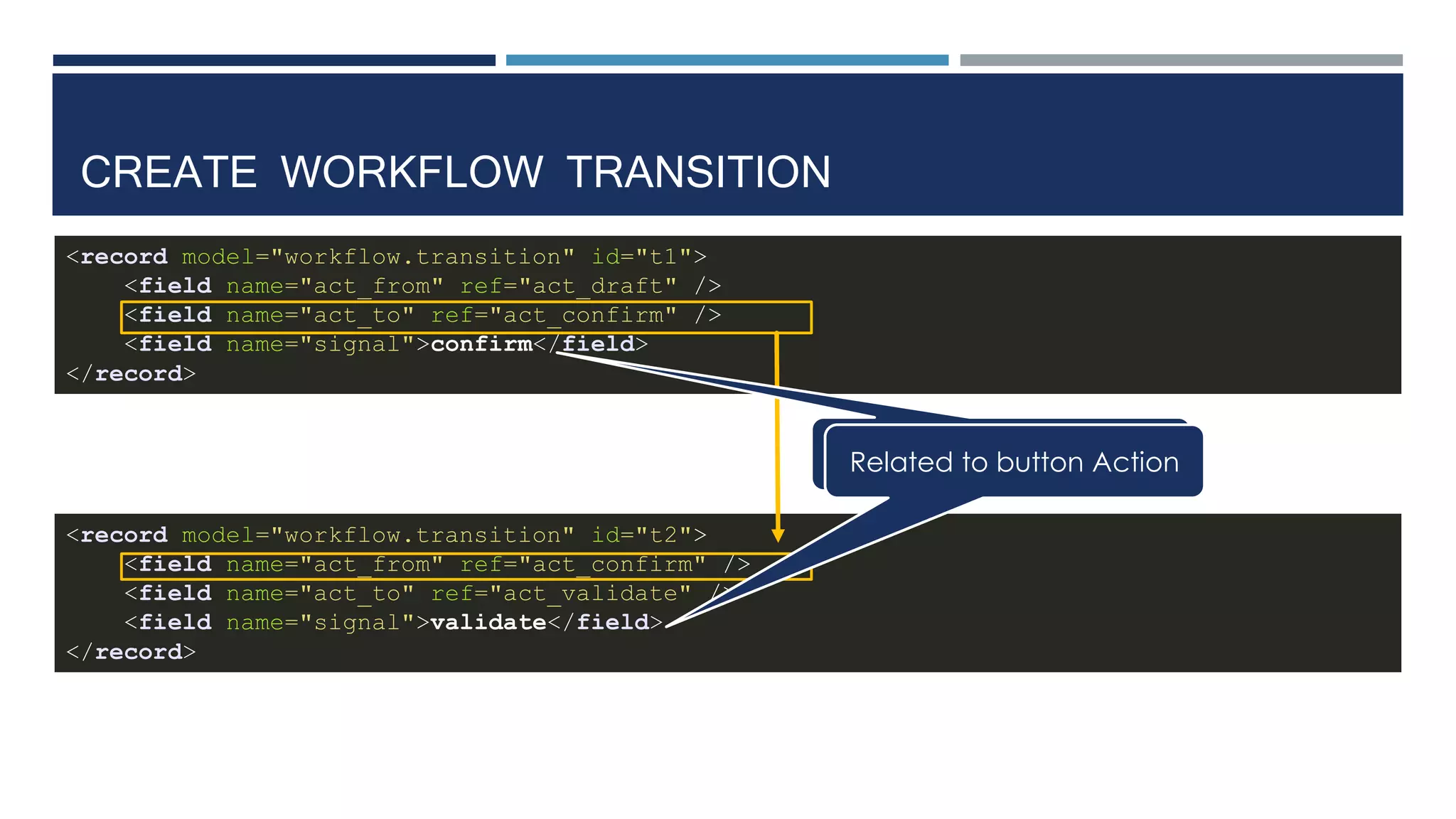

7. CREATE WORKFLOW TRANSITION
<record model="workflow.transition" id="t1">
<field name="act_from" ref="act_draft" />
<field name="act_to" ref="act_confirm" />
<field name="signal">confirm</field>
</record>
<record model="workflow.transition" id="t2">
<field name="act_from" ref="act_confirm" />
<field name="act_to" ref="act_validate" />
<field name="signal">validate</field>
</record>
Related to button ActionRelated to button Action

8. THANK YOU
HOPE IT WILL BE USEFULL
