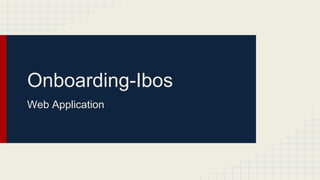

1. Onboarding-Ibos
Web Application

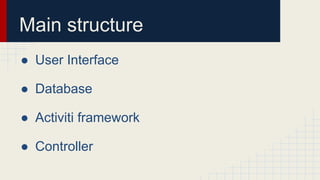

2. Main structure
● User Interface
● Database
● Activiti framework
● Controller

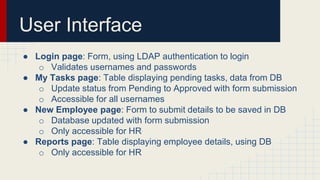

3. User Interface
● Login page: Form, using LDAP authentication to login
o Validates usernames and passwords
● My Tasks page: Table displaying pending tasks, data from DB
o Update status from Pending to Approved with form submission
o Accessible for all usernames
● New Employee page: Form to submit details to be saved in DB
o Database updated with form submission
o Only accessible for HR
● Reports page: Table displaying employee details, using DB
o Only accessible for HR

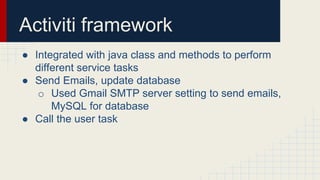

4. Activiti framework
● Integrated with java class and methods to perform
different service tasks
● Send Emails, update database
o Used Gmail SMTP server setting to send emails,
MySQL for database
● Call the user task

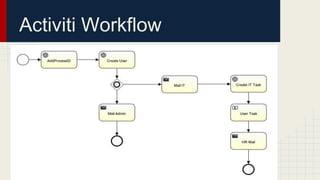

5. Activiti Workflow

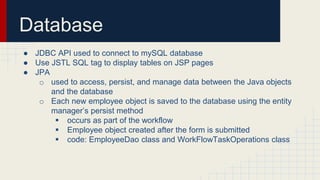

6. Database
● JDBC API used to connect to mySQL database
● Use JSTL SQL tag to display tables on JSP pages
● JPA
o used to access, persist, and manage data between the Java objects
and the database
o Each new employee object is saved to the database using the entity
manager’s persist method
 occurs as part of the workflow
 Employee object created after the form is submitted
 code: EmployeeDao class and WorkFlowTaskOperations class

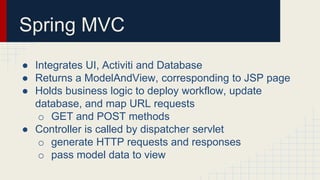

7. Spring MVC
● Integrates UI, Activiti and Database
● Returns a ModelAndView, corresponding to JSP page
● Holds business logic to deploy workflow, update
database, and map URL requests
o GET and POST methods
● Controller is called by dispatcher servlet
o generate HTTP requests and responses
o pass model data to view

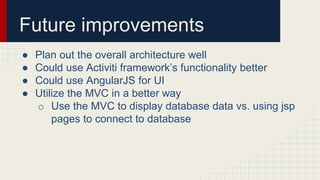

8. Future improvements
● Plan out the overall architecture well
● Could use Activiti framework’s functionality better
● Could use AngularJS for UI
● Utilize the MVC in a better way
o Use the MVC to display database data vs. using jsp
pages to connect to database
