1. OData and Impact on
API Design
With
Anant Jhingran Brian Pagano Greg Brail
@jhingran @brianpagano @gbrail

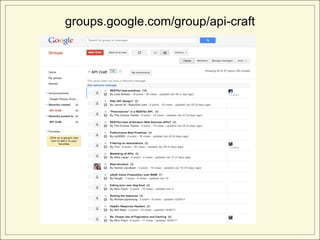

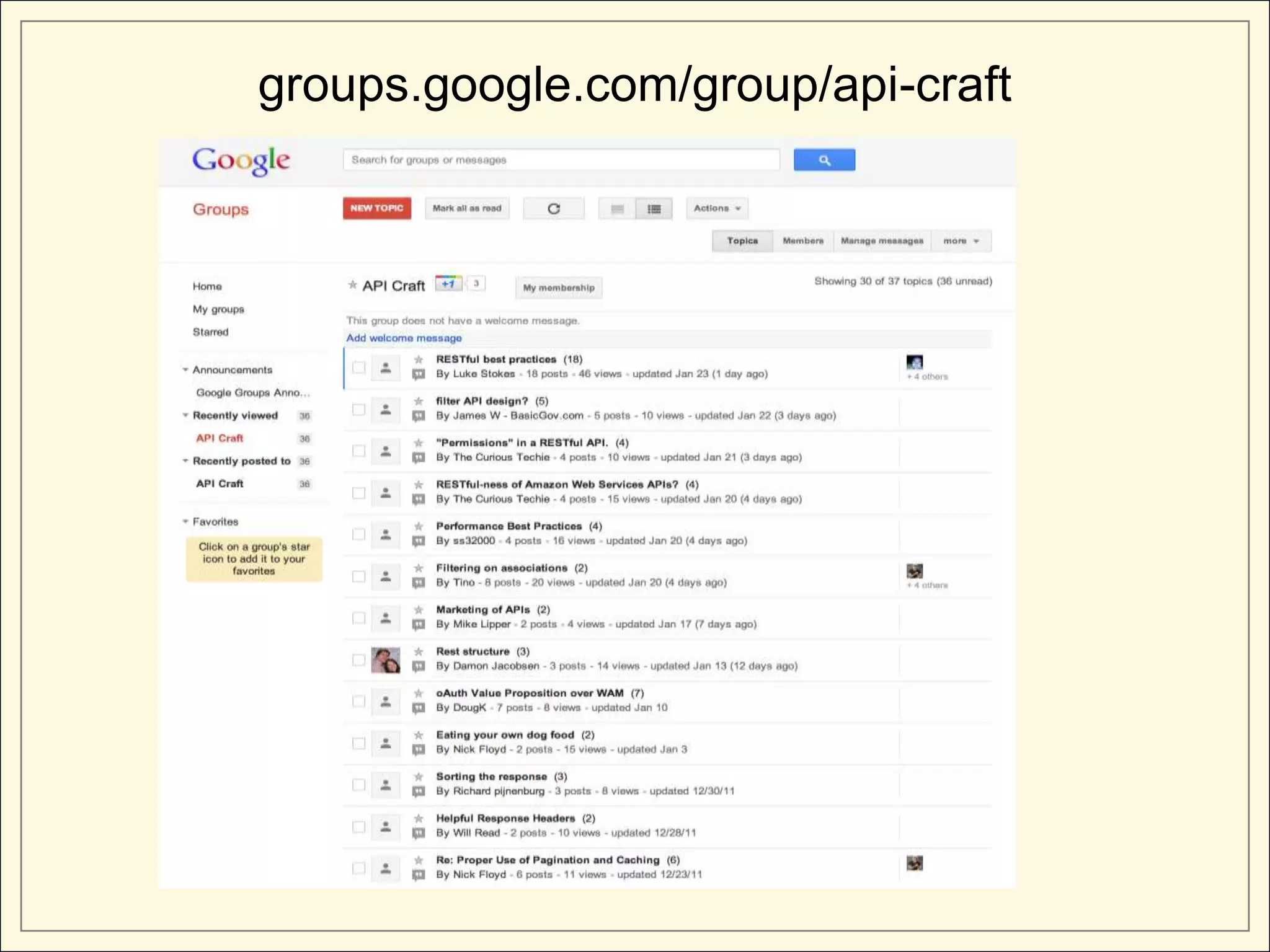

2. groups.google.com/group/api-craft

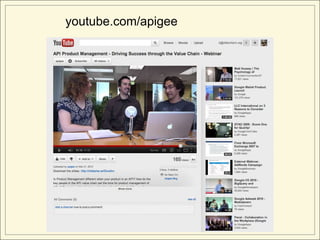

3. youtube.com/apigee

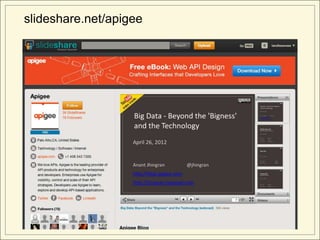

4. slideshare.net/apigee

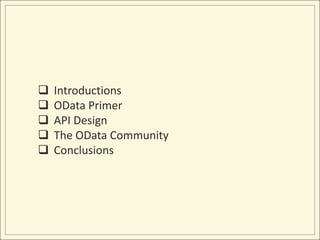

5.  Introductions
 OData Primer
 API Design
 The OData Community
 Conclusions

6. @jhingran @brianpagano @gbrail

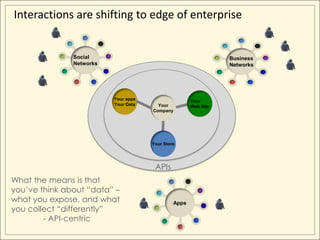

7. Interactions are shifting to edge of enterprise
Social Business
Networks Networks
Your apps Your
Your Data Your Web Site
Company
Your Store
APIs
What the means is that
you’ve think about “data” –
what you expose, and what Apps
you collect “differently”
- API-centric

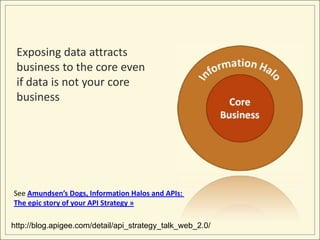

8. Exposing data attracts
business to the core even
if data is not your core
business
See Amundsen’s Dogs, Information Halos and APIs:
The epic story of your API Strategy »
http://blog.apigee.com/detail/api_strategy_talk_web_2.0/

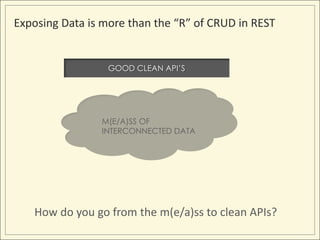

9. Exposing Data is more than the “R” of CRUD in REST
GOOD CLEAN API’S
M(E/A)SS OF
INTERCONNECTED DATA
How do you go from the m(e/a)ss to clean APIs?

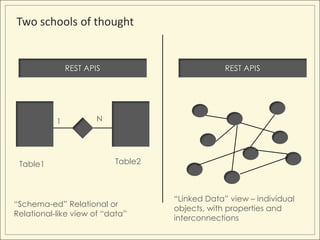

10. Two schools of thought
REST APIS REST APIS
1 N
Table1 Table2
“Linked Data” view – individual
“Schema-ed” Relational or
objects, with properties and
Relational-like view of “data”
interconnections

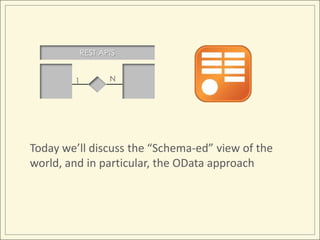

11. REST APIS
1 N
Today we’ll discuss the “Schema-ed” view of the
world, and in particular, the OData approach

12. Let’s look at OData requests and responses.

13. OData by Example
SQL Query OData Request
select * from products where id = 1 /Products(1)
select * from products /Products?$filter=name eq ‘Milk’
where name = ‘Milk’
select name from products /Products?$select=name
select * from products order by name /Products?$orderby=name
select * from products offset 10 limit 10 /Products?$top=10&$skip=10
select * from prices r, products p /Products(1)?$expand=Prices
where r.id = p.id
(* sort of)

14. Filters
/Categories?$filter=Name eq ‘Dairy’
Logical Operators
eq ne gt ge lt le eq or and
Arithmetic Operators
add sub mul div mod
Parenthesis Operator
()
Canonical Functions
substrof endswith startswith
length indexof replace substring tolower
toupper trim concat year years month day
days hour hours minute minutes second
seconds round floor ceiling isof cast

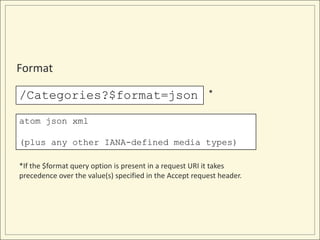

15. Format
/Categories?$format=json *
atom json xml
(plus any other IANA-defined media types)
*If the $format query option is present in a request URI it takes
precedence over the value(s) specified in the Accept request header.

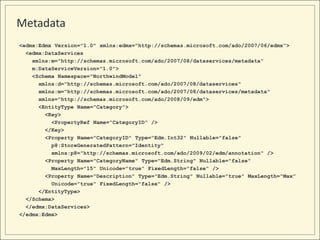

16. Metadata
<edmx:Edmx Version="1.0" xmlns:edmx="http://schemas.microsoft.com/ado/2007/06/edmx">
<edmx:DataServices
xmlns:m="http://schemas.microsoft.com/ado/2007/08/dataservices/metadata"
m:DataServiceVersion="1.0">
<Schema Namespace="NorthwindModel"
xmlns:d="http://schemas.microsoft.com/ado/2007/08/dataservices"
xmlns:m="http://schemas.microsoft.com/ado/2007/08/dataservices/metadata"
xmlns="http://schemas.microsoft.com/ado/2008/09/edm">
<EntityType Name="Category">
<Key>
<PropertyRef Name="CategoryID" />
</Key>
<Property Name="CategoryID" Type="Edm.Int32" Nullable="false"
p8:StoreGeneratedPattern="Identity"
xmlns:p8="http://schemas.microsoft.com/ado/2009/02/edm/annotation" />
<Property Name="CategoryName" Type="Edm.String" Nullable="false"
MaxLength="15" Unicode="true" FixedLength="false" />
<Property Name="Description" Type="Edm.String" Nullable="true" MaxLength="Max"
Unicode="true" FixedLength="false" />
</EntityType>
</Schema>
</edmx:DataServices>
</edmx:Edmx>

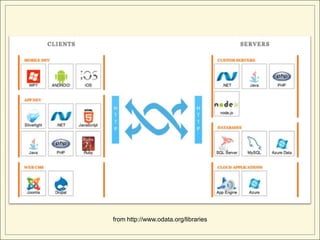

17. Libraries

18. from http://www.odata.org/libraries

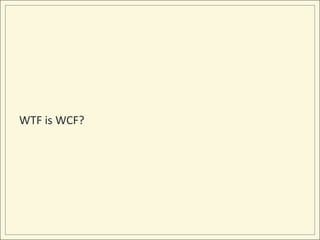

19. WTF is WCF?

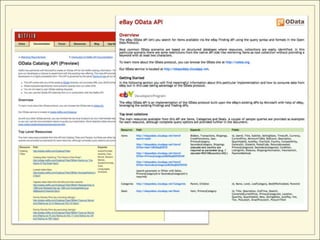

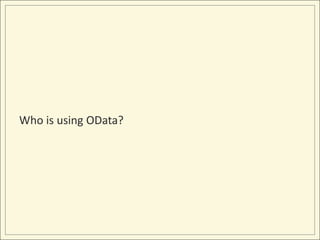

20. Who is using OData?

22. Who created OData?

24. How does OData compare to other approaches?

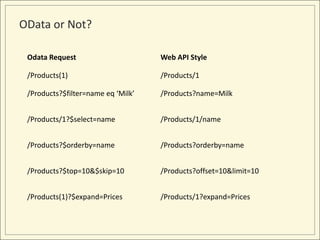

25. OData or Not?
Odata Request Web API Style
/Products(1) /Products/1
/Products?$filter=name eq ‘Milk’ /Products?name=Milk
/Products/1?$select=name /Products/1/name
/Products?$orderby=name /Products?orderby=name
/Products?$top=10&$skip=10 /Products?offset=10&limit=10
/Products(1)?$expand=Prices /Products/1?expand=Prices

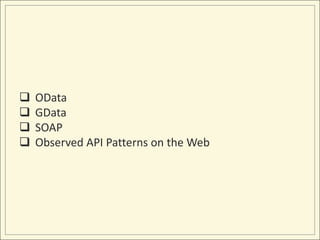

26.  OData
 GData
 SOAP
 Observed API Patterns on the Web

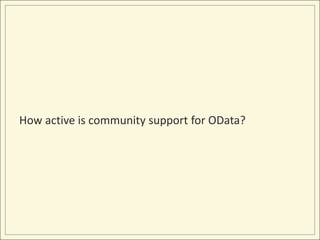

27. How active is community support for OData?

28. Is it time to rally around a standard like OData?
Or is too early?

29. Should one implement OData?

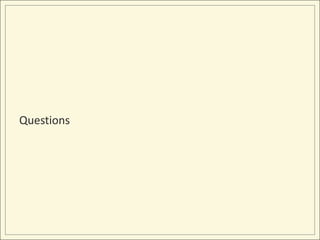

30. Questions

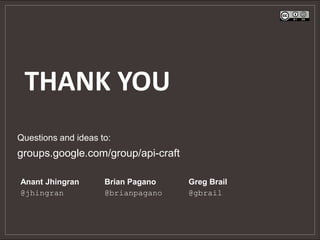

31. THANK YOU
Questions and ideas to:
groups.google.com/group/api-craft
Anant Jhingran Brian Pagano Greg Brail
@jhingran @brianpagano @gbrail
