OAuth2 - The Swiss Army Framework

© 2014 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 1
Brent Shaffer
OAuth2: The Swiss Army Framework

Who Is This Guy?
Hint: Brent Shaffer

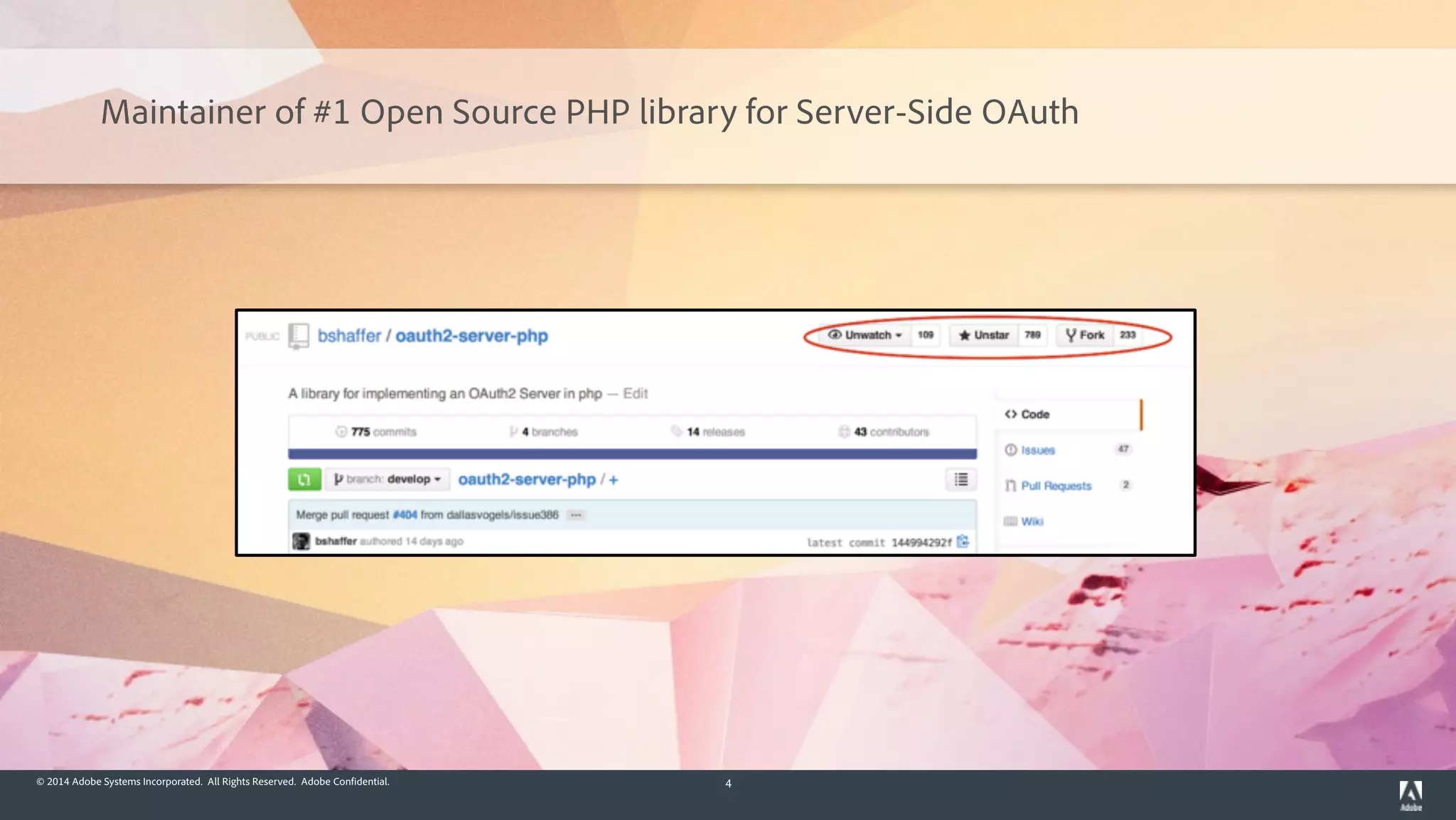

Maintainer of #1 Open Source PHP library for Server-Side OAuth

I’m in a Band!
The ladies love us!
More Hazards More Heroes

Don’t require your users to authenticate
with 3rd parties using passwords!
The moral of the story

Don’t require your users to authenticate
with your APIs using passwords!
…and to a lesser extent

What is OAuth?
▪ Something to do with Facebook
▪ Twitter’s in the mix
▪ Maybe Google too? Github?
▪ Authorization and Authentication
▪ Tokens everywhere
▪ Two-legs, three-legs… crablegs?

Overview

“OAuth is a big set of rules that explain how
two parties exchange tokens"

Currency for Tokens

Tokens Expire

Bearer Token

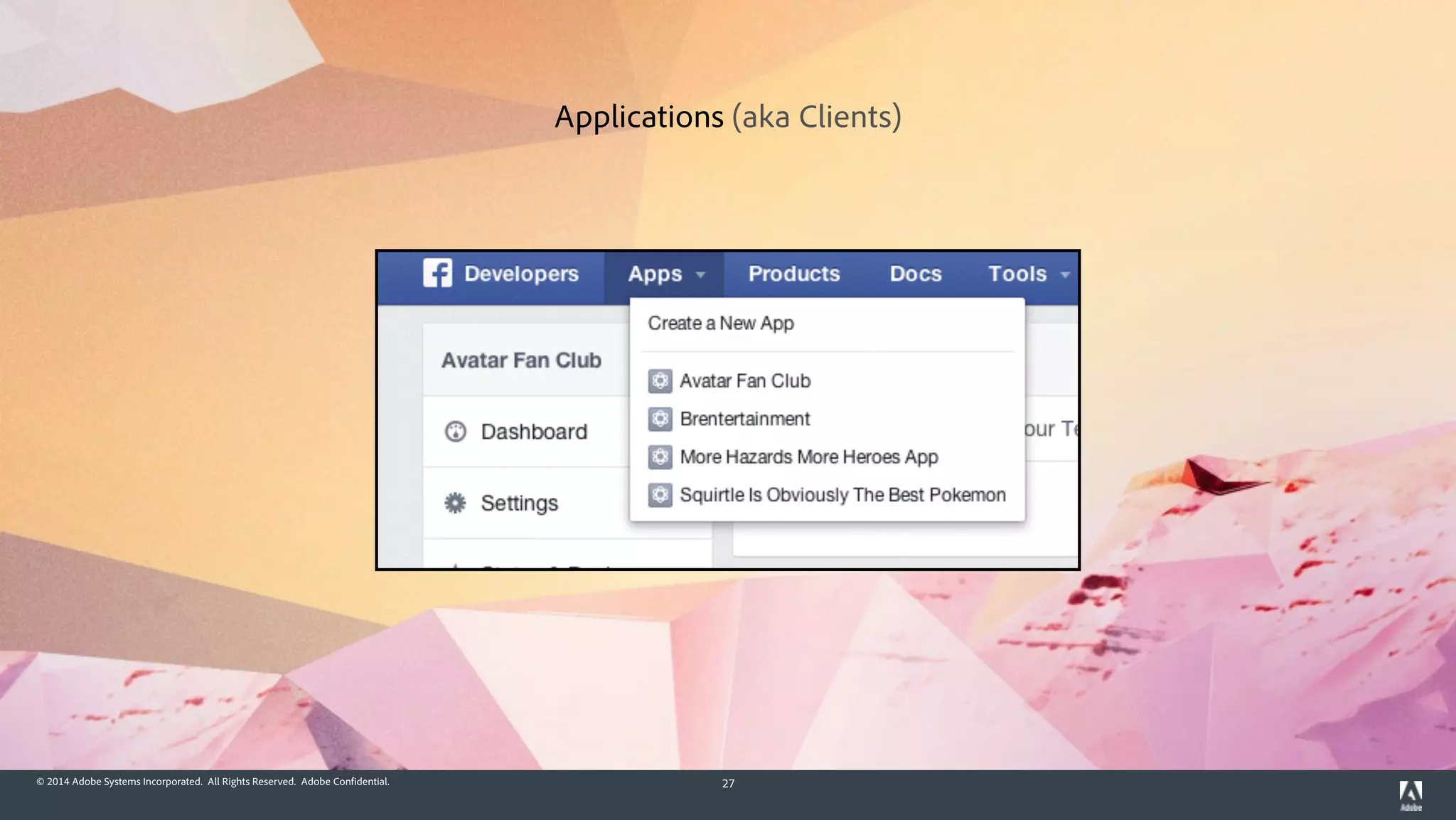

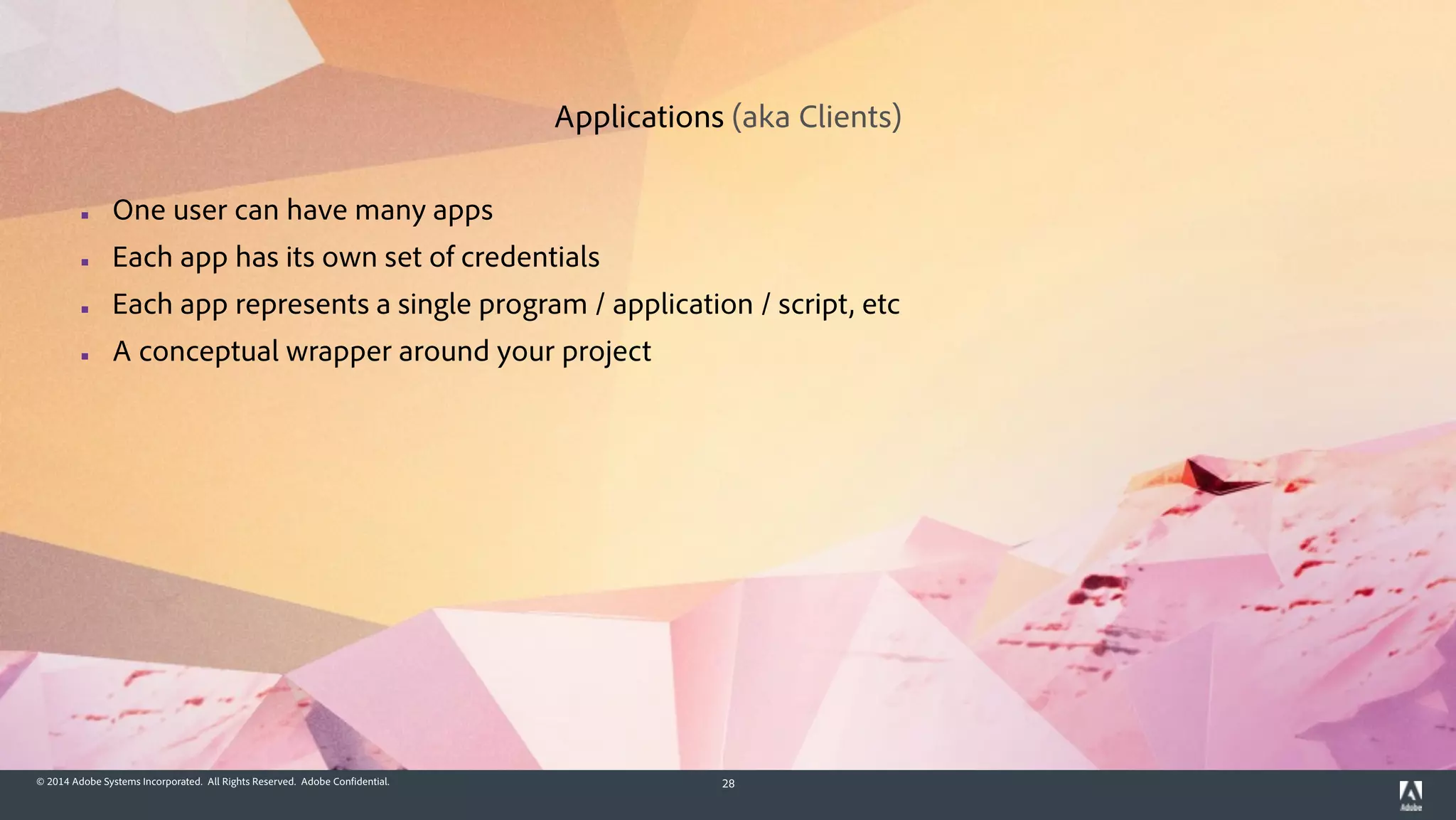

Applications (aka Clients)

▪ One user can have many apps
▪ Each app has its own set of credentials
▪ Each app represents a single program / application / script, etc
▪ A conceptual wrapper around your project

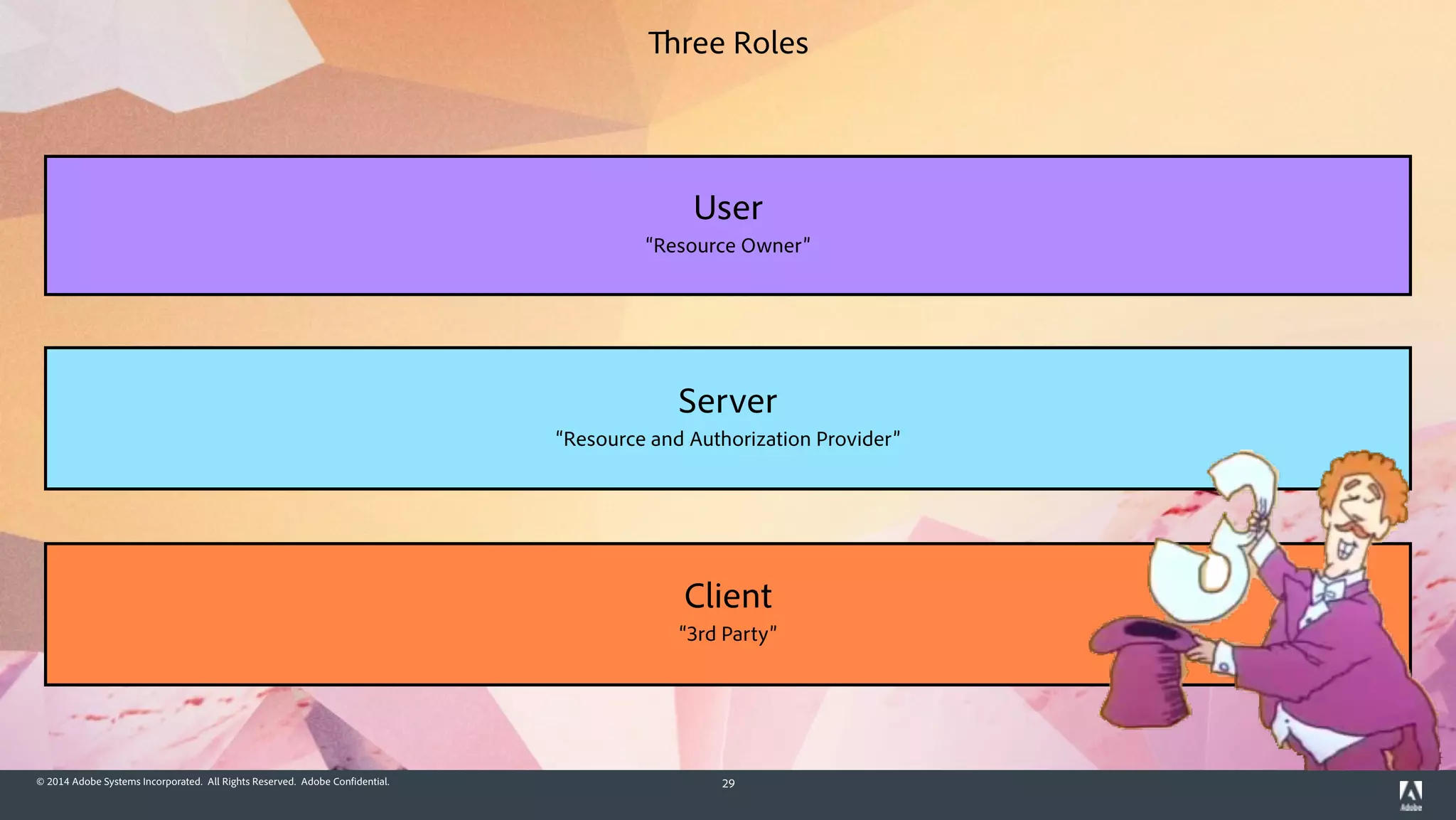

Applications (aka Clients)

User
“Resource Owner”
Client
“3rd Party”
Server
“Resource and Authorization Provider”
Three Roles

USER
3RD PARTY
SERVICE
Three Legs

Authorize Token Resource
The user authorizes
the client
The server returns a
token to the client

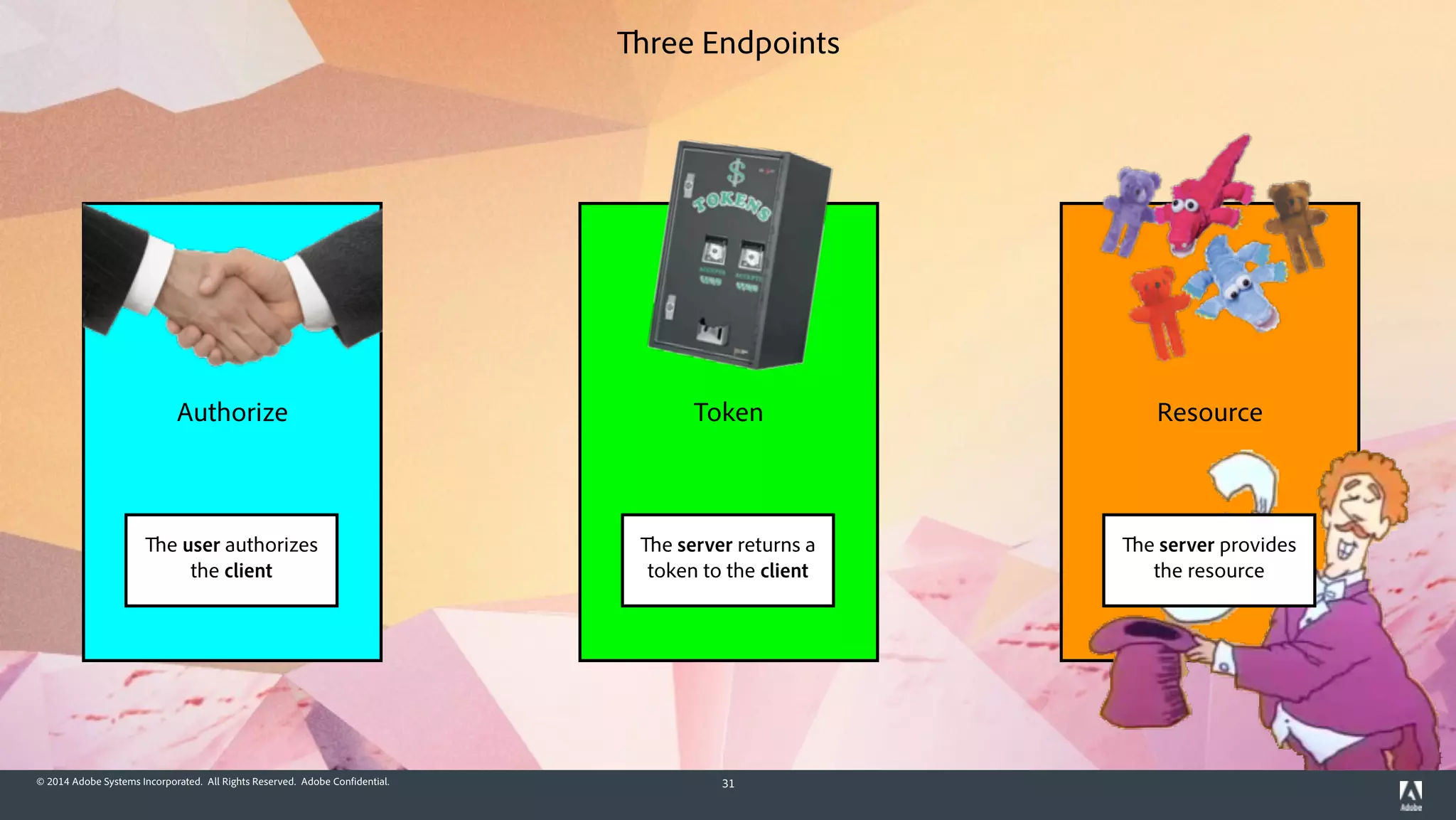

Three Endpoints
The server provides
the resource

Grant Types

“A Grant Type is just a specific way to obtain
(or be granted) an Access Token"

“The multiple ways to get an access token,
i.e. the Grant Types, are what make OAuth a
Swiss Army Framework™”

Brent Shaffer
OAuth2: The Swiss Army Framework

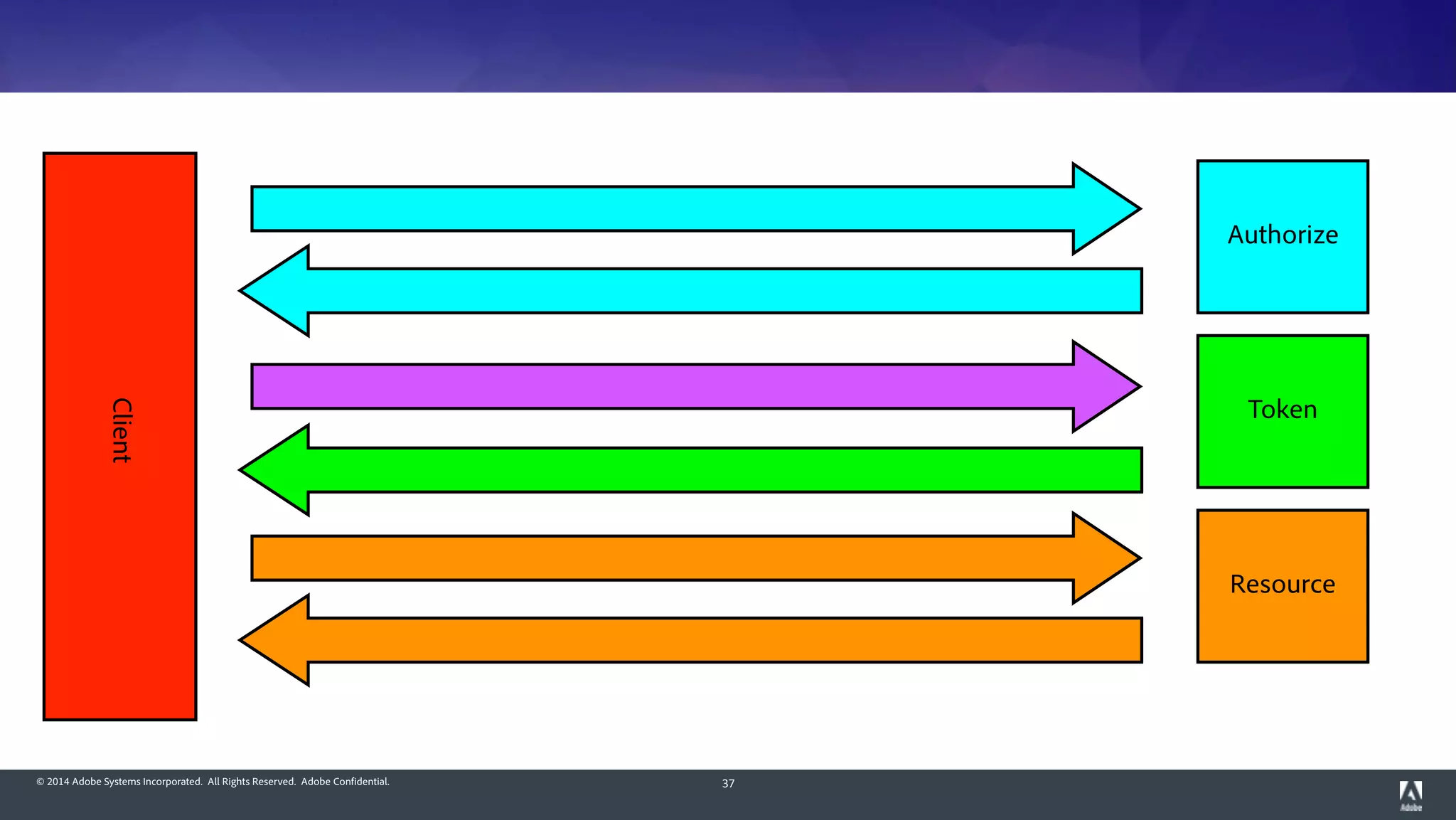

Difficulty: Easy

Client
Authorize
Token
Resource

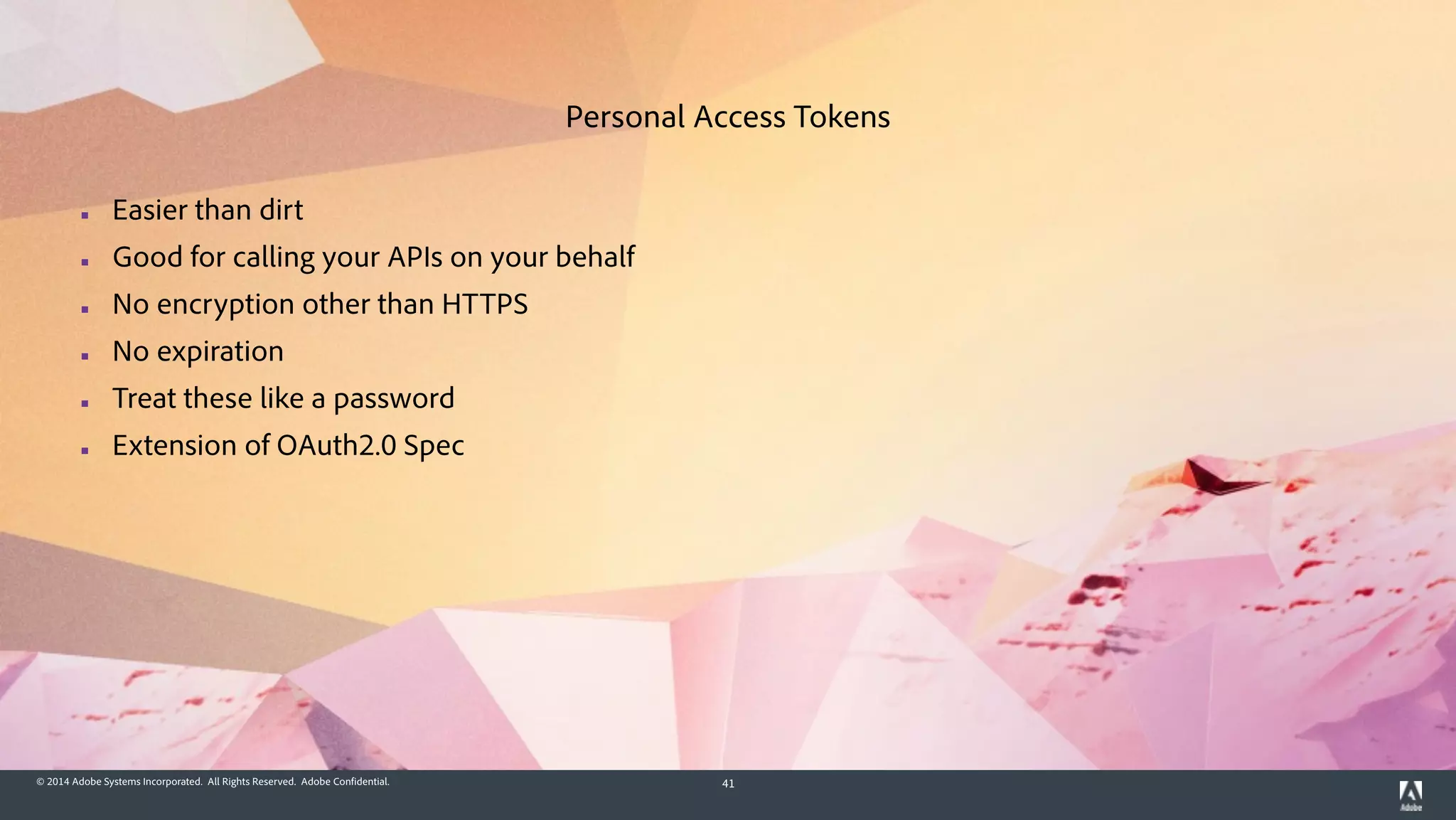

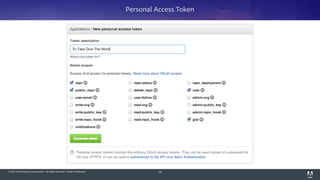

Personal Access Token

▪ Easier than dirt
▪ Good for calling your APIs on your behalf
▪ No encryption other than HTTPS
▪ No expiration
▪ Treat these like a password
▪ Extension of OAuth2.0 Spec

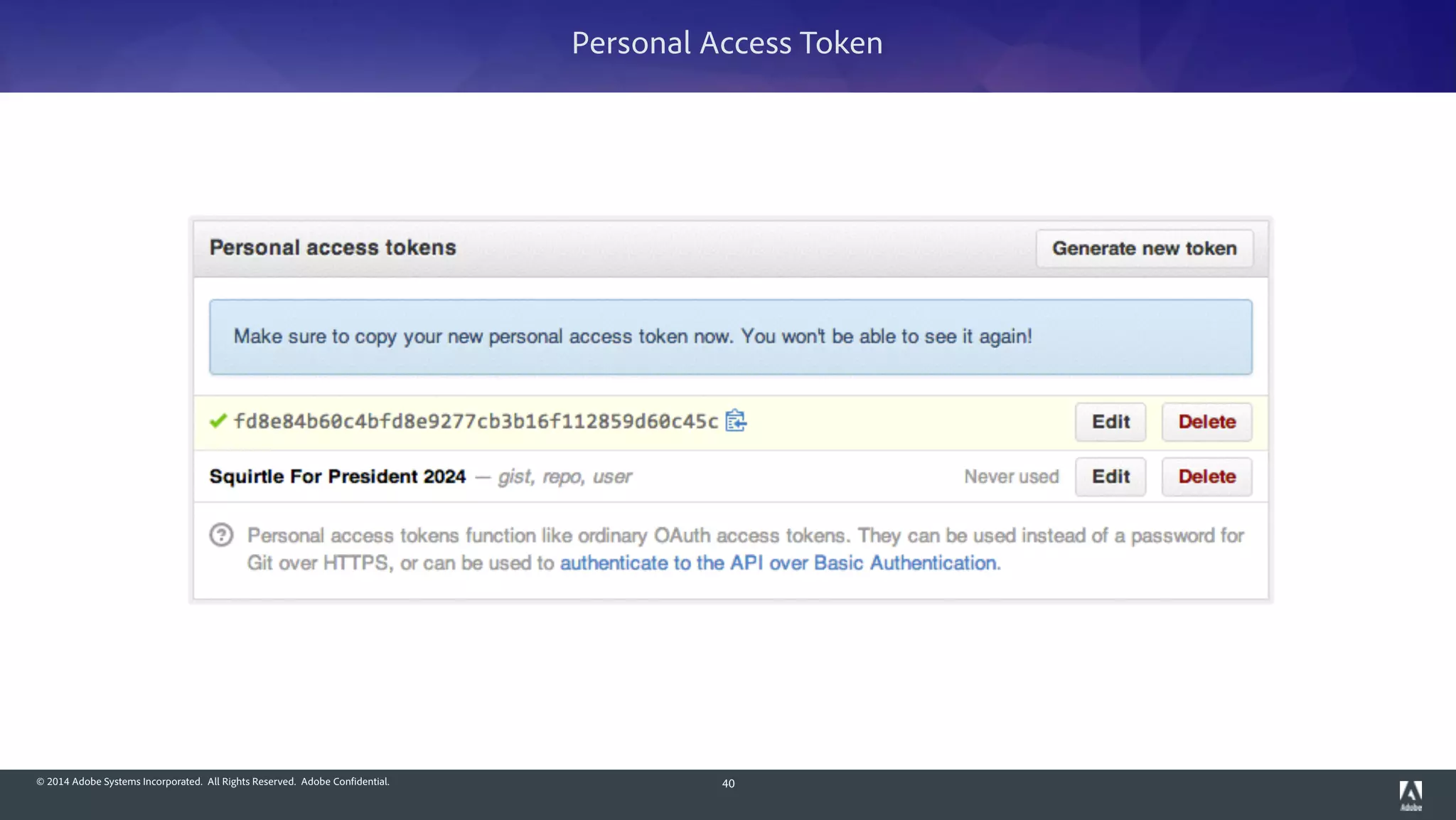

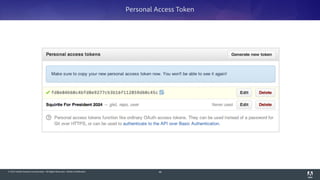

Personal Access Tokens

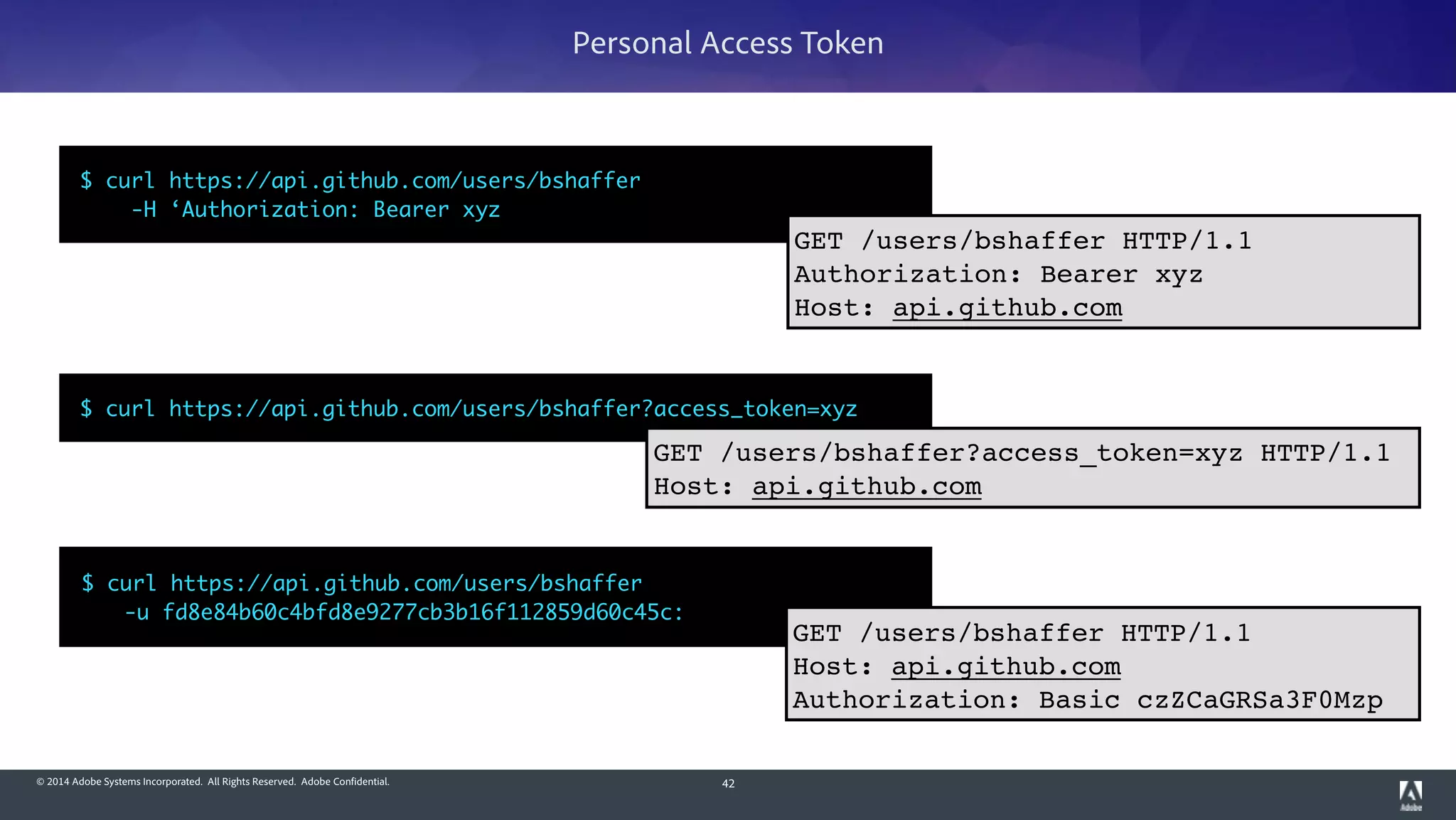

$ curl https://api.github.com/users/bshaffer
-u fd8e84b60c4bfd8e9277cb3b16f112859d60c45c:
$ curl https://api.github.com/users/bshaffer?access_token=xyz
GET /users/bshaffer HTTP/1.1!
Host: api.github.com!
Authorization: Basic czZCaGRSa3F0Mzp
GET /users/bshaffer?access_token=xyz HTTP/1.1!
Host: api.github.com
$ curl https://api.github.com/users/bshaffer
-H ‘Authorization: Bearer xyz
GET /users/bshaffer HTTP/1.1!
Authorization: Bearer xyz!
Host: api.github.com

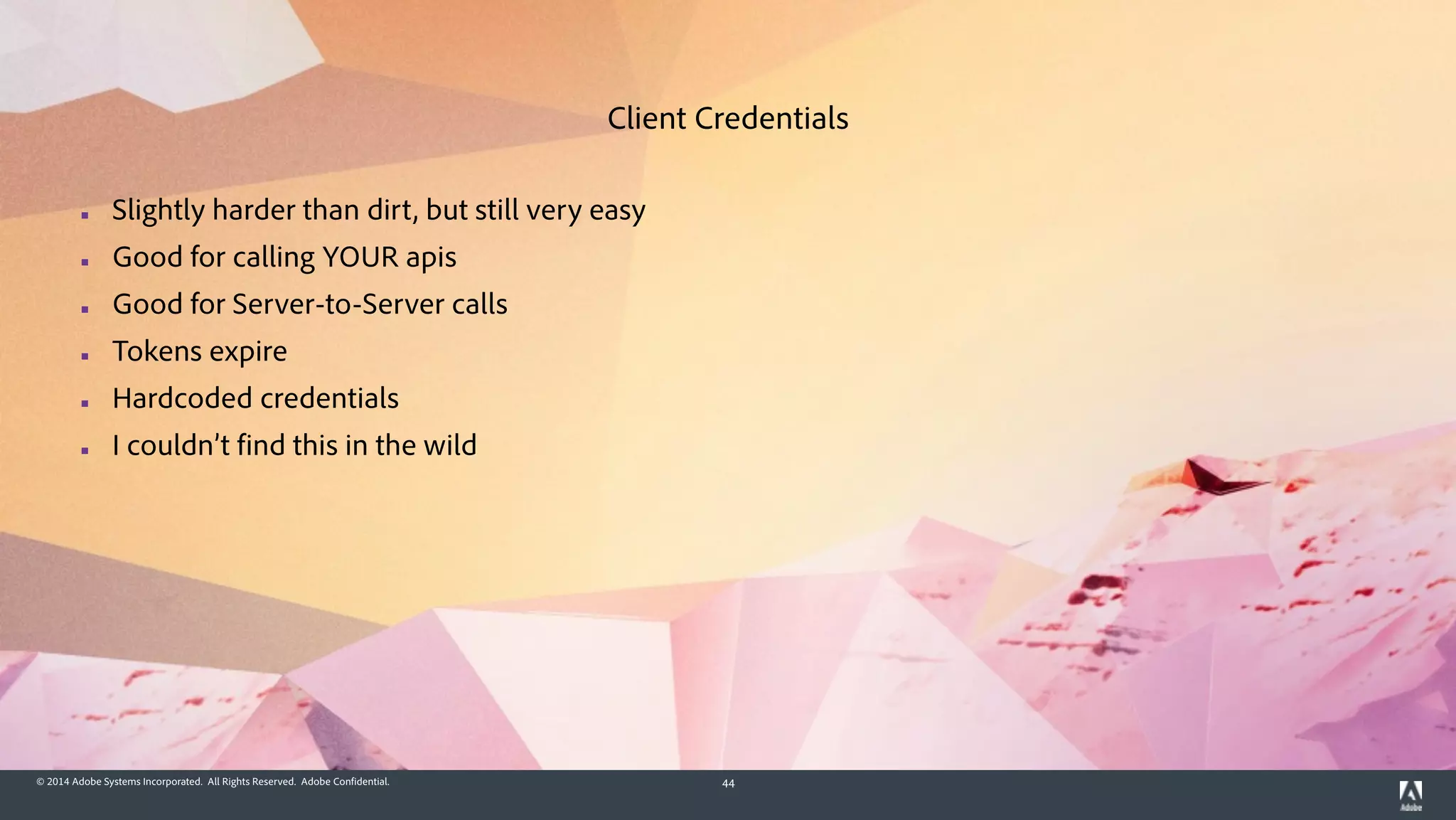

▪ Slightly harder than dirt, but still very easy
▪ Good for calling YOUR apis
▪ Good for Server-to-Server calls
▪ Tokens expire
▪ Hardcoded credentials
▪ I couldn’t find this in the wild
Client Credentials

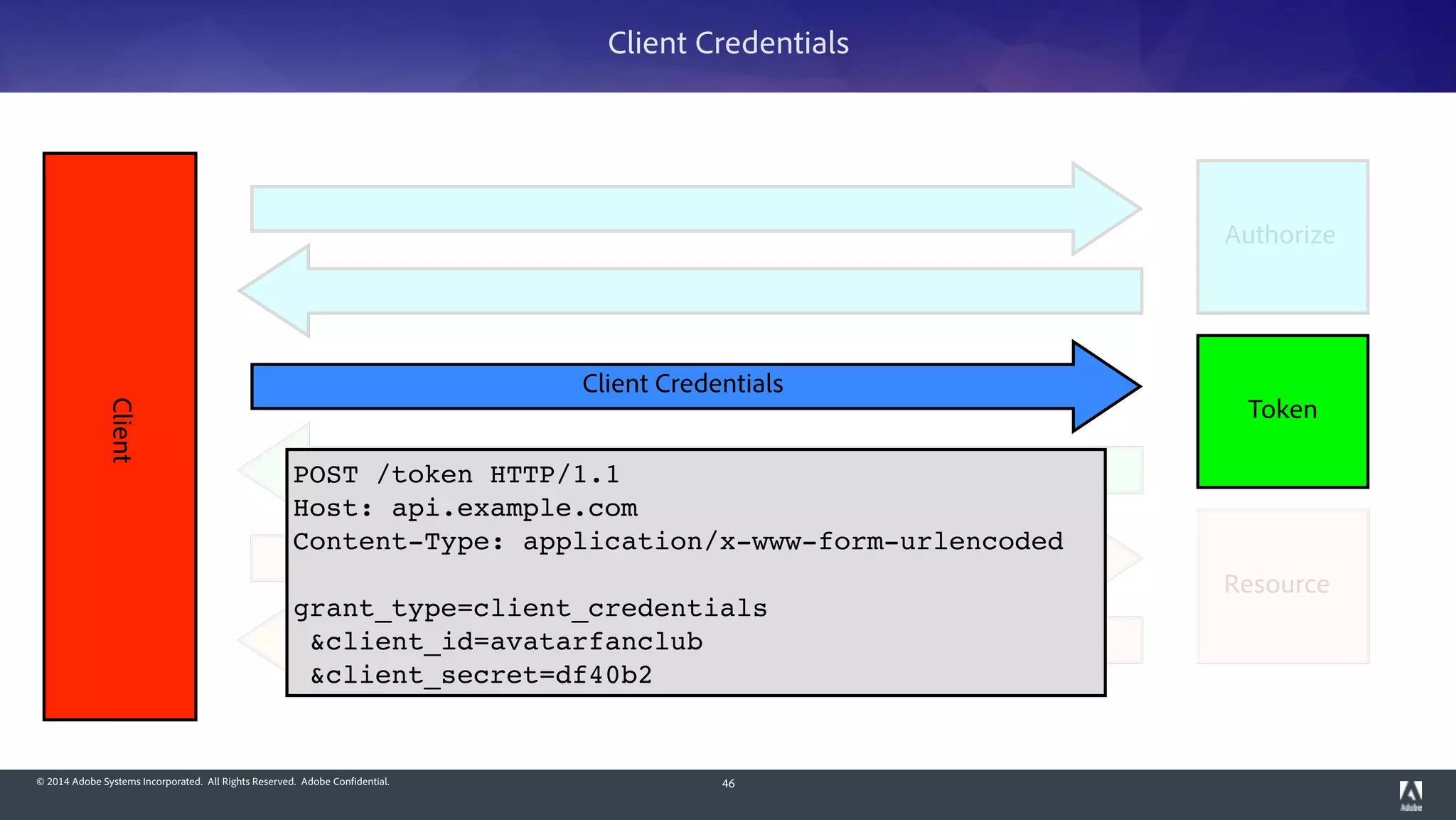

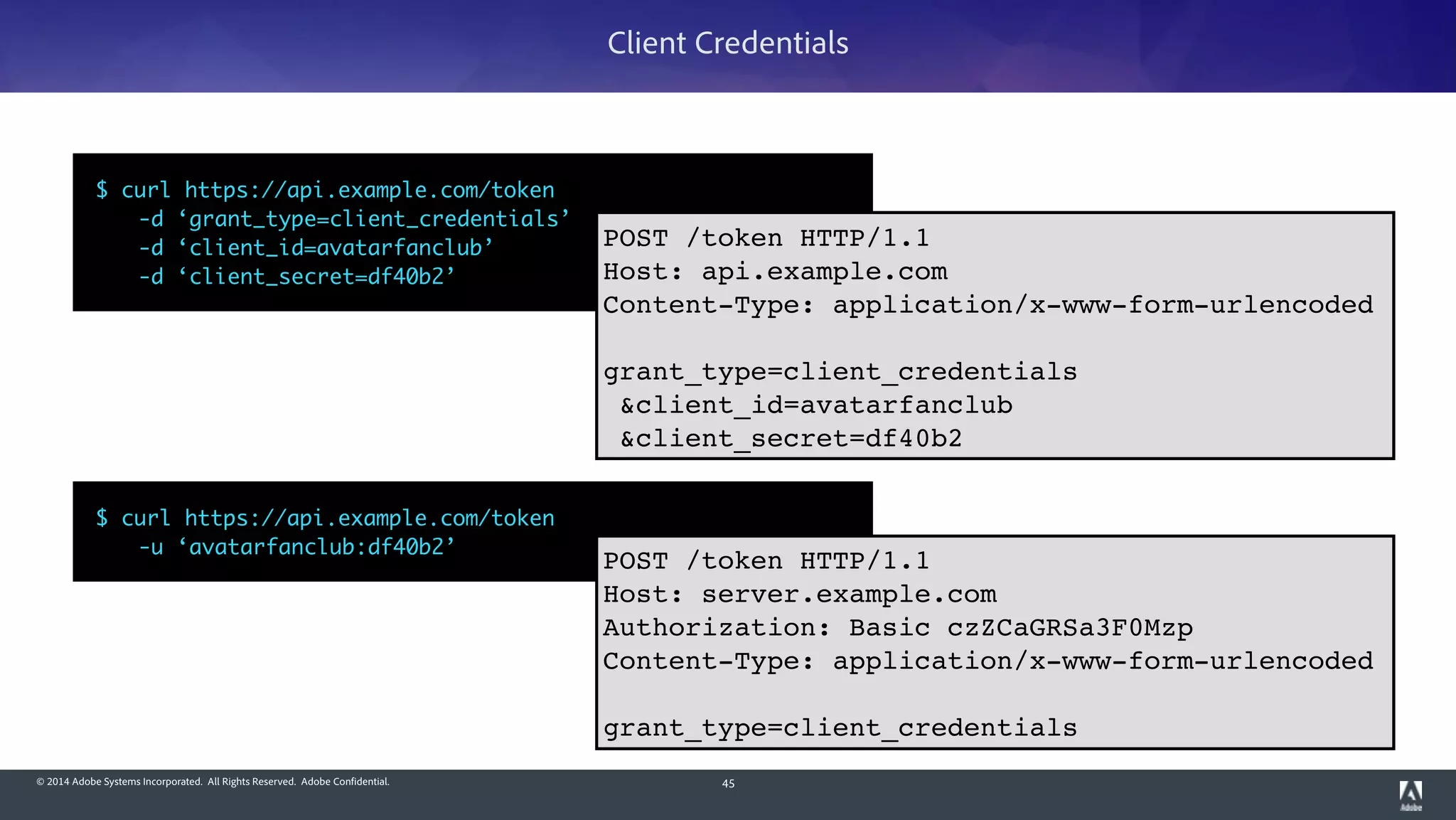

Client Credentials
$ curl https://api.example.com/token
-d ‘grant_type=client_credentials’
-d ‘client_id=avatarfanclub’
-d ‘client_secret=df40b2’
POST /token HTTP/1.1!
Host: api.example.com!
Content-Type: application/x-www-form-urlencoded!
!
grant_type=client_credentials!
&client_id=avatarfanclub!
&client_secret=df40b2
-u ‘avatarfanclub:df40b2’
Host: server.example.com!
Authorization: Basic czZCaGRSa3F0Mzp!
!
grant_type=client_credentials

Client
Token
Client Credentials
Authorize
Resource
!
grant_type=client_credentials!
&client_id=avatarfanclub!
&client_secret=df40b2

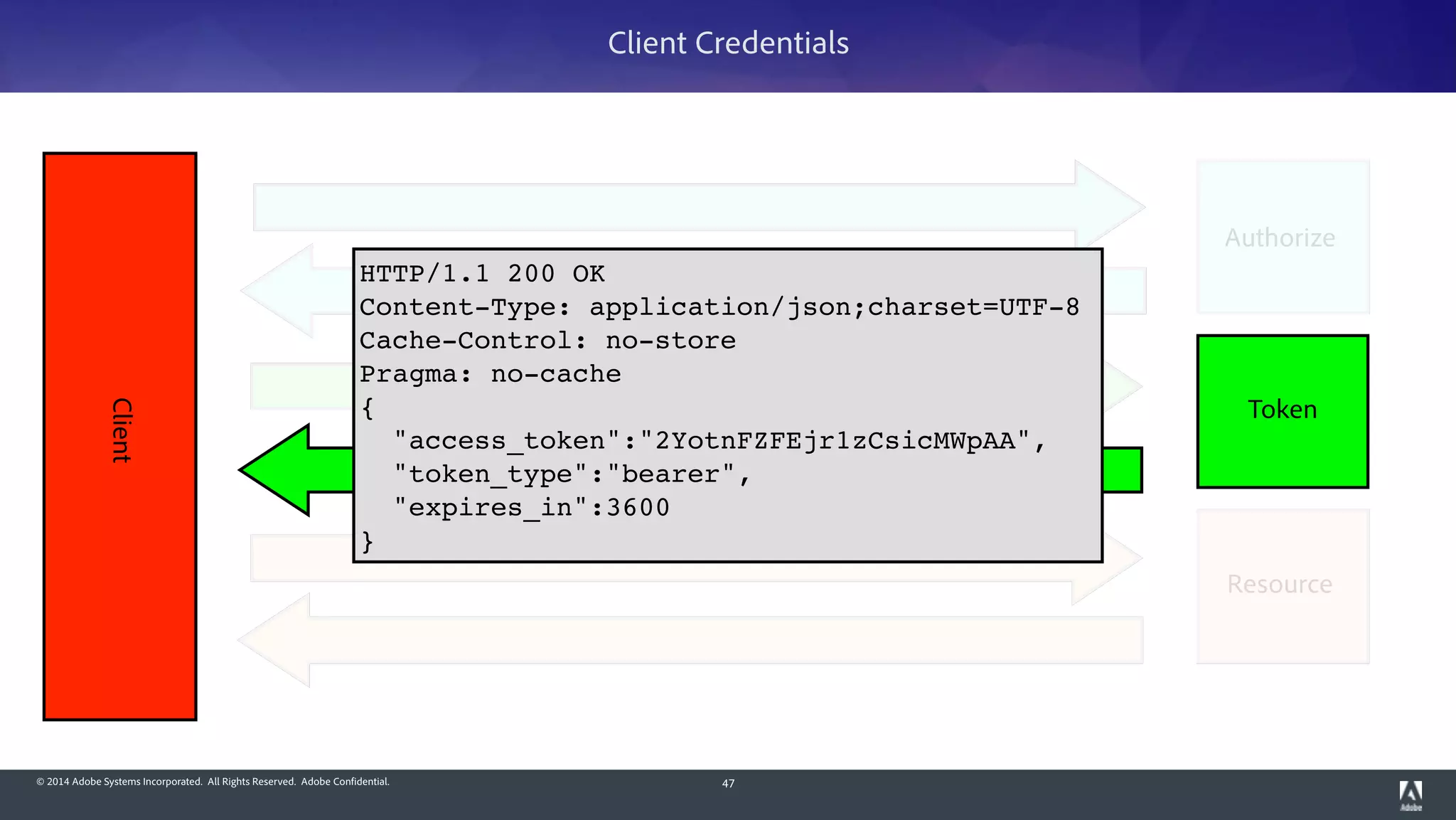

Client Credentials

Client
Token
Client Credentials
Authorize
Resource
HTTP/1.1 200 OK!
Content-Type: application/json;charset=UTF-8!
Cache-Control: no-store!
Pragma: no-cache!
{!
"access_token":"2YotnFZFEjr1zCsicMWpAA",!
"token_type":"bearer",!
"expires_in":3600!
}

Client
Resource
Client Credentials
Authorize
Token

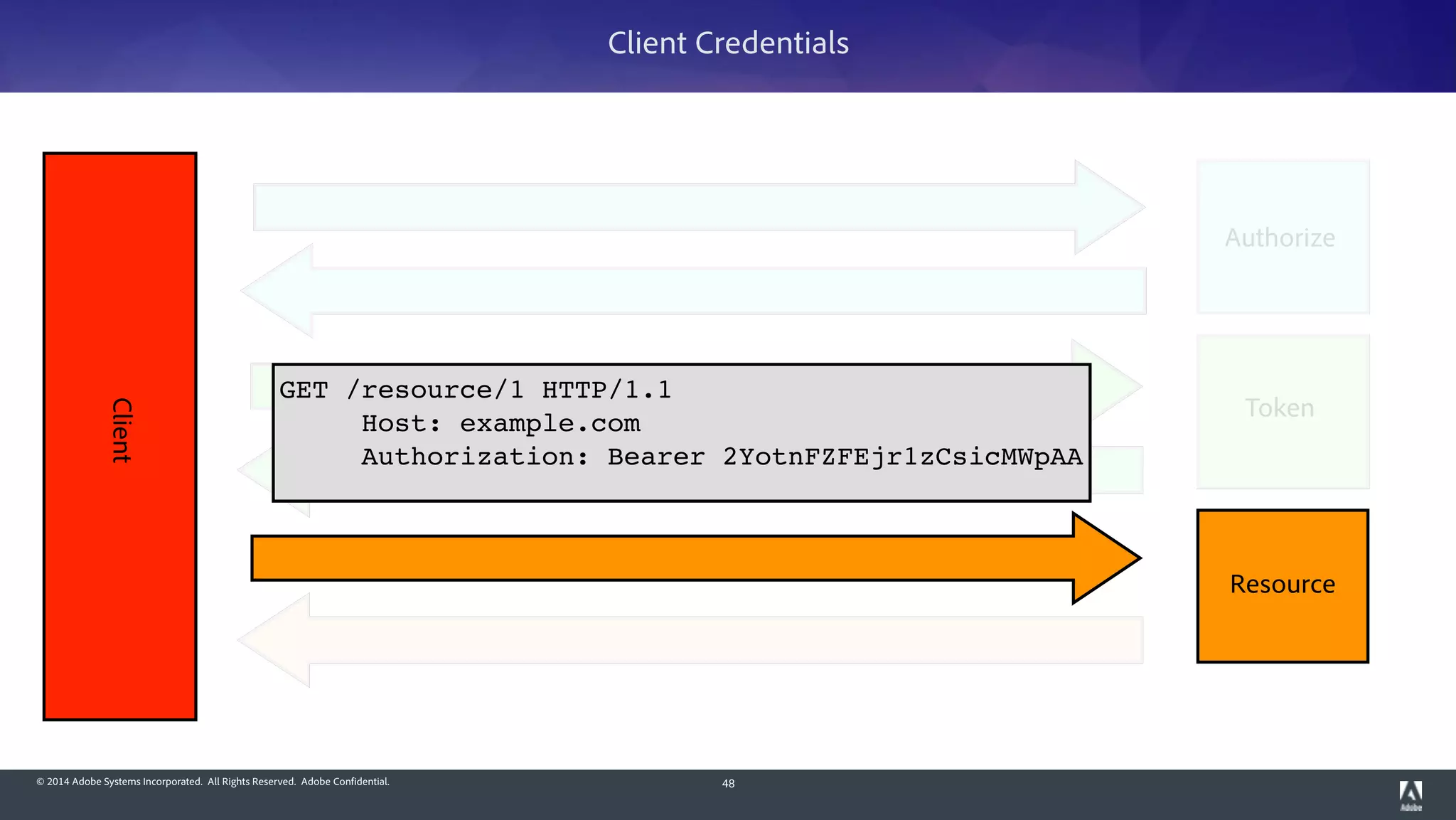

GET /resource/1 HTTP/1.1!
Host: example.com!
Authorization: Bearer 2YotnFZFEjr1zCsicMWpAA

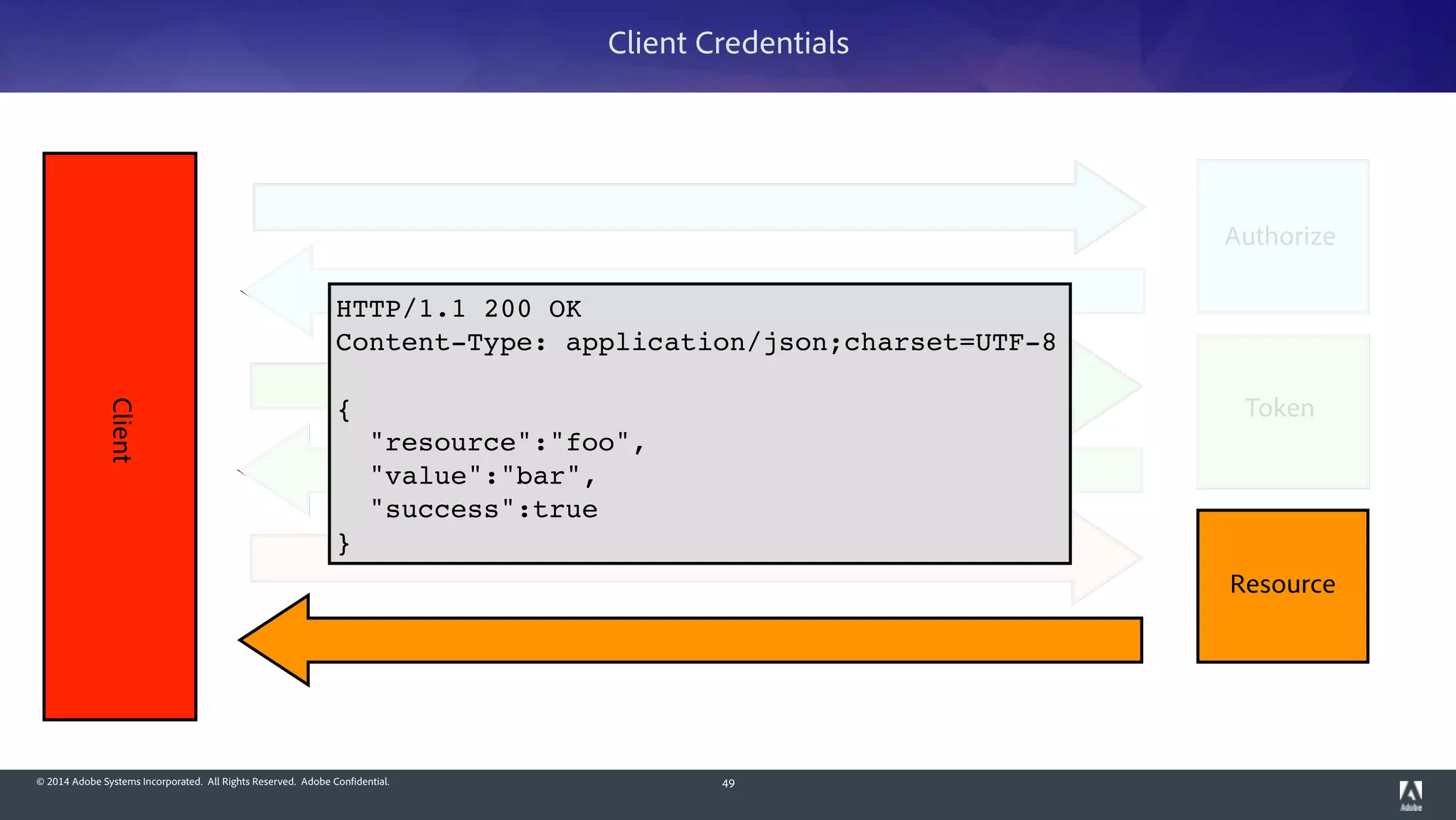

Client
Resource
Client Credentials
Authorize
Token
HTTP/1.1 200 OK!
!
{!
"resource":"foo",!
"value":"bar",!
"success":true!
}

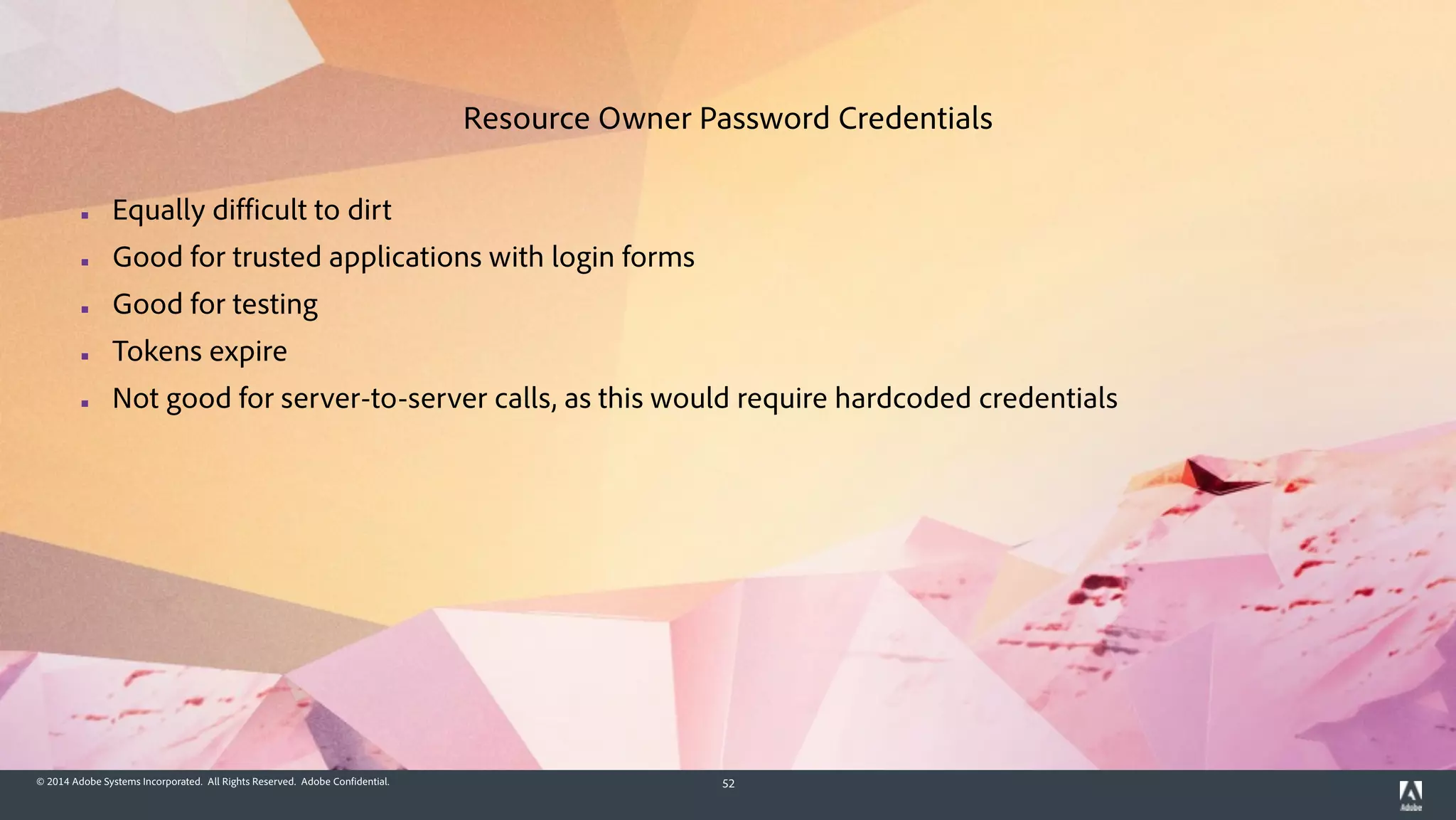

▪ Equally difficult to dirt
▪ Good for trusted applications with login forms
▪ Good for testing
▪ Tokens expire
▪ Not good for server-to-server calls, as this would require hardcoded credentials

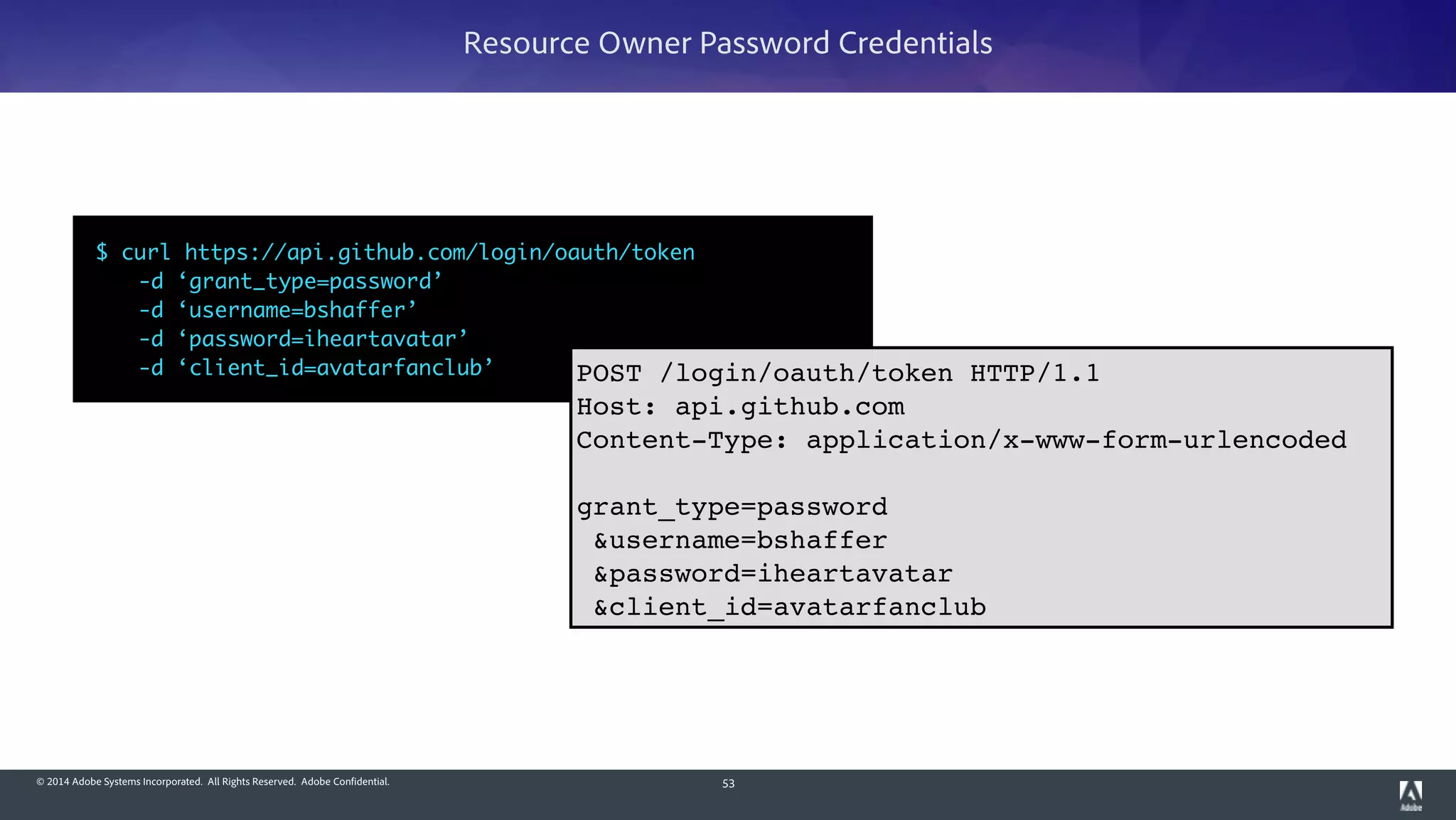

Resource Owner Password Credentials

$ curl https://api.github.com/login/oauth/token
-d ‘grant_type=password’
-d ‘username=bshaffer’
-d ‘password=iheartavatar’
-d ‘client_id=avatarfanclub’ POST /login/oauth/token HTTP/1.1!
!
grant_type=password!
&username=bshaffer!
&password=iheartavatar!
&client_id=avatarfanclub

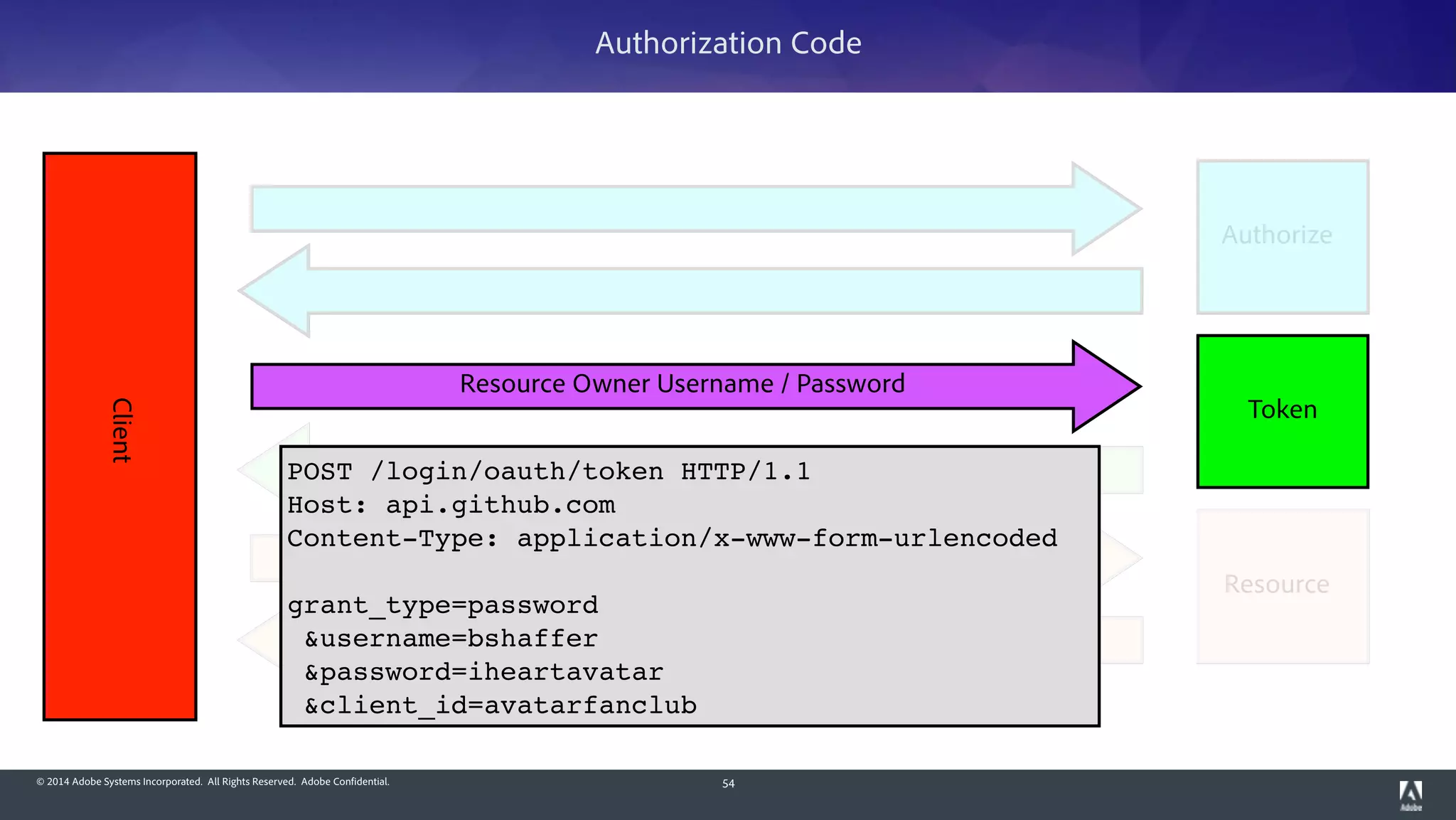

Client
Resource Owner Username / Password
Token
Authorization Code
Authorize
Resource
POST /login/oauth/token HTTP/1.1!
!
grant_type=password!
&username=bshaffer!
&password=iheartavatar!
&client_id=avatarfanclub

Client
Token
Authorize
Resource
HTTP/1.1 200 OK!
Pragma: no-cache!
{!
"expires_in":3600!
}

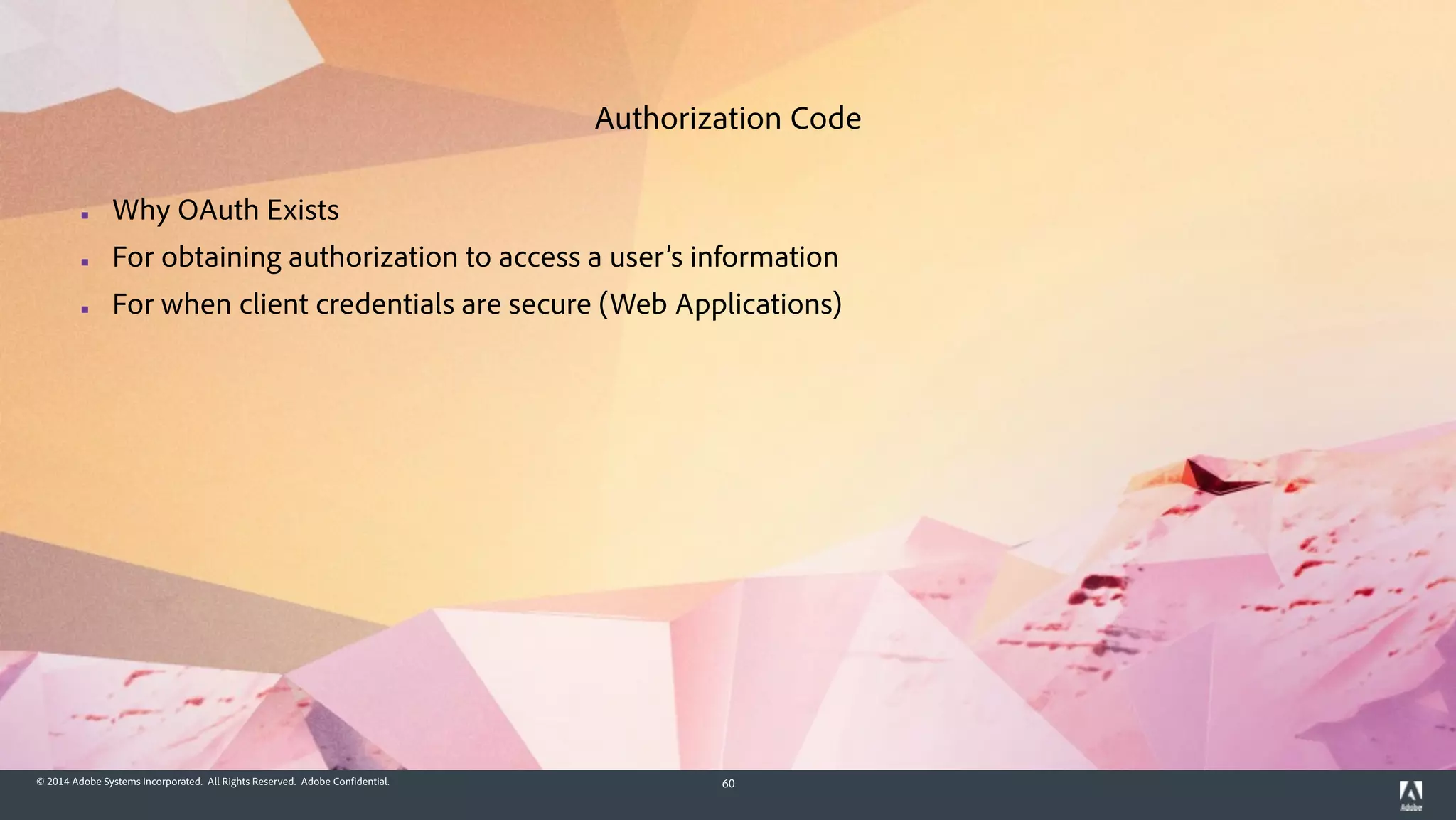

Difficulty: Intermediate

▪ Why OAuth Exists
▪ For obtaining authorization to access a user’s information
▪ For when client credentials are secure (Web Applications)

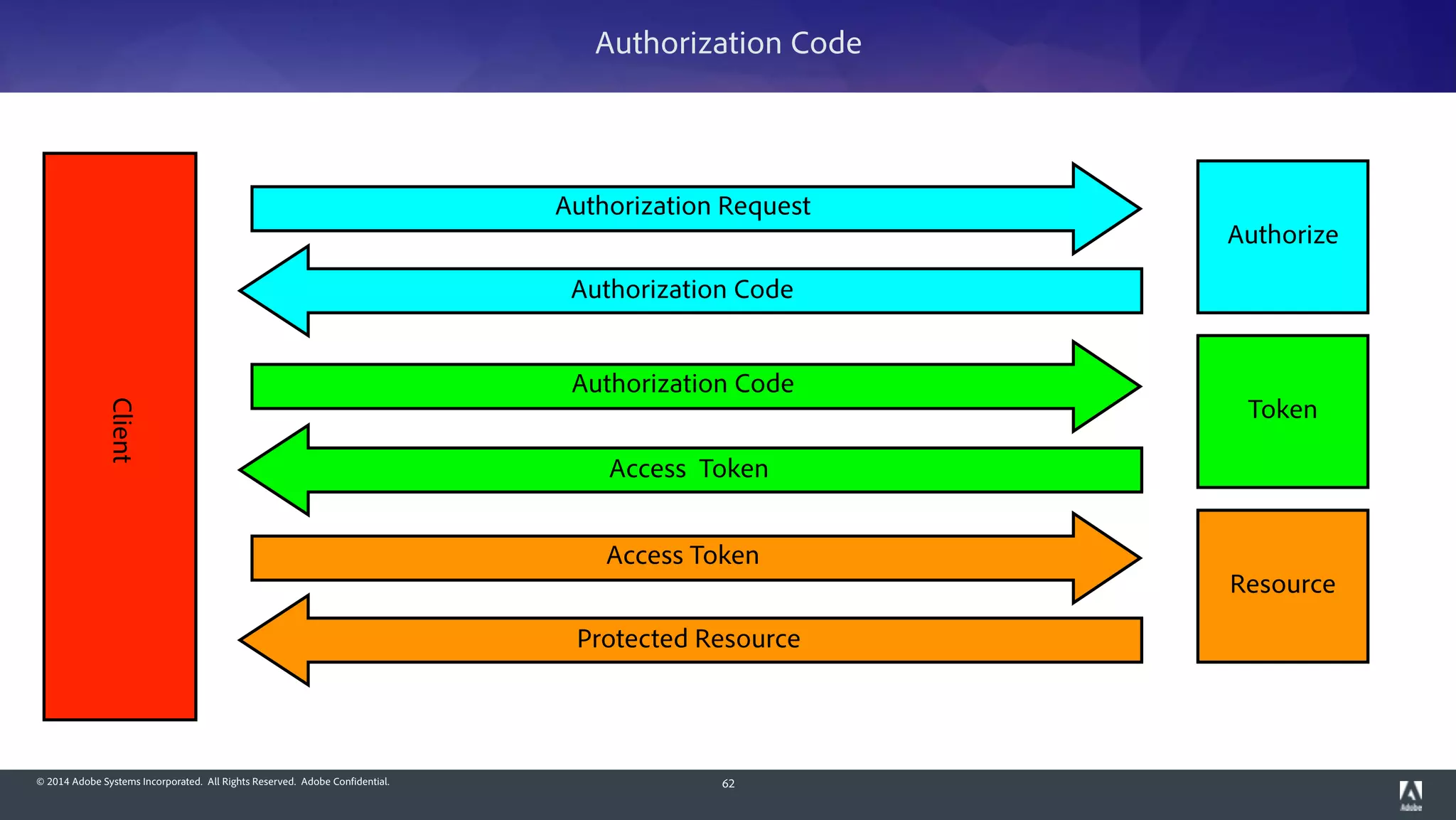

Authorization Code

Authorization Code

Client
Authorization Request
Authorization Code
Authorization Code
Access Token
Access Token
Protected Resource
Authorize
Token
Resource

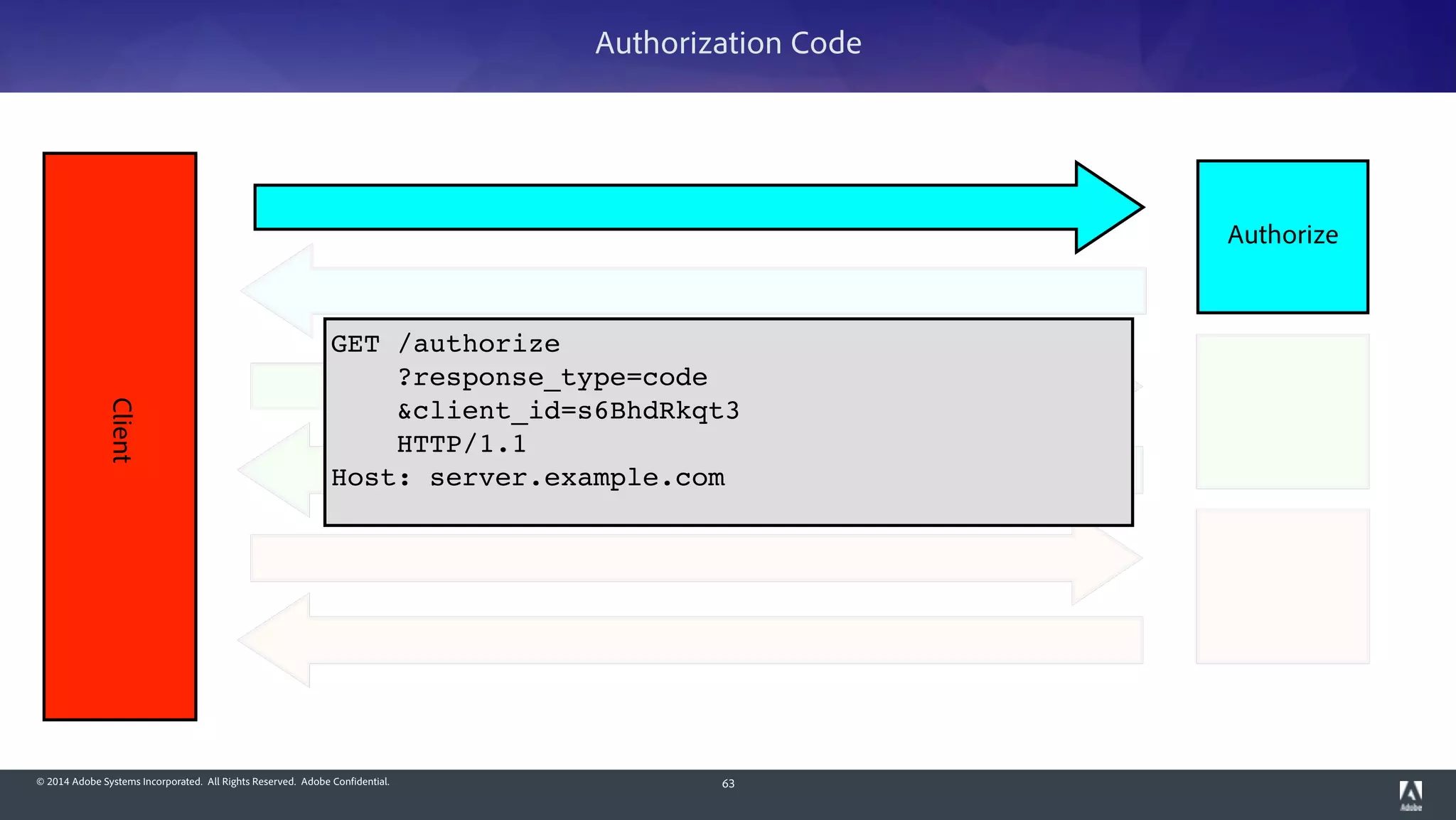

Authorization Code

Client
Authorize
Authorization Code
GET /authorize!
?response_type=code!
&client_id=s6BhdRkqt3!
HTTP/1.1!

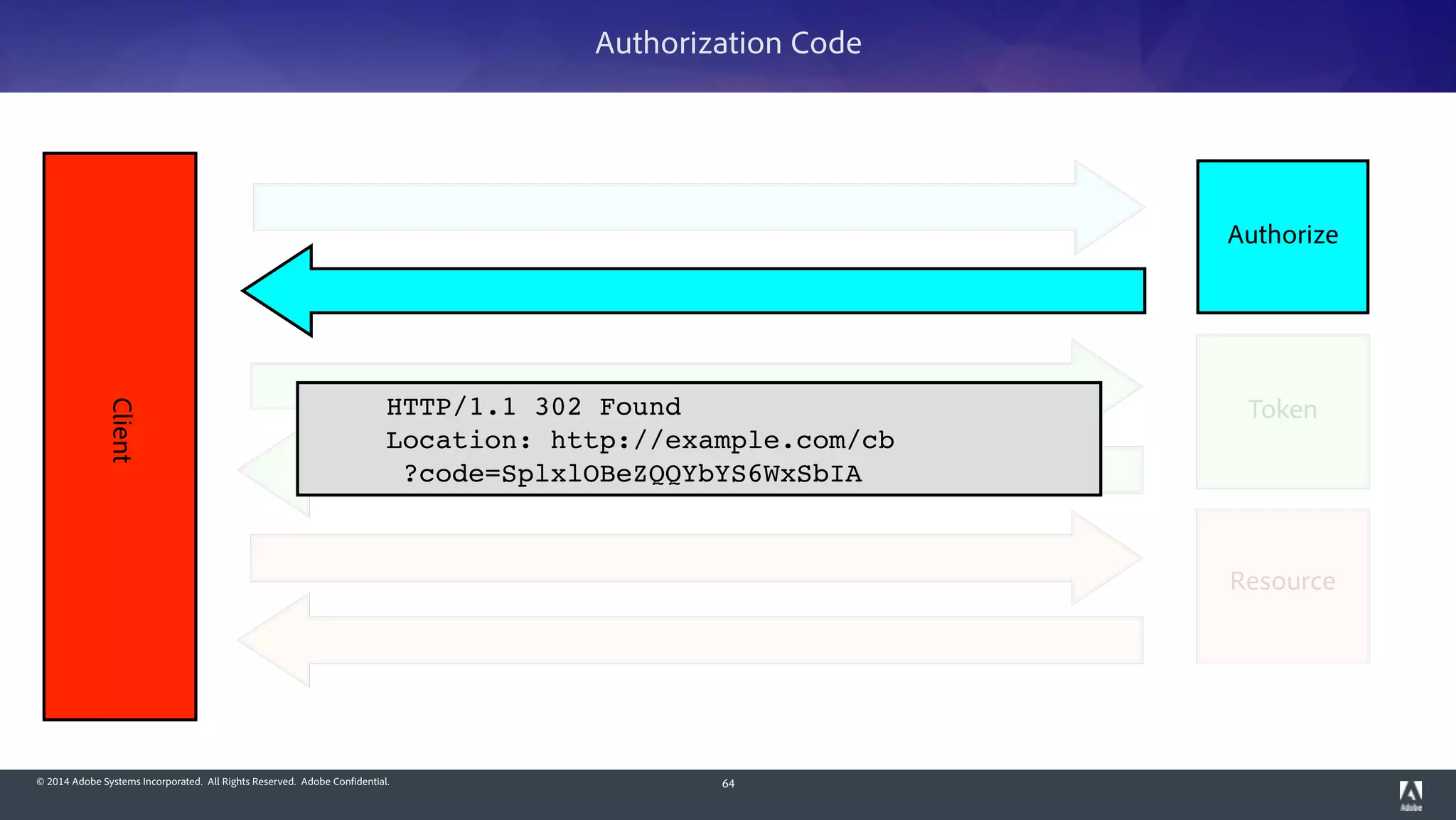

Client
Authorize
Authorization Code
TokenHTTP/1.1 302 Found!
Location: http://example.com/cb!
?code=SplxlOBeZQQYbYS6WxSbIA
Resource

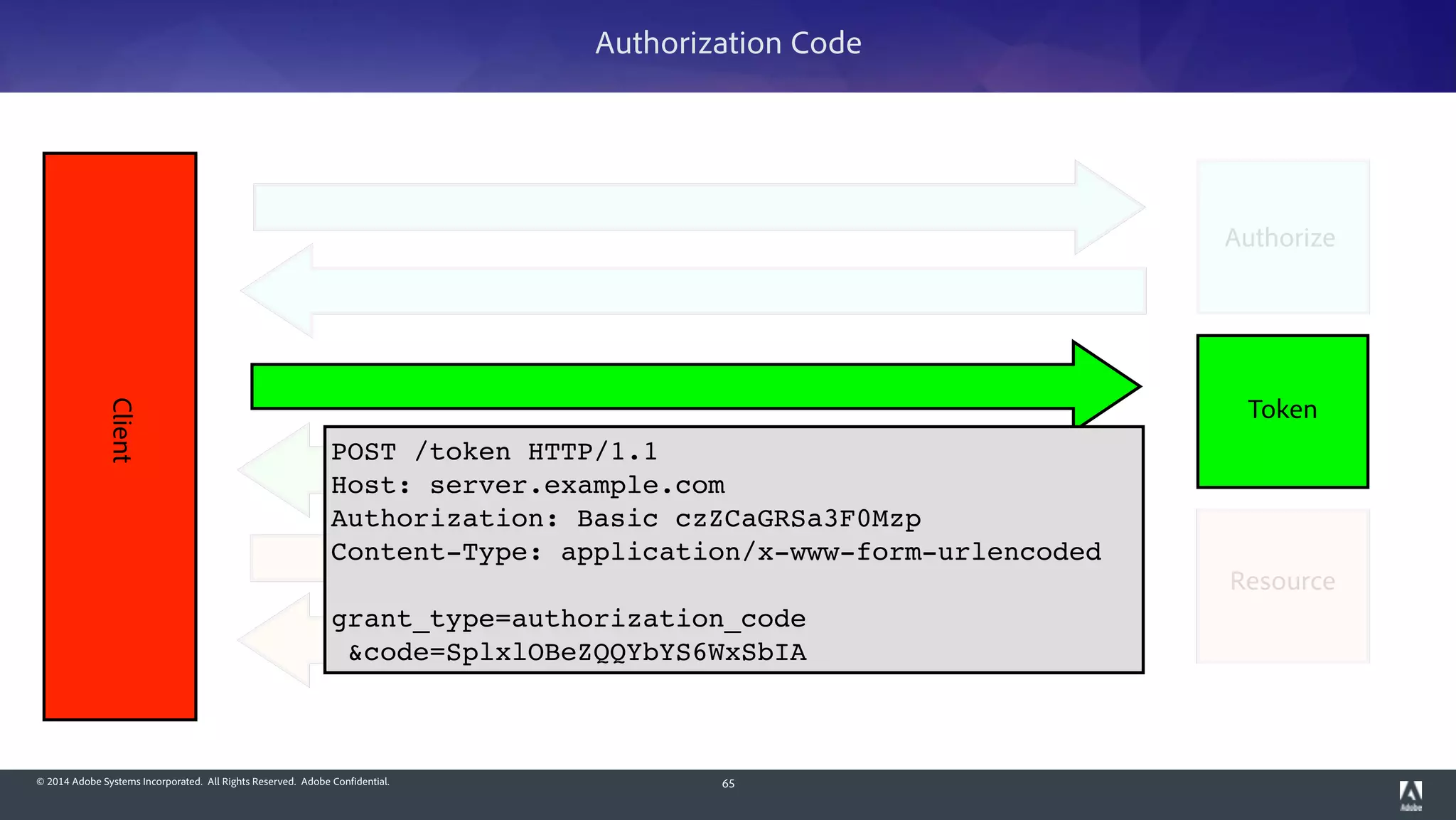

Client
Token
Authorization Code
Resource
!
grant_type=authorization_code!
&code=SplxlOBeZQQYbYS6WxSbIA
Authorize

Client
Token
Authorize
HTTP/1.1 200 OK!
Pragma: no-cache!
{!
"expires_in":3600!
}
Resource

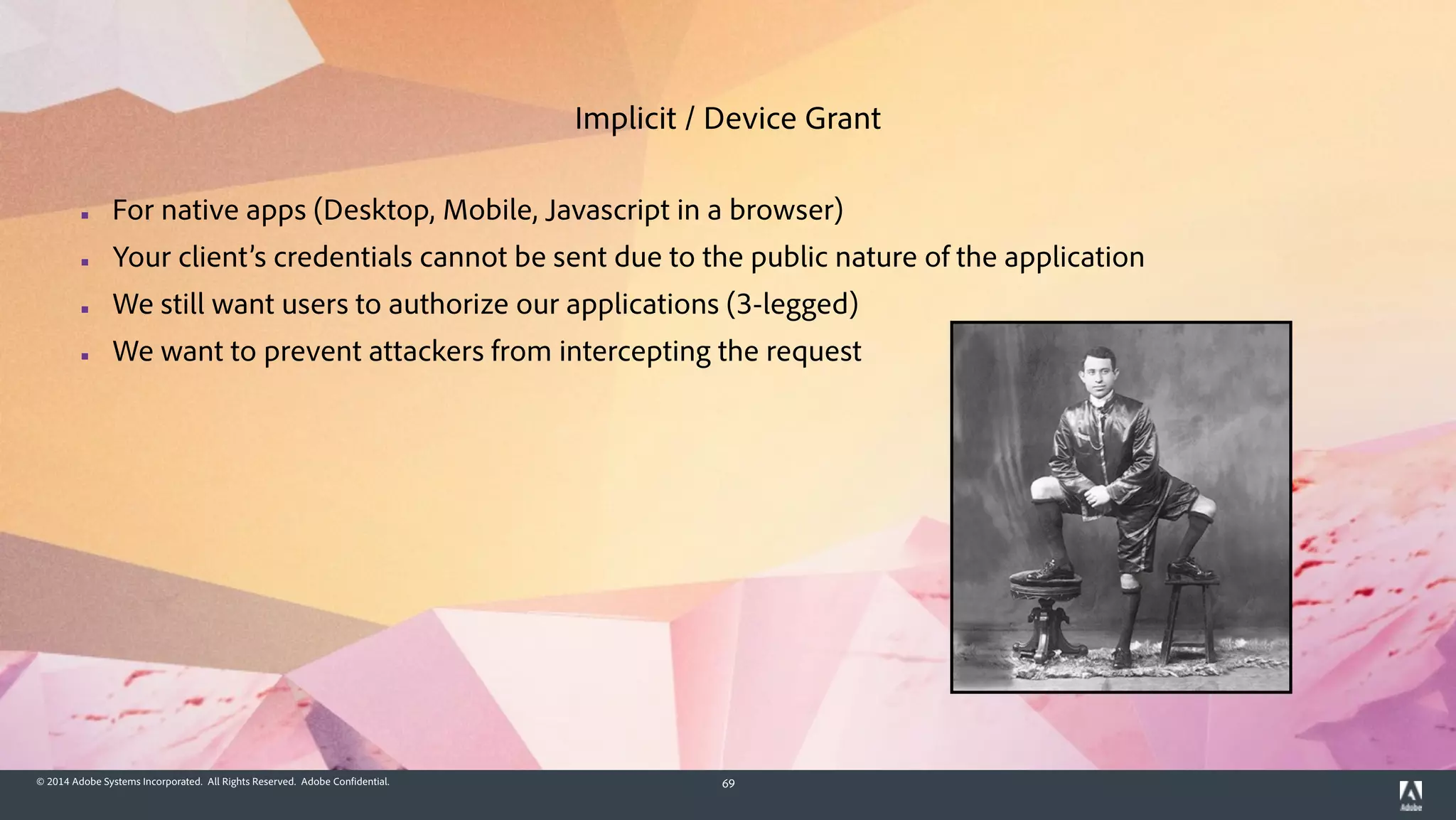

▪ For native apps (Desktop, Mobile, Javascript in a browser)
▪ Your client’s credentials cannot be sent due to the public nature of the application
▪ We still want users to authorize our applications (3-legged)
▪ We want to prevent attackers from intercepting the request

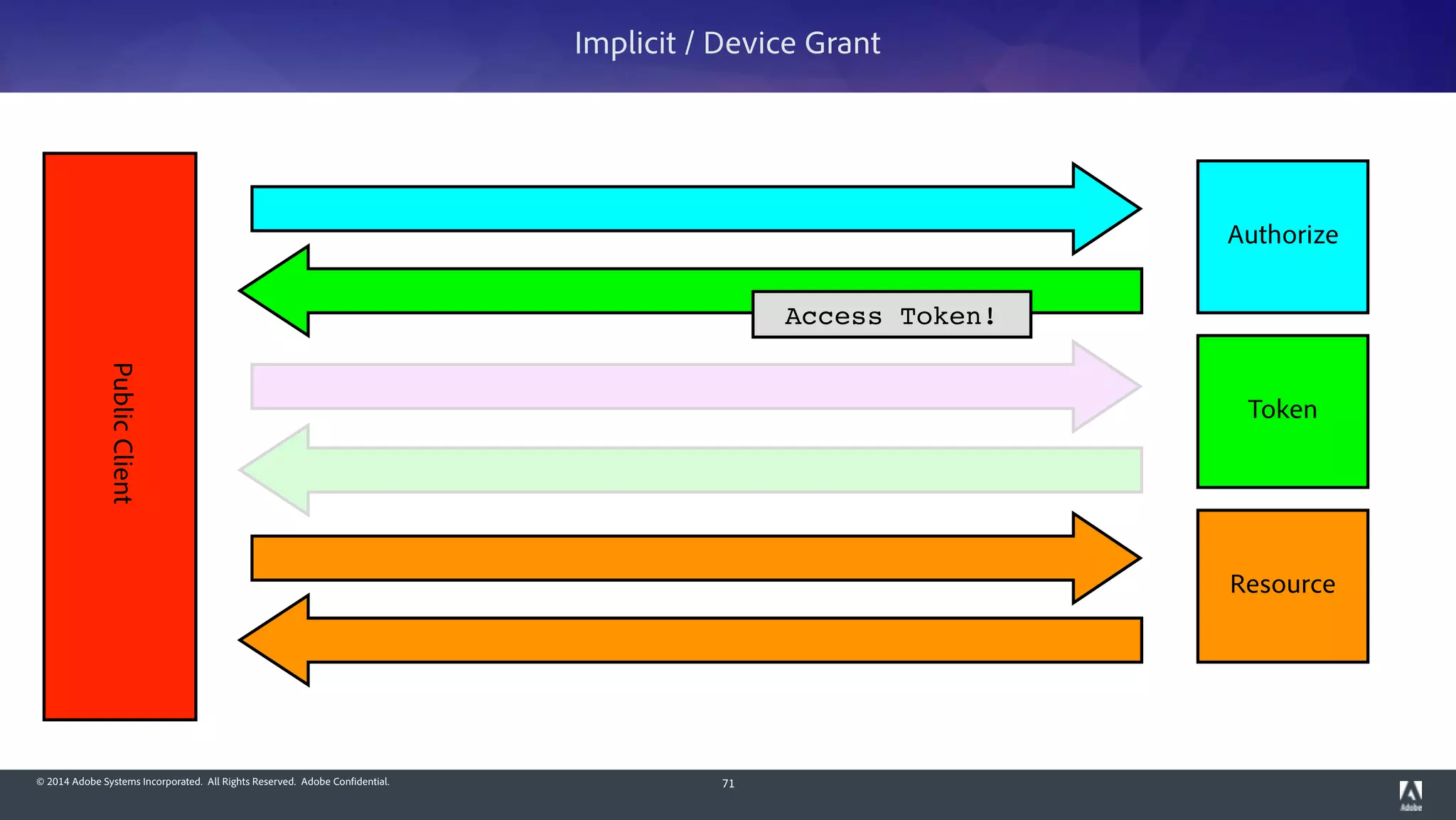

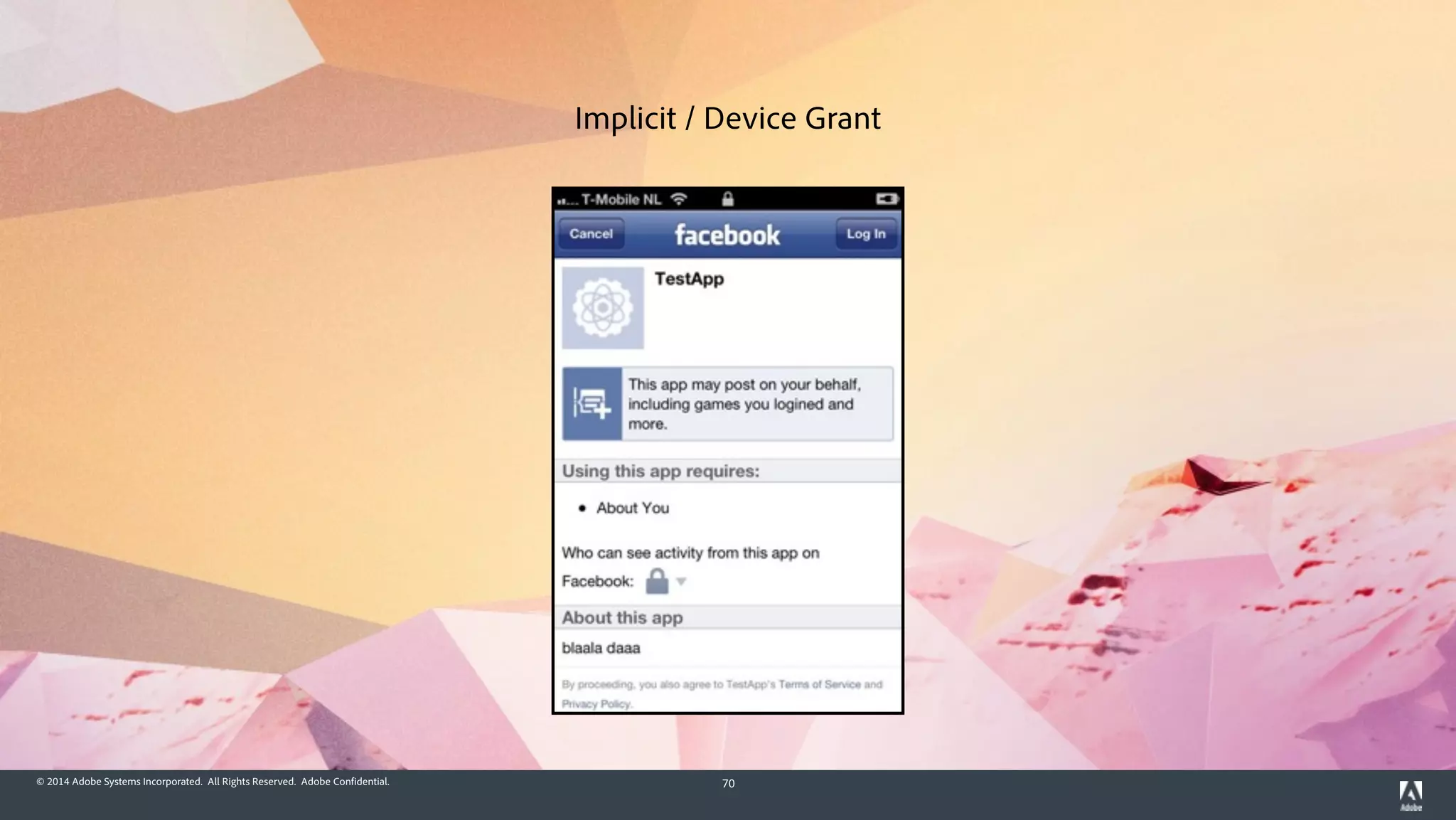

Implicit / Device Grant

PublicClient
Authorize
Token
Resource
Access Token!

▪ A native call is made containing the access token directly from the authorization request
▪ Javascript
▪ Uses a registered Redirect URI
!
▪ Validated against Origins URL
!
▪ iOS Applications
▪ Issues a call to your app using a registered Bundle ID
▪ Android Applications
▪ Issues a call to your app using a registered Package Name
https://mysite.com/myapp#access_token=xyz
function onAuthorizeCallback(authResult) {..}

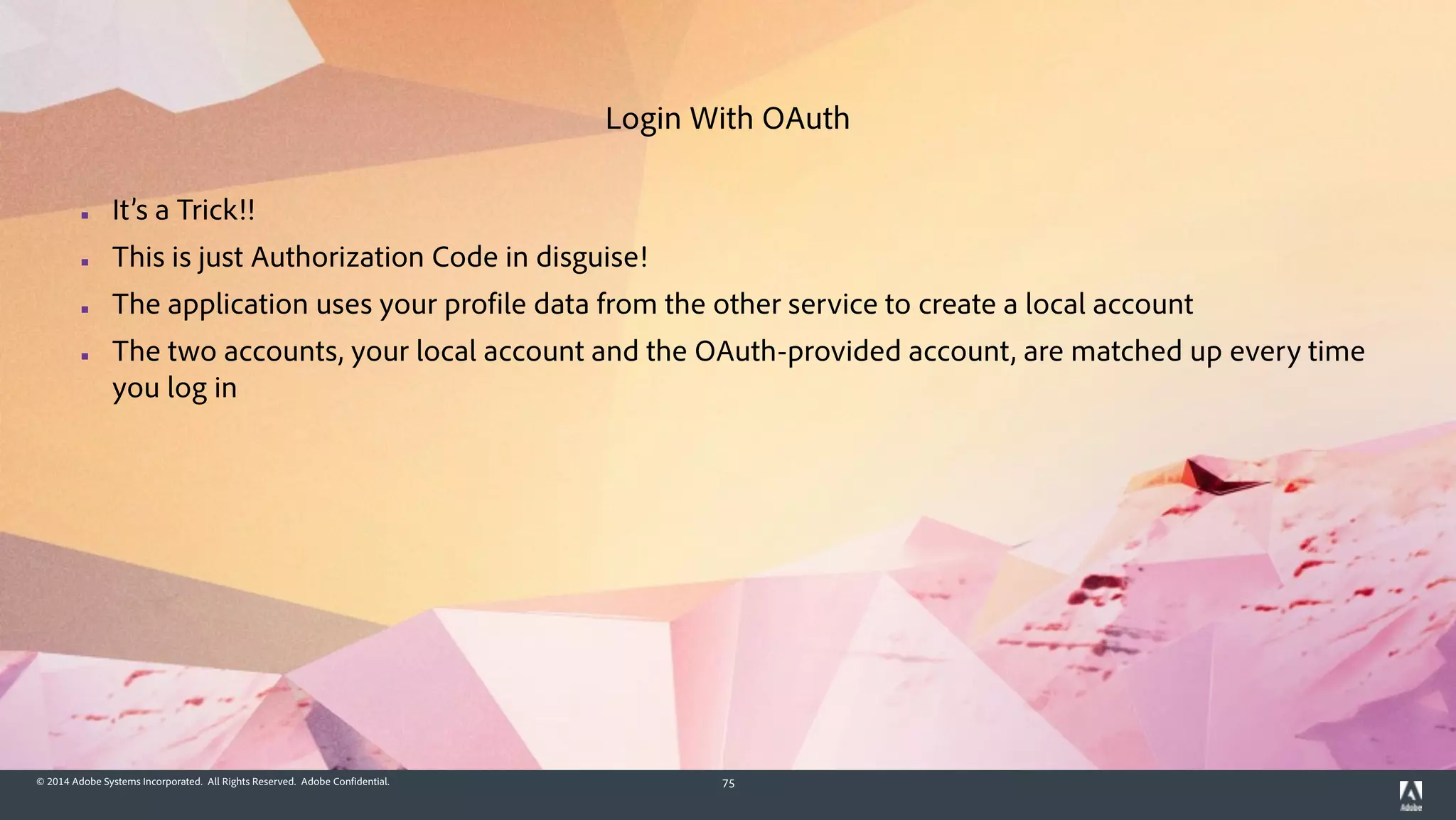

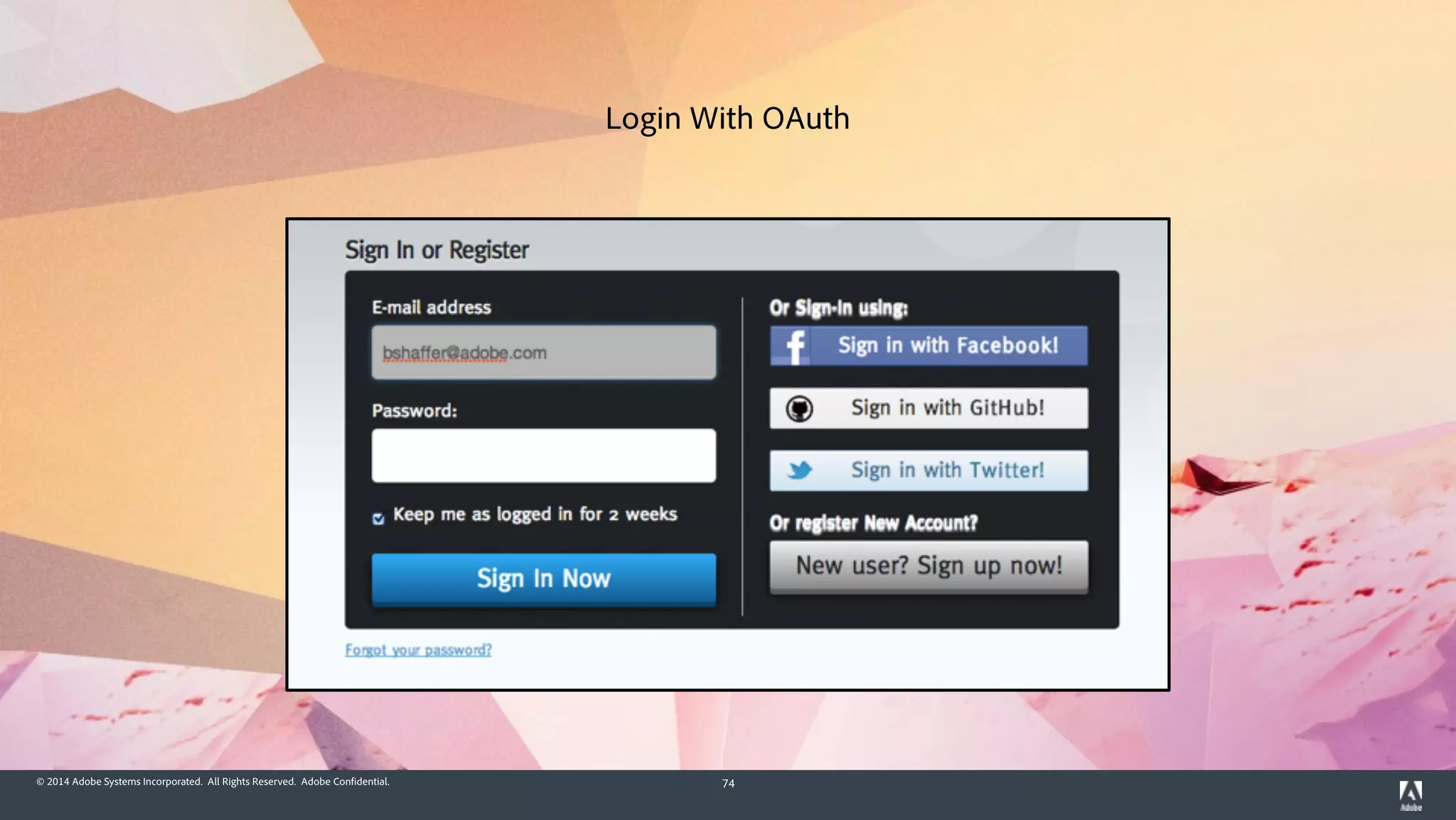

Login With OAuth

▪ It’s a Trick!!
▪ This is just Authorization Code in disguise!
▪ The application uses your profile data from the other service to create a local account
▪ The two accounts, your local account and the OAuth-provided account, are matched up every time
you log in

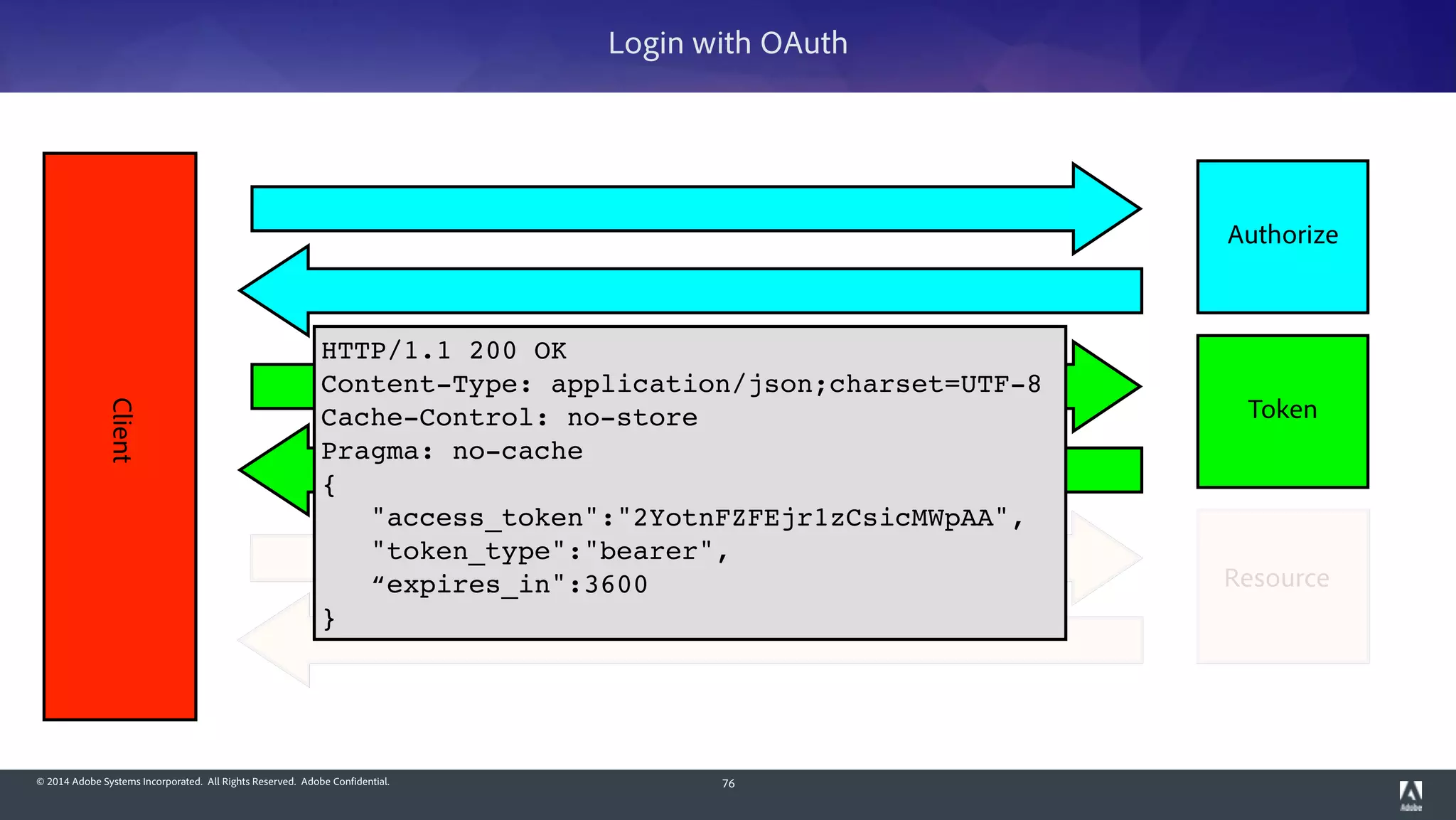

Login With OAuth

Client
Token
Login with OAuth
Authorize
Resource
HTTP/1.1 200 OK!
Pragma: no-cache!
{!
“expires_in":3600!
}

Client
Resource
Client Credentials
Authorize
Token
GET /profile HTTP/1.1!
Authorization: Bearer 2YotnFZFEjr1zCsicMWpAA

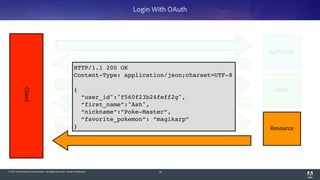

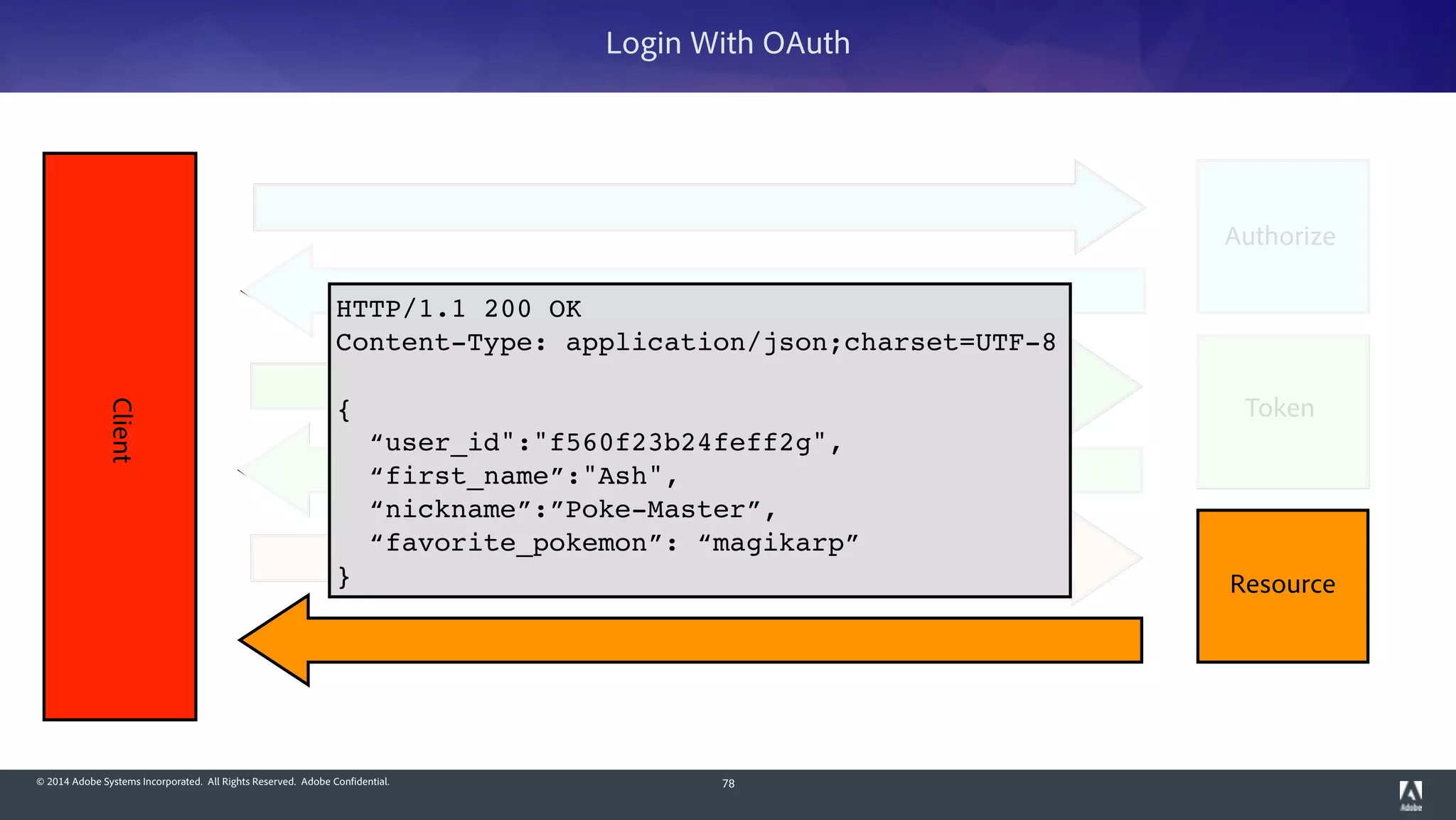

Client
Resource
Login With OAuth
Authorize
Token
HTTP/1.1 200 OK!
!
{!
“user_id":"f560f23b24feff2g",!
“first_name”:"Ash",!
“nickname”:”Poke-Master”,!
“favorite_pokemon”: “magikarp”!
}

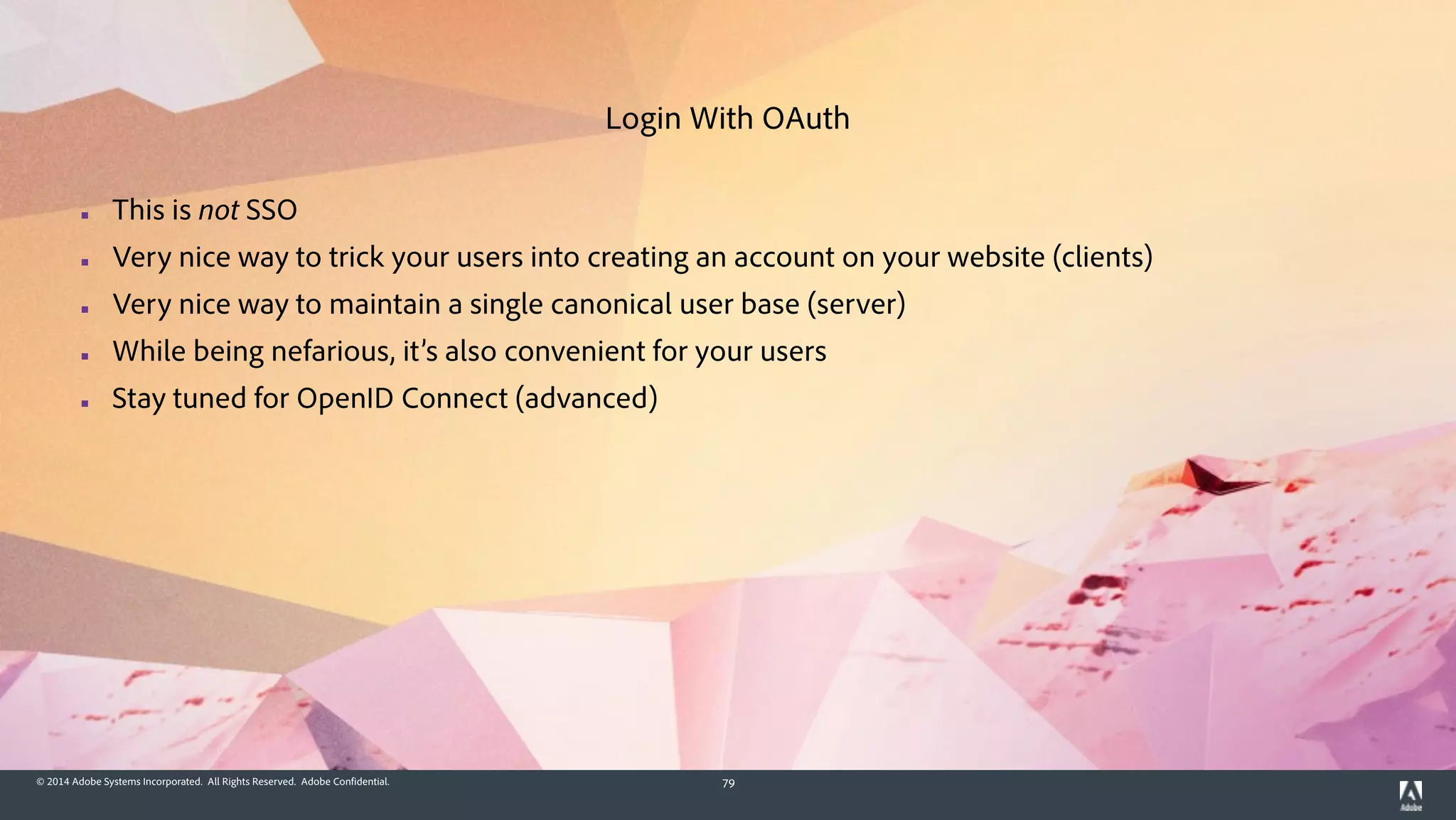

▪ This is not SSO
▪ Very nice way to trick your users into creating an account on your website (clients)
▪ Very nice way to maintain a single canonical user base (server)
▪ While being nefarious, it’s also convenient for your users
▪ Stay tuned for OpenID Connect (advanced)
Login With OAuth

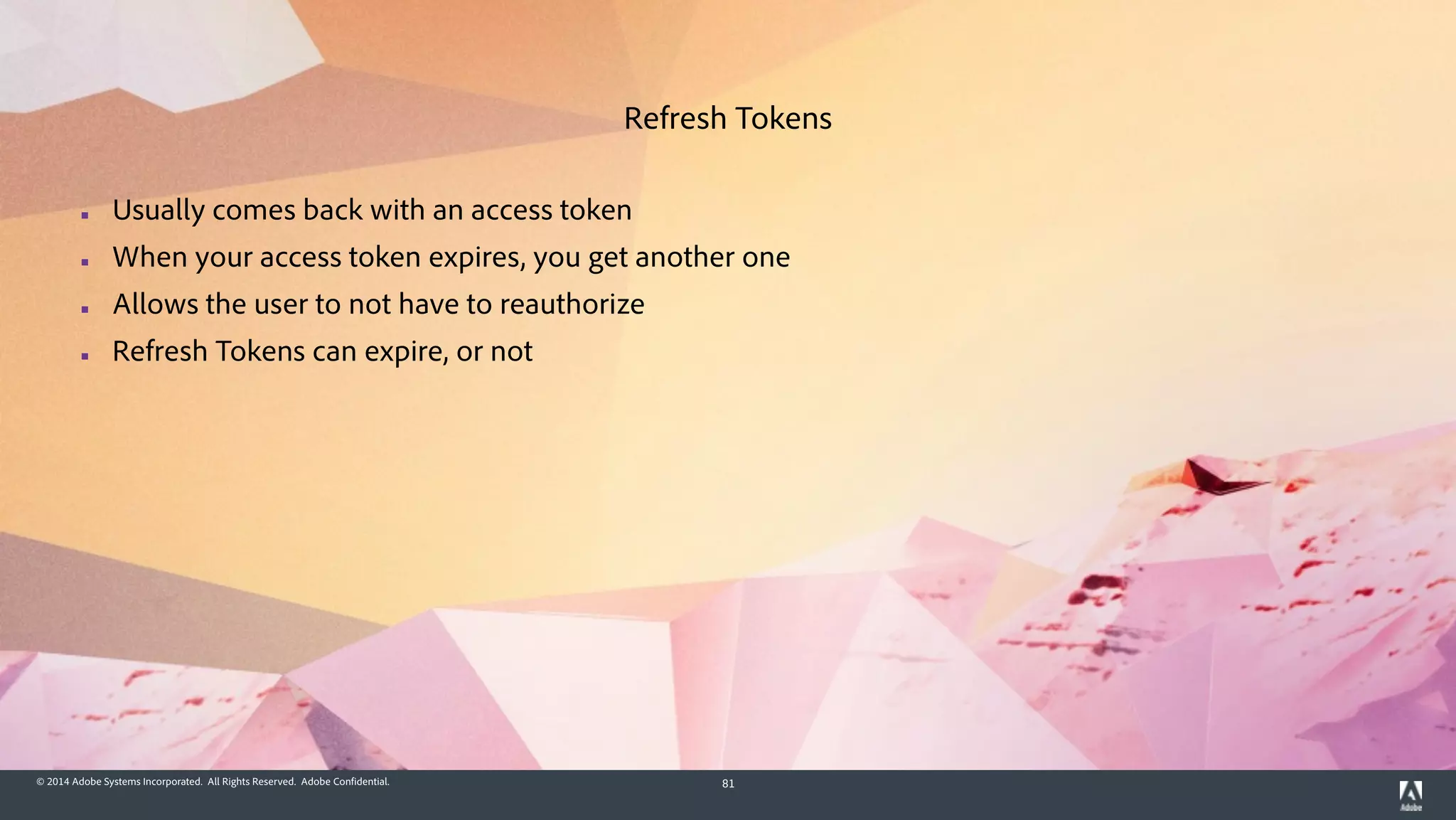

▪ Usually comes back with an access token
▪ When your access token expires, you get another one
▪ Allows the user to not have to reauthorize
▪ Refresh Tokens can expire, or not

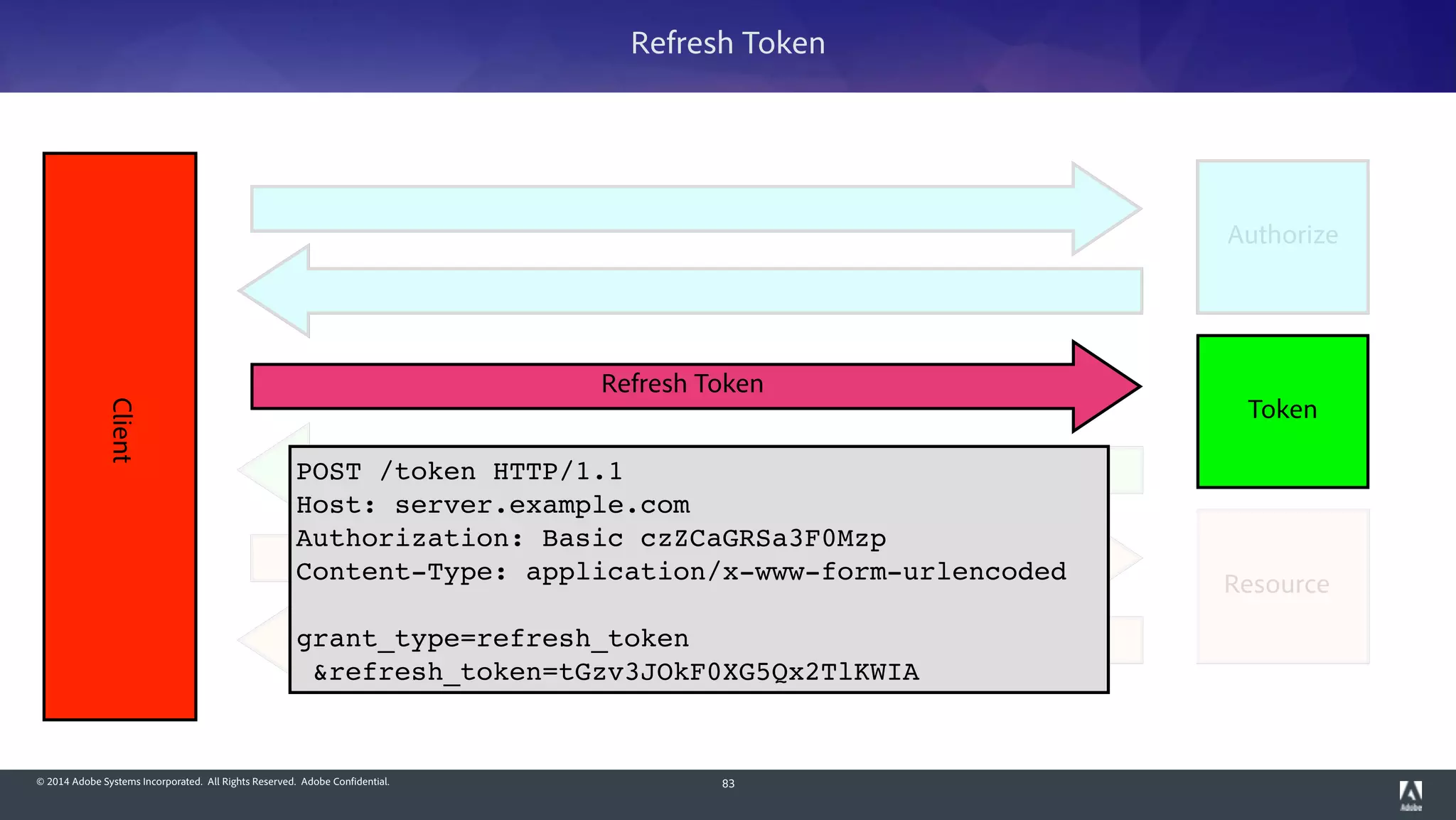

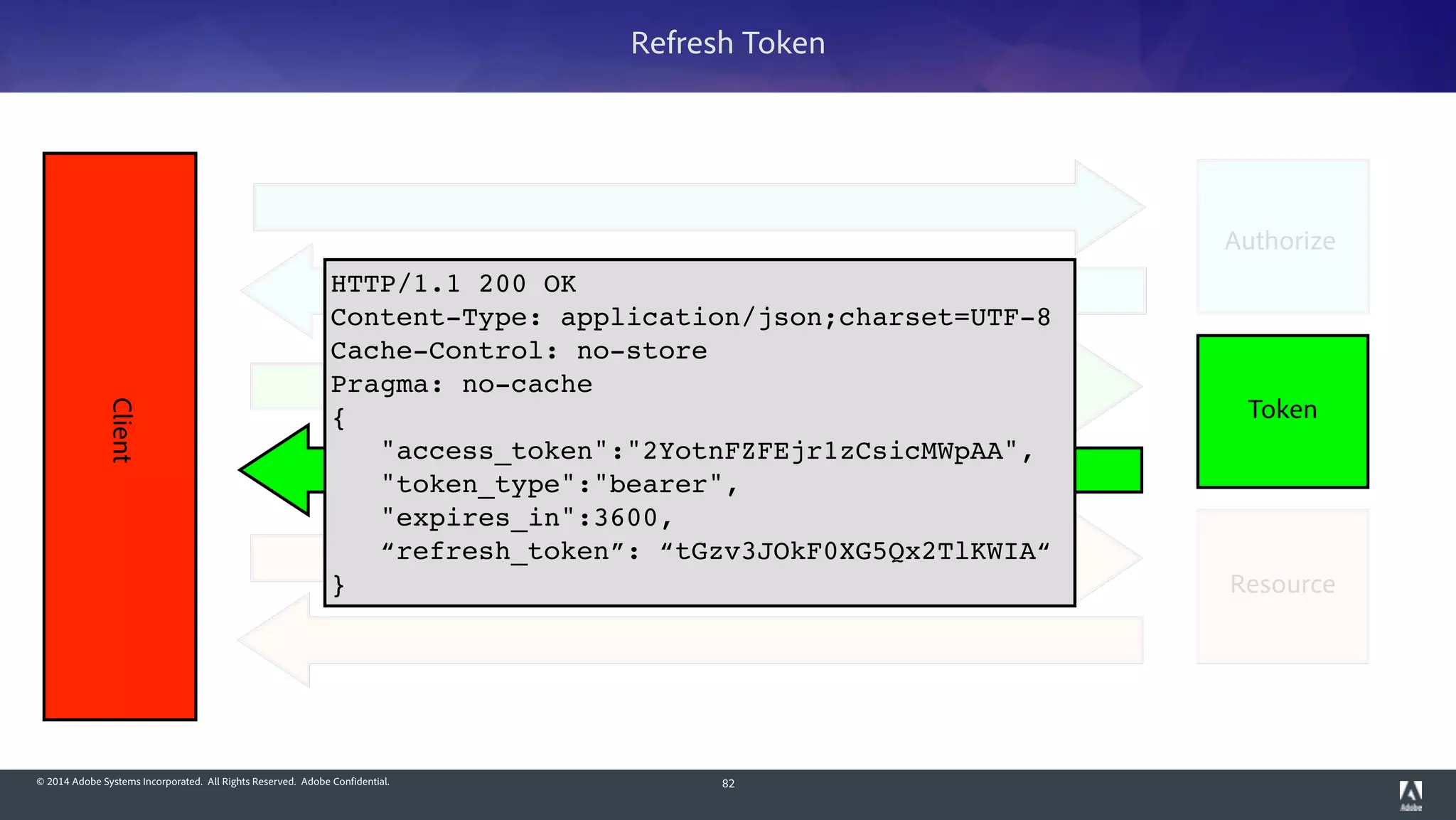

Refresh Tokens

Client
Token
Refresh Token
Authorize
Resource
HTTP/1.1 200 OK!
Pragma: no-cache!
{!
"expires_in":3600,!
“refresh_token”: “tGzv3JOkF0XG5Qx2TlKWIA“!
}

Client
Token
Refresh Token
Authorize
Resource
!
grant_type=refresh_token!
&refresh_token=tGzv3JOkF0XG5Qx2TlKWIA
Refresh Token

Difficulty: Expert

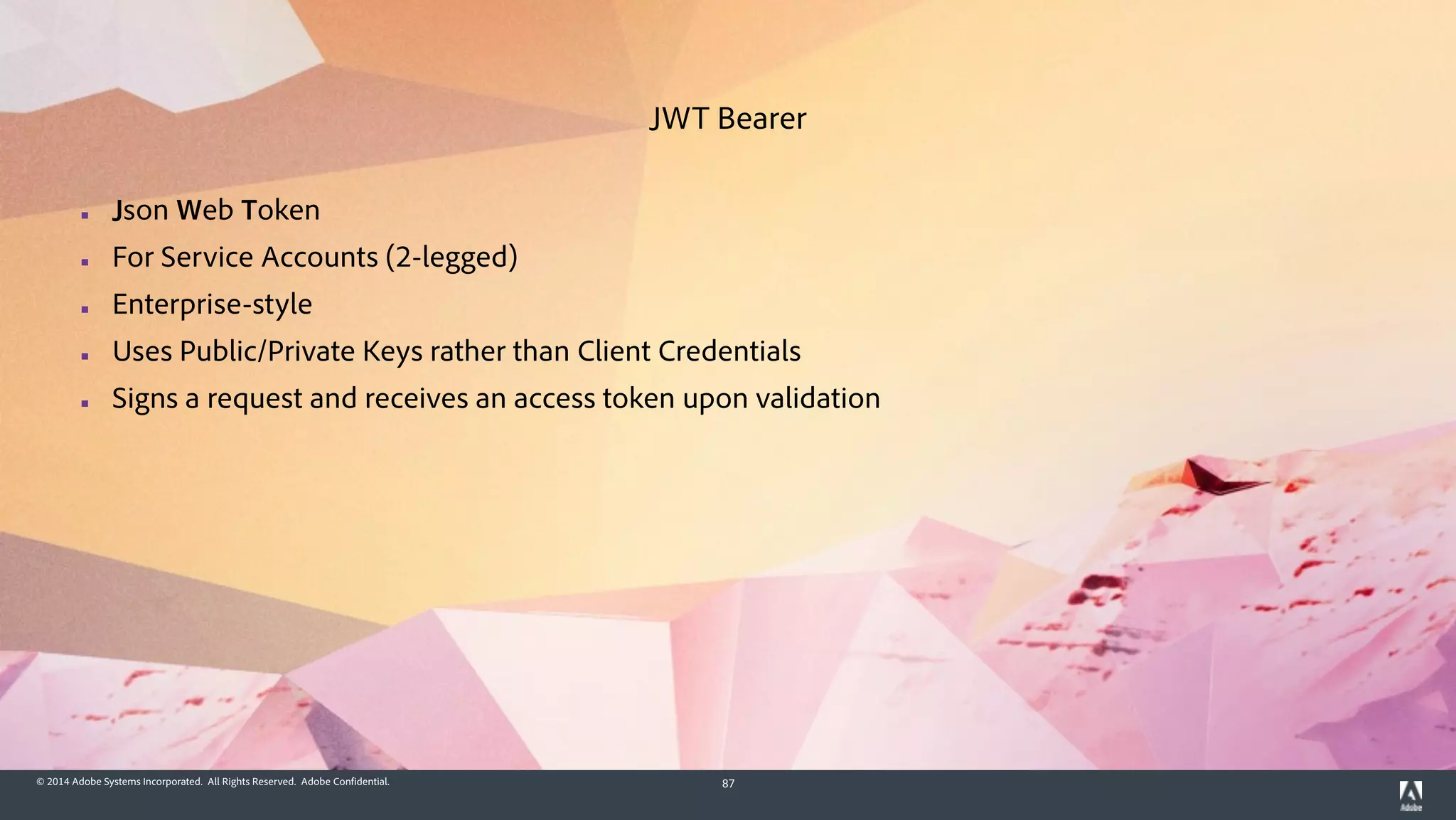

▪ Json Web Token
▪ For Service Accounts (2-legged)
▪ Enterprise-style
▪ Uses Public/Private Keys rather than Client Credentials
▪ Signs a request and receives an access token upon validation

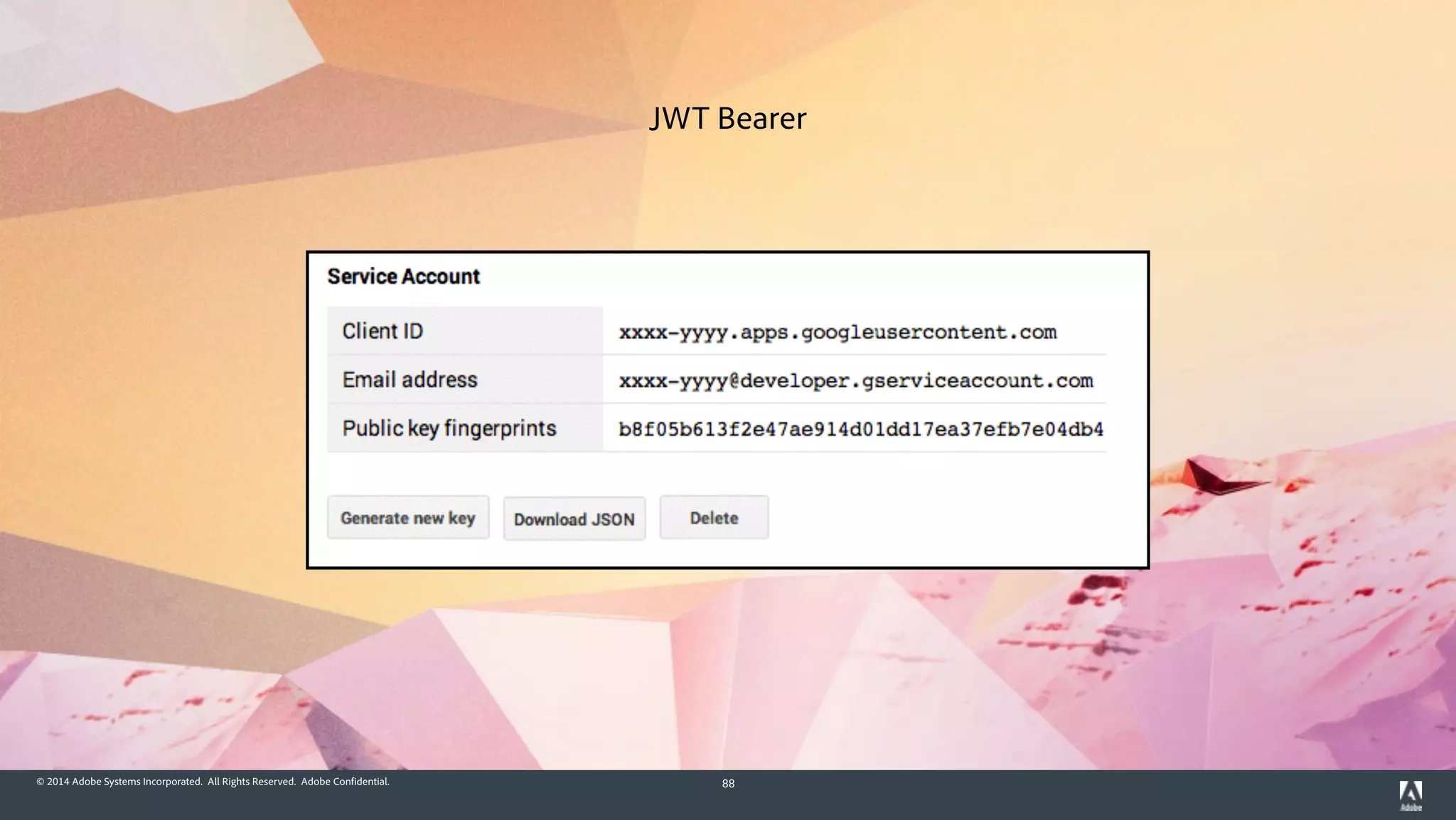

JWT Bearer

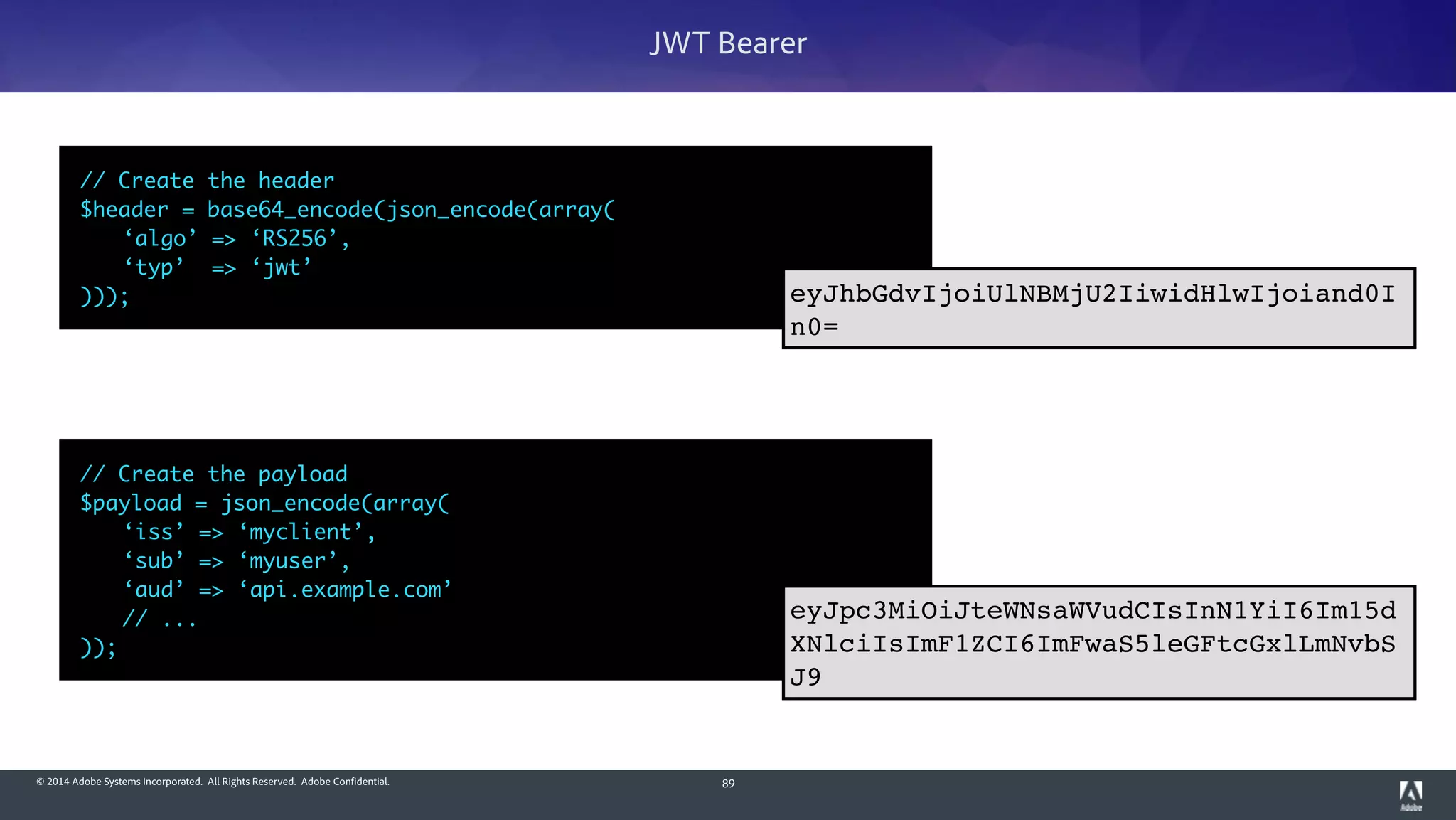

JWT Bearer

© 2014 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.
// Create the payload
$payload = json_encode(array(
‘iss’ => ‘myclient’,
‘sub’ => ‘myuser’,
‘aud’ => ‘api.example.com’
// ...
));
89
JWT Bearer
// Create the header
$header = base64_encode(json_encode(array(
‘algo’ => ‘RS256’,
‘typ’ => ‘jwt’
)));
eyJpc3MiOiJteWNsaWVudCIsInN1YiI6Im15d
XNlciIsImF1ZCI6ImFwaS5leGFtcGxlLmNvbS
J9
eyJhbGdvIjoiUlNBMjU2IiwidHlwIjoiand0I
n0=

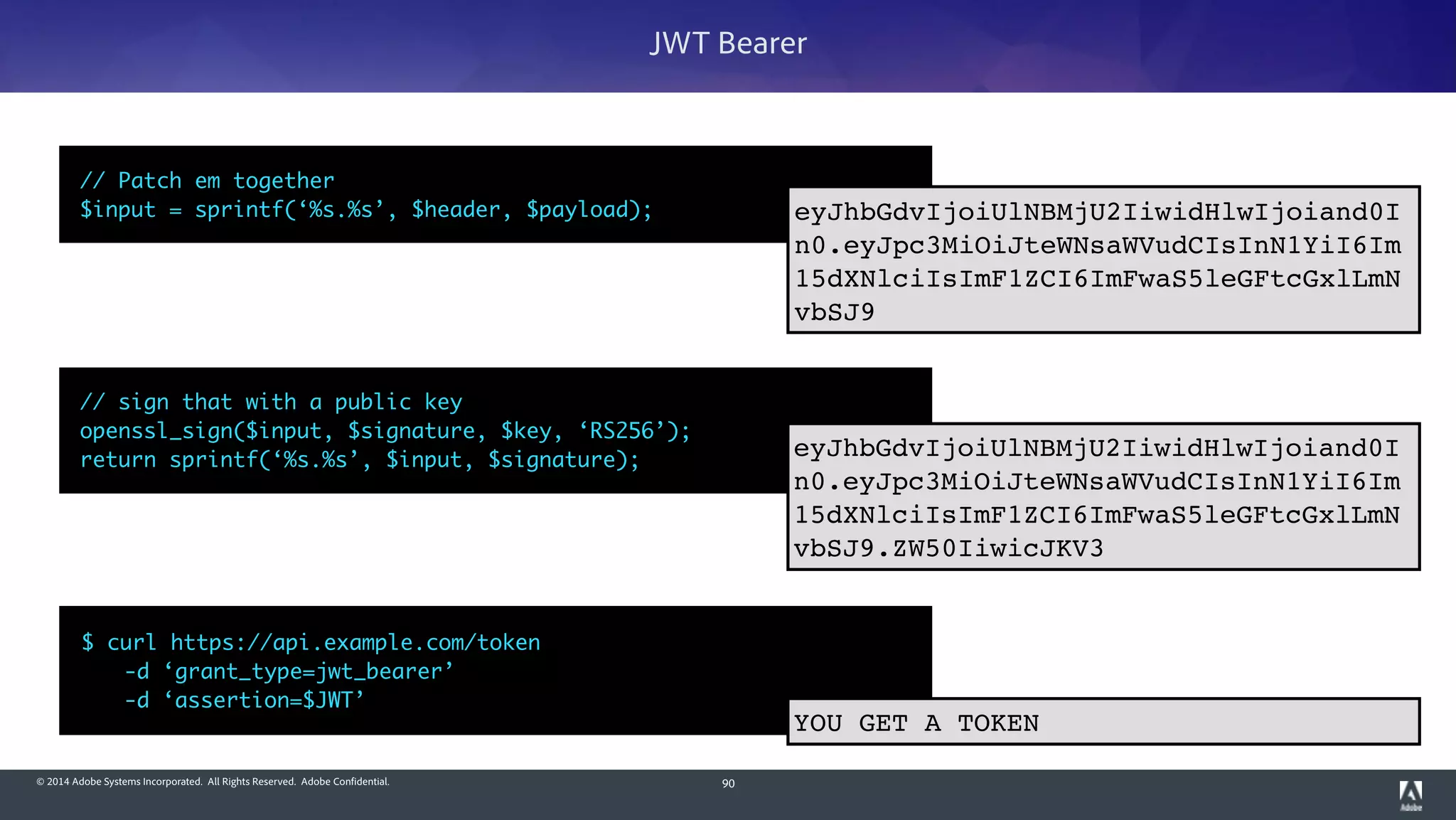

JWT Bearer
-d ‘grant_type=jwt_bearer’
-d ‘assertion=$JWT’
// sign that with a public key
openssl_sign($input, $signature, $key, ‘RS256’);
return sprintf(‘%s.%s’, $input, $signature);
eyJhbGdvIjoiUlNBMjU2IiwidHlwIjoiand0I
n0.eyJpc3MiOiJteWNsaWVudCIsInN1YiI6Im
15dXNlciIsImF1ZCI6ImFwaS5leGFtcGxlLmN
vbSJ9.ZW50IiwicJKV3
// Patch em together
$input = sprintf(‘%s.%s’, $header, $payload); eyJhbGdvIjoiUlNBMjU2IiwidHlwIjoiand0I
n0.eyJpc3MiOiJteWNsaWVudCIsInN1YiI6Im
15dXNlciIsImF1ZCI6ImFwaS5leGFtcGxlLmN
vbSJ9
YOU GET A TOKEN

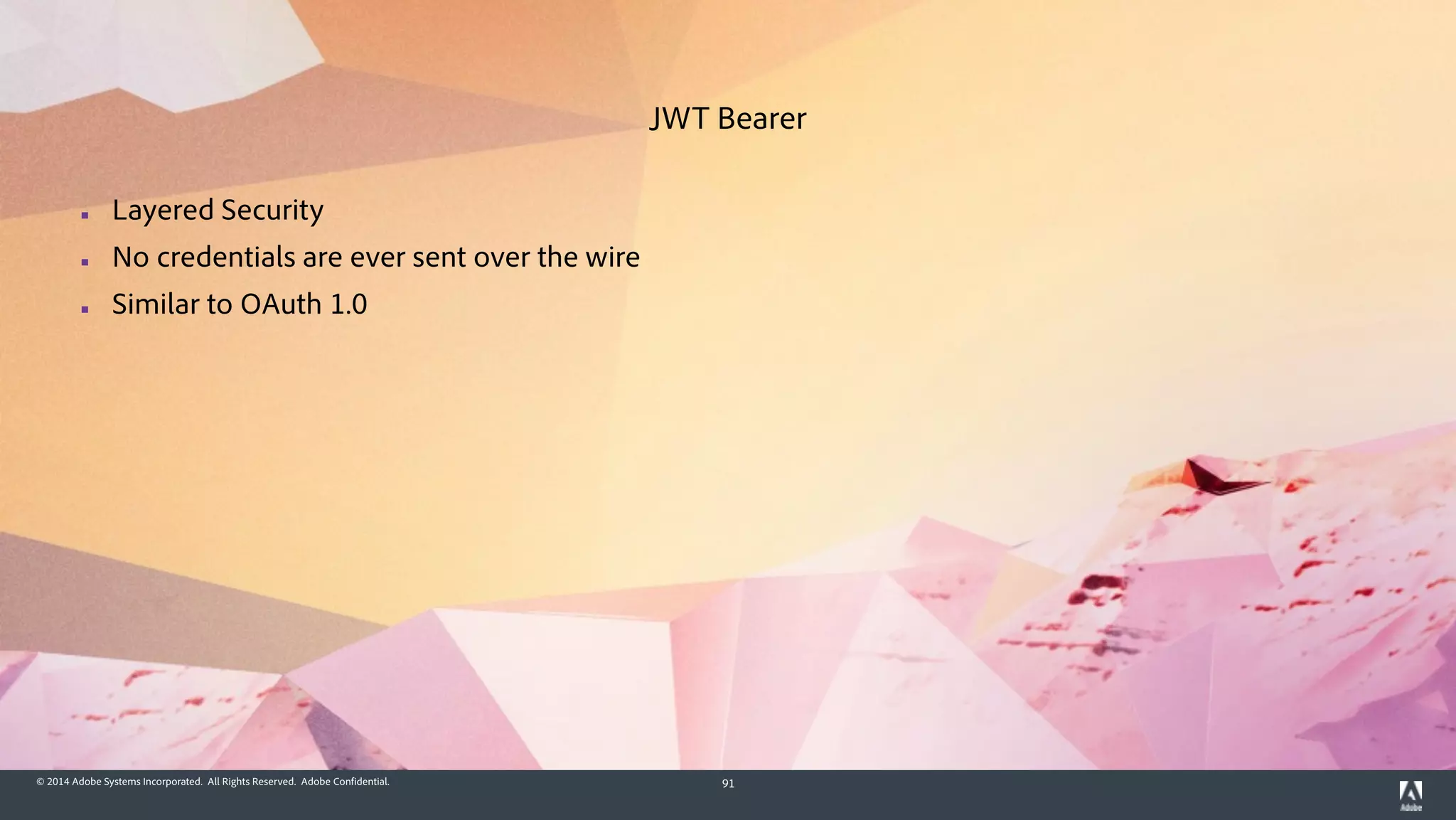

▪ Layered Security
▪ No credentials are ever sent over the wire
▪ Similar to OAuth 1.0
JWT Bearer

▪ Allows for Decentralized API Validation
▪ Authorization Server issues tokens signed using "key db” and a certificate authority
▪ Resource Server validates access tokens according to "Trust Model"
▪ Metadata for token exists in the token itself
▪ Very scalable

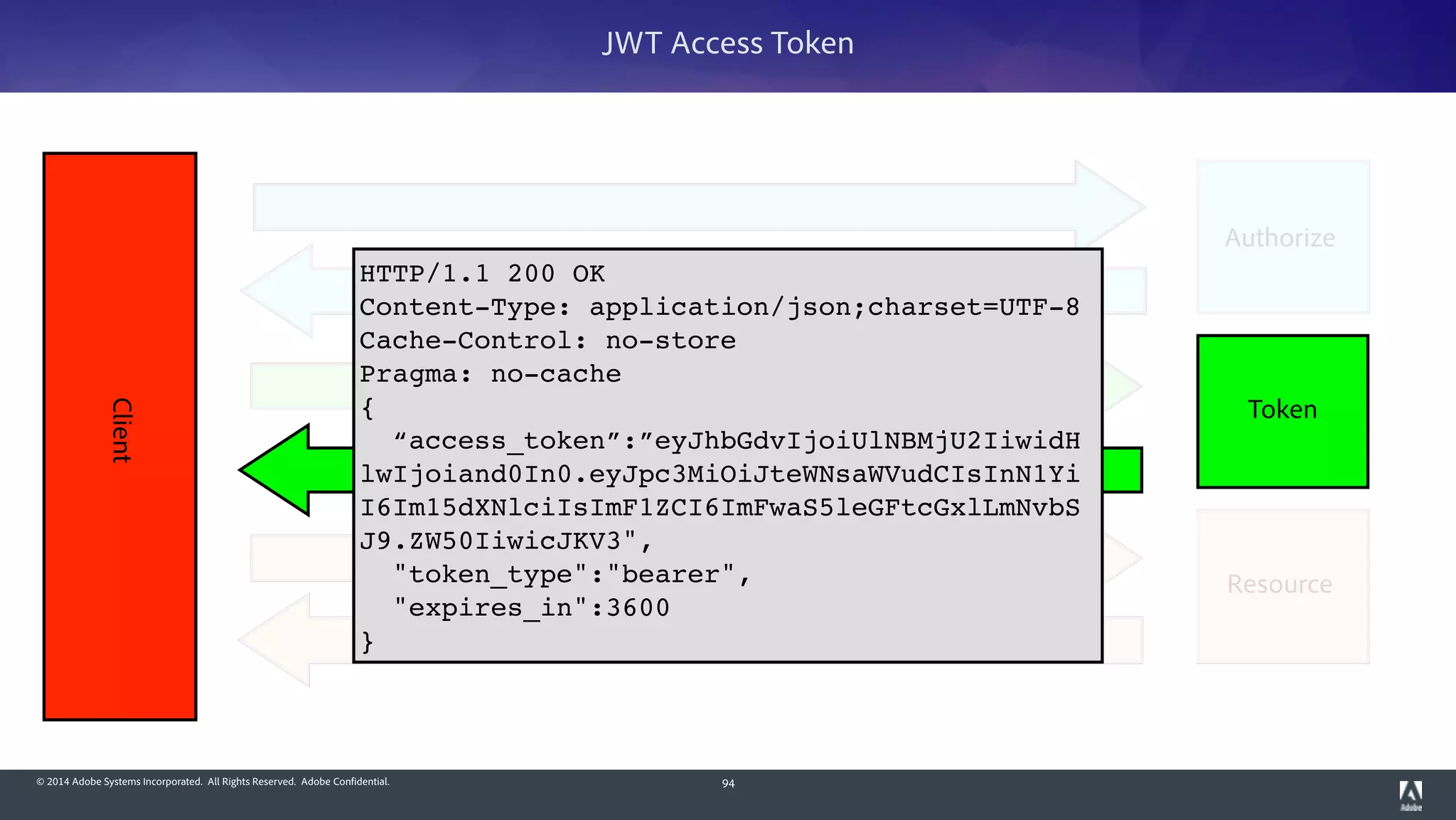

JWT as Access Tokens

Client
Token
JWT Access Token
Authorize
Resource
HTTP/1.1 200 OK!
Pragma: no-cache!
{!
“access_token”:”eyJhbGdvIjoiUlNBMjU2IiwidH
lwIjoiand0In0.eyJpc3MiOiJteWNsaWVudCIsInN1Yi
I6Im15dXNlciIsImF1ZCI6ImFwaS5leGFtcGxlLmNvbS
J9.ZW50IiwicJKV3",!
"expires_in":3600!
}

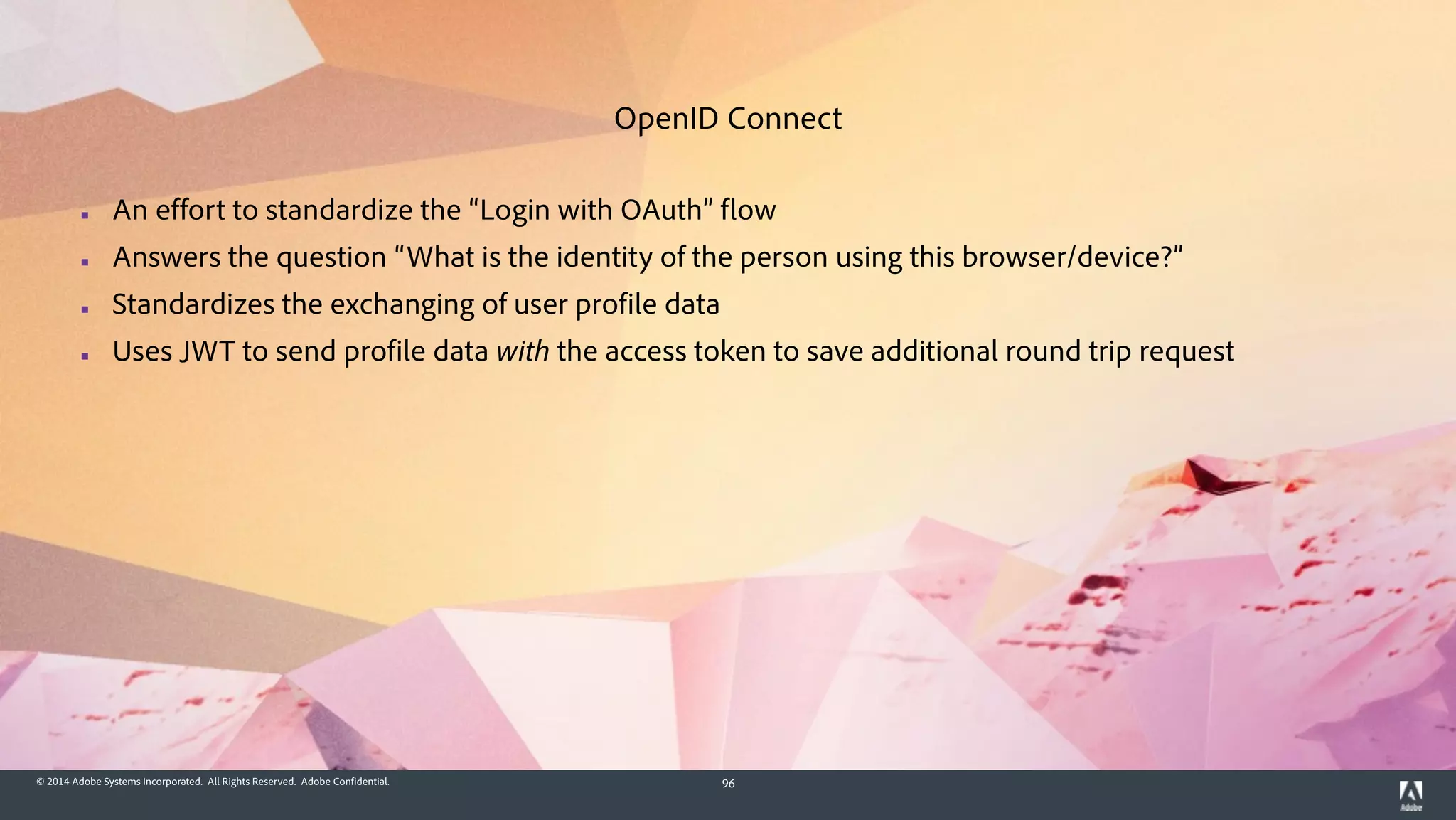

▪ An effort to standardize the “Login with OAuth” flow
▪ Answers the question “What is the identity of the person using this browser/device?”
▪ Standardizes the exchanging of user profile data
▪ Uses JWT to send profile data with the access token to save additional round trip request

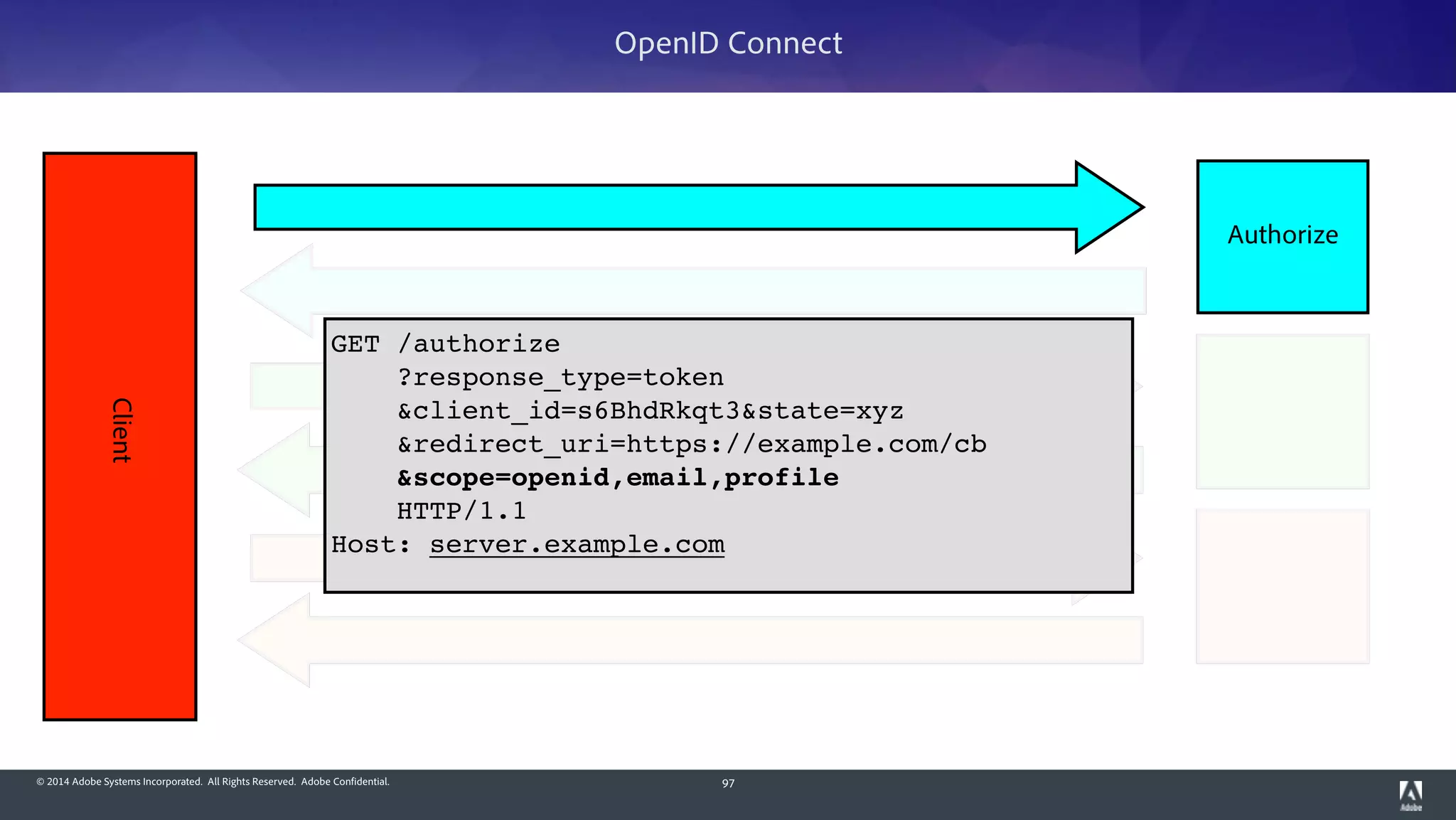

OpenID Connect

Client
Authorize
OpenID Connect
GET /authorize!
?response_type=token!
&client_id=s6BhdRkqt3&state=xyz!
&redirect_uri=https://example.com/cb!
&scope=openid,email,profile!
HTTP/1.1!

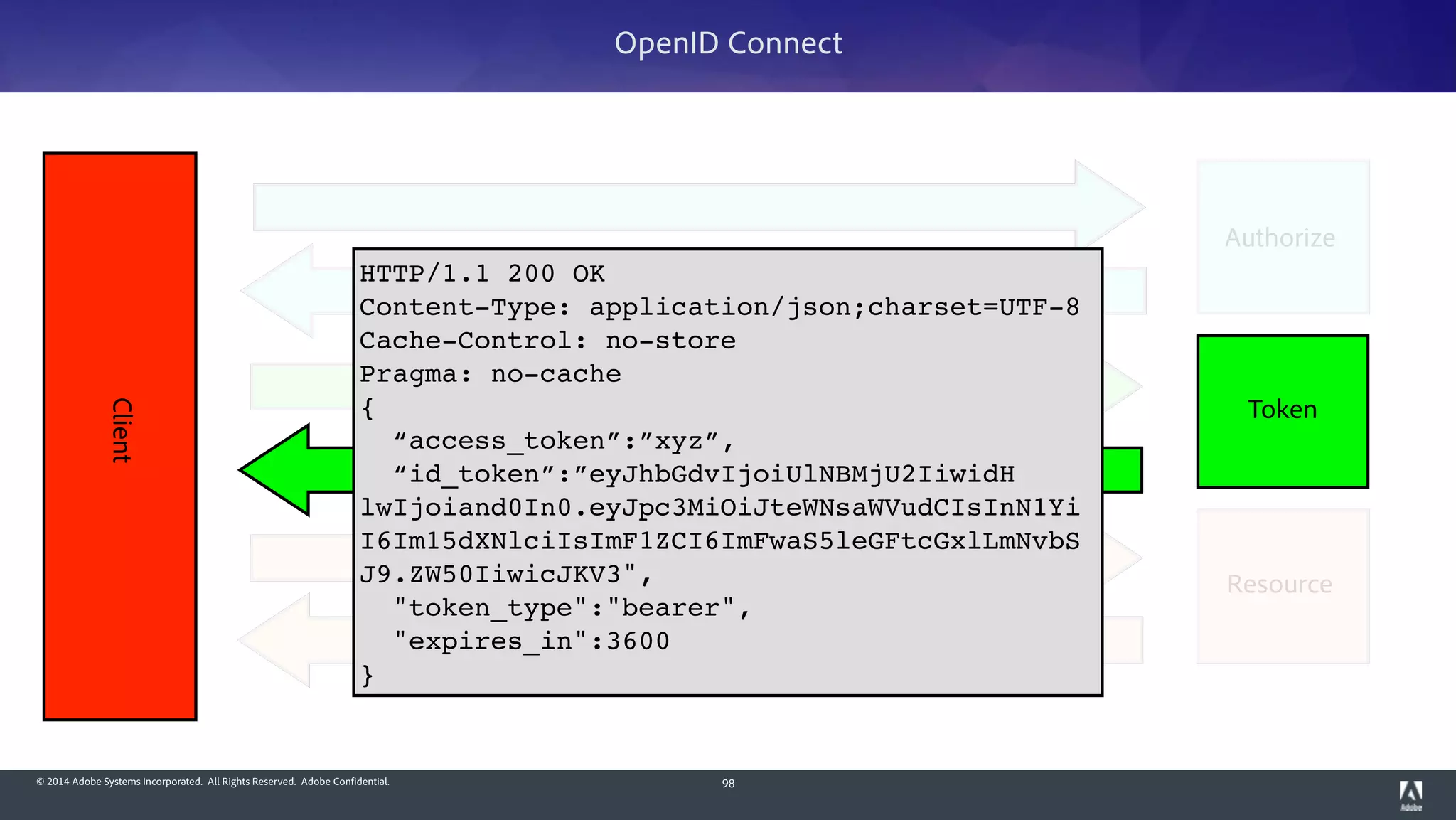

Client
Token
OpenID Connect
Authorize
Resource
HTTP/1.1 200 OK!
Pragma: no-cache!
{!
“access_token”:”xyz”,!
“id_token”:”eyJhbGdvIjoiUlNBMjU2IiwidH
lwIjoiand0In0.eyJpc3MiOiJteWNsaWVudCIsInN1Yi
I6Im15dXNlciIsImF1ZCI6ImFwaS5leGFtcGxlLmNvbS
J9.ZW50IiwicJKV3",!
"expires_in":3600!
}

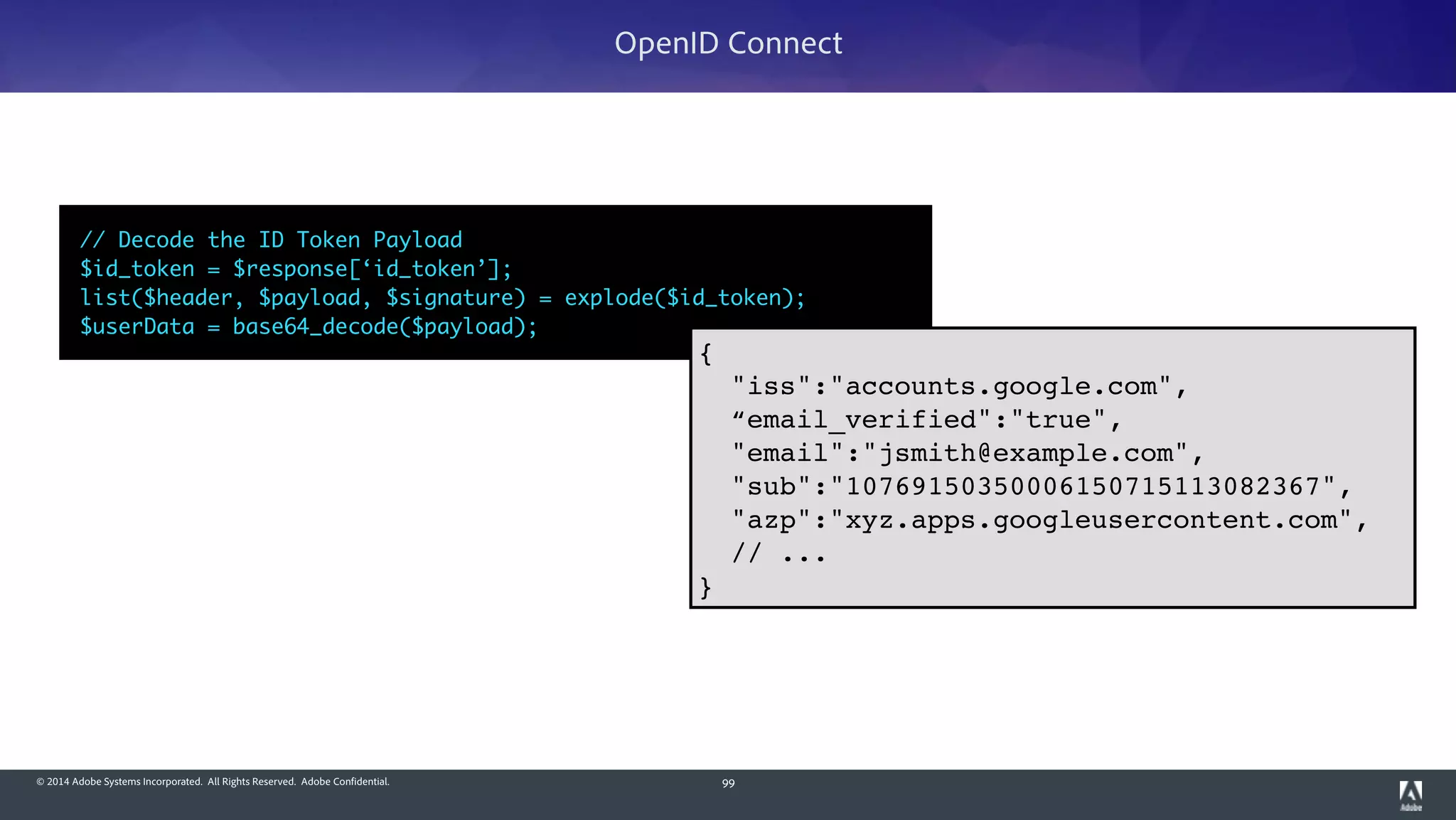

OpenID Connect
// Decode the ID Token Payload
$id_token = $response[‘id_token’];
list($header, $payload, $signature) = explode($id_token);
$userData = base64_decode($payload);
{!
"iss":"accounts.google.com",!
“email_verified":"true",!
"email":"jsmith@example.com",!
"sub":"10769150350006150715113082367",!
"azp":"xyz.apps.googleusercontent.com",!
// ...!
}

!

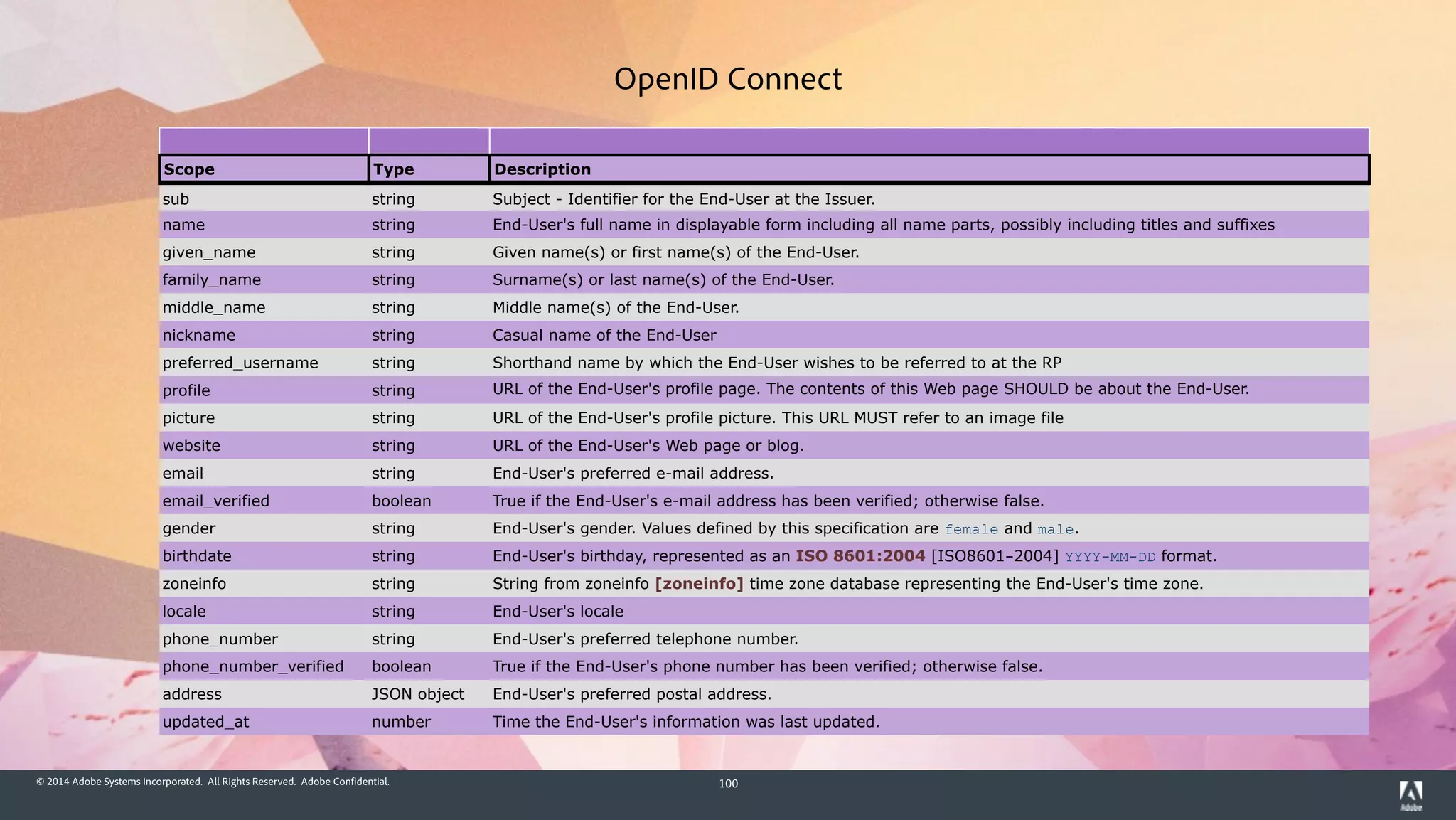

Scope Type Description
sub string Subject - Identifier for the End-User at the Issuer.
name string End-User's full name in displayable form including all name parts, possibly including titles and suffixes
given_name string Given name(s) or first name(s) of the End-User.
family_name string Surname(s) or last name(s) of the End-User.
middle_name string Middle name(s) of the End-User.
nickname string Casual name of the End-User
preferred_username string Shorthand name by which the End-User wishes to be referred to at the RP
profile string URL of the End-User's profile page. The contents of this Web page SHOULD be about the End-User.
picture string URL of the End-User's profile picture. This URL MUST refer to an image file
website string URL of the End-User's Web page or blog.
email string End-User's preferred e-mail address.
email_verified boolean True if the End-User's e-mail address has been verified; otherwise false.
gender string End-User's gender. Values defined by this specification are female and male.
birthdate string End-User's birthday, represented as an ISO 8601:2004 [ISO8601-2004] YYYY-MM-DD format.
zoneinfo string String from zoneinfo [zoneinfo] time zone database representing the End-User's time zone.
locale string End-User's locale
phone_number string End-User's preferred telephone number.
phone_number_verified boolean True if the End-User's phone number has been verified; otherwise false.
address JSON object End-User's preferred postal address.
updated_at number Time the End-User's information was last updated.
OpenID Connect

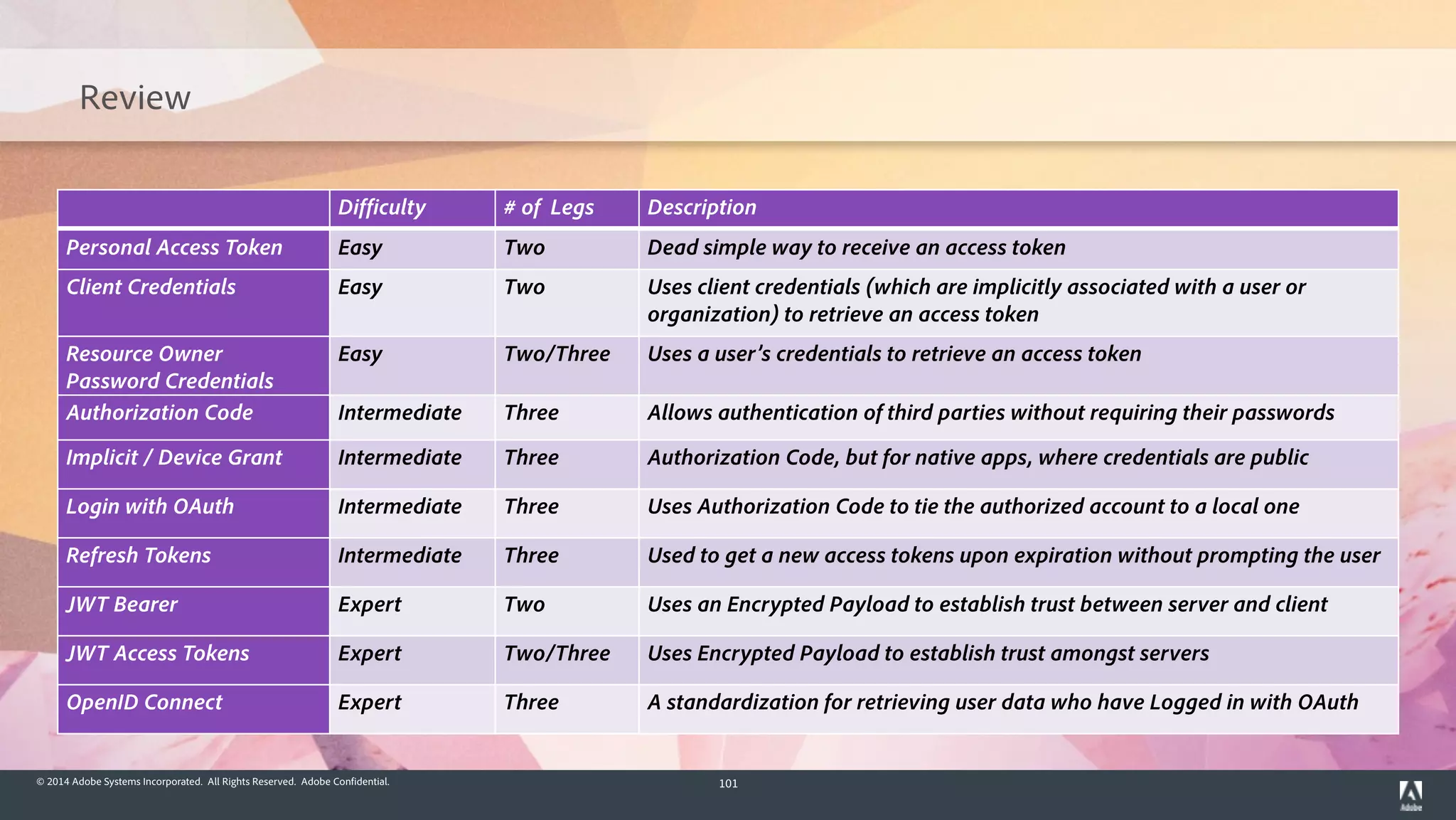

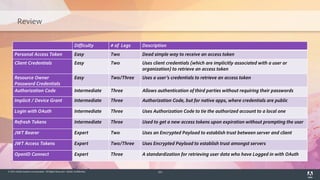

Review
Difficulty # of Legs Description
Personal Access Token Easy Two Dead simple way to receive an access token
Client Credentials Easy Two Uses client credentials (which are implicitly associated with a user or
organization) to retrieve an access token
Resource Owner
Password Credentials
Easy Two/Three Uses a user’s credentials to retrieve an access token
Authorization Code Intermediate Three Allows authentication of third parties without requiring their passwords
Implicit / Device Grant Intermediate Three Authorization Code, but for native apps, where credentials are public
Login with OAuth Intermediate Three Uses Authorization Code to tie the authorized account to a local one
Refresh Tokens Intermediate Three Used to get a new access tokens upon expiration without prompting the user
JWT Bearer Expert Two Uses an Encrypted Payload to establish trust between server and client
JWT Access Tokens Expert Two/Three Uses Encrypted Payload to establish trust amongst servers
OpenID Connect Expert Three A standardization for retrieving user data who have Logged in with OAuth

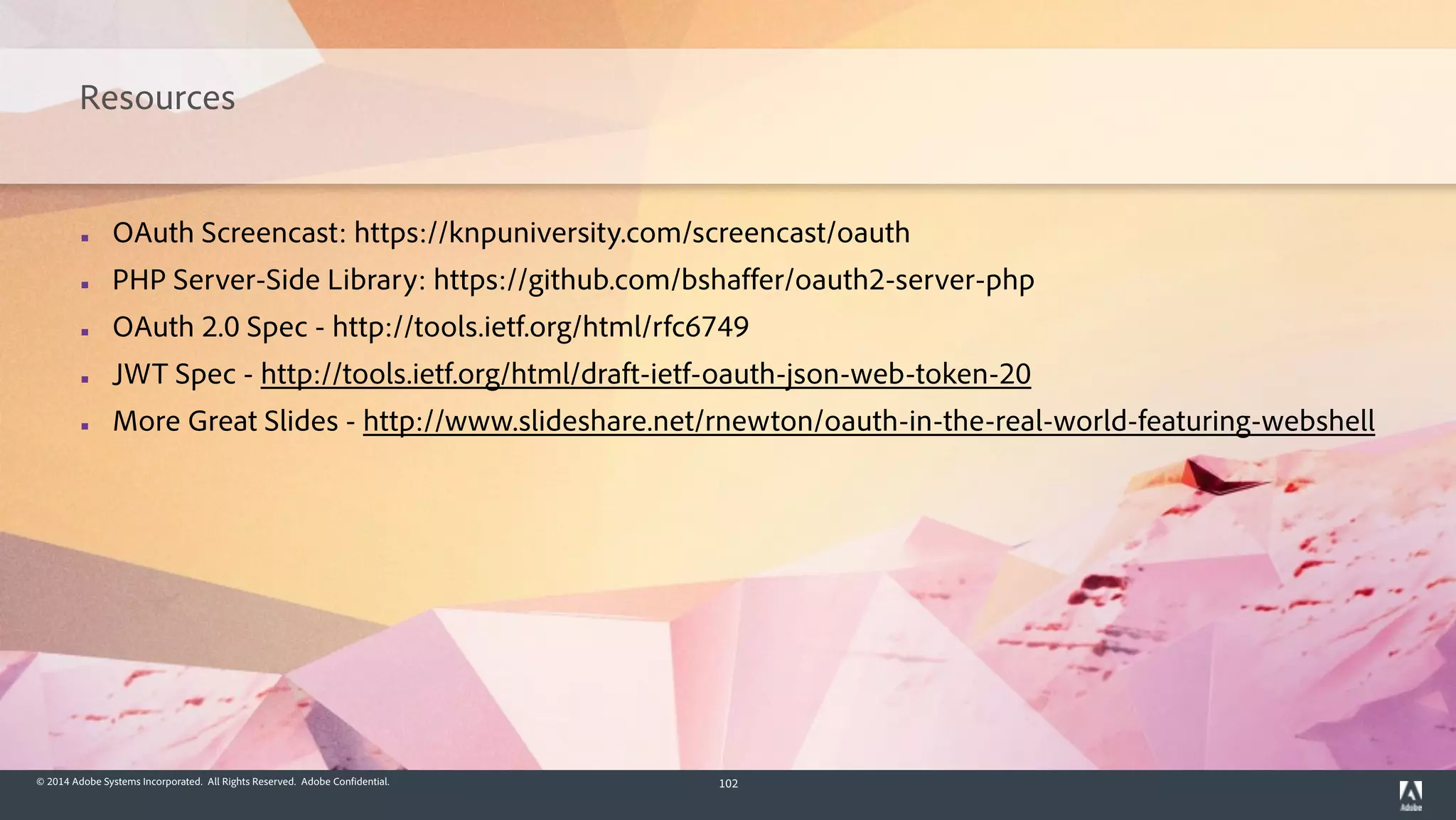

Resources
▪ OAuth Screencast: https://knpuniversity.com/screencast/oauth
▪ PHP Server-Side Library: https://github.com/bshaffer/oauth2-server-php
▪ OAuth 2.0 Spec - http://tools.ietf.org/html/rfc6749
▪ JWT Spec - http://tools.ietf.org/html/draft-ietf-oauth-json-web-token-20
▪ More Great Slides - http://www.slideshare.net/rnewton/oauth-in-the-real-world-featuring-webshell

OAuth2 - The Swiss Army Framework

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (8)

Similar to OAuth2 - The Swiss Army Framework

Similar to OAuth2 - The Swiss Army Framework (20)

Recently uploaded

Recently uploaded (20)

OAuth2 - The Swiss Army Framework
