The document discusses OAuth 2.0 libraries for PHP and Ruby. For PHP, it describes thephpleague/oauth2-client library which allows configuring 3 endpoint URLs and implementing the OAuth flow with conditional checks. For Ruby, it mentions omniauth/omniauth libraries like omniauth-twitter which simplify implementation by handling most complexity, with differences only in the 3 URLs. It also describes Doorkeeper for developing OAuth servers in Ruby on Rails, which works with Devise and allows registering client apps and users through predefined functions.

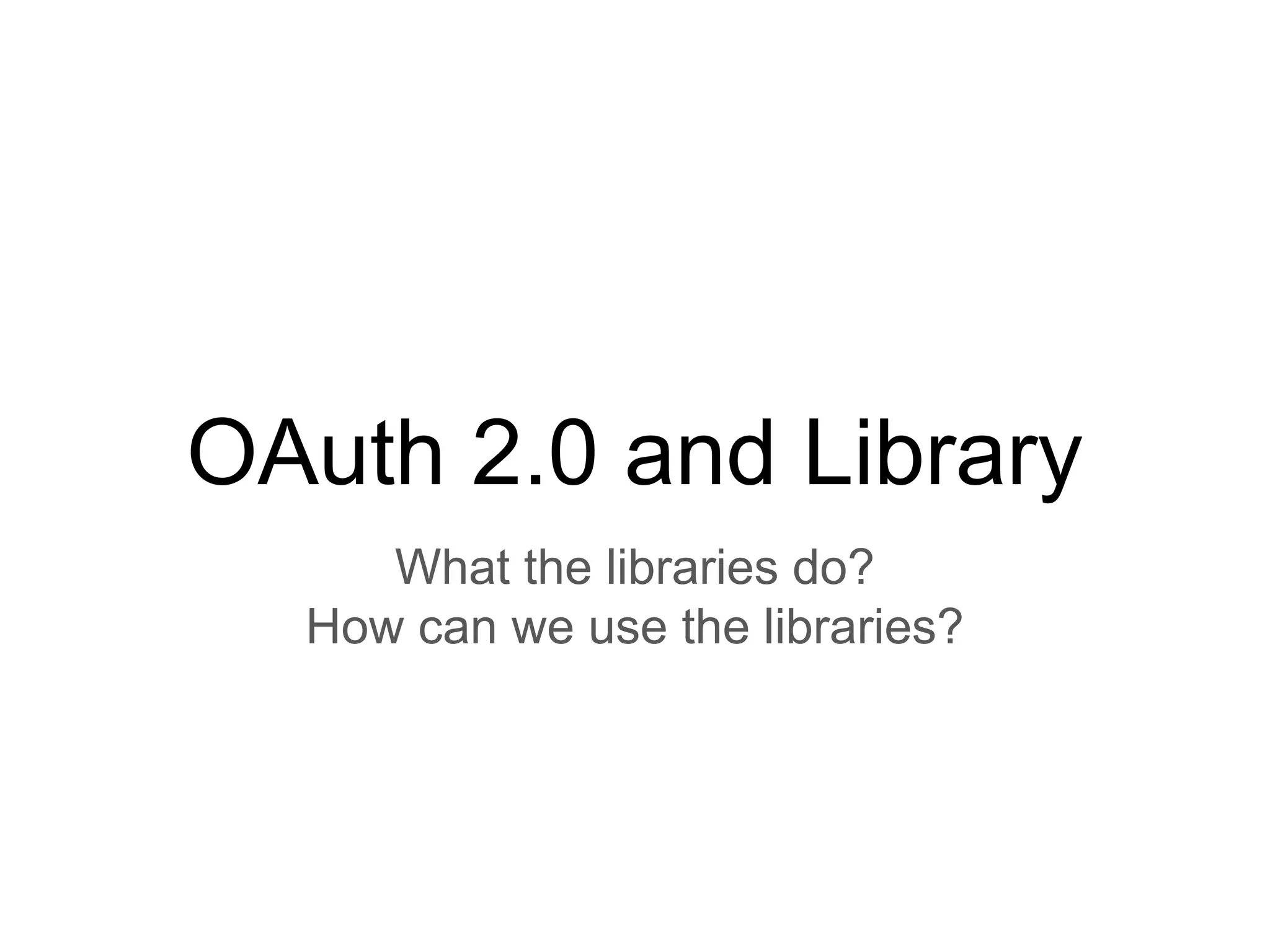

1. OAuth 2.0 and Library
What the libraries do?
How can we use the libraries?

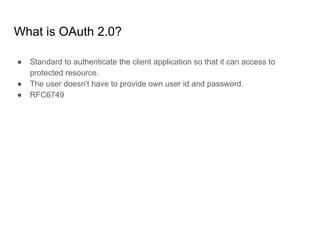

2. What is OAuth 2.0?
● Standard to authenticate the client application so that it can access to
protected resource.
● The user doesn't have to provide own user id and password.
● RFC6749

3. OAuth Flow (simple version)
Client App
Resource Svr
Auth Svr
Start
(1) Authorization Client
Redirect and authenticate
Respond Code
(2) Request Token
Respond Token
(3) Request Resource
redirect_uri
client_id
scope
response_type
grant_type
client_id
scope
code
code
state
access_token
token_type
expires_in
refresh_token
example_parameter

4. OAuth Flow (simple version
Client App
Resource Svr
Auth Svr
Start
(1) Authenticate Client
Redirect and authenticate
Respond Code
(2) Request Token
Respond Token
(3) Request Resource
3 endpoint URLs for
configuration

5. PHP Library: thephpleague/oauth2-client
https://github.com/thephpleague/oauth2-client
$provider = new LeagueOAuth2ClientProviderGenericProvider([
'clientId' => 'demoapp', // The client ID assigned to you by the provider
'clientSecret' => 'demopass', // The client password assigned to you by the provider
'redirectUri' => 'http://example.com/your-redirect-url/',
'urlAuthorize' => 'http://brentertainment.com/oauth2/lockdin/authorize',
'urlAccessToken' => 'http://brentertainment.com/oauth2/lockdin/token',
'urlResourceOwnerDetails' => 'http://brentertainment.com/oauth2/lockdin/resource'
]);
// If we don't have an authorization code then get one
if (!isset($_GET['code'])) {
// Fetch the authorization URL from the provider; this returns the
// urlAuthorize option and generates and applies any necessary parameters
// (e.g. state).
$authorizationUrl = $provider->getAuthorizationUrl();
// Get the state generated for you and store it to the session.
$_SESSION['oauth2state'] = $provider->getState();
// Redirect the user to the authorization URL.
header('Location: ' . $authorizationUrl);
exit;
// Check given state against previously stored one to mitigate CSRF attack
} elseif (empty($_GET['state']) || (isset($_SESSION['oauth2state']) && $_GET['state'] !== $_SESSION['oauth2state'])) {
if (isset($_SESSION['oauth2state'])) {
unset($_SESSION['oauth2state']);
}
exit('Invalid state');
} else {
try {
// Try to get an access token using the authorization code grant.
$accessToken = $provider->getAccessToken('authorization_code', [
'code' => $_GET['code']
]);
// We have an access token, which we may use in authenticated
// requests against the service provider's API.
echo 'Access Token: ' . $accessToken->getToken() . "<br>";
echo 'Refresh Token: ' . $accessToken->getRefreshToken() . "<br>";
echo 'Expired in: ' . $accessToken->getExpires() . "<br>";
echo 'Already expired? ' . ($accessToken->hasExpired() ? 'expired' : 'not expired') . "<br>";
Let's view the sample code.

6. PHP Library: thephpleague/oauth2-client
$provider = new LeagueOAuth2ClientProviderGenericProvider([
'clientId' => 'demoapp', // The client ID assigned to you by the provider
'clientSecret' => 'demopass', // The client password assigned to you by the provider
'redirectUri' => 'http://example.com/your-redirect-url/',
'urlAuthorize' => 'http://brentertainment.com/oauth2/lockdin/authorize',
'urlAccessToken' => 'http://brentertainment.com/oauth2/lockdin/token',
'urlResourceOwnerDetails' => 'http://brentertainment.com/oauth2/lockdin/resource'
]);
3 URLs for auth and resource server.

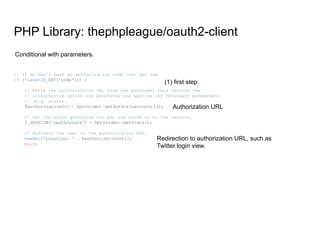

7. PHP Library: thephpleague/oauth2-client
// If we don't have an authorization code then get one
if (!isset($_GET['code'])) {
// Fetch the authorization URL from the provider; this returns the
// urlAuthorize option and generates and applies any necessary parameters
// (e.g. state).
$authorizationUrl = $provider->getAuthorizationUrl();
// Get the state generated for you and store it to the session.
$_SESSION['oauth2state'] = $provider->getState();
// Redirect the user to the authorization URL.
header('Location: ' . $authorizationUrl);
exit;
Conditional with parameters.
(1) first step
Authorization URL
Redirection to authorization URL, such as
Twitter login view.

8. PHP Library: thephpleague/oauth2-client
// Check given state against previously stored one to mitigate CSRF attack
} elseif (empty($_GET['state']) || (isset($_SESSION['oauth2state']) && $_GET['state'] !==
$_SESSION['oauth2state'])) {
if (isset($_SESSION['oauth2state'])) {
unset($_SESSION['oauth2state']);
}
exit('Invalid state');
Process when the user came back from authorization.
Handles irregular pattern

9. PHP Library: thephpleague/oauth2-client
} else {
try {
// Try to get an access token using the authorization code grant.
$accessToken = $provider->getAccessToken('authorization_code', [
'code' => $_GET['code']
]);
// We have an access token, which we may use in authenticated
// requests against the service provider's API.
echo 'Access Token: ' . $accessToken->getToken() . "<br>";
echo 'Refresh Token: ' . $accessToken->getRefreshToken() . "<br>";
echo 'Expired in: ' . $accessToken->getExpires() . "<br>";
echo 'Already expired? ' . ($accessToken->hasExpired() ? 'expired' : 'not expired') . "<br>";
// Using the access token, we may look up details about the
// resource owner.
$resourceOwner = $provider->getResourceOwner($accessToken);
var_export($resourceOwner->toArray());
// The provider provides a way to get an authenticated API request for
// the service, using the access token; it returns an object conforming
// to PsrHttpMessageRequestInterface.
$request = $provider->getAuthenticatedRequest(
'GET',
'http://brentertainment.com/oauth2/lockdin/resource',
$accessToken
);
} catch (LeagueOAuth2ClientProviderExceptionIdentityProviderException$e) {
// Failed to get the access token or user details.
exit($e->getMessage());
}
}
(2) Get Access token
(3) Get resource information

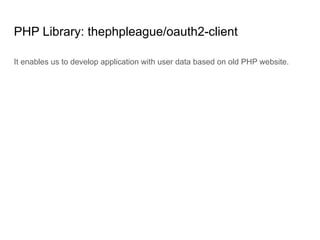

10. PHP Library: thephpleague/oauth2-client
It enables us to develop application with user data based on old PHP website.

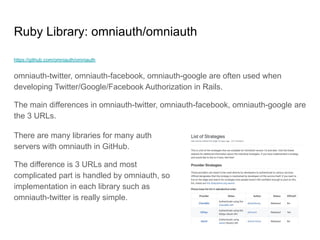

11. Ruby Library: omniauth/omniauth
https://github.com/omniauth/omniauth
omniauth-twitter, omniauth-facebook, omniauth-google are often used when
developing Twitter/Google/Facebook Authorization in Rails.
The main differences in omniauth-twitter, omniauth-facebook, omniauth-google are
the 3 URLs.
There are many libraries for many auth
servers with omniauth in GitHub.
The difference is 3 URLs and most
complicated part is handled by omniauth, so
implementation in each library such as
omniauth-twitter is really simple.

12. Ruby Library: omniauth/omniauth
The main component omniauth-google-oauth2 is google_oauth2.rb, 227 lines.

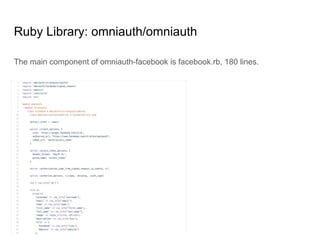

13. Ruby Library: omniauth/omniauth
The main component of omniauth-facebook is facebook.rb, 180 lines.

14. Library to develop server: Doorkeeper
https://github.com/doorkeeper-gem/doorkeeper
It is used with Rails and it collaborates with Devise well.

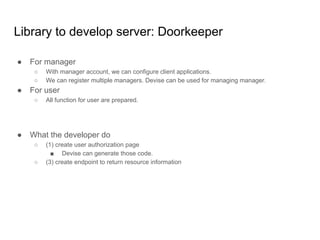

15. Library to develop server: Doorkeeper
● For manager
○ With manager account, we can configure client applications.
○ We can register multiple managers. Devise can be used for managing manager.
● For user
○ All function for user are prepared.
● What the developer do
○ (1) create user authorization page
■ Devise can generate those code.
○ (3) create endpoint to return resource information

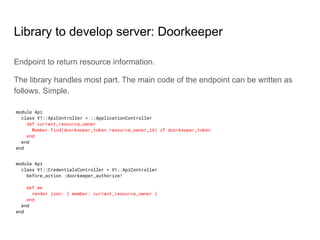

16. Library to develop server: Doorkeeper
Endpoint to return resource information.
The library handles most part. The main code of the endpoint can be written as
follows. Simple.
module Api
class V1::ApiController < ::ApplicationController
def current_resource_owner
Member.find(doorkeeper_token.resource_owner_id) if doorkeeper_token
end
end
end
module Api
class V1::CredentialsController < V1::ApiController
before_action :doorkeeper_authorize!
def me
render json: { member: current_resource_owner }
end
end
end

17. Reference
● OAuth 2.0 structure and authorization https://murashun.jp/blog/20150920-01.html
● OAuth 2.0 client in Java https://www.ibm.com/developerworks/jp/security/library/se-oauthjavapt3/index.html
● OAuth authorization with Rails + devise + omniauth + doorkeeper
https://qiita.com/moehiko/items/300dcfa4d8f70660bcd1
