This document summarizes a presentation about MuleSoft operational capabilities and deployment options. It includes: 1) An overview of MuleSoft and its history as an integration platform, including its acquisition by Salesforce. 2) Details on MuleSoft's operational capabilities when deployed on CloudHub, including auto-scaling, intelligent healing, and zero-downtime updates. 3) Five use cases that demonstrate different deployment architectures using MuleSoft, including CloudHub, hybrid implementations with on-premise and cloud components, and customer-hosted options.

1. [NYC] MuleSoft Meetup Group
MuleSoft Operational Capabilities and Deployment Options
13th March, 2021

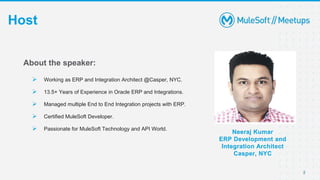

2. 2
Host
Neeraj Kumar
ERP Development and
Integration Architect
Casper, NYC
About the speaker:
 Working as ERP and Integration Architect @Casper, NYC.
 13.5+ Years of Experience in Oracle ERP and Integrations.
 Managed multiple End to End Integration projects with ERP.
 Certified MuleSoft Developer.
 Passionate for MuleSoft Technology and API World.

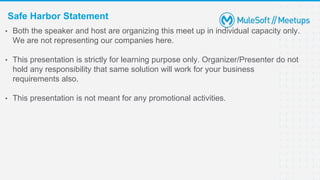

3. Safe Harbor Statement
• Both the speaker and host are organizing this meet up in individual capacity only.
We are not representing our companies here.
• This presentation is strictly for learning purpose only. Organizer/Presenter do not
hold any responsibility that same solution will work for your business
requirements also.
• This presentation is not meant for any promotional activities.

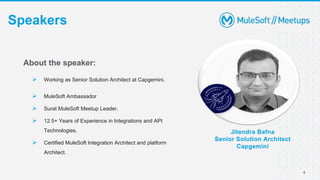

4. 4
Speakers
Jitendra Bafna
Senior Solution Architect
Capgemini
About the speaker:
 Working as Senior Solution Architect at Capgemini.
 MuleSoft Ambassador
 Surat MuleSoft Meetup Leader.
 12.5+ Years of Experience in Integrations and API
Technologies.
 Certified MuleSoft Integration Architect and platform
Architect.

5. CHEERS..!!
We have prizes to give away!
3 Winners a special prize is ready
5
A SHOW OF HANDS:
New Members With Us.!!

6. Agenda
MuleSoft and its History
MuleSoft Operational and API Capabilities
Use Case 1: CloudHub Architecture
Use Case 2: CloudHub Architecture With VPC, VPN and DLB
Use Case 3: Customer Hosted Mule Runtime (Hybrid)
Use Case 4: Runtime Fabric Manager
Use Case 5: API Management Capabilities for Non Mule Application
Trivia Quiz
1
2
3
4
5
6
7
8

7. MuleSoft in Gartner Magic Quadrant - 2020
Gartner has recognized the company as a Leader for the sixth time in the 2020 Magic Quadrant for Enterprise
Integration Platform as a Service (iPaaS).
In addition, MuleSoft has been named a Leader for the fifth consecutive time in the 2020 Gartner Magic Quadrant
for Full Life Cycle API Management

8. What is MuleSoft?
MuleSoft is the software company having headquartered in the San Francisco, California that provides the
integration software to connect applications, data or devices etc.
Founded as a MuleSource by Ross Mason and Dave Rosenberg.
MuleSource has been renamed to MuleSoft. MuleSoft originally provided Messaging and Middleware
capabilities, later expanded to IPaaS through product Anypoint Platform.
2006
2009
2013
2016
MuleSoft acquired the ProgrammableWeb.
MuleSoft was ranked #20 on the Forbes Cloud 100 list.
MuleSoft filed the IPO and start trading in New York Stock Exchange.
2017
2018 MuleSoft acquired by Salesforce.

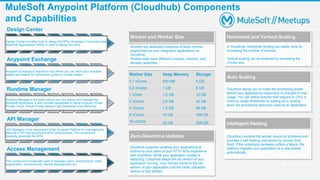

9. Design Center
Design Center provides tools to design the APIs, developer Connectors and
MuleSoft Applications. RAML is used to design the APIs.
Anypoint Exchange
Anypoint Exchange is repository hub where you can store your reusable
assets and search for connectors, public or private assets.
Runtime Manager
Runtime Manager is the place where you can deploy and manage the
MuleSoft Application. It also provide capabilities to setup Anypoint Virtual
Private Cloud, Virtual Private Network and Dedicated Load Balancer.
API Manager
API Manager is the component of the Anypoint Platform for managing the
lifecycle of API and secure the APIs using policies. This component
basically governed the APIs.
Access Management
This component is basically used to manager users, subscriptions, roles,
organization, environments, Identity Management etc.
Workers are dedicated instances of Mule runtime
engine that run your integration applications on
CloudHub.
Worker sizes have different compute, memory, and
storage capacities.
Worker and Worker Size
Worker Size Heap Memory Storage
0.1 vCores 500 MB 8 GB
0.2 vCores 1 GB 8 GB
1 vCore 1.5 GB 12 GB
2 vCores 3.5 GB 40 GB
4 vCores 7.5 GB 88 GB
8 vCores 15 GB 168 GB
16 vCores 32 GB 328 GB
Horizontal and Vertical Scaling
In CloudHub, Horizontal Scaling can easily done by
increasing the number of workers.
Vertical scaling can be achieved by increasing the
vCores size.
Auto Scaling
CloudHub allows you to make the processing power
behind your applications responsive to changes in their
usage. You can define policies that respond to CPU or
memory usage thresholds by scaling up or scaling
down the processing resources used by an application.
Intelligent Healing
CloudHub monitors the worker clouds for problems and
provides a self-healing mechanism to recover from
them. If the underlying hardware suffers a failure, the
platform migrates your application to a new worker
automatically.
Zero-Downtime Updates
CloudHub supports updating your applications at
runtime so end users of your HTTP APIs experience
zero downtime. While your application update is
deploying, CloudHub keeps the old version of your
application running. Your domain points to the old
version of your application until the newly uploaded
version is fully started.
MuleSoft Anypoint Platform (Cloudhub) Components
and Capabilities

10. MuleSoft Region and Multitenancy
10
US East (N. Virginia)
US East (Ohio)
US West (N. California)
EU (Ireland)
EU (London)
EU (Frankfurt)
Asia Pacific (Tokyo)
Asia Pacific (Singapore)
Asia Pacific (Sydney)
Central (Canada)
South America (Sao Paulo)
Runtime Manager (CloudHub)
Region Sub-Domain
US East (North Virginia) us-e1.cloudhub.io
US East (Ohio) us-e2.cloudhub.io
US West (Oregon) us-w2.cloudhub.io
US West (North California) us-w1.cloudhub.io
Canada (Central) ca-c1.cloudhub.io
Brazil (Sao Paulo) br-s1.cloudhub.io
Europe (Ireland) ir-e1.cloudhub.io
Europe (Frankfurt) de-c1.cloudhub.io
UK (London) uk-e1.cloudhub.io
Asia Pacific (Tokyo) jp-e1.cloudhub.io
Asia Pacific (Sydney) au-s1.cloudhub.io
Asia Pacific (Singapore) sg-s1.cloudhub.io
US West (Oregon)
 First, the worker cloud is a multitenant
cloud of virtual machines. These VMs
provide the security and isolation needed
for your integrations to run custom code
without affecting others.
 Second, the management console and the
platform services have a "shared
everything" architecture – all tenants
share the same web UI, monitoring
services, load balancers, etc. These
services do not process or transmit your
data.

11. MuleSoft Operational Capabilities
and Deployment Options

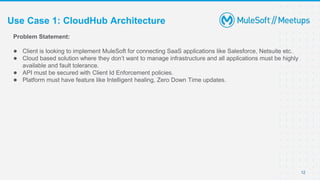

12. Use Case 1: CloudHub Architecture
12
Problem Statement:
● Client is looking to implement MuleSoft for connecting SaaS applications like Salesforce, Netsuite etc.
● Cloud based solution where they don’t want to manage infrastructure and all applications must be highly
available and fault tolerance.
● API must be secured with Client Id Enforcement policies.
● Platform must have feature like Intelligent healing, Zero Down Time updates.

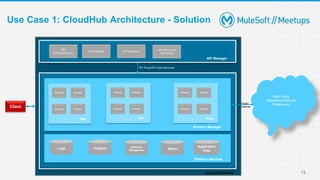

13. Use Case 1: CloudHub Architecture - Solution
13
SaaS Apps
(Salesforce/Netsuite
/Databases)
Runtime Manager
Dev Test Prod
Platform Services
Worker
Worker
Worker
Worker
Worker
Worker
Worker
Worker
Worker
Worker
Worker
Worker
Logs Insights Scheduler
Management Alerts
Application
Data
API Manager
API
Policies/Security
API Gateway API Analytics API Alerts and
Monitoring
Public
Internet
API Proxy/API Auto Discovery
Anypoint Platform
Client

14. Demonstration on Use Case 1

15. Use Case 2: CloudHub Architecture (Accessing
Application Within Private DC or Cloud)
15
Problem Statement:
● Client is looking to implement MuleSoft for connecting SaaS applications like Salesforce, SAP system in
private AWS cloud and Databases and resources in on premise system.
● Cloud based solution where they don’t want to manage infrastructure and all applications must be highly
available and fault tolerance.
● Application can be access by fewer client publicly.
● API must be secured with OAuth JWT.
● Platform must have feature like Intelligent healing, Zero Down Time updates.

16. Use Case 2: CloudHub Architecture (Accessing
Application Within Private DC or Cloud)
- Solution
16
SaaS Apps
(Salesforce/Netsuite
/Databases)
Platform Services
Logs Insights Scheduler
Management Alerts
Application
Data
API Manager
API
Policies/Security
API Gateway API Analytics API Alerts and
Monitoring
API Proxy/API Auto Discovery
Anypoint Platform
Client
Runtime Manager
Non Prod VPC (10.0.1.0/22)
Prod VPC (192.168.1.0/22)
Dedicated
Load
Balancer
(Prod)
Dedicated
Load
Balancer
(Non Prod) Dev Test
Prod
Databases
Databases
Core Systems
Core Systems
VPN IPSec
Tunnelling
VPN IPSec
Tunnelling
Corporate Datacenter
(Non Prod)
Corporate Datacenter
(Prod)
us-east-1
us-east-1
AWS Cloud DC
(us-east-1)
AWS Resources
(Prod)
172.168.1.0/16
AWS Resources
(Non Prod)
11.0.1.0/16

17. Demonstration on Use Case 2

18. Use Case 3: Customer Hosted MuleSoft Runtime
(Hybrid Implementation)
18
Problem Statement:
● Financial institution is looking to implement cost effective solution and can operate on minimal cores.
Solution must be highly available and having low workloads.
● Due to compliance or security requirements within organization, they cannot move to cloud based
approach.
● API must be secured with Client Id Enforcement policy.
● Application deployed on Mule Runtime must be highly available.

19. Use Case 3: Customer Hosted MuleSoft Runtime
(Hybrid Implementation) - Solution
19
Prod Server 1
(Mule Runtime 4.3)
Prod Server 2
(Mule Runtime 4.3)
Test Server 1
(Mule Runtime 4.3)
Test Server 2
(Mule Runtime 4.3)
Prod Environment
Clustering
Test Environment
Clustering
Prod Load Balancer
Test Load Balancer
Customer Hosted (Data Plane)
Behind Firewall
https
443
https
443
https
443
https
443
Distributed
Memory Grid
Distributed
Memory Grid
API Manager
API
Policies
API
Analytics
API
Security
API Auto Discovery/API
Proxy
Anypoint Platform (Control Plane)
Anypoint Monitoring
and Alerts

20. Demonstration on Use Case 3

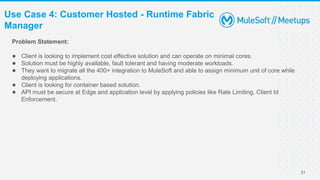

21. Use Case 4: Customer Hosted - Runtime Fabric
Manager
21
Problem Statement:
● Client is looking to implement cost effective solution and can operate on minimal cores.
● Solution must be highly available, fault tolerant and having moderate workloads.
● They want to migrate all the 400+ integration to MuleSoft and able to assign minimum unit of core while
deploying applications.
● Client is looking for container based solution.
● API must be secure at Edge and application level by applying policies like Rate Limiting, Client Id
Enforcement.

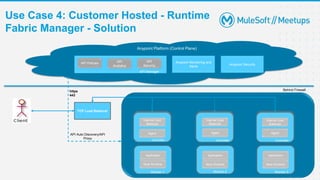

22. Use Case 4: Customer Hosted - Runtime
Fabric Manager - Solution
22
Customer Hosted (Data Plane)
Customer Hosted (Data Plane)
API Manager
API Policies API
Analytics
API
Security
Anypoint Platform (Control Plane)
Anypoint Monitoring and
Alerts
Mule Runtime
Application
Mule Runtime
Application
Mule Runtime
Application
Agent
Internal Load
Balancer
Agent
Internal Load
Balancer
Agent
Internal Load
Balancer
Mule Runtime
Application
Mule Runtime
Application
Mule Runtime
Application
Worker 1 Worker 2 Worker 3
Controller Controller Controller
Anypoint Security
https
443
Behind Firewall
TCP Load Balancer
API Auto Discovery/API
Proxy

23. Use Case 5: Leverage Anypoint API Management
Capabilities for Non MuleSoft Application
23
Problem Statement:
● Client wants to implement API Management Capabilities for Non MuleSoft applications.
● Having ‘n’ number of web services and apis implemented using non mule technologies but there is no
capabilities of API governance.
● Need to enable OAuth 2.0 Authentication for all the web services and apis.
● Want fewer clients can access apis publicly and securely.
● Non MuleSoft

24. Use Case 5: Leverage Anypoint API Management
Capabilities for Non MuleSoft Application - Solution
24
Web Services Non MuleSoft APIs
On Premise VPN
Anypoint VPN
VPN IPSec Tunnelling
Behind Firewall
On Premise
Mule Proxy
1
Mule Proxy
2
Mule Proxy
3
Mule Proxy
4
Mule Proxy
5
Anypoint VPC (10.0.1.0/24)
API Policies API Security
API
Analytics
API Alerts
and
Monitoring

25. Demonstration on Use Case 5

26. Get ready to WIN a Special Gift from MuleSoft Community
Quiz Time

27. Question 1
What is best way to connect AWS VPC and Anypoint VPC
if they exists in same region?
a. VPC Peering
b. VPN IP Sec Tunneling
c. Direct Connect
d. None of the Above
27

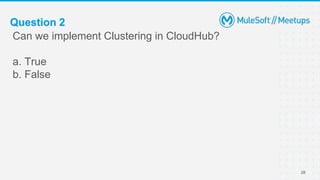

28. Question 2
Can we implement Clustering in CloudHub?
a. True
b. False
28

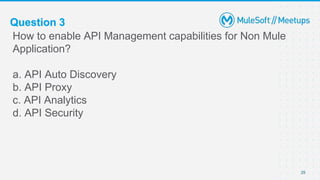

29. Question 3
How to enable API Management capabilities for Non Mule
Application?
a. API Auto Discovery
b. API Proxy
c. API Analytics
d. API Security
29

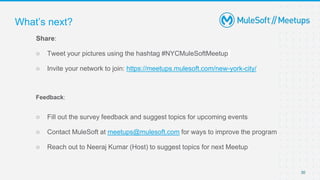

30. 30
Share:
○ Tweet your pictures using the hashtag #NYCMuleSoftMeetup
○ Invite your network to join: https://meetups.mulesoft.com/new-york-city/
Feedback:
○ Fill out the survey feedback and suggest topics for upcoming events
○ Contact MuleSoft at meetups@mulesoft.com for ways to improve the program
○ Reach out to Neeraj Kumar (Host) to suggest topics for next Meetup
What’s next?

31. Thank you
