1. 31/03/2020: API Design Practices to Accelerate
Development
Manchester MuleSoft Meetup Group

2. All contents © MuleSoft Inc.
Introductions
2
• About Francis Edwards:
– I’ve worked for Saint-Gobain for three years, initially providing integrations between
different corporate systems as well as to external third parties. I’ve replaced numerous
file transfer integrations, automated scripts & exposed APIs to existing or new services for
the Digital Transformation strategy.
– I completed the RAML 0.8 exam without revision, but took a few ‘non’ open book
attempts at the exam following the 2 day API Design course to work out what I needed to
learn.
– I’ve used the Design Centre and Anypoint Exchange to create and publish RAML
specifications and built subsequent implementations using the maven-dependency-plugin
• About Saint-Gobain Building Distribution:
– Saint-Gobain Building Distribution is the company that bring together a number of
suppliers & brands that supply material & tools into the construction industry
– The company is part of the wider Saint-Gobain Group & uses IT infrastructure that is both
within UK datacentres & IT services headquartered in France.

3. All contents © MuleSoft Inc.
RAML Integrating Design with Development
3
• Useful Resources
– There are a number of books that can
help learn API design and RAML
particularly – Manning: The Design of
Web APIs & Undisturbed REST
– API Workbench is a package that can
be installed into ATOM editor
– Design Centre at Anypoint Platform
– The RAML Specification – GitHub
project
– The resources at RAML Org
– The API Design Course from Mulesoft
Training

4. API Design Practices to Accelerate Development
RAML 1.0

5. All contents © MuleSoft Inc.
RAML Integrating Design with Development
5
• Requirement 1 – Anypoint Studio
– The first parts of a RAML definition
can be used to provide configuration
details to developer – this includes
both the http-requester and http-
listener
– Prevents typing errors and assigns
correct testing details
– item definitions aid with using ‘as
:String’ or
Integer.parseInt(message.inboundPr
operties.ID) functions when declaring
values

6. All contents © MuleSoft Inc.
RAML Integrating Design with Development
6
• Requirement 2 – Anypoint Studio
– Flows can be generated with payload
stubs using the imported RAML
specification
– Need to use types with embedded
examples to populate payload stubs

7. All contents © MuleSoft Inc.
RAML Integrating Design with Development
7
• Requirement 3 – Design Centre Console
– Requires to root element to be valid and
ideally have all code in the specification to
render the console
– Requires that securitySchemes defined and a
securedBy element populated by at least null
to provide console functionality
– The documentation element allows a readme
file to be included in the console that can
give instructions for expected behavior and
information in the described resource

8. All contents © MuleSoft Inc.
RAML Integrating Design with Development
8

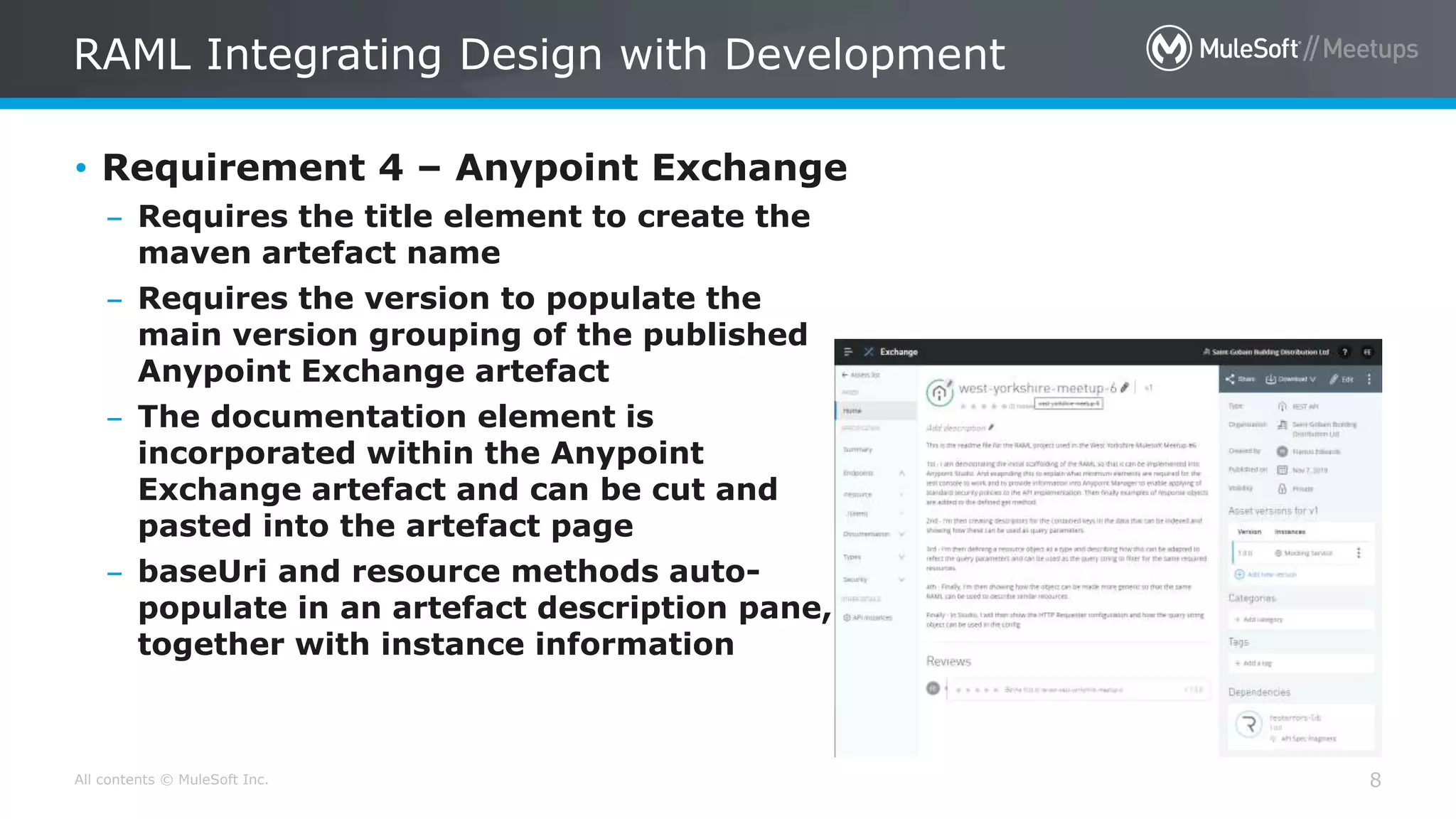

• Requirement 4 – Anypoint Exchange
– Requires the title element to create the
maven artefact name
– Requires the version to populate the
main version grouping of the published
Anypoint Exchange artefact
– The documentation element is
incorporated within the Anypoint
Exchange artefact and can be cut and
pasted into the artefact page
– baseUri and resource methods auto-
populate in an artefact description pane,
together with instance information

9. All contents © MuleSoft Inc.
RAML Integrating Design with Development
9
• Requirement 5 – API Manager
– The title element is taken from the
title in Anypoint Exchange which
is populated from the original
element
– version required to differentiate
API implementation and produce
unique autodiscovery string
– baseUri required to populate the
location of the API
implementation

10. All contents © MuleSoft Inc.
RAML Integrating Design with Development
10
• Requirement 6 – Service Contract
– Examples data can be included
initially to aid with setting output
payloads, but also provide errors
– Object definitions can be used to
provide meta-data for
transformations
– RAML minimally describes the API
rather than like JSON schemas that
fully describe objects
– Objects are used as input into query-
parms expressions. It is easier to
carry out null checking on JSON
objects than to remember to so this
for each query-param used in a HTTP
requester

11. All contents © MuleSoft Inc.
RAML Integrating Design with Development
11

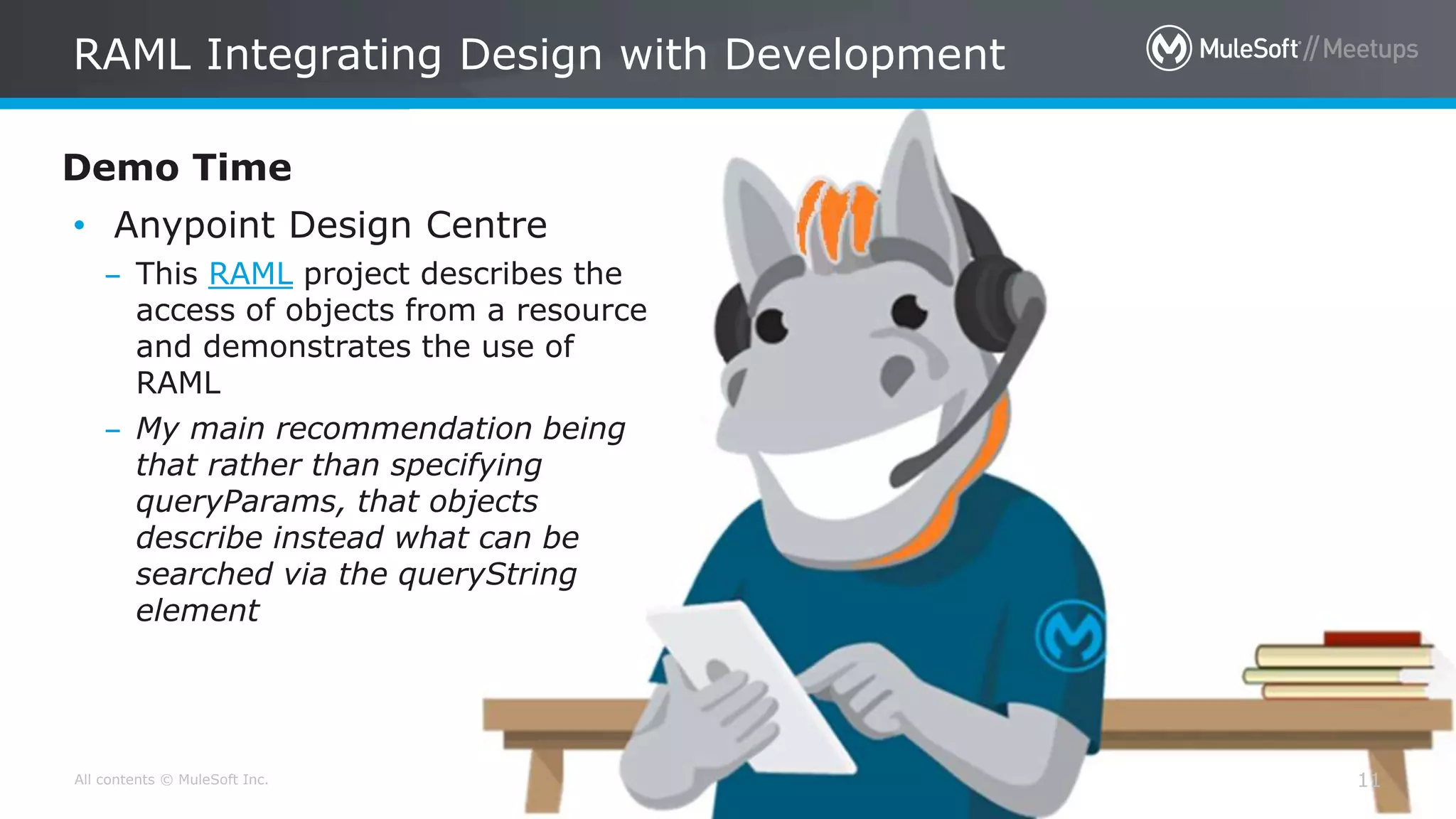

Demo Time
• Anypoint Design Centre
– This RAML project describes the
access of objects from a resource
and demonstrates the use of
RAML
– My main recommendation being
that rather than specifying
queryParams, that objects
describe instead what can be
searched via the queryString
element
