- 1. July 31st, 2019:Log Aggregation and ELK on Anypoint Platform Dallas Meetup

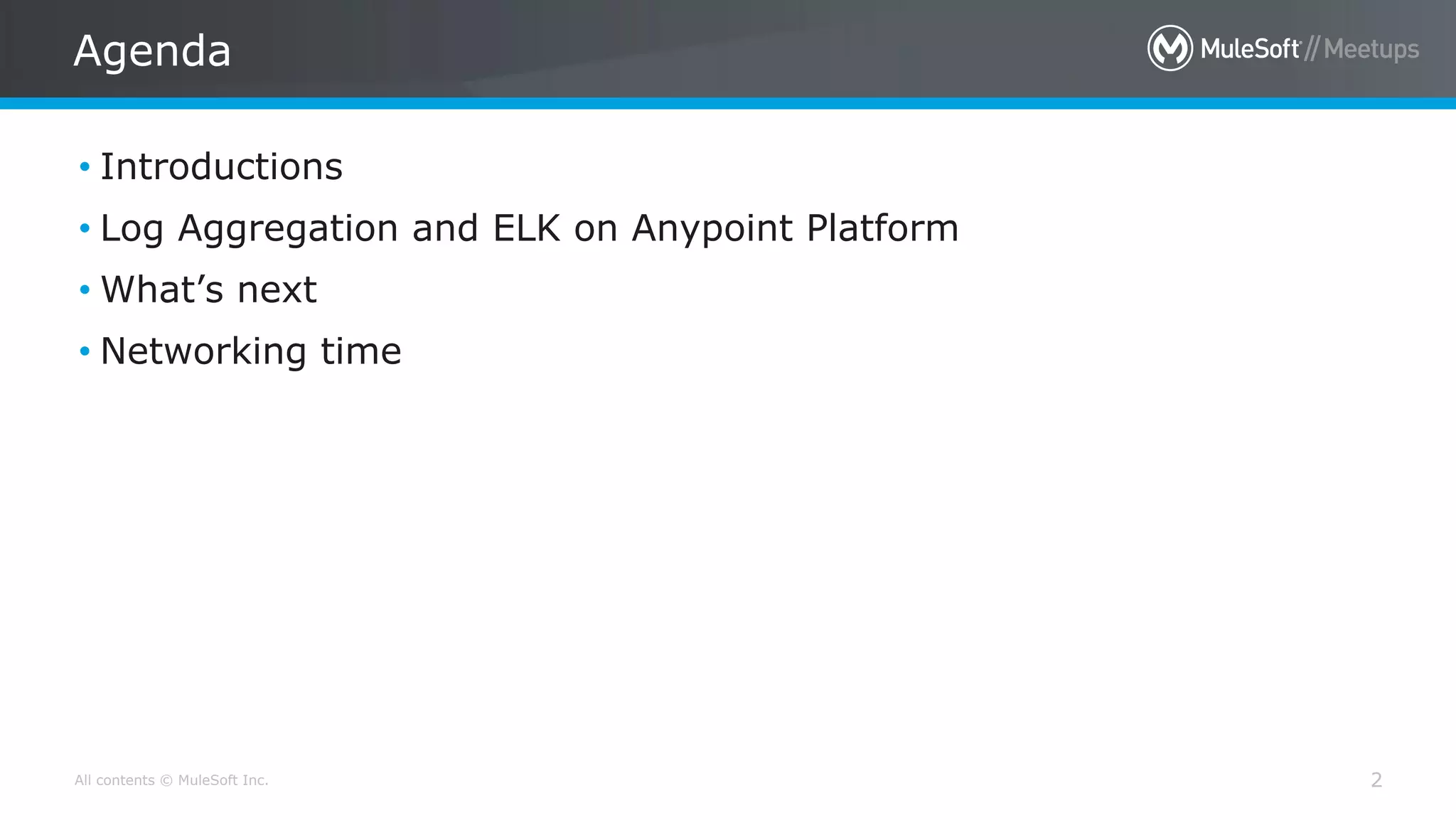

- 2. All contents ©MuleSoft Inc. Agenda 2 • Introductions • Log Aggregation and ELK on Anypoint Platform • What’s next • Networking time

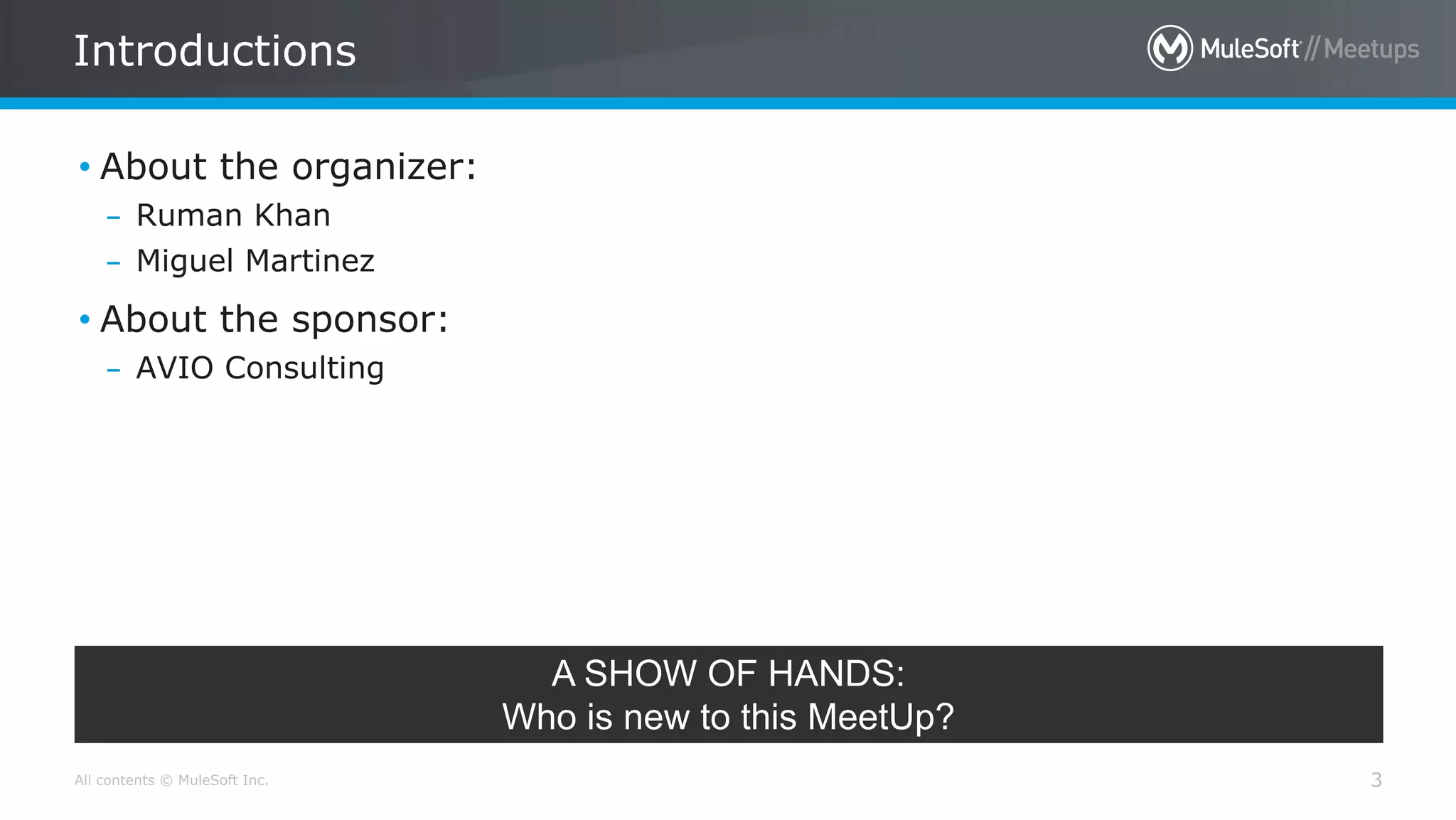

- 3. All contents ©MuleSoft Inc. Introductions 3 • About the organizer: – Ruman Khan – Miguel Martinez • About the sponsor: – AVIO Consulting A SHOW OF HANDS: Who is new to this MeetUp?

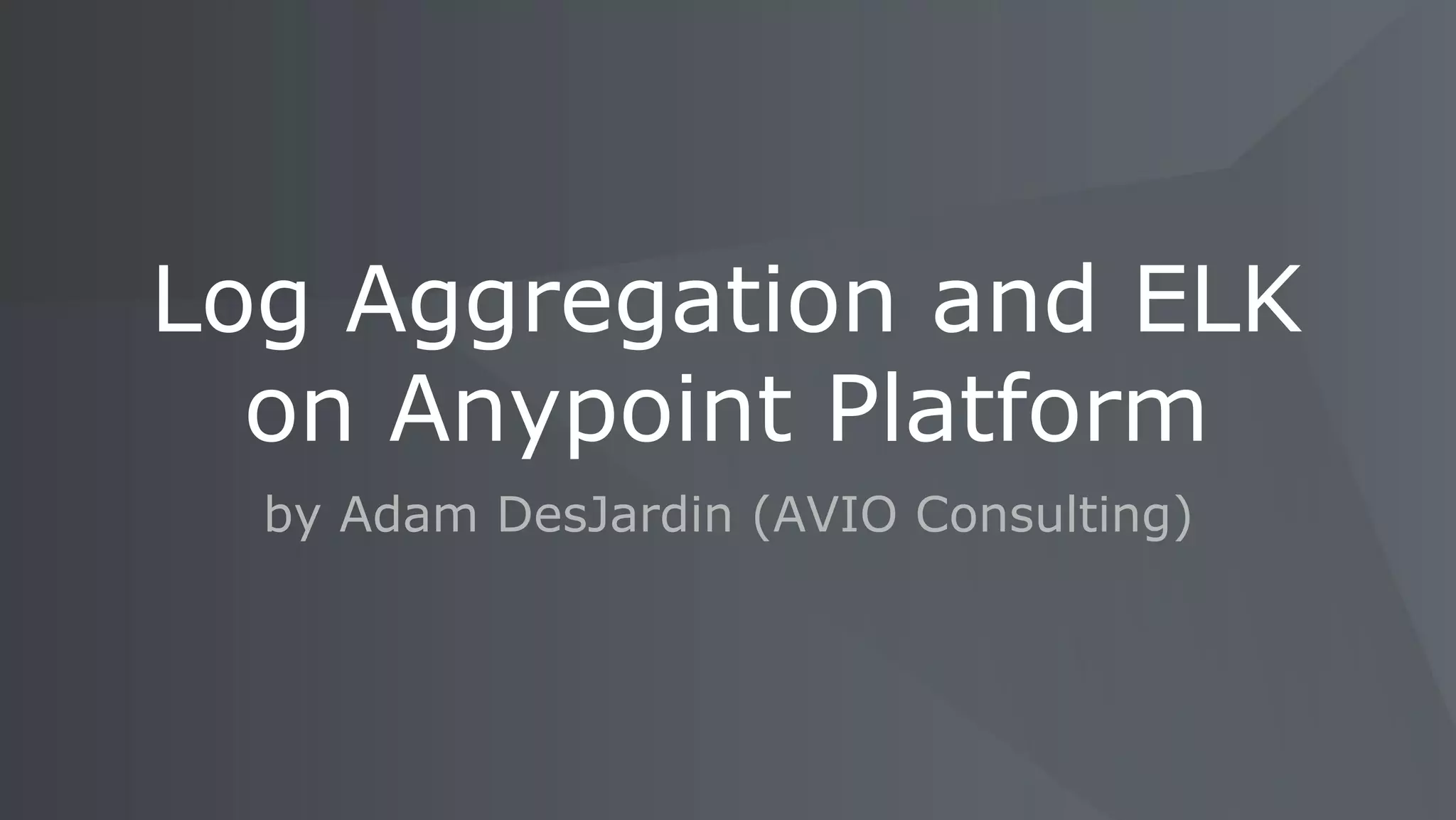

- 4. by Adam DesJardin(AVIO Consulting) Log Aggregation and ELK on Anypoint Platform

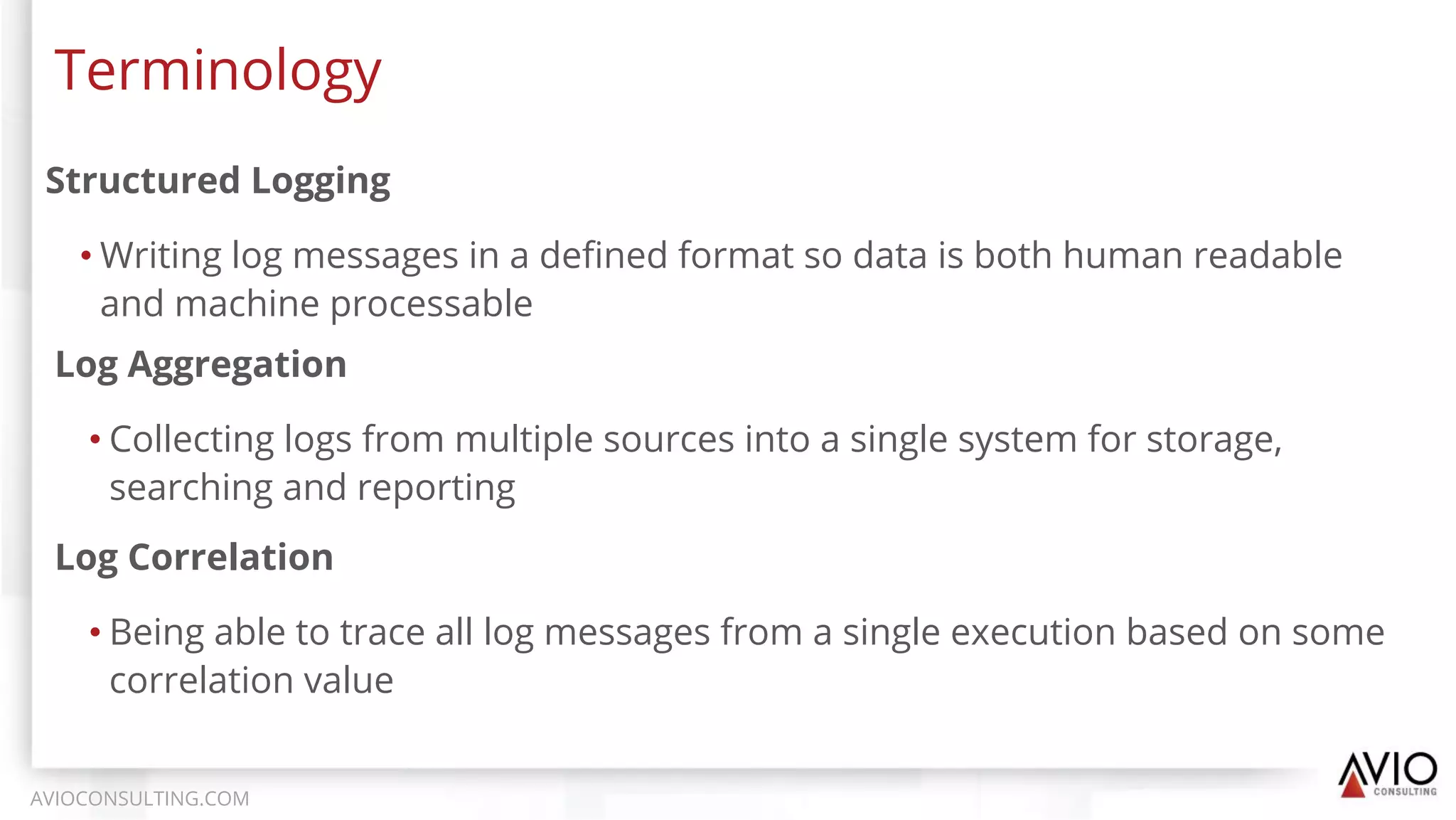

- 5. Structured Logging • Writinglog messages in a defined format so data is both human readable and machine processable Terminology AVIOCONSULTING.COM Log Aggregation • Collecting logs from multiple sources into a single system for storage, searching and reporting Log Correlation • Being able to trace all log messages from a single execution based on some correlation value

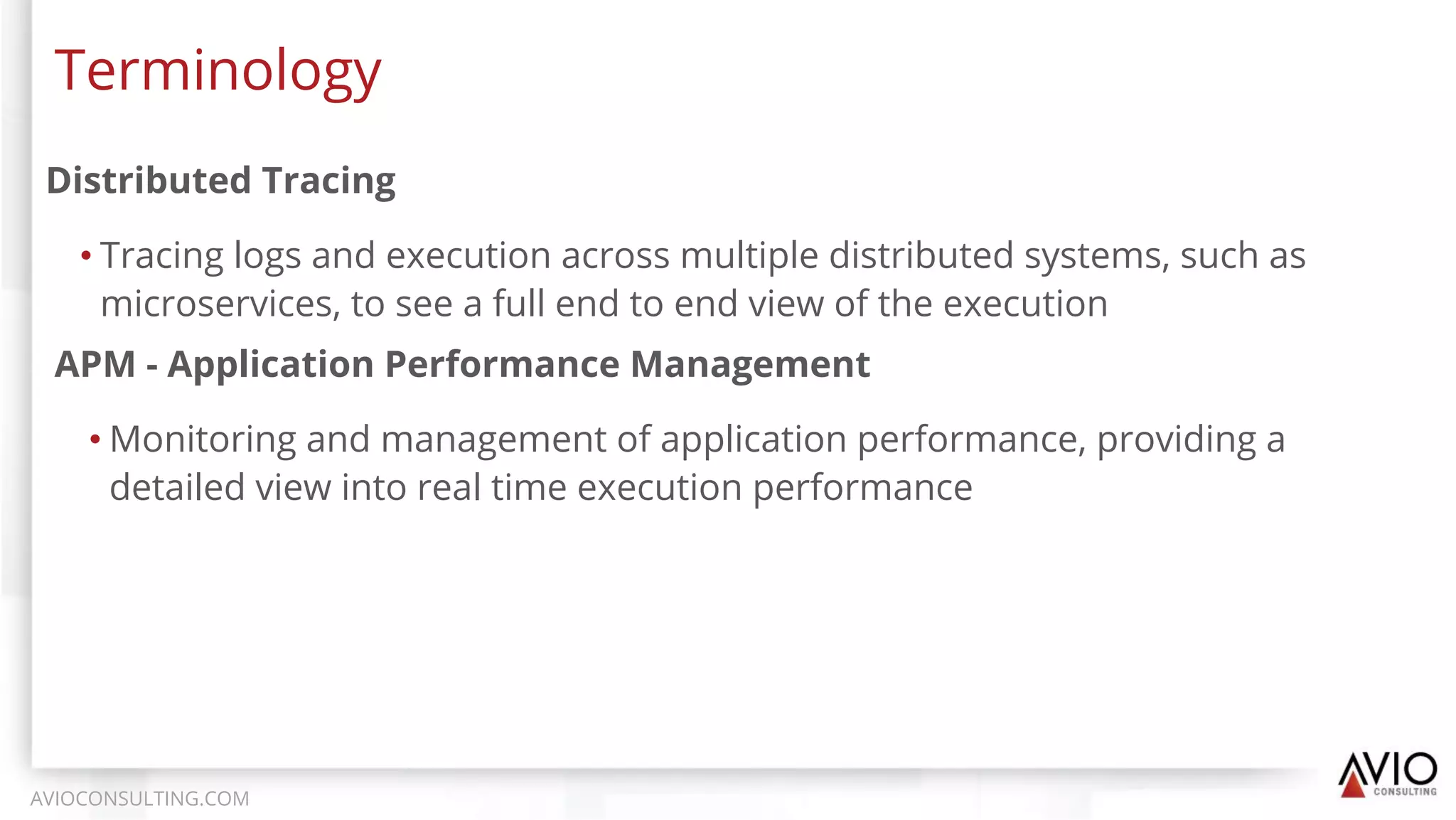

- 6. Distributed Tracing • Tracinglogs and execution across multiple distributed systems, such as microservices, to see a full end to end view of the execution Terminology AVIOCONSULTING.COM APM - Application Performance Management • Monitoring and management of application performance, providing a detailed view into real time execution performance

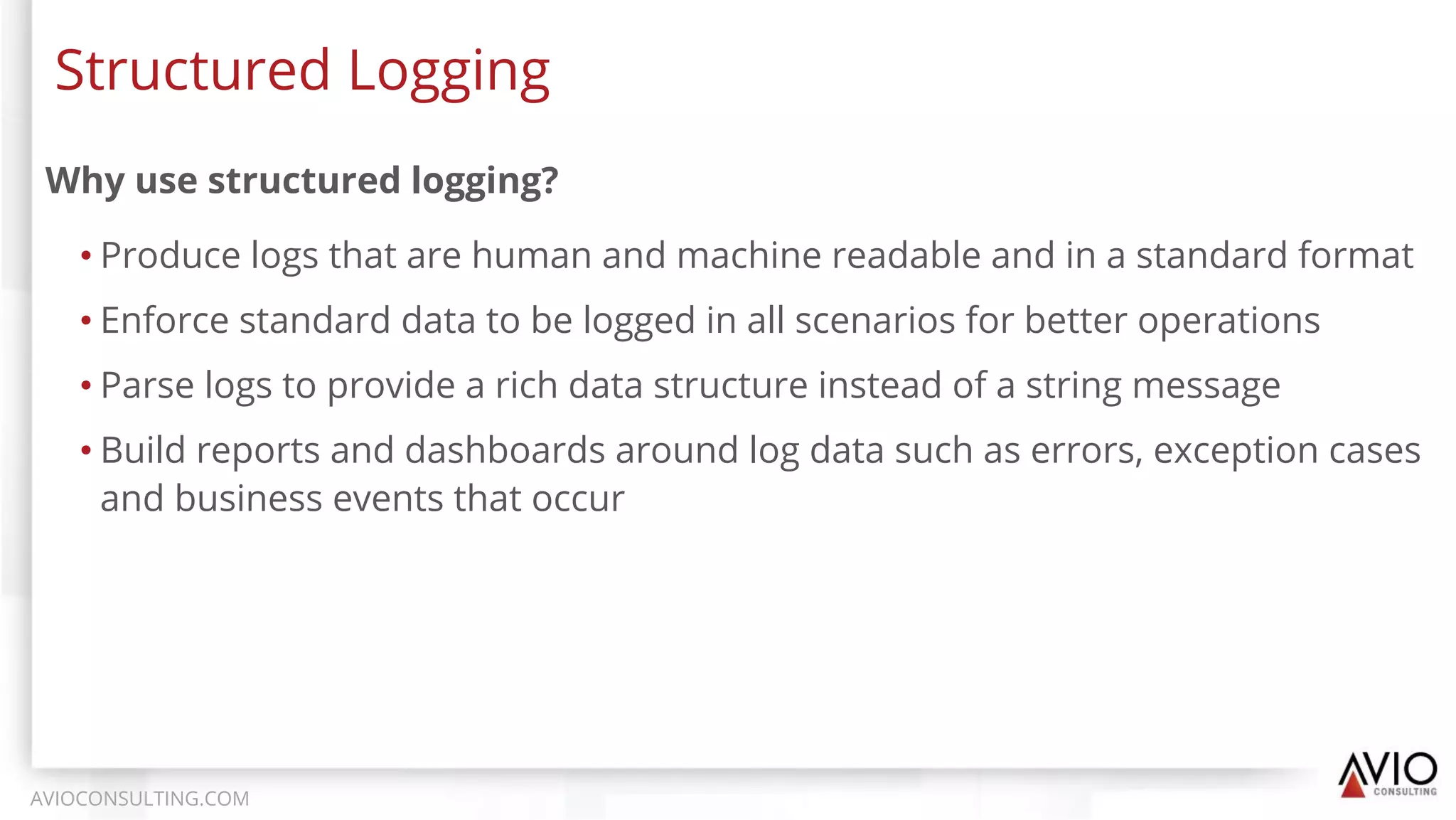

- 7. Why use structuredlogging? • Produce logs that are human and machine readable and in a standard format • Enforce standard data to be logged in all scenarios for better operations • Parse logs to provide a rich data structure instead of a string message • Build reports and dashboards around log data such as errors, exception cases and business events that occur Structured Logging AVIOCONSULTING.COM

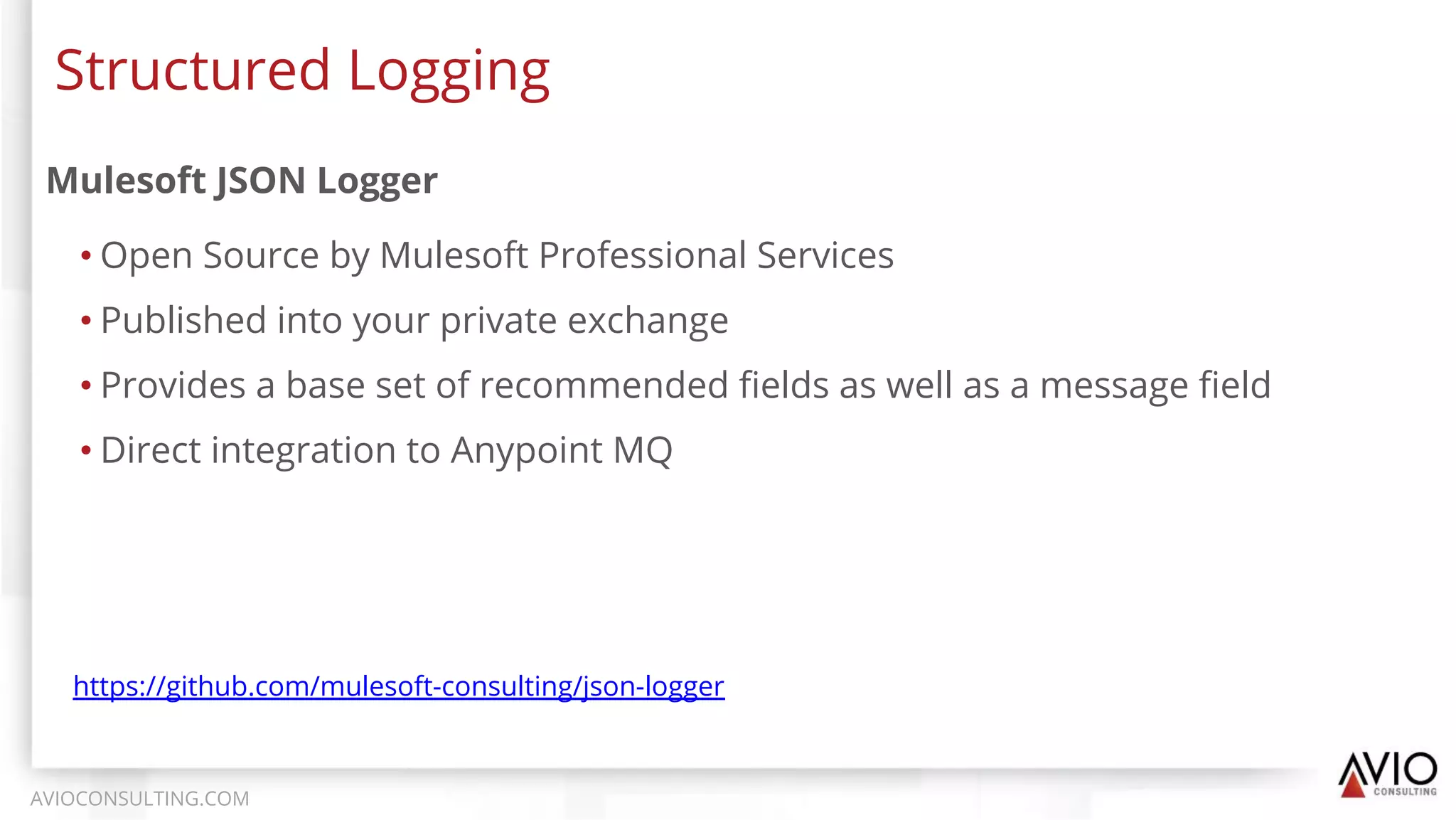

- 8. Mulesoft JSON Logger •Open Source by Mulesoft Professional Services • Published into your private exchange • Provides a base set of recommended fields as well as a message field • Direct integration to Anypoint MQ Structured Logging AVIOCONSULTING.COM https://github.com/mulesoft-consulting/json-logger

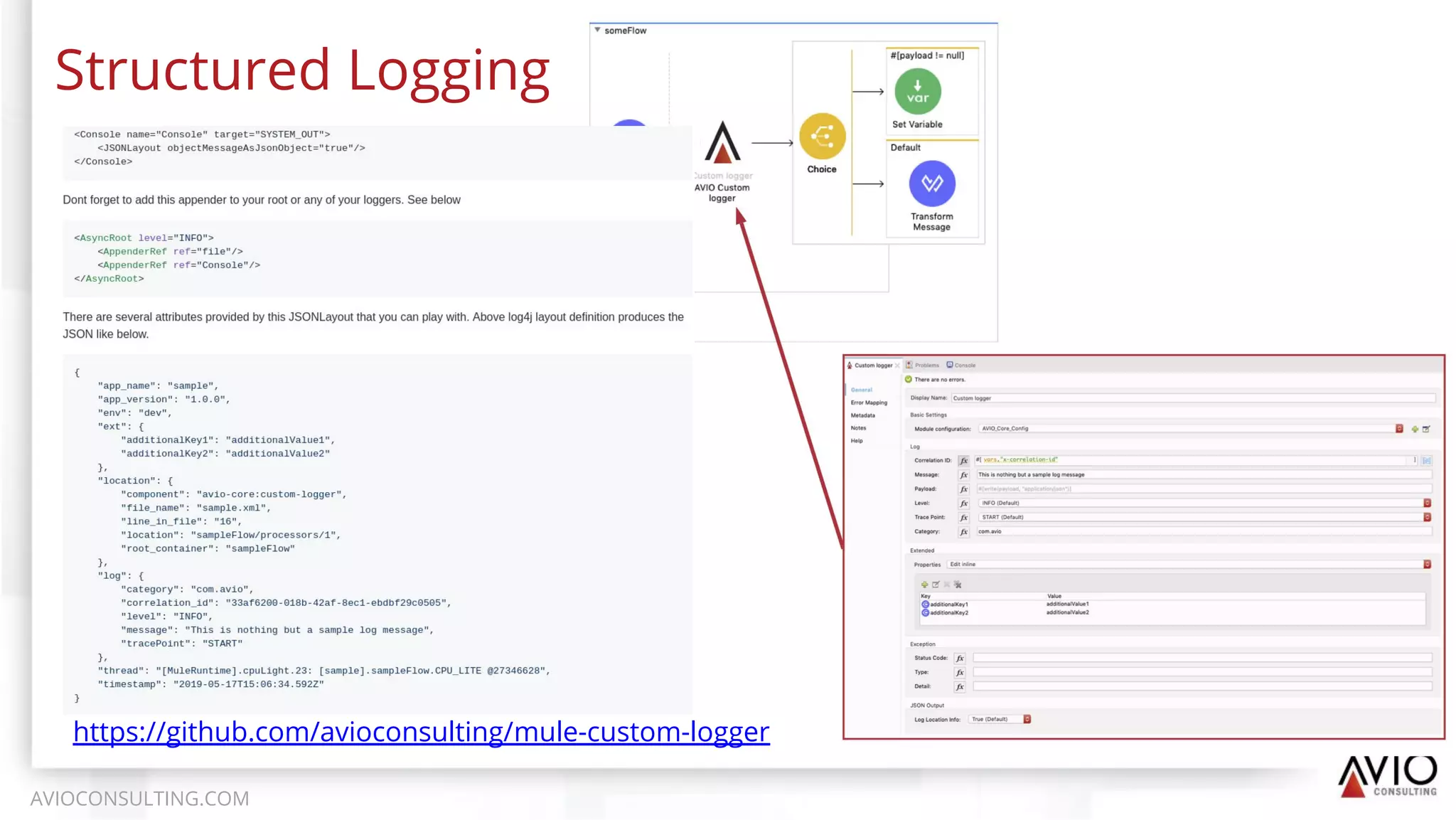

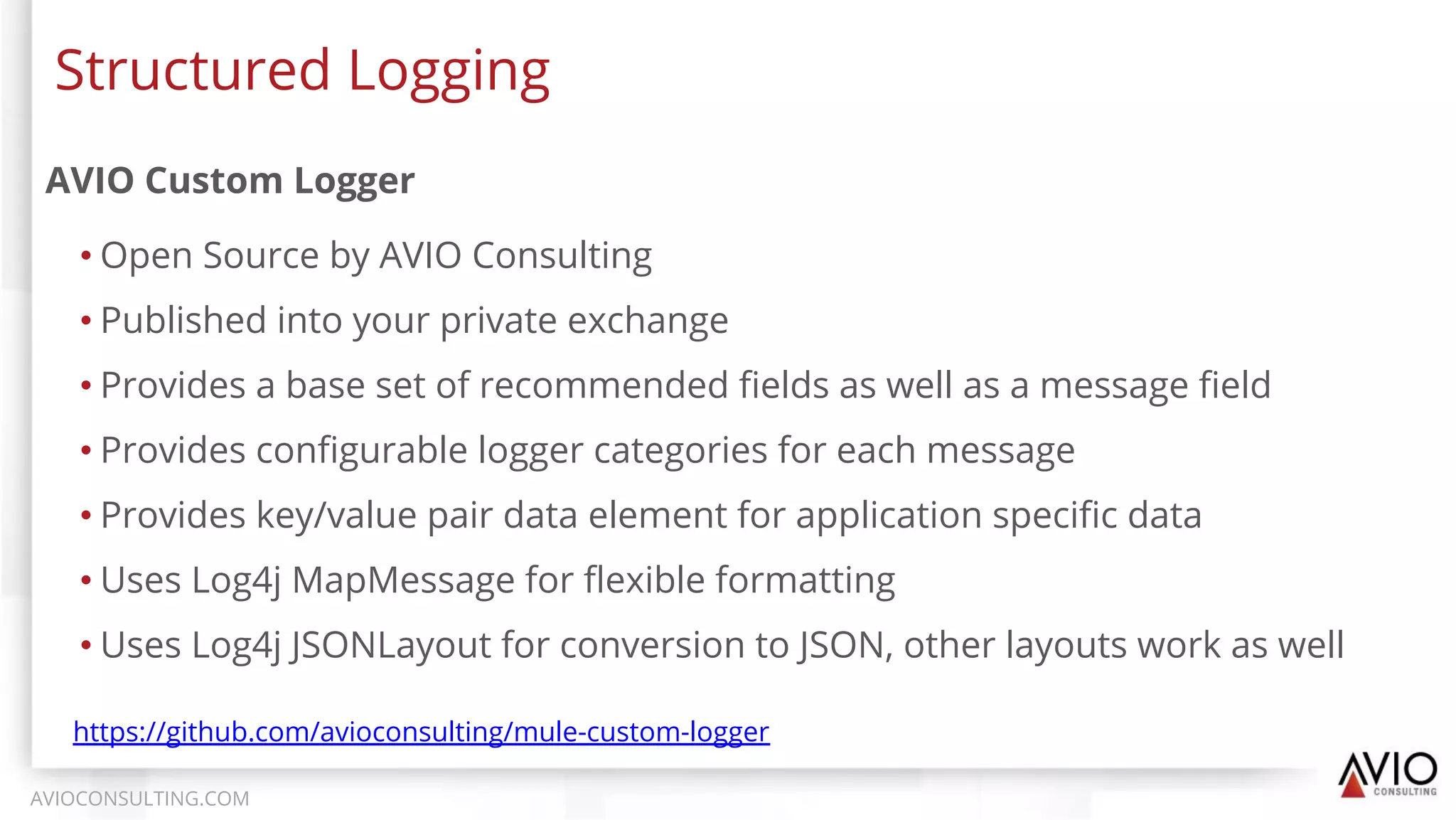

- 9. AVIO Custom Logger •Open Source by AVIO Consulting • Published into your private exchange • Provides a base set of recommended fields as well as a message field • Provides configurable logger categories for each message • Provides key/value pair data element for application specific data • Uses Log4j MapMessage for flexible formatting • Uses Log4j JSONLayout for conversion to JSON, other layouts work as well Structured Logging AVIOCONSULTING.COM https://github.com/avioconsulting/mule-custom-logger
- 10.

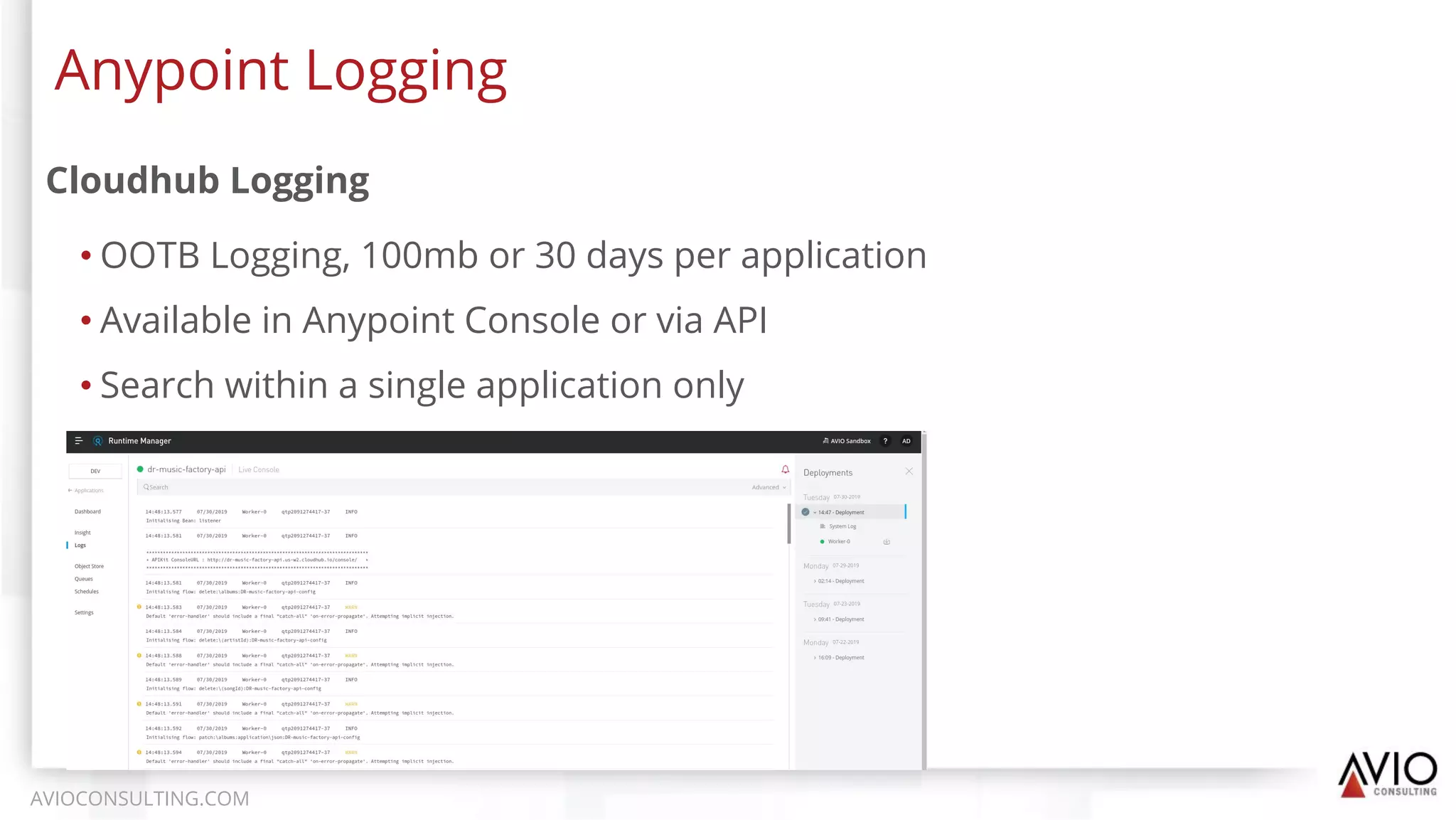

- 11. Cloudhub Logging • OOTBLogging, 100mb or 30 days per application • Available in Anypoint Console or via API • Search within a single application only Anypoint Logging AVIOCONSULTING.COM

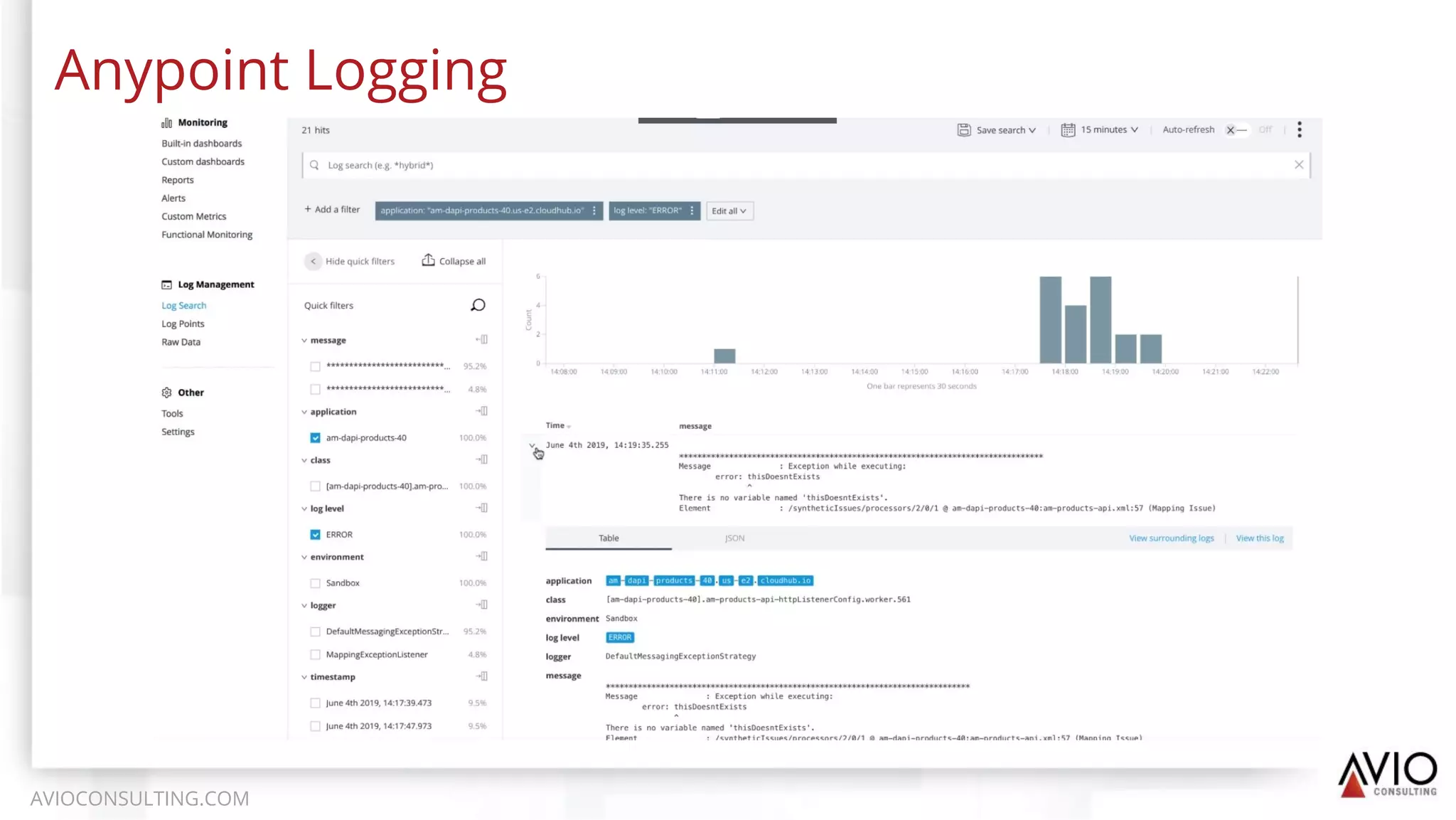

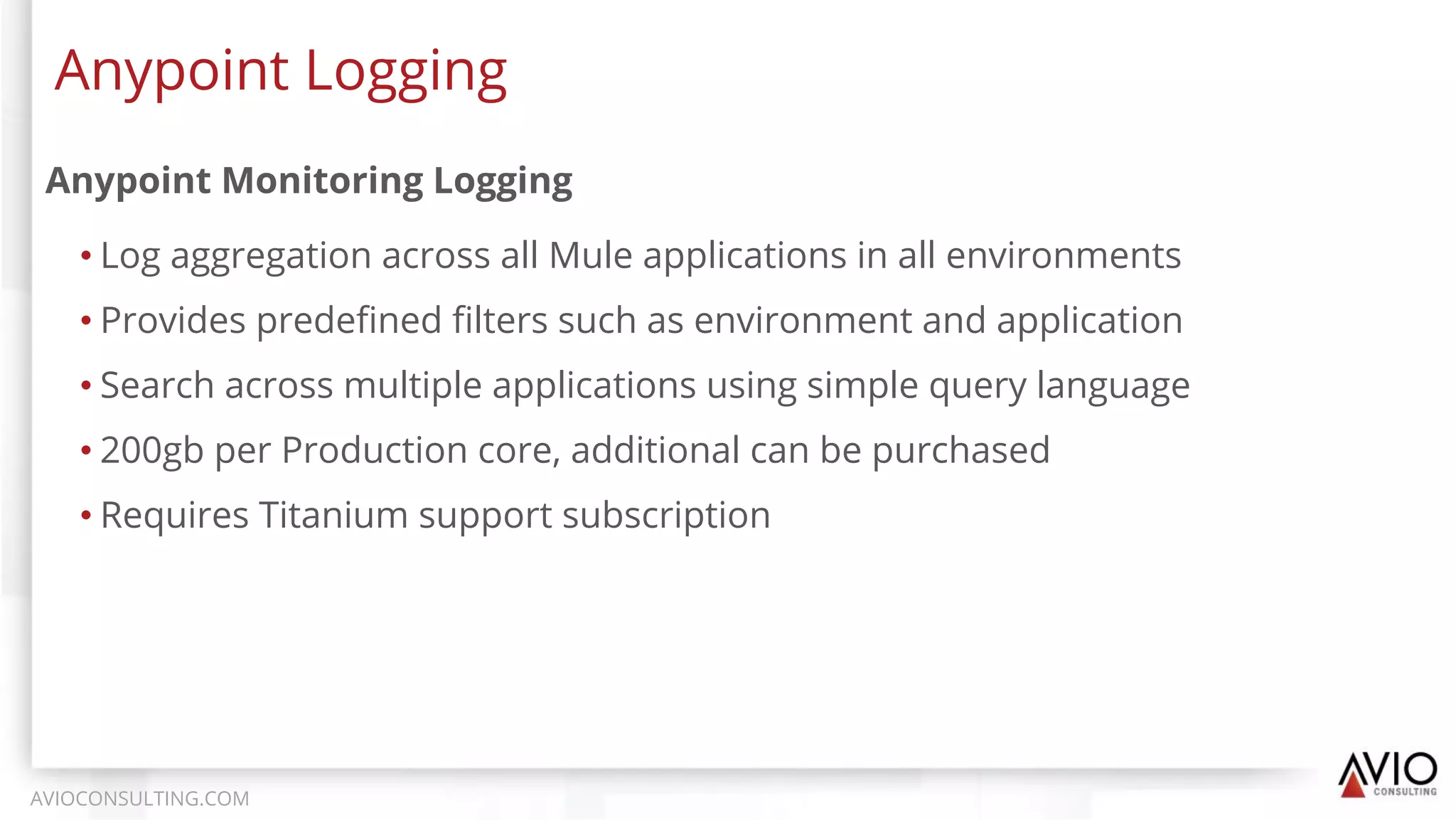

- 12. Anypoint Monitoring Logging •Log aggregation across all Mule applications in all environments • Provides predefined filters such as environment and application • Search across multiple applications using simple query language • 200gb per Production core, additional can be purchased • Requires Titanium support subscription Anypoint Logging AVIOCONSULTING.COM
- 13.

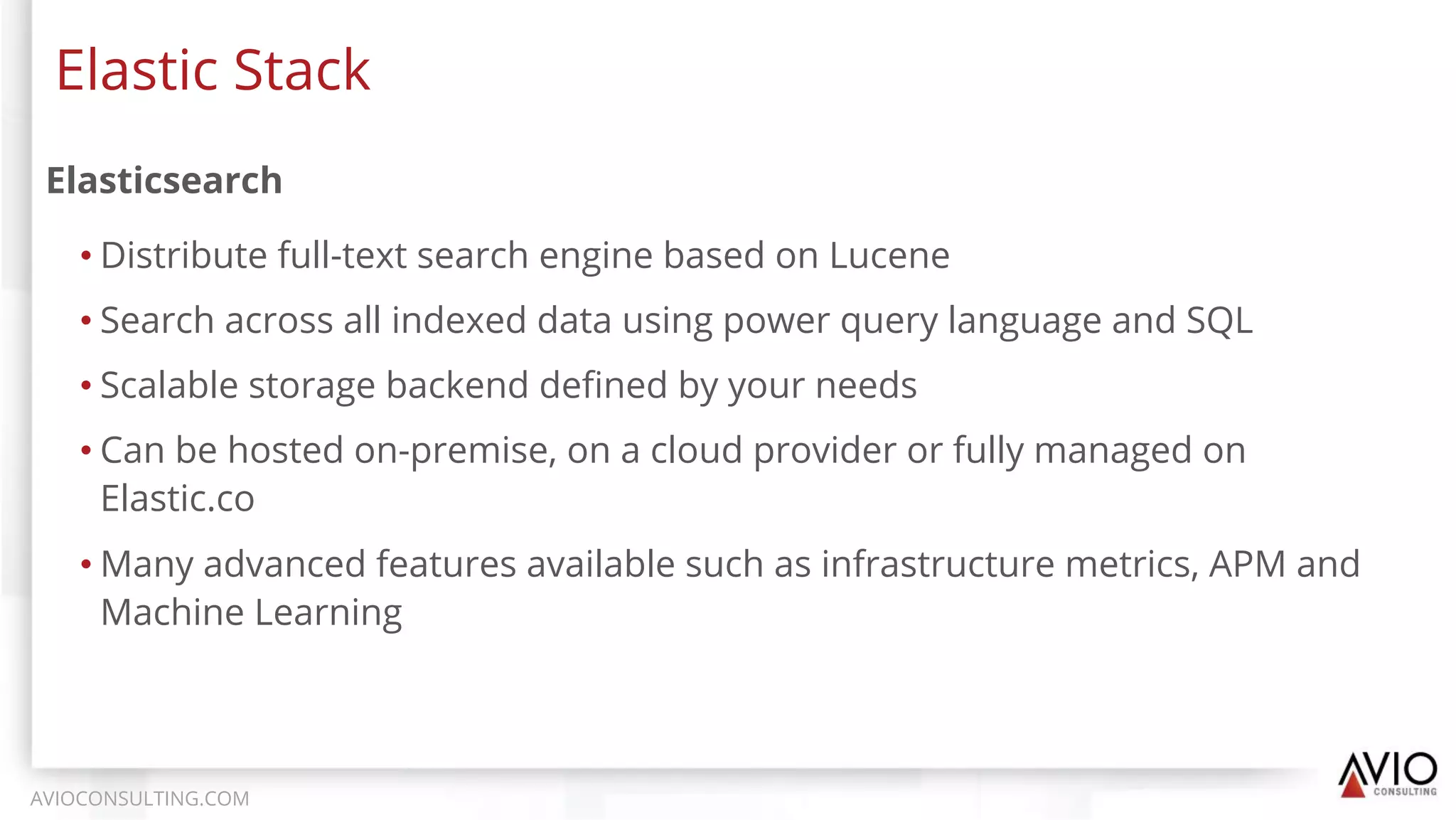

- 14. Elasticsearch • Distribute full-textsearch engine based on Lucene • Search across all indexed data using power query language and SQL • Scalable storage backend defined by your needs • Can be hosted on-premise, on a cloud provider or fully managed on Elastic.co • Many advanced features available such as infrastructure metrics, APM and Machine Learning Elastic Stack AVIOCONSULTING.COM

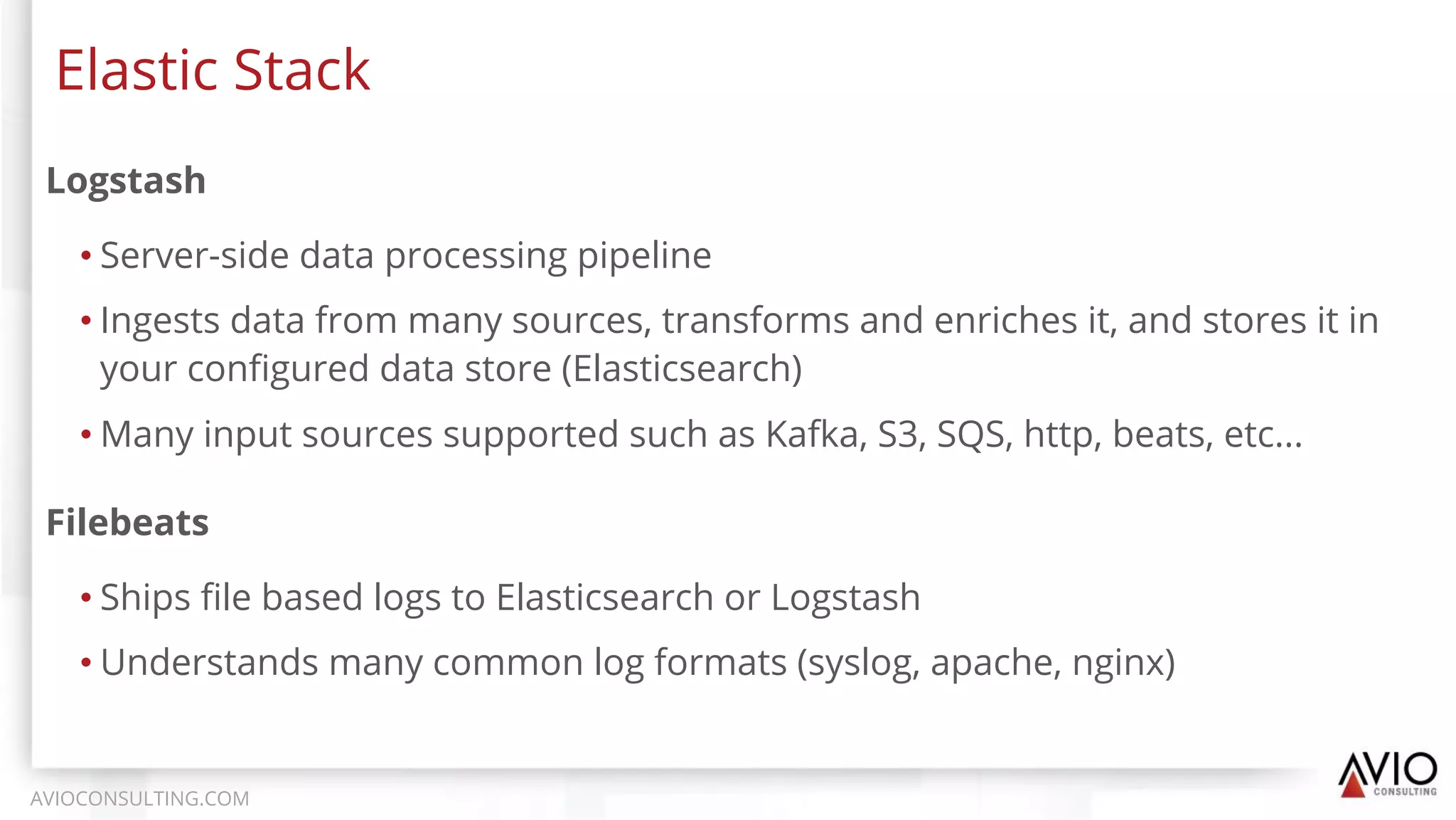

- 15. Logstash • Server-side dataprocessing pipeline • Ingests data from many sources, transforms and enriches it, and stores it in your configured data store (Elasticsearch) • Many input sources supported such as Kafka, S3, SQS, http, beats, etc... Elastic Stack AVIOCONSULTING.COM Filebeats • Ships file based logs to Elasticsearch or Logstash • Understands many common log formats (syslog, apache, nginx)

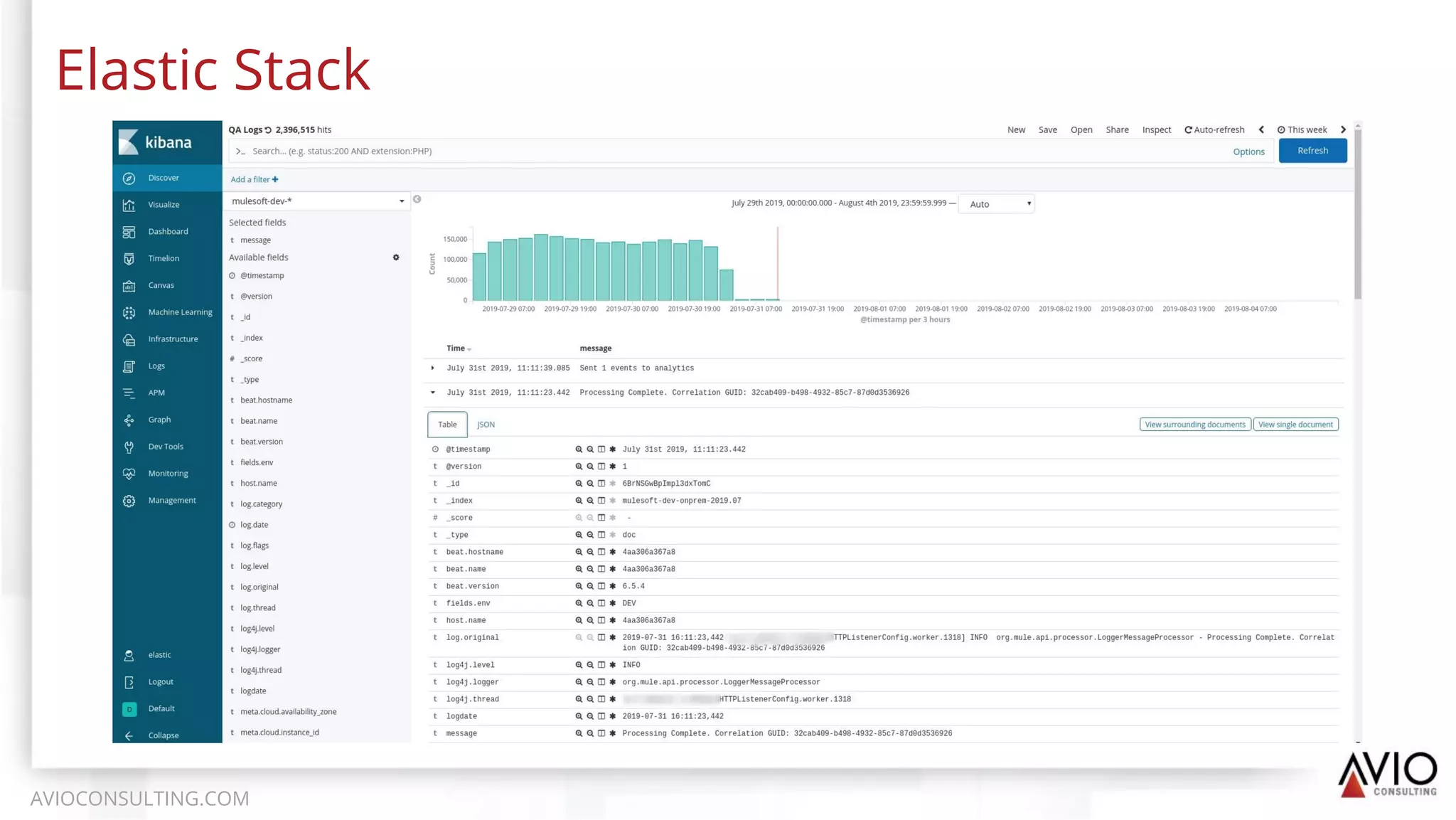

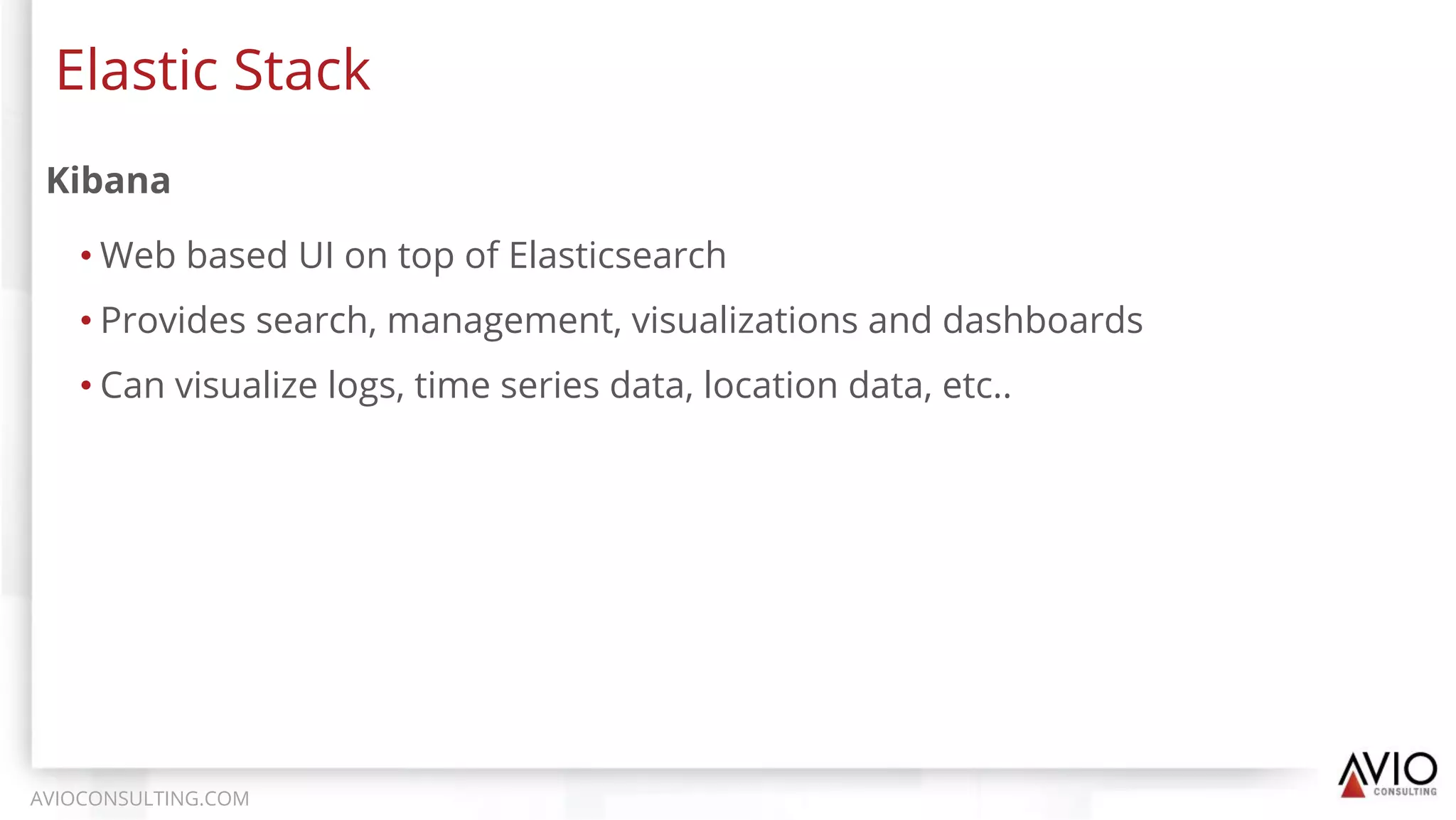

- 16. Kibana • Web basedUI on top of Elasticsearch • Provides search, management, visualizations and dashboards • Can visualize logs, time series data, location data, etc.. Elastic Stack AVIOCONSULTING.COM
- 17.

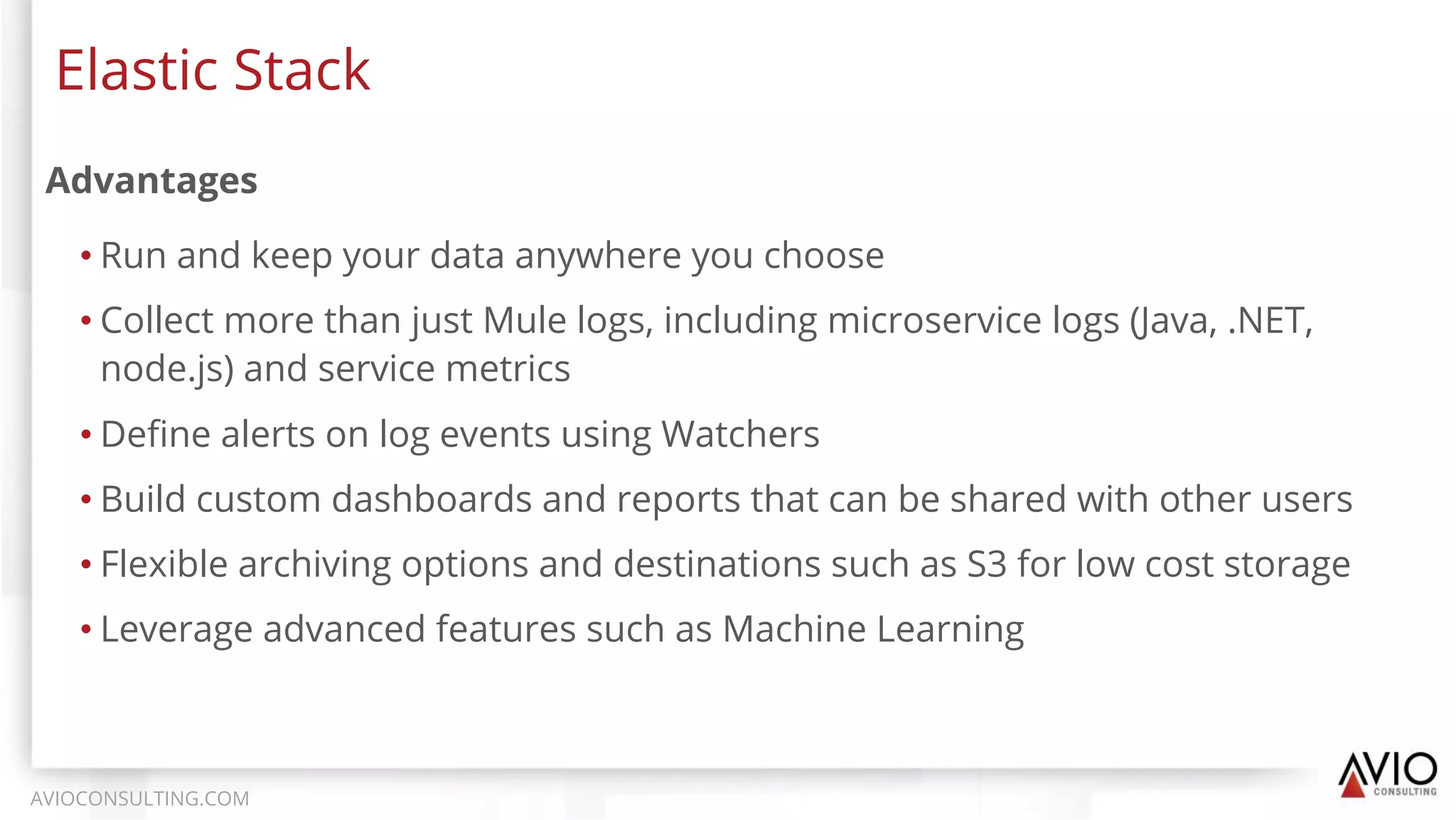

- 18. Advantages • Run andkeep your data anywhere you choose • Collect more than just Mule logs, including microservice logs (Java, .NET, node.js) and service metrics • Define alerts on log events using Watchers • Build custom dashboards and reports that can be shared with other users • Flexible archiving options and destinations such as S3 for low cost storage • Leverage advanced features such as Machine Learning Elastic Stack AVIOCONSULTING.COM

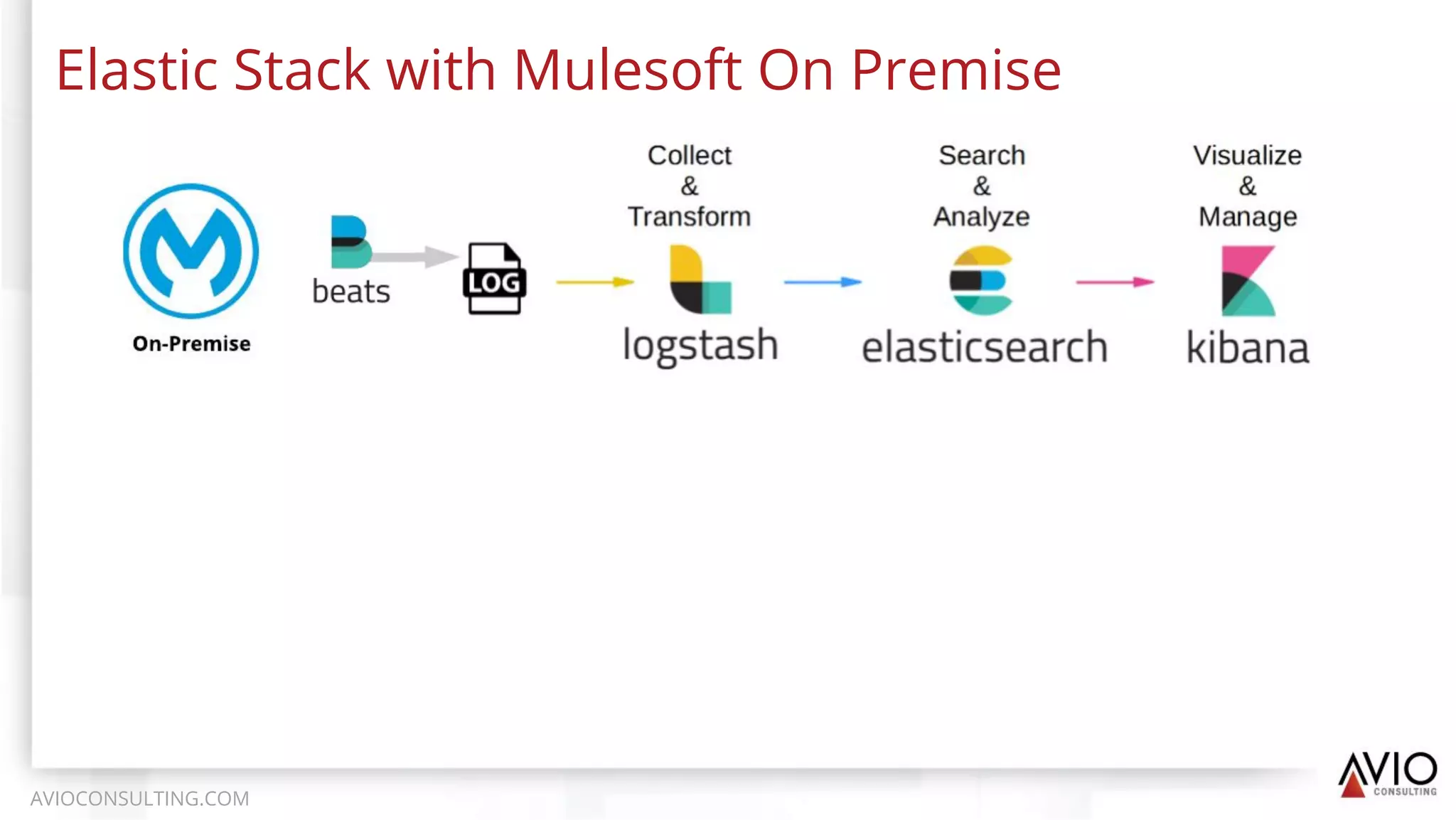

- 19. Elastic Stack withMulesoft On Premise AVIOCONSULTING.COM

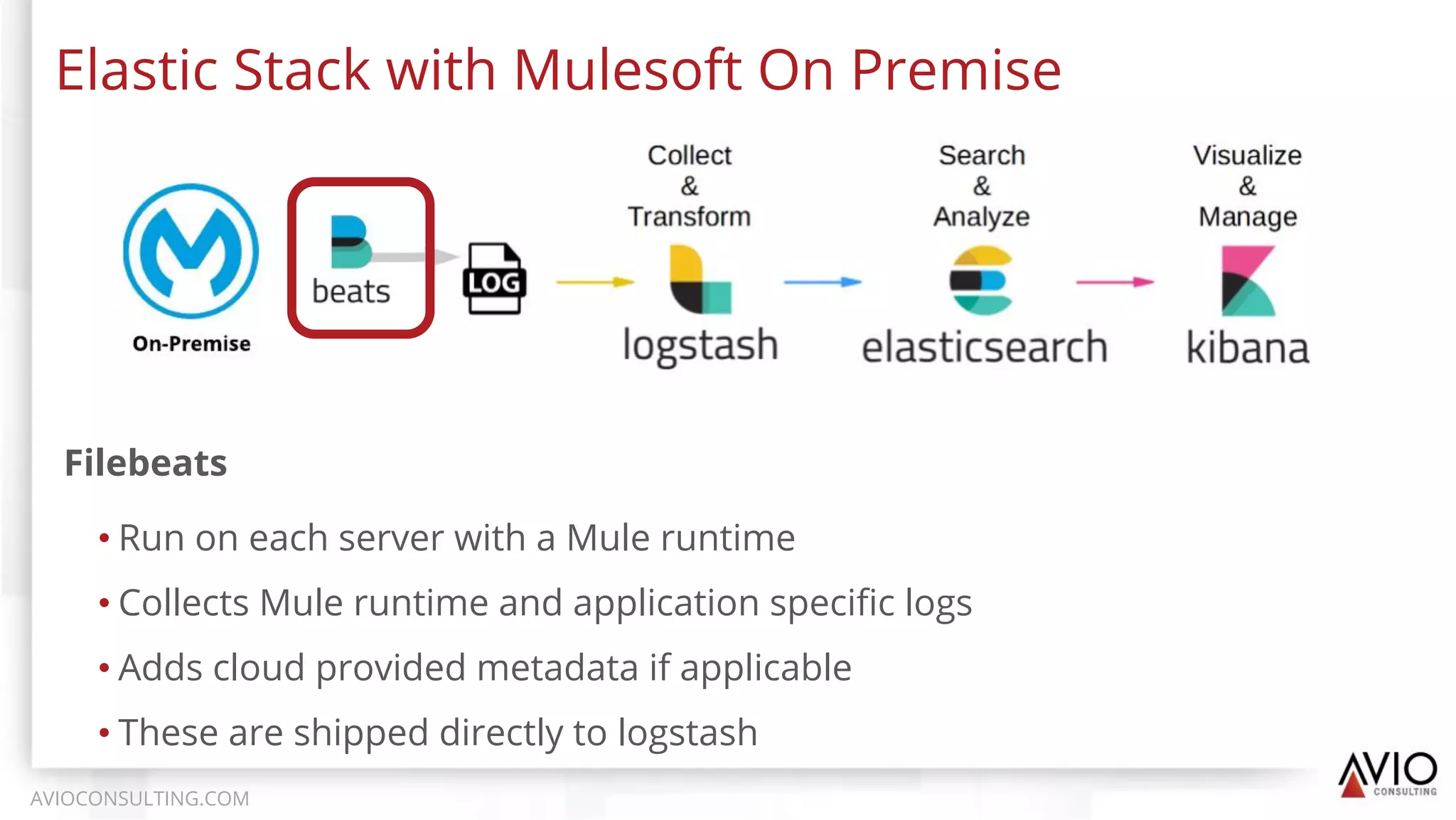

- 20. Elastic Stack withMulesoft On Premise AVIOCONSULTING.COM Filebeats • Run on each server with a Mule runtime • Collects Mule runtime and application specific logs • Adds cloud provided metadata if applicable • These are shipped directly to logstash

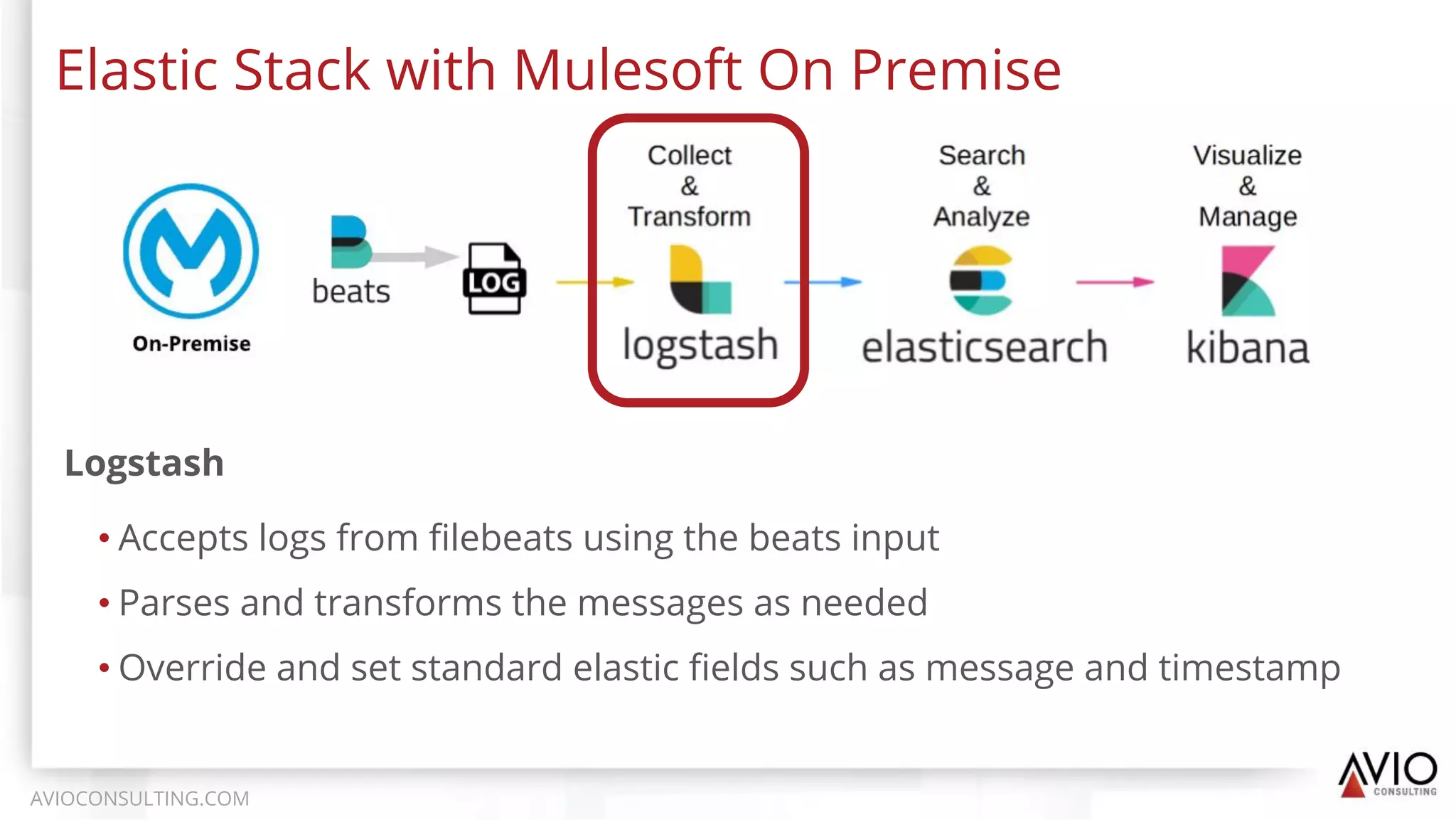

- 21. Elastic Stack withMulesoft On Premise AVIOCONSULTING.COM Logstash • Accepts logs from filebeats using the beats input • Parses and transforms the messages as needed • Override and set standard elastic fields such as message and timestamp

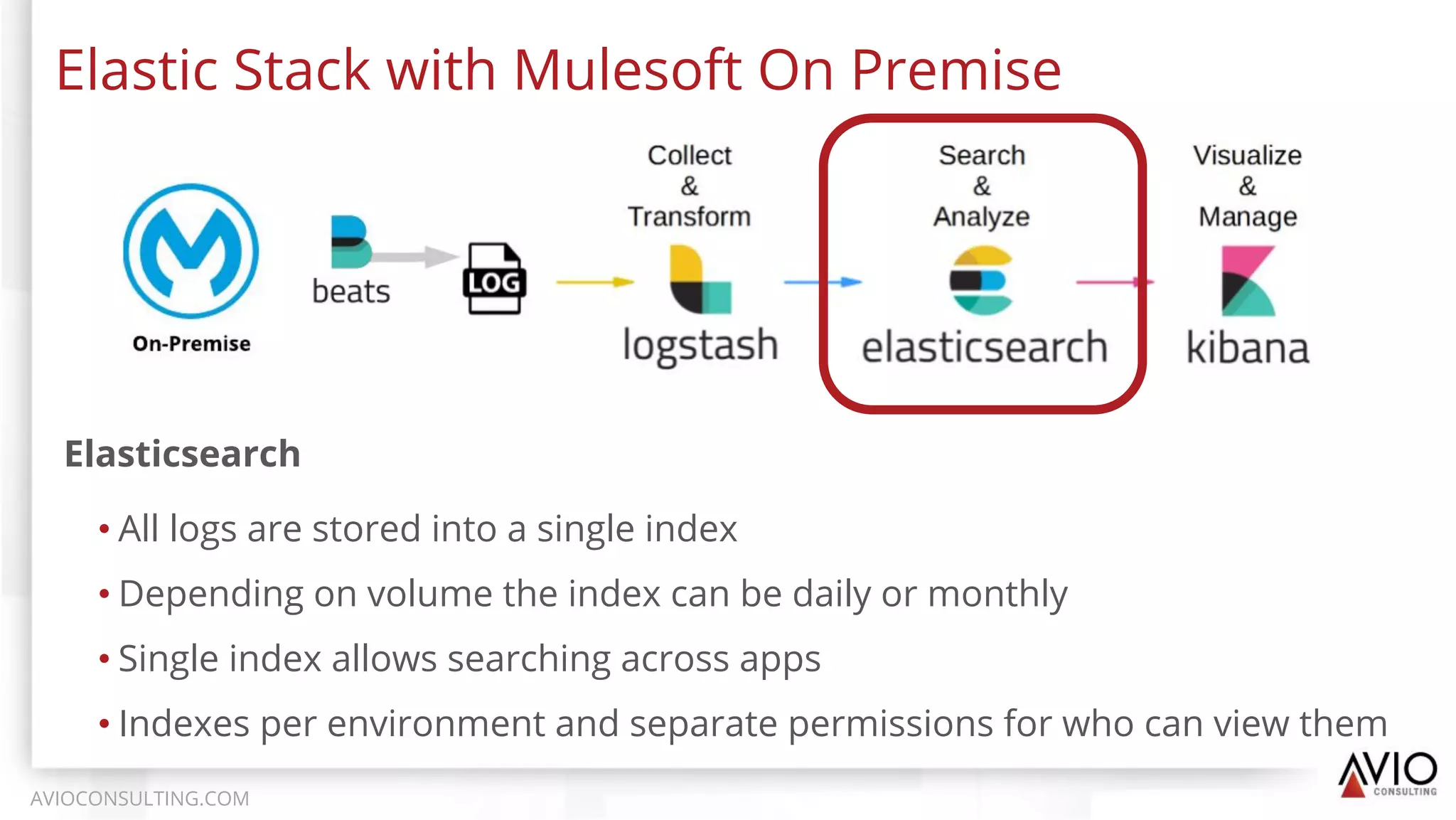

- 22. Elastic Stack withMulesoft On Premise AVIOCONSULTING.COM Elasticsearch • All logs are stored into a single index • Depending on volume the index can be daily or monthly • Single index allows searching across apps • Indexes per environment and separate permissions for who can view them

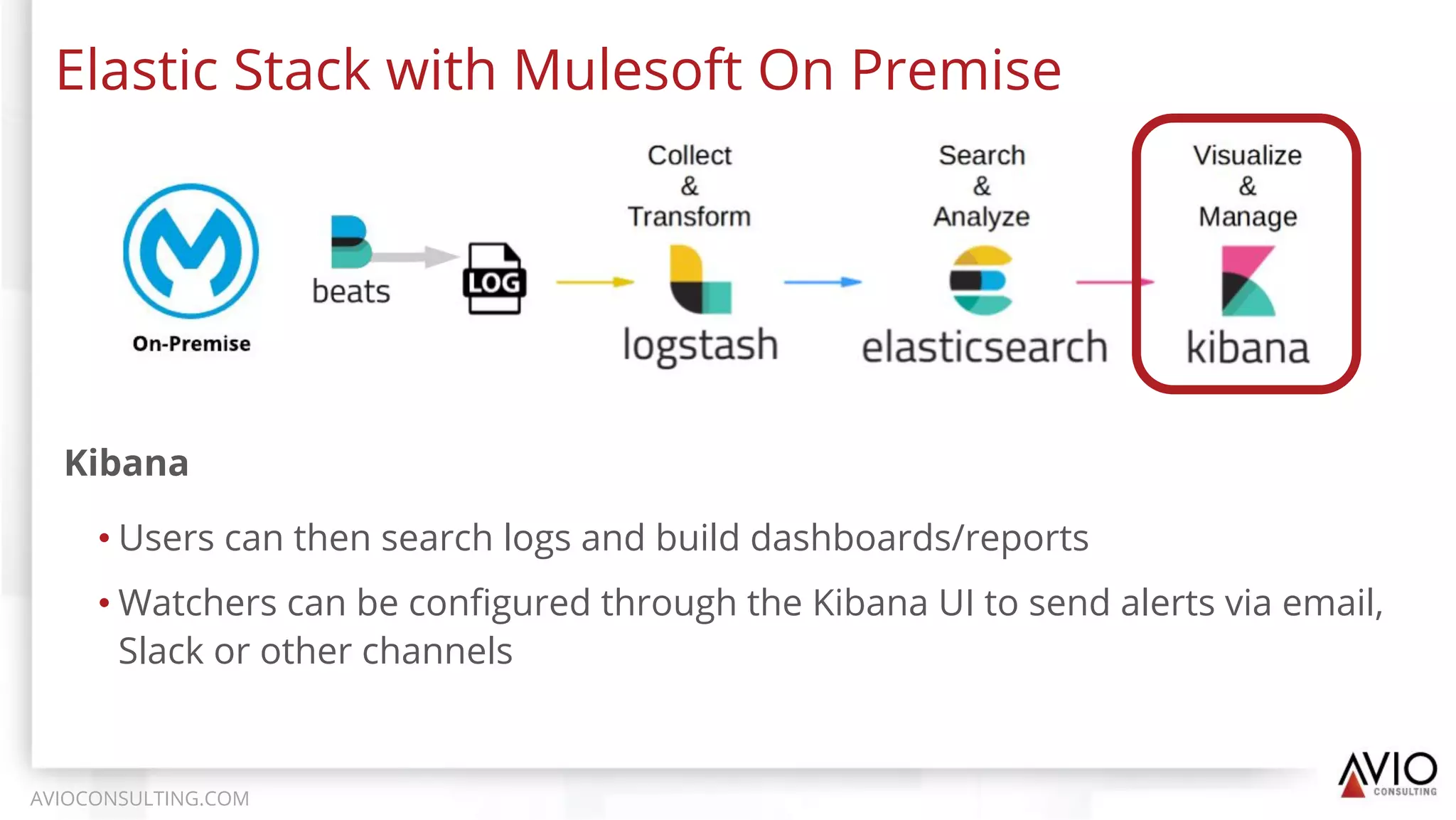

- 23. Elastic Stack withMulesoft On Premise AVIOCONSULTING.COM Kibana • Users can then search logs and build dashboards/reports • Watchers can be configured through the Kibana UI to send alerts via email, Slack or other channels

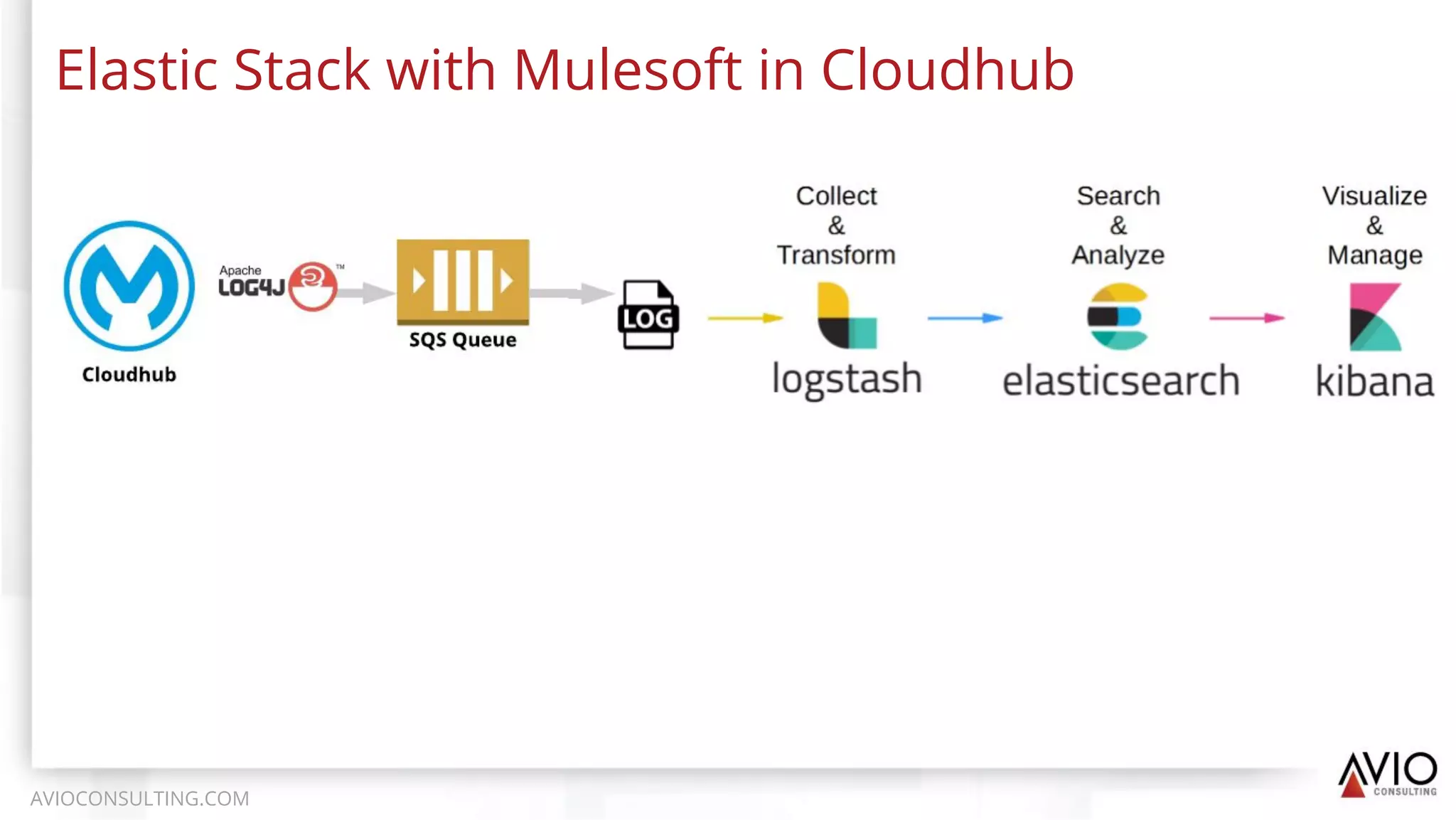

- 24. Elastic Stack withMulesoft in Cloudhub AVIOCONSULTING.COM

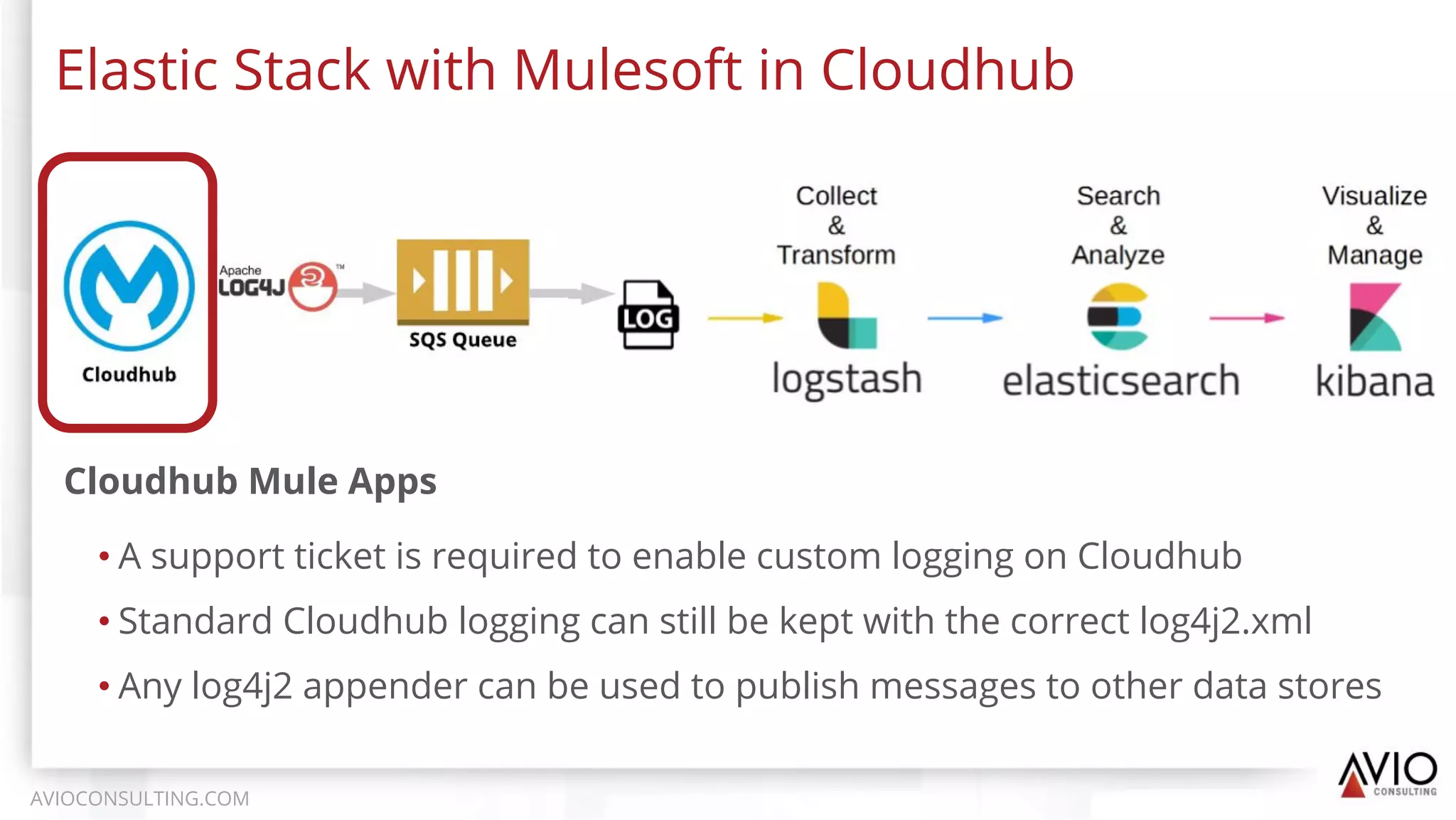

- 25. Elastic Stack withMulesoft in Cloudhub AVIOCONSULTING.COM Cloudhub Mule Apps • A support ticket is required to enable custom logging on Cloudhub • Standard Cloudhub logging can still be kept with the correct log4j2.xml • Any log4j2 appender can be used to publish messages to other data stores

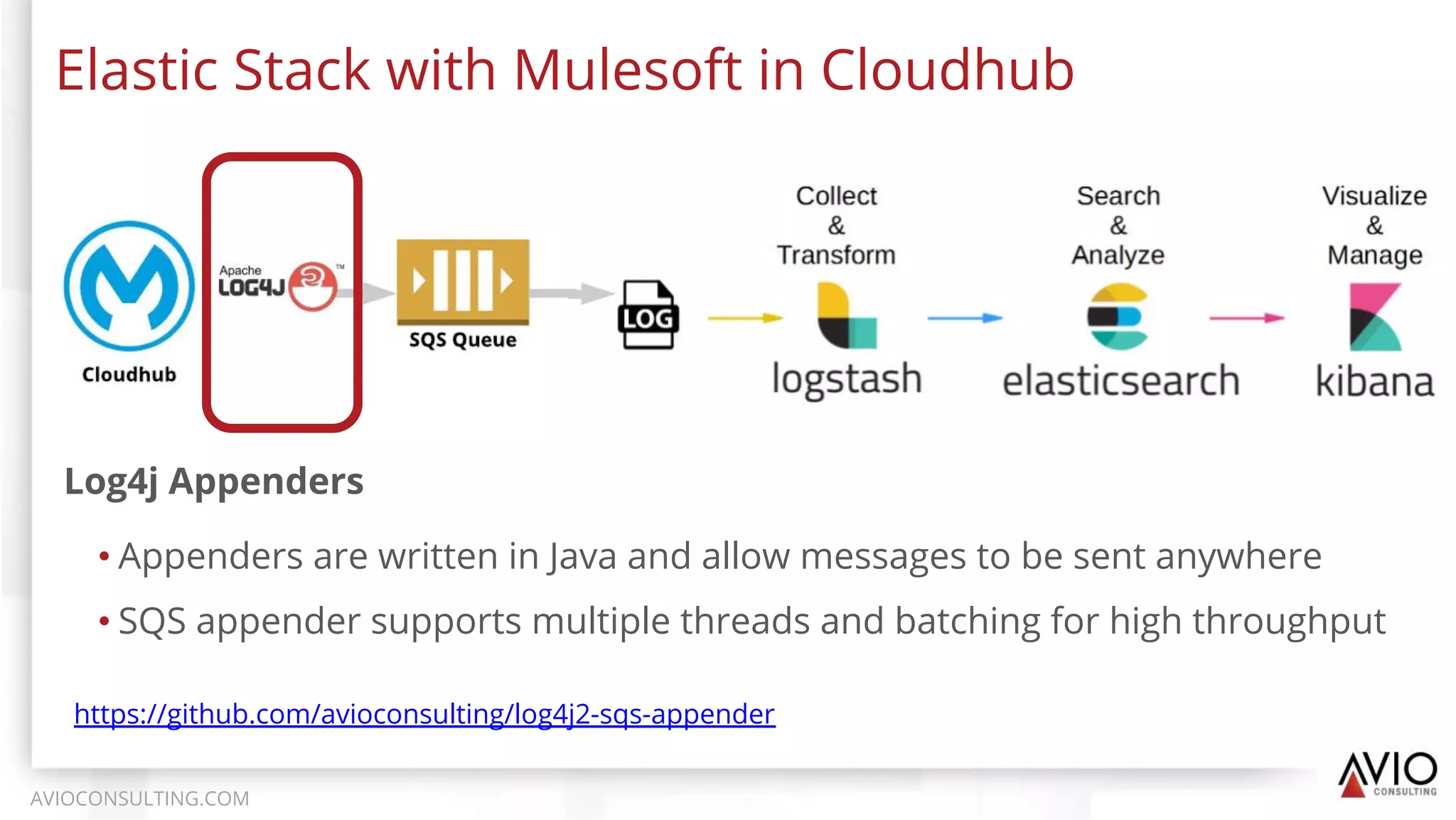

- 26. Elastic Stack withMulesoft in Cloudhub AVIOCONSULTING.COM Log4j Appenders • Appenders are written in Java and allow messages to be sent anywhere • SQS appender supports multiple threads and batching for high throughput https://github.com/avioconsulting/log4j2-sqs-appender

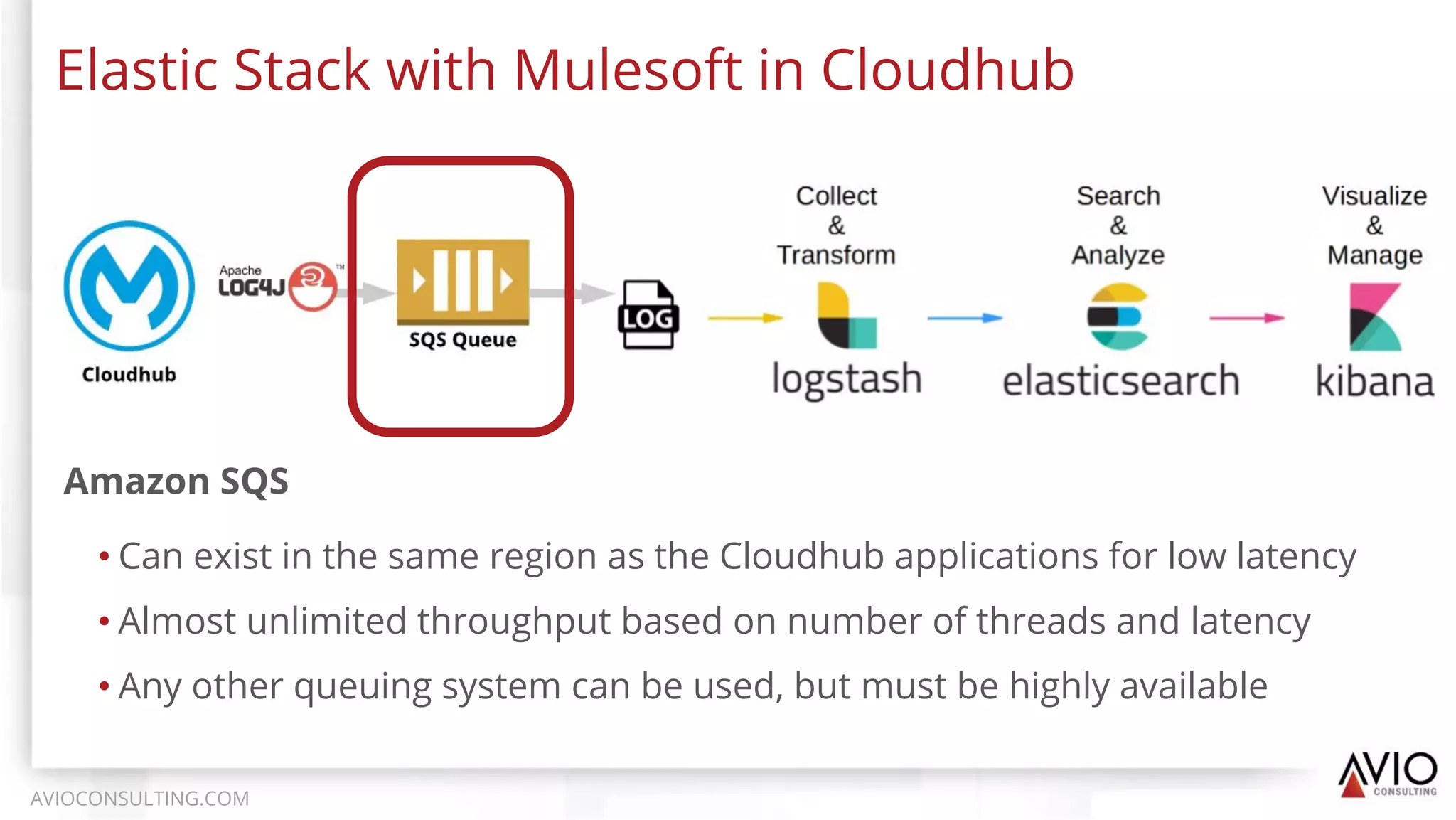

- 27. Elastic Stack withMulesoft in Cloudhub AVIOCONSULTING.COM Amazon SQS • Can exist in the same region as the Cloudhub applications for low latency • Almost unlimited throughput based on number of threads and latency • Any other queuing system can be used, but must be highly available

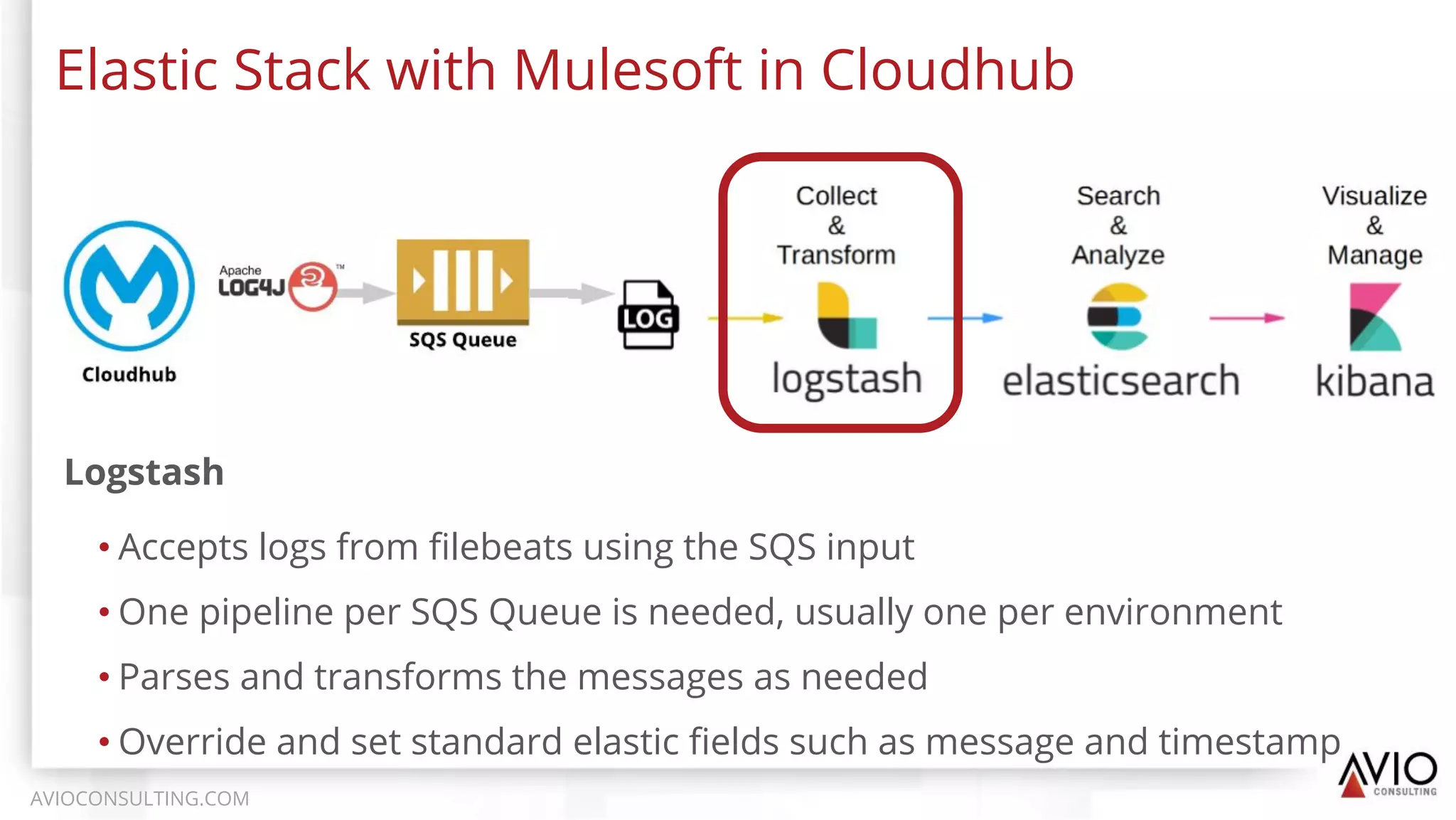

- 28. Elastic Stack withMulesoft in Cloudhub AVIOCONSULTING.COM Logstash • Accepts logs from filebeats using the SQS input • One pipeline per SQS Queue is needed, usually one per environment • Parses and transforms the messages as needed • Override and set standard elastic fields such as message and timestamp

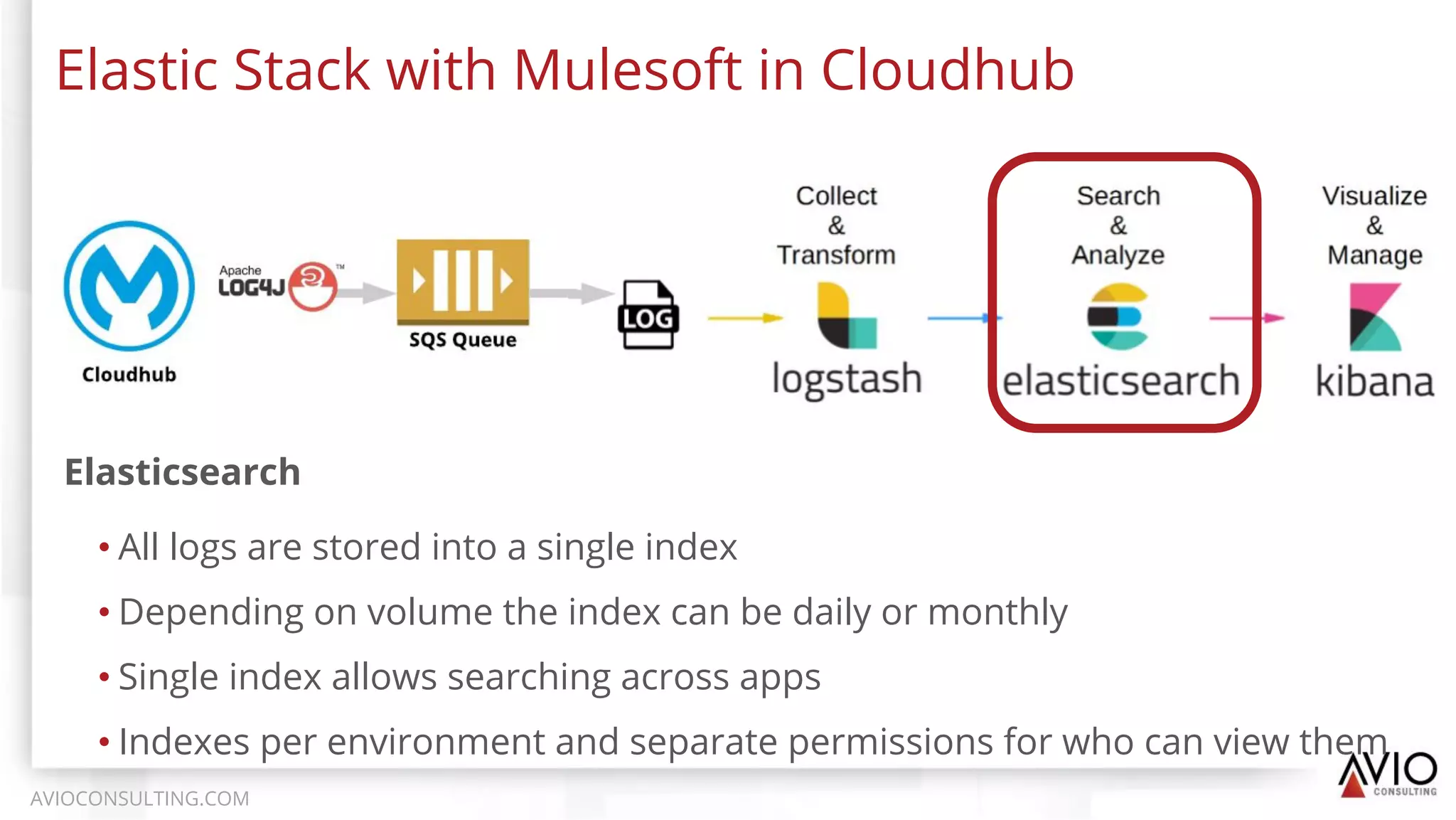

- 29. Elastic Stack withMulesoft in Cloudhub AVIOCONSULTING.COM Elasticsearch • All logs are stored into a single index • Depending on volume the index can be daily or monthly • Single index allows searching across apps • Indexes per environment and separate permissions for who can view them

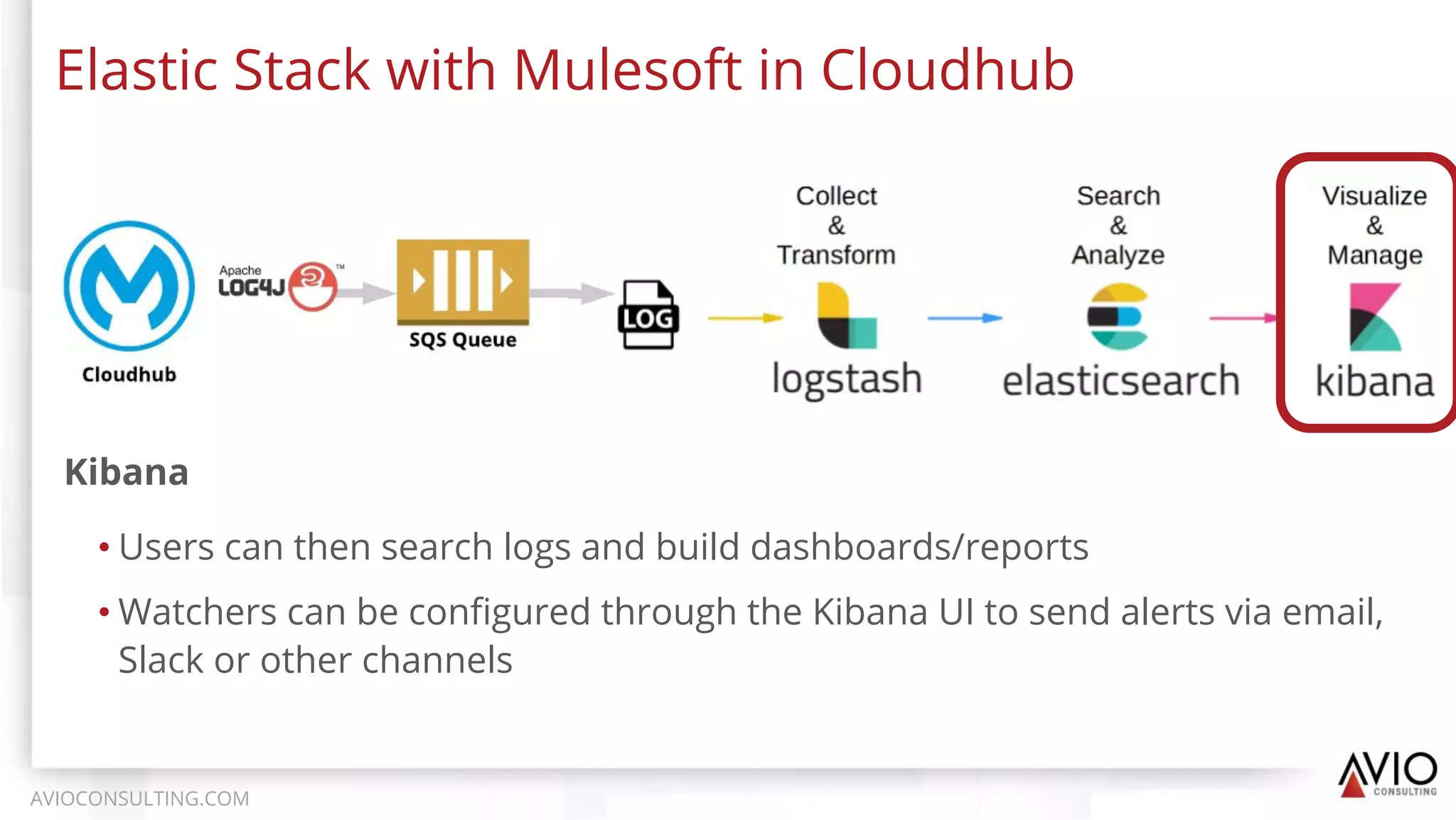

- 30. Elastic Stack withMulesoft in Cloudhub AVIOCONSULTING.COM Kibana • Users can then search logs and build dashboards/reports • Watchers can be configured through the Kibana UI to send alerts via email, Slack or other channels

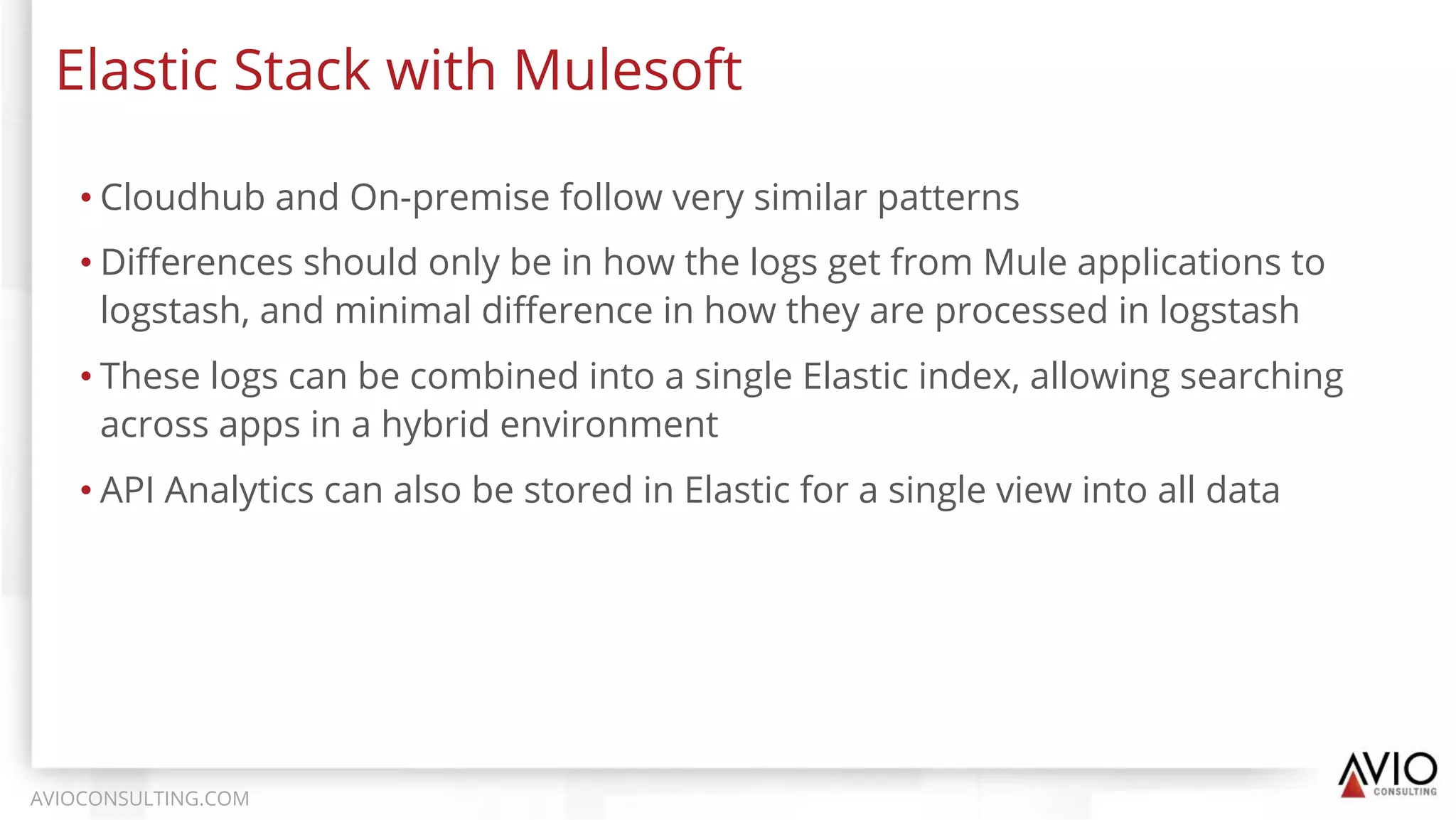

- 31. • Cloudhub andOn-premise follow very similar patterns • Differences should only be in how the logs get from Mule applications to logstash, and minimal difference in how they are processed in logstash • These logs can be combined into a single Elastic index, allowing searching across apps in a hybrid environment • API Analytics can also be stored in Elastic for a single view into all data Elastic Stack with Mulesoft AVIOCONSULTING.COM
- 32. Elastic Stack withMulesoft AVIOCONSULTING.COM

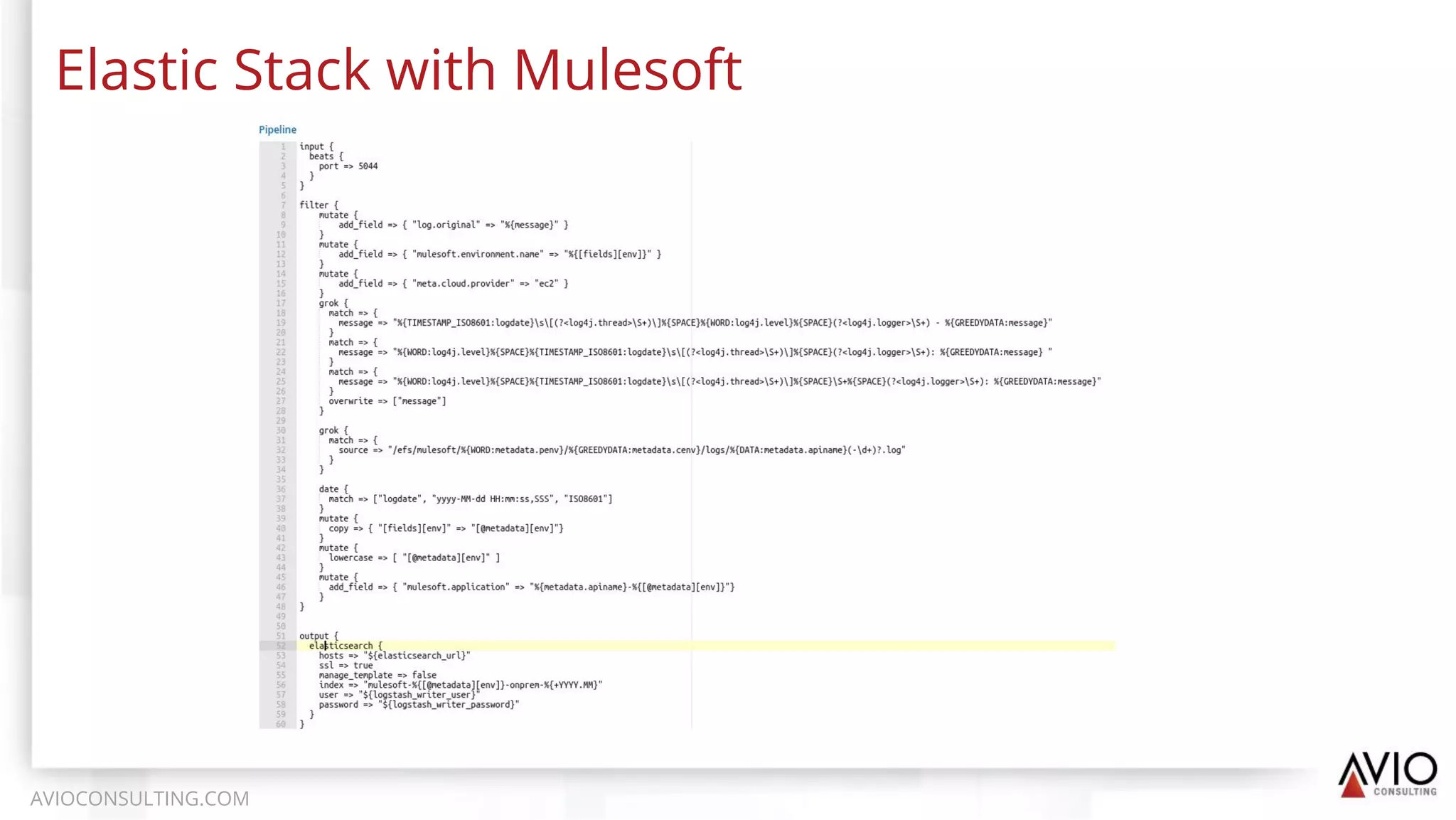

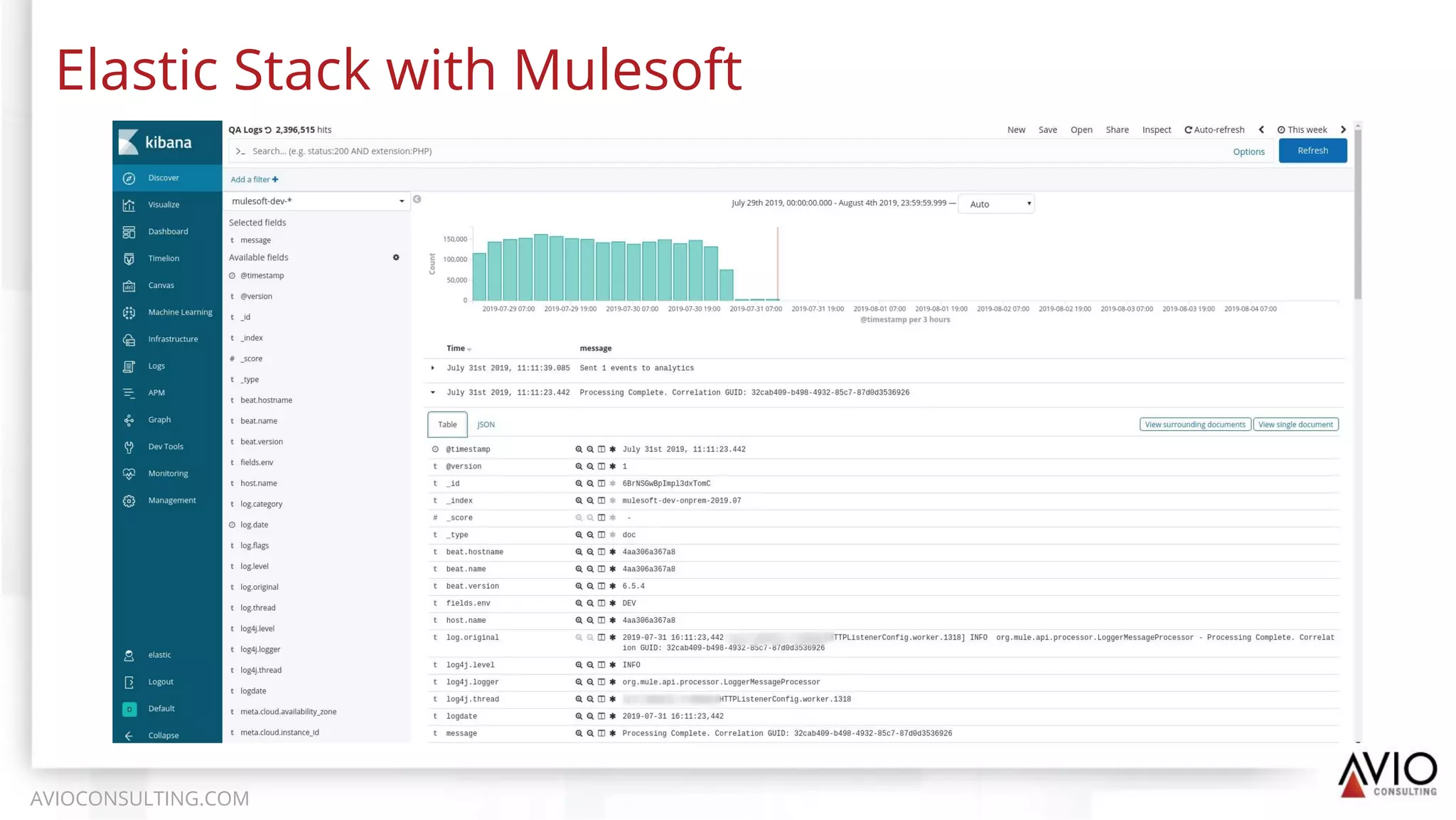

- 33. Elastic Stack withMulesoft AVIOCONSULTING.COM

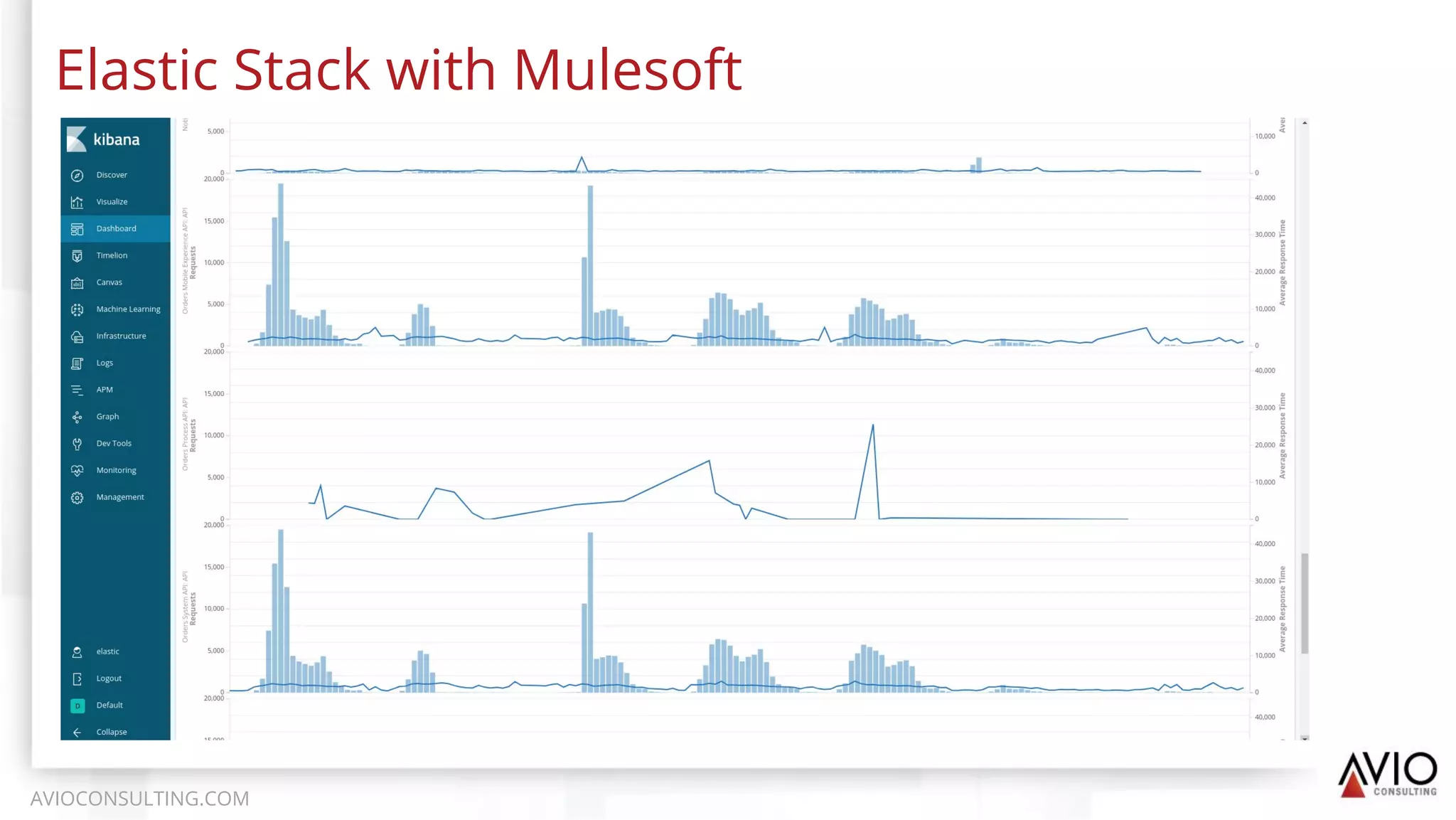

- 34. Elastic Stack withMulesoft AVIOCONSULTING.COM

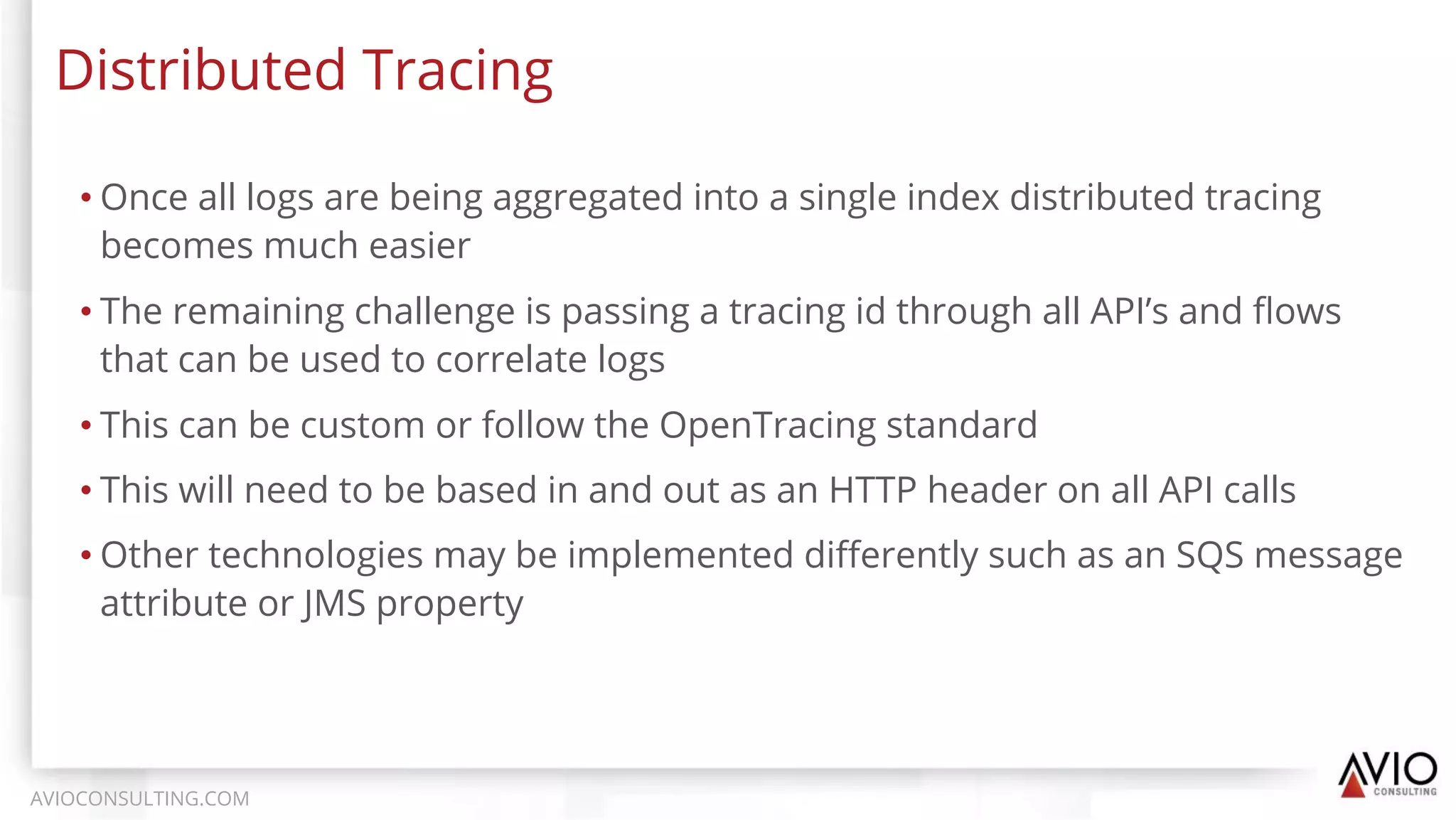

- 35. • Once alllogs are being aggregated into a single index distributed tracing becomes much easier • The remaining challenge is passing a tracing id through all API’s and flows that can be used to correlate logs • This can be custom or follow the OpenTracing standard • This will need to be based in and out as an HTTP header on all API calls • Other technologies may be implemented differently such as an SQS message attribute or JMS property Distributed Tracing AVIOCONSULTING.COM

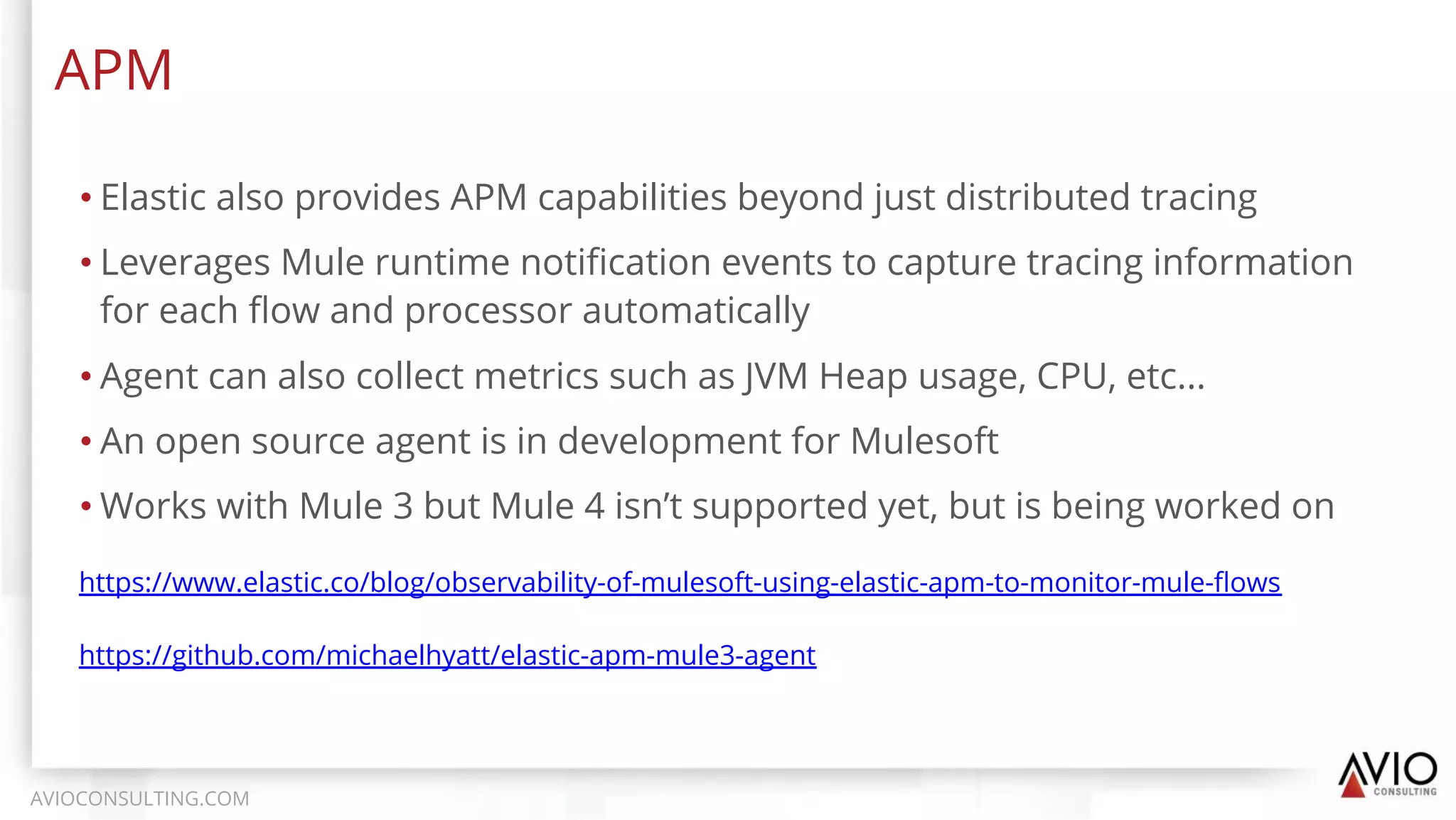

- 36. • Elastic alsoprovides APM capabilities beyond just distributed tracing • Leverages Mule runtime notification events to capture tracing information for each flow and processor automatically • Agent can also collect metrics such as JVM Heap usage, CPU, etc... • An open source agent is in development for Mulesoft • Works with Mule 3 but Mule 4 isn’t supported yet, but is being worked on APM AVIOCONSULTING.COM https://www.elastic.co/blog/observability-of-mulesoft-using-elastic-apm-to-monitor-mule-flows https://github.com/michaelhyatt/elastic-apm-mule3-agent
