InnoSQL -
NoSQL in MySQL
Starring as Kaspele: Ulf Wendel
Bed time story: Káschberl!

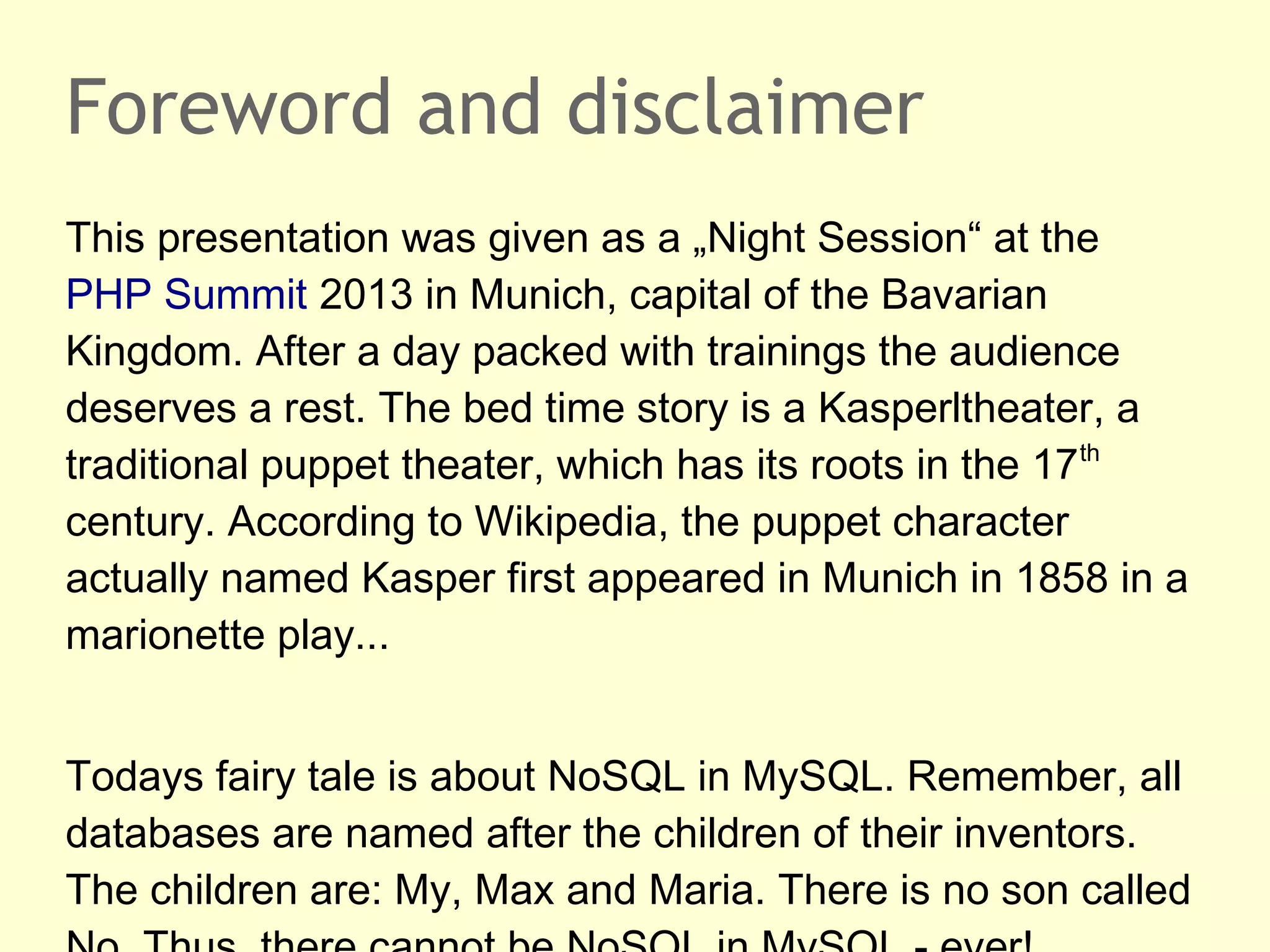

Foreword and disclaimer
This presentation was given as a „Night Session“ at the
PHP Summit 2013 in Munich, capital of the Bavarian
Kingdom. After a day packed with trainings the audience
deserves a rest. The bed time story is a Kasperltheater, a
traditional puppet theater, which has its roots in the 17th
century. According to Wikipedia, the puppet character
actually named Kasper first appeared in Munich in 1858 in a
marionette play...


Todays fairy tale is about NoSQL in MySQL. Remember, all
databases are named after the children of their inventors.
The children are: My, Max and Maria. There is no son called

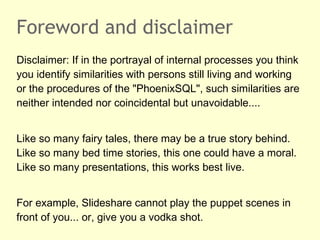

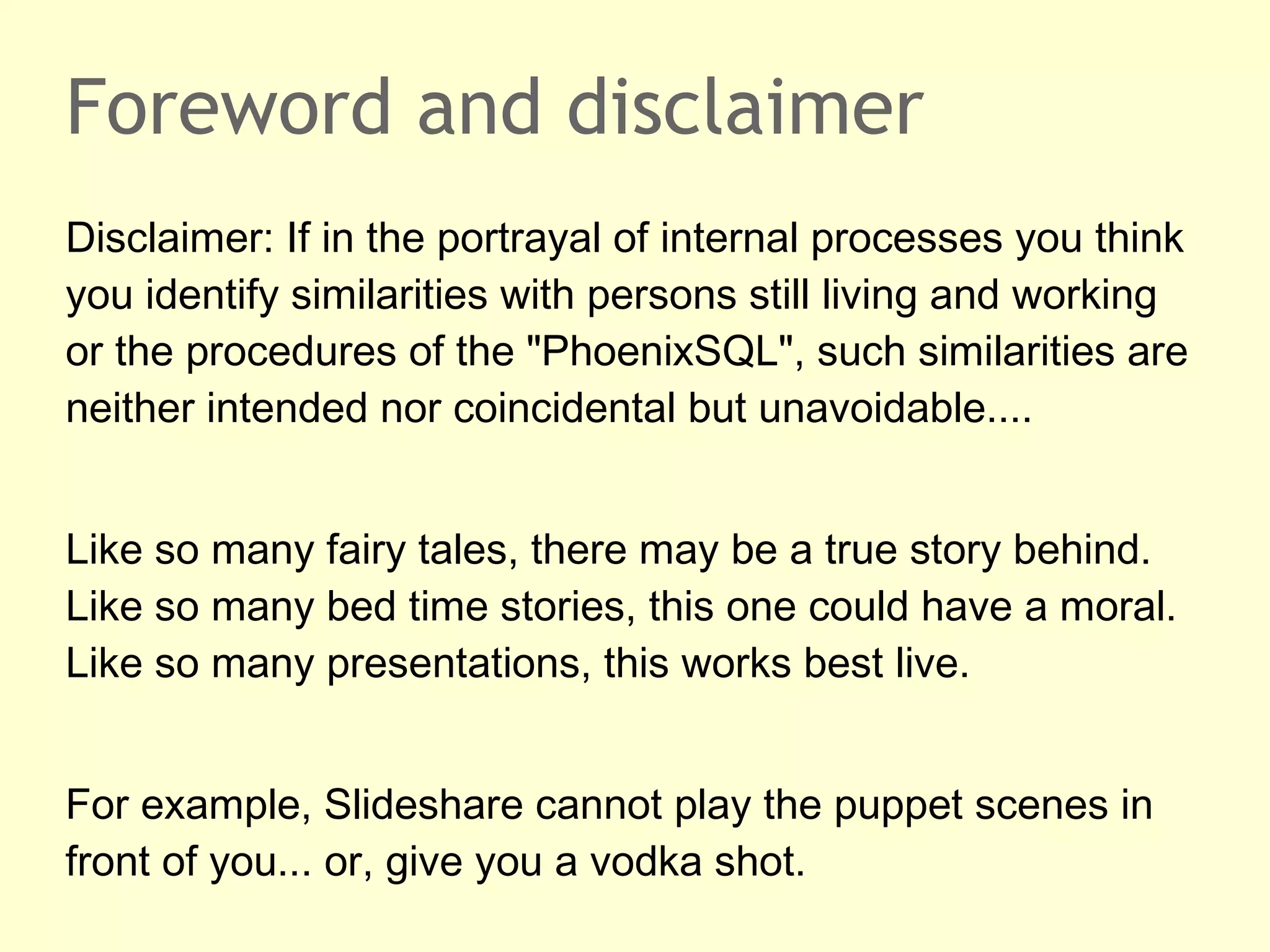

Foreword and disclaimer
Disclaimer: If in the portrayal of internal processes you think
you identify similarities with persons still living and working
or the procedures of the "PhoenixSQL", such similarities are
neither intended nor coincidental but unavoidable....


Like so many fairy tales, there may be a true story behind.
Like so many bed time stories, this one could have a moral.
Like so many presentations, this works best live.


For example, Slideshare cannot play the puppet scenes in
front of you... or, give you a vodka shot.
InnoSQL -
NoSQL in MySQL
Starring as Kaspele: Ulf Wendel

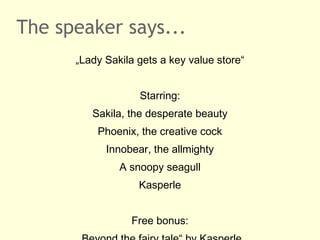

The speaker says...
      „Lady Sakila gets a key value store“


                   Starring:
         Sakila, the desperate beauty
          Phoenix, the creative cock
            Innobear, the allmighty
               A snoopy seagull
                   Kasperle


                 Free bonus:
Season style:
                                 Hot NoSQL outfits

                                                    We
                         BREAKING NEWS:             No love
                                                      SQ
                         NoSQL explained                L

                                           Drizzle?
                                SQL free cloud solutions that
                                 don't leave you in the rain!


       *** International jet set trend: polyglot persistence ***

               First act: the wretch
     *** Couchbase and CouchDB split – exclusive photo ***
*** Framed workers: Having been grouped by aggregates ***

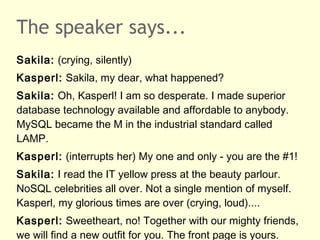

The speaker says...
Sakila: (crying, silently)
Kasperl: Sakila, my dear, what happened?
Sakila: Oh, Kasperl! I am so desperate. I made superior
database technology available and affordable to anybody.
MySQL became the M in the industrial standard called
LAMP.
Kasperl: (interrupts her) My one and only - you are the #1!
Sakila: I read the IT yellow press at the beauty parlour.
NoSQL celebrities all over. Not a single mention of myself.
Kasperl, my glorious times are over (crying, loud)....
Kasperl: Sweetheart, no! Together with our mighty friends,
we will find a new outfit for you. The front page is yours.

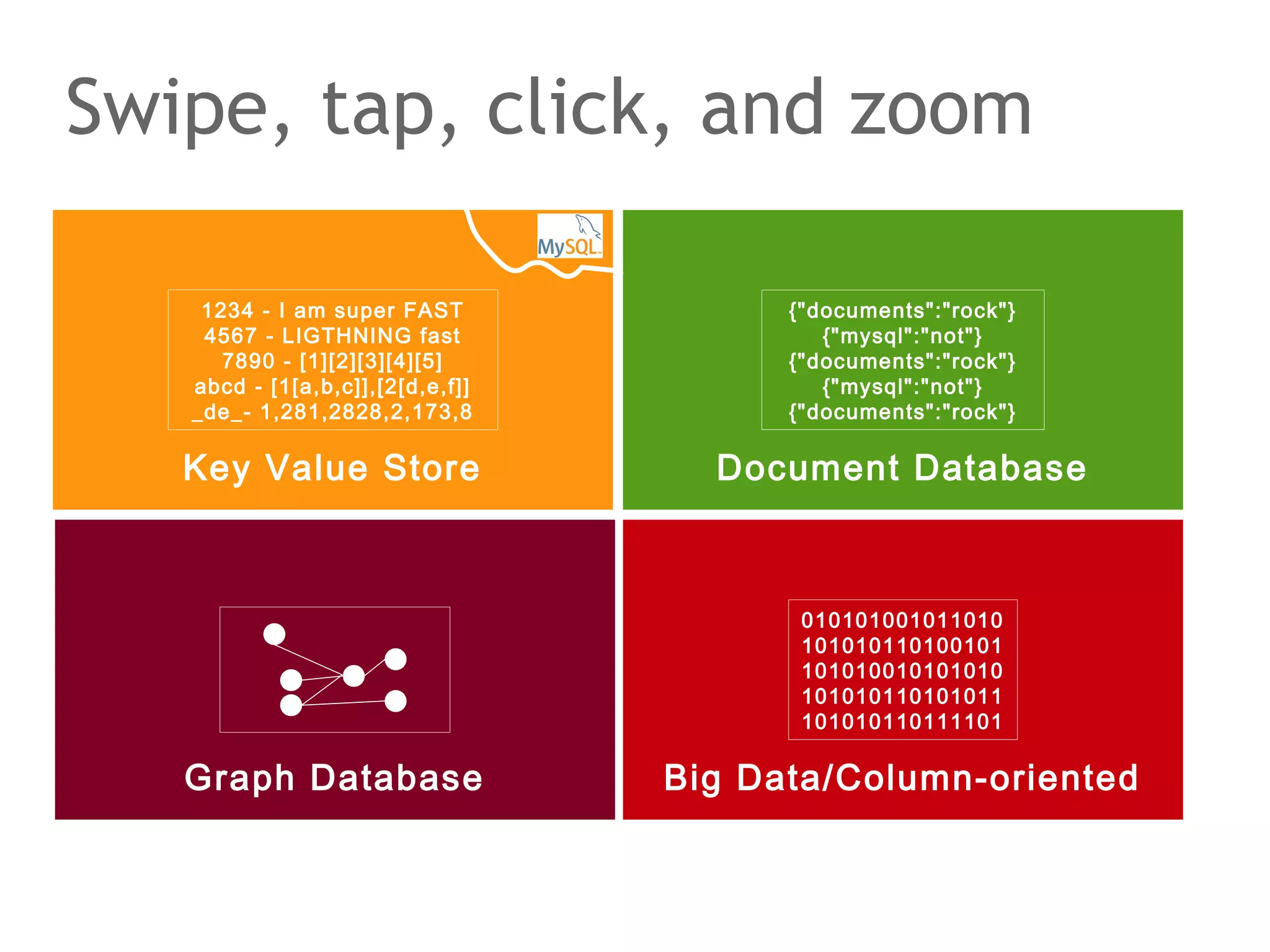

Swipe, tap, click, and zoom

    1234 - I am super FAST              {"documents":"rock"}
    4567 - LIGTHNING fast                  {"mysql":"not"}
      7890 - [1][2][3][4][5]            {"documents":"rock"}
   abcd - [1[a,b,c]],[2[d,e,f]]            {"mysql":"not"}
   _de_- 1,281,2828,2,173,8             {"documents":"rock"}

   Key Value Store                  Document Database



                                         010101001011010
                                         101010110100101
                                         101010010101010
                                         101010110101011
                                         101010110111101

   Graph Database                 Big Data/Column-oriented

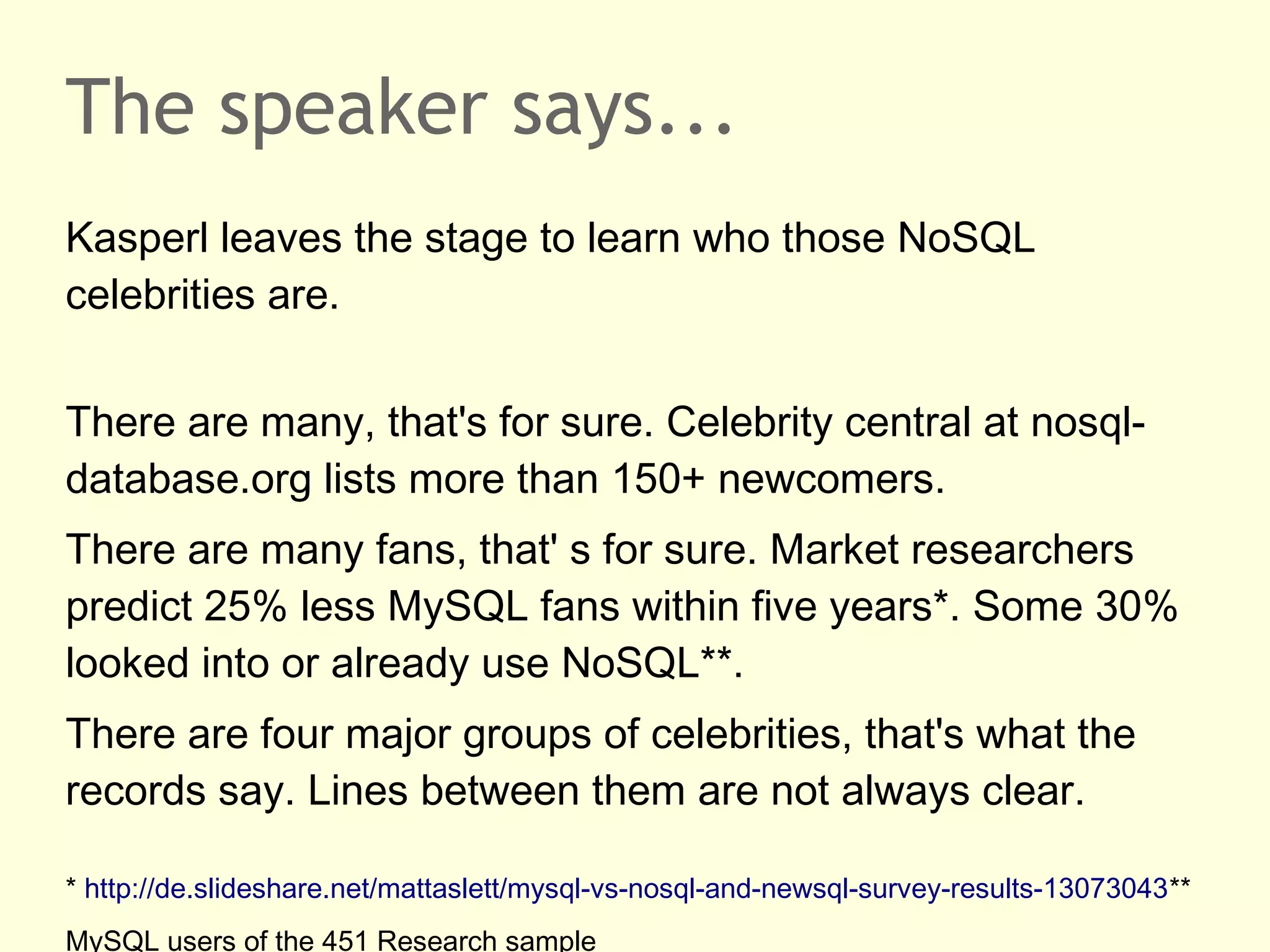

The speaker says...
Kasperl leaves the stage to learn who those NoSQL
celebrities are.


There are many, that's for sure. Celebrity central at nosql-
database.org lists more than 150+ newcomers.
There are many fans, that' s for sure. Market researchers
predict 25% less MySQL fans within five years*. Some 30%
looked into or already use NoSQL**.
There are four major groups of celebrities, that's what the
records say. Lines between them are not always clear.

* http://de.slideshare.net/mattaslett/mysql-vs-nosql-and-newsql-survey-results-13073043**
MySQL users of the 451 Research sample

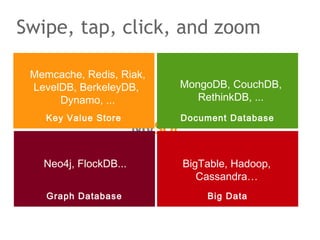

Swipe, tap, click, and zoom

 Memcache, Redis, Riak,
 LevelDB, BerkeleyDB,     MongoDB, CouchDB,
      Dynamo, ...            RethinkDB, ...
    Key Value Store       Document Database




   Neo4j, FlockDB...      BigTable, Hadoop,
                             Cassandra…
    Graph Database            Big Data

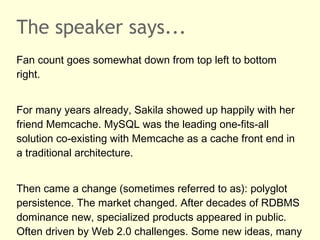

The speaker says...
Fan count goes somewhat down from top left to bottom
right.


For many years already, Sakila showed up happily with her
friend Memcache. MySQL was the leading one-fits-all
solution co-existing with Memcache as a cache front end in
a traditional architecture.


Then came a change (sometimes referred to as): polyglot
persistence. The market changed. After decades of RDBMS
dominance new, specialized products appeared in public.
Often driven by Web 2.0 challenges. Some new ideas, many

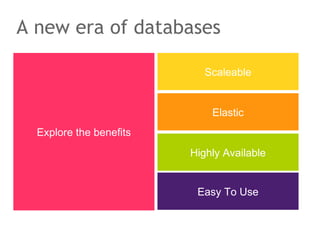

A new era of databases

                            Scaleable


                             Elastic
  Explore the benefits
                         Highly Available


                          Easy To Use

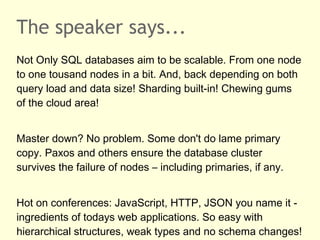

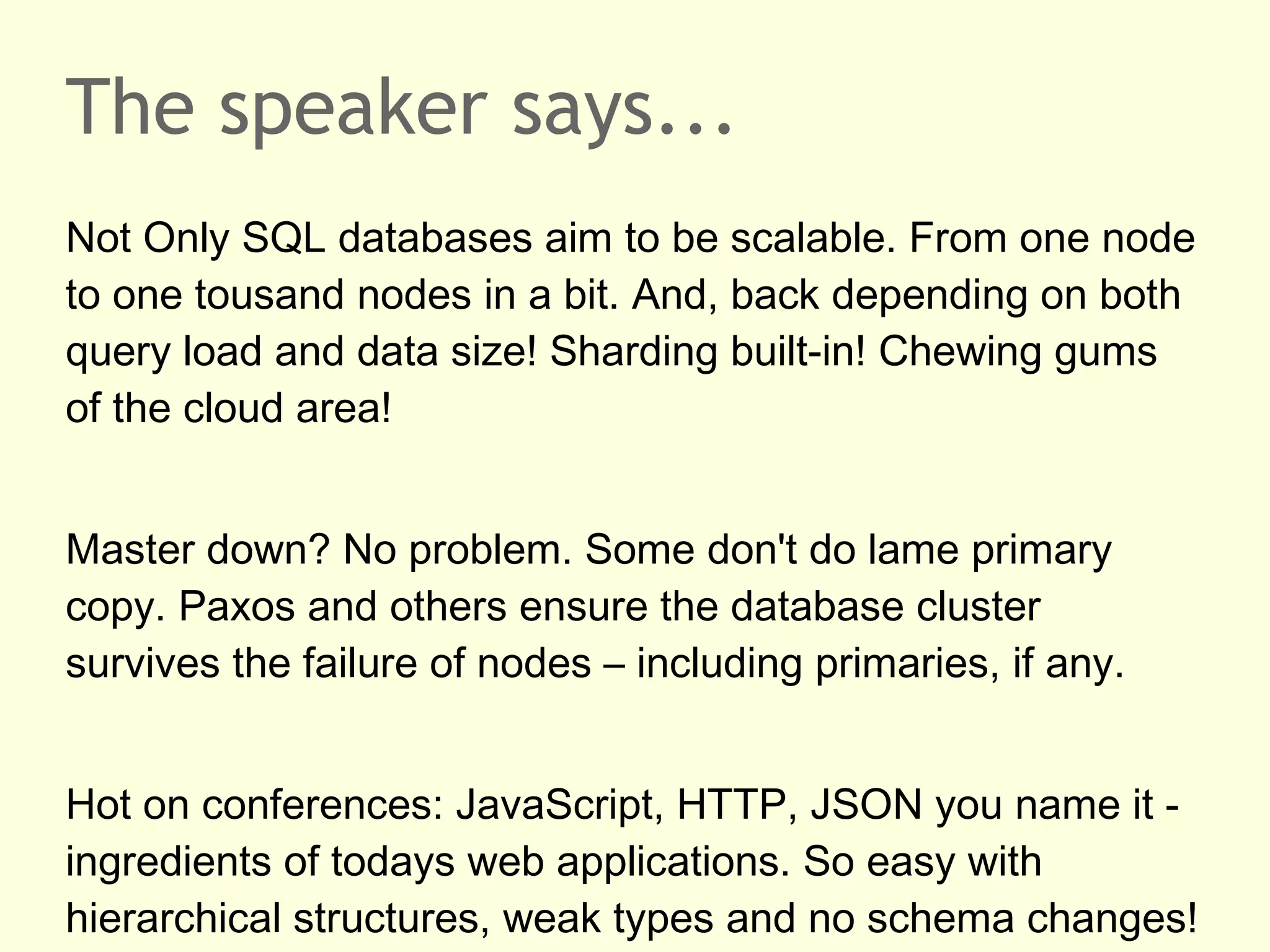

The speaker says...
Not Only SQL databases aim to be scalable. From one node
to one tousand nodes in a bit. And, back depending on both
query load and data size! Sharding built-in! Chewing gums
of the cloud area!


Master down? No problem. Some don't do lame primary
copy. Paxos and others ensure the database cluster
survives the failure of nodes – including primaries, if any.


Hot on conferences: JavaScript, HTTP, JSON you name it -
ingredients of todays web applications. So easy with
hierarchical structures, weak types and no schema changes!

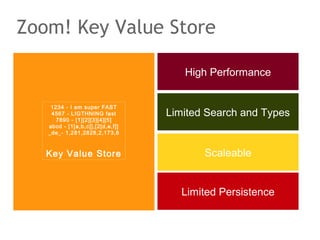

Zoom! Key Value Store

                                     High Performance


    1234 - I am super FAST
    4567 - LIGTHNING fast         Limited Search and Types
      7890 - [1][2][3][4][5]
   abcd - [1[a,b,c]],[2[d,e,f]]
   _de_- 1,281,2828,2,173,8



   Key Value Store                       Scaleable


                                    Limited Persistence

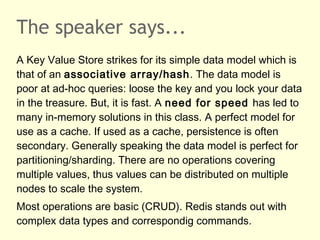

The speaker says...
A Key Value Store strikes for its simple data model which is
that of an associative array/hash. The data model is
poor at ad-hoc queries: loose the key and you lock your data
in the treasure. But, it is fast. A need for speed has led to
many in-memory solutions in this class. A perfect model for
use as a cache. If used as a cache, persistence is often
secondary. Generally speaking the data model is perfect for
partitioning/sharding. There are no operations covering
multiple values, thus values can be distributed on multiple
nodes to scale the system.
Most operations are basic (CRUD). Redis stands out with
complex data types and correspondig commands.
Using MySQL as a NoSQL –
A story for exceeding 750,000 qps
on a commodity server

[…] MySQL/InnoDB 5.1 […] When
you run simple multi-threaded
"memcached get" benchmarks, you
can probably execute 400,000+ get
operations per second, even though
memcached clients are located on
remote servers. […] network i/o
bound [...] 260,000 qps on MySQL
via HandlerSocket, 220,000 qps on
memcached [...]

     Second act: Phoenix, the super, super, super star

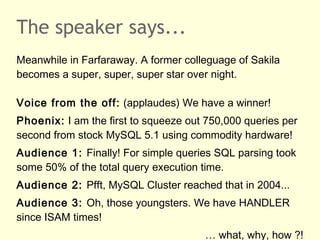

The speaker says...
Meanwhile in Farfaraway. A former colleguage of Sakila
becomes a super, super, super star over night.

Voice from the off: (applaudes) We have a winner!
Phoenix: I am the first to squeeze out 750,000 queries per
second from stock MySQL 5.1 using commodity hardware!
Audience 1: Finally! For simple queries SQL parsing took
some 50% of the total query execution time.
Audience 2: Pfft, MySQL Cluster reached that in 2004...
Audience 3: Oh, those youngsters. We have HANDLER
since ISAM times!
                                      … what, why, how ?!

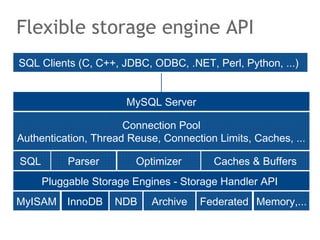

Flexible storage engine API
SQL Clients (C, C++, JDBC, ODBC, .NET, Perl, Python, ...)


                      MySQL Server

                      Connection Pool
Authentication, Thread Reuse, Connection Limits, Caches, ...

SQL        Parser       Optimizer       Caches & Buffers
      Pluggable Storage Engines - Storage Handler API
MyISAM InnoDB       NDB     Archive   Federated Memory,...

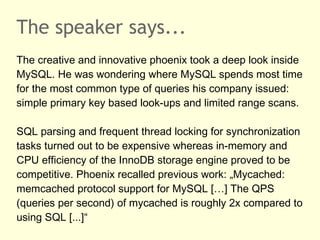

The speaker says...
The creative and innovative phoenix took a deep look inside
MySQL. He was wondering where MySQL spends most time
for the most common type of queries his company issued:
simple primary key based look-ups and limited range scans.

SQL parsing and frequent thread locking for synchronization
tasks turned out to be expensive whereas in-memory and
CPU efficiency of the InnoDB storage engine proved to be
competitive. Phoenix recalled previous work: „Mycached:
memcached protocol support for MySQL […] The QPS
(queries per second) of mycached is roughly 2x compared to
using SQL [...]“

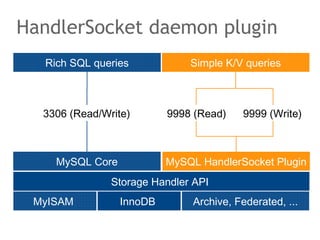

HandlerSocket daemon plugin
  Rich SQL queries            Simple K/V queries



  3306 (Read/Write)       9998 (Read)    9999 (Write)



    MySQL Core            MySQL HandlerSocket Plugin
               Storage Handler API
 MyISAM          InnoDB        Archive, Federated, ...

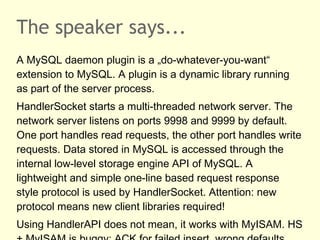

The speaker says...
A MySQL daemon plugin is a „do-whatever-you-want“
extension to MySQL. A plugin is a dynamic library running
as part of the server process.
HandlerSocket starts a multi-threaded network server. The
network server listens on ports 9998 and 9999 by default.
One port handles read requests, the other port handles write
requests. Data stored in MySQL is accessed through the
internal low-level storage engine API of MySQL. A
lightweight and simple one-line based request response
style protocol is used by HandlerSocket. Attention: new
protocol means new client libraries required!
Using HandlerAPI does not mean, it works with MyISAM. HS

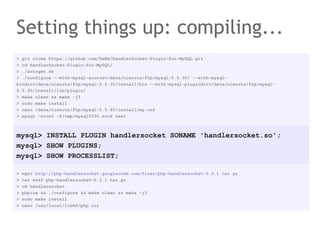

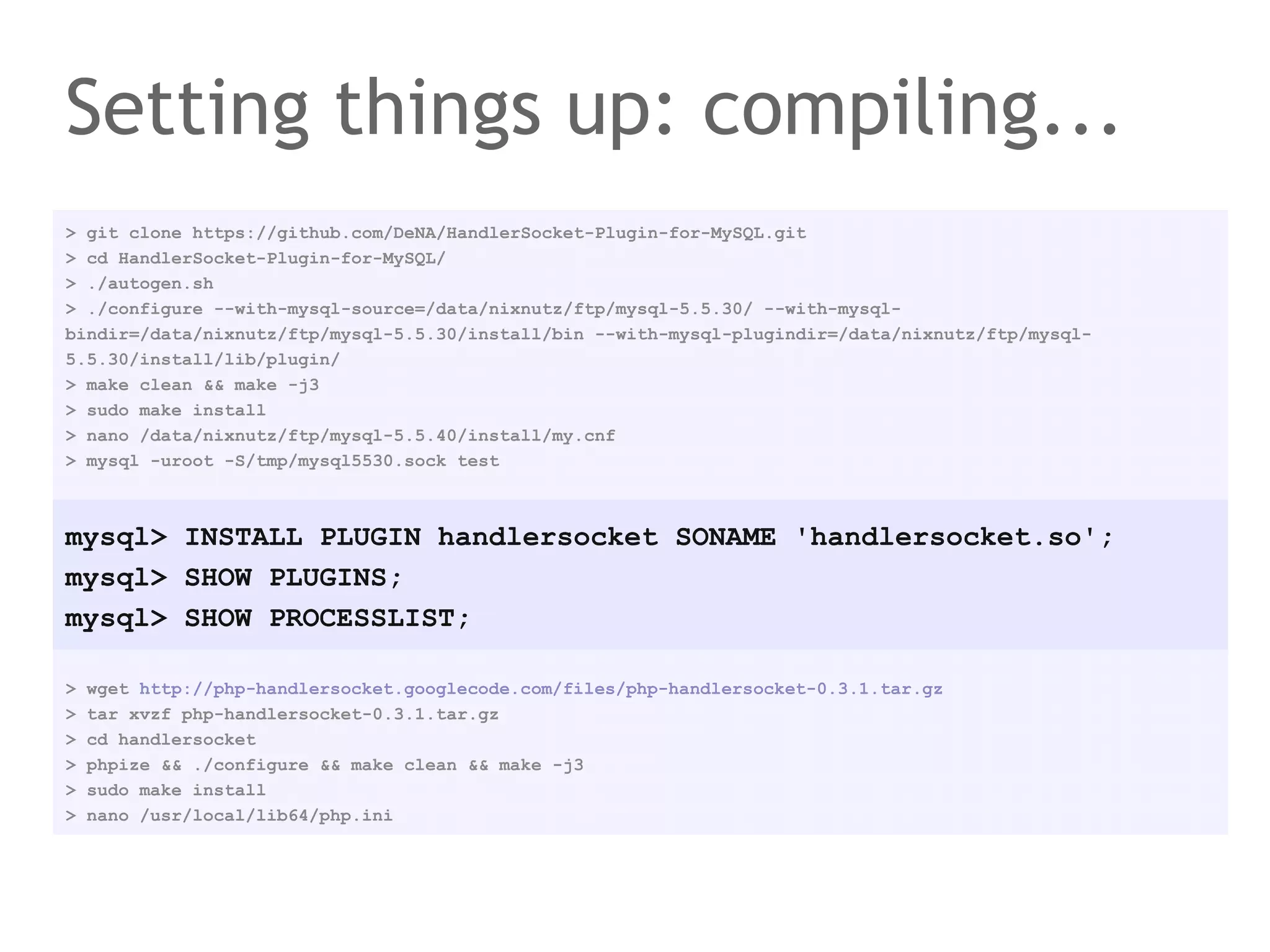

Setting things up: compiling...
> git clone https://github.com/DeNA/HandlerSocket-Plugin-for-MySQL.git
> cd HandlerSocket-Plugin-for-MySQL/
> ./autogen.sh
> ./configure --with-mysql-source=/data/nixnutz/ftp/mysql-5.5.30/ --with-mysql-
bindir=/data/nixnutz/ftp/mysql-5.5.30/install/bin --with-mysql-plugindir=/data/nixnutz/ftp/mysql-
5.5.30/install/lib/plugin/
> make clean && make -j3
> sudo make install
> nano /data/nixnutz/ftp/mysql-5.5.40/install/my.cnf
> mysql -uroot -S/tmp/mysql5530.sock test



mysql> INSTALL PLUGIN handlersocket SONAME 'handlersocket.so';
mysql> SHOW PLUGINS;
mysql> SHOW PROCESSLIST;

>   wget http://php-handlersocket.googlecode.com/files/php-handlersocket-0.3.1.tar.gz
>   tar xvzf php-handlersocket-0.3.1.tar.gz
>   cd handlersocket
>   phpize && ./configure && make clean && make -j3
>   sudo make install
>   nano /usr/local/lib64/php.ini
The speaker says...
HandlerSocket is distributed in source „as-is“ by the original
authors. It has originally been developed to work with
MySQL 5.1. The latest version can be compiled against
MySQL 5.5. MySQL 5.6 is currently not supported but may
so in the future. MySQL forks may distribute patched
versions, however, I went for the original repository.


PHP users can choose from two PHP based client libraries
implementing the text-based protocol and one C/C++ PHP
based extension. For all tests the PHP extension has been
used. The handlersocket PHP extension is using the C++
client library shipped with HandlerSocket.

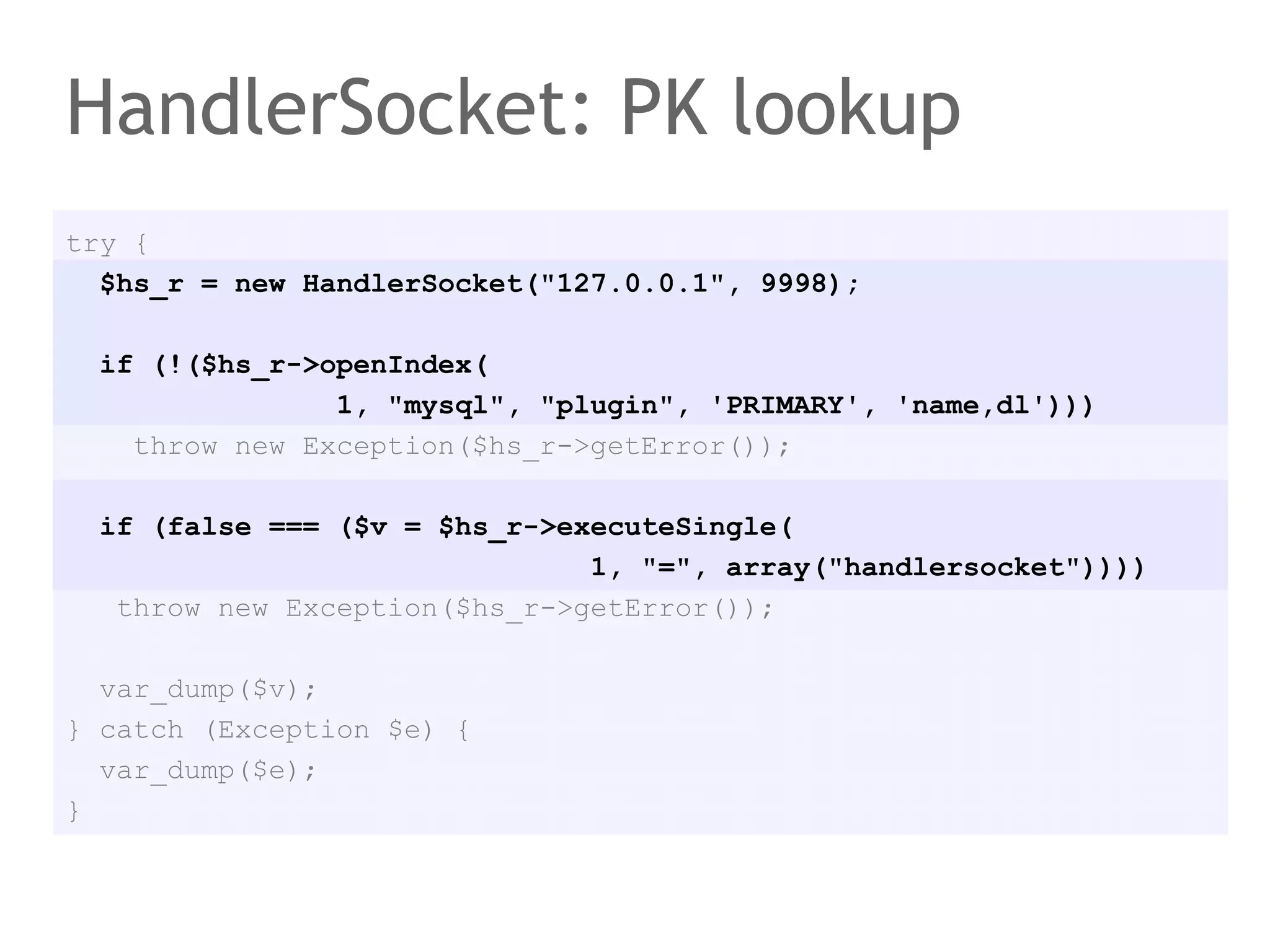

HandlerSocket: PK lookup
try {
  $hs_r = new HandlerSocket("127.0.0.1", 9998);

  if (!($hs_r->openIndex(
                1, "mysql", "plugin", 'PRIMARY', 'name,dl')))
    throw new Exception($hs_r->getError());

  if (false === ($v = $hs_r->executeSingle(
                               1, "=", array("handlersocket"))))
   throw new Exception($hs_r->getError());

  var_dump($v);
} catch (Exception $e) {
  var_dump($e);
}

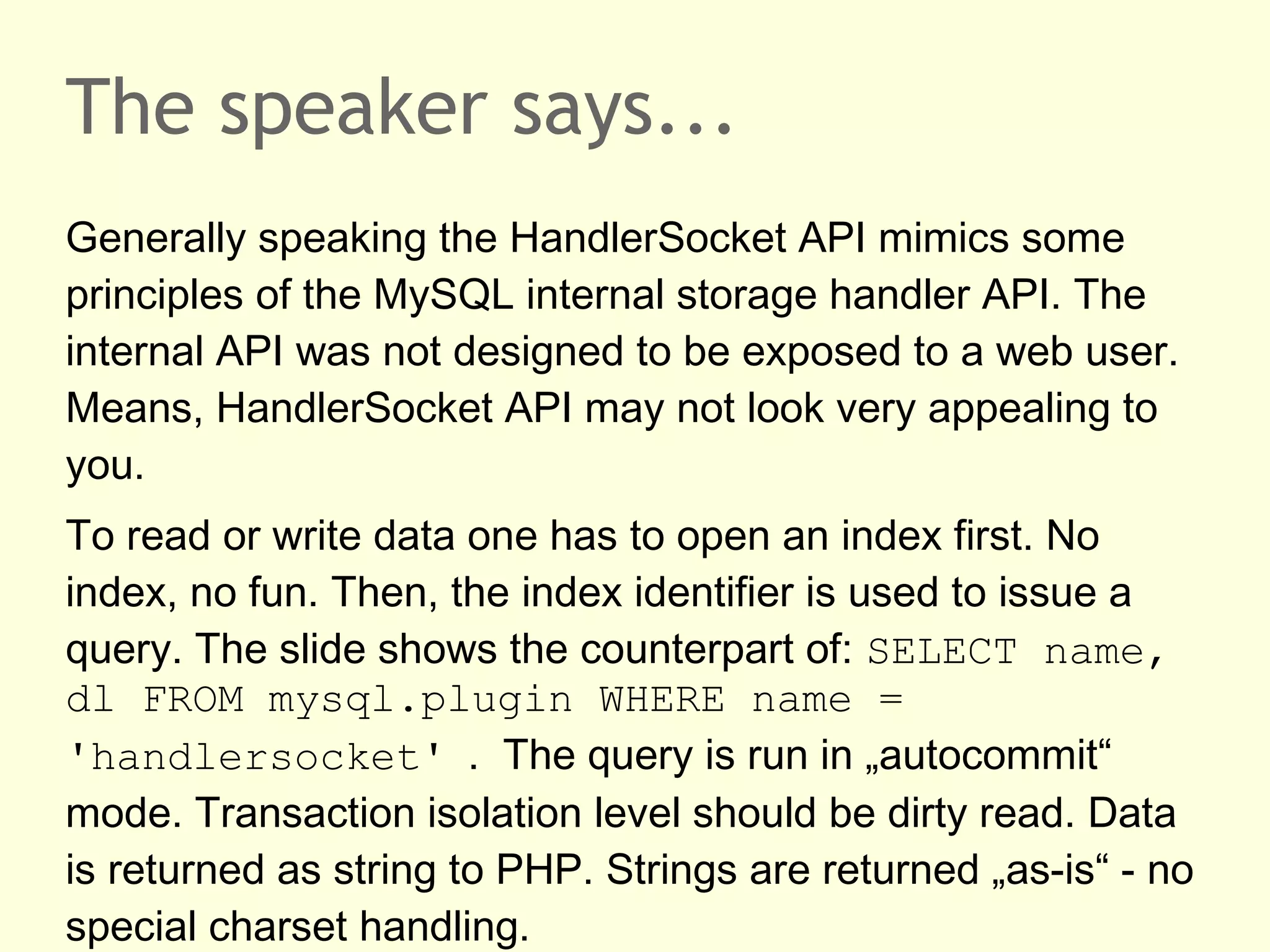

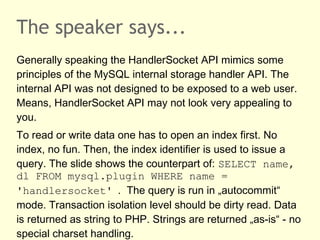

The speaker says...
Generally speaking the HandlerSocket API mimics some
principles of the MySQL internal storage handler API. The
internal API was not designed to be exposed to a web user.
Means, HandlerSocket API may not look very appealing to
you.
To read or write data one has to open an index first. No
index, no fun. Then, the index identifier is used to issue a
query. The slide shows the counterpart of: SELECT name,
dl FROM mysql.plugin WHERE name =
'handlersocket' . The query is run in „autocommit“
mode. Transaction isolation level should be dirty read. Data
is returned as string to PHP. Strings are returned „as-is“ - no
special charset handling.

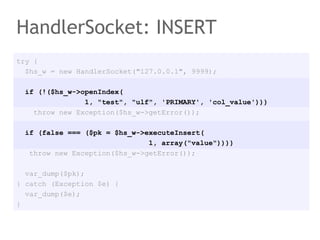

HandlerSocket: INSERT
try {
  $hs_w = new HandlerSocket("127.0.0.1", 9999);

  if (!($hs_w->openIndex(
                1, "test", "ulf", 'PRIMARY', 'col_value')))
    throw new Exception($hs_w->getError());

  if (false === ($pk = $hs_w->executeInsert(
                               1, array("value"))))
   throw new Exception($hs_w->getError());

  var_dump($pk);
} catch (Exception $e) {
  var_dump($e);
}

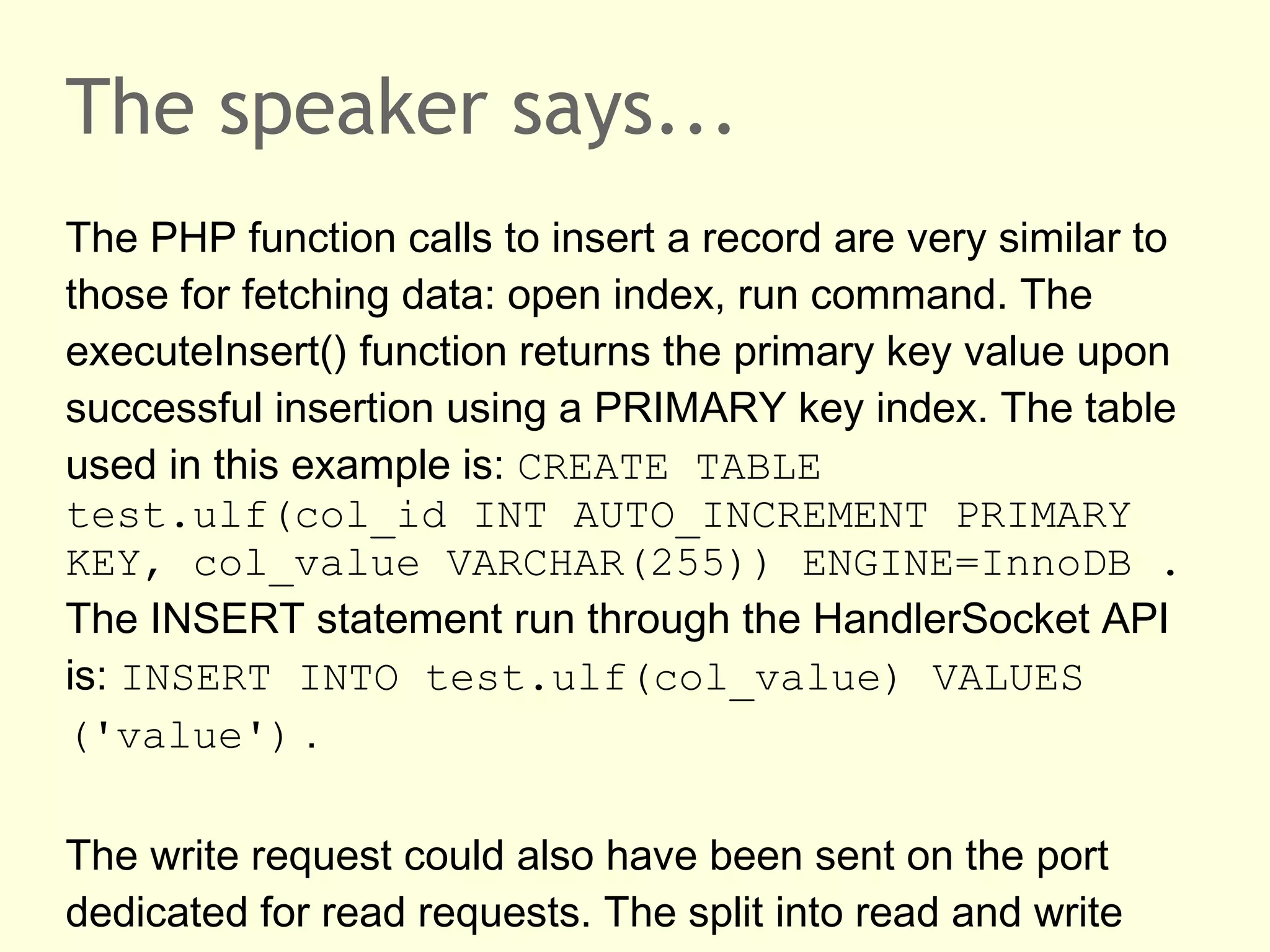

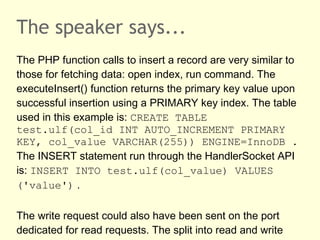

The speaker says...
The PHP function calls to insert a record are very similar to
those for fetching data: open index, run command. The
executeInsert() function returns the primary key value upon
successful insertion using a PRIMARY key index. The table
used in this example is: CREATE TABLE
test.ulf(col_id INT AUTO_INCREMENT PRIMARY
KEY, col_value VARCHAR(255)) ENGINE=InnoDB .
The INSERT statement run through the HandlerSocket API
is: INSERT INTO test.ulf(col_value) VALUES
('value') .

The write request could also have been sent on the port
dedicated for read requests. The split into read and write

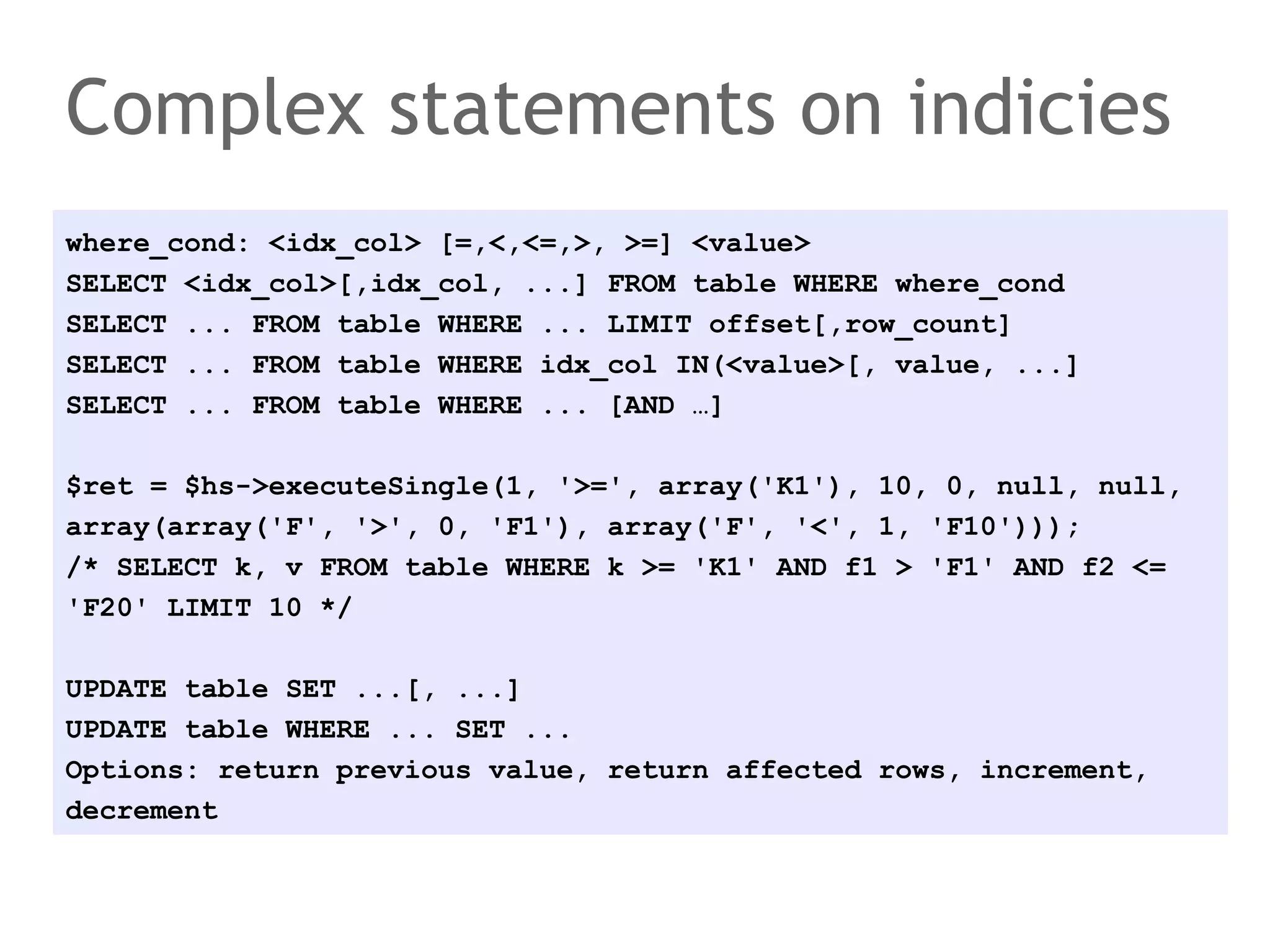

Complex statements on indicies
where_cond: <idx_col> [=,<,<=,>, >=] <value>
SELECT <idx_col>[,idx_col, ...] FROM table WHERE where_cond
SELECT ... FROM table WHERE ... LIMIT offset[,row_count]
SELECT ... FROM table WHERE idx_col IN(<value>[, value, ...]
SELECT ... FROM table WHERE ... [AND …]

$ret = $hs->executeSingle(1, '>=', array('K1'), 10, 0, null, null,
array(array('F', '>', 0, 'F1'), array('F', '<', 1, 'F10')));
/* SELECT k, v FROM table WHERE k >= 'K1' AND f1 > 'F1' AND f2 <=
'F20' LIMIT 10 */

UPDATE table SET ...[, ...]
UPDATE table WHERE ... SET ...
Options: return previous value, return affected rows, increment,
decrement

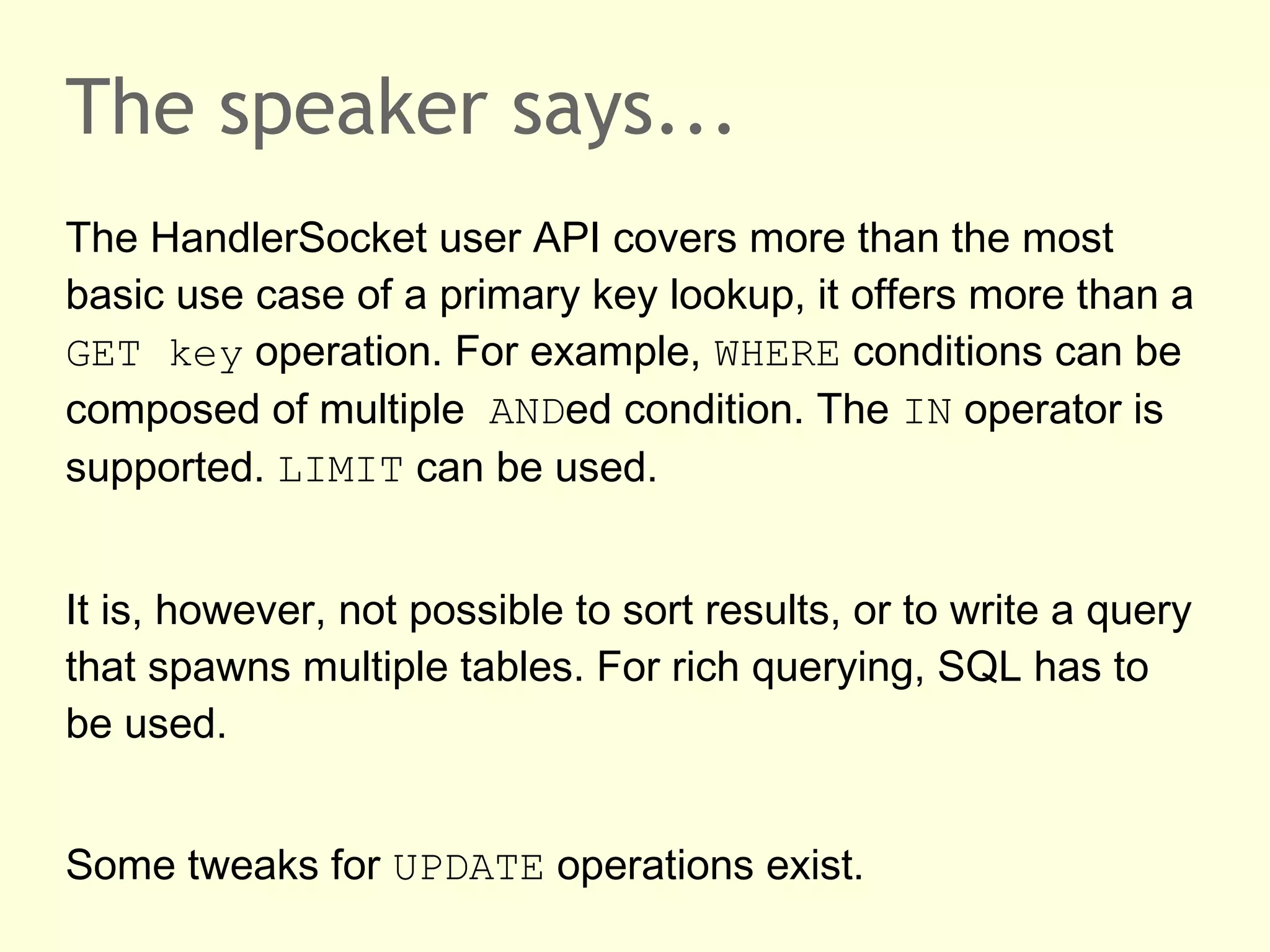

The speaker says...
The HandlerSocket user API covers more than the most
basic use case of a primary key lookup, it offers more than a
GET key operation. For example, WHERE conditions can be
composed of multiple ANDed condition. The IN operator is
supported. LIMIT can be used.


It is, however, not possible to sort results, or to write a query
that spawns multiple tables. For rich querying, SQL has to
be used.


Some tweaks for UPDATE operations exist.
Third act: Innobear rescues Sakila. So, so, so close!

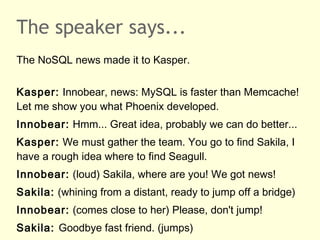

The speaker says...
The NoSQL news made it to Kasper.


Kasper: Innobear, news: MySQL is faster than Memcache!
Let me show you what Phoenix developed.
Innobear: Hmm... Great idea, probably we can do better...
Kasper: We must gather the team. You go to find Sakila, I
have a rough idea where to find Seagull.
Innobear: (loud) Sakila, where are you! We got news!
Sakila: (whining from a distant, ready to jump off a bridge)
Innobear: (comes close to her) Please, don't jump!
Sakila: Goodbye fast friend. (jumps)
Third act: Seagull is a valuable team member

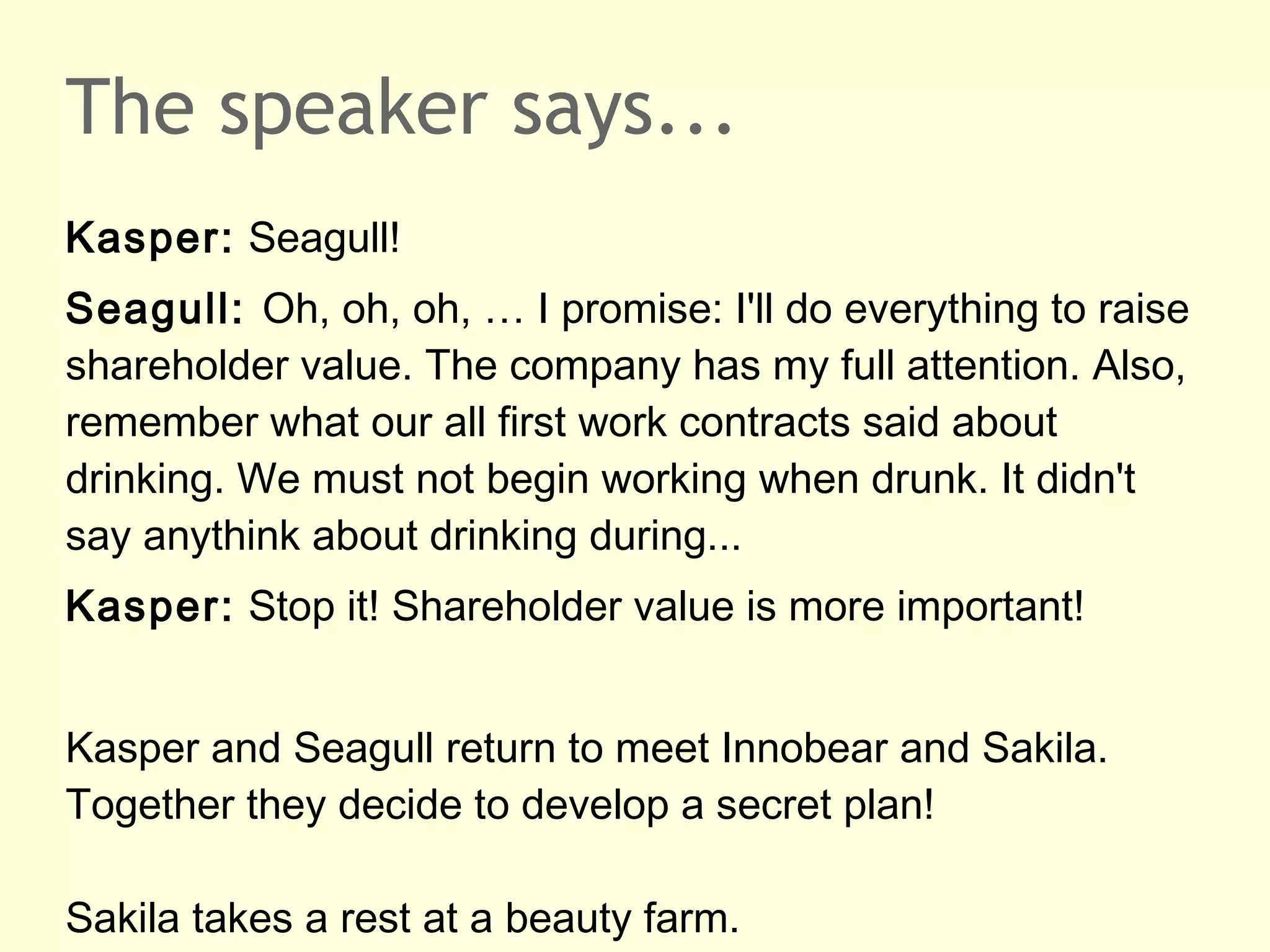

The speaker says...
Kasper: Seagull!
Seagull: Oh, oh, oh, … I promise: I'll do everything to raise
shareholder value. The company has my full attention. Also,
remember what our all first work contracts said about
drinking. We must not begin working when drunk. It didn't
say anythink about drinking during...
Kasper: Stop it! Shareholder value is more important!


Kasper and Seagull return to meet Innobear and Sakila.
Together they decide to develop a secret plan!

Sakila takes a rest at a beauty farm.
Third act: at labs.mysql.com

                               © Fairywikileaks
The speaker says...

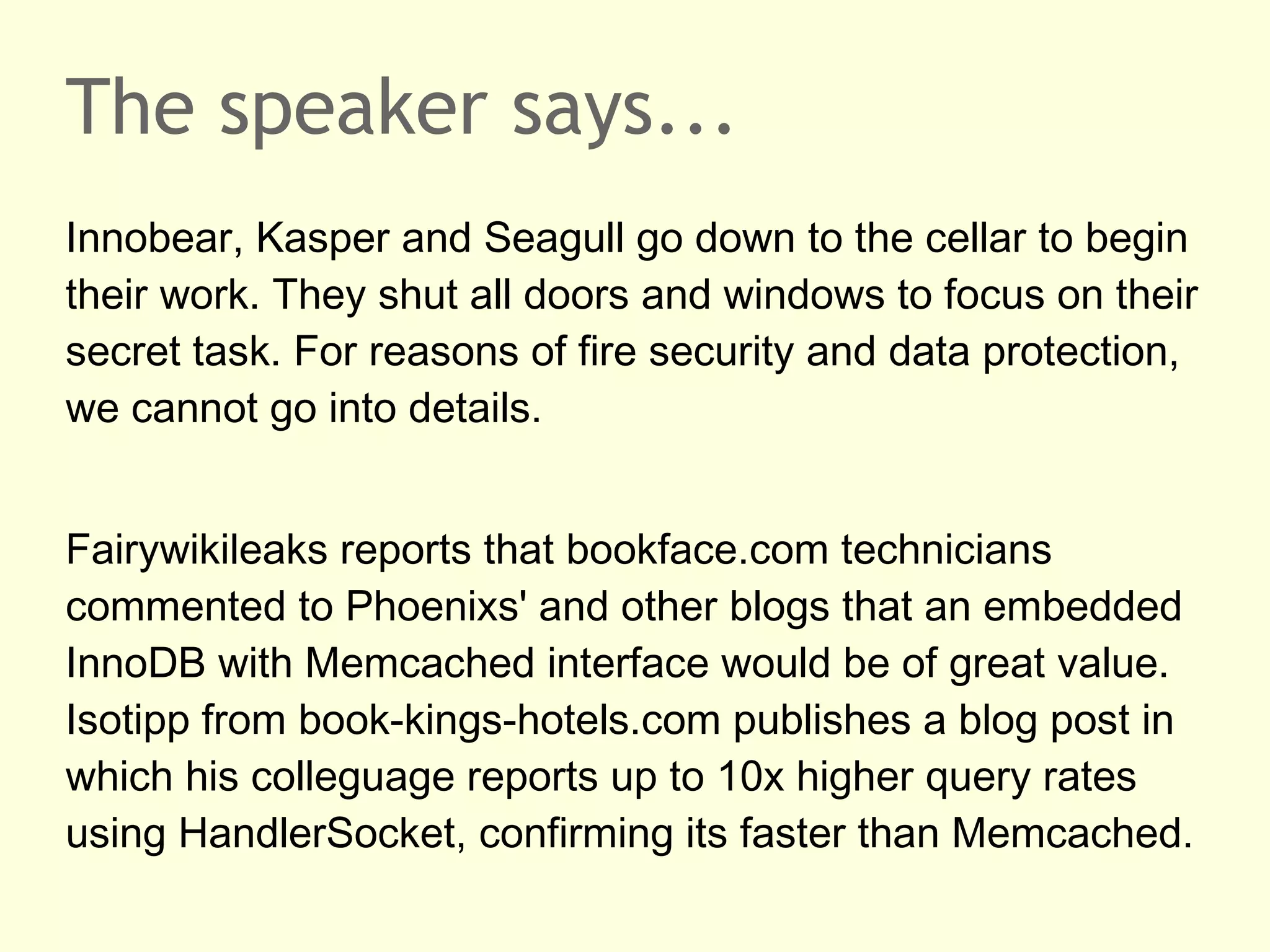

Innobear, Kasper and Seagull go down to the cellar to begin
their work. They shut all doors and windows to focus on their
secret task. For reasons of fire security and data protection,
we cannot go into details.


Fairywikileaks reports that bookface.com technicians
commented to Phoenixs' and other blogs that an embedded
InnoDB with Memcached interface would be of great value.
Isotipp from book-kings-hotels.com publishes a blog post in
which his colleguage reports up to 10x higher query rates
using HandlerSocket, confirming its faster than Memcached.

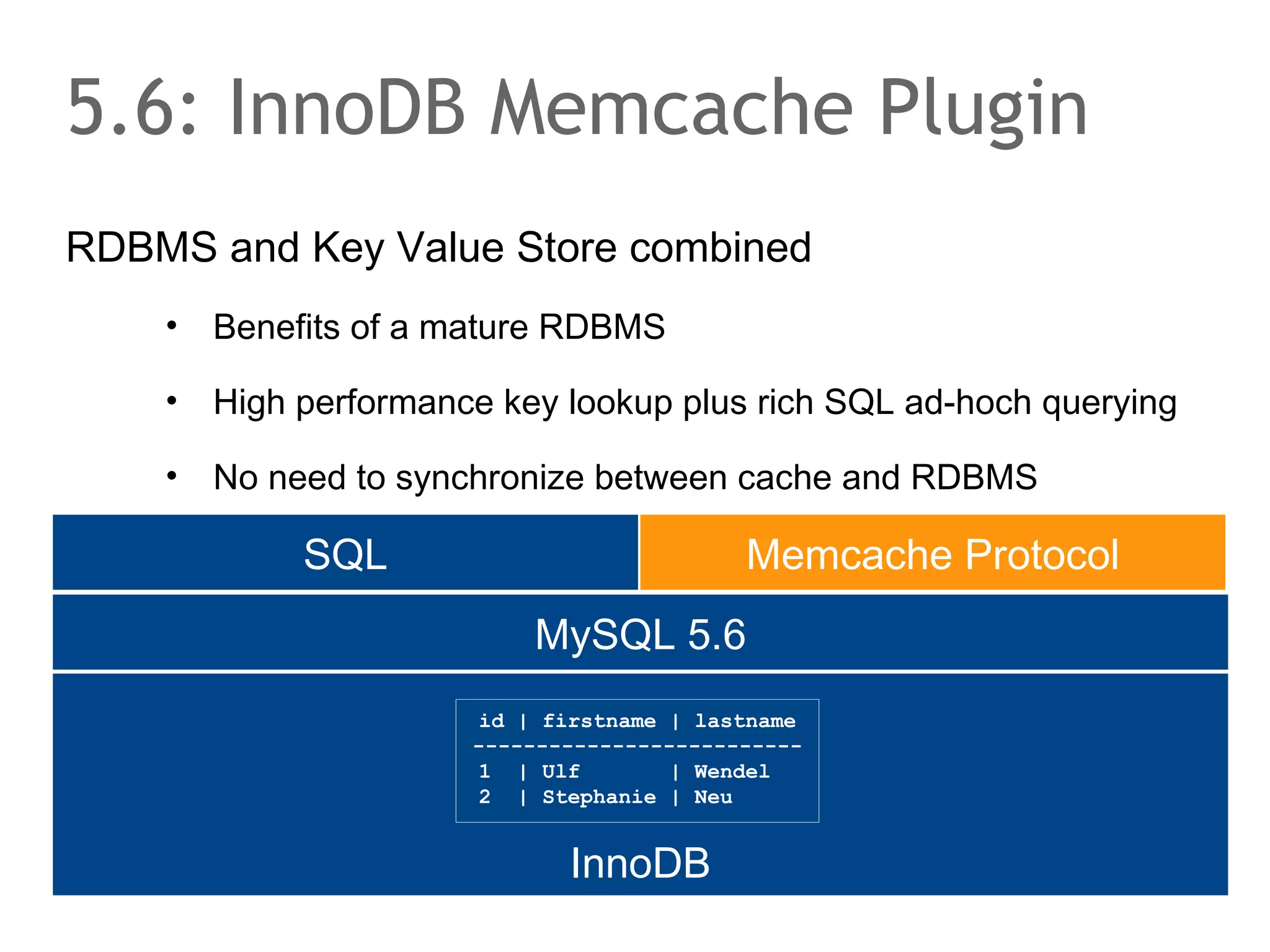

5.6: InnoDB Memcache Plugin
RDBMS and Key Value Store combined
    •   Benefits of a mature RDBMS

    •   High performance key lookup plus rich SQL ad-hoch querying

    •   No need to synchronize between cache and RDBMS

             SQL                            Memcache Protocol
                           MySQL 5.6
                       id | firstname | lastname
                       --------------------------
                       1 | Ulf        | Wendel
                       2 | Nils
                            Stephanie | Lagner
                                        Neu


                              InnoDB

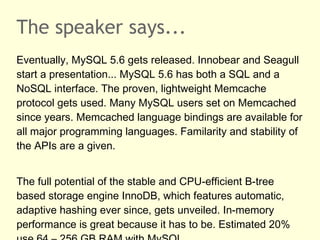

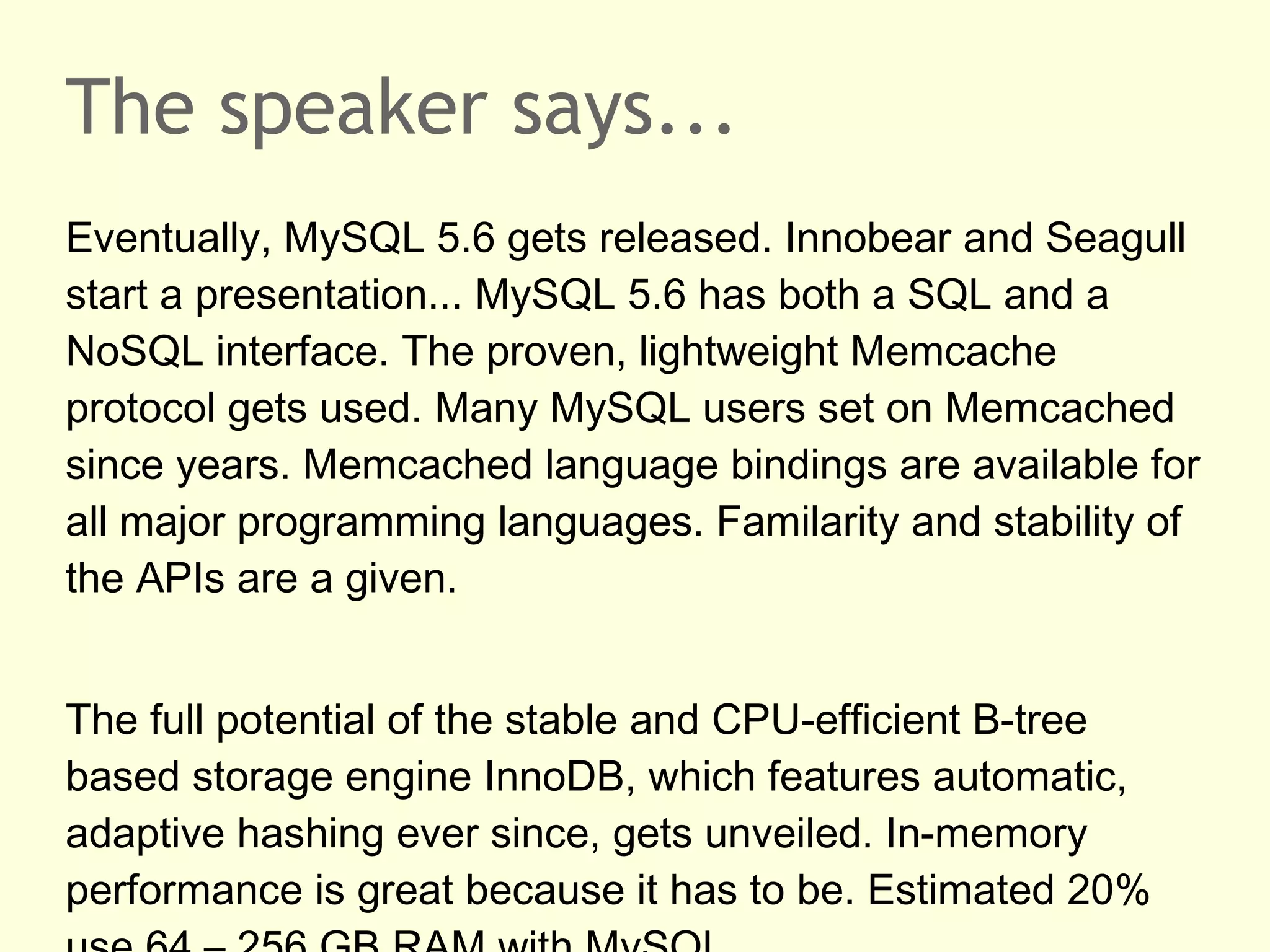

The speaker says...
Eventually, MySQL 5.6 gets released. Innobear and Seagull
start a presentation... MySQL 5.6 has both a SQL and a
NoSQL interface. The proven, lightweight Memcache
protocol gets used. Many MySQL users set on Memcached
since years. Memcached language bindings are available for
all major programming languages. Familarity and stability of
the APIs are a given.


The full potential of the stable and CPU-efficient B-tree
based storage engine InnoDB, which features automatic,
adaptive hashing ever since, gets unveiled. In-memory
performance is great because it has to be. Estimated 20%

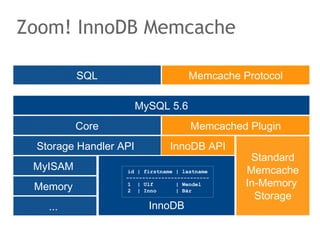

Zoom! InnoDB Memcache

          SQL                        Memcache Protocol

                       MySQL 5.6
          Core                        Memcached Plugin
 Storage Handler API           InnoDB API
                                                Standard
 MyISAM           id | firstname | lastname    Memcache
                                               In-Memory
                  --------------------------
 Memory           1 | Ulf        | Wendel

                                                 Storage
                  2 | Inno       | Bär


   ...                   InnoDB

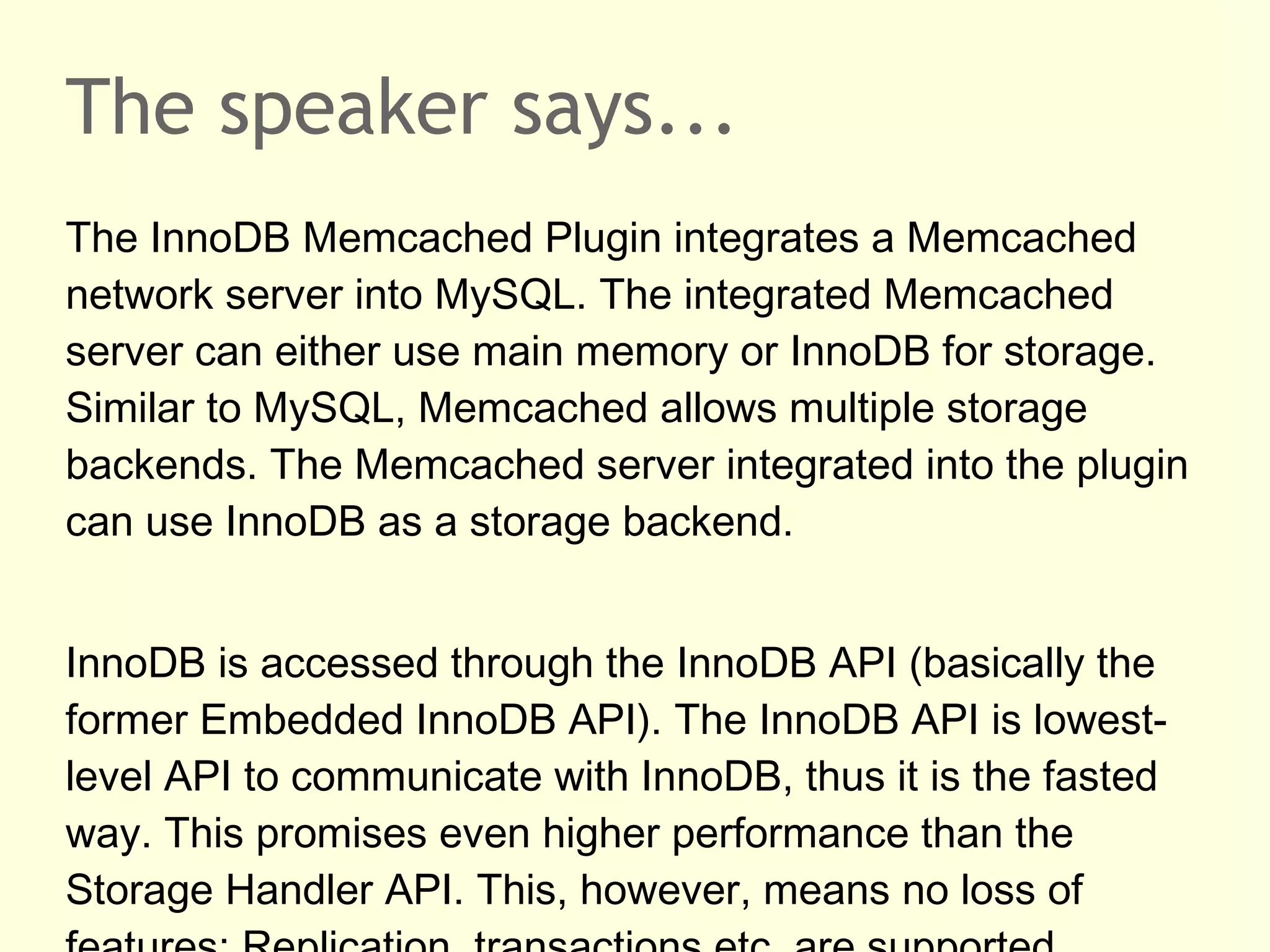

The speaker says...

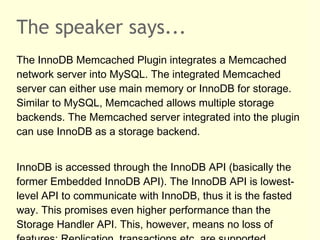

The InnoDB Memcached Plugin integrates a Memcached
network server into MySQL. The integrated Memcached
server can either use main memory or InnoDB for storage.
Similar to MySQL, Memcached allows multiple storage
backends. The Memcached server integrated into the plugin
can use InnoDB as a storage backend.


InnoDB is accessed through the InnoDB API (basically the
former Embedded InnoDB API). The InnoDB API is lowest-
level API to communicate with InnoDB, thus it is the fasted
way. This promises even higher performance than the
Storage Handler API. This, however, means no loss of

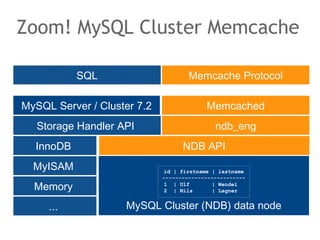

Zoom! MySQL Cluster Memcache

           SQL                       Memcache Protocol

MySQL Server / Cluster 7.2                Memcached
   Storage Handler API                       ndb_eng
  InnoDB                           NDB API
  MyISAM                     id | firstname | lastname
                             --------------------------
  Memory                     1 | Ulf
                             2 | Nils
                                            | Wendel
                                            | Lagner


     ...            MySQL Cluster (NDB) data node

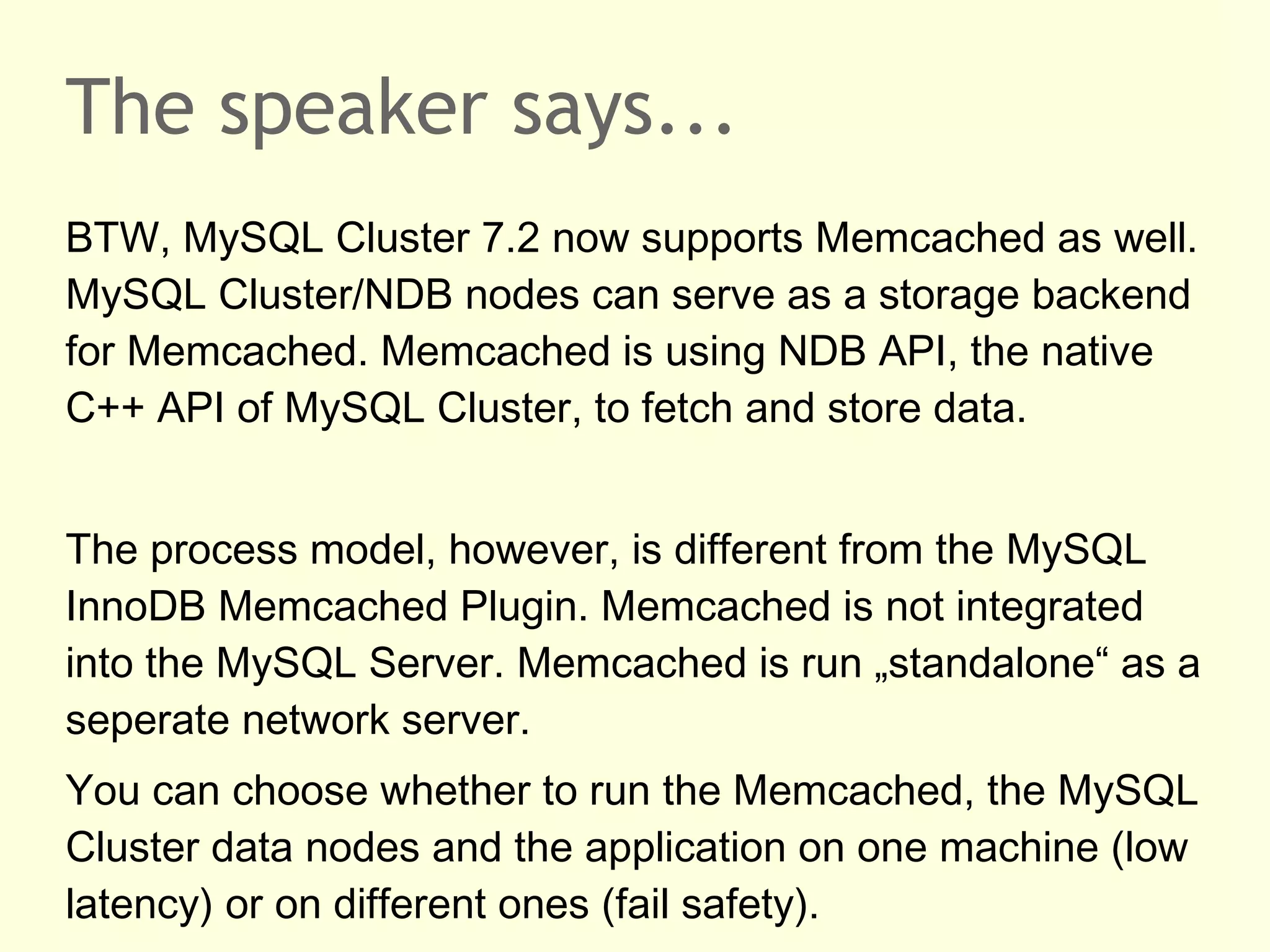

The speaker says...
BTW, MySQL Cluster 7.2 now supports Memcached as well.
MySQL Cluster/NDB nodes can serve as a storage backend
for Memcached. Memcached is using NDB API, the native
C++ API of MySQL Cluster, to fetch and store data.


The process model, however, is different from the MySQL
InnoDB Memcached Plugin. Memcached is not integrated
into the MySQL Server. Memcached is run „standalone“ as a
seperate network server.
You can choose whether to run the Memcached, the MySQL
Cluster data nodes and the application on one machine (low
latency) or on different ones (fail safety).

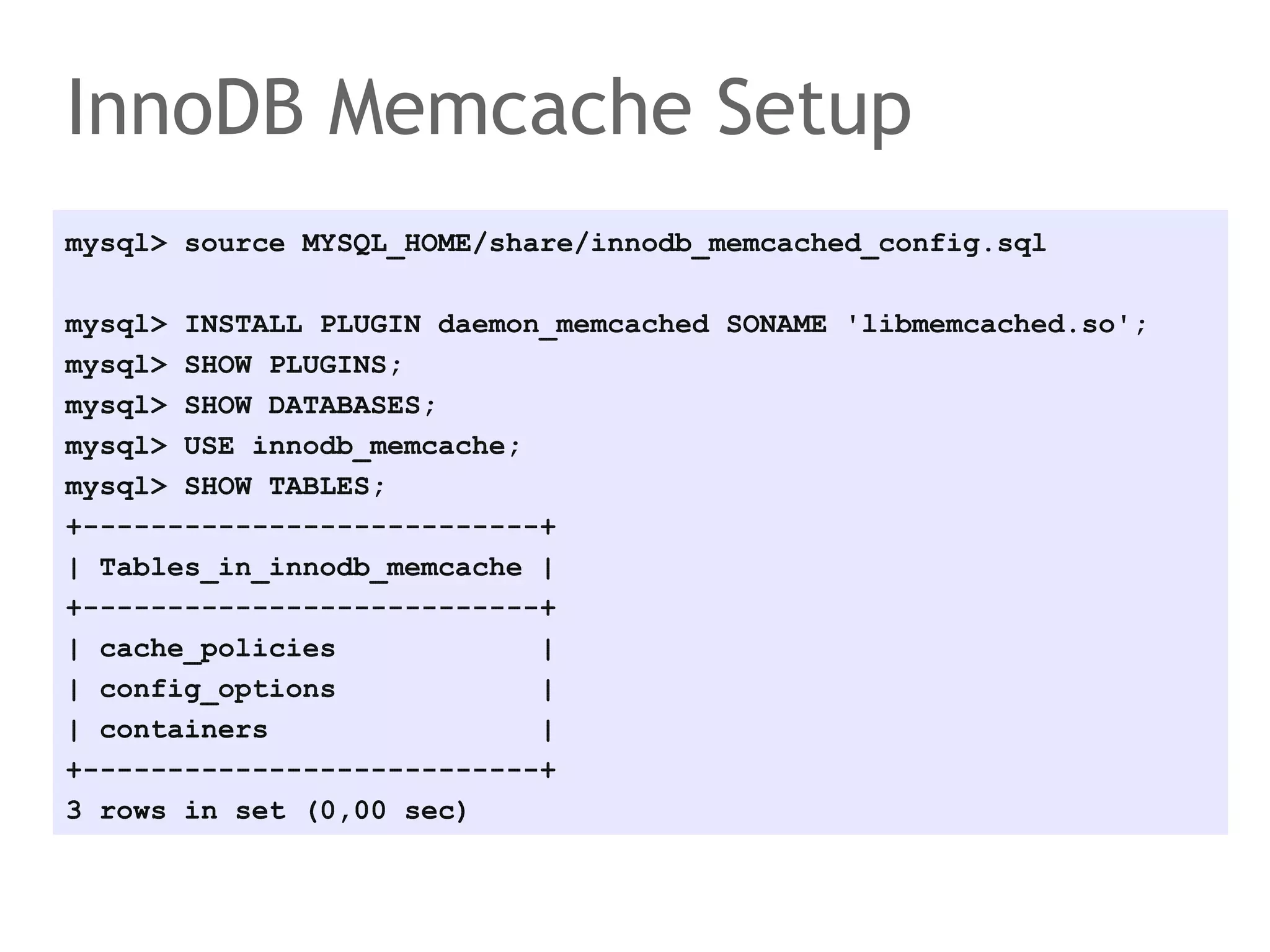

InnoDB Memcache Setup
mysql> source MYSQL_HOME/share/innodb_memcached_config.sql

mysql> INSTALL PLUGIN daemon_memcached SONAME 'libmemcached.so';
mysql> SHOW PLUGINS;
mysql> SHOW DATABASES;
mysql> USE innodb_memcache;
mysql> SHOW TABLES;
+---------------------------+
| Tables_in_innodb_memcache |
+---------------------------+
| cache_policies            |
| config_options            |
| containers                |
+---------------------------+
3 rows in set (0,00 sec)

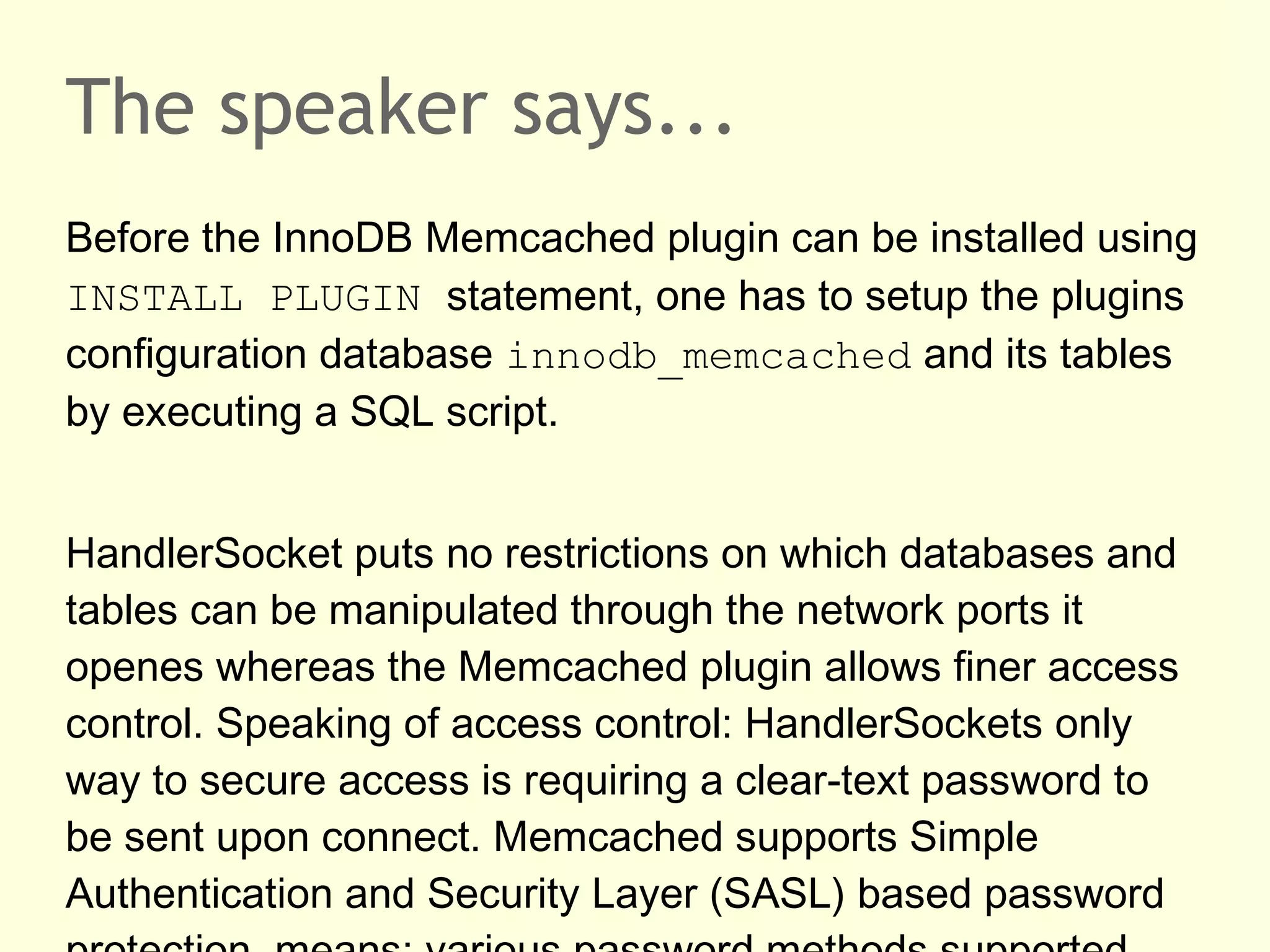

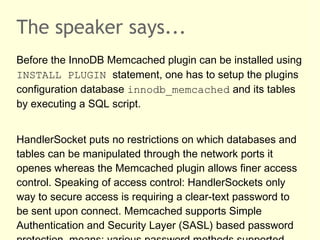

The speaker says...
Before the InnoDB Memcached plugin can be installed using
INSTALL PLUGIN statement, one has to setup the plugins
configuration database innodb_memcached and its tables
by executing a SQL script.


HandlerSocket puts no restrictions on which databases and
tables can be manipulated through the network ports it
openes whereas the Memcached plugin allows finer access
control. Speaking of access control: HandlerSockets only
way to secure access is requiring a clear-text password to
be sent upon connect. Memcached supports Simple
Authentication and Security Layer (SASL) based password

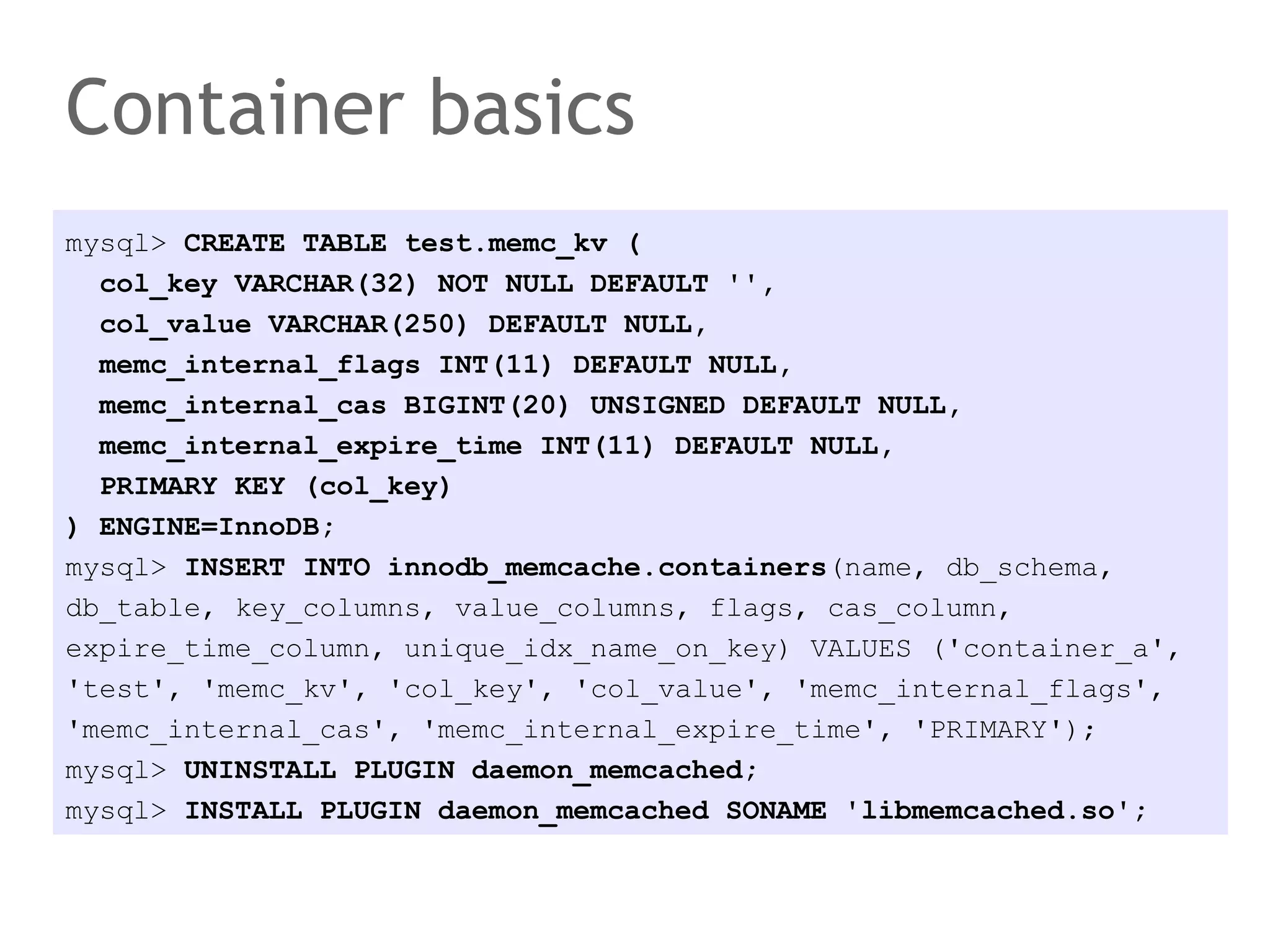

Container basics
mysql> CREATE TABLE test.memc_kv (
  col_key VARCHAR(32) NOT NULL DEFAULT '',
  col_value VARCHAR(250) DEFAULT NULL,
  memc_internal_flags INT(11) DEFAULT NULL,
  memc_internal_cas BIGINT(20) UNSIGNED DEFAULT NULL,
  memc_internal_expire_time INT(11) DEFAULT NULL,
  PRIMARY KEY (col_key)
) ENGINE=InnoDB;
mysql> INSERT INTO innodb_memcache.containers(name, db_schema,
db_table, key_columns, value_columns, flags, cas_column,
expire_time_column, unique_idx_name_on_key) VALUES ('container_a',
'test', 'memc_kv', 'col_key', 'col_value', 'memc_internal_flags',
'memc_internal_cas', 'memc_internal_expire_time', 'PRIMARY');
mysql> UNINSTALL PLUGIN daemon_memcached;
mysql> INSTALL PLUGIN daemon_memcached SONAME 'libmemcached.so';

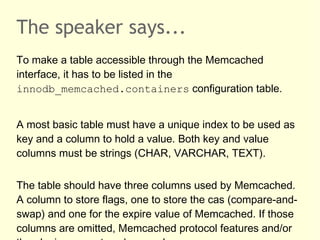

The speaker says...

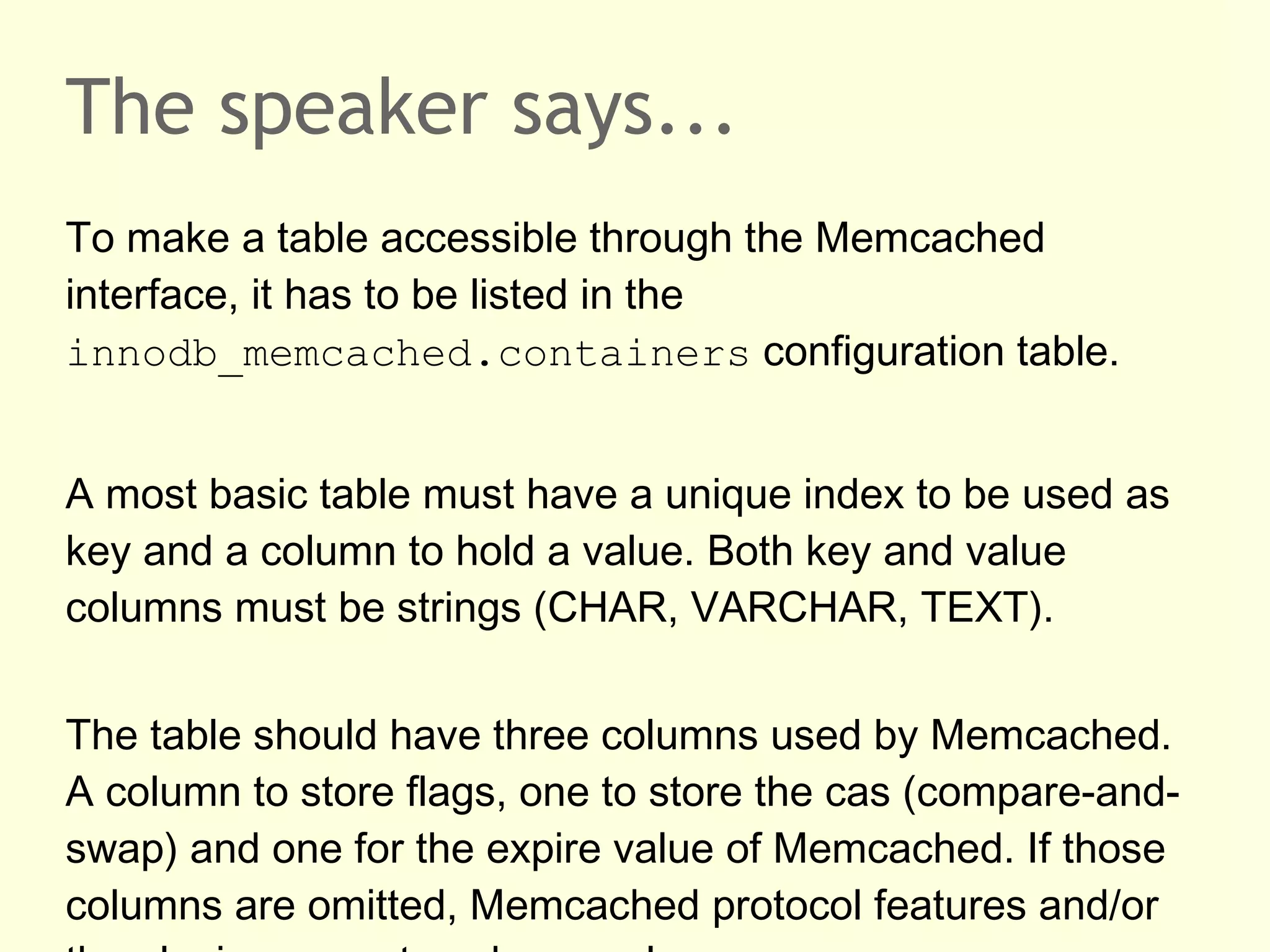

To make a table accessible through the Memcached
interface, it has to be listed in the
innodb_memcached.containers configuration table.


A most basic table must have a unique index to be used as
key and a column to hold a value. Both key and value
columns must be strings (CHAR, VARCHAR, TEXT).


The table should have three columns used by Memcached.
A column to store flags, one to store the cas (compare-and-
swap) and one for the expire value of Memcached. If those
columns are omitted, Memcached protocol features and/or

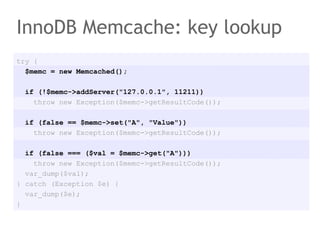

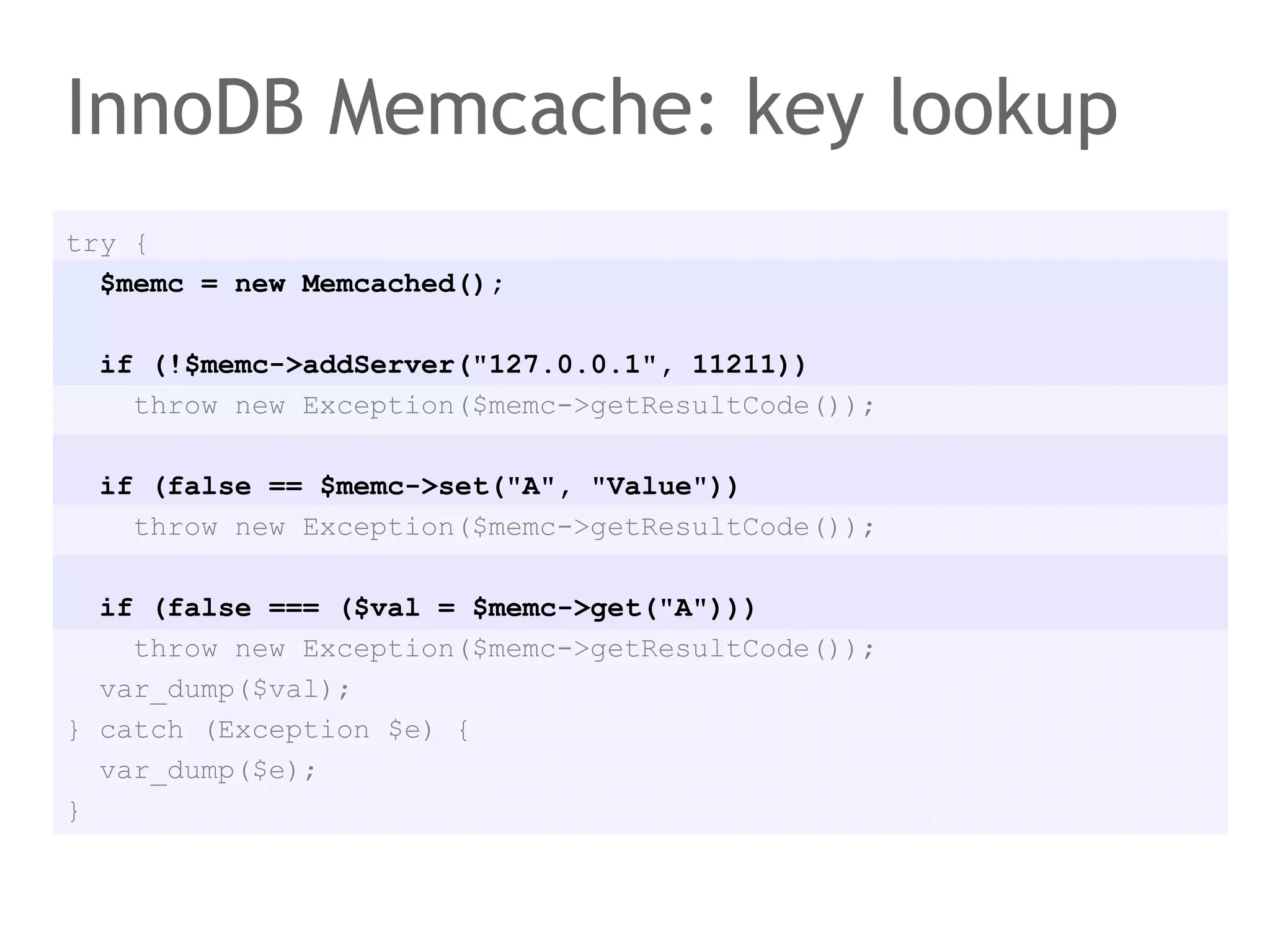

InnoDB Memcache: key lookup
try {
  $memc = new Memcached();

  if (!$memc->addServer("127.0.0.1", 11211))
    throw new Exception($memc->getResultCode());

  if (false == $memc->set("A", "Value"))
    throw new Exception($memc->getResultCode());

  if (false === ($val = $memc->get("A")))
    throw new Exception($memc->getResultCode());
  var_dump($val);
} catch (Exception $e) {
  var_dump($e);
}
The speaker says...

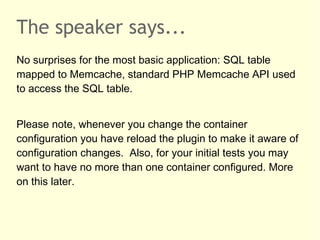

No surprises for the most basic application: SQL table
mapped to Memcache, standard PHP Memcache API used
to access the SQL table.


Please note, whenever you change the container
configuration you have reload the plugin to make it aware of
configuration changes. Also, for your initial tests you may
want to have no more than one container configured. More
on this later.

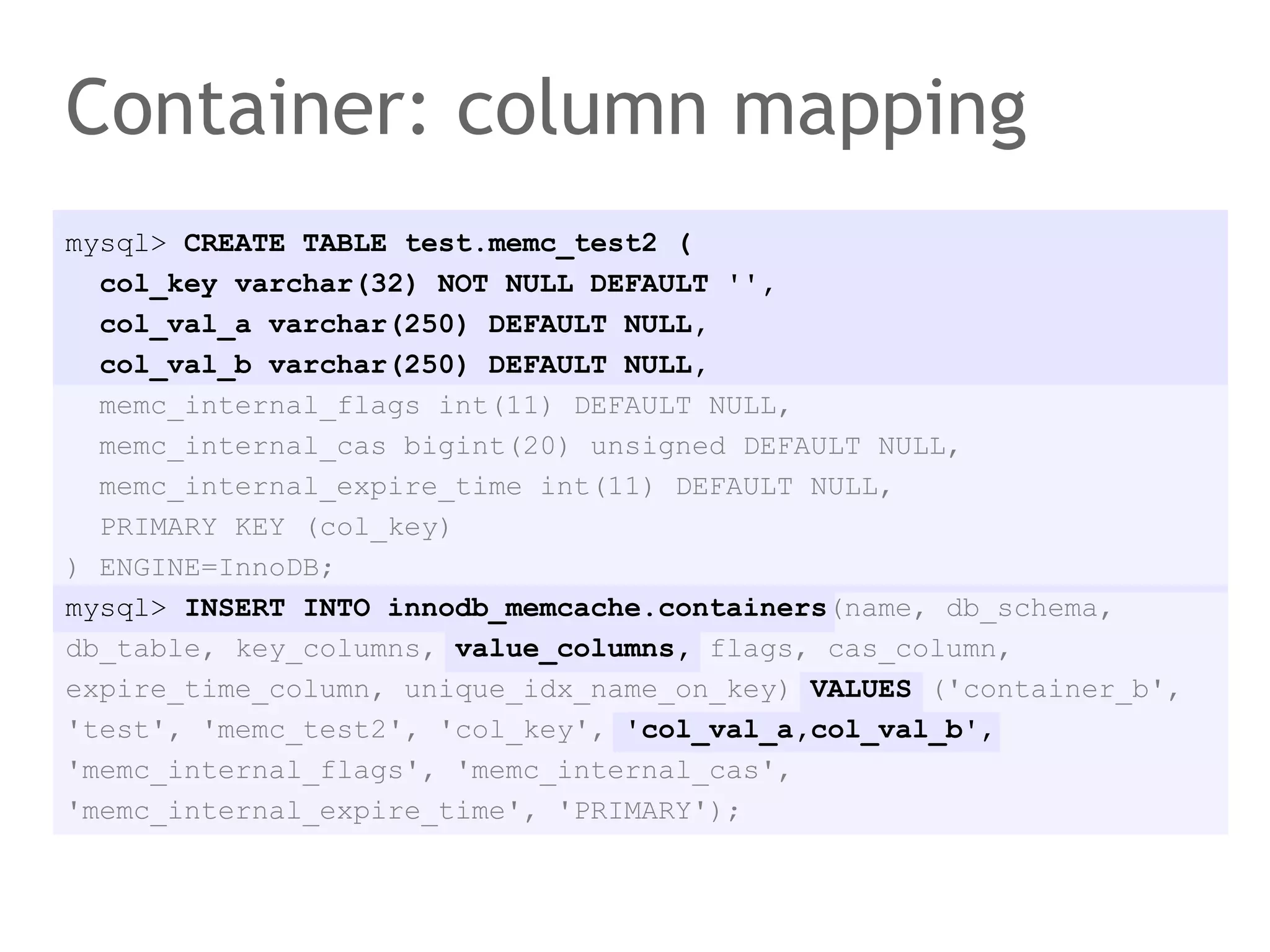

Container: column mapping
mysql> CREATE TABLE test.memc_test2 (
  col_key varchar(32) NOT NULL DEFAULT '',
  col_val_a varchar(250) DEFAULT NULL,
  col_val_b varchar(250) DEFAULT NULL,
  memc_internal_flags int(11) DEFAULT NULL,
  memc_internal_cas bigint(20) unsigned DEFAULT NULL,
  memc_internal_expire_time int(11) DEFAULT NULL,
  PRIMARY KEY (col_key)
) ENGINE=InnoDB;
mysql> INSERT INTO innodb_memcache.containers(name, db_schema,
db_table, key_columns, value_columns, flags, cas_column,
expire_time_column, unique_idx_name_on_key) VALUES ('container_b',
'test', 'memc_test2', 'col_key', 'col_val_a,col_val_b',
'memc_internal_flags', 'memc_internal_cas',
'memc_internal_expire_time', 'PRIMARY');
The speaker says...

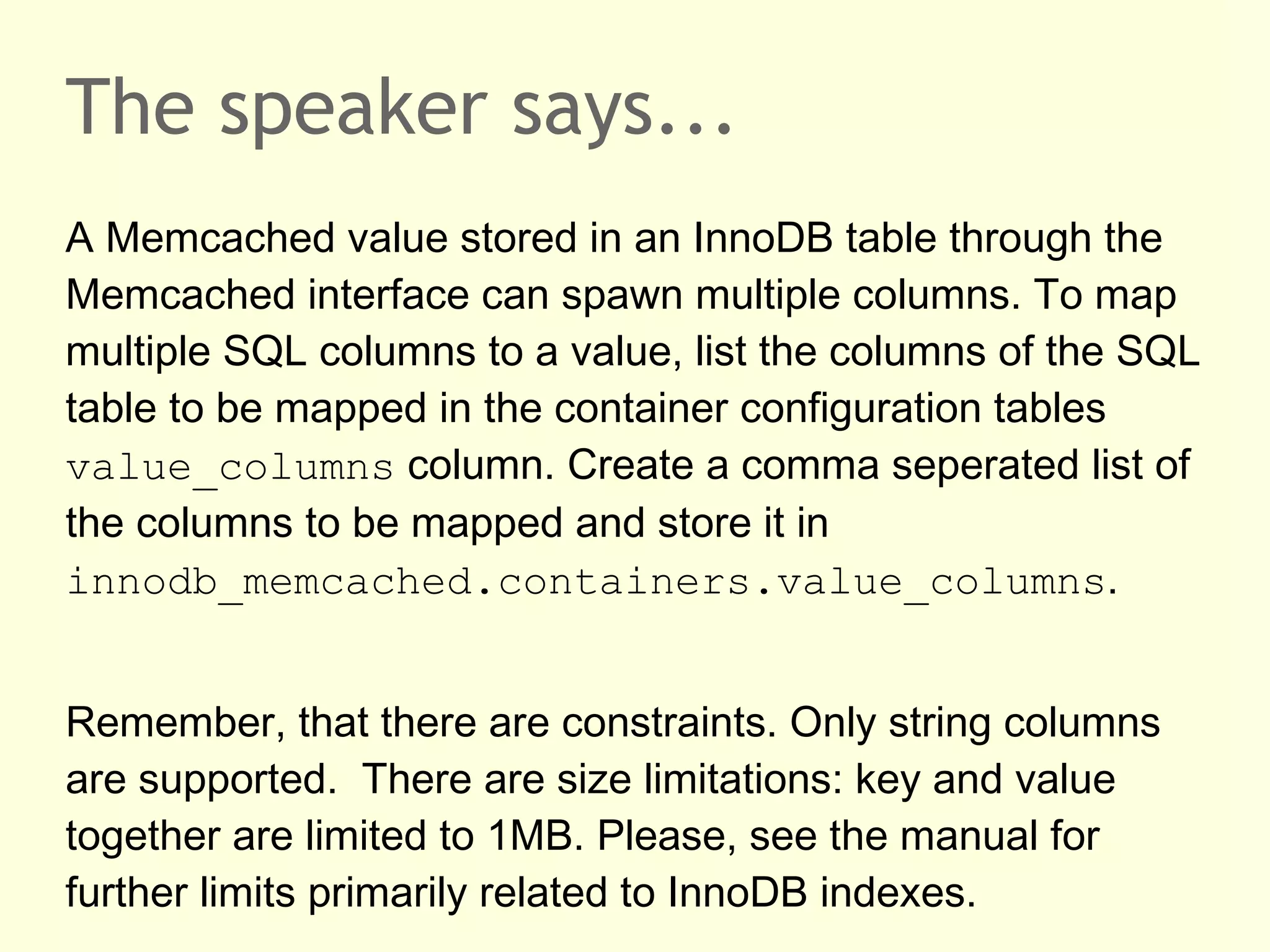

A Memcached value stored in an InnoDB table through the
Memcached interface can spawn multiple columns. To map
multiple SQL columns to a value, list the columns of the SQL
table to be mapped in the container configuration tables
value_columns column. Create a comma seperated list of
the columns to be mapped and store it in
innodb_memcached.containers.value_columns.


Remember, that there are constraints. Only string columns
are supported. There are size limitations: key and value
together are limited to 1MB. Please, see the manual for
further limits primarily related to InnoDB indexes.

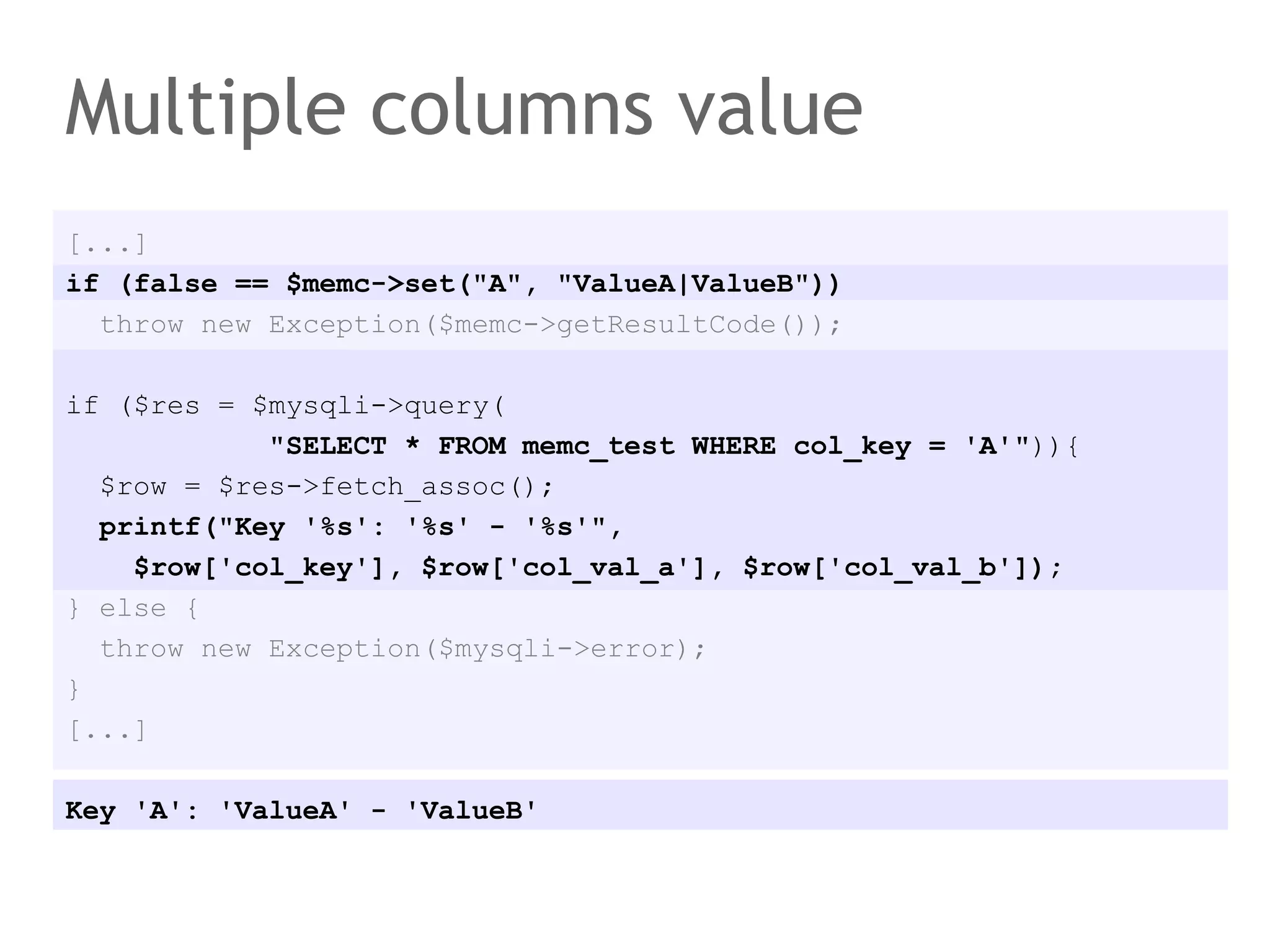

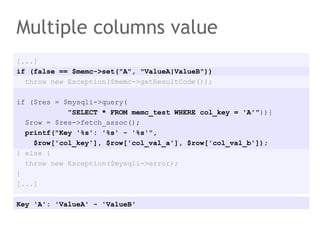

Multiple columns value
[...]
if (false == $memc->set("A", "ValueA|ValueB"))
  throw new Exception($memc->getResultCode());

if ($res = $mysqli->query(
            "SELECT * FROM memc_test WHERE col_key = 'A'")){
  $row = $res->fetch_assoc();
  printf("Key '%s': '%s' - '%s'",
    $row['col_key'], $row['col_val_a'], $row['col_val_b']);
} else {
  throw new Exception($mysqli->error);
}
[...]

Key 'A': 'ValueA' - 'ValueB'

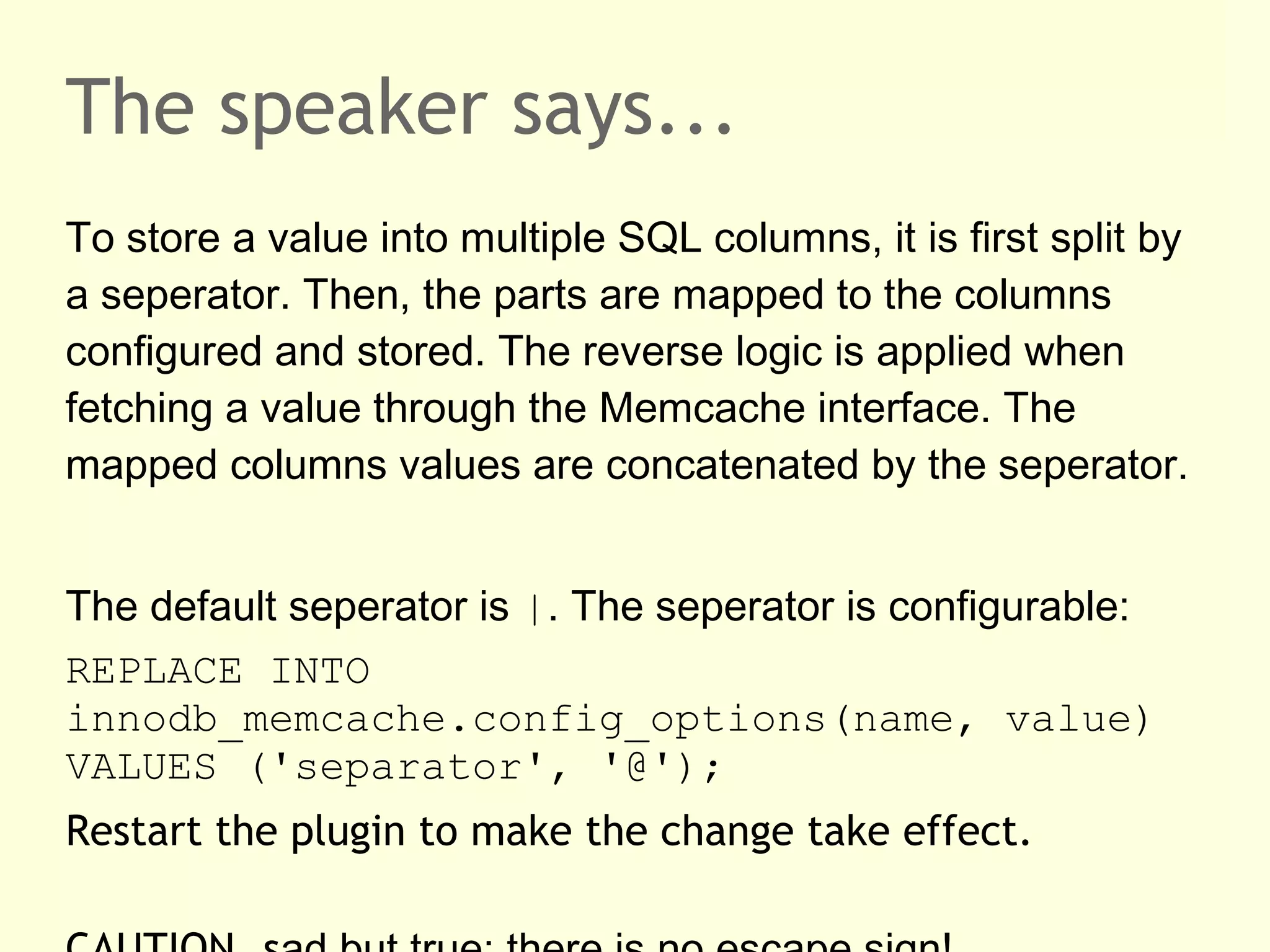

The speaker says...
To store a value into multiple SQL columns, it is first split by
a seperator. Then, the parts are mapped to the columns
configured and stored. The reverse logic is applied when
fetching a value through the Memcache interface. The
mapped columns values are concatenated by the seperator.


The default seperator is |. The seperator is configurable:
REPLACE INTO
innodb_memcache.config_options(name, value)
VALUES ('separator', '@');
Restart the plugin to make the change take effect.

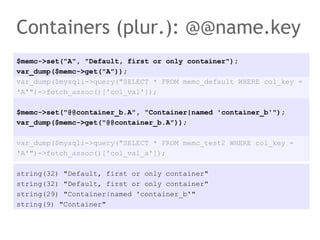

Containers (plur.): @@name.key
$memc->set("A", "Default, first or only container");
var_dump($memc->get("A"));
var_dump($mysqli->query("SELECT * FROM memc_default WHERE col_key =
'A'")->fetch_assoc()['col_val']);

$memc->set("@@container_b.A", "Container|named 'container_b'");
var_dump($memc->get("@@container_b.A"));

var_dump($mysqli->query("SELECT * FROM memc_test2 WHERE col_key =
'A'")->fetch_assoc()['col_val_a']);

string(32) "Default, first or only container"
string(32) "Default, first or only container"
string(29) "Container|named 'container_b'"
string(9) "Container"

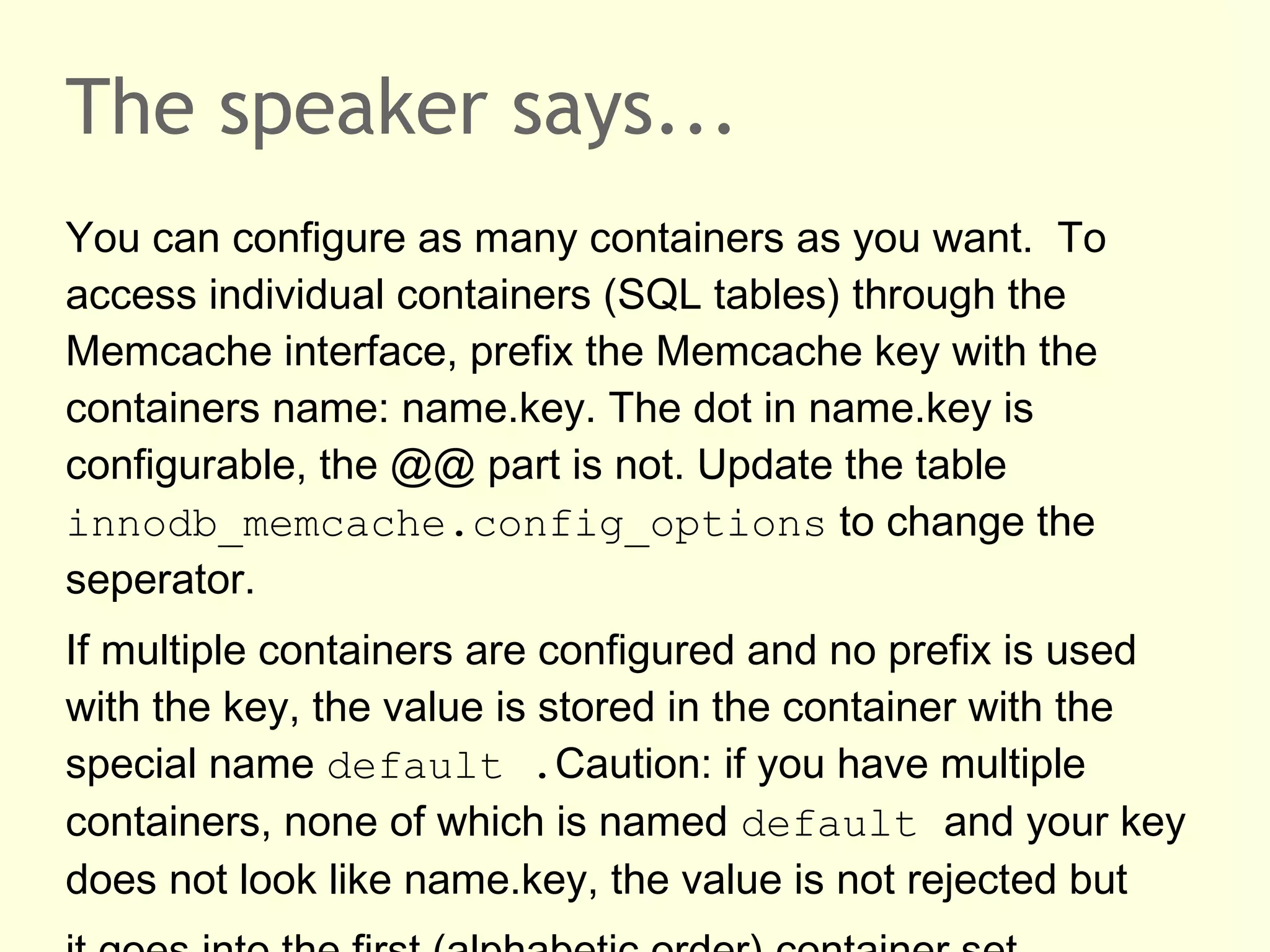

The speaker says...
You can configure as many containers as you want. To
access individual containers (SQL tables) through the
Memcache interface, prefix the Memcache key with the
containers name: name.key. The dot in name.key is
configurable, the @@ part is not. Update the table
innodb_memcache.config_options to change the
seperator.
If multiple containers are configured and no prefix is used
with the key, the value is stored in the container with the
special name default .Caution: if you have multiple
containers, none of which is named default and your key
does not look like name.key, the value is not rejected but
… natural and fresh from the country!
                BTW, if you can read this, you don't need glasses!




Fourth act: subversive activities, or valuable team member?

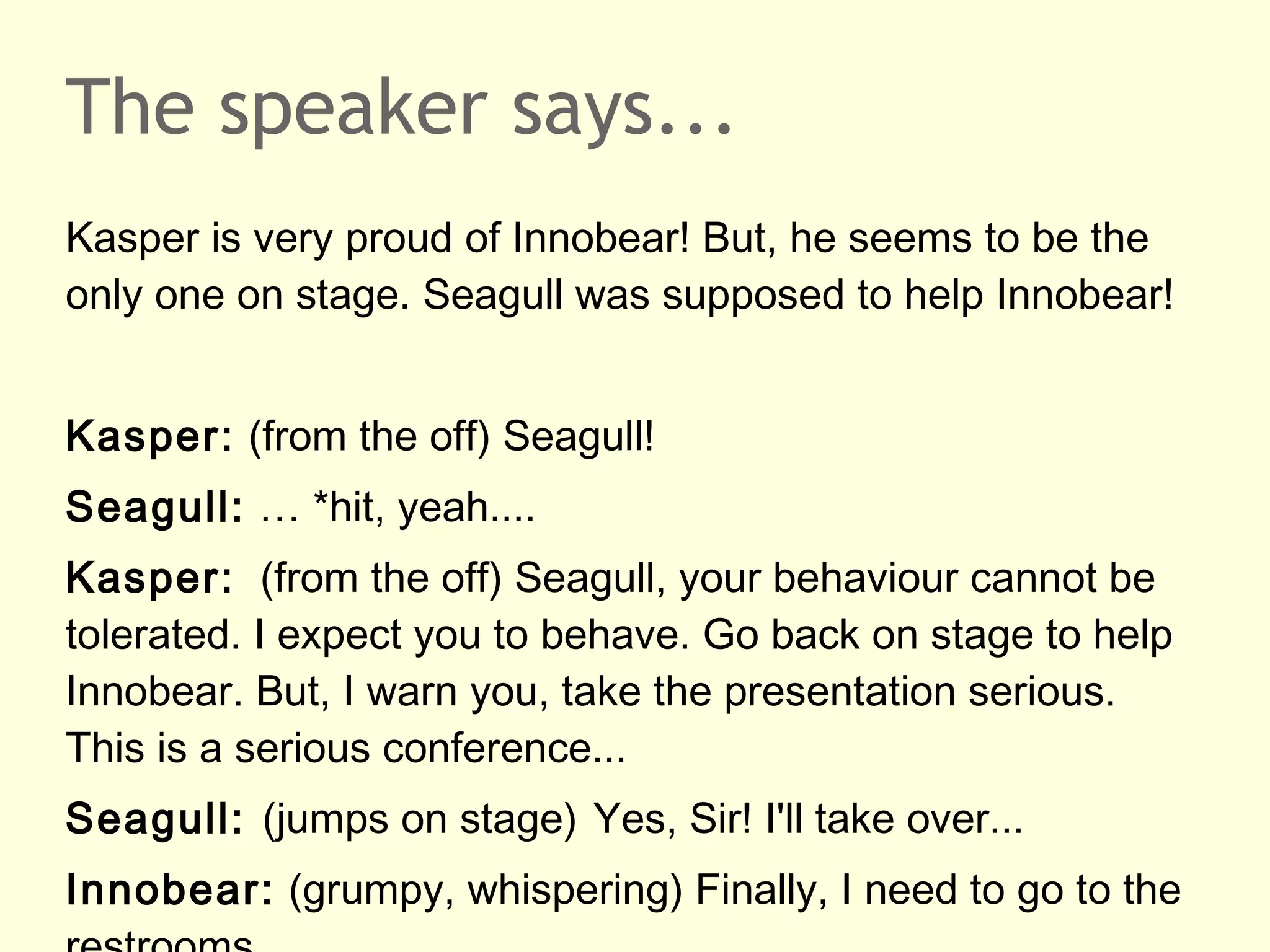

The speaker says...

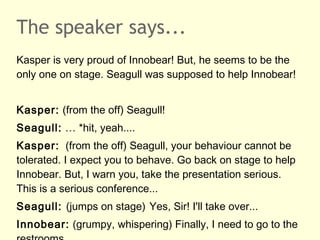

Kasper is very proud of Innobear! But, he seems to be the
only one on stage. Seagull was supposed to help Innobear!


Kasper: (from the off) Seagull!
Seagull: … *hit, yeah....
Kasper: (from the off) Seagull, your behaviour cannot be
tolerated. I expect you to behave. Go back on stage to help
Innobear. But, I warn you, take the presentation serious.
This is a serious conference...
Seagull: (jumps on stage) Yes, Sir! I'll take over...
Innobear: (grumpy, whispering) Finally, I need to go to the
GET @@name = USE name
$memc->set("@@container_b.A", "Container|named 'container_b'");
var_dump($memc->get("@@container_b"));
var_dump($memc->get("A"));
var_dump($memc->delete("A"));
var_dump($memc->get("A"));
var_dump($memc->get("@@default"));
$memc->set("A", "Will it go into default?");
var_dump($memc->get("A"));

string(17) "test/memc_default"
string(29) "Container|named 'container_b'"
bool(true)
bool(false)
string(17) "test/memc_default"
string(24) "Will it go into default?"

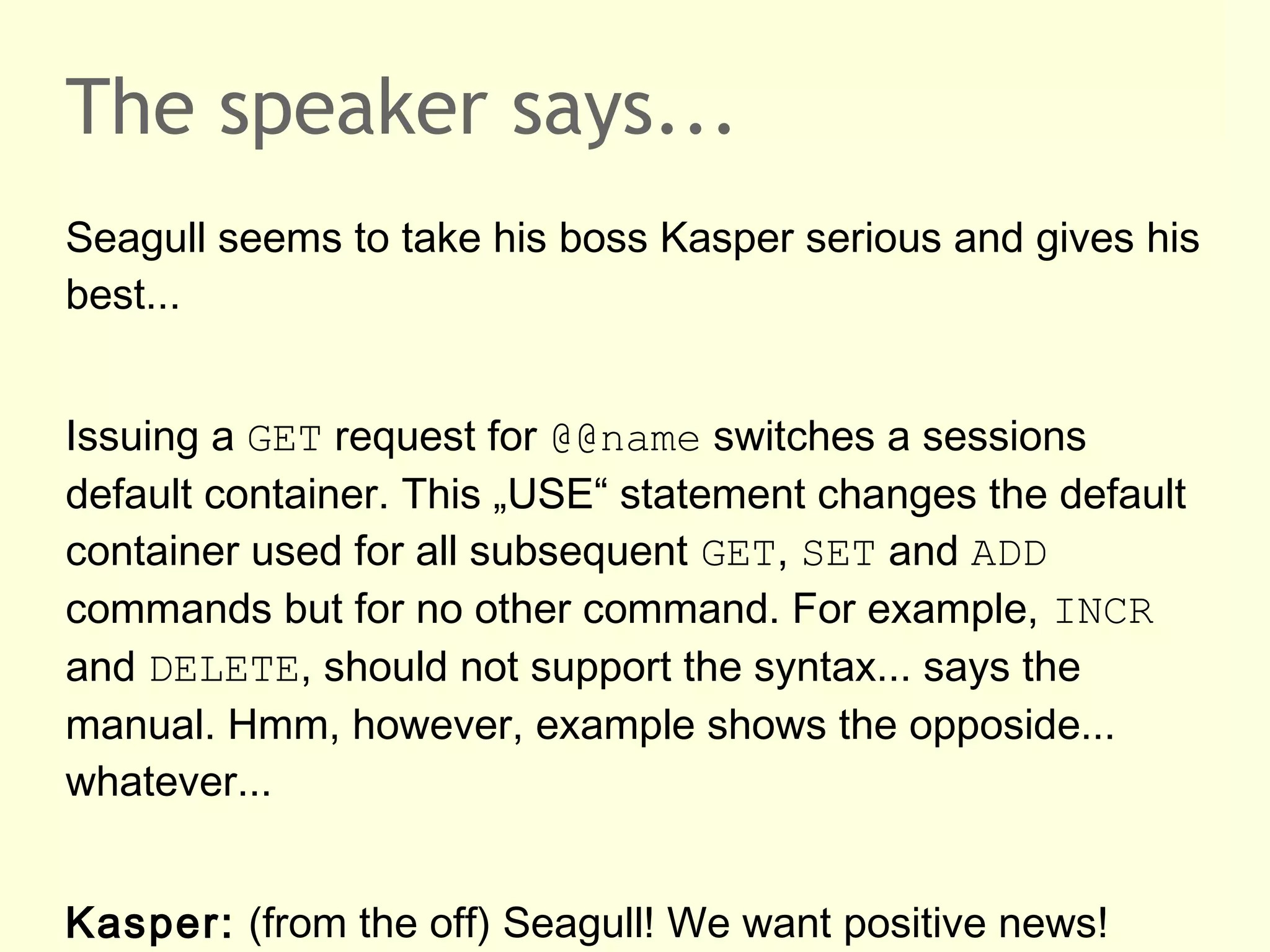

The speaker says...
Seagull seems to take his boss Kasper serious and gives his
best...


Issuing a GET request for @@name switches a sessions
default container. This „USE“ statement changes the default
container used for all subsequent GET, SET and ADD
commands but for no other command. For example, INCR
and DELETE, should not support the syntax... says the
manual. Hmm, however, example shows the opposide...
whatever...


Kasper: (from the off) Seagull! We want positive news!

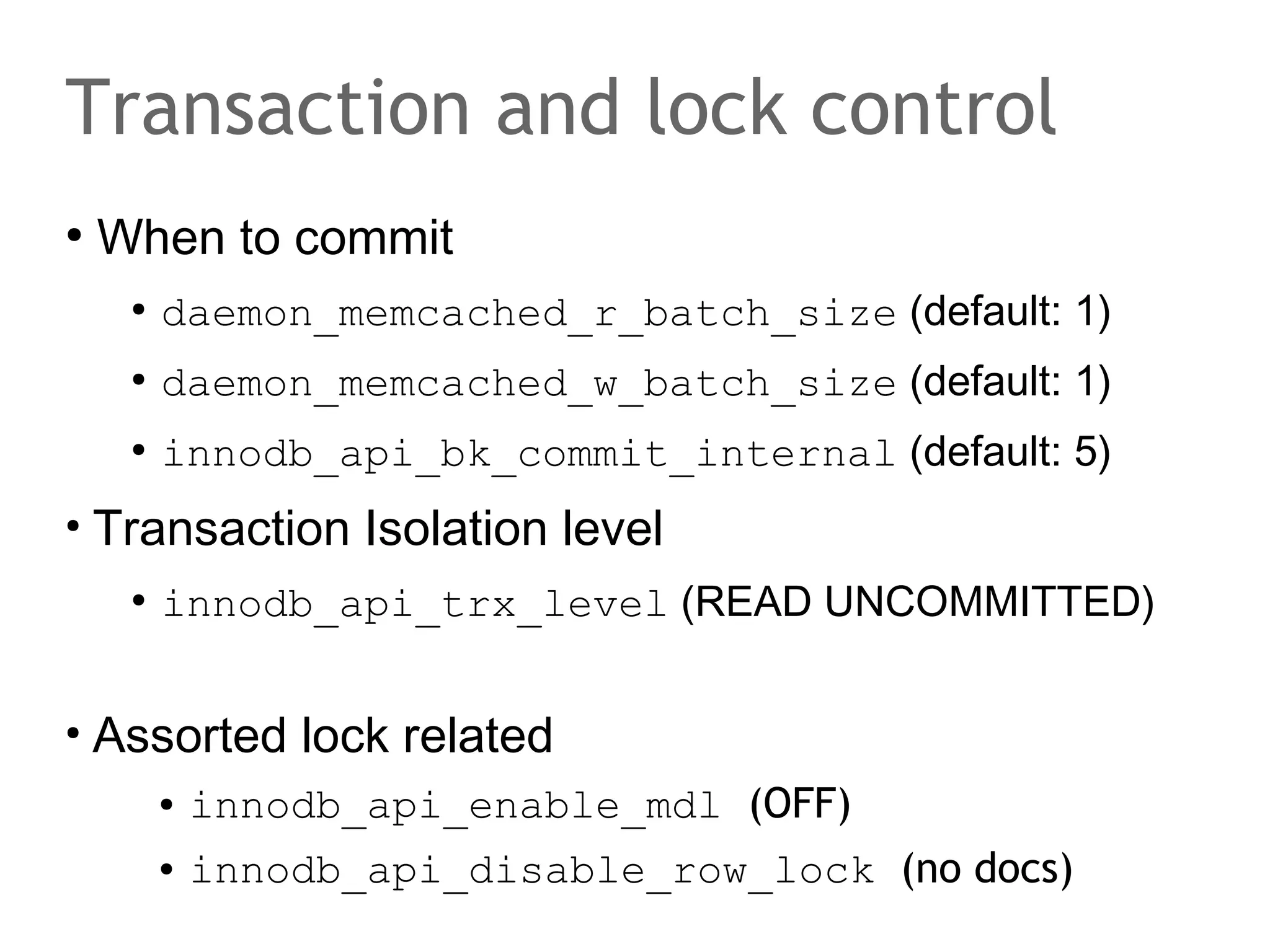

Transaction and lock control
●
    When to commit
     ●
         daemon_memcached_r_batch_size (default: 1)
     ●
         daemon_memcached_w_batch_size (default: 1)
     ●
         innodb_api_bk_commit_internal (default: 5)
●
    Transaction Isolation level
     ●
         innodb_api_trx_level (READ UNCOMMITTED)

●
    Assorted lock related
         ●   innodb_api_enable_mdl (OFF)
         ●   innodb_api_disable_row_lock (no docs)

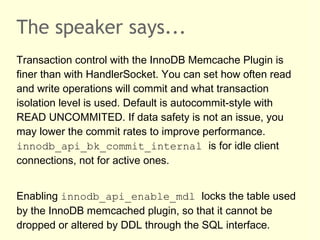

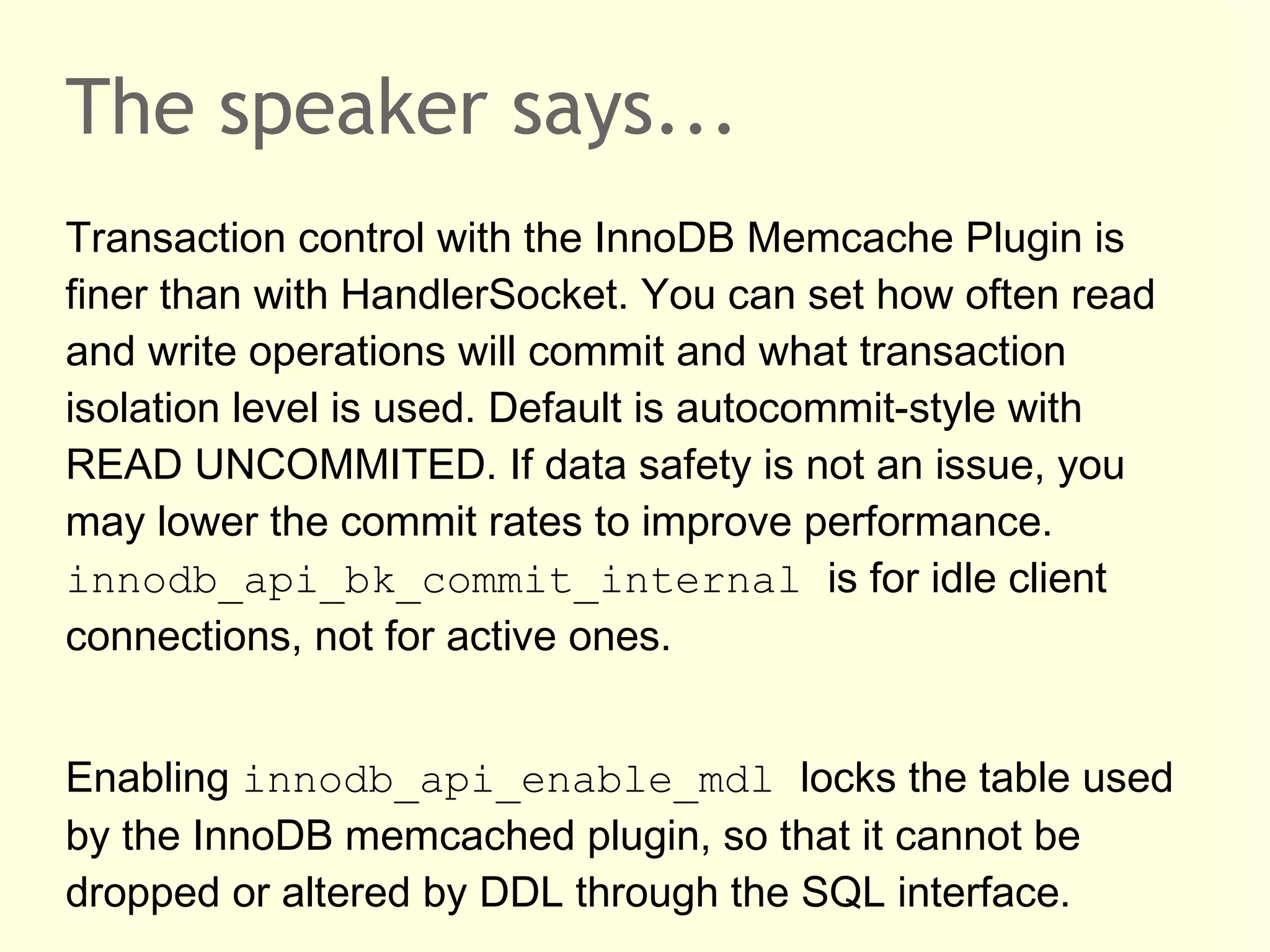

The speaker says...
Transaction control with the InnoDB Memcache Plugin is
finer than with HandlerSocket. You can set how often read
and write operations will commit and what transaction
isolation level is used. Default is autocommit-style with
READ UNCOMMITED. If data safety is not an issue, you
may lower the commit rates to improve performance.
innodb_api_bk_commit_internal is for idle client
connections, not for active ones.


Enabling innodb_api_enable_mdl locks the table used
by the InnoDB memcached plugin, so that it cannot be
dropped or altered by DDL through the SQL interface.

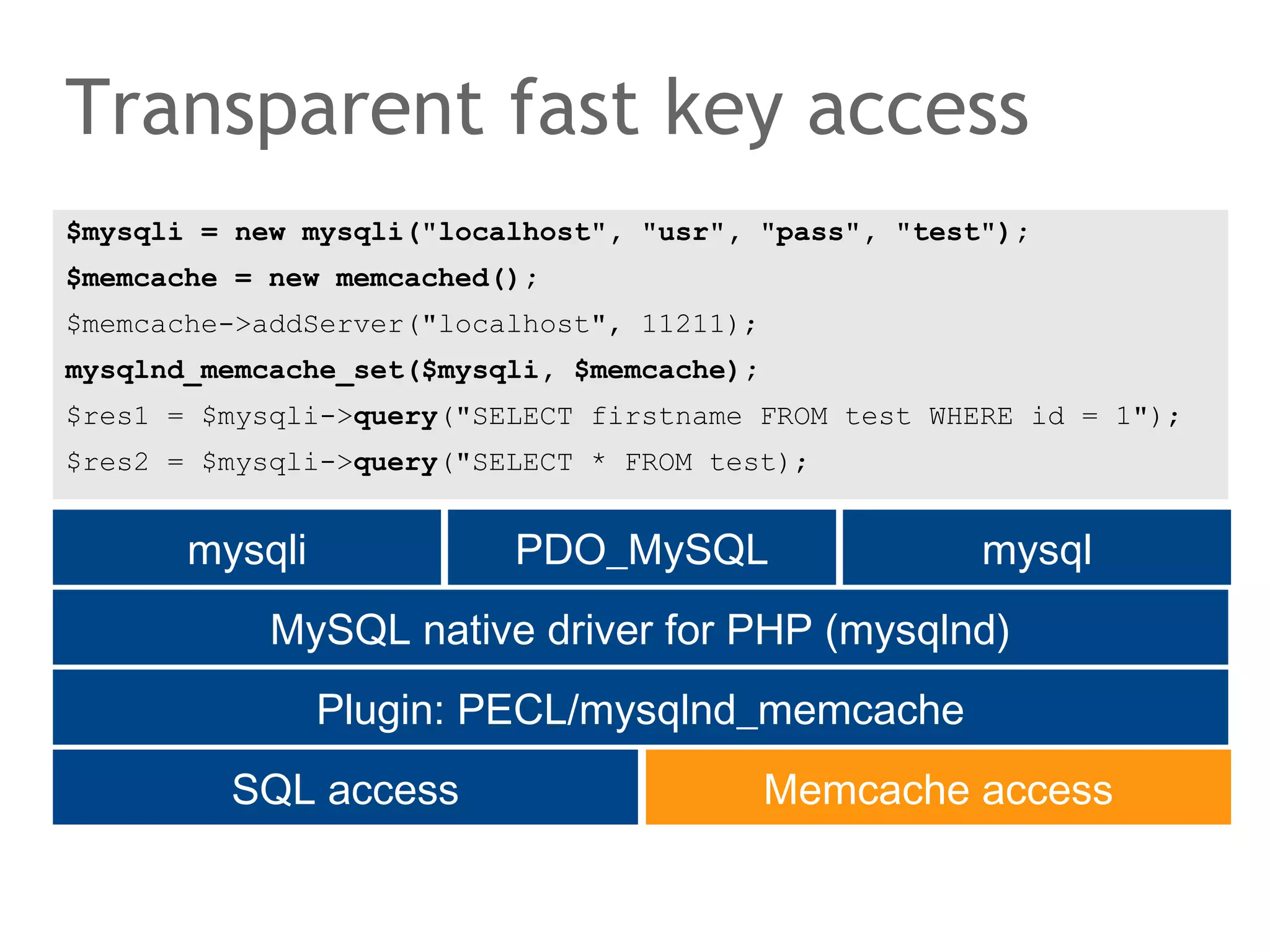

Transparent fast key access
$mysqli = new mysqli("localhost", "usr", "pass", "test");
$memcache = new memcached();
$memcache->addServer("localhost", 11211);
mysqlnd_memcache_set($mysqli, $memcache);
$res1 = $mysqli->query("SELECT firstname FROM test WHERE id = 1");
$res2 = $mysqli->query("SELECT * FROM test);


       mysqli             PDO_MySQL                   mysql
            MySQL native driver for PHP (mysqlnd)
                Plugin: PECL/mysqlnd_memcache
         SQL access                         Memcache access

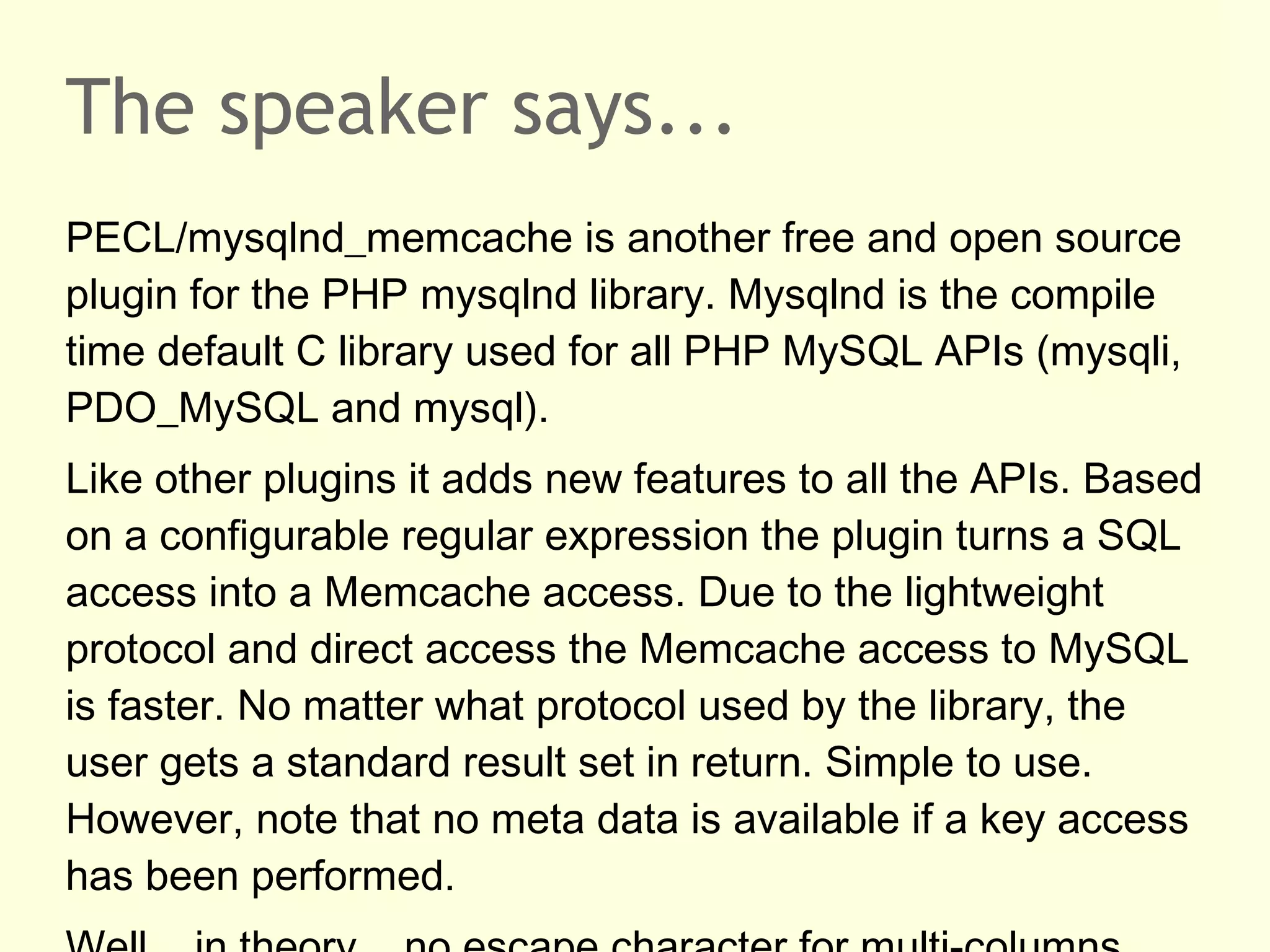

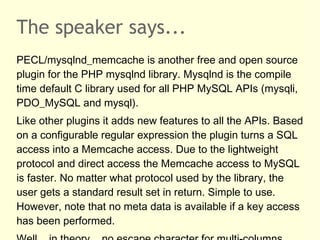

The speaker says...
PECL/mysqlnd_memcache is another free and open source
plugin for the PHP mysqlnd library. Mysqlnd is the compile
time default C library used for all PHP MySQL APIs (mysqli,
PDO_MySQL and mysql).
Like other plugins it adds new features to all the APIs. Based
on a configurable regular expression the plugin turns a SQL
access into a Memcache access. Due to the lightweight
protocol and direct access the Memcache access to MySQL
is faster. No matter what protocol used by the library, the
user gets a standard result set in return. Simple to use.
However, note that no meta data is available if a key access
has been performed.

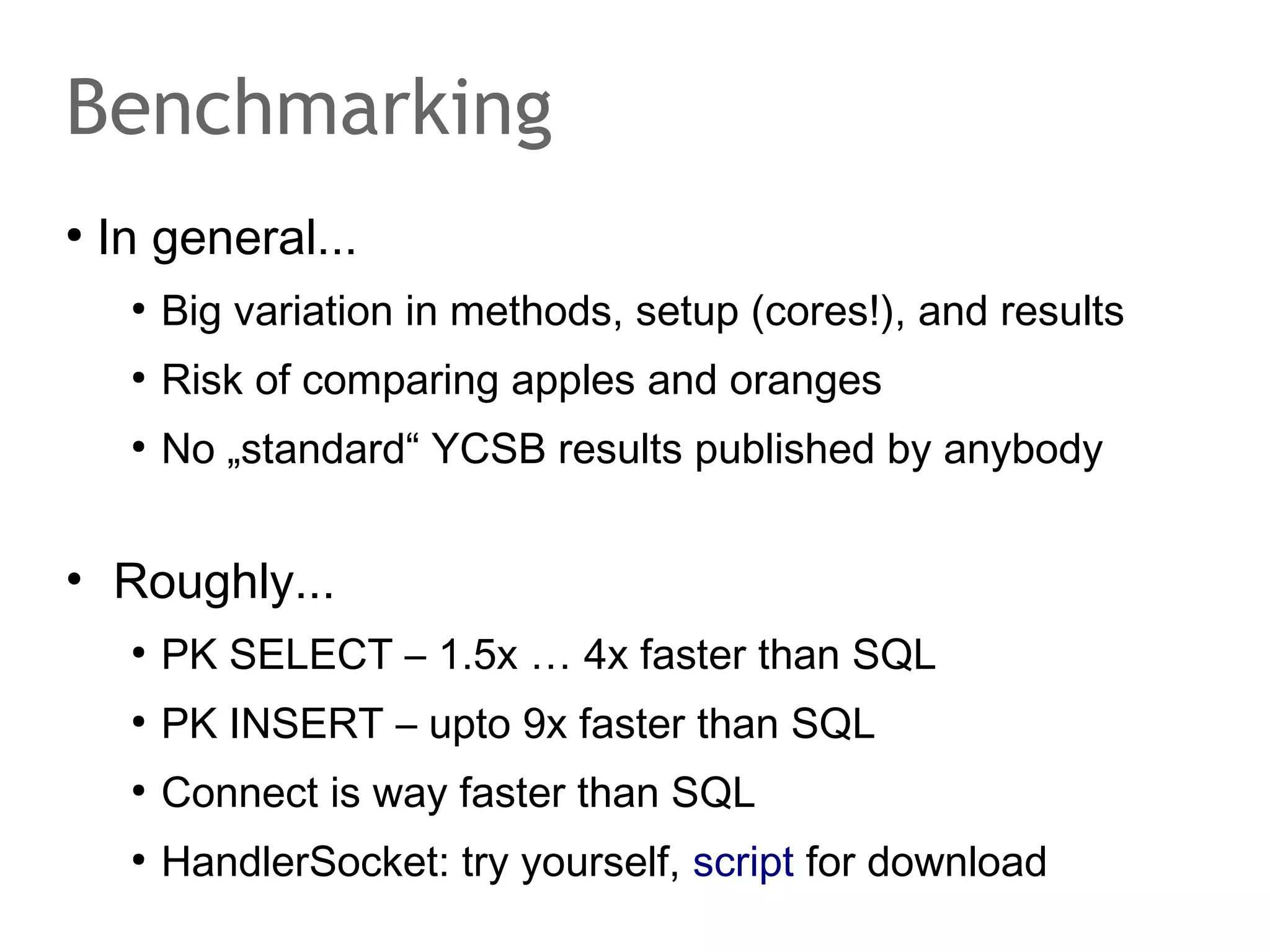

Benchmarking
●
    In general...
     ●
         Big variation in methods, setup (cores!), and results
     ●
         Risk of comparing apples and oranges
     ●
         No „standard“ YCSB results published by anybody


• Roughly...
     ●
         PK SELECT – 1.5x … 4x faster than SQL
     ●
         PK INSERT – upto 9x faster than SQL
     ●
         Connect is way faster than SQL
     ●
         HandlerSocket: try yourself, script for download

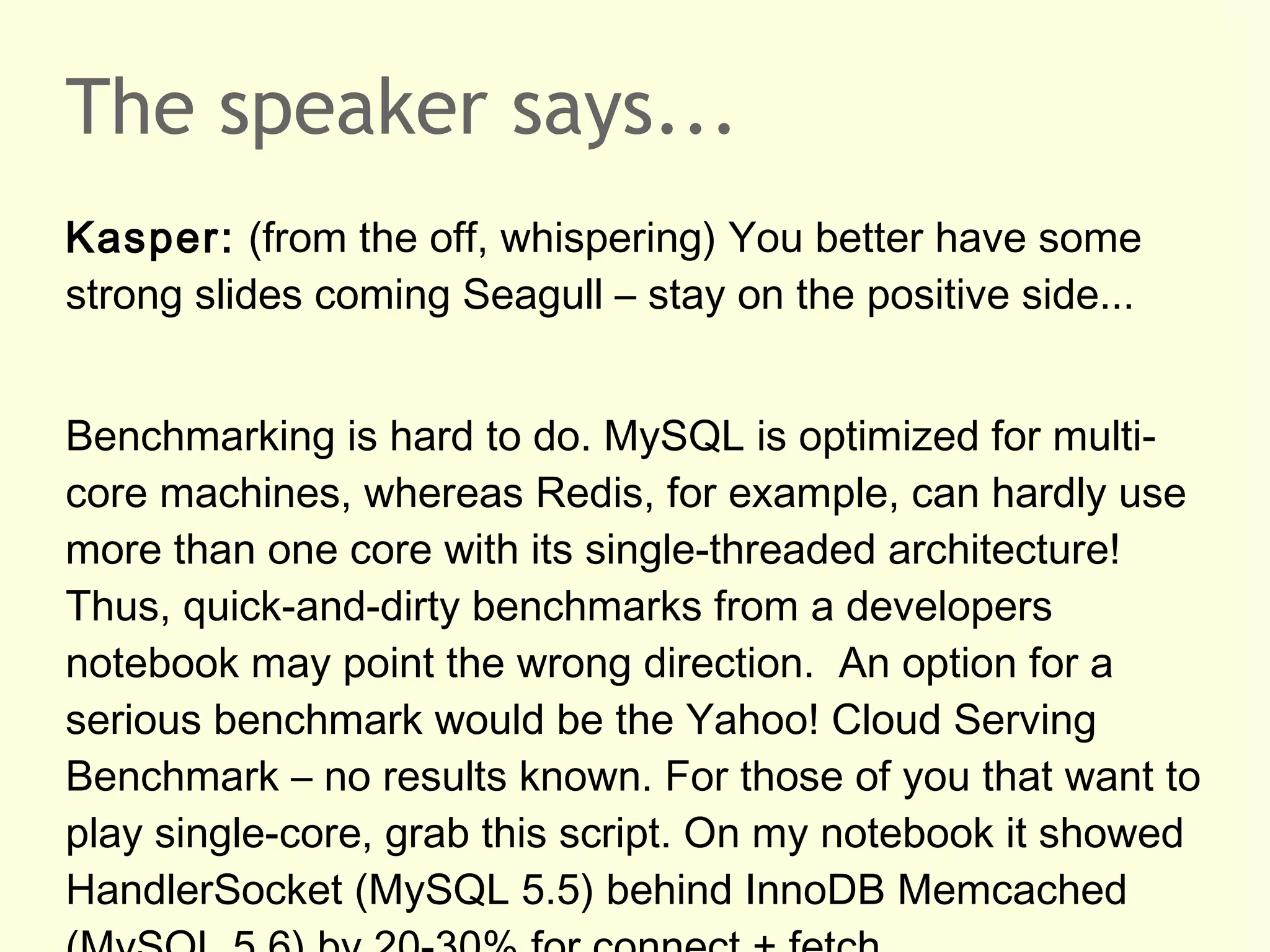

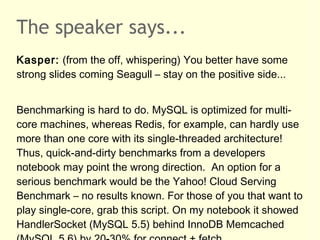

The speaker says...
Kasper: (from the off, whispering) You better have some
strong slides coming Seagull – stay on the positive side...


Benchmarking is hard to do. MySQL is optimized for multi-
core machines, whereas Redis, for example, can hardly use
more than one core with its single-threaded architecture!
Thus, quick-and-dirty benchmarks from a developers
notebook may point the wrong direction. An option for a
serious benchmark would be the Yahoo! Cloud Serving
Benchmark – no results known. For those of you that want to
play single-core, grab this script. On my notebook it showed
HandlerSocket (MySQL 5.5) behind InnoDB Memcached

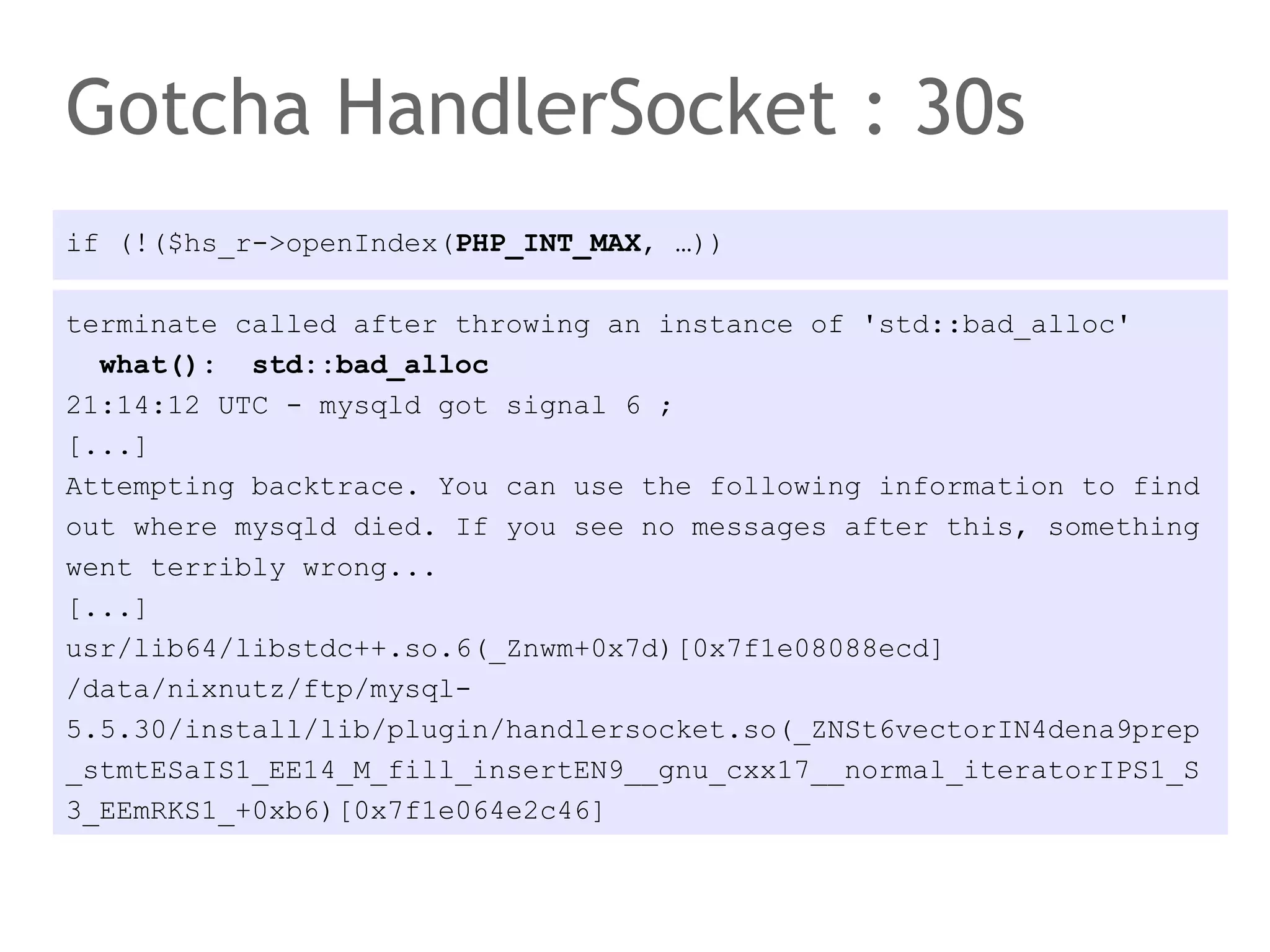

Gotcha HandlerSocket : 30s
if (!($hs_r->openIndex(PHP_INT_MAX, …))

terminate called after throwing an instance of 'std::bad_alloc'
  what(): std::bad_alloc
21:14:12 UTC - mysqld got signal 6 ;
[...]
Attempting backtrace. You can use the following information to find
out where mysqld died. If you see no messages after this, something
went terribly wrong...
[...]
usr/lib64/libstdc++.so.6(_Znwm+0x7d)[0x7f1e08088ecd]
/data/nixnutz/ftp/mysql-
5.5.30/install/lib/plugin/handlersocket.so(_ZNSt6vectorIN4dena9prep
_stmtESaIS1_EE14_M_fill_insertEN9__gnu_cxx17__normal_iteratorIPS1_S
3_EEmRKS1_+0xb6)[0x7f1e064e2c46]

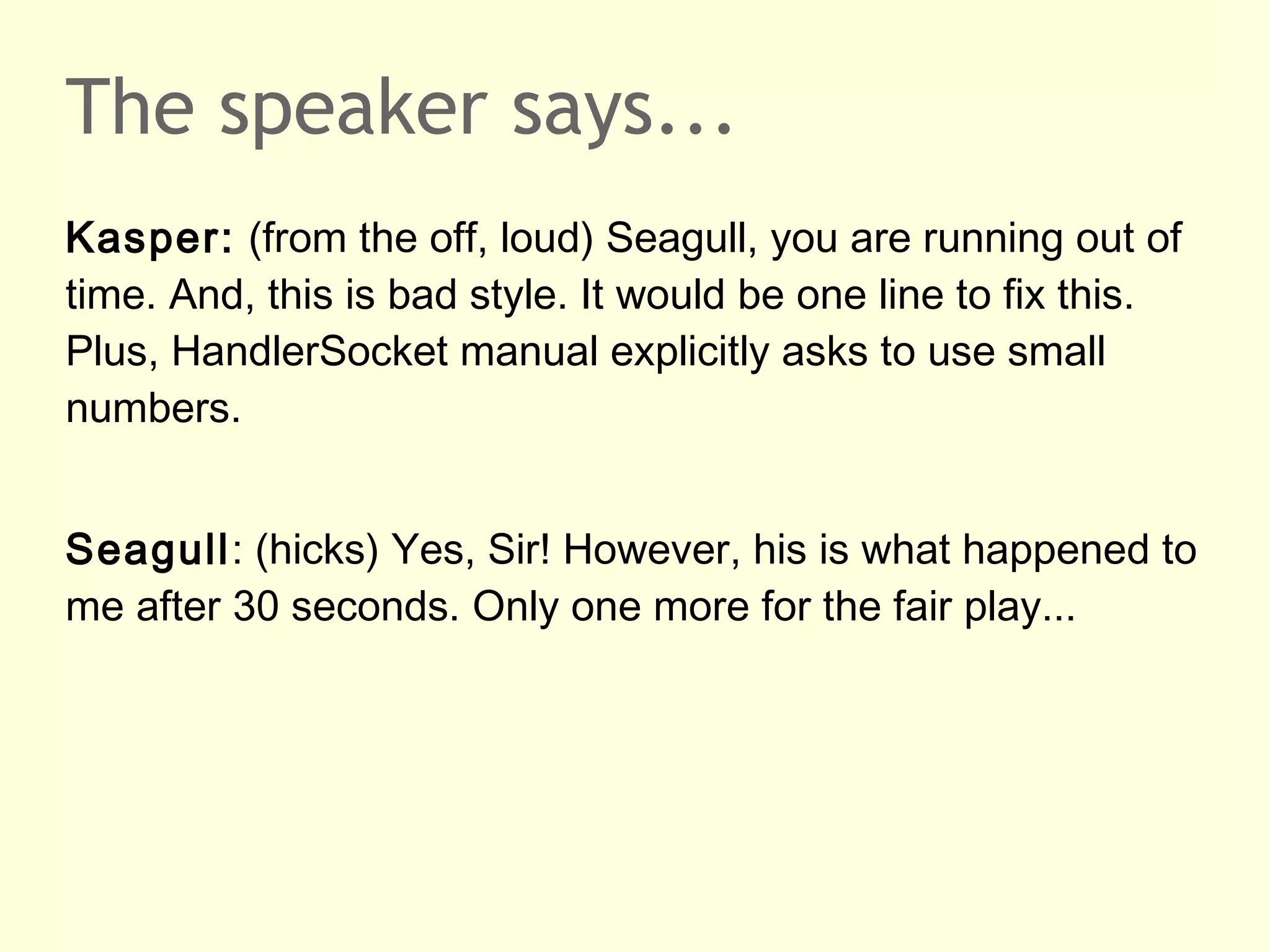

The speaker says...

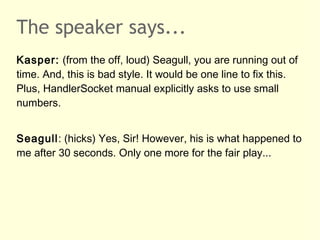

Kasper: (from the off, loud) Seagull, you are running out of
time. And, this is bad style. It would be one line to fix this.
Plus, HandlerSocket manual explicitly asks to use small
numbers.


Seagull: (hicks) Yes, Sir! However, his is what happened to
me after 30 seconds. Only one more for the fair play...
Gotcha Memcached: 3000s?
uninstall plugin daemon_memcached; install plugin daemon_memcached
soname 'libmemcached.so';
Query OK, 0 rows affected (50,04 sec)

ERROR 2013 (HY000): Lost connection to MySQL server during query

[...]
2013-03-17 19:29:28 38575 [Note] Shutting down plugin
'daemon_memcached'
 InnoDB_Memcached: column 6 in the entry for config table
'containers' in database 'innodb_memcache' has an invalid NULL
value
Failed to initialize instance. Error code: 13
2013-03-17 19:29:37 38575 [Note] Shutting down plugin
'daemon_memcached'

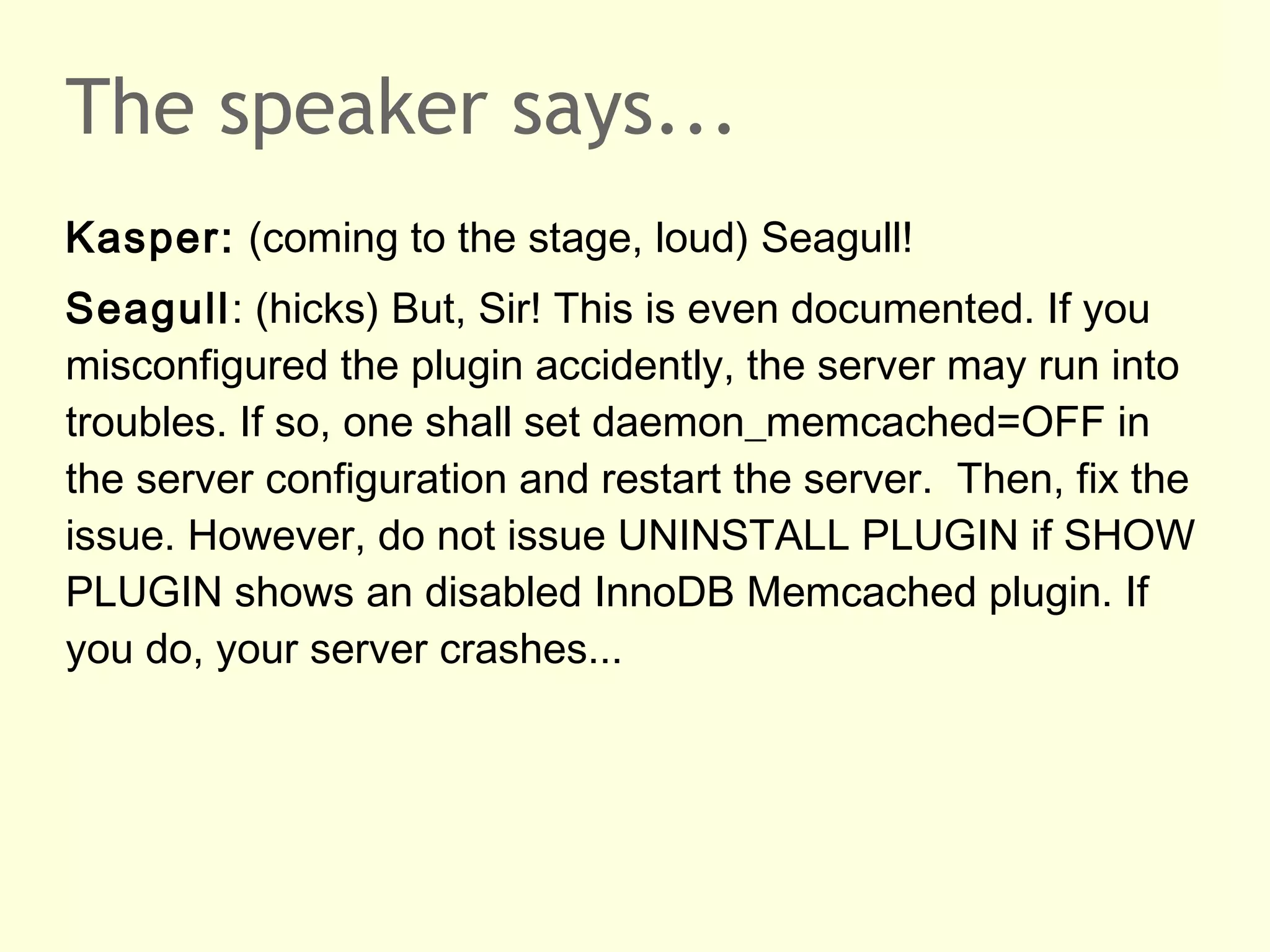

The speaker says...
Kasper: (coming to the stage, loud) Seagull!
Seagull: (hicks) But, Sir! This is even documented. If you
misconfigured the plugin accidently, the server may run into
troubles. If so, one shall set daemon_memcached=OFF in
the server configuration and restart the server. Then, fix the
issue. However, do not issue UNINSTALL PLUGIN if SHOW
PLUGIN shows an disabled InnoDB Memcached plugin. If
you do, your server crashes...
Fifth act: Grand finale with Innobear

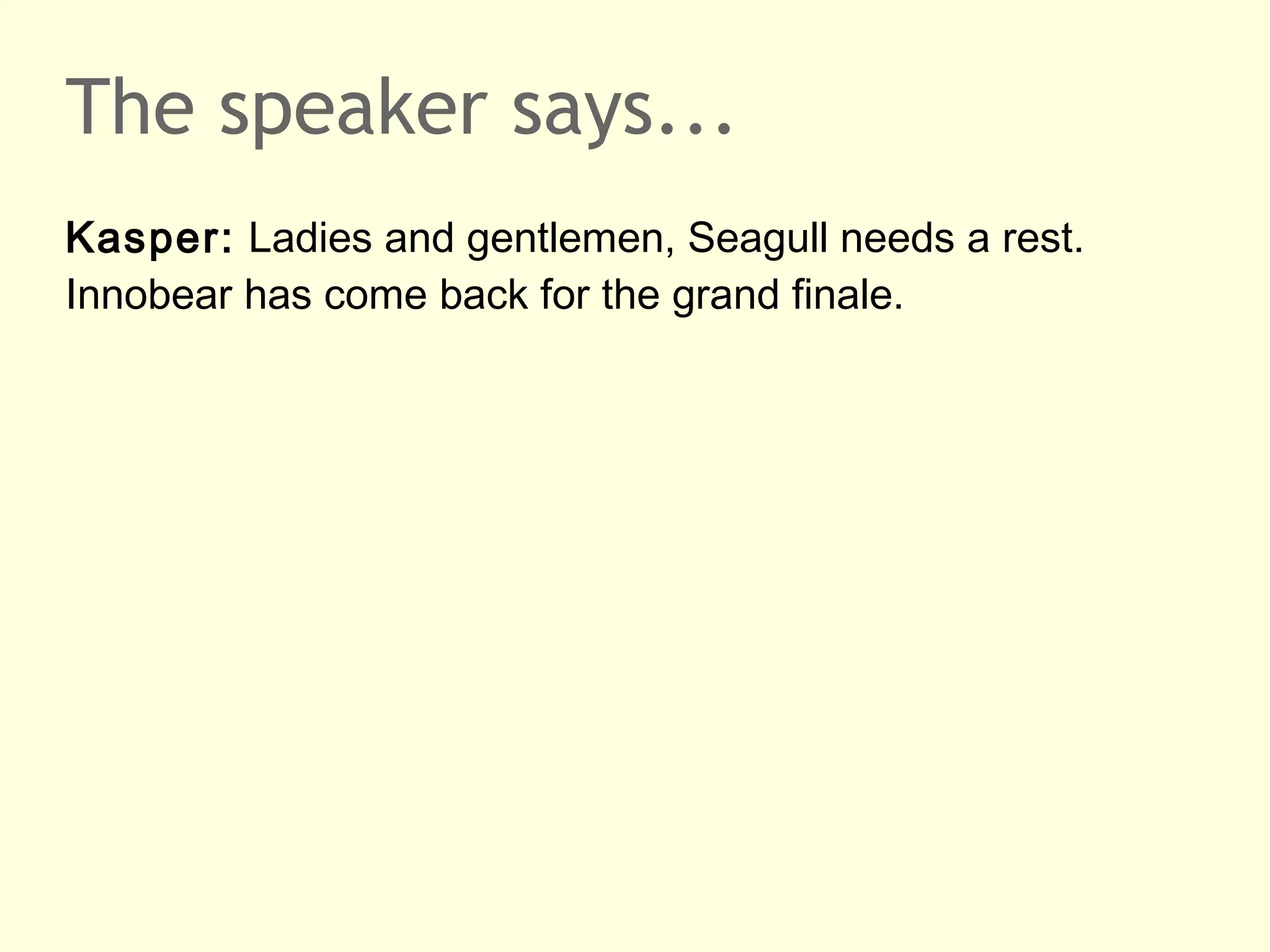

The speaker says...
Kasper: Ladies and gentlemen, Seagull needs a rest.
Innobear has come back for the grand finale.

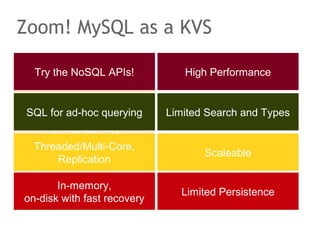

Zoom! MySQL as a KVS

  Try the NoSQL APIs!                  High Performance


      1234 - I am super FAST
 SQL for ad-hoc querying
      4567 - LIGTHNING fast         Limited Search and Types
        7890 - [1][2][3][4][5]
     abcd - [1[a,b,c]],[2[d,e,f]]
     _de_- 1,281,2828,2,173,8

  Threaded/Multi-Core,
    Key Value Store                        Scaleable
      Replication

       In-memory,
                                      Limited Persistence
on-disk with fast recovery

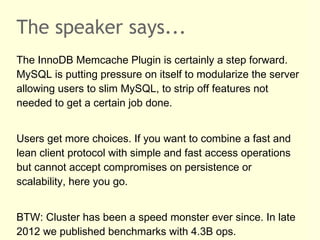

The speaker says...
The InnoDB Memcache Plugin is certainly a step forward.
MySQL is putting pressure on itself to modularize the server
allowing users to slim MySQL, to strip off features not
needed to get a certain job done.


Users get more choices. If you want to combine a fast and
lean client protocol with simple and fast access operations
but cannot accept compromises on persistence or
scalability, here you go.


BTW: Cluster has been a speed monster ever since. In late
2012 we published benchmarks with 4.3B ops.
Supercharge
    your web apps
      with MySQL



Really rich queries!
                             d
                       or car
              co llect
      akila
Free S


                   *** Exclusive tipps: natural beauty at any age ***

   Happy End: Sakila, Sakila and Sakila in ITs' yellow press!

      *** True: NoSQL weekly recommends MySQL whitepaper ***
THE END



Contact: ulf.wendel@oracle.com
The speaker says...

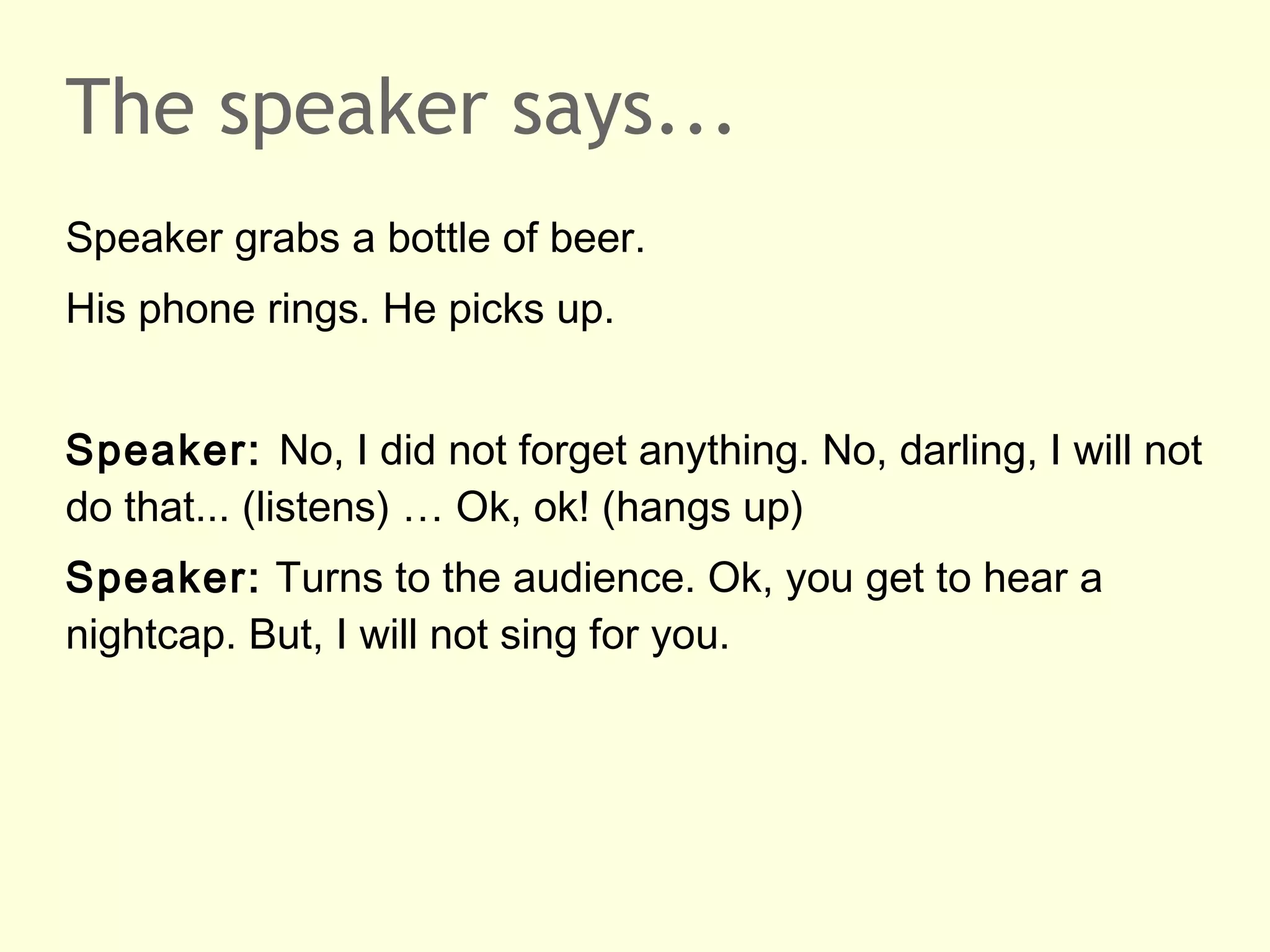

Speaker grabs a bottle of beer.
His phone rings. He picks up.


Speaker: No, I did not forget anything. No, darling, I will not
do that... (listens) … Ok, ok! (hangs up)
Speaker: Turns to the audience. Ok, you get to hear a
nightcap. But, I will not sing for you.
Helan går
Sjung hopp faderallan lallan lej
Helan går
Sjung hopp faderallan lej
Och den som inte helan tar
Han heller inte halvan får
Helan går
(Drink)
Sjung hopp faderallan lej
                     (Music plays, singer: Kaj Arnö)
The whole goes
Sing "hup fol-de-rol la la la la"
The whole goes
Sing "hup fol-de-rol la la"
And the one who doesn't take the whole
Doesn't get the half either
The whole goes - (Drink)
Sing "hup fol-de-rol la la"


                                  Nightcap: Helan Går

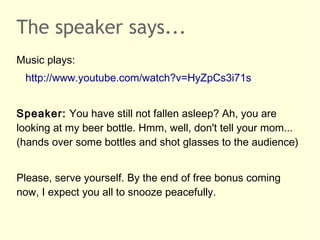

The speaker says...

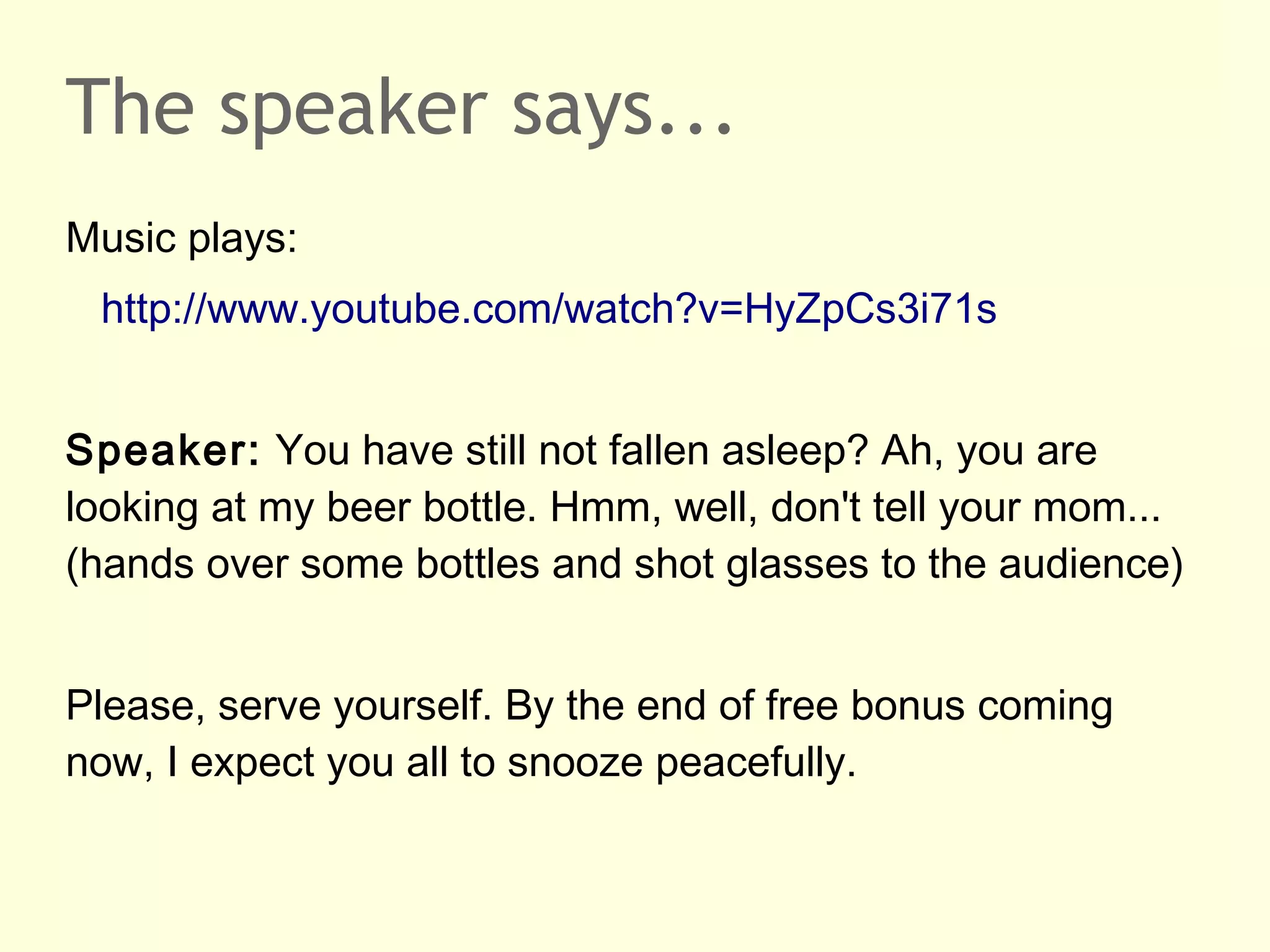

Music plays:
 http://www.youtube.com/watch?v=HyZpCs3i71s


Speaker: You have still not fallen asleep? Ah, you are
looking at my beer bottle. Hmm, well, don't tell your mom...
(hands over some bottles and shot glasses to the audience)


Please, serve yourself. By the end of free bonus coming
now, I expect you all to snooze peacefully.
Free bonus: beyond the fairy tale

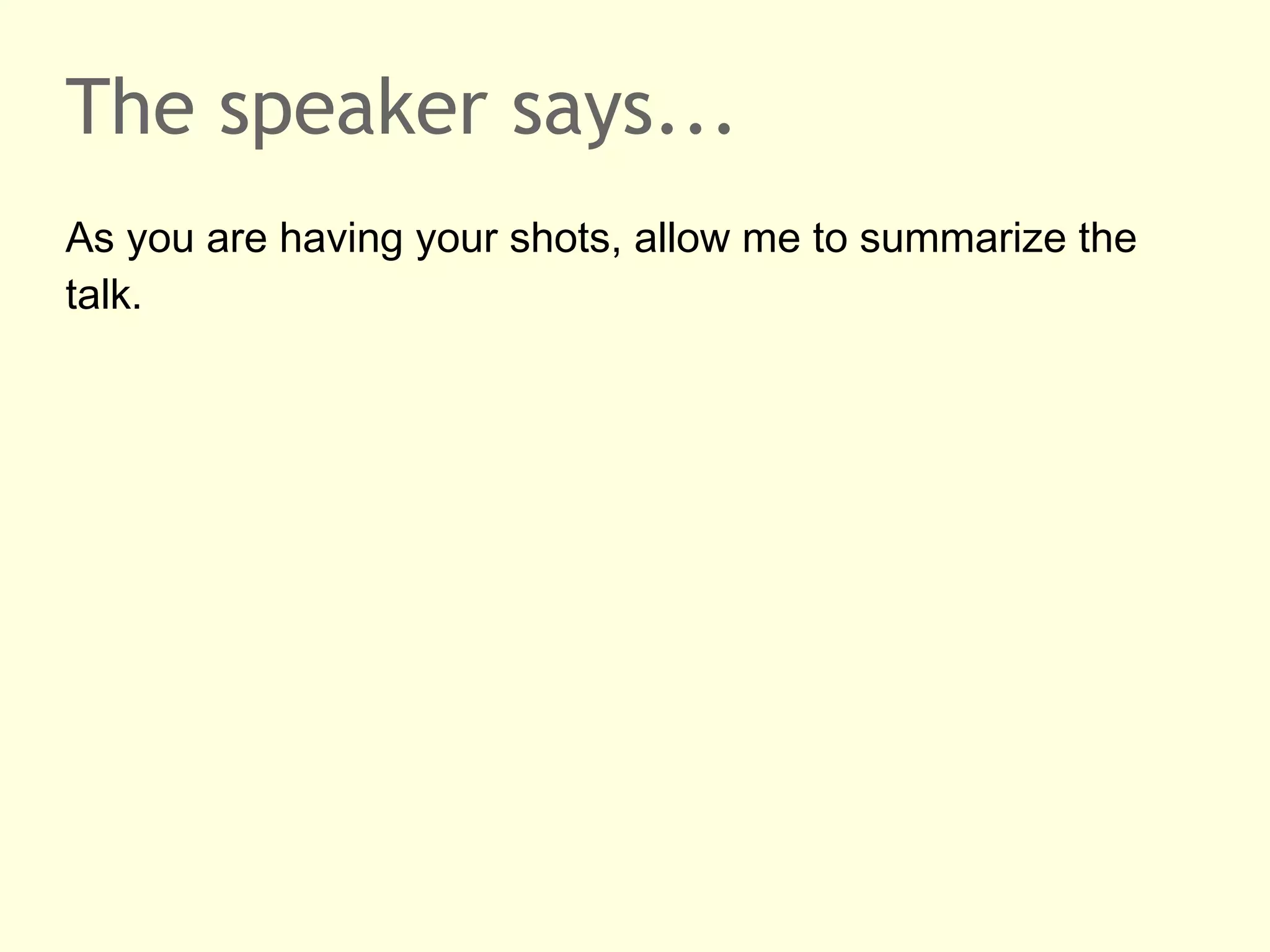

The speaker says...
As you are having your shots, allow me to summarize the
talk.

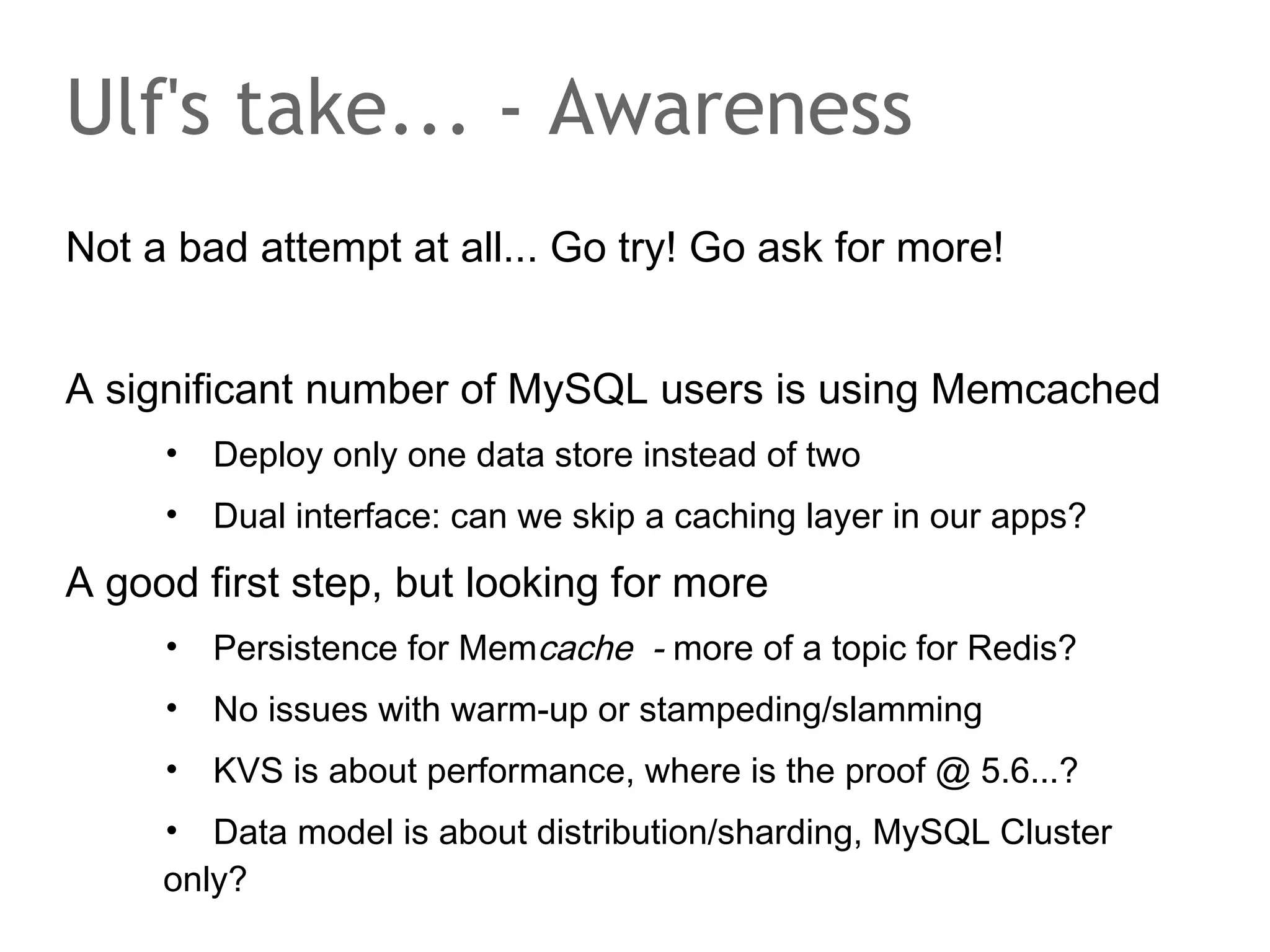

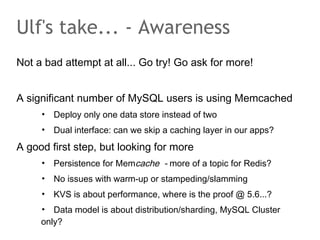

Ulf's take... - Awareness
Not a bad attempt at all... Go try! Go ask for more!


A significant number of MySQL users is using Memcached
     •   Deploy only one data store instead of two
     •   Dual interface: can we skip a caching layer in our apps?
A good first step, but looking for more
     •   Persistence for Memcache - more of a topic for Redis?
     •   No issues with warm-up or stampeding/slamming
     •   KVS is about performance, where is the proof @ 5.6...?
     • Data model is about distribution/sharding, MySQL Cluster
     only?

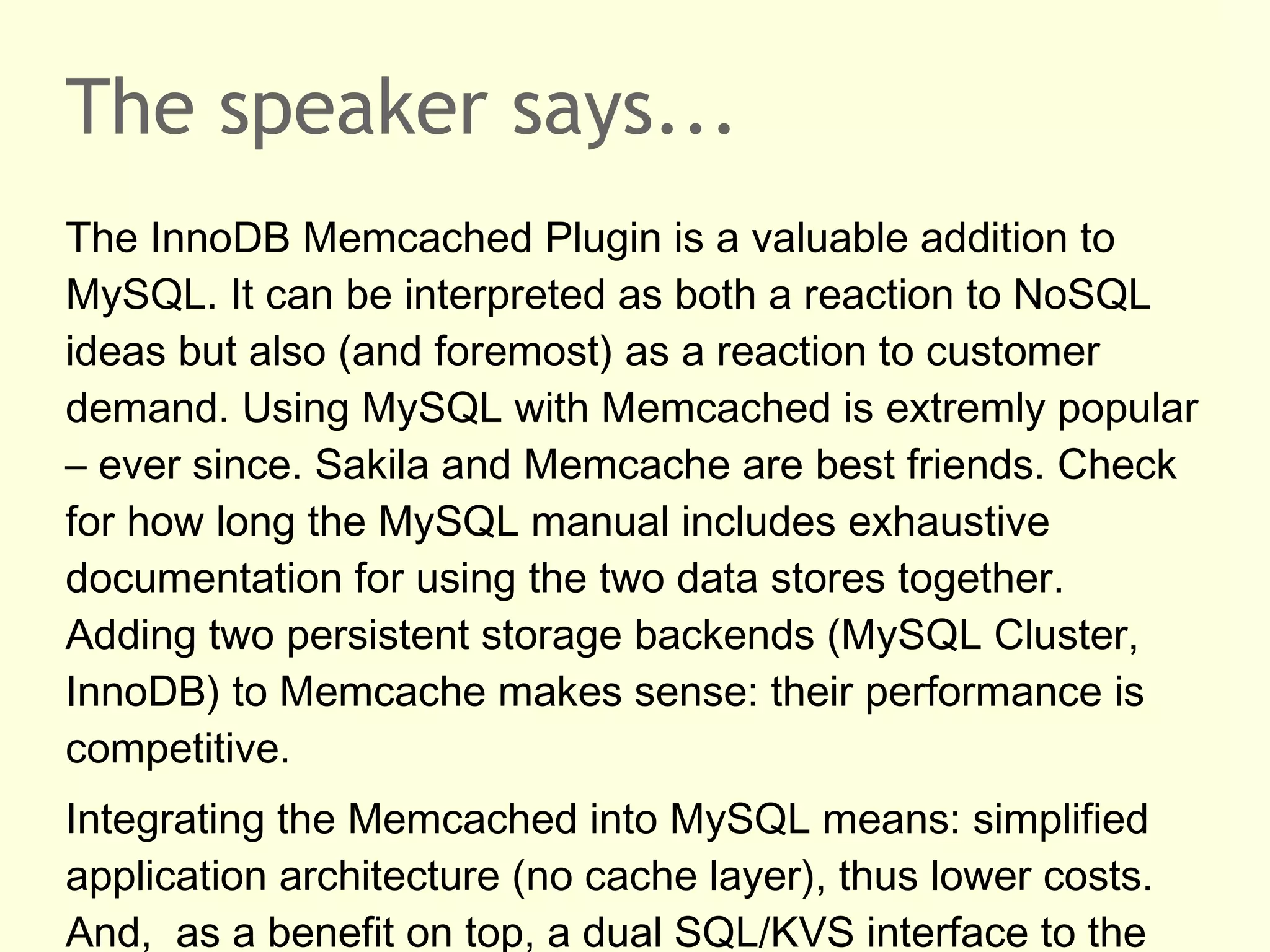

The speaker says...
The InnoDB Memcached Plugin is a valuable addition to
MySQL. It can be interpreted as both a reaction to NoSQL
ideas but also (and foremost) as a reaction to customer
demand. Using MySQL with Memcached is extremly popular
– ever since. Sakila and Memcache are best friends. Check
for how long the MySQL manual includes exhaustive
documentation for using the two data stores together.
Adding two persistent storage backends (MySQL Cluster,
InnoDB) to Memcache makes sense: their performance is
competitive.
Integrating the Memcached into MySQL means: simplified
application architecture (no cache layer), thus lower costs.
And, as a benefit on top, a dual SQL/KVS interface to the
Swipe, tap, click, and zoom

    1234 - I am super FAST              {"documents":"rock"}
    4567 - LIGTHNING fast                  {"mysql":"not"}
      7890 - [1][2][3][4][5]            {"documents":"rock"}
   abcd - [1[a,b,c]],[2[d,e,f]]            {"mysql":"not"}
   _de_- 1,281,2828,2,173,8             {"documents":"rock"}

   Key Value Store                  Document Database



                                         010101001011010
                                         101010110100101
                                         101010010101010
                                         101010110101011
                                         101010110111101

   Graph Database                 Big Data/Column-oriented

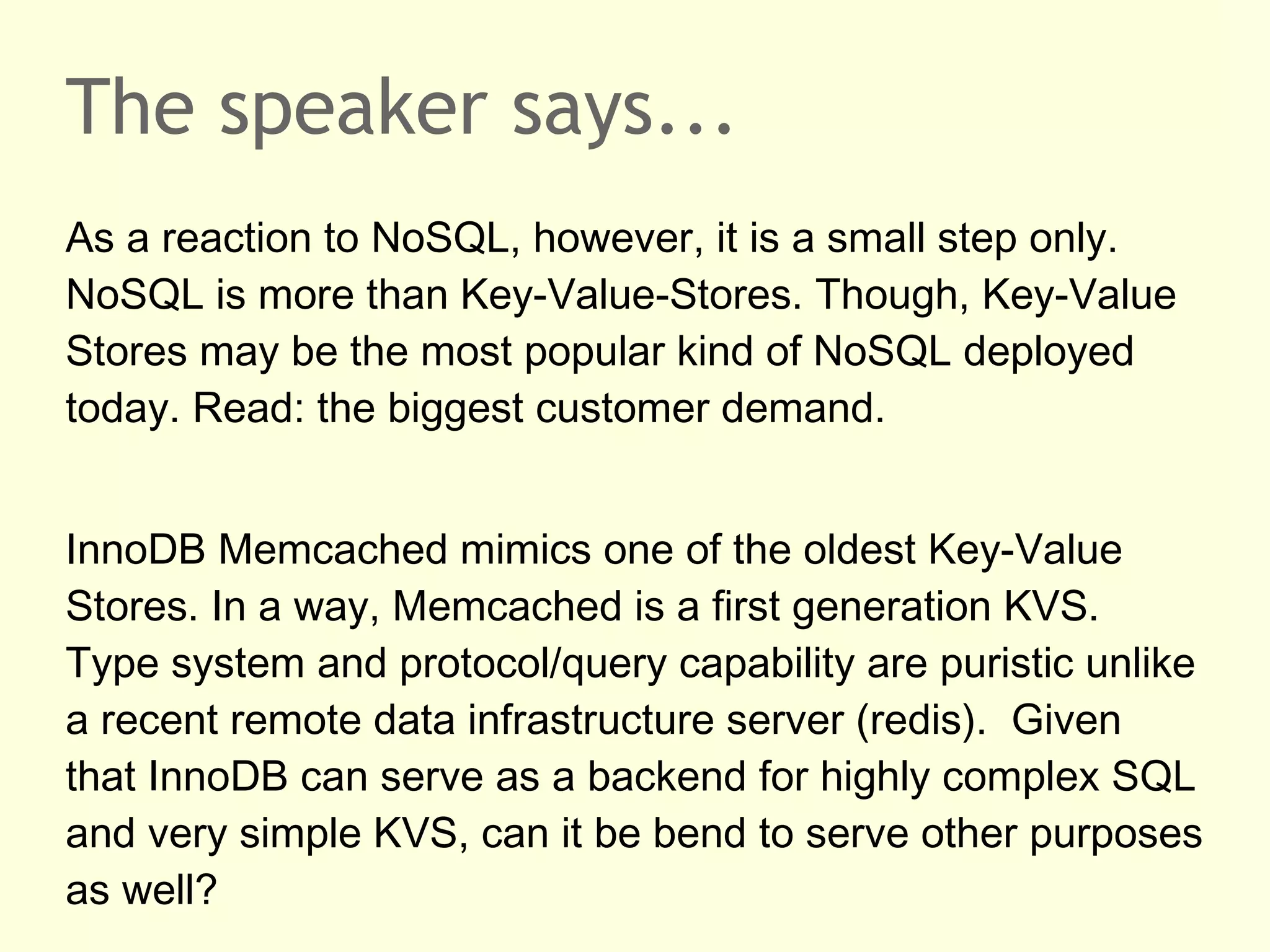

The speaker says...
As a reaction to NoSQL, however, it is a small step only.
NoSQL is more than Key-Value-Stores. Though, Key-Value
Stores may be the most popular kind of NoSQL deployed
today. Read: the biggest customer demand.


InnoDB Memcached mimics one of the oldest Key-Value
Stores. In a way, Memcached is a first generation KVS.
Type system and protocol/query capability are puristic unlike
a recent remote data infrastructure server (redis). Given
that InnoDB can serve as a backend for highly complex SQL
and very simple KVS, can it be bend to serve other purposes
as well?

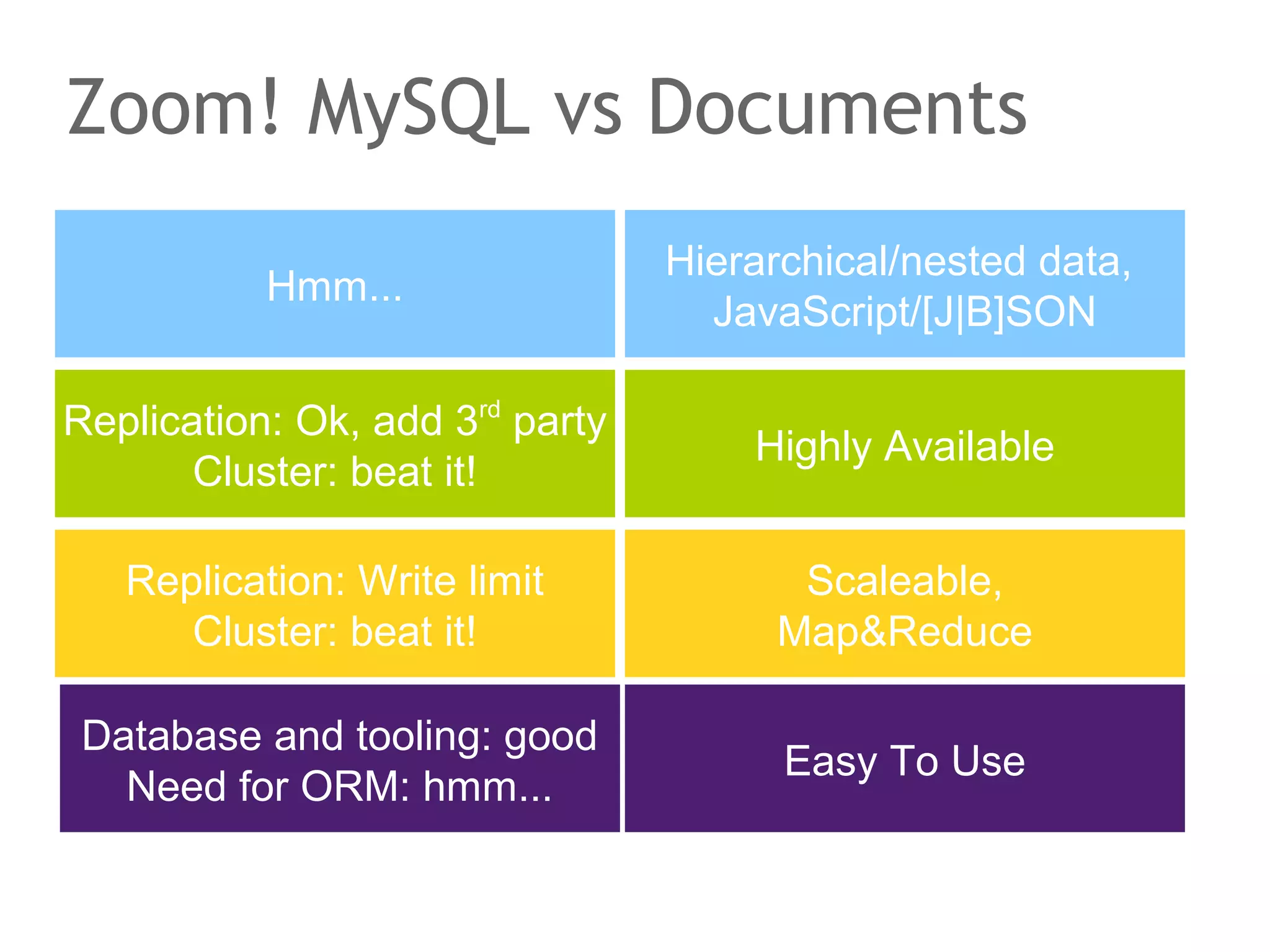

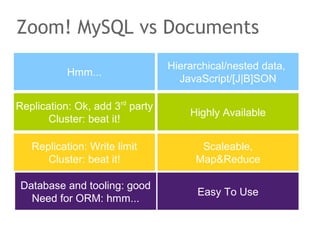

Zoom! MySQL vs Documents
                                 Hierarchical/nested data,
           Hmm...
                                   JavaScript/[J|B]SON

Replication: Ok, add 3rd party
                                     Highly Available
       Cluster: beat it!

   Replication: Write limit            Scaleable,
      Cluster: beat it!               Map&Reduce

 Database and tooling: good
                                       Easy To Use
   Need for ORM: hmm...

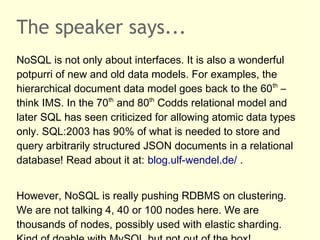

The speaker says...
NoSQL is not only about interfaces. It is also a wonderful
potpurri of new and old data models. For examples, the
hierarchical document data model goes back to the 60th –
think IMS. In the 70th and 80th Codds relational model and
later SQL has seen criticized for allowing atomic data types
only. SQL:2003 has 90% of what is needed to store and
query arbitrarily structured JSON documents in a relational
database! Read about it at: blog.ulf-wendel.de/ .


However, NoSQL is really pushing RDBMS on clustering.
We are not talking 4, 40 or 100 nodes here. We are
thousands of nodes, possibly used with elastic sharding.

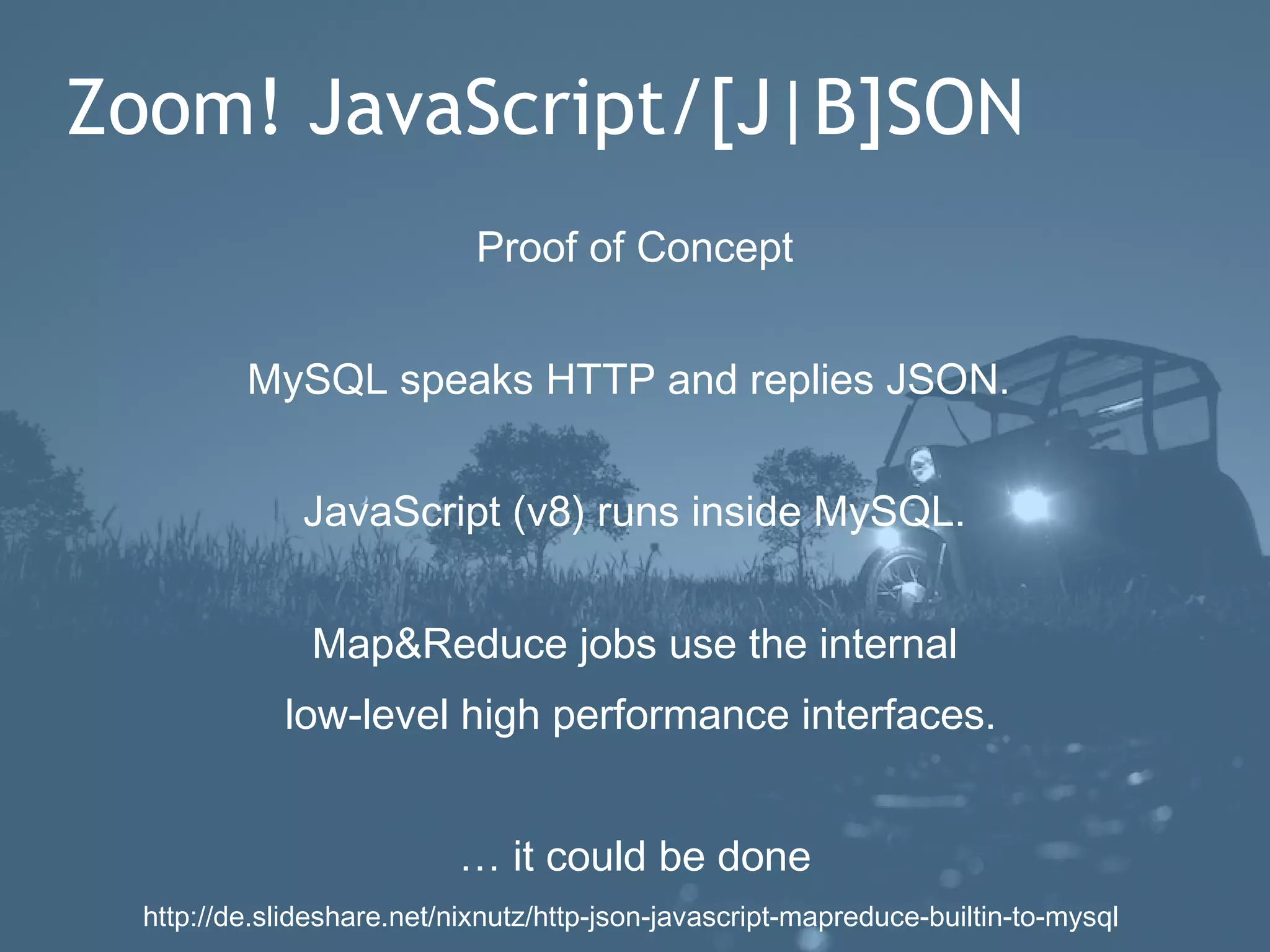

Zoom! JavaScript/[J|B]SON
                             Proof of Concept


          MySQL speaks HTTP and replies JSON.


               JavaScript (v8) runs inside MySQL.


               Map&Reduce jobs use the internal
             low-level high performance interfaces.


                           … it could be done
  http://de.slideshare.net/nixnutz/http-json-javascript-mapreduce-builtin-to-mysql

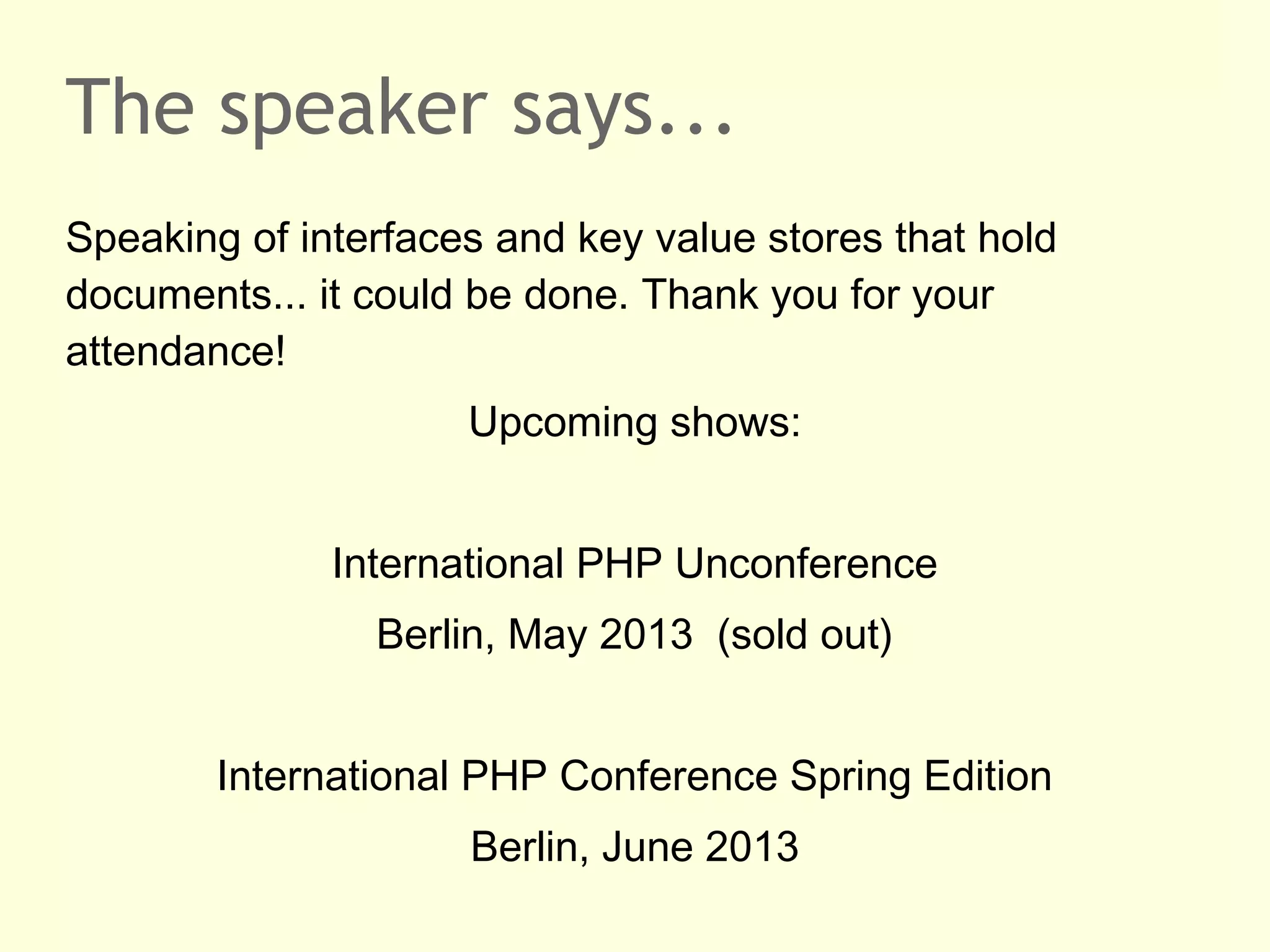

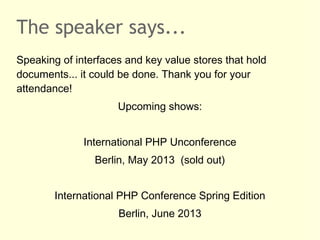

The speaker says...
Speaking of interfaces and key value stores that hold
documents... it could be done. Thank you for your
attendance!
                     Upcoming shows:


              International PHP Unconference
                Berlin, May 2013 (sold out)


        International PHP Conference Spring Edition
                     Berlin, June 2013

More Related Content

What's hot

Built-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIsBuilt-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIs
Ulf Wendel

The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL ProxyThe PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
Ulf Wendel

DIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL ClusterDIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL Cluster
Ulf Wendel

MySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistencyMySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistency
Ulf Wendel

PHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing pluginPHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing plugin
Ulf Wendel

Intro to PECL/mysqlnd_ms (4/7/2011)
Intro to PECL/mysqlnd_ms (4/7/2011)Intro to PECL/mysqlnd_ms (4/7/2011)
Intro to PECL/mysqlnd_ms (4/7/2011)
Chris Barber

The mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing pluginThe mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing plugin
Ulf Wendel

MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
Ulf Wendel

PoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HAPoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HA
Ulf Wendel

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication
Bogdan Kecman

Highly Available MySQL/PHP Applications with mysqlnd
Highly Available MySQL/PHP Applications with mysqlndHighly Available MySQL/PHP Applications with mysqlnd
Highly Available MySQL/PHP Applications with mysqlnd
Jervin Real

Methods of Sharding MySQL
Methods of Sharding MySQLMethods of Sharding MySQL
Methods of Sharding MySQL
Laine Campbell

Introduction to Galera
Introduction to GaleraIntroduction to Galera
Introduction to Galera
Henrik Ingo

MySQL Multi Master Replication
MySQL Multi Master ReplicationMySQL Multi Master Replication
MySQL Multi Master Replication
Moshe Kaplan

Award-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cacheAward-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cache
Ulf Wendel

High-Availability using MySQL Fabric
High-Availability using MySQL FabricHigh-Availability using MySQL Fabric
High-Availability using MySQL Fabric
Mats Kindahl

Galera cluster for MySQL - Introduction Slides
Galera cluster for MySQL - Introduction SlidesGalera cluster for MySQL - Introduction Slides
Galera cluster for MySQL - Introduction Slides
Severalnines

Using and Benchmarking Galera in different architectures (PLUK 2012)
Using and Benchmarking Galera in different architectures (PLUK 2012)Using and Benchmarking Galera in different architectures (PLUK 2012)
Using and Benchmarking Galera in different architectures (PLUK 2012)
Henrik Ingo

MySQL Operator for Kubernetes
MySQL Operator for KubernetesMySQL Operator for Kubernetes
MySQL Operator for Kubernetes
Kenny Gryp

MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)
MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)
MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)
Alfranio Júnior


What's hot (20)

Built-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIsBuilt-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIs

The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL ProxyThe PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy

DIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL ClusterDIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL Cluster

MySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistencyMySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistency

PHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing pluginPHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing plugin

Intro to PECL/mysqlnd_ms (4/7/2011)
Intro to PECL/mysqlnd_ms (4/7/2011)Intro to PECL/mysqlnd_ms (4/7/2011)
Intro to PECL/mysqlnd_ms (4/7/2011)

The mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing pluginThe mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing plugin

MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4

PoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HAPoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HA

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication

Highly Available MySQL/PHP Applications with mysqlnd
Highly Available MySQL/PHP Applications with mysqlndHighly Available MySQL/PHP Applications with mysqlnd
Highly Available MySQL/PHP Applications with mysqlnd

Methods of Sharding MySQL
Methods of Sharding MySQLMethods of Sharding MySQL
Methods of Sharding MySQL

Introduction to Galera
Introduction to GaleraIntroduction to Galera
Introduction to Galera

MySQL Multi Master Replication
MySQL Multi Master ReplicationMySQL Multi Master Replication
MySQL Multi Master Replication

Award-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cacheAward-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cache

High-Availability using MySQL Fabric
High-Availability using MySQL FabricHigh-Availability using MySQL Fabric
High-Availability using MySQL Fabric

Galera cluster for MySQL - Introduction Slides
Galera cluster for MySQL - Introduction SlidesGalera cluster for MySQL - Introduction Slides
Galera cluster for MySQL - Introduction Slides

Using and Benchmarking Galera in different architectures (PLUK 2012)
Using and Benchmarking Galera in different architectures (PLUK 2012)Using and Benchmarking Galera in different architectures (PLUK 2012)
Using and Benchmarking Galera in different architectures (PLUK 2012)

MySQL Operator for Kubernetes
MySQL Operator for KubernetesMySQL Operator for Kubernetes
MySQL Operator for Kubernetes

MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)
MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)
MySQL High Availability: Managing Farms of Distributed Servers (MySQL Fabric)


Viewers also liked

Conhecendo o-composer-por-nandokstronet
Conhecendo o-composer-por-nandokstronetConhecendo o-composer-por-nandokstronet
Conhecendo o-composer-por-nandokstronet
Code Experts Learning

Back your app with MySQL and Redis on Cloud Foundry
Back your app with MySQL and Redis on Cloud FoundryBack your app with MySQL and Redis on Cloud Foundry
Back your app with MySQL and Redis on Cloud Foundry
Kenny Bastani

Domine Validação de Dados em 45min
Domine Validação de Dados em 45minDomine Validação de Dados em 45min
Domine Validação de Dados em 45min
Alexandre Gaigalas

Scaling php applications with redis
Scaling php applications with redisScaling php applications with redis
Scaling php applications with redis
jimbojsb

Object Calisthenics Applied to PHP
Object Calisthenics Applied to PHPObject Calisthenics Applied to PHP
Object Calisthenics Applied to PHP
Guilherme Blanco

MySQL For Oracle DBA's and Developers
MySQL For Oracle DBA's and DevelopersMySQL For Oracle DBA's and Developers
MySQL For Oracle DBA's and Developers
Ronald Bradford

PHP para Adultos: Clean Code e Object Calisthenics
PHP para Adultos: Clean Code e Object CalisthenicsPHP para Adultos: Clean Code e Object Calisthenics
PHP para Adultos: Clean Code e Object Calisthenics
Guilherme Blanco

Javascript para adultos
Javascript para adultosJavascript para adultos
Javascript para adultos
Guilherme Blanco

Pagination Done the Right Way
Pagination Done the Right WayPagination Done the Right Way
Pagination Done the Right Way
Markus Winand

Redis Labs and SQL Server
Redis Labs and SQL ServerRedis Labs and SQL Server
Redis Labs and SQL Server
Lynn Langit

Regular Expressions 101
Regular Expressions 101Regular Expressions 101
Regular Expressions 101
Raj Rajandran

Building Scalable High Availability Systems using MySQL Fabric
Building Scalable High Availability Systems using MySQL FabricBuilding Scalable High Availability Systems using MySQL Fabric
Building Scalable High Availability Systems using MySQL Fabric
Mats Kindahl

MySQL Query And Index Tuning
MySQL Query And Index TuningMySQL Query And Index Tuning
MySQL Query And Index Tuning
Manikanda kumar

O esquecido do PHP
O esquecido do PHPO esquecido do PHP
O esquecido do PHP
Henrique Moody

PHP-CLI em 7 passos
PHP-CLI em 7 passosPHP-CLI em 7 passos
PHP-CLI em 7 passos
Henrique Moody

MySQL Sharding: Tools and Best Practices for Horizontal Scaling
MySQL Sharding: Tools and Best Practices for Horizontal ScalingMySQL Sharding: Tools and Best Practices for Horizontal Scaling
MySQL Sharding: Tools and Best Practices for Horizontal Scaling
Mats Kindahl

Designing Teams for Emerging Challenges
Designing Teams for Emerging ChallengesDesigning Teams for Emerging Challenges
Designing Teams for Emerging Challenges
Aaron Irizarry


Viewers also liked (17)

Conhecendo o-composer-por-nandokstronet
Conhecendo o-composer-por-nandokstronetConhecendo o-composer-por-nandokstronet
Conhecendo o-composer-por-nandokstronet

Back your app with MySQL and Redis on Cloud Foundry
Back your app with MySQL and Redis on Cloud FoundryBack your app with MySQL and Redis on Cloud Foundry
Back your app with MySQL and Redis on Cloud Foundry

Domine Validação de Dados em 45min
Domine Validação de Dados em 45minDomine Validação de Dados em 45min
Domine Validação de Dados em 45min

Scaling php applications with redis
Scaling php applications with redisScaling php applications with redis
Scaling php applications with redis

Object Calisthenics Applied to PHP
Object Calisthenics Applied to PHPObject Calisthenics Applied to PHP
Object Calisthenics Applied to PHP

MySQL For Oracle DBA's and Developers
MySQL For Oracle DBA's and DevelopersMySQL For Oracle DBA's and Developers
MySQL For Oracle DBA's and Developers

PHP para Adultos: Clean Code e Object Calisthenics
PHP para Adultos: Clean Code e Object CalisthenicsPHP para Adultos: Clean Code e Object Calisthenics
PHP para Adultos: Clean Code e Object Calisthenics

Javascript para adultos
Javascript para adultosJavascript para adultos
Javascript para adultos

Pagination Done the Right Way
Pagination Done the Right WayPagination Done the Right Way
Pagination Done the Right Way

Redis Labs and SQL Server
Redis Labs and SQL ServerRedis Labs and SQL Server
Redis Labs and SQL Server

Regular Expressions 101
Regular Expressions 101Regular Expressions 101
Regular Expressions 101

Building Scalable High Availability Systems using MySQL Fabric
Building Scalable High Availability Systems using MySQL FabricBuilding Scalable High Availability Systems using MySQL Fabric
Building Scalable High Availability Systems using MySQL Fabric

MySQL Query And Index Tuning
MySQL Query And Index TuningMySQL Query And Index Tuning
MySQL Query And Index Tuning

O esquecido do PHP
O esquecido do PHPO esquecido do PHP
O esquecido do PHP

PHP-CLI em 7 passos
PHP-CLI em 7 passosPHP-CLI em 7 passos
PHP-CLI em 7 passos

MySQL Sharding: Tools and Best Practices for Horizontal Scaling
MySQL Sharding: Tools and Best Practices for Horizontal ScalingMySQL Sharding: Tools and Best Practices for Horizontal Scaling
MySQL Sharding: Tools and Best Practices for Horizontal Scaling

Designing Teams for Emerging Challenges
Designing Teams for Emerging ChallengesDesigning Teams for Emerging Challenges
Designing Teams for Emerging Challenges


Similar to NoSQL in MySQL

DataStax C*ollege Credit: What and Why NoSQL?
DataStax C*ollege Credit: What and Why NoSQL?DataStax C*ollege Credit: What and Why NoSQL?
DataStax C*ollege Credit: What and Why NoSQL?
DataStax

On nosql
On nosqlOn nosql
NoSQL Intro with cassandra
NoSQL Intro with cassandraNoSQL Intro with cassandra
NoSQL Intro with cassandra
Brian Enochson

NoSQL Part 3, or A Modest Proposal for a Heretical Key Valuestore
NoSQL Part 3, or A Modest Proposal for a Heretical Key ValuestoreNoSQL Part 3, or A Modest Proposal for a Heretical Key Valuestore
NoSQL Part 3, or A Modest Proposal for a Heretical Key Valuestore
Mark Atwood

A Hitchhiker's Guide to NOSQL v1.0
A Hitchhiker's Guide to NOSQL v1.0A Hitchhiker's Guide to NOSQL v1.0
A Hitchhiker's Guide to NOSQL v1.0
Krishna Sankar

SQL or NoSQL, that is the question!
SQL or NoSQL, that is the question!SQL or NoSQL, that is the question!
SQL or NoSQL, that is the question!
Andraz Tori

Scylla db deck, july 2017
Scylla db deck, july 2017Scylla db deck, july 2017
Scylla db deck, july 2017
Dor Laor

Microsoft Openness Mongo DB
Microsoft Openness Mongo DBMicrosoft Openness Mongo DB
Microsoft Openness Mongo DB
Heriyadi Janwar

MySQL Cluster Scaling to a Billion Queries
MySQL Cluster Scaling to a Billion QueriesMySQL Cluster Scaling to a Billion Queries
MySQL Cluster Scaling to a Billion Queries
Bernd Ocklin

My Sql And Search At Craigslist
My Sql And Search At CraigslistMy Sql And Search At Craigslist
My Sql And Search At Craigslist
MySQLConference

Using RAG to create your own Podcast conversations.pdf
Using RAG to create your own Podcast conversations.pdfUsing RAG to create your own Podcast conversations.pdf
Using RAG to create your own Podcast conversations.pdf
Richard Rodger

Breakthrough OLAP performance with Cassandra and Spark
Breakthrough OLAP performance with Cassandra and SparkBreakthrough OLAP performance with Cassandra and Spark
Breakthrough OLAP performance with Cassandra and Spark
Evan Chan

Making MySQL Agile-ish
Making MySQL Agile-ishMaking MySQL Agile-ish
Making MySQL Agile-ish
Dave Stokes

Spark - The Ultimate Scala Collections by Martin Odersky
Spark - The Ultimate Scala Collections by Martin OderskySpark - The Ultimate Scala Collections by Martin Odersky
Spark - The Ultimate Scala Collections by Martin Odersky
Spark Summit

Webinar: The Future of SQL
Webinar: The Future of SQLWebinar: The Future of SQL
Webinar: The Future of SQL
Crate.io

Scaling opensimulator inventory using nosql
Scaling opensimulator inventory using nosqlScaling opensimulator inventory using nosql
Scaling opensimulator inventory using nosql
David Daeschler

The Smug Mug Tale
The Smug Mug TaleThe Smug Mug Tale
The Smug Mug Tale
MySQLConference

If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.
Lukas Smith

Oracle's Take On NoSQL
Oracle's Take On NoSQLOracle's Take On NoSQL
Oracle's Take On NoSQL
Alexander Shopov

No Sql
No SqlNo Sql

Similar to NoSQL in MySQL (20)

DataStax C*ollege Credit: What and Why NoSQL?
DataStax C*ollege Credit: What and Why NoSQL?DataStax C*ollege Credit: What and Why NoSQL?
DataStax C*ollege Credit: What and Why NoSQL?

On nosql
On nosqlOn nosql
On nosql

NoSQL Intro with cassandra
NoSQL Intro with cassandraNoSQL Intro with cassandra
NoSQL Intro with cassandra

NoSQL Part 3, or A Modest Proposal for a Heretical Key Valuestore
NoSQL Part 3, or A Modest Proposal for a Heretical Key ValuestoreNoSQL Part 3, or A Modest Proposal for a Heretical Key Valuestore
NoSQL Part 3, or A Modest Proposal for a Heretical Key Valuestore

A Hitchhiker's Guide to NOSQL v1.0
A Hitchhiker's Guide to NOSQL v1.0A Hitchhiker's Guide to NOSQL v1.0
A Hitchhiker's Guide to NOSQL v1.0

SQL or NoSQL, that is the question!
SQL or NoSQL, that is the question!SQL or NoSQL, that is the question!
SQL or NoSQL, that is the question!

Scylla db deck, july 2017
Scylla db deck, july 2017Scylla db deck, july 2017
Scylla db deck, july 2017

Microsoft Openness Mongo DB
Microsoft Openness Mongo DBMicrosoft Openness Mongo DB
Microsoft Openness Mongo DB

MySQL Cluster Scaling to a Billion Queries
MySQL Cluster Scaling to a Billion QueriesMySQL Cluster Scaling to a Billion Queries
MySQL Cluster Scaling to a Billion Queries

My Sql And Search At Craigslist
My Sql And Search At CraigslistMy Sql And Search At Craigslist
My Sql And Search At Craigslist

Using RAG to create your own Podcast conversations.pdf
Using RAG to create your own Podcast conversations.pdfUsing RAG to create your own Podcast conversations.pdf
Using RAG to create your own Podcast conversations.pdf

Breakthrough OLAP performance with Cassandra and Spark
Breakthrough OLAP performance with Cassandra and SparkBreakthrough OLAP performance with Cassandra and Spark
Breakthrough OLAP performance with Cassandra and Spark

Making MySQL Agile-ish
Making MySQL Agile-ishMaking MySQL Agile-ish
Making MySQL Agile-ish

Spark - The Ultimate Scala Collections by Martin Odersky
Spark - The Ultimate Scala Collections by Martin OderskySpark - The Ultimate Scala Collections by Martin Odersky
Spark - The Ultimate Scala Collections by Martin Odersky

Webinar: The Future of SQL
Webinar: The Future of SQLWebinar: The Future of SQL
Webinar: The Future of SQL

Scaling opensimulator inventory using nosql
Scaling opensimulator inventory using nosqlScaling opensimulator inventory using nosql
Scaling opensimulator inventory using nosql

The Smug Mug Tale
The Smug Mug TaleThe Smug Mug Tale
The Smug Mug Tale

If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.

Oracle's Take On NoSQL
Oracle's Take On NoSQLOracle's Take On NoSQL
Oracle's Take On NoSQL

No Sql
No SqlNo Sql
No Sql


More from Ulf Wendel

HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQLHTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
Ulf Wendel

PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011
Ulf Wendel

The power of mysqlnd plugins
The power of mysqlnd pluginsThe power of mysqlnd plugins
The power of mysqlnd plugins
Ulf Wendel

Mysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark reportMysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark report
Ulf Wendel

mysqlnd query cache plugin: user-defined storage handler
mysqlnd query cache plugin: user-defined storage handlermysqlnd query cache plugin: user-defined storage handler
mysqlnd query cache plugin: user-defined storage handler
Ulf Wendel

Mysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuningMysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuning
Ulf Wendel

Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008
Ulf Wendel


More from Ulf Wendel (7)

HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQLHTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL

PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011

The power of mysqlnd plugins
The power of mysqlnd pluginsThe power of mysqlnd plugins
The power of mysqlnd plugins

Mysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark reportMysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark report

mysqlnd query cache plugin: user-defined storage handler
mysqlnd query cache plugin: user-defined storage handlermysqlnd query cache plugin: user-defined storage handler
mysqlnd query cache plugin: user-defined storage handler

Mysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuningMysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuning

Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008


Recently uploaded

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024
aakash malhotra

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps
HackersList

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf
HackersList

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence
rajancomputerfbd

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...
chetankumar9855

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Zilliz

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
kumarjarun2010

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks


Recently uploaded (20)

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution


NoSQL in MySQL

  • 1. InnoSQL - NoSQL in MySQL Starring as Kaspele: Ulf Wendel
  • 2. Bed time story: Káschberl!
  • 3. Foreword and disclaimer This presentation was given as a „Night Session“ at the PHP Summit 2013 in Munich, capital of the Bavarian Kingdom. After a day packed with trainings the audience deserves a rest. The bed time story is a Kasperltheater, a traditional puppet theater, which has its roots in the 17th century. According to Wikipedia, the puppet character actually named Kasper first appeared in Munich in 1858 in a marionette play... Todays fairy tale is about NoSQL in MySQL. Remember, all databases are named after the children of their inventors. The children are: My, Max and Maria. There is no son called
  • 4. Foreword and disclaimer Disclaimer: If in the portrayal of internal processes you think you identify similarities with persons still living and working or the procedures of the "PhoenixSQL", such similarities are neither intended nor coincidental but unavoidable.... Like so many fairy tales, there may be a true story behind. Like so many bed time stories, this one could have a moral. Like so many presentations, this works best live. For example, Slideshare cannot play the puppet scenes in front of you... or, give you a vodka shot.
  • 5. InnoSQL - NoSQL in MySQL Starring as Kaspele: Ulf Wendel
  • 6. The speaker says... „Lady Sakila gets a key value store“ Starring: Sakila, the desperate beauty Phoenix, the creative cock Innobear, the allmighty A snoopy seagull Kasperle Free bonus:
  • 7. Season style: Hot NoSQL outfits We BREAKING NEWS: No love SQ NoSQL explained L Drizzle? SQL free cloud solutions that don't leave you in the rain! *** International jet set trend: polyglot persistence *** First act: the wretch *** Couchbase and CouchDB split – exclusive photo *** *** Framed workers: Having been grouped by aggregates ***
  • 8. The speaker says... Sakila: (crying, silently) Kasperl: Sakila, my dear, what happened? Sakila: Oh, Kasperl! I am so desperate. I made superior database technology available and affordable to anybody. MySQL became the M in the industrial standard called LAMP. Kasperl: (interrupts her) My one and only - you are the #1! Sakila: I read the IT yellow press at the beauty parlour. NoSQL celebrities all over. Not a single mention of myself. Kasperl, my glorious times are over (crying, loud).... Kasperl: Sweetheart, no! Together with our mighty friends, we will find a new outfit for you. The front page is yours.
  • 9. Swipe, tap, click, and zoom 1234 - I am super FAST {"documents":"rock"} 4567 - LIGTHNING fast {"mysql":"not"} 7890 - [1][2][3][4][5] {"documents":"rock"} abcd - [1[a,b,c]],[2[d,e,f]] {"mysql":"not"} _de_- 1,281,2828,2,173,8 {"documents":"rock"} Key Value Store Document Database 010101001011010 101010110100101 101010010101010 101010110101011 101010110111101 Graph Database Big Data/Column-oriented
  • 10. The speaker says... Kasperl leaves the stage to learn who those NoSQL celebrities are. There are many, that's for sure. Celebrity central at nosql- database.org lists more than 150+ newcomers. There are many fans, that' s for sure. Market researchers predict 25% less MySQL fans within five years*. Some 30% looked into or already use NoSQL**. There are four major groups of celebrities, that's what the records say. Lines between them are not always clear. * http://de.slideshare.net/mattaslett/mysql-vs-nosql-and-newsql-survey-results-13073043** MySQL users of the 451 Research sample
  • 11. Swipe, tap, click, and zoom Memcache, Redis, Riak, LevelDB, BerkeleyDB, MongoDB, CouchDB, Dynamo, ... RethinkDB, ... Key Value Store Document Database Neo4j, FlockDB... BigTable, Hadoop, Cassandra… Graph Database Big Data
  • 12. The speaker says... Fan count goes somewhat down from top left to bottom right. For many years already, Sakila showed up happily with her friend Memcache. MySQL was the leading one-fits-all solution co-existing with Memcache as a cache front end in a traditional architecture. Then came a change (sometimes referred to as): polyglot persistence. The market changed. After decades of RDBMS dominance new, specialized products appeared in public. Often driven by Web 2.0 challenges. Some new ideas, many
  • 13. A new era of databases Scaleable Elastic Explore the benefits Highly Available Easy To Use
  • 14. The speaker says... Not Only SQL databases aim to be scalable. From one node to one tousand nodes in a bit. And, back depending on both query load and data size! Sharding built-in! Chewing gums of the cloud area! Master down? No problem. Some don't do lame primary copy. Paxos and others ensure the database cluster survives the failure of nodes – including primaries, if any. Hot on conferences: JavaScript, HTTP, JSON you name it - ingredients of todays web applications. So easy with hierarchical structures, weak types and no schema changes!
  • 15. Zoom! Key Value Store High Performance 1234 - I am super FAST 4567 - LIGTHNING fast Limited Search and Types 7890 - [1][2][3][4][5] abcd - [1[a,b,c]],[2[d,e,f]] _de_- 1,281,2828,2,173,8 Key Value Store Scaleable Limited Persistence
  • 16. The speaker says... A Key Value Store strikes for its simple data model which is that of an associative array/hash. The data model is poor at ad-hoc queries: loose the key and you lock your data in the treasure. But, it is fast. A need for speed has led to many in-memory solutions in this class. A perfect model for use as a cache. If used as a cache, persistence is often secondary. Generally speaking the data model is perfect for partitioning/sharding. There are no operations covering multiple values, thus values can be distributed on multiple nodes to scale the system. Most operations are basic (CRUD). Redis stands out with complex data types and correspondig commands.
  • 17. Using MySQL as a NoSQL – A story for exceeding 750,000 qps on a commodity server […] MySQL/InnoDB 5.1 […] When you run simple multi-threaded "memcached get" benchmarks, you can probably execute 400,000+ get operations per second, even though memcached clients are located on remote servers. […] network i/o bound [...] 260,000 qps on MySQL via HandlerSocket, 220,000 qps on memcached [...] Second act: Phoenix, the super, super, super star
  • 18. The speaker says... Meanwhile in Farfaraway. A former colleguage of Sakila becomes a super, super, super star over night. Voice from the off: (applaudes) We have a winner! Phoenix: I am the first to squeeze out 750,000 queries per second from stock MySQL 5.1 using commodity hardware! Audience 1: Finally! For simple queries SQL parsing took some 50% of the total query execution time. Audience 2: Pfft, MySQL Cluster reached that in 2004... Audience 3: Oh, those youngsters. We have HANDLER since ISAM times! … what, why, how ?!
  • 19. Flexible storage engine API SQL Clients (C, C++, JDBC, ODBC, .NET, Perl, Python, ...) MySQL Server Connection Pool Authentication, Thread Reuse, Connection Limits, Caches, ... SQL Parser Optimizer Caches & Buffers Pluggable Storage Engines - Storage Handler API MyISAM InnoDB NDB Archive Federated Memory,...
  • 20. The speaker says... The creative and innovative phoenix took a deep look inside MySQL. He was wondering where MySQL spends most time for the most common type of queries his company issued: simple primary key based look-ups and limited range scans. SQL parsing and frequent thread locking for synchronization tasks turned out to be expensive whereas in-memory and CPU efficiency of the InnoDB storage engine proved to be competitive. Phoenix recalled previous work: „Mycached: memcached protocol support for MySQL […] The QPS (queries per second) of mycached is roughly 2x compared to using SQL [...]“
  • 21. HandlerSocket daemon plugin Rich SQL queries Simple K/V queries 3306 (Read/Write) 9998 (Read) 9999 (Write) MySQL Core MySQL HandlerSocket Plugin Storage Handler API MyISAM InnoDB Archive, Federated, ...
  • 22. The speaker says... A MySQL daemon plugin is a „do-whatever-you-want“ extension to MySQL. A plugin is a dynamic library running as part of the server process. HandlerSocket starts a multi-threaded network server. The network server listens on ports 9998 and 9999 by default. One port handles read requests, the other port handles write requests. Data stored in MySQL is accessed through the internal low-level storage engine API of MySQL. A lightweight and simple one-line based request response style protocol is used by HandlerSocket. Attention: new protocol means new client libraries required! Using HandlerAPI does not mean, it works with MyISAM. HS
  • 23. Setting things up: compiling... > git clone https://github.com/DeNA/HandlerSocket-Plugin-for-MySQL.git > cd HandlerSocket-Plugin-for-MySQL/ > ./autogen.sh > ./configure --with-mysql-source=/data/nixnutz/ftp/mysql-5.5.30/ --with-mysql- bindir=/data/nixnutz/ftp/mysql-5.5.30/install/bin --with-mysql-plugindir=/data/nixnutz/ftp/mysql- 5.5.30/install/lib/plugin/ > make clean && make -j3 > sudo make install > nano /data/nixnutz/ftp/mysql-5.5.40/install/my.cnf > mysql -uroot -S/tmp/mysql5530.sock test mysql> INSTALL PLUGIN handlersocket SONAME 'handlersocket.so'; mysql> SHOW PLUGINS; mysql> SHOW PROCESSLIST; > wget http://php-handlersocket.googlecode.com/files/php-handlersocket-0.3.1.tar.gz > tar xvzf php-handlersocket-0.3.1.tar.gz > cd handlersocket > phpize && ./configure && make clean && make -j3 > sudo make install > nano /usr/local/lib64/php.ini
  • 24. The speaker says... HandlerSocket is distributed in source „as-is“ by the original authors. It has originally been developed to work with MySQL 5.1. The latest version can be compiled against MySQL 5.5. MySQL 5.6 is currently not supported but may so in the future. MySQL forks may distribute patched versions, however, I went for the original repository. PHP users can choose from two PHP based client libraries implementing the text-based protocol and one C/C++ PHP based extension. For all tests the PHP extension has been used. The handlersocket PHP extension is using the C++ client library shipped with HandlerSocket.
  • 25. HandlerSocket: PK lookup try { $hs_r = new HandlerSocket("127.0.0.1", 9998); if (!($hs_r->openIndex( 1, "mysql", "plugin", 'PRIMARY', 'name,dl'))) throw new Exception($hs_r->getError()); if (false === ($v = $hs_r->executeSingle( 1, "=", array("handlersocket")))) throw new Exception($hs_r->getError()); var_dump($v); } catch (Exception $e) { var_dump($e); }
  • 26. The speaker says... Generally speaking the HandlerSocket API mimics some principles of the MySQL internal storage handler API. The internal API was not designed to be exposed to a web user. Means, HandlerSocket API may not look very appealing to you. To read or write data one has to open an index first. No index, no fun. Then, the index identifier is used to issue a query. The slide shows the counterpart of: SELECT name, dl FROM mysql.plugin WHERE name = 'handlersocket' . The query is run in „autocommit“ mode. Transaction isolation level should be dirty read. Data is returned as string to PHP. Strings are returned „as-is“ - no special charset handling.
  • 27. HandlerSocket: INSERT try { $hs_w = new HandlerSocket("127.0.0.1", 9999); if (!($hs_w->openIndex( 1, "test", "ulf", 'PRIMARY', 'col_value'))) throw new Exception($hs_w->getError()); if (false === ($pk = $hs_w->executeInsert( 1, array("value")))) throw new Exception($hs_w->getError()); var_dump($pk); } catch (Exception $e) { var_dump($e); }
  • 28. The speaker says... The PHP function calls to insert a record are very similar to those for fetching data: open index, run command. The executeInsert() function returns the primary key value upon successful insertion using a PRIMARY key index. The table used in this example is: CREATE TABLE test.ulf(col_id INT AUTO_INCREMENT PRIMARY KEY, col_value VARCHAR(255)) ENGINE=InnoDB . The INSERT statement run through the HandlerSocket API is: INSERT INTO test.ulf(col_value) VALUES ('value') . The write request could also have been sent on the port dedicated for read requests. The split into read and write
  • 29. Complex statements on indicies where_cond: <idx_col> [=,<,<=,>, >=] <value> SELECT <idx_col>[,idx_col, ...] FROM table WHERE where_cond SELECT ... FROM table WHERE ... LIMIT offset[,row_count] SELECT ... FROM table WHERE idx_col IN(<value>[, value, ...] SELECT ... FROM table WHERE ... [AND …] $ret = $hs->executeSingle(1, '>=', array('K1'), 10, 0, null, null, array(array('F', '>', 0, 'F1'), array('F', '<', 1, 'F10'))); /* SELECT k, v FROM table WHERE k >= 'K1' AND f1 > 'F1' AND f2 <= 'F20' LIMIT 10 */ UPDATE table SET ...[, ...] UPDATE table WHERE ... SET ... Options: return previous value, return affected rows, increment, decrement
  • 30. The speaker says... The HandlerSocket user API covers more than the most basic use case of a primary key lookup, it offers more than a GET key operation. For example, WHERE conditions can be composed of multiple ANDed condition. The IN operator is supported. LIMIT can be used. It is, however, not possible to sort results, or to write a query that spawns multiple tables. For rich querying, SQL has to be used. Some tweaks for UPDATE operations exist.
  • 31. Third act: Innobear rescues Sakila. So, so, so close!
  • 32. The speaker says... The NoSQL news made it to Kasper. Kasper: Innobear, news: MySQL is faster than Memcache! Let me show you what Phoenix developed. Innobear: Hmm... Great idea, probably we can do better... Kasper: We must gather the team. You go to find Sakila, I have a rough idea where to find Seagull. Innobear: (loud) Sakila, where are you! We got news! Sakila: (whining from a distant, ready to jump off a bridge) Innobear: (comes close to her) Please, don't jump! Sakila: Goodbye fast friend. (jumps)
  • 33. Third act: Seagull is a valuable team member
  • 34. The speaker says... Kasper: Seagull! Seagull: Oh, oh, oh, … I promise: I'll do everything to raise shareholder value. The company has my full attention. Also, remember what our all first work contracts said about drinking. We must not begin working when drunk. It didn't say anythink about drinking during... Kasper: Stop it! Shareholder value is more important! Kasper and Seagull return to meet Innobear and Sakila. Together they decide to develop a secret plan! Sakila takes a rest at a beauty farm.
  • 35. Third act: at labs.mysql.com © Fairywikileaks
  • 36. The speaker says... Innobear, Kasper and Seagull go down to the cellar to begin their work. They shut all doors and windows to focus on their secret task. For reasons of fire security and data protection, we cannot go into details. Fairywikileaks reports that bookface.com technicians commented to Phoenixs' and other blogs that an embedded InnoDB with Memcached interface would be of great value. Isotipp from book-kings-hotels.com publishes a blog post in which his colleguage reports up to 10x higher query rates using HandlerSocket, confirming its faster than Memcached.
  • 37. 5.6: InnoDB Memcache Plugin RDBMS and Key Value Store combined • Benefits of a mature RDBMS • High performance key lookup plus rich SQL ad-hoch querying • No need to synchronize between cache and RDBMS SQL Memcache Protocol MySQL 5.6 id | firstname | lastname -------------------------- 1 | Ulf | Wendel 2 | Nils Stephanie | Lagner Neu InnoDB
  • 38. The speaker says... Eventually, MySQL 5.6 gets released. Innobear and Seagull start a presentation... MySQL 5.6 has both a SQL and a NoSQL interface. The proven, lightweight Memcache protocol gets used. Many MySQL users set on Memcached since years. Memcached language bindings are available for all major programming languages. Familarity and stability of the APIs are a given. The full potential of the stable and CPU-efficient B-tree based storage engine InnoDB, which features automatic, adaptive hashing ever since, gets unveiled. In-memory performance is great because it has to be. Estimated 20%
  • 39. Zoom! InnoDB Memcache SQL Memcache Protocol MySQL 5.6 Core Memcached Plugin Storage Handler API InnoDB API Standard MyISAM id | firstname | lastname Memcache In-Memory -------------------------- Memory 1 | Ulf | Wendel Storage 2 | Inno | Bär ... InnoDB
  • 40. The speaker says... The InnoDB Memcached Plugin integrates a Memcached network server into MySQL. The integrated Memcached server can either use main memory or InnoDB for storage. Similar to MySQL, Memcached allows multiple storage backends. The Memcached server integrated into the plugin can use InnoDB as a storage backend. InnoDB is accessed through the InnoDB API (basically the former Embedded InnoDB API). The InnoDB API is lowest- level API to communicate with InnoDB, thus it is the fasted way. This promises even higher performance than the Storage Handler API. This, however, means no loss of
  • 41. Zoom! MySQL Cluster Memcache SQL Memcache Protocol MySQL Server / Cluster 7.2 Memcached Storage Handler API ndb_eng InnoDB NDB API MyISAM id | firstname | lastname -------------------------- Memory 1 | Ulf 2 | Nils | Wendel | Lagner ... MySQL Cluster (NDB) data node
  • 42. The speaker says... BTW, MySQL Cluster 7.2 now supports Memcached as well. MySQL Cluster/NDB nodes can serve as a storage backend for Memcached. Memcached is using NDB API, the native C++ API of MySQL Cluster, to fetch and store data. The process model, however, is different from the MySQL InnoDB Memcached Plugin. Memcached is not integrated into the MySQL Server. Memcached is run „standalone“ as a seperate network server. You can choose whether to run the Memcached, the MySQL Cluster data nodes and the application on one machine (low latency) or on different ones (fail safety).
  • 43. InnoDB Memcache Setup mysql> source MYSQL_HOME/share/innodb_memcached_config.sql mysql> INSTALL PLUGIN daemon_memcached SONAME 'libmemcached.so'; mysql> SHOW PLUGINS; mysql> SHOW DATABASES; mysql> USE innodb_memcache; mysql> SHOW TABLES; +---------------------------+ | Tables_in_innodb_memcache | +---------------------------+ | cache_policies | | config_options | | containers | +---------------------------+ 3 rows in set (0,00 sec)
  • 44. The speaker says... Before the InnoDB Memcached plugin can be installed using INSTALL PLUGIN statement, one has to setup the plugins configuration database innodb_memcached and its tables by executing a SQL script. HandlerSocket puts no restrictions on which databases and tables can be manipulated through the network ports it openes whereas the Memcached plugin allows finer access control. Speaking of access control: HandlerSockets only way to secure access is requiring a clear-text password to be sent upon connect. Memcached supports Simple Authentication and Security Layer (SASL) based password
  • 45. Container basics mysql> CREATE TABLE test.memc_kv ( col_key VARCHAR(32) NOT NULL DEFAULT '', col_value VARCHAR(250) DEFAULT NULL, memc_internal_flags INT(11) DEFAULT NULL, memc_internal_cas BIGINT(20) UNSIGNED DEFAULT NULL, memc_internal_expire_time INT(11) DEFAULT NULL, PRIMARY KEY (col_key) ) ENGINE=InnoDB; mysql> INSERT INTO innodb_memcache.containers(name, db_schema, db_table, key_columns, value_columns, flags, cas_column, expire_time_column, unique_idx_name_on_key) VALUES ('container_a', 'test', 'memc_kv', 'col_key', 'col_value', 'memc_internal_flags', 'memc_internal_cas', 'memc_internal_expire_time', 'PRIMARY'); mysql> UNINSTALL PLUGIN daemon_memcached; mysql> INSTALL PLUGIN daemon_memcached SONAME 'libmemcached.so';
  • 46. The speaker says... To make a table accessible through the Memcached interface, it has to be listed in the innodb_memcached.containers configuration table. A most basic table must have a unique index to be used as key and a column to hold a value. Both key and value columns must be strings (CHAR, VARCHAR, TEXT). The table should have three columns used by Memcached. A column to store flags, one to store the cas (compare-and- swap) and one for the expire value of Memcached. If those columns are omitted, Memcached protocol features and/or
  • 47. InnoDB Memcache: key lookup try { $memc = new Memcached(); if (!$memc->addServer("127.0.0.1", 11211)) throw new Exception($memc->getResultCode()); if (false == $memc->set("A", "Value")) throw new Exception($memc->getResultCode()); if (false === ($val = $memc->get("A"))) throw new Exception($memc->getResultCode()); var_dump($val); } catch (Exception $e) { var_dump($e); }
  • 48. The speaker says... No surprises for the most basic application: SQL table mapped to Memcache, standard PHP Memcache API used to access the SQL table. Please note, whenever you change the container configuration you have reload the plugin to make it aware of configuration changes. Also, for your initial tests you may want to have no more than one container configured. More on this later.
  • 49. Container: column mapping mysql> CREATE TABLE test.memc_test2 ( col_key varchar(32) NOT NULL DEFAULT '', col_val_a varchar(250) DEFAULT NULL, col_val_b varchar(250) DEFAULT NULL, memc_internal_flags int(11) DEFAULT NULL, memc_internal_cas bigint(20) unsigned DEFAULT NULL, memc_internal_expire_time int(11) DEFAULT NULL, PRIMARY KEY (col_key) ) ENGINE=InnoDB; mysql> INSERT INTO innodb_memcache.containers(name, db_schema, db_table, key_columns, value_columns, flags, cas_column, expire_time_column, unique_idx_name_on_key) VALUES ('container_b', 'test', 'memc_test2', 'col_key', 'col_val_a,col_val_b', 'memc_internal_flags', 'memc_internal_cas', 'memc_internal_expire_time', 'PRIMARY');
  • 50. The speaker says... A Memcached value stored in an InnoDB table through the Memcached interface can spawn multiple columns. To map multiple SQL columns to a value, list the columns of the SQL table to be mapped in the container configuration tables value_columns column. Create a comma seperated list of the columns to be mapped and store it in innodb_memcached.containers.value_columns. Remember, that there are constraints. Only string columns are supported. There are size limitations: key and value together are limited to 1MB. Please, see the manual for further limits primarily related to InnoDB indexes.
  • 51. Multiple columns value [...] if (false == $memc->set("A", "ValueA|ValueB")) throw new Exception($memc->getResultCode()); if ($res = $mysqli->query( "SELECT * FROM memc_test WHERE col_key = 'A'")){ $row = $res->fetch_assoc(); printf("Key '%s': '%s' - '%s'", $row['col_key'], $row['col_val_a'], $row['col_val_b']); } else { throw new Exception($mysqli->error); } [...] Key 'A': 'ValueA' - 'ValueB'
  • 52. The speaker says... To store a value into multiple SQL columns, it is first split by a seperator. Then, the parts are mapped to the columns configured and stored. The reverse logic is applied when fetching a value through the Memcache interface. The mapped columns values are concatenated by the seperator. The default seperator is |. The seperator is configurable: REPLACE INTO innodb_memcache.config_options(name, value) VALUES ('separator', '@'); Restart the plugin to make the change take effect.
  • 53. Containers (plur.): @@name.key $memc->set("A", "Default, first or only container"); var_dump($memc->get("A")); var_dump($mysqli->query("SELECT * FROM memc_default WHERE col_key = 'A'")->fetch_assoc()['col_val']); $memc->set("@@container_b.A", "Container|named 'container_b'"); var_dump($memc->get("@@container_b.A")); var_dump($mysqli->query("SELECT * FROM memc_test2 WHERE col_key = 'A'")->fetch_assoc()['col_val_a']); string(32) "Default, first or only container" string(32) "Default, first or only container" string(29) "Container|named 'container_b'" string(9) "Container"
  • 54. The speaker says... You can configure as many containers as you want. To access individual containers (SQL tables) through the Memcache interface, prefix the Memcache key with the containers name: name.key. The dot in name.key is configurable, the @@ part is not. Update the table innodb_memcache.config_options to change the seperator. If multiple containers are configured and no prefix is used with the key, the value is stored in the container with the special name default .Caution: if you have multiple containers, none of which is named default and your key does not look like name.key, the value is not rejected but
  • 55. … natural and fresh from the country! BTW, if you can read this, you don't need glasses! Fourth act: subversive activities, or valuable team member?
  • 56. The speaker says... Kasper is very proud of Innobear! But, he seems to be the only one on stage. Seagull was supposed to help Innobear! Kasper: (from the off) Seagull! Seagull: … *hit, yeah.... Kasper: (from the off) Seagull, your behaviour cannot be tolerated. I expect you to behave. Go back on stage to help Innobear. But, I warn you, take the presentation serious. This is a serious conference... Seagull: (jumps on stage) Yes, Sir! I'll take over... Innobear: (grumpy, whispering) Finally, I need to go to the
  • 57. GET @@name = USE name $memc->set("@@container_b.A", "Container|named 'container_b'"); var_dump($memc->get("@@container_b")); var_dump($memc->get("A")); var_dump($memc->delete("A")); var_dump($memc->get("A")); var_dump($memc->get("@@default")); $memc->set("A", "Will it go into default?"); var_dump($memc->get("A")); string(17) "test/memc_default" string(29) "Container|named 'container_b'" bool(true) bool(false) string(17) "test/memc_default" string(24) "Will it go into default?"
  • 58. The speaker says... Seagull seems to take his boss Kasper serious and gives his best... Issuing a GET request for @@name switches a sessions default container. This „USE“ statement changes the default container used for all subsequent GET, SET and ADD commands but for no other command. For example, INCR and DELETE, should not support the syntax... says the manual. Hmm, however, example shows the opposide... whatever... Kasper: (from the off) Seagull! We want positive news!
  • 59. Transaction and lock control ● When to commit ● daemon_memcached_r_batch_size (default: 1) ● daemon_memcached_w_batch_size (default: 1) ● innodb_api_bk_commit_internal (default: 5) ● Transaction Isolation level ● innodb_api_trx_level (READ UNCOMMITTED) ● Assorted lock related ● innodb_api_enable_mdl (OFF) ● innodb_api_disable_row_lock (no docs)
  • 60. The speaker says... Transaction control with the InnoDB Memcache Plugin is finer than with HandlerSocket. You can set how often read and write operations will commit and what transaction isolation level is used. Default is autocommit-style with READ UNCOMMITED. If data safety is not an issue, you may lower the commit rates to improve performance. innodb_api_bk_commit_internal is for idle client connections, not for active ones. Enabling innodb_api_enable_mdl locks the table used by the InnoDB memcached plugin, so that it cannot be dropped or altered by DDL through the SQL interface.
  • 61. Transparent fast key access $mysqli = new mysqli("localhost", "usr", "pass", "test"); $memcache = new memcached(); $memcache->addServer("localhost", 11211); mysqlnd_memcache_set($mysqli, $memcache); $res1 = $mysqli->query("SELECT firstname FROM test WHERE id = 1"); $res2 = $mysqli->query("SELECT * FROM test); mysqli PDO_MySQL mysql MySQL native driver for PHP (mysqlnd) Plugin: PECL/mysqlnd_memcache SQL access Memcache access
  • 62. The speaker says... PECL/mysqlnd_memcache is another free and open source plugin for the PHP mysqlnd library. Mysqlnd is the compile time default C library used for all PHP MySQL APIs (mysqli, PDO_MySQL and mysql). Like other plugins it adds new features to all the APIs. Based on a configurable regular expression the plugin turns a SQL access into a Memcache access. Due to the lightweight protocol and direct access the Memcache access to MySQL is faster. No matter what protocol used by the library, the user gets a standard result set in return. Simple to use. However, note that no meta data is available if a key access has been performed.
  • 63. Benchmarking ● In general... ● Big variation in methods, setup (cores!), and results ● Risk of comparing apples and oranges ● No „standard“ YCSB results published by anybody • Roughly... ● PK SELECT – 1.5x … 4x faster than SQL ● PK INSERT – upto 9x faster than SQL ● Connect is way faster than SQL ● HandlerSocket: try yourself, script for download
  • 64. The speaker says... Kasper: (from the off, whispering) You better have some strong slides coming Seagull – stay on the positive side... Benchmarking is hard to do. MySQL is optimized for multi- core machines, whereas Redis, for example, can hardly use more than one core with its single-threaded architecture! Thus, quick-and-dirty benchmarks from a developers notebook may point the wrong direction. An option for a serious benchmark would be the Yahoo! Cloud Serving Benchmark – no results known. For those of you that want to play single-core, grab this script. On my notebook it showed HandlerSocket (MySQL 5.5) behind InnoDB Memcached
  • 65. Gotcha HandlerSocket : 30s if (!($hs_r->openIndex(PHP_INT_MAX, …)) terminate called after throwing an instance of 'std::bad_alloc' what(): std::bad_alloc 21:14:12 UTC - mysqld got signal 6 ; [...] Attempting backtrace. You can use the following information to find out where mysqld died. If you see no messages after this, something went terribly wrong... [...] usr/lib64/libstdc++.so.6(_Znwm+0x7d)[0x7f1e08088ecd] /data/nixnutz/ftp/mysql- 5.5.30/install/lib/plugin/handlersocket.so(_ZNSt6vectorIN4dena9prep _stmtESaIS1_EE14_M_fill_insertEN9__gnu_cxx17__normal_iteratorIPS1_S 3_EEmRKS1_+0xb6)[0x7f1e064e2c46]
  • 66. The speaker says... Kasper: (from the off, loud) Seagull, you are running out of time. And, this is bad style. It would be one line to fix this. Plus, HandlerSocket manual explicitly asks to use small numbers. Seagull: (hicks) Yes, Sir! However, his is what happened to me after 30 seconds. Only one more for the fair play...
  • 67. Gotcha Memcached: 3000s? uninstall plugin daemon_memcached; install plugin daemon_memcached soname 'libmemcached.so'; Query OK, 0 rows affected (50,04 sec) ERROR 2013 (HY000): Lost connection to MySQL server during query [...] 2013-03-17 19:29:28 38575 [Note] Shutting down plugin 'daemon_memcached' InnoDB_Memcached: column 6 in the entry for config table 'containers' in database 'innodb_memcache' has an invalid NULL value Failed to initialize instance. Error code: 13 2013-03-17 19:29:37 38575 [Note] Shutting down plugin 'daemon_memcached'
  • 68. The speaker says... Kasper: (coming to the stage, loud) Seagull! Seagull: (hicks) But, Sir! This is even documented. If you misconfigured the plugin accidently, the server may run into troubles. If so, one shall set daemon_memcached=OFF in the server configuration and restart the server. Then, fix the issue. However, do not issue UNINSTALL PLUGIN if SHOW PLUGIN shows an disabled InnoDB Memcached plugin. If you do, your server crashes...
  • 69. Fifth act: Grand finale with Innobear
  • 70. The speaker says... Kasper: Ladies and gentlemen, Seagull needs a rest. Innobear has come back for the grand finale.
  • 71. Zoom! MySQL as a KVS Try the NoSQL APIs! High Performance 1234 - I am super FAST SQL for ad-hoc querying 4567 - LIGTHNING fast Limited Search and Types 7890 - [1][2][3][4][5] abcd - [1[a,b,c]],[2[d,e,f]] _de_- 1,281,2828,2,173,8 Threaded/Multi-Core, Key Value Store Scaleable Replication In-memory, Limited Persistence on-disk with fast recovery
  • 72. The speaker says... The InnoDB Memcache Plugin is certainly a step forward. MySQL is putting pressure on itself to modularize the server allowing users to slim MySQL, to strip off features not needed to get a certain job done. Users get more choices. If you want to combine a fast and lean client protocol with simple and fast access operations but cannot accept compromises on persistence or scalability, here you go. BTW: Cluster has been a speed monster ever since. In late 2012 we published benchmarks with 4.3B ops.
  • 73. Supercharge your web apps with MySQL Really rich queries! d or car co llect akila Free S *** Exclusive tipps: natural beauty at any age *** Happy End: Sakila, Sakila and Sakila in ITs' yellow press! *** True: NoSQL weekly recommends MySQL whitepaper ***
  • 75. The speaker says... Speaker grabs a bottle of beer. His phone rings. He picks up. Speaker: No, I did not forget anything. No, darling, I will not do that... (listens) … Ok, ok! (hangs up) Speaker: Turns to the audience. Ok, you get to hear a nightcap. But, I will not sing for you.
  • 76. Helan går Sjung hopp faderallan lallan lej Helan går Sjung hopp faderallan lej Och den som inte helan tar Han heller inte halvan får Helan går (Drink) Sjung hopp faderallan lej (Music plays, singer: Kaj Arnö) The whole goes Sing "hup fol-de-rol la la la la" The whole goes Sing "hup fol-de-rol la la" And the one who doesn't take the whole Doesn't get the half either The whole goes - (Drink) Sing "hup fol-de-rol la la" Nightcap: Helan Går
  • 77. The speaker says... Music plays: http://www.youtube.com/watch?v=HyZpCs3i71s Speaker: You have still not fallen asleep? Ah, you are looking at my beer bottle. Hmm, well, don't tell your mom... (hands over some bottles and shot glasses to the audience) Please, serve yourself. By the end of free bonus coming now, I expect you all to snooze peacefully.
  • 78. Free bonus: beyond the fairy tale
  • 79. The speaker says... As you are having your shots, allow me to summarize the talk.
  • 80. Ulf's take... - Awareness Not a bad attempt at all... Go try! Go ask for more! A significant number of MySQL users is using Memcached • Deploy only one data store instead of two • Dual interface: can we skip a caching layer in our apps? A good first step, but looking for more • Persistence for Memcache - more of a topic for Redis? • No issues with warm-up or stampeding/slamming • KVS is about performance, where is the proof @ 5.6...? • Data model is about distribution/sharding, MySQL Cluster only?
  • 81. The speaker says... The InnoDB Memcached Plugin is a valuable addition to MySQL. It can be interpreted as both a reaction to NoSQL ideas but also (and foremost) as a reaction to customer demand. Using MySQL with Memcached is extremly popular – ever since. Sakila and Memcache are best friends. Check for how long the MySQL manual includes exhaustive documentation for using the two data stores together. Adding two persistent storage backends (MySQL Cluster, InnoDB) to Memcache makes sense: their performance is competitive. Integrating the Memcached into MySQL means: simplified application architecture (no cache layer), thus lower costs. And, as a benefit on top, a dual SQL/KVS interface to the
  • 82. Swipe, tap, click, and zoom 1234 - I am super FAST {"documents":"rock"} 4567 - LIGTHNING fast {"mysql":"not"} 7890 - [1][2][3][4][5] {"documents":"rock"} abcd - [1[a,b,c]],[2[d,e,f]] {"mysql":"not"} _de_- 1,281,2828,2,173,8 {"documents":"rock"} Key Value Store Document Database 010101001011010 101010110100101 101010010101010 101010110101011 101010110111101 Graph Database Big Data/Column-oriented
  • 83. The speaker says... As a reaction to NoSQL, however, it is a small step only. NoSQL is more than Key-Value-Stores. Though, Key-Value Stores may be the most popular kind of NoSQL deployed today. Read: the biggest customer demand. InnoDB Memcached mimics one of the oldest Key-Value Stores. In a way, Memcached is a first generation KVS. Type system and protocol/query capability are puristic unlike a recent remote data infrastructure server (redis). Given that InnoDB can serve as a backend for highly complex SQL and very simple KVS, can it be bend to serve other purposes as well?
  • 84. Zoom! MySQL vs Documents Hierarchical/nested data, Hmm... JavaScript/[J|B]SON Replication: Ok, add 3rd party Highly Available Cluster: beat it! Replication: Write limit Scaleable, Cluster: beat it! Map&Reduce Database and tooling: good Easy To Use Need for ORM: hmm...
  • 85. The speaker says... NoSQL is not only about interfaces. It is also a wonderful potpurri of new and old data models. For examples, the hierarchical document data model goes back to the 60th – think IMS. In the 70th and 80th Codds relational model and later SQL has seen criticized for allowing atomic data types only. SQL:2003 has 90% of what is needed to store and query arbitrarily structured JSON documents in a relational database! Read about it at: blog.ulf-wendel.de/ . However, NoSQL is really pushing RDBMS on clustering. We are not talking 4, 40 or 100 nodes here. We are thousands of nodes, possibly used with elastic sharding.
  • 86. Zoom! JavaScript/[J|B]SON Proof of Concept MySQL speaks HTTP and replies JSON. JavaScript (v8) runs inside MySQL. Map&Reduce jobs use the internal low-level high performance interfaces. … it could be done http://de.slideshare.net/nixnutz/http-json-javascript-mapreduce-builtin-to-mysql
  • 87. The speaker says... Speaking of interfaces and key value stores that hold documents... it could be done. Thank you for your attendance! Upcoming shows: International PHP Unconference Berlin, May 2013 (sold out) International PHP Conference Spring Edition Berlin, June 2013
