Ulf Wendel, Oracle



    PHP mysqlnd
Connection Multiplexing

    PECL/mysqlnd_mux 1.0.0-prototype

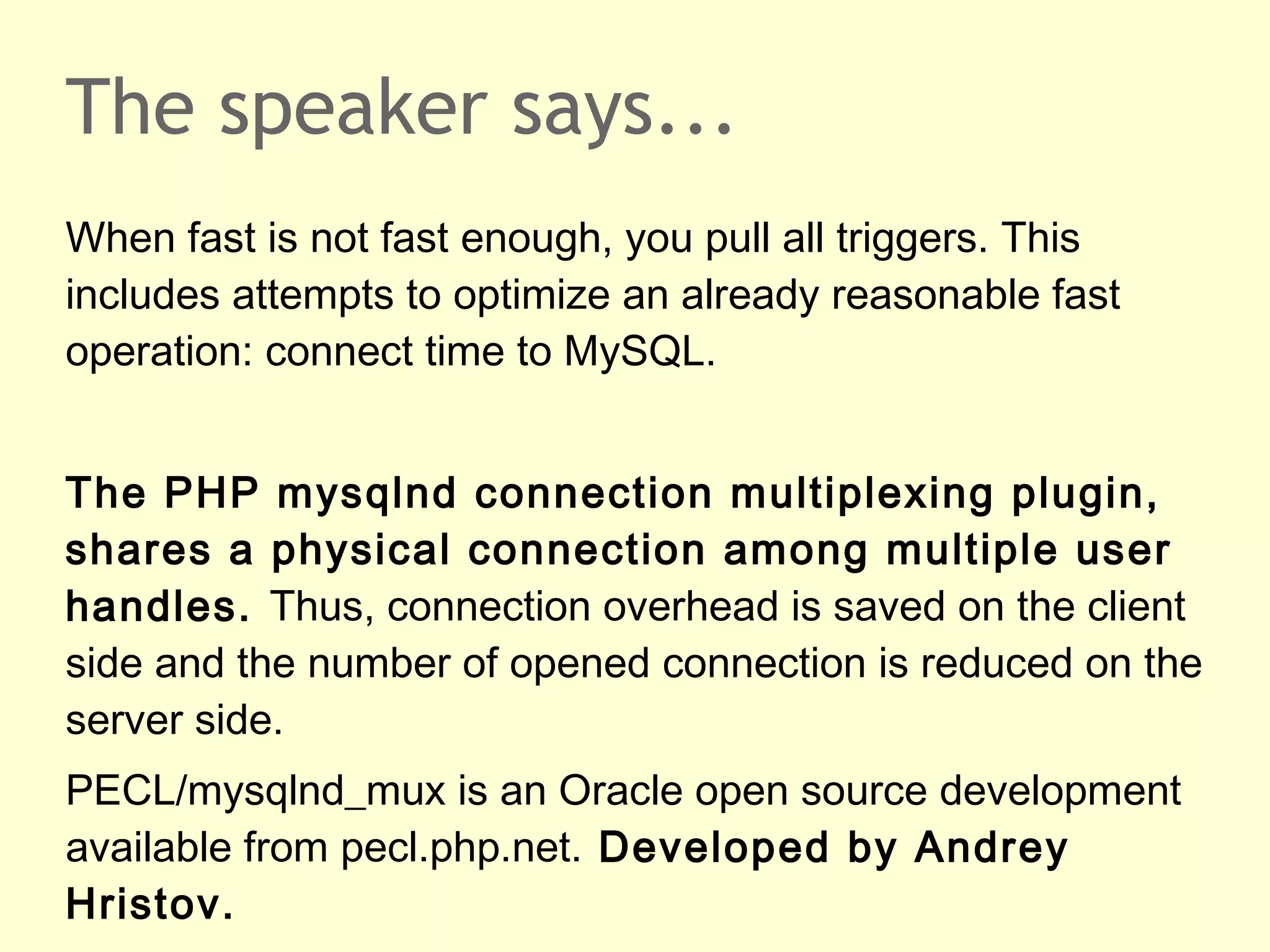

The speaker says...
When fast is not fast enough, you pull all triggers. This
includes attempts to optimize an already reasonable fast
operation: connect time to MySQL.


The PHP mysqlnd connection multiplexing plugin,
shares a physical connection among multiple user
handles. Thus, connection overhead is saved on the client
side and the number of opened connection is reduced on the
server side.
PECL/mysqlnd_mux is an Oracle open source development
available from pecl.php.net. Developed by Andrey
Hristov.

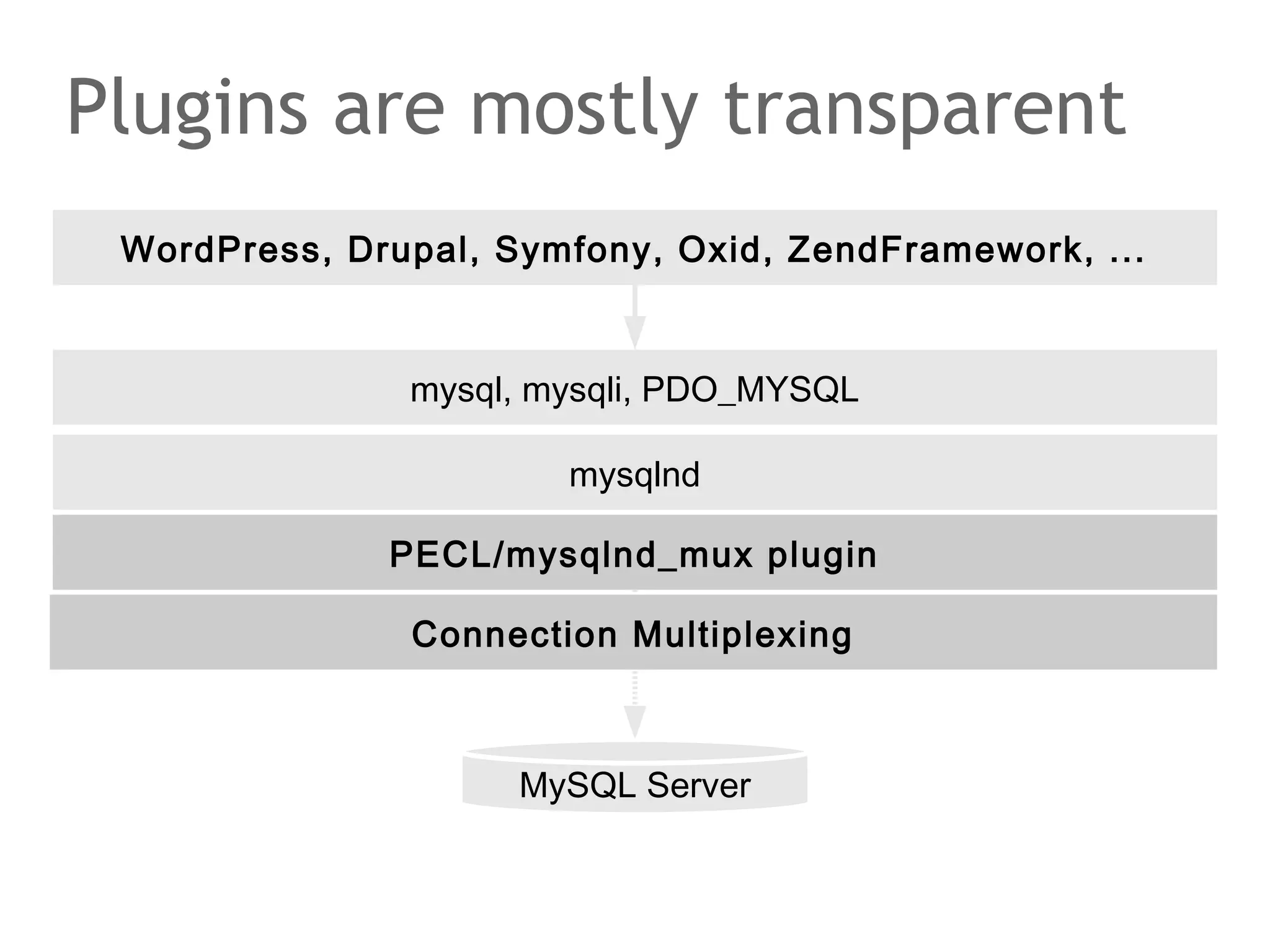

Plugins are mostly transparent
 WordPress, Drupal, Symfony, Oxid, ZendFramework, ...


               mysql, mysqli, PDO_MYSQL

                       mysqlnd

              PECL/mysqlnd_mux plugin

               Connection Multiplexing



                     MySQL Server

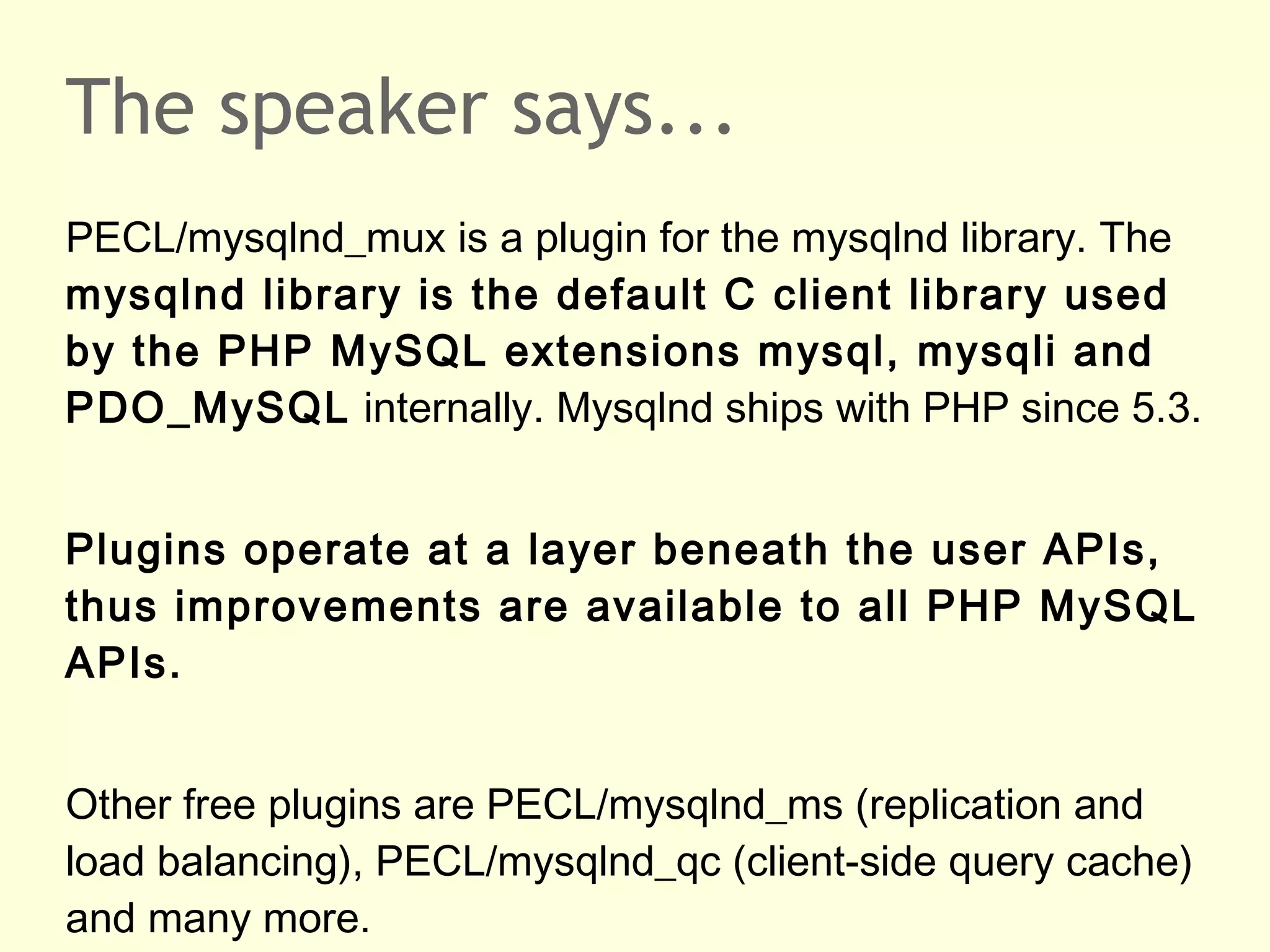

The speaker says...
PECL/mysqlnd_mux is a plugin for the mysqlnd library. The
mysqlnd library is the default C client library used
by the PHP MySQL extensions mysql, mysqli and
PDO_MySQL internally. Mysqlnd ships with PHP since 5.3.


Plugins operate at a layer beneath the user APIs,
thus improvements are available to all PHP MySQL
APIs.


Other free plugins are PECL/mysqlnd_ms (replication and
load balancing), PECL/mysqlnd_qc (client-side query cache)
and many more.

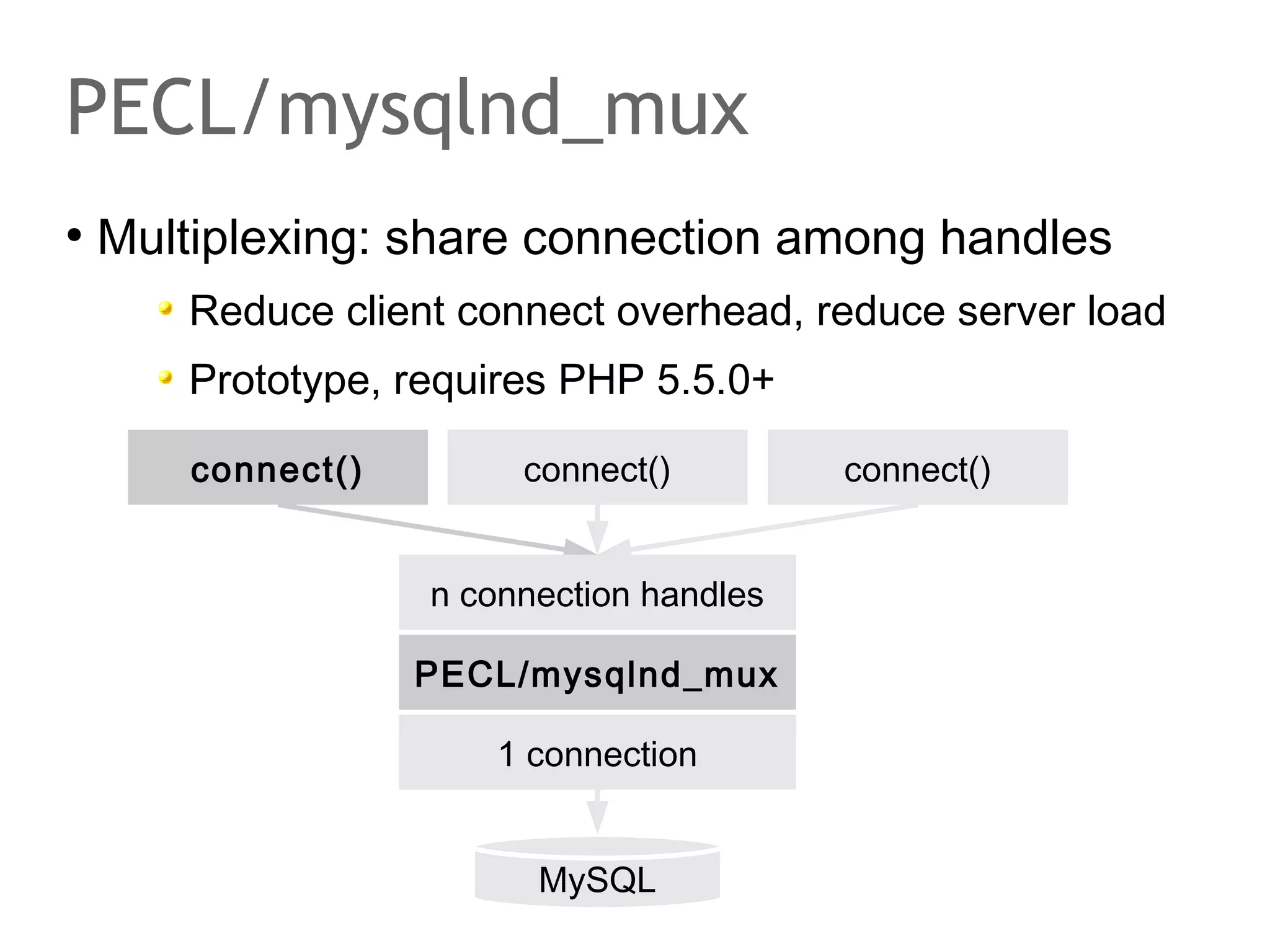

PECL/mysqlnd_mux
●
    Multiplexing: share connection among handles
       Reduce client connect overhead, reduce server load
       Prototype, requires PHP 5.5.0+

        connect()        connect()         connect()


                    n connection handles

                    PECL/mysqlnd_mux

                        1 connection


                          MySQL

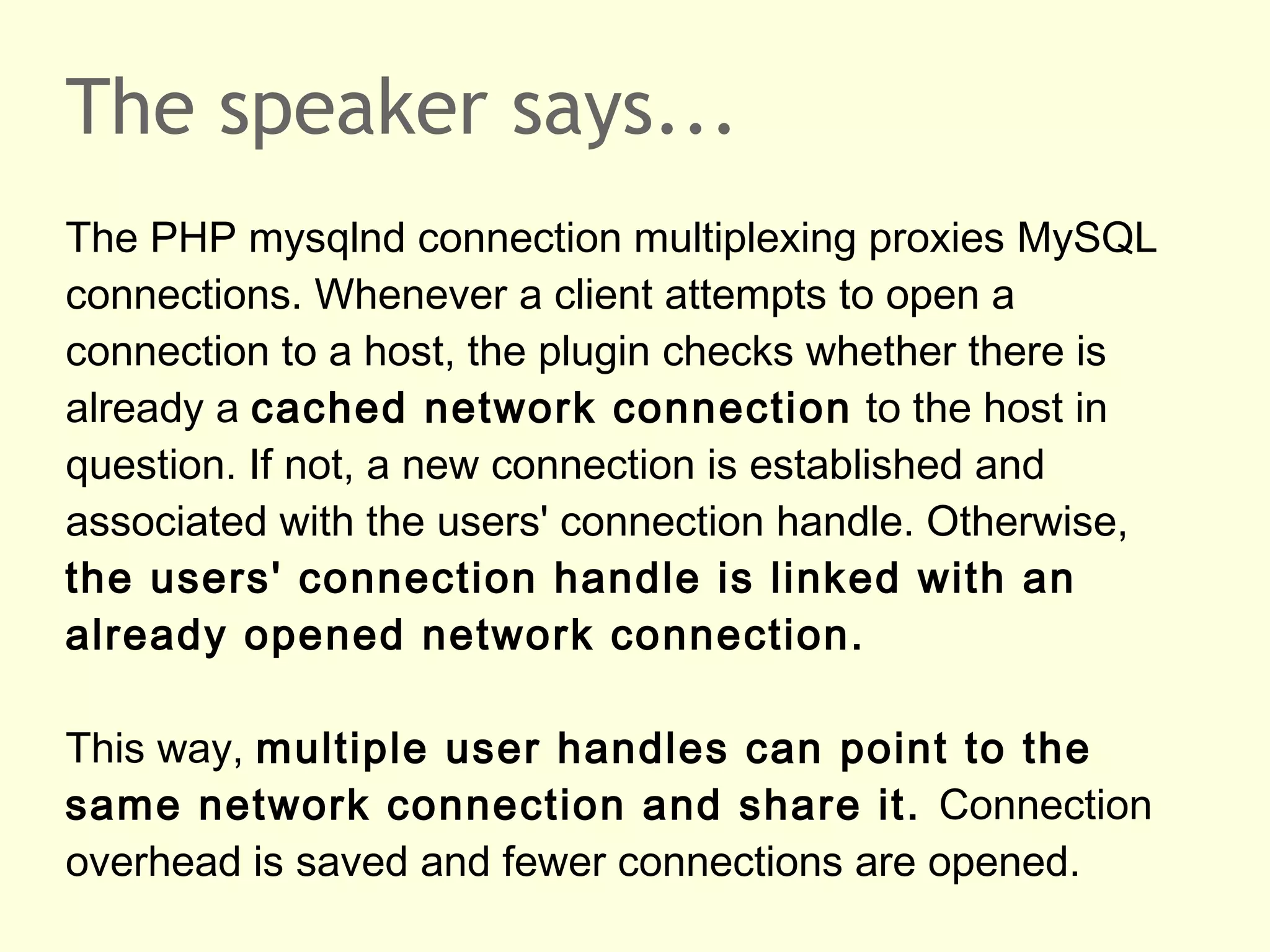

The speaker says...
The PHP mysqlnd connection multiplexing proxies MySQL
connections. Whenever a client attempts to open a
connection to a host, the plugin checks whether there is
already a cached network connection to the host in
question. If not, a new connection is established and
associated with the users' connection handle. Otherwise,
the users' connection handle is linked with an
already opened network connection.

This way, multiple user handles can point to the
same network connection and share it. Connection
overhead is saved and fewer connections are opened.

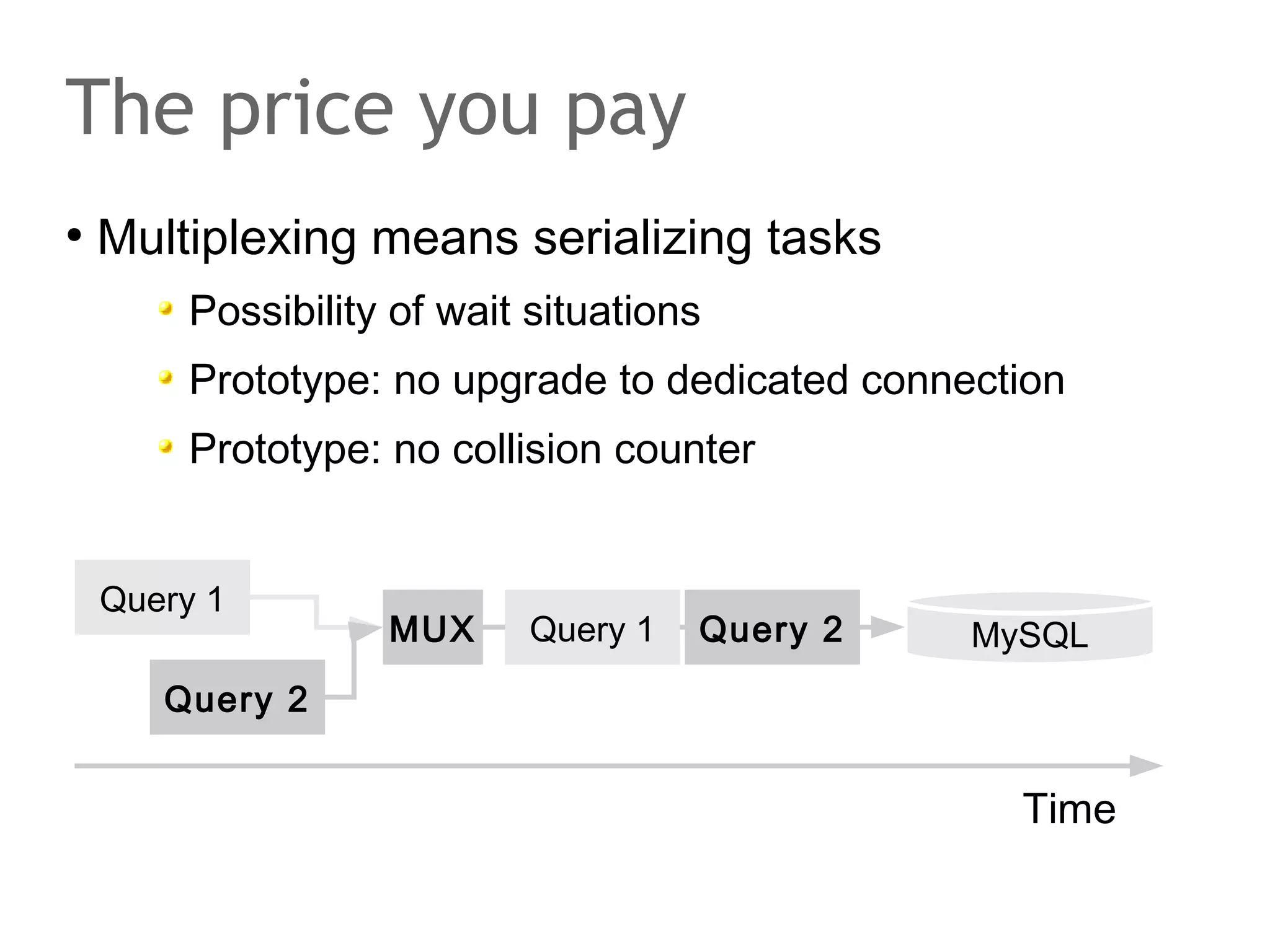

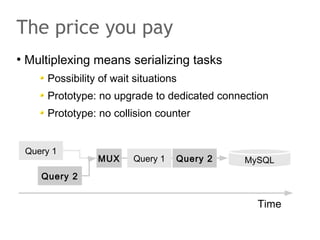

The price you pay
●
    Multiplexing means serializing tasks
        Possibility of wait situations
        Prototype: no upgrade to dedicated connection
        Prototype: no collision counter


    Query 1
                   MUX     Query 1   Query 2    MySQL
       Query 2


                                                  Time

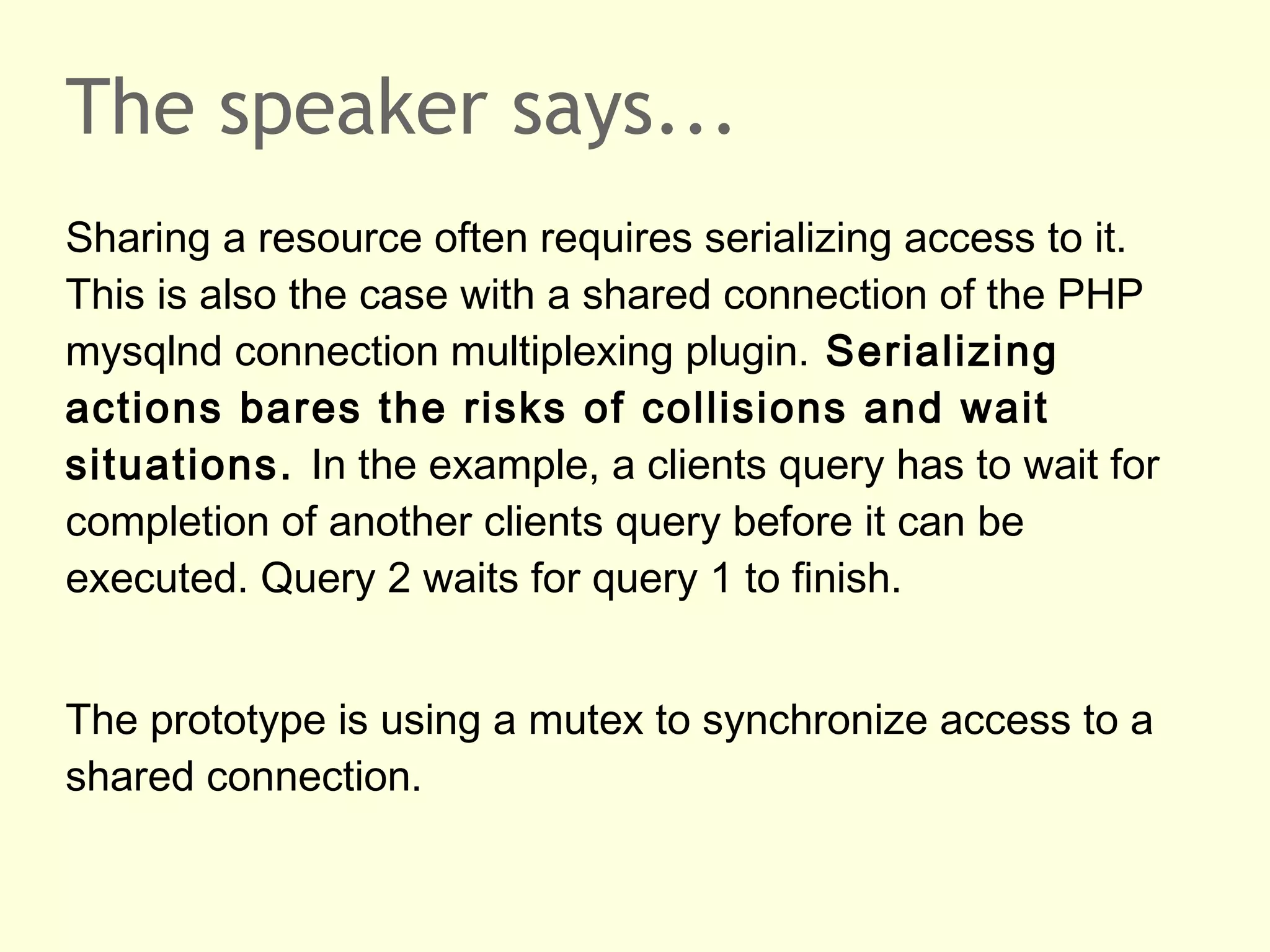

The speaker says...
Sharing a resource often requires serializing access to it.
This is also the case with a shared connection of the PHP
mysqlnd connection multiplexing plugin. Serializing
actions bares the risks of collisions and wait
situations. In the example, a clients query has to wait for
completion of another clients query before it can be
executed. Query 2 waits for query 1 to finish.


The prototype is using a mutex to synchronize access to a
shared connection.

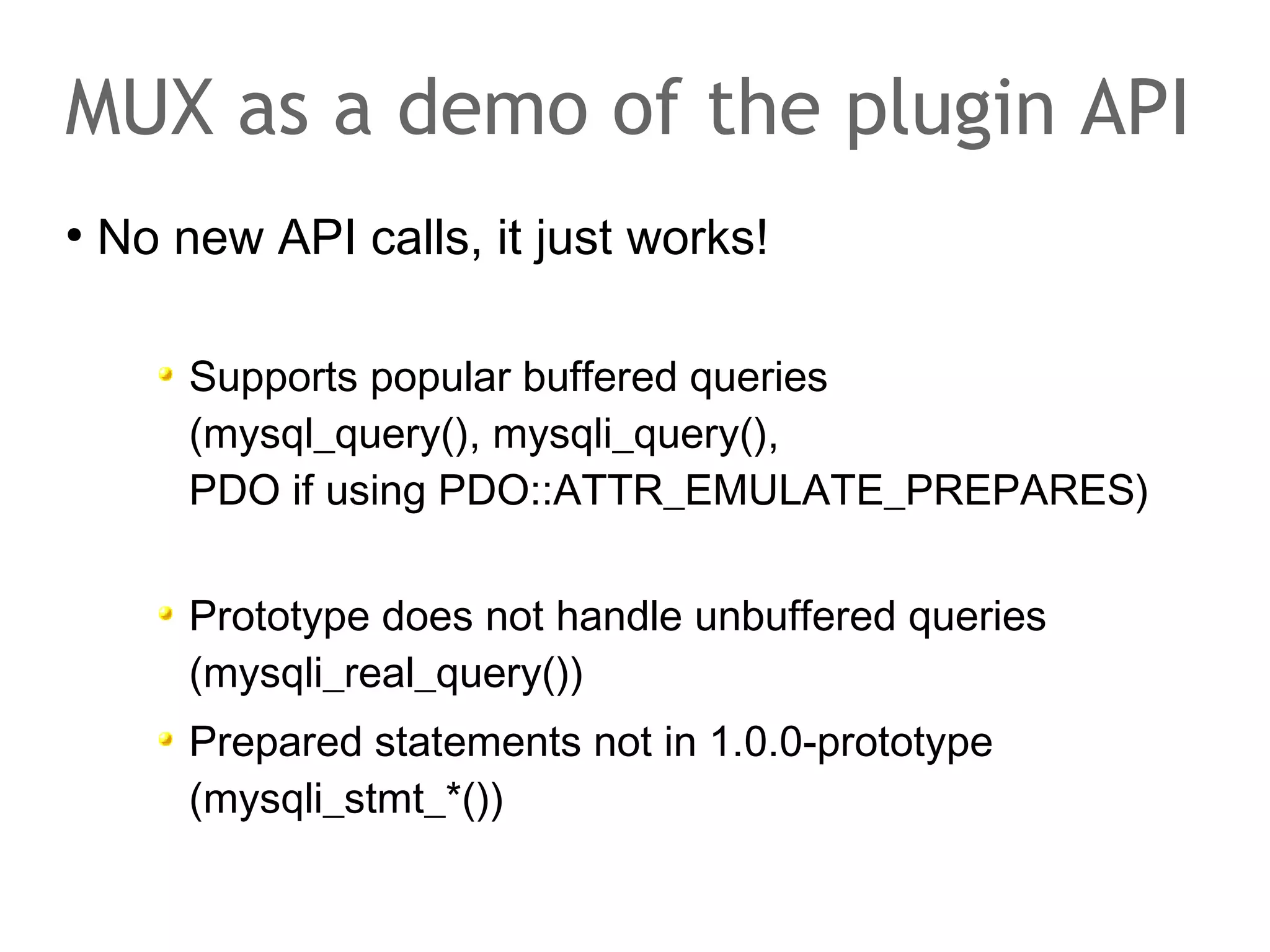

MUX as a demo of the plugin API
●
    No new API calls, it just works!

        Supports popular buffered queries
        (mysql_query(), mysqli_query(),
        PDO if using PDO::ATTR_EMULATE_PREPARES)

        Prototype does not handle unbuffered queries
        (mysqli_real_query())
        Prepared statements not in 1.0.0-prototype
        (mysqli_stmt_*())

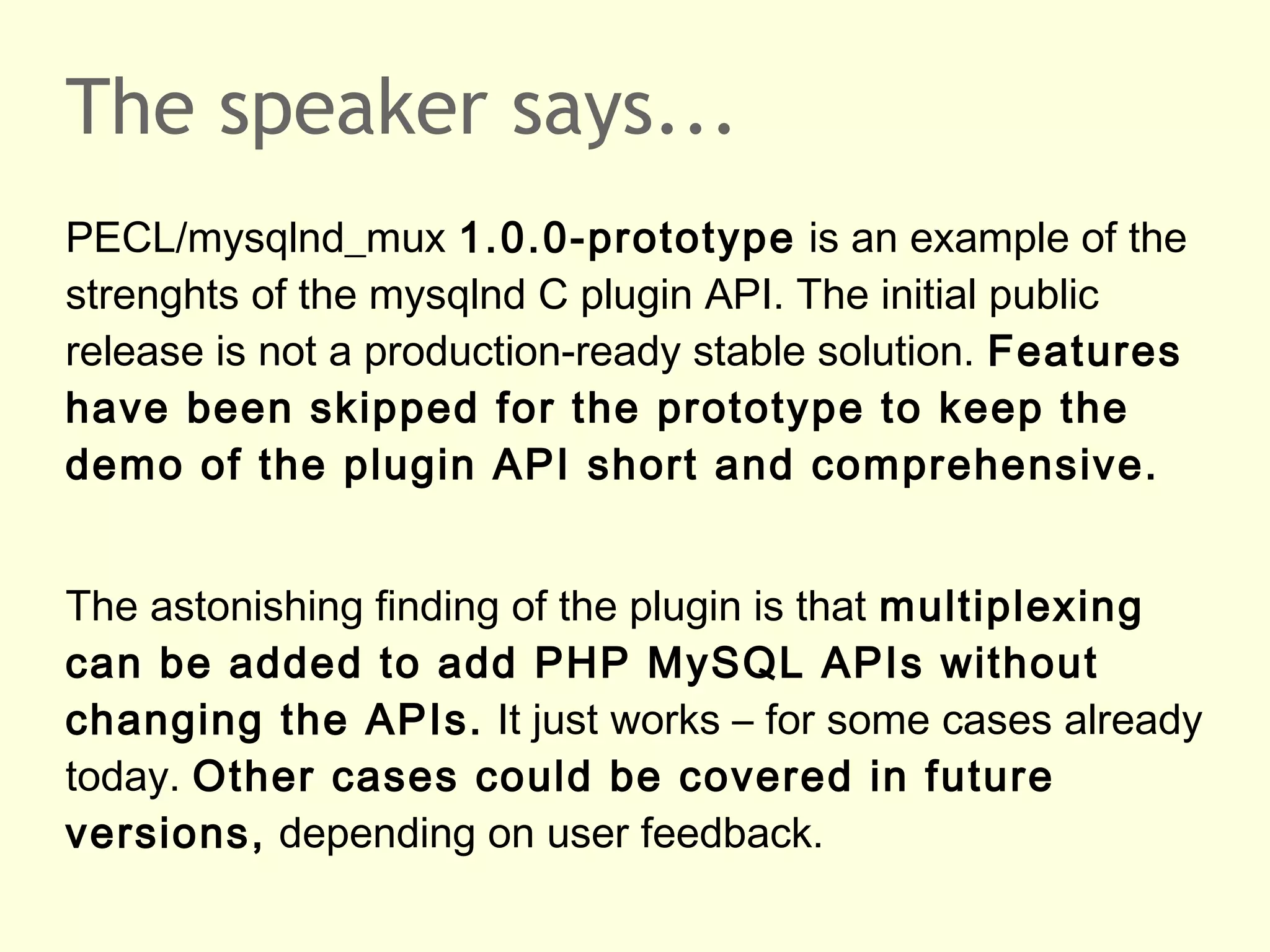

The speaker says...
PECL/mysqlnd_mux 1.0.0-prototype is an example of the
strenghts of the mysqlnd C plugin API. The initial public
release is not a production-ready stable solution. Features
have been skipped for the prototype to keep the
demo of the plugin API short and comprehensive.


The astonishing finding of the plugin is that multiplexing
can be added to add PHP MySQL APIs without
changing the APIs. It just works – for some cases already
today. Other cases could be covered in future
versions, depending on user feedback.
THAT'S IT FOLKS?

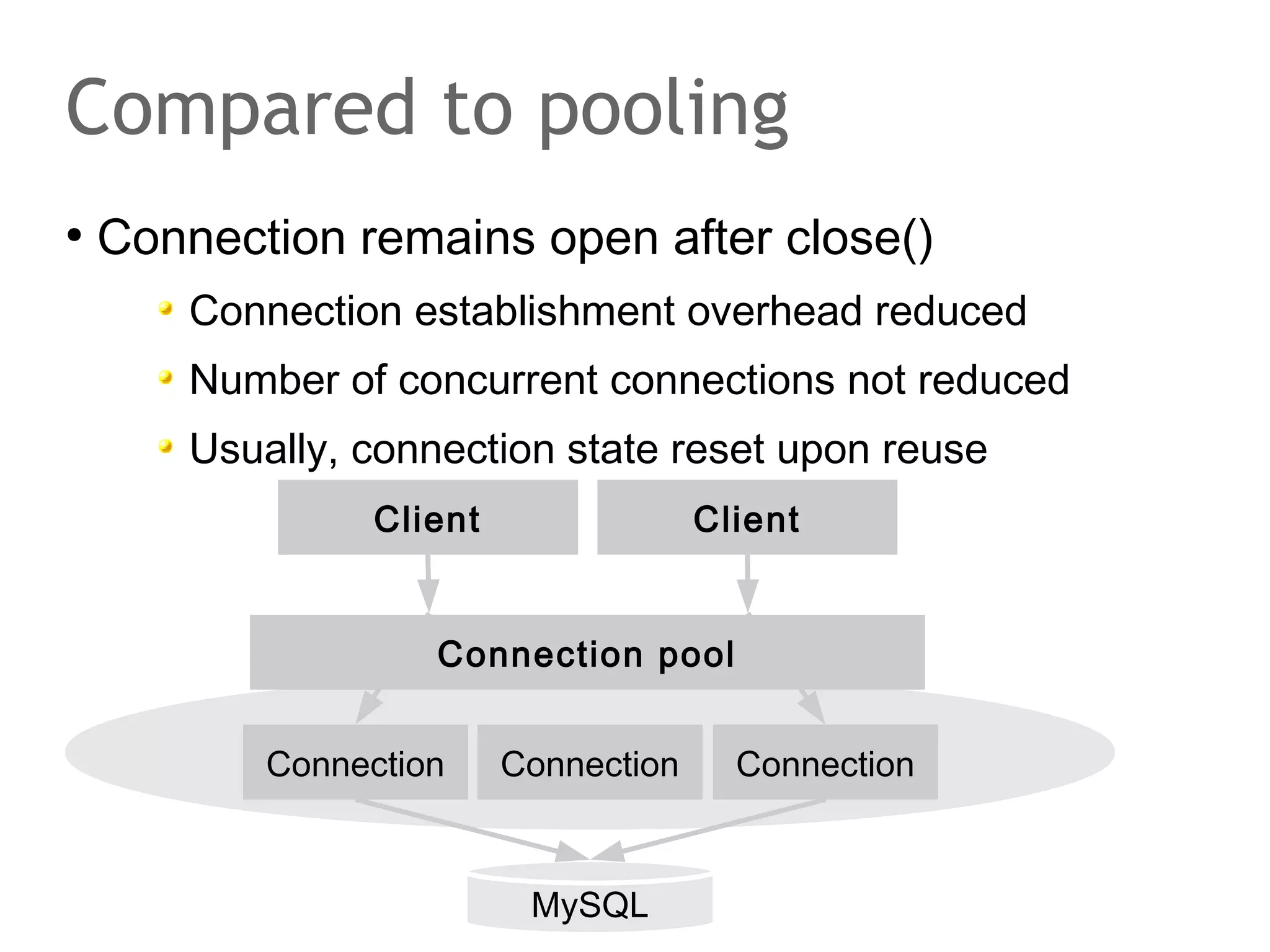

Compared to pooling
●
    Connection remains open after close()
        Connection establishment overhead reduced
        Number of concurrent connections not reduced
        Usually, connection state reset upon reuse
                  Client                Client


                     Connection pool


            Connection     Connection     Connection


                            MySQL

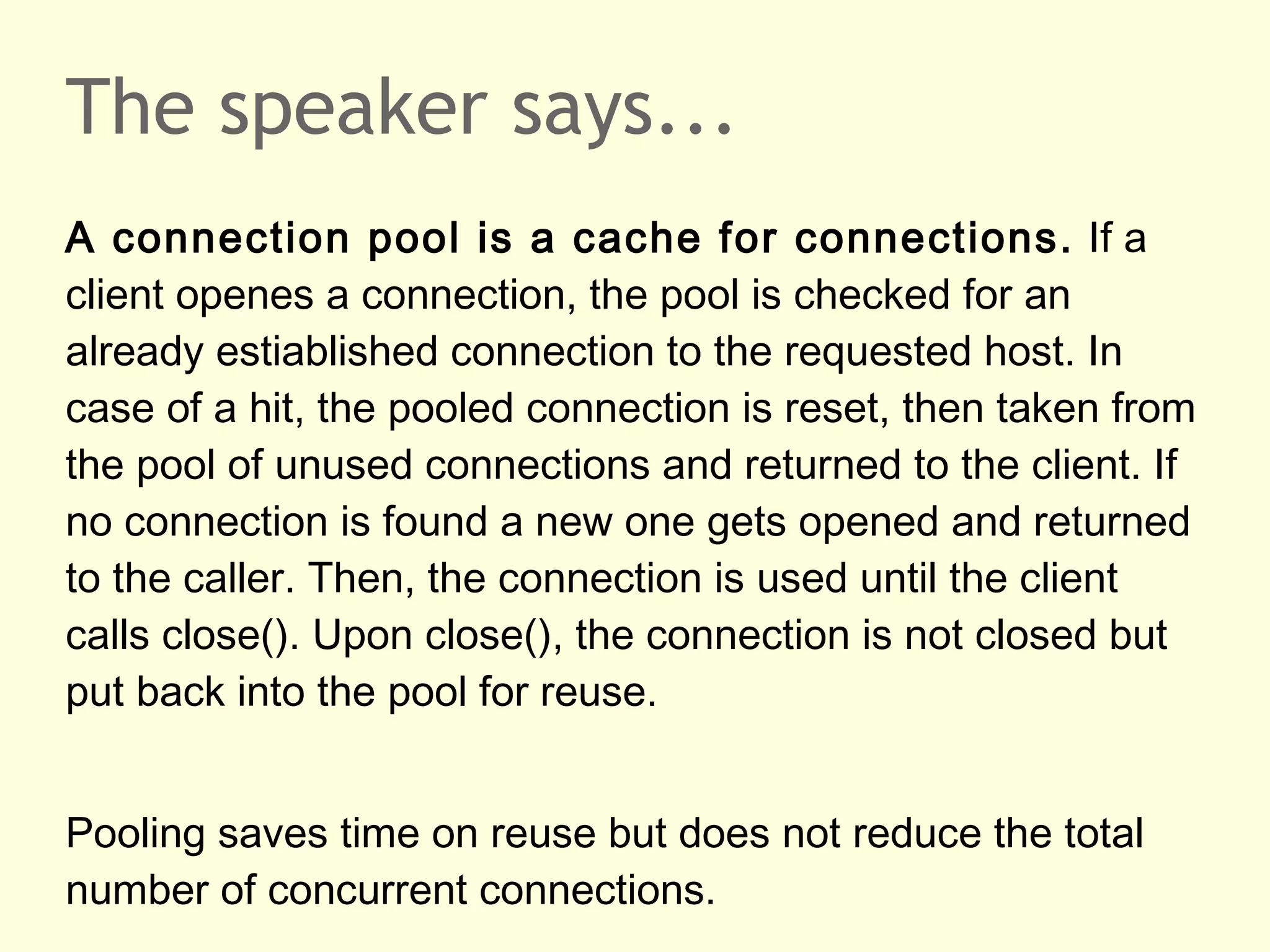

The speaker says...
A connection pool is a cache for connections. If a
client openes a connection, the pool is checked for an
already estiablished connection to the requested host. In
case of a hit, the pooled connection is reset, then taken from
the pool of unused connections and returned to the client. If
no connection is found a new one gets opened and returned
to the caller. Then, the connection is used until the client
calls close(). Upon close(), the connection is not closed but
put back into the pool for reuse.


Pooling saves time on reuse but does not reduce the total
number of concurrent connections.

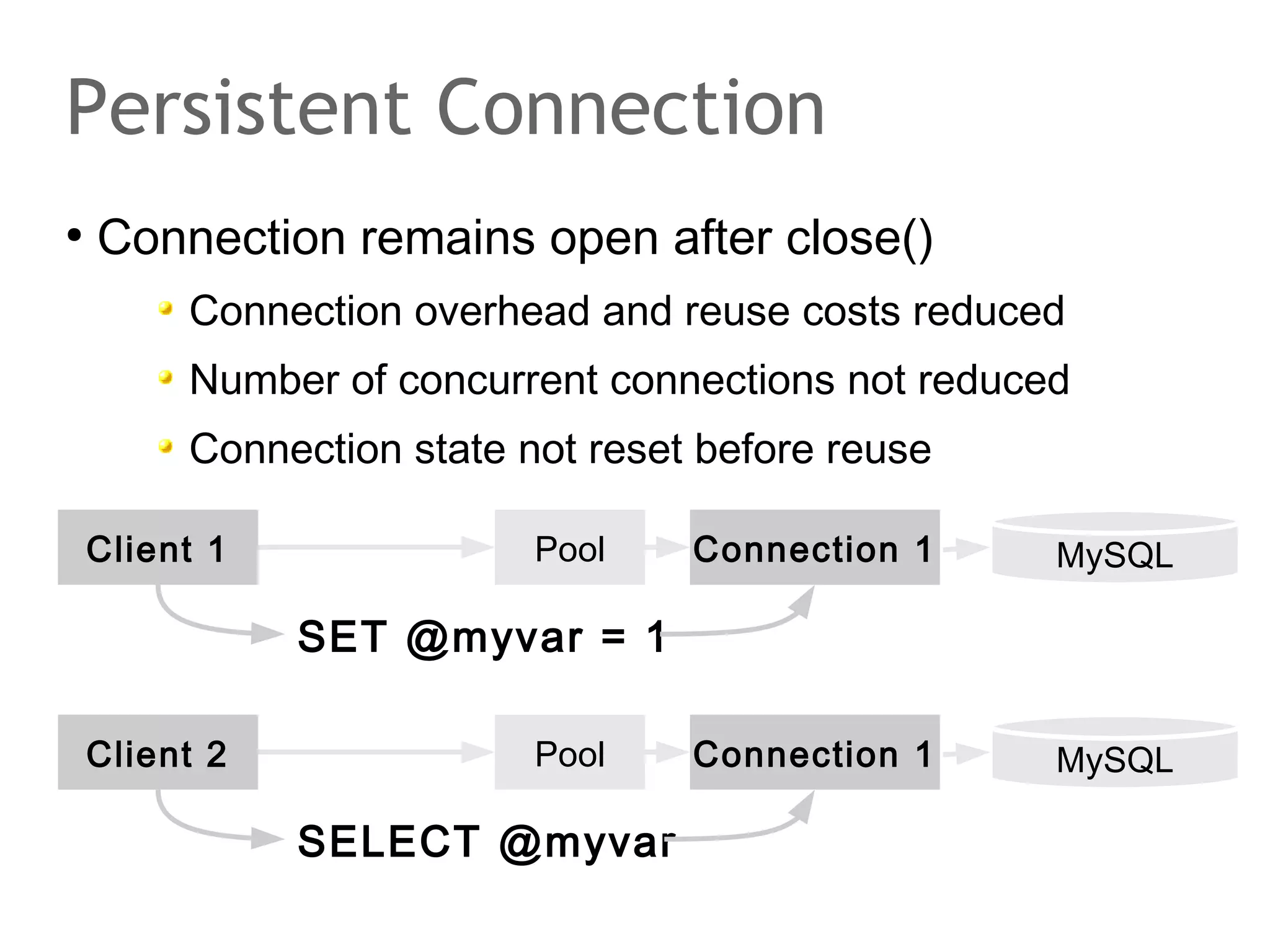

Persistent Connection
●
    Connection remains open after close()
         Connection overhead and reuse costs reduced
         Number of concurrent connections not reduced
         Connection state not reset before reuse

    Client 1               Pool    Connection 1     MySQL

               SET @myvar = 1

    Client 2               Pool    Connection 1     MySQL

               SELECT @myvar

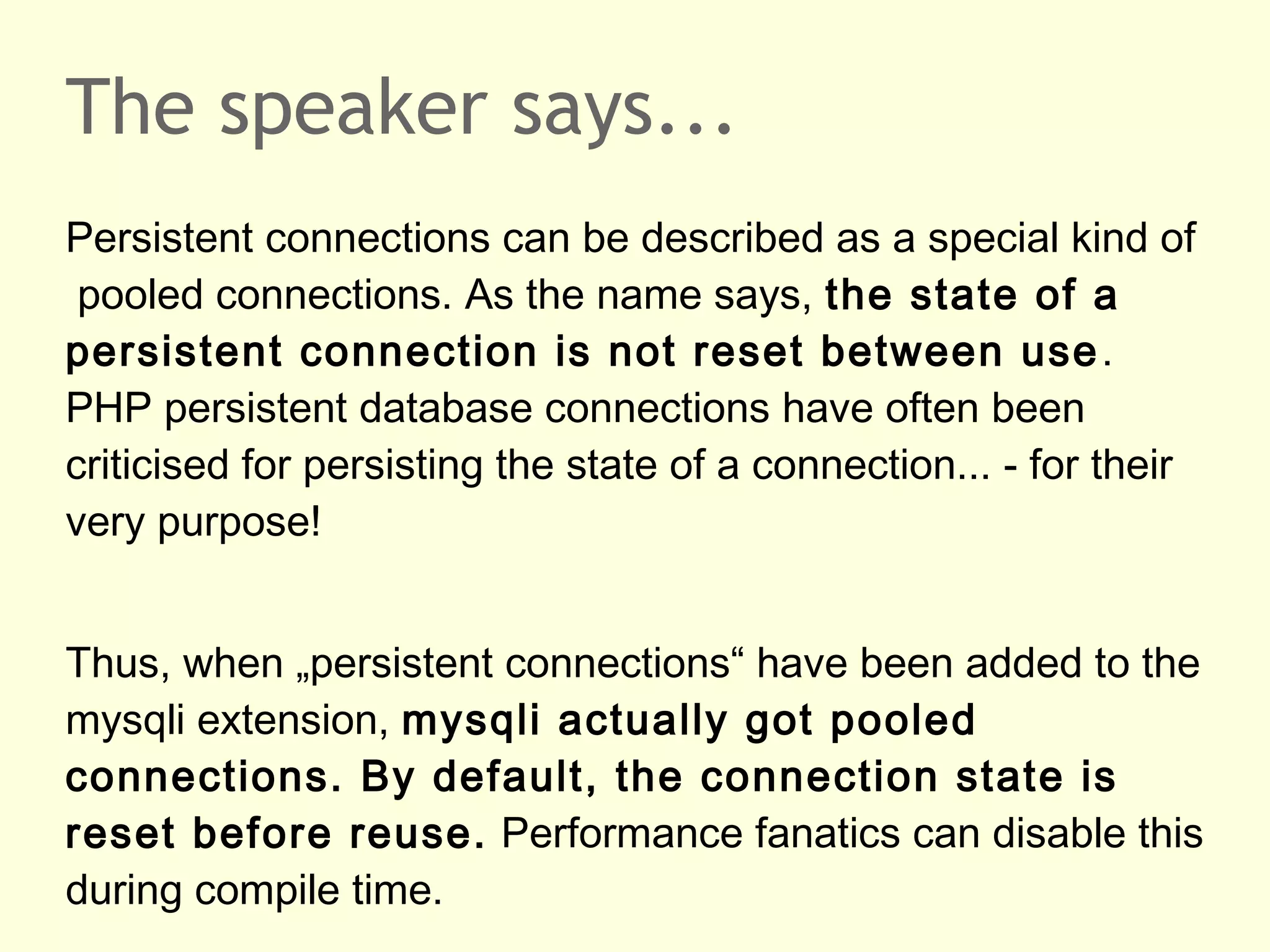

The speaker says...
Persistent connections can be described as a special kind of
 pooled connections. As the name says, the state of a
persistent connection is not reset between use .
PHP persistent database connections have often been
criticised for persisting the state of a connection... - for their
very purpose!


Thus, when „persistent connections“ have been added to the
mysqli extension, mysqli actually got pooled
connections. By default, the connection state is
reset before reuse. Performance fanatics can disable this
during compile time.

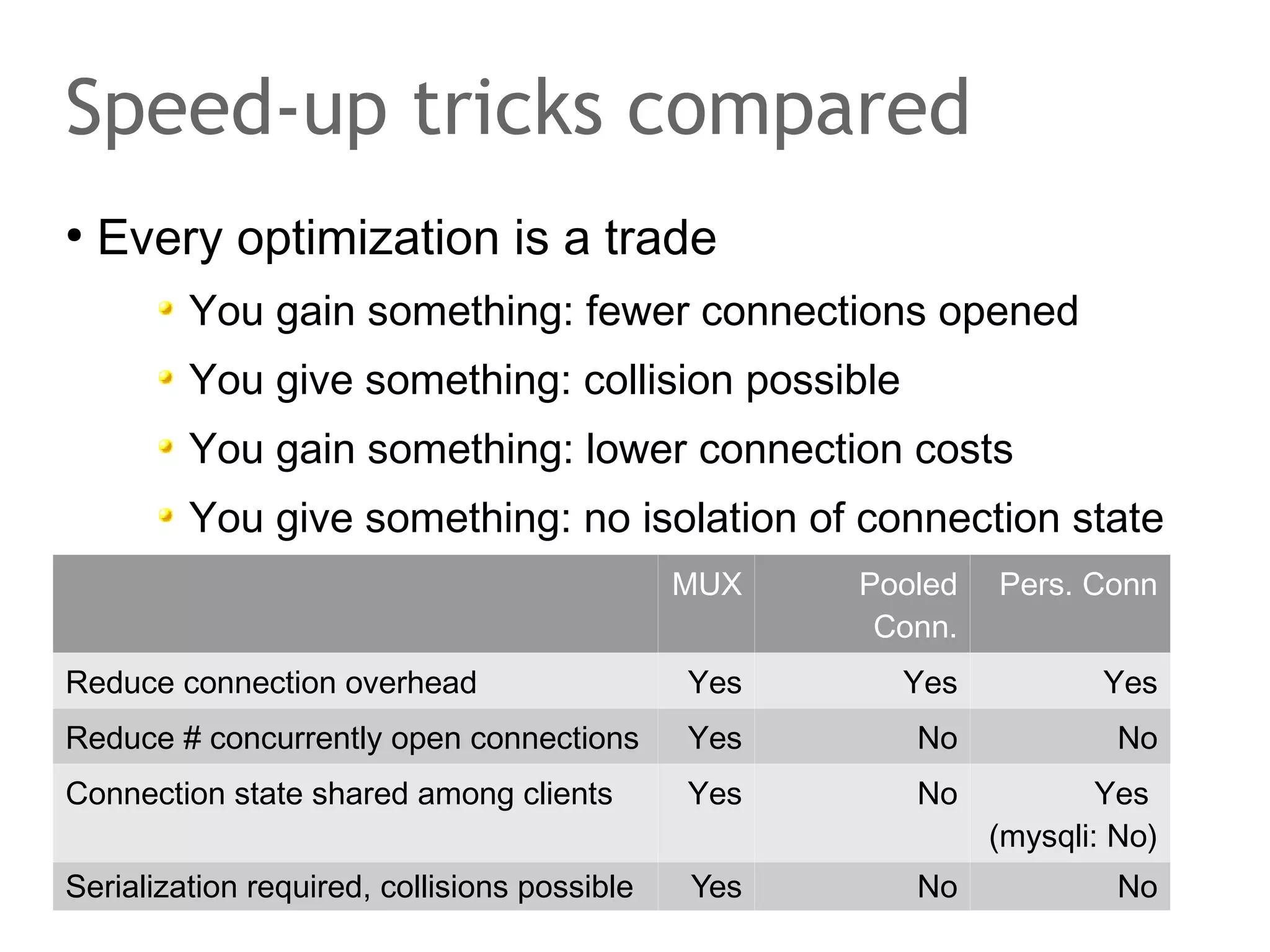

Speed-up tricks compared
●
    Every optimization is a trade
         You gain something: fewer connections opened
         You give something: collision possible
         You gain something: lower connection costs
         You give something: no isolation of connection state
                                              MUX   Pooled   Pers. Conn
                                                     Conn.
Reduce connection overhead                    Yes     Yes            Yes
Reduce # concurrently open connections        Yes      No             No
Connection state shared among clients         Yes      No            Yes
                                                             (mysqli: No)
Serialization required, collisions possible   Yes      No             No

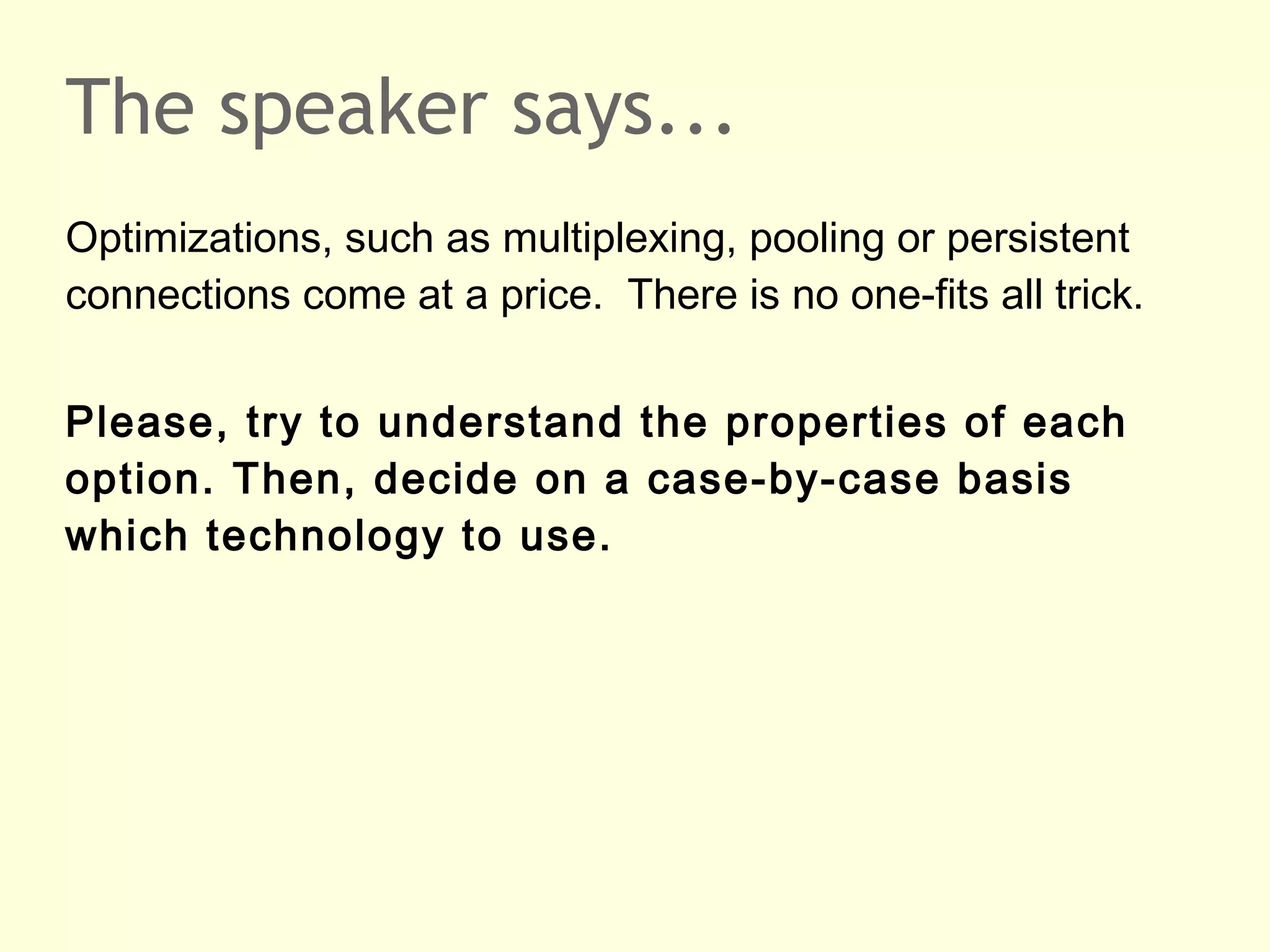

The speaker says...
Optimizations, such as multiplexing, pooling or persistent
connections come at a price. There is no one-fits all trick.


Please, try to understand the properties of each
option. Then, decide on a case-by-case basis
which technology to use.

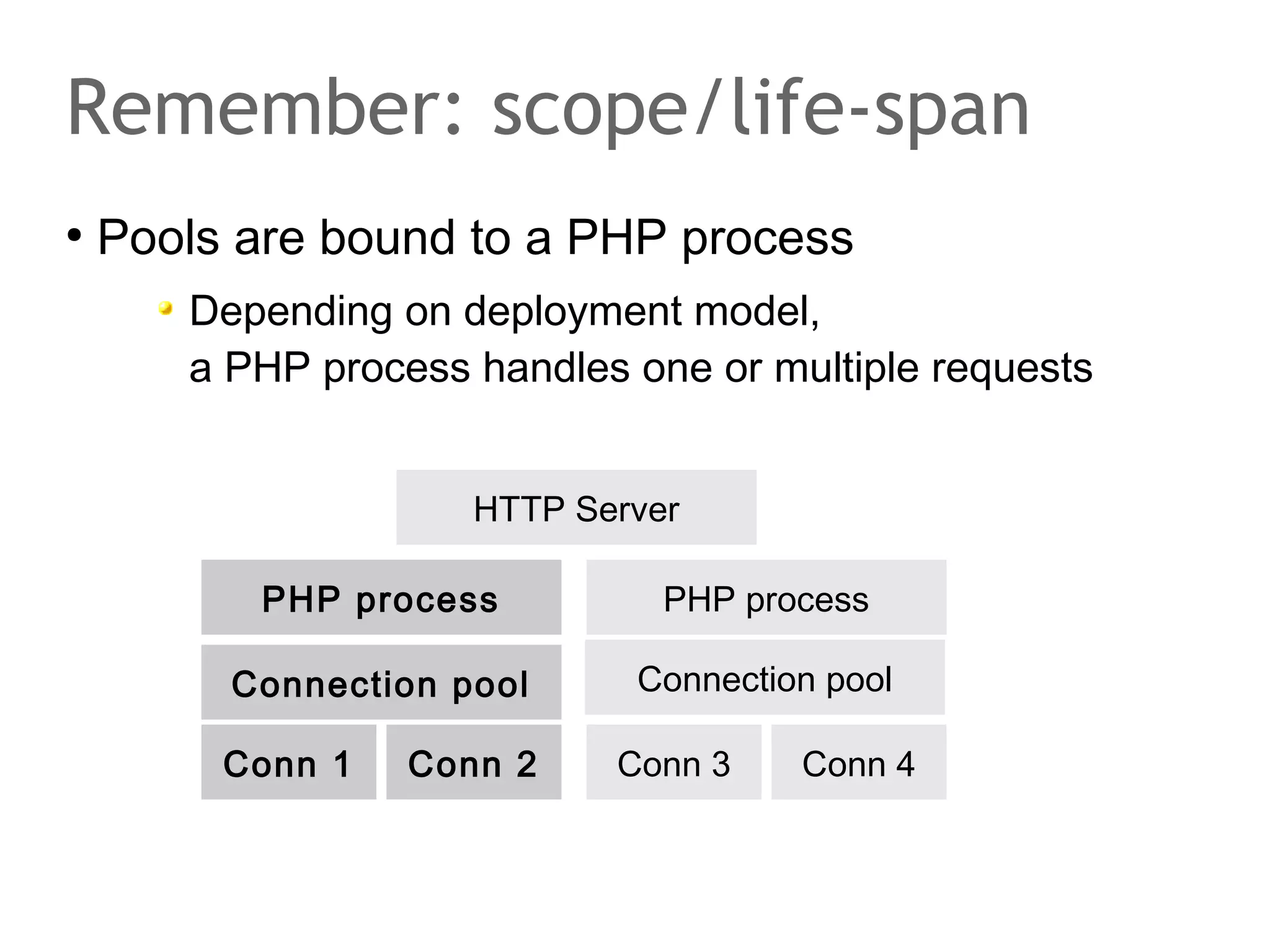

Remember: scope/life-span
●
    Pools are bound to a PHP process
       Depending on deployment model,
       a PHP process handles one or multiple requests


                     HTTP Server

          PHP process          PHP process

         Connection pool     Connection pool

         Conn 1   Conn 2    Conn 3    Conn 4

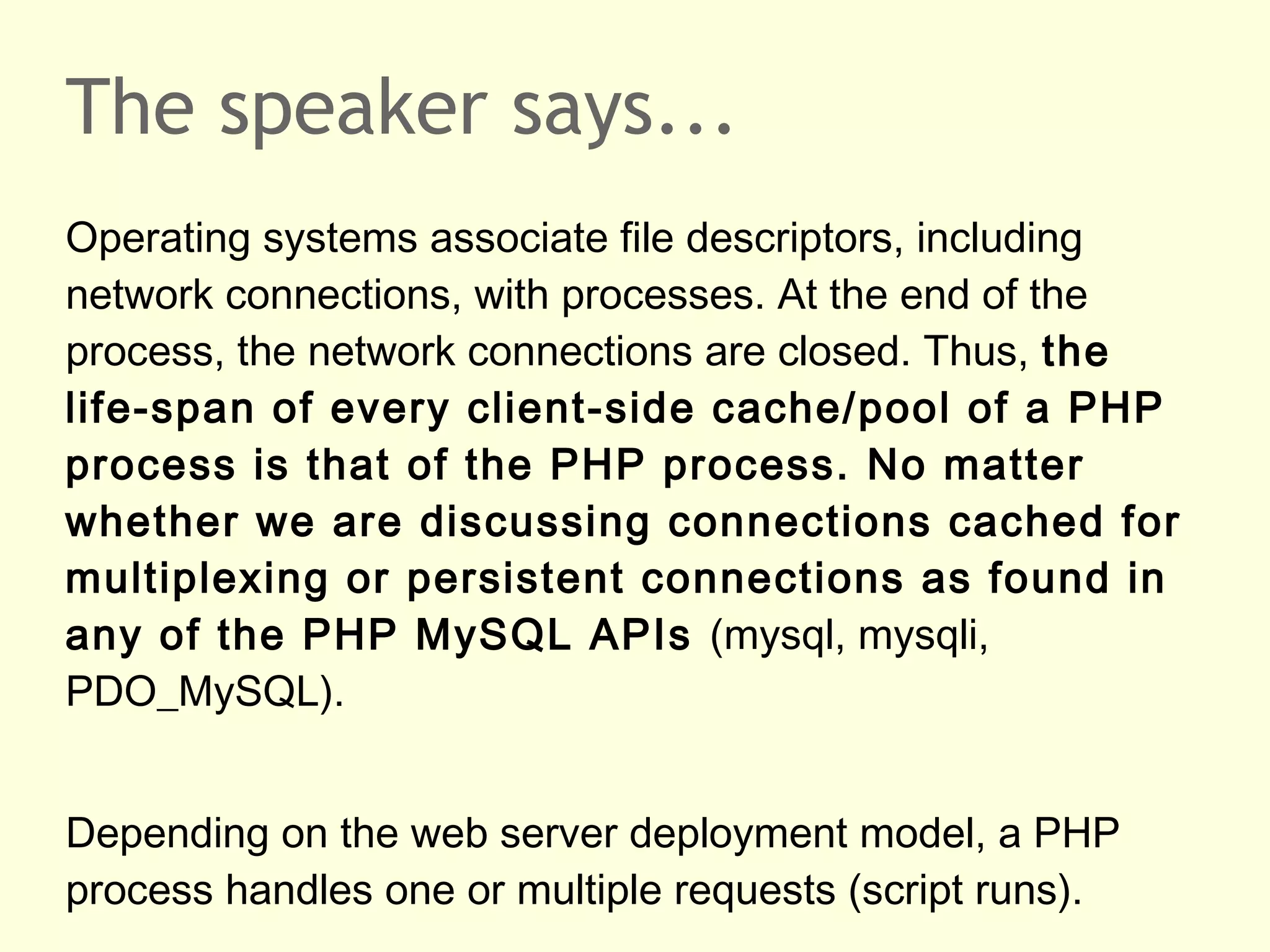

The speaker says...
Operating systems associate file descriptors, including
network connections, with processes. At the end of the
process, the network connections are closed. Thus, the
life-span of every client-side cache/pool of a PHP
process is that of the PHP process. No matter
whether we are discussing connections cached for
multiplexing or persistent connections as found in
any of the PHP MySQL APIs (mysql, mysqli,
PDO_MySQL).


Depending on the web server deployment model, a PHP
process handles one or multiple requests (script runs).
THE END



      http://www.slideshare.net/nixnutz/
Contact: ulf.wendel@oracle.com, @Ulf_Wendel
