MySQL native driver for PHP: Customizing the query cache
mysqlnd_qc:  Customization by user defined storage handler Ulf Wendel, Andrey Hristov MySQL Connectors Team Sun Microsystems

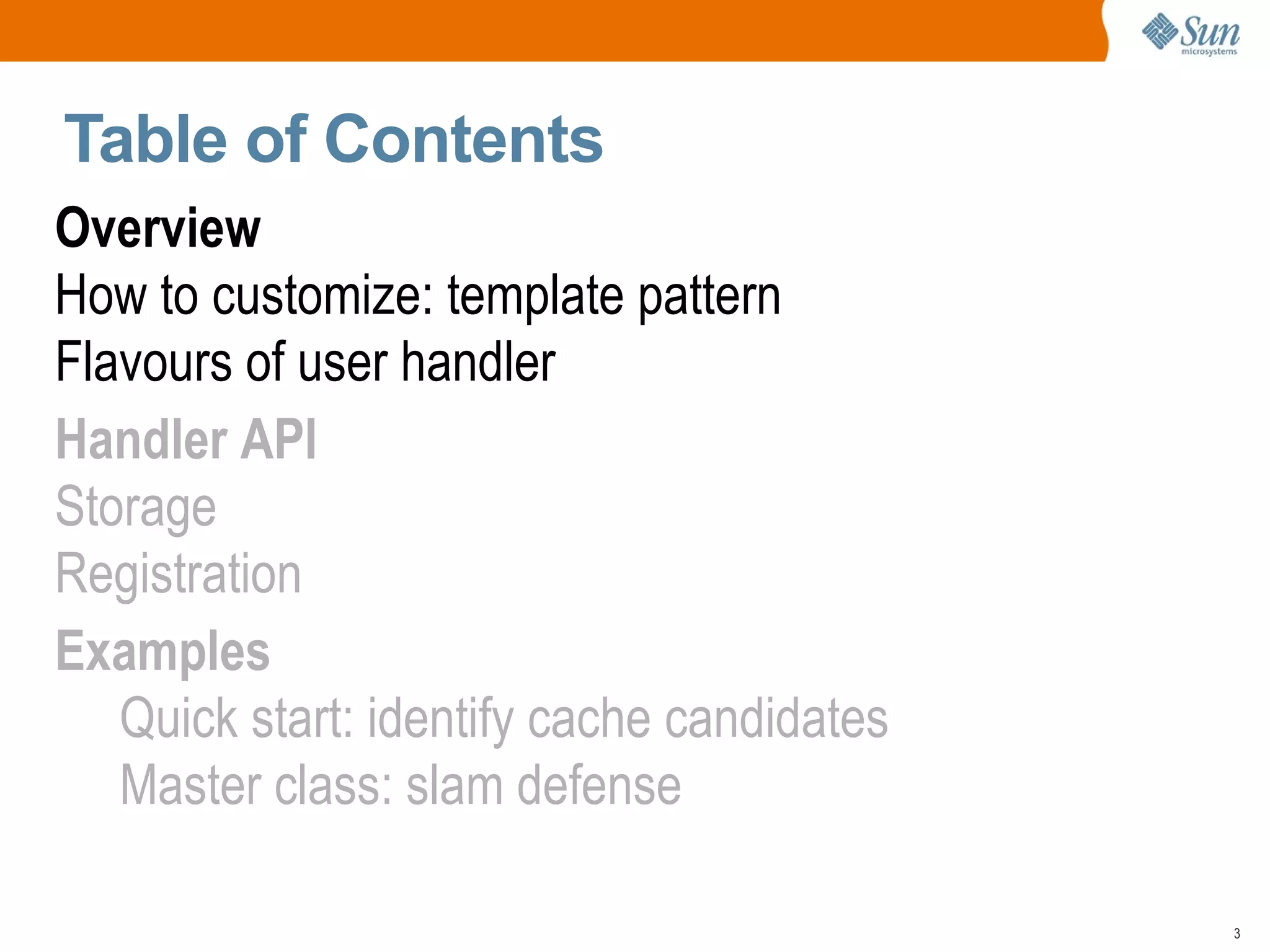

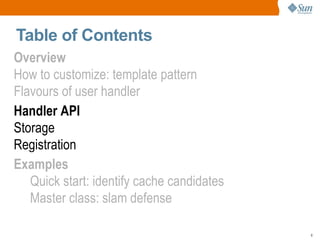

Table of Contents Overview How to customize: template pattern
Flavours of user handler Handler API Storage

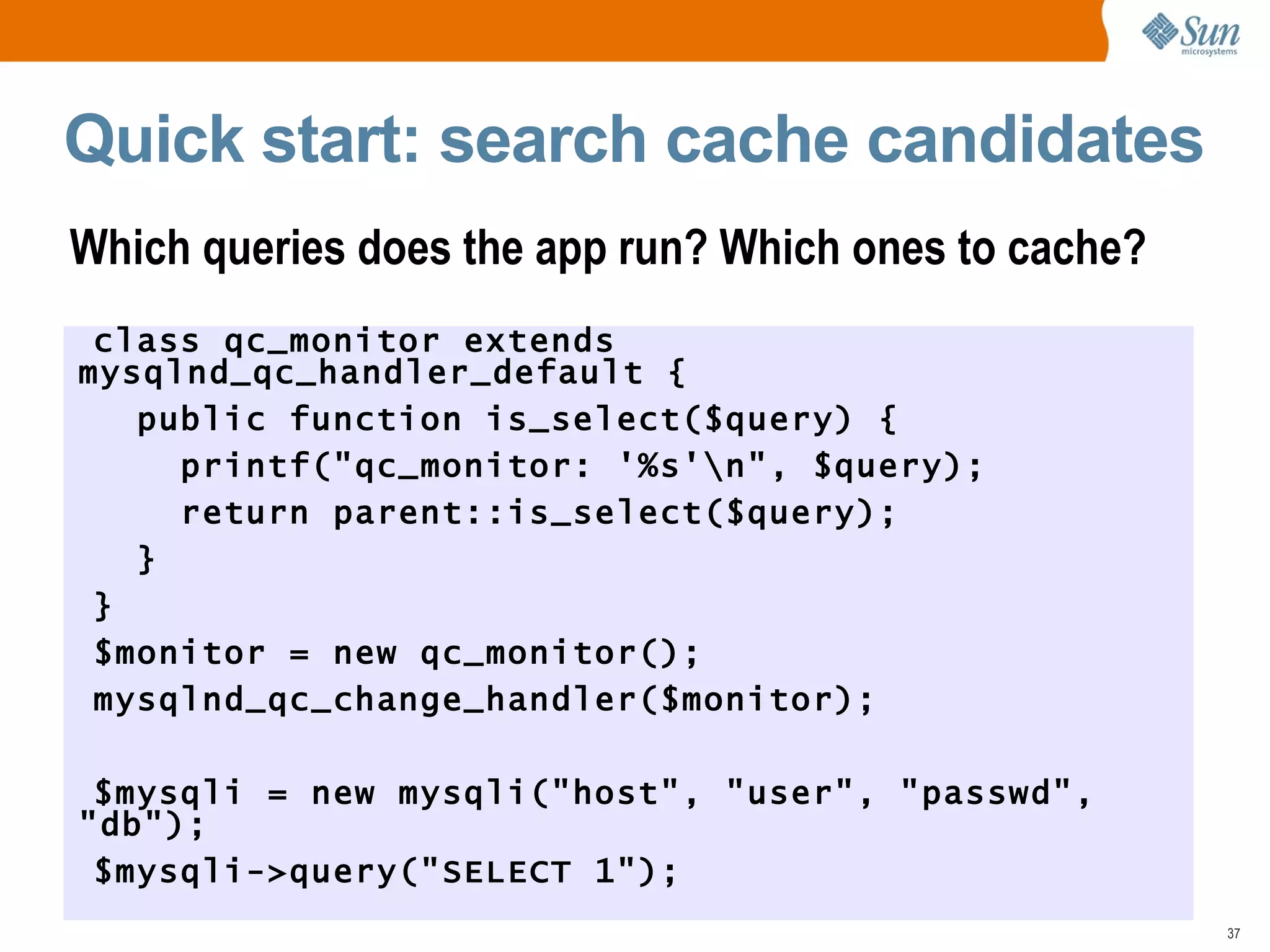

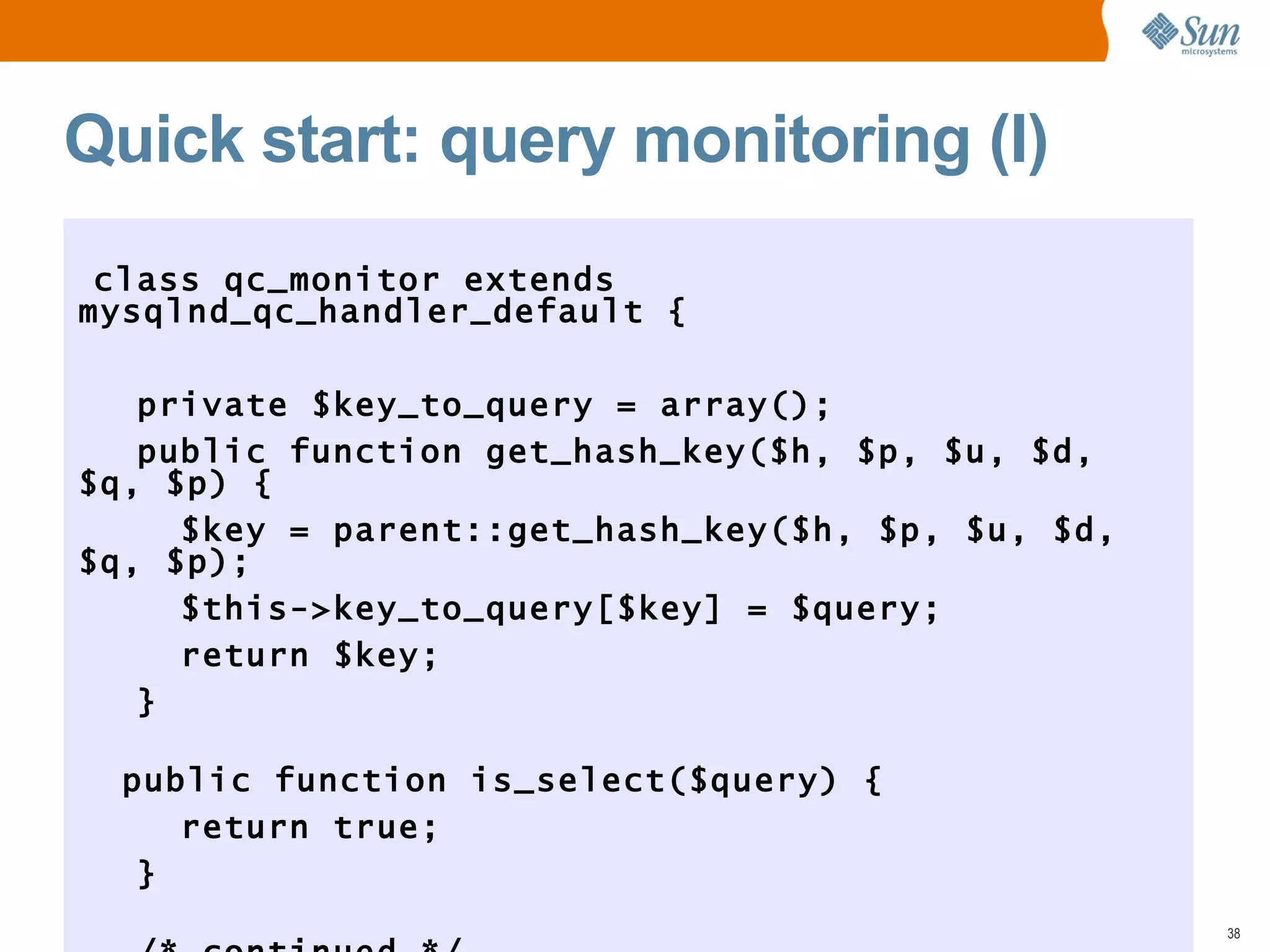

Registration Examples Quick start: identify cache candidates

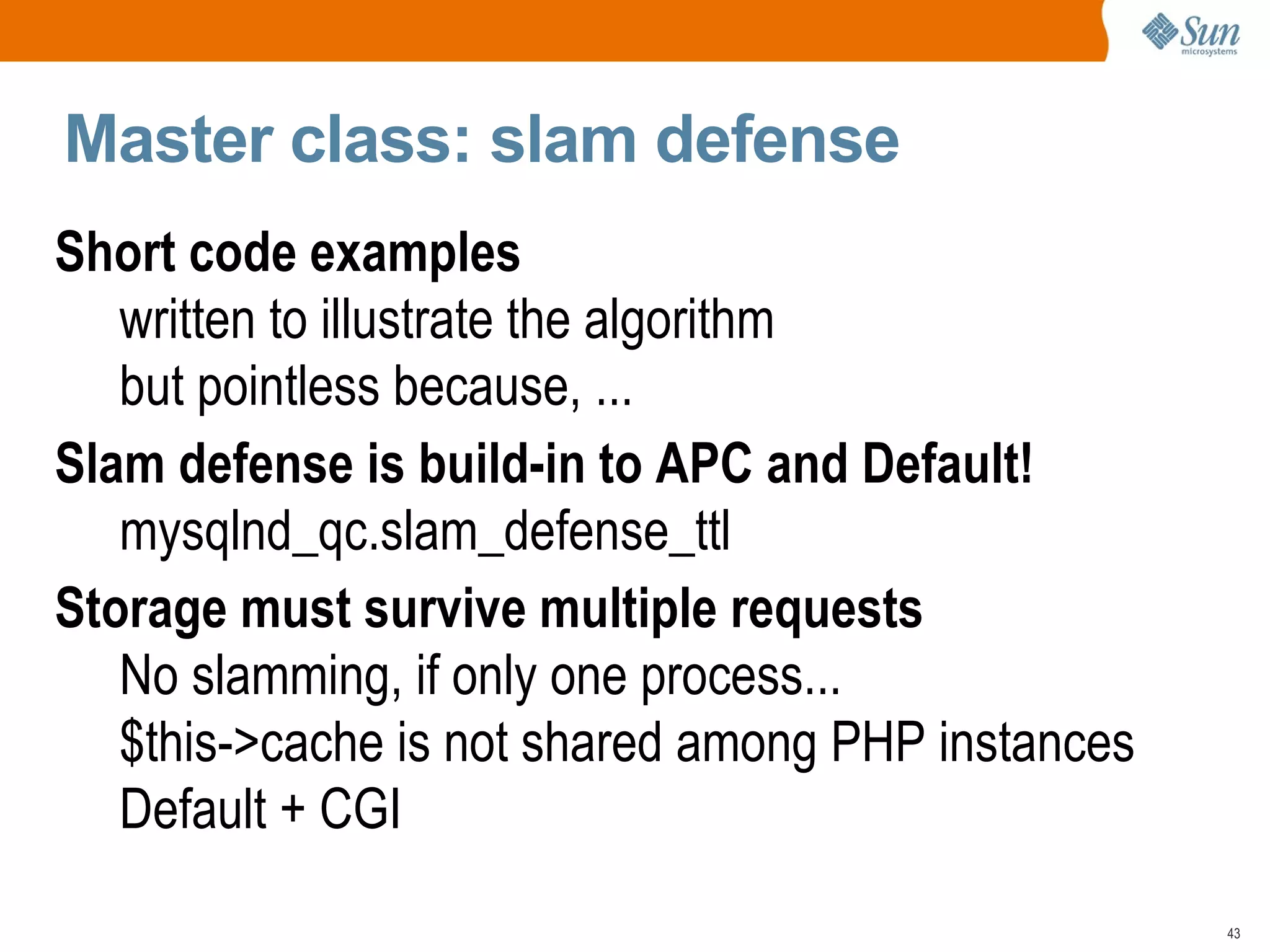

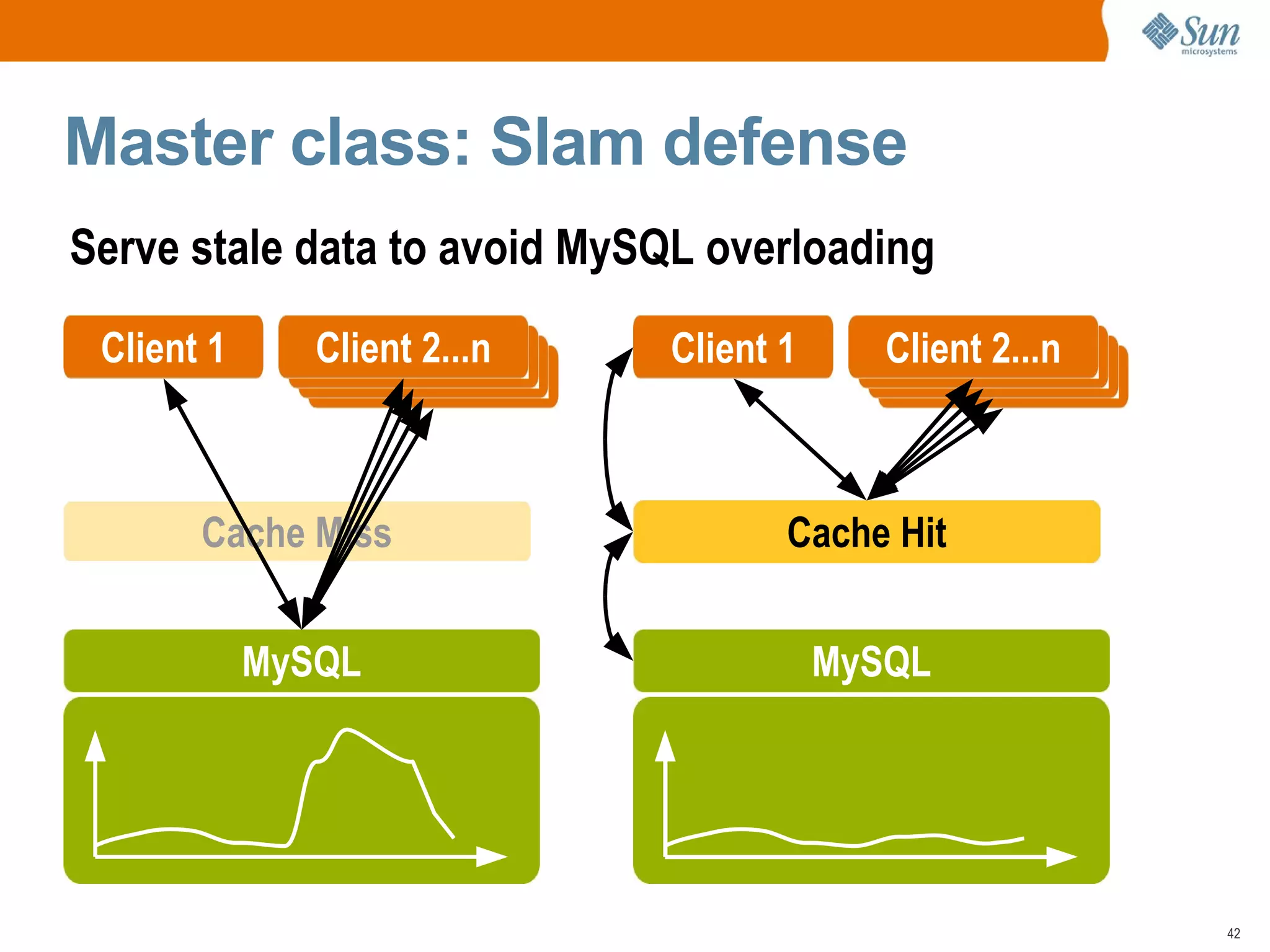

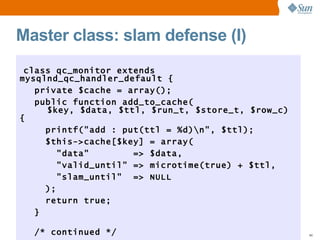

Master class: slam defense

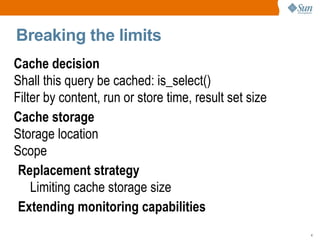

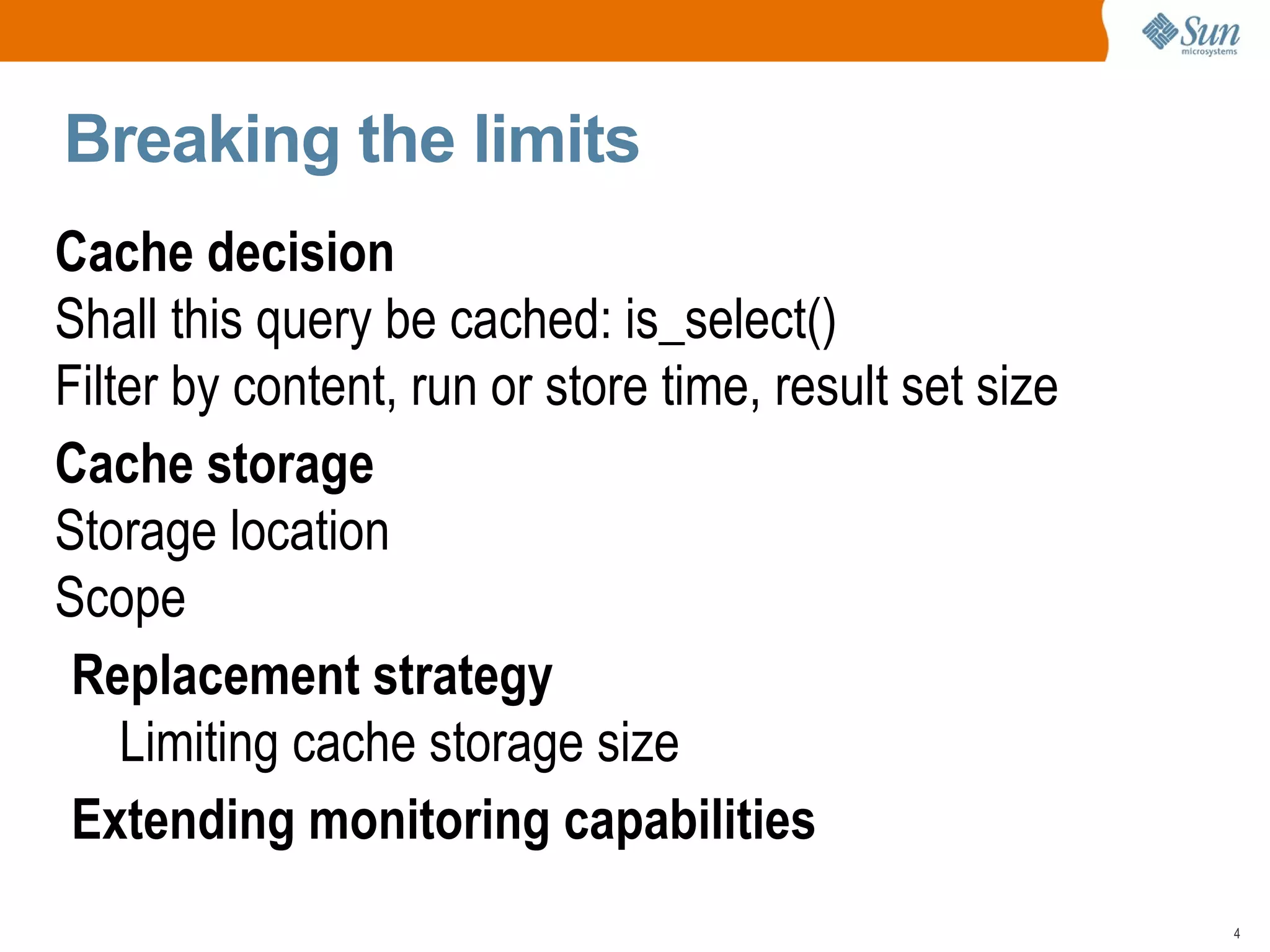

Breaking the limits Cache decision Shall this query be cached: is_select()
Filter by content, run or store time, result set size Cache storage Storage location
Scope Replacement strategy Limiting cache storage size Extending monitoring capabilities

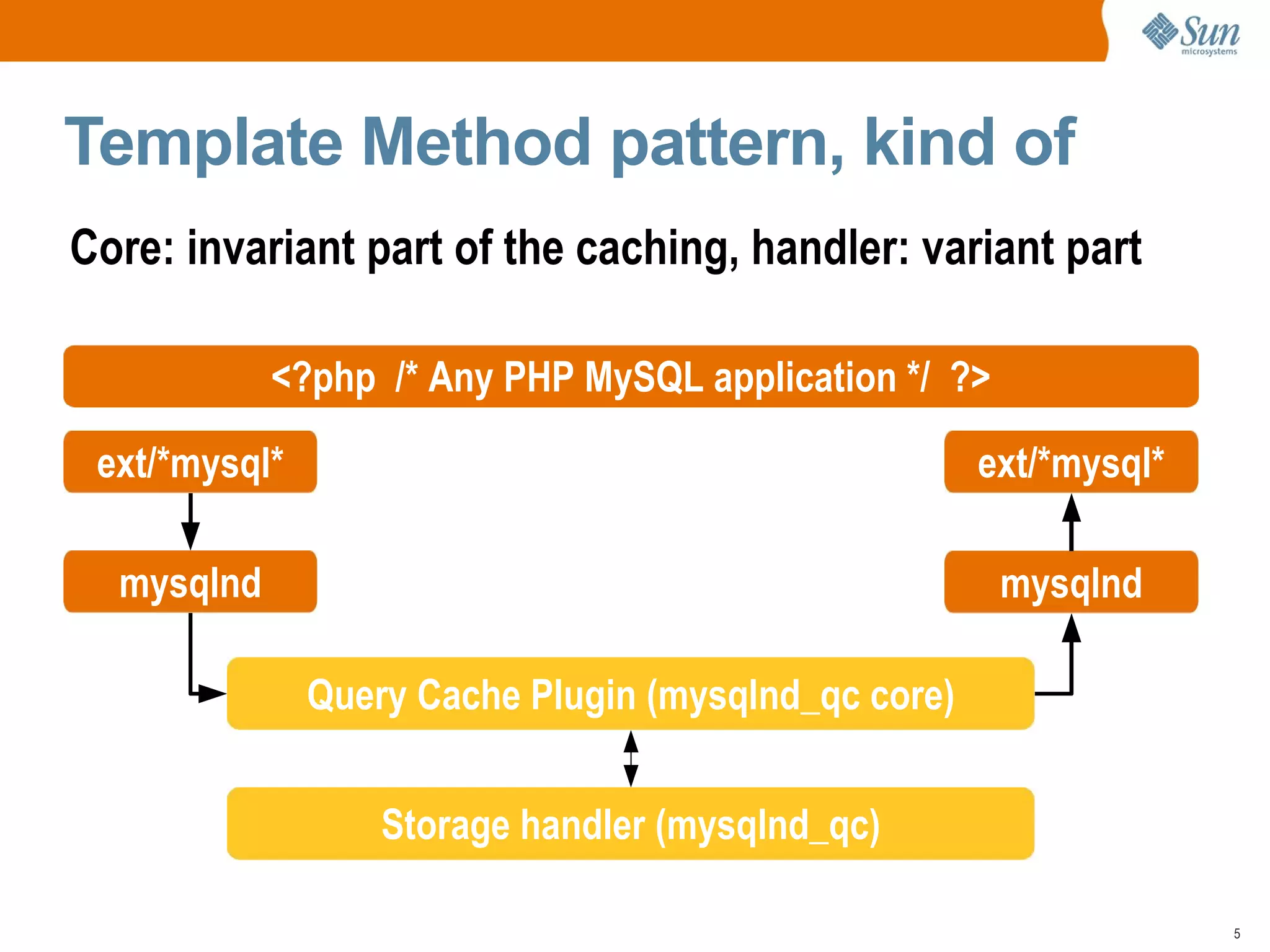

Template Method pattern, kind of Core: invariant part of the caching, handler: variant part <?php  /* Any PHP MySQL application */  ?> ext/*mysql* ext/*mysql* mysqlnd mysqlnd Query Cache Plugin (mysqlnd_qc core) Storage handler (mysqlnd_qc)

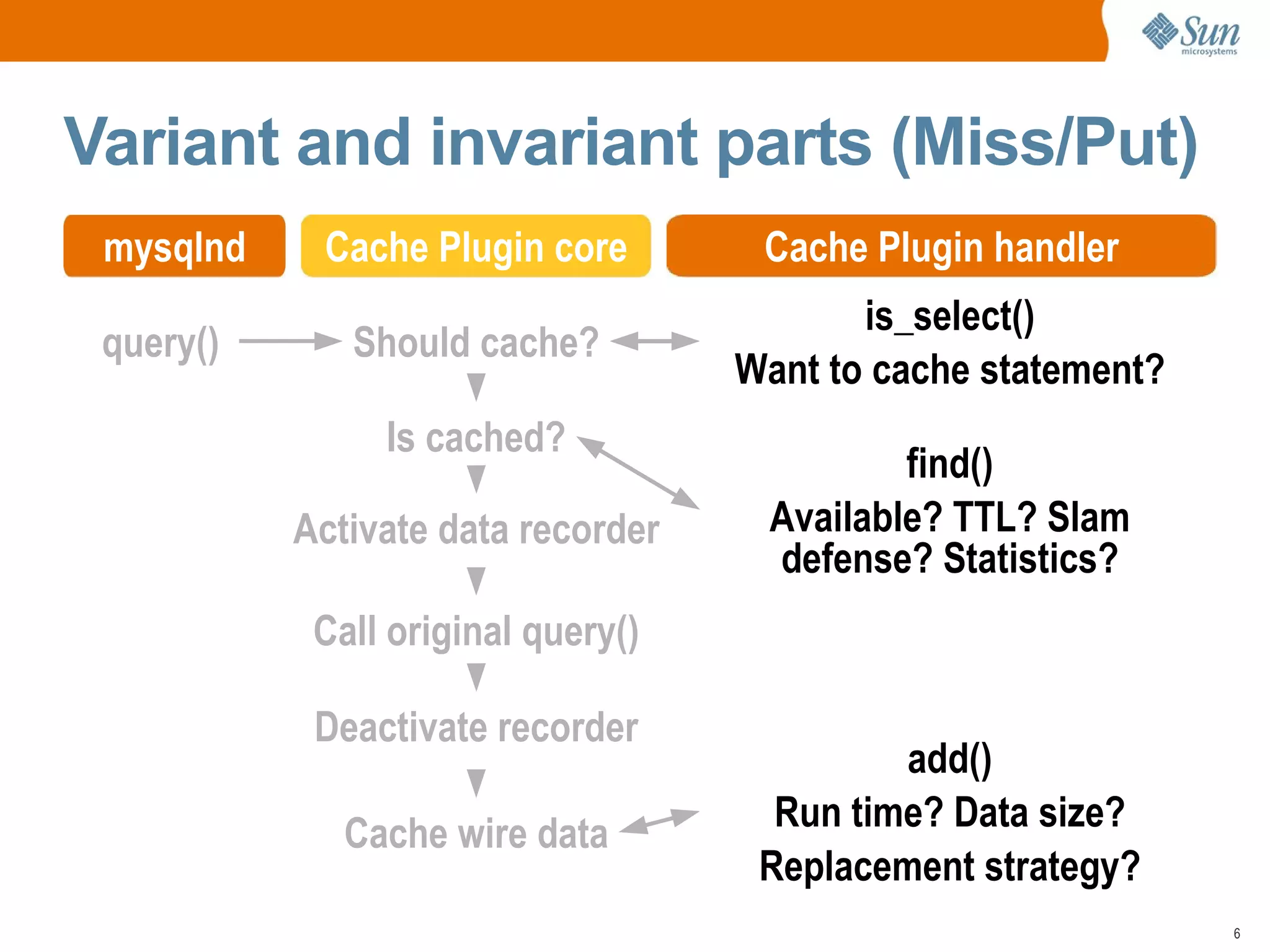

Variant and invariant parts (Miss/Put) mysqlnd Cache Plugin handler Cache Plugin core query()  Should cache? Is cached? Activate data recorder Call original query() Deactivate recorder Cache wire data is_select() Want to cache statement? find() Available? TTL? Slam defense? Statistics? add() Run time? Data size? Replacement strategy?

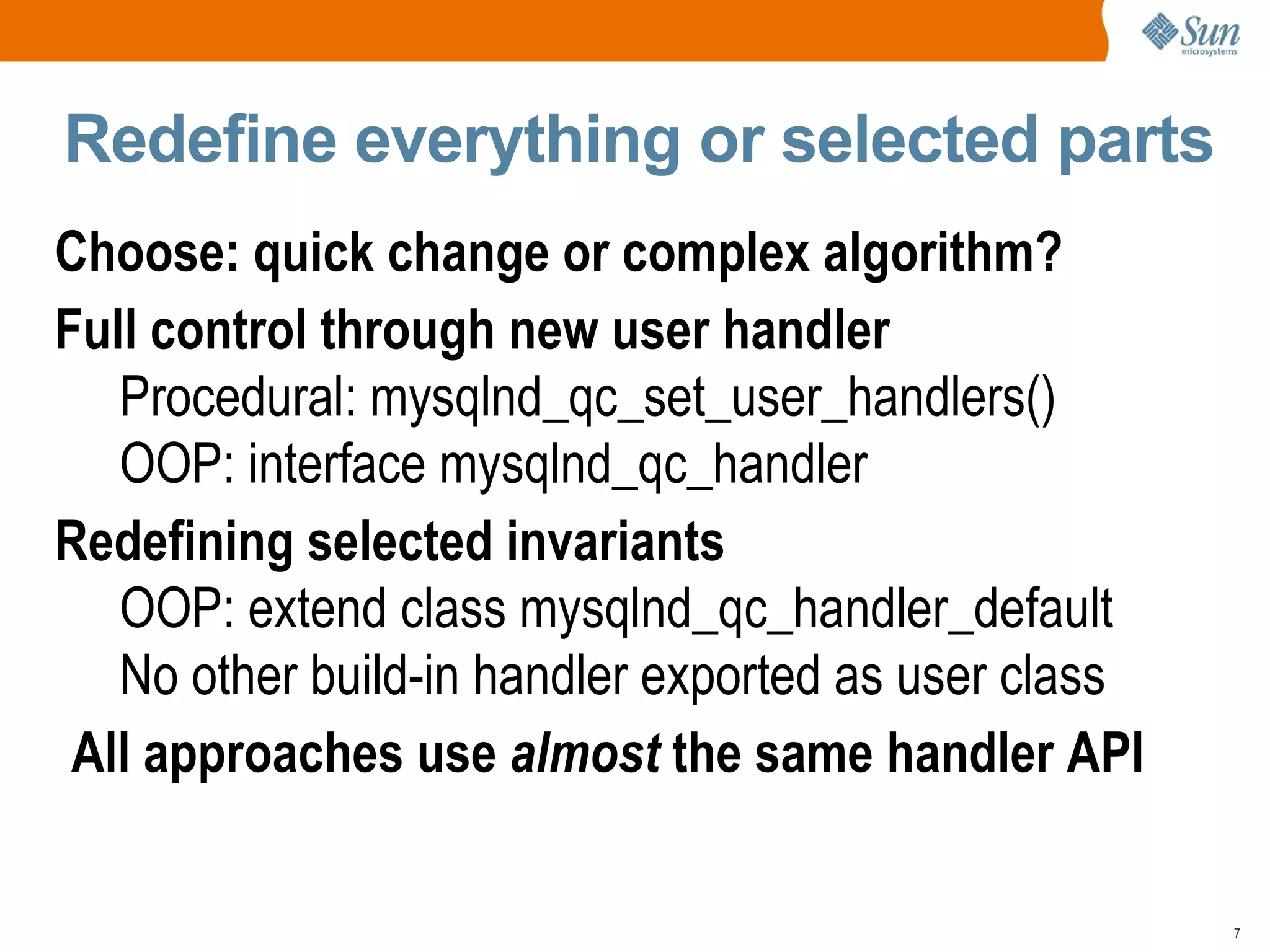

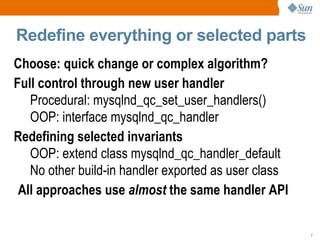

Redefine everything or selected parts Choose: quick change or complex algorithm?

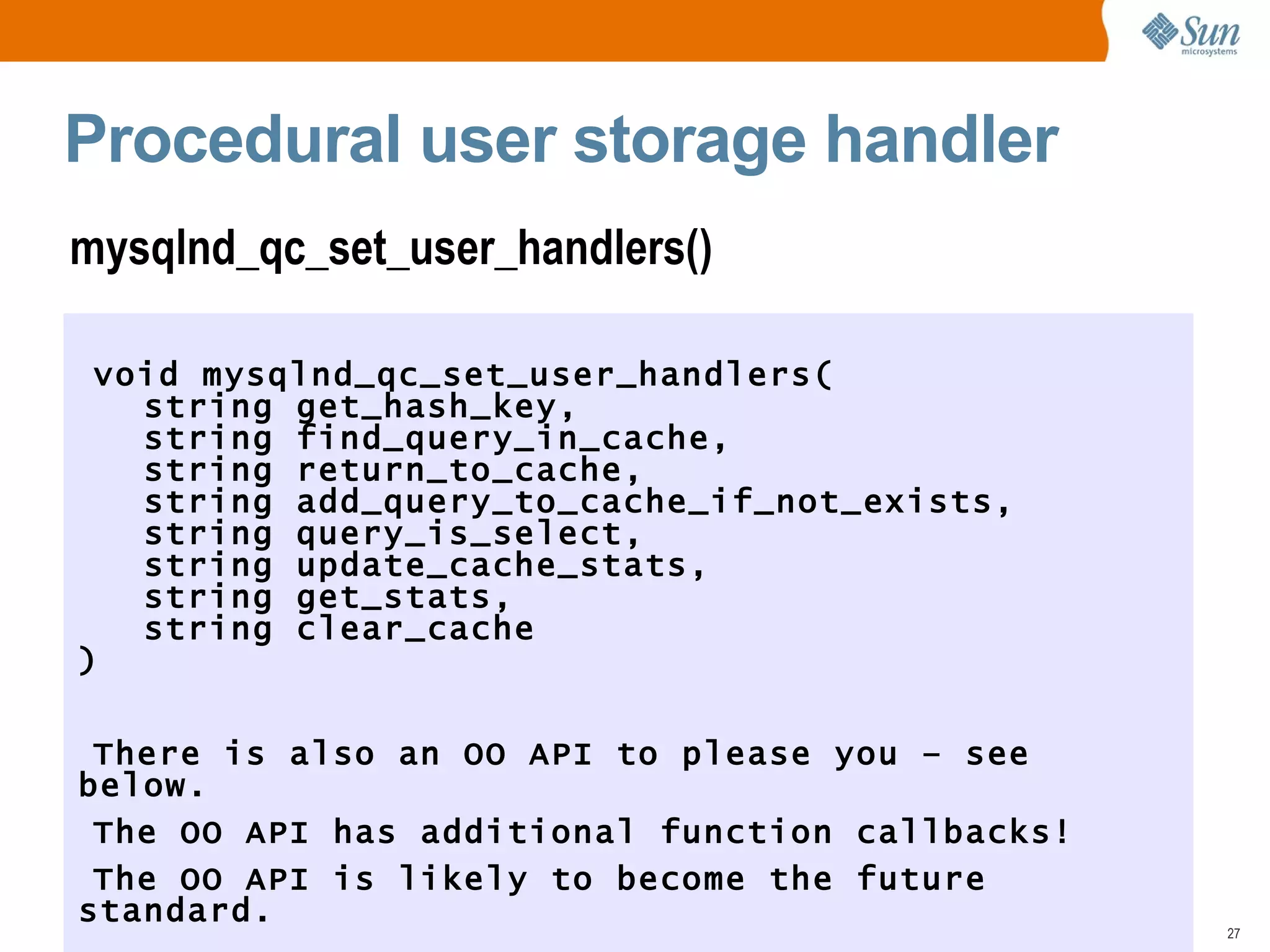

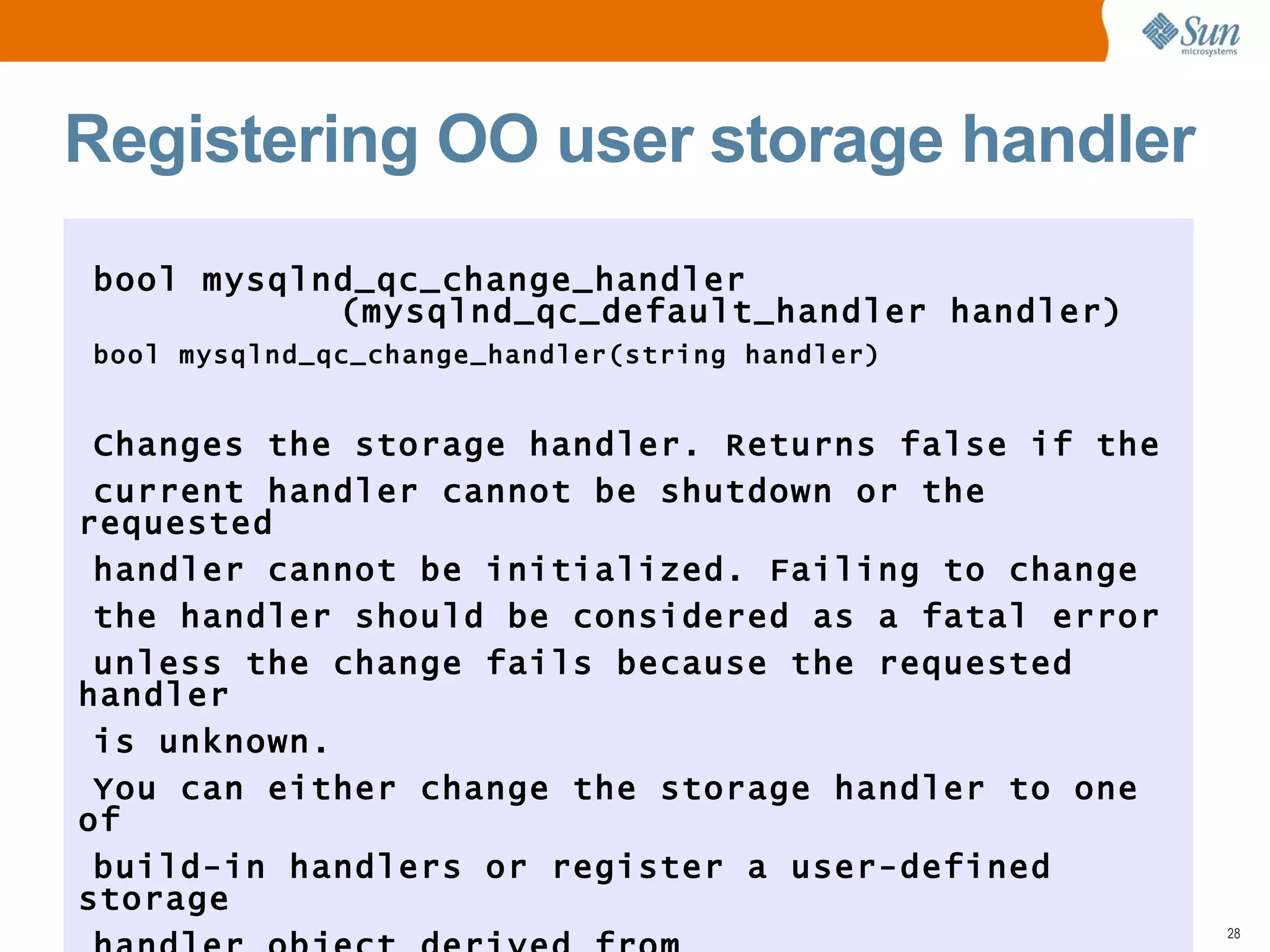

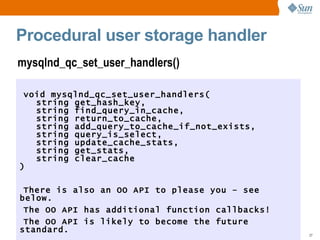

Full control through new user handler Procedural: mysqlnd_qc_set_user_handlers()

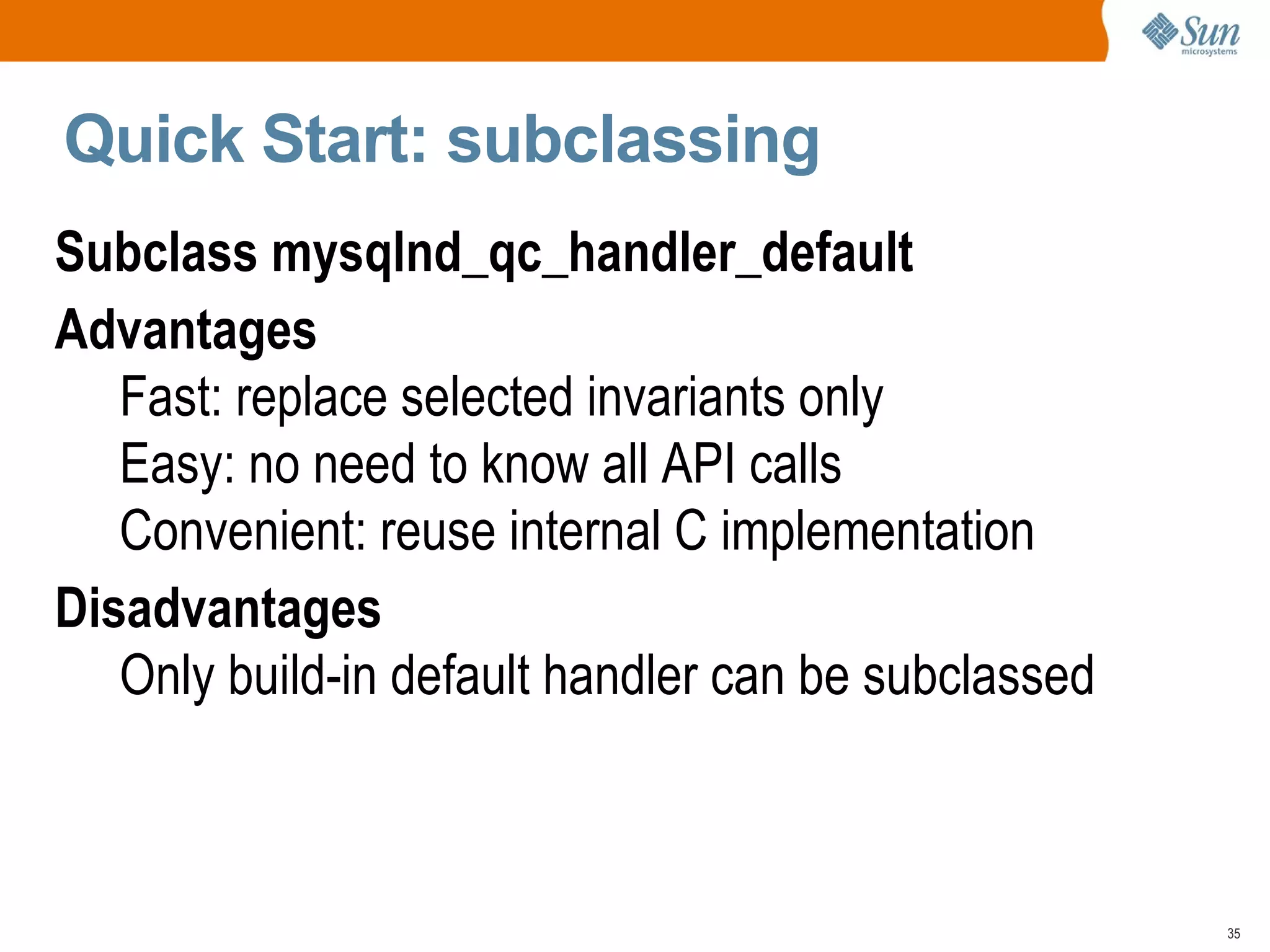

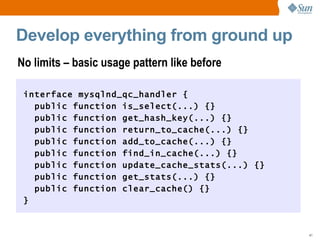

OOP: interface mysqlnd_qc_handler Redefining selected invariants OOP: extend class mysqlnd_qc_handler_default
No other build-in handler exported as user class All approaches use  almost  the same handler API

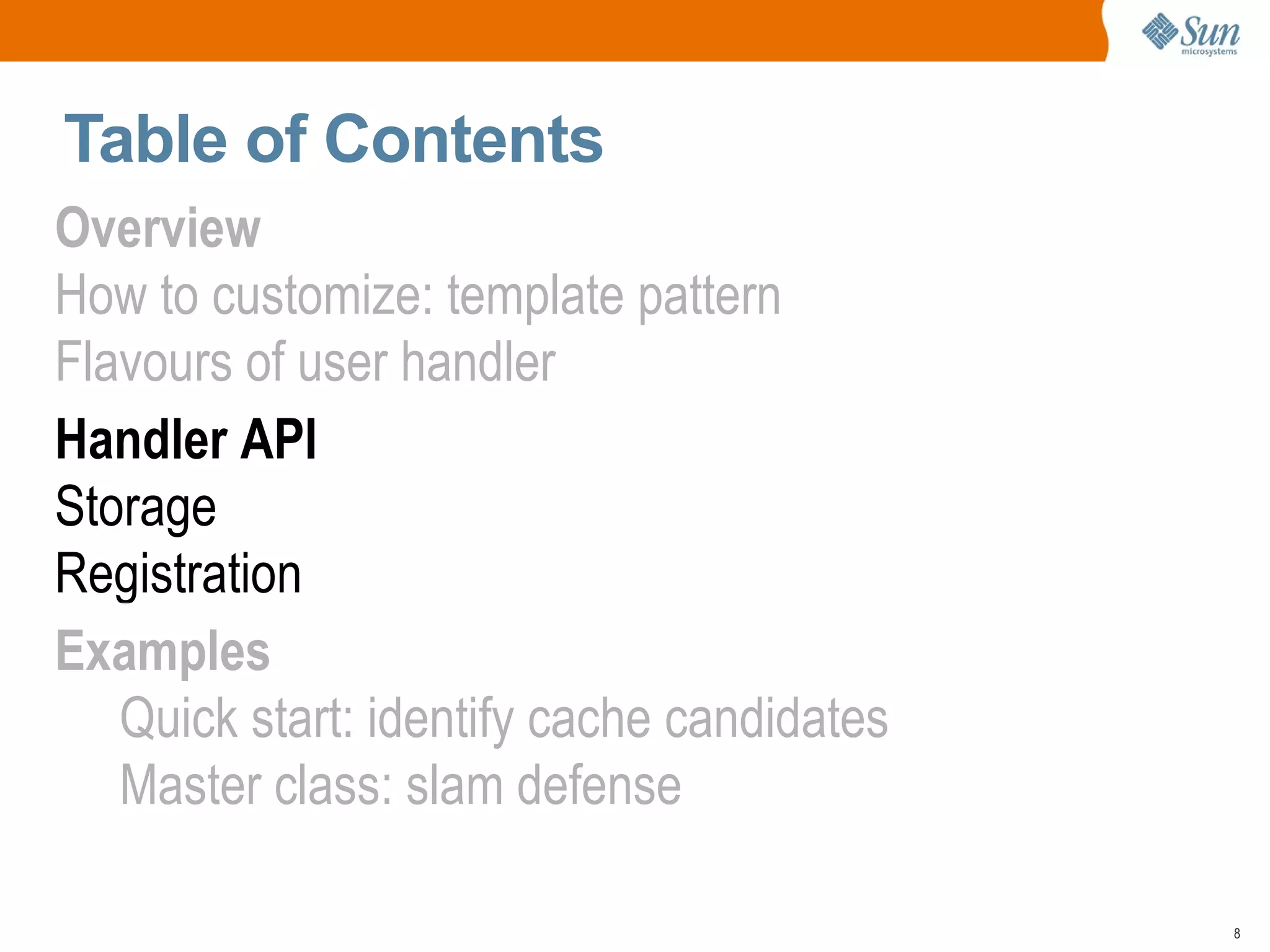

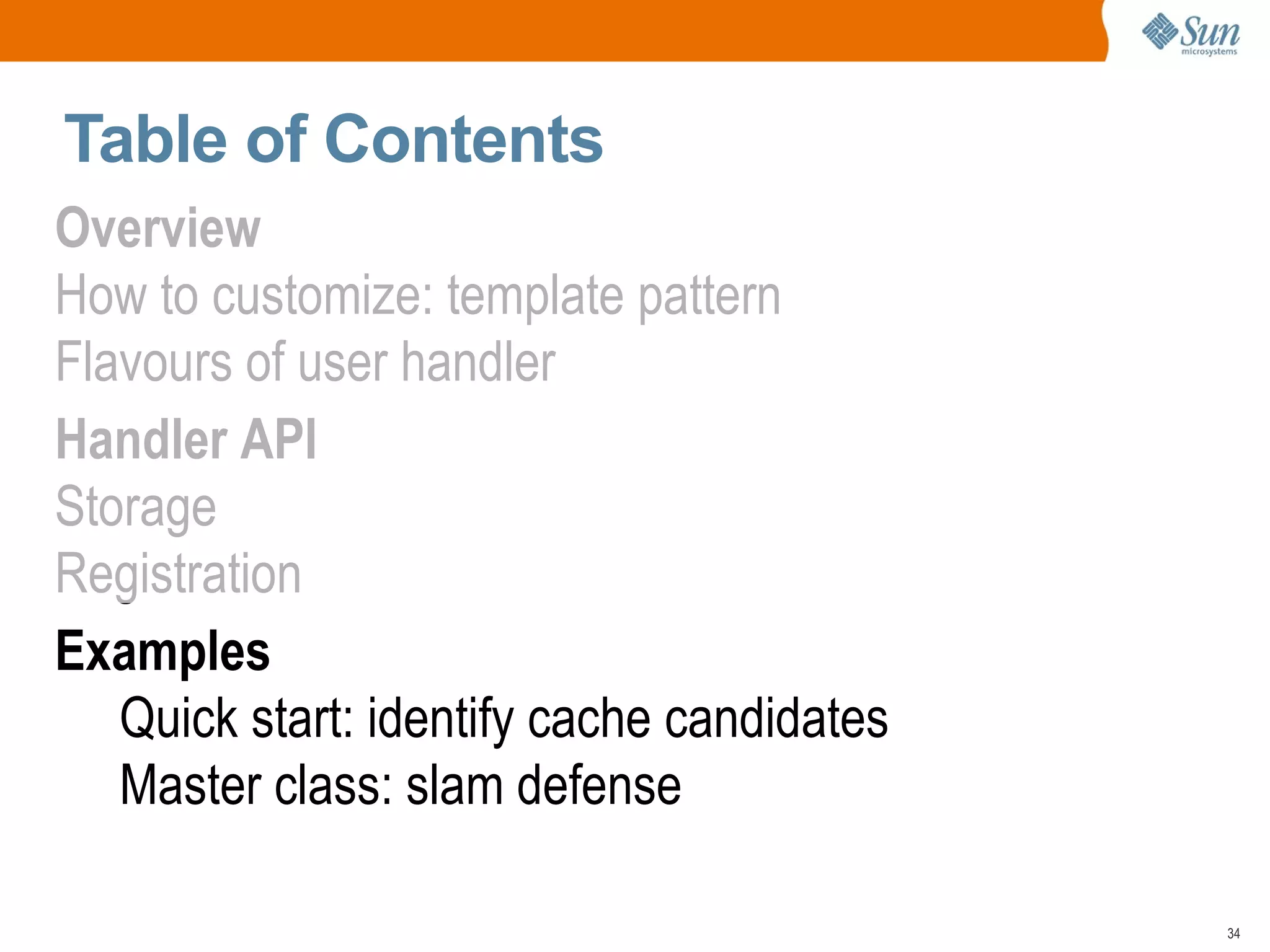

Table of Contents Overview How to customize: template pattern
Flavours of user handler Handler API Storage
Registration Examples Quick start: identify cache candidates

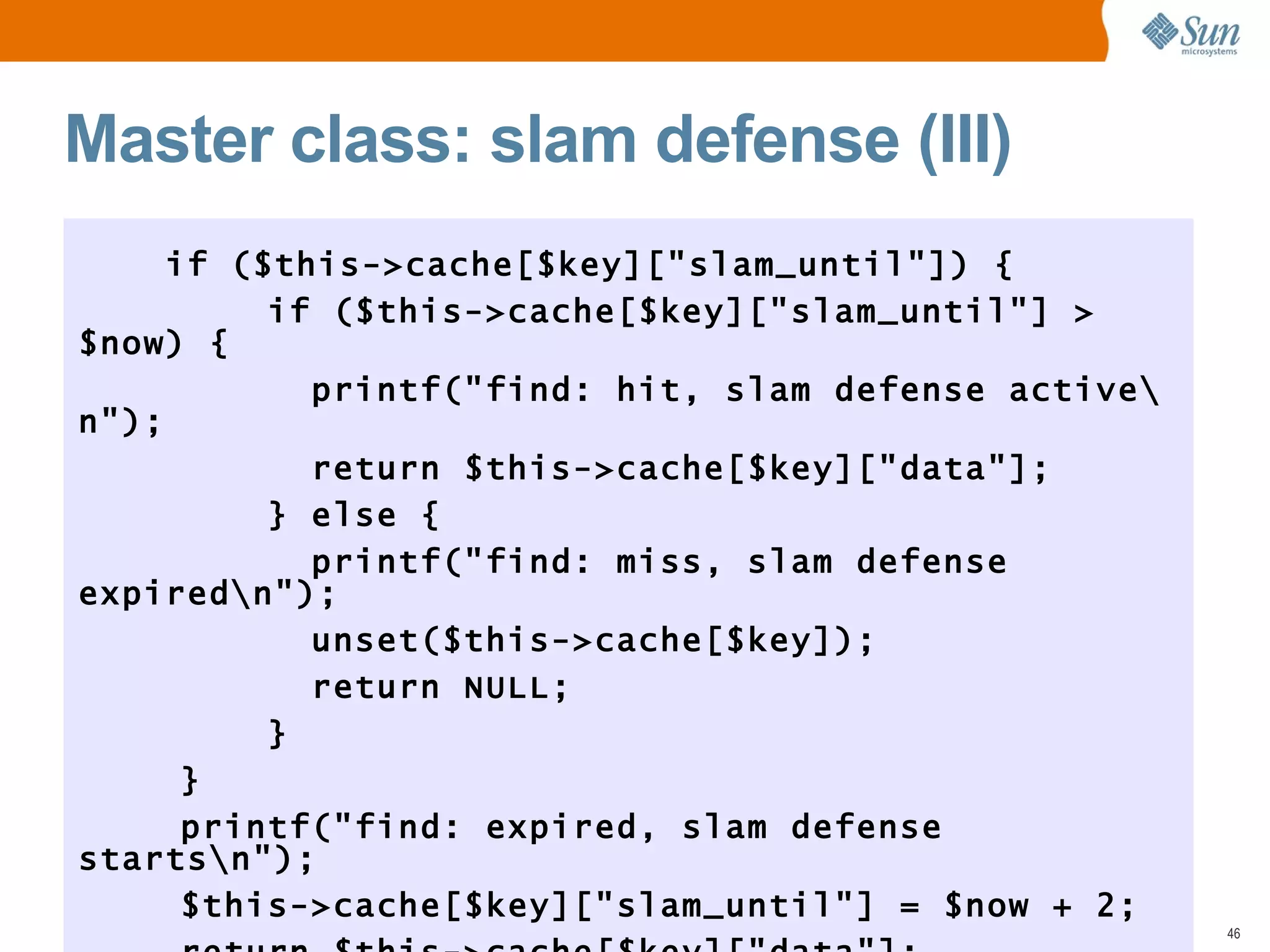

Master class: slam defense

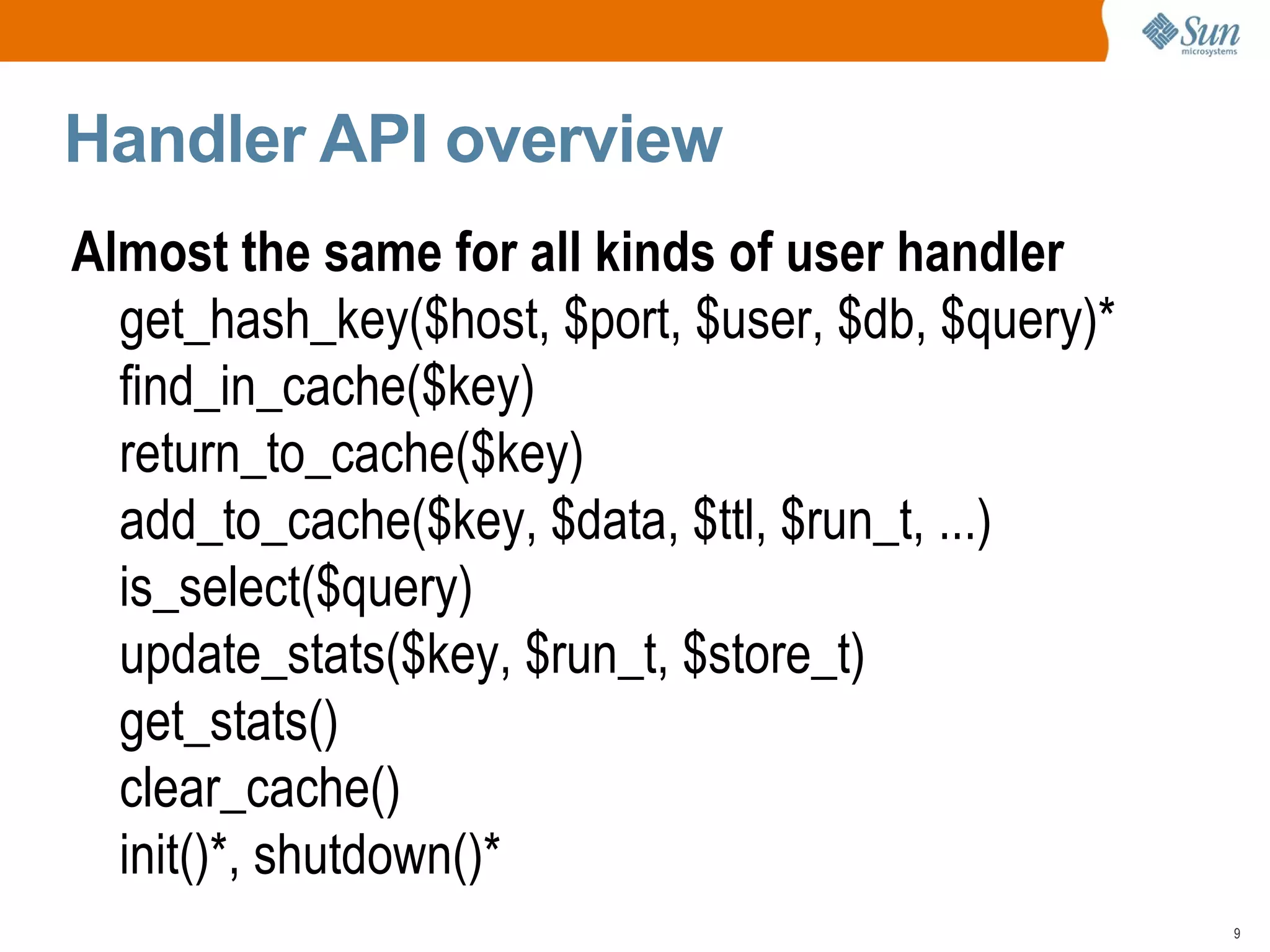

Handler API overview Almost the same for all kinds of user handler get_hash_key($host, $port, $user, $db, $query)*
find_in_cache($key)

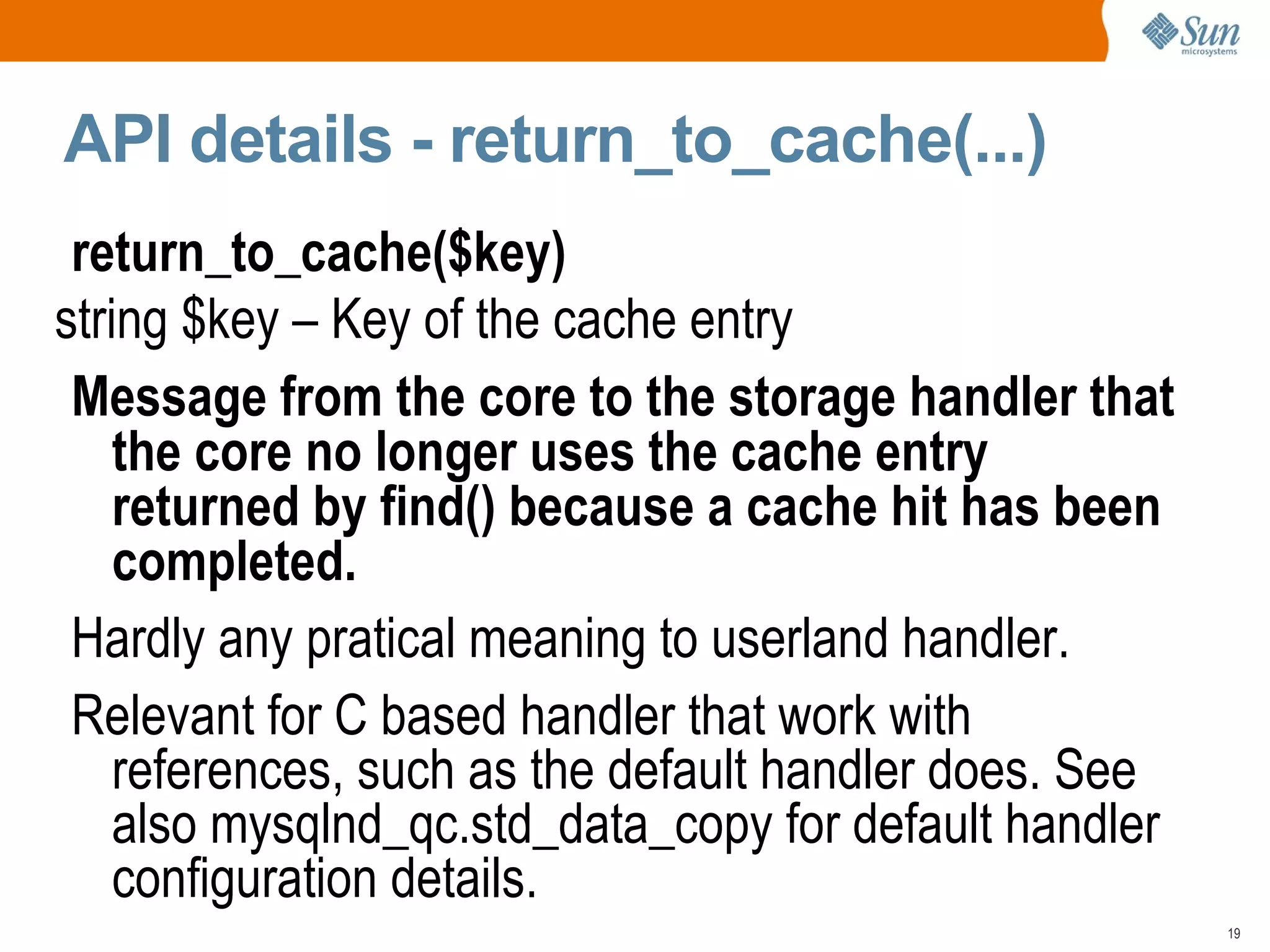

return_to_cache($key)

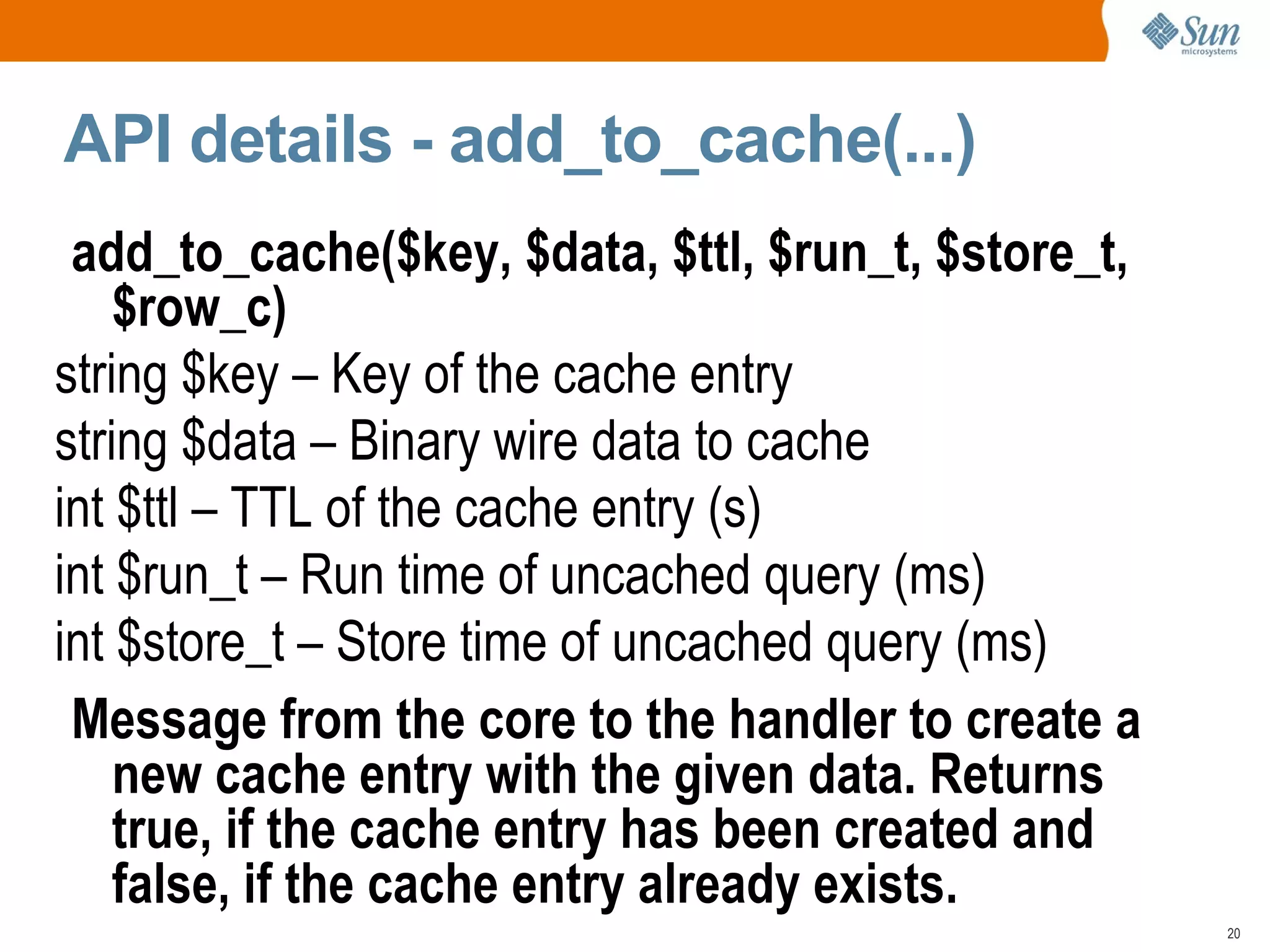

add_to_cache($key, $data, $ttl, $run_t, ...)

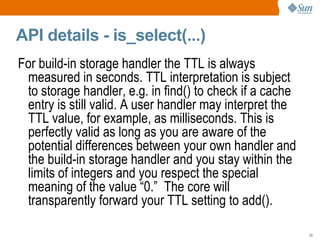

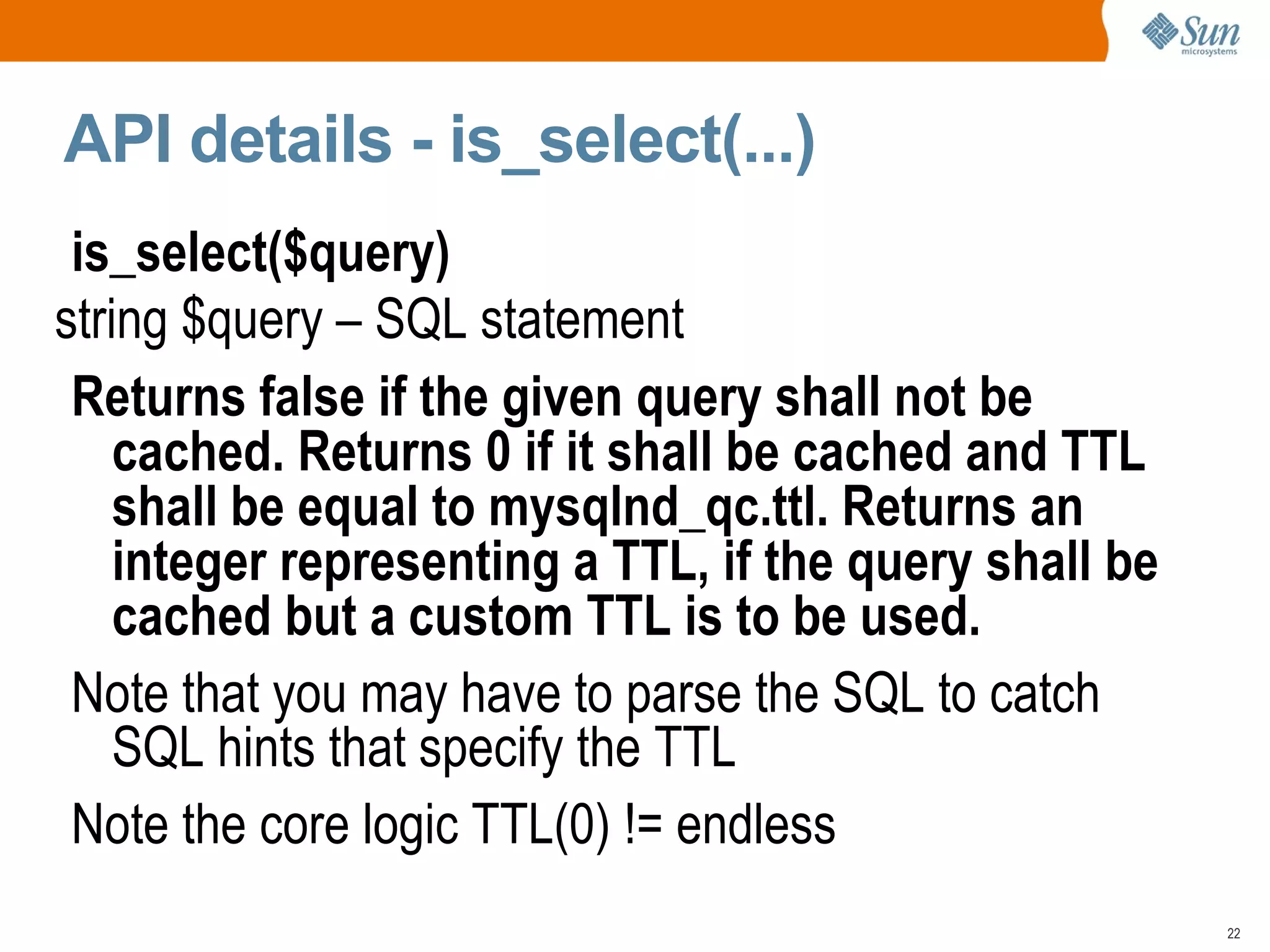

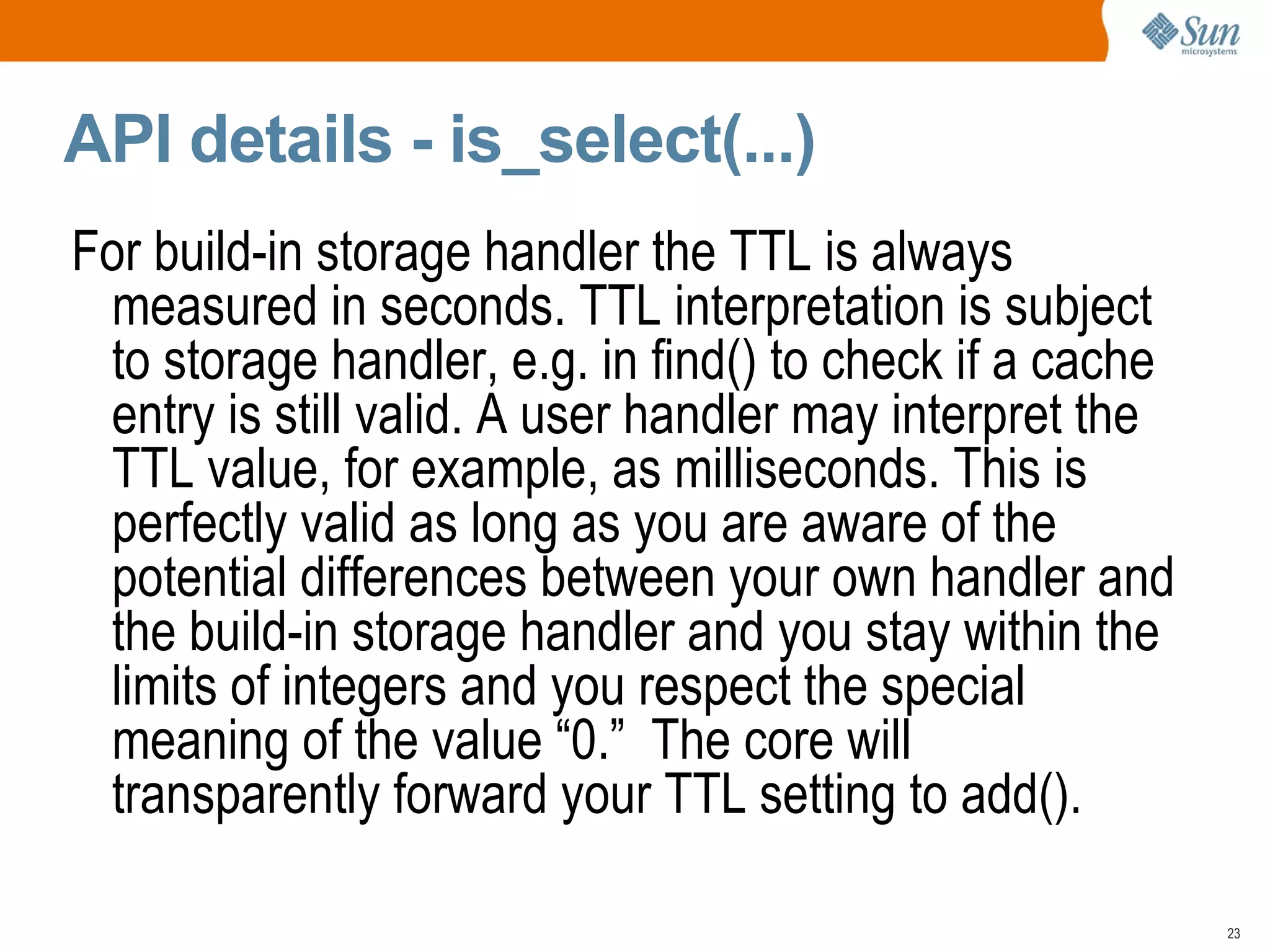

is_select($query)

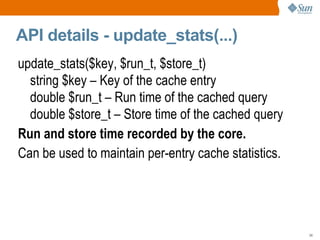

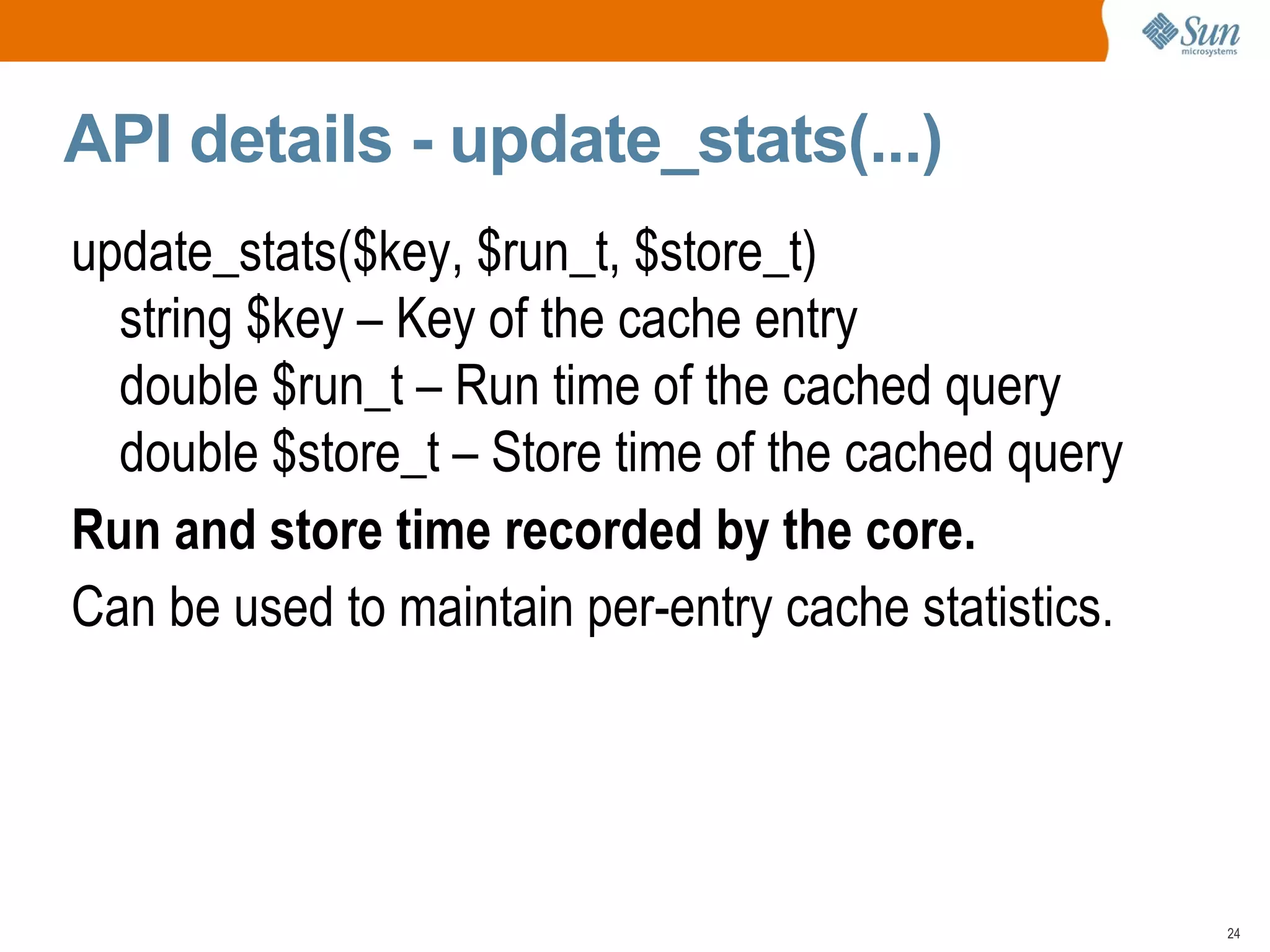

update_stats($key, $run_t, $store_t)

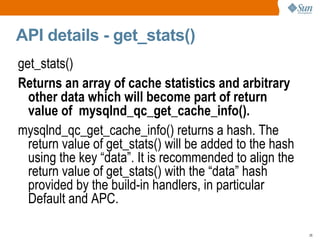

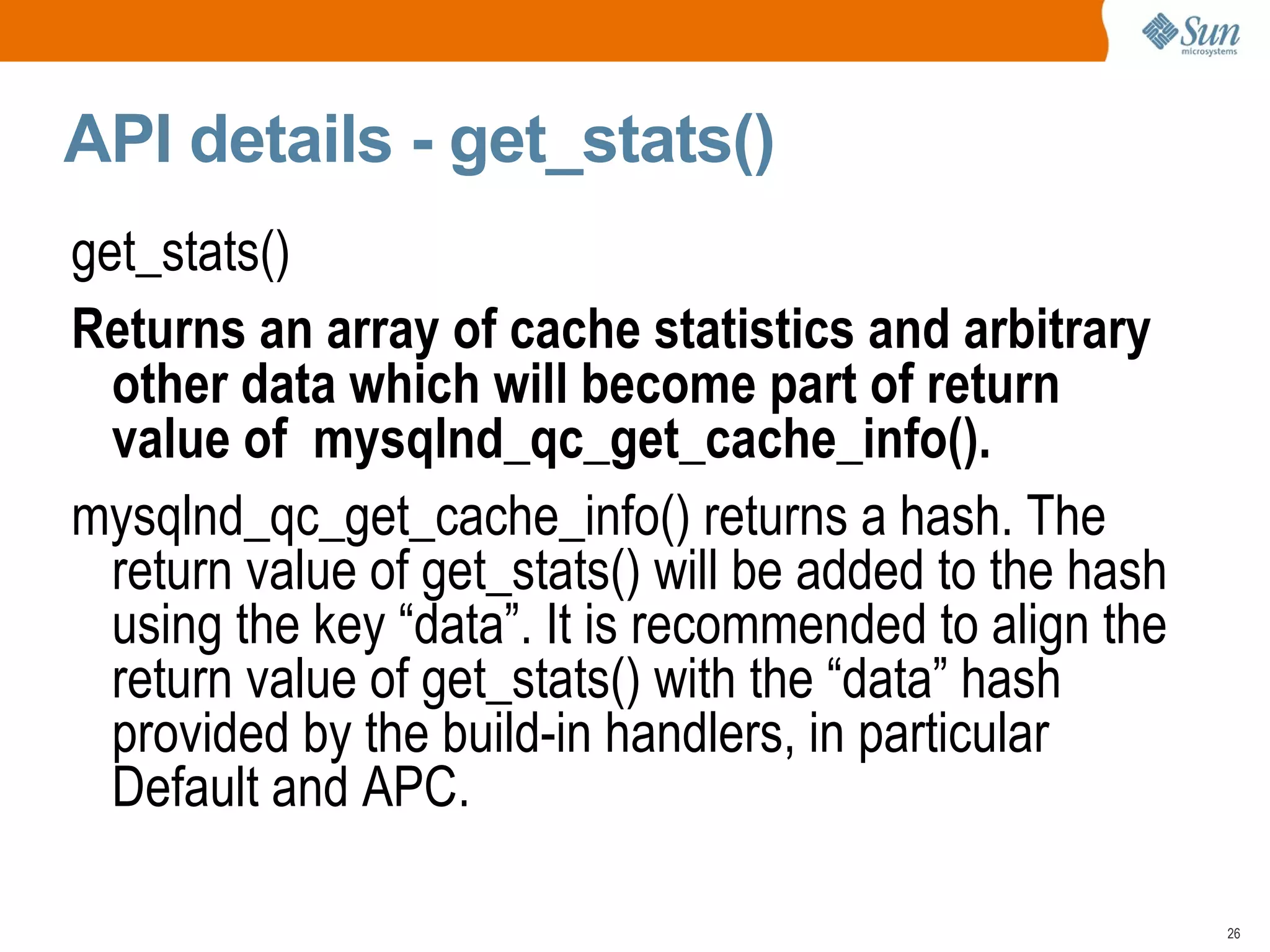

get_stats()

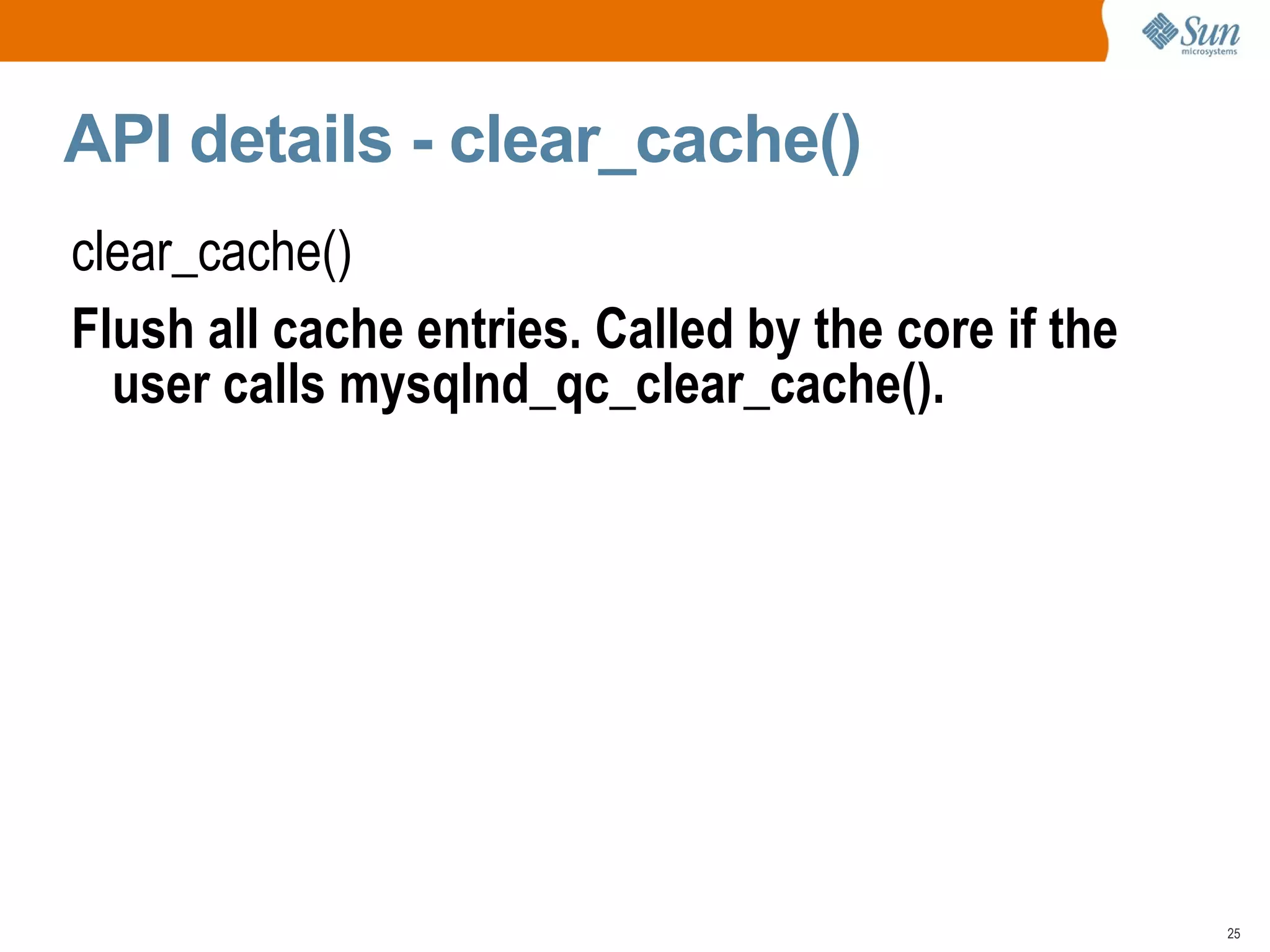

clear_cache()

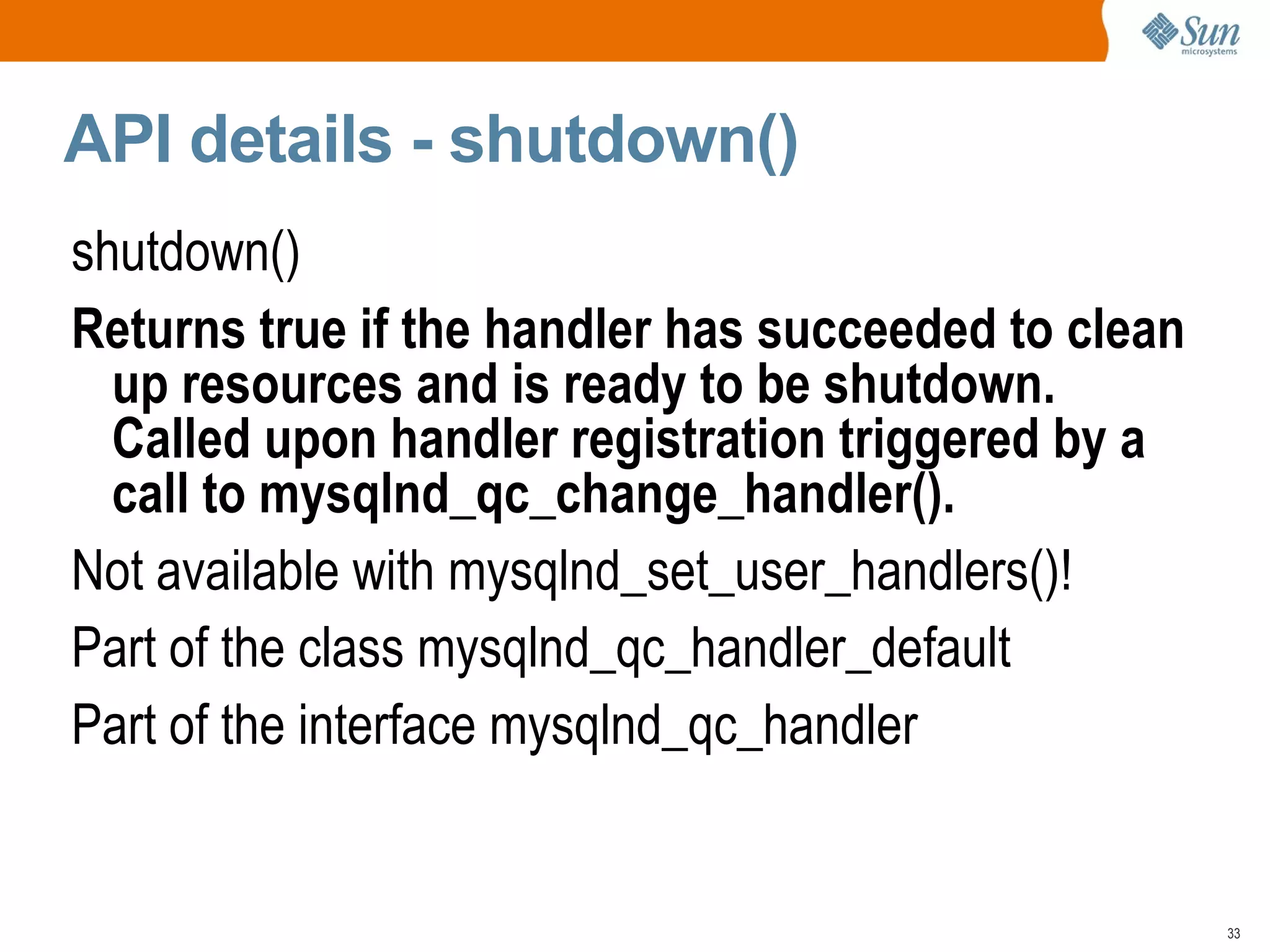

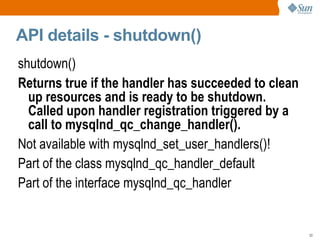

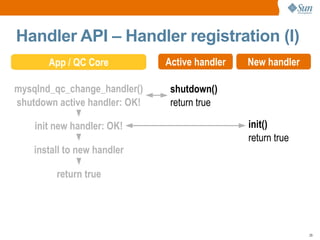

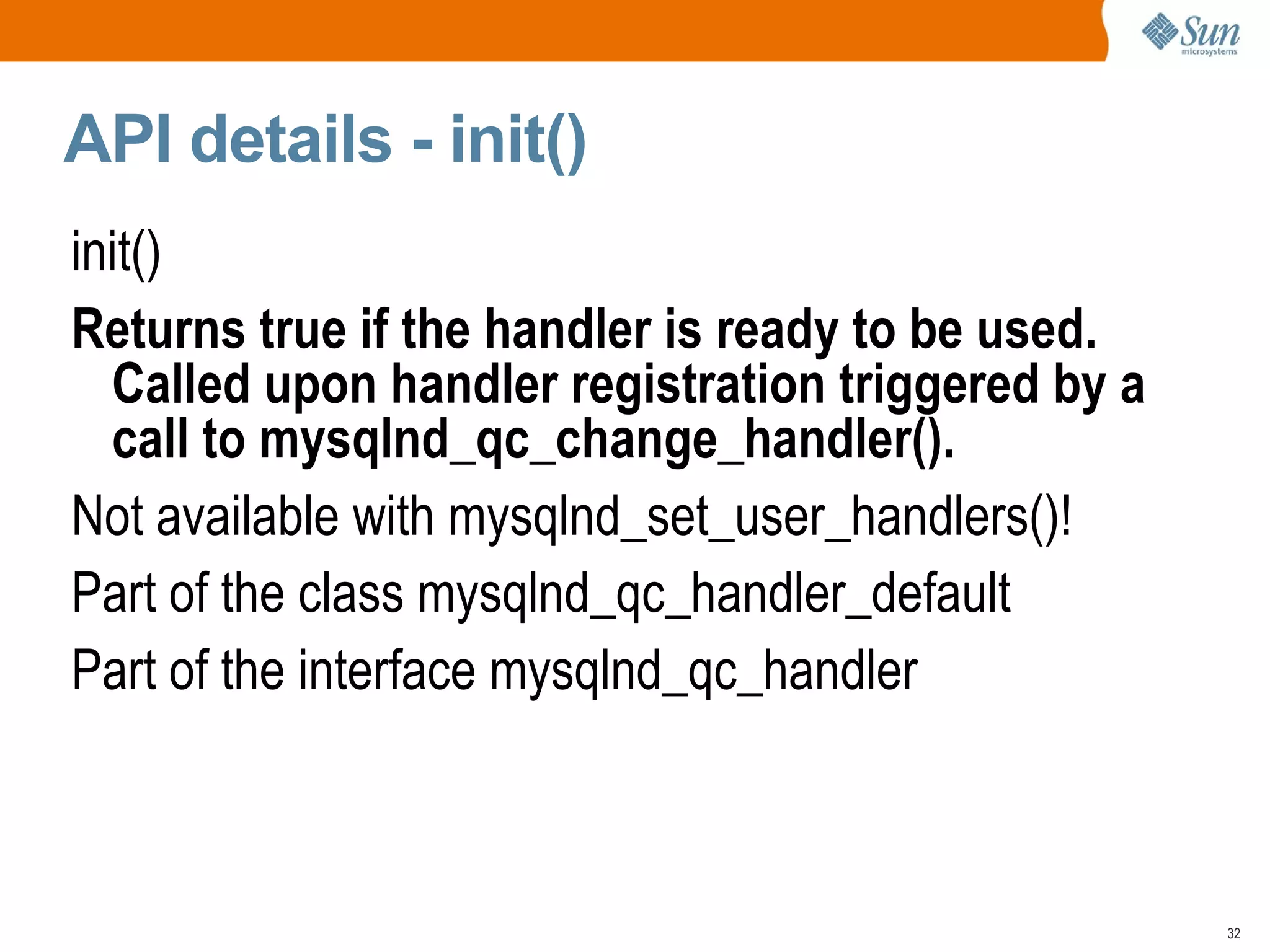

init()*, shutdown()*

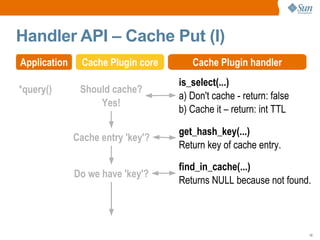

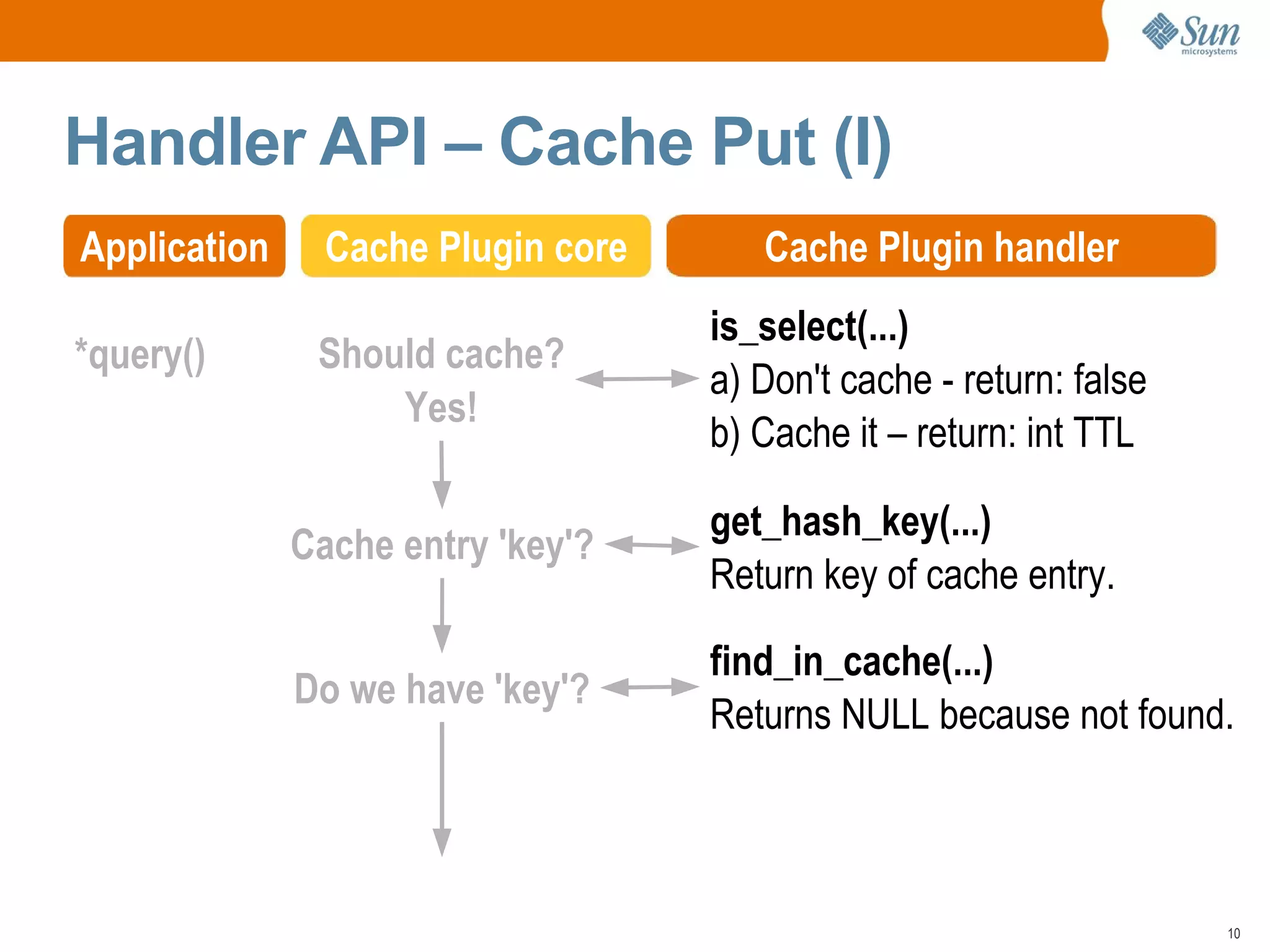

Handler API – Cache Put (I) Application Cache Plugin handler Cache Plugin core *query()  Should cache? Yes! Cache entry 'key'? is_select(...)  a) Don't cache - return: false b) Cache it – return: int TTL get_hash_key(...)  Return key of cache entry. find_in_cache(...) Returns NULL because not found. Do we have 'key'?

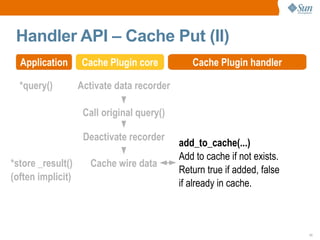

Handler API – Cache Put (II) Application Cache Plugin handler Cache Plugin core *query() add_to_cache(...) Add to cache if not exists. Return true if added, false if already in cache. Activate data recorder Call original query() Deactivate recorder Cache wire data *store _result() (often implicit)

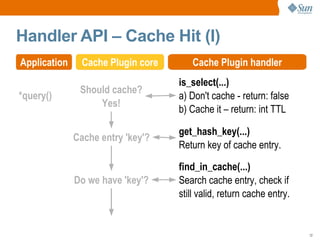

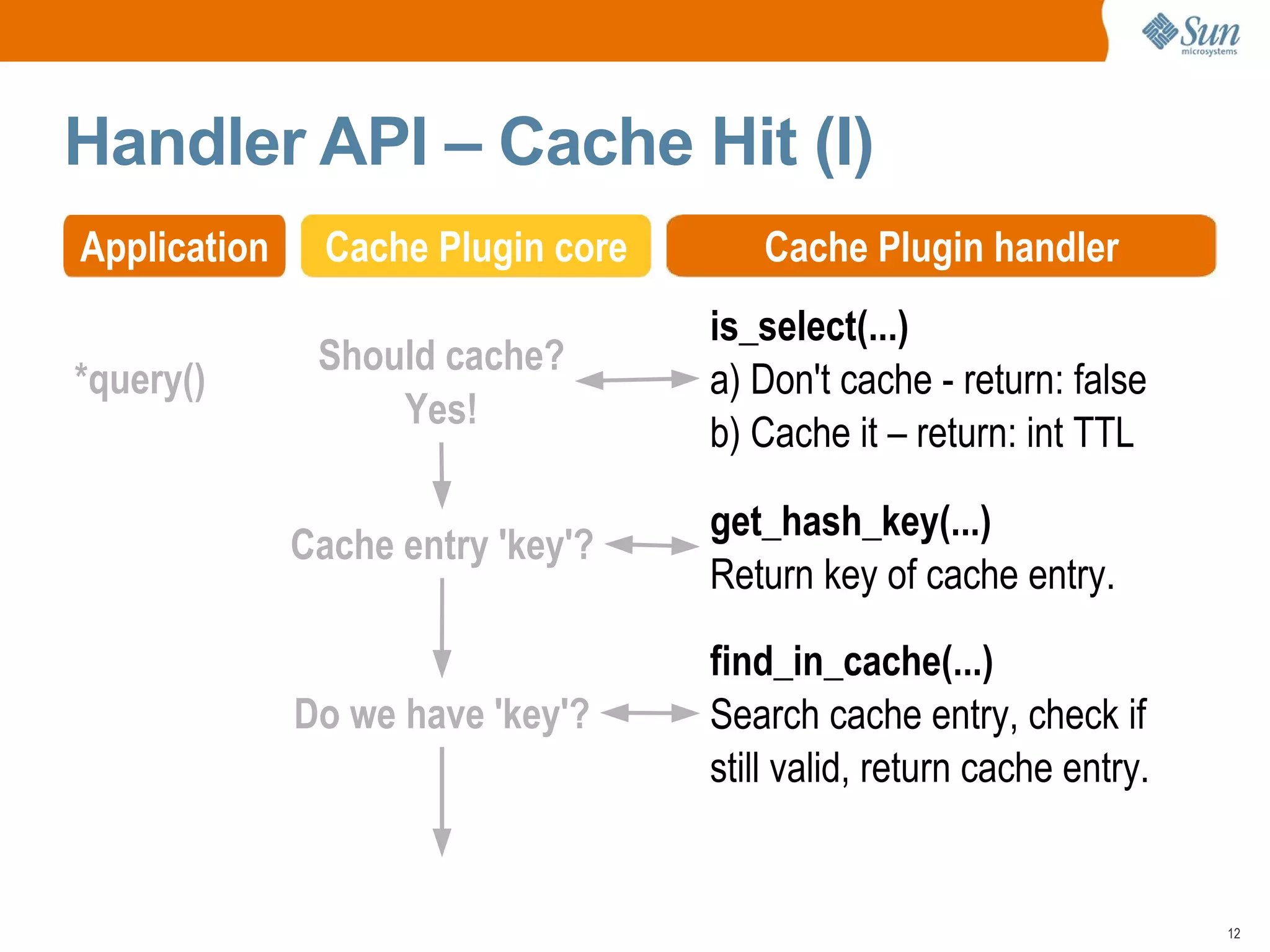

Handler API – Cache Hit (I) Application Cache Plugin handler Cache Plugin core *query()  Should cache? Yes! Cache entry 'key'? is_select(...)  a) Don't cache - return: false b) Cache it – return: int TTL get_hash_key(...)  Return key of cache entry. find_in_cache(...) Search cache entry, check if still valid, return cache entry. Do we have 'key'?

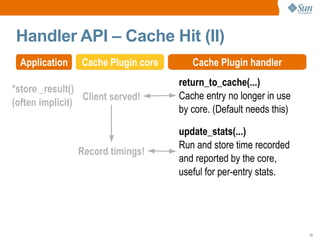

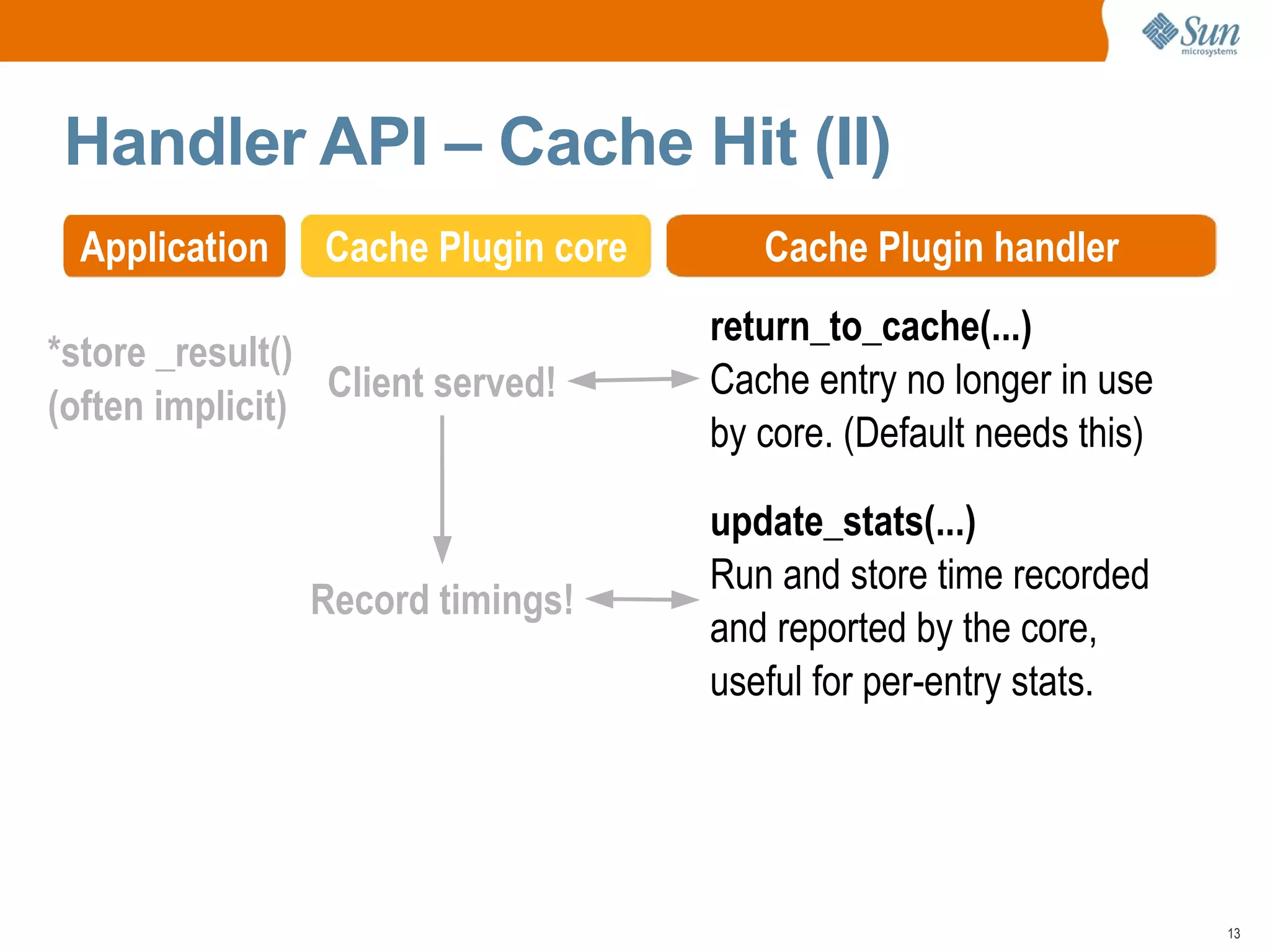

Handler API – Cache Hit (II) Application Cache Plugin handler Cache Plugin core *store _result() (often implicit) Client served! Record timings! return_to_cache(...) Cache entry no longer in use by core. (Default needs this) update_stats(...) Run and store time recorded and reported by the core, useful for per-entry stats.

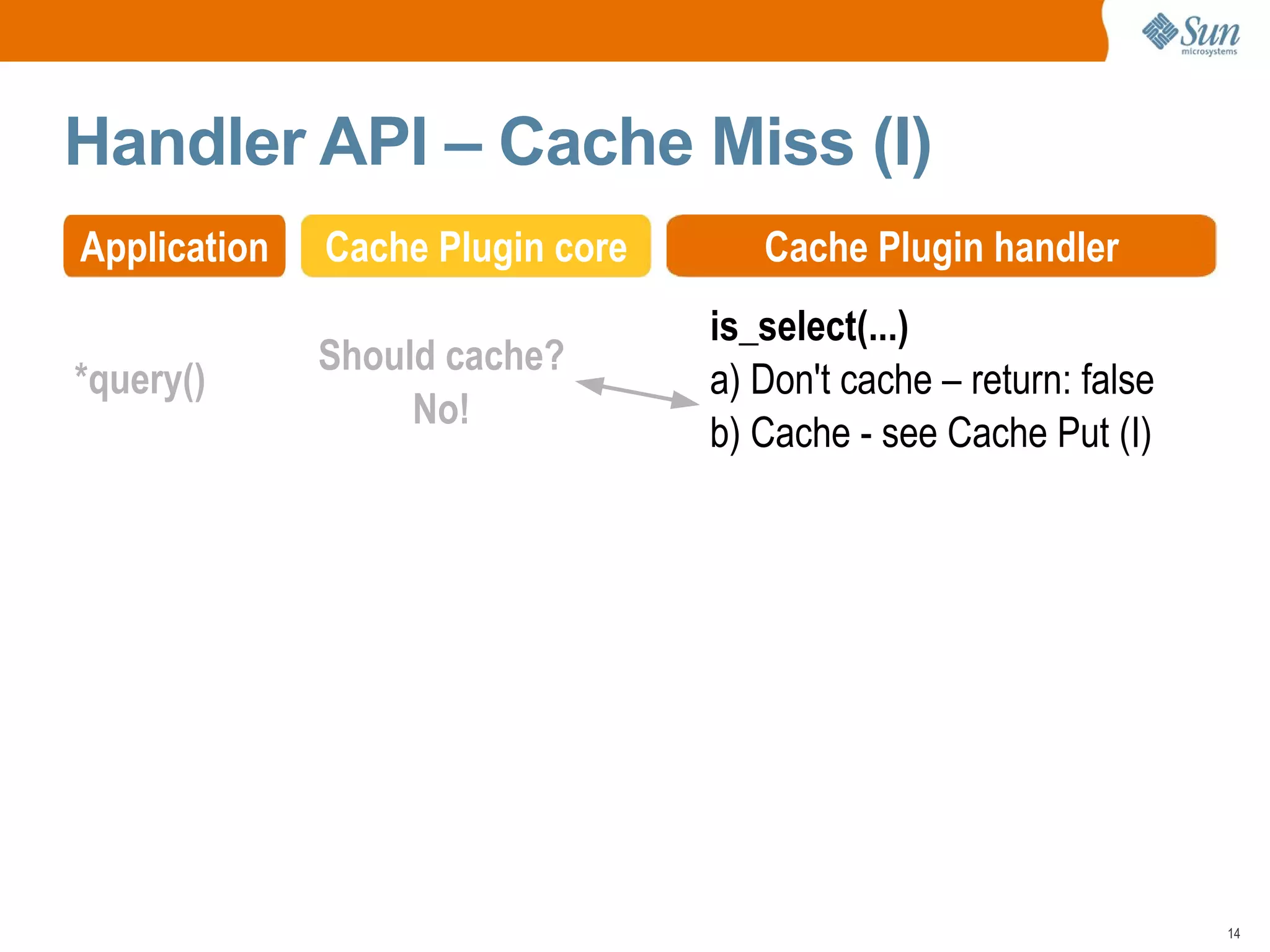

Handler API – Cache Miss (I) Application Cache Plugin handler Cache Plugin core *query()  Should cache? No! is_select(...)  a) Don't cache – return: false b) Cache - see Cache Put (I)

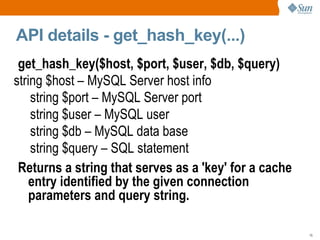

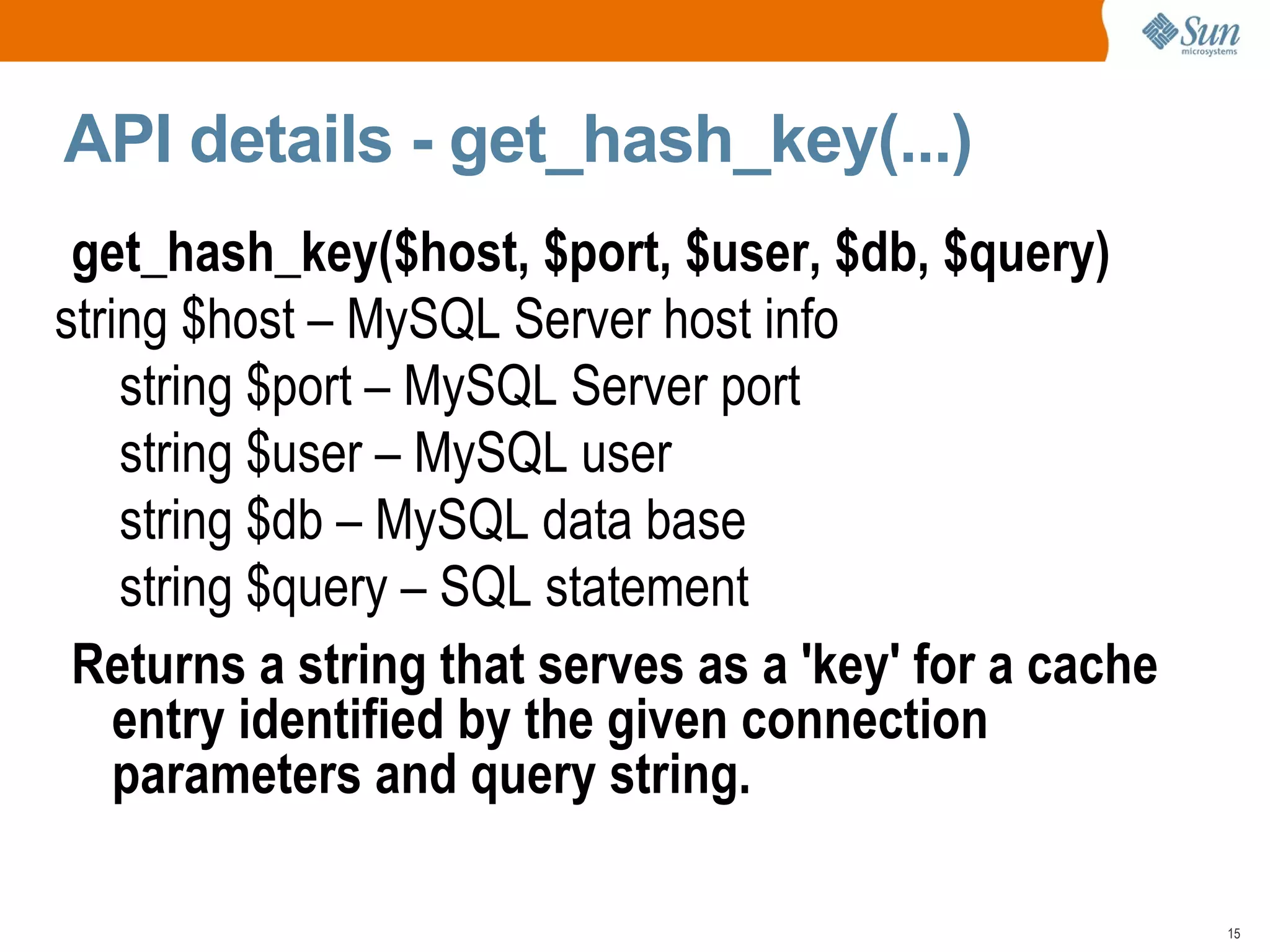

API details - get_hash_key(...) get_hash_key($host, $port, $user, $db, $query) string $host – MySQL Server host info
string $port – MySQL Server port
string $user – MySQL user
string $db – MySQL data base
string $query – SQL statement Returns a string that serves as a 'key' for a cache entry identified by the given connection parameters and query string.

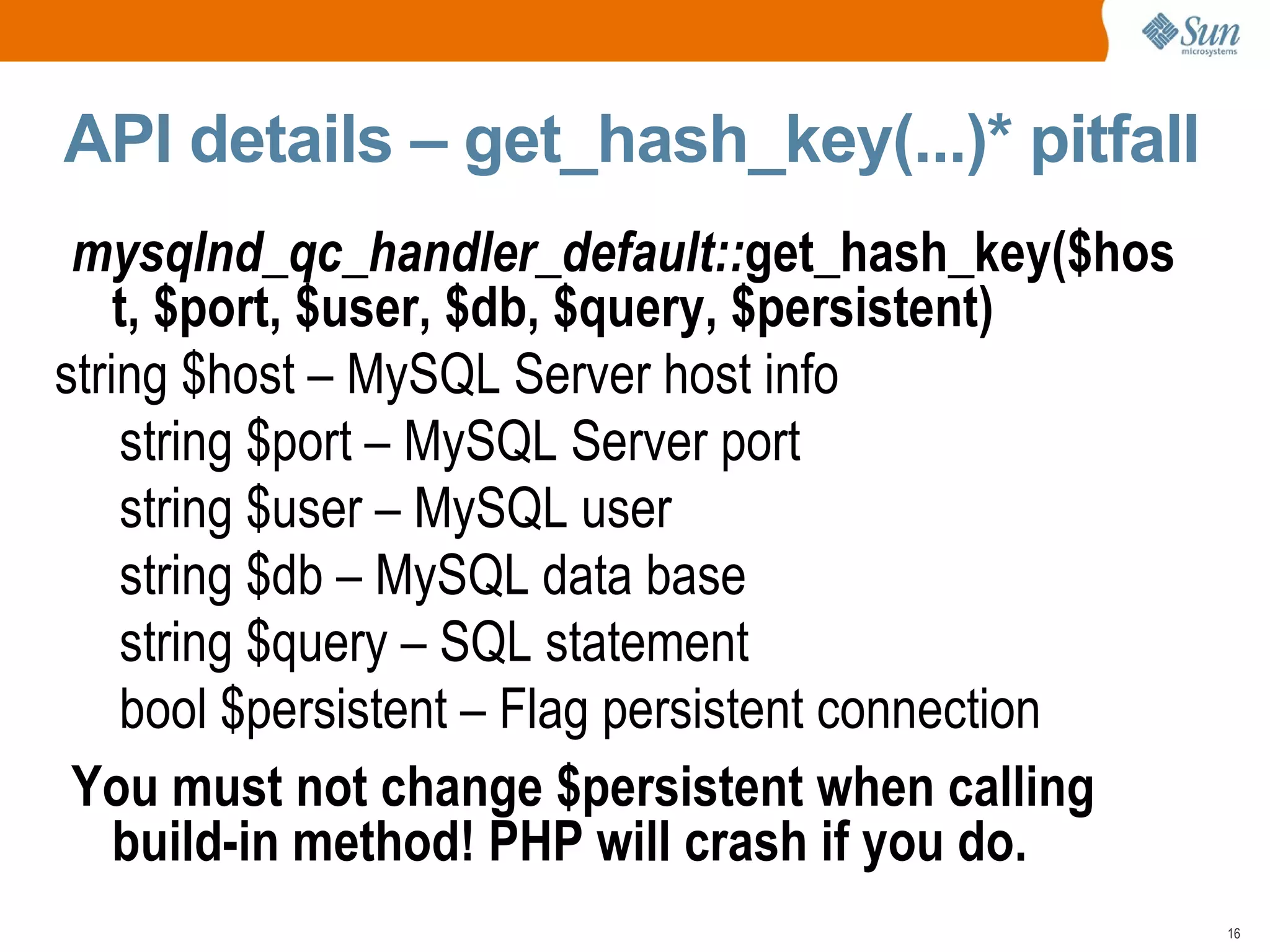

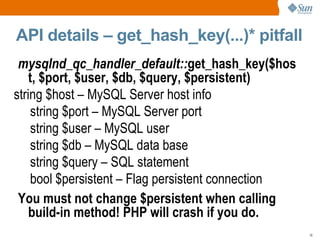

API details – get_hash_key(...)* pitfall mysqlnd_qc_handler_default:: get_hash_key($host, $port, $user, $db, $query, $persistent) string $host – MySQL Server host info
string $port – MySQL Server port
string $user – MySQL user
string $db – MySQL data base
string $query – SQL statement
bool $persistent – Flag persistent connection You must not change $persistent when calling build-in method! PHP will crash if you do.

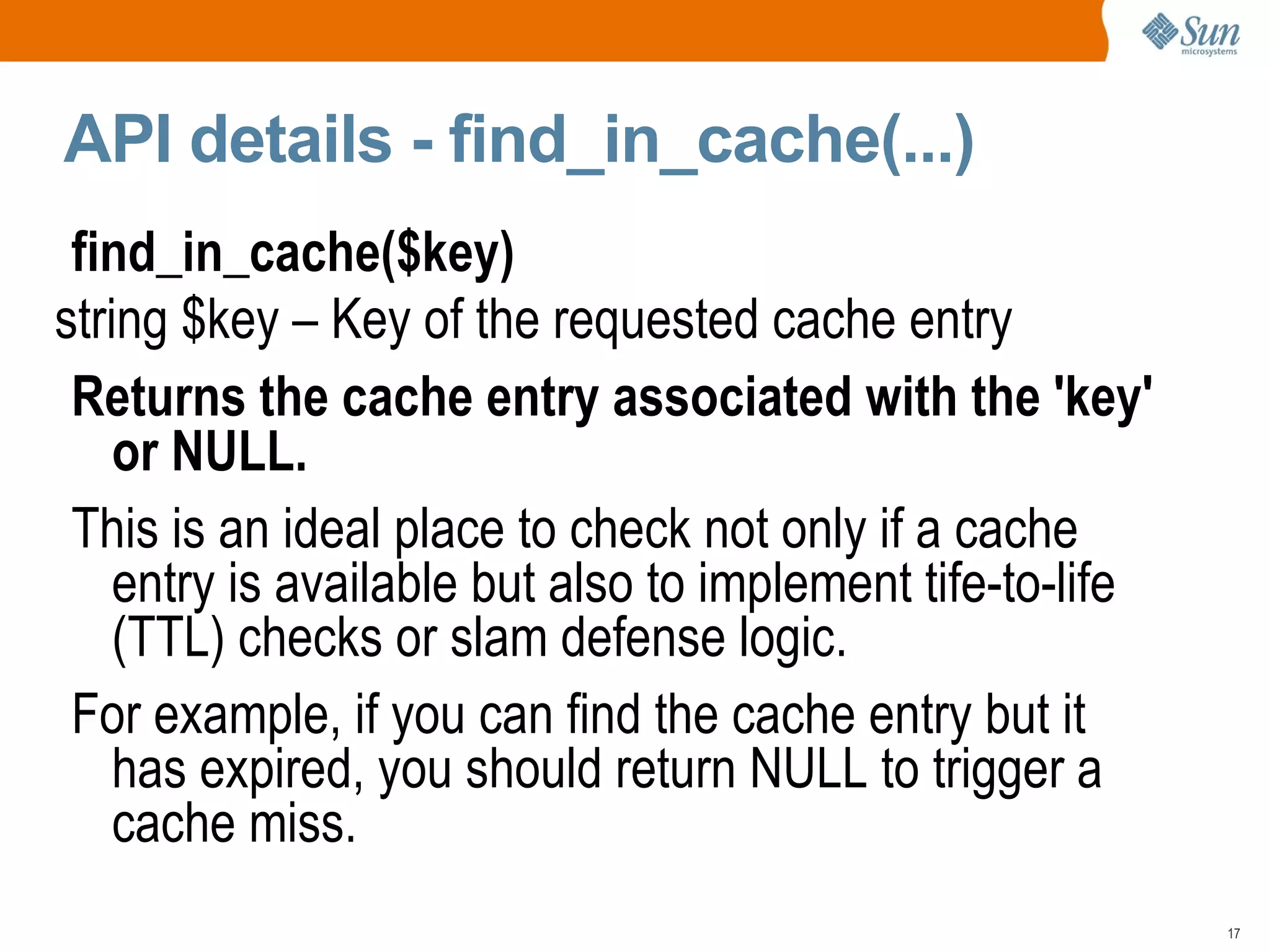

API details - find_in_cache(...) find_in_cache($key) string $key – Key of the requested cache entry Returns the cache entry associated with the 'key' or NULL.
This is an ideal place to check not only if a cache entry is available but also to implement tife-to-life (TTL) checks or slam defense logic.
For example, if you can find the cache entry but it has expired, you should return NULL to trigger a  cache miss.

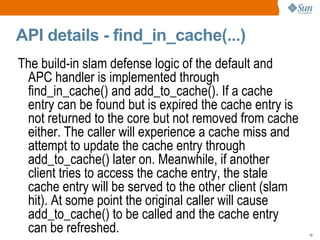

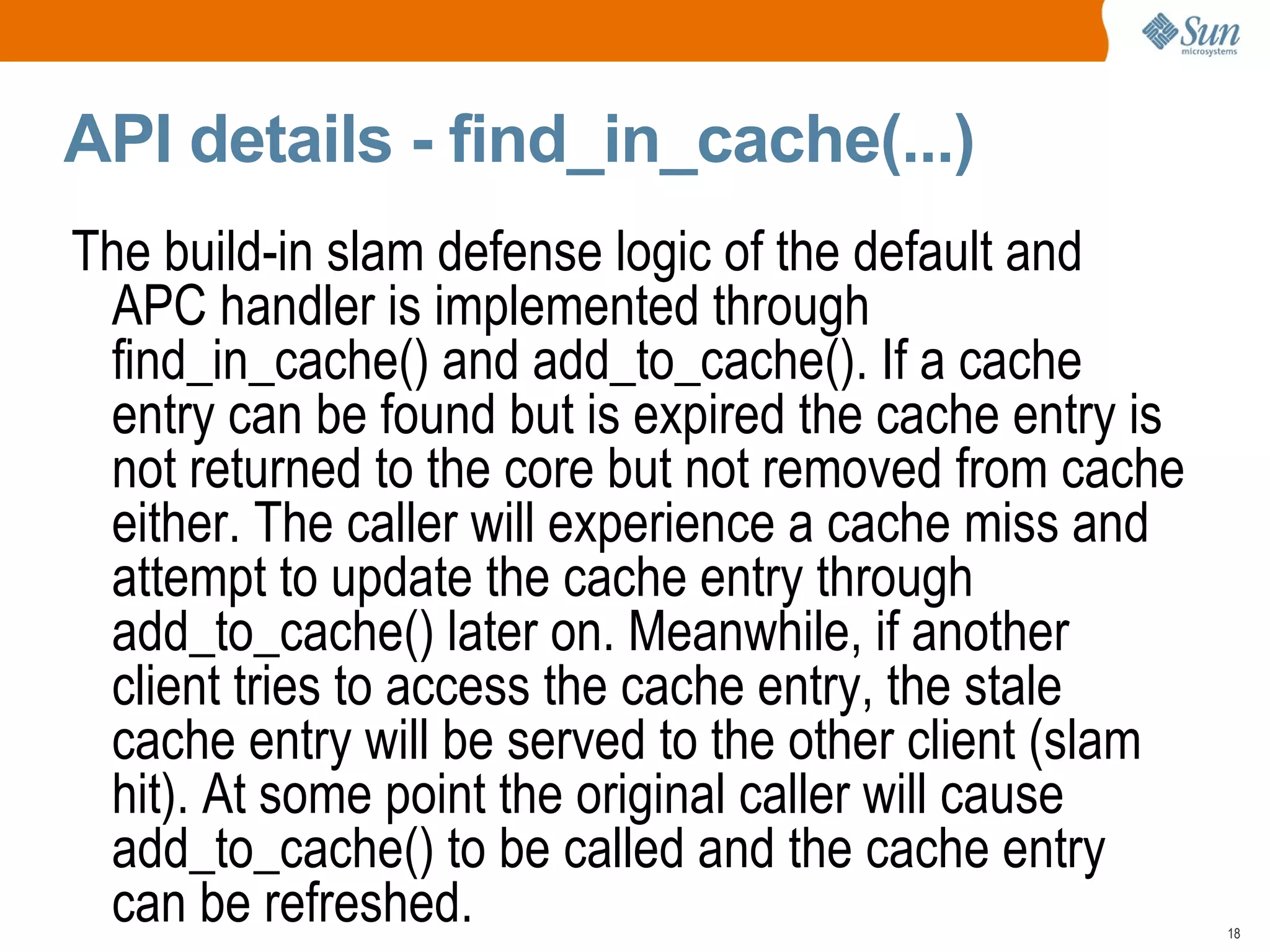

API details - find_in_cache(...) The build-in slam defense logic of the default and APC handler is implemented through find_in_cache() and add_to_cache(). If a cache entry can be found but is expired the cache entry is not returned to the core but not removed from cache either. The caller will experience a cache miss and attempt to update the cache entry through add_to_cache() later on. Meanwhile, if another client tries to access the cache entry, the stale cache entry will be served to the other client (slam hit). At some point the original caller will cause add_to_cache() to be called and the cache entry can be refreshed.

More Related Content

What's hot

Cascading Through Hadoop for the Boulder JUG
Cascading Through Hadoop for the Boulder JUGCascading Through Hadoop for the Boulder JUG
Cascading Through Hadoop for the Boulder JUG
Matthew McCullough

Workshop unittesting
Workshop unittestingWorkshop unittesting
Workshop unittesting
Joshua Thijssen

Perl object ?
Perl object ?Perl object ?
Perl object ?
ℕicolas ℝ.

Indexing and Query Optimizer (Mongo Austin)
Indexing and Query Optimizer (Mongo Austin)Indexing and Query Optimizer (Mongo Austin)
Indexing and Query Optimizer (Mongo Austin)
MongoDB

PHP 7 – What changed internally? (PHP Barcelona 2015)
PHP 7 – What changed internally? (PHP Barcelona 2015)PHP 7 – What changed internally? (PHP Barcelona 2015)
PHP 7 – What changed internally? (PHP Barcelona 2015)
Nikita Popov

Integrating icinga2 and the HashiCorp suite
Integrating icinga2 and the HashiCorp suiteIntegrating icinga2 and the HashiCorp suite
Integrating icinga2 and the HashiCorp suite
Bram Vogelaar

21.04.2016 Meetup: Spark vs. Flink
21.04.2016 Meetup: Spark vs. Flink21.04.2016 Meetup: Spark vs. Flink
21.04.2016 Meetup: Spark vs. Flink
Comsysto Reply GmbH

4069180 Caching Performance Lessons From Facebook
4069180 Caching Performance Lessons From Facebook4069180 Caching Performance Lessons From Facebook
4069180 Caching Performance Lessons From Facebook
guoqing75

MongoDB - Aggregation Pipeline
MongoDB - Aggregation PipelineMongoDB - Aggregation Pipeline
MongoDB - Aggregation Pipeline
Jason Terpko

Esprima - What is that
Esprima - What is thatEsprima - What is that
Esprima - What is that
Abhijeet Pawar

Diving into HHVM Extensions (PHPNW Conference 2015)
Diving into HHVM Extensions (PHPNW Conference 2015)Diving into HHVM Extensions (PHPNW Conference 2015)
Diving into HHVM Extensions (PHPNW Conference 2015)
James Titcumb

A miało być tak... bez wycieków
A miało być tak... bez wyciekówA miało być tak... bez wycieków
A miało być tak... bez wycieków
Konrad Kokosa

Raquel Guimaraes- Third party infrastructure as code
Raquel Guimaraes-  Third party infrastructure as codeRaquel Guimaraes-  Third party infrastructure as code
Raquel Guimaraes- Third party infrastructure as code
Thoughtworks

Webinar: Building Your First App in Node.js
Webinar: Building Your First App in Node.jsWebinar: Building Your First App in Node.js
Webinar: Building Your First App in Node.js
MongoDB

Php Security
Php SecurityPhp Security
Php Security
guest7cf35c

Using Spark to Load Oracle Data into Cassandra
Using Spark to Load Oracle Data into CassandraUsing Spark to Load Oracle Data into Cassandra
Using Spark to Load Oracle Data into Cassandra
Jim Hatcher

Indexing and Query Optimization
Indexing and Query OptimizationIndexing and Query Optimization
Indexing and Query Optimization
MongoDB

Just-In-Time Compiler in PHP 8
Just-In-Time Compiler in PHP 8Just-In-Time Compiler in PHP 8
Just-In-Time Compiler in PHP 8
Nikita Popov

PHP 7 – What changed internally?
PHP 7 – What changed internally?PHP 7 – What changed internally?
PHP 7 – What changed internally?
Nikita Popov

Indexing & Query Optimization
Indexing & Query OptimizationIndexing & Query Optimization
Indexing & Query Optimization
MongoDB


What's hot (20)

Cascading Through Hadoop for the Boulder JUG
Cascading Through Hadoop for the Boulder JUGCascading Through Hadoop for the Boulder JUG
Cascading Through Hadoop for the Boulder JUG

Workshop unittesting
Workshop unittestingWorkshop unittesting
Workshop unittesting

Perl object ?
Perl object ?Perl object ?
Perl object ?

Indexing and Query Optimizer (Mongo Austin)
Indexing and Query Optimizer (Mongo Austin)Indexing and Query Optimizer (Mongo Austin)
Indexing and Query Optimizer (Mongo Austin)

PHP 7 – What changed internally? (PHP Barcelona 2015)
PHP 7 – What changed internally? (PHP Barcelona 2015)PHP 7 – What changed internally? (PHP Barcelona 2015)
PHP 7 – What changed internally? (PHP Barcelona 2015)

Integrating icinga2 and the HashiCorp suite
Integrating icinga2 and the HashiCorp suiteIntegrating icinga2 and the HashiCorp suite
Integrating icinga2 and the HashiCorp suite

21.04.2016 Meetup: Spark vs. Flink
21.04.2016 Meetup: Spark vs. Flink21.04.2016 Meetup: Spark vs. Flink
21.04.2016 Meetup: Spark vs. Flink

4069180 Caching Performance Lessons From Facebook
4069180 Caching Performance Lessons From Facebook4069180 Caching Performance Lessons From Facebook
4069180 Caching Performance Lessons From Facebook

MongoDB - Aggregation Pipeline
MongoDB - Aggregation PipelineMongoDB - Aggregation Pipeline
MongoDB - Aggregation Pipeline

Esprima - What is that
Esprima - What is thatEsprima - What is that
Esprima - What is that

Diving into HHVM Extensions (PHPNW Conference 2015)
Diving into HHVM Extensions (PHPNW Conference 2015)Diving into HHVM Extensions (PHPNW Conference 2015)
Diving into HHVM Extensions (PHPNW Conference 2015)

A miało być tak... bez wycieków
A miało być tak... bez wyciekówA miało być tak... bez wycieków
A miało być tak... bez wycieków

Raquel Guimaraes- Third party infrastructure as code
Raquel Guimaraes-  Third party infrastructure as codeRaquel Guimaraes-  Third party infrastructure as code
Raquel Guimaraes- Third party infrastructure as code

Webinar: Building Your First App in Node.js
Webinar: Building Your First App in Node.jsWebinar: Building Your First App in Node.js
Webinar: Building Your First App in Node.js

Php Security
Php SecurityPhp Security
Php Security

Using Spark to Load Oracle Data into Cassandra
Using Spark to Load Oracle Data into CassandraUsing Spark to Load Oracle Data into Cassandra
Using Spark to Load Oracle Data into Cassandra

Indexing and Query Optimization
Indexing and Query OptimizationIndexing and Query Optimization
Indexing and Query Optimization

Just-In-Time Compiler in PHP 8
Just-In-Time Compiler in PHP 8Just-In-Time Compiler in PHP 8
Just-In-Time Compiler in PHP 8

PHP 7 – What changed internally?
PHP 7 – What changed internally?PHP 7 – What changed internally?
PHP 7 – What changed internally?

Indexing & Query Optimization
Indexing & Query OptimizationIndexing & Query Optimization
Indexing & Query Optimization


Viewers also liked

10 things you might not know about MySQL
10 things you might not know about MySQL10 things you might not know about MySQL
10 things you might not know about MySQL
Jorge Bernal

Criterios de admision en terapia intensiva
Criterios de admision en terapia intensivaCriterios de admision en terapia intensiva
Criterios de admision en terapia intensiva
Ruth Pesina

Cuidados de enfermería en la administración de surfactante
Cuidados de enfermería en la administración de surfactanteCuidados de enfermería en la administración de surfactante
Cuidados de enfermería en la administración de surfactante
Oscar Gonzalez

Gear6 Webinar - MySQL Scaling with Memcached
Gear6 Webinar - MySQL Scaling with MemcachedGear6 Webinar - MySQL Scaling with Memcached
Gear6 Webinar - MySQL Scaling with Memcached
Gear6

클라우드 서버를 이용한 모바일 웹 개발
클라우드 서버를 이용한 모바일 웹 개발클라우드 서버를 이용한 모바일 웹 개발
클라우드 서버를 이용한 모바일 웹 개발
Kenu, GwangNam Heo

My sql102
My sql102My sql102
My sql102
Dave Stokes

Mysql basics1
Mysql basics1Mysql basics1
Mysql basics1
Steffy Robert

관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016
관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016
관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016
Amazon Web Services Korea

Cb08 sanchez citlali.ppsx
Cb08 sanchez citlali.ppsxCb08 sanchez citlali.ppsx
Cb08 sanchez citlali.ppsx
Citlali Sanchez Lopez

Easy MySQL Replication Setup and Troubleshooting
Easy MySQL Replication Setup and TroubleshootingEasy MySQL Replication Setup and Troubleshooting
Easy MySQL Replication Setup and Troubleshooting
Bob Burgess

MySQL Tuning using digested slow-logs
MySQL Tuning using digested slow-logsMySQL Tuning using digested slow-logs
MySQL Tuning using digested slow-logs
Bob Burgess

Performance Schema in MySQL (Danil Zburivsky)
Performance Schema in MySQL (Danil Zburivsky)Performance Schema in MySQL (Danil Zburivsky)
Performance Schema in MySQL (Danil Zburivsky)
Ontico

MySQL database
MySQL databaseMySQL database
MySQL database
lalit choudhary

The care and feeding of a MySQL database
The care and feeding of a MySQL databaseThe care and feeding of a MySQL database
The care and feeding of a MySQL database
Dave Stokes

PoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HAPoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HA
Ulf Wendel

Mysql query optimization
Mysql query optimizationMysql query optimization
Mysql query optimization
Baohua Cai

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication
Ulf Wendel

MySQL DBA
MySQL DBAMySQL DBA
MySQL DBA
lalit choudhary

Modern MySQL Monitoring and Dashboards.
Modern MySQL Monitoring and Dashboards.Modern MySQL Monitoring and Dashboards.
Modern MySQL Monitoring and Dashboards.
Mydbops

Best Practices in Migrating to MySQL - Part 1
Best Practices in Migrating to MySQL - Part 1Best Practices in Migrating to MySQL - Part 1
Best Practices in Migrating to MySQL - Part 1
Ronald Bradford


Viewers also liked (20)

10 things you might not know about MySQL
10 things you might not know about MySQL10 things you might not know about MySQL
10 things you might not know about MySQL

Criterios de admision en terapia intensiva
Criterios de admision en terapia intensivaCriterios de admision en terapia intensiva
Criterios de admision en terapia intensiva

Cuidados de enfermería en la administración de surfactante
Cuidados de enfermería en la administración de surfactanteCuidados de enfermería en la administración de surfactante
Cuidados de enfermería en la administración de surfactante

Gear6 Webinar - MySQL Scaling with Memcached
Gear6 Webinar - MySQL Scaling with MemcachedGear6 Webinar - MySQL Scaling with Memcached
Gear6 Webinar - MySQL Scaling with Memcached

클라우드 서버를 이용한 모바일 웹 개발
클라우드 서버를 이용한 모바일 웹 개발클라우드 서버를 이용한 모바일 웹 개발
클라우드 서버를 이용한 모바일 웹 개발

My sql102
My sql102My sql102
My sql102

Mysql basics1
Mysql basics1Mysql basics1
Mysql basics1

관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016
관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016
관계형 데이터베이스의 새로운 패러다임 Amazon Aurora :: 김상필 :: AWS Summit Seoul 2016

Cb08 sanchez citlali.ppsx
Cb08 sanchez citlali.ppsxCb08 sanchez citlali.ppsx
Cb08 sanchez citlali.ppsx

Easy MySQL Replication Setup and Troubleshooting
Easy MySQL Replication Setup and TroubleshootingEasy MySQL Replication Setup and Troubleshooting
Easy MySQL Replication Setup and Troubleshooting

MySQL Tuning using digested slow-logs
MySQL Tuning using digested slow-logsMySQL Tuning using digested slow-logs
MySQL Tuning using digested slow-logs

Performance Schema in MySQL (Danil Zburivsky)
Performance Schema in MySQL (Danil Zburivsky)Performance Schema in MySQL (Danil Zburivsky)
Performance Schema in MySQL (Danil Zburivsky)

MySQL database
MySQL databaseMySQL database
MySQL database

The care and feeding of a MySQL database
The care and feeding of a MySQL databaseThe care and feeding of a MySQL database
The care and feeding of a MySQL database

PoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HAPoC: Using a Group Communication System to improve MySQL Replication HA
PoC: Using a Group Communication System to improve MySQL Replication HA

Mysql query optimization
Mysql query optimizationMysql query optimization
Mysql query optimization

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication

MySQL DBA
MySQL DBAMySQL DBA
MySQL DBA

Modern MySQL Monitoring and Dashboards.
Modern MySQL Monitoring and Dashboards.Modern MySQL Monitoring and Dashboards.
Modern MySQL Monitoring and Dashboards.

Best Practices in Migrating to MySQL - Part 1
Best Practices in Migrating to MySQL - Part 1Best Practices in Migrating to MySQL - Part 1
Best Practices in Migrating to MySQL - Part 1


Similar to mysqlnd query cache plugin: user-defined storage handler

Built-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIsBuilt-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIs
Ulf Wendel

Mysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuningMysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuning
Ulf Wendel

Advanced Hibernate Notes
Advanced Hibernate NotesAdvanced Hibernate Notes
Advanced Hibernate Notes
Kaniska Mandal

CodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory laneCodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory lane
Maarten Balliauw

Performance Tuning
Performance TuningPerformance Tuning
Performance Tuning
Ligaya Turmelle

Dapper performance
Dapper performanceDapper performance
Dapper performance
Suresh Loganatha

.NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management...
.NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management....NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management...
.NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management...
NETFest

Spring 4 advanced final_xtr_presentation
Spring 4 advanced final_xtr_presentationSpring 4 advanced final_xtr_presentation
Spring 4 advanced final_xtr_presentation
sourabh aggarwal

DotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NETDotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NET
Maarten Balliauw

MUC - Moodle Universal Cache
MUC - Moodle Universal CacheMUC - Moodle Universal Cache
MUC - Moodle Universal Cache
Tim Hunt

Things you can find in the plan cache
Things you can find in the plan cacheThings you can find in the plan cache
Things you can find in the plan cache
sqlserver.co.il

Smarty
SmartySmarty
Services Drupalcamp Stockholm 2009
Services Drupalcamp Stockholm 2009Services Drupalcamp Stockholm 2009
Services Drupalcamp Stockholm 2009
hugowetterberg

idea: talk about the Active Cache
idea: talk about the Active Cacheidea: talk about the Active Cache
idea: talk about the Active Cache
Ching Yi Chan

Instrumenting plugins for Performance Schema
Instrumenting plugins for Performance SchemaInstrumenting plugins for Performance Schema
Instrumenting plugins for Performance Schema
Mark Leith

Caching with Memcached and APC
Caching with Memcached and APCCaching with Memcached and APC
Caching with Memcached and APC
Ben Ramsey

PHP & Performance
PHP & PerformancePHP & Performance
PHP & Performance
毅 吕

Finagle and Java Service Framework at Pinterest
Finagle and Java Service Framework at PinterestFinagle and Java Service Framework at Pinterest
Finagle and Java Service Framework at Pinterest
Pavan Chitumalla

Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)
Maarten Balliauw

Mysqlnd, an unknown powerful PHP extension
Mysqlnd, an unknown powerful PHP extensionMysqlnd, an unknown powerful PHP extension
Mysqlnd, an unknown powerful PHP extension
julien pauli


Similar to mysqlnd query cache plugin: user-defined storage handler (20)

Built-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIsBuilt-in query caching for all PHP MySQL extensions/APIs
Built-in query caching for all PHP MySQL extensions/APIs

Mysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuningMysqlnd query cache plugin statistics and tuning
Mysqlnd query cache plugin statistics and tuning

Advanced Hibernate Notes
Advanced Hibernate NotesAdvanced Hibernate Notes
Advanced Hibernate Notes

CodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory laneCodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory lane

Performance Tuning
Performance TuningPerformance Tuning
Performance Tuning

Dapper performance
Dapper performanceDapper performance
Dapper performance

.NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management...
.NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management....NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management...
.NET Fest 2018. Maarten Balliauw. Let’s refresh our memory! Memory management...

Spring 4 advanced final_xtr_presentation
Spring 4 advanced final_xtr_presentationSpring 4 advanced final_xtr_presentation
Spring 4 advanced final_xtr_presentation

DotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NETDotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NET

MUC - Moodle Universal Cache
MUC - Moodle Universal CacheMUC - Moodle Universal Cache
MUC - Moodle Universal Cache

Things you can find in the plan cache
Things you can find in the plan cacheThings you can find in the plan cache
Things you can find in the plan cache

Smarty
SmartySmarty
Smarty

Services Drupalcamp Stockholm 2009
Services Drupalcamp Stockholm 2009Services Drupalcamp Stockholm 2009
Services Drupalcamp Stockholm 2009

idea: talk about the Active Cache
idea: talk about the Active Cacheidea: talk about the Active Cache
idea: talk about the Active Cache

Instrumenting plugins for Performance Schema
Instrumenting plugins for Performance SchemaInstrumenting plugins for Performance Schema
Instrumenting plugins for Performance Schema

Caching with Memcached and APC
Caching with Memcached and APCCaching with Memcached and APC
Caching with Memcached and APC

PHP & Performance
PHP & PerformancePHP & Performance
PHP & Performance

Finagle and Java Service Framework at Pinterest
Finagle and Java Service Framework at PinterestFinagle and Java Service Framework at Pinterest
Finagle and Java Service Framework at Pinterest

Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)

Mysqlnd, an unknown powerful PHP extension
Mysqlnd, an unknown powerful PHP extensionMysqlnd, an unknown powerful PHP extension
Mysqlnd, an unknown powerful PHP extension


More from Ulf Wendel

HTTP Plugin for MySQL!
HTTP Plugin for MySQL!HTTP Plugin for MySQL!
HTTP Plugin for MySQL!
Ulf Wendel

Data massage: How databases have been scaled from one to one million nodes
Data massage: How databases have been scaled from one to one million nodesData massage: How databases have been scaled from one to one million nodes
Data massage: How databases have been scaled from one to one million nodes
Ulf Wendel

MySQL 5.7 clustering: The developer perspective
MySQL 5.7 clustering: The developer perspectiveMySQL 5.7 clustering: The developer perspective
MySQL 5.7 clustering: The developer perspective
Ulf Wendel

MySQL 5.7 Fabric: Introduction to High Availability and Sharding
MySQL 5.7 Fabric: Introduction to High Availability and Sharding MySQL 5.7 Fabric: Introduction to High Availability and Sharding
MySQL 5.7 Fabric: Introduction to High Availability and Sharding
Ulf Wendel

DIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL ClusterDIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL Cluster
Ulf Wendel

NoSQL in MySQL
NoSQL in MySQLNoSQL in MySQL
NoSQL in MySQL
Ulf Wendel

Vote NO for MySQL
Vote NO for MySQLVote NO for MySQL
Vote NO for MySQL
Ulf Wendel

PHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing pluginPHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing plugin
Ulf Wendel

HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQLHTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
Ulf Wendel

MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
Ulf Wendel

MySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistencyMySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistency
Ulf Wendel

MySQL 5.6 Global Transaction Identifier - Use case: Failover
MySQL 5.6 Global Transaction Identifier - Use case: FailoverMySQL 5.6 Global Transaction Identifier - Use case: Failover
MySQL 5.6 Global Transaction Identifier - Use case: Failover
Ulf Wendel

MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011
MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011
MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011
Ulf Wendel

PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011
Ulf Wendel

The mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing pluginThe mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing plugin
Ulf Wendel

Award-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cacheAward-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cache
Ulf Wendel

The power of mysqlnd plugins
The power of mysqlnd pluginsThe power of mysqlnd plugins
The power of mysqlnd plugins
Ulf Wendel

Mysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark reportMysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark report
Ulf Wendel

The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL ProxyThe PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
Ulf Wendel

Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008
Ulf Wendel


More from Ulf Wendel (20)

HTTP Plugin for MySQL!
HTTP Plugin for MySQL!HTTP Plugin for MySQL!
HTTP Plugin for MySQL!

Data massage: How databases have been scaled from one to one million nodes
Data massage: How databases have been scaled from one to one million nodesData massage: How databases have been scaled from one to one million nodes
Data massage: How databases have been scaled from one to one million nodes

MySQL 5.7 clustering: The developer perspective
MySQL 5.7 clustering: The developer perspectiveMySQL 5.7 clustering: The developer perspective
MySQL 5.7 clustering: The developer perspective

MySQL 5.7 Fabric: Introduction to High Availability and Sharding
MySQL 5.7 Fabric: Introduction to High Availability and Sharding MySQL 5.7 Fabric: Introduction to High Availability and Sharding
MySQL 5.7 Fabric: Introduction to High Availability and Sharding

DIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL ClusterDIY: A distributed database cluster, or: MySQL Cluster
DIY: A distributed database cluster, or: MySQL Cluster

NoSQL in MySQL
NoSQL in MySQLNoSQL in MySQL
NoSQL in MySQL

Vote NO for MySQL
Vote NO for MySQLVote NO for MySQL
Vote NO for MySQL

PHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing pluginPHP mysqlnd connection multiplexing plugin
PHP mysqlnd connection multiplexing plugin

HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQLHTTP, JSON, JavaScript, Map&Reduce built-in to MySQL
HTTP, JSON, JavaScript, Map&Reduce built-in to MySQL

MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4
MySQL? Load? Clustering! Balancing! PECL/mysqlnd_ms 1.4

MySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistencyMySQL 5.6 Global Transaction IDs - Use case: (session) consistency
MySQL 5.6 Global Transaction IDs - Use case: (session) consistency

MySQL 5.6 Global Transaction Identifier - Use case: Failover
MySQL 5.6 Global Transaction Identifier - Use case: FailoverMySQL 5.6 Global Transaction Identifier - Use case: Failover
MySQL 5.6 Global Transaction Identifier - Use case: Failover

MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011
MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011
MySQL native driver for PHP (mysqlnd) - Introduction and overview, Edition 2011

PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011PHPopstar der PHP Unconference 2011
PHPopstar der PHP Unconference 2011

The mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing pluginThe mysqlnd replication and load balancing plugin
The mysqlnd replication and load balancing plugin

Award-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cacheAward-winning technology: Oxid loves the query cache
Award-winning technology: Oxid loves the query cache

The power of mysqlnd plugins
The power of mysqlnd pluginsThe power of mysqlnd plugins
The power of mysqlnd plugins

Mysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark reportMysqlnd query cache plugin benchmark report
Mysqlnd query cache plugin benchmark report

The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL ProxyThe PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy
The PHP mysqlnd plugin talk - plugins an alternative to MySQL Proxy

Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008Mysqlnd Async Ipc2008
Mysqlnd Async Ipc2008


Recently uploaded

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx
ishalveerrandhawa1

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf
Tatiana Al-Chueyr

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf
ChristopherTHyatt

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx
SynapseIndia

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop
CEPTES Software Inc

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure
KAMAL CHOUDHARY

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
kumarjarun2010

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world
Emerging Tech

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
Edge AI and Vision Alliance

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
SynapseIndia

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence
rajancomputerfbd

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Mydbops


Recently uploaded (20)

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops


mysqlnd query cache plugin: user-defined storage handler

  • 1. MySQL native driver for PHP: Customizing the query cache
  • 2. mysqlnd_qc: Customization by user defined storage handler Ulf Wendel, Andrey Hristov MySQL Connectors Team Sun Microsystems
  • 3. Table of Contents Overview How to customize: template pattern
  • 4. Flavours of user handler Handler API Storage
  • 5. Registration Examples Quick start: identify cache candidates
  • 7. Breaking the limits Cache decision Shall this query be cached: is_select()
  • 8. Filter by content, run or store time, result set size Cache storage Storage location
  • 9. Scope Replacement strategy Limiting cache storage size Extending monitoring capabilities
  • 10. Template Method pattern, kind of Core: invariant part of the caching, handler: variant part <?php /* Any PHP MySQL application */ ?> ext/*mysql* ext/*mysql* mysqlnd mysqlnd Query Cache Plugin (mysqlnd_qc core) Storage handler (mysqlnd_qc)
  • 11. Variant and invariant parts (Miss/Put) mysqlnd Cache Plugin handler Cache Plugin core query() Should cache? Is cached? Activate data recorder Call original query() Deactivate recorder Cache wire data is_select() Want to cache statement? find() Available? TTL? Slam defense? Statistics? add() Run time? Data size? Replacement strategy?
  • 12. Redefine everything or selected parts Choose: quick change or complex algorithm?
  • 13. Full control through new user handler Procedural: mysqlnd_qc_set_user_handlers()
  • 14. OOP: interface mysqlnd_qc_handler Redefining selected invariants OOP: extend class mysqlnd_qc_handler_default
  • 15. No other build-in handler exported as user class All approaches use almost the same handler API
  • 16. Table of Contents Overview How to customize: template pattern
  • 17. Flavours of user handler Handler API Storage
  • 18. Registration Examples Quick start: identify cache candidates
  • 20. Handler API overview Almost the same for all kinds of user handler get_hash_key($host, $port, $user, $db, $query)*
  • 29. Handler API – Cache Put (I) Application Cache Plugin handler Cache Plugin core *query() Should cache? Yes! Cache entry 'key'? is_select(...) a) Don't cache - return: false b) Cache it – return: int TTL get_hash_key(...) Return key of cache entry. find_in_cache(...) Returns NULL because not found. Do we have 'key'?
  • 30. Handler API – Cache Put (II) Application Cache Plugin handler Cache Plugin core *query() add_to_cache(...) Add to cache if not exists. Return true if added, false if already in cache. Activate data recorder Call original query() Deactivate recorder Cache wire data *store _result() (often implicit)
  • 31. Handler API – Cache Hit (I) Application Cache Plugin handler Cache Plugin core *query() Should cache? Yes! Cache entry 'key'? is_select(...) a) Don't cache - return: false b) Cache it – return: int TTL get_hash_key(...) Return key of cache entry. find_in_cache(...) Search cache entry, check if still valid, return cache entry. Do we have 'key'?
  • 32. Handler API – Cache Hit (II) Application Cache Plugin handler Cache Plugin core *store _result() (often implicit) Client served! Record timings! return_to_cache(...) Cache entry no longer in use by core. (Default needs this) update_stats(...) Run and store time recorded and reported by the core, useful for per-entry stats.
  • 33. Handler API – Cache Miss (I) Application Cache Plugin handler Cache Plugin core *query() Should cache? No! is_select(...) a) Don't cache – return: false b) Cache - see Cache Put (I)
  • 34. API details - get_hash_key(...) get_hash_key($host, $port, $user, $db, $query) string $host – MySQL Server host info
  • 35. string $port – MySQL Server port
  • 36. string $user – MySQL user
  • 37. string $db – MySQL data base
  • 38. string $query – SQL statement Returns a string that serves as a 'key' for a cache entry identified by the given connection parameters and query string.
  • 39. API details – get_hash_key(...)* pitfall mysqlnd_qc_handler_default:: get_hash_key($host, $port, $user, $db, $query, $persistent) string $host – MySQL Server host info
  • 40. string $port – MySQL Server port
  • 41. string $user – MySQL user
  • 42. string $db – MySQL data base
  • 43. string $query – SQL statement
  • 44. bool $persistent – Flag persistent connection You must not change $persistent when calling build-in method! PHP will crash if you do.
  • 45. API details - find_in_cache(...) find_in_cache($key) string $key – Key of the requested cache entry Returns the cache entry associated with the 'key' or NULL.
  • 46. This is an ideal place to check not only if a cache entry is available but also to implement tife-to-life (TTL) checks or slam defense logic.
  • 47. For example, if you can find the cache entry but it has expired, you should return NULL to trigger a cache miss.
  • 48. API details - find_in_cache(...) The build-in slam defense logic of the default and APC handler is implemented through find_in_cache() and add_to_cache(). If a cache entry can be found but is expired the cache entry is not returned to the core but not removed from cache either. The caller will experience a cache miss and attempt to update the cache entry through add_to_cache() later on. Meanwhile, if another client tries to access the cache entry, the stale cache entry will be served to the other client (slam hit). At some point the original caller will cause add_to_cache() to be called and the cache entry can be refreshed.
  • 49. API details - return_to_cache(...) return_to_cache($key) string $key – Key of the cache entry Message from the core to the storage handler that the core no longer uses the cache entry returned by find() because a cache hit has been completed.
  • 50. Hardly any pratical meaning to userland handler.
  • 51. Relevant for C based handler that work with references, such as the default handler does. See also mysqlnd_qc.std_data_copy for default handler configuration details.
  • 52. API details - add_to_cache(...) add_to_cache($key, $data, $ttl, $run_t, $store_t, $row_c) string $key – Key of the cache entry
  • 53. string $data – Binary wire data to cache
  • 54. int $ttl – TTL of the cache entry (s)
  • 55. int $run_t – Run time of uncached query (ms)
  • 56. int $store_t – Store time of uncached query (ms) Message from the core to the handler to create a new cache entry with the given data. Returns true, if the cache entry has been created and false, if the cache entry already exists.

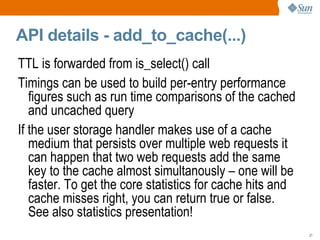

  • 57. API details - add_to_cache(...) TTL is forwarded from is_select() call
  • 58. Timings can be used to build per-entry performance figures such as run time comparisons of the cached and uncached query
  • 59. If the user storage handler makes use of a cache medium that persists over multiple web requests it can happen that two web requests add the same key to the cache almost simultanously – one will be faster. To get the core statistics for cache hits and cache misses right, you can return true or false. See also statistics presentation!
  • 60. API details - is_select(...) is_select($query) string $query – SQL statement Returns false if the given query shall not be cached. Returns 0 if it shall be cached and TTL shall be equal to mysqlnd_qc.ttl. Returns an integer representing a TTL, if the query shall be cached but a custom TTL is to be used.
  • 61. Note that you may have to parse the SQL to catch SQL hints that specify the TTL
  • 62. Note the core logic TTL(0) != endless
  • 63. API details - is_select(...) For build-in storage handler the TTL is always measured in seconds. TTL interpretation is subject to storage handler, e.g. in find() to check if a cache entry is still valid. A user handler may interpret the TTL value, for example, as milliseconds. This is perfectly valid as long as you are aware of the potential differences between your own handler and the build-in storage handler and you stay within the limits of integers and you respect the special meaning of the value “0.” The core will transparently forward your TTL setting to add().
  • 64. API details - update_stats(...) update_stats($key, $run_t, $store_t) string $key – Key of the cache entry
  • 65. double $run_t – Run time of the cached query
  • 66. double $store_t – Store time of the cached query Run and store time recorded by the core.
  • 67. Can be used to maintain per-entry cache statistics.
  • 68. API details - clear_cache() clear_cache()
  • 69. Flush all cache entries. Called by the core if the user calls mysqlnd_qc_clear_cache().
  • 70. API details - get_stats() get_stats()
  • 71. Returns an array of cache statistics and arbitrary other data which will become part of return value of mysqlnd_qc_get_cache_info().
  • 72. mysqlnd_qc_get_cache_info() returns a hash. The return value of get_stats() will be added to the hash using the key “data”. It is recommended to align the return value of get_stats() with the “data” hash provided by the build-in handlers, in particular Default and APC.
  • 73. Procedural user storage handler void mysqlnd_qc_set_user_handlers( string get_hash_key, string find_query_in_cache, string return_to_cache, string add_query_to_cache_if_not_exists, string query_is_select, string update_cache_stats, string get_stats, string clear_cache ) There is also an OO API to please you – see below. The OO API has additional function callbacks! The OO API is likely to become the future standard. mysqlnd_qc_set_user_handlers()
  • 74. Registering OO user storage handler bool mysqlnd_qc_change_handler (mysqlnd_qc_default_handler handler) bool mysqlnd_qc_change_handler(string handler) Changes the storage handler. Returns false if the current handler cannot be shutdown or the requested handler cannot be initialized. Failing to change the handler should be considered as a fatal error unless the change fails because the requested handler is unknown. You can either change the storage handler to one of build-in handlers or register a user-defined storage handler object derived from mysqlnd_qc_handler_default.
  • 75. Handler API – Handler registration (I) Active handler App / QC Core mysqlnd_qc_change_handler() shutdown active handler: OK! shutdown() return true New handler init() return true init new handler: OK! install to new handler return true

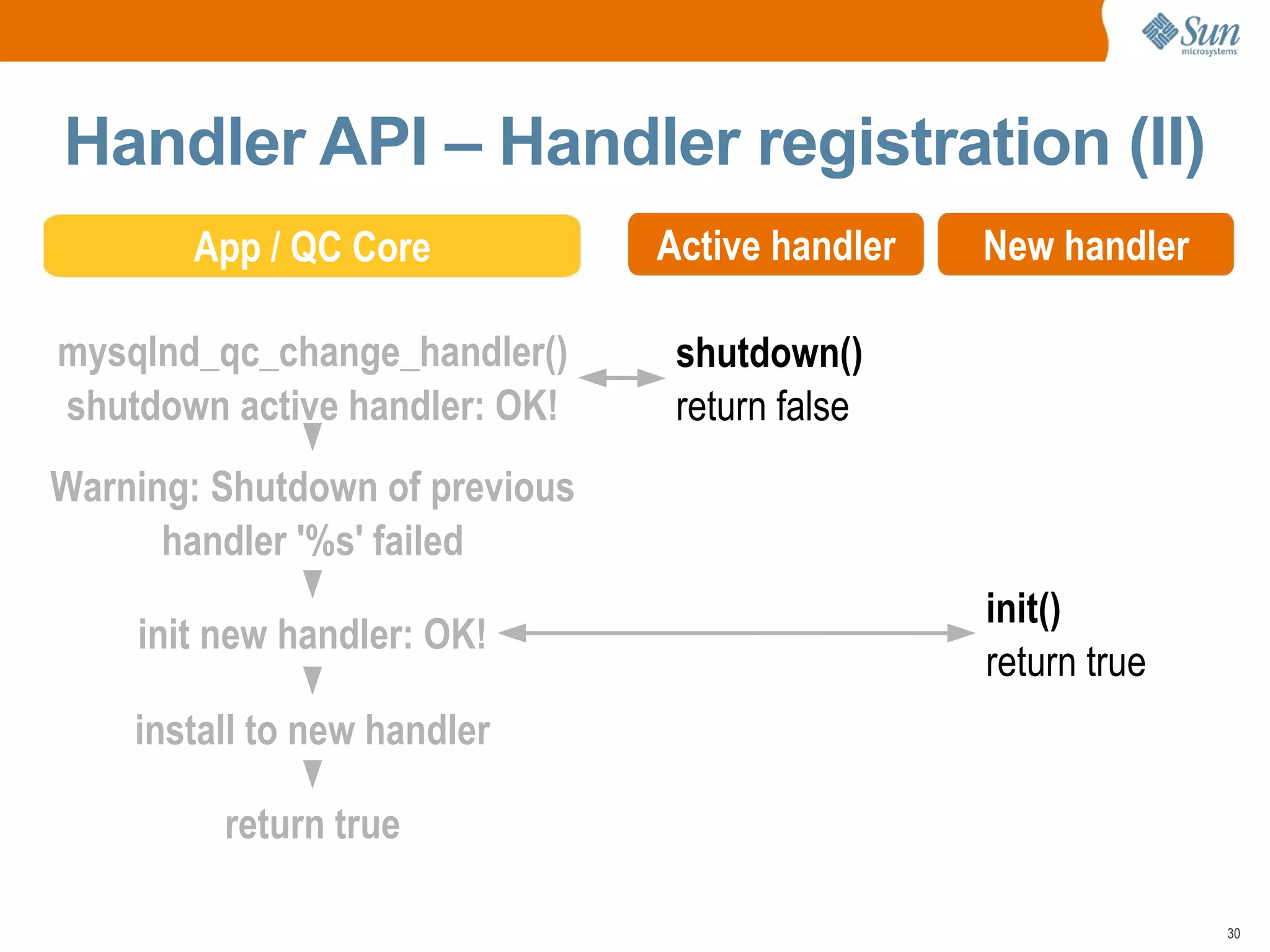

  • 76. Handler API – Handler registration (II) Active handler App / QC Core mysqlnd_qc_change_handler() shutdown active handler: OK! shutdown() return false New handler init() return true init new handler: OK! install to new handler Warning: Shutdown of previous handler '%s' failed return true

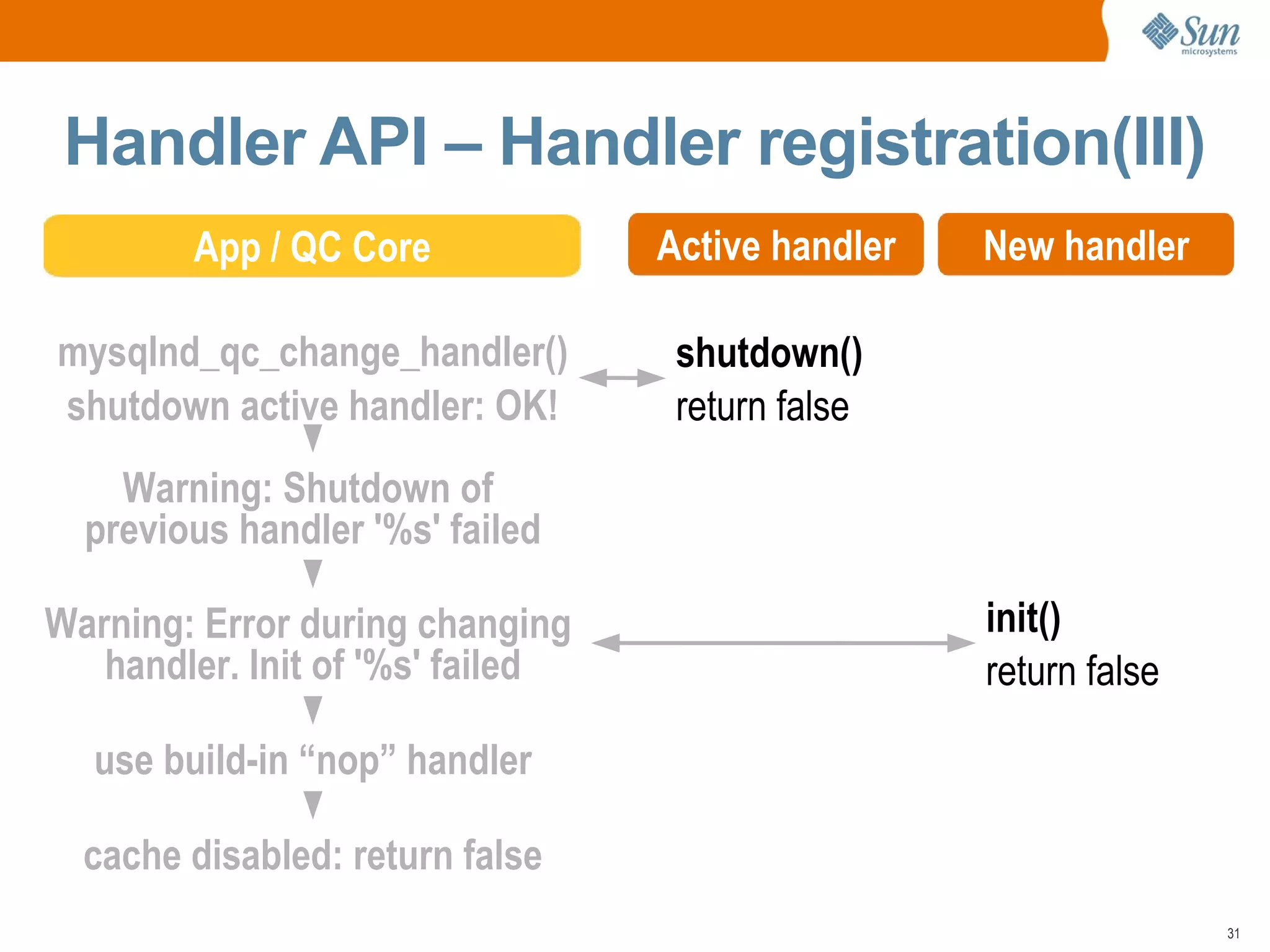

  • 77. Handler API – Handler registration(III) Active handler App / QC Core mysqlnd_qc_change_handler() shutdown active handler: OK! shutdown() return false New handler init() return false Warning: Error during changing handler. Init of '%s' failed use build-in “nop” handler Warning: Shutdown of previous handler '%s' failed cache disabled: return false
  • 78. API details - init() init()
  • 79. Returns true if the handler is ready to be used. Called upon handler registration triggered by a call to mysqlnd_qc_change_handler().
  • 80. Not available with mysqlnd_set_user_handlers()!
  • 81. Part of the class mysqlnd_qc_handler_default
  • 82. Part of the interface mysqlnd_qc_handler
  • 83. API details - shutdown() shutdown()
  • 84. Returns true if the handler has succeeded to clean up resources and is ready to be shutdown. Called upon handler registration triggered by a call to mysqlnd_qc_change_handler().
  • 85. Not available with mysqlnd_set_user_handlers()!
  • 86. Part of the class mysqlnd_qc_handler_default
  • 87. Part of the interface mysqlnd_qc_handler
  • 88. Table of Contents Overview How to customize: template pattern
  • 89. Flavours of user handler Handler API Storage
  • 90. Registration Examples Quick start: identify cache candidates
  • 92. Quick Start: subclassing Subclass mysqlnd_qc_handler_default
  • 93. Advantages Fast: replace selected invariants only
  • 94. Easy: no need to know all API calls
  • 95. Convenient: reuse internal C implementation Disadvantages Only build-in default handler can be subclassed
  • 96. Class mysqlnd_qc_handler_default class mysqlnd_qc_handler_default { public function init() {} public function is_select(...) {} public function get_hash_key(...) {} public function return_to_cache(...) {} public function add_to_cache(...) {} public function find_in_cache(...) {} public function update_cache_stats(...) {} public function get_stats(...) {} public function clear_cache() {} public function shutdown() {} }
  • 97. Quick start: search cache candidates Which queries does the app run? Which ones to cache? class qc_monitor extends mysqlnd_qc_handler_default { public function is_select($query) { printf(&quot;qc_monitor: '%s'&quot;, $query); return parent::is_select($query); } } $monitor = new qc_monitor(); mysqlnd_qc_change_handler($monitor); $mysqli = new mysqli(&quot;host&quot;, &quot;user&quot;, &quot;passwd&quot;, &quot;db&quot;); $mysqli->query(&quot;SELECT 1&quot;);
  • 98. Quick start: query monitoring (I) class qc_monitor extends mysqlnd_qc_handler_default { private $key_to_query = array(); public function get_hash_key($h, $p, $u, $d, $q, $p) { $key = parent::get_hash_key($h, $p, $u, $d, $q, $p); $this->key_to_query[$key] = $query; return $key; } public function is_select($query) { return true; } /* continued */

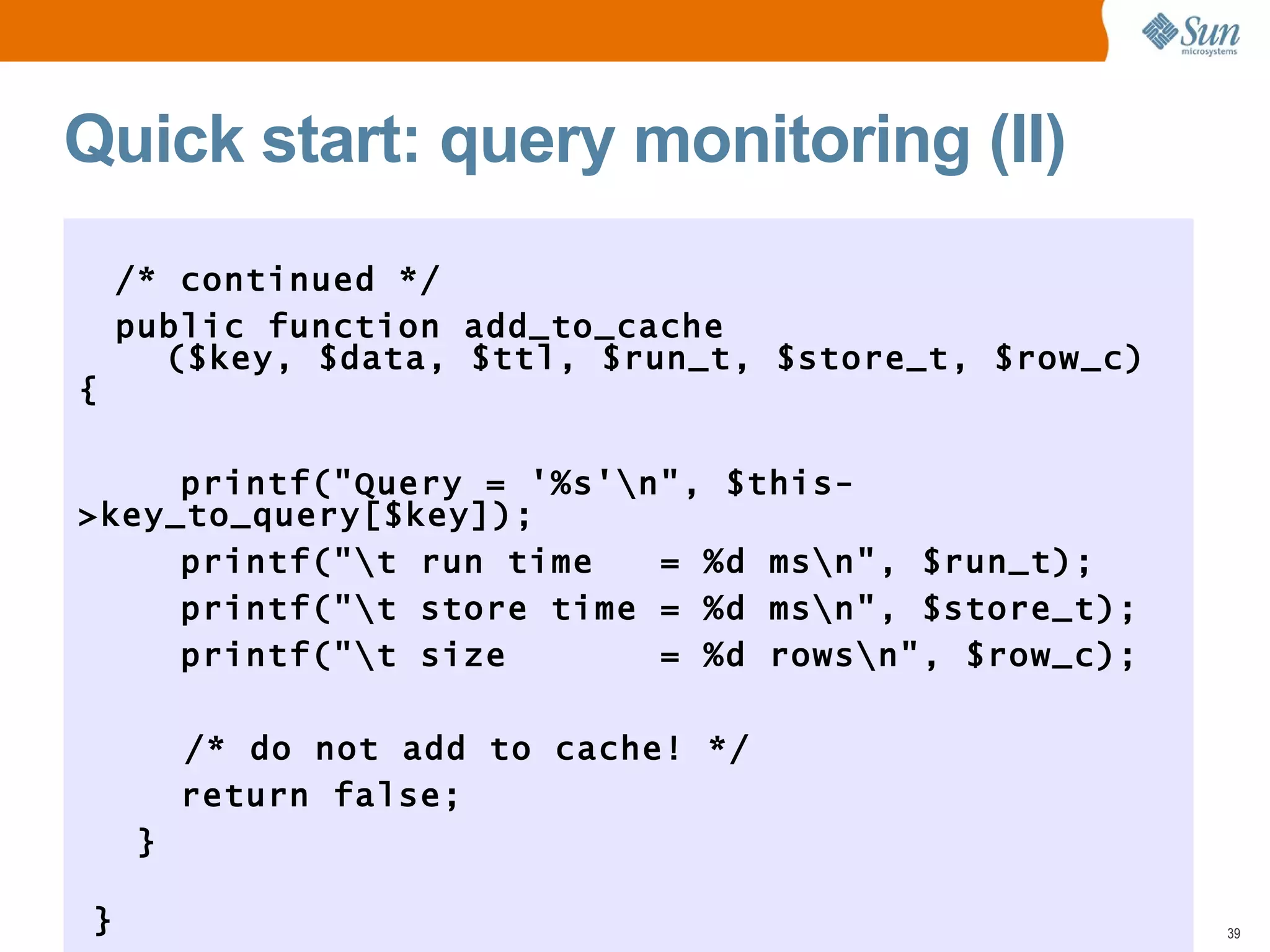

  • 99. Quick start: query monitoring (II) /* continued */ public function add_to_cache ($key, $data, $ttl, $run_t, $store_t, $row_c) { printf(&quot;Query = '%s'&quot;, $this->key_to_query[$key]); printf(&quot; run time = %d ms&quot;, $run_t); printf(&quot; store time = %d ms&quot;, $store_t); printf(&quot; size = %d rows&quot;, $row_c); /* do not add to cache! */ return false; } }
  • 100. Quick Start: Don't do this Don't modify wire data! Packets out of order. Expected n received m...
  • 101. MySQL server has gone away
  • 102. Error reading result set's header Don't change $persistent of get_hash_key()! Segmentation fault
  • 104. Develop everything from ground up interface mysqlnd_qc_handler { public function is_select(...) {} public function get_hash_key(...) {} public function return_to_cache(...) {} public function add_to_cache(...) {} public function find_in_cache(...) {} public function update_cache_stats(...) {} public function get_stats(...) {} public function clear_cache() {} } No limits – basic usage pattern like before
  • 105. Cache Miss Client 2...100 Client 2...100 Client 2...100 Master class: Slam defense Serve stale data to avoid MySQL overloading Client 1 Client 2...n MySQL Client 2...100 Client 2...100 Client 2...100 Client 1 Client 2...n Slam Stale Hit MySQL Cache Hit
  • 106. Master class: slam defense Short code examples written to illustrate the algorithm
  • 107. but pointless because, ... Slam defense is build-in to APC and Default! mysqlnd_qc.slam_defense_ttl Storage must survive multiple requests No slamming, if only one process...
  • 108. $this->cache is not shared among PHP instances
  • 110. Master class: slam defense (I) class qc_monitor extends mysqlnd_qc_handler_default { private $cache = array(); public function add_to_cache( $key, $data, $ttl, $run_t, $store_t, $row_c) { printf(&quot;add : put(ttl = %d)&quot;, $ttl); $this->cache[$key] = array( &quot;data&quot; => $data, &quot;valid_until&quot; => microtime(true) + $ttl, &quot;slam_until&quot; => NULL ); return true; } /* continued */
  • 111. Master class: slam defense (II) public function find_in_cache($key) { if (!isset($this->cache[$key])) { printf(&quot;find: miss&quot;); return NULL; } $now = microtime(true); if ($this->cache[$key][&quot;valid_until&quot;] > $now) { printf(&quot;find: hit&quot;); return $this->cache[$key][&quot;data&quot;]; } /* continued */
  • 112. Master class: slam defense (III) if ($this->cache[$key][&quot;slam_until&quot;]) { if ($this->cache[$key][&quot;slam_until&quot;] > $now) { printf(&quot;find: hit, slam defense active&quot;); return $this->cache[$key][&quot;data&quot;]; } else { printf(&quot;find: miss, slam defense expired&quot;); unset($this->cache[$key]); return NULL; } } printf(&quot;find: expired, slam defense starts&quot;); $this->cache[$key][&quot;slam_until&quot;] = $now + 2; return $this->cache[$key][&quot;data&quot;]; } }

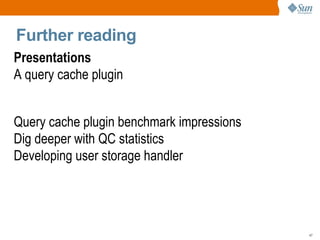

  • 113. Presentations A query cache plugin
  • 114. Query cache plugin benchmark impressions
  • 115. Dig deeper with QC statistics
  • 116. Developing user storage handler Further reading
  • 117. The End Feedback: ulf.wendel@sun.com The End Feedback: [email_address] , [email_address]
