1. 1
NoCRM
Piotr Karwatka
CTO at Divante

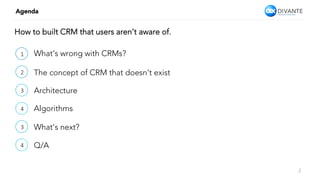

2. Agenda
2
How to built CRM that users aren’t aware of.
What's wrong with CRMs?
The concept of CRM that doesn't exist
Architecture
Algorithms
1
2
3
4
What’s next?
Q/A
3
4

3. What’s wrong with CRMs?
3
1. We sell B2B software services:
- We have 10+ sales team; 50+ new projects / year; contracts for 2+ years
2. We use “Predictable revenue” (see book by Aaron Ross: http://predictablerevenue.com)
3. At this point a CRM is a must – we tried Zoho, Pipedrive, Base ..
4. Most transactions in B2B are made by e-mail – CRM is yet another system and additional work
5. Sales reps. aren’t used to knowledge management systems
6. Main challenges
- leads leaking from CRM,
- no common place for offers/estimations/contacts – a learning company approach,
- unintended cross-communication with customers; insufficient knowledge about customers,
- hard to coach new sales reps.; hard to find what “sells” / suggest improvements,
- The need for the process automation: tracking / alerting leads, analyzing sales signals
- Predicting sales based on sales signals and the whole company history
Key issue with CRM at Divante? Adoption.

4. 4
CRM that users aren’t aware of. The concept.
customer A.
Your company
NoCRM
daily communica4on
- business as usual
Lead discovery &
classification
new value - pa9erns,
Predic4ons, struct. data
Automatic Entity Discovery
Leads, Contacts, Deals, Offers
+ Knowledge base
Sales pipeline &
patterns discovery
No User engagement –
language processing +
machine learning
customer B.
CUSTOMERS E-MAIL STREAM SALES REPS.

5. 5

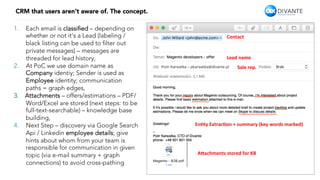

CRM that users aren’t aware of. The concept.
1. Each email is classified – depending on
whether or not it’s a Lead (labeling /
black listing can be used to filter out
private messages) – messages are
threaded for lead history,
2. At PoC we use domain name as
Company identiy; Sender is used as
Employee identity; communication
paths = graph edges,
3. Attachments – offers/estimations – PDF/
Word/Excel are stored (next steps: to be
full-text-searchable) – knowledge base
building,
4. Next Step – discovery via Google Search
Api / Linkedin employee details; give
hints about whom from your team is
responsible for communication in given
topic (via e-mail summary + graph
connections) to avoid cross-pathing
Contact
Lead name
En-ty Extrac-on + summary (key words marked)
A9achments stored for KB
Sale rep.

6. 1. Imagine CRM that works 100% in background
- A manager adds sales team e-mails in panel, they receive invitations,
- Users authorize Gmail/Outlook/IMAP accounts,
- NoCRM monitors all sent and received e-mails,
- Due to the natural language processing and machine learning we discover patterns,
predict sales results, and estimate lead stages
- UI – No classic CRM UI; 70% Chrome Plugin – augmented e-mails; 10% a shared panel
for search/knowledge graph/statistics; 20% - smart e-mail notifications
2. Key features:
- Coaching: success patterns/prediction; KPIs; alerts & stats for management
- Knowledge graph: discovering entities from e-mails: companies/contacts
communication paths; gathering all the offers/inquiries in one place
- Pipeline and hints: automatic lead stage estimation, action signals, sentiments
CRM that users aren’t aware of. The concept.
6
Next slides: tech highlights how we started to work on PoC & what’s next.

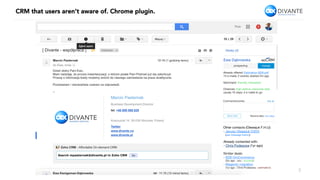

7. CRM that users aren’t aware of. Chrome plugin.
7

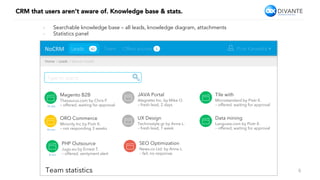

8. CRM that users aren’t aware of. Knowledge base & stats.
8
NoCRM Piotr Karwatka
Home > Leads > Search results
Leads 42
Type to search…
Team Offers archive 5
Magento B2B
Thesaurus.com by Chris P.
– offered, waiting for approval
JAVA Portal
Alegretto Inc. by Mike O.
– fresh lead, 2 days
Tile with
Microstandard by Piotr K.
– offered, waiting for approval
ORO Commerce
Minority Inc by Piotr K.
– not responding 3 weeks
UX Design
Technostyle.gr by Anna L.
– fresh lead, 1 week
Data mining
Langusta.com by Piotr K.
– offered, waiting for approval
PHP Outsource
Jugo.eu by Ernest T.
– offered, sentyment alert
SEO Optimization
News.co Ltd. by Anna L.
– fail, no response
Team statistics
15 min
10 min
8 min
- Searchable knowledge base – all leads, knowledge diagram, attachments
- Statistics panel

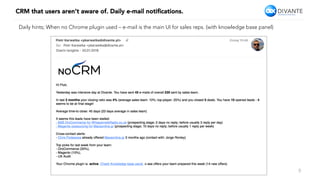

9. CRM that users aren’t aware of. Daily e-mail notifications.
9
Daily hints; When no Chrome plugin used – e-mail is the main UI for sales reps. (with knowledge base panel)

10. 10
NoCRM Architecture
- E-mail agent on steroids,
- Standard big-data architecture,
- MLlib based alg. _ ext. APIs
for data drilling (eg. Entity Discovery)
e-mail
providers
e-mail sourcing
authoriza4on
workers & push
N-phase processing
via Spark & Spark
Streaming + MLlib
Analy-cal DB
+ storage: mongoDB
and HDFS (a9.)
Frontend – nodeJS
+ react
…

11. 11

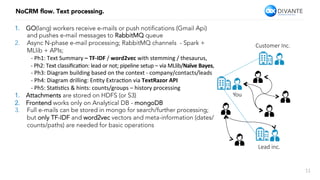

NoCRM flow. Text processing.
You
Customer Inc.
Lead inc.
1. GO(lang) workers receive e-mails or push notifications (Gmail Api)
and pushes e-mail messages to RabbitMQ queue
2. Async N-phase e-mail processing; RabbitMQ channels - Spark +
MLlib + APIs;
- Ph1: Text Summary – TF-IDF / word2vec with stemming / thesaurus,
- Ph2: Text classifica4on: lead or not; pipeline setup – via MLlib/Naïve Bayes,
- Ph3: Diagram building based on the context - company/contacts/leads
- Ph4: Diagram drilling: En4ty Extrac4on via TextRazor API
- Ph5: Sta4s4cs & hints: counts/groups – history processing
1. Attachments are stored on HDFS (or S3)
2. Frontend works only on Analytical DB - mongoDB
3. Full e-mails can be stored in mongo for search/further processing;
but only TF-IDF and word2vec vectors and meta-information (dates/
counts/paths) are needed for basic operations

12. 12

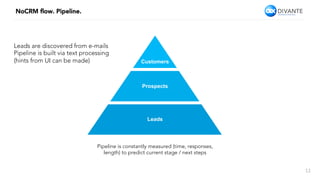

NoCRM flow. Pipeline.
Leads are discovered from e-mails
Pipeline is built via text processing
(hints from UI can be made)
Pipeline is constantly measured (time, responses,
length) to predict current stage / next steps
Leads
Prospects
Customers

13. Phase 1: Text summary / feature extraction
Text processing:
- parse e-mails (body + subject)
- tokenize and stem the documents (various Lucence
stemmers can be used)
- create a dictionary out of all the words in the
collection of documents and compute IDF (Inverse
Document Frequency for each term)
TF(t) = (Number of times term t appears in a document) / (Total number
of terms in the document).
IDF(t) = log_e(Total number of documents /Number of documents with
term t in it).
- To check: word2vec algorithm for synonyms
https://www.quora.com/How-does-word2vec-work
- Implemented in Spark with MLlib with stemming and
thesaurus – keywords discovery, further classification
source,
Example?
https://en.wikipedia.org/wiki/Rainbow
Terms count:
the: 16
and: 6
rainbow: 5
droplets: 3
Terms count in 5 other articles:
the: 6
and: 6
rainbow: 1
droplets: 1
TF-IDF:
rainbow: 5 * log(6/1) 3.89
droplets: 3 * log(6/1) 2.33
the: 16 * log(6/6) 0.0
and: 6 * log(6/6) 0.0
looks like
keywords!
Example from: http://shiffman.net/teaching/a2z/analysis/#tfidf

14. 14

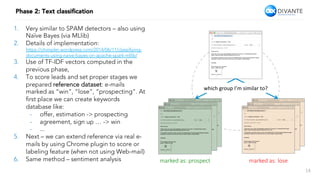

Phase 2: Text classification
1. Very similar to SPAM detectors – also using
Naïve Bayes (via MLlib)
2. Details of implementation:
https://chimpler.wordpress.com/2014/06/11/classifiying-
documents-using-naive-bayes-on-apache-spark-mllib/
3. Use of TF-IDF vectors computed in the
previous phase,
4. To score leads and set proper stages we
prepared reference dataset: e-mails
marked as “win”, “lose”, “prospecting”. At
first place we can create keywords
database like:
- offer, estimation -> prospecting
- agreement, sign up … -> win
- ...
5. Next – we can extend reference via real e-
mails by using Chrome plugin to score or
labeling feature (when not using Web-mail)
6. Same method – sentiment analysis marked as: prospect
marked as: lose
which group I’m similar to?

15. 15

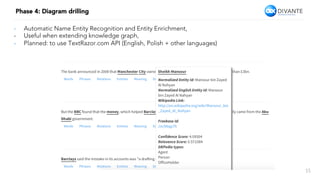

Phase 4: Diagram drilling
- Automatic Name Entity Recognition and Entity Enrichment,
- Useful when extending knowledge graph,
- Planned: to use TextRazor.com API (English, Polish + other languages)

16. 16

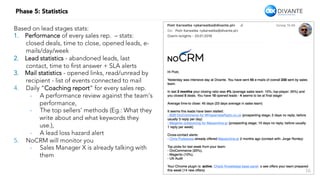

Phase 5: Statistics
Based on lead stages stats:
1. Performance of every sales rep. – stats:
closed deals, time to close, opened leads, e-
mails/day/week
2. Lead statistics - abandoned leads, last
contact, time to first answer + SLA alerts
3. Mail statistics - opened links, read/unread by
recipient - list of events connected to mail
4. Daily “Coaching report” for every sales rep.
- A performance review against the team’s
performance,
- The top sellers’ methods (Eg.: What they
write about and what keywords they
use.),
- A lead loss hazard alert
5. NoCRM will monitor you
- Sales Manager X is already talking with
them

17. 17
What’s next?
- Smarter text analysis – use of Entity Recognition + gathering context data from Google
Search, Linkedin …
- Website / e-mail tracking (tracking links / pixels in e-mails)
- UI enhancements – panel & plugin development,
- Tests, tests, tests, tests.

18. 18
Q/A
Extended version of this presentaJon with text descripJon?
pkarwatka@divante.pl

19. THANK YOU
19
Piotr Karwatka, pkarwatka@divante.pl
