The Magento Functional Testing Framework (MFTF) is an open-source testing framework designed for the Magento ecosystem that facilitates automated regression testing. It requires minimal programming knowledge and functions with specific software prerequisites like Selenium and Java, ultimately improving development efficiency and reducing manual testing efforts. Despite its advantages, MFTF has challenges, such as a complex file structure and a lack of comprehensive guidelines for testing implementations.

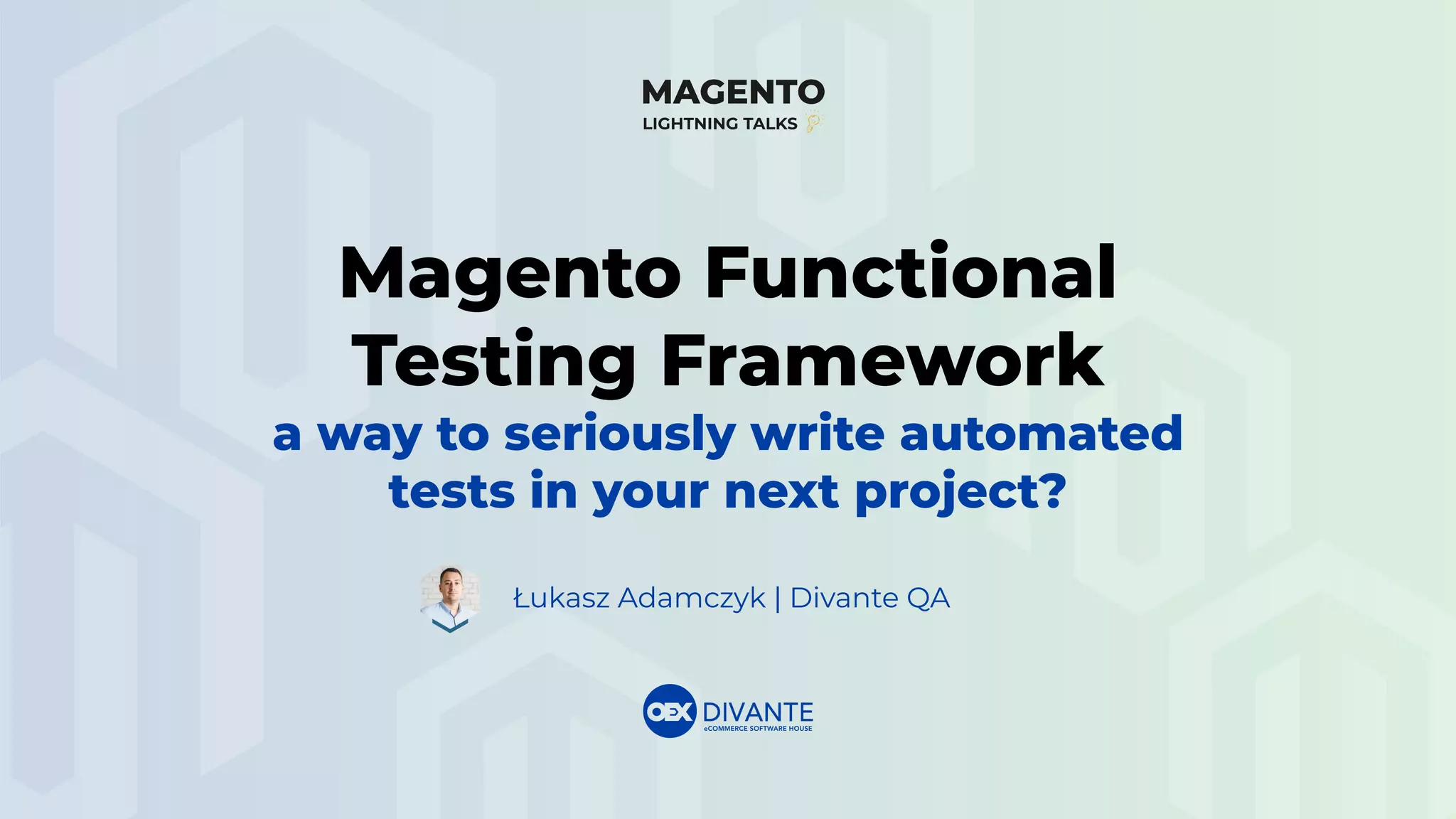

1. Łukasz Adamczyk | Divante QA
Magento Functional
Testing Framework
a way to seriously write automated
tests in your next project?

2. Let’s talk about
eCommerce
Hi, my name is Lukasz Adamczyk
I am a Software Tester with few years of experience, focus
on Magento from 2 years.
email: ladamczyk@divante.com

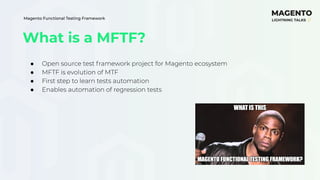

3. Magento Functional Testing Framework
What is a MFTF?
● Open source test framework project for Magento ecosystem
● MFTF is evolution of MTF
● First step to learn tests automation
● Enables automation of regression tests

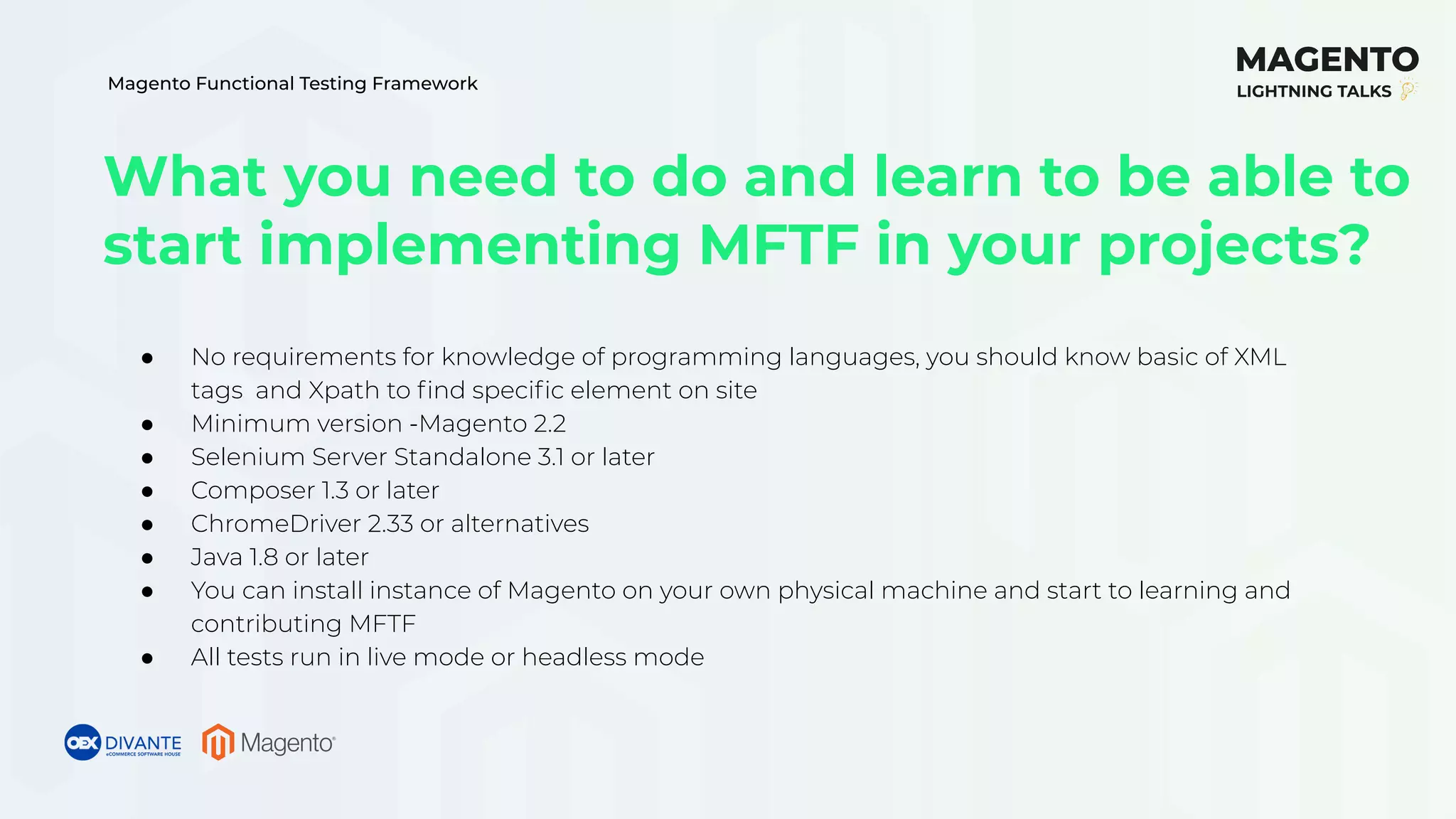

4. Magento Functional Testing Framework
What you need to do and learn to be able to
start implementing MFTF in your projects?
● No requirements for knowledge of programming languages, you should know basic of XML
tags and Xpath to find specific element on site
● Minimum version -Magento 2.2
● Selenium Server Standalone 3.1 or later
● Composer 1.3 or later
● ChromeDriver 2.33 or alternatives
● Java 1.8 or later
● You can install instance of Magento on your own physical machine and start to learning and
contributing MFTF
● All tests run in live mode or headless mode

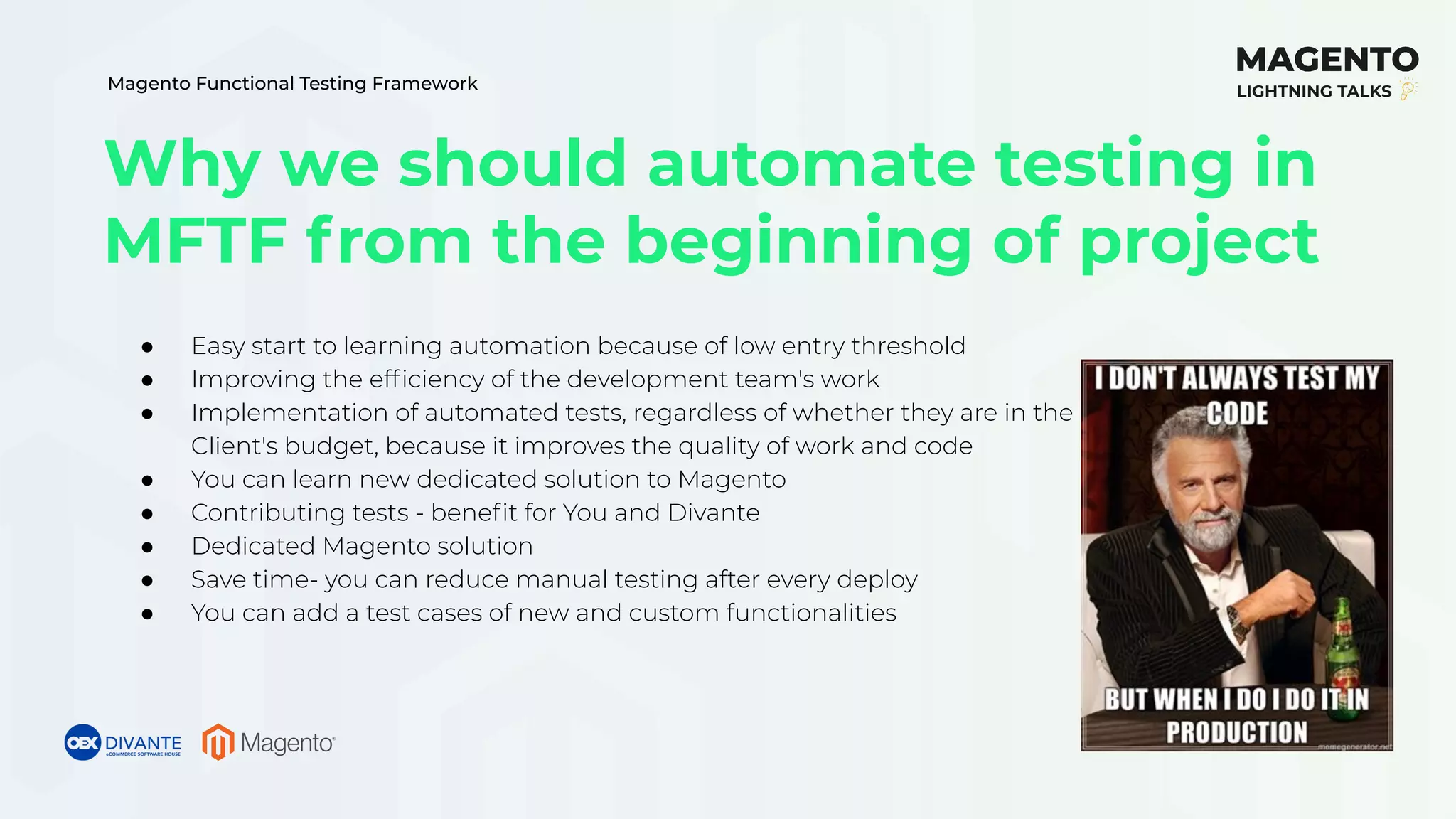

5. Magento Functional Testing Framework
Why we should automate testing in
MFTF from the beginning of project
● Easy start to learning automation because of low entry threshold
● Improving the efficiency of the development team's work
● Implementation of automated tests, regardless of whether they are in the
Client's budget, because it improves the quality of work and code
● You can learn new dedicated solution to Magento
● Contributing tests - benefit for You and Divante
● Dedicated Magento solution
● Save time- you can reduce manual testing after every deploy
● You can add a test cases of new and custom functionalities

6. Magento Functional Testing Framework

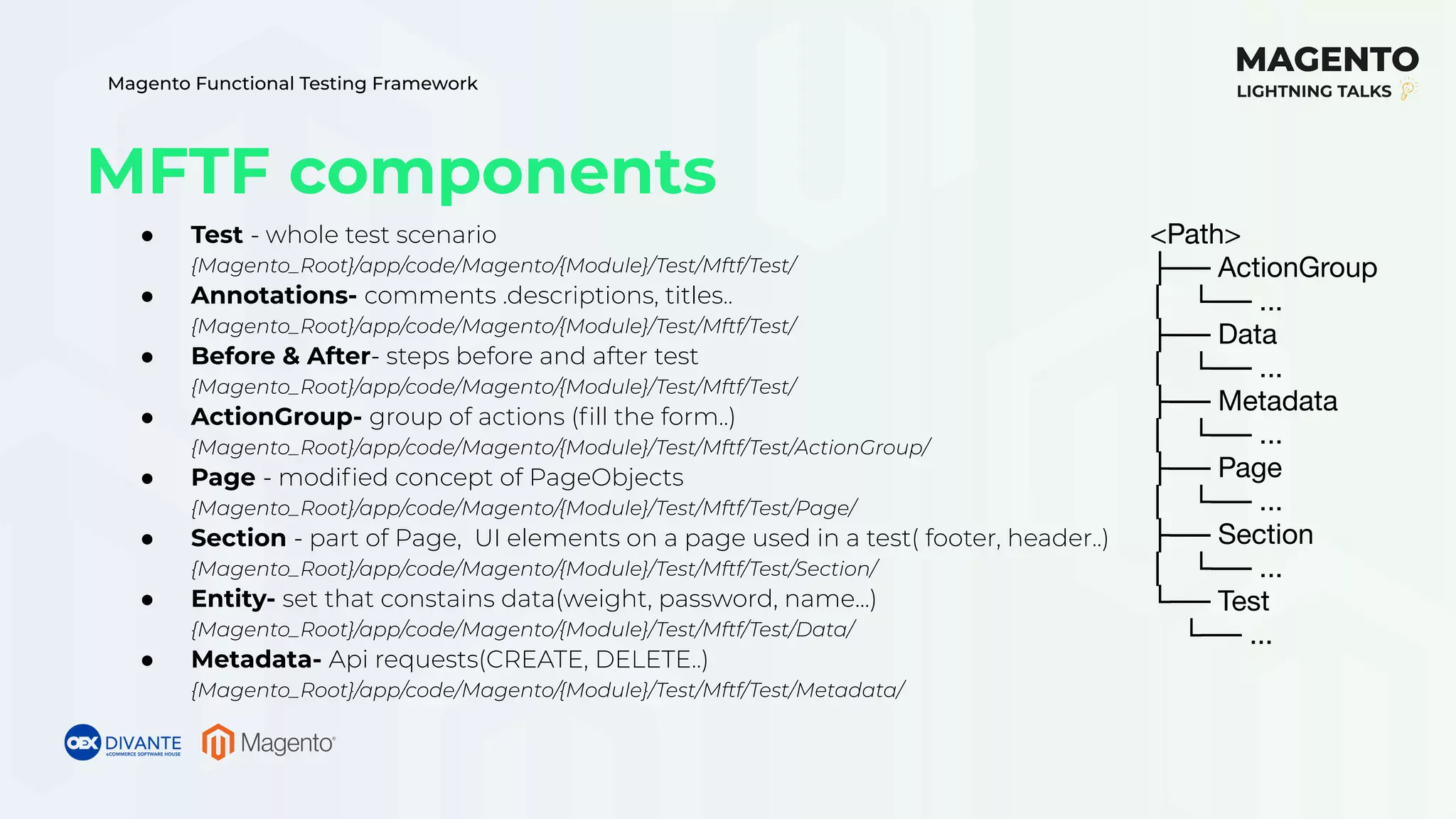

MFTF components
● Test - whole test scenario
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/
● Annotations- comments .descriptions, titles..
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/
● Before & After- steps before and after test
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/
● ActionGroup- group of actions (fill the form..)
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/ActionGroup/
● Page - modified concept of PageObjects
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/Page/
● Section - part of Page, UI elements on a page used in a test( footer, header..)
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/Section/
● Entity- set that constains data(weight, password, name...)
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/Data/
● Metadata- Api requests(CREATE, DELETE..)
{Magento_Root}/app/code/Magento/{Module}/Test/Mftf/Test/Metadata/
<Path>
├── ActionGroup
│ └── ...
├── Data
│ └── ...
├── Metadata
│ └── ...
├── Page
│ └── ...
├── Section
│ └── ...
└── Test
└── ...

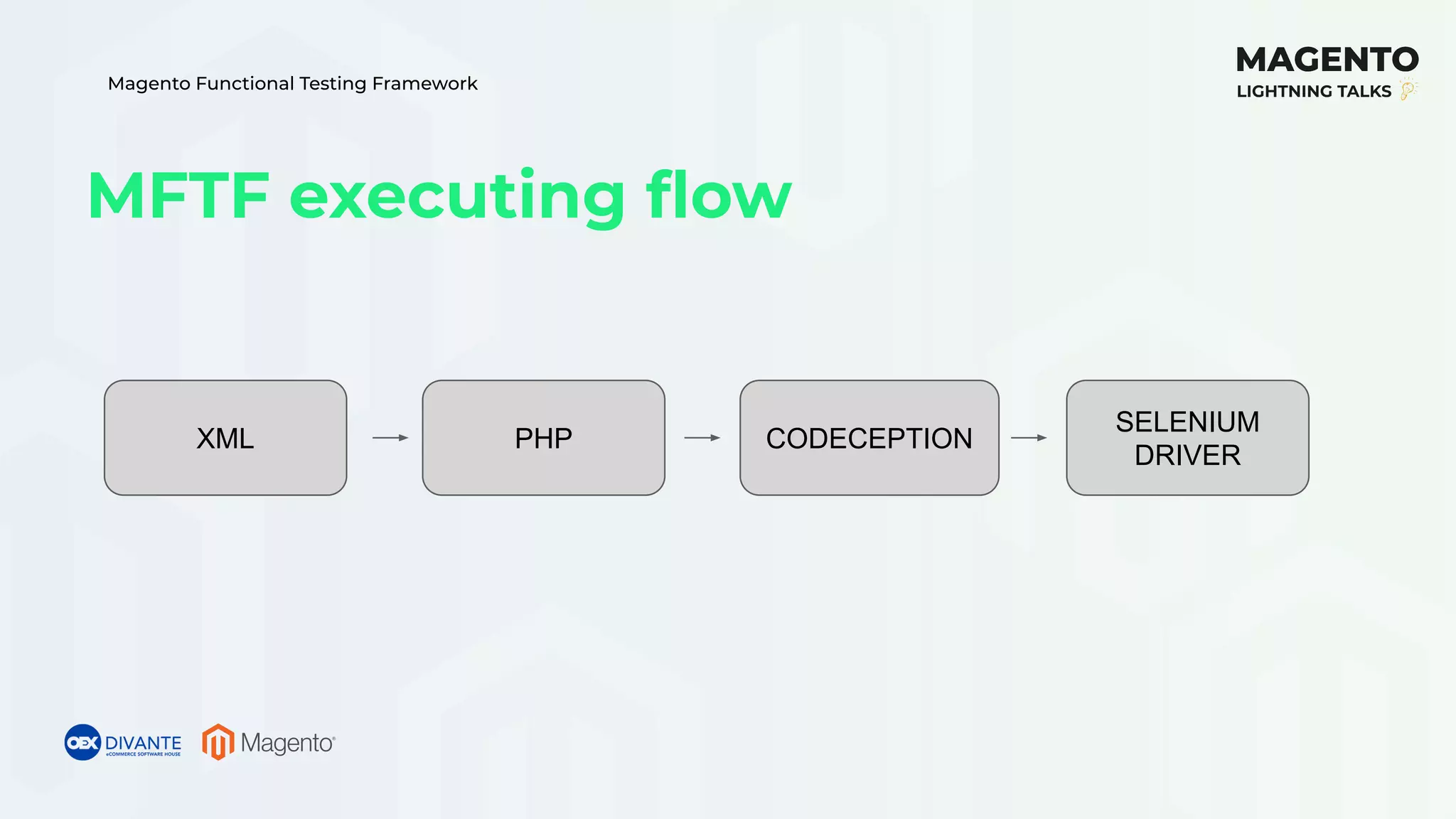

7. Magento Functional Testing Framework
MFTF executing flow
XML CODECEPTION
SELENIUM
DRIVER
PHP

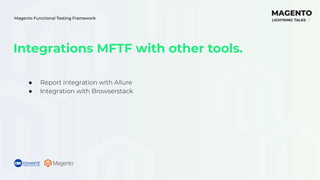

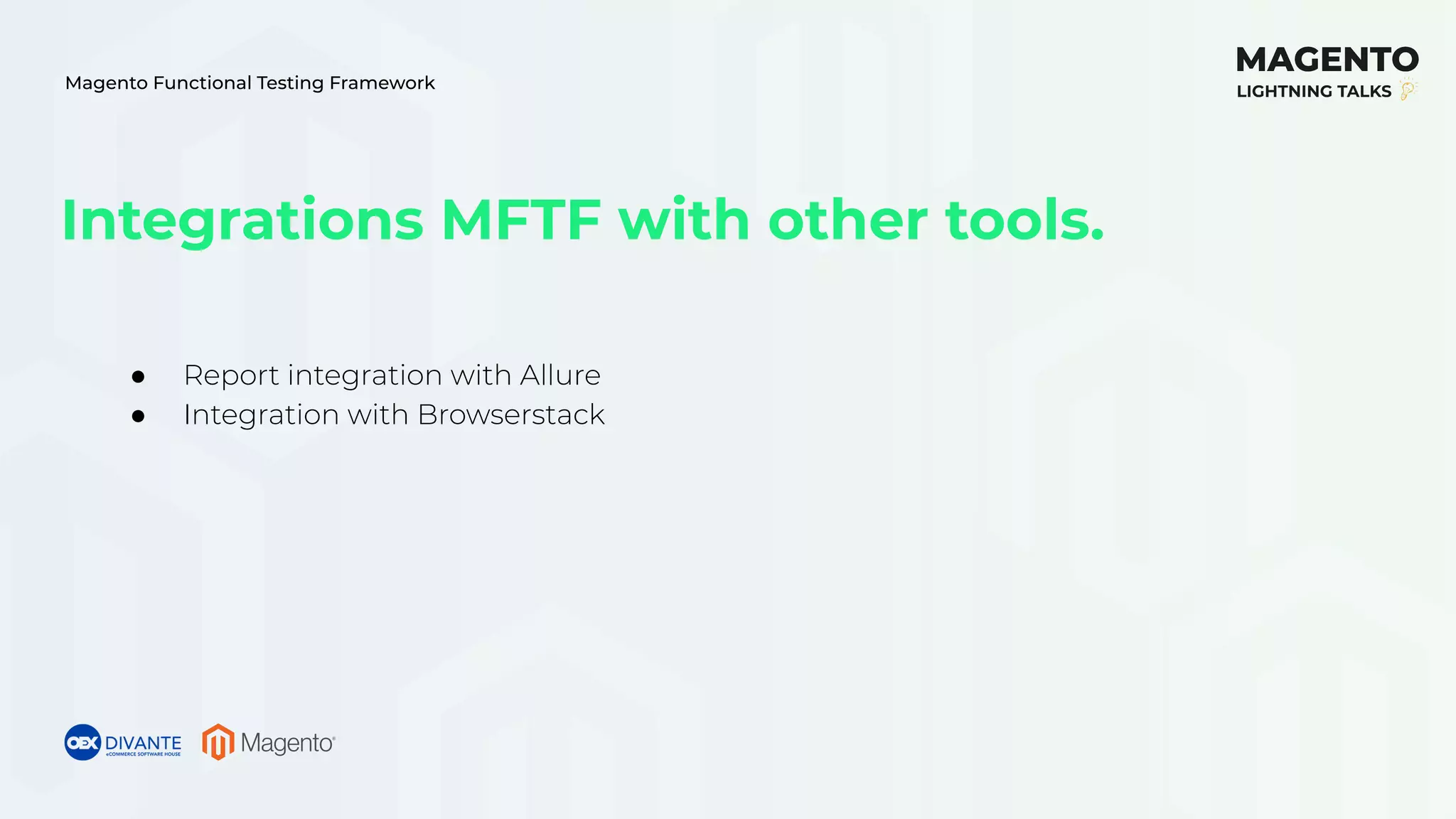

8. Magento Functional Testing Framework
Integrations MFTF with other tools.
● Report integration with Allure
● Integration with Browserstack

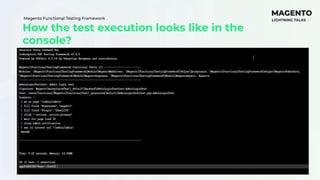

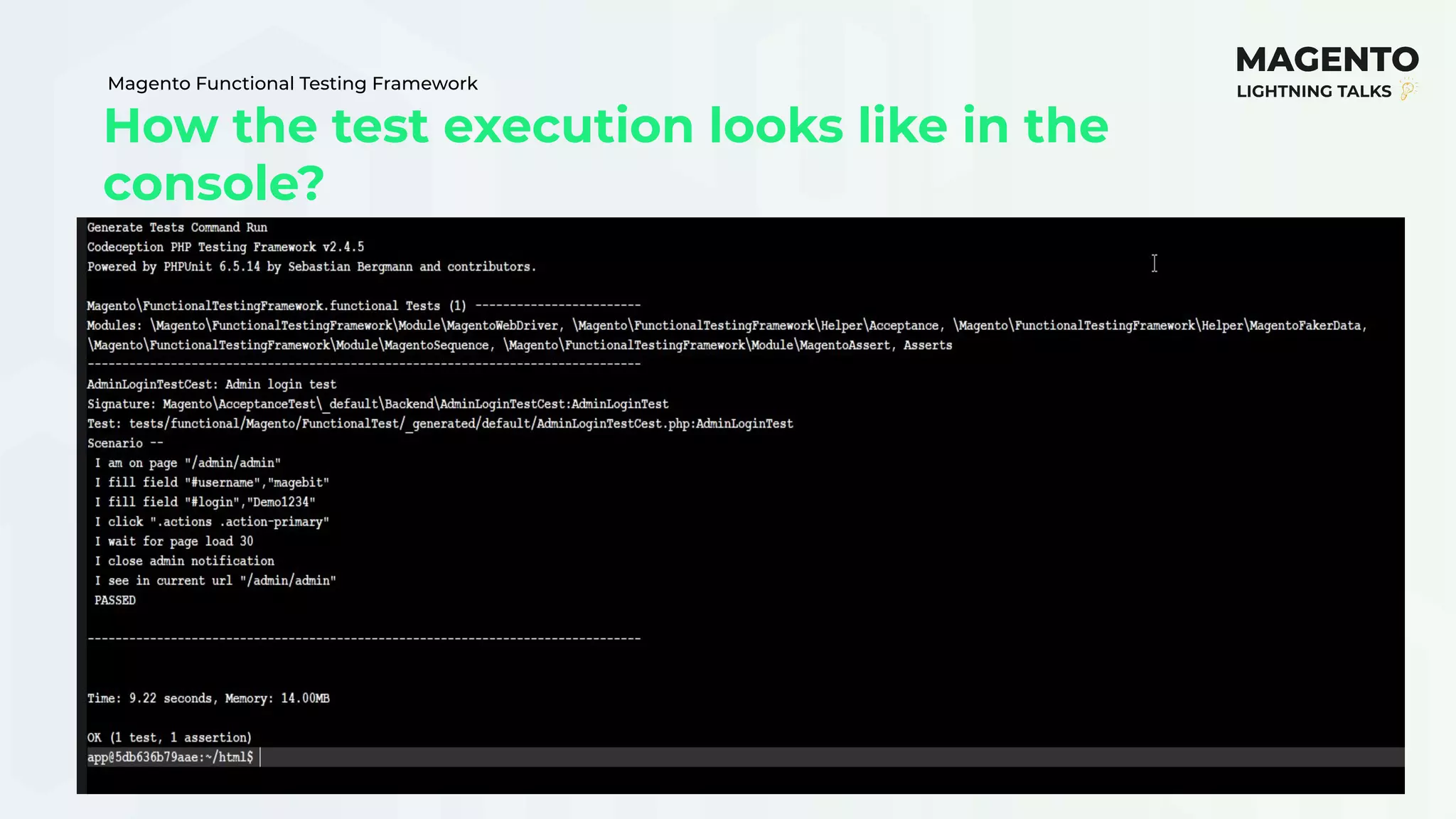

9. Magento Functional Testing Framework
How the test execution looks like in the
console?

10. Magento Functional Testing Framework

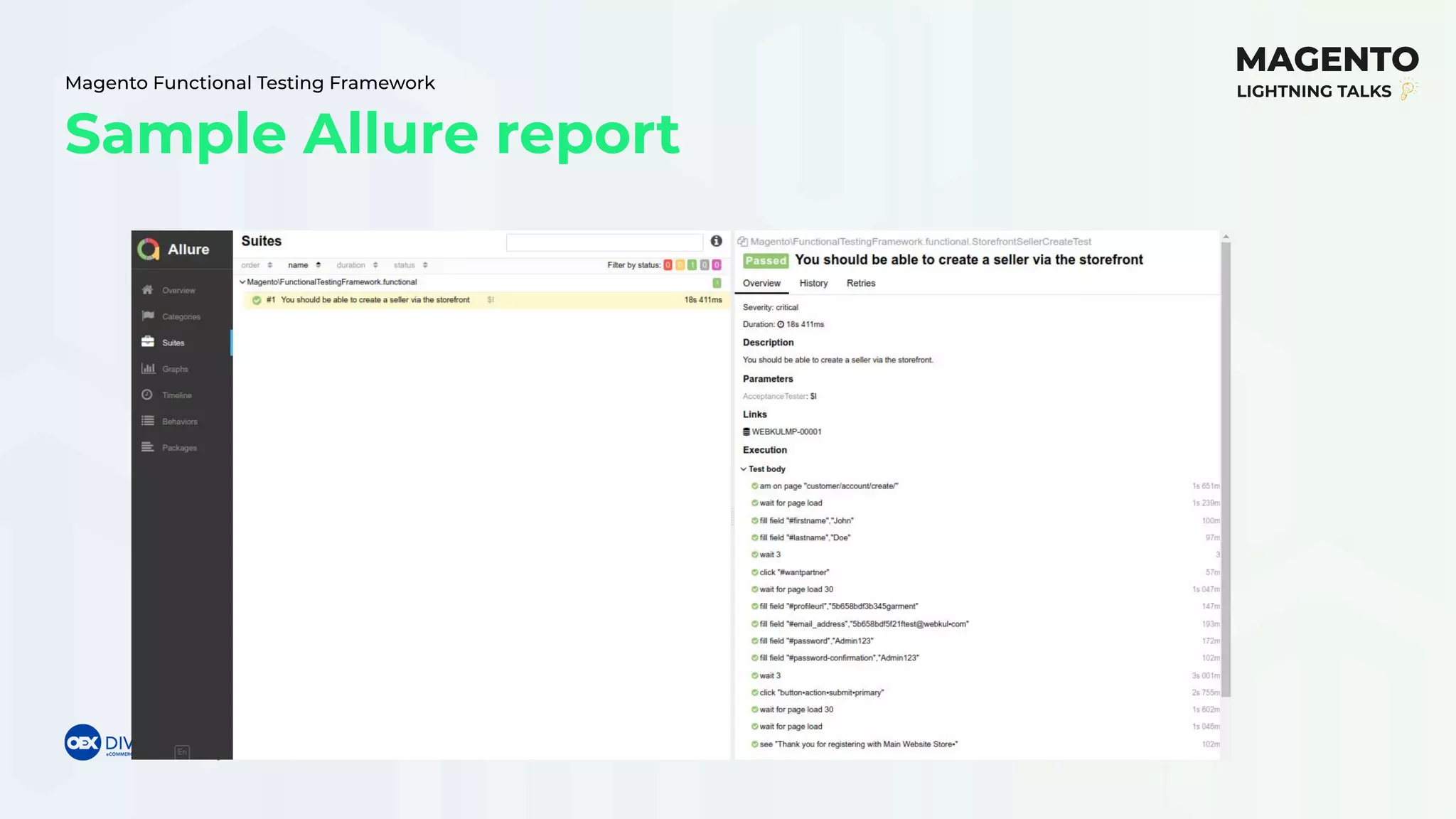

Sample Allure report

11. Magento Functional Testing Framework
Disadvantages and problems
● Very complicated file structure in tests directory
● Hard to install and configuration
● Infinite migration from MTF tests
● No specific guidelines for creating new test cases
● No coverage of all functionalities
● Only on >= Magento 2.2

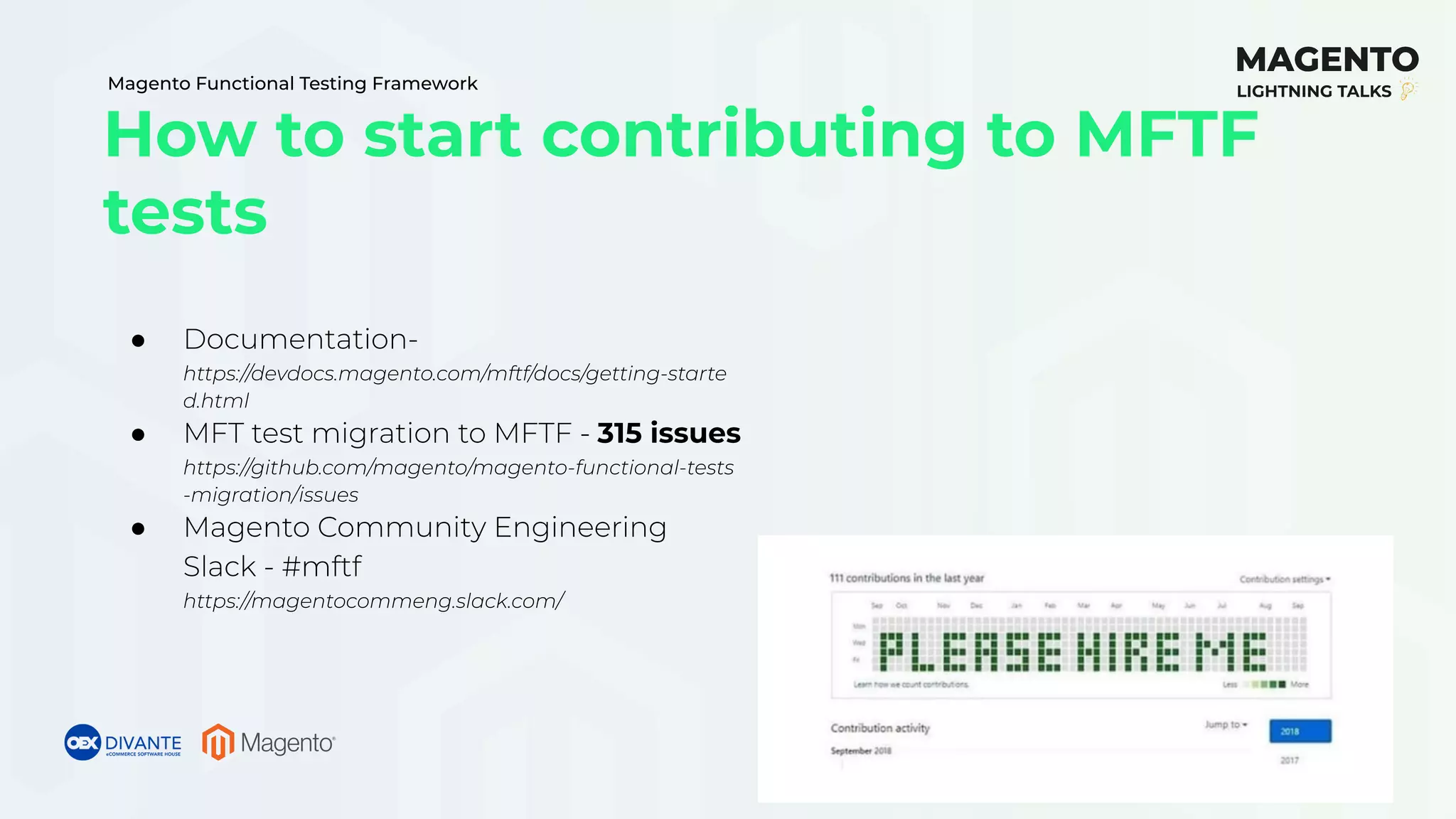

12. Magento Functional Testing Framework
How to start contributing to MFTF
tests
● Documentation-
https://devdocs.magento.com/mftf/docs/getting-starte
d.html
● MFT test migration to MFTF - 315 issues
https://github.com/magento/magento-functional-tests
-migration/issues
● Magento Community Engineering
Slack - #mftf
https://magentocommeng.slack.com/

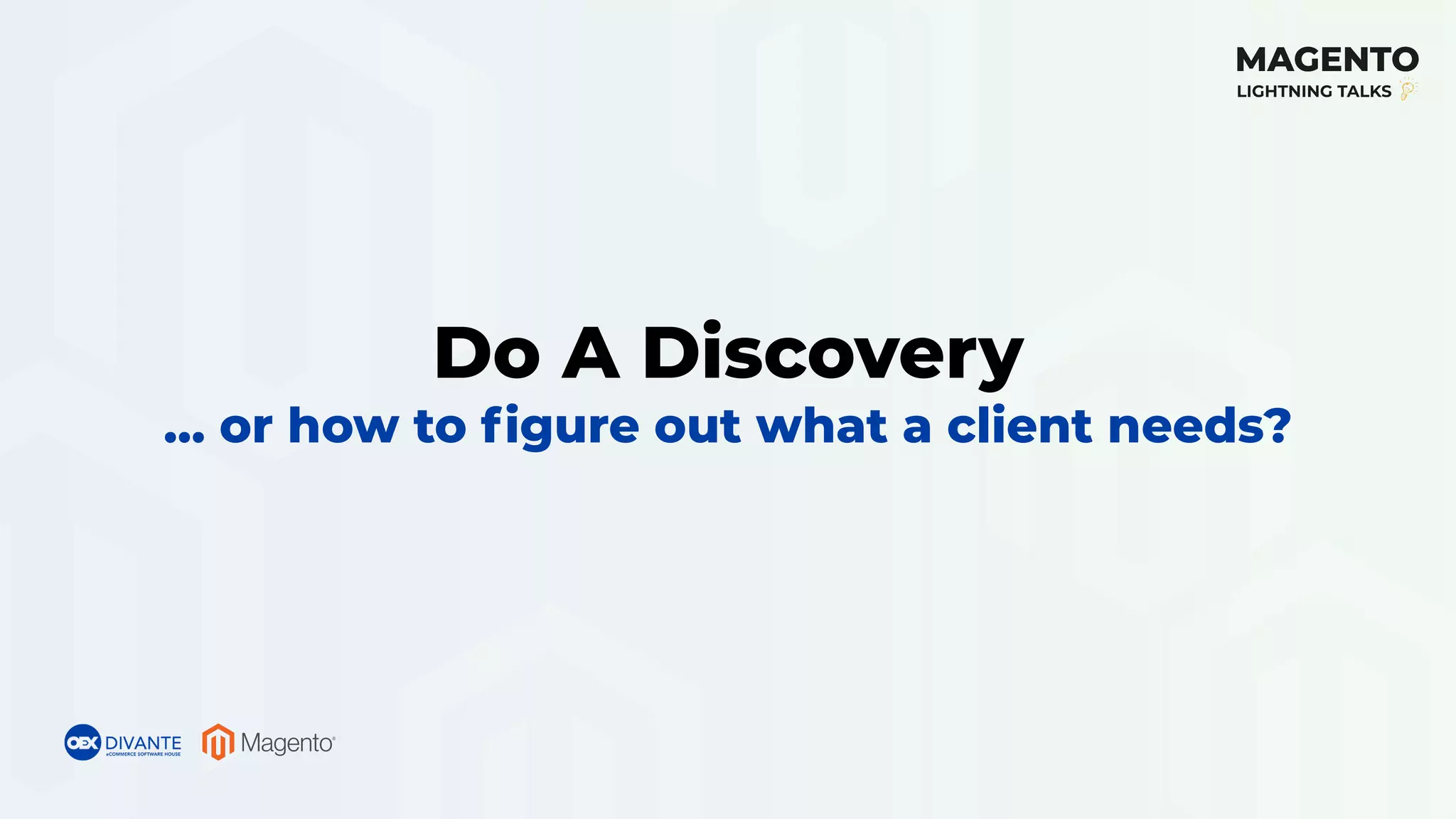

13. Do A Discovery
