1. NiFi – First approach
The very basics

2. The UI
Process Groups containing DataFlows

3. A Data Flow
In fact, 2 Process Groups. DataFlows can be grouped together into process
groups.
• Easier to get an overall view of a complex DataFlow
• Process Groups can be remotely called from other instances of NiFi.
This DataFlow read a CSV file from a folder, and insert each line into a
postgresql table.

4. Processors & Queues

5. Processors’ properties & variables
FlowFile
The GetFile processor first properties.
Input Directory supports NiFi Expression Language. « ${data_in} » will render « /usr/local/Cellar/nifi/data-in ».
File Filter accepts Regular Expressions only.
More about the NiFi Expressions Language in the official doc : https://nifi.apache.org/docs/nifi-docs/html/expression-
language-guide.html
• Boolean Logic
• String Manipulation
• Encode/Decode Functions (json/xml/csv/base64/etc)
• Searching (into string/json/etc)
• Mathematical operation
• Date Manipulation
• Type Coercion
• join/count/etc

6. Variables
FlowFile
data_in is selected and used by a processor
Variables are :
• Scoped in their Process Group
• Inherited from parent Process Group
• Used in properties

7. FlowFiles, Properties, Attributes
Input SQL
Properties
JDBC Connection Pool (jdbc:postgresql….)
Statement Type (insert/update/…)
Table Name (my_table)
Schema Name (public/…)
…
FlowFile
Attributes
(64KB max.)
Payload
(Resources bound)

8. Controllers
FlowFile
• Are much like processors, but they don’t read nor write FlowFiles.
• Used by Processors, Reporting Tasks, and other Controller Services.
• Allows to share functionality and state across the JVM in a clean and consistent manner.
• Like variables, exists in their own Process Group or are inherited from parents.
• As example : DBCPConnectionPool
• Uses JDBC to connect to databases
• Allows to configure a pool of connection
• Connects to only one database

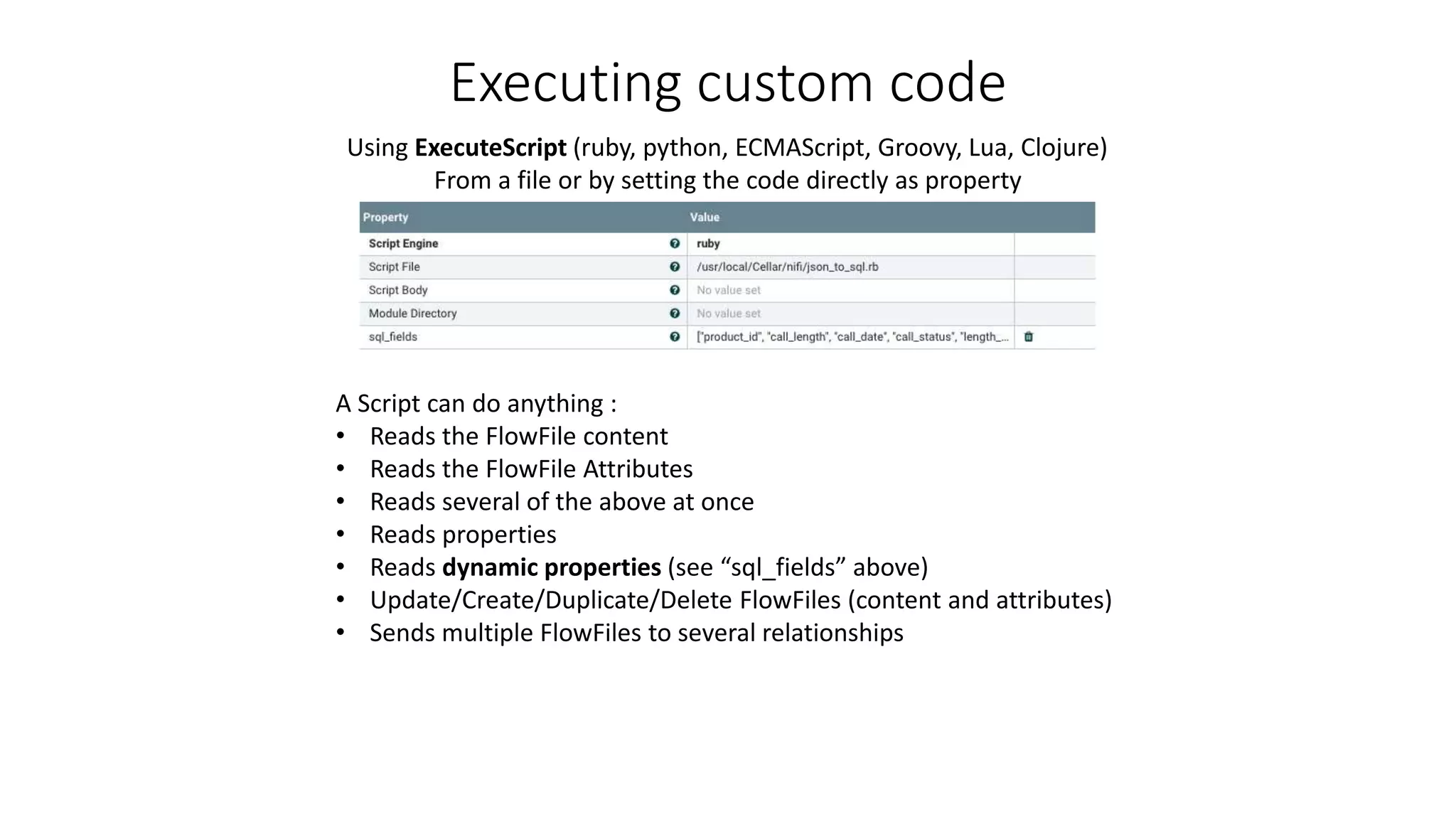

9. Executing custom code
FlowFile
Using ExecuteScript (ruby, python, ECMAScript, Groovy, Lua, Clojure)
From a file or by setting the code directly as property
A Script can do anything :
• Reads the FlowFile content
• Reads the FlowFile Attributes
• Reads several of the above at once
• Reads properties
• Reads dynamic properties (see “sql_fields” above)
• Update/Create/Duplicate/Delete FlowFiles (content and attributes)
• Sends multiple FlowFiles to several relationships

10. Example of custom code
FlowFile
For some reasons, unkown yet to me,
doesn’t work when multithreaded
• Reads a dynamic “sql_fields” parameter
• Takes a FlowFile with json inside
• Replaces it by an SQL query
• Creates the necessary attributes
• Sends the updated FlowFile to the SUCCESS relationship
• So it can be read and executed by PutSQL

11. Resources to look at
FlowFile
Resources to look at :
https://nifi.apache.org/docs.html
https://community.hortonworks.com/articles/75032/executescript-cookbook-part-1.html
https://community.hortonworks.com/articles/75545/executescript-cookbook-part-2.html
https://community.hortonworks.com/articles/77739/executescript-cookbook-part-3.html
https://community.hortonworks.com/questions/106878/split-one-nifi-flow-file-into-multiple-flow-file-b.html
