1. ♦ IP68 sealing ability of the RJ45-ECS con-
nector system provides reliable connec-
Ɵons for many years, even in harsh envi-
ronments.
♦ Installable even on headed cables,
thanks to the large diameter and the
cutaway sicone seal
♦ Plug Short Body connector for low-
space installaƟons
♦ Ethernet cat.5e cable with strended
cable, to avoid breakings due to twisƟng
♦ ConnecƟon and disconnecƟon without
tools, just with thumb pressure

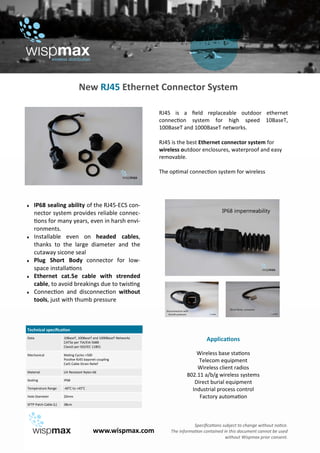

New RJ45 Ethernet Connector System
RJ45 is a field replaceable outdoor ethernet
connecƟon system for high speed 10BaseT,
100BaseT and 1000BaseT networks.
RJ45 is the best Ethernet connector system for
wireless outdoor enclosures, waterproof and easy
removable.
The opƟmal connecƟon system for wireless
www.wispmax.com
SpecificaƟons subject to change without noƟce.
The informaƟon contained in this document cannot be used
without Wispmax prior consent.
Technical specificaƟon
Data 10BaseT, 100BaseT and 1000BaseT Networks
CAT5e per TIA/EIA 568B
ClassD per ISO/IEC 11801
Mechanical MaƟng Cycles >500
PosiƟve RJ45 bayonet coupling
Cat5 Cable Strain Relief
Material UV Resistant Nylon 66
Sealing IP68
Temperature Range -40°C to +45°C
Hole Diameter 20mm
SFTP Patch Cable (L) 38cm
ApplicaƟons
Wireless base staƟons
Telecom equipment
Wireless client radios
802.11 a/b/g wireless systems
Direct burial equipment
Industrial process control
Factory automaƟon
