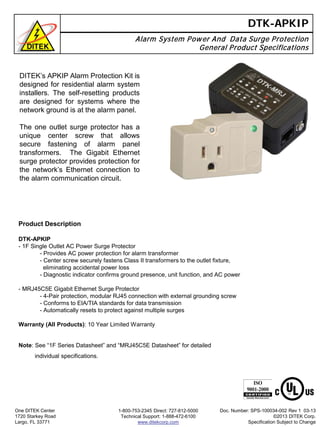

1. DTK-APKIP
Alarm System Power And Data Surge Protection
General Product Specifications
Product Description
DTK-APKIP
- 1F Single Outlet AC Power Surge Protector
- Provides AC power protection for alarm transformer
- Center screw securely fastens Class II transformers to the outlet fixture,
eliminating accidental power loss
- Diagnostic indicator confirms ground presence, unit function, and AC power
- MRJ45C5E Gigabit Ethernet Surge Protector
- 4-Pair protection, modular RJ45 connection with external grounding screw
- Conforms to EIA/TIA standards for data transmission
- Automatically resets to protect against multiple surges
Warranty (All Products): 10 Year Limited Warranty
One DITEK Center
1720 Starkey Road
Largo, FL 33771
1-800-753-2345 Direct: 727-812-5000
Technical Support: 1-888-472-6100
www.ditekcorp.com
Doc. Number: SPS-100034-002 Rev 1 03-13
©2013 DITEK Corp.
Specification Subject to Change
DITEK’s APKIP Alarm Protection Kit is
designed for residential alarm system
installers. The self-resetting products
are designed for systems where the
network ground is at the alarm panel.
The one outlet surge protector has a
unique center screw that allows
secure fastening of alarm panel
transformers. The Gigabit Ethernet
surge protector provides protection for
the network’s Ethernet connection to
the alarm communication circuit.
Note: See “1F Series Datasheet” and “MRJ45C5E Datasheet” for detailed
individual specifications.
