1. LOCKHEED AC-130 - HEAVILY ARMED GROUND-ATTACK AIRCRAFT

2. INTRODUCTION
• The Lockheed AC-130 gunship is a heavily armed ground-attack aircraft variant of the C-130
Hercules transport plane.
• The basic airframe is manufactured by Lockheed, while Boeing is responsible for the conversion
into a gunship and for aircraft support.
• The AC-130A Gunship II superseded the AC-47 Gunship I during the Vietnam War.
• The gunship's sole user is the United States Air Force, which uses AC-130H Spectre, AC-130U
Spooky, AC-130J Ghostrider, and AC-130W Stinger II variants for close air support, air
interdiction and force protection.
• Close air support roles include supporting ground troops, escorting convoys, and flying urban
operations.

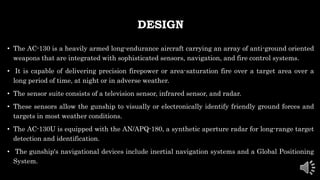

4. DESIGN
• The AC-130 is a heavily armed long-endurance aircraft carrying an array of anti-ground oriented
weapons that are integrated with sophisticated sensors, navigation, and fire control systems.
• It is capable of delivering precision firepower or area-saturation fire over a target area over a
long period of time, at night or in adverse weather.
• The sensor suite consists of a television sensor, infrared sensor, and radar.
• These sensors allow the gunship to visually or electronically identify friendly ground forces and
targets in most weather conditions.
• The AC-130U is equipped with the AN/APQ-180, a synthetic aperture radar for long-range target
detection and identification.
• The gunship's navigational devices include inertial navigation systems and a Global Positioning
System.

6. UPGRADES
• The Black Crow system was slaved into the targeting computers of the AC-130A/E/H, enabling the
detection of the unshielded ignition coils of North Vietnamese trucks hidden under dense jungle
foliage, typical along the Ho Chi Minh trail.
• It could also detect hand-held transmitter signals of air controllers on the ground to identify and
locate targets.
• The PGM-38/U Enhanced 25 mm High Explosive Incendiary (HEI) round was created to expand
the AC-130U gunships' mission in standoff range and survivability for its 25 mm GAU-12/U gun
system.
• This round is a combination of the existing PGU-25 HEI and a M758 fuze designated as FMU-
151/B to meet the MIL-STD-1316.
• The FMU-151 has an improved arming delay with multi-sensitive range.

8. SPECIFICATIONS
• Crew: 13
• Officers: 5
• Length: 97 ft 9 in (29.8 m)
• Wingspan: 132 ft 7 in (40.4 m)
• Height: 38 ft 6 in (11.7 m)
• Wing area: 1745.5 ft² (162.2 m²)
• Loaded weight: 122,400 lb (55,520 kg)
• Max. takeoff weight: 155,000 lb (69,750 kg)

10. PERFORMANCE
• Maximum speed: 260 knots (300 mph, 480 km/h)
• Range: 2,200 nm (2,530 mi, 4,070 km)
• Service ceiling: 30,000 ft (9,100 m)
