The Network Layer

2. 2/21/2023 Tanenbaum Chapter 5 Network 2
Network Layer Design Isues
• Store-and-Forward Packet Switching
• Services Provided to the Transport Layer
• Implementation of Connectionless Service
• Implementation of Connection-Oriented Service
• Comparison of Virtual-Circuit and Datagram Subnets

3. 2/21/2023 Tanenbaum Chapter 5 Network 3
Store-and-Forward Packet Switching
The environment of the network layer protocols.
fig 5-1

4. 2/21/2023 Tanenbaum Chapter 5 Network 4

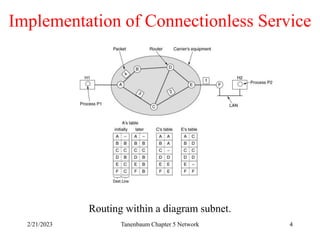

Implementation of Connectionless Service
Routing within a diagram subnet.

5. 2/21/2023 Tanenbaum Chapter 5 Network 5

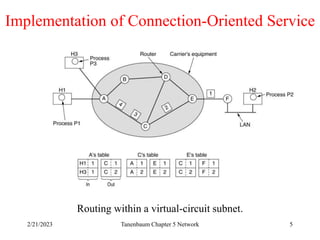

Implementation of Connection-Oriented Service
Routing within a virtual-circuit subnet.

6. 2/21/2023 Tanenbaum Chapter 5 Network 6

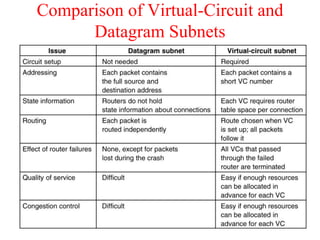

Comparison of Virtual-Circuit and
Datagram Subnets
5-4

7. 2/21/2023 Tanenbaum Chapter 5 Network 7

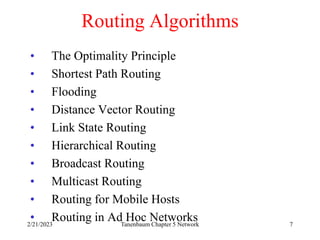

Routing Algorithms
• The Optimality Principle
• Shortest Path Routing
• Flooding
• Distance Vector Routing
• Link State Routing
• Hierarchical Routing
• Broadcast Routing
• Multicast Routing
• Routing for Mobile Hosts
• Routing in Ad Hoc Networks

8. 2/21/2023 Tanenbaum Chapter 5 Network 8
Routing Algorithms (2)

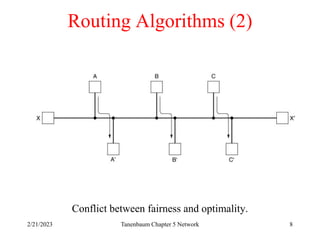

Conflict between fairness and optimality.

9. 2/21/2023 Tanenbaum Chapter 5 Network 9

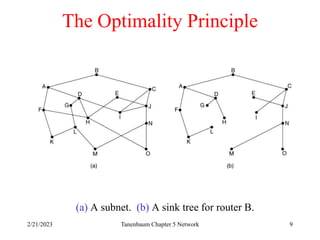

The Optimality Principle
(a) A subnet. (b) A sink tree for router B.

10. 2/21/2023 Tanenbaum Chapter 5 Network 10

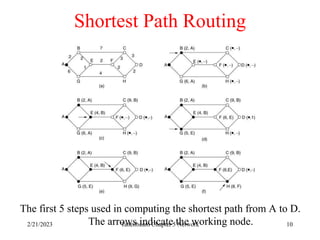

Shortest Path Routing
The first 5 steps used in computing the shortest path from A to D.
The arrows indicate the working node.

11. 2/21/2023 Tanenbaum Chapter 5 Network 11

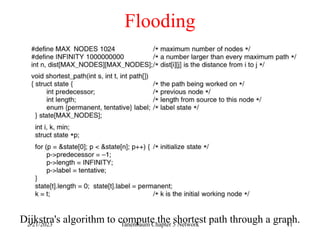

Flooding
Dijkstra's algorithm to compute the shortest path through a graph.
5-8 top

12. 2/21/2023 Tanenbaum Chapter 5 Network 12
Flooding (2)

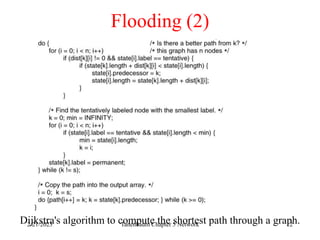

Dijkstra's algorithm to compute the shortest path through a graph.
5-8
bottom

13. 2/21/2023 Tanenbaum Chapter 5 Network 13

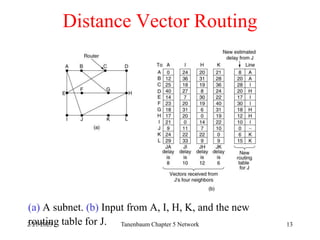

Distance Vector Routing
(a) A subnet. (b) Input from A, I, H, K, and the new
routing table for J.

14. 2/21/2023 Tanenbaum Chapter 5 Network 14
Distance Vector Routing (2)

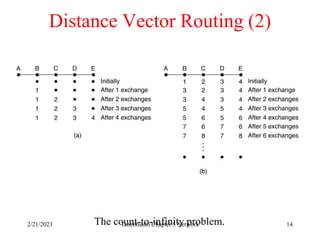

The count-to-infinity problem.

15. 2/21/2023 Tanenbaum Chapter 5 Network 15

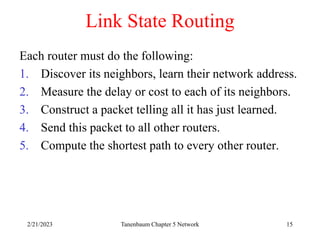

Link State Routing
Each router must do the following:
1. Discover its neighbors, learn their network address.
2. Measure the delay or cost to each of its neighbors.
3. Construct a packet telling all it has just learned.
4. Send this packet to all other routers.
5. Compute the shortest path to every other router.

16. 2/21/2023 Tanenbaum Chapter 5 Network 16

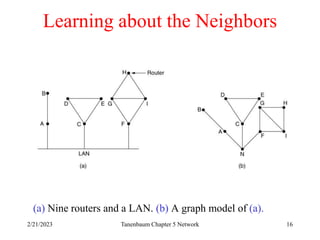

Learning about the Neighbors
(a) Nine routers and a LAN. (b) A graph model of (a).

17. 2/21/2023 Tanenbaum Chapter 5 Network 17
Measuring Line Cost

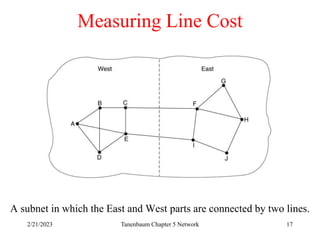

A subnet in which the East and West parts are connected by two lines.

18. 2/21/2023 Tanenbaum Chapter 5 Network 18

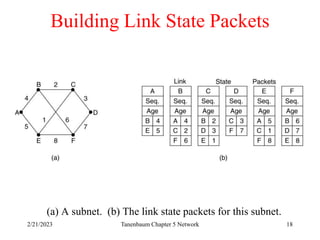

Building Link State Packets
(a) A subnet. (b) The link state packets for this subnet.

19. 2/21/2023 Tanenbaum Chapter 5 Network 19
Distributing the Link State Packets

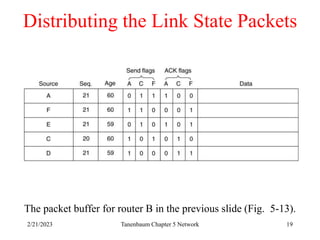

The packet buffer for router B in the previous slide (Fig. 5-13).

20. 2/21/2023 Tanenbaum Chapter 5 Network 20
Oscillation in Shortest Path Routing
Example 1.

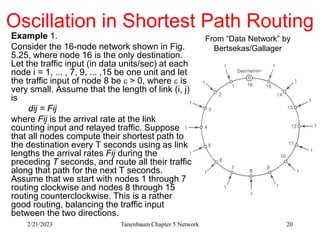

Consider the 16-node network shown in Fig.
5.25, where node 16 is the only destination.
Let the traffic input (in data units/sec) at each
node i = 1, ... , 7, 9, ... ,15 be one unit and let
the traffic input of node 8 be  > 0, where  is
very small. Assume that the length of link (i, j)
is
dij = Fij
where Fij is the arrival rate at the link
counting input and relayed traffic. Suppose
that all nodes compute their shortest path to
the destination every T seconds using as link
lengths the arrival rates Fij during the
preceding T seconds, and route all their traffic
along that path for the next T seconds.
Assume that we start with nodes 1 through 7
routing clockwise and nodes 8 through 15
routing counterclockwise. This is a rather
good routing, balancing the traffic input
between the two directions.
From “Data Network” by
Bertsekas/Gallager

21. 2/21/2023 Tanenbaum Chapter 5 Network 21
Oscillation in Shortest Path Routing

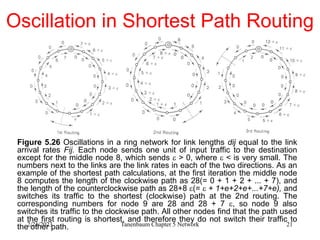

Figure 5.26 Oscillations in a ring network for link lengths dij equal to the link
arrival rates Fij. Each node sends one unit of input traffic to the destination
except for the middle node 8, which sends  > 0, where  < is very small. The
numbers next to the links are the link rates in each of the two directions. As an
example of the shortest path calculations, at the first iteration the middle node
8 computes the length of the clockwise path as 28(= 0 + 1 + 2 + ... + 7), and
the length of the counterclockwise path as 28+8 (=  + 1+e+2+e+...+7+e), and
switches its traffic to the shortest (clockwise) path at the 2nd routing. The
corresponding numbers for node 9 are 28 and 28 + 7 , so node 9 also
switches its traffic to the clockwise path. All other nodes find that the path used
at the first routing is shortest, and therefore they do not switch their traffic to
the other path.

22. 2/21/2023 Tanenbaum Chapter 5 Network 22
Oscillation in Shortest Path Routing

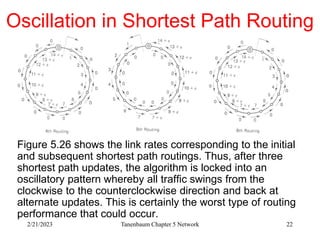

Figure 5.26 shows the link rates corresponding to the initial
and subsequent shortest path routings. Thus, after three
shortest path updates, the algorithm is locked into an
oscillatory pattern whereby all traffic swings from the
clockwise to the counterclockwise direction and back at
alternate updates. This is certainly the worst type of routing
performance that could occur.

23. 2/21/2023 Tanenbaum Chapter 5 Network 23

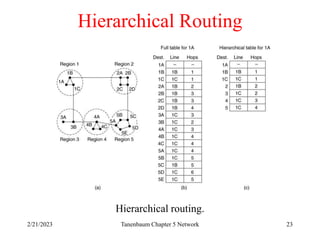

Hierarchical Routing
Hierarchical routing.

24. 2/21/2023 Tanenbaum Chapter 5 Network 24
Broadcast Routing

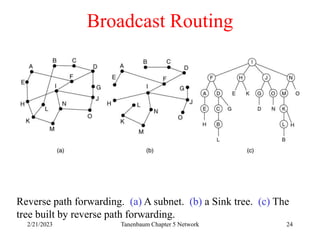

Reverse path forwarding. (a) A subnet. (b) a Sink tree. (c) The
tree built by reverse path forwarding.

25. 2/21/2023 Tanenbaum Chapter 5 Network 25

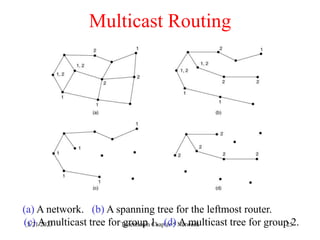

Multicast Routing
(a) A network. (b) A spanning tree for the leftmost router.
(c) A multicast tree for group 1. (d) A multicast tree for group 2.

26. 2/21/2023 Tanenbaum Chapter 5 Network 26
Routing for Mobile Hosts

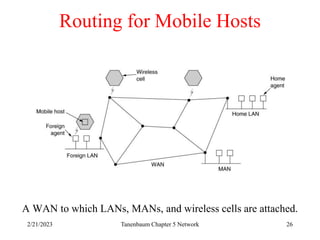

A WAN to which LANs, MANs, and wireless cells are attached.

27. 2/21/2023 Tanenbaum Chapter 5 Network 27
Routing for Mobile Hosts (2)

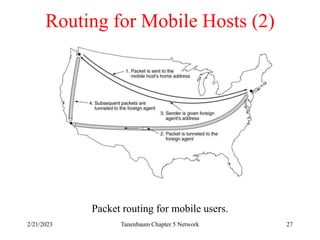

Packet routing for mobile users.

28. 2/21/2023 Tanenbaum Chapter 5 Network 28

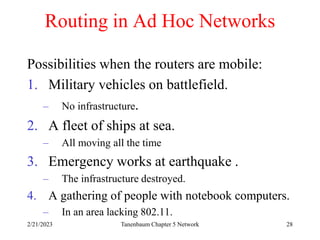

Routing in Ad Hoc Networks
Possibilities when the routers are mobile:
1. Military vehicles on battlefield.
– No infrastructure.
2. A fleet of ships at sea.
– All moving all the time
3. Emergency works at earthquake .
– The infrastructure destroyed.
4. A gathering of people with notebook computers.
– In an area lacking 802.11.

29. 2/21/2023 Tanenbaum Chapter 5 Network 29
Route Discovery
a) (a) Range of A's broadcast.
b) (b) After B and D have received A's broadcast.
c) (c) After C, F, and G have received A's broadcast.
d) (d) After E, H, and I have received A's broadcast.
Shaded nodes are new recipients. Arrows show possible reverse routes.

30. 2/21/2023 Tanenbaum Chapter 5 Network 30
Route Discovery (2)
Format of a ROUTE REQUEST packet.

31. 2/21/2023 Tanenbaum Chapter 5 Network 31
Route Discovery (3)

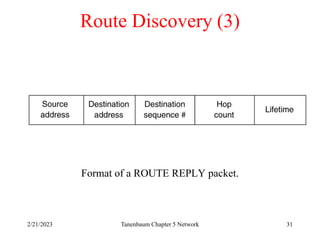

Format of a ROUTE REPLY packet.

32. 2/21/2023 Tanenbaum Chapter 5 Network 32

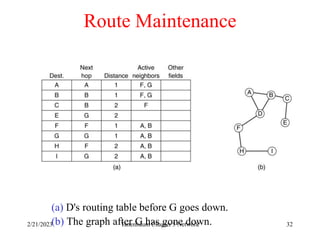

Route Maintenance
(a) D's routing table before G goes down.
(b) The graph after G has gone down.

33. 2/21/2023 Tanenbaum Chapter 5 Network 33
Node Lookup in Peer-to-Peer Networks

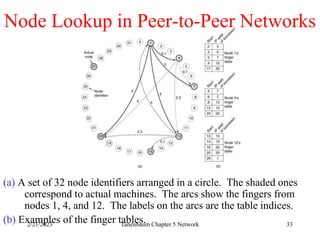

(a) A set of 32 node identifiers arranged in a circle. The shaded ones
correspond to actual machines. The arcs show the fingers from
nodes 1, 4, and 12. The labels on the arcs are the table indices.
(b) Examples of the finger tables.

34. 2/21/2023 Tanenbaum Chapter 5 Network 34
Congestion Control Algorithms
• General Principles of Congestion Control
• Congestion Prevention Policies
• Congestion Control in Virtual-Circuit Subnets
• Congestion Control in Datagram Subnets
• Load Shedding
• Jitter Control

35. 2/21/2023 Tanenbaum Chapter 5 Network 35

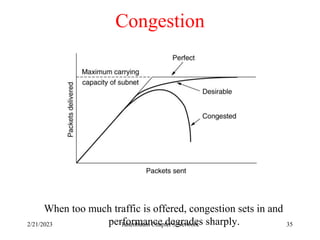

Congestion
When too much traffic is offered, congestion sets in and
performance degrades sharply.

36. 2/21/2023 Tanenbaum Chapter 5 Network 36

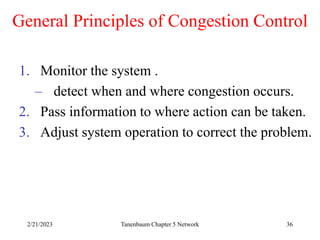

General Principles of Congestion Control
1. Monitor the system .
– detect when and where congestion occurs.
2. Pass information to where action can be taken.
3. Adjust system operation to correct the problem.

37. 2/21/2023 Tanenbaum Chapter 5 Network 37
Congestion Prevention Policies

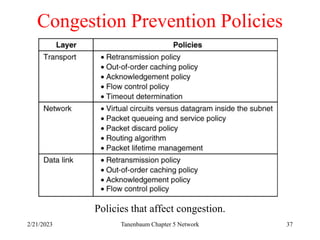

Policies that affect congestion.
5-26

38. 2/21/2023 Tanenbaum Chapter 5 Network 38
Congestion Control in Virtual-Circuit
Subnets

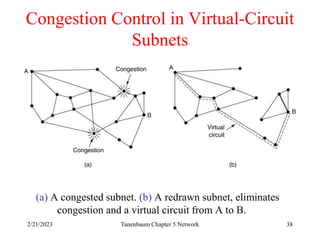

(a) A congested subnet. (b) A redrawn subnet, eliminates
congestion and a virtual circuit from A to B.

39. 2/21/2023 Tanenbaum Chapter 5 Network 39

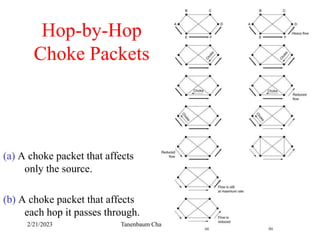

Hop-by-Hop
Choke Packets
(a) A choke packet that affects
only the source.
(b) A choke packet that affects
each hop it passes through.

40. 2/21/2023 Tanenbaum Chapter 5 Network 40

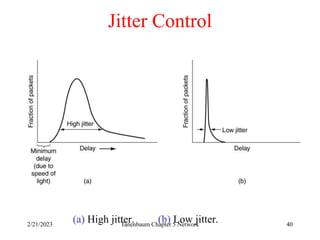

Jitter Control
(a) High jitter. (b) Low jitter.

41. 2/21/2023 Tanenbaum Chapter 5 Network 41

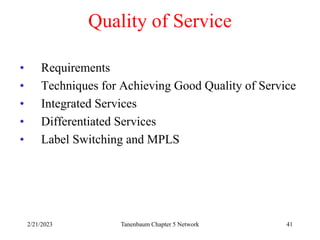

Quality of Service
• Requirements
• Techniques for Achieving Good Quality of Service
• Integrated Services
• Differentiated Services
• Label Switching and MPLS

42. 2/21/2023 Tanenbaum Chapter 5 Network 42
Requirements

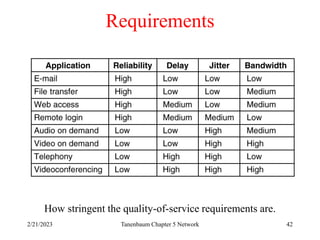

How stringent the quality-of-service requirements are.
5-30

43. 2/21/2023 Tanenbaum Chapter 5 Network 43
Buffering
Smoothing the output stream by buffering packets.

44. 2/21/2023 Tanenbaum Chapter 5 Network 44

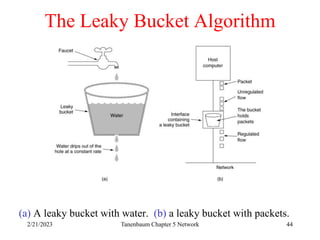

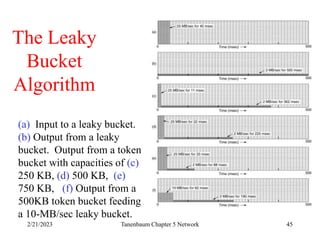

The Leaky Bucket Algorithm
(a) A leaky bucket with water. (b) a leaky bucket with packets.

45. 2/21/2023 Tanenbaum Chapter 5 Network 45
The Leaky
Bucket
Algorithm
(a) Input to a leaky bucket.
(b) Output from a leaky
bucket. Output from a token
bucket with capacities of (c)
250 KB, (d) 500 KB, (e)
750 KB, (f) Output from a
500KB token bucket feeding
a 10-MB/sec leaky bucket.

46. 2/21/2023 Tanenbaum Chapter 5 Network 46

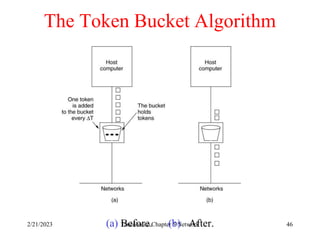

The Token Bucket Algorithm
(a) Before. (b) After.
5-34

47. 2/21/2023 Tanenbaum Chapter 5 Network 47
Admission Control
An example of flow specification.
5-34

48. 2/21/2023 Tanenbaum Chapter 5 Network 48

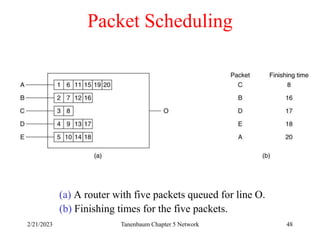

Packet Scheduling
(a) A router with five packets queued for line O.
(b) Finishing times for the five packets.

49. 2/21/2023 Tanenbaum Chapter 5 Network 49
RSVP-The ReSerVation Protocol

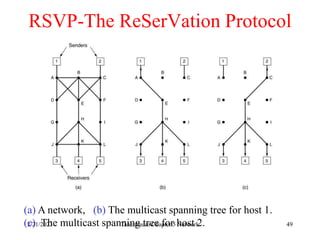

(a) A network, (b) The multicast spanning tree for host 1.
(c) The multicast spanning tree for host 2.

50. 2/21/2023 Tanenbaum Chapter 5 Network 50

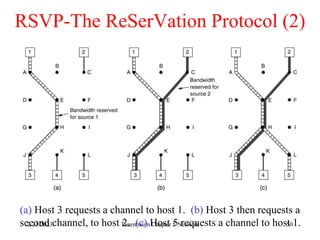

RSVP-The ReSerVation Protocol (2)
(a) Host 3 requests a channel to host 1. (b) Host 3 then requests a
second channel, to host 2. (c) Host 5 requests a channel to host 1.

51. 2/21/2023 Tanenbaum Chapter 5 Network 51

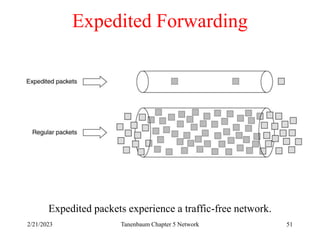

Expedited Forwarding
Expedited packets experience a traffic-free network.

52. 2/21/2023 Tanenbaum Chapter 5 Network 52

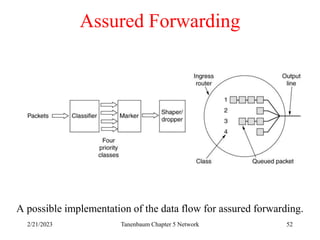

Assured Forwarding
A possible implementation of the data flow for assured forwarding.

53. 2/21/2023 Tanenbaum Chapter 5 Network 53
Label Switching and MPLS

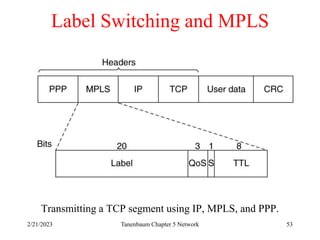

Transmitting a TCP segment using IP, MPLS, and PPP.

54. 2/21/2023 Tanenbaum Chapter 5 Network 54
Internetworking
• How Networks Differ
• How Networks Can Be Connected
• Concatenated Virtual Circuits
• Connectionless Internetworking
• Tunneling
• Internetwork Routing
• Fragmentation

55. 2/21/2023 Tanenbaum Chapter 5 Network 55
Connecting Networks
A collection of interconnected networks.

56. 2/21/2023 Tanenbaum Chapter 5 Network 56
How Networks Differ

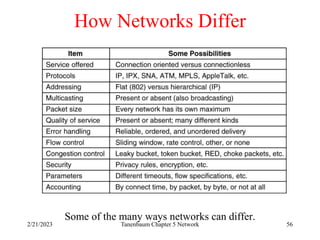

Some of the many ways networks can differ.
5-43

57. 2/21/2023 Tanenbaum Chapter 5 Network 57
How Networks Can Be Connected
(a) Two Ethernets connected by a switch.
(b) Two Ethernets connected by routers.

58. 2/21/2023 Tanenbaum Chapter 5 Network 58
Concatenated Virtual Circuits
Internetworking using concatenated virtual circuits.

59. 2/21/2023 Tanenbaum Chapter 5 Network 59
Connectionless Internetworking
A connectionless internet.

60. 2/21/2023 Tanenbaum Chapter 5 Network 60
Tunneling

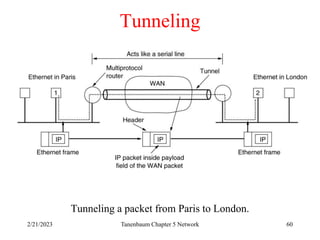

Tunneling a packet from Paris to London.

61. 2/21/2023 Tanenbaum Chapter 5 Network 61
Tunneling (2)

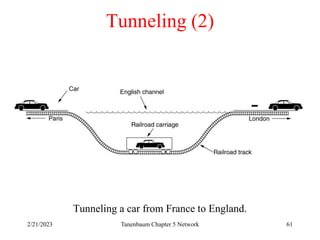

Tunneling a car from France to England.

62. 2/21/2023 Tanenbaum Chapter 5 Network 62
Internetwork Routing
(a) An internetwork. (b) A graph of the internetwork.

63. 2/21/2023 Tanenbaum Chapter 5 Network 63
Fragmentation

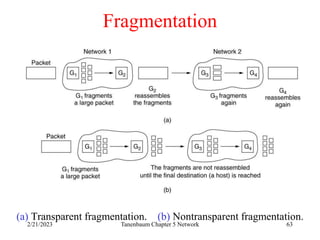

(a) Transparent fragmentation. (b) Nontransparent fragmentation.

64. 2/21/2023 Tanenbaum Chapter 5 Network 64
Fragmentation (2)

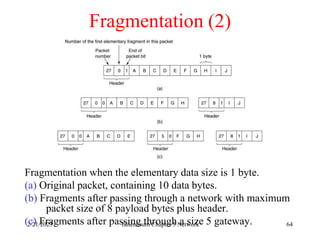

Fragmentation when the elementary data size is 1 byte.
(a) Original packet, containing 10 data bytes.
(b) Fragments after passing through a network with maximum
packet size of 8 payload bytes plus header.
(c) Fragments after passing through a size 5 gateway.

65. 2/21/2023 Tanenbaum Chapter 5 Network 65
The Network Layer in the Internet
• The IP Protocol
• IP Addresses
• Internet Control Protocols
• OSPF – The Interior Gateway Routing Protocol
• BGP – The Exterior Gateway Routing Protocol
• Internet Multicasting
• Mobile IP
• IPv6

66. 2/21/2023 Tanenbaum Chapter 5 Network 66
Design Principles for Internet

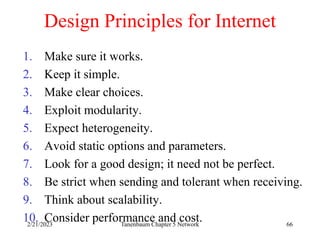

1. Make sure it works.
2. Keep it simple.
3. Make clear choices.
4. Exploit modularity.
5. Expect heterogeneity.
6. Avoid static options and parameters.
7. Look for a good design; it need not be perfect.
8. Be strict when sending and tolerant when receiving.
9. Think about scalability.
10. Consider performance and cost.

67. 2/21/2023 Tanenbaum Chapter 5 Network 67

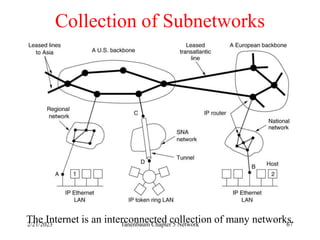

Collection of Subnetworks
The Internet is an interconnected collection of many networks.

68. 2/21/2023 Tanenbaum Chapter 5 Network 68

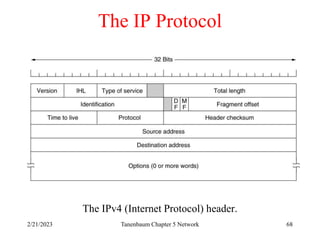

The IP Protocol
The IPv4 (Internet Protocol) header.

69. 2/21/2023 Tanenbaum Chapter 5 Network 69
The IP Protocol (2)

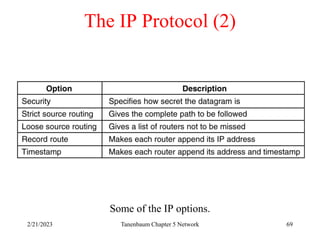

Some of the IP options.
5-54

70. 2/21/2023 Tanenbaum Chapter 5 Network 70
IP Addresses
IP address formats.

71. 2/21/2023 Tanenbaum Chapter 5 Network 71

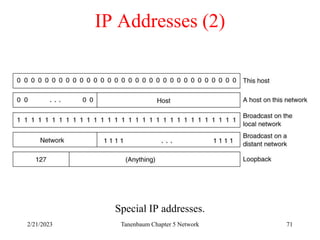

IP Addresses (2)
Special IP addresses.

72. 2/21/2023 Tanenbaum Chapter 5 Network 72
Subnets

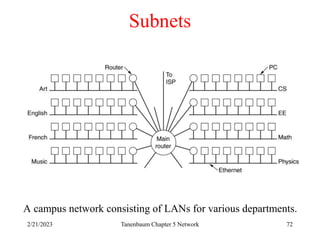

A campus network consisting of LANs for various departments.

73. 2/21/2023 Tanenbaum Chapter 5 Network 73
Subnets (2)
A class B network subnetted into 64 subnets.

74. 2/21/2023 Tanenbaum Chapter 5 Network 74
CDR – Classless InterDomain Routing
A set of IP address assignments.
5-59

75. 2/21/2023 Tanenbaum Chapter 5 Network 75

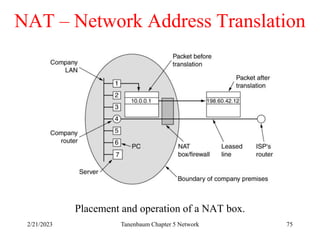

NAT – Network Address Translation
Placement and operation of a NAT box.

76. 2/21/2023 Tanenbaum Chapter 5 Network 76

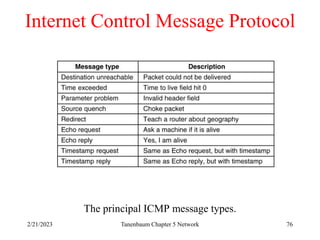

Internet Control Message Protocol
The principal ICMP message types.
5-61

77. 2/21/2023 Tanenbaum Chapter 5 Network 77
ARP– The Address Resolution Protocol
Three interconnected /24 networks: two Ethernets and an FDDI ring.

78. 2/21/2023 Tanenbaum Chapter 5 Network 78
Dynamic Host Configuration Protocol

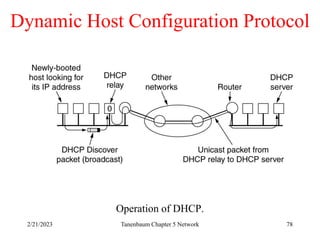

Operation of DHCP.

79. 2/21/2023 Tanenbaum Chapter 5 Network 79
OSPF – The Interior Gateway Routing
Protocol

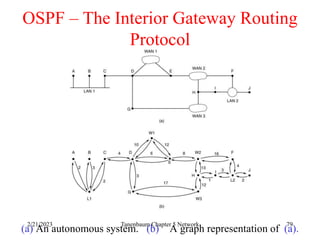

(a) An autonomous system. (b) A graph representation of (a).

80. 2/21/2023 Tanenbaum Chapter 5 Network 80
OSPF (2)
The relation between ASes, backbones, and areas in OSPF.

81. 2/21/2023 Tanenbaum Chapter 5 Network 81

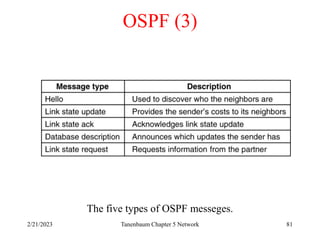

OSPF (3)
The five types of OSPF messeges.
5-66

82. 2/21/2023 Tanenbaum Chapter 5 Network 82
BGP – The Exterior Gateway Routing
Protocol

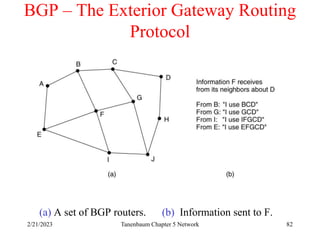

(a) A set of BGP routers. (b) Information sent to F.

83. 2/21/2023 Tanenbaum Chapter 5 Network 83

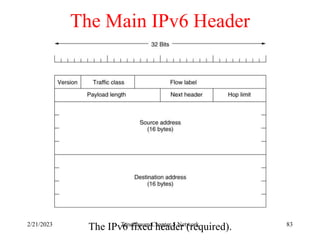

The Main IPv6 Header
The IPv6 fixed header (required).

84. 2/21/2023 Tanenbaum Chapter 5 Network 84
Extension Headers

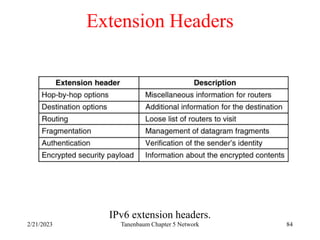

IPv6 extension headers.
5-69

85. 2/21/2023 Tanenbaum Chapter 5 Network 85
Extension Headers (2)
The hop-by-hop extension header for large datagrams (jumbograms).

86. 2/21/2023 Tanenbaum Chapter 5 Network 86

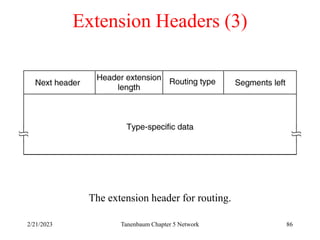

Extension Headers (3)
The extension header for routing.
