- 1.
- 2.
- 3. Interconnection Carry data betweenprocessors and to memory Interconnect components switches links (wires, fiber) Interconnection network flavors static networks: point-to-point communication links AKA direct networks. dynamic networks: switches and communication links AKA indirect networks.
- 4.

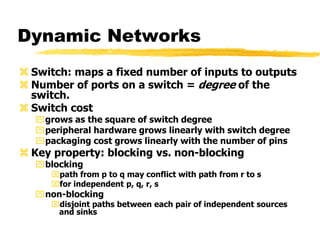

- 5. Dynamic Networks Switch:maps a fixed number of inputs to outputs Number of ports on a switch = degree of the switch. Switch cost grows as the square of switch degree peripheral hardware grows linearly with switch degree packaging cost grows linearly with the number of pins Key property: blocking vs. non-blocking blocking path from p to q may conflict with path from r to s for independent p, q, r, s non-blocking disjoint paths between each pair of independent sources and sinks
- 6. Network Interface Processornode’s link to the interconnect Network interface responsibilities packetizing communication data computing routing information buffering incoming/outgoing data Network interface connection I/O bus: PCI or PCIx on many modern systems memory bus: e.g. AMD HyperTransport, Intel QuickPath higher bandwidth and tighter coupling than I/O bus Network performance depends on relative speeds of I/O and memory buses

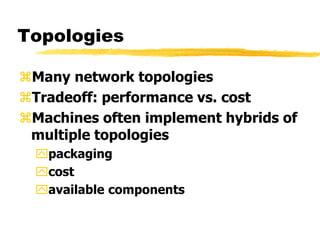

- 7. Topologies Many network topologies Tradeoff:performance vs. cost Machines often implement hybrids of multiple topologies packaging cost available components

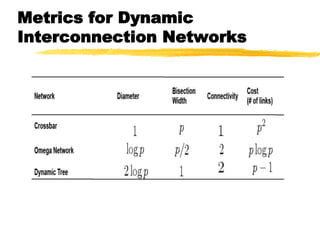

- 8. Metrics Degree number of linksper node Diameter longest distance between two nodes in the network Bisection Width min # of wire cuts to divide the network in 2 halves Cost: # links or switches

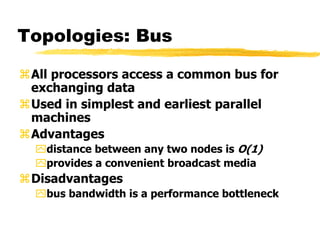

- 9. Topologies: Bus All processorsaccess a common bus for exchanging data Used in simplest and earliest parallel machines Advantages distance between any two nodes is O(1) provides a convenient broadcast media Disadvantages bus bandwidth is a performance bottleneck

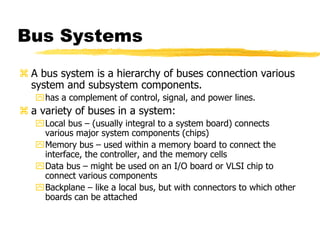

- 10. Bus Systems Abus system is a hierarchy of buses connection various system and subsystem components. has a complement of control, signal, and power lines. a variety of buses in a system: Local bus – (usually integral to a system board) connects various major system components (chips) Memory bus – used within a memory board to connect the interface, the controller, and the memory cells Data bus – might be used on an I/O board or VLSI chip to connect various components Backplane – like a local bus, but with connectors to which other boards can be attached

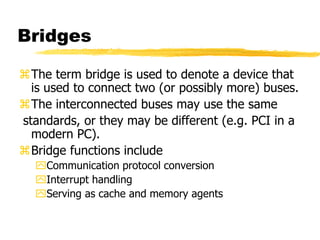

- 11. Bridges The term bridgeis used to denote a device that is used to connect two (or possibly more) buses. The interconnected buses may use the same standards, or they may be different (e.g. PCI in a modern PC). Bridge functions include Communication protocol conversion Interrupt handling Serving as cache and memory agents

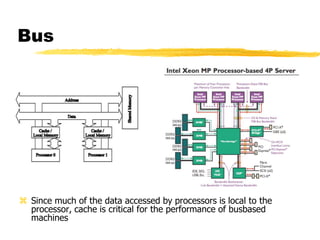

- 12. Bus Since muchof the data accessed by processors is local to the processor, cache is critical for the performance of busbased machines
- 13. Bus Replacement: Direct Connect IntelQuickpath interconnect (2009 - present)
- 14. Direct Connect: 4Node Configurations Figure Credit : The Opteron CMP NorthBridge Architecture, Now and in the Future, AMD , Pat Conway, Bill Hughes , HOT CHIPS 2006 4N SQ XFIRE BW 14.9GB/s Diam 2 avg:1 4N FC XFIRE BW 29.9GB/s Diam 1, Avg: 0.75
- 15. Direct Connect: 8Node Configurations
- 16. Crossbar Network Acrossbar network uses an p×m grid of switches to connect p inputs to m outputs in a non-blocking manner A non-blocking crossbar network connecting p processors to b memory banks Cost of a crossbar: O(p^2) Generally difficult to scale for large values of p Earth Simulator: custom 640-way single-stage crossbar

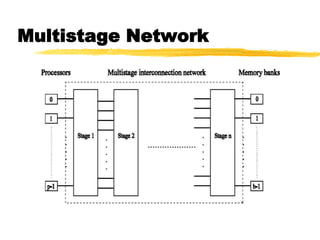

- 17. Assessing Network Alternatives Buses excellent costscalability poor performance scalability Crossbars excellent performance scalability poor cost scalability Multistage interconnects compromise between these extremes
- 18.

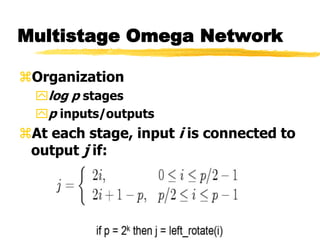

- 19. Multistage Omega Network Organization logp stages p inputs/outputs At each stage, input i is connected to output j if:

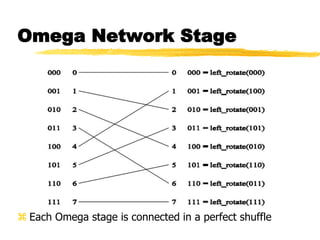

- 20. Omega Network Stage Each Omega stage is connected in a perfect shuffle

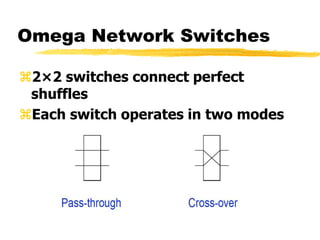

- 21. Omega Network Switches 2×2switches connect perfect shuffles Each switch operates in two modes

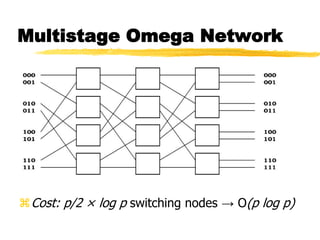

- 22. Multistage Omega Network Cost:p/2 × log p switching nodes → O(p log p)

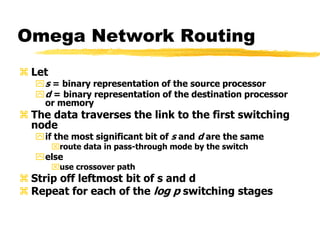

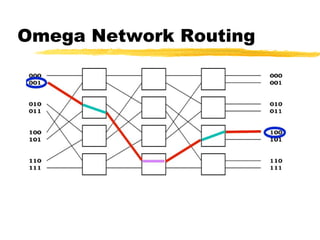

- 23. Omega Network Routing Let s = binary representation of the source processor d = binary representation of the destination processor or memory The data traverses the link to the first switching node if the most significant bit of s and d are the same route data in pass-through mode by the switch else use crossover path Strip off leftmost bit of s and d Repeat for each of the log p switching stages
- 24.

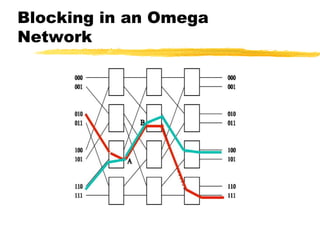

- 25. Blocking in anOmega Network
- 26.

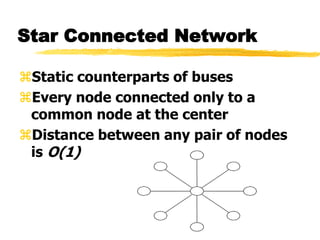

- 27. Star Connected Network Staticcounterparts of buses Every node connected only to a common node at the center Distance between any pair of nodes is O(1)

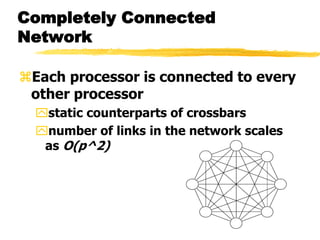

- 28. Completely Connected Network Each processoris connected to every other processor static counterparts of crossbars number of links in the network scales as O(p^2)
- 29. Linear Array Each nodehas two neighbors: left & right If connection between nodes at ends: 1D torus (ring)

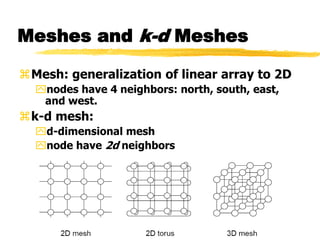

- 30. Meshes and k-dMeshes Mesh: generalization of linear array to 2D nodes have 4 neighbors: north, south, east, and west. k-d mesh: d-dimensional mesh node have 2d neighbors

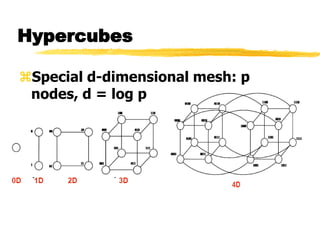

- 31. Hypercubes Special d-dimensional mesh:p nodes, d = log p

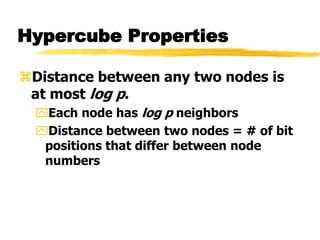

- 32. Hypercube Properties Distance betweenany two nodes is at most log p. Each node has log p neighbors Distance between two nodes = # of bit positions that differ between node numbers
- 33.

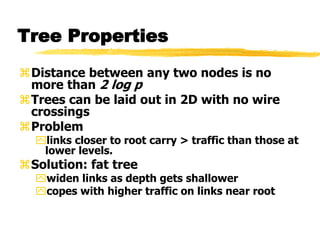

- 34. Tree Properties Distance betweenany two nodes is no more than 2 log p Trees can be laid out in 2D with no wire crossings Problem links closer to root carry > traffic than those at lower levels. Solution: fat tree widen links as depth gets shallower copes with higher traffic on links near root

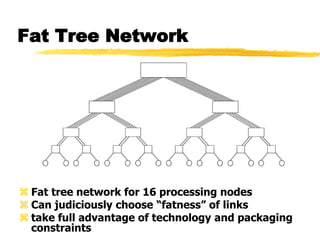

- 35. Fat Tree Network Fat tree network for 16 processing nodes Can judiciously choose “fatness” of links take full advantage of technology and packaging constraints
