iDirect Proprietary & Confidential The iDirect iNFINITI Broadband VSAT Solution Leading IP Convergence over Satellite

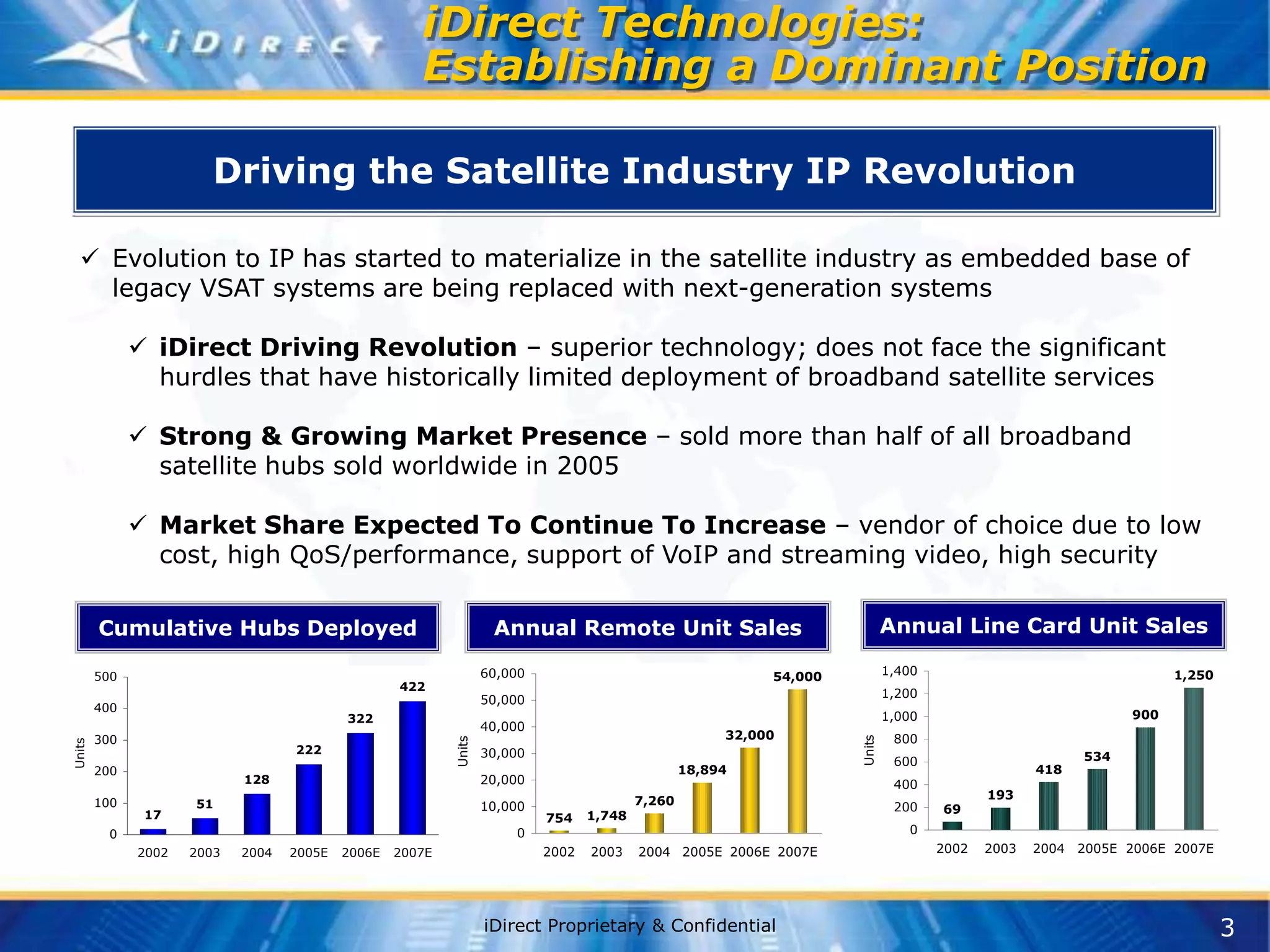

3 iDirect Proprietary & Confidential 754 1,748 7,260 18,894 32,000 54,000 0 10,000 20,000 30,000 40,000 50,000 60,000 2002 2003 2004 2005E 2006E 2007E Units Annual Remote Unit Sales 69 193 418 534 900 1,250 0 200 400 600 800 1,000 1,200 1,400 2002 2003 2004 2005E 2006E 2007E Units Annual Line Card Unit Sales Cumulative Hubs Deployed iDirect Technologies: Establishing a Dominant Position Driving the Satellite Industry IP Revolution  Evolution to IP has started to materialize in the satellite industry as embedded base of legacy VSAT systems are being replaced with next-generation systems  iDirect Driving Revolution – superior technology; does not face the significant hurdles that have historically limited deployment of broadband satellite services  Strong & Growing Market Presence – sold more than half of all broadband satellite hubs sold worldwide in 2005  Market Share Expected To Continue To Increase – vendor of choice due to low cost, high QoS/performance, support of VoIP and streaming video, high security 17 51 128 222 322 422 0 100 200 300 400 500 2002 2003 2004 2005E 2006E 2007E Units
4 iDirect Proprietary & Confidential Technology Leader  Voice, video and data  Enterprise-class terrestrial broadband service quality and performance  Single hub chassis can access five different satellites vs. one for all competitors  Star, Mesh, Point-to-Point and Hybrid networks  Enables real private networks  Provides unprecedented channel speeds – 8.4Mbps upstream & 18.2Mbps downstream  Supports C, Ku and Ka band transponders with carrier class redundancy  Integrated advanced security, including world’s first FIPS 140-2 certification  Launch of enhanced iNFINITI solution in Q2 2005 World’s Most Advanced Solution Built From the Ground Up To Support IP
5 iDirect Proprietary & Confidential Feature Rich, Best TCO Solutions Portfolio of Satellite Networking Solutions Specifically Tailored to Meet Customers’ Needs  Complete, Most Feature Rich Solution – remote satellite router encompasses satellite modem, IP router, TCP/HTTP optimization over satellite, QoS/prioritization and encryption in a single network appliance  Ease of Use – Network Management Software offers industry-leading tools for network control, visibility and ease-of-use  Lowest Cost – iDirect’s hub and remote solutions provide a lower cost of ownership – 40-50% higher bandwidth efficiency than competitors
6 iDirect Proprietary & Confidential 2001-2004 Products 2005+ (iNFINITI launch) Network Topology: Star Single Architecture for Star, Mesh, iSCPC, Spread Spectrum & Hybrid Network Speed Downstream: 9.1 Mbps 18.2 Mbps Network Speed Upstream: 4.2 Mbps 8.4 Mbps* Market Segment: Broadband Broadband Narrowband WiFi, WiMax and Cellular Backhaul Next Generation Capabilities – iNFINITI iNFINITI = Evolutionary Improvement in Capabilities
7 iDirect Proprietary & Confidential Top Tier Customer Base Over 150 Channel Partners… Government 35% Commercial 65% Government End Customers
8 iDirect Proprietary & Confidential First in Hub Market Share 0 10 20 30 40 50 60 70 Hubs Shipped - 2004 (Comsys) iDirect (37%) Hughes (24%) Viasat (21%) Gilat (13%) RCS Total (5%)

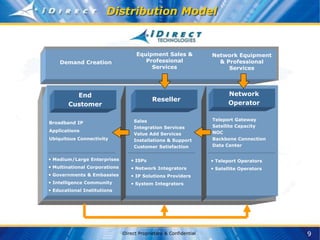

9 iDirect Proprietary & Confidential Network Operator Reseller End Customer Teleport Gateway Satellite Capacity NOC Backbone Connection Data Center Sales Integration Services Value Add Services Installations & Support Customer Satisfaction • Medium/Large Enterprises • Multinational Corporations • Governments & Embassies • Intelligence Community • Educational Institutions • ISPs • Network Integrators • IP Solutions Providers • System Integrators • Teleport Operators • Satellite Operators Distribution Model Broadband IP Applications Ubiquitous Connectivity Demand Creation Equipment Sales & Professional Services Network Equipment & Professional Services
10 iDirect Proprietary & Confidential Industry Recognition: Growth, Innovation Technology Fast 50: Virginia Technology Fast 500 2004 Product Innovation Of The Year 2003 & 2004 2004 Top Three Finalist (John Kealey) 2003 2004 WORLD TELEPORT ASSOCIATION 2004 Teleport Technology Of The Year
11 iDirect Proprietary & Confidential New Investors: ST via VT Engineering (US) IDirect Agrees to Sell Itself for $165 Million By Ellen McCarthy iDirect Technologies Inc., a Herndon firm that sells network equipment to satellite companies, agreed to be acquired yesterday by Singapore Technologies Engineering Ltd. for $165 million in cash. The acquisition is the second big deal this week in the consolidating satellite industry. On Monday, satellite giant Intelsat Ltd., which has most of its operations in the District, said it was acquiring PanAmSat Holding Corp. for $3.2 billion. Under the terms of the IDirect deal, the 11-year old Herndon firm will be acquired by Singapore Technology's U.S. holding company. IDirect will continue to operate under its own name and existing management team. No layoffs are expected among its 150 employees.
iDirect Proprietary & Confidential iDirect iNFINITI: Delivering Broadband Services
13 iDirect Proprietary & Confidential Market Presence Return Data Rates Functions Topology Access Method 16K – 128K Service Transaction/POS Narrowband Slotted Aloha Narrow Band POS Market Type 128K – 4.2Mb Enterprise Applications Shared D-TDMA Broadband 1Mb – 45Mb Telco/Video Broadcast Dedicated Dedicated SCPC SCPC iDirect Technologies Fills The Gap Between Narrowband VSAT and Dedicated SCPC i D I R E C T
14 iDirect Proprietary & Confidential The iDirect Solution iDirect's Broadband VSAT Network System Provides Highly Reliable, Secure, Two-way TCP/IP Transmission for High Speed, Multi-media Service Applications on any Topology (Star, Star/Mesh, Point-to-Point/SCPC) C or Ku-Band Satellite Internet/ Leased Line/MPLS Network Operator Teleport iDirect Broadband VSAT Hub The new iDirect Hub Chassis Line Card supports network speeds of 18 Mbps Downstream, and 4.2 Mbps Upstream. A single 20 slot Hub Chassis supports aggregate speeds of 360 Mbps. By simply adding a separate line card, the iDirect solution can support different topologies from the same chassis It can also support multiple satellite links iDirect Satellite Router Star/Mesh Topology Mesh Connection SCPC Topology SCPC Connection SCPC Connection Star Topology Star Connection
15 iDirect Proprietary & Confidential The iDirect Solution iDirect's Broadband VSAT Network System Provides Highly Reliable, Secure, Two-way TCP/IP Transmission for High Speed, Multi-media Service Applications on any Topology (Star, Star/Mesh, Point-to-Point/SCPC) C or Ku-Band Satellite Internet/ Leased Line/MPLS iDirect Broadband VSAT Hub iDirect Satellite Router Star/Mesh Topology Mesh Connection SCPC Topology SCPC Connection SCPC Connection Star Topology Star Connection Networking iDirect Cards together
16 iDirect Proprietary & Confidential Inherent Scalability Internet/ Leased Line/MPLS iDirect Broadband VSAT Hub C or Ku-Band Satellite Networking iDirect Cards together allows networks to support thousands of sites
17 iDirect Proprietary & Confidential Broadband VSAT Networks: Applications Internet Access Mobile Productivity Mobile Telephony Access Networks Network Backup / Business Continuity Emergency Management Video Monitoring & Surveillance Video Collaboration Enterprise Networks Private Networks
18 iDirect Proprietary & Confidential Enterprise Networks Government & Education Oil & Gas Banks & Insurances Medical/Hospital Multinationals
19 iDirect Proprietary & Confidential Mobile Broadband Market Nomadic Broadband • Emergency Management • IP-enabled SNG • Defense Global, On-the-move Broadband • Maritime • Railway • In-flight • Defense Wireless Internet • Global Edge Connect: VSAT + WiMAX Cellular Backhaul • GSM backhaul • GPRS, EDGE, UMTS Stationary end point Moving end point Satellite first mile Satellite middle mile Terrestrial first mile Satellite Satellite
20 iDirect Proprietary & Confidential The iDirect GSM Backhaul Business Case The implementation of GSM over satellite is commonly used in many regions of the world. Traditionally, this has been supported via a legacy SCPC connection (as depicted above). ● In a point-to-point legacy SCPC connection, each link must be engineered to accommodate the busy hour traffic of the access BTS. ● Satellite transmission however, is very bandwidth sensitive since every kHz of satellite bandwidth must be leased and incurs an additional cost. ● Legacy SCPC provides a “brute force” method of solving Abis backhaul by throwing expensive bandwidth at the connectivity requirement. iDirect’s IP solution represents a natural evolution that will lead to significant bandwidth reductions, and therefore cost savings.
21 iDirect Proprietary & Confidential Integrated Wireless MAN IP Router iDirect iNFINITY Hub Internet Central Hub Teleport’s RF Chain Earth Station at the Center of Each Venue iNFINITI VSAT Wi-Fi Access Point NMS/OSS/BSS Server OSS Controller Wi-Fi Access Point Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi iDirect CAS Load Balancer Edge Router at Teleport
iDirect Proprietary & Confidential The iDirect iNFINITI Product Family
23 iDirect Proprietary & Confidential iDirect Hub Products Private Hub Solution for an Enterprise Full Featured TDMA Hub Single OB/IB Hub Support for Star w/single Inroute 6.0.8 Mesh w/Single Inroute in 7.0 Star w/dual Inroutes in 7.1 VNO Virtual Network Operator A Non-Facilities Based Satellite Services Provider That Desires to Operate Their Own Networks Hub Chassis Solution for a Teleport Full Featured MF-TDMA Hub Extremely Flexible and Scalable Hub Support for Star, Mesh, SCPC Topologies 1IF and 5IF Models Mini Hub Solution for an Small Enterprise Full Featured TDMA Hub Single OB/IB Hub Limited to 15 or 30 Remote Sites Support for Star and Mesh Topologies
24 iDirect Proprietary & Confidential Typical Teleport Configuration Router Protocol Processors NMS Server & Spare iDirect Equipment NMS GUI (Configuration & Monitoring) Internet/ Backbone 5IF Hub Chassis Redundant Architecture Corporate VPN Private Network RF RF iCAS Compression Server WiFi/OSS/BSS Server
25 iDirect Proprietary & Confidential iNFINITI Hub Chassis Compact, 20 Slot, 10U, 19” Rack Mountable * Scalable – Grow As You Need Flexible ● Multiple Multi-inroute Networks Within the Same Chassis * ● Multiple RF Outputs – Up to 5 Different Satellites From One Chassis M:N Universal Line Card Redundancy Automatic Failover N:1 Power and Fan Redundancy iNFINITI 5IF Hub 1 2 3 4 5
26 iDirect Proprietary & Confidential Hub Chassis – Slot Groups Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9 Slot 10 Slot 11 Slot 12 Slot 13 Slot 14 Slot 15 Slot 16 Slot 17 Slot 18 Slot 19 Slot 20 Slot Group 1 Slot Group 2 Slot Group 3 Slot Group 4 Slot Group 5 • Up to 5 Multi-inroute networks per chassis • Each Group uses timing on the backplane • Groups can be combined to increase multi-inroutes • A Single outroute-inroute network can take any slot as it does not use timing on the backplane
27 iDirect Proprietary & Confidential Hub Slot Groups – Configuration Example Network 4 Spare Spare Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9 Slot 10 Slot 11 Slot 12 Slot 13 Slot 14 Slot 15 Slot 16 Slot 17 Slot 18 Slot 19 Slot 20 Slot Group 1 Slot Group 2 Slot Group 3 Slot Group 4 Slot Group 5 • Slot Groups 1, 2, and 3 are Jumpered on the Backplane to share timing • Network 1 has one outroute and 11 inroutes (or some spares ex, 10 inroutes and one spare) • Network 2 has one outroute and one inroute (does not use timing on the backplane) • Network 3 has one outroute and 3 inroutes (one Spare) • Network 4 has one outroute and 3 inroutes Network 1 Network 3 Network 4 Network 2 Available Slot Upstream (inroute) Downstream (Outroute) Network 3 Network 2 Network 1
28 iDirect Proprietary & Confidential iNFINITI Line Cards Same cards for any band (Ku, C, Extended C, Ka) 1:1 or N:1 Redundancy (with M1D1) Hot Swappable Allows an Operator to scale services as needed ● Granularity 1Kbps ● Up to 18.2Mbps TDM downstream and 4.2Mbps TDMA upstream; 8.4Mbps TDMA upstream with iDS 8.0 ● Up to 18.2Mbps TDM downstream for SCPC operation Line Card Models ● Minimum speeds:  Outbound 128Kbps  Inbound 64Kbps ● M1D1: One Modulator and Demodulator  Up to 18Mbps on the outbound  Up to 4.2Mbps on the inbound with .793 FEC and 2.9Mbps with .66 FEC ● M0D1: One Demodulator  Up to 4.2Mbps on the inbound with .793 FEC and 2.9Mbps with .66 FEC ● M0D1-NB : One Demodulator  Up to 242Kbps on the inbound with .793 FEC and 196Kbps with .66 FEC ● M1D1-SCPC: SCPC Service – available iDS 7.0  Support for 128Kbps to 18Mbps
29 iDirect Proprietary & Confidential iNFINITI Private Hub Ideal for corporations that need private network iNFINITI Private Hub supports TDM/TDMA Star Network and Multi-star network with all iDirect features iNFINITI Mesh Private Hub supports Star/Mesh operation with all iDirect features Provides one downstream/upstream network Capability Supports standard outdoor electronics (BUC/LNB) Completely redundant Hardware upgrade path to 5IF Customer HQ LAN Switch VoIP Remote Site iDirect Private Hub iDirect Satellite Router LAN Switch VoIP Remote Site NMS Servers Protocol Processors WAN

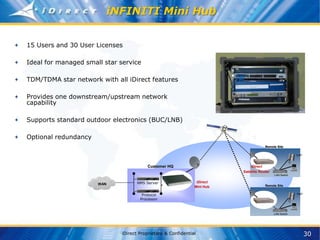

30 iDirect Proprietary & Confidential iNFINITI Mini Hub 15 Users and 30 User Licenses Ideal for managed small star service TDM/TDMA star network with all iDirect features Provides one downstream/upstream network capability Supports standard outdoor electronics (BUC/LNB) Optional redundancy Customer HQ LAN Switch VoIP Remote Site iDirect Mini Hub iDirect Satellite Router LAN Switch VoIP Remote Site NMS Server Protocol Processor WAN
31 iDirect Proprietary & Confidential iNFINITI Satellite Routers iDirect 7000 iDirect 5000 Business Critical Applications for Enterprise Customers 18 Mbps/8.4* Mbps IP Data Rate Adaptive Channel Compression Application QoS TCP Optimization 8-Port LAN Switch Mesh Mode (Optional), SCPC Mode, AES/3DES Link Encryption (Optional) iDirect 3000 Entry Level - Optimized for Internet Access, Basic Voice and Video 18 Mbps/4.2 Mbps IP Data Rate Adaptive Channel Application QoS TCP Optimization Star Mode Only Model 3100 – Star Only Military and Custom Applications 18 Mbps/8.4* Mbps IP Data Rate PCI Slot Adaptive Channel Compression Application QoS TCP Optimization 8-Port LAN Switch Mesh Mode, SCPC Mode AES/3DES Link Encryption (Optional) Model Star Mesh SCPC Security 5100 X X 5150 X X X 5300 X X X 5350 X X X X Model Star Mesh SCPC Security 7300 X X X 7350 X X X X
32 iDirect Proprietary & Confidential Feature NetModem 2+ Series 3000 Series 5000 Series 7000 iNFINITI iConnex Current Remote Functionality Current Backw ards compatible w ith existing Netw orks Backw ards compatible w ith existing Netw orks Backw ards compatible w ith existing Netw orks Backw ards compatible w ith existing Netw orks IPData Rate: Outbound 9 Mbps 18 Mbps 18 Mbps 18 Mbps 18 Mbps IPData Rate: Inbound 4.2 Mbps Large block 1.4 Mbps small block 4.2 Mbps 4.2 Mbps 8.4 Mbps in Q4/2006 4.2 Mbps 8.4 Mbps in Q4/2006 4.2 Mbps 8.4 Mbps in Q4/2006 LAN Ports Single 10/100 Base-T Single 10/100 Base-T 8-Port Sw itch and Single 10/100 Base-T 8-Port Sw itch and Single 10/100 Base-T Single 10/100 Base-T Internal Hard Drive No No Option (On Product Roadmap) Option (On Product Roadmap) No Expansion None None None 1 Standard PCI Slot Option Encryption Option None Option Option Yes SCPC Mode ( Ovenized OSC.) Yes No Yes Yes Yes Star/Mesh Ready No No Option Yes Yes Adaptive Coding & Modulation No Yes (Q4 2006) Yes (Q4 2006) Yes (Q4 2006) Yes (Q4 2006) Data Compression No No Yes Yes Yes Internal Pow er Supply No No No Yes No 48 Volt Option - Supports higher pow er BUCs (up to 10W) No No No Yes Only w ith iConnex-R version Internal Fans No No No Yes No Ambient Temperature Range 0-50C 0-50° C 0-50° C 0-60° C Customer specific Processor Speed (Mhz) 80 266 533 533 533 SDRAM (MB) 16 64 128 128 128 Flash (MB) 8 16 32 32 32 Rack Mount Optional Kit Required Optional Kit Required Optional Kit Required Yes NA Rack Mount Space 2U 2U 2U 1U NA Product Comparison Matrix iDirect Technologies Proprietary and Confidential Rev B 8/11/2005
33 iDirect Proprietary & Confidential Building an IP Business with iDirect iDirect 5IF Hub Chassis iDirect's Broadband VSAT Solution Allows One to Scale the Business in a Very Cost-Effective Manner Spare Ku-Band Shared Network Ku-Band Star Topology Star Connection Spare C-Band Shared Network Star and Star Mesh C-Band Star and Mesh Topology Mesh Connection Spare Ku-Band Private Network on Satellite 3 Private Network SCPC Connection SCPC Remotes
34 iDirect Proprietary & Confidential The iDirect Broadband VSAT Solution Lower Operating Cost with Single Hub ● Up to 5 satellites from same hub ● Up to 20 transponders from same hub ● Up to 20 networks on same hub – VPNs and Private Networks ● Global and hemi-beams, cross-strapping ● More IP bits/Hertz space segment ● Network scalability: From 10s to 1000s remote sites ● Address all Broadband VSAT markets  Star  Star/Mesh  iSCPC ● IP QoS ● Virtual Network Operator  Secure  Mobile

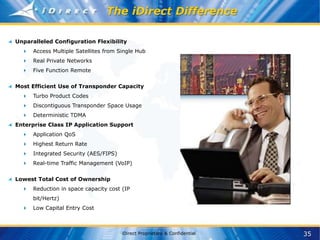

35 iDirect Proprietary & Confidential The iDirect Difference Unparalleled Configuration Flexibility Access Multiple Satellites from Single Hub Real Private Networks Five Function Remote Most Efficient Use of Transponder Capacity Turbo Product Codes Discontiguous Transponder Space Usage Deterministic TDMA Enterprise Class IP Application Support Application QoS Highest Return Rate Integrated Security (AES/FIPS) Real-time Traffic Management (VoIP) Lowest Total Cost of Ownership Reduction in space capacity cost (IP bit/Hertz) Low Capital Entry Cost
iDirect Proprietary & Confidential iDirect iNFINITI Global Network Management System
37 iDirect Proprietary & Confidential iNFINITI Global NMS Industry Leading Global NMS ● Industry-first global IP service provisioning and management Industry-first integrated management of all network topologies ● Star, star/mesh, multi-star, iSCPC, mobile Integrated Features Management ● Full control end-to-end of IP and Satcom network layers Central management and simplicity allows better customer service and support, and lower operations costs ● Centrally manages and monitors all satellite routers: Software updates and configurations
38 iDirect Proprietary & Confidential iNFINITI Global NMS Internet/ Leased Line/MPLS iDirect Broadband VSAT Hub C or Ku-Band Satellite Thousands of remote sites can be controlled by a single NMS platform
39 iDirect Proprietary & Confidential Internet/ Leased Line/MPLS Multiple NMS systems can be managed by a single centrally located system iNFINITI Global NMS
40 iDirect Proprietary & Confidential iNFINITI Global NMS - Details Use the same Global NMS for all networks ● Global and regional GUI Enhancements to Ease Management and Monitoring ● Specific NMS features geared toward global networks All Network Elements defined in a single NMS Single Remote defined in Multiple Networks ● All instances together constitute a single “Roaming Remote” Remote may Freely Roam between Networks ● Same or different Protocol Processors ● Same or different Teleports ● Same or different Satellites/Transponders Remote’s On-Board Configuration contains All Network Configurations Global NMS available in iDS Release 7.0
41 iDirect Proprietary & Confidential NMS Architecture Realtime Network Data Configuration, Firmware Updates Remote Networks Monitor Monitor, Control And Report Linux Back-End Config Database Realtime Archive Server Suite Configure And Control Remote User iMonitor NOC Statio n iBuilder NOC Statio n iMonitor

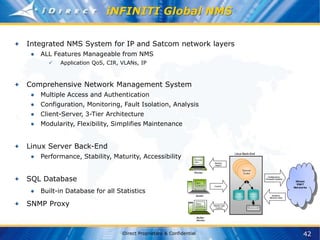

42 iDirect Proprietary & Confidential iNFINITI Global NMS Integrated NMS System for IP and Satcom network layers ● ALL Features Manageable from NMS  Application QoS, CIR, VLANs, IP Comprehensive Network Management System ● Multiple Access and Authentication ● Configuration, Monitoring, Fault Isolation, Analysis ● Client-Server, 3-Tier Architecture ● Modularity, Flexibility, Simplifies Maintenance Linux Server Back-End ● Performance, Stability, Maturity, Accessibility SQL Database ● Built-in Database for all Statistics SNMP Proxy Linux Back-End Server Server Suite Suite Realtime Network Data Configuration, Firmware Updates iDirect VSAT Networks iDirect VSAT Networks Monitor, Report Monitor and Control Config Database Realtime Archive Archive Consolidation Control Remote User iMonitor NOC Station iBuilder NOC Station iBuilder iMonitor Linux Back-End Server Server Suite Suite Server Server Suite Suite Realtime Network Data Configuration, Firmware Updates iDirect VSAT Networks iDirect VSAT Networks Monitor, Report Monitor and Control Config Database Realtime Archive Archive Consolidation Archive Consolidation Control Remote User iMonitor Remote User iMonitor NOC Station iBuilder NOC Station iBuilder NOC Station iBuilder iMonitor NOC Station iBuilder iMonitor
43 iDirect Proprietary & Confidential iBuilder Screen Shots Major Network Components Accessed Through Tree View Template Based Configurations Intuitive & Information Rich Data Entry Forms
44 iDirect Proprietary & Confidential iMonitor Screen Shots IP Activity by Protocol Historical Data Inroute Slot Allocation Before/After Rate Shaping
45 iDirect Proprietary & Confidential iCNM iDirect Customer Network Monitor
iDirect Proprietary & Confidential iDirect iNFINITI: Addressing Satellite Network Challenges
47 iDirect Proprietary & Confidential iDirect iNFINITI: Addressing Satellite Network Challenges Satellite network bandwidth (space segment) is limited and costly Satellite network latency - round trip delay of 480-520msec Eavesdropping Managing Bandwidth Managing Delay Encryption
48 iDirect Proprietary & Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link

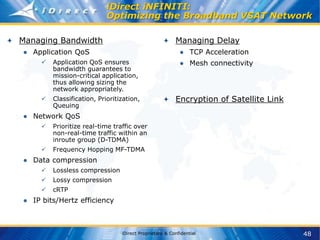

49 iDirect Proprietary & Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
50 iDirect Proprietary & Confidential Remote Site Configuration • Satellite Modem • IP Router • Application QoS • TCP Accelerator • Encryption VSAT Antenna L-Band IFL iNFINITI Satellite Router 10/100 Ethernet 10/100Mbps Ethernet Switch Users PCs VoIP Phones Remote LAN Remote Terminal Video Network Operator Simple Deployment… • Integrated, single box solution • Standard IP/Ethernet Connection to LAN • No power needed at VSAT Antenna • Centrally Managed
51 iDirect Proprietary & Confidential iDirect iNFINITI Real Time Traffic Management Hub NM-1 Outroute Inroute 1 2 5 75 NM-1 6 cRTP reduces overall bandwidth required QoS identifies, classifies and prioritizes traffic * 1 SAR, Fragments and Interleaves to ensure proper dequeuing * 2 Feathering of Timeslots minimizes jitter affects * 4 CIR (Static or Dynamic, application Triggered) * 3 5 Network QoS Ensures proper priority across shared medium * 7 QoS, SAR, CIR on the outroute
52 iDirect Proprietary & Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
53 iDirect Proprietary & Confidential Multiple Inbounds per Outbound Remotes TDM Downstream TDMA Upstream Remotes Remotes Remotes Hub
54 iDirect Proprietary & Confidential Frequency Hopping – MF-TDMA Group 1 Remotes TDM Downstream Fast Hopping MF-TDMA 512 Kbps 512 Kbps 2 Mbps Group 2 Remotes 2 Mbps Inroute Group 1 Inroute Group 2 Bandwidth Demand Analysed and Allocated every TDMA frame “Fast” frequency hopping, on a burst-by-burst basis Remotes can be configured with Min. CIR, Max. Rate, and Dynamic CIR Application Triggered Dynamic CIR ensures high bandwidth efficiency Hub
55 iDirect Proprietary & Confidential Frequency Hopping – MF-TDMA TDMA Time Time Time Time Frequency 1-100 101-200 201-300 MF-TDMA 1-300 101 151 151 185 185 Each inroute serves a subset of VSATs Inroute group bandwidth available to all VSATs 1 51 51 85 85 201 251 251 285 285 101 151 185 1 51 85 201 251 285 151 185 285 85
56 iDirect Proprietary & Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
57 iDirect Proprietary & Confidential Why Compression? One of the greatest challenges of broadband satellite service is the cost of space capacity on service provider networks. This challenge continues to intensify as more users around the globe utilize satellite as their primary means of Internet access. Bandwidth costs have a significant impact on the cost structure of satellite service providers. They also have a direct impact on a service provider’s ability to compete effectively in the market. The key to accomplishing this balance is through the efficient utilization of available bandwidth.
58 iDirect Proprietary & Confidential Lossy versus Lossless Compression Lossless and lossy compression are terms that describe whether or not, in the compression of a file, all original data can be recovered when the file is uncompressed. With lossless compression, every single bit of data that was originally in the file remains after the file is uncompressed. All of the information is completely restored. ● TCP Payload Compression Lossy compression is a form of data reduction. It permanently eliminates unnecessary data in static images coming from the Internet. Lossy compression reduces the resolution of JPEG images coming from the Internet, but it does so in a way that end users cannot detect the differences between compressed and uncompressed images. ● iDirect Compression and Acceleration Server iCAS
59 iDirect Proprietary & Confidential TCP Payload Compression The TCP Payload Compression feature provides increased bandwidth for TCP streams on both the upstream and downstream channels in periods of channel congestion. ● Uses zlib, an open source compression library ● When turned on, compression is activated for both upstream and downstream for the specific remote ● Compression is activated dynamically in times of congestion. If no congestion is present, data passes through the compression layer unchanged TCP Payload Compression will be available on 5xxx and 7xxx iNFINITI remotes with iDS 7.0

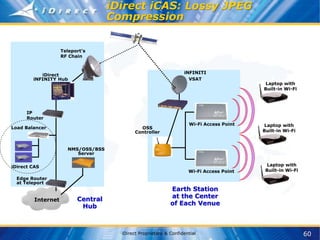

60 iDirect Proprietary & Confidential iDirect iCAS: Lossy JPEG Compression IP Router iDirect iNFINITY Hub Internet Central Hub Teleport’s RF Chain Earth Station at the Center of Each Venue iNFINITI VSAT Wi-Fi Access Point NMS/OSS/BSS Server OSS Controller Wi-Fi Access Point Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi iDirect CAS Load Balancer Edge Router at Teleport

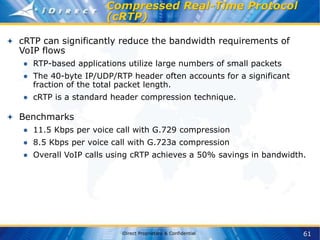

61 iDirect Proprietary & Confidential Compressed Real-Time Protocol (cRTP) cRTP can significantly reduce the bandwidth requirements of VoIP flows ● RTP-based applications utilize large numbers of small packets ● The 40-byte IP/UDP/RTP header often accounts for a significant fraction of the total packet length. ● cRTP is a standard header compression technique. Benchmarks ● 11.5 Kbps per voice call with G.729 compression ● 8.5 Kbps per voice call with G.723a compression ● Overall VoIP calls using cRTP achieves a 50% savings in bandwidth.
62 iDirect Proprietary & Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
63 iDirect Proprietary & Confidential IP bits/Hertz Efficiency Symbol Rate Mod BPSK QPSK 8PSK Transmission Rate FEC Information Rate TDM Overhead IP Data Rate Or User Data Rate Guard Band Mhz Outroute Symbol Rate Mod Transmission Rate FEC Information Rate TDMA Overhead IP Data Rate Or User Data Rate Guard Band Mhz Inroute Throughput Rates: How do they relate? BPSK QPSK 8PSK D-TDMA TPC TPC 1.2 1.2

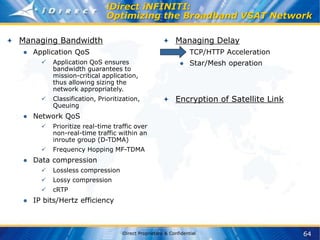

64 iDirect Proprietary & Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP/HTTP Acceleration ● Star/Mesh operation Encryption of Satellite Link
65 iDirect Proprietary & Confidential TCP Acceleration Impact of Satellite Delay ● TCP is “window” driven to prevent receiver saturation ● Uses a “slow start” concept to reduce congestion - therefore takes time to build up to full capacity ● Reacts to network congestion by throttling back if sender detects lost packets ● Will confuse occasional lost packets with congestion - therefore can over react to bit error loses

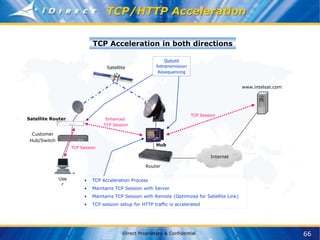

66 iDirect Proprietary & Confidential TCP/HTTP Acceleration Satellite Router Hub www.intelsat.com Customer Hub/Switch Satellite Router Use r • TCP Acceleration Process • Maintains TCP Session with Server • Maintains TCP Session with Remote (Optimized for Satellite Link) • TCP session setup for HTTP traffic is accelerated Enhanced TCP Session TCP Session Queues Retransmission Resequencing TCP Session Internet TCP Acceleration in both directions
67 iDirect Proprietary & Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP/HTTP Acceleration ● Star/Mesh operation Encryption of Satellite Link
68 iDirect Proprietary & Confidential iDirect Star Topology Hub Remotes Downstream 64K – 18 M Upstream 64K – 4 M Remotes Remotes Remotes

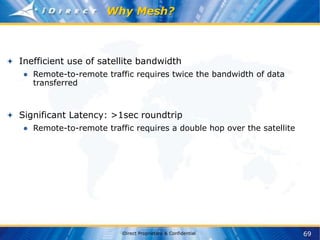

69 iDirect Proprietary & Confidential Why Mesh? Inefficient use of satellite bandwidth ● Remote-to-remote traffic requires twice the bandwidth of data transferred Significant Latency: >1sec roundtrip ● Remote-to-remote traffic requires a double hop over the satellite
70 iDirect Proprietary & Confidential High Level Mesh Architecture Backbone / Internet Enterprise HQ Hub TDM Downstream Remote B MF-TDMA Upstreams Remote A Mesh Connection Star Connection Star TDM Downstream and Mesh Control Generally required for Single Hop Voice and Video
71 iDirect Proprietary & Confidential Hub R R R Star Communications and Control Mesh Control Remote Terminals with TDMA Transmit (Star/Mesh) TDM Receive (Star) TDMA Receive (Mesh) TDMA Carriers for Star Return and Mesh Traffic with MF-TDMA and D-TDMA TDM Forward Channel TDMA Mesh Architecture

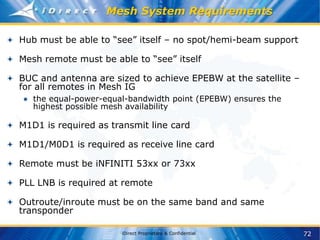

72 iDirect Proprietary & Confidential Mesh System Requirements Hub must be able to “see” itself – no spot/hemi-beam support Mesh remote must be able to “see” itself BUC and antenna are sized to achieve EPEBW at the satellite – for all remotes in Mesh IG ● the equal-power-equal-bandwidth point (EPEBW) ensures the highest possible mesh availability M1D1 is required as transmit line card M1D1/M0D1 is required as receive line card Remote must be iNFINITI 53xx or 73xx PLL LNB is required at remote Outroute/inroute must be on the same band and same transponder
73 iDirect Proprietary & Confidential Star/Mesh Network Design Benefiting from the Star Topology ● The hub maintains tight control of transmissions to and from remotes ● A common network management system is provided through the hub station ● Information transfer is optimized for star topology information networks, such as those maintained by centralized corporations and service/content providers -> the majority of data traffic still takes the star route
74 iDirect Proprietary & Confidential Star/Mesh RF Network Design RF design for mesh operation ● With Star topology, the RF design of the return link can be arranged to minimize dish size and transmit power at the remote VSAT. The resulting weak carrier signals can be received by the larger diameter hub station antenna; VSAT (very small aperture terminal) is the remote Earth station in the star network architecture ● With Mesh design, the VSATs need to be dimensioned appropriately to allow remote-to-remote mesh connectivity Link Budget Implications ● Generally 25% of standard Star throughput  If Star LBA is 2 Mbps, then Mesh would be about 512 kbps ● Network Design Implications  Additional Overhead involved (2 bytes + SAR)
75 iDirect Proprietary & Confidential Sample Link Budget Horizons 1 (127W) – Star and Mesh Ku-band VSAT Sizing - QPSK Assumptions 1. Transponder specific values  SFD -95 dBW/m2 (0 G/T and 0 dB attn)  Attn 10 dB  IBO/OBO 6/3 dB  BW 36 MHz 2. Availability 99.75% 3. Hub 6.1M in Silver Spring, MD VSAT Sizing Forwar d Link Return Link Ant (m) HPA (W) Trans- ponder Usage Star Mesh Max Info Rate / IP Data (kbps) Max Info Rate / IP Data (kbps) 0.793 TPC 0.66 TPC 0.66 TPC 0.793 TPC 1.2 2 BW Limited 675/524 150/115 175/150 4 1350/1050 300/230 350/300 1.8 2 BW Limited 1550/1220 325/250 400/350 4 3100/2440 650/500 800/700 Hub VSAT G/T (dB/K) 5 2 EIRP (dBW) 50 47
76 iDirect Proprietary & Confidential Star/Mesh Operation Star/Mesh is basically an overlay model, and will be tuned in iDS release 7.0 towards VTC and VoIP (UDP) traffic. The mesh traffic can be triggered on a service level basis. For a VoIP call, this means that a remote will send voice signaling (TCP) over a star (remote to hub) topology and RTP/cRTP traffic (UDP) via a direct remote-to-remote meshing.

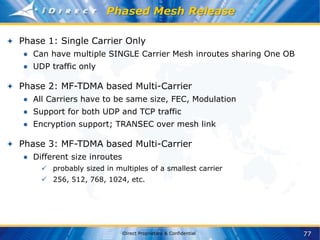

77 iDirect Proprietary & Confidential Phased Mesh Release Phase 1: Single Carrier Only ● Can have multiple SINGLE Carrier Mesh inroutes sharing One OB ● UDP traffic only Phase 2: MF-TDMA based Multi-Carrier ● All Carriers have to be same size, FEC, Modulation ● Support for both UDP and TCP traffic ● Encryption support; TRANSEC over mesh link Phase 3: MF-TDMA based Multi-Carrier ● Different size inroutes  probably sized in multiples of a smallest carrier  256, 512, 768, 1024, etc.

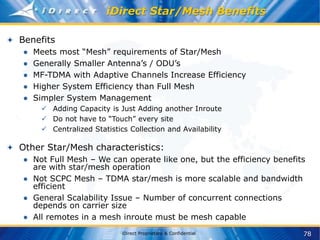

78 iDirect Proprietary & Confidential iDirect Star/Mesh Benefits Benefits ● Meets most “Mesh” requirements of Star/Mesh ● Generally Smaller Antenna’s / ODU’s ● MF-TDMA with Adaptive Channels Increase Efficiency ● Higher System Efficiency than Full Mesh ● Simpler System Management  Adding Capacity is Just Adding another Inroute  Do not have to “Touch” every site  Centralized Statistics Collection and Availability Other Star/Mesh characteristics: ● Not Full Mesh – We can operate like one, but the efficiency benefits are with star/mesh operation ● Not SCPC Mesh – TDMA star/mesh is more scalable and bandwidth efficient ● General Scalability Issue – Number of concurrent connections depends on carrier size ● All remotes in a mesh inroute must be mesh capable
79 iDirect Proprietary & Confidential Broadband VSAT Network Optimization Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
80 iDirect Proprietary & Confidential Remote Site Headquarters LAN/WAN IP Router Satellite Router Hub IP Router Internet Secure VPN 3DES Link Encryption Enterprise Security without Affecting Performance Retains the Benefits of TCP Acceleration and QoS AES Link Encryption Security TCP Acceleration Application QoS Remote Site Satellite Router Encrypted Line Unencrypted Line
81 iDirect Proprietary & Confidential Remote Site iDirect Satellite Router Hub Corporate Standard Link Encryption Use Enterprise Specified Security/Encryption Devices Data Security without Affecting Performance Retains the Benefits of TCP Acceleration and QoS External Encryption Architecture Enterprise Specified Secure Link External Encryption iDirect NA Data Accelerator Application QoS External Encryption iDirect NA Data Accelerator Application QoS Headquarters
iDirect Proprietary & Confidential iDirect iSCPC
83 iDirect Proprietary & Confidential SCPC vs. iSCPC SCPC ● Single Channel per Carrier (SCPC)  One physical modem at each site for each link at that site ● No TDMA overhead  TDMA overhead typically takes 20% to 40% of gross kbps after error correction  SCPC overhead typically takes 2.5% of gross kbps after error correction iSCPC is like SCPC except… ● iSCPC is a term invented by iDirect. It is not standard industry jargon. ● iSCPC interfaces only with IP. It has no clear channel mode. ● iSCPC includes built-in networking and applications layer software:  TCP acceleration for links with long latency  Built-in Application QoS  IP Router with multiple routing policy alternatives
84 iDirect Proprietary & Confidential iDirect iSCPC Features Data Rate – 64Kbps to 18 Mbps IP Only Feature Rich Router ● Application QoS/Prioritization (Classed Based Queuing) ● TCP/Web Acceleration ● RIP v2 or Static Routes ● Local DNS Cache ● NAT ● DHCP/DHCP Helper ● cRTP ● AES/3DES Link Encryption (Optional) GUI Based Management – iSite and iNMS (iDS 7.0) Same Remote Satellite Router Hardware Platform as Star or Star/Mesh ● Reduces Sparing ● Reduces Training Requirement ● Flexibility to use as either TDMA or SCPC (Configuration Change Only) iDirect iSCPC IDU iDirect iSCPC IDU
85 iDirect Proprietary & Confidential iSCPC Performance Limits Simplex (Multicast and UDP Only) or Duplex Mode Can be Symmetric or Asymmetric QPSK is the Currently Available Modulation (Jan 06) BPSK (& possibly 8PSK) will be available with iDS 7.0 Various FEC options available – 0.879, 0.793, 0.533, 0.495, 0.431 Tested Performance (5150) as of Release 6.0.9 ● 1500 Byte Packet Size (UDP)  One Direct Traffic – 16 Mbps  Both Directions Traffic – 20 Mbps Total ● 512 Byte Packet Size (UDP)  One Direct Traffic – 6 Mbps  Both Directions Traffic – 8 Mbps Total
86 iDirect Proprietary & Confidential iSite iSCPC Configuration Full Configuration Support For: Modem Parameters IP Configuration (Including VLANs) QoS Comparing Active/Latest Configuration Also Supports all Pointing/Commissioning Tools In iSCPC Mode
iDirect Proprietary & Confidential The iDirect Virtual Network Operator
88 iDirect Proprietary & Confidential How can we reduce Cost and Complexity of Service Provisioning? Virtual Network Operator (VNO) model ● A VNO is not a virtual operator ● Virtual Network = virtual assets Ecosystem between Host Network Operator (HNO) and Virtual Network Operator (VNO) The VNO has full control over IP Service Provisioning & Delivery including IP Routing and IP QoS/SLA without the cost and complexity of building and maintaining a VSAT or even a terrestrial IP infrastructure
89 iDirect Proprietary & Confidential Virtual Network Operator Model HNO provides / VNO leases: ● Space segment ● Hub, teleport and co-location facilities ● Internet access ● Commissioning and network management HNO NMS IP Appliance Hub VNO2 VNO NMS IP Appliance NMS Client NMS Client VNO1 VNO NMS IP Appliance Internet

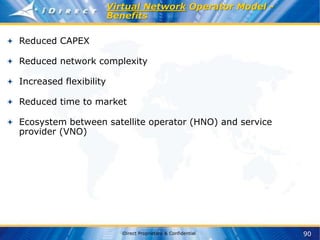

90 iDirect Proprietary & Confidential Virtual Network Operator Model - Benefits Reduced CAPEX Reduced network complexity Increased flexibility Reduced time to market Ecosystem between satellite operator (HNO) and service provider (VNO)
91 iDirect Proprietary & Confidential Virtual Network Operator Virtual Network Operator Provides Hub, Teleport & Space Segment Commissions Remotes Provisions Services iNFINITY Broadband VSAT Solution Service & Support Host Network Operator
92 iDirect Proprietary & Confidential Virtual Network Operator Virtual Network Operator Provides Hub Chassis & Facilities Manages RF & Baseband Chain Provides Space Segment, Co-Lo, Uplink Connectivity to VNO NMS Clients Provides Level-1 Technical Support Gets VNO Package from HNO ● Line Card, VNO Client NMS ● Protocol Processor & NMS Server Manages Remotes ● Commissioning, Configurations ● IP QOS Settings, IP Routing Issues iNFINITY Broadband VSAT Solution Service & Support Host Network Operator
iDirect Proprietary & Confidential iNFINITI-Based Broadband VSAT Service Architecture

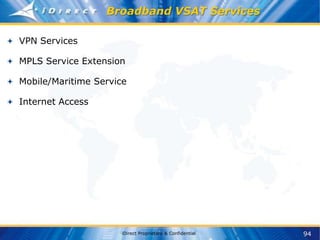

94 iDirect Proprietary & Confidential Broadband VSAT Services VPN Services MPLS Service Extension Mobile/Maritime Service Internet Access
95 iDirect Proprietary & Confidential VPN Service: End-to-End VLANs (802.1p/Q) VLAN 31 VLAN 22 VLAN n IP over Ethernet Remote 2 Remote 4 VLAN 22 IP over Ethernet Remote 3 VLAN 31 VLAN n VLAN 31 VLAN n Remote 1 10.0.1.0/24 10.0.2.0/24 66.0.2.0/24 66.0.9.0/24 10.0.1.0/24 66.0.1.17/28 IP over Ethernet 66.0.1.0/28 Remote 3 Remote 1 Remote 3 Remote 2 Remote 1 Remote 3 66.0.1.0/28 66.0.2.0/24 66.0.9.0/24 VLAN n 10.0.1.0/24 VLAN 22 10.0.1.0/24 10.0.2.0/24 VLAN 31 Remote 4 66.0.1.17/28 • Private Networks • Map to MPLS/ATM/Leased Lines • Closed User Groups • Overlapping Private Addressing • QoS Per VLAN Hub Router IP/MPLS Leased Lines Internet/ VPN
96 iDirect Proprietary & Confidential MPLS Service Extension Extending MPLS VPNs and MPLS QoS ● MPLS VPN to 802.1Q VLAN mapping ● MPLS QoS to 802.1p/DiffServ/ToS ● mapping • iDirect Network MPLS Network Site A1 Site A2 Site B2 HQ-A Router with MPLS Connectivity to MPLS Backbone HQ-B Site B1 PE VLAN 802.1p DiffServ TOS VLAN 802.1p DiffServ TOS
97 iDirect Proprietary & Confidential Remote Site Satellite Router Hub Corporate Standard Link Encryption Use Enterprise Specified Security/Encryption Devices Data Security without Affecting Performance Retains the Benefits of TCP Acceleration and QoS VPN Service: External Encryption Architecture Enterprise Specified Secure Link External Encryption Network Accelerator with Application QoS External Encryption Headquarters Network Accelerator with Application QoS
98 iDirect Proprietary & Confidential Mobile/Maritime Service Applications: Moving trucks, ships, SNG Solution requires a stabilized antenna platform; auto-pointing antenna integration Lat/Long information provided through GPS Hub maintains connectivity with remote as it moves ● Timing Offsets, Frame Start Delay, etc. Automatic beam switch-over, based on ● Geographic location ● Beam availability and quality Backup Teleport/Network Global NMS
99 iDirect Proprietary & Confidential Internet Access: Integrated Turnkey Wireless MAN IP Router Internet Compression Server Central Hub OSS/BSS Server Earth Station at the Center of Each City Satellite Router+ VSAT Long Range Wi-Fi Access Point PC Wi-Fi CPE Ethernet OSS/BSS Controller Broadband Hub
100 iDirect Proprietary & Confidential iDirect iNFINITI Broadband VSAT Networks fulfill the growing demand of corporations and organizations for Broadband IP anywhere
iDirect Proprietary & Confidential Real-Time Traffic Management Details
102 iDirect Proprietary & Confidential Managing Application QoS Application QoS - Enables real-time classification, and prioritization of data traffic Traffic classification & prioritization can be performed using ● Source and/or Destination IP Address ● Source and/or Destination IP Subnet ● Source and/or Destination Port Number ● Source and/or Destination Port Range ● Diffserv and ToS Bits ● VLAN ID ● Protocol (TCP, UDP, HTTP, ICMP, IGMP) Configurable Queue Lengths For Each Service Level A percentage of bandwidth assigned to each service level Configurable drop policy Traffic can be rate limited in both directions LAN Traffic Service Queues Satellite Network RTTM Slide
103 iDirect Proprietary & Confidential SAR – Segmentation and Reassembly Dequeue 2 3 4 5 i j 1 RF Out QoS Distributor VoIP Packets (60 Byte) FTP Packets (1500 Byte) Dequeue RF Out QoS Distributor VoIP Packets (60 Byte) FTP Packets (1500 Byte) SAR 5 6 4 4 4 4 3 3 3 3 2 2 2 2 f g h i j k a b c d e 1 1 1 1 a b c d e f g h 1 a b The Large FTP Packet will delay voice in a congested state 1 a b c As packets are divided into equal sized packets, a voice packet has to wait a maximum of one burst. d 1 Packet Arrival Time RTTM Slide
104 iDirect Proprietary & Confidential Static CIR & Dynamic CIR Static CIR  Committed to Site even if it is not used Dynamic CIR  Allocated to a remote only when traffic present  < 1 sec allocation time  Allocation may be triggered by an Application R1 CIR Shared Pool Bandwidth Allocated to R1 even if there is no traffic at Remote R1 Shared Pool R1 Shared Pool Data Traffic Bandwidth Allocated to R1 in best effort manner R1 Shared Pool CIR CIR Bandwidth Allocated to R1 since Application Triggered Dynamic CIR Voice Traffic RTTM Slide
105 iDirect Proprietary & Confidential 2 3 4 5 6 7 8 9 10 11 75 12 13 14 R1 1 Frame 1 Frame 2 Frame 3 VoIP Packets VoIP Packets VoIP Packets Delay Frame 1 Frame 2 Frame 3 VoIP Packets VoIP Packets VoIP Packets Delay Delay Significant variation in delay causes jitter. Minimal variation in delay significantly reduces jitter. Bandwidth allocated to R1 Timeslot Feathering Allocation RTTM Slide
106 iDirect Proprietary & Confidential Network QoS Network QoS ● Prioritize real-time traffic over non-real-time traffic across shared satellite bandwidth ● Allocate traffic demand for each remote appropriately rt - Real-time Traffic (e.g. VoIP) nrt - Non-Real-time Traffic (e.g. FTP) Network Inroute 1 Inroute 2 Inroute 3 Inroute 4 rt nrt rt nrt rt nrt rt nrt Prioritization Prevents non real time traffic from one remote impacting Real Time Traffic on a different and unrelated remote RTTM Slide
iDirect Proprietary & Confidential End of Presentation
iDirect Proprietary & Confidential Broadband VSAT Networks
109 iDirect Proprietary & Confidential Broadband VSAT Networks: IP Convergence IP is dominant Protocol Data is the dominant application Internet traffic continues growth at a fast pace Network Convergence for data, voice, video ● CAPEX savings: Single platform for all network services ● OPEX savings: Simplified network operation, management and maintenance
110 iDirect Proprietary & Confidential Broadband VSAT Networks: Satellite vs. Terrestrial Pro Satellite ● Geographical coverage unsurpassed  Can access any remote location  Uniform service characteristics ● Extremely reliable (>99.9% up time) ● Extremely reliable data broadcast or multicast ● Single vendor typically ● Easy remote site deployment ● Supports multiple applications  Streaming video & audio applications  Data applications  Voice applications; Voice over IP
111 iDirect Proprietary & Confidential Broadband VSAT Networks: Satellite vs. Terrestrial Pro Satellite (cont.) ● Ideally suited for point-to-multipoint and large distributed networks ● Capable of asymmetric bandwidth ● A single point of management allows for easier traffic analysis/management ● Operational low Bit Error Rate; typically >10-9 ● Capable of simultaneous delivery of data to an unlimited number of remotes ● Independence from typical telephone infrastructure ● Private network capabilities ● Mobile/wireless communication, independent of location
112 iDirect Proprietary & Confidential Broadband VSAT Networks: Satellite vs. Terrestrial Contra Satellite ● Space segment cost ● Propagation Delay (double hop = 0.5 s) ● Eavesdropping
iDirect Proprietary & Confidential Misc. Slides
114 iDirect Proprietary & Confidential Competitive Solution vs. iDirect Typical Remote Site Implementation VoIP Server Desktops Packeteer QoS/Prioritization Mentat TCP Acceleration Cisco IP Router Non-iDirect Satellite Modem 70 Mhz – Ku Up-Converter 70 Mhz – Ku Down-Converter 70 Mhz Ku-Band Complex, Expensive, Multiple Points of Failure, Difficult to Manage, Support Simple, Integrated, Full-featured, Cost Effective Customer Value Slide Ku-Band L-Band iDirect TCP/Web Acceleration QoS/Prioritization 3DES Encryption IP Router Satellite Modem Up-Converter LNB
115 iDirect Proprietary & Confidential iDS Software IP Routing Software ● RIPv2 ● Static Routes Performance Enhancement ● TCP Acceleration, HTTP Acceleration, RTTM Feature Set IP Features ● DNS Caching ● DHCP and DHCP Helper ● NAT (PAT) Quality of Service and Filtering ● System QoS - Rate Limits, CIR (Dynamic & Static), Minimum CIR ● Application QoS - Class Based Weight Fair Queuing ● Filters – Access Control Lists Layer 2 Features ● 802.1q VLANs ● 802.1p Priority Bits ● MTU Auto-discovery Integrated with TCP Acceleration Security ● 3DES Encryption (Optional) ● FIPS Certified Version (Optional) ● Hub Authentication Satcom ● Mobile Mode ● Turbo Product Codes FEC ● L-Band (Ku/C/Ka) ● Interface to Integrate with Auto- pointing Antenna’s ● TVRO Port ● Automatic Uplink Power Control ● TDMA, Mesh and SCPC Management ● Centralized Management ● Over the air upgrades ● Configuration Backup
116 iDirect Proprietary & Confidential iDirect TPC vs. RSV Downstream BER Performance 1.E-12 1.E-11 1.E-10 1.E-09 1.E-08 1.E-07 1.E-06 1.E-05 1.E-04 1.E-03 1.E-02 1.E-01 1.E+00 0 1 2 3 4 5 6 7 8 9 Eb/No BER Standard Network Operating Range Shannon Limit Other RSV iDirect RSV requires 1.5 dB incremental power to provide the same level of service. At 5dB Eb/No 1/100 bits lost 1/100,000,000 bits lost iDirect Other RSV Customer Value Slide
117 iDirect Proprietary & Confidential Typical DVB Implementation (1 network) Vs. iDirect IP Implementation (Up to 20 Networks) QoS/Prioritization Satellite Modem DVB Encapsulator Real Time NMS Non-Real Time NMS Net Enforcer Server Demodulators Router Up/Down Converter Modulator LAN Switches iDirect Hub w/Universal Line Cards NMS Server Protocol Processor LAN Switch Typical DVB Hub Typical iDirect Hub Demodulators iDirect Hub Slide
118 iDirect Proprietary & Confidential Configuration Flexibility Hub Router Small Remote Site 512 kbps / 128 Kbps 1 Mbps / 256 Kbps 2 Mbps / 512 Kbps With 32 kbps CIR Router Medium Remote Site Router Large Remote Site • Each remote can be configured with a different bandwidth • Per remote bandwidth increase through configuration • Configure CIRs, Minimum and Maximum Rates • MF-TDMA provides efficient Bandwidth usage
iDirect Proprietary & Confidential Thank You

More Related Content

PPT
Adhoc and Sensor Networks - Chapter 05
byAli Habeeb

PDF
Cellular Communication Report
byPrashant Gajendra

PDF
Carrier Ethernet - What and Why
byAnuradha Udunuwara

PPT
ASIC design Flow (Digital Design)
bySudhanshu Janwadkar

PPTX
Semiconductors
byHomeworkAssignmentHe

PDF
Implications of super channels on CDC ROADM architectures
byAnuj Malik

PDF
Latchup latchup
bychenna_kesava

PPTX
Asic design
byAksum Institute of Technology(AIT, @Letsgo)

Adhoc and Sensor Networks - Chapter 05
byAli Habeeb

Cellular Communication Report
byPrashant Gajendra

Carrier Ethernet - What and Why
byAnuradha Udunuwara

ASIC design Flow (Digital Design)
bySudhanshu Janwadkar

Semiconductors
byHomeworkAssignmentHe

Implications of super channels on CDC ROADM architectures
byAnuj Malik

Latchup latchup
bychenna_kesava

Asic design
byAksum Institute of Technology(AIT, @Letsgo)


What's hot

PPTX
Extreme fabric connect
byMUK Extreme

PPTX
4G - LTE
byRahul Ghai

PDF
ZTE BTS Manual
byibrahimnabil17

DOCX
Report on 4G - LTE
byRahul Ghai

PDF
PresenWide Bandgap Semiconductor Materials for Improved Performance Microwave...
byRealsim, Fanavaran Sharif

PDF
Clock Tree Timing 101
bySilicon Labs

PDF
ROADM Technologies for Flexible - Tbitsec Optical Networks
byCPqD

PPT
GPRS
byDeniz Kılınç

PDF
BGP Large Communities in IXPs
byAPNIC

PPTX
ASIC Design Flow | Physical Design | VLSI
byJayant Suthar

PPT
Non Linear Effects in Fiber Optic Systems
byAtul Nanal

PPT
Bgp
byFebrian ‎

PPT
WDM Basics
byTarig Elamin

DOCX
Vlsi interview questions compilation
byRajesh M

PPTX
Microblaze
byKrunal Siddhapathak

PDF
IOS Cisco - Cheat sheets
byAlejandro Marin

PPTX
Placement in VLSI Design
byTeam-VLSI-ITMU

PPT
Free space optics by Mayank Awasthi
bymayankawasthi31

PPTX
Basics of DWDM Technology
byPankaj Lahariya

PDF
Solusi Tugas Studi Kasus IPTables Three-Legged Network Firewall
byI Putu Hariyadi

Extreme fabric connect
byMUK Extreme

4G - LTE
byRahul Ghai

ZTE BTS Manual
byibrahimnabil17

Report on 4G - LTE
byRahul Ghai

PresenWide Bandgap Semiconductor Materials for Improved Performance Microwave...
byRealsim, Fanavaran Sharif

Clock Tree Timing 101
bySilicon Labs

ROADM Technologies for Flexible - Tbitsec Optical Networks
byCPqD

GPRS
byDeniz Kılınç

BGP Large Communities in IXPs
byAPNIC

ASIC Design Flow | Physical Design | VLSI
byJayant Suthar

Non Linear Effects in Fiber Optic Systems
byAtul Nanal

Bgp
byFebrian ‎

WDM Basics
byTarig Elamin

Vlsi interview questions compilation
byRajesh M

Microblaze
byKrunal Siddhapathak

IOS Cisco - Cheat sheets
byAlejandro Marin

Placement in VLSI Design
byTeam-VLSI-ITMU

Free space optics by Mayank Awasthi
bymayankawasthi31

Basics of DWDM Technology
byPankaj Lahariya

Solusi Tugas Studi Kasus IPTables Three-Legged Network Firewall
byI Putu Hariyadi


Similar to Network_Operator_presentation.ppt

PPT
Power point network operator overview
byJoshua Cohen

PDF
Newtec Dialog Info Session at IBC2015
byNewtec

PDF
Northtelecom broshur v2 (low res)
byEbrahim Habibi ابراهیم حبیبی

PDF
IP Trunking
byST Engineering iDirect

PDF
Vsat day-2008-idirect
bySSPI Brasil

PDF
Product Sheet iDirect Hub Infrastructure
byST Engineering iDirect

PDF
Enterprise Connectivity
byST Engineering iDirect

PDF
RPAS and Manned Aircraft
byST Engineering iDirect

PDF
iS5 Communications Catalog
byComposite Power Group Inc.

PDF
IoT SCADA
byST Engineering iDirect

PPTX
Satellite Telecom Solutions Asia Pacific (www.suarez.asia)
bySuárez&Co. Consulting

PDF
Military Defense Solutions Overview
byST Engineering iDirect

PDF
The Future of IPTV
byRaymond Monaco

PDF
iDirect's solution for electric ulities
byJoshua Cohen

PDF
Application brief oil_and_gas
byJoshua Cohen

PDF
Morale, Welfare and Recreation
byST Engineering iDirect

PDF
Application brief ip infrastructure_extension
byJoshua Cohen

PPTX
Broad Sky Networks - In-vehicle presentation w Cradlepoint
byMaureen Donovan

PDF
Broadband Access Over Satellite: For Consumer, SOHO and SME
byST Engineering iDirect

PDF
Vsat day-2008-newtec
bySSPI Brasil

Power point network operator overview
byJoshua Cohen

Newtec Dialog Info Session at IBC2015
byNewtec

Northtelecom broshur v2 (low res)
byEbrahim Habibi ابراهیم حبیبی

IP Trunking
byST Engineering iDirect

Vsat day-2008-idirect
bySSPI Brasil

Product Sheet iDirect Hub Infrastructure
byST Engineering iDirect

Enterprise Connectivity
byST Engineering iDirect

RPAS and Manned Aircraft
byST Engineering iDirect

iS5 Communications Catalog
byComposite Power Group Inc.

IoT SCADA
byST Engineering iDirect

Satellite Telecom Solutions Asia Pacific (www.suarez.asia)
bySuárez&Co. Consulting

Military Defense Solutions Overview
byST Engineering iDirect

The Future of IPTV
byRaymond Monaco

iDirect's solution for electric ulities
byJoshua Cohen

Application brief oil_and_gas
byJoshua Cohen

Morale, Welfare and Recreation
byST Engineering iDirect

Application brief ip infrastructure_extension
byJoshua Cohen

Broad Sky Networks - In-vehicle presentation w Cradlepoint
byMaureen Donovan

Broadband Access Over Satellite: For Consumer, SOHO and SME
byST Engineering iDirect

Vsat day-2008-newtec
bySSPI Brasil


Recently uploaded

PPTX
UNIT 1- Introduction to Basic of Computer Fundamentals
bypawarbhaktiit

PPTX
Design Flaws and Known Attacks in Agentic AI - ITI Business Session
byInformation Technology Institute

PDF
Building Voice Agents with Google Agent Development Kit
bySuresh Peiris

PDF
January Patch Tuesday
byIvanti

PDF
XonTel Plus IP-PBX Business Phone System
byXonTel Technology

PDF
6 Insights from the Patron Saint of AI Failure
byScott M. Graffius

PDF
Are AI Hallucinations Getting Better or Worse? We Analyzed the Data.
byScott M. Graffius

PDF
Top 5 Best Dedicated Server Providers in Los Angeles (Updated Edition)
byAtal Networks

PPTX
Oracle SCM Cloud Solutions for Smart Supply Chain Management
byChetu

PDF
Chapter 2 Computer Threat .pdf
byGetnet Tigabie Askale -(GM)

PPTX
Basics-of-Electronics-and-Core-Components-of-IoT-Systems.pptx
byMuhammedNihal54

PDF
Louisville User Group: Transforming Technical Debt into Technical Wealth
byLynda Kane

PDF
Intro to CrafterQ - AI Agent Platform for the Enterprise.pdf
byCrafterQ

PDF
AI Data Analyst: Smarter Insights for Modern Real Estate Decisions
byLeni Analyst

PPTX
On-Device AI with Gemma 3n and PaliGemma 2 Session Slides - GDG VESIT
bygdgcodecellcmpn

PPTX
02_Extended Warehouse Management Functions and Features.pptx
byUdayakumar218983

PPTX
TechSprint Kickoff - Everything You Need to Know
bygdgcodecellcmpn

PPTX
Lecture 04. about Black heads and Hackerss.pptx
byvinocol222

PDF
Early Signs of Constraint Loss in Modern System Design
byReality Drift Archive

PDF
KM World 2025 Enterprises, KM, & Agentic AI
byEnterprise Knowledge

UNIT 1- Introduction to Basic of Computer Fundamentals
bypawarbhaktiit

Design Flaws and Known Attacks in Agentic AI - ITI Business Session
byInformation Technology Institute

Building Voice Agents with Google Agent Development Kit
bySuresh Peiris

January Patch Tuesday
byIvanti

XonTel Plus IP-PBX Business Phone System
byXonTel Technology

6 Insights from the Patron Saint of AI Failure
byScott M. Graffius

Are AI Hallucinations Getting Better or Worse? We Analyzed the Data.
byScott M. Graffius

Top 5 Best Dedicated Server Providers in Los Angeles (Updated Edition)
byAtal Networks

Oracle SCM Cloud Solutions for Smart Supply Chain Management
byChetu

Chapter 2 Computer Threat .pdf
byGetnet Tigabie Askale -(GM)

Basics-of-Electronics-and-Core-Components-of-IoT-Systems.pptx
byMuhammedNihal54

Louisville User Group: Transforming Technical Debt into Technical Wealth
byLynda Kane

Intro to CrafterQ - AI Agent Platform for the Enterprise.pdf
byCrafterQ

AI Data Analyst: Smarter Insights for Modern Real Estate Decisions
byLeni Analyst

On-Device AI with Gemma 3n and PaliGemma 2 Session Slides - GDG VESIT
bygdgcodecellcmpn

02_Extended Warehouse Management Functions and Features.pptx
byUdayakumar218983

TechSprint Kickoff - Everything You Need to Know
bygdgcodecellcmpn

Lecture 04. about Black heads and Hackerss.pptx
byvinocol222

Early Signs of Constraint Loss in Modern System Design
byReality Drift Archive

KM World 2025 Enterprises, KM, & Agentic AI
byEnterprise Knowledge


Network_Operator_presentation.ppt

  • 1.
    iDirect Proprietary &Confidential The iDirect iNFINITI Broadband VSAT Solution Leading IP Convergence over Satellite
  • 2.
    3 iDirect Proprietary &Confidential 754 1,748 7,260 18,894 32,000 54,000 0 10,000 20,000 30,000 40,000 50,000 60,000 2002 2003 2004 2005E 2006E 2007E Units Annual Remote Unit Sales 69 193 418 534 900 1,250 0 200 400 600 800 1,000 1,200 1,400 2002 2003 2004 2005E 2006E 2007E Units Annual Line Card Unit Sales Cumulative Hubs Deployed iDirect Technologies: Establishing a Dominant Position Driving the Satellite Industry IP Revolution  Evolution to IP has started to materialize in the satellite industry as embedded base of legacy VSAT systems are being replaced with next-generation systems  iDirect Driving Revolution – superior technology; does not face the significant hurdles that have historically limited deployment of broadband satellite services  Strong & Growing Market Presence – sold more than half of all broadband satellite hubs sold worldwide in 2005  Market Share Expected To Continue To Increase – vendor of choice due to low cost, high QoS/performance, support of VoIP and streaming video, high security 17 51 128 222 322 422 0 100 200 300 400 500 2002 2003 2004 2005E 2006E 2007E Units
  • 3.
    4 iDirect Proprietary &Confidential Technology Leader  Voice, video and data  Enterprise-class terrestrial broadband service quality and performance  Single hub chassis can access five different satellites vs. one for all competitors  Star, Mesh, Point-to-Point and Hybrid networks  Enables real private networks  Provides unprecedented channel speeds – 8.4Mbps upstream & 18.2Mbps downstream  Supports C, Ku and Ka band transponders with carrier class redundancy  Integrated advanced security, including world’s first FIPS 140-2 certification  Launch of enhanced iNFINITI solution in Q2 2005 World’s Most Advanced Solution Built From the Ground Up To Support IP
  • 4.
    5 iDirect Proprietary &Confidential Feature Rich, Best TCO Solutions Portfolio of Satellite Networking Solutions Specifically Tailored to Meet Customers’ Needs  Complete, Most Feature Rich Solution – remote satellite router encompasses satellite modem, IP router, TCP/HTTP optimization over satellite, QoS/prioritization and encryption in a single network appliance  Ease of Use – Network Management Software offers industry-leading tools for network control, visibility and ease-of-use  Lowest Cost – iDirect’s hub and remote solutions provide a lower cost of ownership – 40-50% higher bandwidth efficiency than competitors
  • 5.
    6 iDirect Proprietary &Confidential 2001-2004 Products 2005+ (iNFINITI launch) Network Topology: Star Single Architecture for Star, Mesh, iSCPC, Spread Spectrum & Hybrid Network Speed Downstream: 9.1 Mbps 18.2 Mbps Network Speed Upstream: 4.2 Mbps 8.4 Mbps* Market Segment: Broadband Broadband Narrowband WiFi, WiMax and Cellular Backhaul Next Generation Capabilities – iNFINITI iNFINITI = Evolutionary Improvement in Capabilities
  • 6.
    7 iDirect Proprietary &Confidential Top Tier Customer Base Over 150 Channel Partners… Government 35% Commercial 65% Government End Customers
  • 7.
    8 iDirect Proprietary &Confidential First in Hub Market Share 0 10 20 30 40 50 60 70 Hubs Shipped - 2004 (Comsys) iDirect (37%) Hughes (24%) Viasat (21%) Gilat (13%) RCS Total (5%)
  • 8.
    9 iDirect Proprietary &Confidential Network Operator Reseller End Customer Teleport Gateway Satellite Capacity NOC Backbone Connection Data Center Sales Integration Services Value Add Services Installations & Support Customer Satisfaction • Medium/Large Enterprises • Multinational Corporations • Governments & Embassies • Intelligence Community • Educational Institutions • ISPs • Network Integrators • IP Solutions Providers • System Integrators • Teleport Operators • Satellite Operators Distribution Model Broadband IP Applications Ubiquitous Connectivity Demand Creation Equipment Sales & Professional Services Network Equipment & Professional Services
  • 9.
    10 iDirect Proprietary &Confidential Industry Recognition: Growth, Innovation Technology Fast 50: Virginia Technology Fast 500 2004 Product Innovation Of The Year 2003 & 2004 2004 Top Three Finalist (John Kealey) 2003 2004 WORLD TELEPORT ASSOCIATION 2004 Teleport Technology Of The Year
  • 10.
    11 iDirect Proprietary &Confidential New Investors: ST via VT Engineering (US) IDirect Agrees to Sell Itself for $165 Million By Ellen McCarthy iDirect Technologies Inc., a Herndon firm that sells network equipment to satellite companies, agreed to be acquired yesterday by Singapore Technologies Engineering Ltd. for $165 million in cash. The acquisition is the second big deal this week in the consolidating satellite industry. On Monday, satellite giant Intelsat Ltd., which has most of its operations in the District, said it was acquiring PanAmSat Holding Corp. for $3.2 billion. Under the terms of the IDirect deal, the 11-year old Herndon firm will be acquired by Singapore Technology's U.S. holding company. IDirect will continue to operate under its own name and existing management team. No layoffs are expected among its 150 employees.
  • 11.
    iDirect Proprietary &Confidential iDirect iNFINITI: Delivering Broadband Services
  • 12.
    13 iDirect Proprietary &Confidential Market Presence Return Data Rates Functions Topology Access Method 16K – 128K Service Transaction/POS Narrowband Slotted Aloha Narrow Band POS Market Type 128K – 4.2Mb Enterprise Applications Shared D-TDMA Broadband 1Mb – 45Mb Telco/Video Broadcast Dedicated Dedicated SCPC SCPC iDirect Technologies Fills The Gap Between Narrowband VSAT and Dedicated SCPC i D I R E C T
  • 13.
    14 iDirect Proprietary &Confidential The iDirect Solution iDirect's Broadband VSAT Network System Provides Highly Reliable, Secure, Two-way TCP/IP Transmission for High Speed, Multi-media Service Applications on any Topology (Star, Star/Mesh, Point-to-Point/SCPC) C or Ku-Band Satellite Internet/ Leased Line/MPLS Network Operator Teleport iDirect Broadband VSAT Hub The new iDirect Hub Chassis Line Card supports network speeds of 18 Mbps Downstream, and 4.2 Mbps Upstream. A single 20 slot Hub Chassis supports aggregate speeds of 360 Mbps. By simply adding a separate line card, the iDirect solution can support different topologies from the same chassis It can also support multiple satellite links iDirect Satellite Router Star/Mesh Topology Mesh Connection SCPC Topology SCPC Connection SCPC Connection Star Topology Star Connection
  • 14.
    15 iDirect Proprietary &Confidential The iDirect Solution iDirect's Broadband VSAT Network System Provides Highly Reliable, Secure, Two-way TCP/IP Transmission for High Speed, Multi-media Service Applications on any Topology (Star, Star/Mesh, Point-to-Point/SCPC) C or Ku-Band Satellite Internet/ Leased Line/MPLS iDirect Broadband VSAT Hub iDirect Satellite Router Star/Mesh Topology Mesh Connection SCPC Topology SCPC Connection SCPC Connection Star Topology Star Connection Networking iDirect Cards together
  • 15.
    16 iDirect Proprietary &Confidential Inherent Scalability Internet/ Leased Line/MPLS iDirect Broadband VSAT Hub C or Ku-Band Satellite Networking iDirect Cards together allows networks to support thousands of sites
  • 16.
    17 iDirect Proprietary &Confidential Broadband VSAT Networks: Applications Internet Access Mobile Productivity Mobile Telephony Access Networks Network Backup / Business Continuity Emergency Management Video Monitoring & Surveillance Video Collaboration Enterprise Networks Private Networks
  • 17.
    18 iDirect Proprietary &Confidential Enterprise Networks Government & Education Oil & Gas Banks & Insurances Medical/Hospital Multinationals
  • 18.
    19 iDirect Proprietary &Confidential Mobile Broadband Market Nomadic Broadband • Emergency Management • IP-enabled SNG • Defense Global, On-the-move Broadband • Maritime • Railway • In-flight • Defense Wireless Internet • Global Edge Connect: VSAT + WiMAX Cellular Backhaul • GSM backhaul • GPRS, EDGE, UMTS Stationary end point Moving end point Satellite first mile Satellite middle mile Terrestrial first mile Satellite Satellite
  • 19.
    20 iDirect Proprietary &Confidential The iDirect GSM Backhaul Business Case The implementation of GSM over satellite is commonly used in many regions of the world. Traditionally, this has been supported via a legacy SCPC connection (as depicted above). ● In a point-to-point legacy SCPC connection, each link must be engineered to accommodate the busy hour traffic of the access BTS. ● Satellite transmission however, is very bandwidth sensitive since every kHz of satellite bandwidth must be leased and incurs an additional cost. ● Legacy SCPC provides a “brute force” method of solving Abis backhaul by throwing expensive bandwidth at the connectivity requirement. iDirect’s IP solution represents a natural evolution that will lead to significant bandwidth reductions, and therefore cost savings.
  • 20.
    21 iDirect Proprietary &Confidential Integrated Wireless MAN IP Router iDirect iNFINITY Hub Internet Central Hub Teleport’s RF Chain Earth Station at the Center of Each Venue iNFINITI VSAT Wi-Fi Access Point NMS/OSS/BSS Server OSS Controller Wi-Fi Access Point Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi iDirect CAS Load Balancer Edge Router at Teleport
  • 21.
    iDirect Proprietary &Confidential The iDirect iNFINITI Product Family
  • 22.
    23 iDirect Proprietary &Confidential iDirect Hub Products Private Hub Solution for an Enterprise Full Featured TDMA Hub Single OB/IB Hub Support for Star w/single Inroute 6.0.8 Mesh w/Single Inroute in 7.0 Star w/dual Inroutes in 7.1 VNO Virtual Network Operator A Non-Facilities Based Satellite Services Provider That Desires to Operate Their Own Networks Hub Chassis Solution for a Teleport Full Featured MF-TDMA Hub Extremely Flexible and Scalable Hub Support for Star, Mesh, SCPC Topologies 1IF and 5IF Models Mini Hub Solution for an Small Enterprise Full Featured TDMA Hub Single OB/IB Hub Limited to 15 or 30 Remote Sites Support for Star and Mesh Topologies
  • 23.
    24 iDirect Proprietary &Confidential Typical Teleport Configuration Router Protocol Processors NMS Server & Spare iDirect Equipment NMS GUI (Configuration & Monitoring) Internet/ Backbone 5IF Hub Chassis Redundant Architecture Corporate VPN Private Network RF RF iCAS Compression Server WiFi/OSS/BSS Server
  • 24.
    25 iDirect Proprietary &Confidential iNFINITI Hub Chassis Compact, 20 Slot, 10U, 19” Rack Mountable * Scalable – Grow As You Need Flexible ● Multiple Multi-inroute Networks Within the Same Chassis * ● Multiple RF Outputs – Up to 5 Different Satellites From One Chassis M:N Universal Line Card Redundancy Automatic Failover N:1 Power and Fan Redundancy iNFINITI 5IF Hub 1 2 3 4 5
  • 25.
    26 iDirect Proprietary &Confidential Hub Chassis – Slot Groups Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9 Slot 10 Slot 11 Slot 12 Slot 13 Slot 14 Slot 15 Slot 16 Slot 17 Slot 18 Slot 19 Slot 20 Slot Group 1 Slot Group 2 Slot Group 3 Slot Group 4 Slot Group 5 • Up to 5 Multi-inroute networks per chassis • Each Group uses timing on the backplane • Groups can be combined to increase multi-inroutes • A Single outroute-inroute network can take any slot as it does not use timing on the backplane
  • 26.
    27 iDirect Proprietary &Confidential Hub Slot Groups – Configuration Example Network 4 Spare Spare Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9 Slot 10 Slot 11 Slot 12 Slot 13 Slot 14 Slot 15 Slot 16 Slot 17 Slot 18 Slot 19 Slot 20 Slot Group 1 Slot Group 2 Slot Group 3 Slot Group 4 Slot Group 5 • Slot Groups 1, 2, and 3 are Jumpered on the Backplane to share timing • Network 1 has one outroute and 11 inroutes (or some spares ex, 10 inroutes and one spare) • Network 2 has one outroute and one inroute (does not use timing on the backplane) • Network 3 has one outroute and 3 inroutes (one Spare) • Network 4 has one outroute and 3 inroutes Network 1 Network 3 Network 4 Network 2 Available Slot Upstream (inroute) Downstream (Outroute) Network 3 Network 2 Network 1
  • 27.
    28 iDirect Proprietary &Confidential iNFINITI Line Cards Same cards for any band (Ku, C, Extended C, Ka) 1:1 or N:1 Redundancy (with M1D1) Hot Swappable Allows an Operator to scale services as needed ● Granularity 1Kbps ● Up to 18.2Mbps TDM downstream and 4.2Mbps TDMA upstream; 8.4Mbps TDMA upstream with iDS 8.0 ● Up to 18.2Mbps TDM downstream for SCPC operation Line Card Models ● Minimum speeds:  Outbound 128Kbps  Inbound 64Kbps ● M1D1: One Modulator and Demodulator  Up to 18Mbps on the outbound  Up to 4.2Mbps on the inbound with .793 FEC and 2.9Mbps with .66 FEC ● M0D1: One Demodulator  Up to 4.2Mbps on the inbound with .793 FEC and 2.9Mbps with .66 FEC ● M0D1-NB : One Demodulator  Up to 242Kbps on the inbound with .793 FEC and 196Kbps with .66 FEC ● M1D1-SCPC: SCPC Service – available iDS 7.0  Support for 128Kbps to 18Mbps
  • 28.
    29 iDirect Proprietary &Confidential iNFINITI Private Hub Ideal for corporations that need private network iNFINITI Private Hub supports TDM/TDMA Star Network and Multi-star network with all iDirect features iNFINITI Mesh Private Hub supports Star/Mesh operation with all iDirect features Provides one downstream/upstream network Capability Supports standard outdoor electronics (BUC/LNB) Completely redundant Hardware upgrade path to 5IF Customer HQ LAN Switch VoIP Remote Site iDirect Private Hub iDirect Satellite Router LAN Switch VoIP Remote Site NMS Servers Protocol Processors WAN
  • 29.
    30 iDirect Proprietary &Confidential iNFINITI Mini Hub 15 Users and 30 User Licenses Ideal for managed small star service TDM/TDMA star network with all iDirect features Provides one downstream/upstream network capability Supports standard outdoor electronics (BUC/LNB) Optional redundancy Customer HQ LAN Switch VoIP Remote Site iDirect Mini Hub iDirect Satellite Router LAN Switch VoIP Remote Site NMS Server Protocol Processor WAN
  • 30.
    31 iDirect Proprietary &Confidential iNFINITI Satellite Routers iDirect 7000 iDirect 5000 Business Critical Applications for Enterprise Customers 18 Mbps/8.4* Mbps IP Data Rate Adaptive Channel Compression Application QoS TCP Optimization 8-Port LAN Switch Mesh Mode (Optional), SCPC Mode, AES/3DES Link Encryption (Optional) iDirect 3000 Entry Level - Optimized for Internet Access, Basic Voice and Video 18 Mbps/4.2 Mbps IP Data Rate Adaptive Channel Application QoS TCP Optimization Star Mode Only Model 3100 – Star Only Military and Custom Applications 18 Mbps/8.4* Mbps IP Data Rate PCI Slot Adaptive Channel Compression Application QoS TCP Optimization 8-Port LAN Switch Mesh Mode, SCPC Mode AES/3DES Link Encryption (Optional) Model Star Mesh SCPC Security 5100 X X 5150 X X X 5300 X X X 5350 X X X X Model Star Mesh SCPC Security 7300 X X X 7350 X X X X
  • 31.
    32 iDirect Proprietary &Confidential Feature NetModem 2+ Series 3000 Series 5000 Series 7000 iNFINITI iConnex Current Remote Functionality Current Backw ards compatible w ith existing Netw orks Backw ards compatible w ith existing Netw orks Backw ards compatible w ith existing Netw orks Backw ards compatible w ith existing Netw orks IPData Rate: Outbound 9 Mbps 18 Mbps 18 Mbps 18 Mbps 18 Mbps IPData Rate: Inbound 4.2 Mbps Large block 1.4 Mbps small block 4.2 Mbps 4.2 Mbps 8.4 Mbps in Q4/2006 4.2 Mbps 8.4 Mbps in Q4/2006 4.2 Mbps 8.4 Mbps in Q4/2006 LAN Ports Single 10/100 Base-T Single 10/100 Base-T 8-Port Sw itch and Single 10/100 Base-T 8-Port Sw itch and Single 10/100 Base-T Single 10/100 Base-T Internal Hard Drive No No Option (On Product Roadmap) Option (On Product Roadmap) No Expansion None None None 1 Standard PCI Slot Option Encryption Option None Option Option Yes SCPC Mode ( Ovenized OSC.) Yes No Yes Yes Yes Star/Mesh Ready No No Option Yes Yes Adaptive Coding & Modulation No Yes (Q4 2006) Yes (Q4 2006) Yes (Q4 2006) Yes (Q4 2006) Data Compression No No Yes Yes Yes Internal Pow er Supply No No No Yes No 48 Volt Option - Supports higher pow er BUCs (up to 10W) No No No Yes Only w ith iConnex-R version Internal Fans No No No Yes No Ambient Temperature Range 0-50C 0-50° C 0-50° C 0-60° C Customer specific Processor Speed (Mhz) 80 266 533 533 533 SDRAM (MB) 16 64 128 128 128 Flash (MB) 8 16 32 32 32 Rack Mount Optional Kit Required Optional Kit Required Optional Kit Required Yes NA Rack Mount Space 2U 2U 2U 1U NA Product Comparison Matrix iDirect Technologies Proprietary and Confidential Rev B 8/11/2005
  • 32.
    33 iDirect Proprietary &Confidential Building an IP Business with iDirect iDirect 5IF Hub Chassis iDirect's Broadband VSAT Solution Allows One to Scale the Business in a Very Cost-Effective Manner Spare Ku-Band Shared Network Ku-Band Star Topology Star Connection Spare C-Band Shared Network Star and Star Mesh C-Band Star and Mesh Topology Mesh Connection Spare Ku-Band Private Network on Satellite 3 Private Network SCPC Connection SCPC Remotes
  • 33.
    34 iDirect Proprietary &Confidential The iDirect Broadband VSAT Solution Lower Operating Cost with Single Hub ● Up to 5 satellites from same hub ● Up to 20 transponders from same hub ● Up to 20 networks on same hub – VPNs and Private Networks ● Global and hemi-beams, cross-strapping ● More IP bits/Hertz space segment ● Network scalability: From 10s to 1000s remote sites ● Address all Broadband VSAT markets  Star  Star/Mesh  iSCPC ● IP QoS ● Virtual Network Operator  Secure  Mobile
  • 34.
    35 iDirect Proprietary &Confidential The iDirect Difference Unparalleled Configuration Flexibility Access Multiple Satellites from Single Hub Real Private Networks Five Function Remote Most Efficient Use of Transponder Capacity Turbo Product Codes Discontiguous Transponder Space Usage Deterministic TDMA Enterprise Class IP Application Support Application QoS Highest Return Rate Integrated Security (AES/FIPS) Real-time Traffic Management (VoIP) Lowest Total Cost of Ownership Reduction in space capacity cost (IP bit/Hertz) Low Capital Entry Cost
  • 35.
    iDirect Proprietary &Confidential iDirect iNFINITI Global Network Management System
  • 36.
    37 iDirect Proprietary &Confidential iNFINITI Global NMS Industry Leading Global NMS ● Industry-first global IP service provisioning and management Industry-first integrated management of all network topologies ● Star, star/mesh, multi-star, iSCPC, mobile Integrated Features Management ● Full control end-to-end of IP and Satcom network layers Central management and simplicity allows better customer service and support, and lower operations costs ● Centrally manages and monitors all satellite routers: Software updates and configurations
  • 37.
    38 iDirect Proprietary &Confidential iNFINITI Global NMS Internet/ Leased Line/MPLS iDirect Broadband VSAT Hub C or Ku-Band Satellite Thousands of remote sites can be controlled by a single NMS platform
  • 38.
    39 iDirect Proprietary &Confidential Internet/ Leased Line/MPLS Multiple NMS systems can be managed by a single centrally located system iNFINITI Global NMS
  • 39.
    40 iDirect Proprietary &Confidential iNFINITI Global NMS - Details Use the same Global NMS for all networks ● Global and regional GUI Enhancements to Ease Management and Monitoring ● Specific NMS features geared toward global networks All Network Elements defined in a single NMS Single Remote defined in Multiple Networks ● All instances together constitute a single “Roaming Remote” Remote may Freely Roam between Networks ● Same or different Protocol Processors ● Same or different Teleports ● Same or different Satellites/Transponders Remote’s On-Board Configuration contains All Network Configurations Global NMS available in iDS Release 7.0
  • 40.
    41 iDirect Proprietary &Confidential NMS Architecture Realtime Network Data Configuration, Firmware Updates Remote Networks Monitor Monitor, Control And Report Linux Back-End Config Database Realtime Archive Server Suite Configure And Control Remote User iMonitor NOC Statio n iBuilder NOC Statio n iMonitor
  • 41.
    42 iDirect Proprietary &Confidential iNFINITI Global NMS Integrated NMS System for IP and Satcom network layers ● ALL Features Manageable from NMS  Application QoS, CIR, VLANs, IP Comprehensive Network Management System ● Multiple Access and Authentication ● Configuration, Monitoring, Fault Isolation, Analysis ● Client-Server, 3-Tier Architecture ● Modularity, Flexibility, Simplifies Maintenance Linux Server Back-End ● Performance, Stability, Maturity, Accessibility SQL Database ● Built-in Database for all Statistics SNMP Proxy Linux Back-End Server Server Suite Suite Realtime Network Data Configuration, Firmware Updates iDirect VSAT Networks iDirect VSAT Networks Monitor, Report Monitor and Control Config Database Realtime Archive Archive Consolidation Control Remote User iMonitor NOC Station iBuilder NOC Station iBuilder iMonitor Linux Back-End Server Server Suite Suite Server Server Suite Suite Realtime Network Data Configuration, Firmware Updates iDirect VSAT Networks iDirect VSAT Networks Monitor, Report Monitor and Control Config Database Realtime Archive Archive Consolidation Archive Consolidation Control Remote User iMonitor Remote User iMonitor NOC Station iBuilder NOC Station iBuilder NOC Station iBuilder iMonitor NOC Station iBuilder iMonitor
  • 42.
    43 iDirect Proprietary &Confidential iBuilder Screen Shots Major Network Components Accessed Through Tree View Template Based Configurations Intuitive & Information Rich Data Entry Forms
  • 43.
    44 iDirect Proprietary &Confidential iMonitor Screen Shots IP Activity by Protocol Historical Data Inroute Slot Allocation Before/After Rate Shaping
  • 44.
    45 iDirect Proprietary &Confidential iCNM iDirect Customer Network Monitor
  • 45.
    iDirect Proprietary &Confidential iDirect iNFINITI: Addressing Satellite Network Challenges
  • 46.
    47 iDirect Proprietary &Confidential iDirect iNFINITI: Addressing Satellite Network Challenges Satellite network bandwidth (space segment) is limited and costly Satellite network latency - round trip delay of 480-520msec Eavesdropping Managing Bandwidth Managing Delay Encryption
  • 47.
    48 iDirect Proprietary &Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
  • 48.
    49 iDirect Proprietary &Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
  • 49.
    50 iDirect Proprietary &Confidential Remote Site Configuration • Satellite Modem • IP Router • Application QoS • TCP Accelerator • Encryption VSAT Antenna L-Band IFL iNFINITI Satellite Router 10/100 Ethernet 10/100Mbps Ethernet Switch Users PCs VoIP Phones Remote LAN Remote Terminal Video Network Operator Simple Deployment… • Integrated, single box solution • Standard IP/Ethernet Connection to LAN • No power needed at VSAT Antenna • Centrally Managed
  • 50.
    51 iDirect Proprietary &Confidential iDirect iNFINITI Real Time Traffic Management Hub NM-1 Outroute Inroute 1 2 5 75 NM-1 6 cRTP reduces overall bandwidth required QoS identifies, classifies and prioritizes traffic * 1 SAR, Fragments and Interleaves to ensure proper dequeuing * 2 Feathering of Timeslots minimizes jitter affects * 4 CIR (Static or Dynamic, application Triggered) * 3 5 Network QoS Ensures proper priority across shared medium * 7 QoS, SAR, CIR on the outroute
  • 51.
    52 iDirect Proprietary &Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
  • 52.
    53 iDirect Proprietary &Confidential Multiple Inbounds per Outbound Remotes TDM Downstream TDMA Upstream Remotes Remotes Remotes Hub
  • 53.
    54 iDirect Proprietary &Confidential Frequency Hopping – MF-TDMA Group 1 Remotes TDM Downstream Fast Hopping MF-TDMA 512 Kbps 512 Kbps 2 Mbps Group 2 Remotes 2 Mbps Inroute Group 1 Inroute Group 2 Bandwidth Demand Analysed and Allocated every TDMA frame “Fast” frequency hopping, on a burst-by-burst basis Remotes can be configured with Min. CIR, Max. Rate, and Dynamic CIR Application Triggered Dynamic CIR ensures high bandwidth efficiency Hub
  • 54.
    55 iDirect Proprietary &Confidential Frequency Hopping – MF-TDMA TDMA Time Time Time Time Frequency 1-100 101-200 201-300 MF-TDMA 1-300 101 151 151 185 185 Each inroute serves a subset of VSATs Inroute group bandwidth available to all VSATs 1 51 51 85 85 201 251 251 285 285 101 151 185 1 51 85 201 251 285 151 185 285 85
  • 55.
    56 iDirect Proprietary &Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
  • 56.
    57 iDirect Proprietary &Confidential Why Compression? One of the greatest challenges of broadband satellite service is the cost of space capacity on service provider networks. This challenge continues to intensify as more users around the globe utilize satellite as their primary means of Internet access. Bandwidth costs have a significant impact on the cost structure of satellite service providers. They also have a direct impact on a service provider’s ability to compete effectively in the market. The key to accomplishing this balance is through the efficient utilization of available bandwidth.
  • 57.
    58 iDirect Proprietary &Confidential Lossy versus Lossless Compression Lossless and lossy compression are terms that describe whether or not, in the compression of a file, all original data can be recovered when the file is uncompressed. With lossless compression, every single bit of data that was originally in the file remains after the file is uncompressed. All of the information is completely restored. ● TCP Payload Compression Lossy compression is a form of data reduction. It permanently eliminates unnecessary data in static images coming from the Internet. Lossy compression reduces the resolution of JPEG images coming from the Internet, but it does so in a way that end users cannot detect the differences between compressed and uncompressed images. ● iDirect Compression and Acceleration Server iCAS
  • 58.
    59 iDirect Proprietary &Confidential TCP Payload Compression The TCP Payload Compression feature provides increased bandwidth for TCP streams on both the upstream and downstream channels in periods of channel congestion. ● Uses zlib, an open source compression library ● When turned on, compression is activated for both upstream and downstream for the specific remote ● Compression is activated dynamically in times of congestion. If no congestion is present, data passes through the compression layer unchanged TCP Payload Compression will be available on 5xxx and 7xxx iNFINITI remotes with iDS 7.0
  • 59.
    60 iDirect Proprietary &Confidential iDirect iCAS: Lossy JPEG Compression IP Router iDirect iNFINITY Hub Internet Central Hub Teleport’s RF Chain Earth Station at the Center of Each Venue iNFINITI VSAT Wi-Fi Access Point NMS/OSS/BSS Server OSS Controller Wi-Fi Access Point Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi Laptop with Built-in Wi-Fi iDirect CAS Load Balancer Edge Router at Teleport
  • 60.
    61 iDirect Proprietary &Confidential Compressed Real-Time Protocol (cRTP) cRTP can significantly reduce the bandwidth requirements of VoIP flows ● RTP-based applications utilize large numbers of small packets ● The 40-byte IP/UDP/RTP header often accounts for a significant fraction of the total packet length. ● cRTP is a standard header compression technique. Benchmarks ● 11.5 Kbps per voice call with G.729 compression ● 8.5 Kbps per voice call with G.723a compression ● Overall VoIP calls using cRTP achieves a 50% savings in bandwidth.
  • 61.
    62 iDirect Proprietary &Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
  • 62.
    63 iDirect Proprietary &Confidential IP bits/Hertz Efficiency Symbol Rate Mod BPSK QPSK 8PSK Transmission Rate FEC Information Rate TDM Overhead IP Data Rate Or User Data Rate Guard Band Mhz Outroute Symbol Rate Mod Transmission Rate FEC Information Rate TDMA Overhead IP Data Rate Or User Data Rate Guard Band Mhz Inroute Throughput Rates: How do they relate? BPSK QPSK 8PSK D-TDMA TPC TPC 1.2 1.2
  • 63.
    64 iDirect Proprietary &Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP/HTTP Acceleration ● Star/Mesh operation Encryption of Satellite Link
  • 64.
    65 iDirect Proprietary &Confidential TCP Acceleration Impact of Satellite Delay ● TCP is “window” driven to prevent receiver saturation ● Uses a “slow start” concept to reduce congestion - therefore takes time to build up to full capacity ● Reacts to network congestion by throttling back if sender detects lost packets ● Will confuse occasional lost packets with congestion - therefore can over react to bit error loses
  • 65.
    66 iDirect Proprietary &Confidential TCP/HTTP Acceleration Satellite Router Hub www.intelsat.com Customer Hub/Switch Satellite Router Use r • TCP Acceleration Process • Maintains TCP Session with Server • Maintains TCP Session with Remote (Optimized for Satellite Link) • TCP session setup for HTTP traffic is accelerated Enhanced TCP Session TCP Session Queues Retransmission Resequencing TCP Session Internet TCP Acceleration in both directions
  • 66.
    67 iDirect Proprietary &Confidential iDirect iNFINITI: Optimizing the Broadband VSAT Network Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP/HTTP Acceleration ● Star/Mesh operation Encryption of Satellite Link
  • 67.
    68 iDirect Proprietary &Confidential iDirect Star Topology Hub Remotes Downstream 64K – 18 M Upstream 64K – 4 M Remotes Remotes Remotes
  • 68.
    69 iDirect Proprietary &Confidential Why Mesh? Inefficient use of satellite bandwidth ● Remote-to-remote traffic requires twice the bandwidth of data transferred Significant Latency: >1sec roundtrip ● Remote-to-remote traffic requires a double hop over the satellite
  • 69.
    70 iDirect Proprietary &Confidential High Level Mesh Architecture Backbone / Internet Enterprise HQ Hub TDM Downstream Remote B MF-TDMA Upstreams Remote A Mesh Connection Star Connection Star TDM Downstream and Mesh Control Generally required for Single Hop Voice and Video
  • 70.
    71 iDirect Proprietary &Confidential Hub R R R Star Communications and Control Mesh Control Remote Terminals with TDMA Transmit (Star/Mesh) TDM Receive (Star) TDMA Receive (Mesh) TDMA Carriers for Star Return and Mesh Traffic with MF-TDMA and D-TDMA TDM Forward Channel TDMA Mesh Architecture
  • 71.
    72 iDirect Proprietary &Confidential Mesh System Requirements Hub must be able to “see” itself – no spot/hemi-beam support Mesh remote must be able to “see” itself BUC and antenna are sized to achieve EPEBW at the satellite – for all remotes in Mesh IG ● the equal-power-equal-bandwidth point (EPEBW) ensures the highest possible mesh availability M1D1 is required as transmit line card M1D1/M0D1 is required as receive line card Remote must be iNFINITI 53xx or 73xx PLL LNB is required at remote Outroute/inroute must be on the same band and same transponder
  • 72.
    73 iDirect Proprietary &Confidential Star/Mesh Network Design Benefiting from the Star Topology ● The hub maintains tight control of transmissions to and from remotes ● A common network management system is provided through the hub station ● Information transfer is optimized for star topology information networks, such as those maintained by centralized corporations and service/content providers -> the majority of data traffic still takes the star route
  • 73.
    74 iDirect Proprietary &Confidential Star/Mesh RF Network Design RF design for mesh operation ● With Star topology, the RF design of the return link can be arranged to minimize dish size and transmit power at the remote VSAT. The resulting weak carrier signals can be received by the larger diameter hub station antenna; VSAT (very small aperture terminal) is the remote Earth station in the star network architecture ● With Mesh design, the VSATs need to be dimensioned appropriately to allow remote-to-remote mesh connectivity Link Budget Implications ● Generally 25% of standard Star throughput  If Star LBA is 2 Mbps, then Mesh would be about 512 kbps ● Network Design Implications  Additional Overhead involved (2 bytes + SAR)
  • 74.
    75 iDirect Proprietary &Confidential Sample Link Budget Horizons 1 (127W) – Star and Mesh Ku-band VSAT Sizing - QPSK Assumptions 1. Transponder specific values  SFD -95 dBW/m2 (0 G/T and 0 dB attn)  Attn 10 dB  IBO/OBO 6/3 dB  BW 36 MHz 2. Availability 99.75% 3. Hub 6.1M in Silver Spring, MD VSAT Sizing Forwar d Link Return Link Ant (m) HPA (W) Trans- ponder Usage Star Mesh Max Info Rate / IP Data (kbps) Max Info Rate / IP Data (kbps) 0.793 TPC 0.66 TPC 0.66 TPC 0.793 TPC 1.2 2 BW Limited 675/524 150/115 175/150 4 1350/1050 300/230 350/300 1.8 2 BW Limited 1550/1220 325/250 400/350 4 3100/2440 650/500 800/700 Hub VSAT G/T (dB/K) 5 2 EIRP (dBW) 50 47
  • 75.
    76 iDirect Proprietary &Confidential Star/Mesh Operation Star/Mesh is basically an overlay model, and will be tuned in iDS release 7.0 towards VTC and VoIP (UDP) traffic. The mesh traffic can be triggered on a service level basis. For a VoIP call, this means that a remote will send voice signaling (TCP) over a star (remote to hub) topology and RTP/cRTP traffic (UDP) via a direct remote-to-remote meshing.
  • 76.
    77 iDirect Proprietary &Confidential Phased Mesh Release Phase 1: Single Carrier Only ● Can have multiple SINGLE Carrier Mesh inroutes sharing One OB ● UDP traffic only Phase 2: MF-TDMA based Multi-Carrier ● All Carriers have to be same size, FEC, Modulation ● Support for both UDP and TCP traffic ● Encryption support; TRANSEC over mesh link Phase 3: MF-TDMA based Multi-Carrier ● Different size inroutes  probably sized in multiples of a smallest carrier  256, 512, 768, 1024, etc.
  • 77.
    78 iDirect Proprietary &Confidential iDirect Star/Mesh Benefits Benefits ● Meets most “Mesh” requirements of Star/Mesh ● Generally Smaller Antenna’s / ODU’s ● MF-TDMA with Adaptive Channels Increase Efficiency ● Higher System Efficiency than Full Mesh ● Simpler System Management  Adding Capacity is Just Adding another Inroute  Do not have to “Touch” every site  Centralized Statistics Collection and Availability Other Star/Mesh characteristics: ● Not Full Mesh – We can operate like one, but the efficiency benefits are with star/mesh operation ● Not SCPC Mesh – TDMA star/mesh is more scalable and bandwidth efficient ● General Scalability Issue – Number of concurrent connections depends on carrier size ● All remotes in a mesh inroute must be mesh capable
  • 78.
    79 iDirect Proprietary &Confidential Broadband VSAT Network Optimization Managing Bandwidth ● Application QoS  Application QoS ensures bandwidth guarantees to mission-critical application, thus allowing sizing the network appropriately.  Classification, Prioritization, Queuing ● Network QoS  Prioritize real-time traffic over non-real-time traffic within an inroute group (D-TDMA)  Frequency Hopping MF-TDMA ● Data compression  Lossless compression  Lossy compression  cRTP ● IP bits/Hertz efficiency Managing Delay ● TCP Acceleration ● Mesh connectivity Encryption of Satellite Link
  • 79.
    80 iDirect Proprietary &Confidential Remote Site Headquarters LAN/WAN IP Router Satellite Router Hub IP Router Internet Secure VPN 3DES Link Encryption Enterprise Security without Affecting Performance Retains the Benefits of TCP Acceleration and QoS AES Link Encryption Security TCP Acceleration Application QoS Remote Site Satellite Router Encrypted Line Unencrypted Line
  • 80.
    81 iDirect Proprietary &Confidential Remote Site iDirect Satellite Router Hub Corporate Standard Link Encryption Use Enterprise Specified Security/Encryption Devices Data Security without Affecting Performance Retains the Benefits of TCP Acceleration and QoS External Encryption Architecture Enterprise Specified Secure Link External Encryption iDirect NA Data Accelerator Application QoS External Encryption iDirect NA Data Accelerator Application QoS Headquarters
  • 81.
    iDirect Proprietary &Confidential iDirect iSCPC
  • 82.
    83 iDirect Proprietary &Confidential SCPC vs. iSCPC SCPC ● Single Channel per Carrier (SCPC)  One physical modem at each site for each link at that site ● No TDMA overhead  TDMA overhead typically takes 20% to 40% of gross kbps after error correction  SCPC overhead typically takes 2.5% of gross kbps after error correction iSCPC is like SCPC except… ● iSCPC is a term invented by iDirect. It is not standard industry jargon. ● iSCPC interfaces only with IP. It has no clear channel mode. ● iSCPC includes built-in networking and applications layer software:  TCP acceleration for links with long latency  Built-in Application QoS  IP Router with multiple routing policy alternatives
  • 83.
    84 iDirect Proprietary &Confidential iDirect iSCPC Features Data Rate – 64Kbps to 18 Mbps IP Only Feature Rich Router ● Application QoS/Prioritization (Classed Based Queuing) ● TCP/Web Acceleration ● RIP v2 or Static Routes ● Local DNS Cache ● NAT ● DHCP/DHCP Helper ● cRTP ● AES/3DES Link Encryption (Optional) GUI Based Management – iSite and iNMS (iDS 7.0) Same Remote Satellite Router Hardware Platform as Star or Star/Mesh ● Reduces Sparing ● Reduces Training Requirement ● Flexibility to use as either TDMA or SCPC (Configuration Change Only) iDirect iSCPC IDU iDirect iSCPC IDU
  • 84.
    85 iDirect Proprietary &Confidential iSCPC Performance Limits Simplex (Multicast and UDP Only) or Duplex Mode Can be Symmetric or Asymmetric QPSK is the Currently Available Modulation (Jan 06) BPSK (& possibly 8PSK) will be available with iDS 7.0 Various FEC options available – 0.879, 0.793, 0.533, 0.495, 0.431 Tested Performance (5150) as of Release 6.0.9 ● 1500 Byte Packet Size (UDP)  One Direct Traffic – 16 Mbps  Both Directions Traffic – 20 Mbps Total ● 512 Byte Packet Size (UDP)  One Direct Traffic – 6 Mbps  Both Directions Traffic – 8 Mbps Total
  • 85.
    86 iDirect Proprietary &Confidential iSite iSCPC Configuration Full Configuration Support For: Modem Parameters IP Configuration (Including VLANs) QoS Comparing Active/Latest Configuration Also Supports all Pointing/Commissioning Tools In iSCPC Mode
  • 86.
    iDirect Proprietary &Confidential The iDirect Virtual Network Operator
  • 87.
    88 iDirect Proprietary &Confidential How can we reduce Cost and Complexity of Service Provisioning? Virtual Network Operator (VNO) model ● A VNO is not a virtual operator ● Virtual Network = virtual assets Ecosystem between Host Network Operator (HNO) and Virtual Network Operator (VNO) The VNO has full control over IP Service Provisioning & Delivery including IP Routing and IP QoS/SLA without the cost and complexity of building and maintaining a VSAT or even a terrestrial IP infrastructure
  • 88.
    89 iDirect Proprietary &Confidential Virtual Network Operator Model HNO provides / VNO leases: ● Space segment ● Hub, teleport and co-location facilities ● Internet access ● Commissioning and network management HNO NMS IP Appliance Hub VNO2 VNO NMS IP Appliance NMS Client NMS Client VNO1 VNO NMS IP Appliance Internet
  • 89.
    90 iDirect Proprietary &Confidential Virtual Network Operator Model - Benefits Reduced CAPEX Reduced network complexity Increased flexibility Reduced time to market Ecosystem between satellite operator (HNO) and service provider (VNO)
  • 90.
    91 iDirect Proprietary &Confidential Virtual Network Operator Virtual Network Operator Provides Hub, Teleport & Space Segment Commissions Remotes Provisions Services iNFINITY Broadband VSAT Solution Service & Support Host Network Operator
  • 91.
    92 iDirect Proprietary &Confidential Virtual Network Operator Virtual Network Operator Provides Hub Chassis & Facilities Manages RF & Baseband Chain Provides Space Segment, Co-Lo, Uplink Connectivity to VNO NMS Clients Provides Level-1 Technical Support Gets VNO Package from HNO ● Line Card, VNO Client NMS ● Protocol Processor & NMS Server Manages Remotes ● Commissioning, Configurations ● IP QOS Settings, IP Routing Issues iNFINITY Broadband VSAT Solution Service & Support Host Network Operator
  • 92.
    iDirect Proprietary &Confidential iNFINITI-Based Broadband VSAT Service Architecture
  • 93.
    94 iDirect Proprietary &Confidential Broadband VSAT Services VPN Services MPLS Service Extension Mobile/Maritime Service Internet Access
  • 94.
    95 iDirect Proprietary &Confidential VPN Service: End-to-End VLANs (802.1p/Q) VLAN 31 VLAN 22 VLAN n IP over Ethernet Remote 2 Remote 4 VLAN 22 IP over Ethernet Remote 3 VLAN 31 VLAN n VLAN 31 VLAN n Remote 1 10.0.1.0/24 10.0.2.0/24 66.0.2.0/24 66.0.9.0/24 10.0.1.0/24 66.0.1.17/28 IP over Ethernet 66.0.1.0/28 Remote 3 Remote 1 Remote 3 Remote 2 Remote 1 Remote 3 66.0.1.0/28 66.0.2.0/24 66.0.9.0/24 VLAN n 10.0.1.0/24 VLAN 22 10.0.1.0/24 10.0.2.0/24 VLAN 31 Remote 4 66.0.1.17/28 • Private Networks • Map to MPLS/ATM/Leased Lines • Closed User Groups • Overlapping Private Addressing • QoS Per VLAN Hub Router IP/MPLS Leased Lines Internet/ VPN
  • 95.
    96 iDirect Proprietary &Confidential MPLS Service Extension Extending MPLS VPNs and MPLS QoS ● MPLS VPN to 802.1Q VLAN mapping ● MPLS QoS to 802.1p/DiffServ/ToS ● mapping • iDirect Network MPLS Network Site A1 Site A2 Site B2 HQ-A Router with MPLS Connectivity to MPLS Backbone HQ-B Site B1 PE VLAN 802.1p DiffServ TOS VLAN 802.1p DiffServ TOS
  • 96.
    97 iDirect Proprietary &Confidential Remote Site Satellite Router Hub Corporate Standard Link Encryption Use Enterprise Specified Security/Encryption Devices Data Security without Affecting Performance Retains the Benefits of TCP Acceleration and QoS VPN Service: External Encryption Architecture Enterprise Specified Secure Link External Encryption Network Accelerator with Application QoS External Encryption Headquarters Network Accelerator with Application QoS
  • 97.
    98 iDirect Proprietary &Confidential Mobile/Maritime Service Applications: Moving trucks, ships, SNG Solution requires a stabilized antenna platform; auto-pointing antenna integration Lat/Long information provided through GPS Hub maintains connectivity with remote as it moves ● Timing Offsets, Frame Start Delay, etc. Automatic beam switch-over, based on ● Geographic location ● Beam availability and quality Backup Teleport/Network Global NMS
  • 98.
    99 iDirect Proprietary &Confidential Internet Access: Integrated Turnkey Wireless MAN IP Router Internet Compression Server Central Hub OSS/BSS Server Earth Station at the Center of Each City Satellite Router+ VSAT Long Range Wi-Fi Access Point PC Wi-Fi CPE Ethernet OSS/BSS Controller Broadband Hub
  • 99.
    100 iDirect Proprietary &Confidential iDirect iNFINITI Broadband VSAT Networks fulfill the growing demand of corporations and organizations for Broadband IP anywhere
  • 100.
    iDirect Proprietary &Confidential Real-Time Traffic Management Details
  • 101.
    102 iDirect Proprietary &Confidential Managing Application QoS Application QoS - Enables real-time classification, and prioritization of data traffic Traffic classification & prioritization can be performed using ● Source and/or Destination IP Address ● Source and/or Destination IP Subnet ● Source and/or Destination Port Number ● Source and/or Destination Port Range ● Diffserv and ToS Bits ● VLAN ID ● Protocol (TCP, UDP, HTTP, ICMP, IGMP) Configurable Queue Lengths For Each Service Level A percentage of bandwidth assigned to each service level Configurable drop policy Traffic can be rate limited in both directions LAN Traffic Service Queues Satellite Network RTTM Slide
  • 102.
    103 iDirect Proprietary &Confidential SAR – Segmentation and Reassembly Dequeue 2 3 4 5 i j 1 RF Out QoS Distributor VoIP Packets (60 Byte) FTP Packets (1500 Byte) Dequeue RF Out QoS Distributor VoIP Packets (60 Byte) FTP Packets (1500 Byte) SAR 5 6 4 4 4 4 3 3 3 3 2 2 2 2 f g h i j k a b c d e 1 1 1 1 a b c d e f g h 1 a b The Large FTP Packet will delay voice in a congested state 1 a b c As packets are divided into equal sized packets, a voice packet has to wait a maximum of one burst. d 1 Packet Arrival Time RTTM Slide
  • 103.
    104 iDirect Proprietary &Confidential Static CIR & Dynamic CIR Static CIR  Committed to Site even if it is not used Dynamic CIR  Allocated to a remote only when traffic present  < 1 sec allocation time  Allocation may be triggered by an Application R1 CIR Shared Pool Bandwidth Allocated to R1 even if there is no traffic at Remote R1 Shared Pool R1 Shared Pool Data Traffic Bandwidth Allocated to R1 in best effort manner R1 Shared Pool CIR CIR Bandwidth Allocated to R1 since Application Triggered Dynamic CIR Voice Traffic RTTM Slide
  • 104.
    105 iDirect Proprietary &Confidential 2 3 4 5 6 7 8 9 10 11 75 12 13 14 R1 1 Frame 1 Frame 2 Frame 3 VoIP Packets VoIP Packets VoIP Packets Delay Frame 1 Frame 2 Frame 3 VoIP Packets VoIP Packets VoIP Packets Delay Delay Significant variation in delay causes jitter. Minimal variation in delay significantly reduces jitter. Bandwidth allocated to R1 Timeslot Feathering Allocation RTTM Slide
  • 105.
    106 iDirect Proprietary &Confidential Network QoS Network QoS ● Prioritize real-time traffic over non-real-time traffic across shared satellite bandwidth ● Allocate traffic demand for each remote appropriately rt - Real-time Traffic (e.g. VoIP) nrt - Non-Real-time Traffic (e.g. FTP) Network Inroute 1 Inroute 2 Inroute 3 Inroute 4 rt nrt rt nrt rt nrt rt nrt Prioritization Prevents non real time traffic from one remote impacting Real Time Traffic on a different and unrelated remote RTTM Slide
  • 106.
    iDirect Proprietary &Confidential End of Presentation
  • 107.
    iDirect Proprietary &Confidential Broadband VSAT Networks
  • 108.
    109 iDirect Proprietary &Confidential Broadband VSAT Networks: IP Convergence IP is dominant Protocol Data is the dominant application Internet traffic continues growth at a fast pace Network Convergence for data, voice, video ● CAPEX savings: Single platform for all network services ● OPEX savings: Simplified network operation, management and maintenance
  • 109.
    110 iDirect Proprietary &Confidential Broadband VSAT Networks: Satellite vs. Terrestrial Pro Satellite ● Geographical coverage unsurpassed  Can access any remote location  Uniform service characteristics ● Extremely reliable (>99.9% up time) ● Extremely reliable data broadcast or multicast ● Single vendor typically ● Easy remote site deployment ● Supports multiple applications  Streaming video & audio applications  Data applications  Voice applications; Voice over IP
  • 110.
    111 iDirect Proprietary &Confidential Broadband VSAT Networks: Satellite vs. Terrestrial Pro Satellite (cont.) ● Ideally suited for point-to-multipoint and large distributed networks ● Capable of asymmetric bandwidth ● A single point of management allows for easier traffic analysis/management ● Operational low Bit Error Rate; typically >10-9 ● Capable of simultaneous delivery of data to an unlimited number of remotes ● Independence from typical telephone infrastructure ● Private network capabilities ● Mobile/wireless communication, independent of location
  • 111.
    112 iDirect Proprietary &Confidential Broadband VSAT Networks: Satellite vs. Terrestrial Contra Satellite ● Space segment cost ● Propagation Delay (double hop = 0.5 s) ● Eavesdropping
  • 112.
    iDirect Proprietary &Confidential Misc. Slides
  • 113.
    114 iDirect Proprietary &Confidential Competitive Solution vs. iDirect Typical Remote Site Implementation VoIP Server Desktops Packeteer QoS/Prioritization Mentat TCP Acceleration Cisco IP Router Non-iDirect Satellite Modem 70 Mhz – Ku Up-Converter 70 Mhz – Ku Down-Converter 70 Mhz Ku-Band Complex, Expensive, Multiple Points of Failure, Difficult to Manage, Support Simple, Integrated, Full-featured, Cost Effective Customer Value Slide Ku-Band L-Band iDirect TCP/Web Acceleration QoS/Prioritization 3DES Encryption IP Router Satellite Modem Up-Converter LNB
  • 114.
    115 iDirect Proprietary &Confidential iDS Software IP Routing Software ● RIPv2 ● Static Routes Performance Enhancement ● TCP Acceleration, HTTP Acceleration, RTTM Feature Set IP Features ● DNS Caching ● DHCP and DHCP Helper ● NAT (PAT) Quality of Service and Filtering ● System QoS - Rate Limits, CIR (Dynamic & Static), Minimum CIR ● Application QoS - Class Based Weight Fair Queuing ● Filters – Access Control Lists Layer 2 Features ● 802.1q VLANs ● 802.1p Priority Bits ● MTU Auto-discovery Integrated with TCP Acceleration Security ● 3DES Encryption (Optional) ● FIPS Certified Version (Optional) ● Hub Authentication Satcom ● Mobile Mode ● Turbo Product Codes FEC ● L-Band (Ku/C/Ka) ● Interface to Integrate with Auto- pointing Antenna’s ● TVRO Port ● Automatic Uplink Power Control ● TDMA, Mesh and SCPC Management ● Centralized Management ● Over the air upgrades ● Configuration Backup
  • 115.
    116 iDirect Proprietary &Confidential iDirect TPC vs. RSV Downstream BER Performance 1.E-12 1.E-11 1.E-10 1.E-09 1.E-08 1.E-07 1.E-06 1.E-05 1.E-04 1.E-03 1.E-02 1.E-01 1.E+00 0 1 2 3 4 5 6 7 8 9 Eb/No BER Standard Network Operating Range Shannon Limit Other RSV iDirect RSV requires 1.5 dB incremental power to provide the same level of service. At 5dB Eb/No 1/100 bits lost 1/100,000,000 bits lost iDirect Other RSV Customer Value Slide
  • 116.
    117 iDirect Proprietary &Confidential Typical DVB Implementation (1 network) Vs. iDirect IP Implementation (Up to 20 Networks) QoS/Prioritization Satellite Modem DVB Encapsulator Real Time NMS Non-Real Time NMS Net Enforcer Server Demodulators Router Up/Down Converter Modulator LAN Switches iDirect Hub w/Universal Line Cards NMS Server Protocol Processor LAN Switch Typical DVB Hub Typical iDirect Hub Demodulators iDirect Hub Slide
  • 117.
    118 iDirect Proprietary &Confidential Configuration Flexibility Hub Router Small Remote Site 512 kbps / 128 Kbps 1 Mbps / 256 Kbps 2 Mbps / 512 Kbps With 32 kbps CIR Router Medium Remote Site Router Large Remote Site • Each remote can be configured with a different bandwidth • Per remote bandwidth increase through configuration • Configure CIRs, Minimum and Maximum Rates • MF-TDMA provides efficient Bandwidth usage
  • 118.
    iDirect Proprietary &Confidential Thank You
