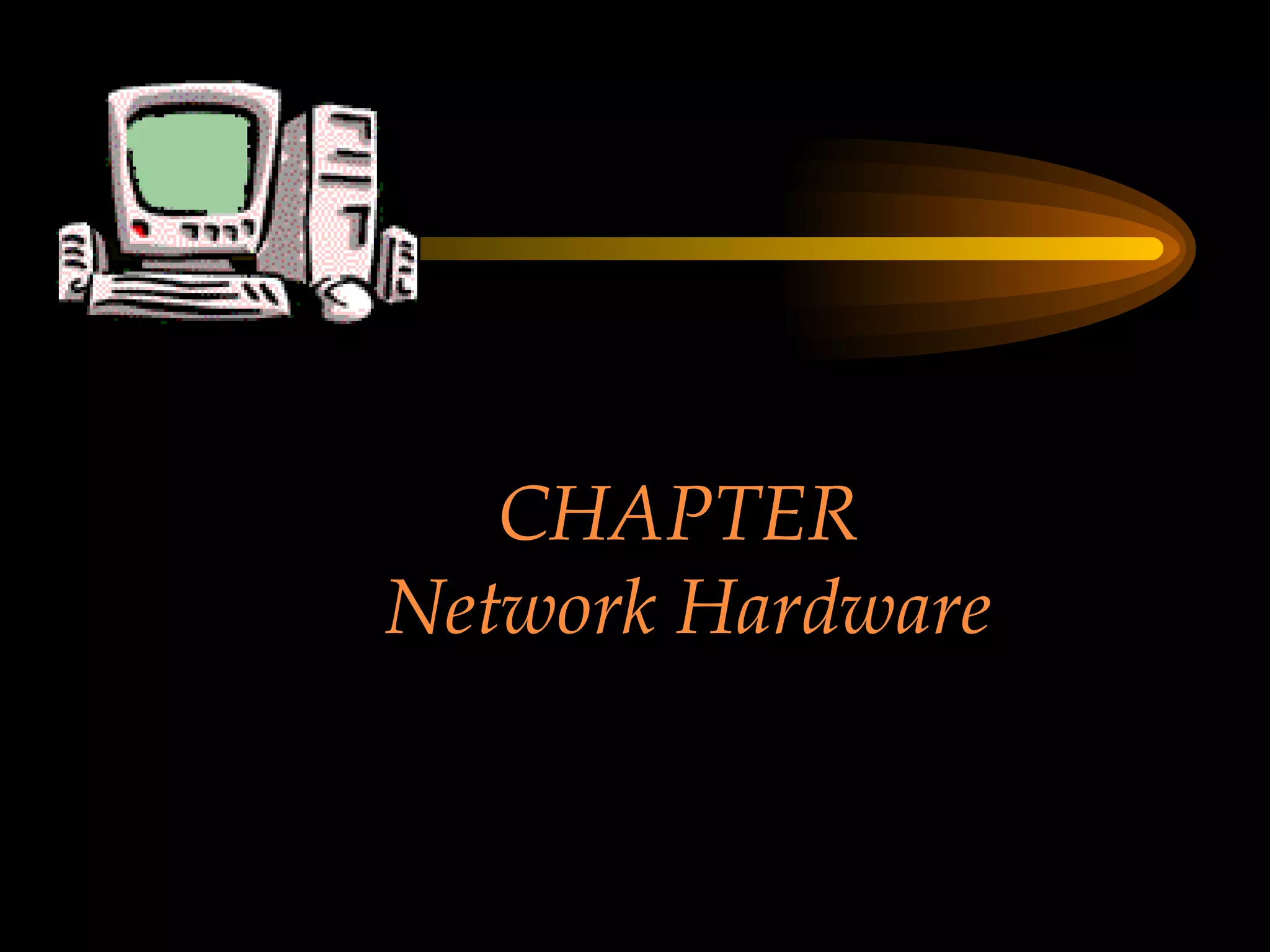

1. CHAPTER Network Hardware

2. Chapter Objectives Describe the important basic network hardware and the internetworking hardware Discuss the desired characteristics of a server and a workstation Present different switching technologies Examine the routing process with the help of an example

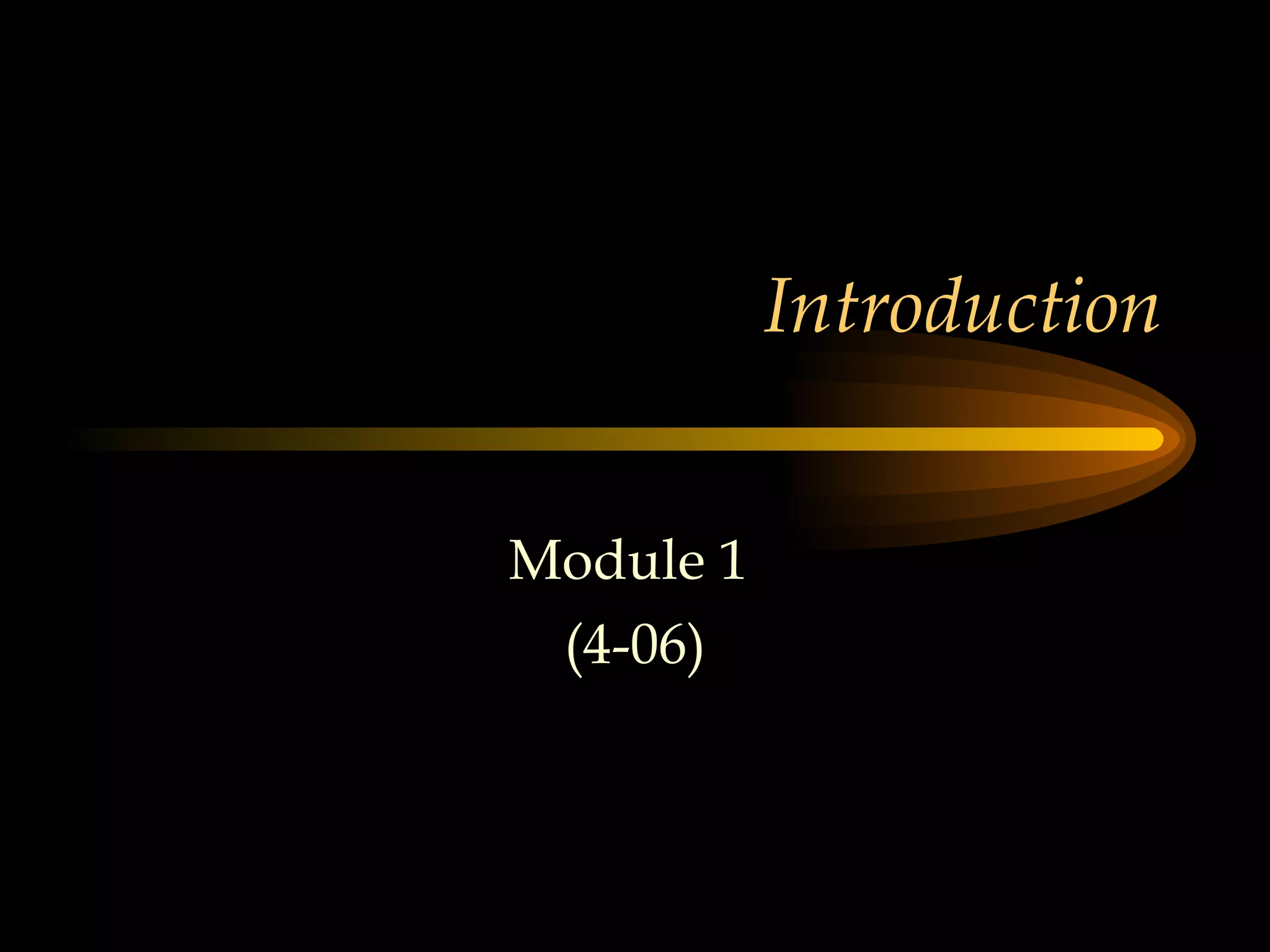

3. Introduction Module 1 (4-06)

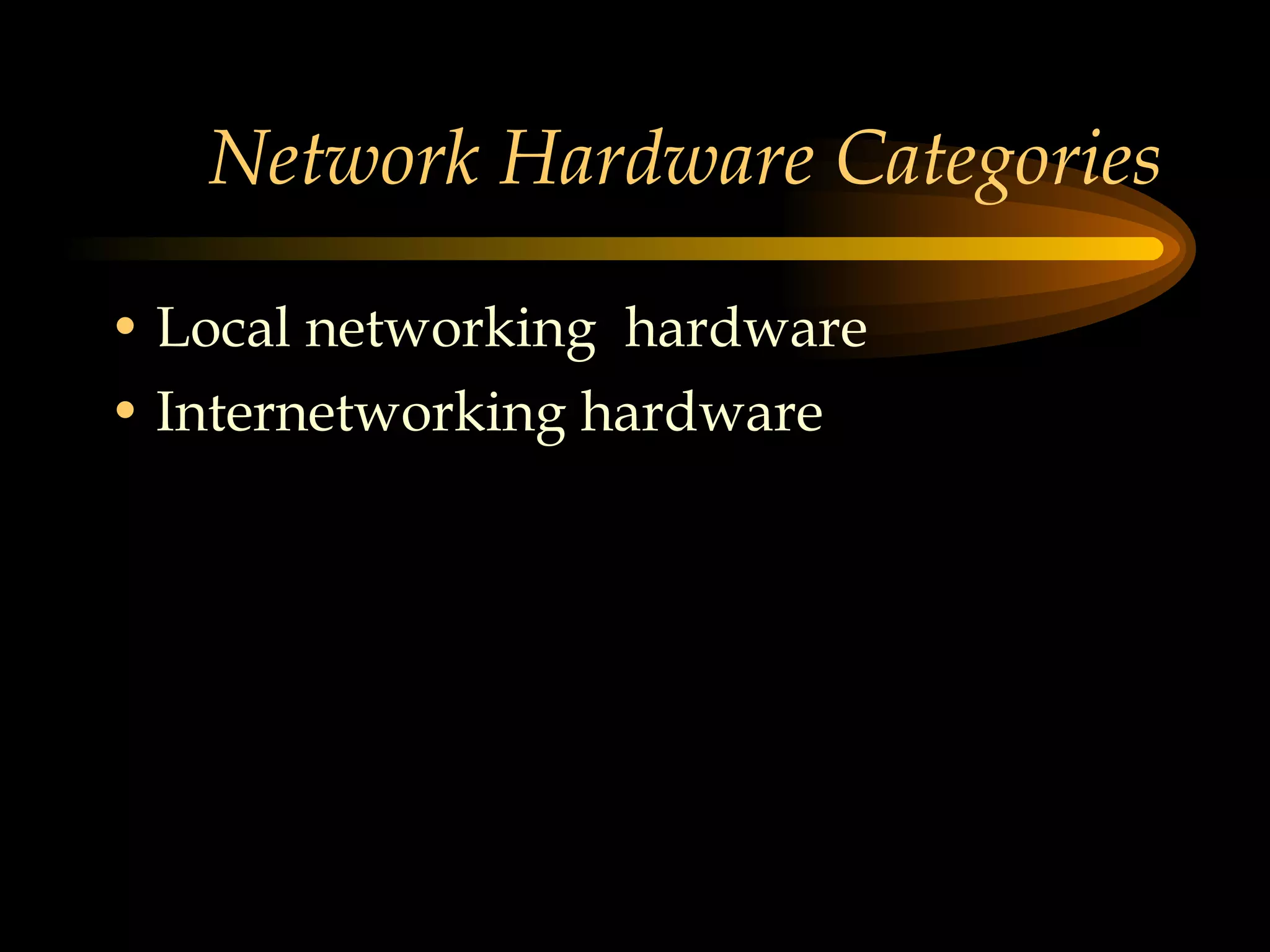

4. Network Hardware Categories Local networking hardware Internetworking hardware

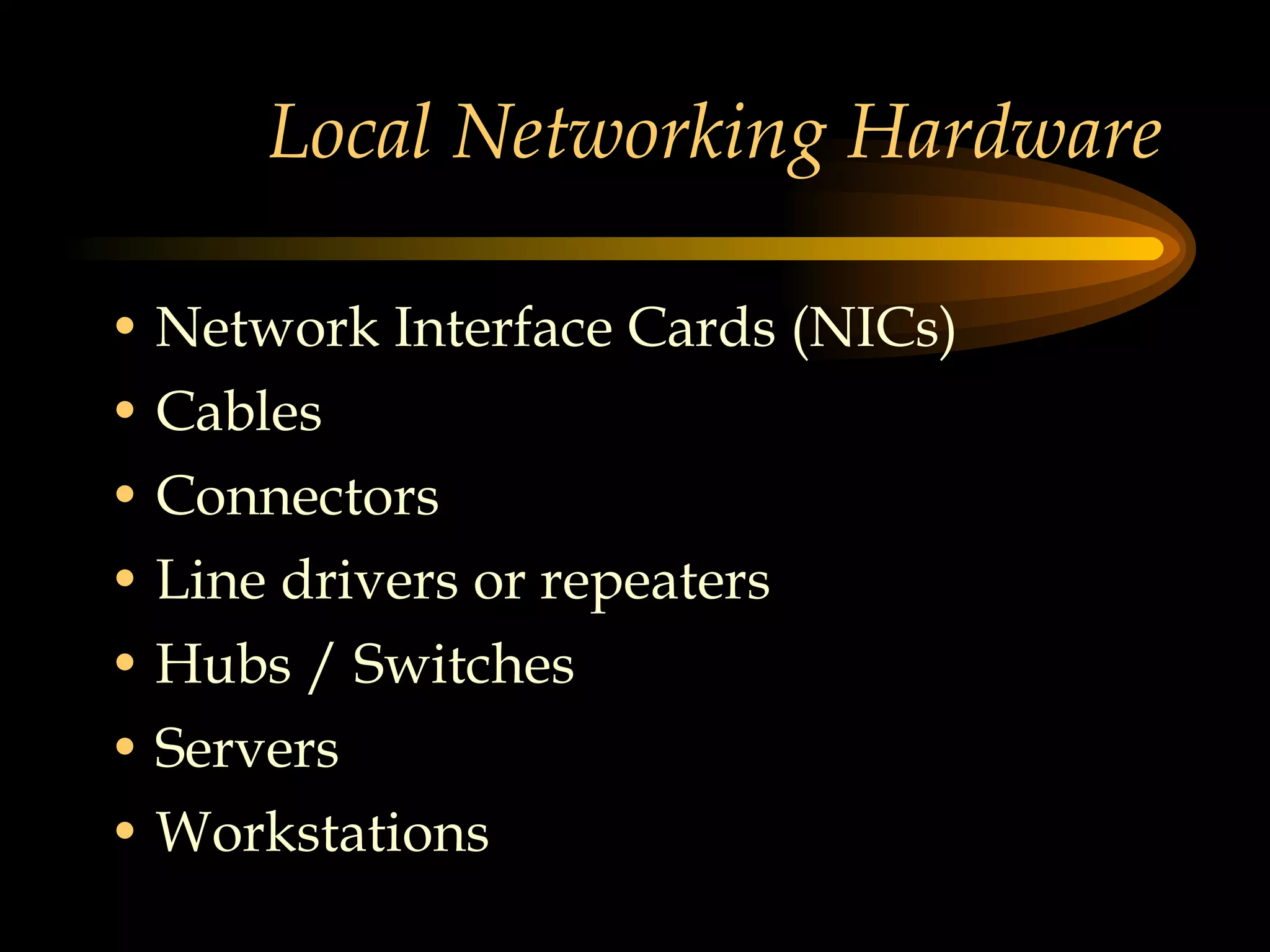

5. Local Networking Hardware Network Interface Cards (NICs) Cables Connectors Line drivers or repeaters Hubs / Switches Servers Workstations

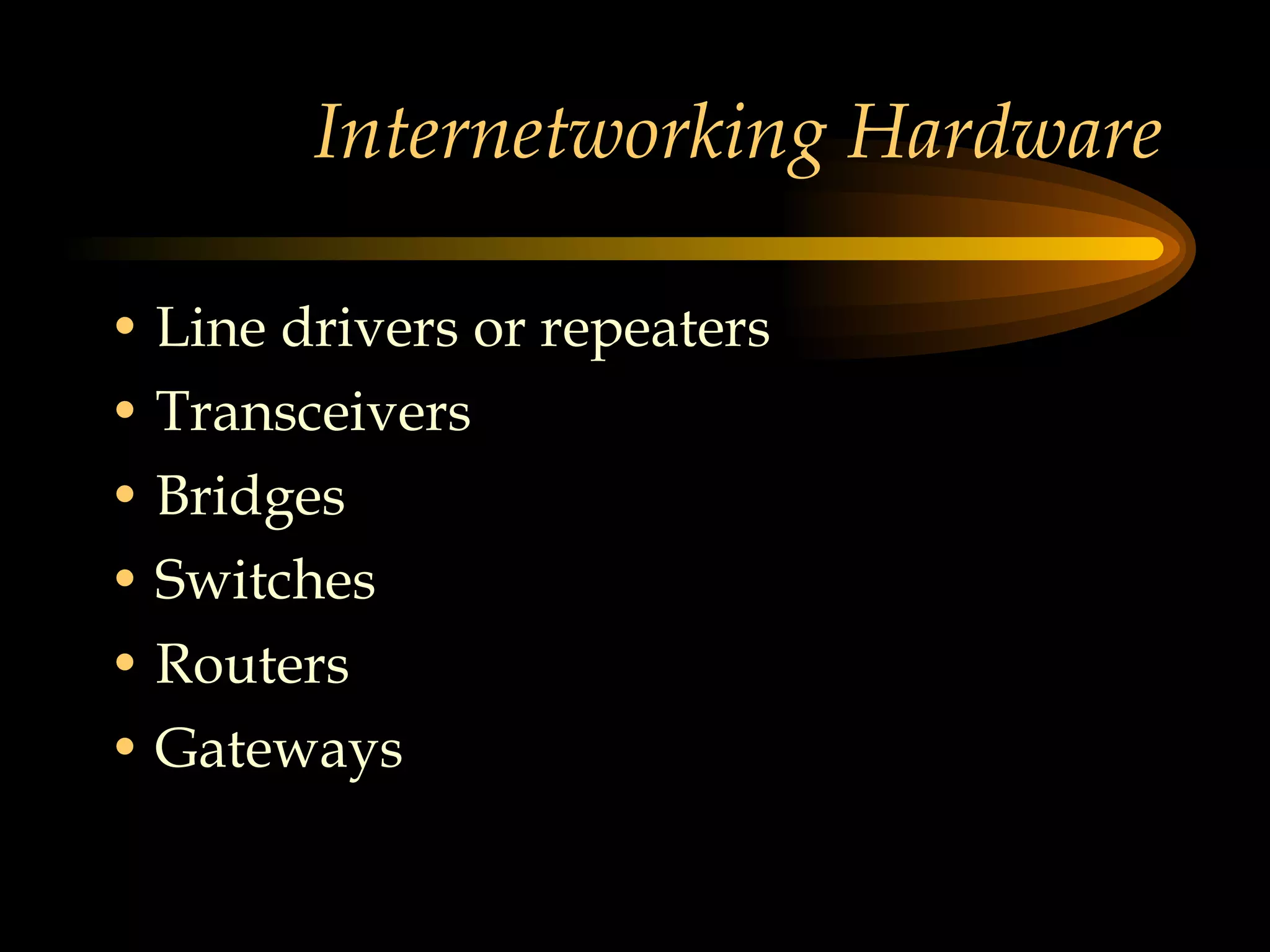

6. Internetworking Hardware Line drivers or repeaters Transceivers Bridges Switches Routers Gateways

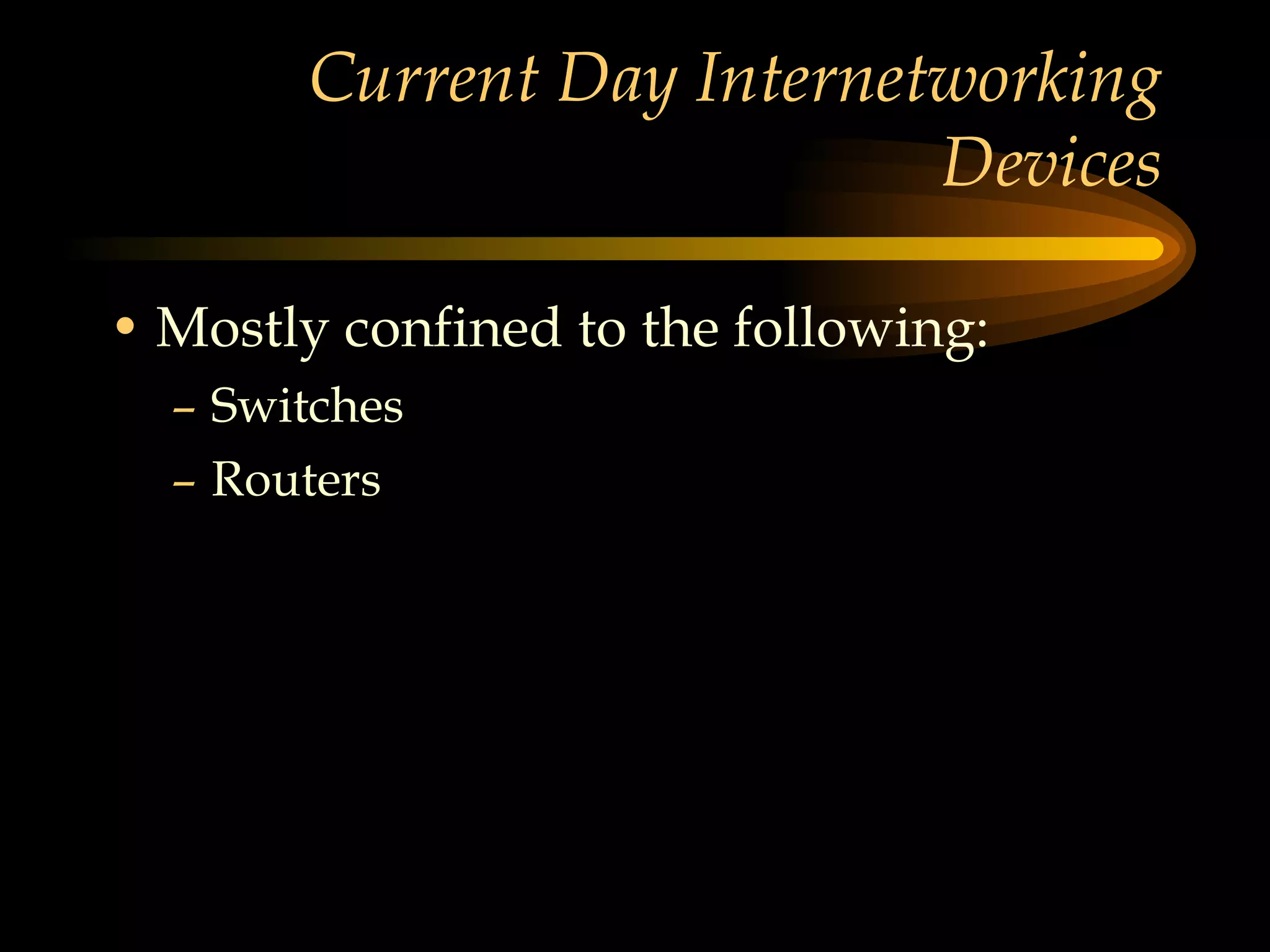

7. Current Day Internetworking Devices Mostly confined to the following: Switches Routers

8. Folding of Devices into Switches Show Diagram

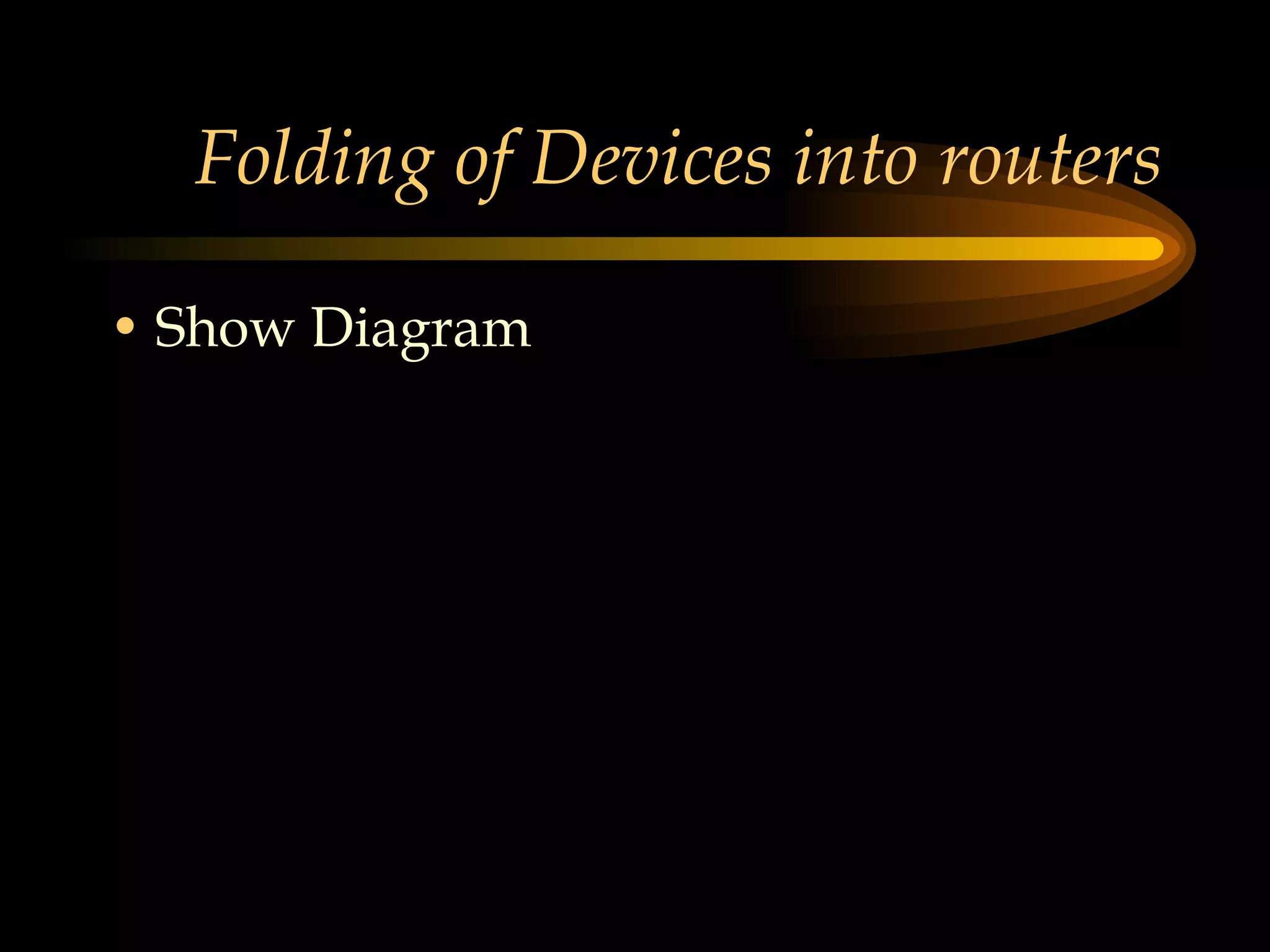

9. Folding of Devices into routers Show Diagram

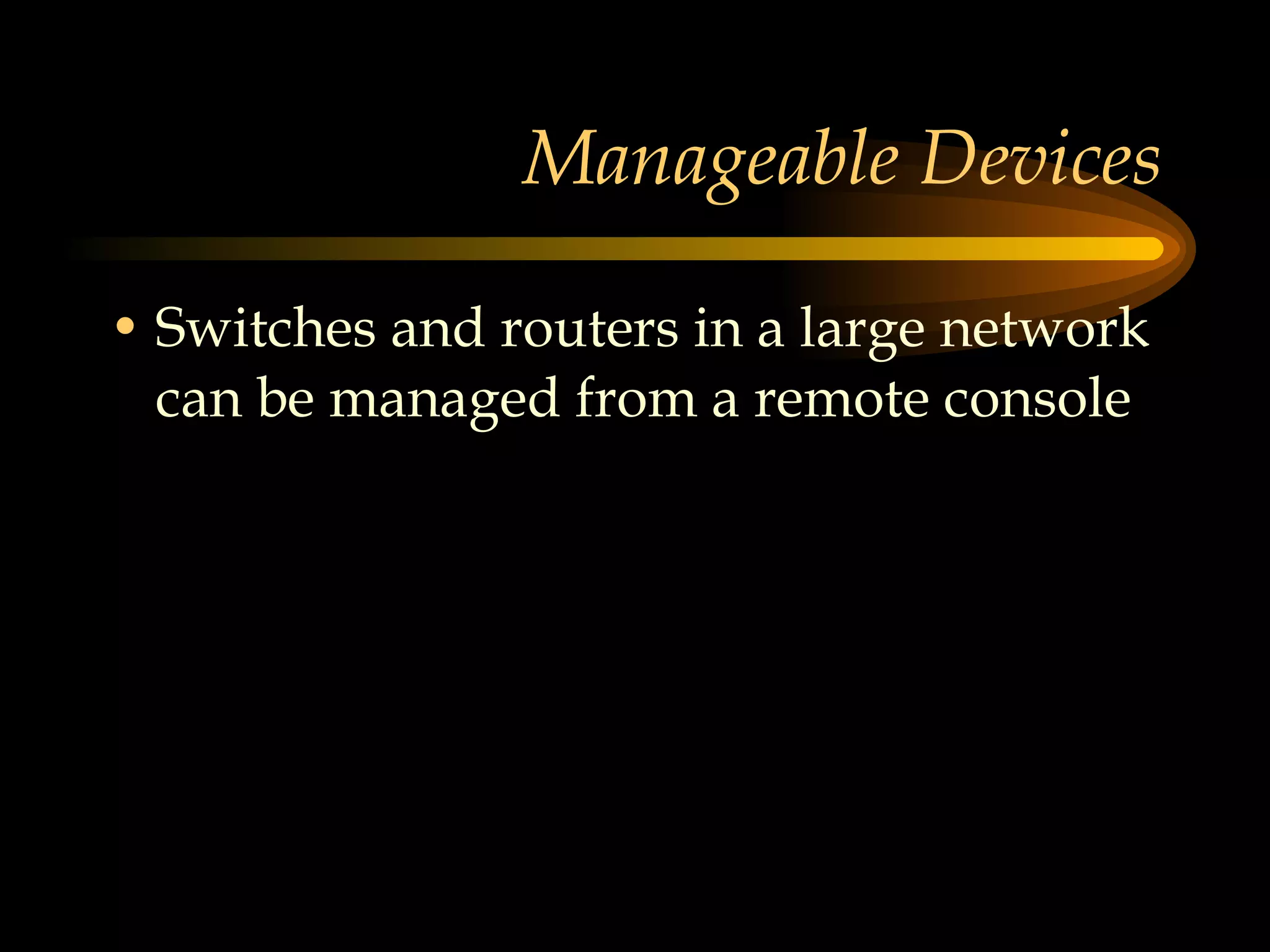

10. Manageable Devices Switches and routers in a large network can be managed from a remote console

11. End of Module

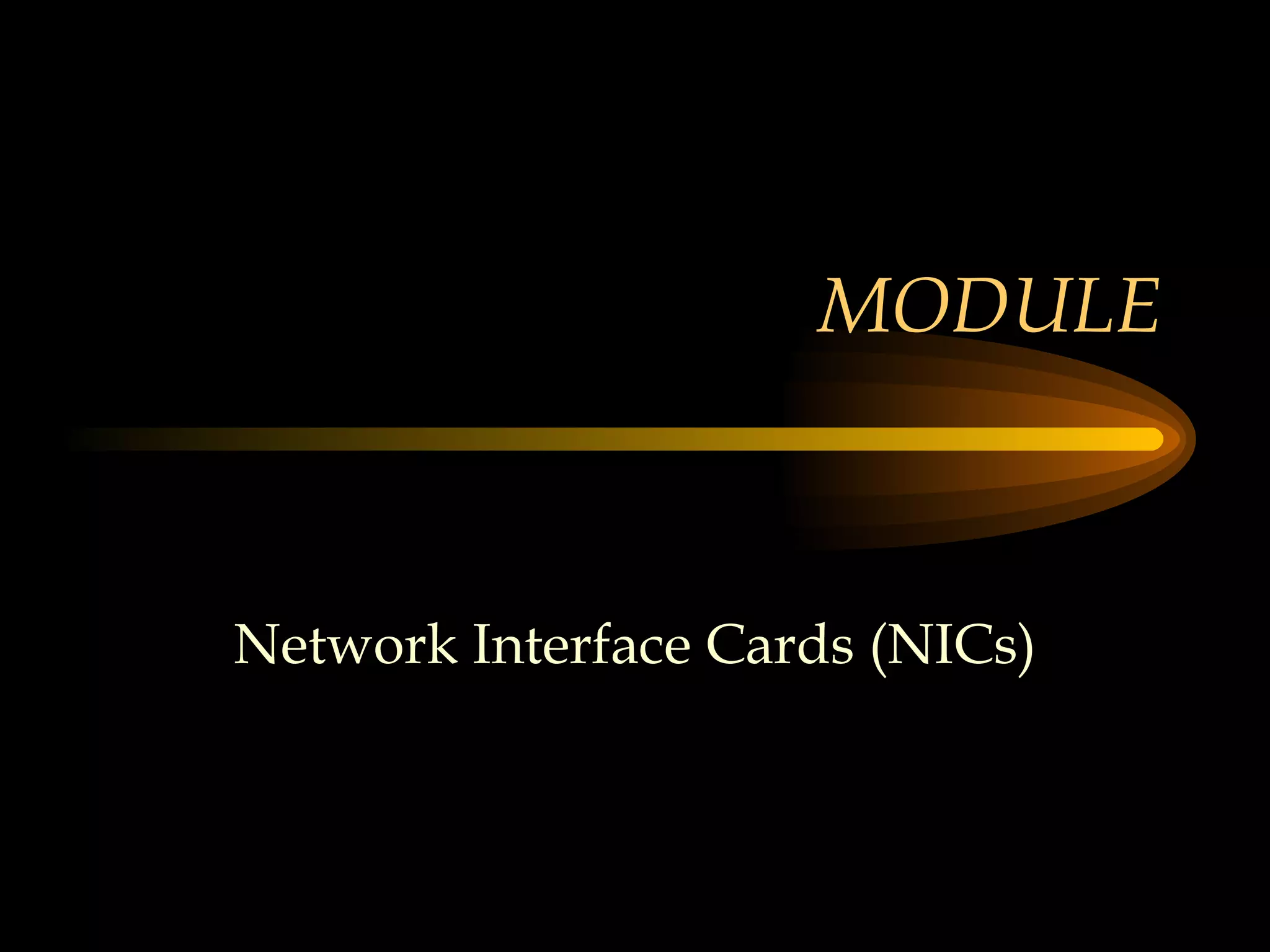

12. MODULE Network Interface Cards (NICs)

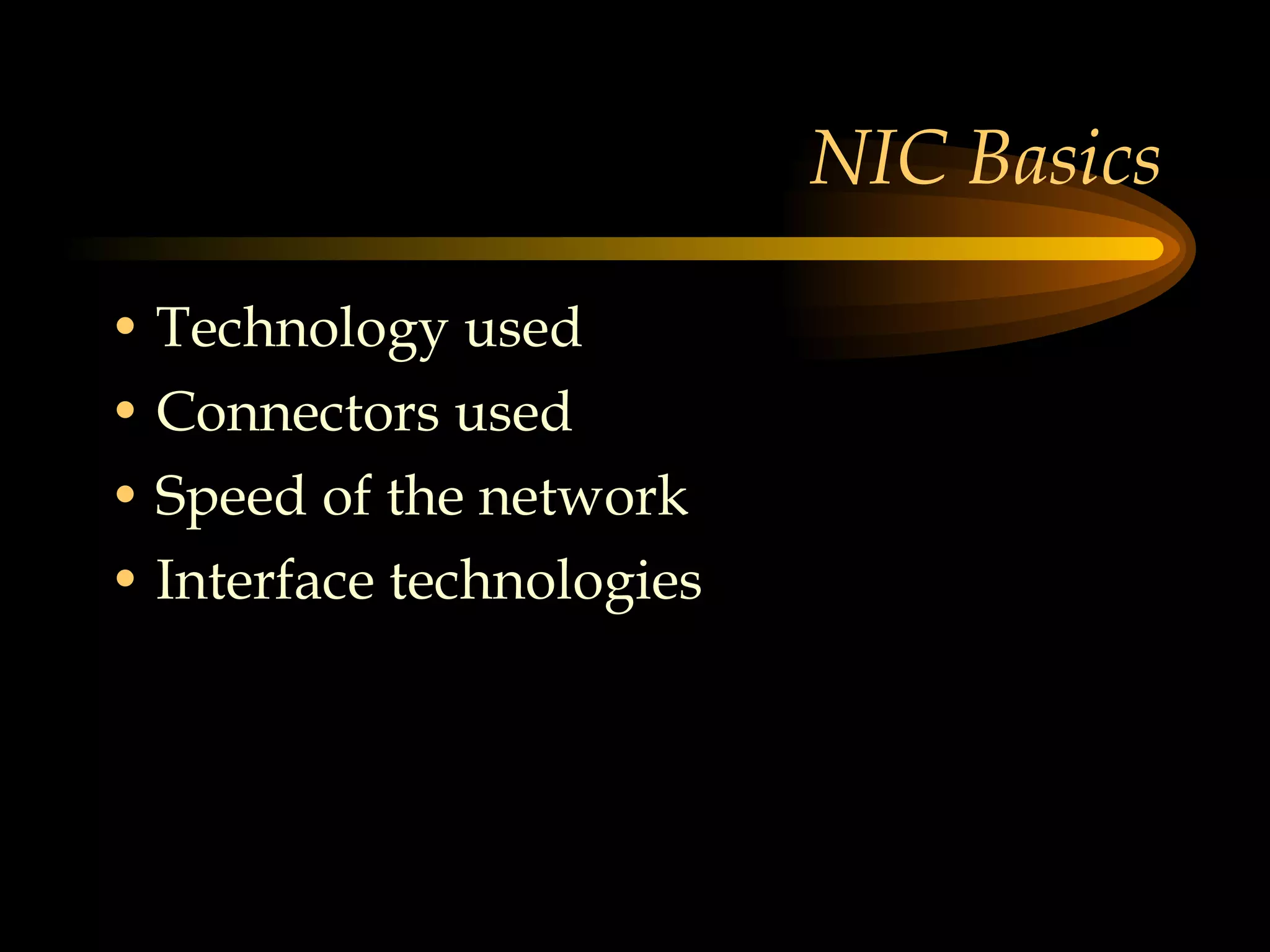

13. NIC Basics Technology used Connectors used Speed of the network Interface technologies

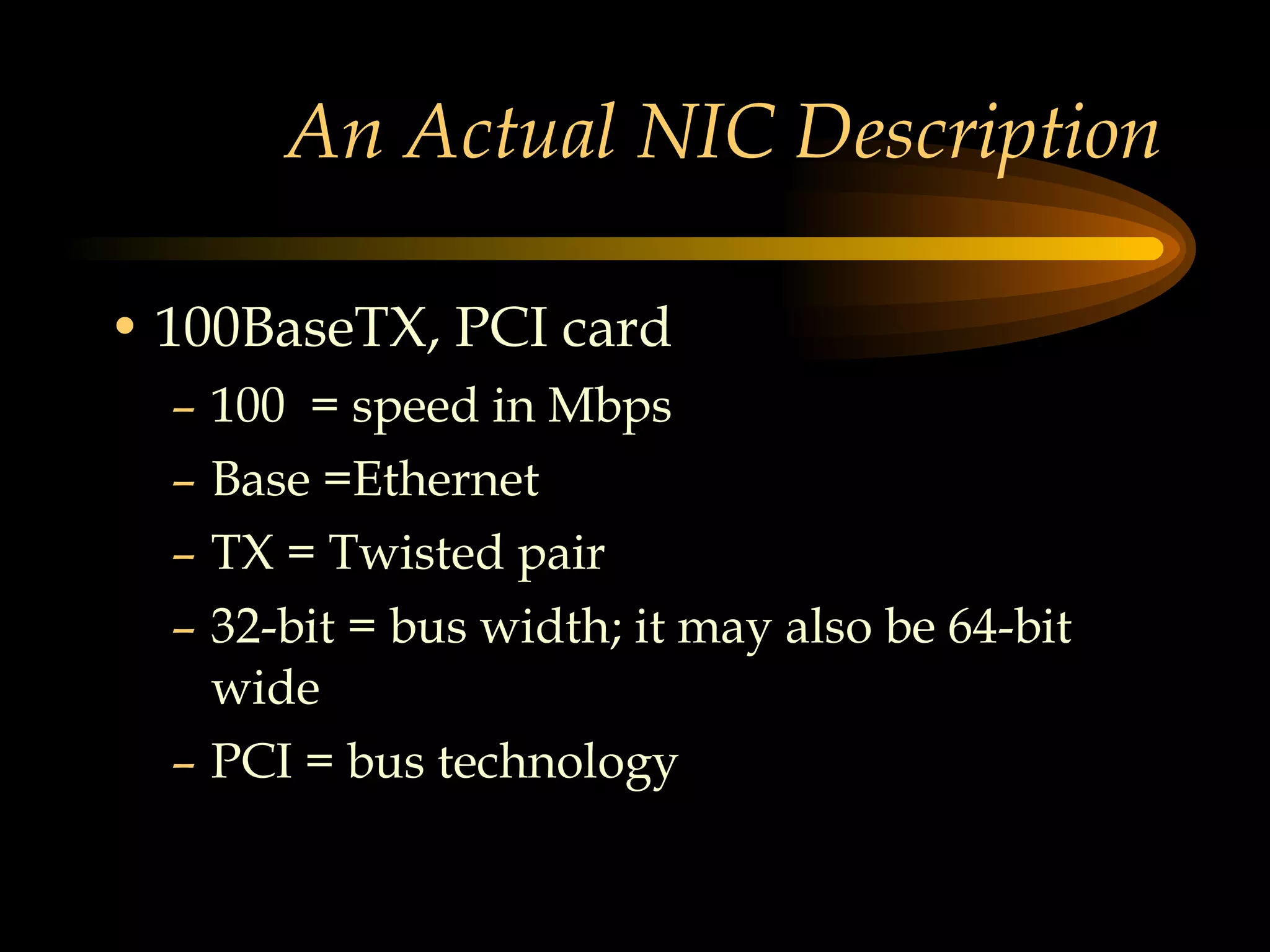

14. An Actual NIC Description 100BaseTX, PCI card 100 = speed in Mbps Base =Ethernet TX = Twisted pair 32-bit = bus width; it may also be 64-bit wide PCI = bus technology

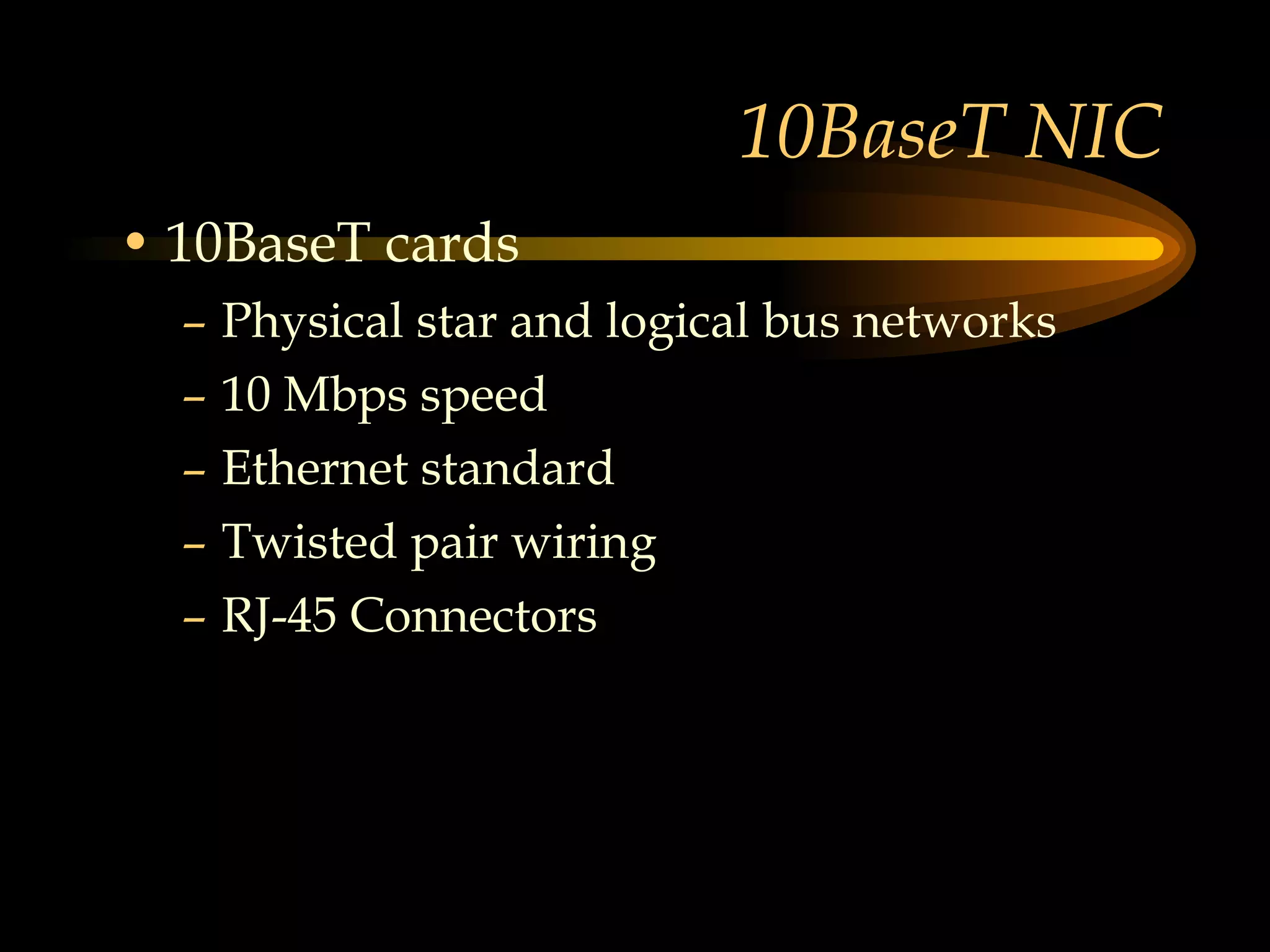

15. 10BaseT NIC 10BaseT cards Physical star and logical bus networks 10 Mbps speed Ethernet standard Twisted pair wiring RJ-45 Connectors

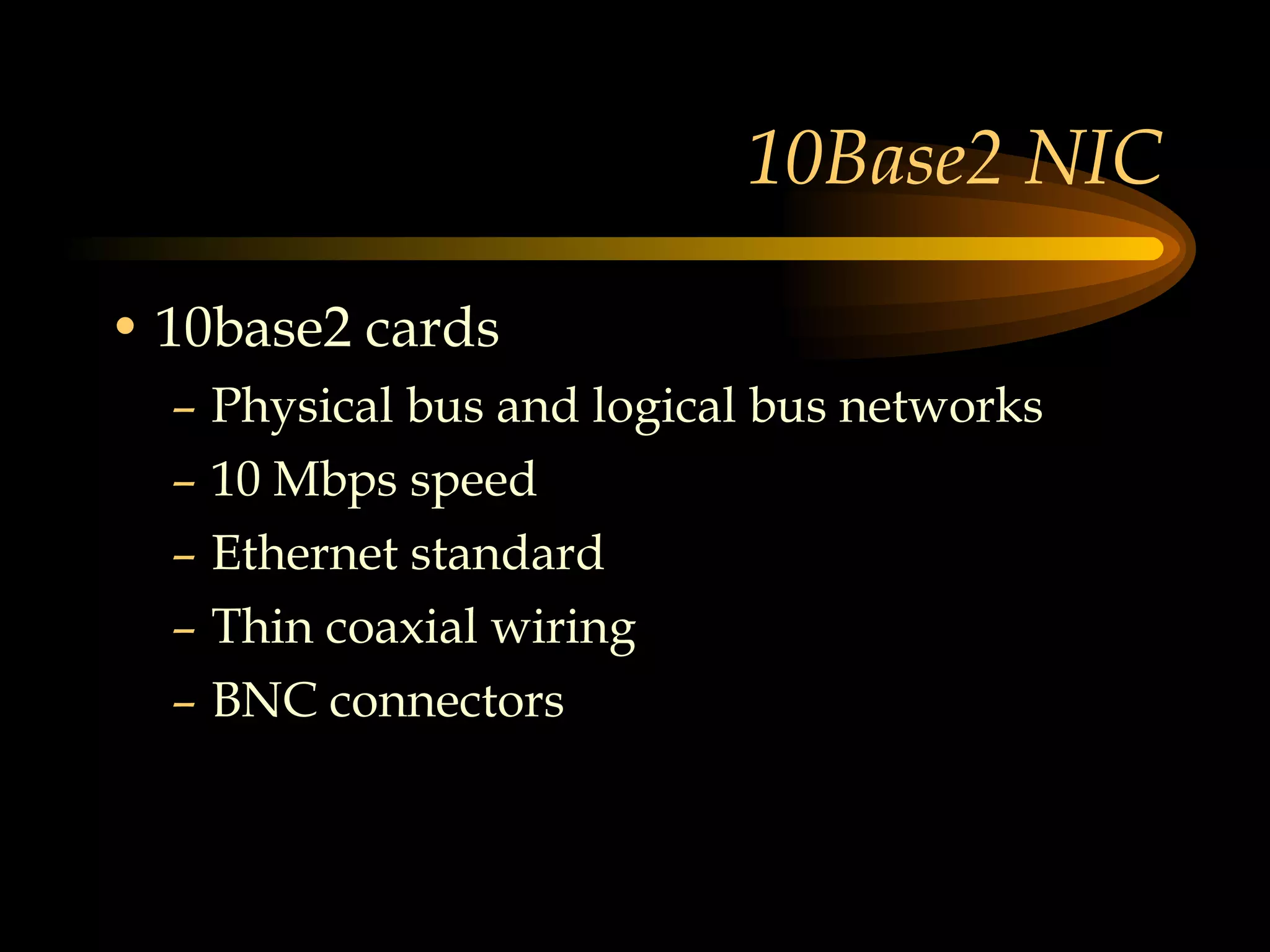

16. 10Base2 NIC 10base2 cards Physical bus and logical bus networks 10 Mbps speed Ethernet standard Thin coaxial wiring BNC connectors

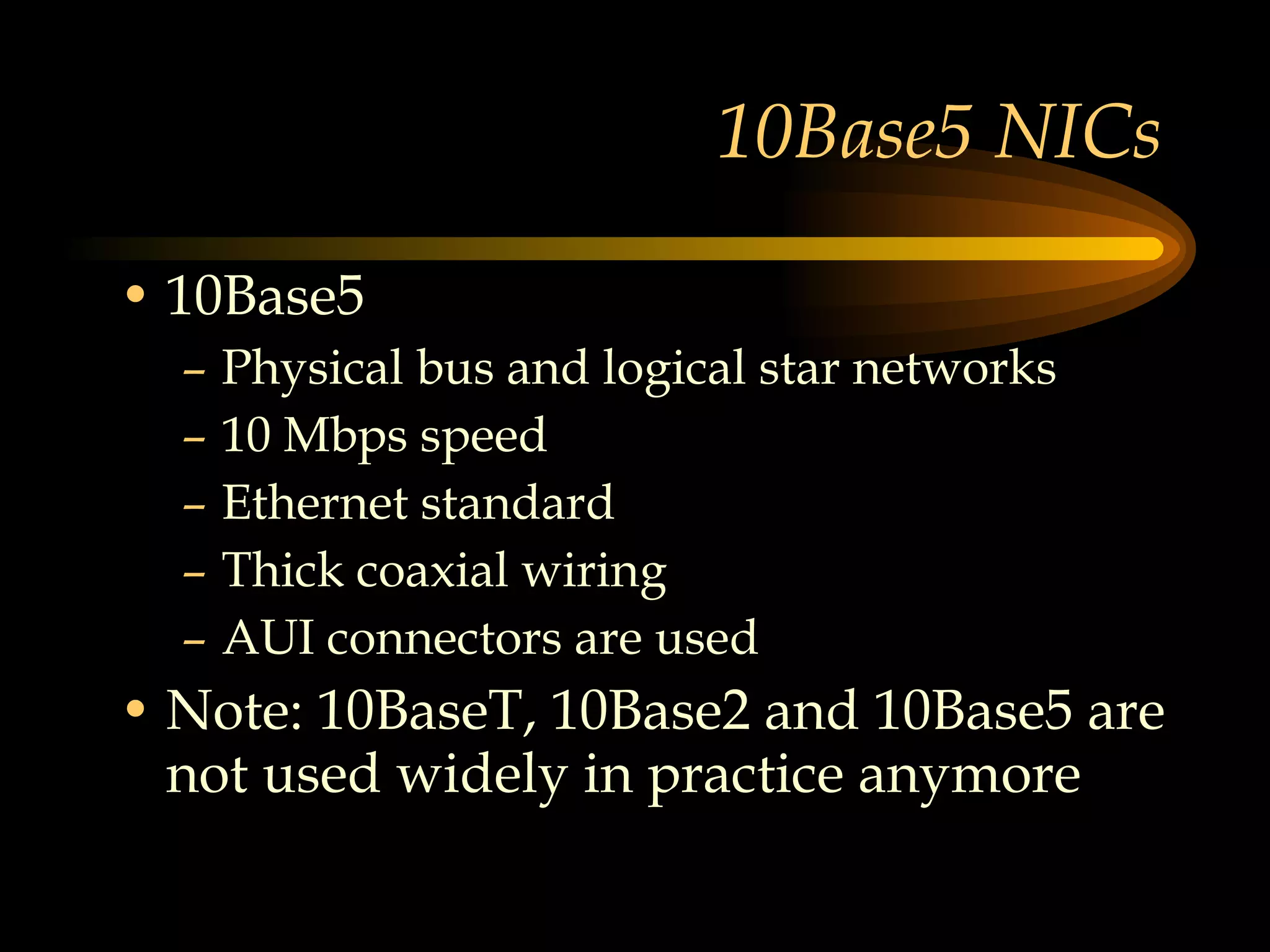

17. 10Base5 NICs 10Base5 Physical bus and logical star networks 10 Mbps speed Ethernet standard Thick coaxial wiring AUI connectors are used Note: 10BaseT, 10Base2 and 10Base5 are not used widely in practice anymore

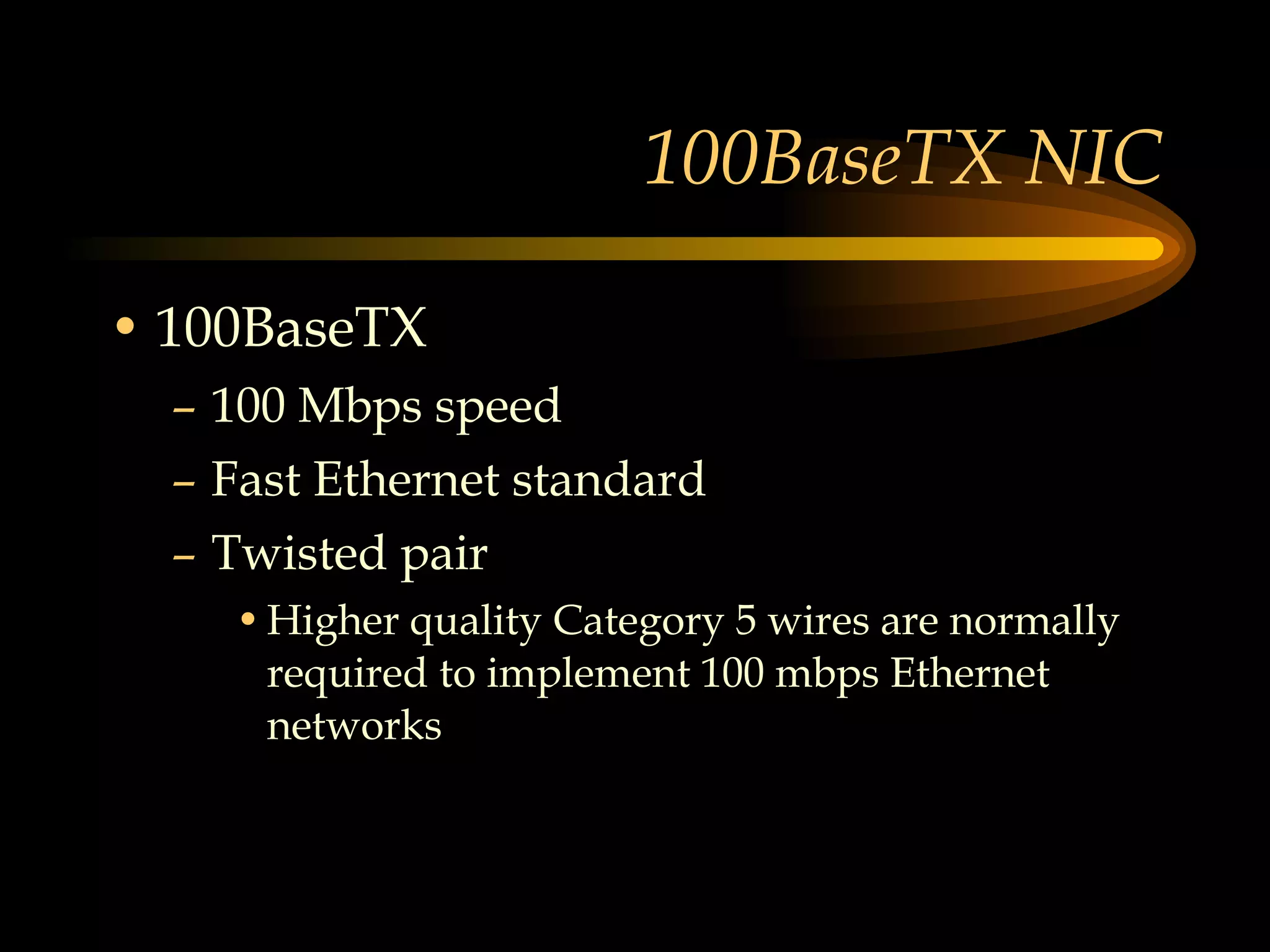

18. 100BaseTX NIC 100BaseTX 100 Mbps speed Fast Ethernet standard Twisted pair Higher quality Category 5 wires are normally required to implement 100 mbps Ethernet networks

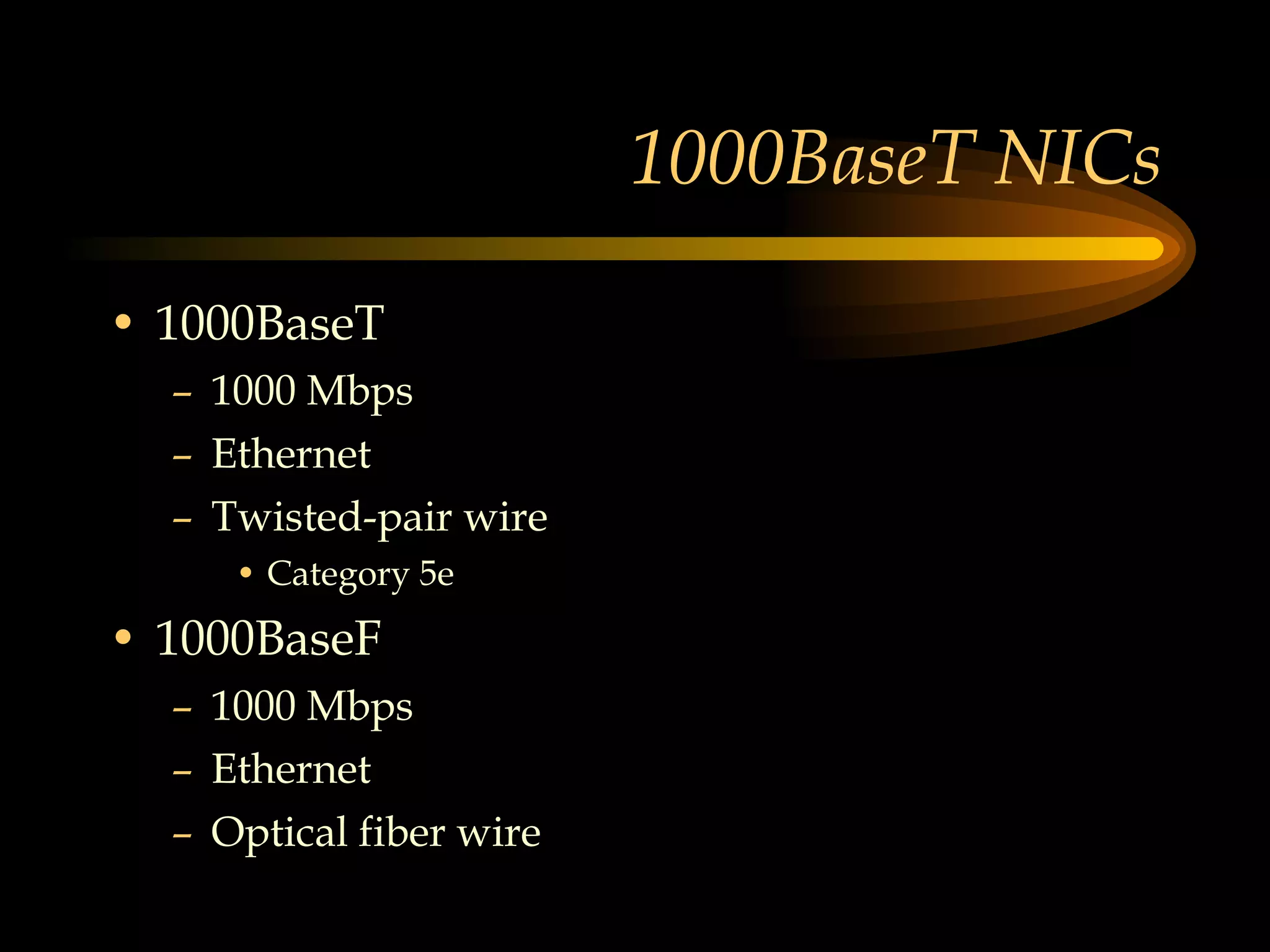

19. 1000BaseT NICs 1000BaseT 1000 Mbps Ethernet Twisted-pair wire Category 5e 1000BaseF 1000 Mbps Ethernet Optical fiber wire

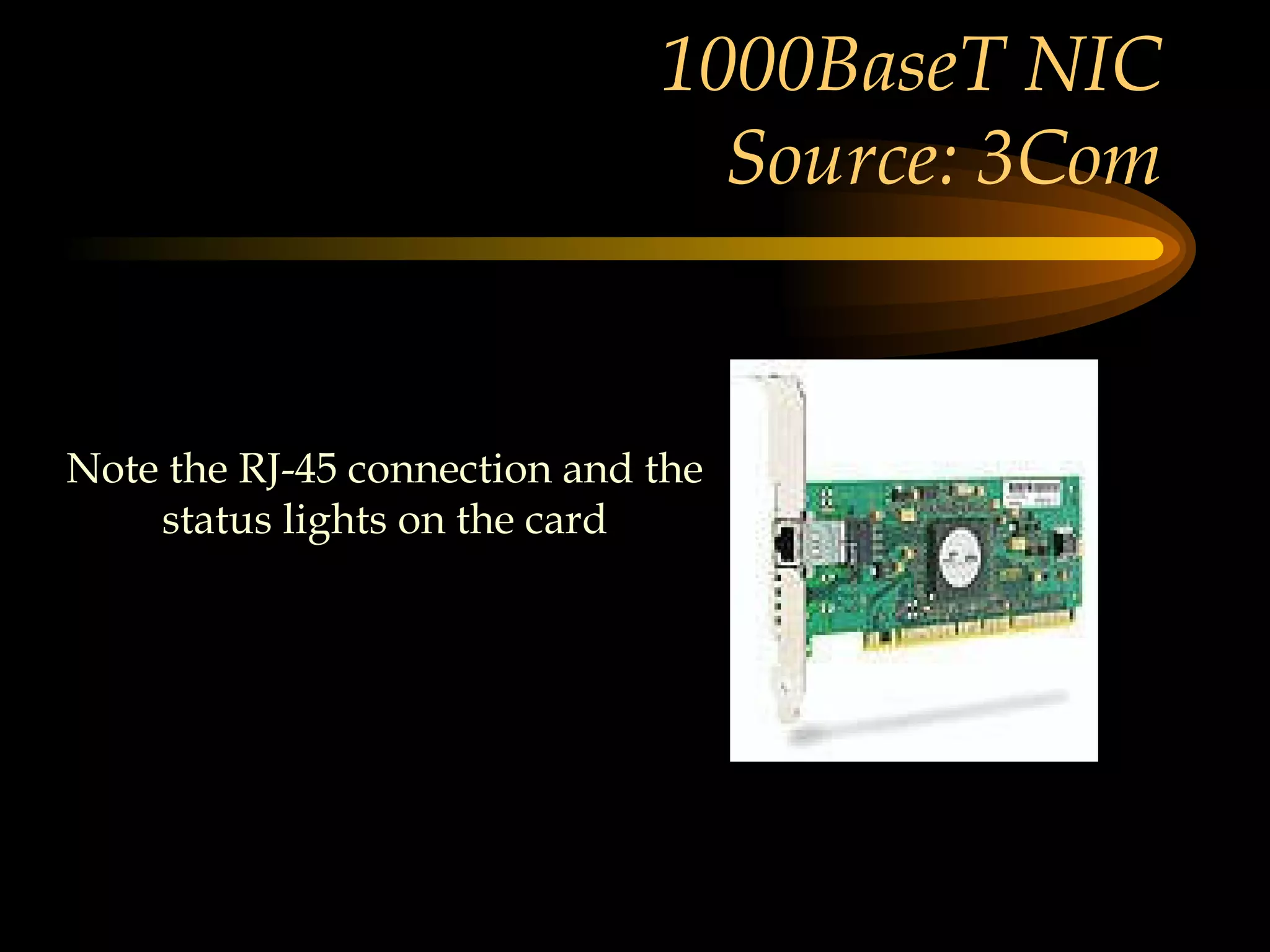

20. 1000BaseT NIC Source: 3Com Note the RJ-45 connection and the status lights on the card

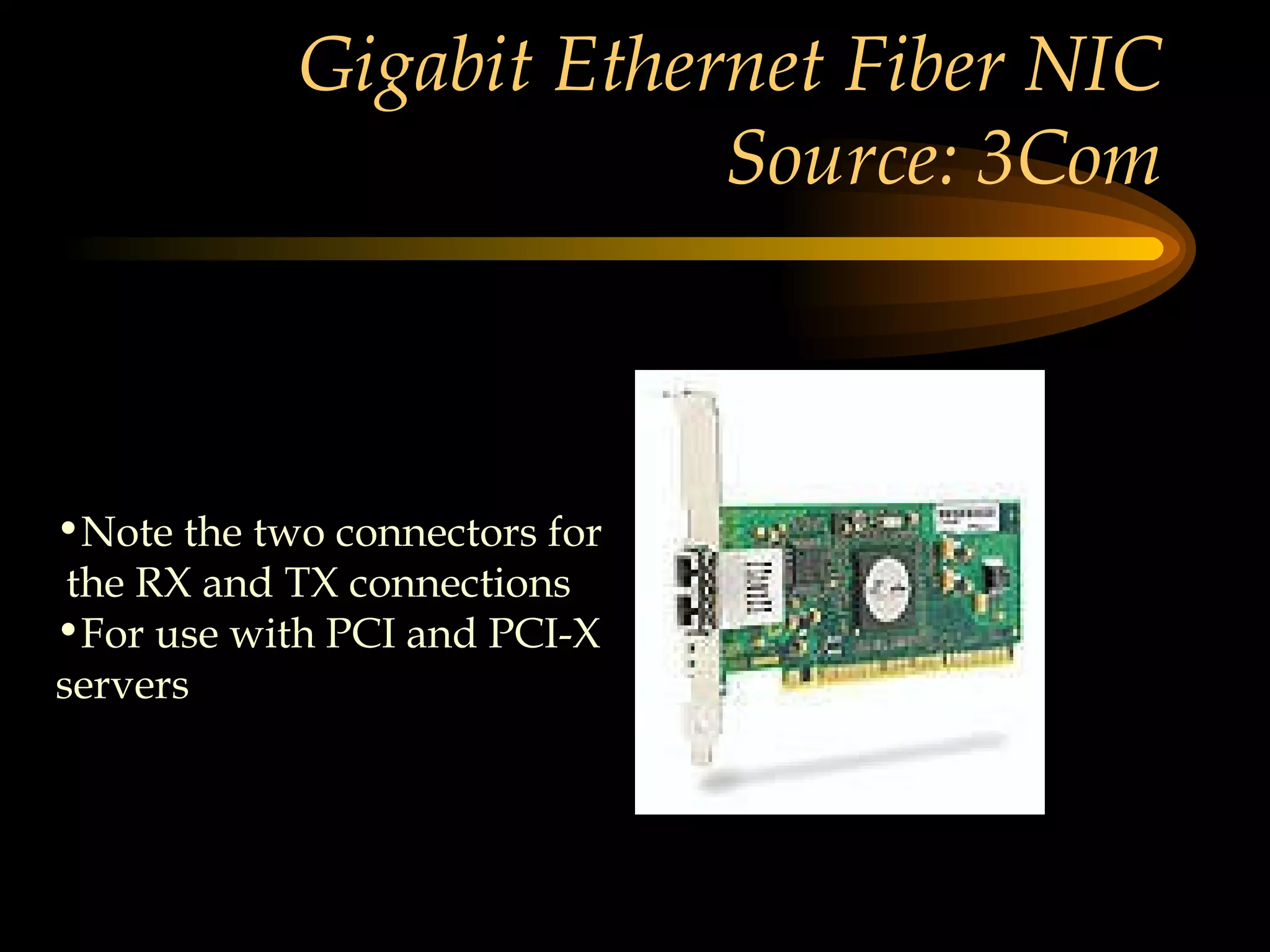

21. Gigabit Ethernet Fiber NIC Source: 3Com Note the two connectors for the RX and TX connections For use with PCI and PCI-X servers

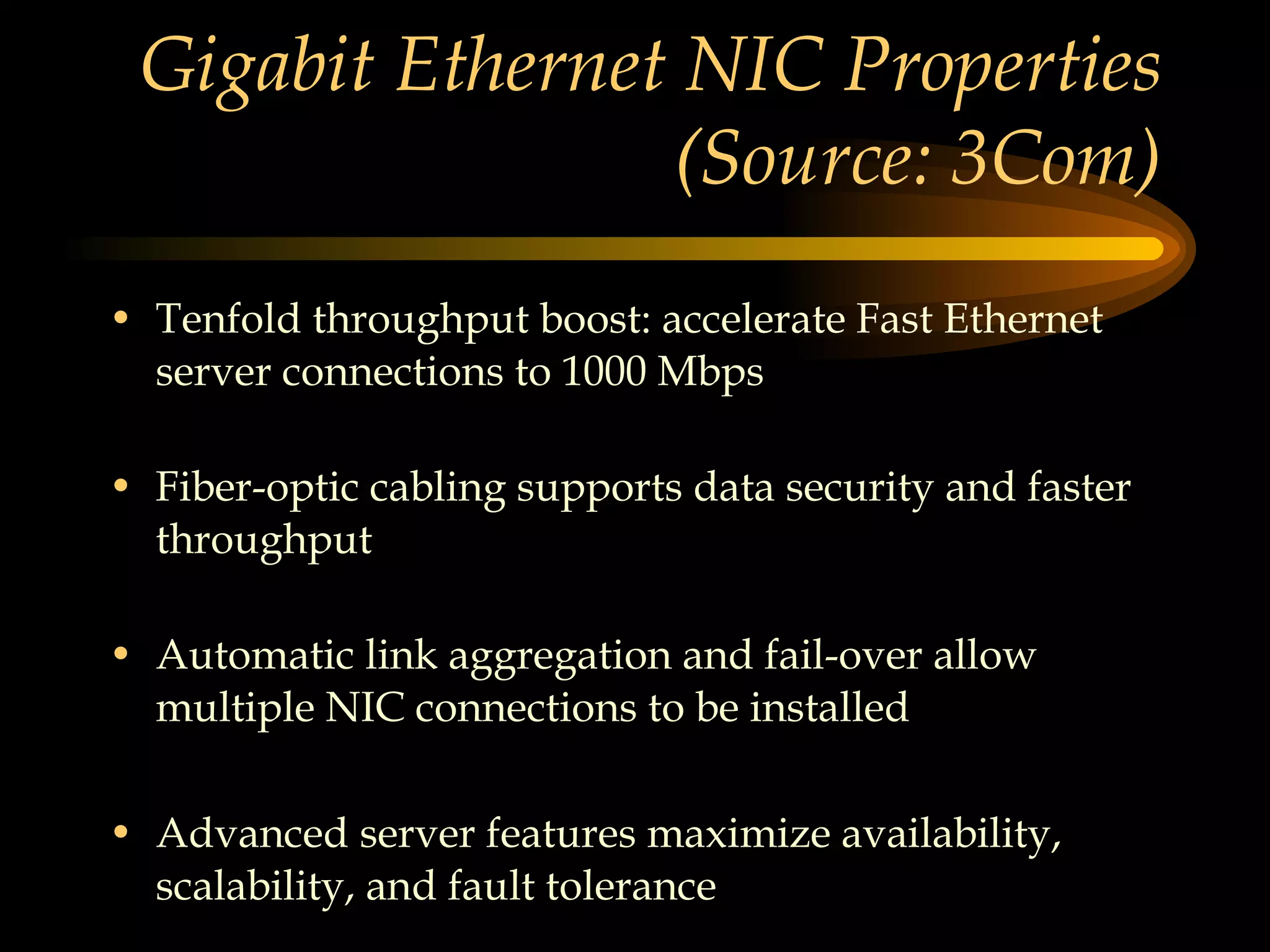

22. Gigabit Ethernet NIC Properties (Source: 3Com) Tenfold throughput boost: accelerate Fast Ethernet server connections to 1000 Mbps Fiber-optic cabling supports data security and faster throughput Automatic link aggregation and fail-over allow multiple NIC connections to be installed Advanced server features maximize availability, scalability, and fault tolerance

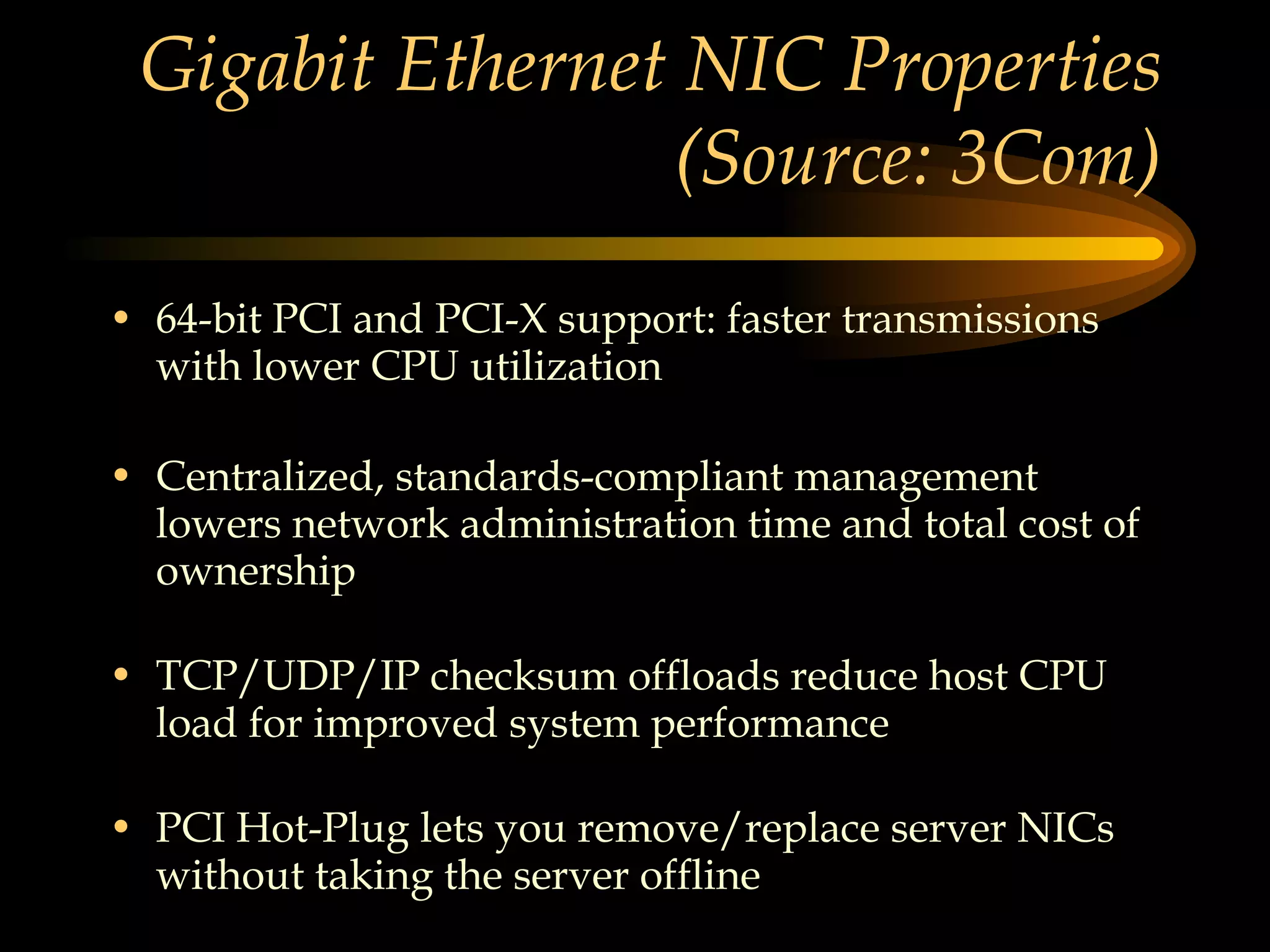

23. Gigabit Ethernet NIC Properties (Source: 3Com) 64-bit PCI and PCI-X support: faster transmissions with lower CPU utilization Centralized, standards-compliant management lowers network administration time and total cost of ownership TCP/UDP/IP checksum offloads reduce host CPU load for improved system performance PCI Hot-Plug lets you remove/replace server NICs without taking the server offline

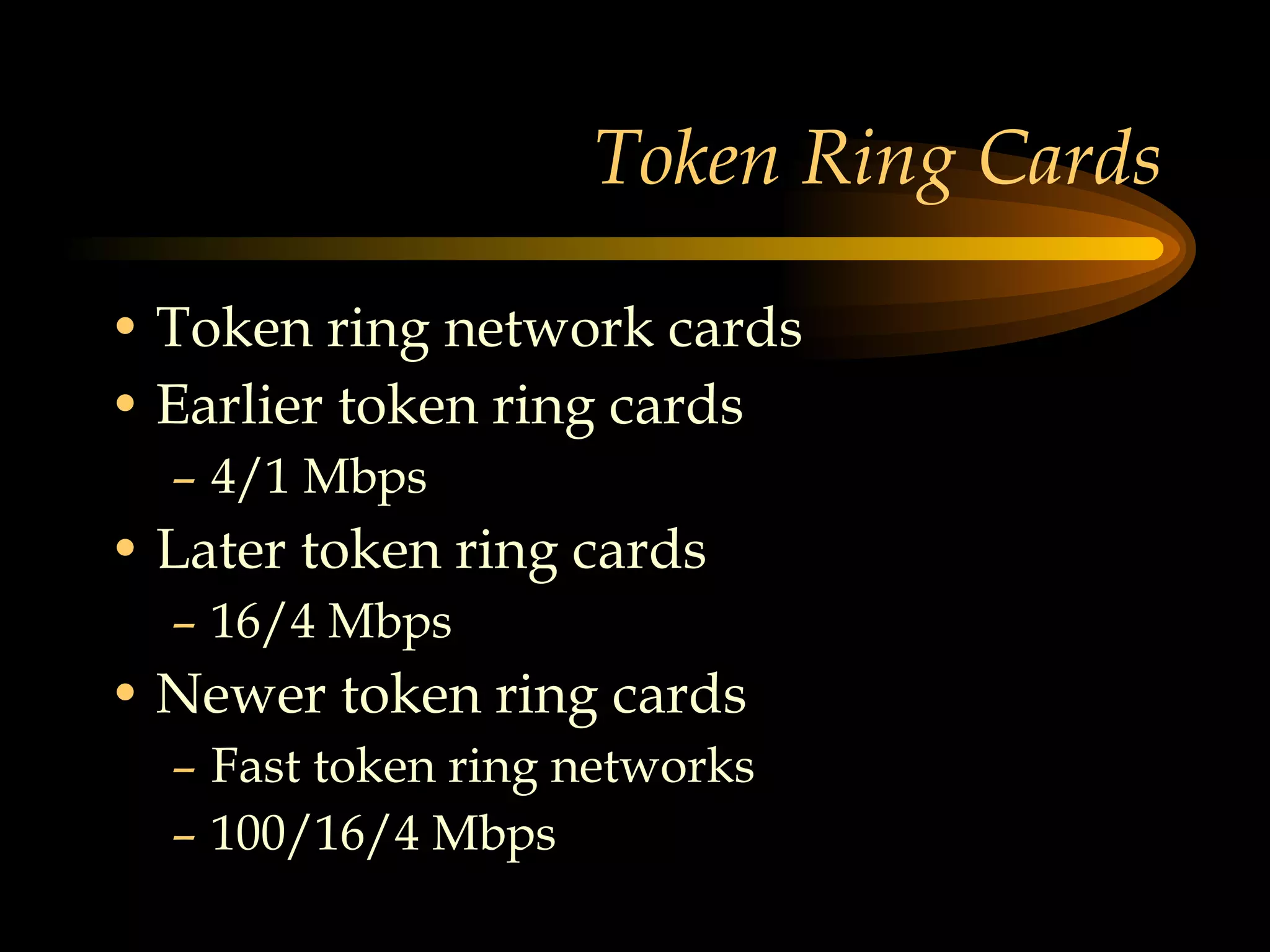

24. Token Ring Cards Token ring network cards Earlier token ring cards 4/1 Mbps Later token ring cards 16/4 Mbps Newer token ring cards Fast token ring networks 100/16/4 Mbps

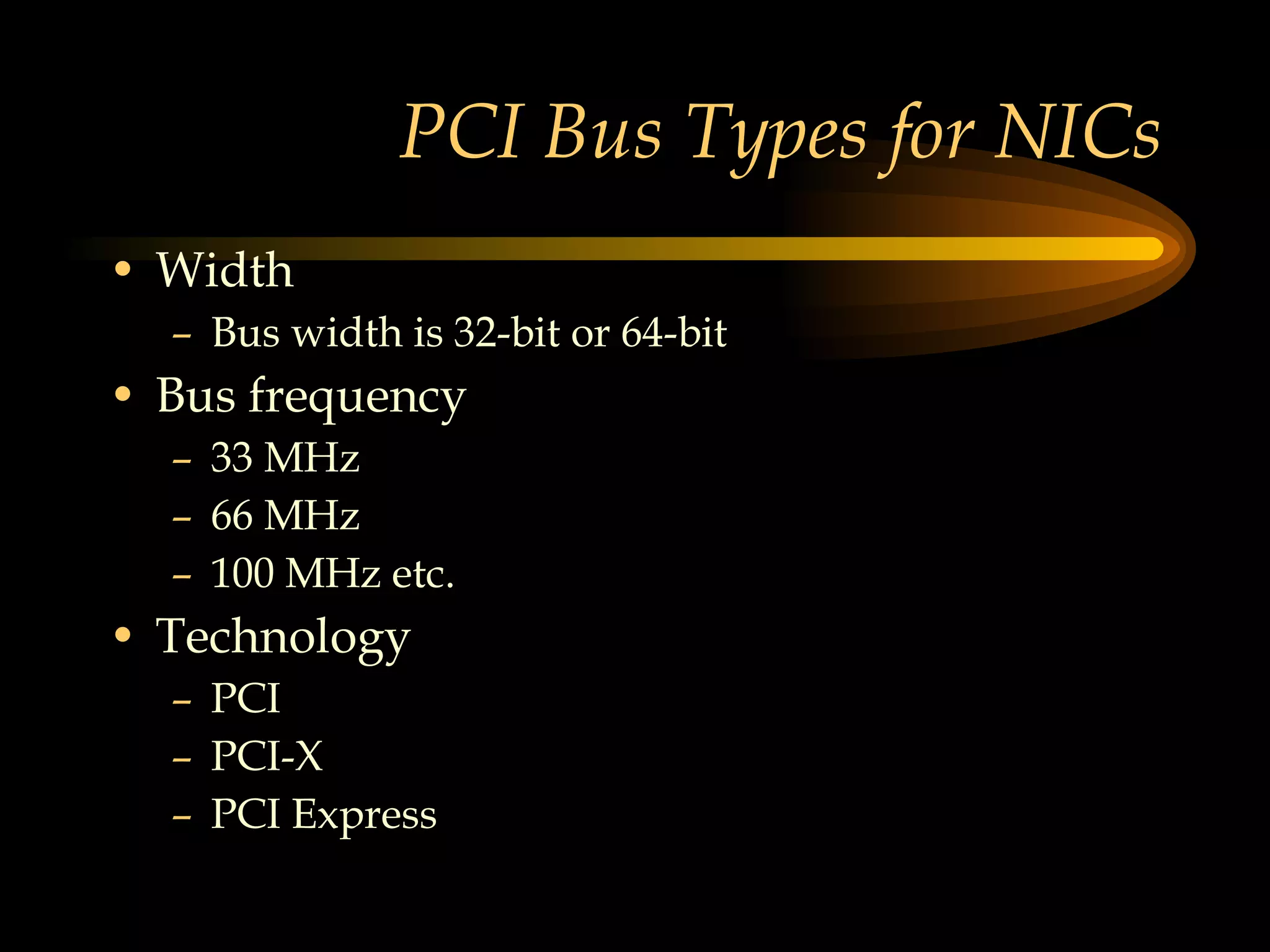

25. PCI Bus Types for NICs Width Bus width is 32-bit or 64-bit Bus frequency 33 MHz 66 MHz 100 MHz etc. Technology PCI PCI-X PCI Express

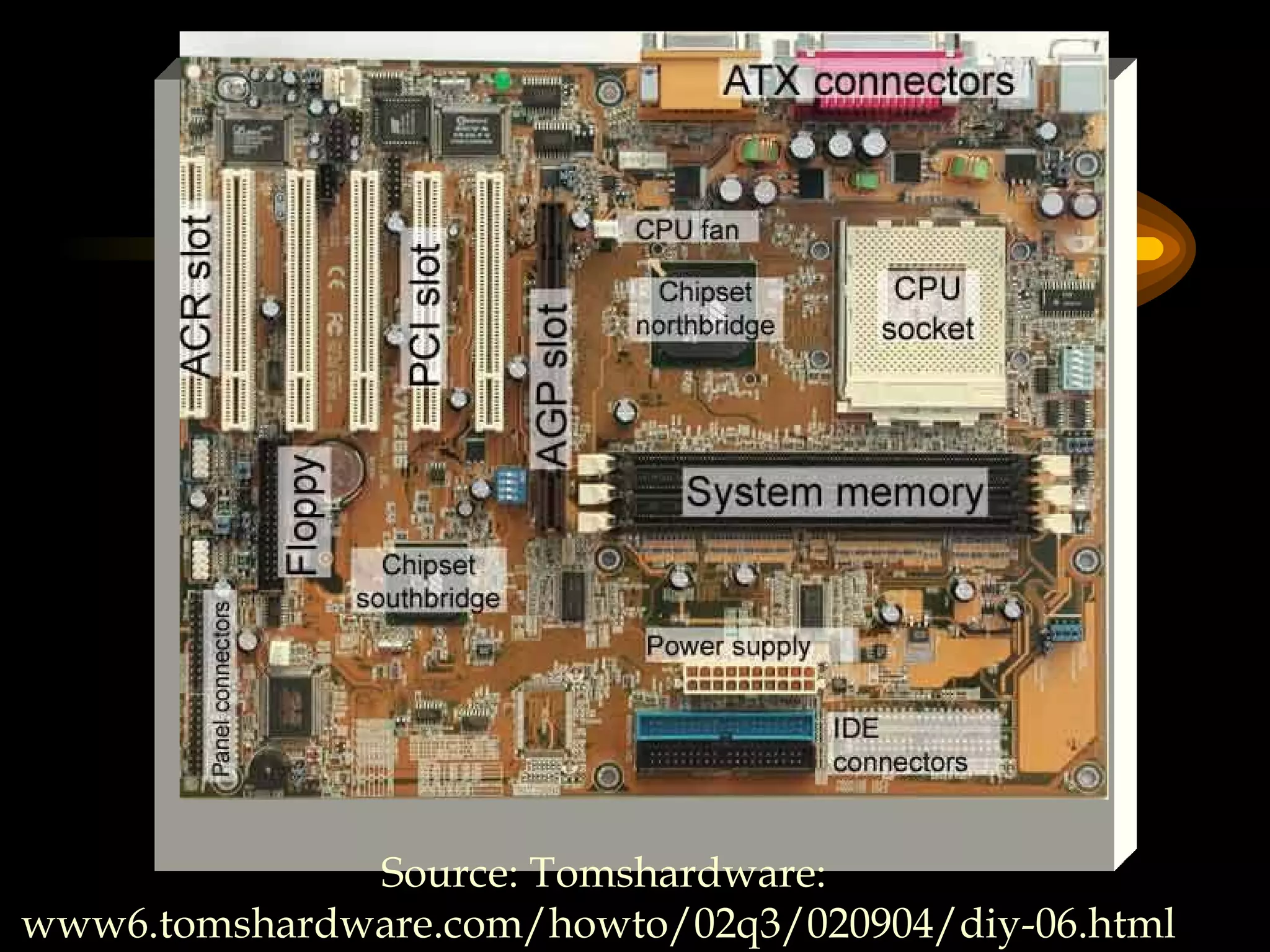

26. Source: Tomshardware: www6.tomshardware.com/howto/02q3/020904/diy-06.html

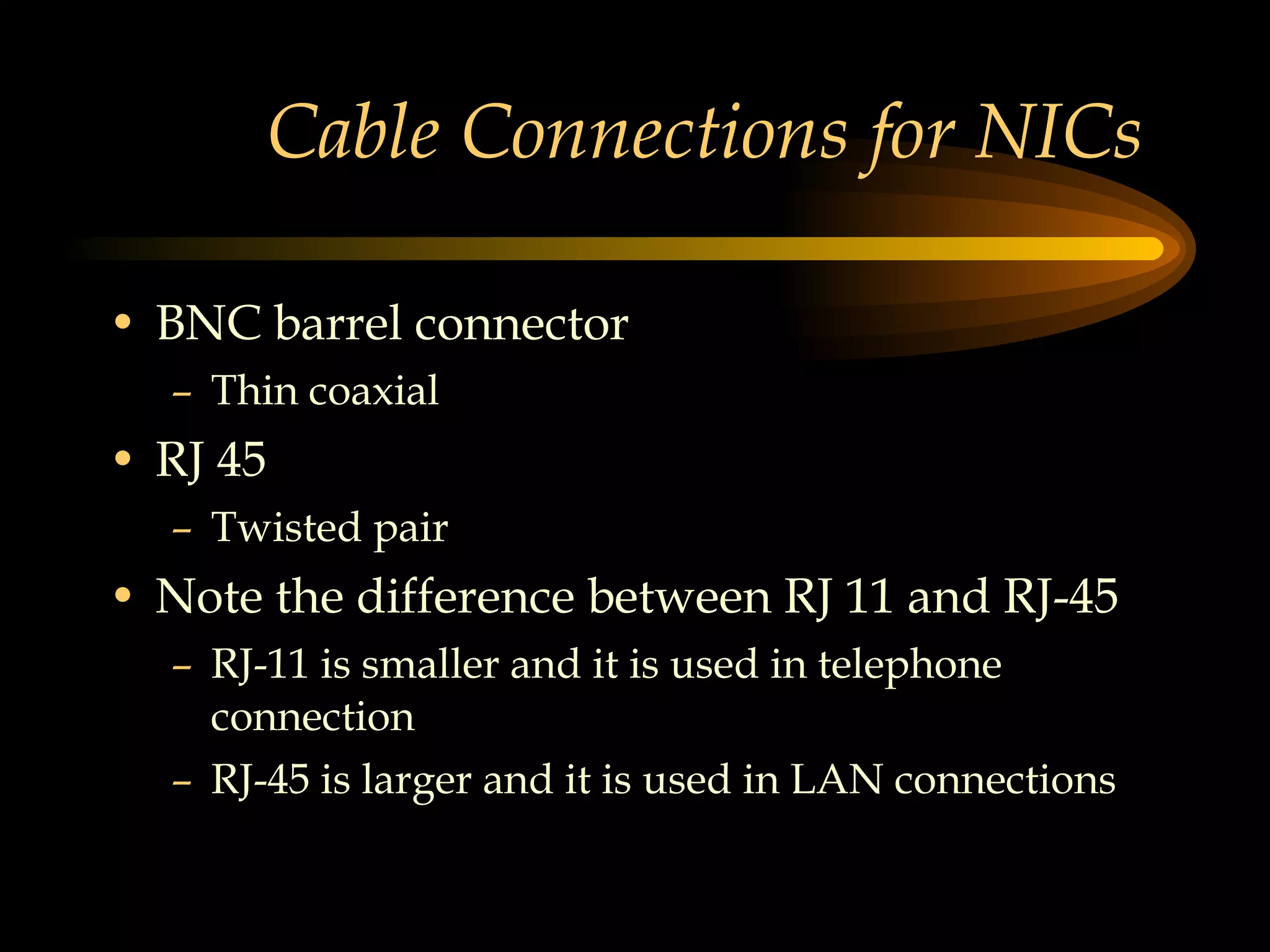

27. Cable Connections for NICs BNC barrel connector Thin coaxial RJ 45 Twisted pair Note the difference between RJ 11 and RJ-45 RJ-11 is smaller and it is used in telephone connection RJ-45 is larger and it is used in LAN connections

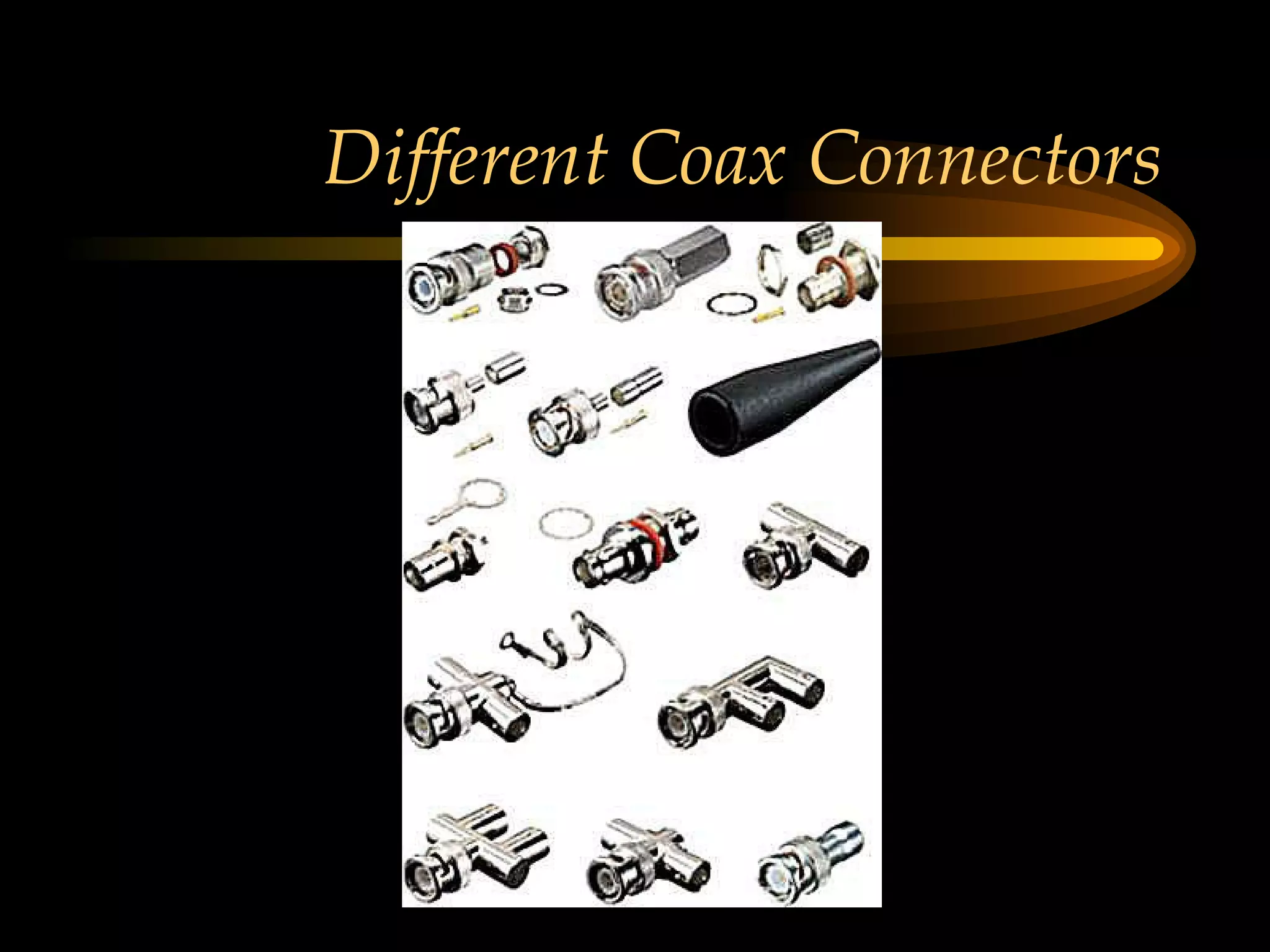

28. Different Coax Connectors

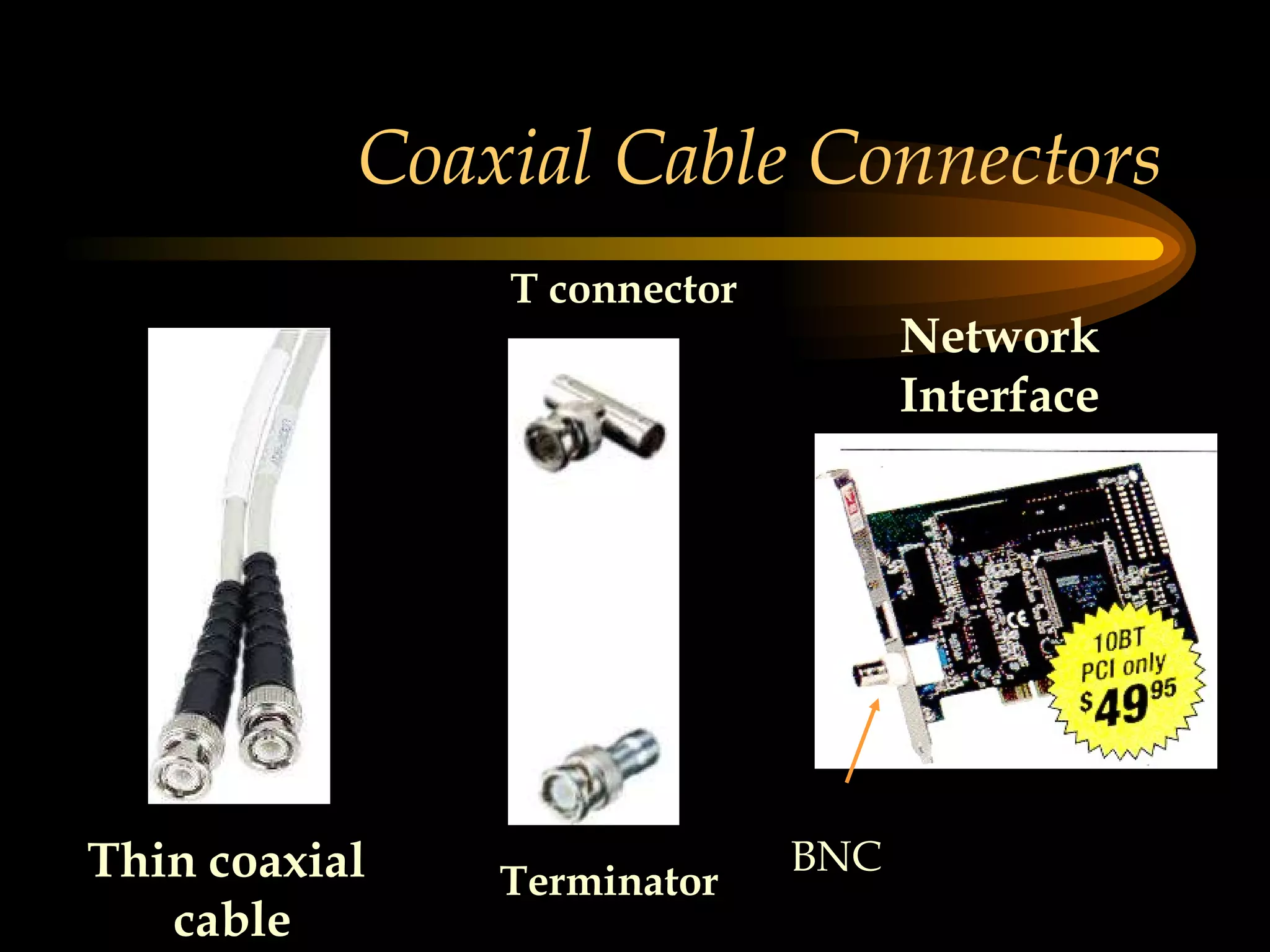

29. Coaxial Cable Connectors Thin coaxial cable T connector Terminator Network Interface Card BNC

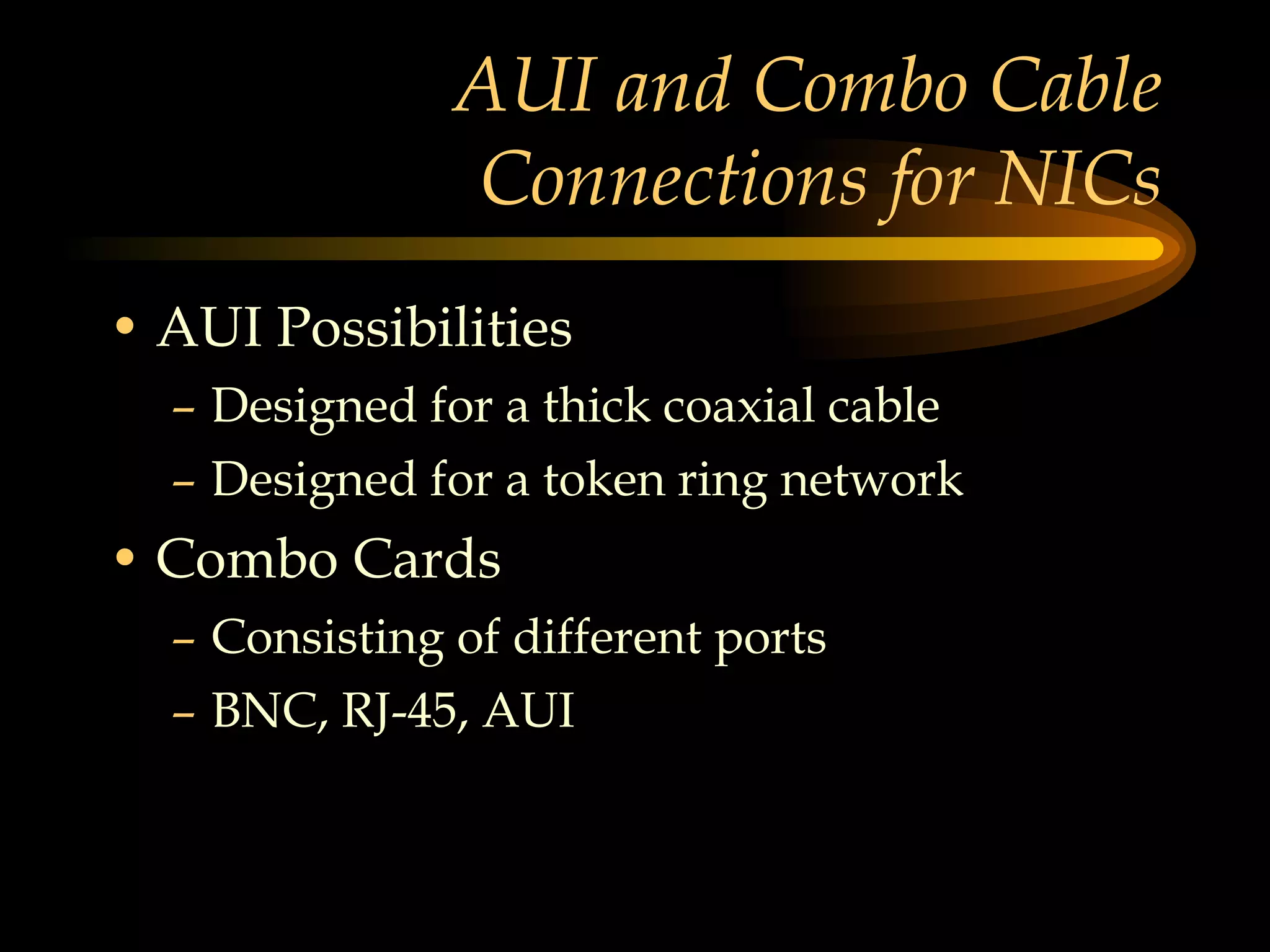

30. AUI and Combo Cable Connections for NICs AUI Possibilities Designed for a thick coaxial cable Designed for a token ring network Combo Cards Consisting of different ports BNC, RJ-45, AUI

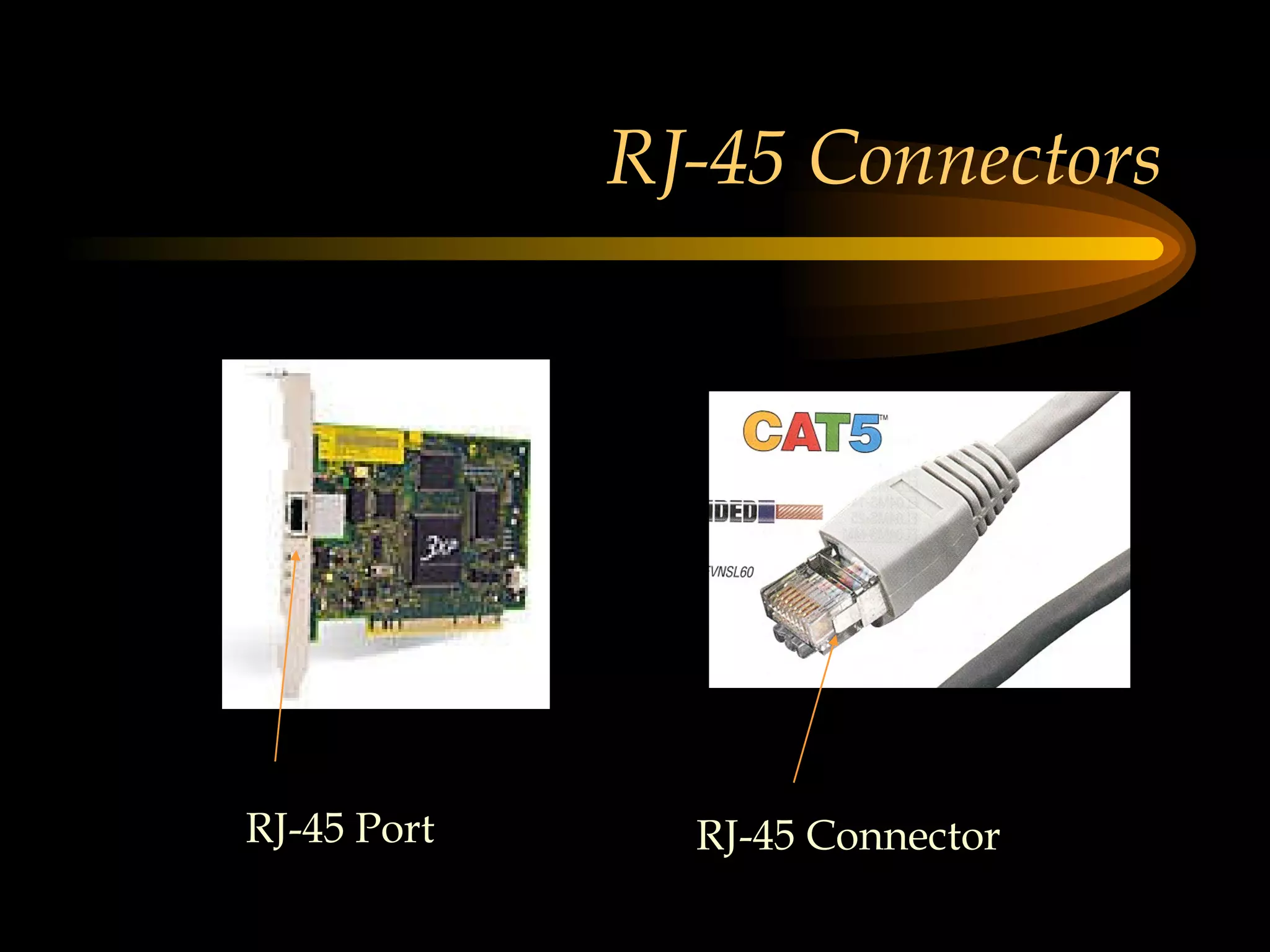

31. RJ-45 Connectors RJ-45 Port RJ-45 Connector

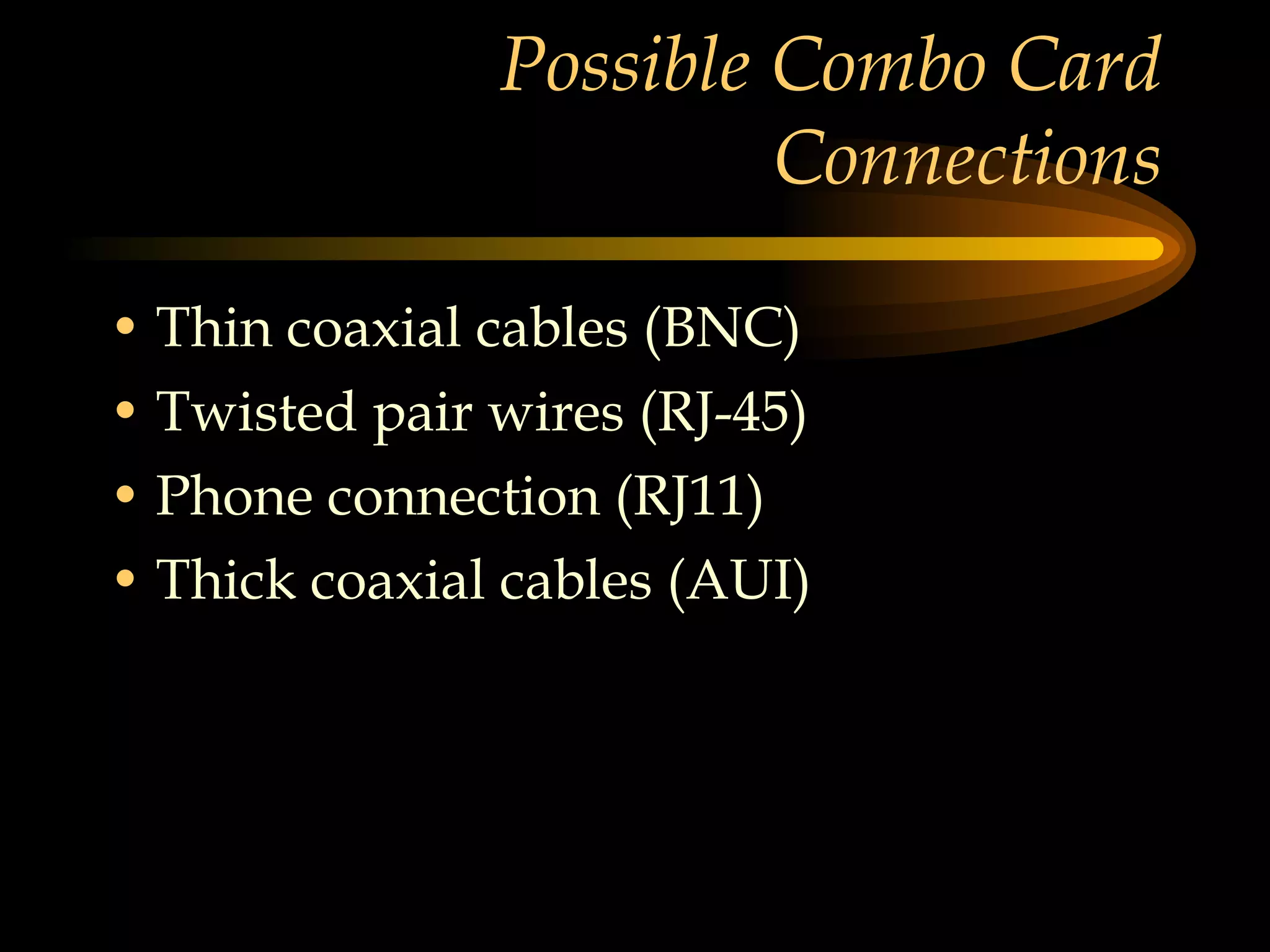

32. Possible Combo Card Connections Thin coaxial cables (BNC) Twisted pair wires (RJ-45) Phone connection (RJ11) Thick coaxial cables (AUI)

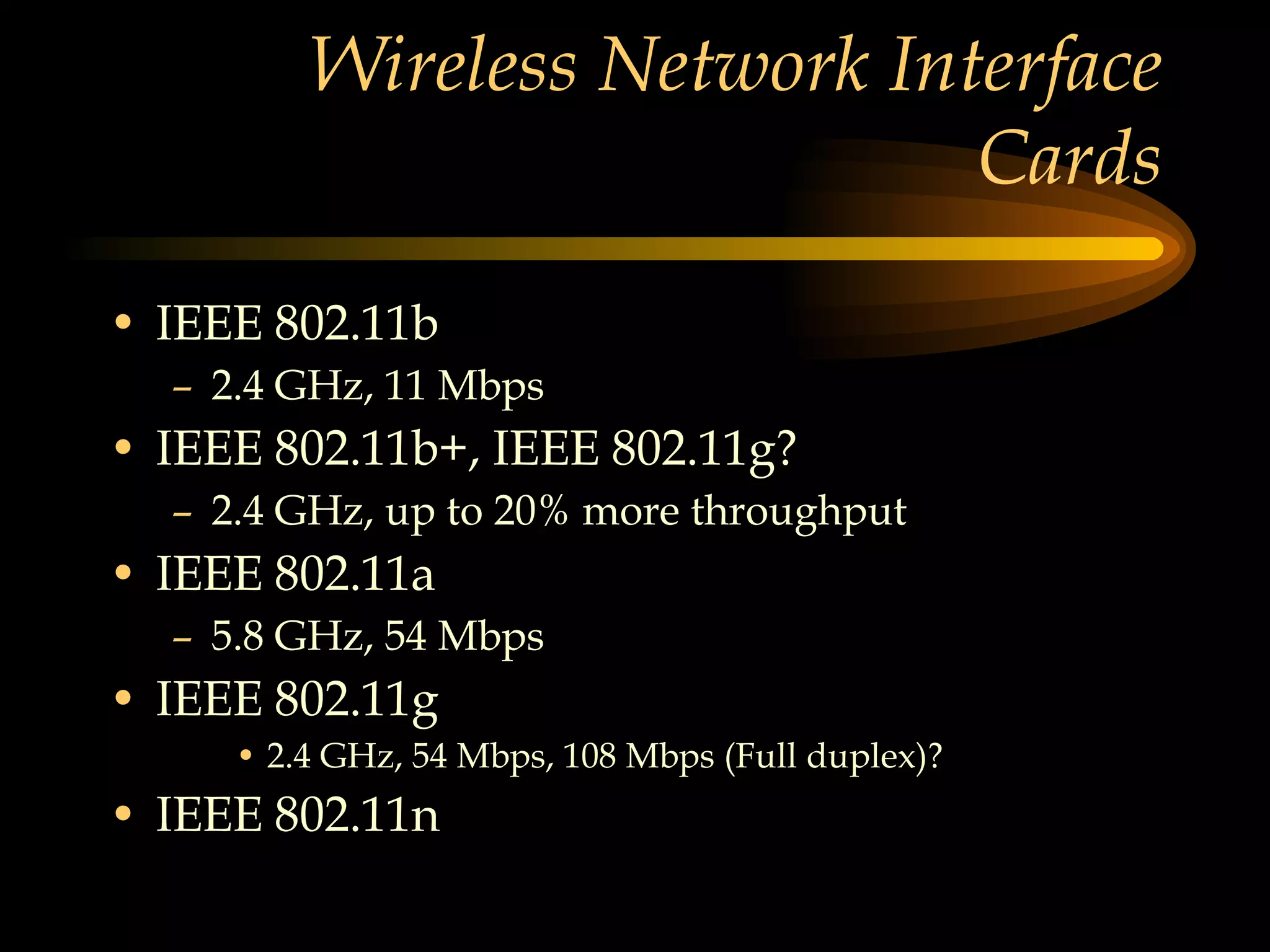

33. Wireless Network Interface Cards IEEE 802.11b 2.4 GHz, 11 Mbps IEEE 802.11b+, IEEE 802.11g? 2.4 GHz, up to 20% more throughput IEEE 802.11a 5.8 GHz, 54 Mbps IEEE 802.11g 2.4 GHz, 54 Mbps, 108 Mbps (Full duplex)? IEEE 802.11n

34. Example of Older 10Base2 Card BNC Source: Black Box

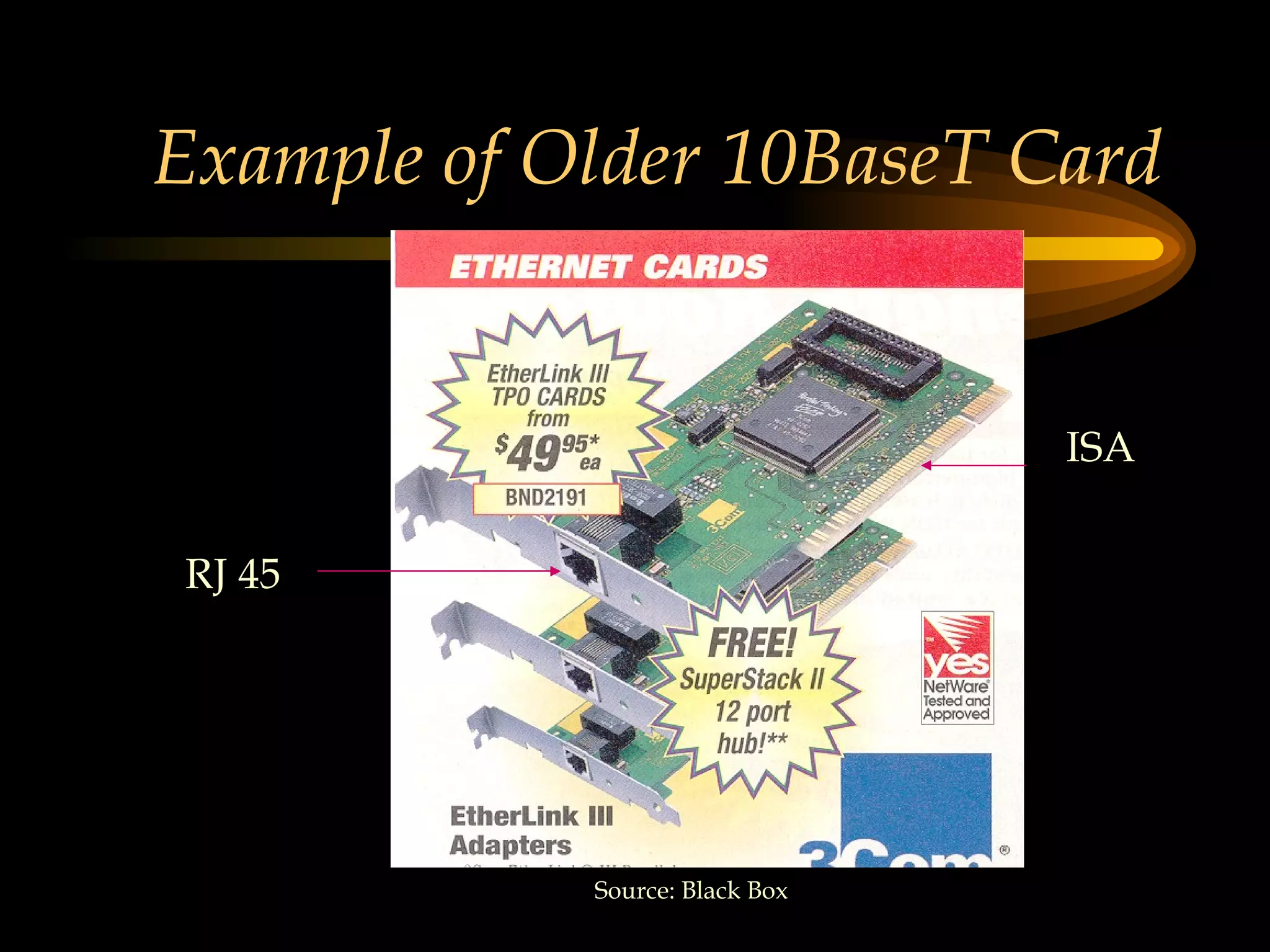

35. Example of Older 10BaseT Card RJ 45 ISA Source: Black Box

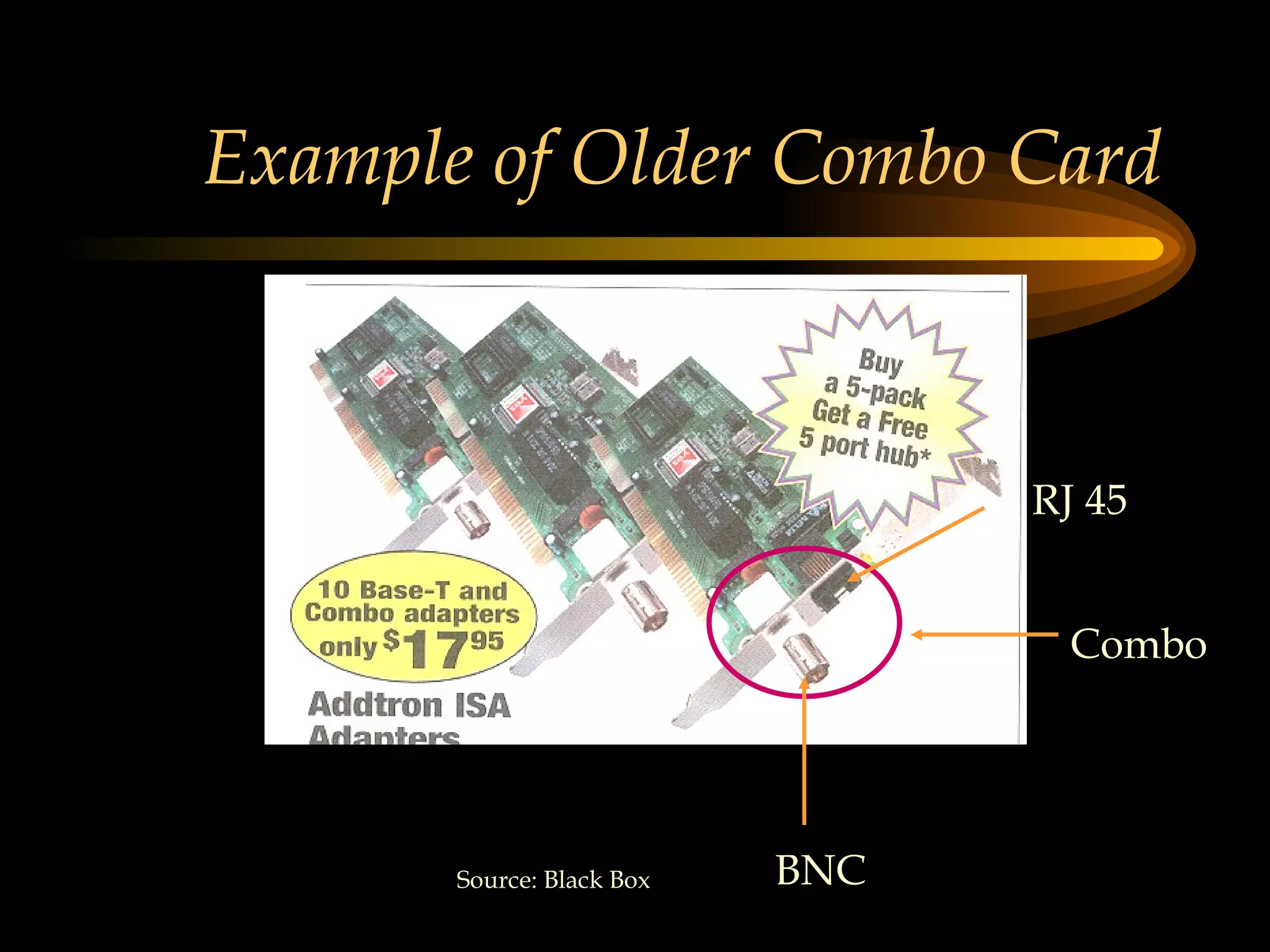

36. Example of Older Combo Card Combo Source: Black Box RJ 45 BNC

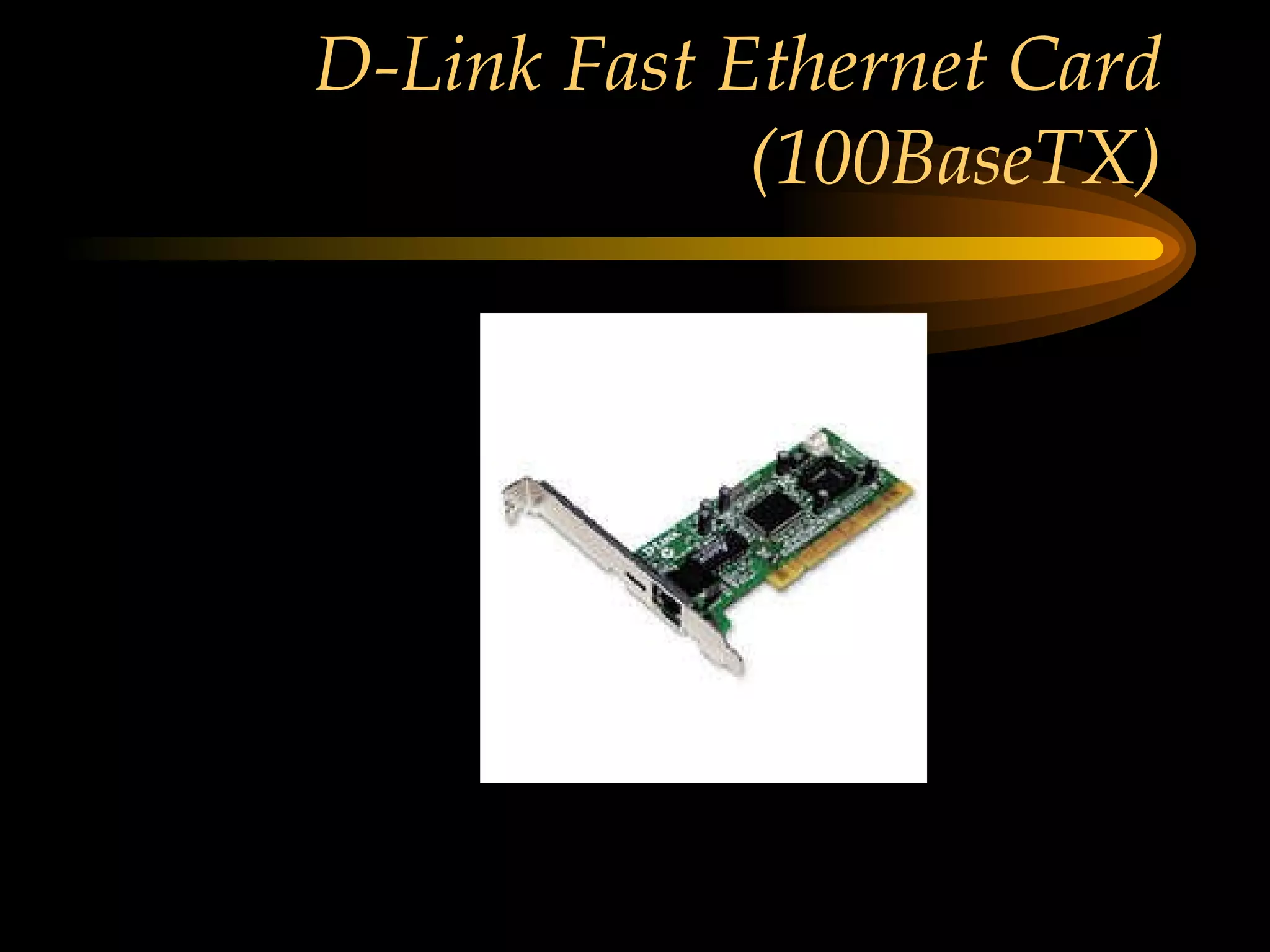

37. D-Link Fast Ethernet Card (100BaseTX)

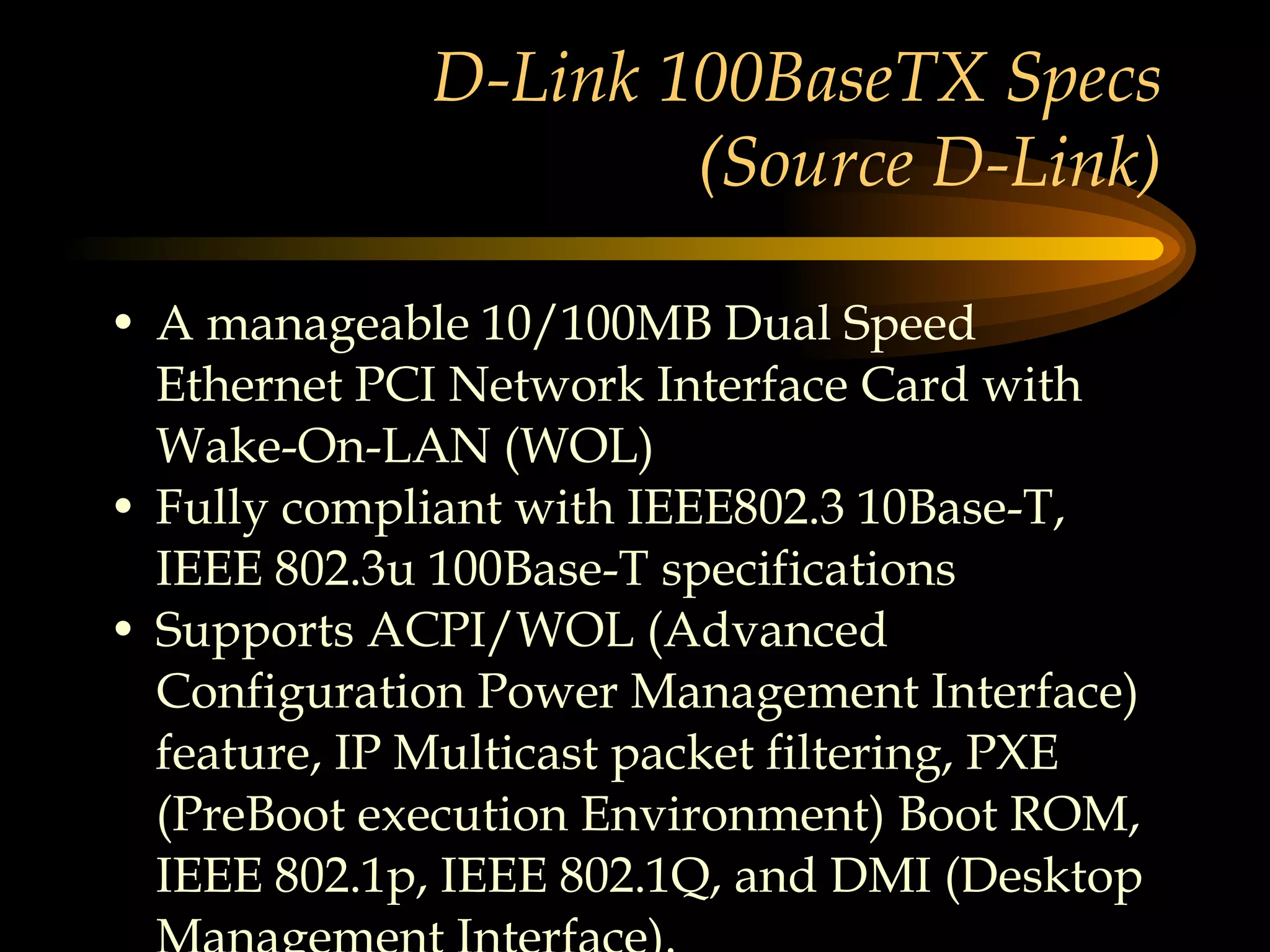

38. D-Link 100BaseTX Specs (Source D-Link) A manageable 10/100MB Dual Speed Ethernet PCI Network Interface Card with Wake-On-LAN (WOL) Fully compliant with IEEE802.3 10Base-T, IEEE 802.3u 100Base-T specifications Supports ACPI/WOL (Advanced Configuration Power Management Interface) feature, IP Multicast packet filtering, PXE (PreBoot execution Environment) Boot ROM, IEEE 802.1p, IEEE 802.1Q, and DMI (Desktop Management Interface).

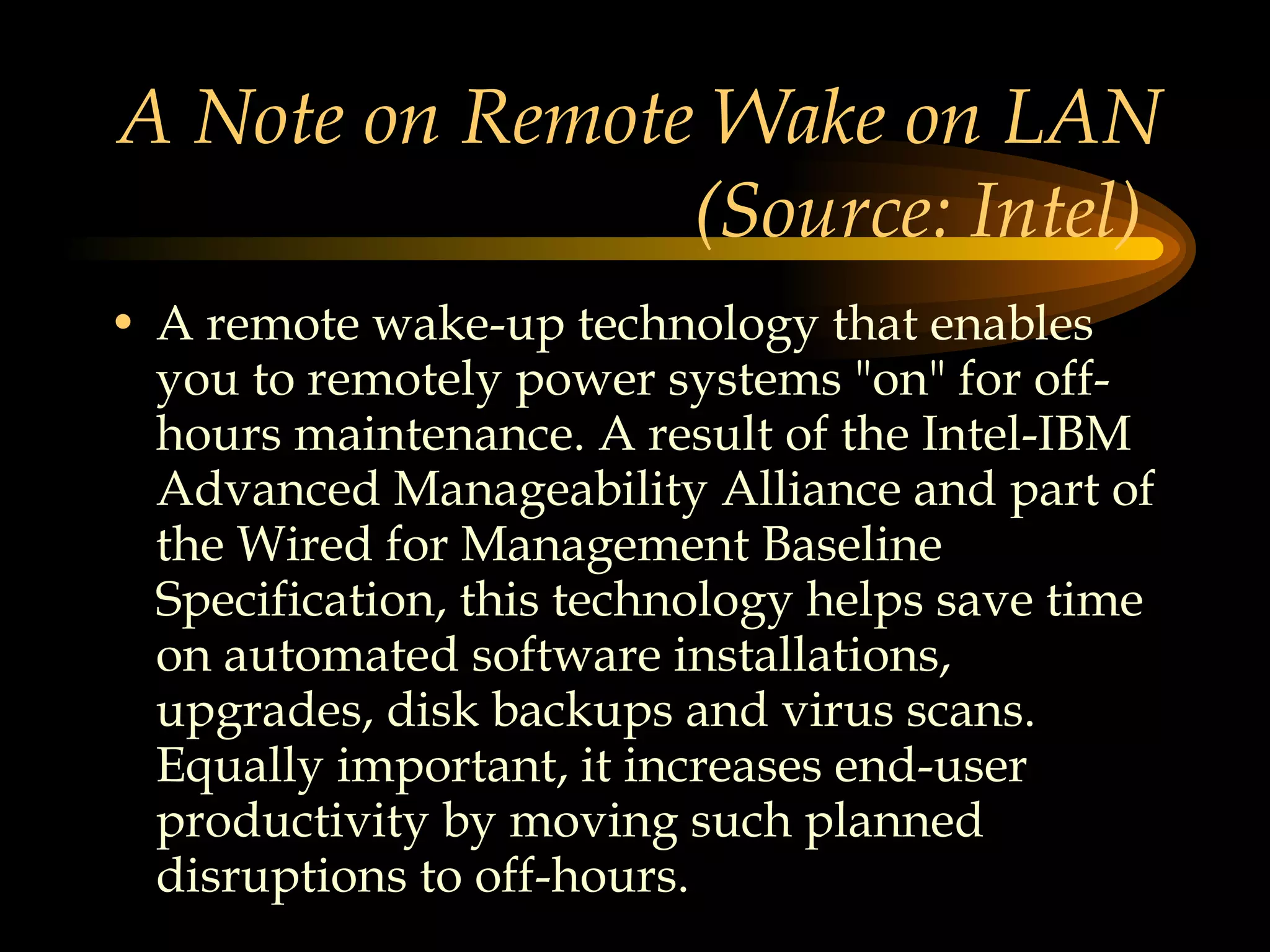

39. A Note on Remote Wake on LAN (Source: Intel) A remote wake-up technology that enables you to remotely power systems "on" for off-hours maintenance. A result of the Intel-IBM Advanced Manageability Alliance and part of the Wired for Management Baseline Specification, this technology helps save time on automated software installations, upgrades, disk backups and virus scans. Equally important, it increases end-user productivity by moving such planned disruptions to off-hours.

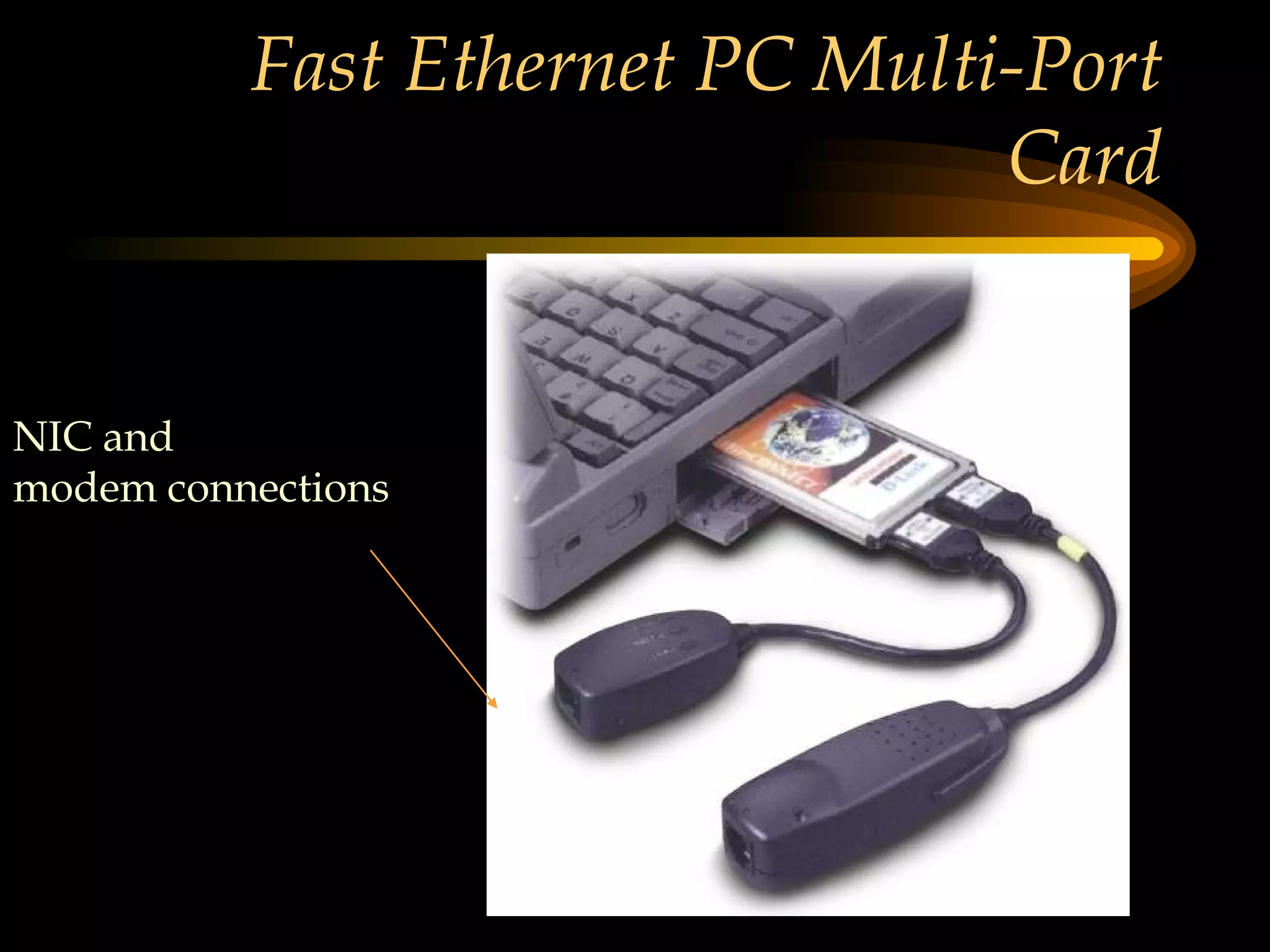

40. Fast Ethernet PC Multi-Port Card NIC and modem connections

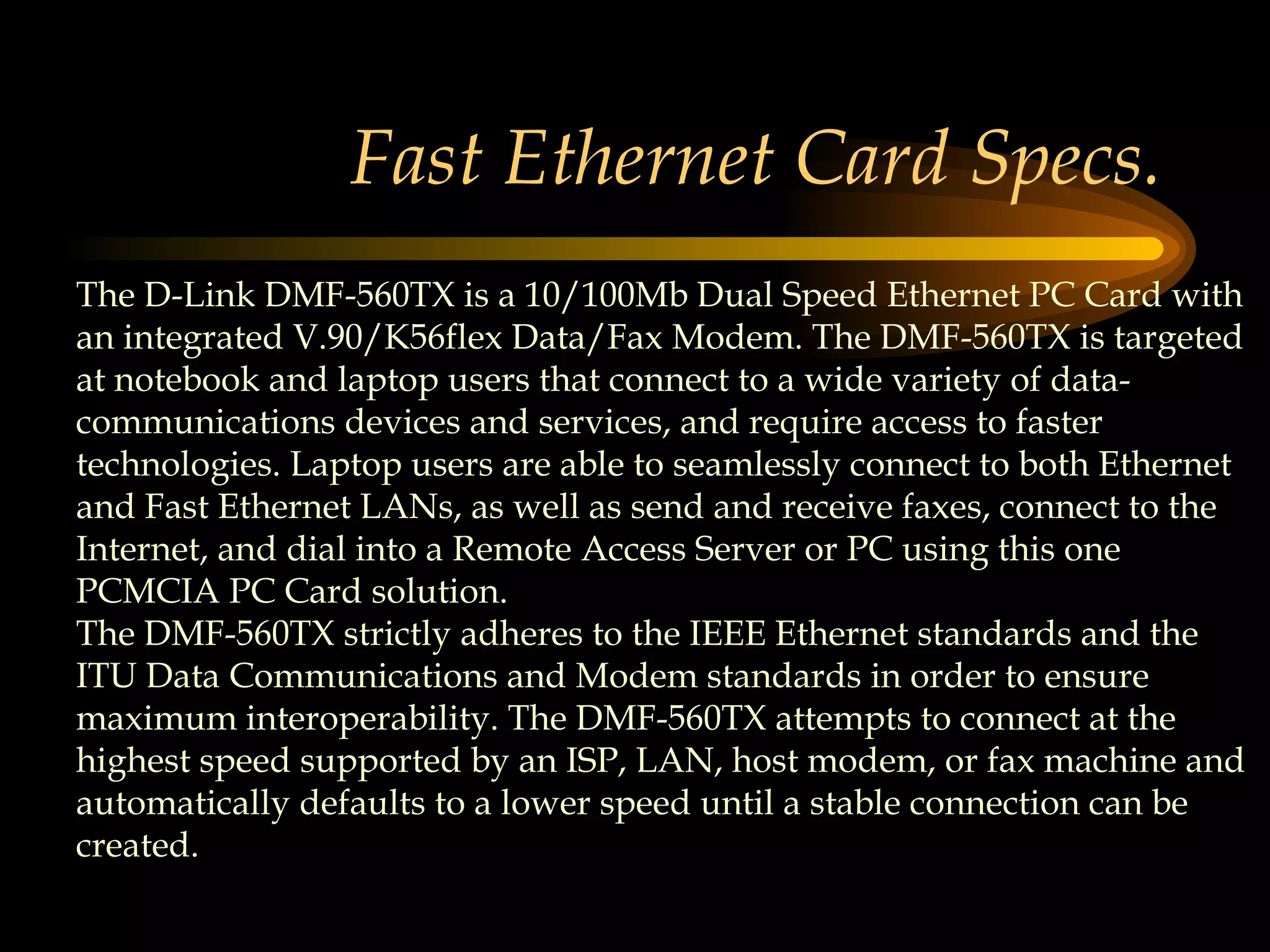

41. Fast Ethernet Card Specs. The D-Link DMF-560TX is a 10/100Mb Dual Speed Ethernet PC Card with an integrated V.90/K56flex Data/Fax Modem. The DMF-560TX is targeted at notebook and laptop users that connect to a wide variety of data-communications devices and services, and require access to faster technologies. Laptop users are able to seamlessly connect to both Ethernet and Fast Ethernet LANs, as well as send and receive faxes, connect to the Internet, and dial into a Remote Access Server or PC using this one PCMCIA PC Card solution. The DMF-560TX strictly adheres to the IEEE Ethernet standards and the ITU Data Communications and Modem standards in order to ensure maximum interoperability. The DMF-560TX attempts to connect at the highest speed supported by an ISP, LAN, host modem, or fax machine and automatically defaults to a lower speed until a stable connection can be created.

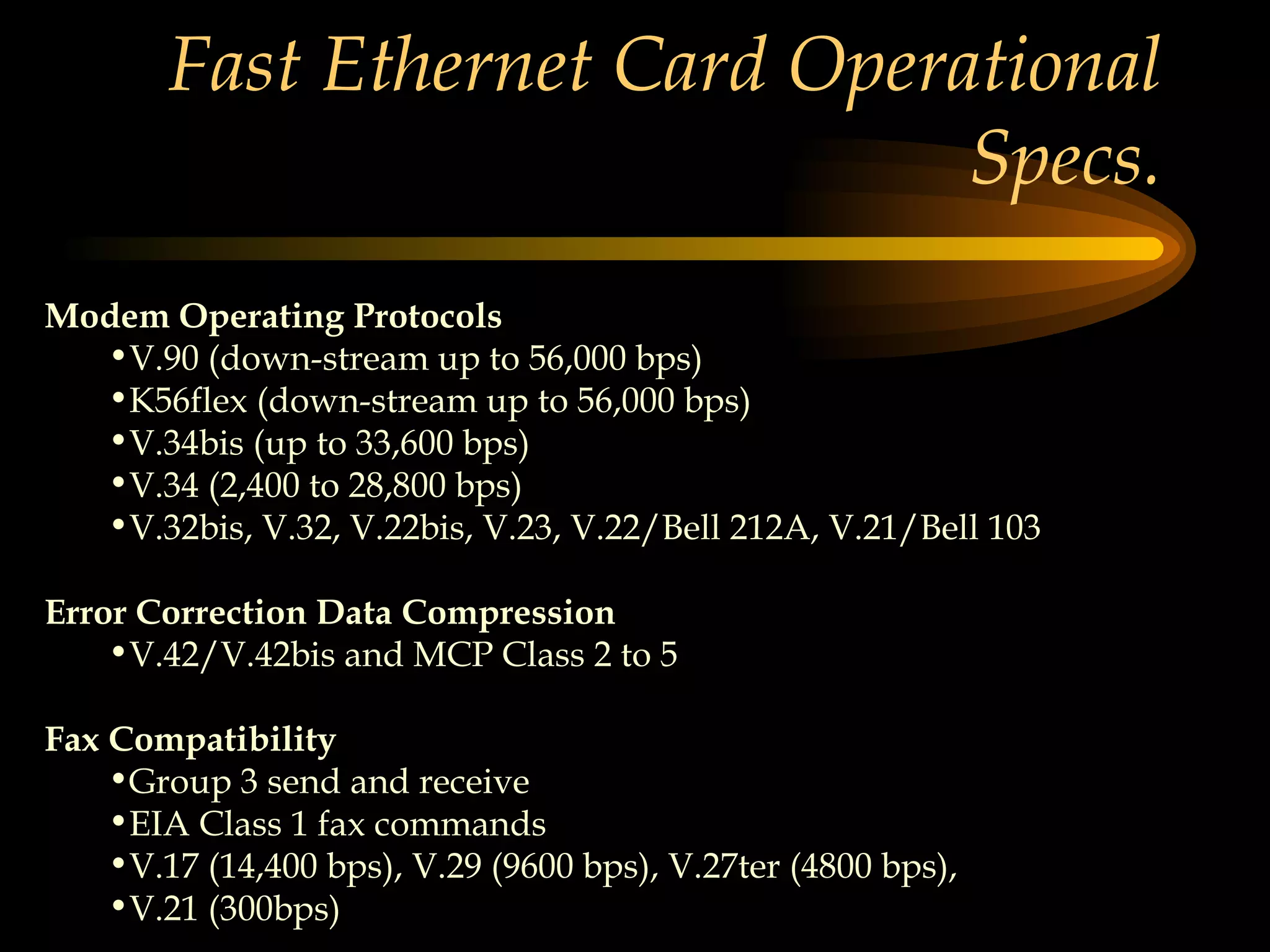

42. Fast Ethernet Card Operational Specs. Modem Operating Protocols V.90 (down-stream up to 56,000 bps) K56flex (down-stream up to 56,000 bps) V.34bis (up to 33,600 bps) V.34 (2,400 to 28,800 bps) V.32bis, V.32, V.22bis, V.23, V.22/Bell 212A, V.21/Bell 103 Error Correction Data Compression V.42/V.42bis and MCP Class 2 to 5 Fax Compatibility Group 3 send and receive EIA Class 1 fax commands V.17 (14,400 bps), V.29 (9600 bps), V.27ter (4800 bps), V.21 (300bps)

43. Token Ring Adapter (NIC) Note the connector type.

44. Ethernet to Token Ring Bridge

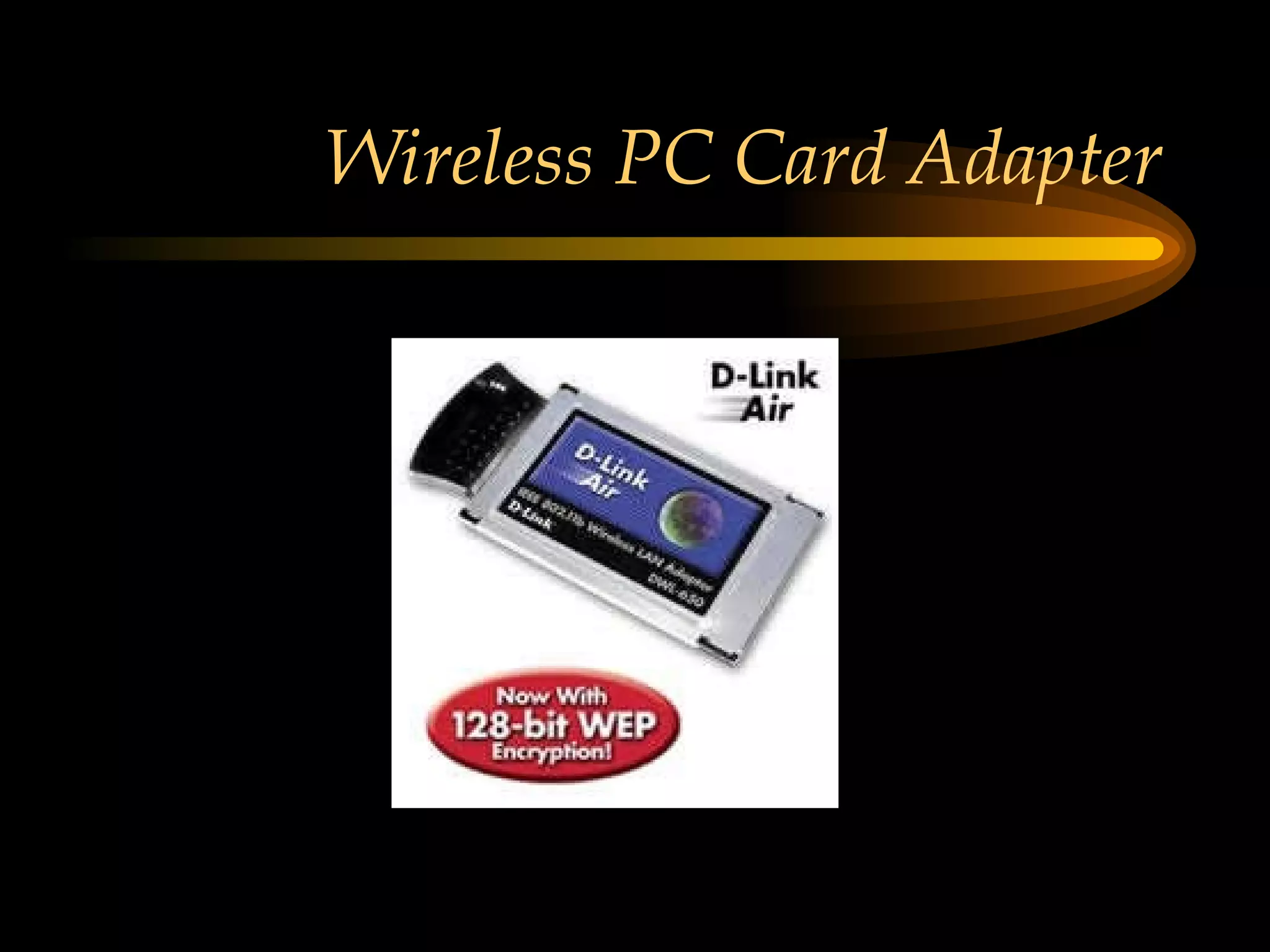

45. Wireless PC Card Adapter

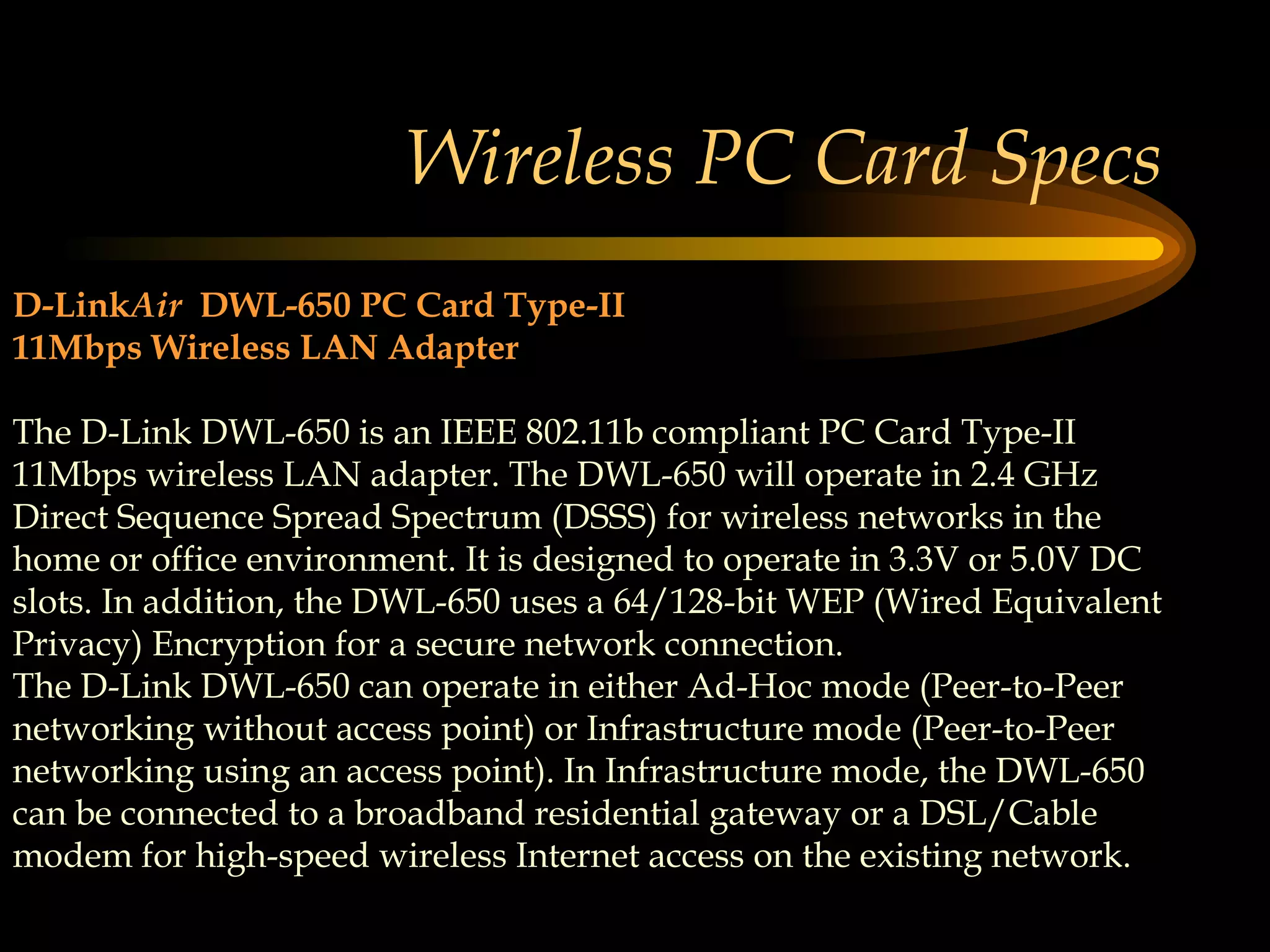

46. Wireless PC Card Specs D-Link Air DWL-650 PC Card Type-II 11Mbps Wireless LAN Adapter The D-Link DWL-650 is an IEEE 802.11b compliant PC Card Type-II 11Mbps wireless LAN adapter. The DWL-650 will operate in 2.4 GHz Direct Sequence Spread Spectrum (DSSS) for wireless networks in the home or office environment. It is designed to operate in 3.3V or 5.0V DC slots. In addition, the DWL-650 uses a 64/128-bit WEP (Wired Equivalent Privacy) Encryption for a secure network connection. The D-Link DWL-650 can operate in either Ad-Hoc mode (Peer-to-Peer networking without access point) or Infrastructure mode (Peer-to-Peer networking using an access point). In Infrastructure mode, the DWL-650 can be connected to a broadband residential gateway or a DSL/Cable modem for high-speed wireless Internet access on the existing network.

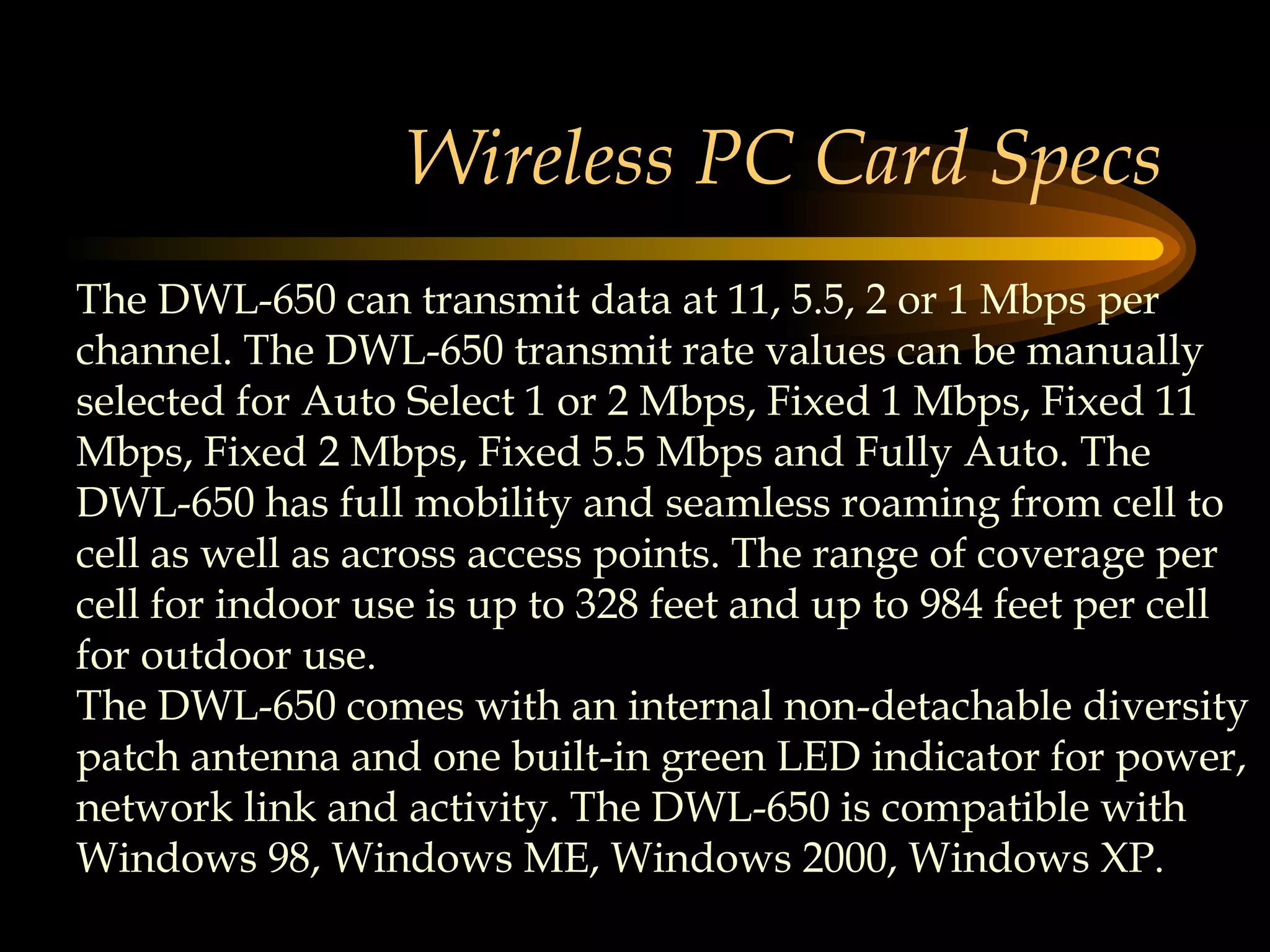

47. Wireless PC Card Specs The DWL-650 can transmit data at 11, 5.5, 2 or 1 Mbps per channel. The DWL-650 transmit rate values can be manually selected for Auto Select 1 or 2 Mbps, Fixed 1 Mbps, Fixed 11 Mbps, Fixed 2 Mbps, Fixed 5.5 Mbps and Fully Auto. The DWL-650 has full mobility and seamless roaming from cell to cell as well as across access points. The range of coverage per cell for indoor use is up to 328 feet and up to 984 feet per cell for outdoor use. The DWL-650 comes with an internal non-detachable diversity patch antenna and one built-in green LED indicator for power, network link and activity. The DWL-650 is compatible with Windows 98, Windows ME, Windows 2000, Windows XP.

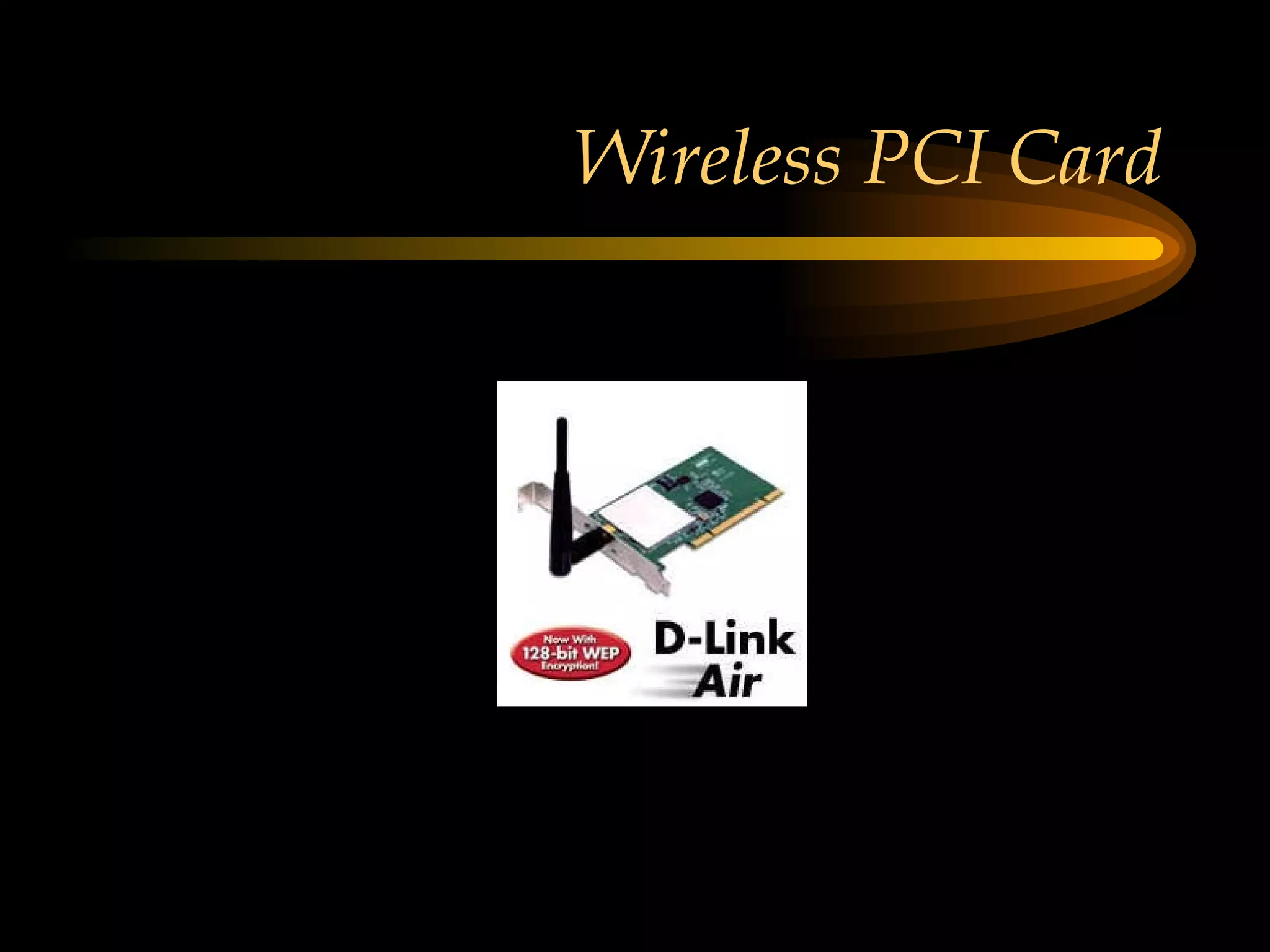

48. Wireless PCI Card

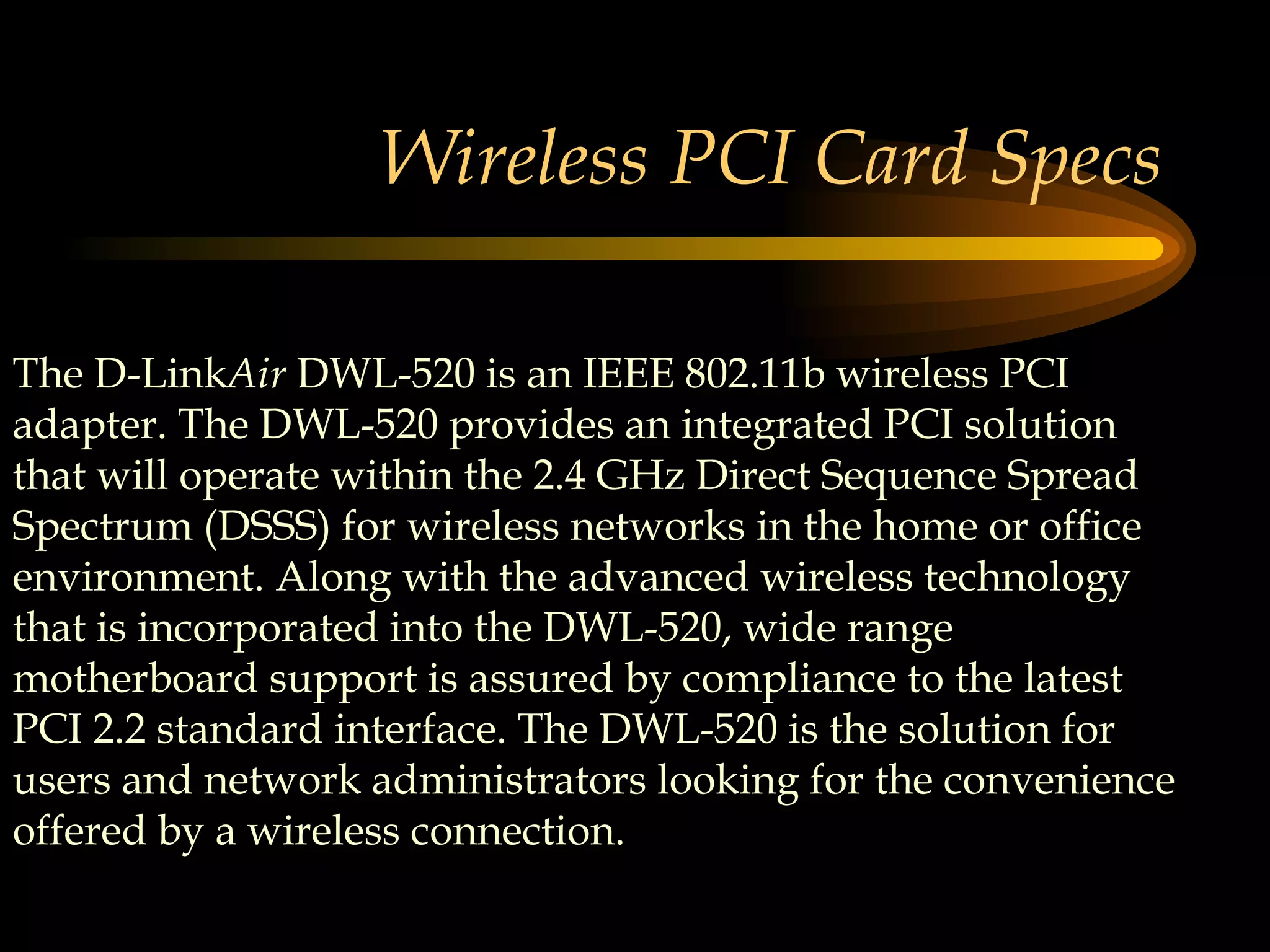

49. Wireless PCI Card Specs The D-Link Air DWL-520 is an IEEE 802.11b wireless PCI adapter. The DWL-520 provides an integrated PCI solution that will operate within the 2.4 GHz Direct Sequence Spread Spectrum (DSSS) for wireless networks in the home or office environment. Along with the advanced wireless technology that is incorporated into the DWL-520, wide range motherboard support is assured by compliance to the latest PCI 2.2 standard interface. The DWL-520 is the solution for users and network administrators looking for the convenience offered by a wireless connection.

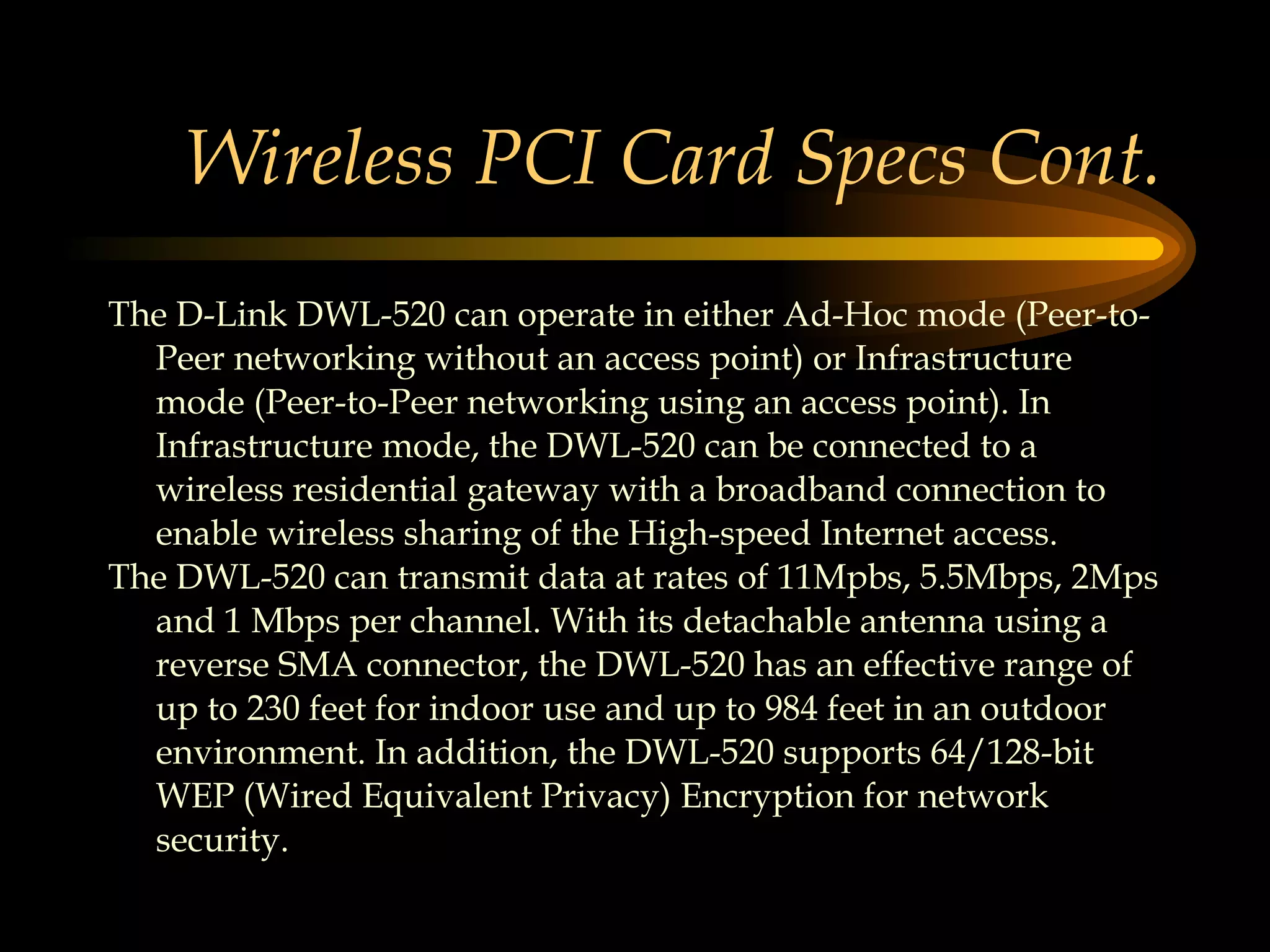

50. Wireless PCI Card Specs Cont. The D-Link DWL-520 can operate in either Ad-Hoc mode (Peer-to-Peer networking without an access point) or Infrastructure mode (Peer-to-Peer networking using an access point). In Infrastructure mode, the DWL-520 can be connected to a wireless residential gateway with a broadband connection to enable wireless sharing of the High-speed Internet access. The DWL-520 can transmit data at rates of 11Mpbs, 5.5Mbps, 2Mps and 1 Mbps per channel. With its detachable antenna using a reverse SMA connector, the DWL-520 has an effective range of up to 230 feet for indoor use and up to 984 feet in an outdoor environment. In addition, the DWL-520 supports 64/128-bit WEP (Wired Equivalent Privacy) Encryption for network security.

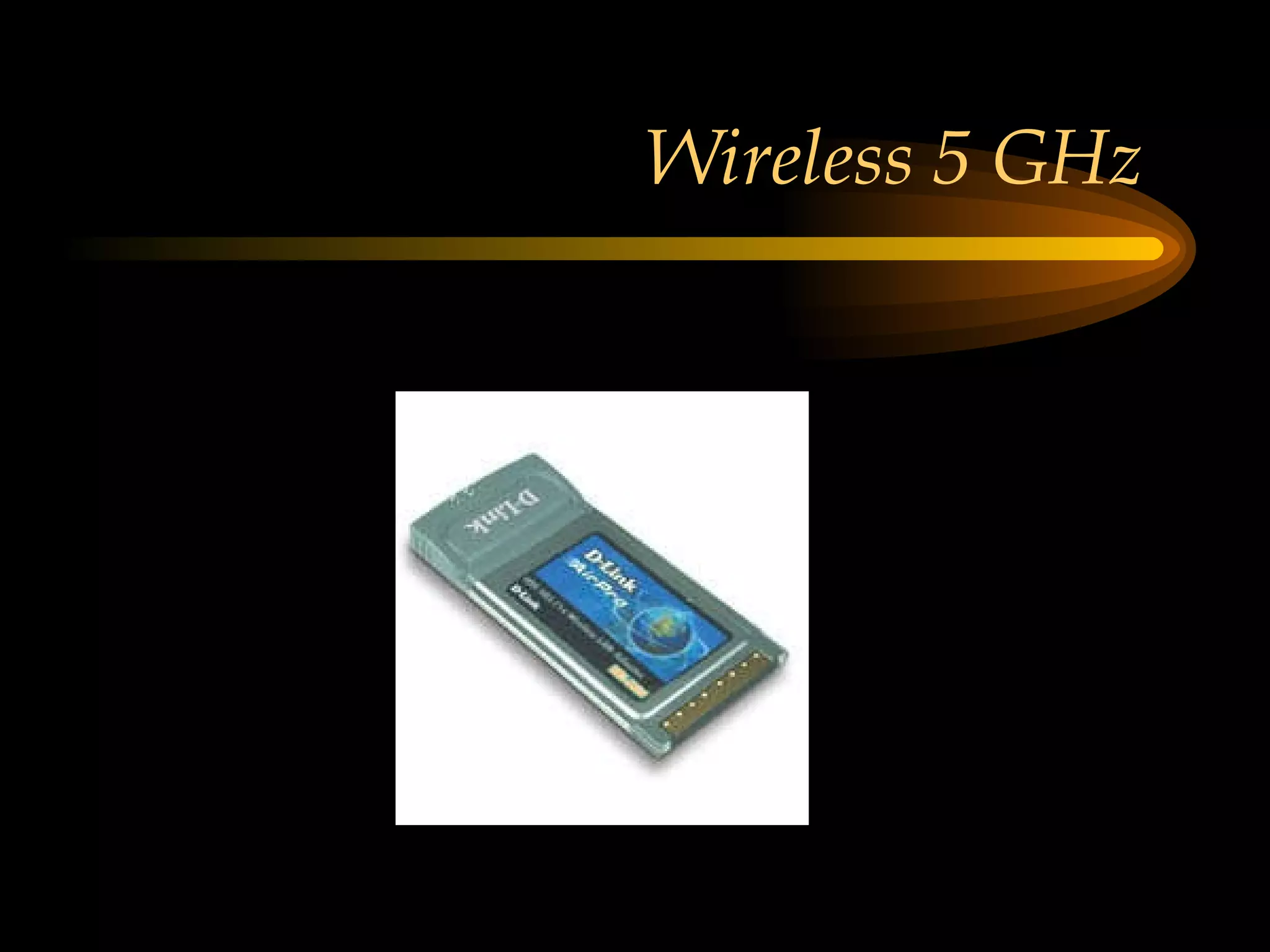

51. Wireless 5 GHz

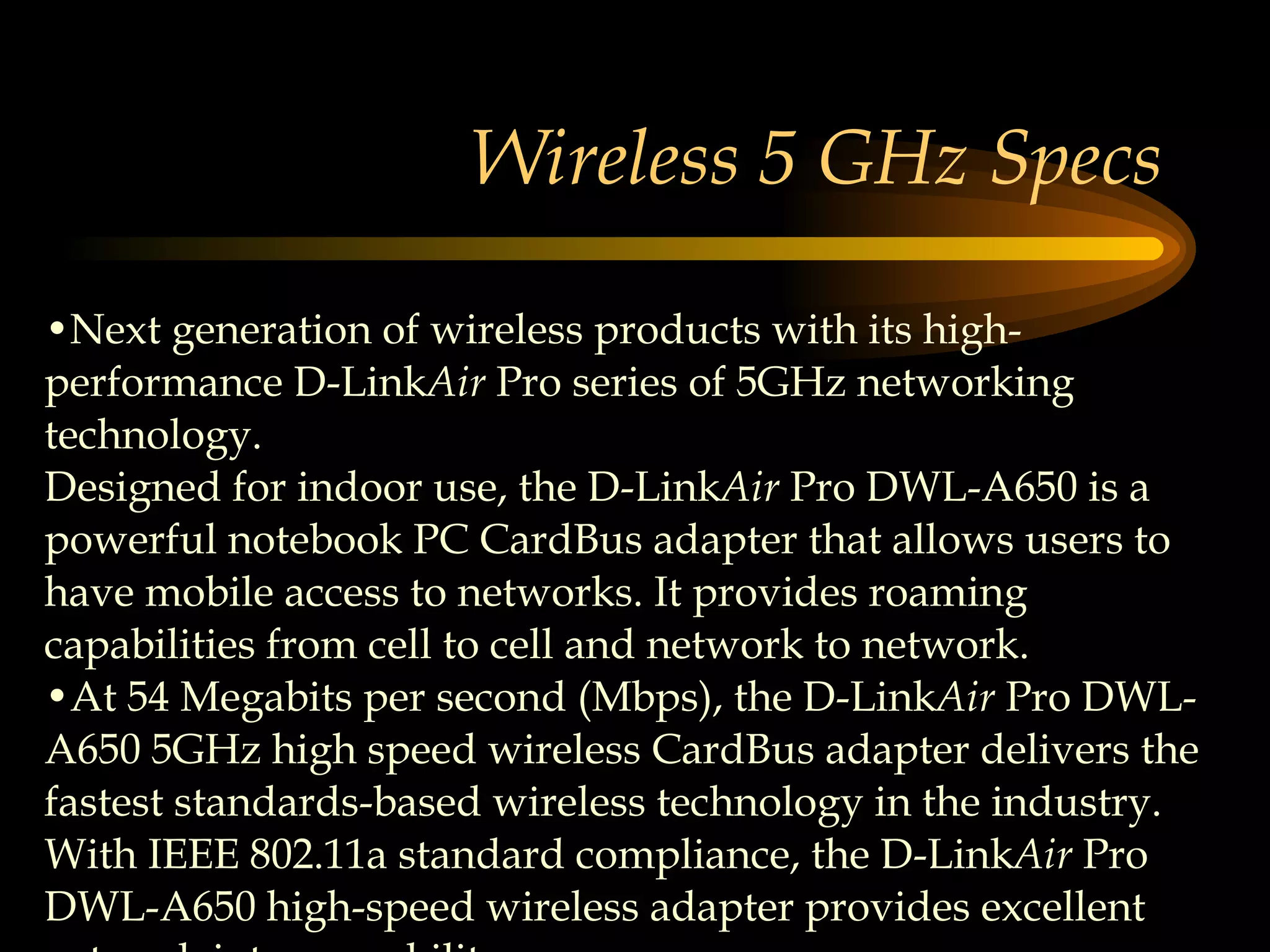

52. Wireless 5 GHz Specs Next generation of wireless products with its high-performance D-Link Air Pro series of 5GHz networking technology. Designed for indoor use, the D-Link Air Pro DWL-A650 is a powerful notebook PC CardBus adapter that allows users to have mobile access to networks. It provides roaming capabilities from cell to cell and network to network. At 54 Megabits per second (Mbps), the D-Link Air Pro DWL-A650 5GHz high speed wireless CardBus adapter delivers the fastest standards-based wireless technology in the industry. With IEEE 802.11a standard compliance, the D-Link Air Pro DWL-A650 high-speed wireless adapter provides excellent network interoperability.

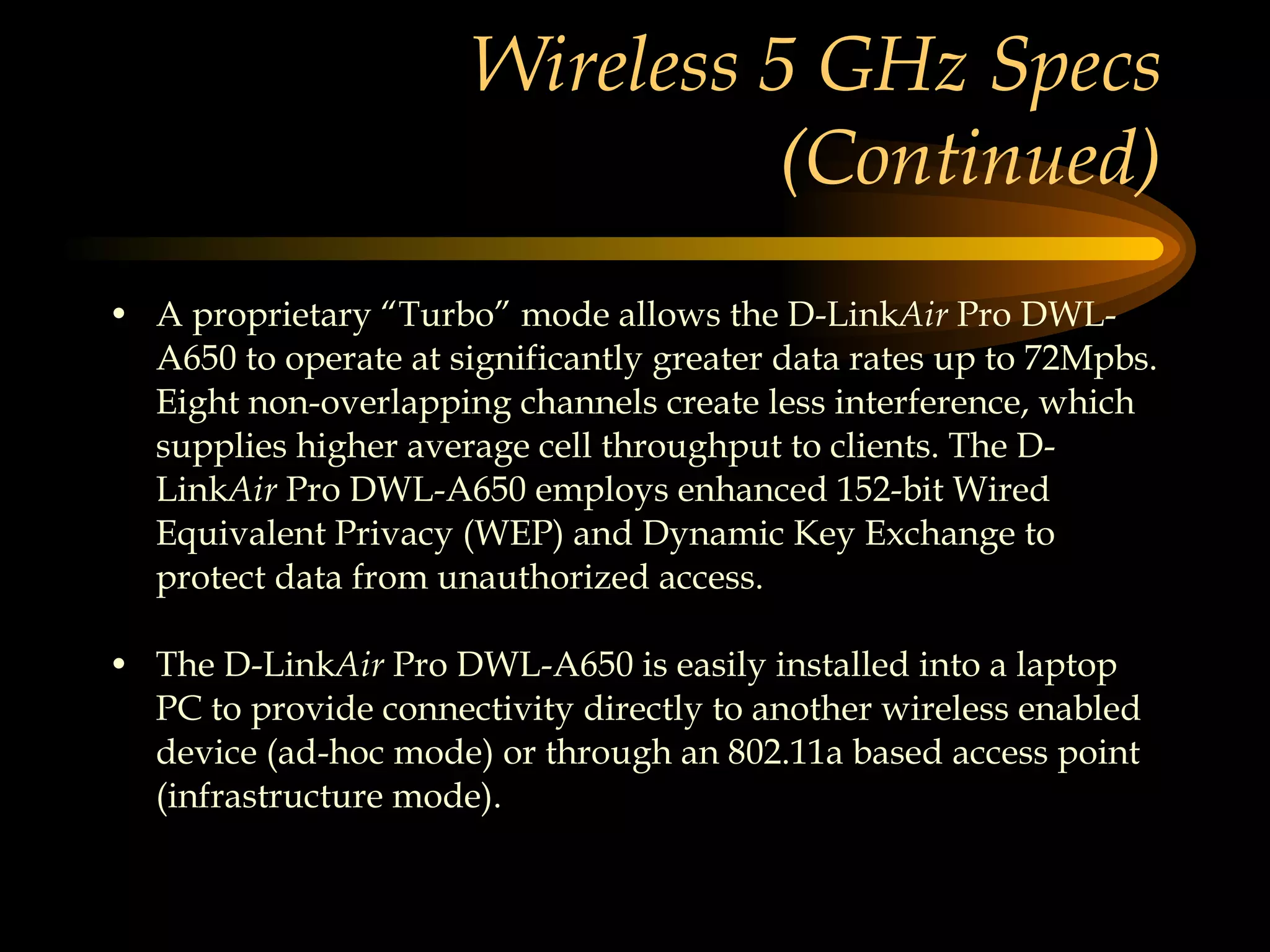

53. Wireless 5 GHz Specs (Continued) A proprietary “Turbo” mode allows the D-Link Air Pro DWL-A650 to operate at significantly greater data rates up to 72Mpbs. Eight non-overlapping channels create less interference, which supplies higher average cell throughput to clients. The D-Link Air Pro DWL-A650 employs enhanced 152-bit Wired Equivalent Privacy (WEP) and Dynamic Key Exchange to protect data from unauthorized access. The D-Link Air Pro DWL-A650 is easily installed into a laptop PC to provide connectivity directly to another wireless enabled device (ad-hoc mode) or through an 802.11a based access point (infrastructure mode).

54. END OF MODULE

55. MODULE NIC Resources

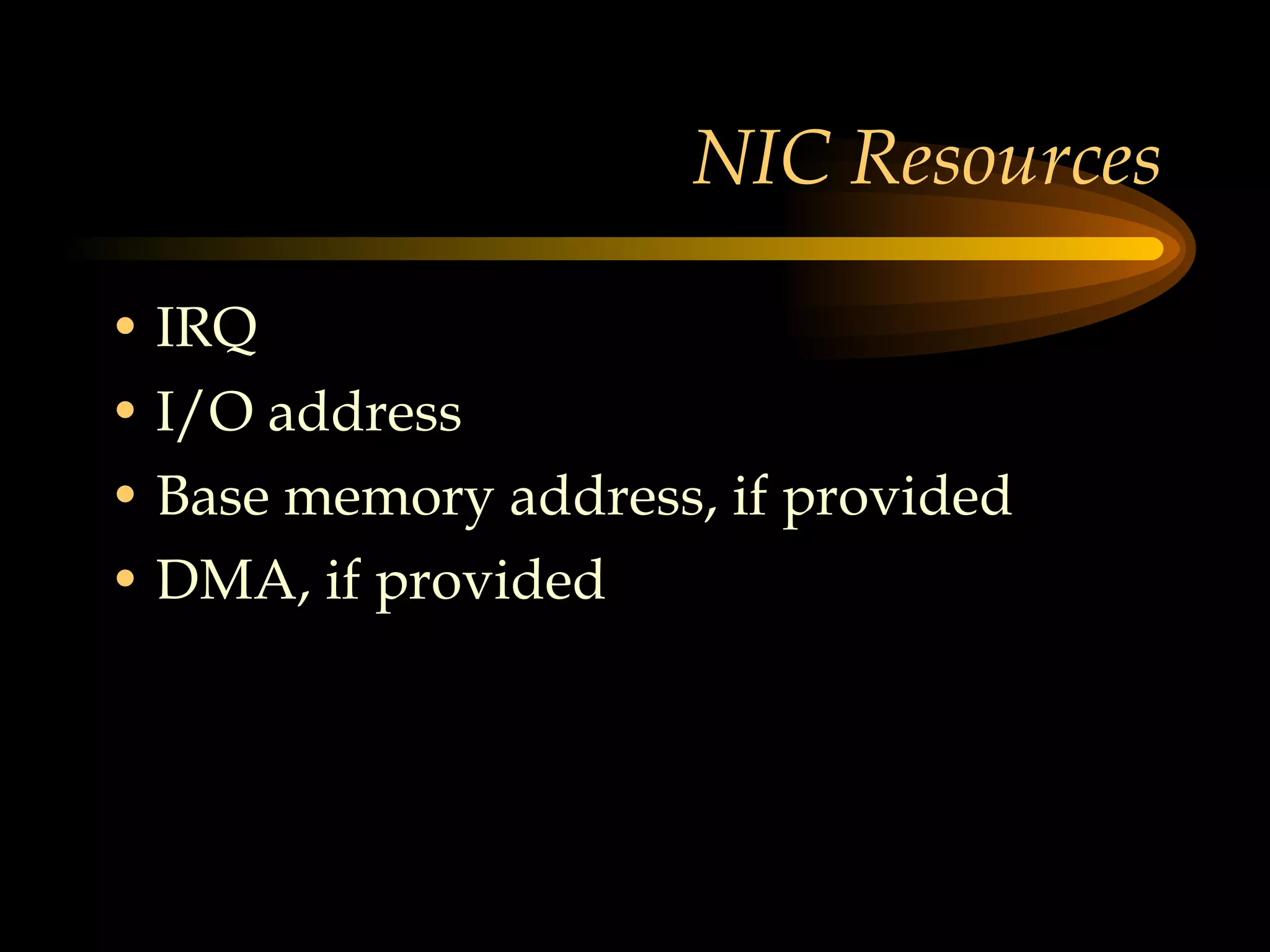

56. NIC Resources IRQ I/O address Base memory address, if provided DMA, if provided

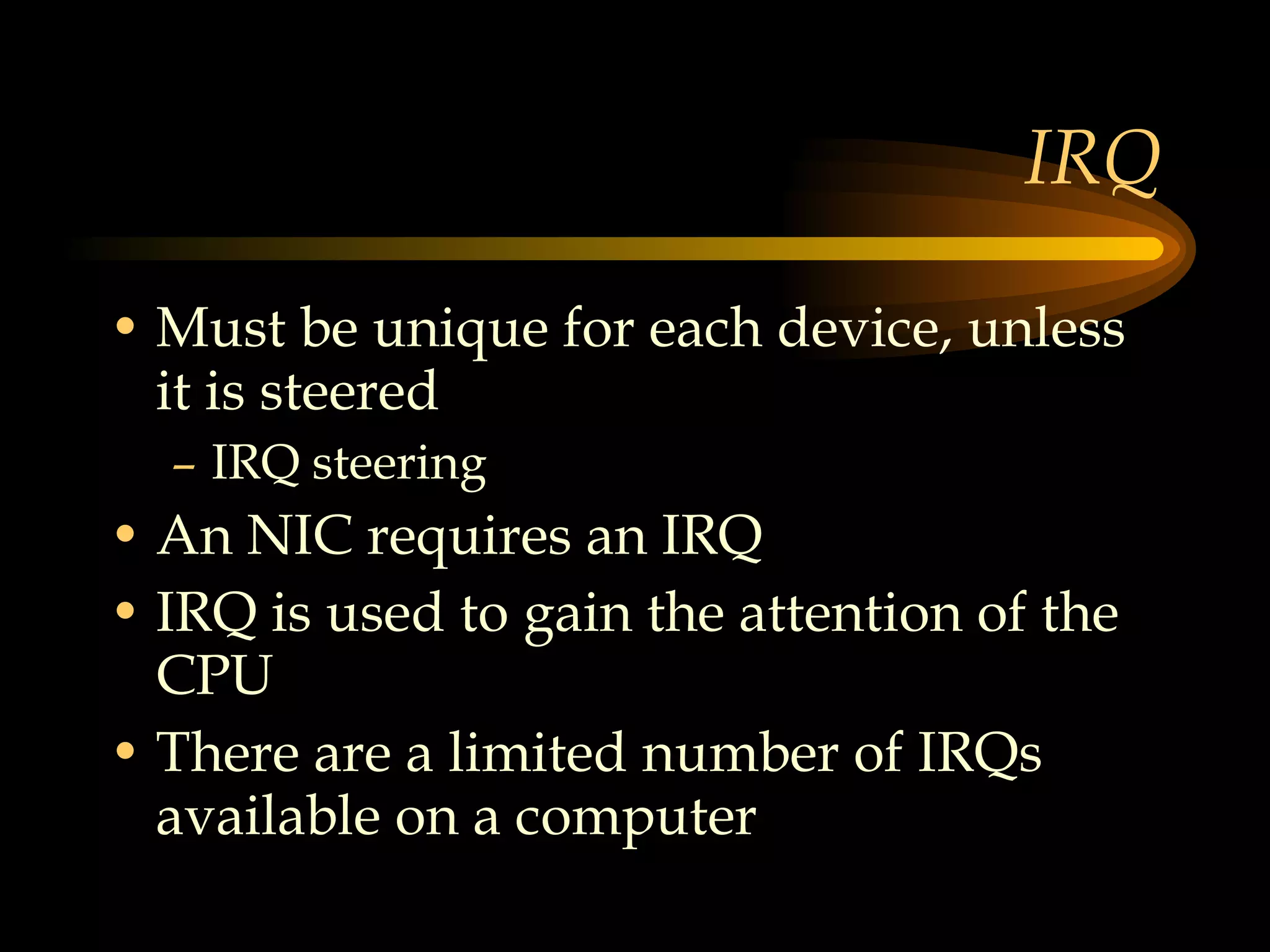

57. IRQ Must be unique for each device, unless it is steered IRQ steering An NIC requires an IRQ IRQ is used to gain the attention of the CPU There are a limited number of IRQs available on a computer

58. IRQ Assignment (learnthat.com) IRQ Device 0 Timer 1 Keyboard 2 Wired to IRQ 9 3 COM 2 (COM 4) 4 COM 1 (COM 3) 5 Available (often LPT2, sound cards, or network cards) 6 Floppy Disk Controller 7 LPT1 8 Clock 9 Wired to IRQ 2 10 Unused 11 Unused 12 Mouse Port 13 Coprocessor 14 Hard Disk Controller 15 Unused

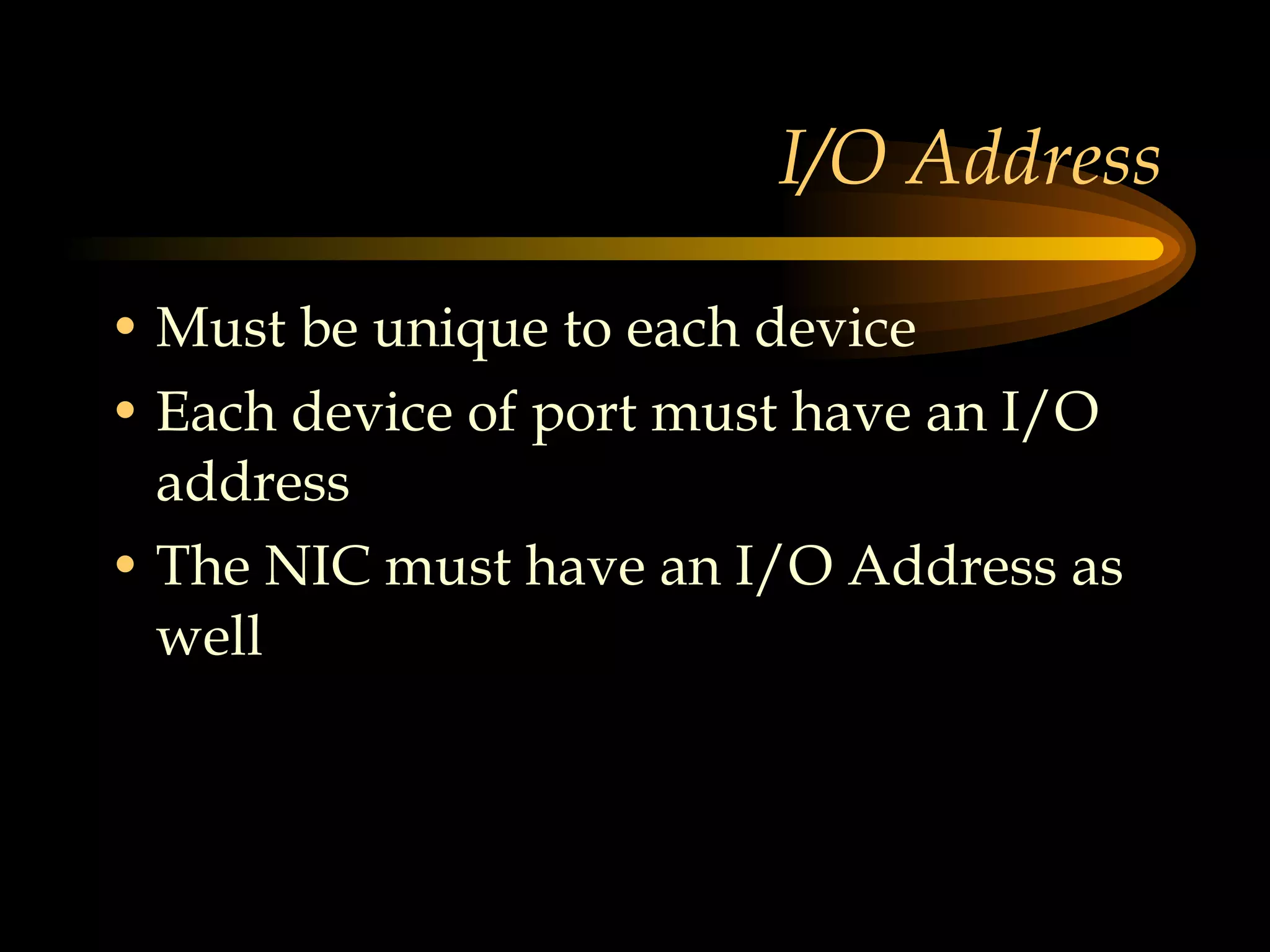

59. I/O Address Must be unique to each device Each device of port must have an I/O address The NIC must have an I/O Address as well

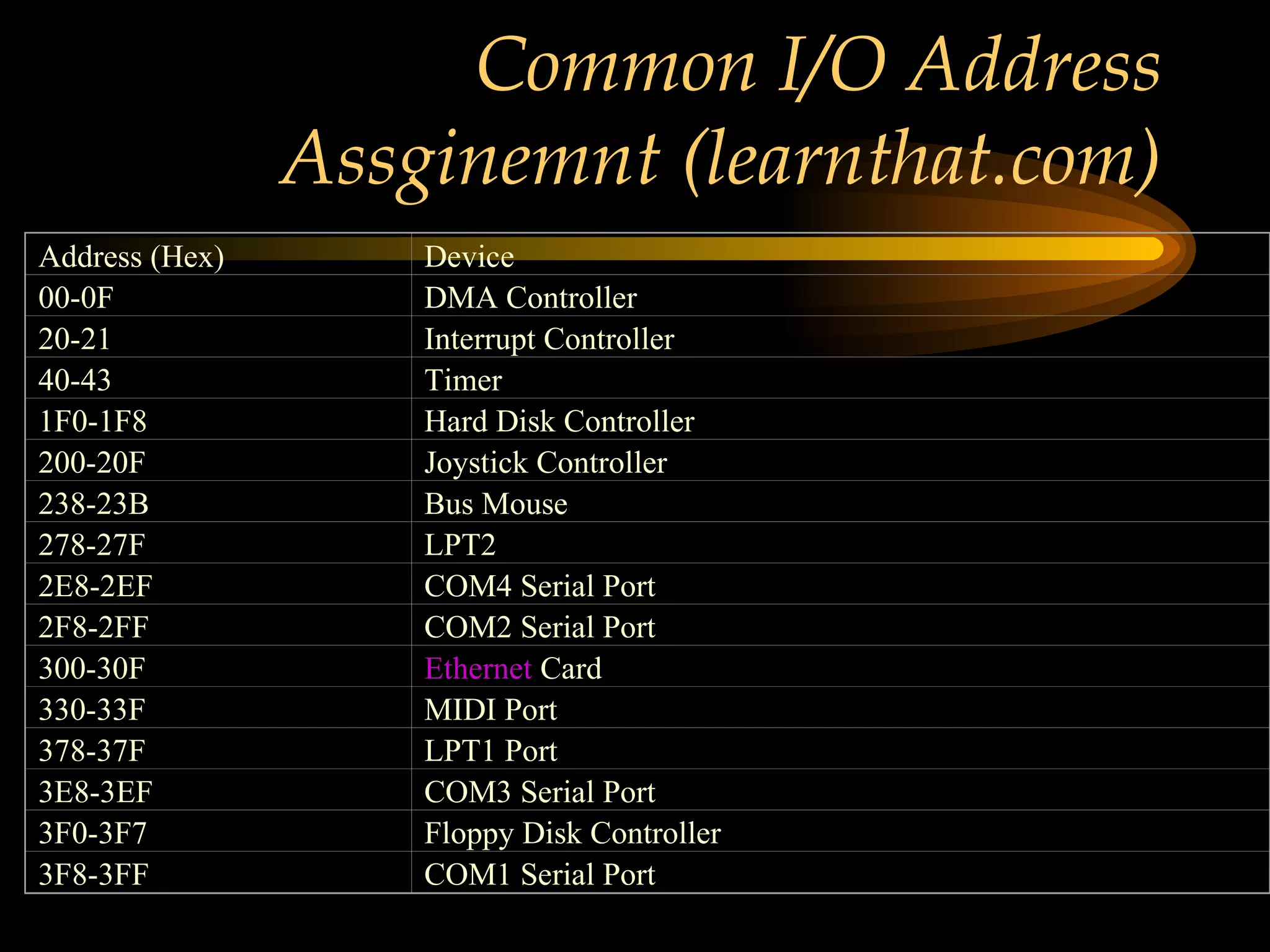

60. Common I/O Address Assginemnt (learnthat.com) Address (Hex) Device 00-0F DMA Controller 20-21 Interrupt Controller 40-43 Timer 1F0-1F8 Hard Disk Controller 200-20F Joystick Controller 238-23B Bus Mouse 278-27F LPT2 2E8-2EF COM4 Serial Port 2F8-2FF COM2 Serial Port 300-30F Ethernet Card 330-33F MIDI Port 378-37F LPT1 Port 3E8-3EF COM3 Serial Port 3F0-3F7 Floppy Disk Controller 3F8-3FF COM1 Serial Port

61. I/O Address ( www.techencylopedia.com ) There is a 64K address space for I/O addresses, although typically less than 1K is used. Each board that uses an I/O address contains a few bytes of memory (16, 32, etc.) set to a default address range. One or more alternate addresses is also provided to resolve conflicts with other boards. These I/O spaces are a bunch of tiny memory banks scattered over different devices. As long as each one is set to a different address, the CPU can transmit signals to the appropriate boards without conflict. Following are the default I/O addresses for the serial and parallel ports in a PC.

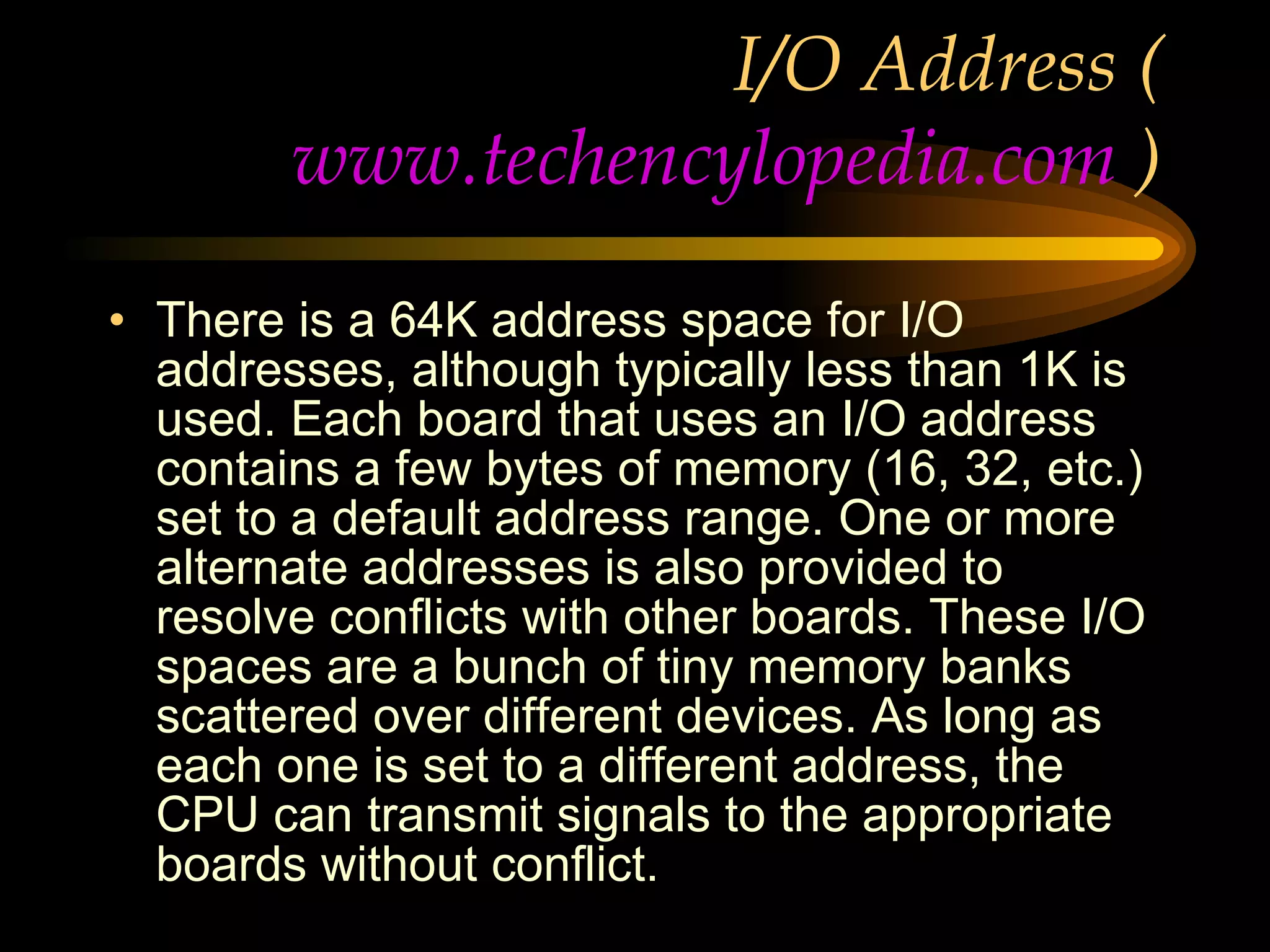

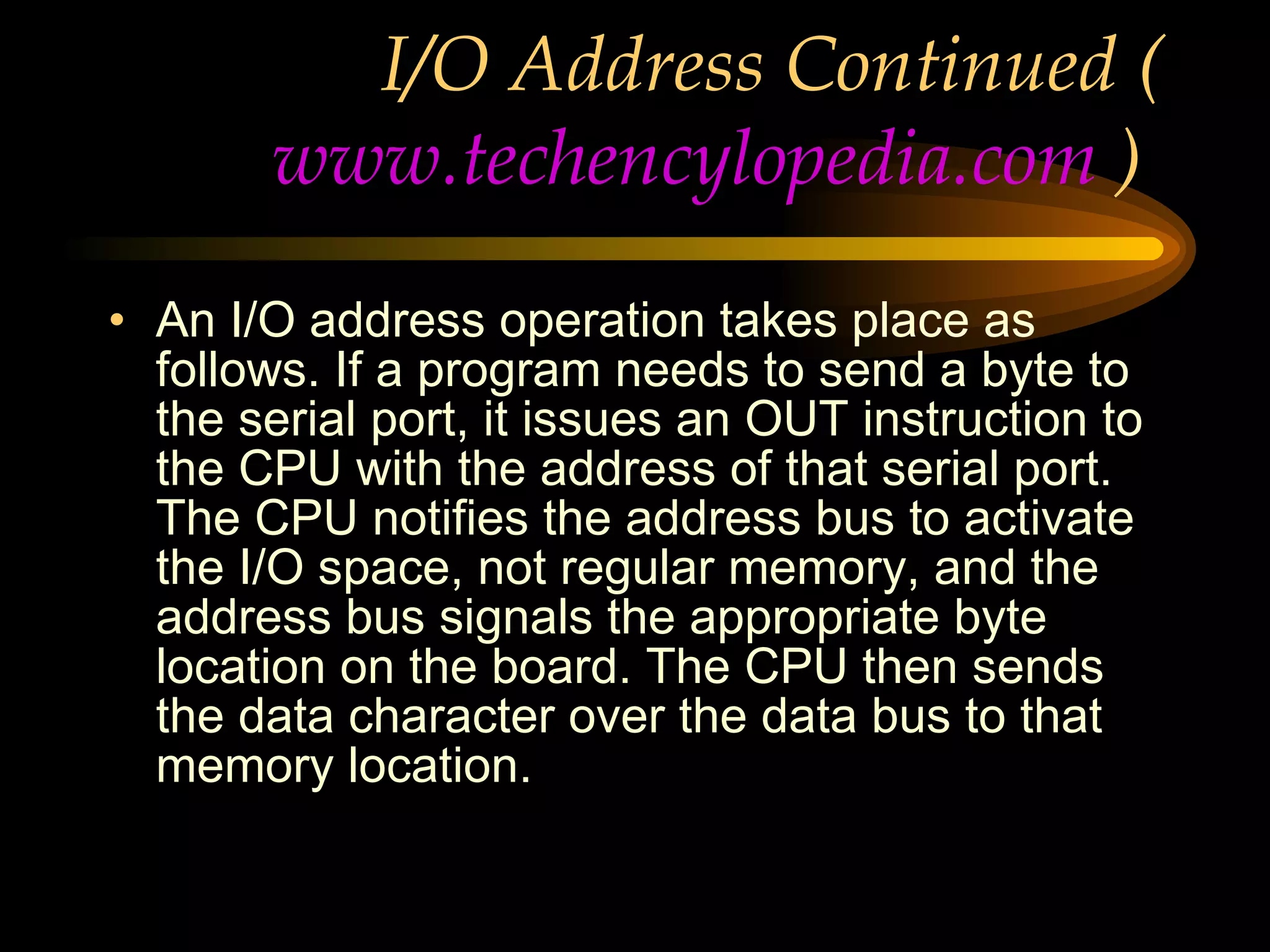

62. I/O Address Continued ( www.techencylopedia.com ) An I/O address operation takes place as follows. If a program needs to send a byte to the serial port, it issues an OUT instruction to the CPU with the address of that serial port. The CPU notifies the address bus to activate the I/O space, not regular memory, and the address bus signals the appropriate byte location on the board. The CPU then sends the data character over the data bus to that memory location.

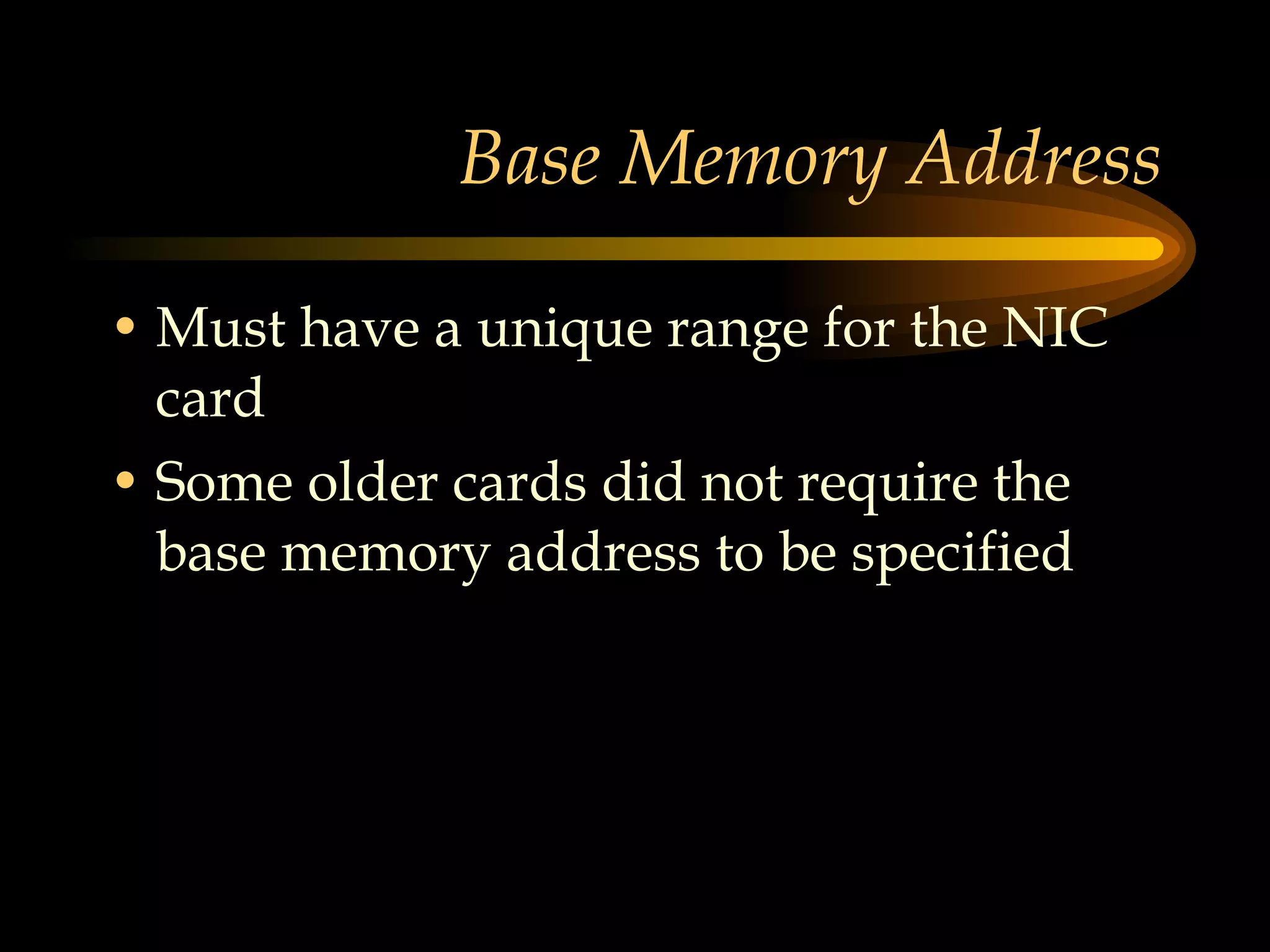

63. Base Memory Address Must have a unique range for the NIC card Some older cards did not require the base memory address to be specified

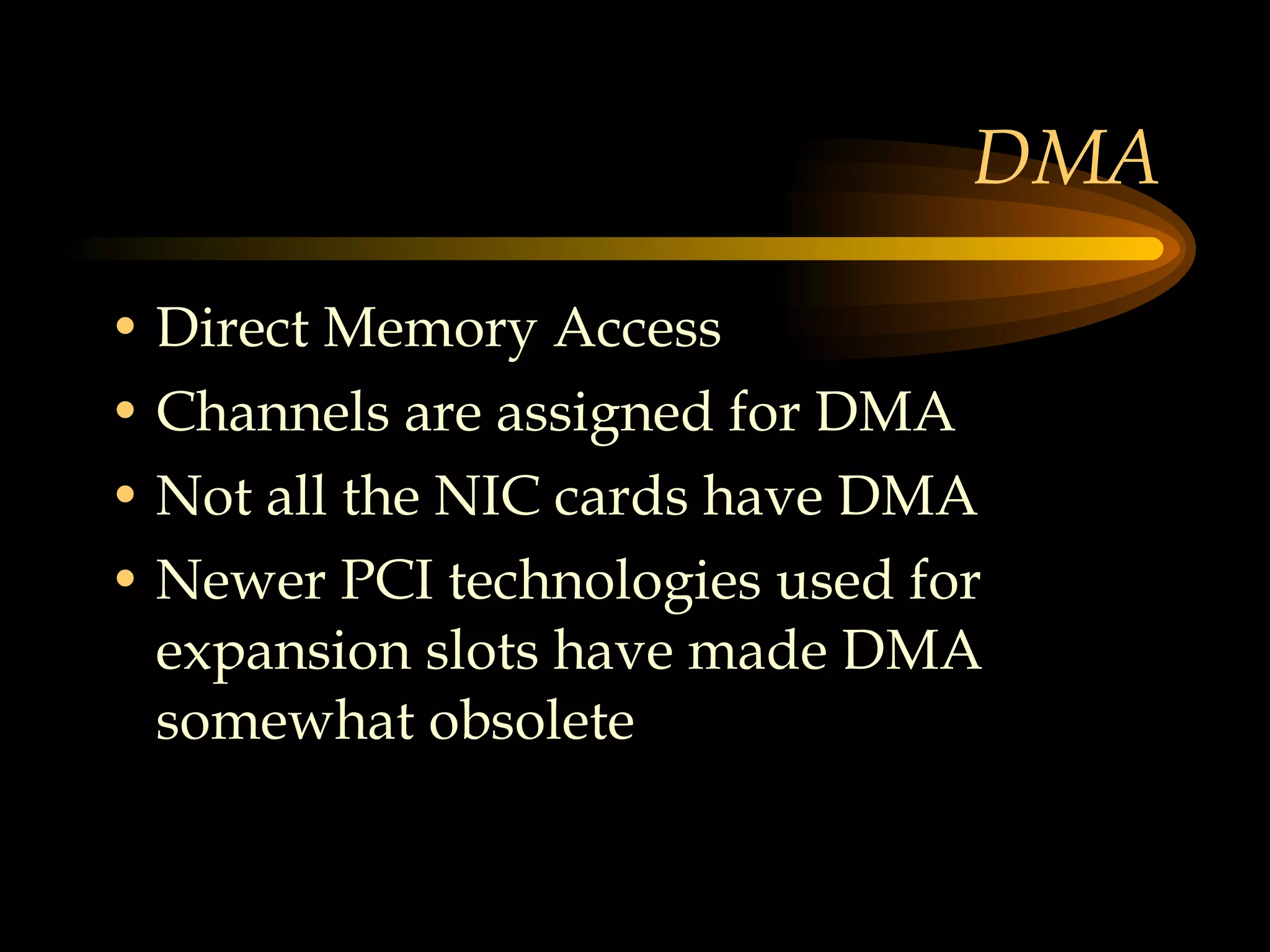

64. DMA Direct Memory Access Channels are assigned for DMA Not all the NIC cards have DMA Newer PCI technologies used for expansion slots have made DMA somewhat obsolete

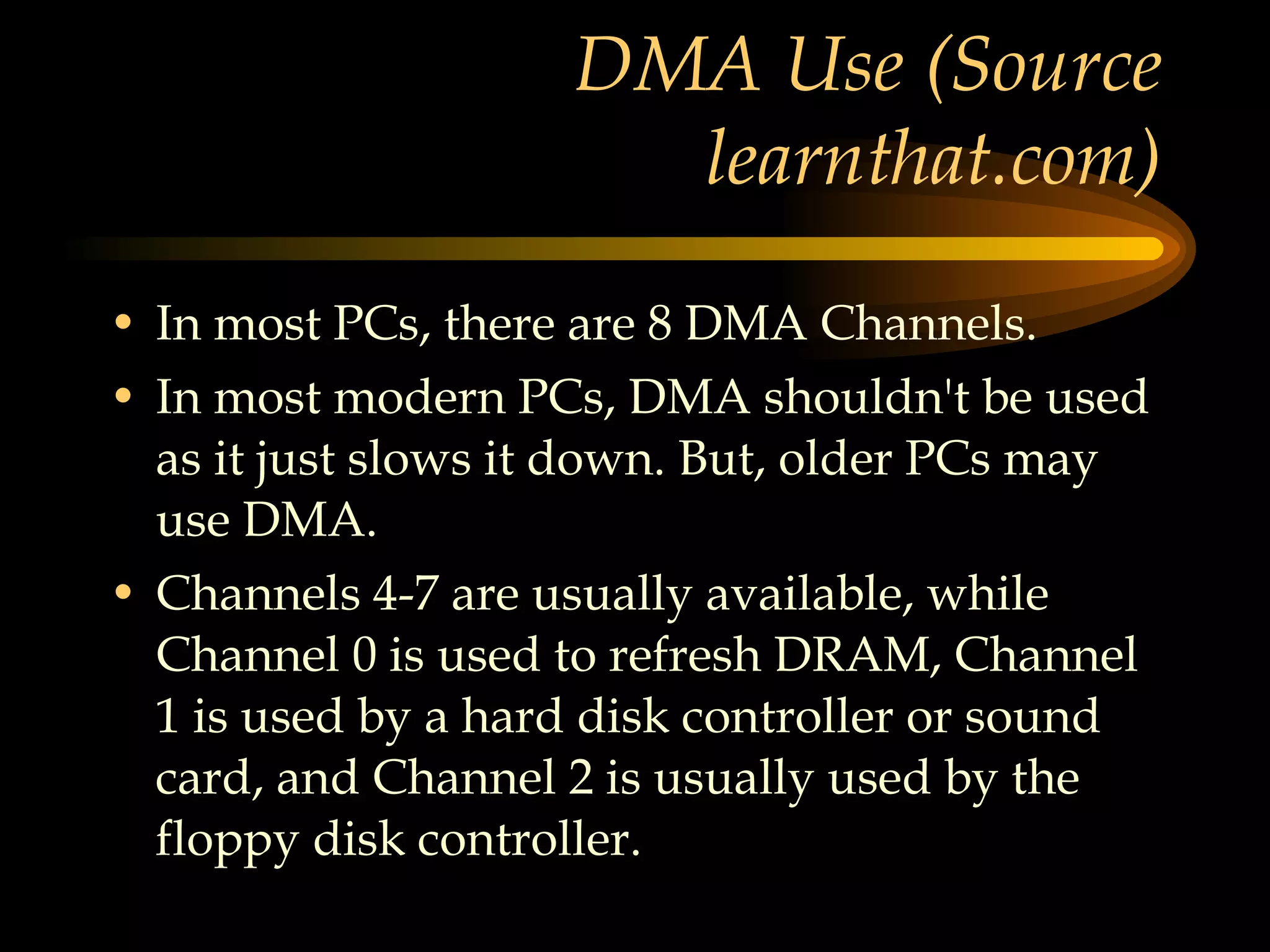

65. DMA Use (Source learnthat.com) In most PCs, there are 8 DMA Channels. In most modern PCs, DMA shouldn't be used as it just slows it down. But, older PCs may use DMA. Channels 4-7 are usually available, while Channel 0 is used to refresh DRAM, Channel 1 is used by a hard disk controller or sound card, and Channel 2 is usually used by the floppy disk controller.

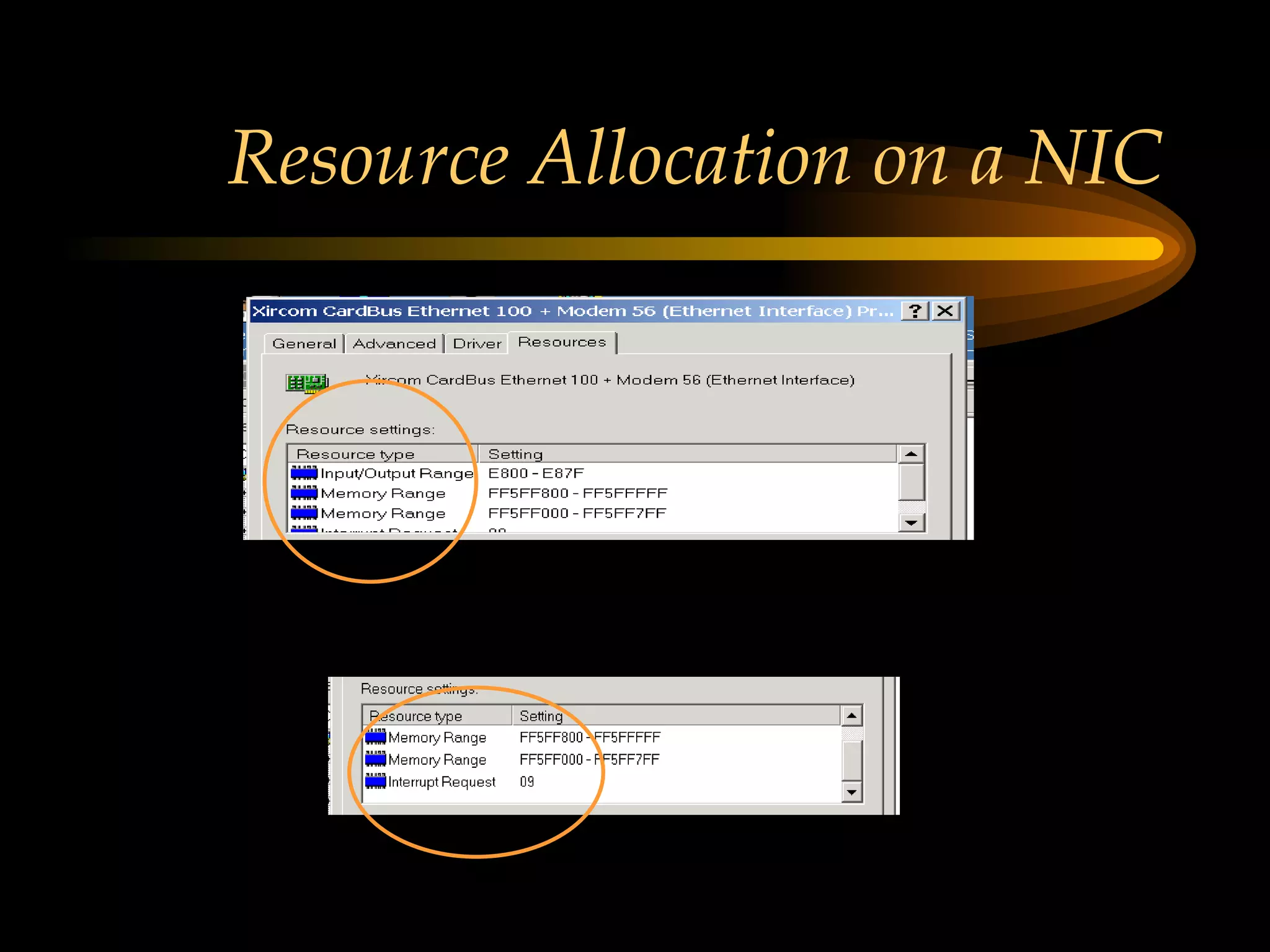

66. Resource Allocation on a NIC

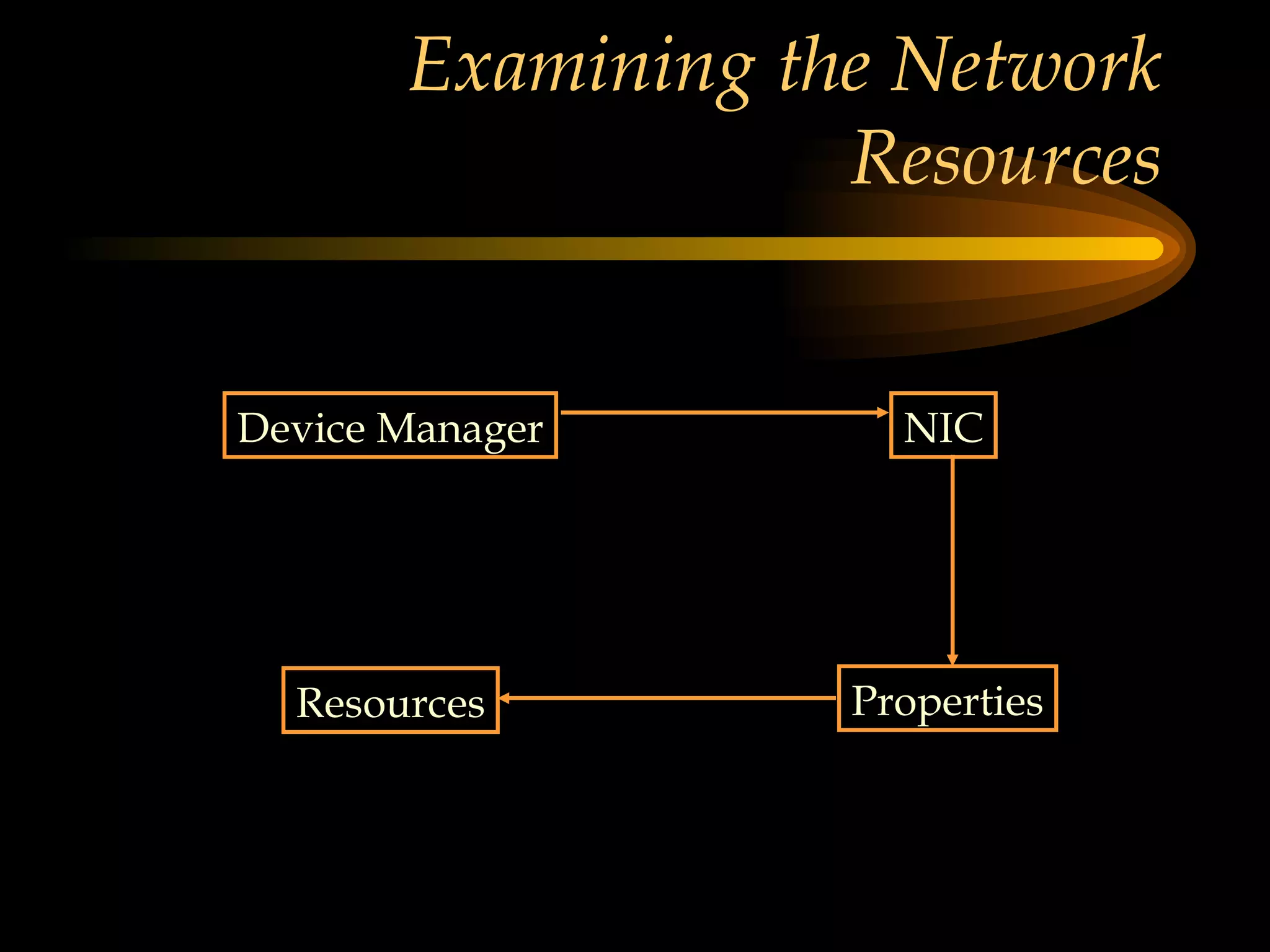

67. Examining the Network Resources Device Manager NIC Properties Resources

68. END OF MODULE

69. MODULE Network Connectors and Hubs

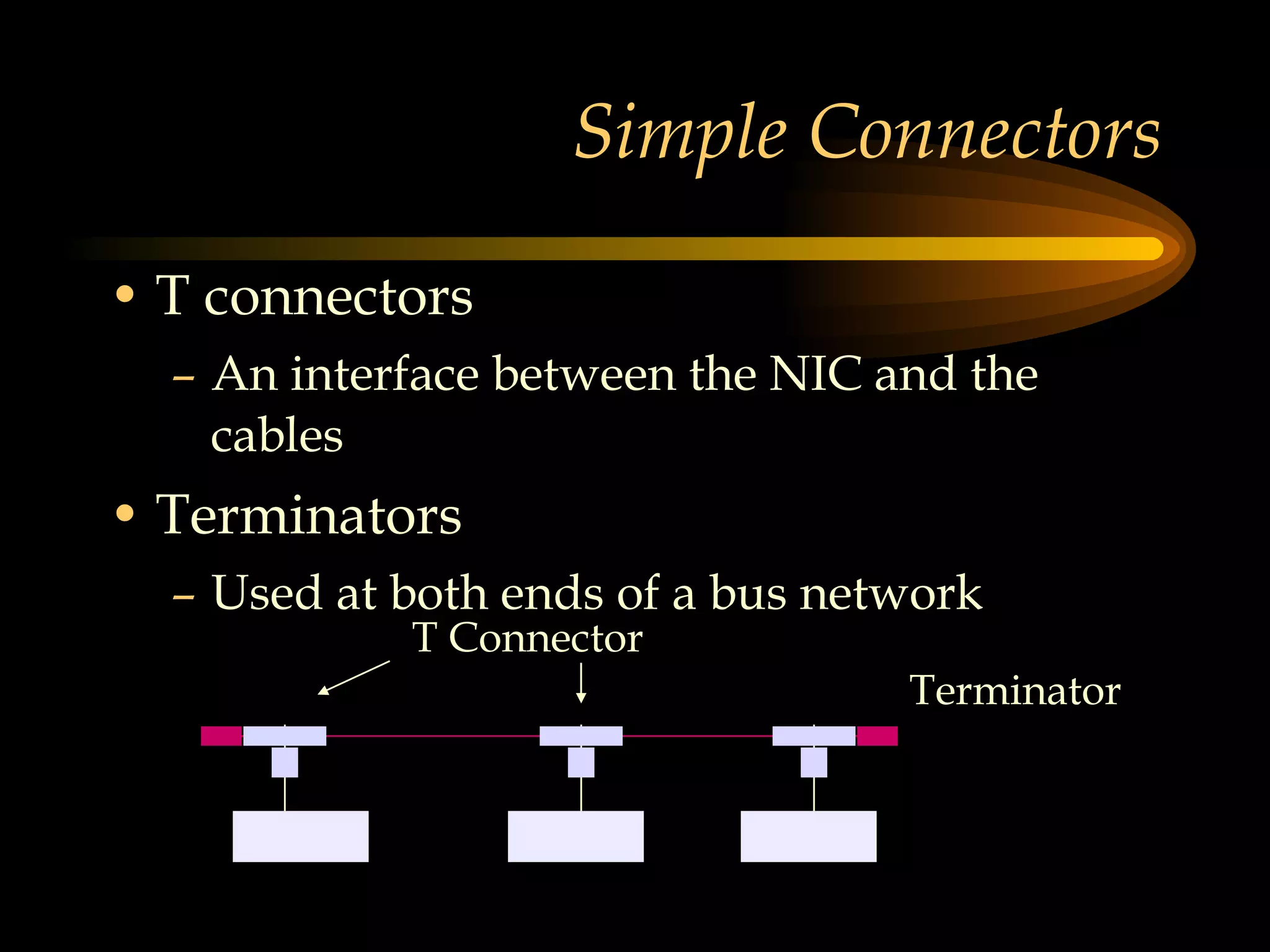

70. Simple Connectors T connectors An interface between the NIC and the cables Terminators Used at both ends of a bus network Terminator T Connector

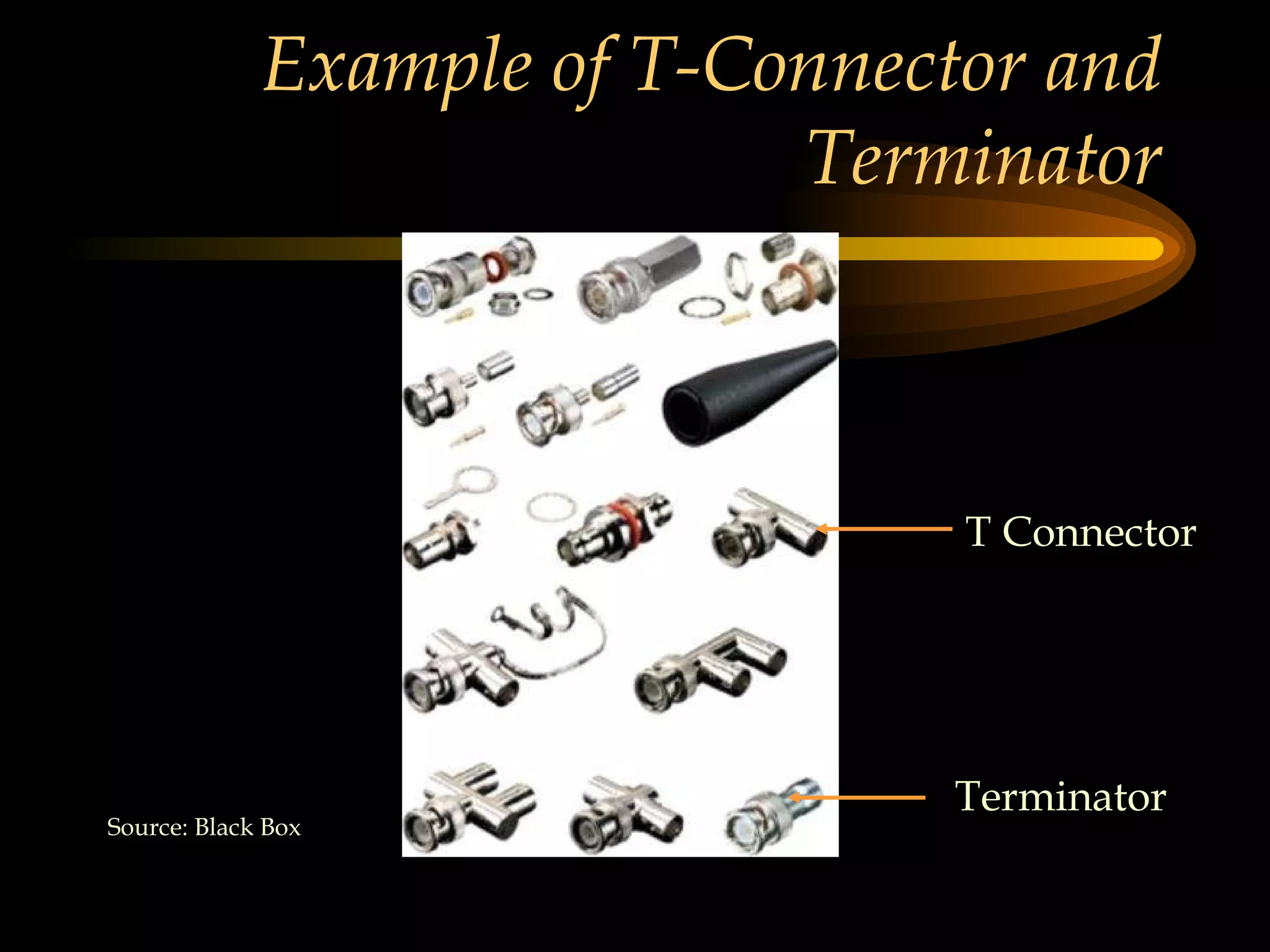

71. Example of T-Connector and Terminator T Connector Terminator Source: Black Box

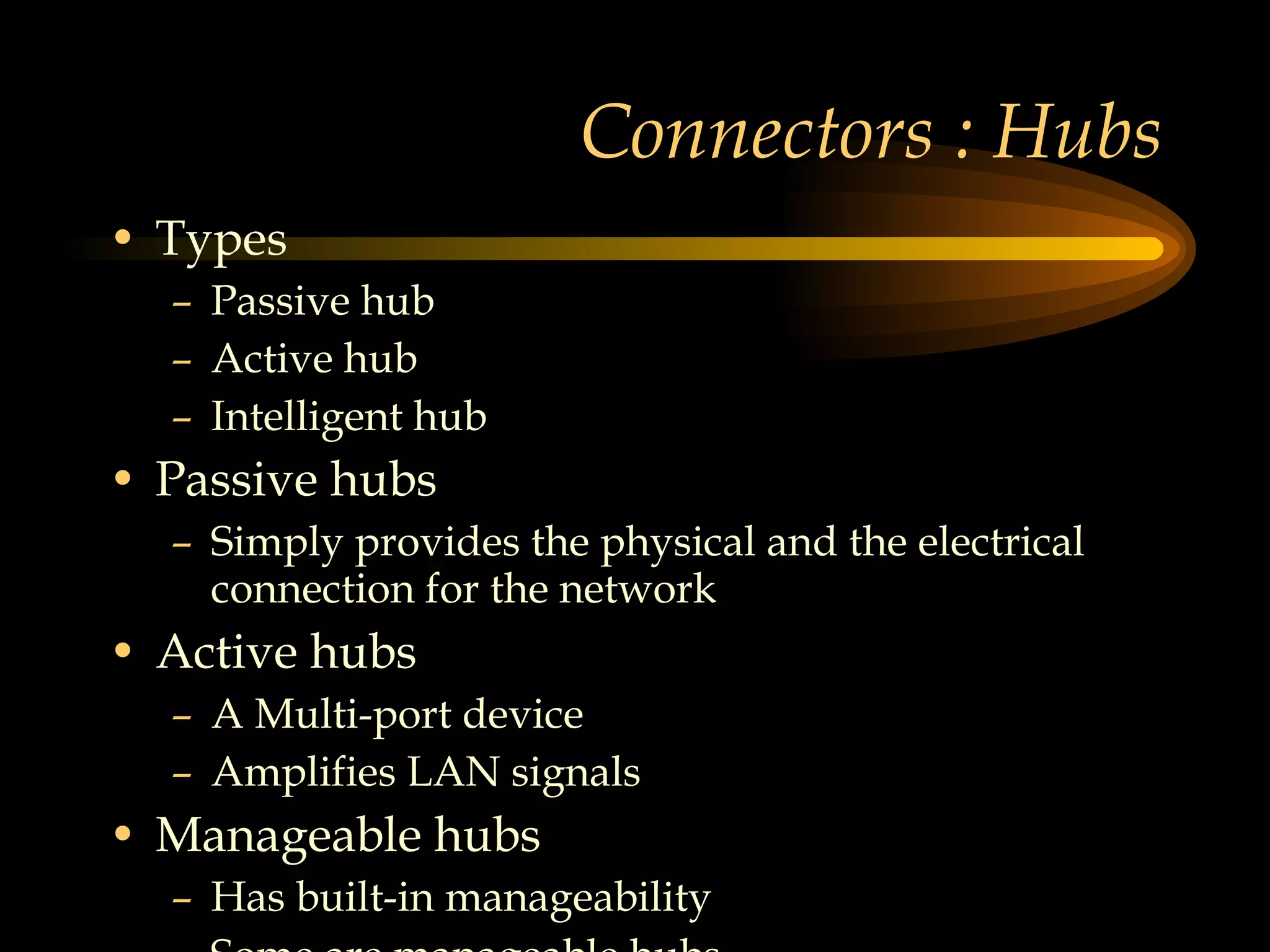

72. Connectors : Hubs Types Passive hub Active hub Intelligent hub Passive hubs Simply provides the physical and the electrical connection for the network Active hubs A Multi-port device Amplifies LAN signals Manageable hubs Has built-in manageability Some are manageable hubs

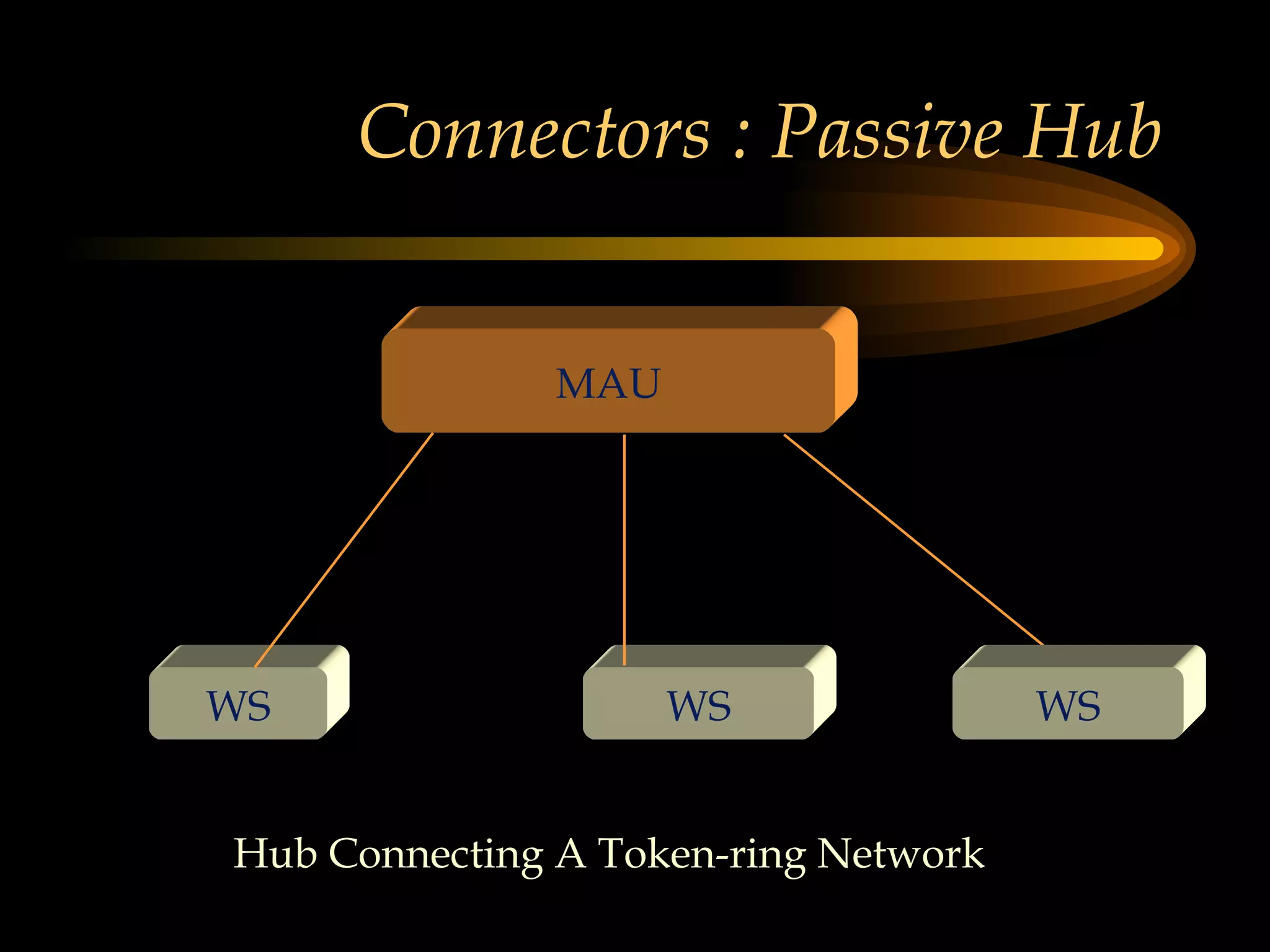

73. Connectors : Passive Hub MAU WS WS Hub Connecting A Token-ring Network WS

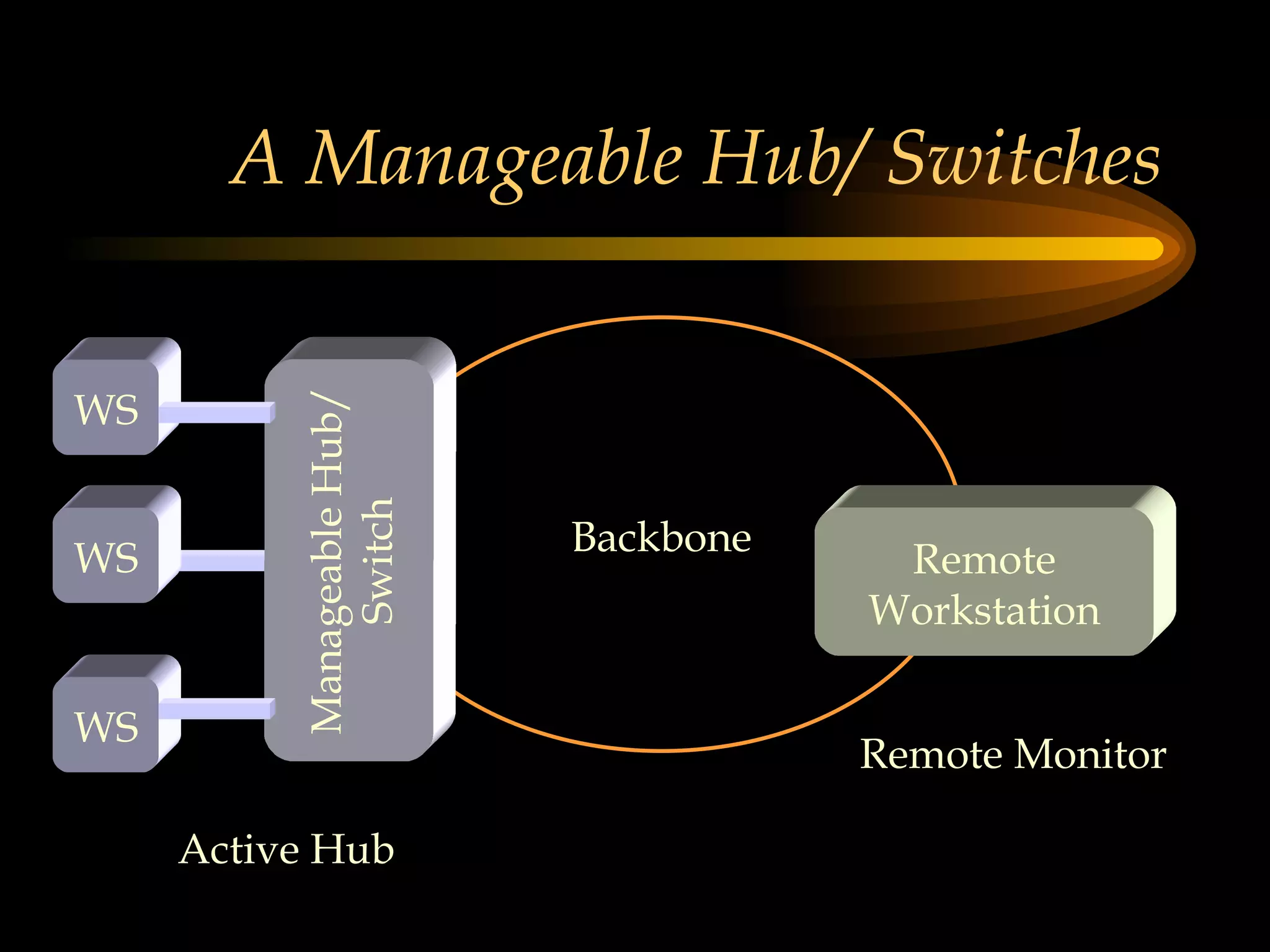

74. A Manageable Hub/ Switches Backbone Manageable Hub/ Switch Remote Workstation WS WS WS Remote Monitor Active Hub

75. LAN Management Software Sophisticated Monitor the network traffic through each of the ports Becoming popular Standardized protocol for remote management exists SNMP (Simple Network Management Protocol)

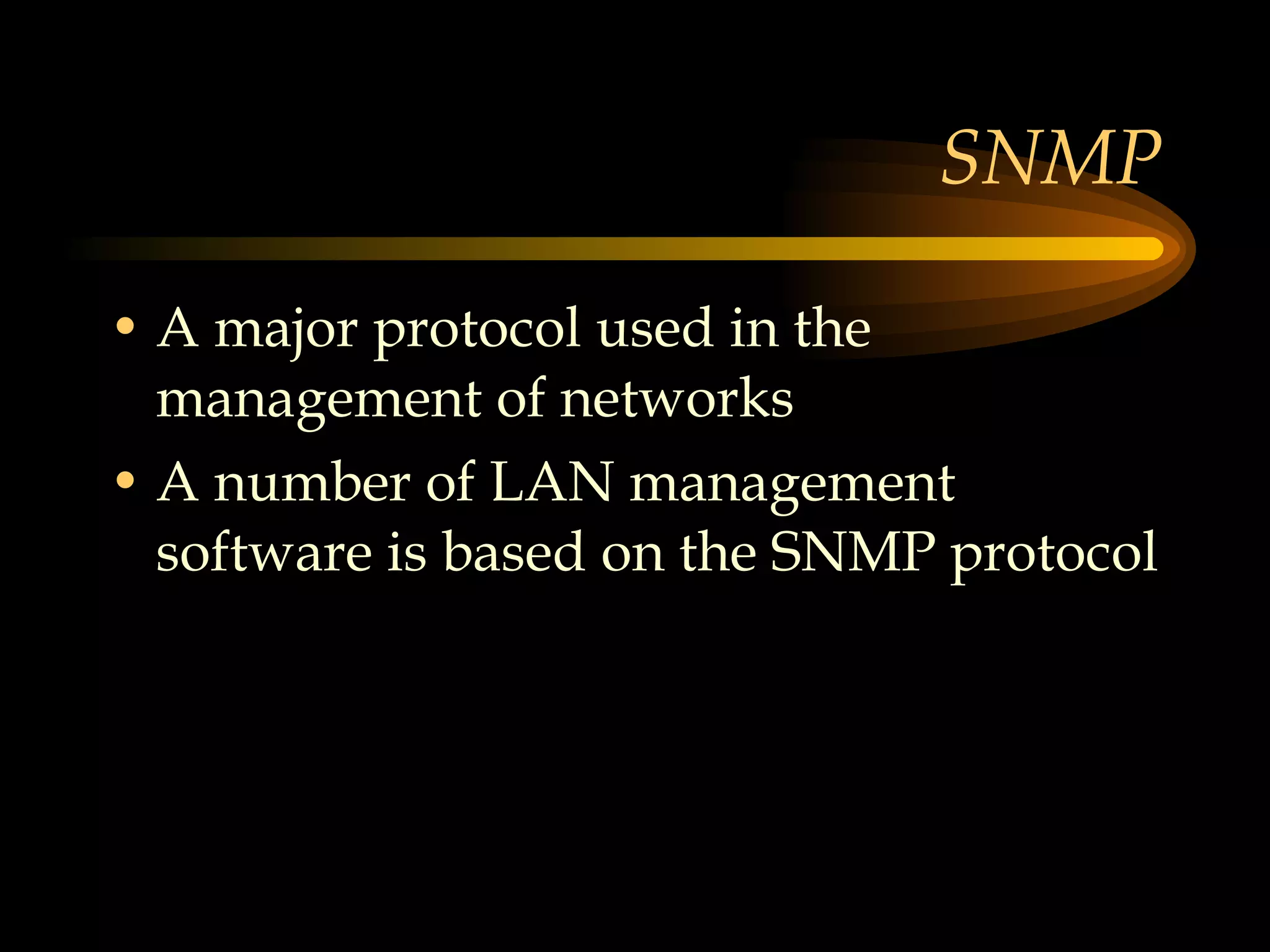

76. SNMP A major protocol used in the management of networks A number of LAN management software is based on the SNMP protocol

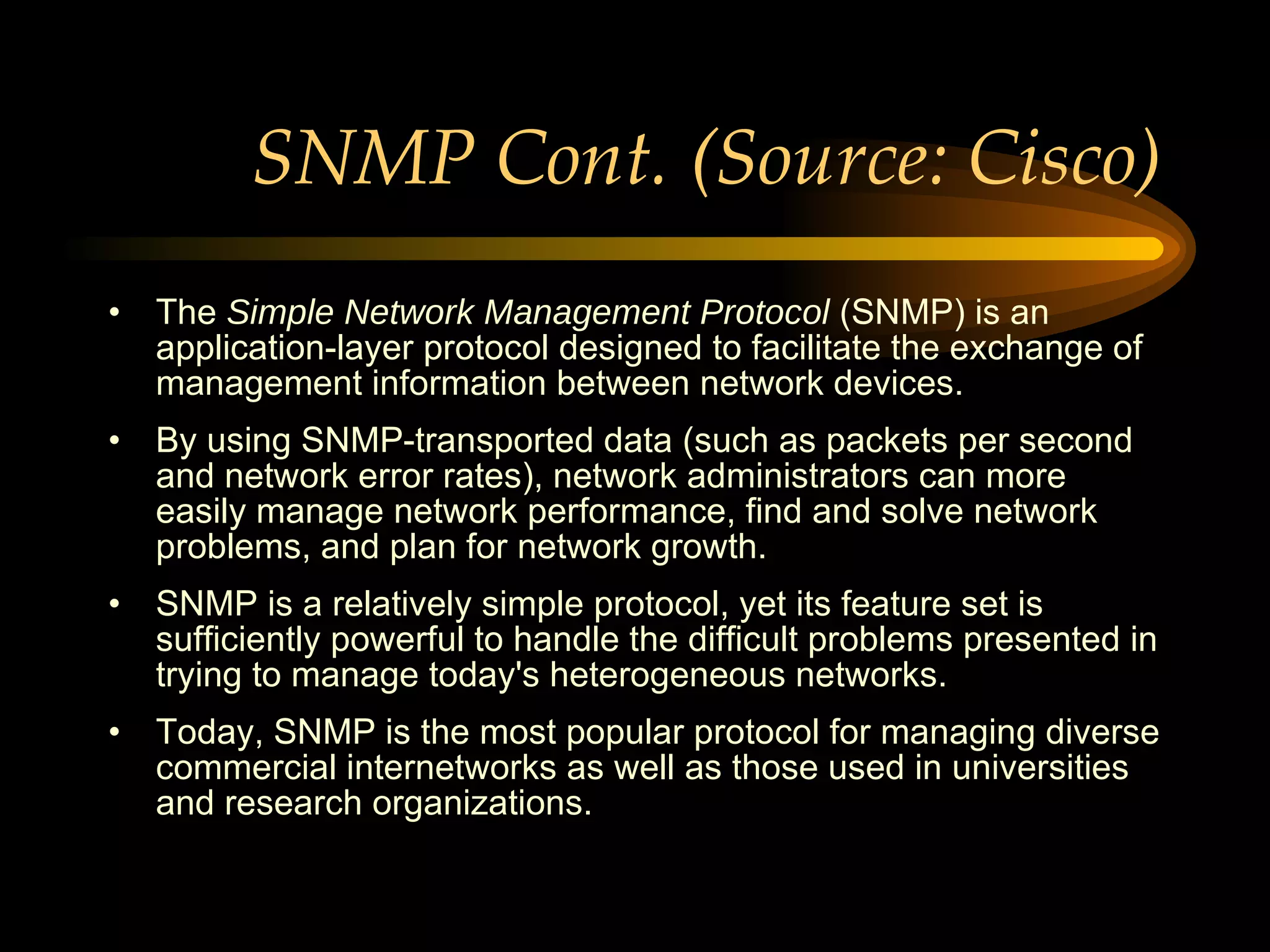

77. SNMP Cont. (Source: Cisco) The Simple Network Management Protocol (SNMP) is an application-layer protocol designed to facilitate the exchange of management information between network devices. By using SNMP-transported data (such as packets per second and network error rates), network administrators can more easily manage network performance, find and solve network problems, and plan for network growth. SNMP is a relatively simple protocol, yet its feature set is sufficiently powerful to handle the difficult problems presented in trying to manage today's heterogeneous networks. Today, SNMP is the most popular protocol for managing diverse commercial internetworks as well as those used in universities and research organizations.

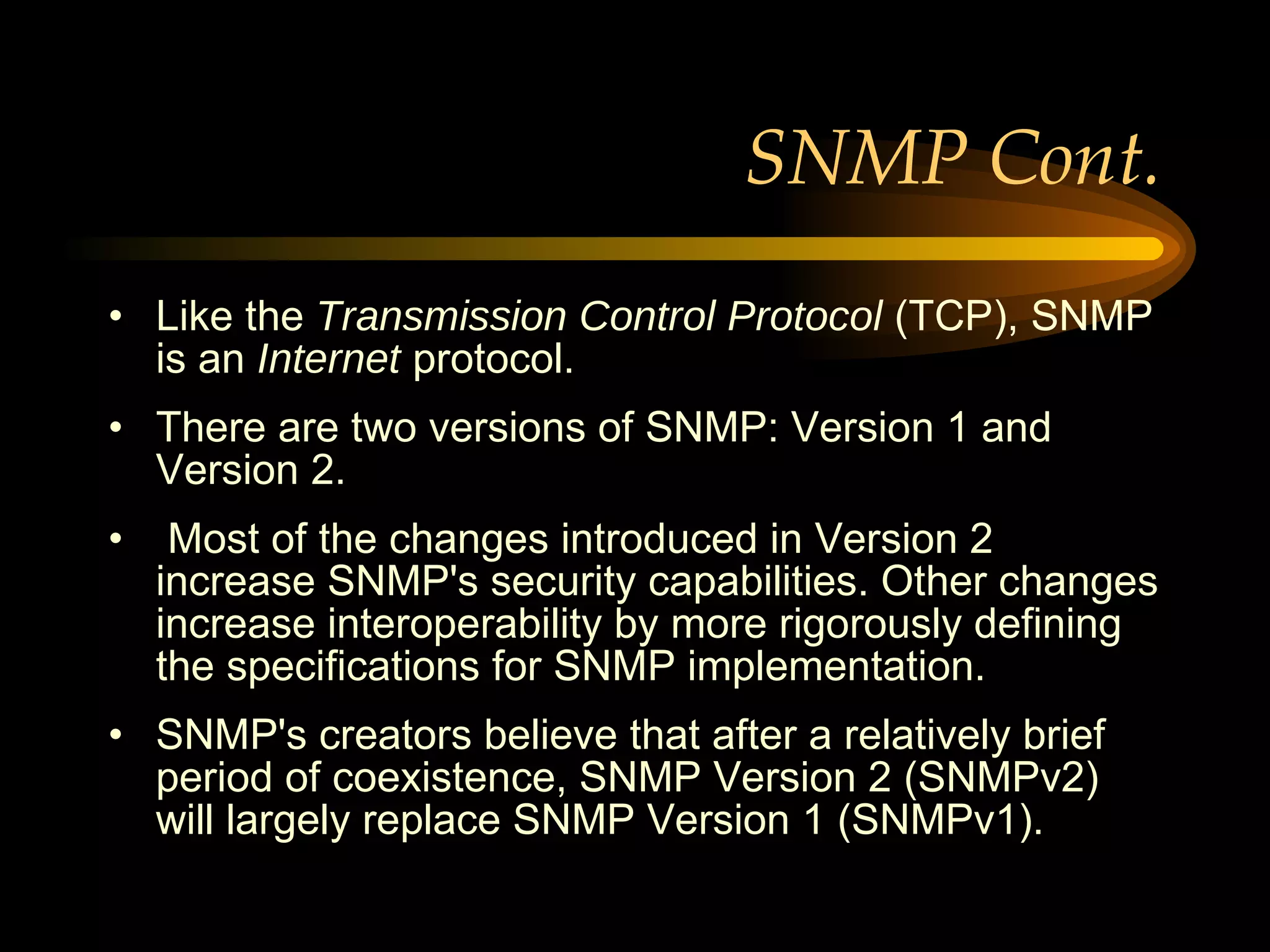

78. SNMP Cont. Like the Transmission Control Protocol (TCP), SNMP is an Internet protocol. There are two versions of SNMP: Version 1 and Version 2. Most of the changes introduced in Version 2 increase SNMP's security capabilities. Other changes increase interoperability by more rigorously defining the specifications for SNMP implementation. SNMP's creators believe that after a relatively brief period of coexistence, SNMP Version 2 (SNMPv2) will largely replace SNMP Version 1 (SNMPv1).

79. Web Research Obtain additional information on the following LAN troubleshooting software LAN Analyzer LAN Sniffer

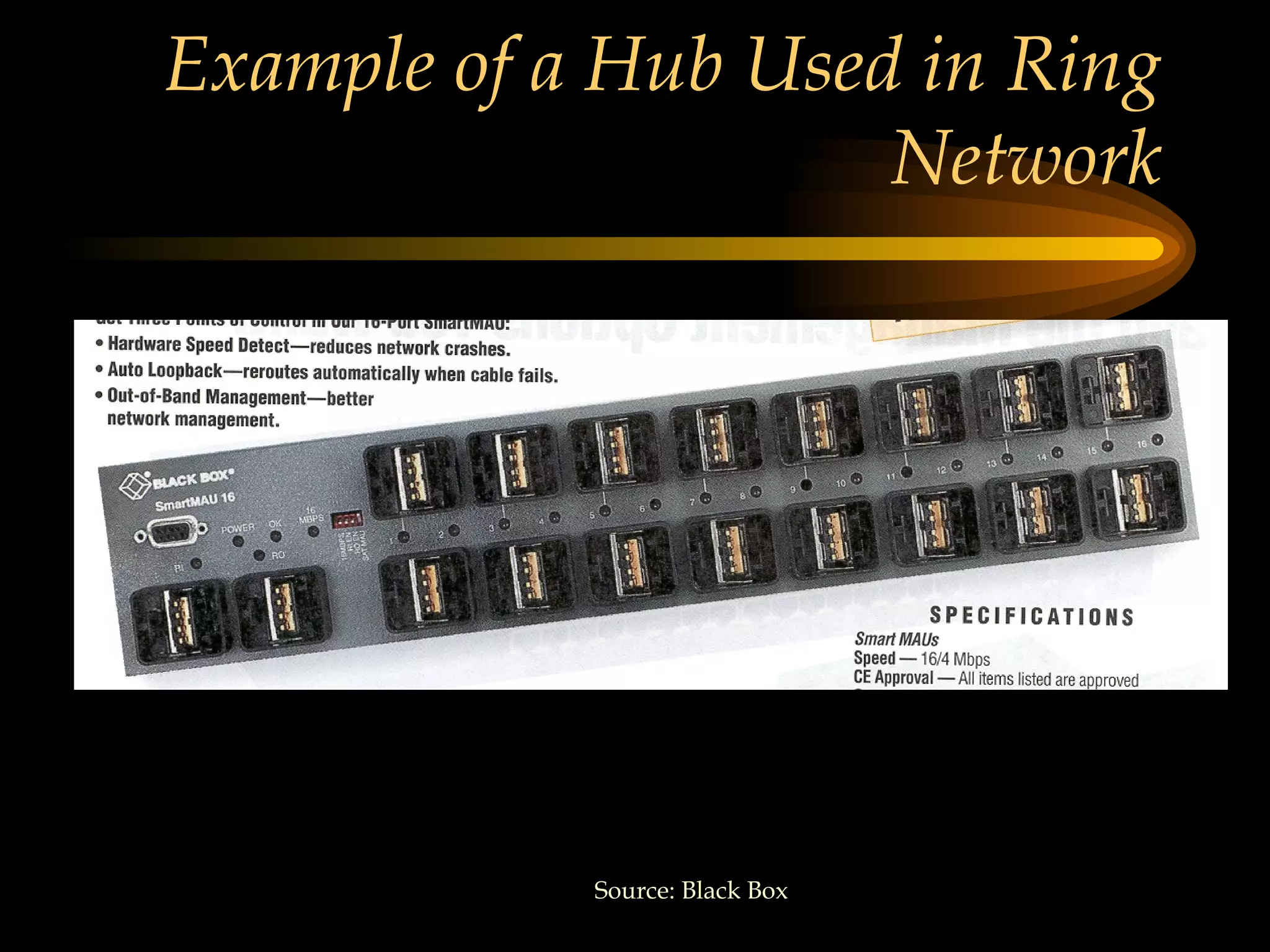

80. Example of a Hub Used in Ring Network Source: Black Box

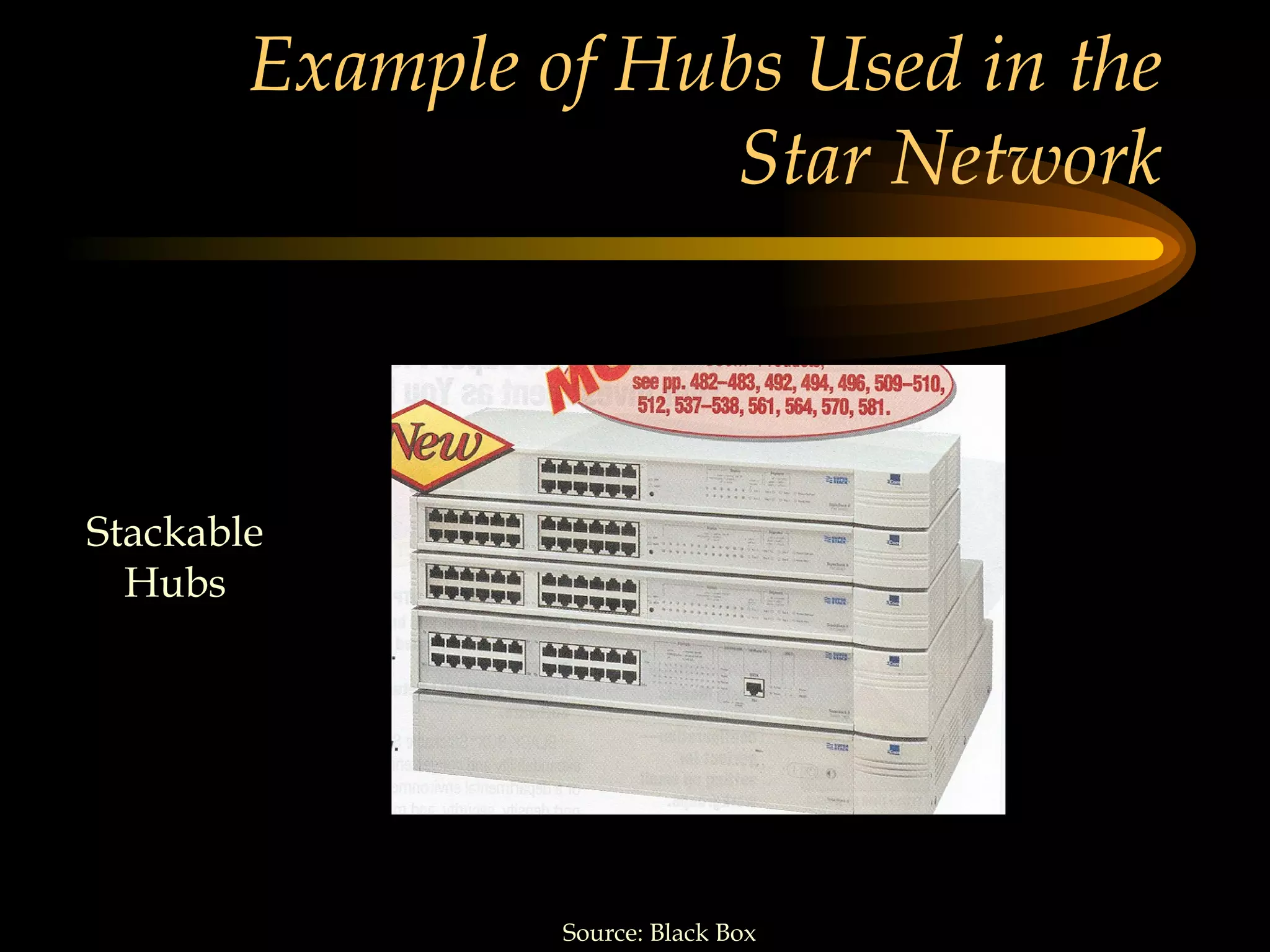

81. Example of Hubs Used in the Star Network Stackable Hubs Source: Black Box

82. END OF MODULE

83. Web Research Photonic switching www.agilent.com/comms/photonicswitch www.cnn.com/tech

84. MODULE Server and Workstation Hardware

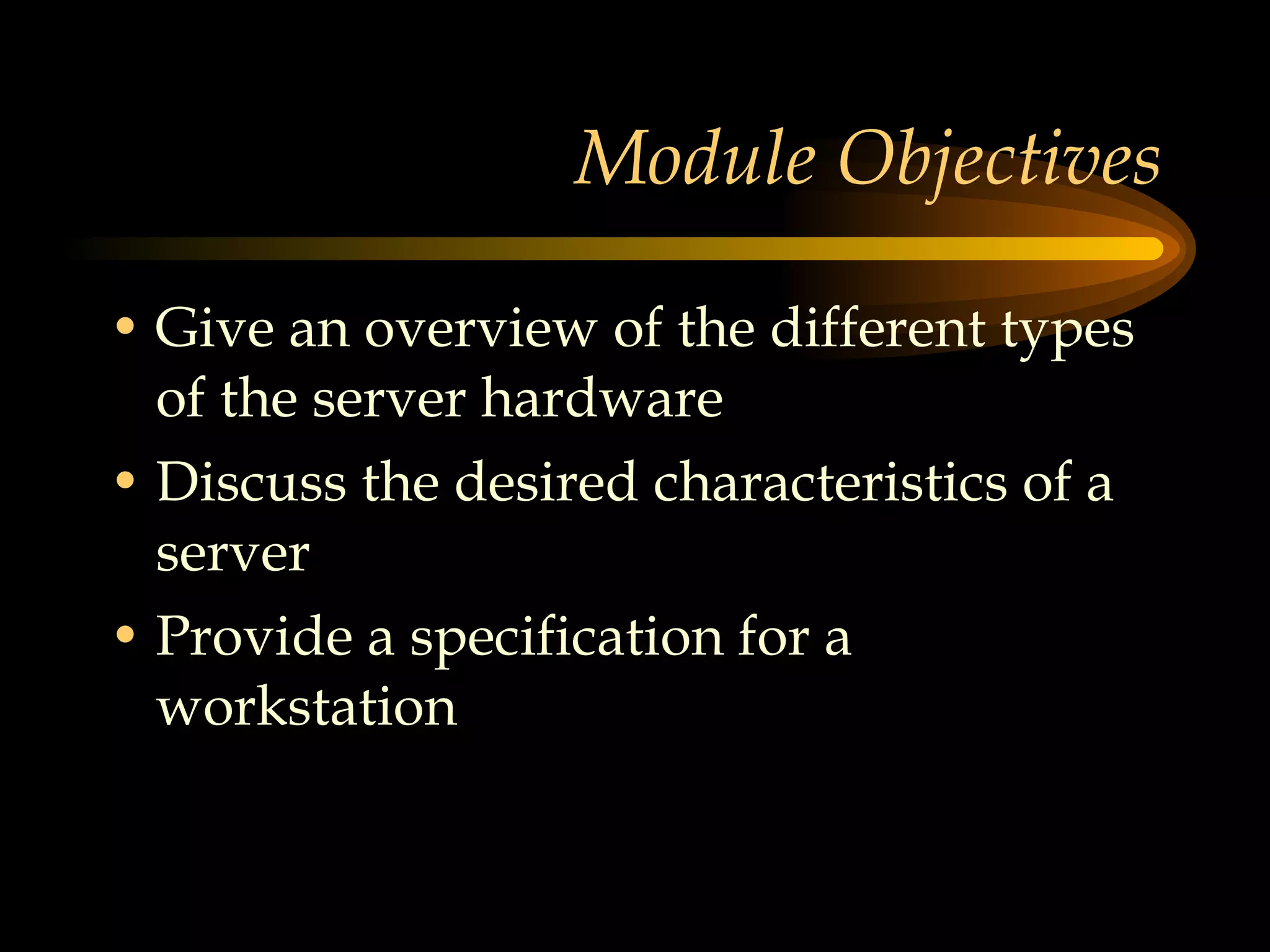

85. Module Objectives Give an overview of the different types of the server hardware Discuss the desired characteristics of a server Provide a specification for a workstation

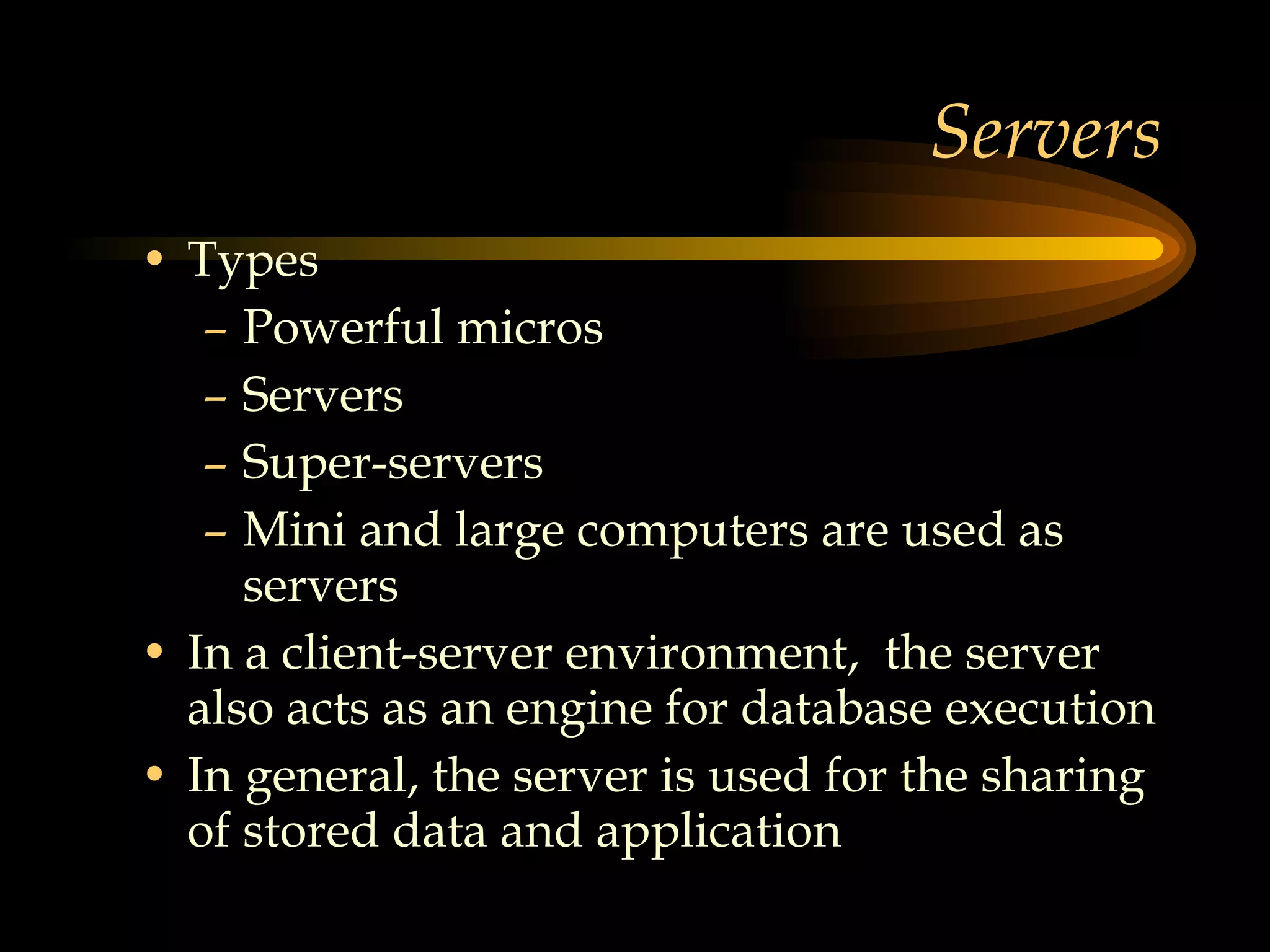

86. Servers Types Powerful micros Servers Super-servers Mini and large computers are used as servers In a client-server environment, the server also acts as an engine for database execution In general, the server is used for the sharing of stored data and application

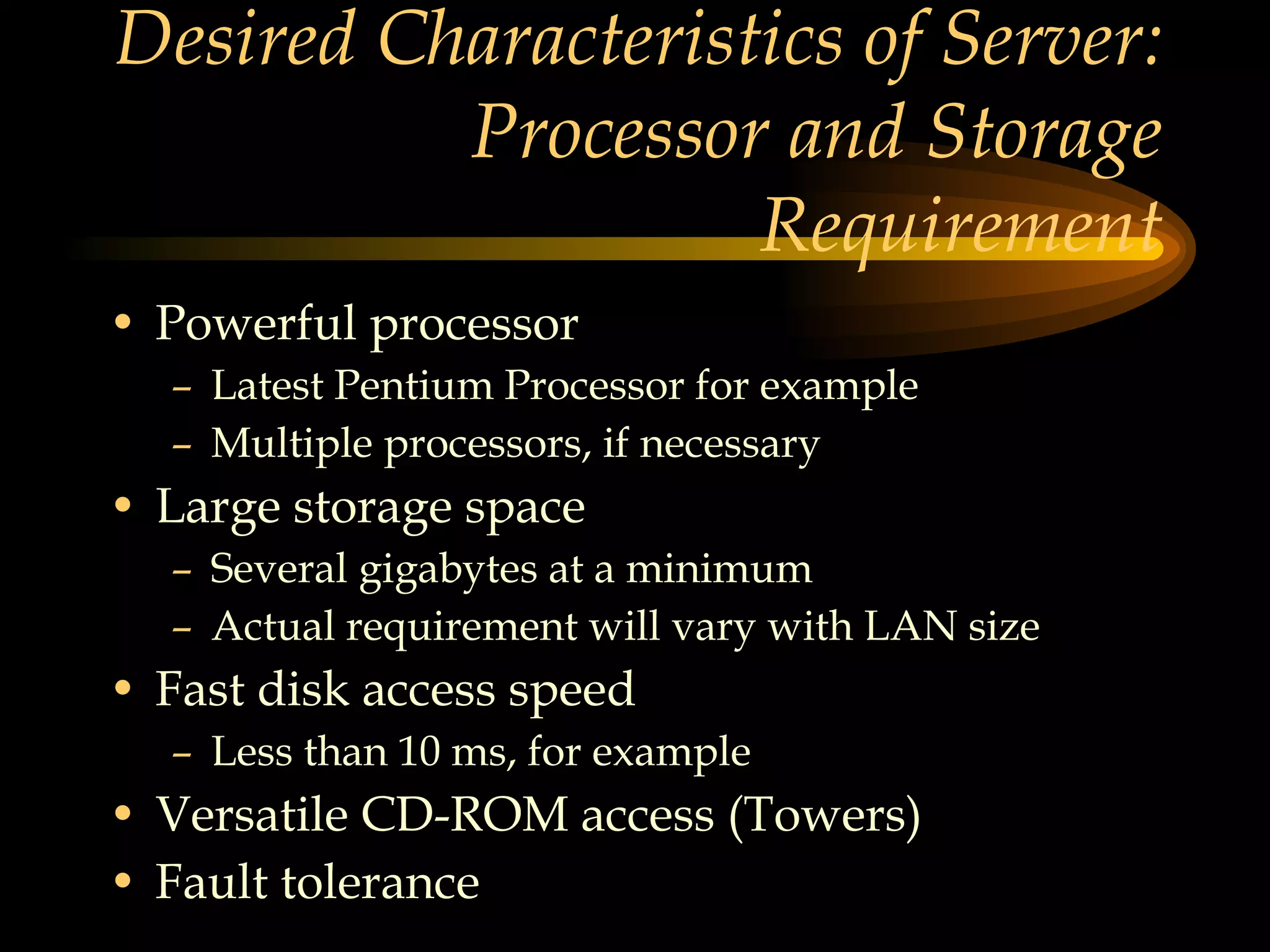

87. Desired Characteristics of Server: Processor and Storage Requirement Powerful processor Latest Pentium Processor for example Multiple processors, if necessary Large storage space Several gigabytes at a minimum Actual requirement will vary with LAN size Fast disk access speed Less than 10 ms, for example Versatile CD-ROM access (Towers) Fault tolerance

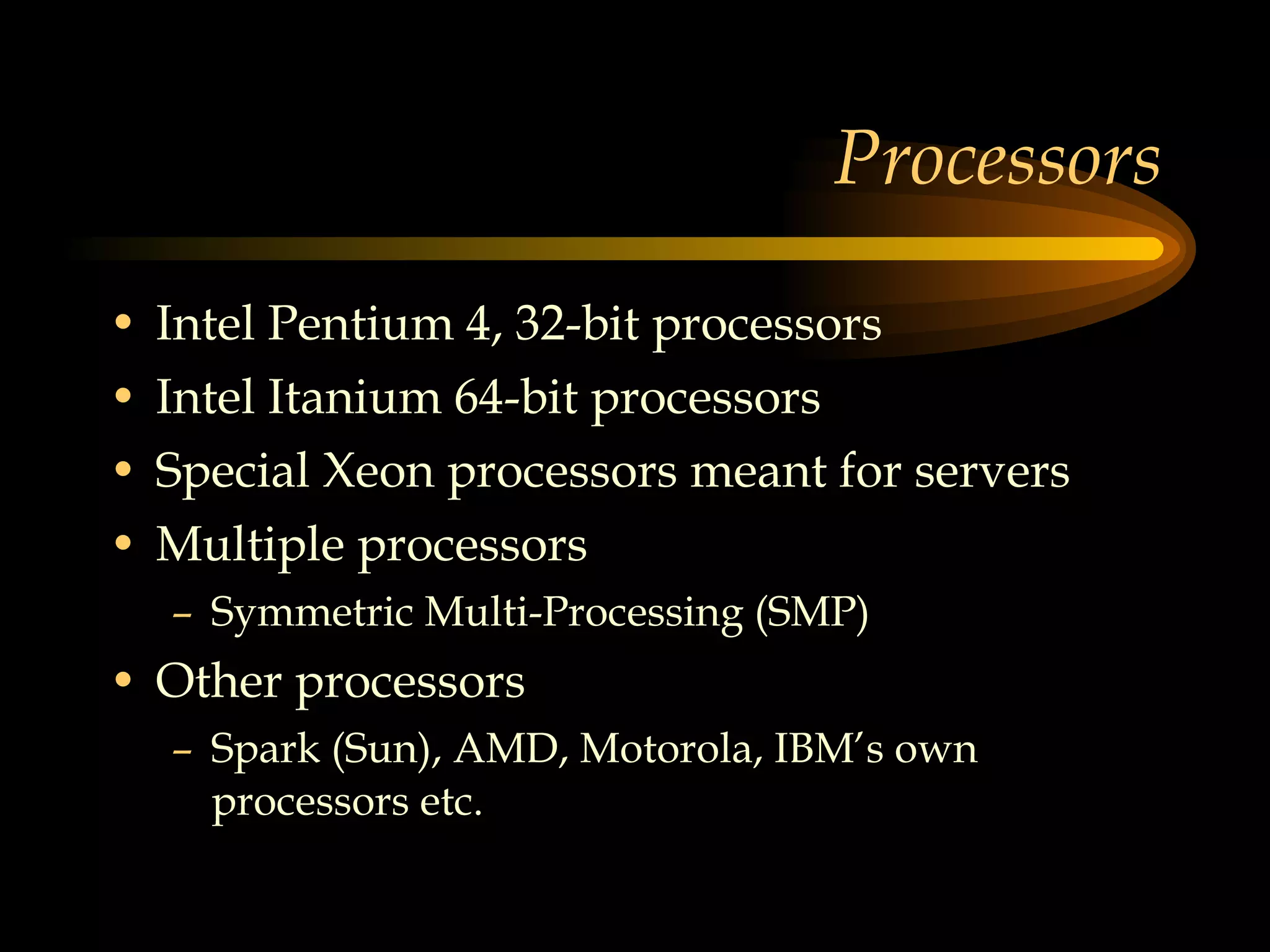

88. Processors Intel Pentium 4, 32-bit processors Intel Itanium 64-bit processors Special Xeon processors meant for servers Multiple processors Symmetric Multi-Processing (SMP) Other processors Spark (Sun), AMD, Motorola, IBM’s own processors etc.

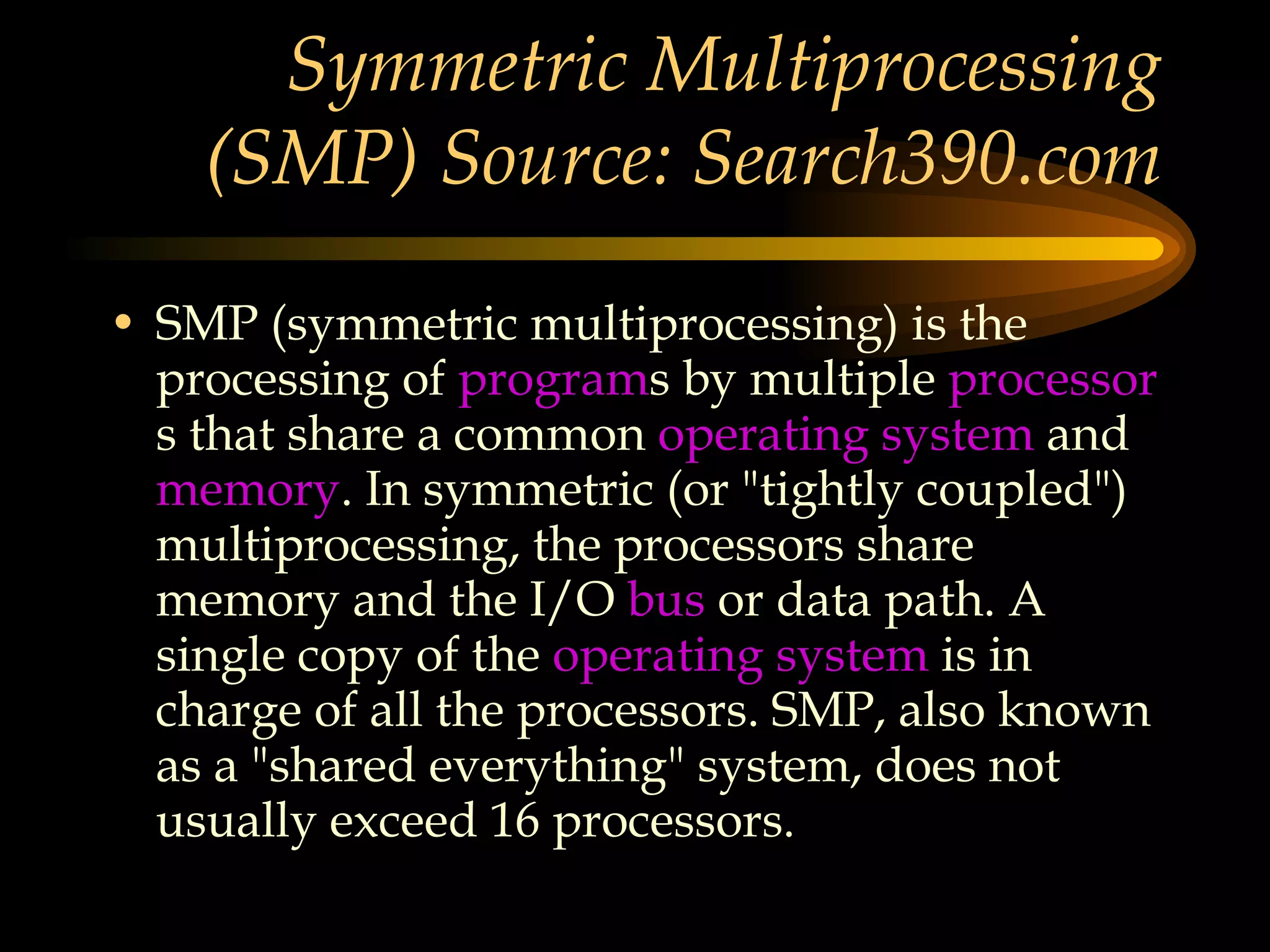

89. Symmetric Multiprocessing (SMP) Source: Search390.com SMP (symmetric multiprocessing) is the processing of program s by multiple processor s that share a common operating system and memory . In symmetric (or "tightly coupled") multiprocessing, the processors share memory and the I/O bus or data path. A single copy of the operating system is in charge of all the processors. SMP, also known as a "shared everything" system, does not usually exceed 16 processors.

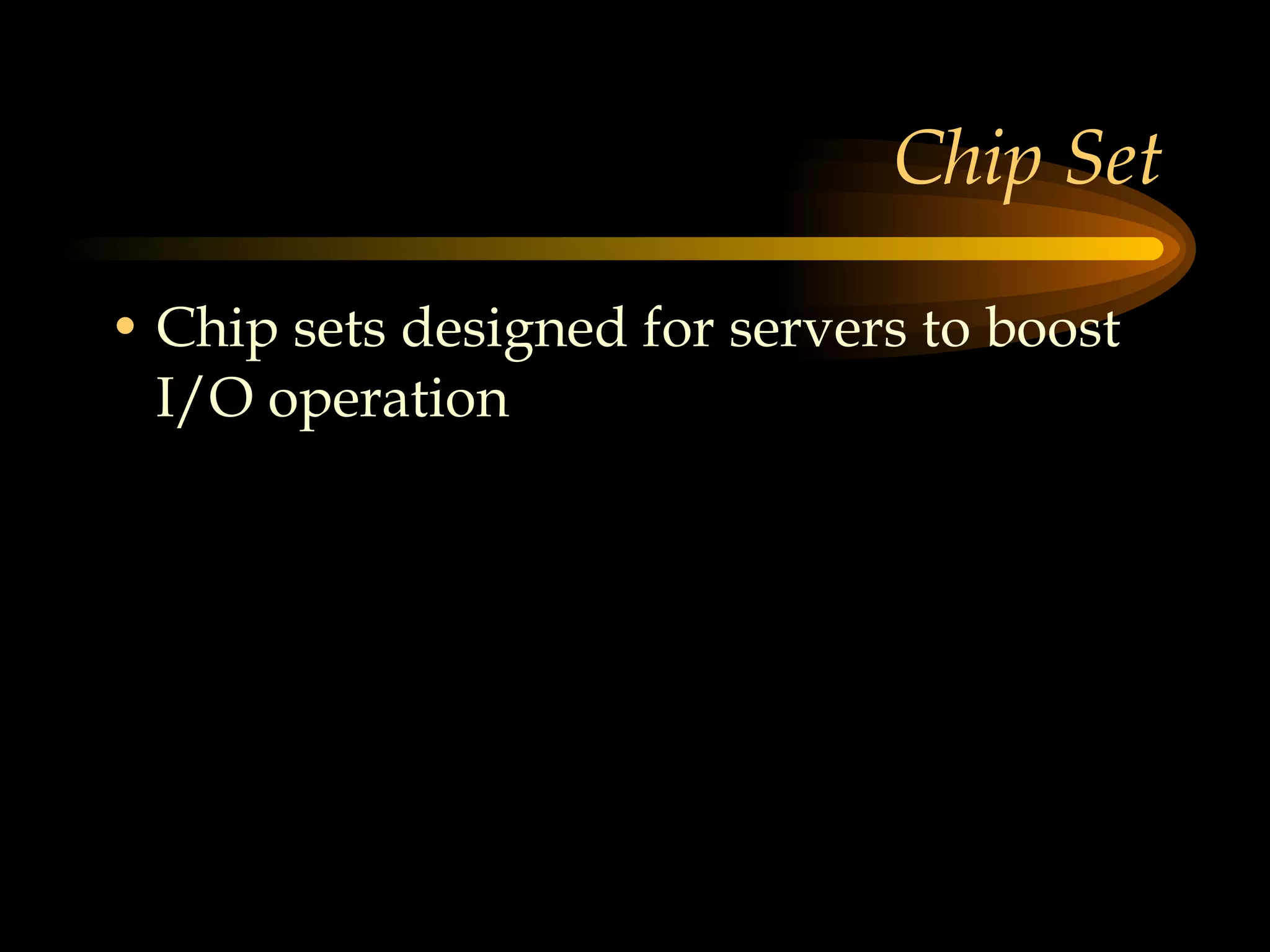

90. Chip Set Chip sets designed for servers to boost I/O operation

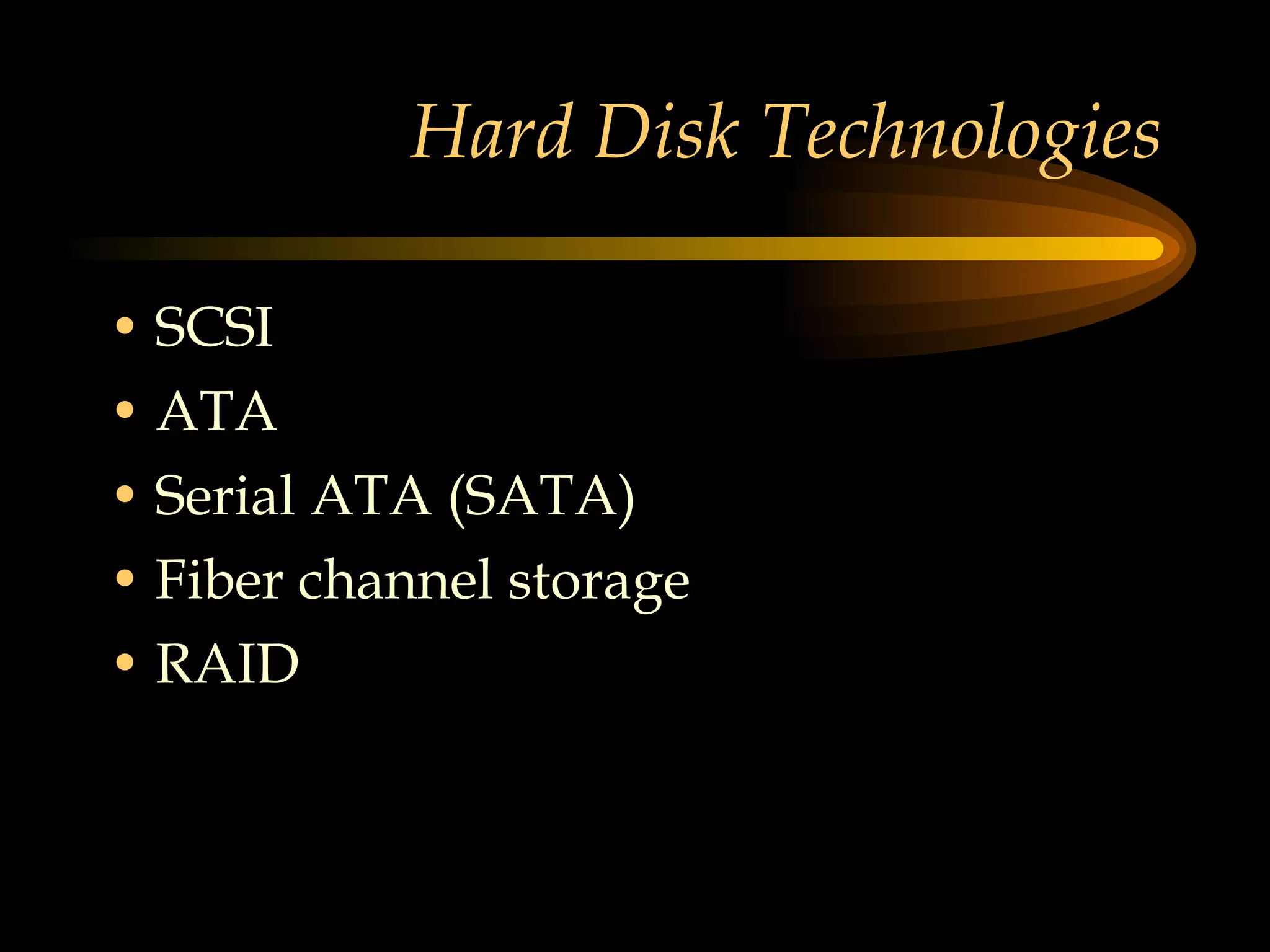

91. Hard Disk Technologies SCSI ATA Serial ATA (SATA) Fiber channel storage RAID

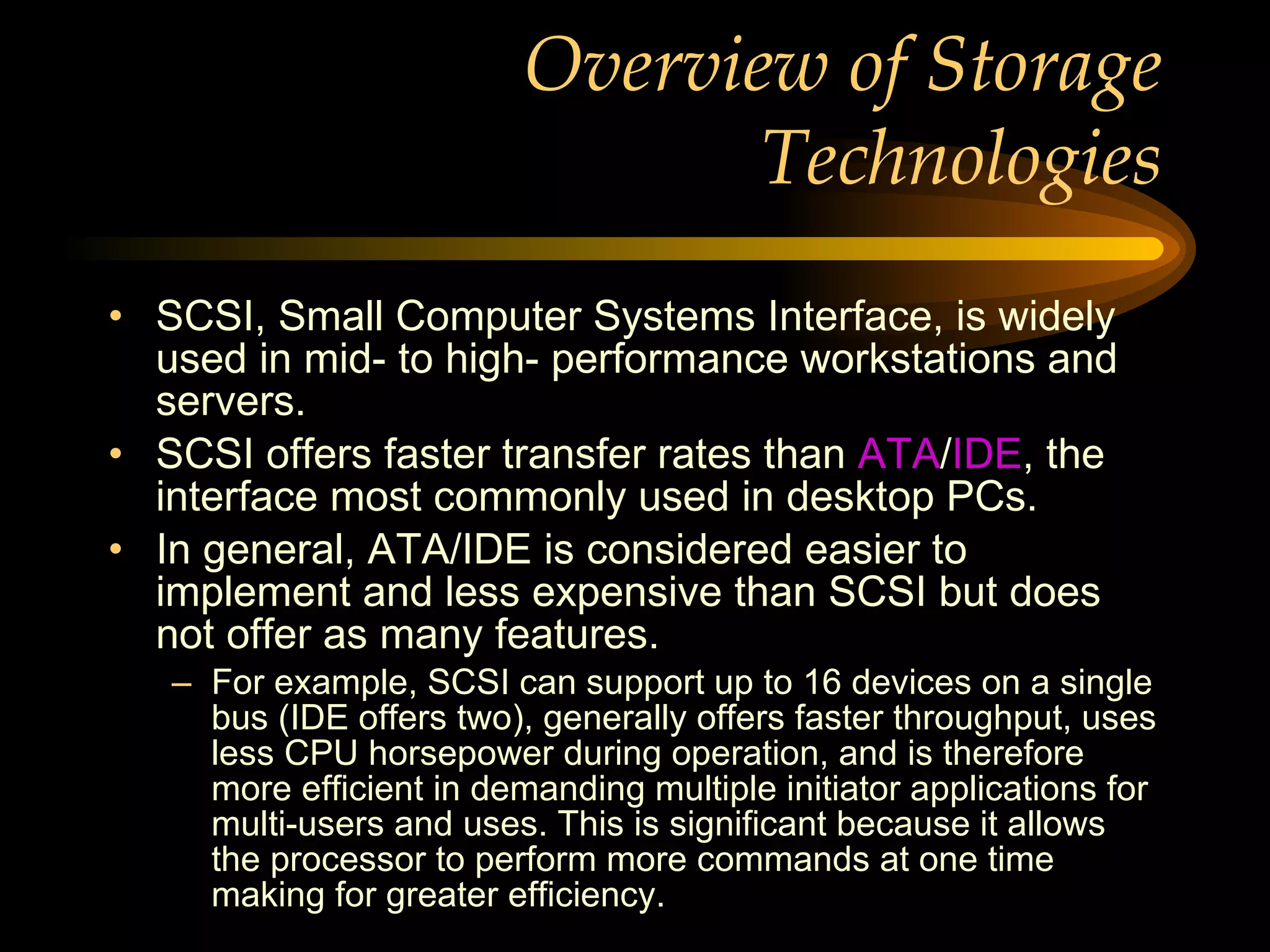

92. Overview of Storage Technologies SCSI, Small Computer Systems Interface, is widely used in mid- to high- performance workstations and servers. SCSI offers faster transfer rates than ATA / IDE , the interface most commonly used in desktop PCs. In general, ATA/IDE is considered easier to implement and less expensive than SCSI but does not offer as many features. For example, SCSI can support up to 16 devices on a single bus (IDE offers two), generally offers faster throughput, uses less CPU horsepower during operation, and is therefore more efficient in demanding multiple initiator applications for multi-users and uses. This is significant because it allows the processor to perform more commands at one time making for greater efficiency.

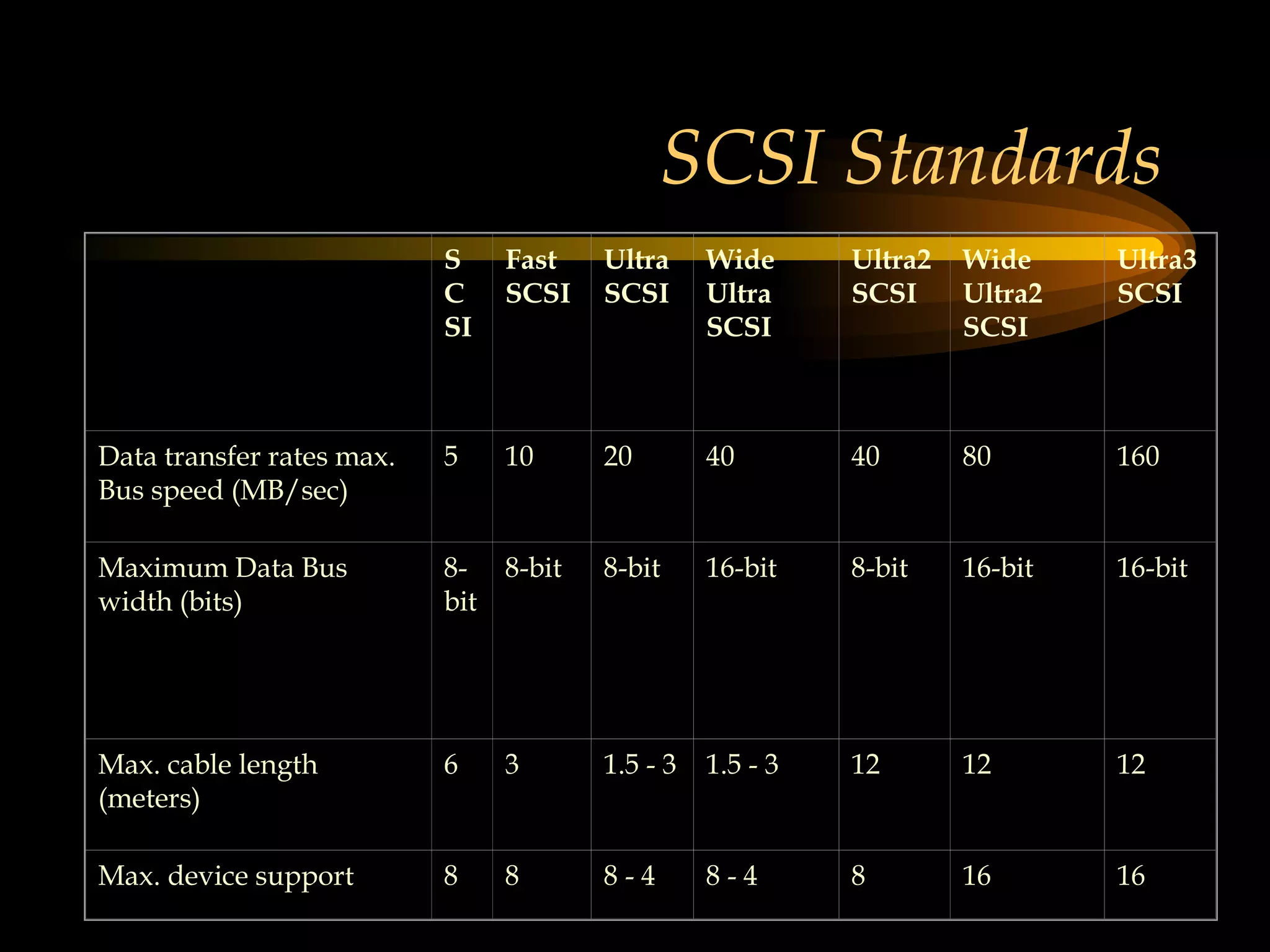

93. SCSI Standards SCSI Fast SCSI Ultra SCSI Wide Ultra SCSI Ultra2 SCSI Wide Ultra2 SCSI Ultra3 SCSI Data transfer rates max. Bus speed (MB/sec) 5 10 20 40 40 80 160 Maximum Data Bus width (bits) 8-bit 8-bit 8-bit 16-bit 8-bit 16-bit 16-bit Max. cable length (meters) 6 3 1.5 - 3 1.5 - 3 12 12 12 Max. device support 8 8 8 - 4 8 - 4 8 16 16

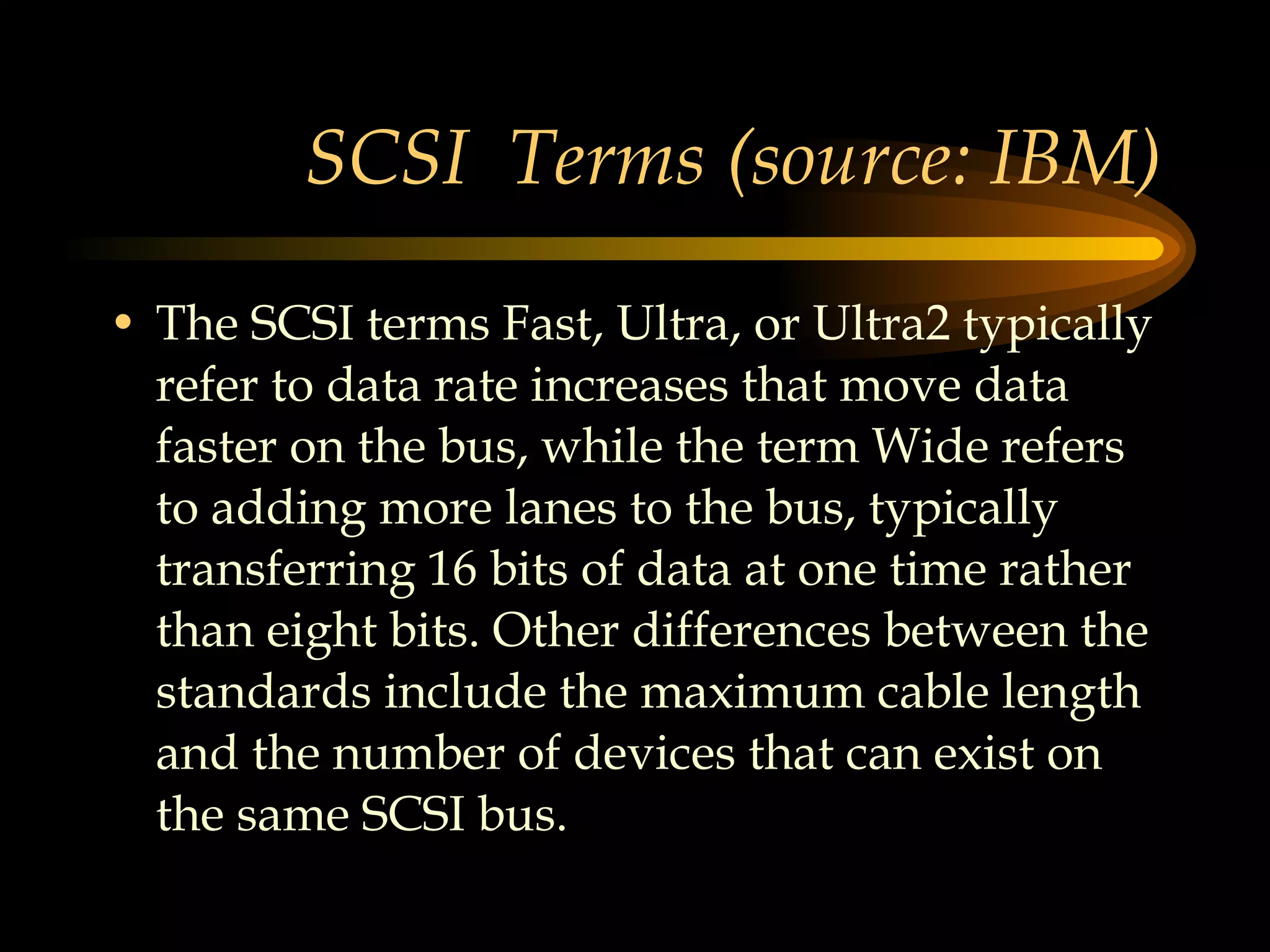

94. SCSI Terms (source: IBM) The SCSI terms Fast, Ultra, or Ultra2 typically refer to data rate increases that move data faster on the bus, while the term Wide refers to adding more lanes to the bus, typically transferring 16 bits of data at one time rather than eight bits. Other differences between the standards include the maximum cable length and the number of devices that can exist on the same SCSI bus.

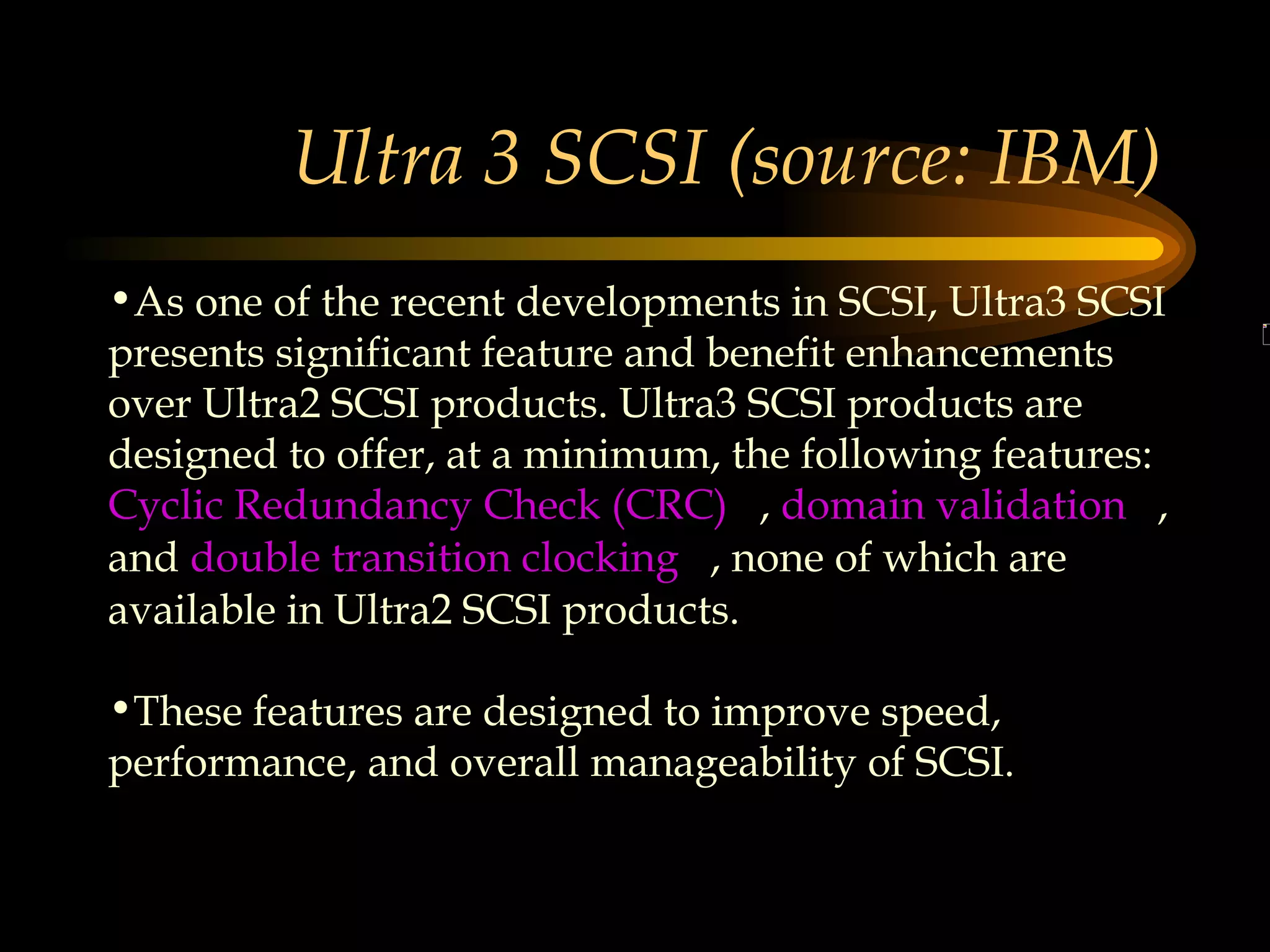

95. Ultra 3 SCSI (source: IBM) As one of the recent developments in SCSI, Ultra3 SCSI presents significant feature and benefit enhancements over Ultra2 SCSI products. Ultra3 SCSI products are designed to offer, at a minimum, the following features: Cyclic Redundancy Check (CRC) , domain validation , and double transition clocking , none of which are available in Ultra2 SCSI products. These features are designed to improve speed, performance, and overall manageability of SCSI.

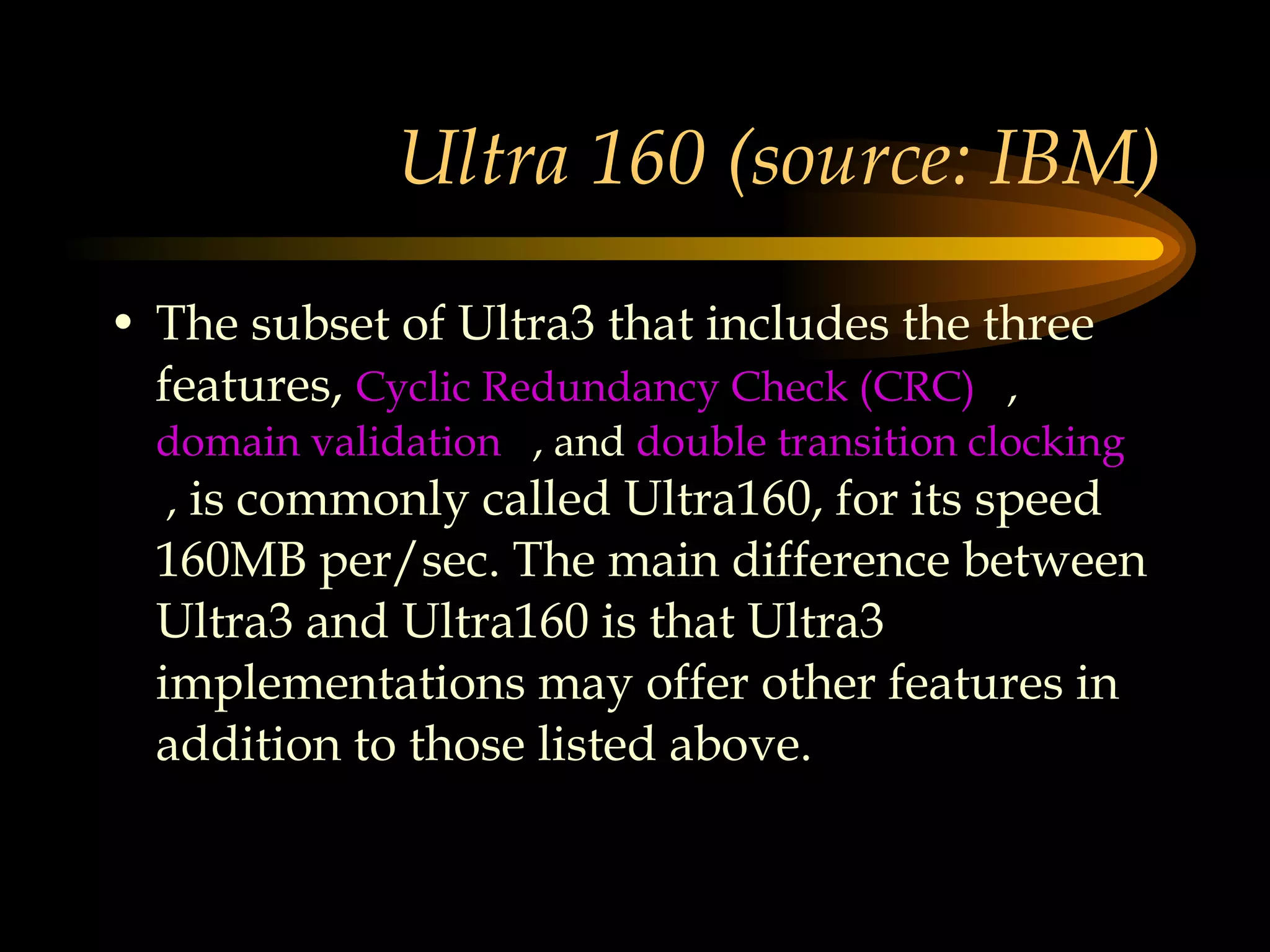

96. Ultra 160 (source: IBM) The subset of Ultra3 that includes the three features, Cyclic Redundancy Check (CRC) , domain validation , and double transition clocking , is commonly called Ultra160, for its speed 160MB per/sec. The main difference between Ultra3 and Ultra160 is that Ultra3 implementations may offer other features in addition to those listed above.

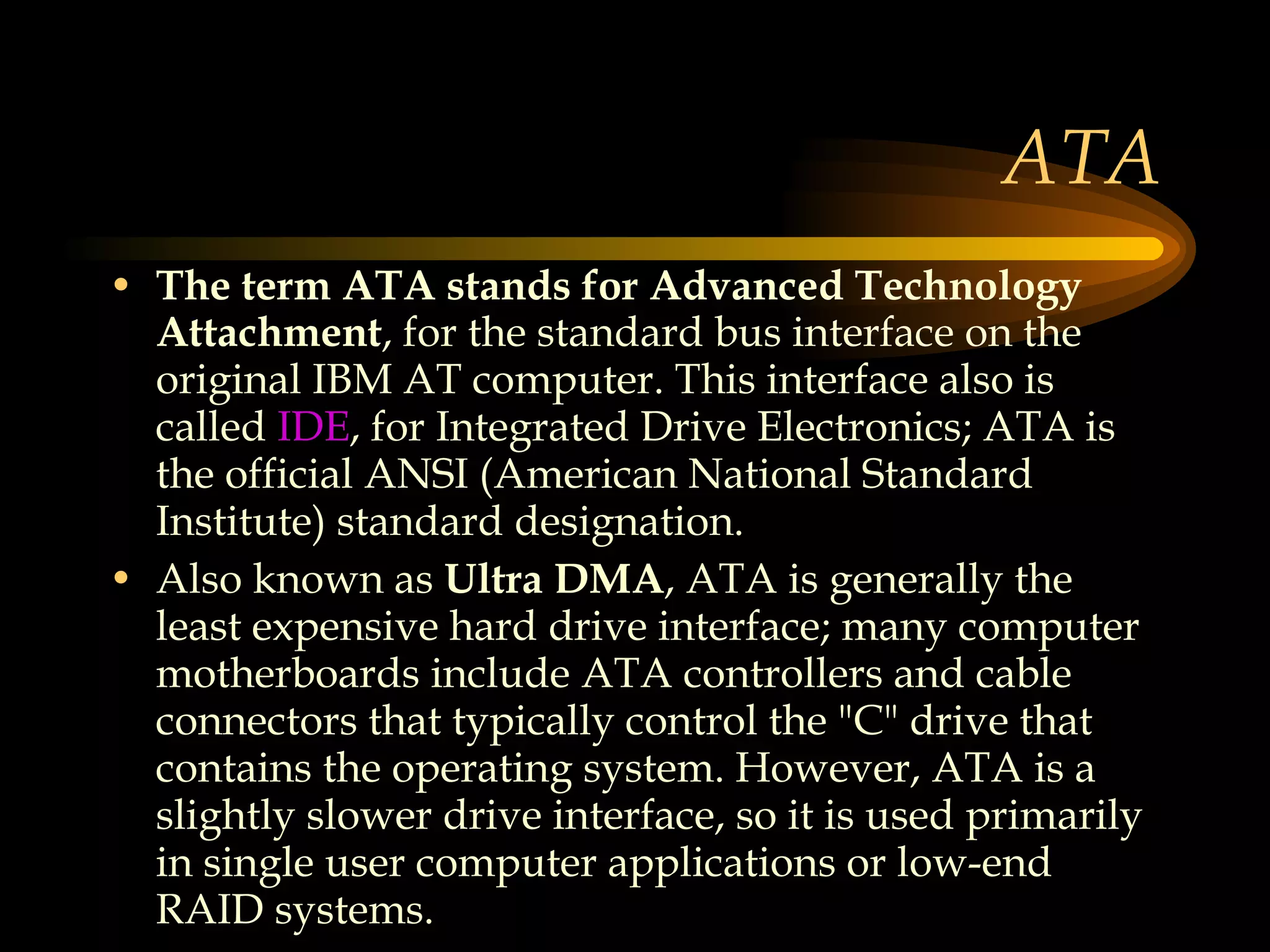

97. ATA The term ATA stands for Advanced Technology Attachment , for the standard bus interface on the original IBM AT computer. This interface also is called IDE , for Integrated Drive Electronics; ATA is the official ANSI (American National Standard Institute) standard designation. Also known as Ultra DMA , ATA is generally the least expensive hard drive interface; many computer motherboards include ATA controllers and cable connectors that typically control the "C" drive that contains the operating system. However, ATA is a slightly slower drive interface, so it is used primarily in single user computer applications or low-end RAID systems.

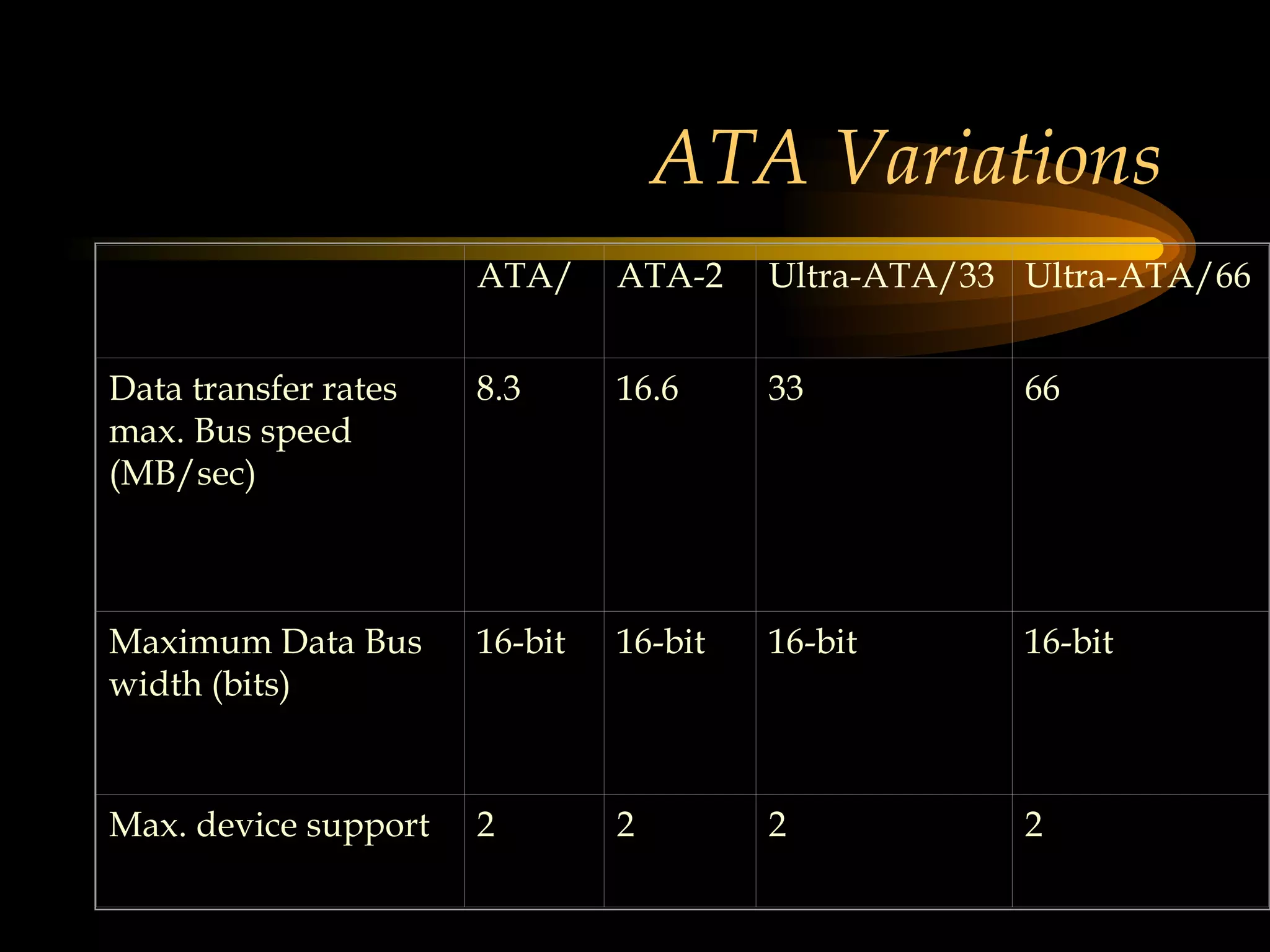

98. ATA Variations ATA/ ATA-2 Ultra-ATA/33 Ultra-ATA/66 Data transfer rates max. Bus speed (MB/sec) 8.3 16.6 33 66 Maximum Data Bus width (bits) 16-bit 16-bit 16-bit 16-bit Max. device support 2 2 2 2

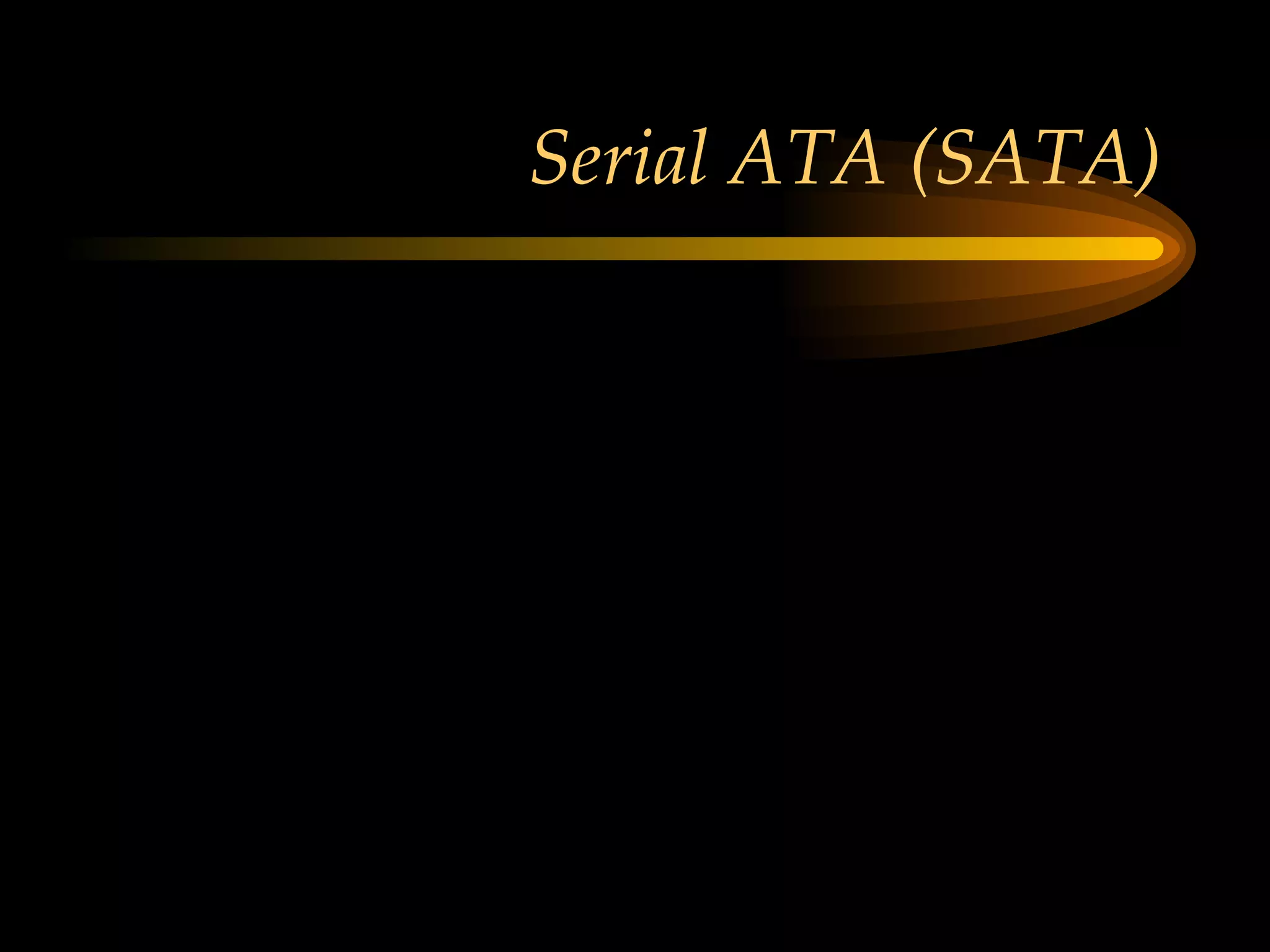

99. Serial ATA (SATA)

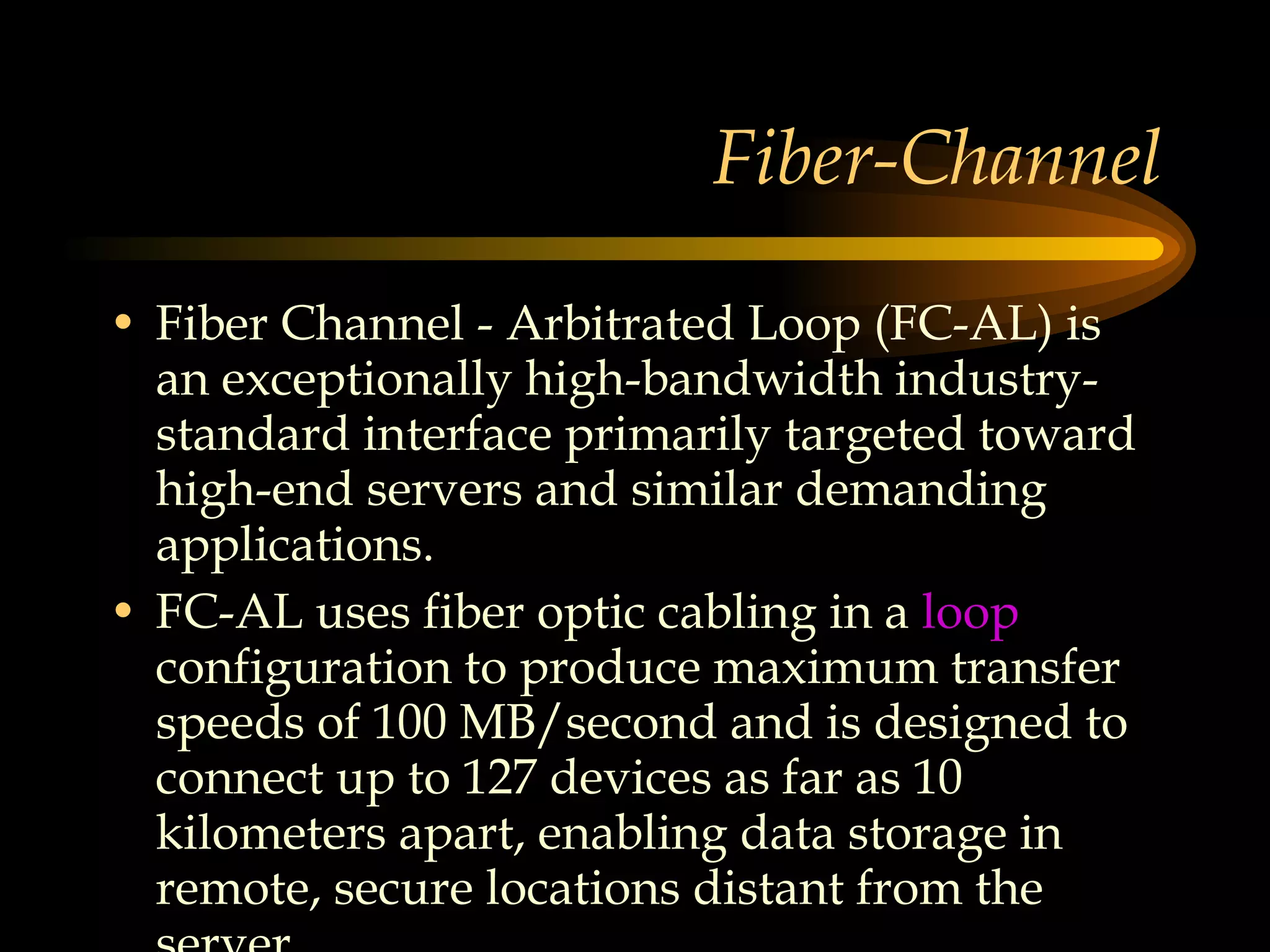

100. Fiber-Channel Fiber Channel - Arbitrated Loop (FC-AL) is an exceptionally high-bandwidth industry-standard interface primarily targeted toward high-end servers and similar demanding applications. FC-AL uses fiber optic cabling in a loop configuration to produce maximum transfer speeds of 100 MB/second and is designed to connect up to 127 devices as far as 10 kilometers apart, enabling data storage in remote, secure locations distant from the server.

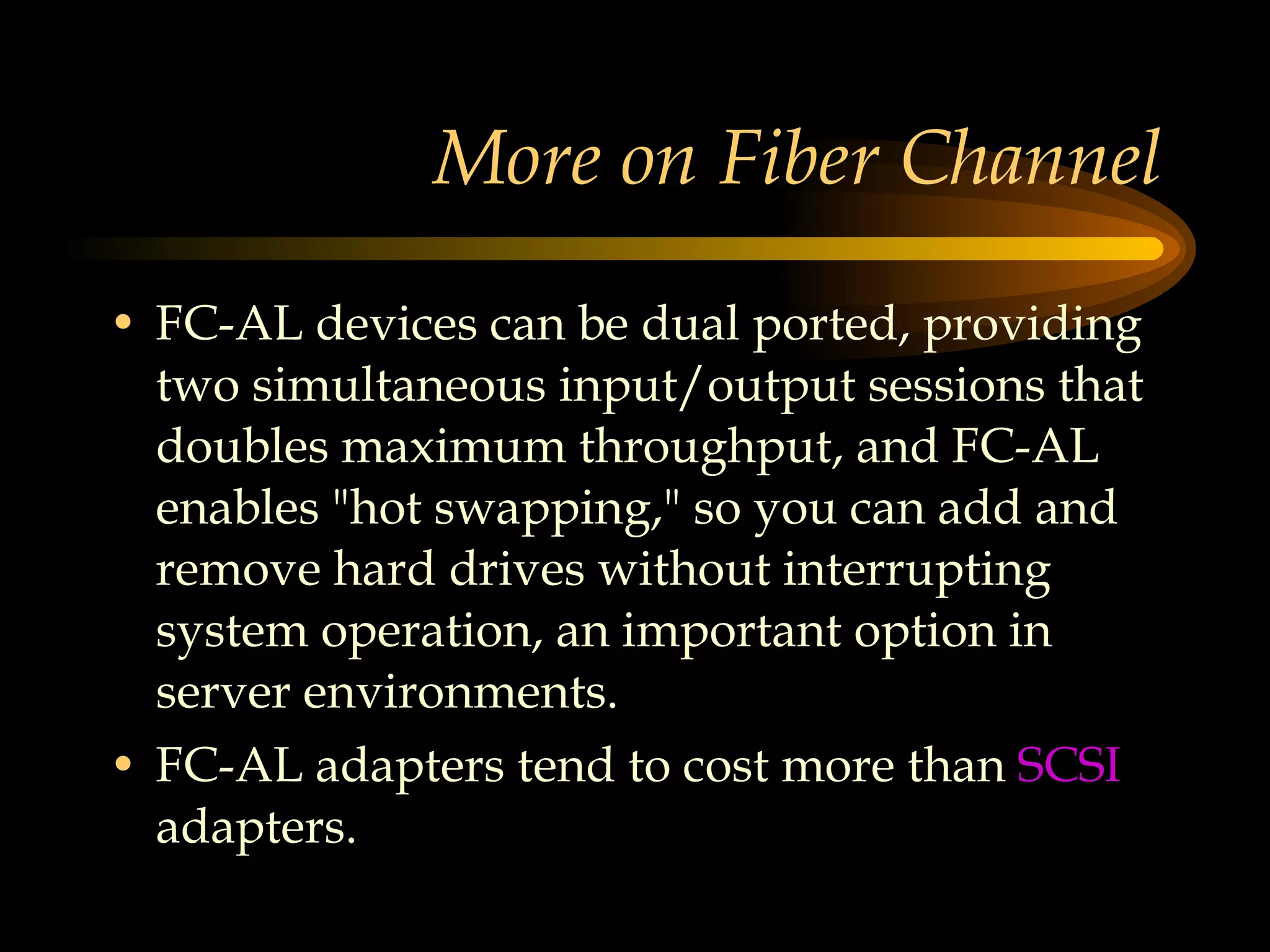

101. More on Fiber Channel FC-AL devices can be dual ported, providing two simultaneous input/output sessions that doubles maximum throughput, and FC-AL enables "hot swapping," so you can add and remove hard drives without interrupting system operation, an important option in server environments. FC-AL adapters tend to cost more than SCSI adapters.

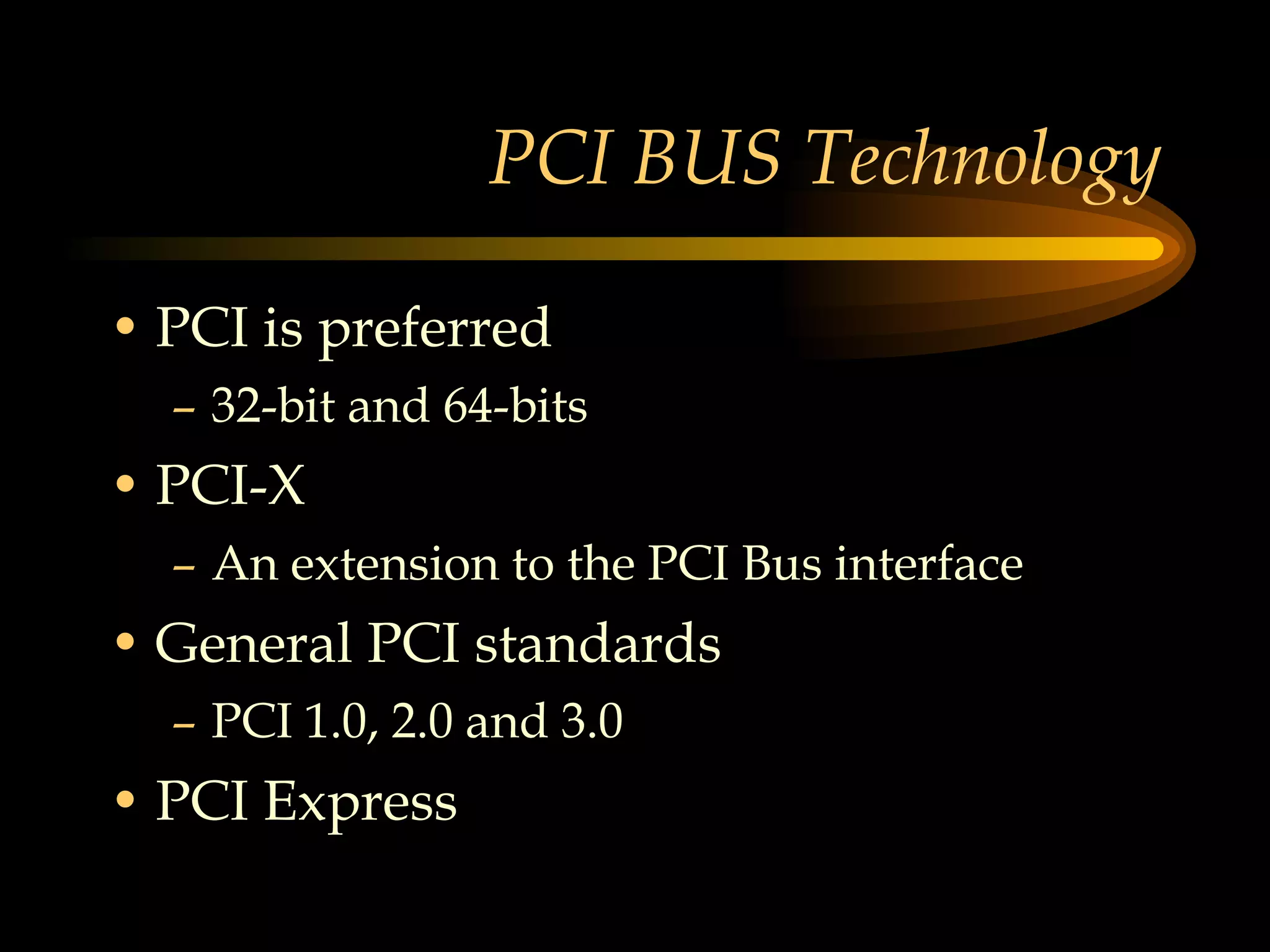

102. PCI BUS Technology PCI is preferred 32-bit and 64-bits PCI-X An extension to the PCI Bus interface General PCI standards PCI 1.0, 2.0 and 3.0 PCI Express

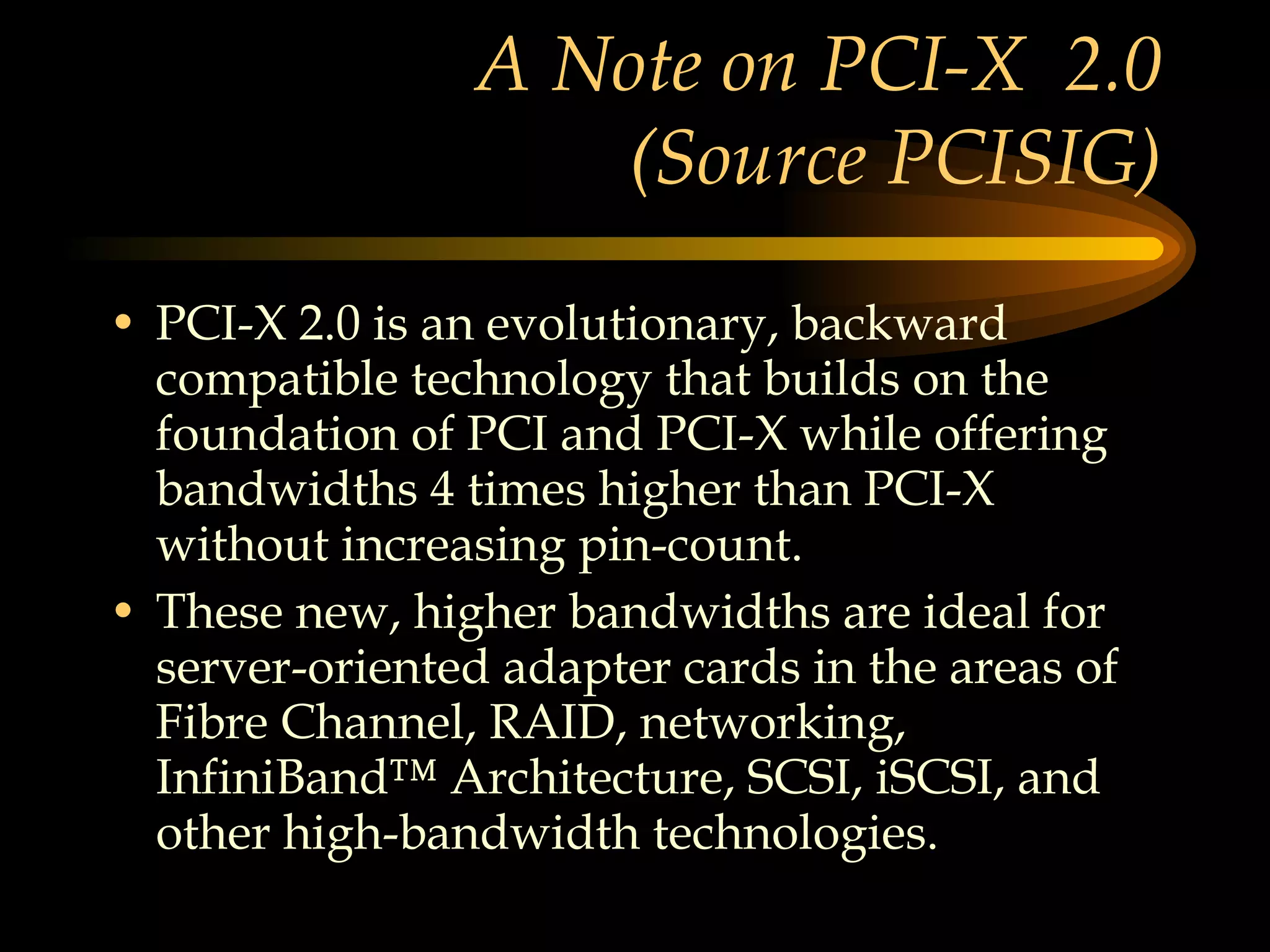

103. A Note on PCI-X 2.0 (Source PCISIG) PCI-X 2.0 is an evolutionary, backward compatible technology that builds on the foundation of PCI and PCI-X while offering bandwidths 4 times higher than PCI-X without increasing pin-count. These new, higher bandwidths are ideal for server-oriented adapter cards in the areas of Fibre Channel, RAID, networking, InfiniBand™ Architecture, SCSI, iSCSI, and other high-bandwidth technologies.

104. PCI-X 2.0 Performance Advantage (Source PCISIG) Doubles and Quadruples PCI-X bandwidth. Enables 10Gb Ethernet, 10Gb Fiber Channel, InfiniBand™ Architecture, and other IO technologies. Performance 32 times higher than the first generation of PCI.

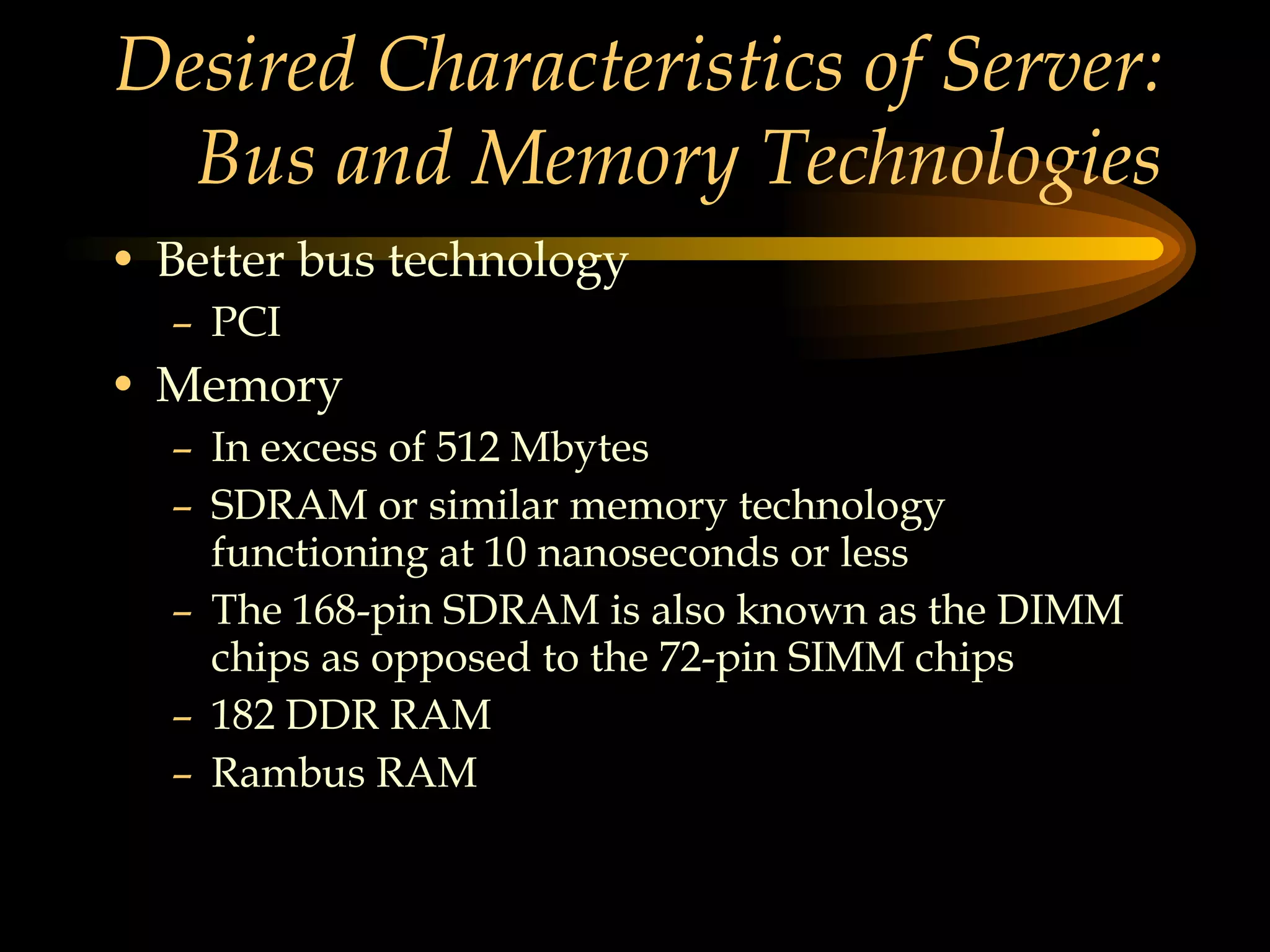

105. Desired Characteristics of Server: Bus and Memory Technologies Better bus technology PCI Memory In excess of 512 Mbytes SDRAM or similar memory technology functioning at 10 nanoseconds or less The 168-pin SDRAM is also known as the DIMM chips as opposed to the 72-pin SIMM chips 182 DDR RAM Rambus RAM

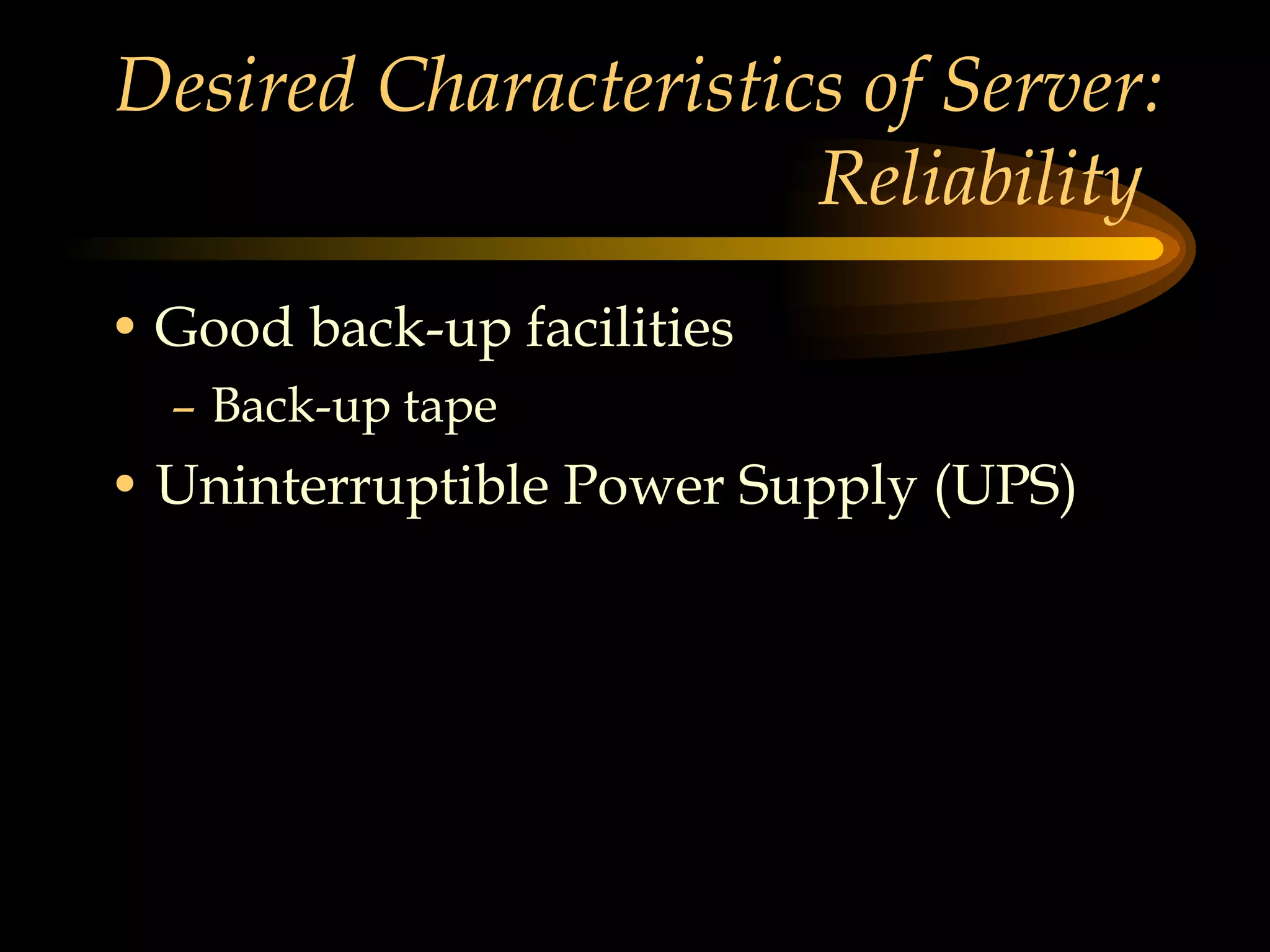

106. Desired Characteristics of Server: Reliability Good back-up facilities Back-up tape Uninterruptible Power Supply (UPS)

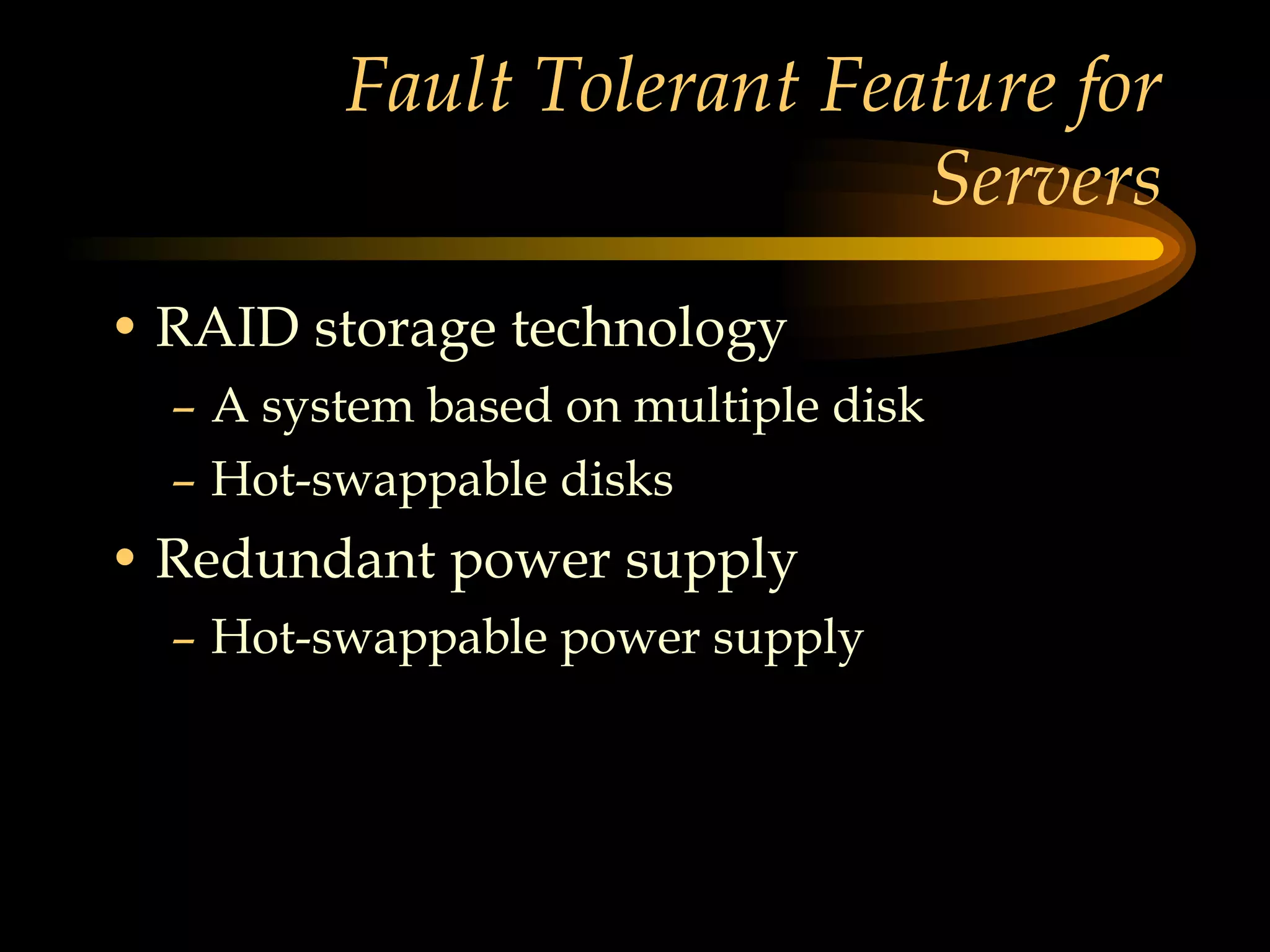

107. Fault Tolerant Feature for Servers RAID storage technology A system based on multiple disk Hot-swappable disks Redundant power supply Hot-swappable power supply

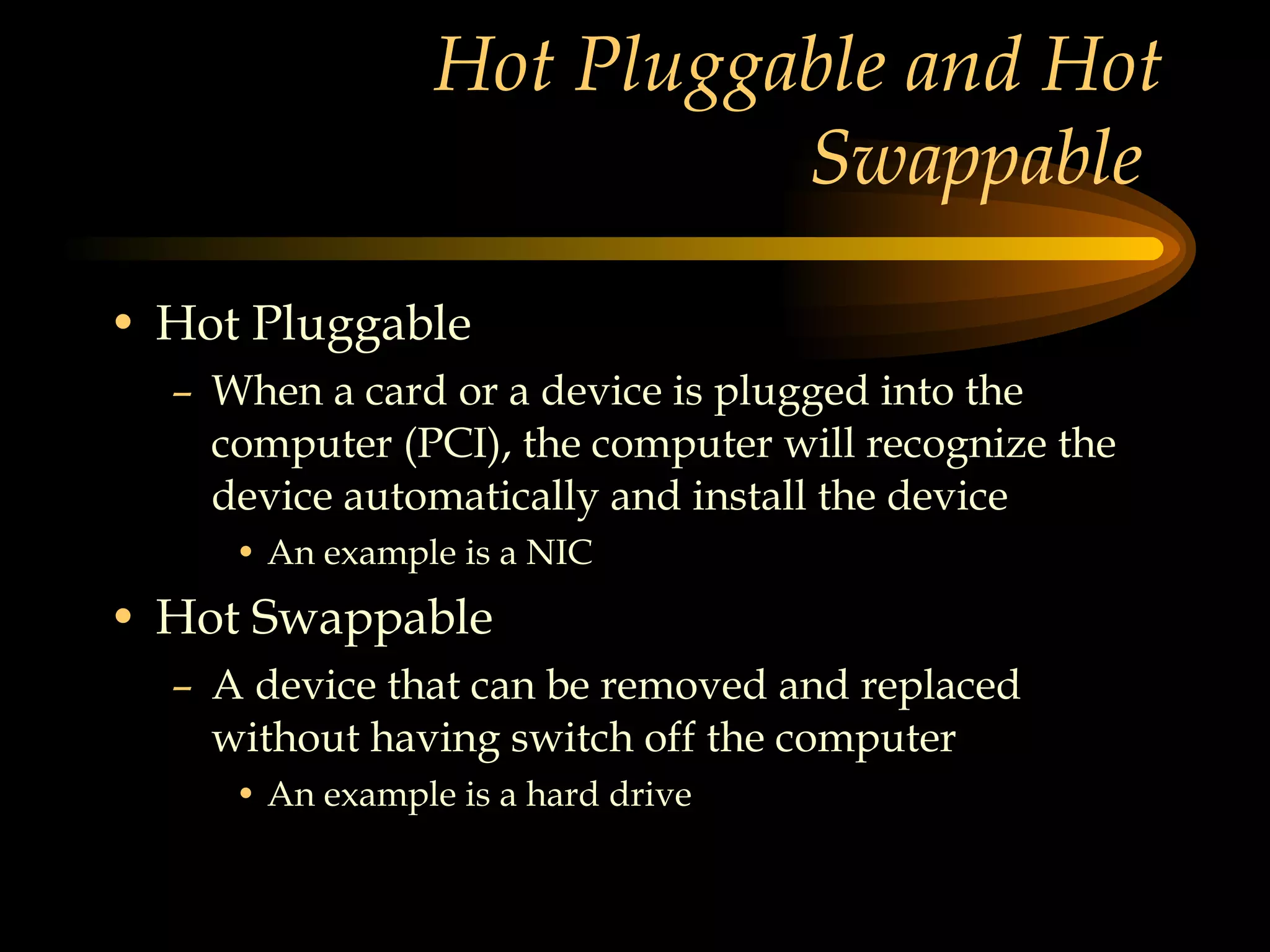

108. Hot Pluggable and Hot Swappable Hot Pluggable When a card or a device is plugged into the computer (PCI), the computer will recognize the device automatically and install the device An example is a NIC Hot Swappable A device that can be removed and replaced without having switch off the computer An example is a hard drive

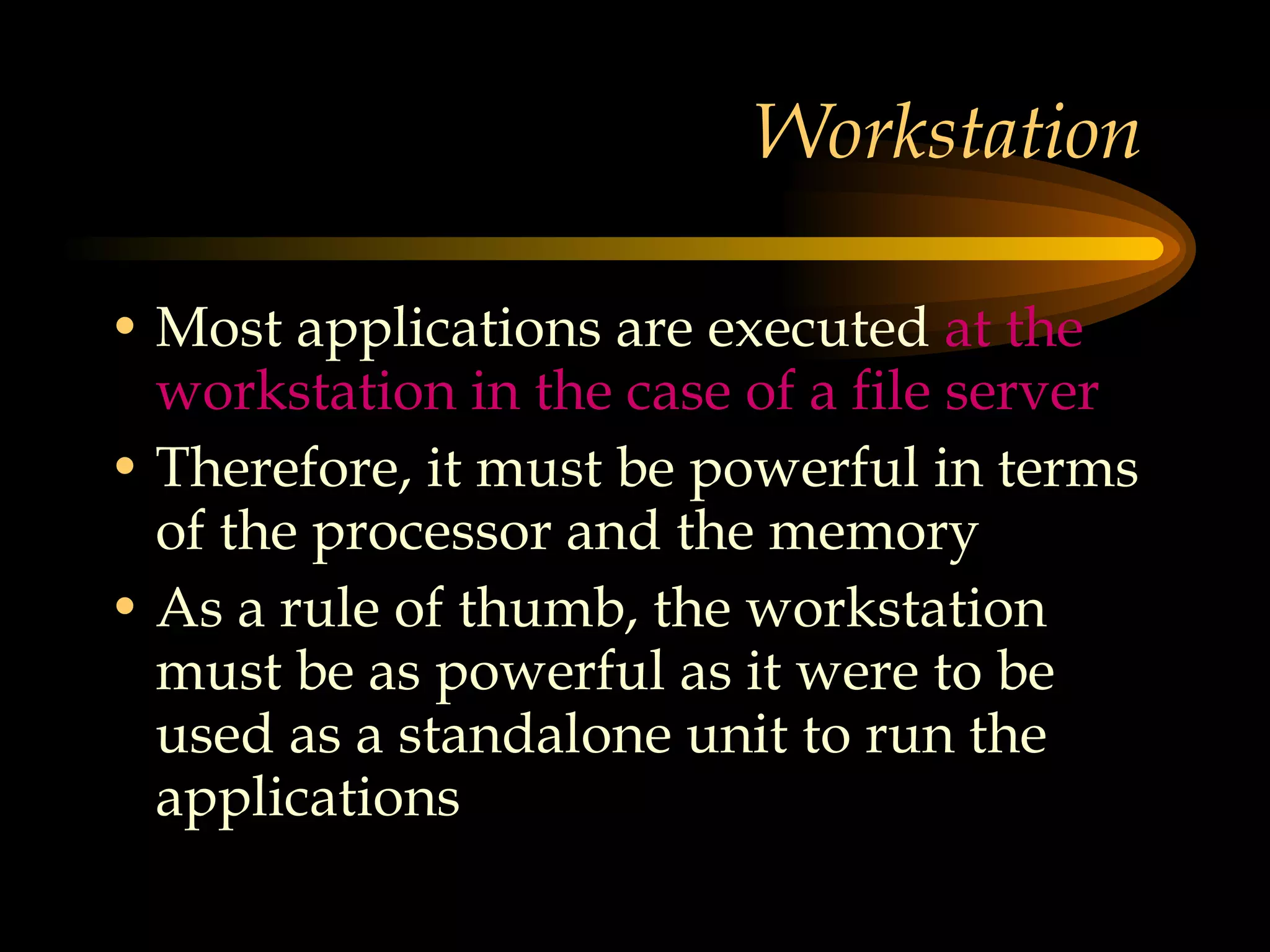

109. Workstation Most applications are executed at the workstation in the case of a file server Therefore, it must be powerful in terms of the processor and the memory As a rule of thumb, the workstation must be as powerful as it were to be used as a standalone unit to run the applications

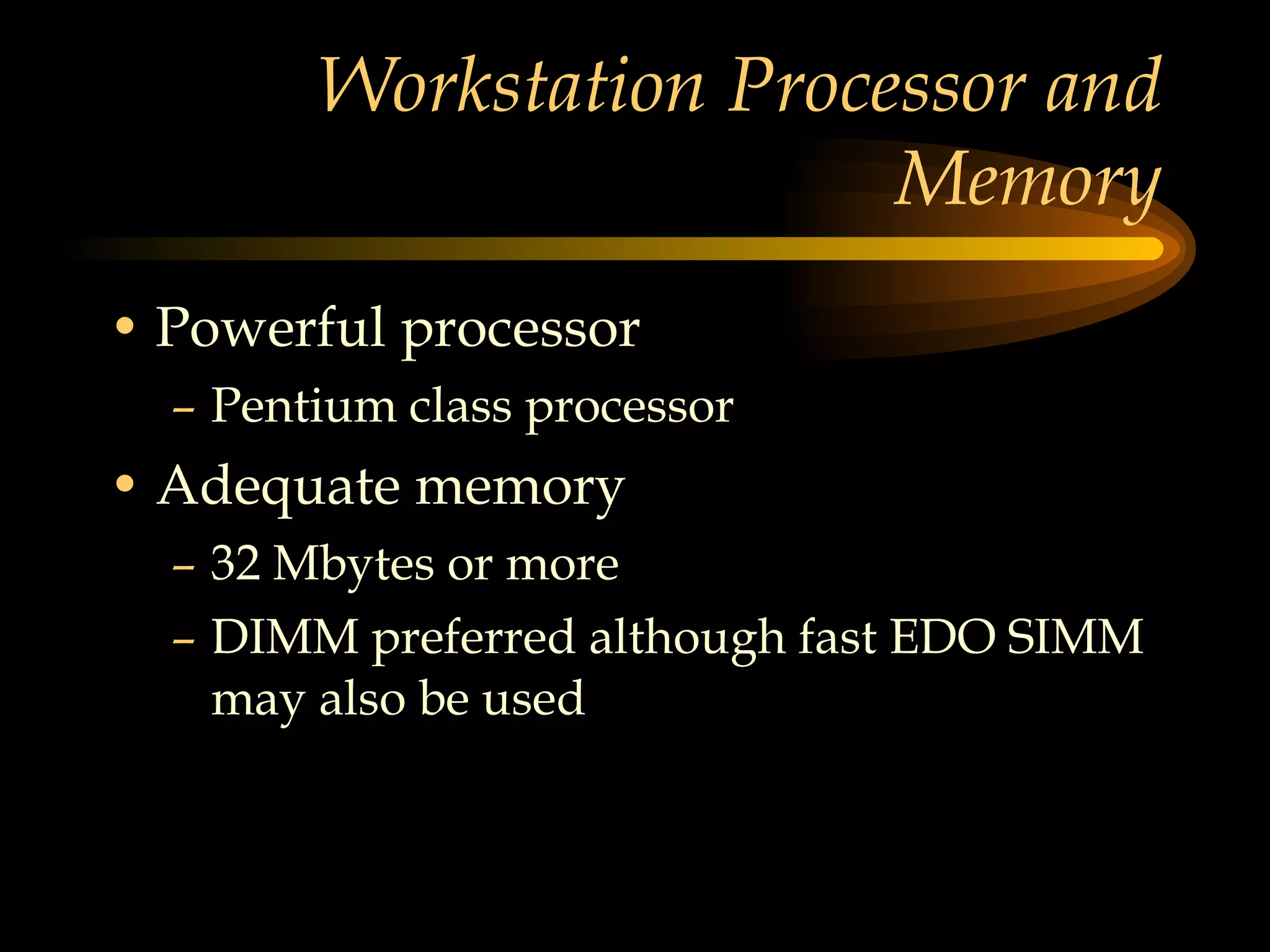

110. Workstation Processor and Memory Powerful processor Pentium class processor Adequate memory 32 Mbytes or more DIMM preferred although fast EDO SIMM may also be used

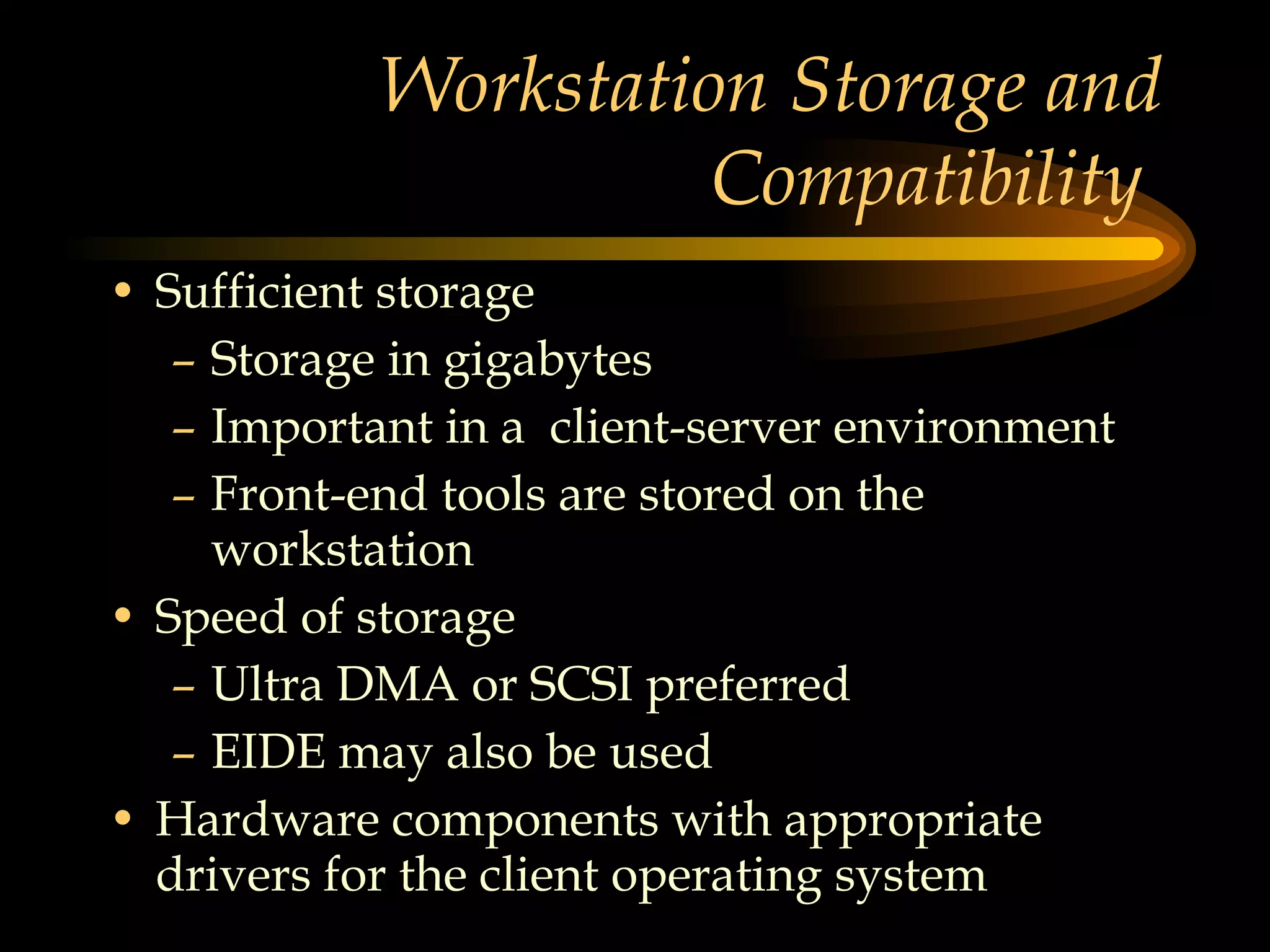

111. Workstation Storage and Compatibility Sufficient storage Storage in gigabytes Important in a client-server environment Front-end tools are stored on the workstation Speed of storage Ultra DMA or SCSI preferred EIDE may also be used Hardware components with appropriate drivers for the client operating system

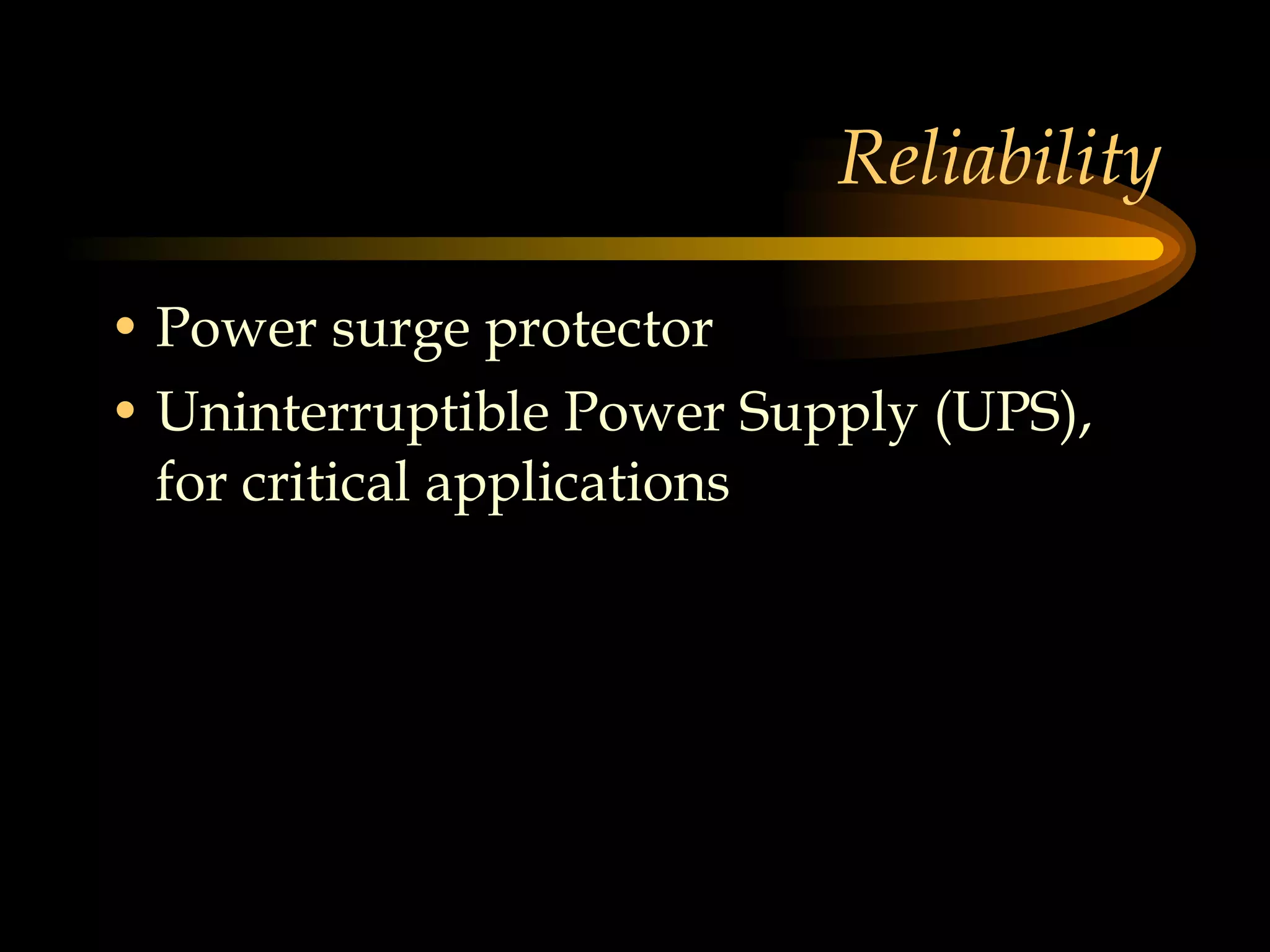

112. Reliability Power surge protector Uninterruptible Power Supply (UPS), for critical applications

113. END OF MODULE

114. MODULE Repeater

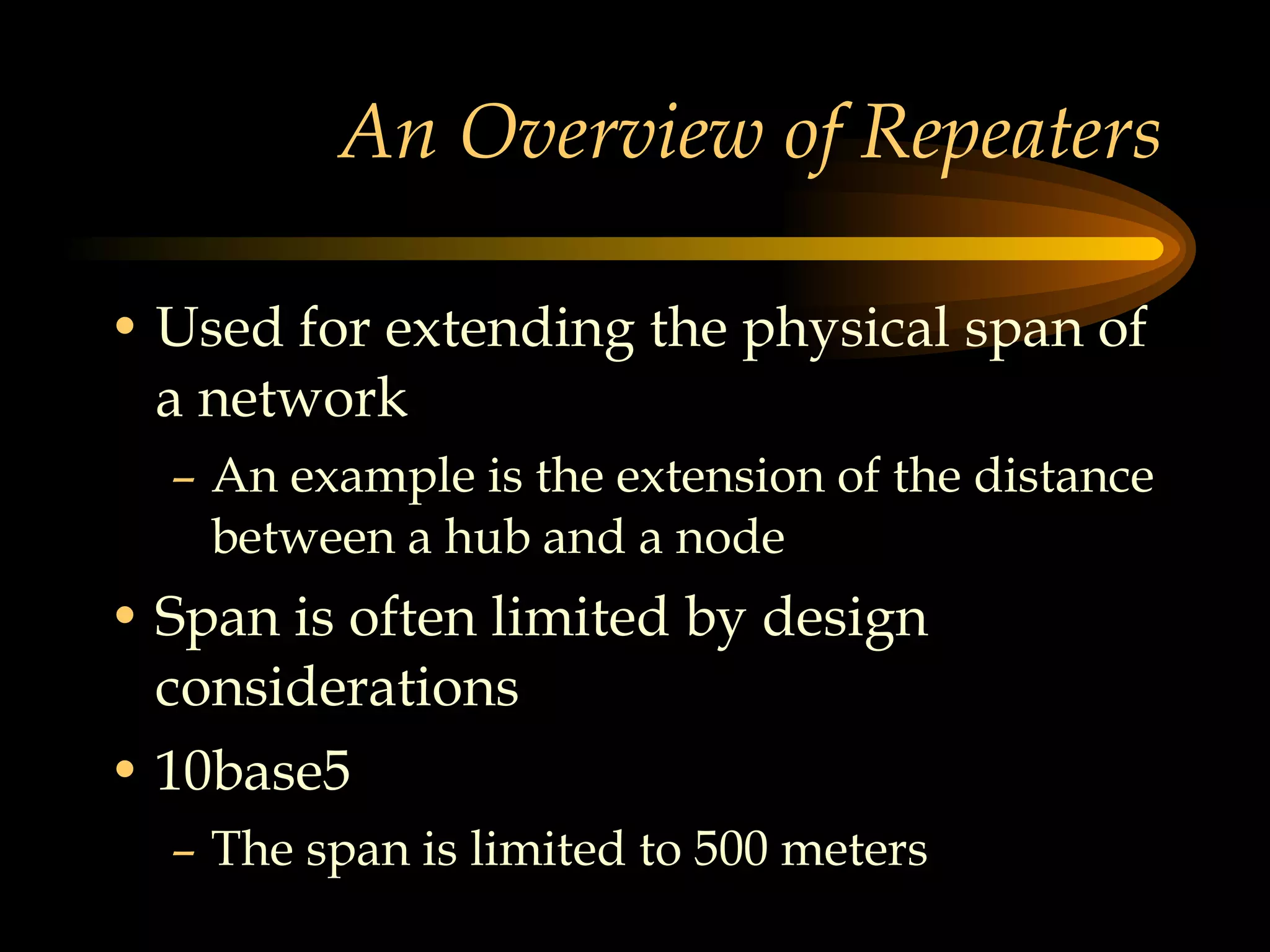

115. An Overview of Repeaters Used for extending the physical span of a network An example is the extension of the distance between a hub and a node Span is often limited by design considerations 10base5 The span is limited to 500 meters

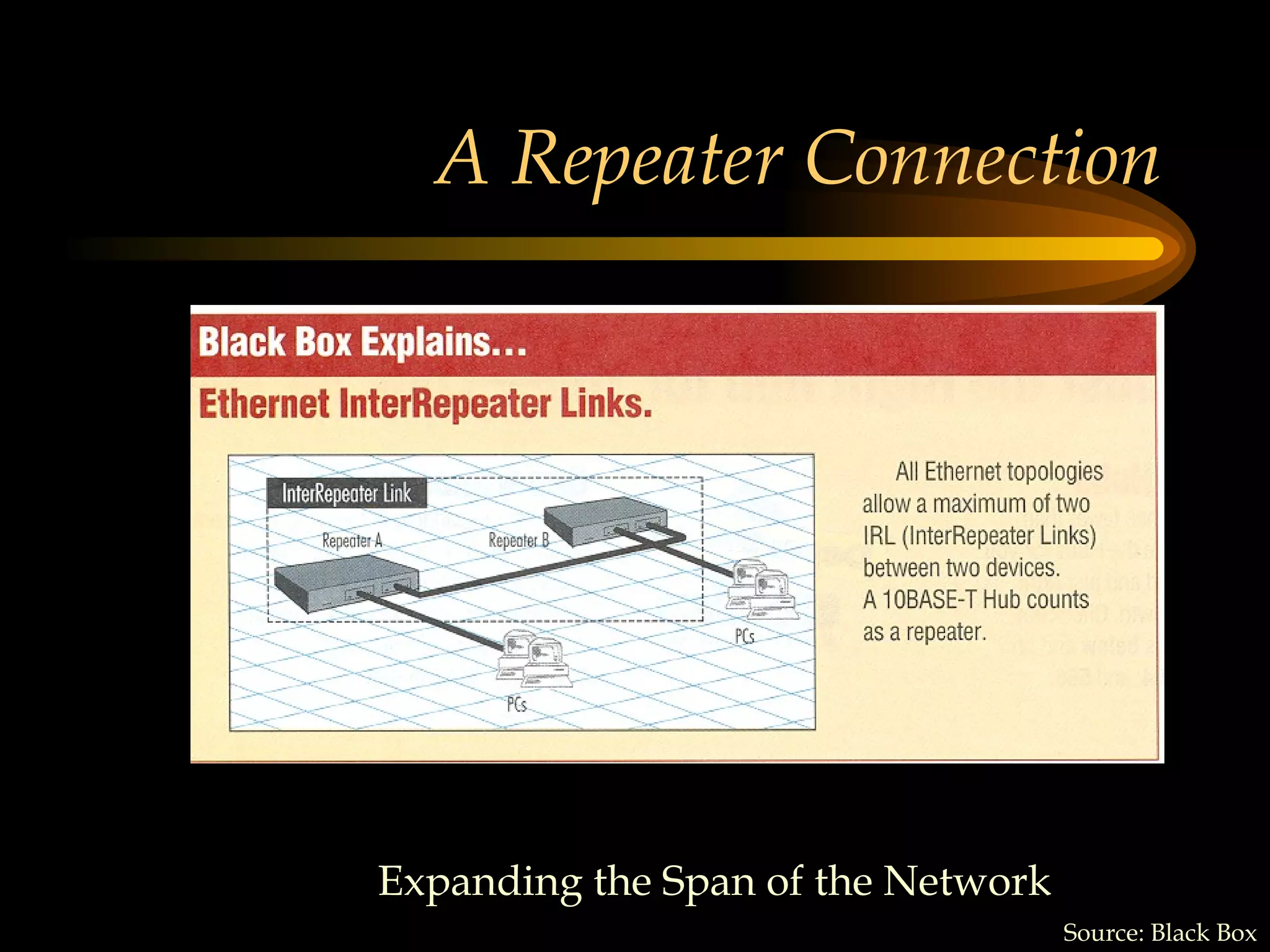

116. A Repeater Connection Expanding the Span of the Network Source: Black Box

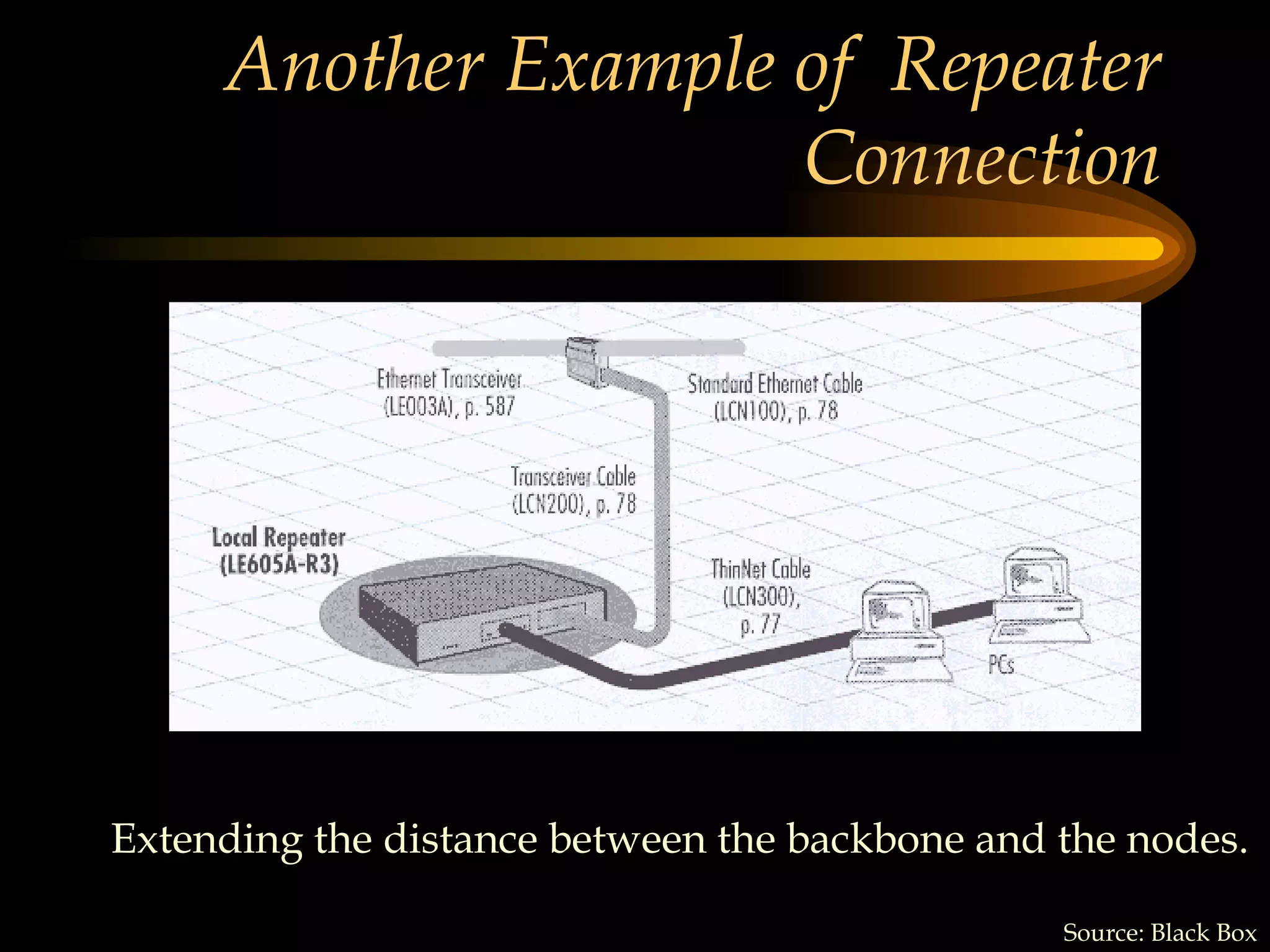

117. Another Example of Repeater Connection Extending the distance between the backbone and the nodes. Source: Black Box

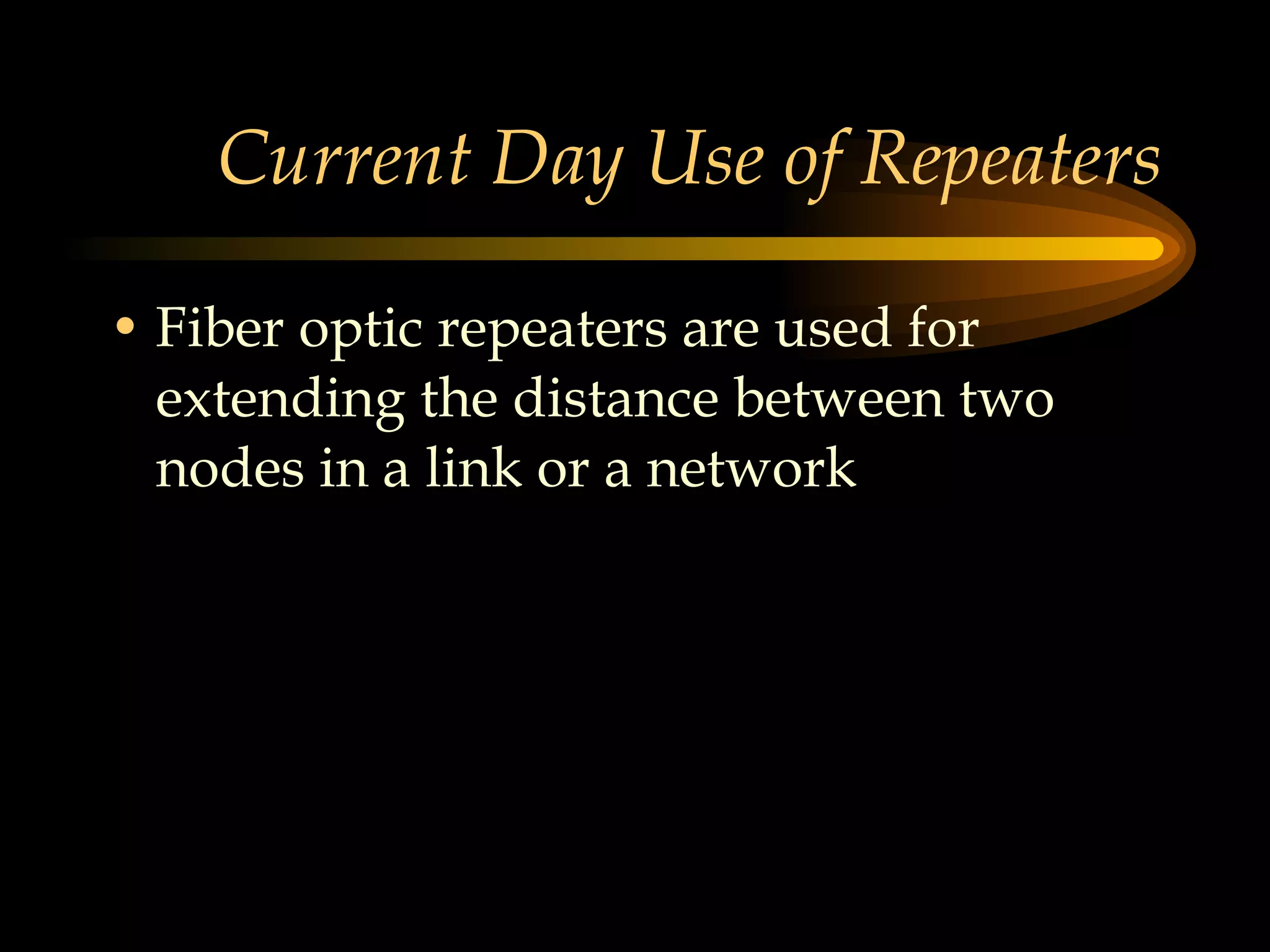

118. Current Day Use of Repeaters Fiber optic repeaters are used for extending the distance between two nodes in a link or a network

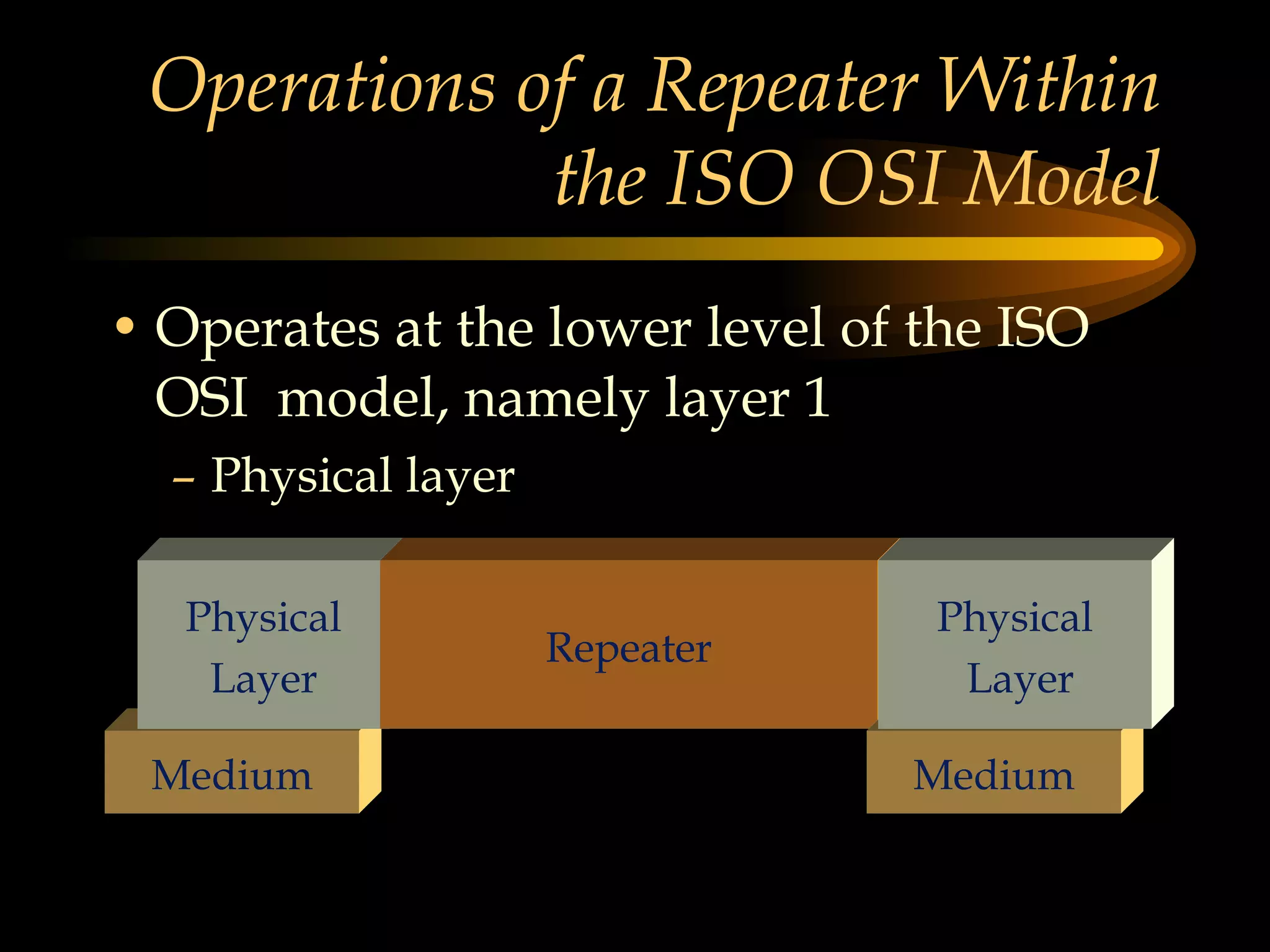

119. Operations of a Repeater Within the ISO OSI Model Operates at the lower level of the ISO OSI model, namely layer 1 Physical layer Medium Physical Layer Repeater Medium Physical Layer

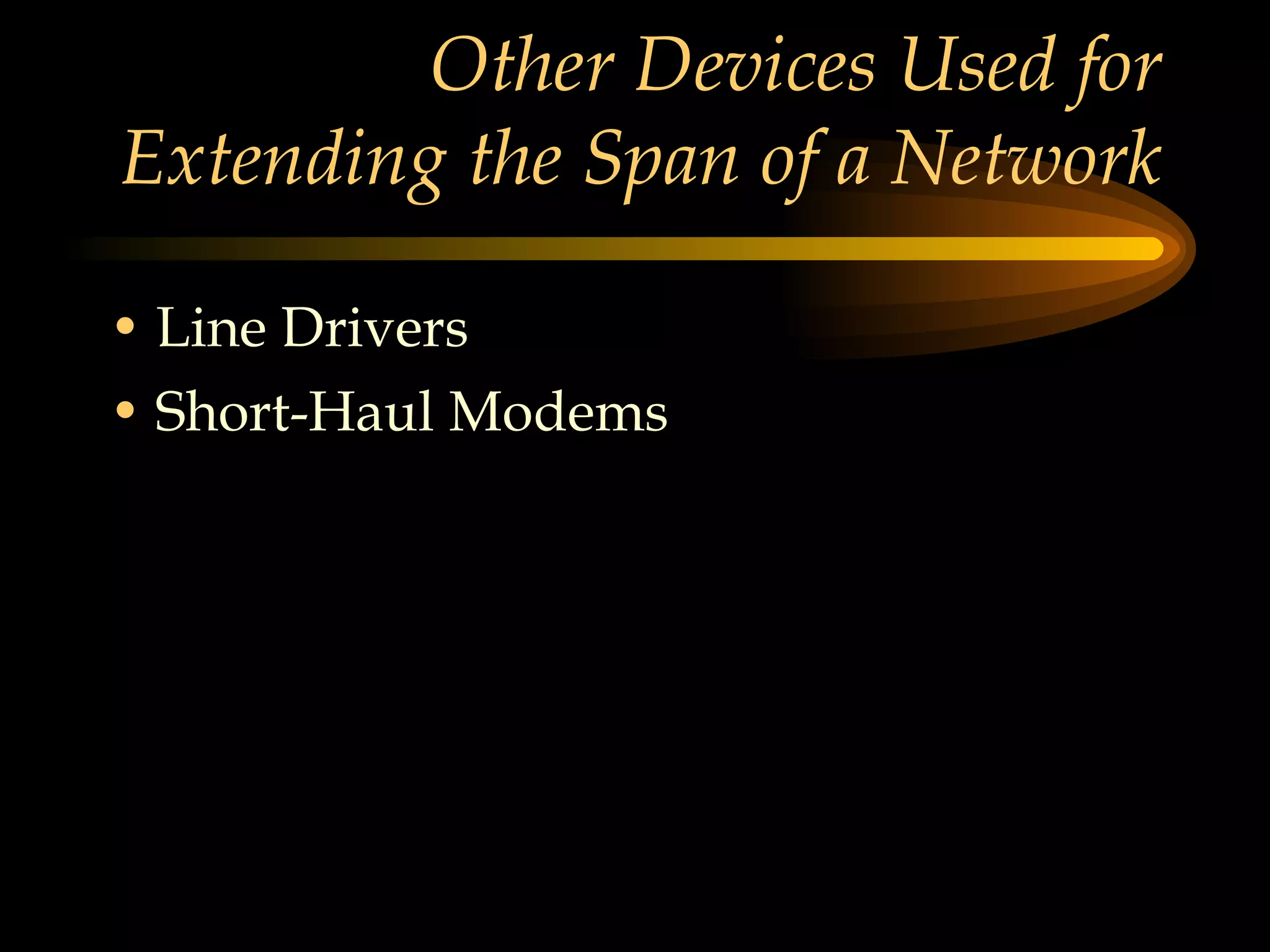

120. Other Devices Used for Extending the Span of a Network Line Drivers Short-Haul Modems

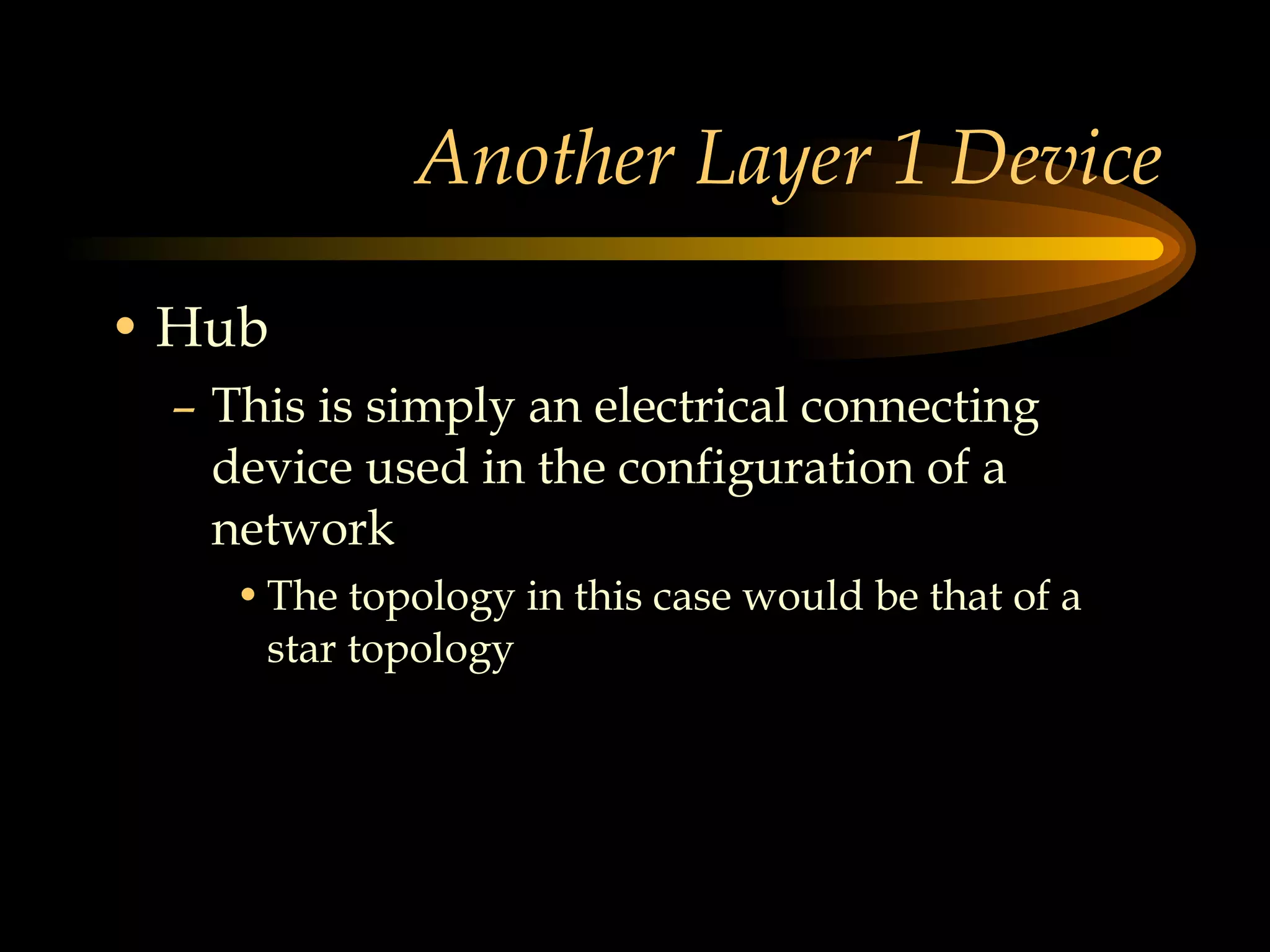

121. Another Layer 1 Device Hub This is simply an electrical connecting device used in the configuration of a network The topology in this case would be that of a star topology

122. END OF MODULE

123. MODULE Bridge

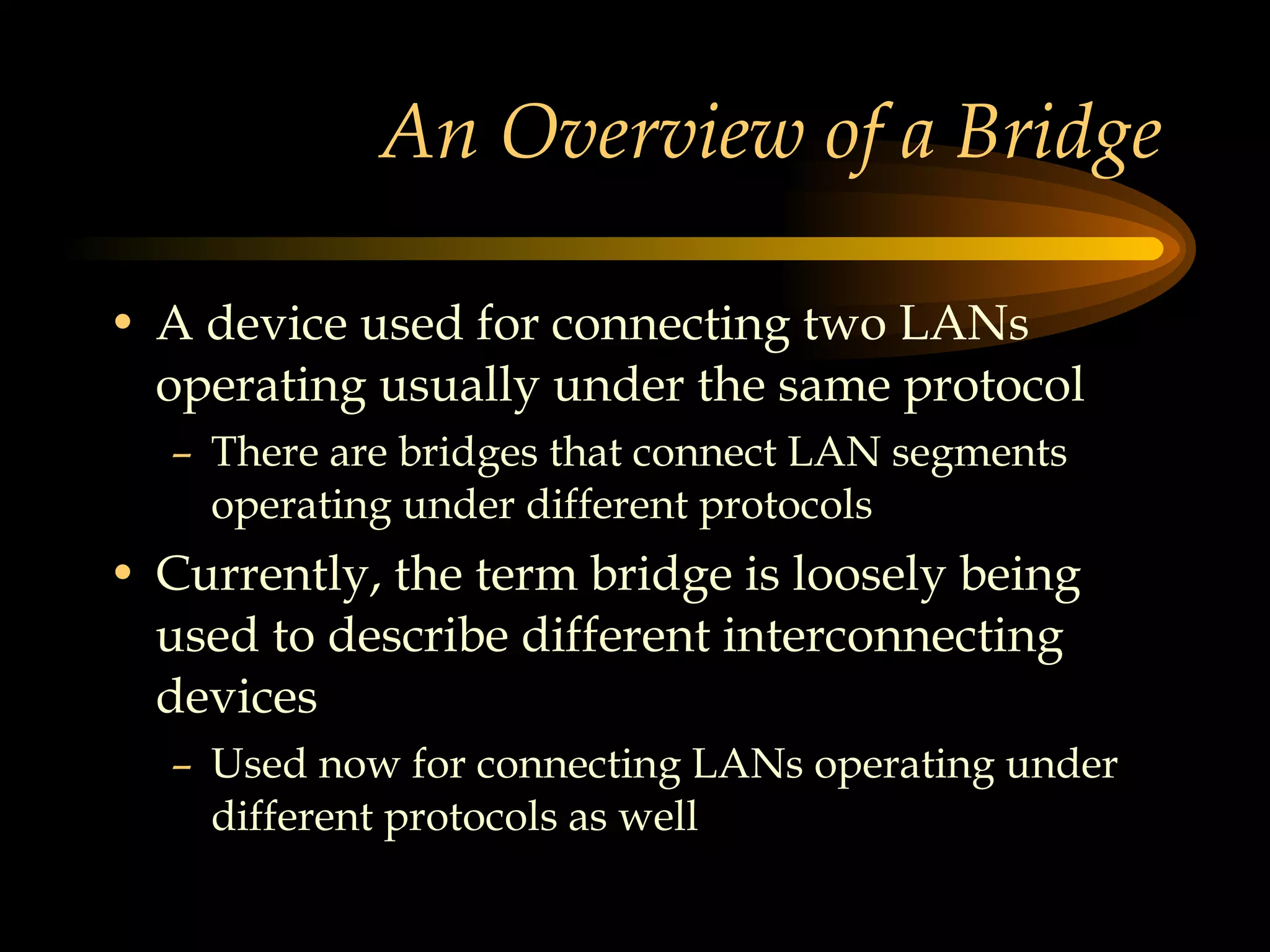

124. An Overview of a Bridge A device used for connecting two LANs operating usually under the same protocol There are bridges that connect LAN segments operating under different protocols Currently, the term bridge is loosely being used to describe different interconnecting devices Used now for connecting LANs operating under different protocols as well

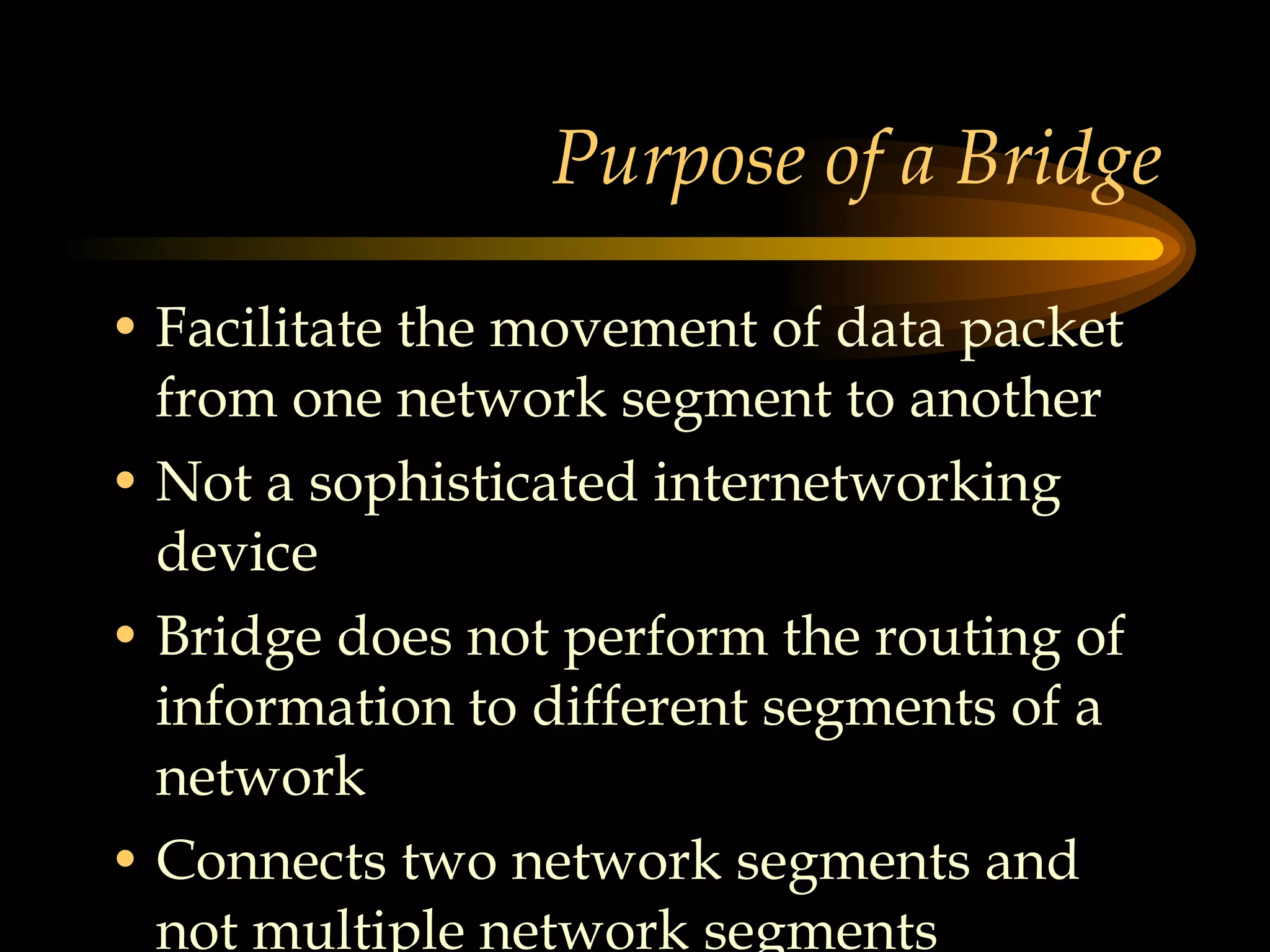

125. Purpose of a Bridge Facilitate the movement of data packet from one network segment to another Not a sophisticated internetworking device Bridge does not perform the routing of information to different segments of a network Connects two network segments and not multiple network segments

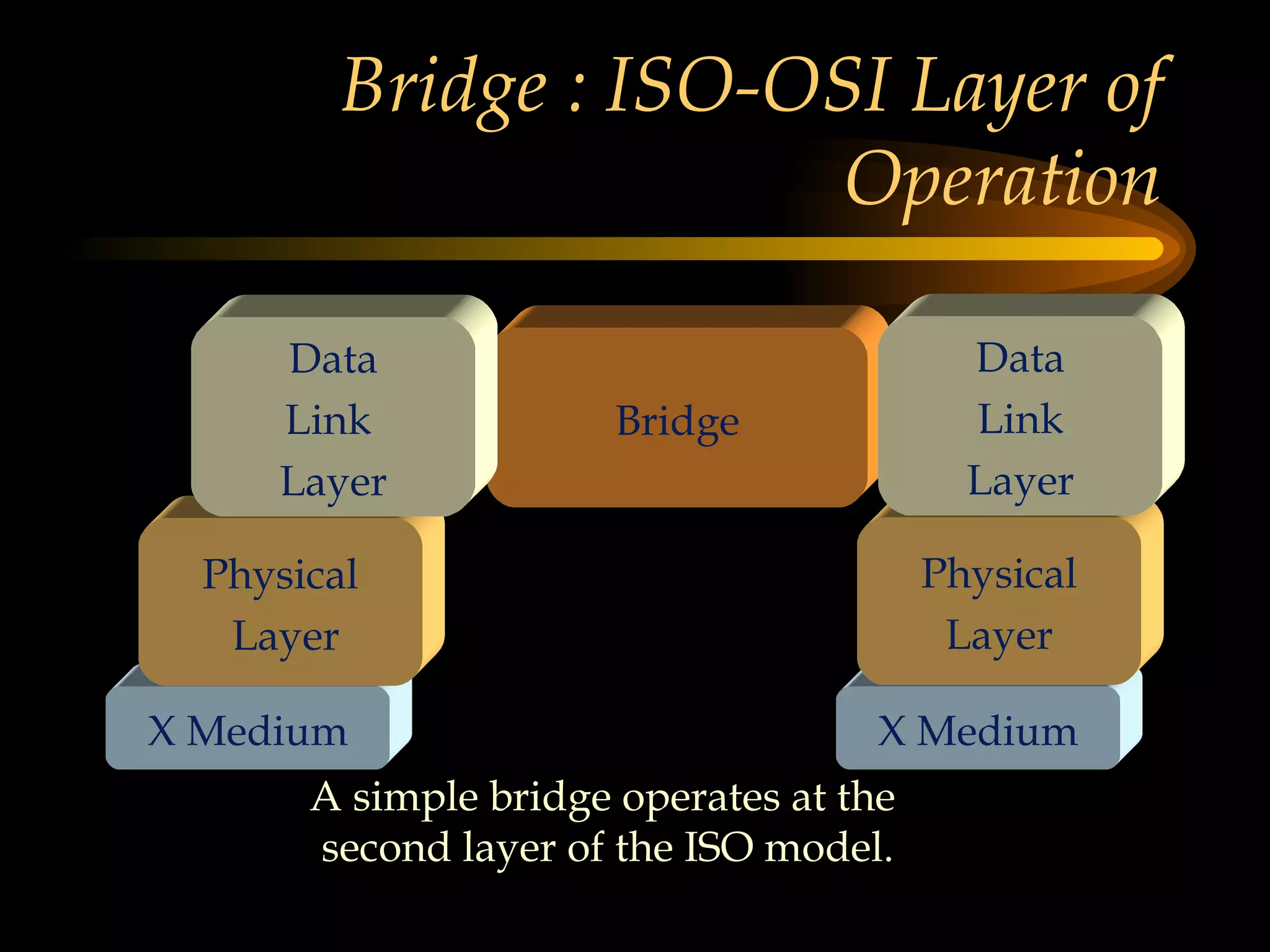

126. Bridge : ISO-OSI Layer of Operation Bridge X Medium X Medium Physical Layer Physical Layer Data Link Layer Data Link Layer A simple bridge operates at the second layer of the ISO model.

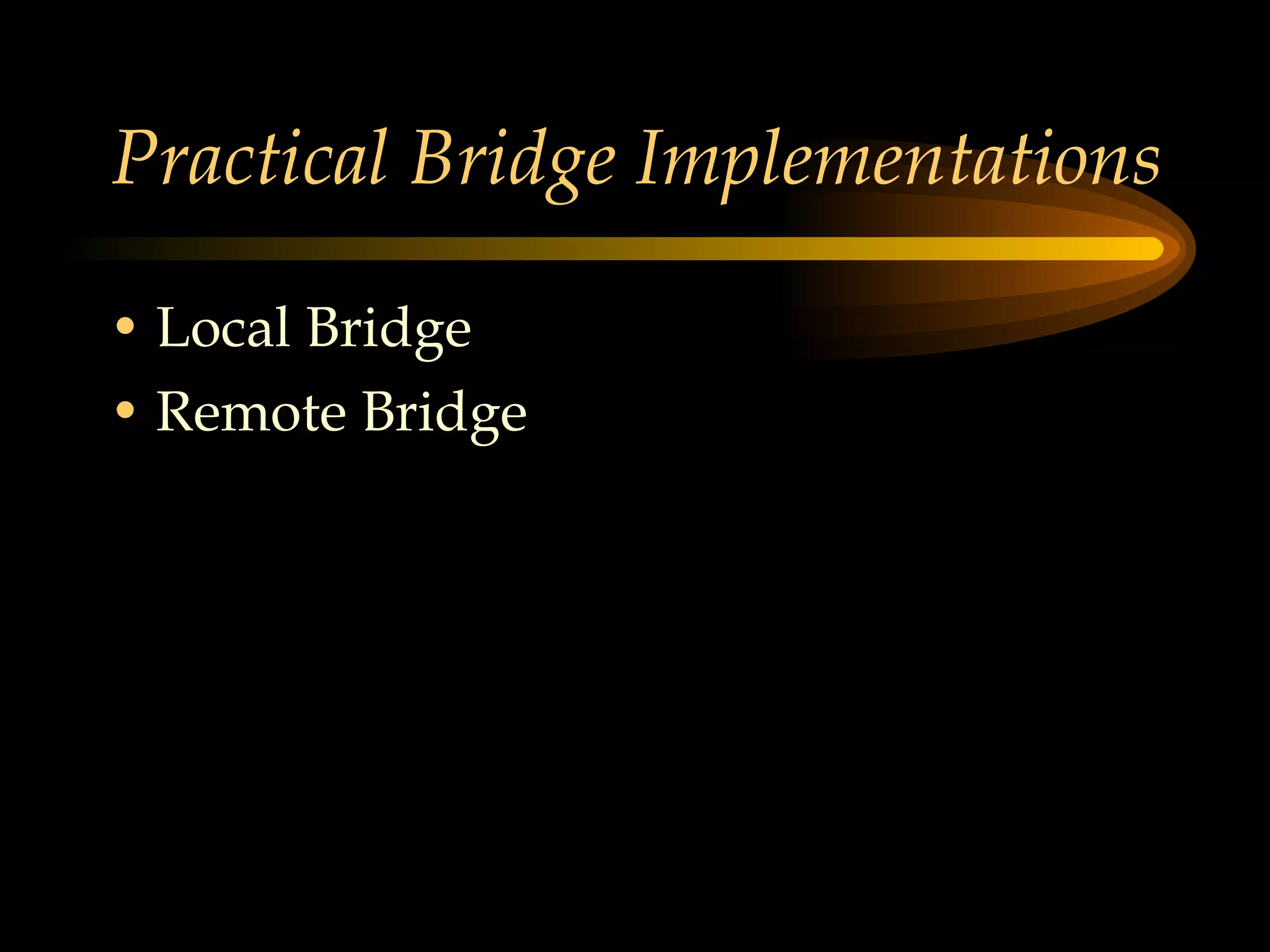

127. Practical Bridge Implementations Local Bridge Remote Bridge

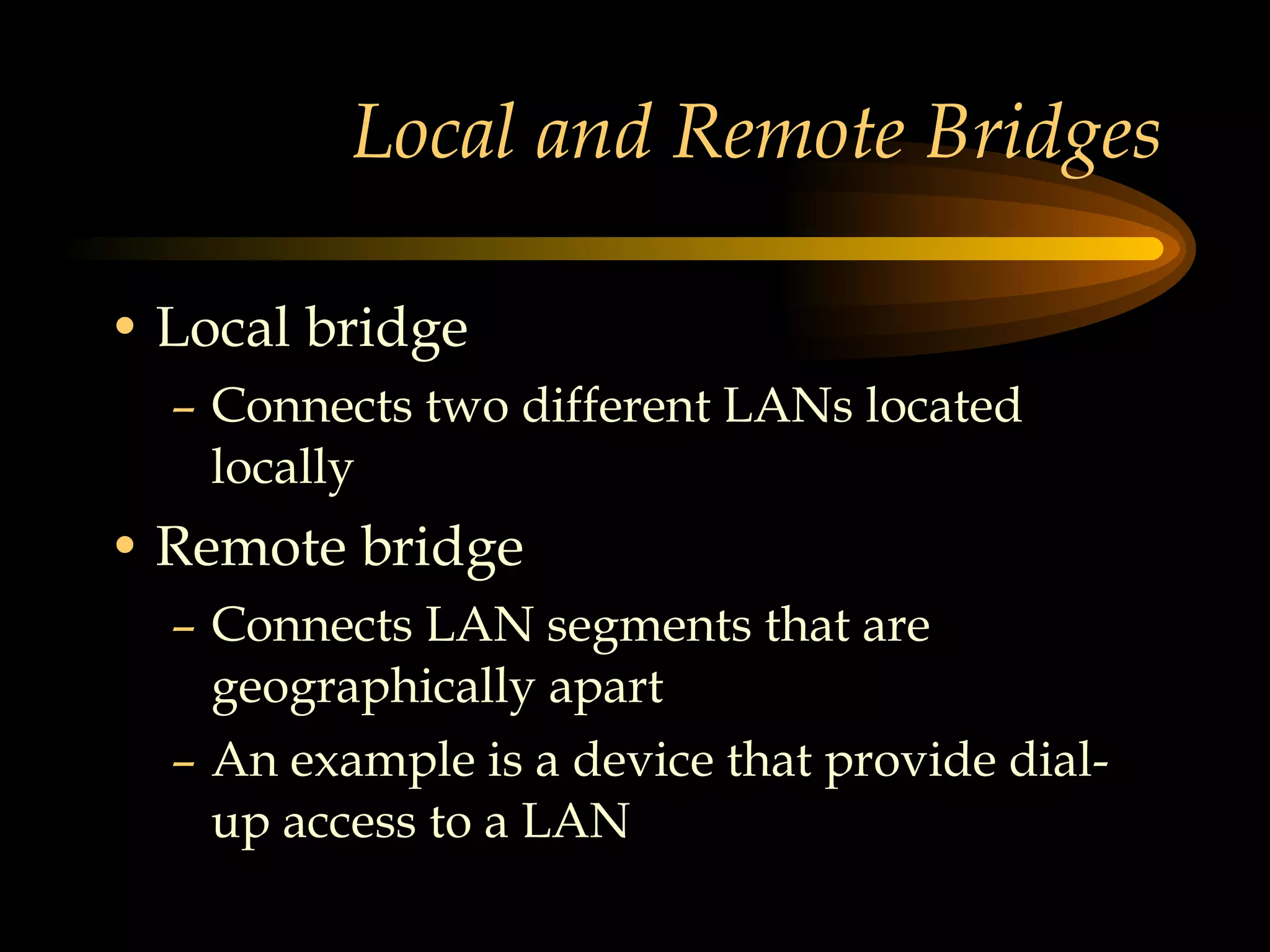

128. Local and Remote Bridges Local bridge Connects two different LANs located locally Remote bridge Connects LAN segments that are geographically apart An example is a device that provide dial-up access to a LAN

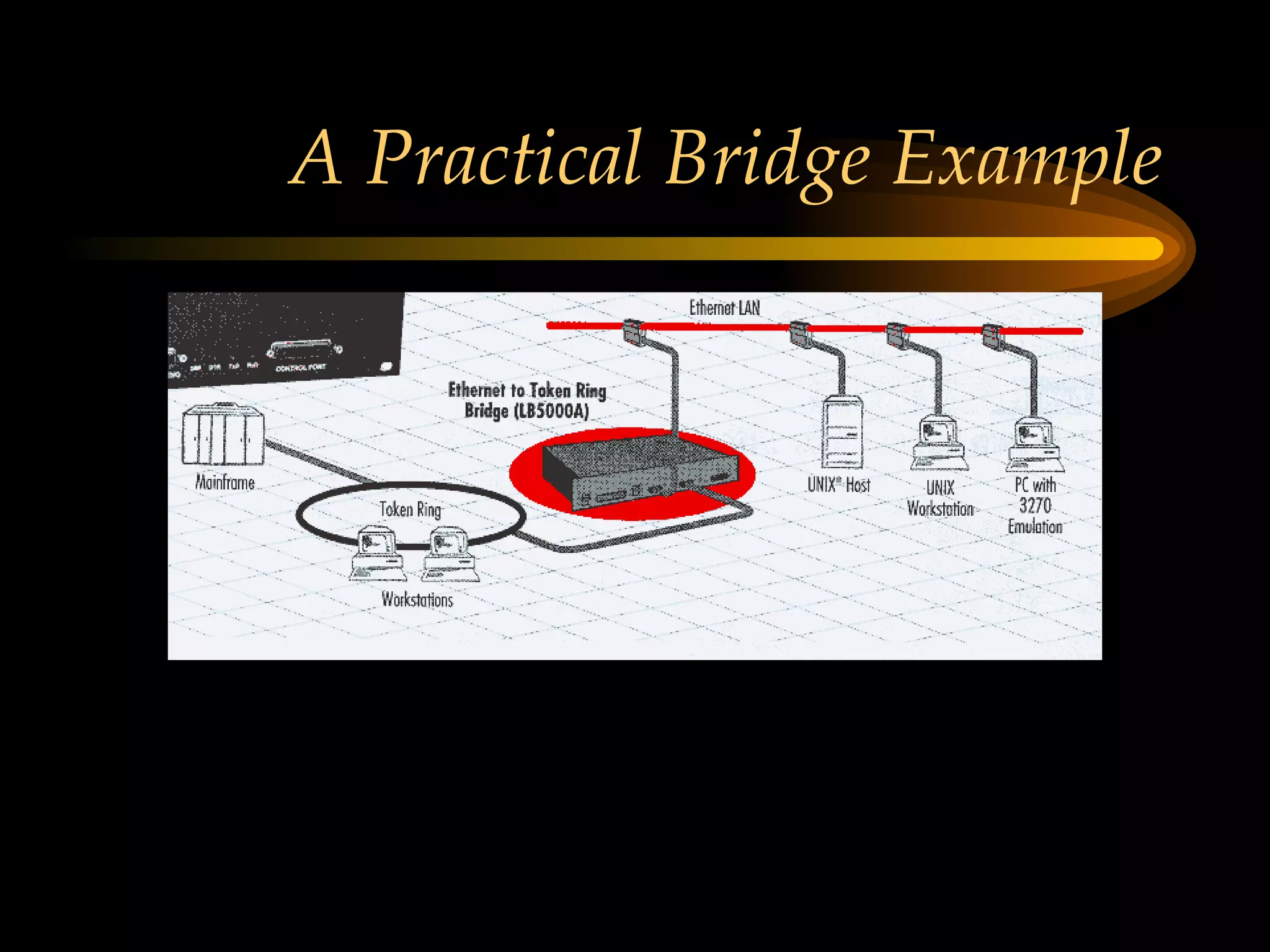

129. A Practical Bridge Example

130. END OF MODULE

131. MODULE Switch

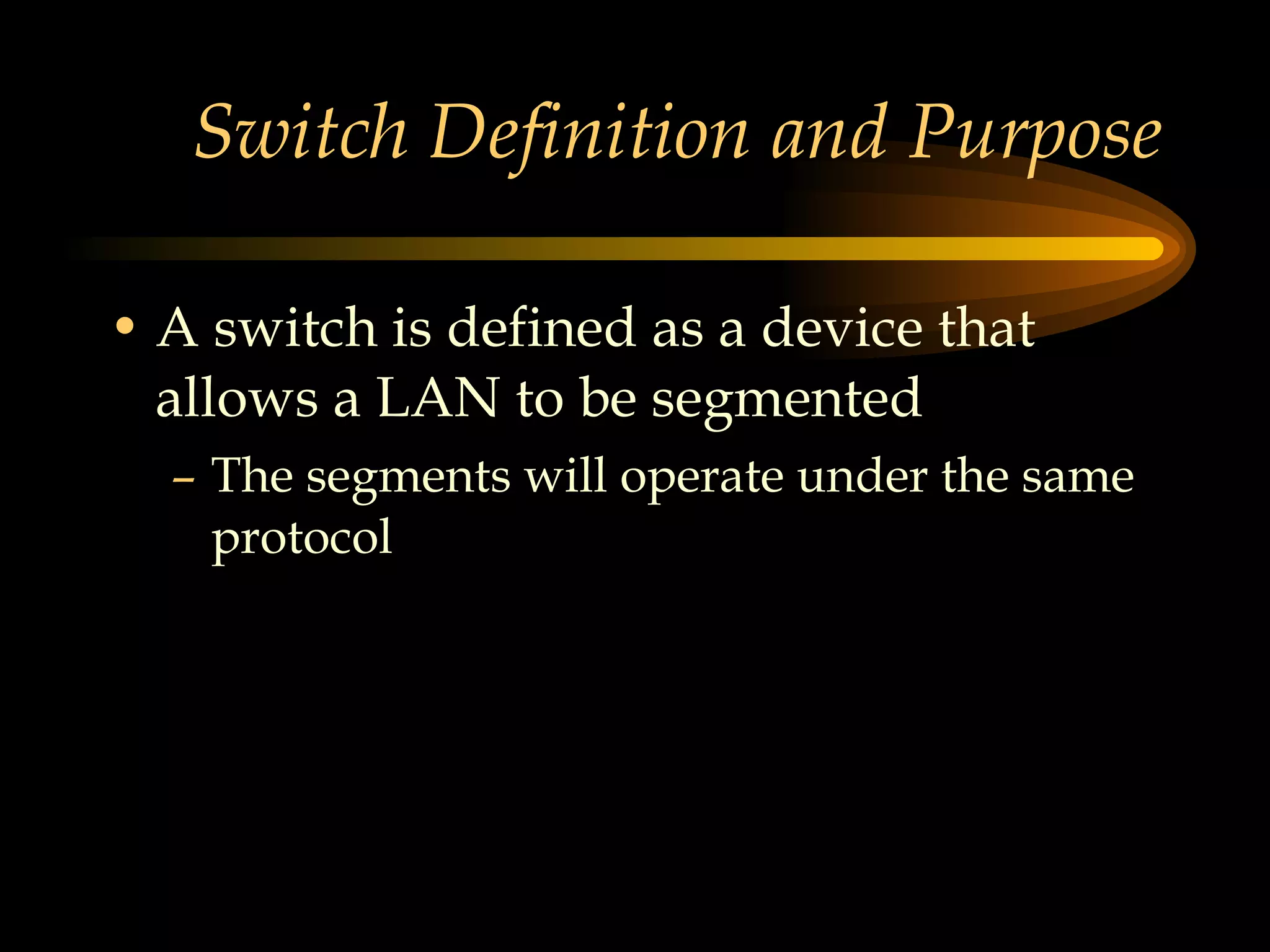

132. Switch Definition and Purpose A switch is defined as a device that allows a LAN to be segmented The segments will operate under the same protocol

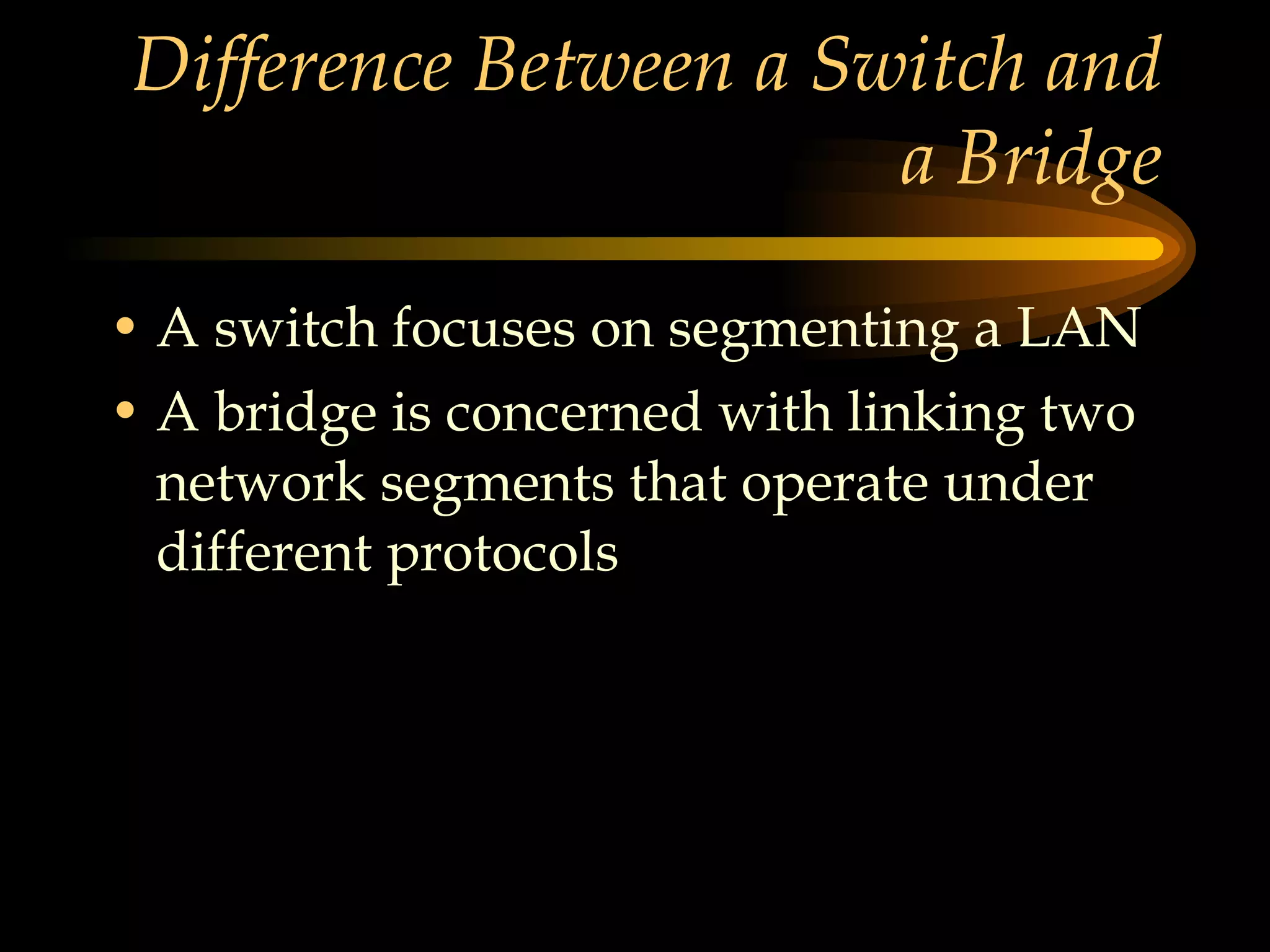

133. Difference Between a Switch and a Bridge A switch focuses on segmenting a LAN A bridge is concerned with linking two network segments that operate under different protocols

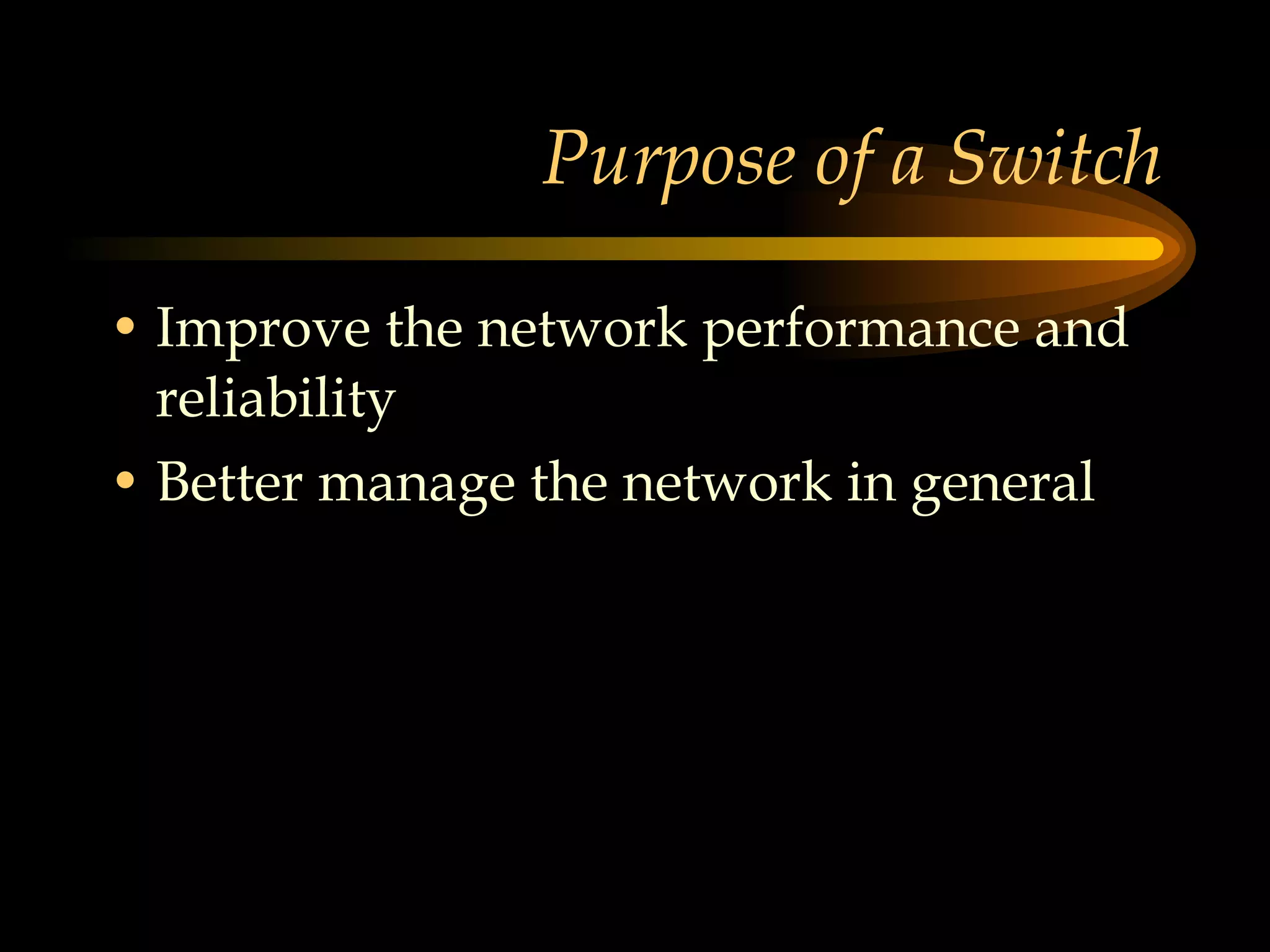

134. Purpose of a Switch Improve the network performance and reliability Better manage the network in general

135. Switch : ISO-OSI Layer of Operation Switch X Medium X Medium Physical Layer Physical Layer Data Link Layer Data Link Layer A simple Switch operates at the second layer of the ISO model.

136. Layer 3 Switches Some switches operate at Layer 3 of the ISO-OSI model These switches perform routing as well

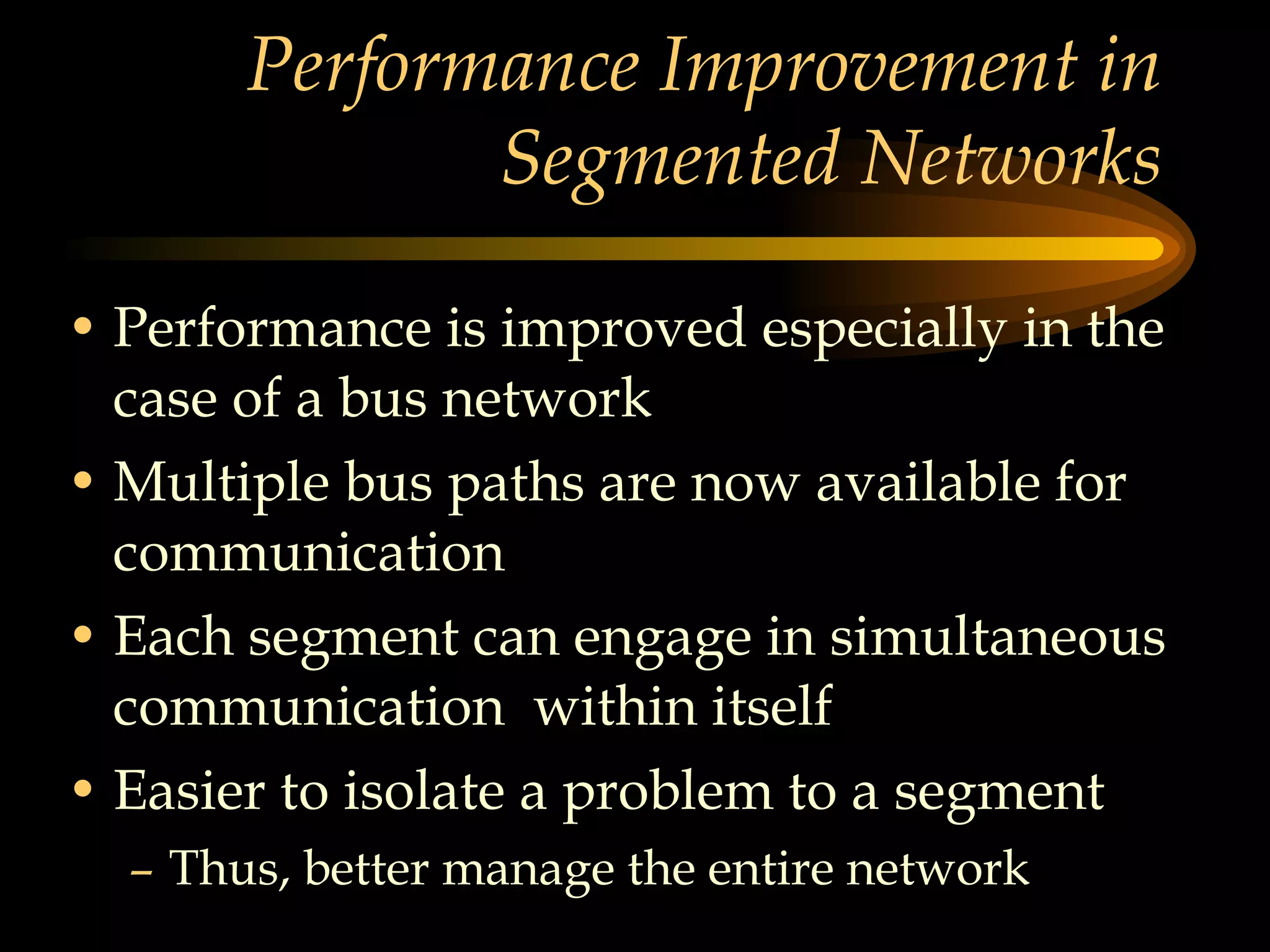

137. Performance Improvement in Segmented Networks Performance is improved especially in the case of a bus network Multiple bus paths are now available for communication Each segment can engage in simultaneous communication within itself Easier to isolate a problem to a segment Thus, better manage the entire network

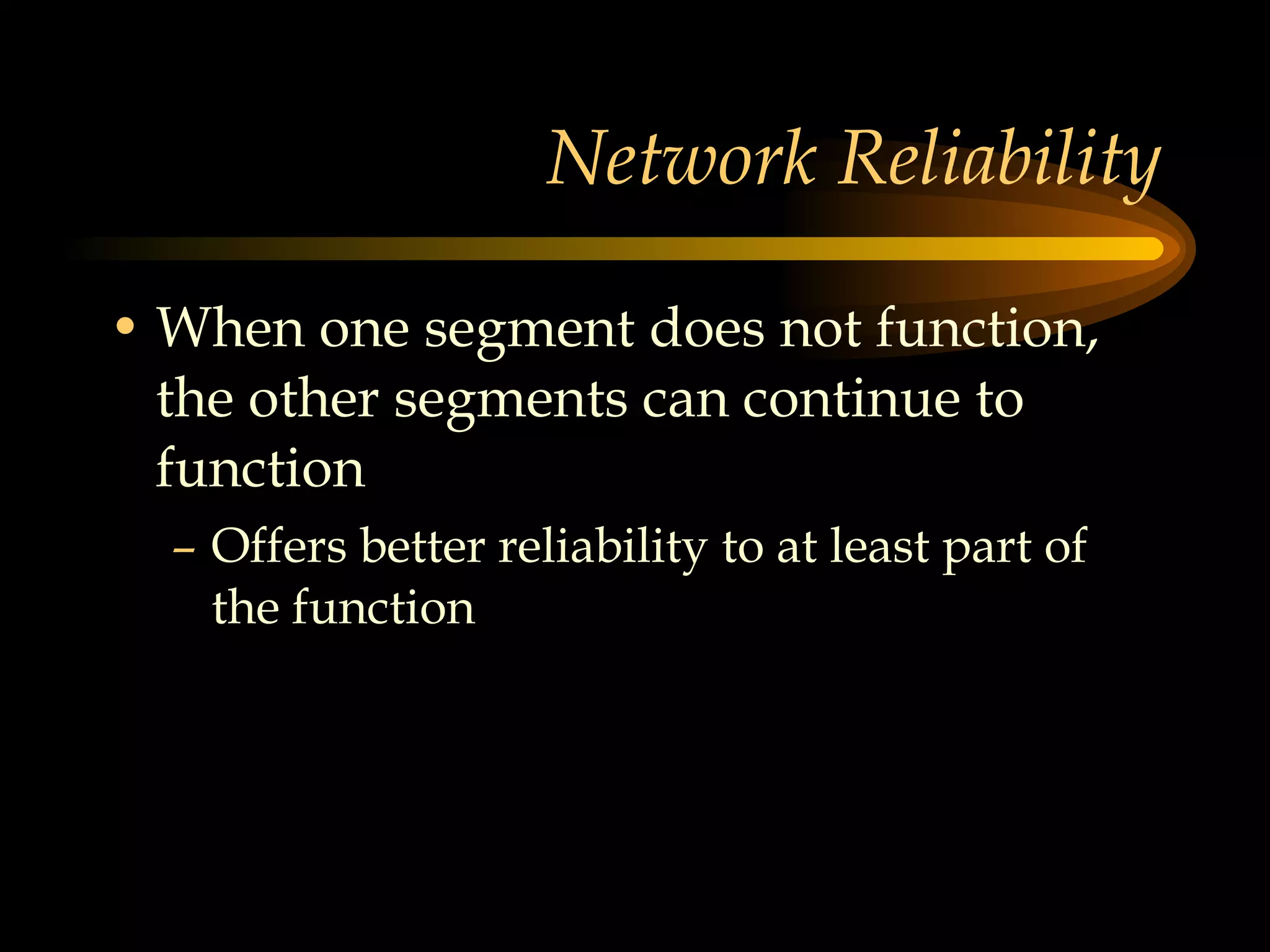

138. Network Reliability When one segment does not function, the other segments can continue to function Offers better reliability to at least part of the function

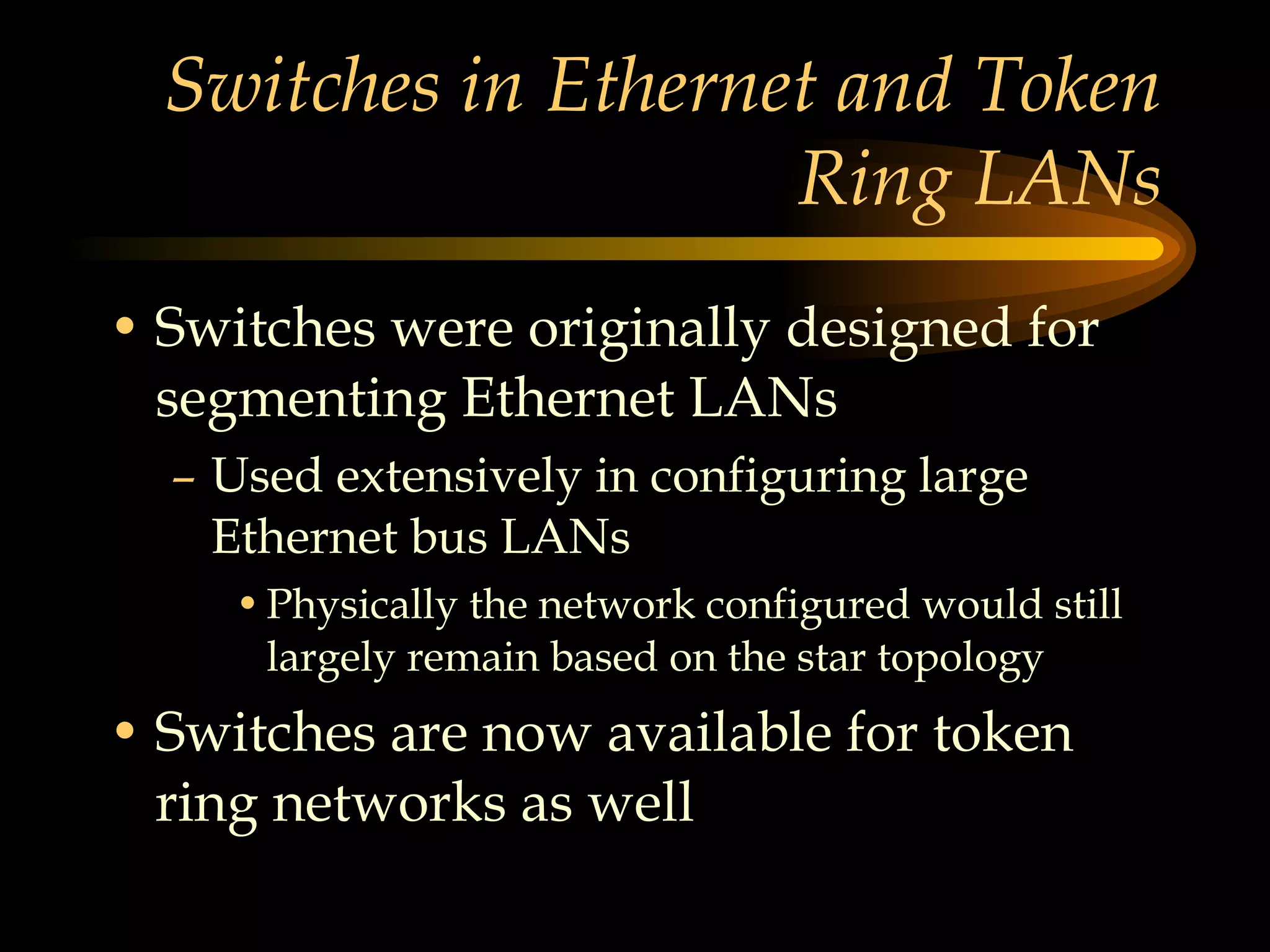

139. Switches in Ethernet and Token Ring LANs Switches were originally designed for segmenting Ethernet LANs Used extensively in configuring large Ethernet bus LANs Physically the network configured would still largely remain based on the star topology Switches are now available for token ring networks as well

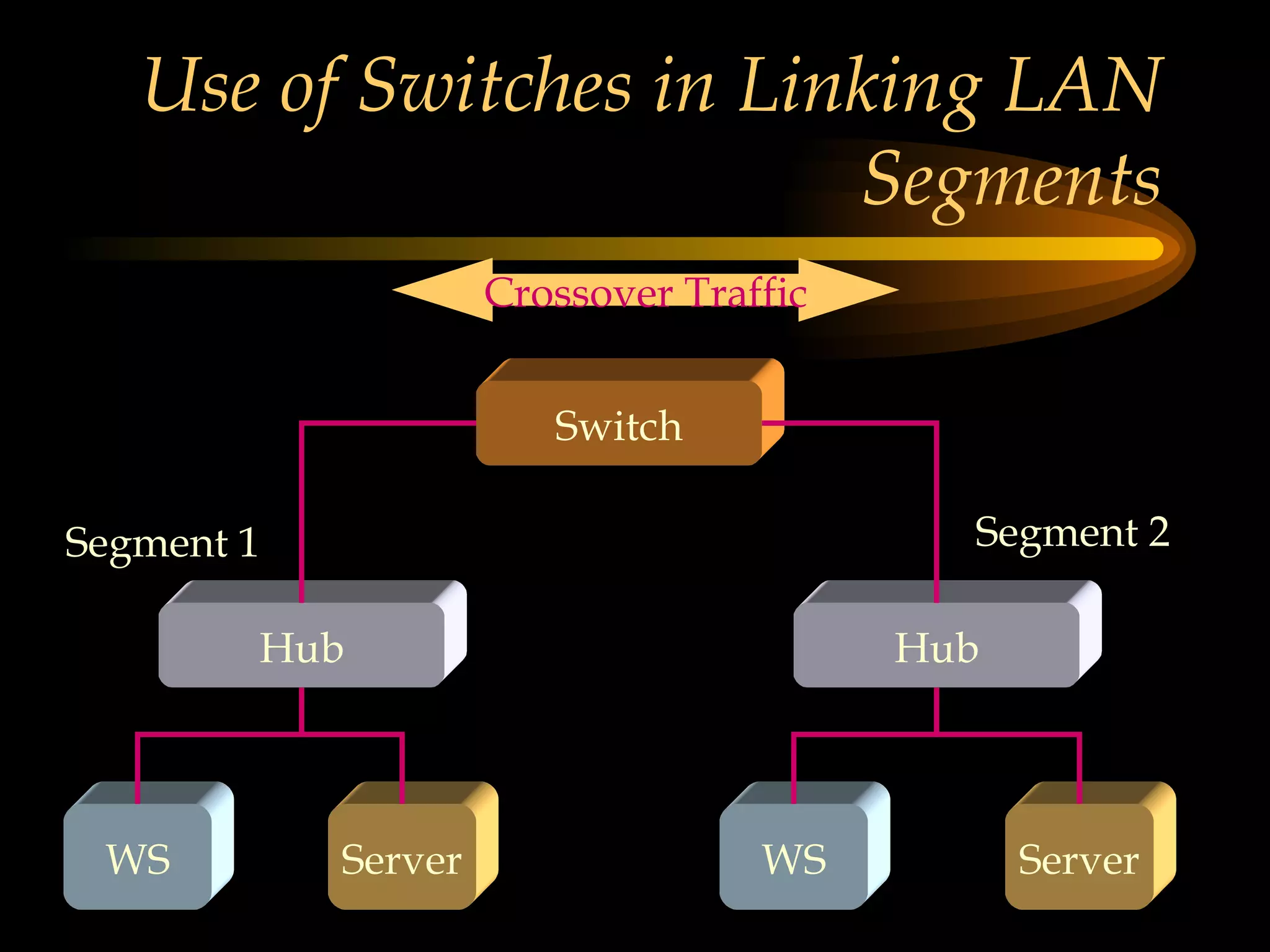

140. Use of Switches in Linking LAN Segments Switch Hub Hub WS Server WS Server Segment 1 Segment 2 Crossover Traffic

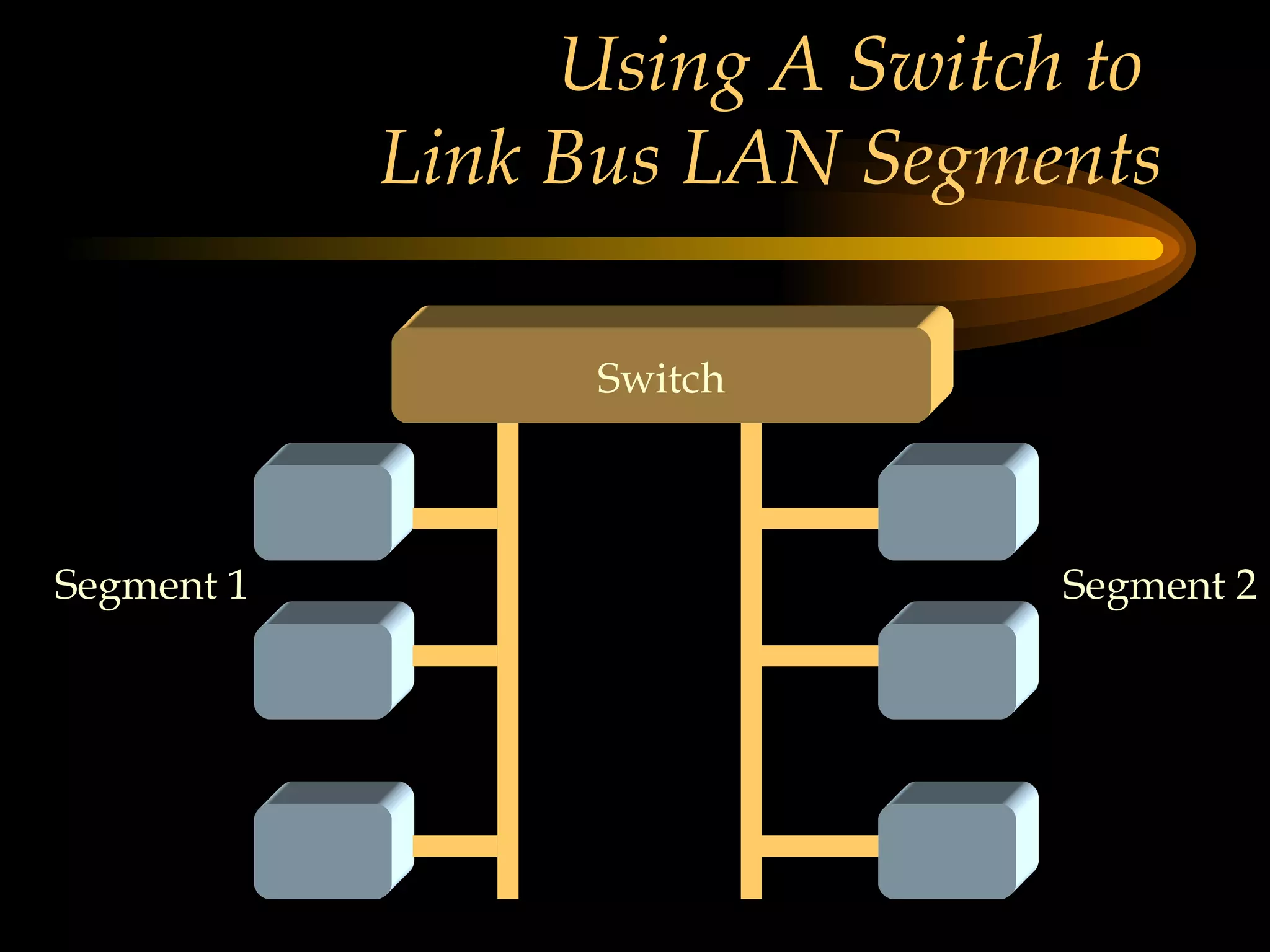

141. Using A Switch to Link Bus LAN Segments Switch Segment 1 Segment 2

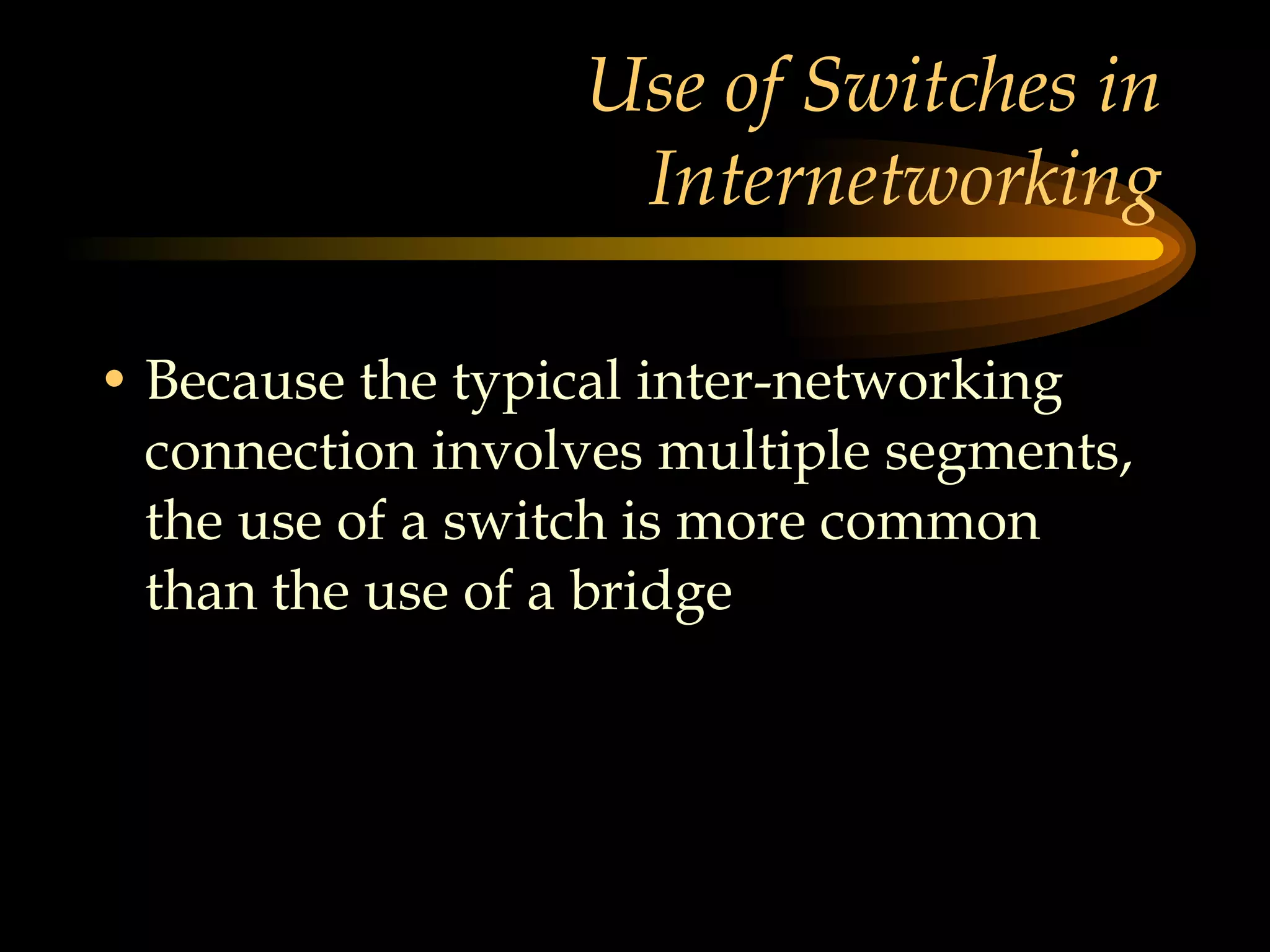

142. Use of Switches in Internetworking Because the typical inter-networking connection involves multiple segments, the use of a switch is more common than the use of a bridge

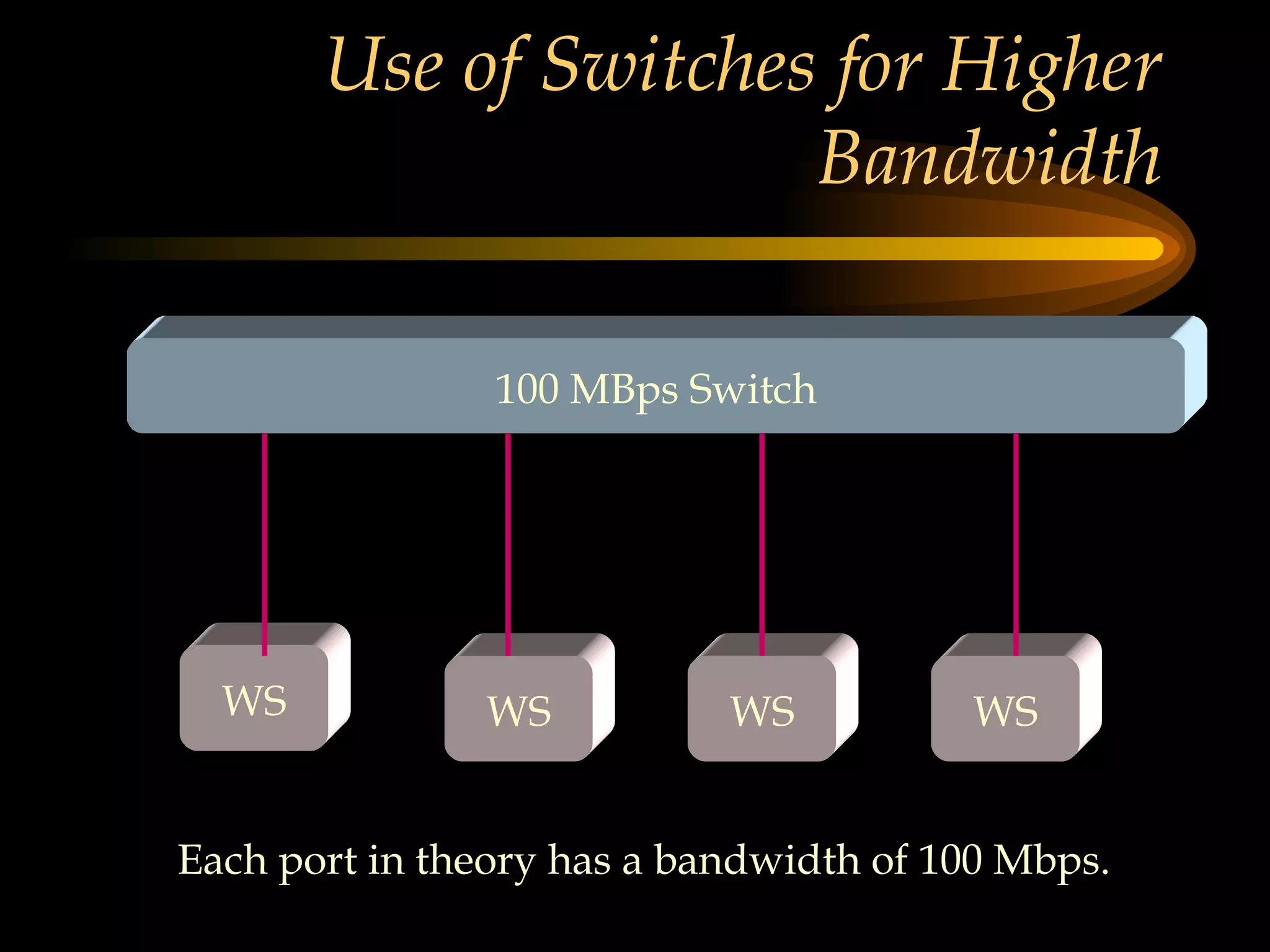

143. Use of Switches for Higher Bandwidth WS 100 MBps Switch WS WS WS Each port in theory has a bandwidth of 100 Mbps.

144. END OF MODULE

145. MODULE Switching Technology

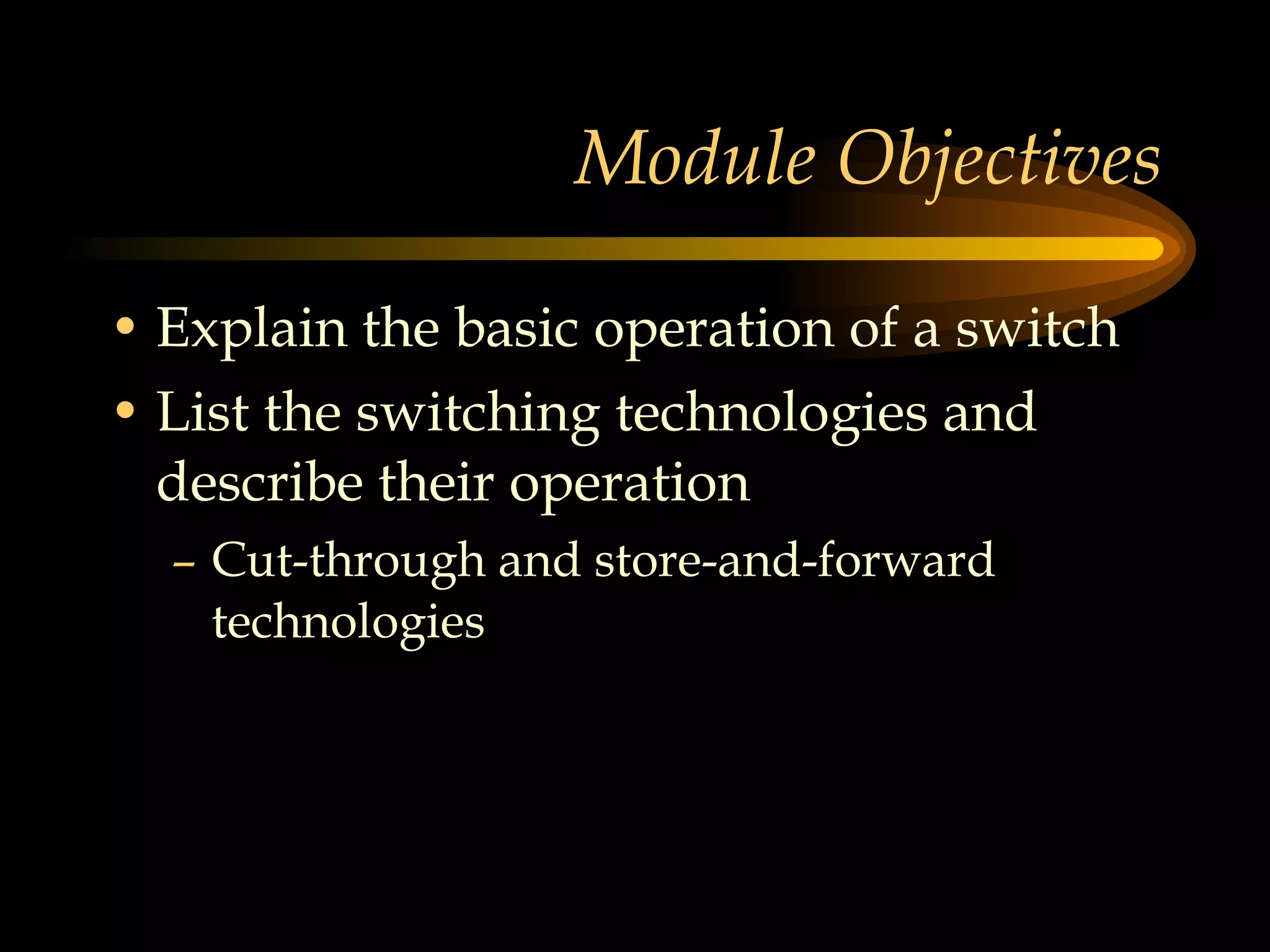

146. Module Objectives Explain the basic operation of a switch List the switching technologies and describe their operation Cut-through and store-and-forward technologies

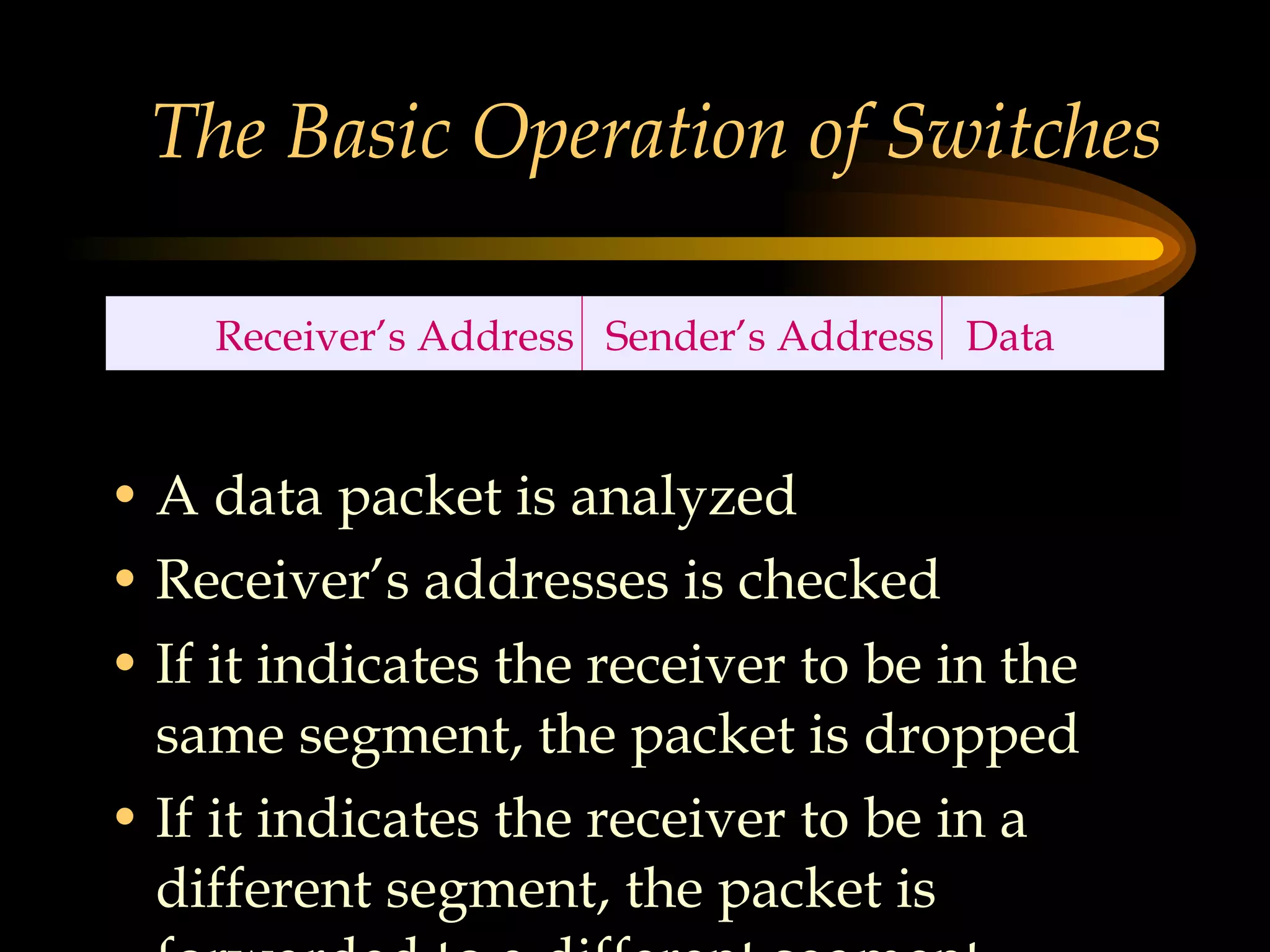

147. The Basic Operation of Switches A data packet is analyzed Receiver’s addresses is checked If it indicates the receiver to be in the same segment, the packet is dropped If it indicates the receiver to be in a different segment, the packet is forwarded to a different segment Receiver’s Address Sender’s Address Data

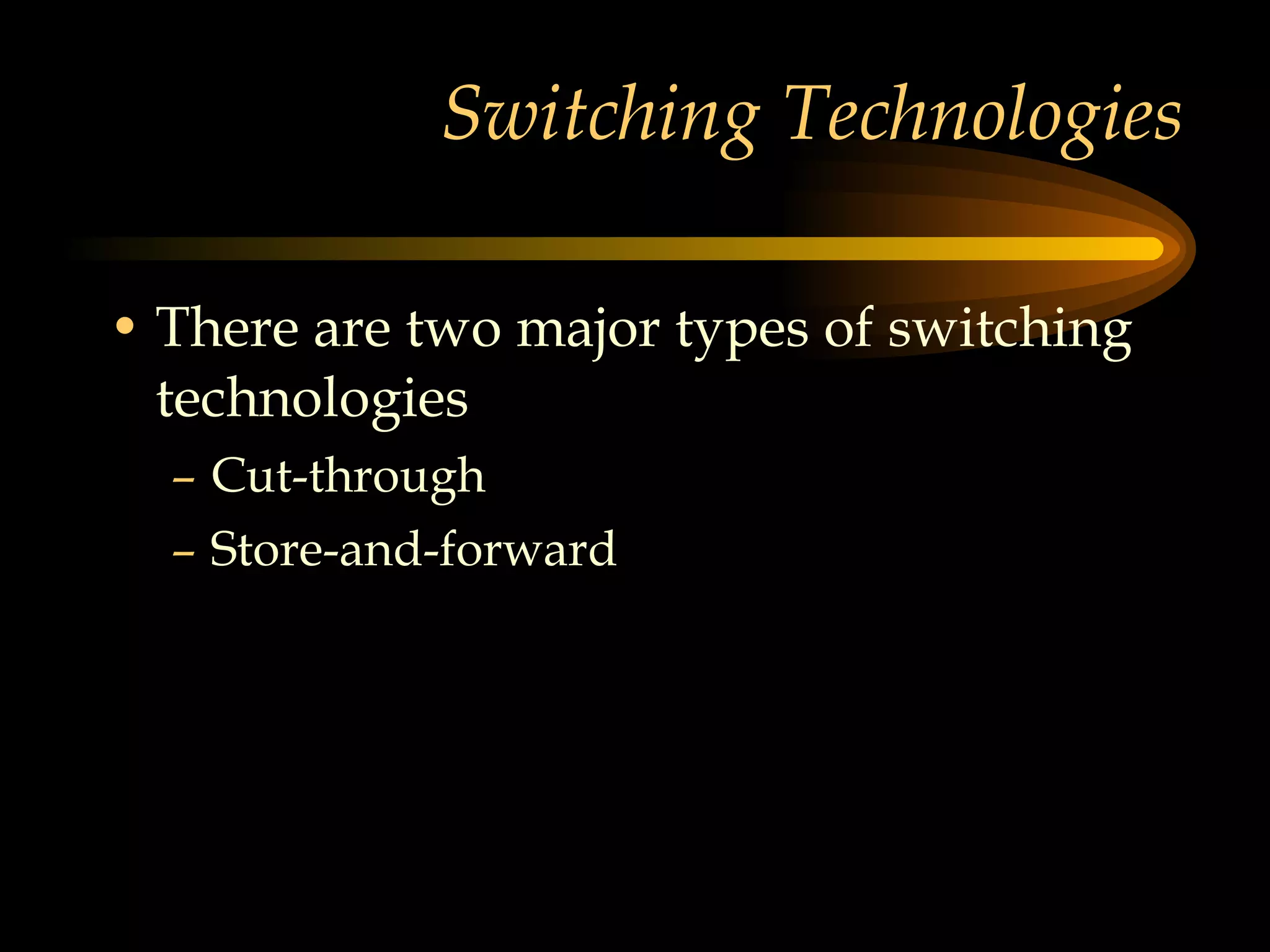

148. Switching Technologies There are two major types of switching technologies Cut-through Store-and-forward

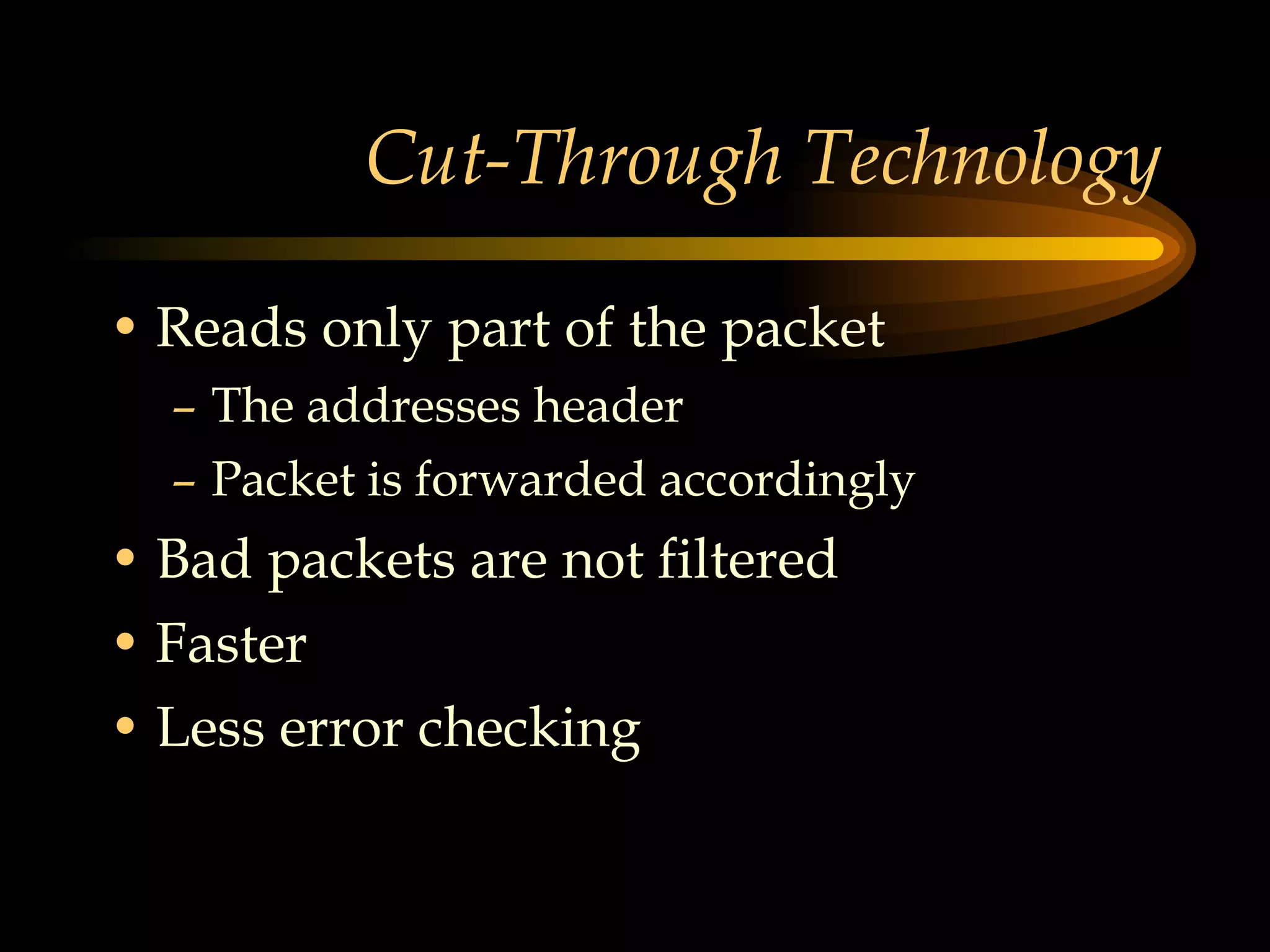

149. Cut-Through Technology Reads only part of the packet The addresses header Packet is forwarded accordingly Bad packets are not filtered Faster Less error checking

150. Store-and-Forward Technology Entire packet is processed Packets are filtered Bad packets are filtered Slower More error checking

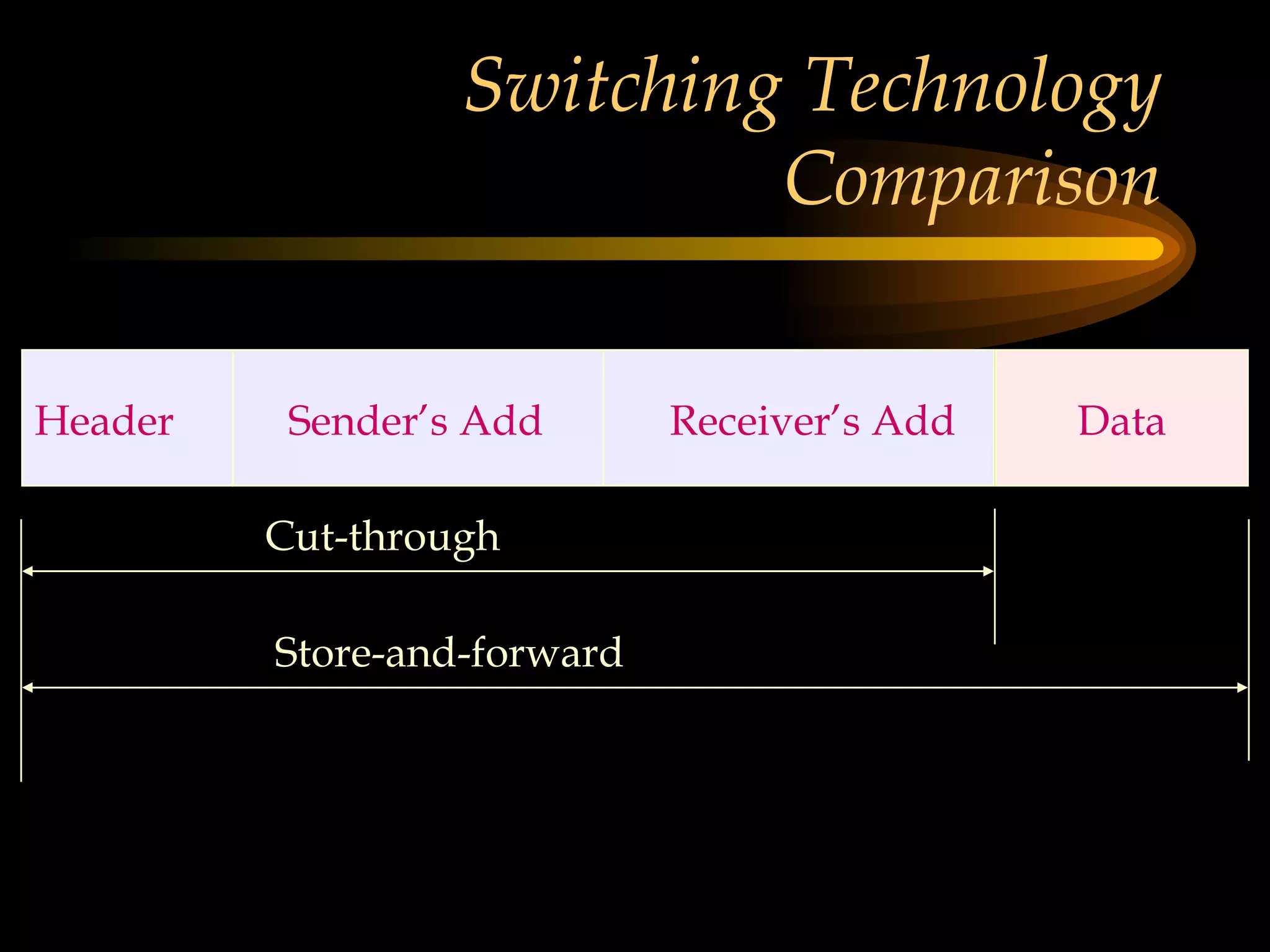

151. Switching Technology Comparison Header Sender’s Add Receiver’s Add Data Cut-through Store-and-forward

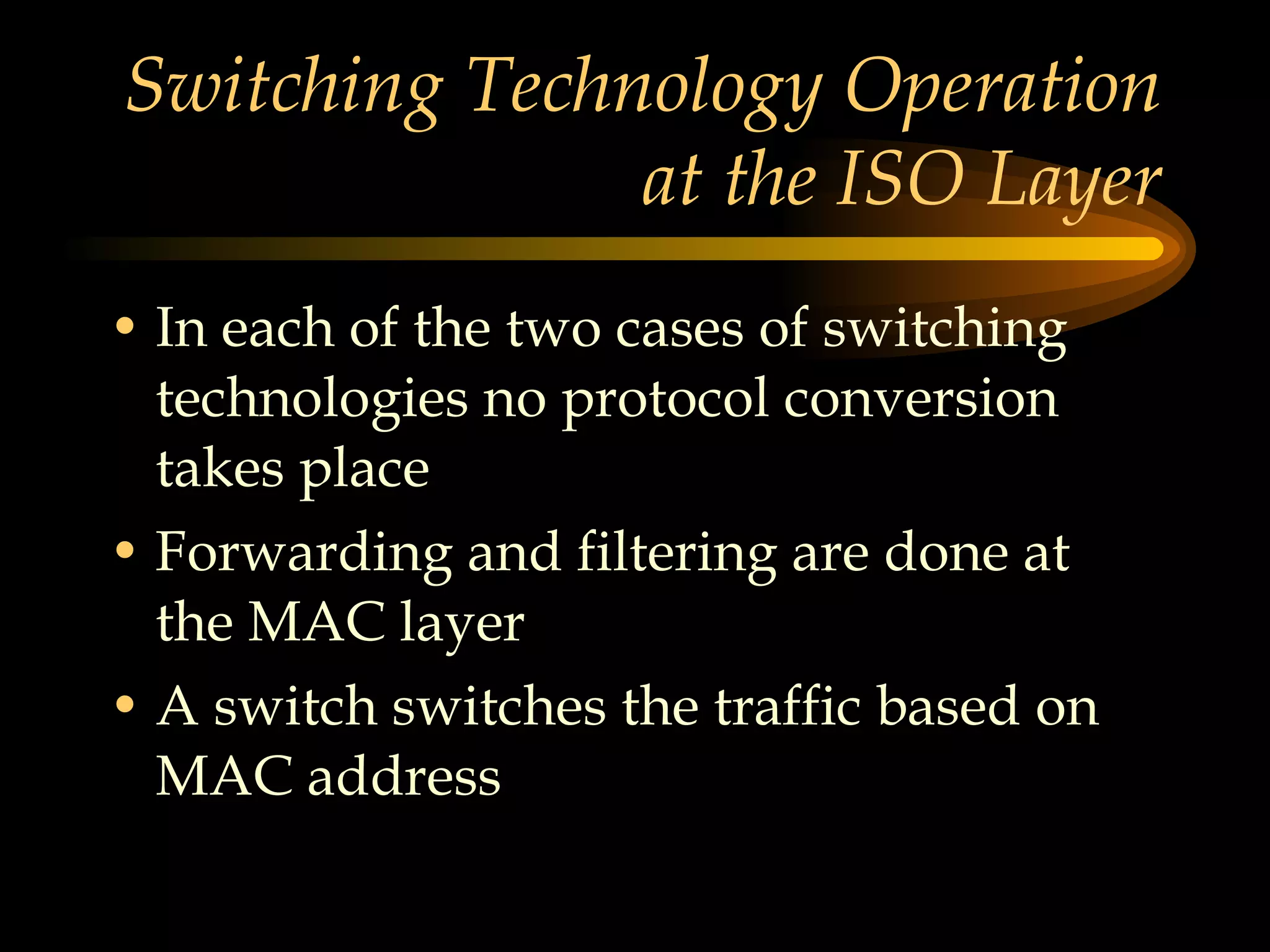

152. Switching Technology Operation at the ISO Layer In each of the two cases of switching technologies no protocol conversion takes place Forwarding and filtering are done at the MAC layer A switch switches the traffic based on MAC address

153. Web Research Fiber channel Clustering Load Balancing

154. END OF MODULE

155. MODULE Routers

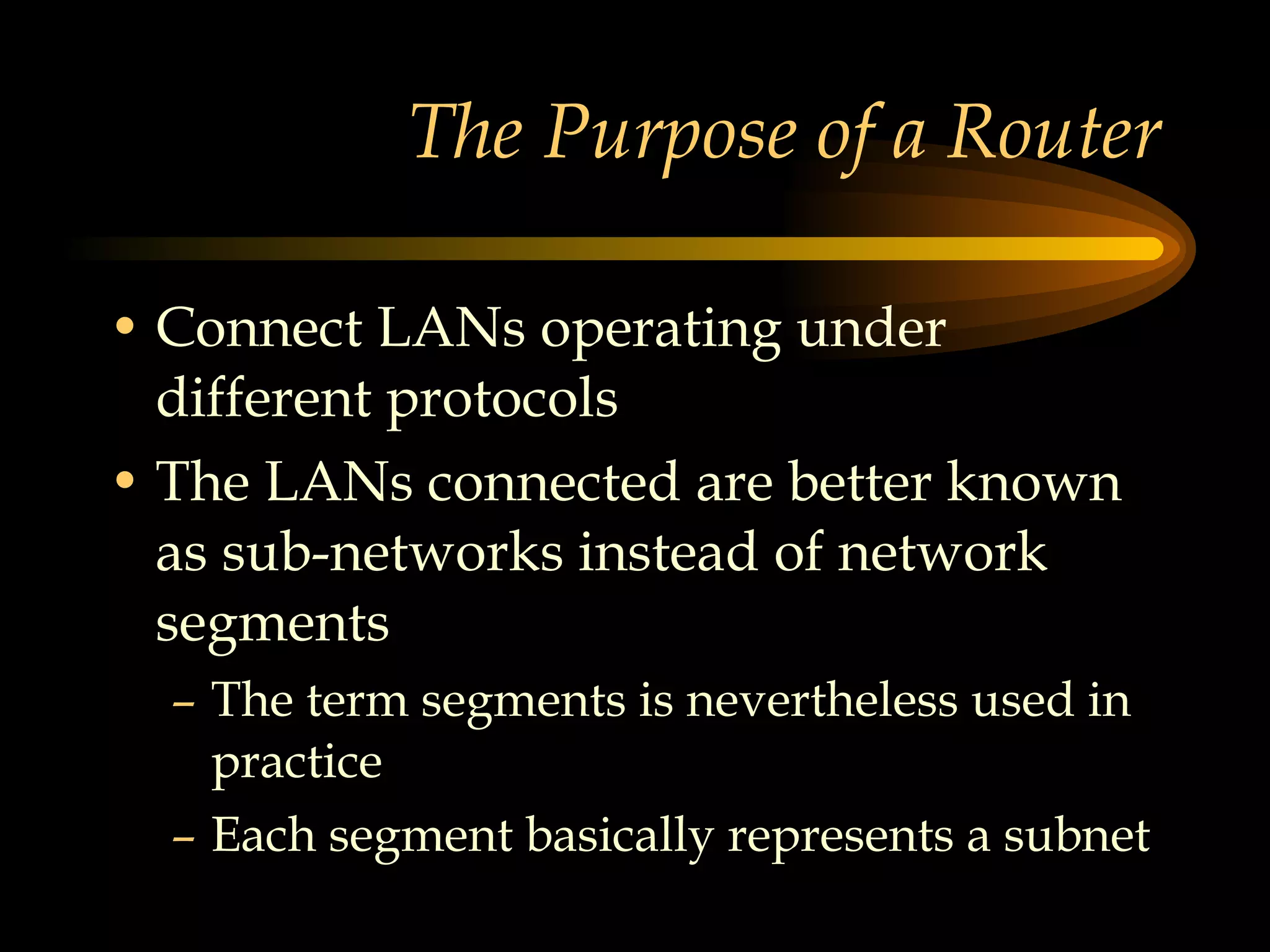

156. The Purpose of a Router Connect LANs operating under different protocols The LANs connected are better known as sub-networks instead of network segments The term segments is nevertheless used in practice Each segment basically represents a subnet

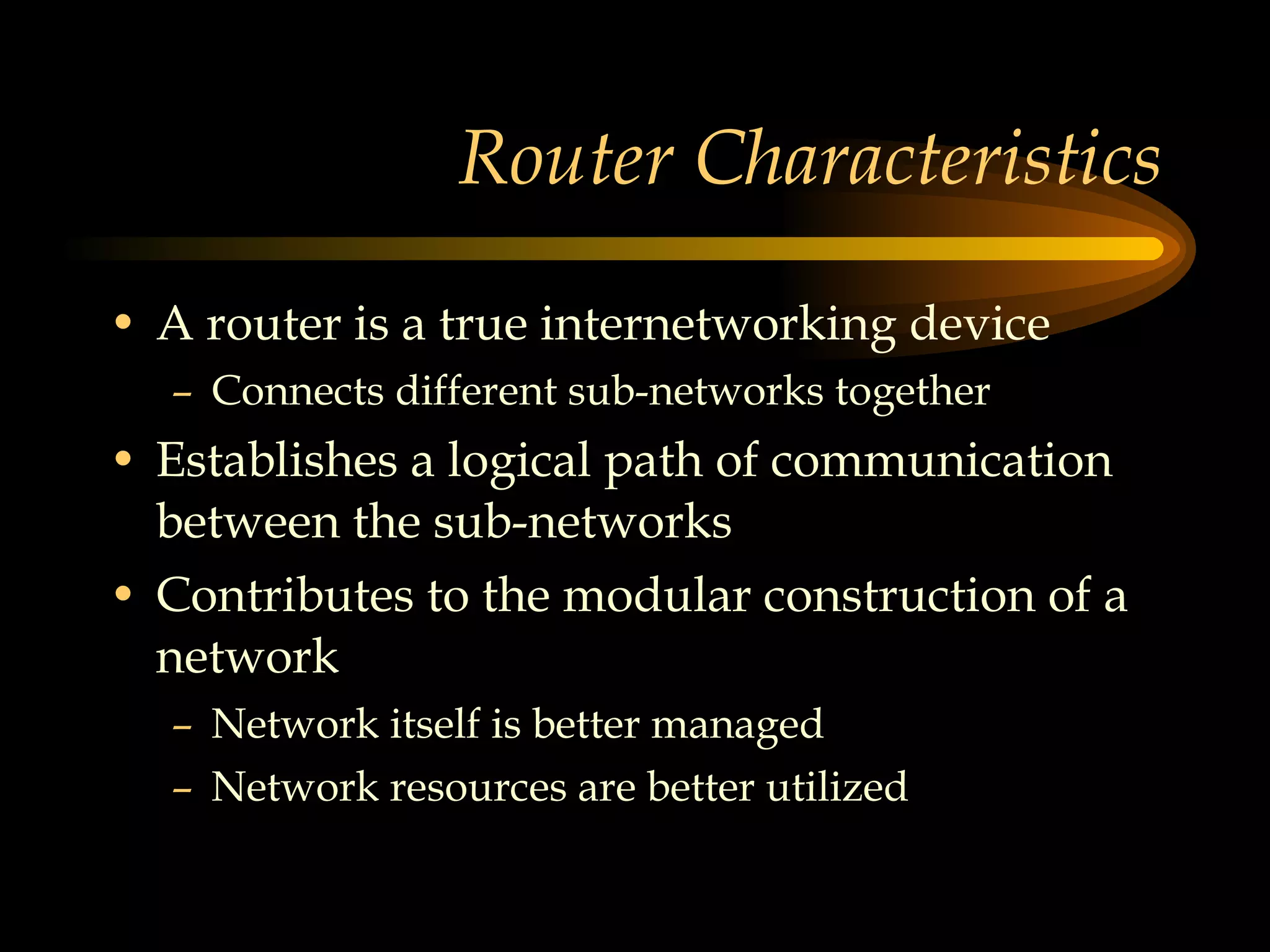

157. Router Characteristics A router is a true internetworking device Connects different sub-networks together Establishes a logical path of communication between the sub-networks Contributes to the modular construction of a network Network itself is better managed Network resources are better utilized

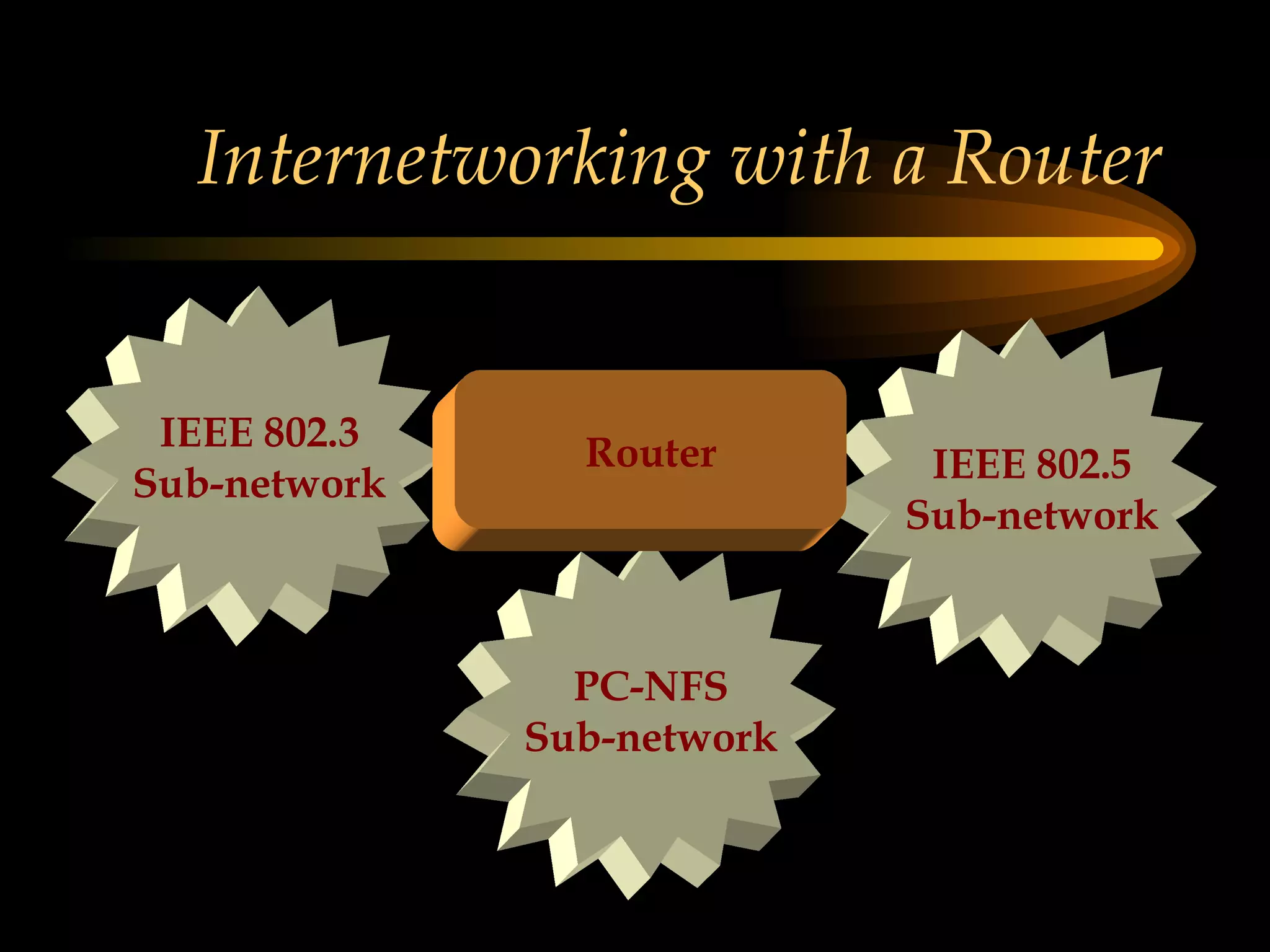

158. Internetworking with a Router IEEE 802.3 Sub-network IEEE 802.5 Sub-network PC-NFS Sub-network Router

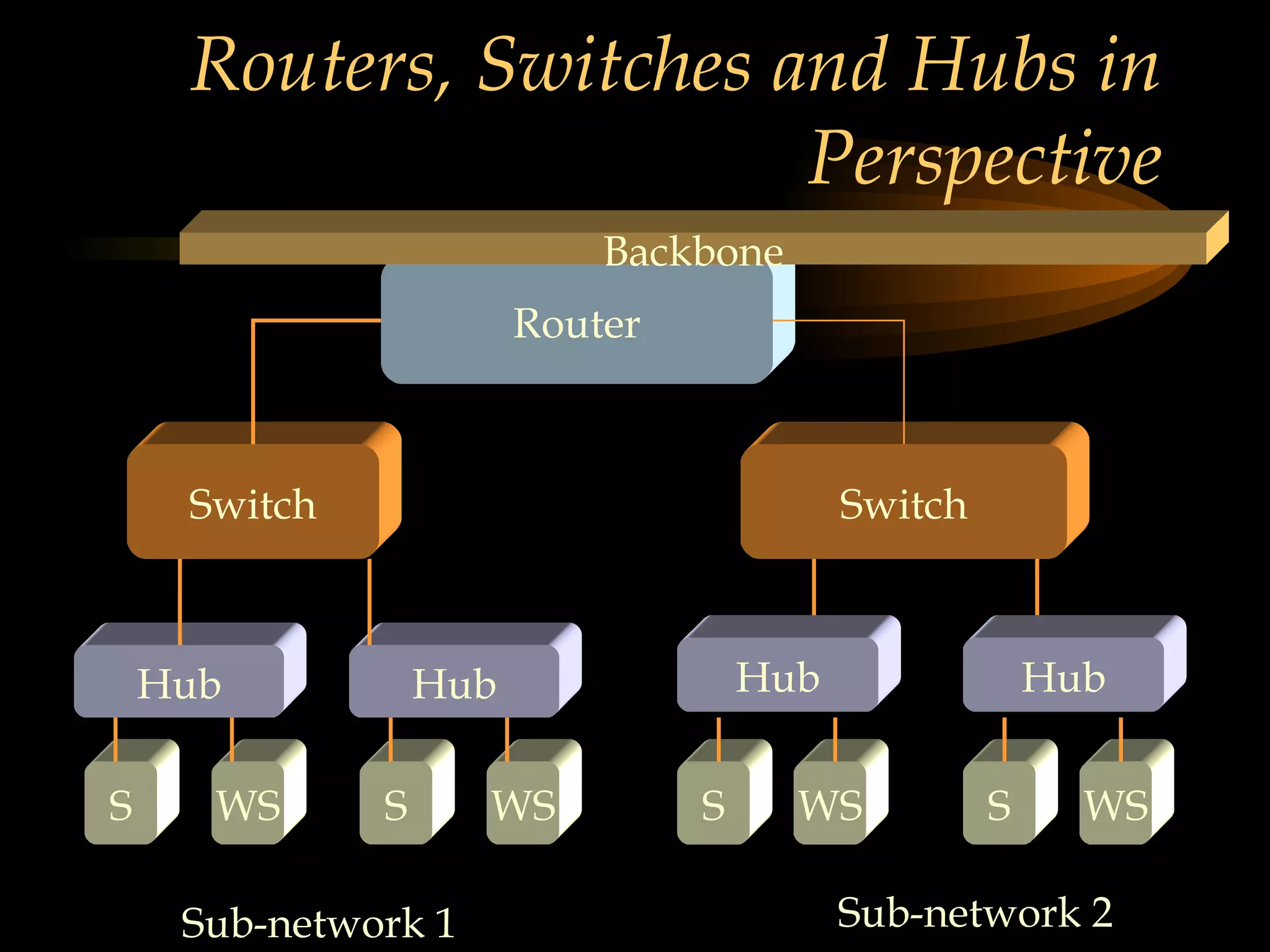

159. Routers, Switches and Hubs in Perspective Switch Switch Hub Hub S WS WS WS Router Hub S WS Hub WS S Hub WS WS Hub WS S Sub-network 1 Sub-network 2 Backbone

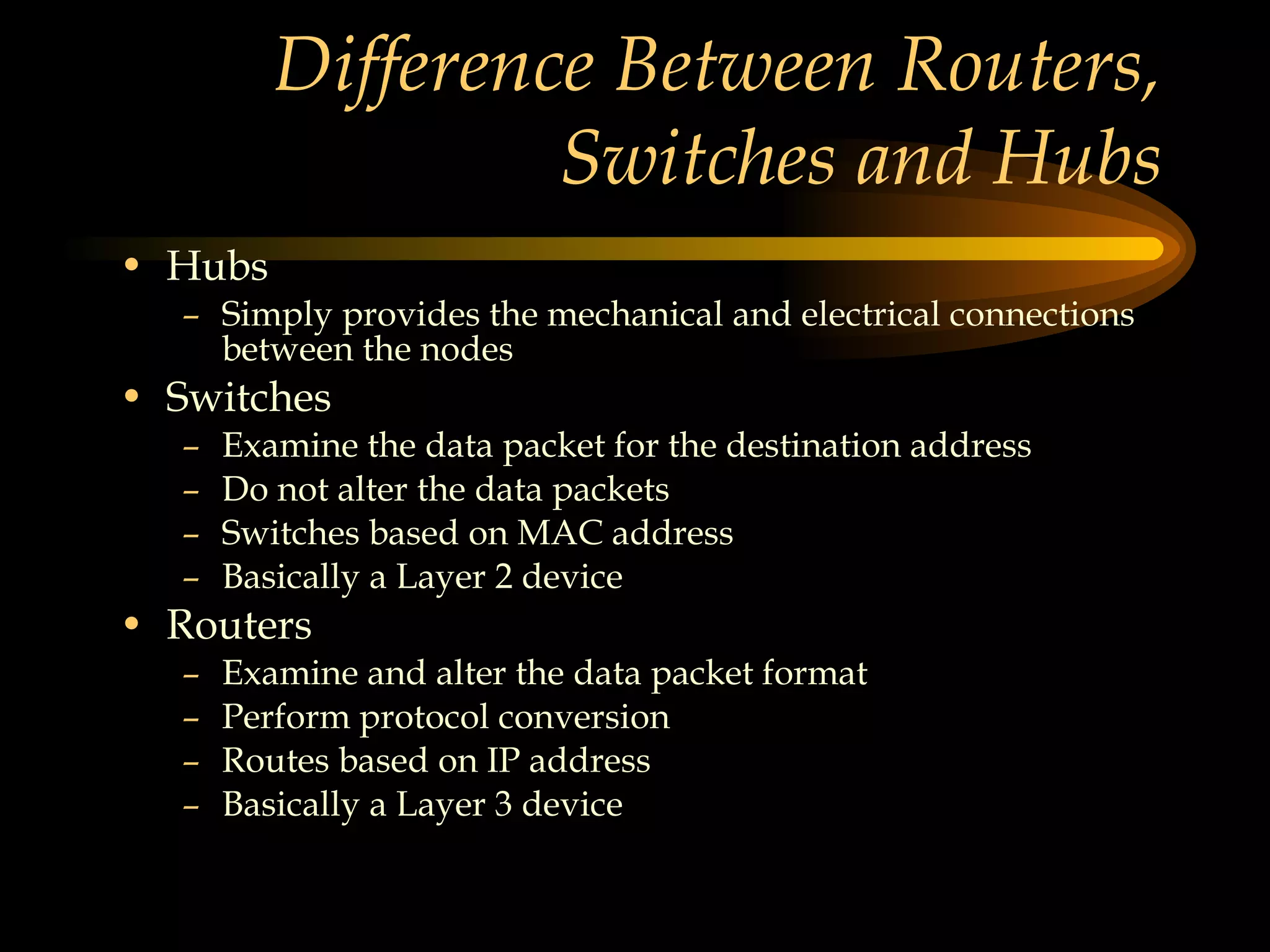

160. Difference Between Routers, Switches and Hubs Hubs Simply provides the mechanical and electrical connections between the nodes Switches Examine the data packet for the destination address Do not alter the data packets Switches based on MAC address Basically a Layer 2 device Routers Examine and alter the data packet format Perform protocol conversion Routes based on IP address Basically a Layer 3 device

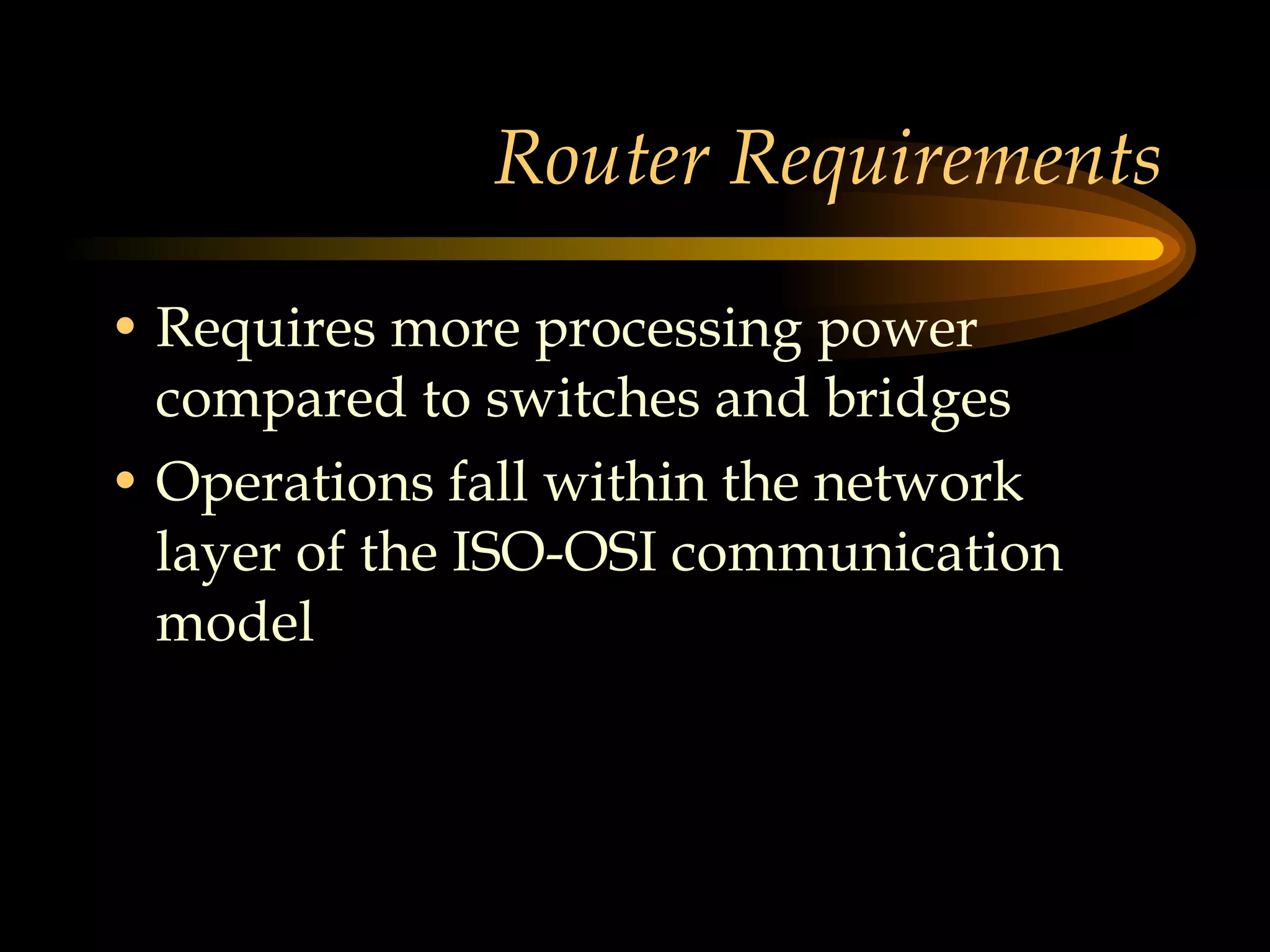

161. Router Requirements Requires more processing power compared to switches and bridges Operations fall within the network layer of the ISO-OSI communication model

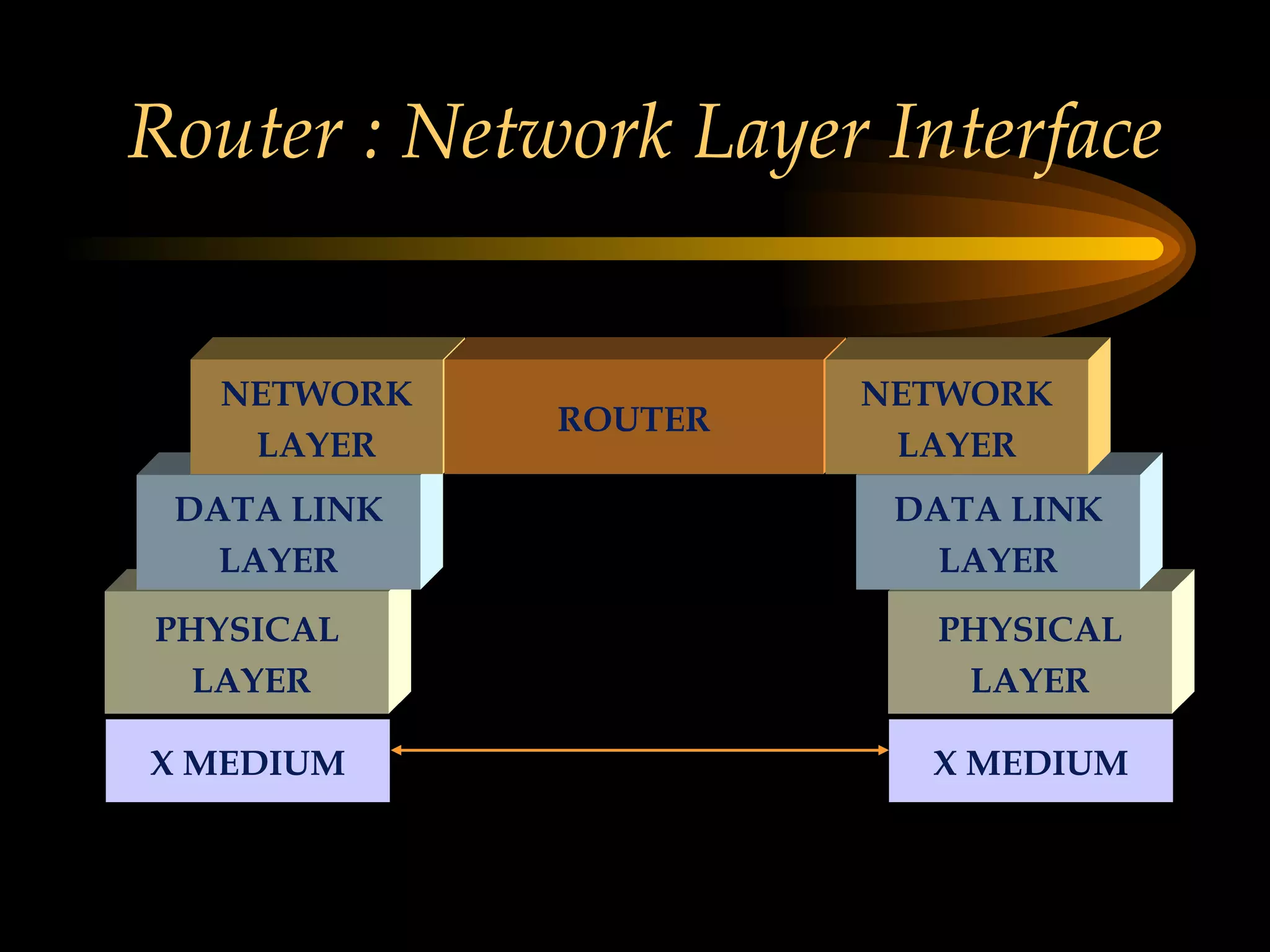

162. Router : Network Layer Interface X MEDIUM X MEDIUM PHYSICAL LAYER PHYSICAL LAYER DATA LINK LAYER DATA LINK LAYER NETWORK LAYER ROUTER NETWORK LAYER

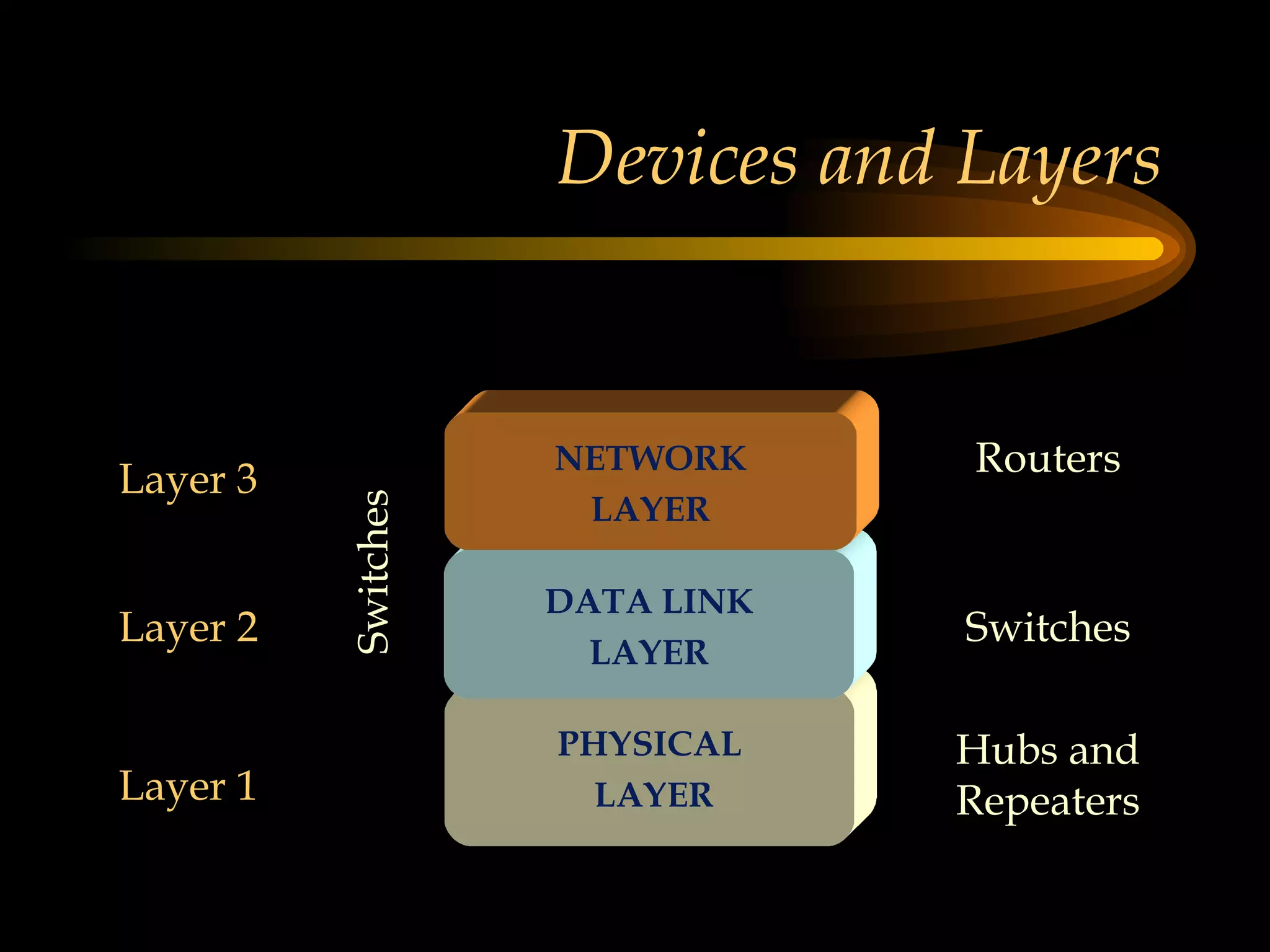

163. Devices and Layers PHYSICAL LAYER DATA LINK LAYER NETWORK LAYER Switches Routers Hubs and Repeaters Switches Layer 1 Layer 2 Layer 3

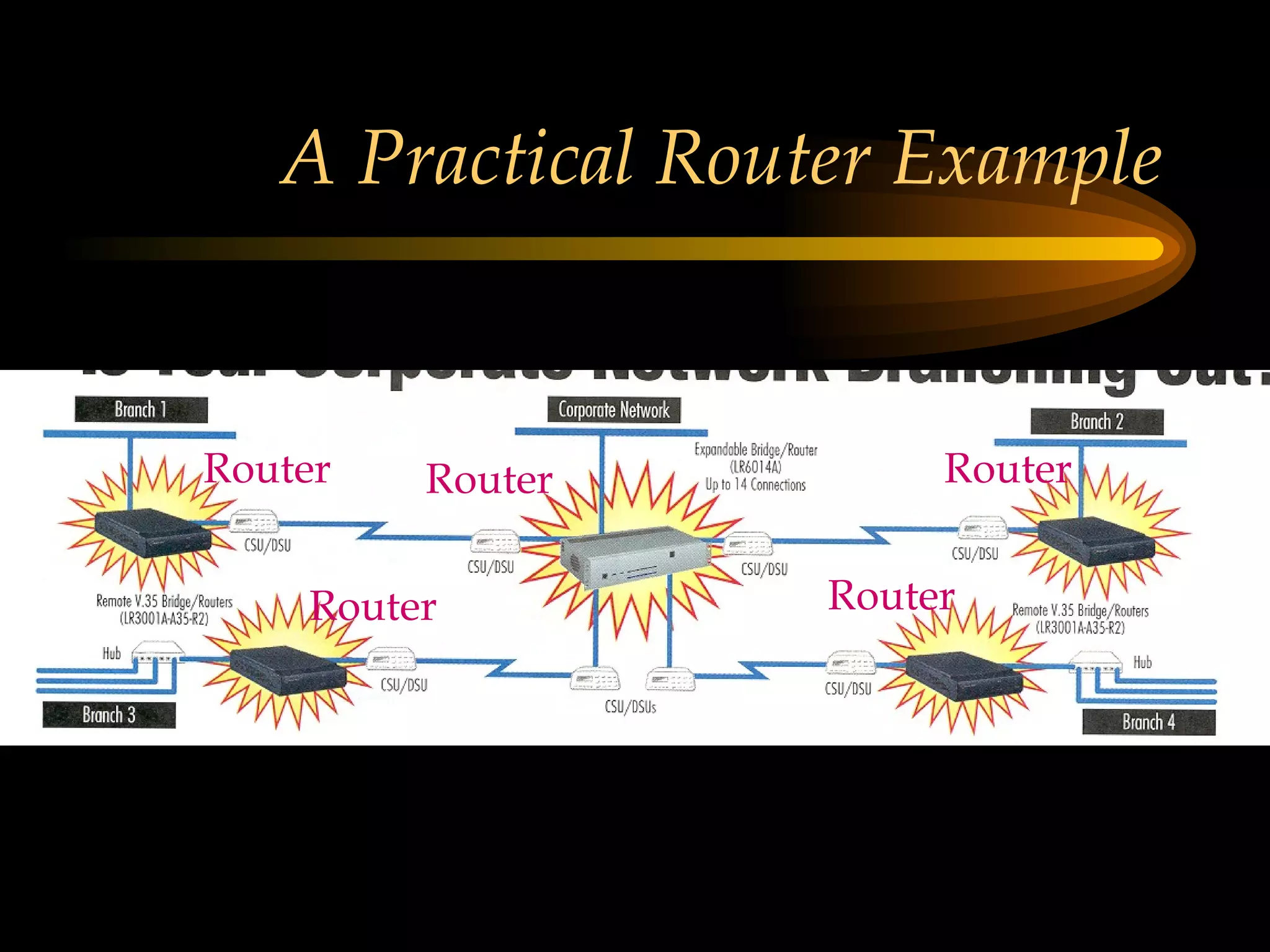

164. A Practical Router Example Router Router Router Router Router

165. END OF MODULE

166. MODULE Gateway

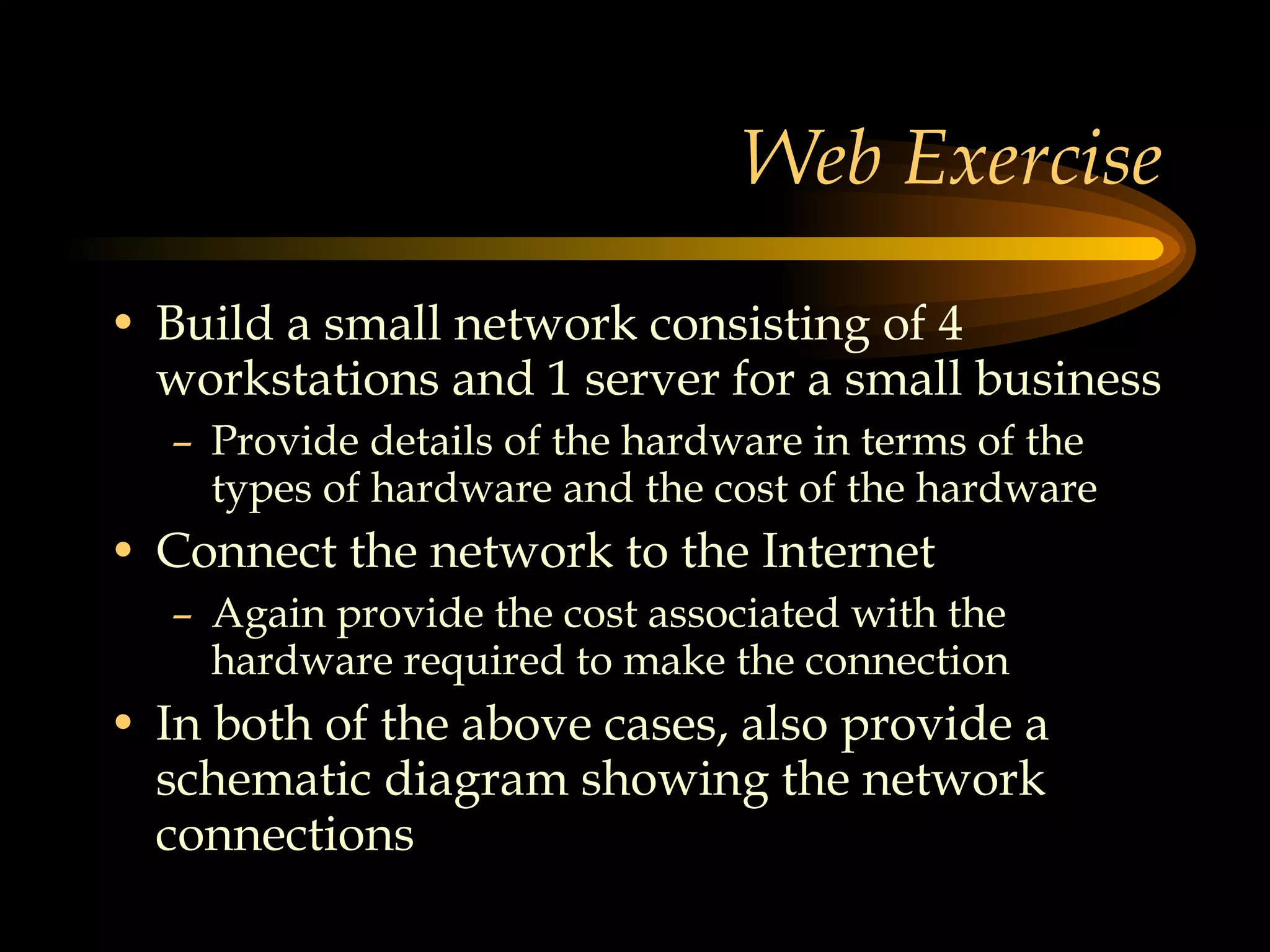

167. Web Exercise Build a small network consisting of 4 workstations and 1 server for a small business Provide details of the hardware in terms of the types of hardware and the cost of the hardware Connect the network to the Internet Again provide the cost associated with the hardware required to make the connection In both of the above cases, also provide a schematic diagram showing the network connections

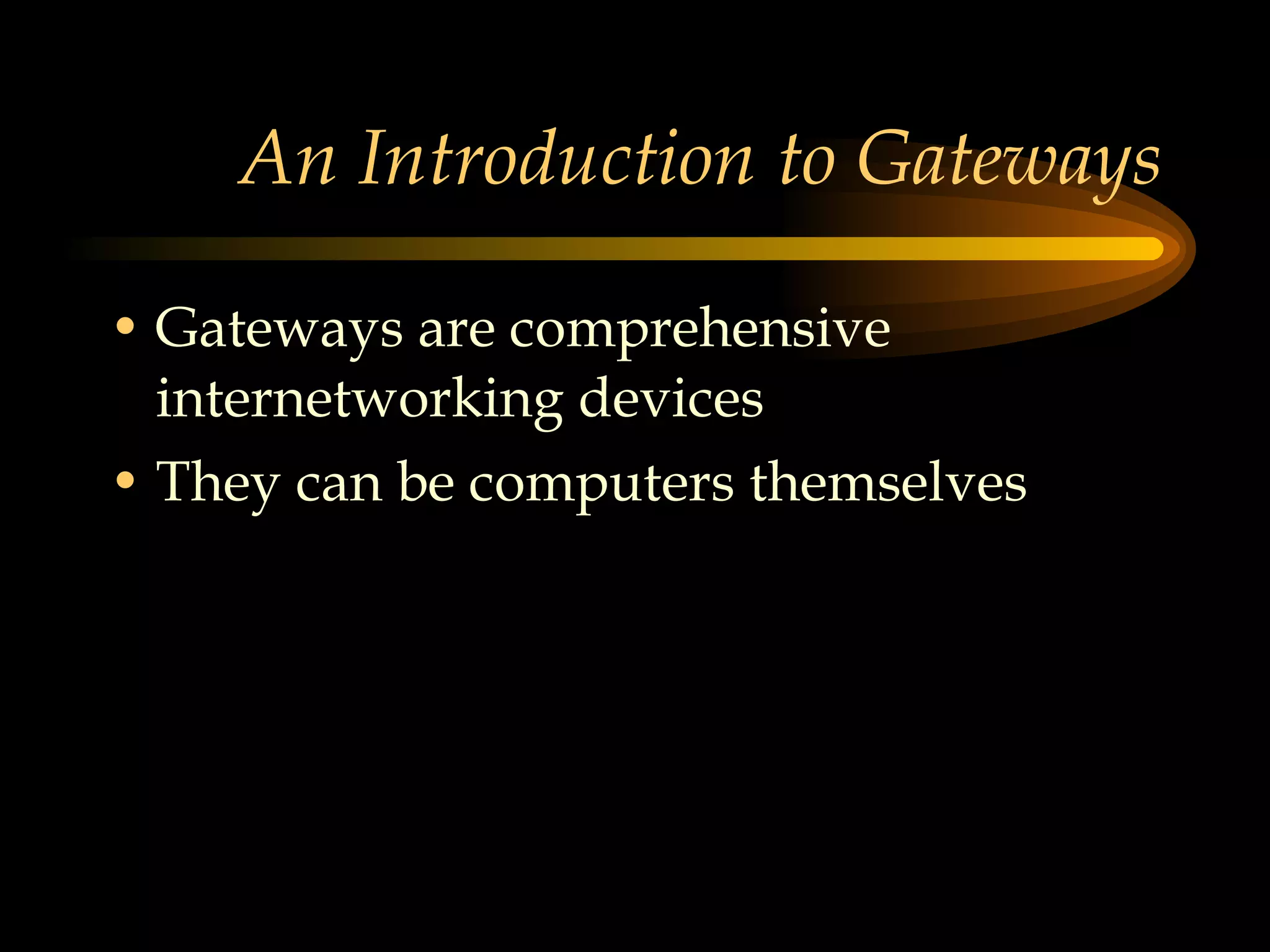

169. An Introduction to Gateways Gateways are comprehensive internetworking devices They can be computers themselves

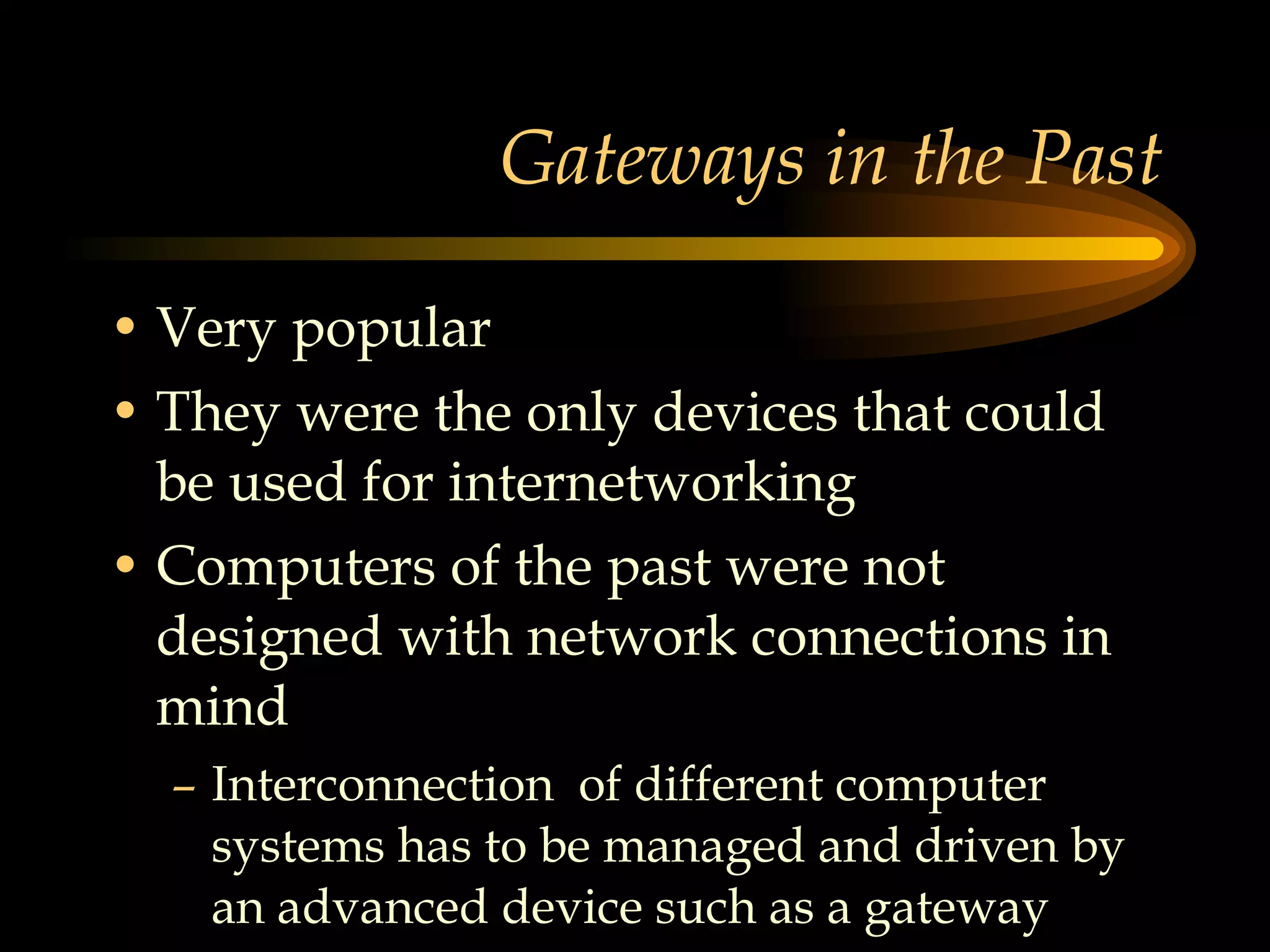

170. Gateways in the Past Very popular They were the only devices that could be used for internetworking Computers of the past were not designed with network connections in mind Interconnection of different computer systems has to be managed and driven by an advanced device such as a gateway

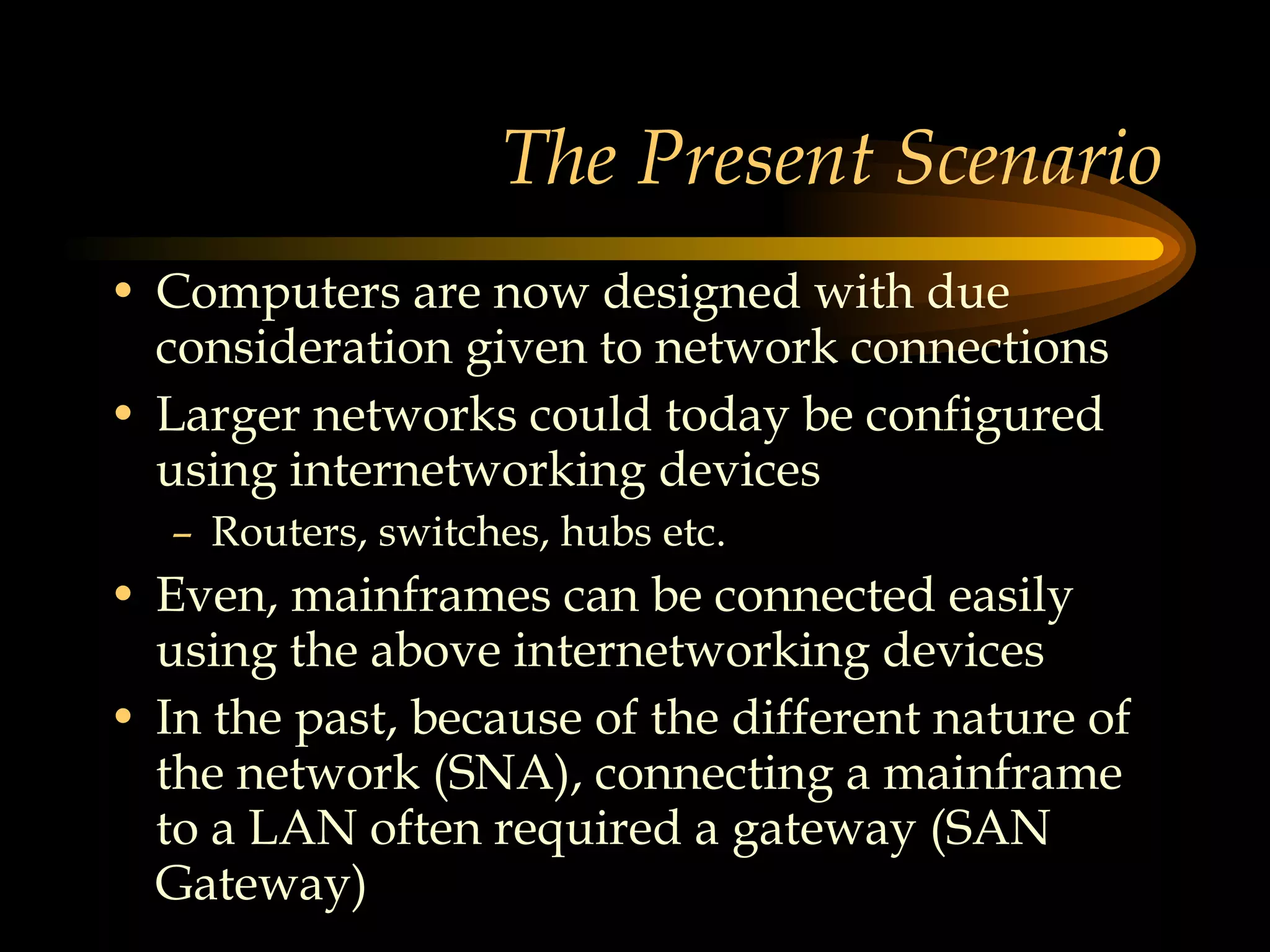

171. The Present Scenario Computers are now designed with due consideration given to network connections Larger networks could today be configured using internetworking devices Routers, switches, hubs etc. Even, mainframes can be connected easily using the above internetworking devices In the past, because of the different nature of the network (SNA), connecting a mainframe to a LAN often required a gateway (SAN Gateway)

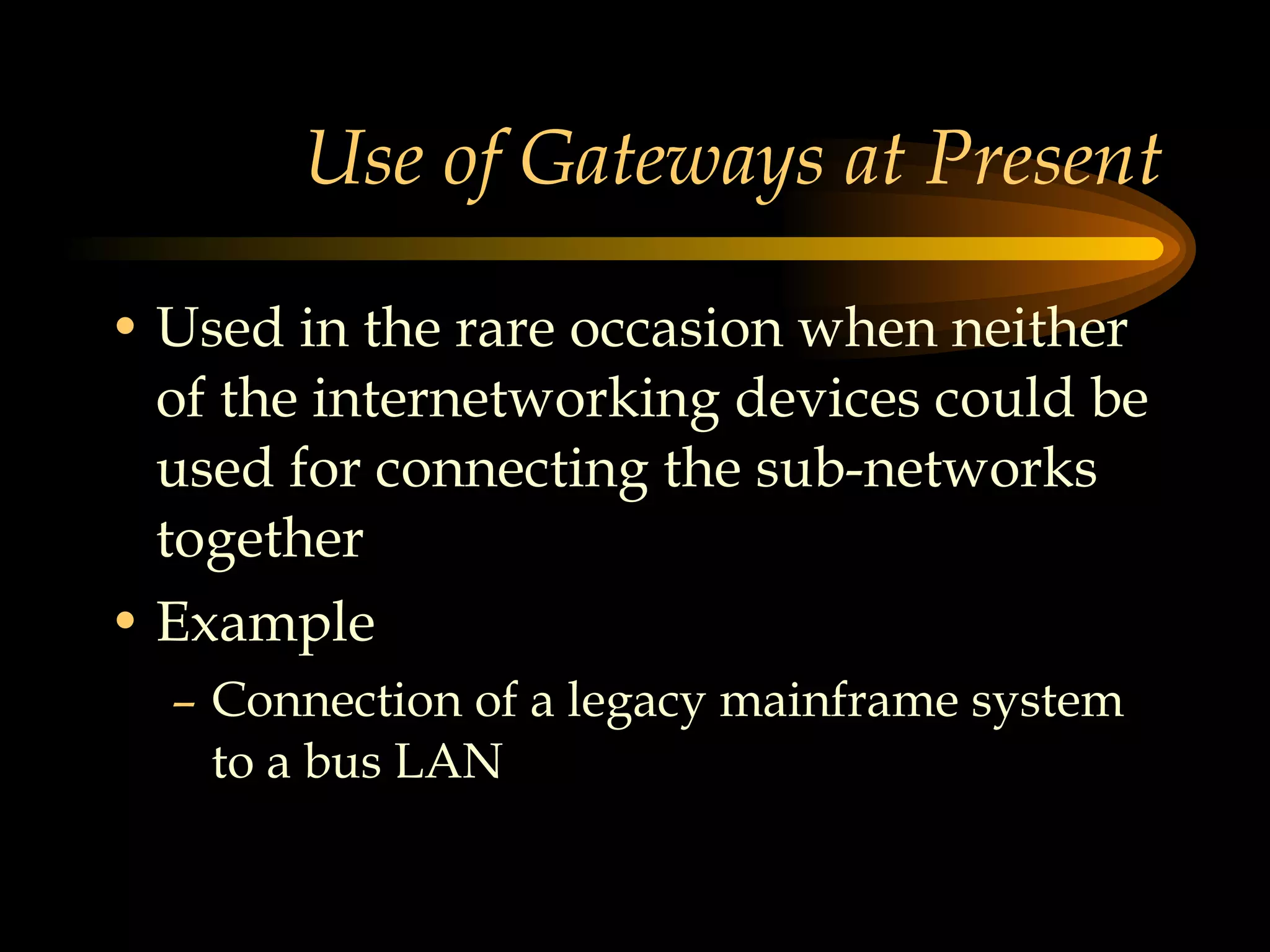

172. Use of Gateways at Present Used in the rare occasion when neither of the internetworking devices could be used for connecting the sub-networks together Example Connection of a legacy mainframe system to a bus LAN

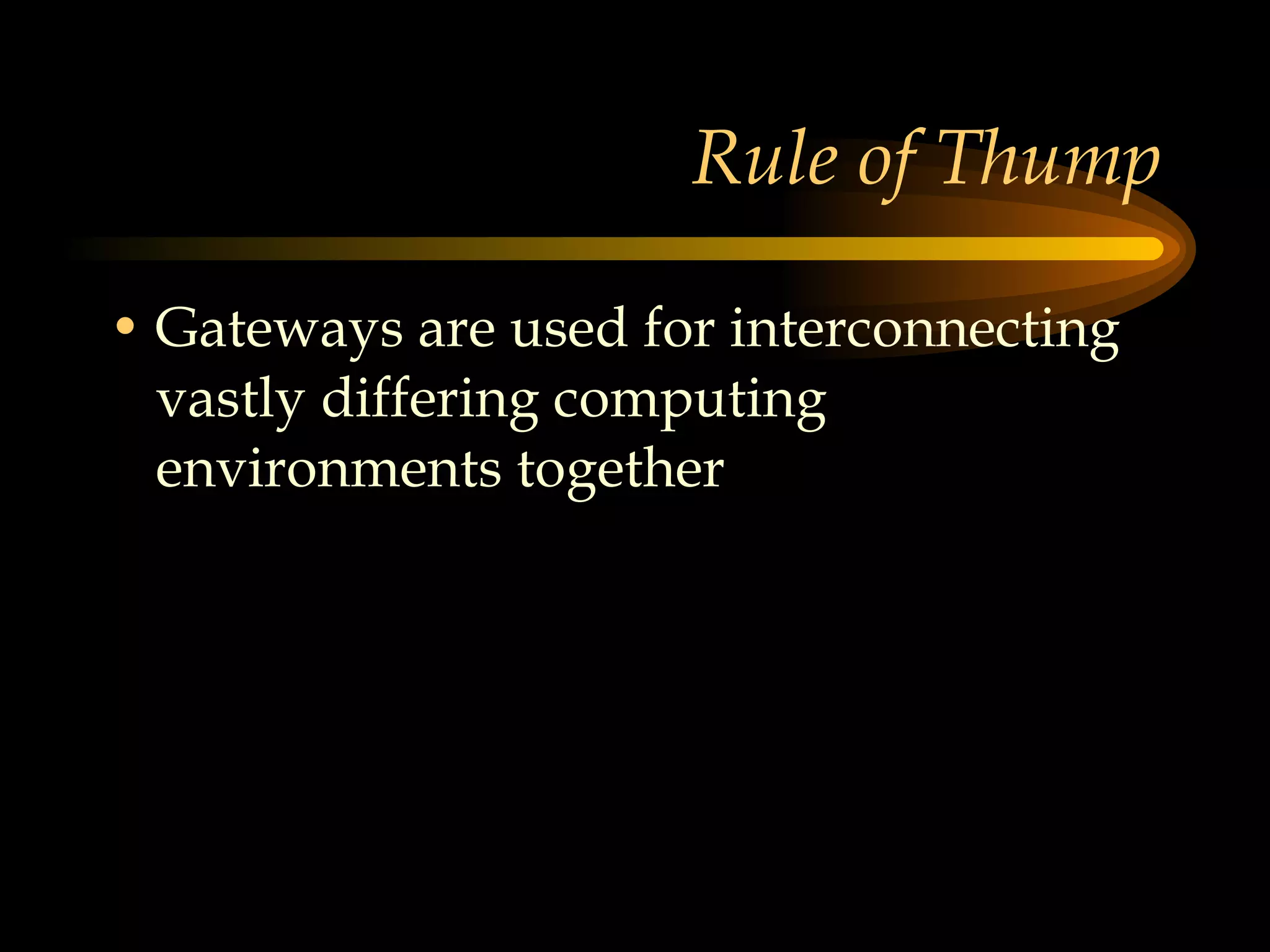

173. Rule of Thump Gateways are used for interconnecting vastly differing computing environments together

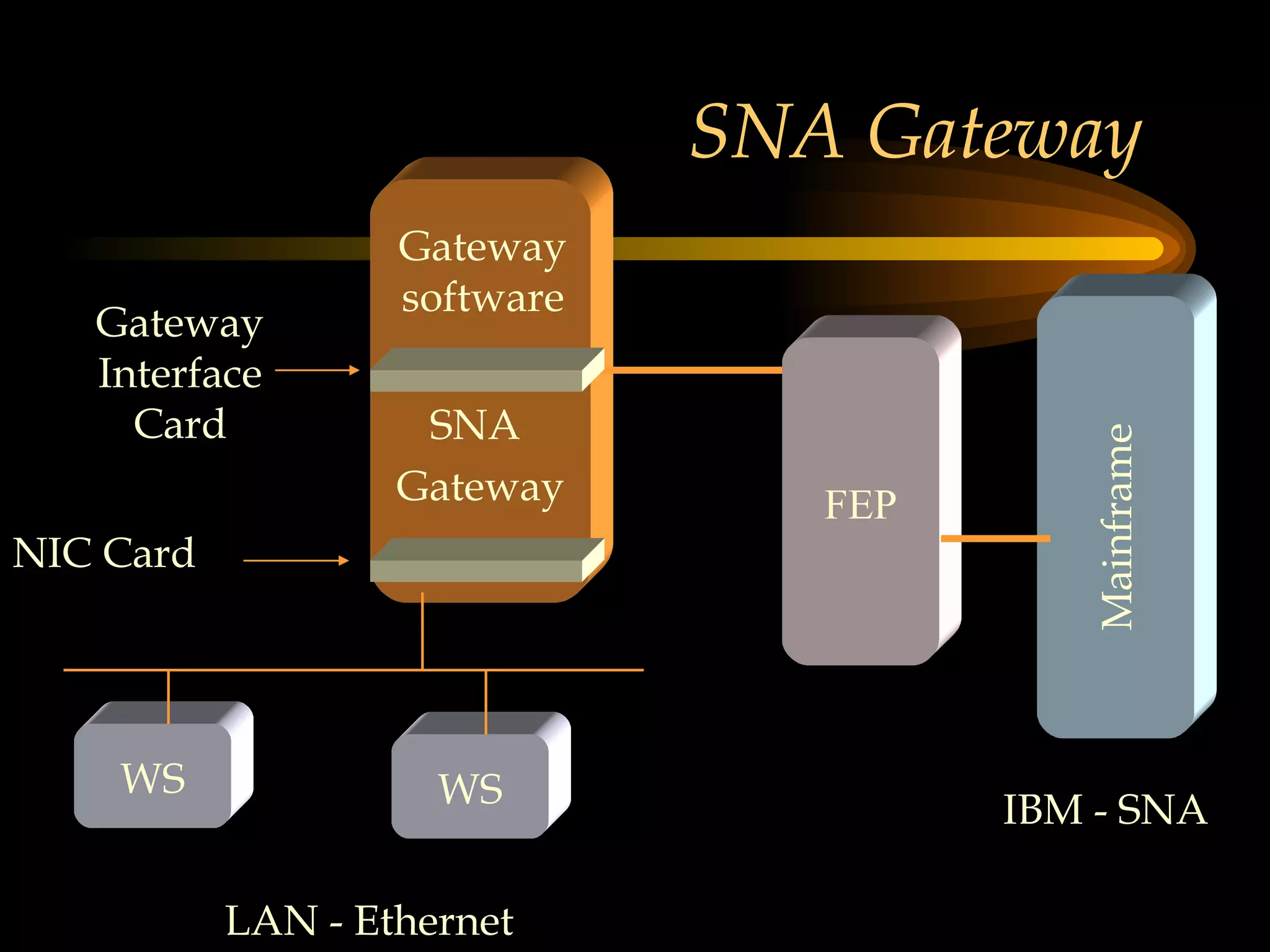

174. SNA Gateway SNA Gateway WS WS Mainframe LAN - Ethernet IBM - SNA FEP NIC Card Gateway software Gateway Interface Card

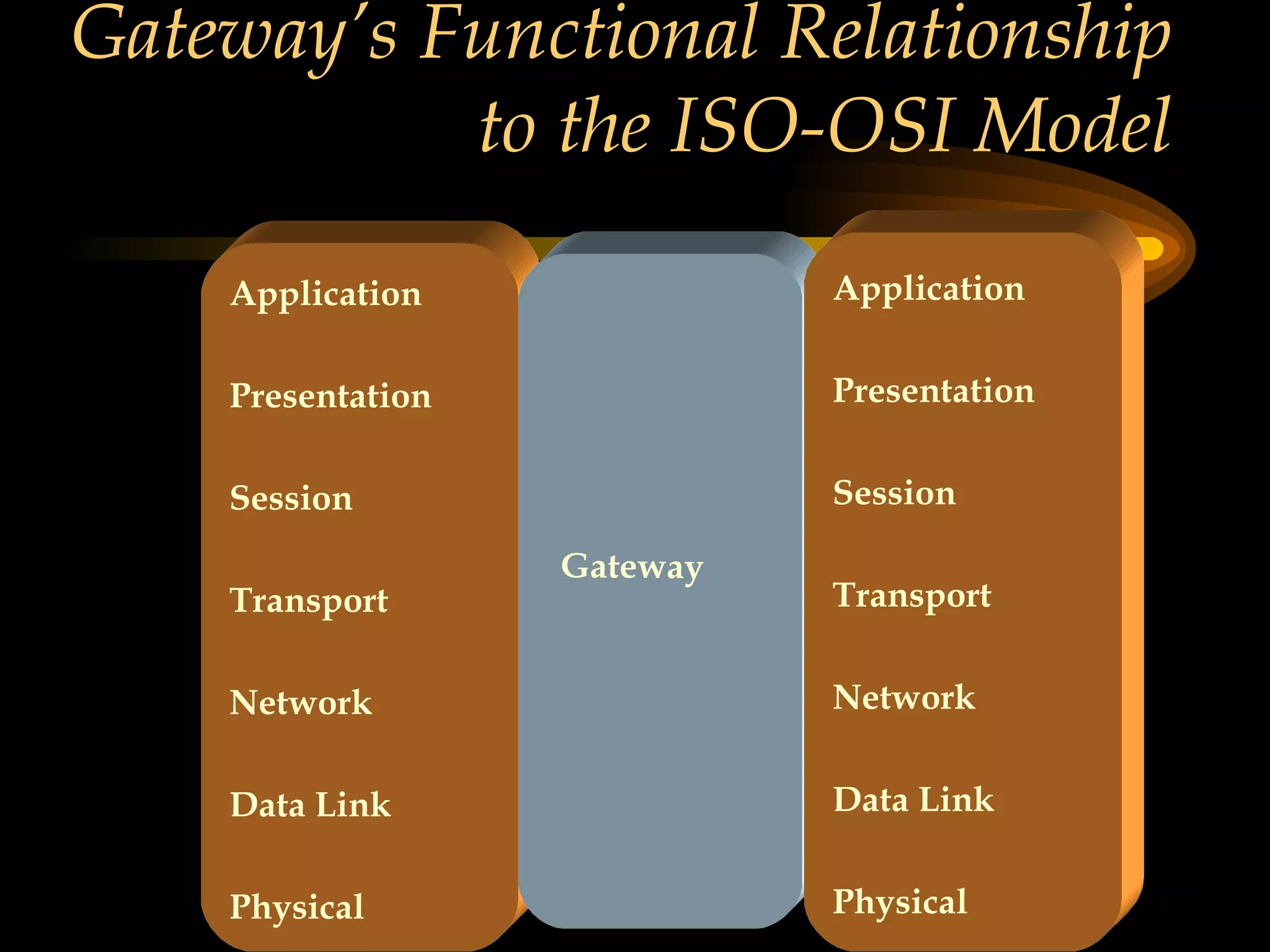

175. Gateway’s Functional Relationship to the ISO-OSI Model Application Presentation Session Transport Network Data Link Physical Gateway Application Presentation Session Transport Network Data Link Physical

176. END OF MODULE

177. END OF MODULE END OF CHAPTER
