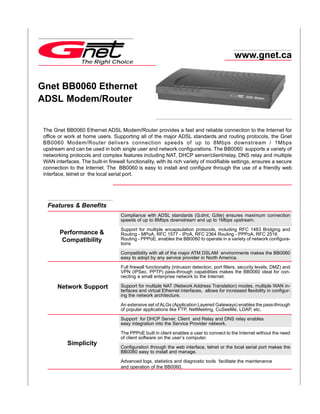

www.gnet.ca
                  The Right Choice



Gnet BB0060 Ethernet
ADSL Modem/Router


 The Gnet BB0060 Ethernet ADSL Modem/Router provides a fast and reliable connection to the Internet for
 office or work at home users. Supporting all of the major ADSL standards and routing protocols, the Gnet
 BB0060 Modem/Router delivers connection speeds of up to 8Mbps downstream / 1Mbps
 upstream and can be used in both single user and network configurations. The BB0060 supports a variety of
 networking protocols and complex features including NAT, DHCP server/client/relay, DNS relay and multiple
 WAN interfaces. The built-in firewall functionality, with its rich variety of modifiable settings, ensures a secure
 connection to the Internet. The BB0060 is easy to install and configure through the use of a friendly web
 interface, telnet or the local serial port.




   Features & Benefits
                                    Compliance with ADSL standards (G.dmt, G.lite) ensures maximum connection
                                    speeds of up to 8Mbps downstream and up to 1Mbps upstream.

                                    Support for multiple encapsulation protocols, including RFC 1483 Bridging and
        Performance &               Routing - MPoA, RFC 1577 - IPoA, RFC 2364 Routing - PPPoA, RFC 2516
         Compatibility              Routing - PPPoE, enables the BB0060 to operate in a variety of network configura-
                                    tions

                                    Compatibility with all of the major ATM DSLAM environments makes the BB0060
                                    easy to adopt by any service provider in North America.
                                    Full firewall functionality (intrusion detection, port filters, security levels, DMZ) and
                                    VPN (IPSec, PPTP) pass-through capabilities makes the BB0060 ideal for con-
                                    necting a small enterprise network to the Internet.

       Network Support              Support for multiple NAT (Network Address Translation) modes, multiple WAN in-
                                    terfaces and virtual Ethernet interfaces, allows for increased flexibility in configur-
                                    ing the network architecture.

                                    An extensive set of ALGs (Application Layered Gateways) enables the pass-through
                                    of popular applications like FTP, NetMeeting, CuSeeMe, LDAP, etc.

                                    Support for DHCP Server, Client and Relay and DNS relay enables
                                    easy integration into the Service Provider network.

                                    The PPPoE built in client enables a user to connect to the Internet without the need
                                    of client software on the user’s computer.
            Simplicity
                                    Configuration through the web interface, telnet or the local serial port makes the
                                    BB0060 easy to install and manage.

                                    Advanced logs, statistics and diagnostic tools facilitate the maintenance
                                    and operation of the BB0060.

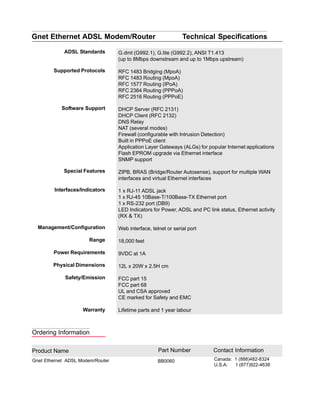

Gnet Ethernet ADSL Modem/Router                                Technical Specifications
            ADSL Standards        G.dmt (G992.1), G.lite (G992.2), ANSI T1.413
                                  (up to 8Mbps downstream and up to 1Mbps upstream)

        Supported Protocols       RFC 1483 Bridging (MpoA)
                                  RFC 1483 Routing (MpoA)
                                  RFC 1577 Routing (IPoA)
                                  RFC 2364 Routing (PPPoA)
                                  RFC 2516 Routing (PPPoE)

           Software Support       DHCP Server (RFC 2131)
                                  DHCP Client (RFC 2132)
                                  DNS Relay
                                  NAT (several modes)
                                  Firewall (configurable with Intrusion Detection)
                                  Built in PPPoE client
                                  Application Layer Gateways (ALGs) for popular Internet applications
                                  Flash EPROM upgrade via Ethernet interface
                                  SNMP support

            Special Features      ZIPB, BRAS (Bridge/Router Autosense), support for multiple WAN
                                  interfaces and virtual Ethernet interfaces

        Interfaces/Indicators     1 x RJ-11 ADSL jack
                                  1 x RJ-45 10Base-T/100Base-TX Ethernet port
                                  1 x RS-232 port (DB9)
                                  LED Indicators for Power, ADSL and PC link status, Ethernet activity
                                  (RX & TX)

  Management/Configuration        Web interface, telnet or serial port

                      Range       18,000 feet

        Power Requirements        9VDC at 1A

        Physical Dimensions       12L x 20W x 2.5H cm

             Safety/Emission      FCC part 15
                                  FCC part 68
                                  UL and CSA approved
                                  CE marked for Safety and EMC

                    Warranty      Lifetime parts and 1 year labour



Ordering Information

Product Name                                        Part Number            Contact Information
Gnet Ethernet ADSL Modem/Router                     BB0060                 Canada: 1 (888)482-8324
                                                                           U.S.A:  1 (877)922-4638
