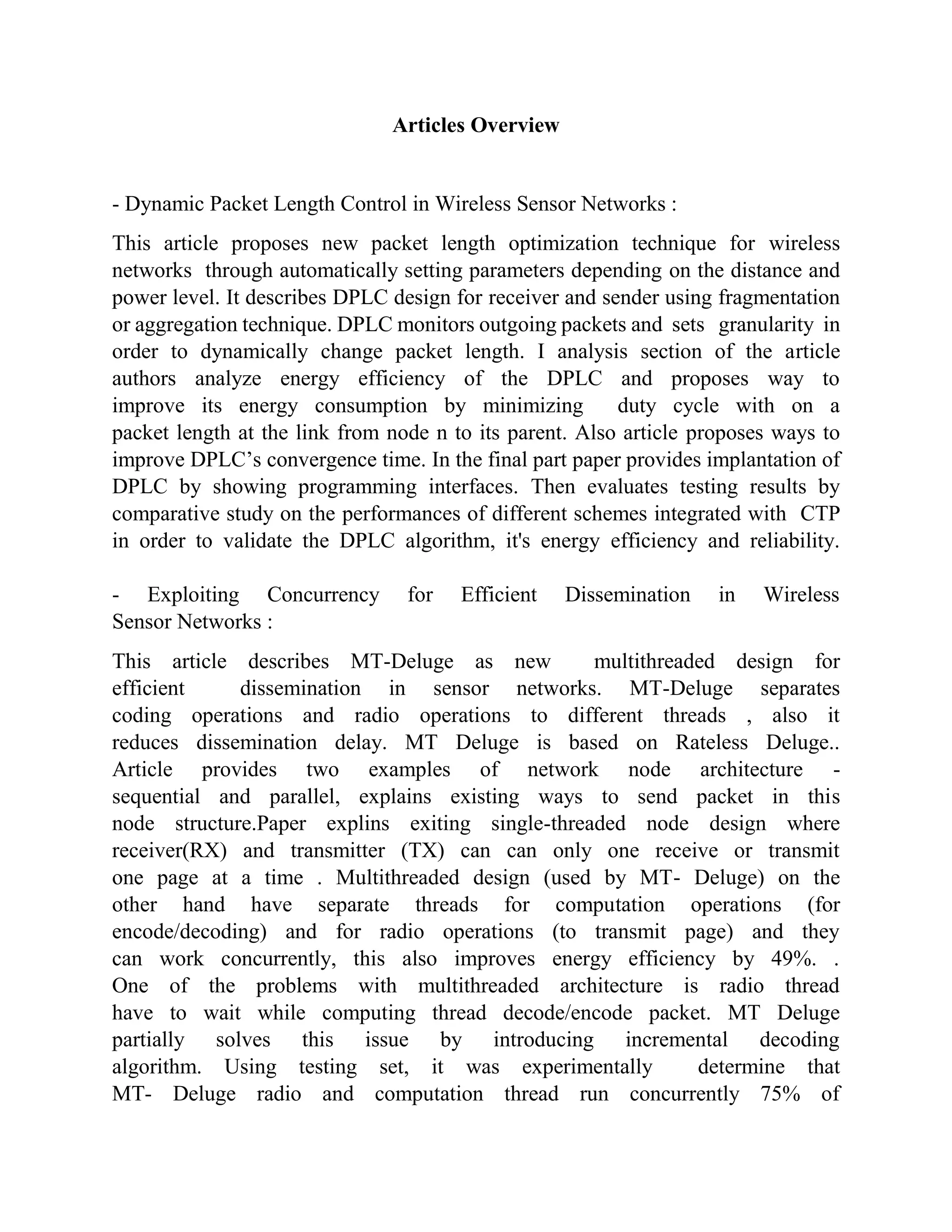

Articles Overview
- Dynamic Packet Length Control in Wireless Sensor Networks :
This article proposes new packet length optimization technique for wireless
networks through automatically setting parameters depending on the distance and
power level. It describes DPLC design for receiver and sender using fragmentation
or aggregation technique. DPLC monitors outgoing packets and sets granularity in
order to dynamically change packet length. I analysis section of the article
authors analyze energy efficiency of the DPLC and proposes way to
improve its energy consumption by minimizing duty cycle with on a
packet length at the link from node n to its parent. Also article proposes ways to
improve DPLC’s convergence time. In the final part paper provides implantation of
DPLC by showing programming interfaces. Then evaluates testing results by
comparative study on the performances of different schemes integrated with CTP
in order to validate the DPLC algorithm, it's energy efficiency and reliability.
- Exploiting Concurrency for Efficient Dissemination in Wireless
Sensor Networks :
This article describes MT-Deluge as new multithreaded design for
efficient dissemination in sensor networks. MT-Deluge separates
coding operations and radio operations to different threads , also it
reduces dissemination delay. MT Deluge is based on Rateless Deluge..
Article provides two examples of network node architecture -
sequential and parallel, explains existing ways to send packet in this
node structure.Paper explins exiting single-threaded node design where
receiver(RX) and transmitter (TX) can can only one receive or transmit
one page at a time . Multithreaded design (used by MT- Deluge) on the
other hand have separate threads for computation operations (for
encode/decoding) and for radio operations (to transmit page) and they
can work concurrently, this also improves energy efficiency by 49%. .
One of the problems with multithreaded architecture is radio thread
have to wait while computing thread decode/encode packet. MT Deluge
partially solves this issue by introducing incremental decoding
algorithm. Using testing set, it was experimentally determine that
MT- Deluge radio and computation thread run concurrently 75% of

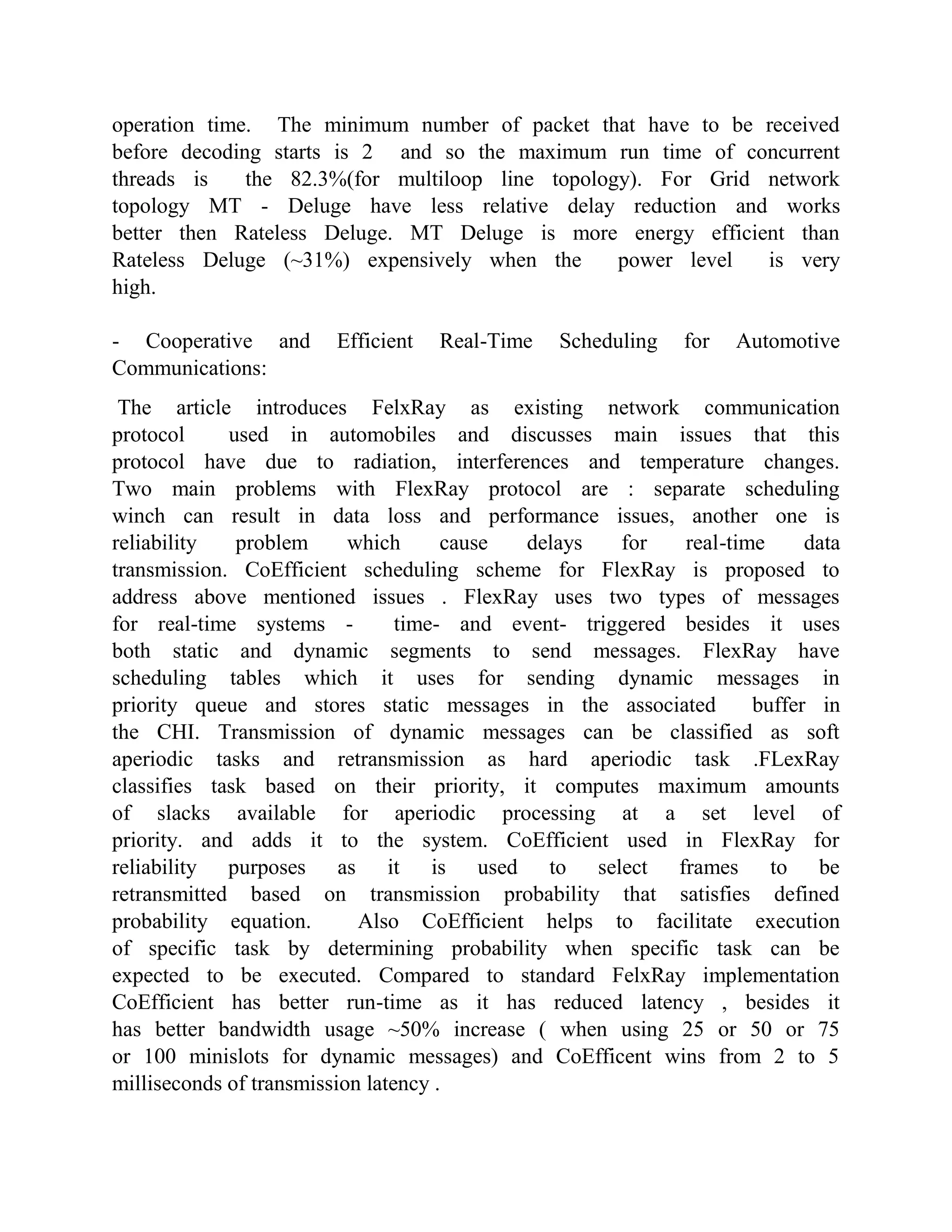

operation time. The minimum number of packet that have to be received
before decoding starts is 2 and so the maximum run time of concurrent
threads is the 82.3%(for multiloop line topology). For Grid network
topology MT - Deluge have less relative delay reduction and works
better then Rateless Deluge. MT Deluge is more energy efficient than
Rateless Deluge (~31%) expensively when the power level is very
high.
- Cooperative and Efficient Real-Time Scheduling for Automotive
Communications:
The article introduces FelxRay as existing network communication
protocol used in automobiles and discusses main issues that this
protocol have due to radiation, interferences and temperature changes.
Two main problems with FlexRay protocol are : separate scheduling
winch can result in data loss and performance issues, another one is
reliability problem which cause delays for real-time data
transmission. CoEfficient scheduling scheme for FlexRay is proposed to
address above mentioned issues . FlexRay uses two types of messages
for real-time systems - time- and event- triggered besides it uses
both static and dynamic segments to send messages. FlexRay have
scheduling tables which it uses for sending dynamic messages in
priority queue and stores static messages in the associated buffer in
the CHI. Transmission of dynamic messages can be classified as soft
aperiodic tasks and retransmission as hard aperiodic task .FLexRay
classifies task based on their priority, it computes maximum amounts
of slacks available for aperiodic processing at a set level of
priority. and adds it to the system. CoEfficient used in FlexRay for
reliability purposes as it is used to select frames to be
retransmitted based on transmission probability that satisfies defined
probability equation. Also CoEfficient helps to facilitate execution
of specific task by determining probability when specific task can be
expected to be executed. Compared to standard FelxRay implementation
CoEfficient has better run-time as it has reduced latency , besides it
has better bandwidth usage ~50% increase ( when using 25 or 50 or 75
or 100 minislots for dynamic messages) and CoEfficent wins from 2 to 5
milliseconds of transmission latency .
