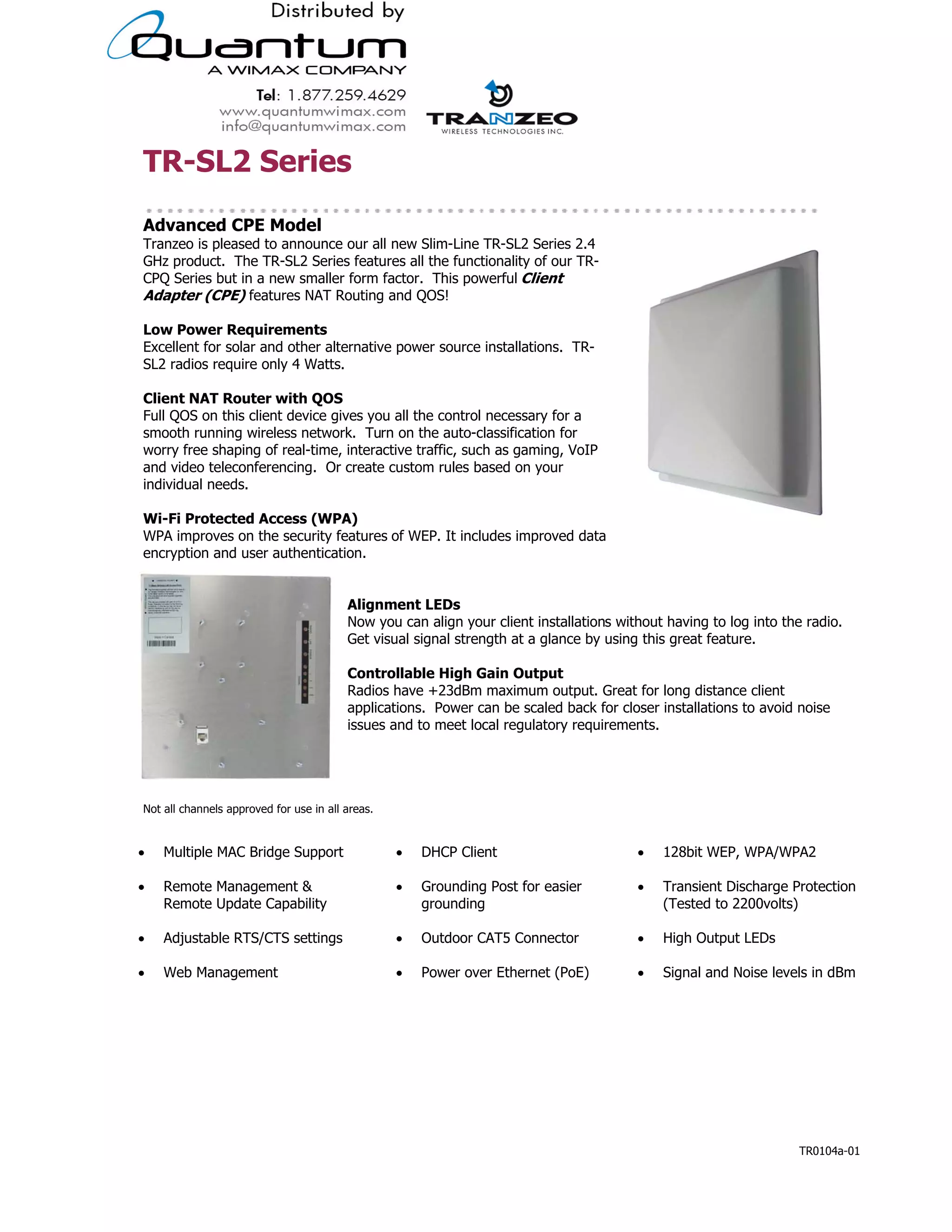

Tranzeo is pleased to announce our all new Slim-Line TR-SL2 Series 2.4
GHz product. The TR-SL2 Series features all the functionality of our TR-
CPQ Series but in a new smaller form factor. This powerful 27*(08'
,-/98()':234; features NAT Routing and QOS!
'
%6<'36<()'"(=>*)(?(08+'
Excellent for solar and other alternative power source installations. TR-
SL2 radios require only 4 Watts.
'
27*(08'@,!'"6>8()'<*8A'BC$'
Full QOS on this client device gives you all the control necessary for a
smooth running wireless network. Turn on the auto-classification for
worry free shaping of real-time, interactive traffic, such as gaming, VoIP
and video teleconferencing. Or create custom rules based on your
individual needs.
'
D*#E*'3)68(18(-',11(++':D3,;'
WPA improves on the security features of WEP. It includes improved data
encryption and user authentication.
'
'
,7*F0?(08'%4G+'
Now you can align your client installations without having to log into the radio.
Get visual signal strength at a glance by using this great feature.
'
2608)677/H7('I*FA'J/*0'C>89>8'
Radios have +23dBm maximum output. Great for long distance client
applications. Power can be scaled back for closer installations to avoid noise
issues and to meet local regulatory requirements.

Not all channels approved for use in all areas.

! Multiple MAC Bridge Support ! DHCP Client ! 128bit WEP, WPA/WPA2

! Remote Management & ! Grounding Post for easier ! Transient Discharge Protection
Remote Update Capability grounding (Tested to 2200volts)

! Adjustable RTS/CTS settings ! Outdoor CAT5 Connector ! High Output LEDs

! Web Management ! Power over Ethernet (PoE) ! Signal and Noise levels in dBm

19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4
T: 604.460.6002 • F: 604.460.6005 • Toll Free: 1.866.872.6936 • Website: www.tranzeo.com
© Tranzeo Wireless Technologies. All rights reserved. E & OE.
TR0104a-01

!"#$%&'$()*(+'$9(1*K*1/8*60+'
'
E(/8>)(+'
$8/0-/)-' 802.11b/g*

E)(=>(01L'"/0F( 2400 MHz to 2483.5 MHz

"/-*6'56-(' Customer Premise Equipment
H#?6-(' 5.5/11 Mbps CCK, 2 Mbps DQPSK, 1 Mbps DBPSK
G/8/'"/0F('M'56->7/8*60' 48/54 Mbps QAM-64, 24/36 Mbps QAM-16,
F#?6-('
12/18 Mbps QPSK, 6/9 Mbps BPSK
26??>0*1/8*60'5(8A6-' Half-Duplex
H#?6-(' -85dBm @ 11 Mbps, -90dBm @ 1 Mbps
"(1(*.()'$(0+*8*.*8L'
F#?6-(' -72dBm @ 54 Mbps, -89dBm @ 6 Mbps

367/)*N/8*60' Horizontal or Vertical

C>89>8'36<()'
!"#$%&#@'O'!"#$%&#PQ' +23dBm max
,08(00/+'
D*0-'%6/-':@;' R(/?<*-8A'
56-(7' !L9(' PSS'?9A' P&Q'?9A' I6)*N608/7' T()8*1/7'
!
!"#$%&#@ ' N-Connector 78 122 N/A N/A
!
!"#$%&#PQ ' 15dBi Panel (internal) 78 122 30° 30°

5/0/F(?(08'
"(?68('260K*F>)/8*60 Based on IP Address
G(.*1('5/0/F(?(08' Windows Utility, Web-Based Management, SNMP (MIB-II and 80211 mib compliant)

3)686167'$>996)8(-' TCP/IP
40/64 bits and 128 bits WEP encryption, Media Access Control address filter (MAC),
$(1>)*8L'
WPA and WPA2 (TKIP/AES) encryption
48A()0(8'2600(186)' 10/100 BaseT (Water Tight RJ-45)

C9()/8*0F'!(?9()/8>)(' -55°C to +55°C

D/))/08L' 5 year for parts /3 year for parts and labour**
G*?(0+*60+'
!"#$%&#@'O'!"#$%&#PQ' 10.38" X 8.63" X 3.00" (radio only)

36<()'$>997L'
AC Power Adapter (US, UK, EU Snap In Plugs)
U0*.()+/7' Input: 120-240 VAC~ 50-60 Hz, 0.6 A
Output: 18.0 VDC, 1.1 A

Specifications are subject to change without notice.
*g-mode available only in radio product built after January 10, 2007.
!
f (FCC) and W(World) Models - Subject to local regulations.
**3 and 5 Year warranties only apply to radio products built after December 1, 2006 and December 31 2007, respectively.

19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4
T: 604.460.6002 • F: 604.460.6005 • Toll Free: 1.866.872.6936 • Website: www.tranzeo.com
© Tranzeo Wireless Technologies. All rights reserved. E & OE.
TR0104a-01
